Pneumatic Straight Round 45 Degree Glass Edging Machine: A Comprehensive Technical Overview

Abstract

The Pneumatic Straight Round 45 Degree Glass Edging Machine stands as a pivotal piece of equipment in the modern glass processing industry, integrating pneumatic actuation, precision machining, and automated control technologies to deliver high-efficiency, high-precision edge treatment for flat glass. This article systematically elaborates on the machine’s structural design, working principle, core technical parameters, application scenarios, performance advantages, maintenance protocols, and future development trends. By analyzing its engineering innovations and industrial value, it aims to provide a theoretical and practical reference for glass processing enterprises, equipment manufacturers, and technical researchers, highlighting the machine’s role in advancing the automation, precision, and versatility of glass edge processing.

1. Introduction

With the rapid development of industries such as architectural decoration, automotive manufacturing, home appliances, and furniture production, the demand for flat glass products has grown exponentially, accompanied by increasingly stringent requirements for glass edge quality, processing efficiency, and product safety. Raw glass, after cutting, exhibits sharp, irregular edges with micro-cracks and burrs, which not only pose safety hazards during handling and installation but also reduce the mechanical strength and aesthetic appeal of the final product. Traditional manual edging and semi-automatic mechanical edging methods suffer from low efficiency, inconsistent precision, high labor intensity, and poor surface finish, failing to meet the mass production and high-quality standards of modern glass processing.

In response to these industry pain points, the Pneumatic Straight Round 45 Degree Glass Edging Machine has emerged as a specialized solution designed for continuous, one-pass processing of straight round edges and 45-degree chamfers on flat glass. Leveraging pneumatic systems for stable clamping, precise pressure control, and flexible spindle feeding, combined with multi-stage grinding and polishing mechanisms, the machine achieves integrated coarse grinding, fine grinding, chamfering, and polishing operations. It addresses the limitations of conventional edging equipment, offering superior stability, precision, and adaptability to diverse glass thicknesses and sizes. This article provides a comprehensive analysis of the machine’s technical characteristics, operational mechanisms, and industrial applications, exploring its contributions to the upgrading of glass processing technology and the optimization of production workflows.

2. Structural Design and Core Components

The Pneumatic Straight Round 45 Degree Glass Edging Machine features a robust, integrated structural design, consisting of a main frame, pneumatic clamping and feeding system, multi-spindle grinding and polishing unit, PLC control system, cooling and dust removal system, and glass conveying mechanism. Each component is engineered for synergistic operation, ensuring high precision, stability, and reliability during continuous processing.

2.1 Main Frame

The main frame serves as the structural foundation of the machine, typically fabricated from high-strength thick steel plates through precision welding and stress-relief annealing. This design eliminates deformation caused by long-term high-load operation, maintaining the geometric accuracy of the entire equipment. The frame is equipped with precision linear guide rails and ball screws for the grinding spindle movement, ensuring smooth, backlash-free motion of the grinding heads. The rigid frame structure also minimizes vibration during high-speed grinding, which is critical for preventing glass chipping and ensuring edge finish consistency. Some high-end models adopt a gantry-type structure to enhance stability when processing large-format glass sheets, with a load-bearing capacity of up to 700 kg, suitable for architectural and automotive glass applications.

2.2 Pneumatic Clamping and Feeding System

As the core feature distinguishing this machine from conventional mechanical edging equipment, the pneumatic system is responsible for glass clamping, spindle feeding, and pressure regulation. The system comprises an air compressor, air storage tank, precision pressure regulating valves, pneumatic cylinders, and pneumatic control valves.


Pneumatic Clamping Mechanism: Equipped with pneumatic clamping jaws lined with wear-resistant rubber or polyurethane, the system applies uniform, adjustable pressure (0.2–0.6 MPa) to secure glass sheets of varying thicknesses (3–25 mm) without surface damage. The pneumatic clamping ensures stable glass positioning during high-speed grinding, eliminating slippage and positional deviation. Compared with mechanical clamping, pneumatic clamping offers softer contact, reducing the risk of glass edge breakage and improving product yield.
Pneumatic Spindle Feeding: The grinding and polishing spindles are driven by pneumatic cylinders for radial feeding, with PLC-controlled precision pressure regulation. This allows real-time adjustment of the grinding wheel’s contact pressure with the glass edge, adapting to different glass hardnesses and processing requirements. The pneumatic feeding mechanism provides flexible, shock-free movement, avoiding excessive pressure that causes chipping and ensuring uniform material removal across the glass edge. High-end models feature independent pneumatic control for each spindle, enabling separate adjustment of grinding pressure for coarse grinding, fine grinding, and polishing stages.


2.3 Multi-Spindle Grinding and Polishing Unit

The grinding and polishing unit is the core execution component, typically configured with 9–11 spindles arranged in a linear sequence, each equipped with a dedicated grinding or polishing wheel for sequential processing. The spindle configuration is optimized for one-pass completion of coarse grinding, fine grinding, 45-degree chamfering, and polishing:


Coarse Grinding Spindles: The first two to three spindles are fitted with diamond cup wheels (grit size #100–#140) for rapid removal of sharp edges, burrs, and micro-cracks from the cut glass, forming the basic round edge profile. These spindles operate at high speeds (2800–3600 rpm) to ensure efficient material removal, with pneumatic pressure set to 0.4–0.6 MPa for stable cutting.
Fine Grinding Spindles: The middle three to four spindles use resin-bonded diamond wheels (grit size #230–#320) to refine the edge profile, eliminating coarse grinding marks and improving surface flatness. The pneumatic feeding pressure is reduced to 0.3–0.4 MPa to achieve precise material removal and edge uniformity.
45-Degree Chamfering Spindles: Dedicated spindles are angled at 45 degrees, equipped with specialized chamfering wheels to process the beveled edge synchronously with the round edge. The chamfer width is adjustable (0.5–3 mm) via the PLC control panel, meeting diverse design requirements for architectural glass, shower enclosures, and furniture glass.
Polishing Spindles: The final two to three spindles use cerium oxide polishing wheels or resin polishing wheels to achieve an optical-grade finish (surface roughness Ra ≤ 0.15 μm). The pneumatic pressure is further reduced to 0.2–0.3 MPa to ensure a smooth, scratch-free surface, eliminating the need for secondary polishing.


2.4 PLC Control System

The machine is equipped with a high-performance PLC (Programmable Logic Controller) paired with a touch-screen human-machine interface (HMI), enabling intelligent control of the entire processing workflow. The control system supports parameter setting (glass thickness, chamfer width, processing speed, grinding pressure), real-time monitoring (spindle speed, air pressure, processing status), fault diagnosis, and automatic alarm functions. Operators can store and recall processing parameters for different glass specifications, reducing setup time and improving production efficiency. The system also supports linkage with automatic glass loading and unloading equipment, facilitating integration into fully automated production lines. Advanced models feature Ethernet communication for remote monitoring, parameter optimization, and predictive maintenance, aligning with smart manufacturing trends.

2.5 Cooling and Dust Removal System

During grinding and polishing, the friction between the grinding wheel and glass generates high temperatures, which can cause thermal stress, edge cracking, or grinding wheel wear. The cooling system adopts a water circulation design, with precision nozzles spraying cooling liquid (pure water or specialized glass grinding coolant) directly onto the grinding contact area. This reduces temperature, lubricates the contact surface, and flushes away glass powder and debris. The dust removal system, integrated with the cooling circulation, filters and recycles the coolant, reducing water consumption and environmental pollution. High-efficiency filtration systems (filter precision ≤ 5 μm) prevent glass powder from clogging nozzles and damaging precision components, extending the service life of grinding wheels and spindles.

2.6 Glass Conveying Mechanism

The conveying mechanism consists of variable-speed conveyor belts, drive motors, and positioning sensors, ensuring stable, continuous glass feeding during processing. The conveyor speed is adjustable (0.8–6 m/min) via a frequency converter, matching the processing efficiency to different glass thicknesses and edge requirements. The conveyor surface is lined with anti-slip, wear-resistant materials to prevent glass scratching and slippage. Positioning sensors at the inlet and outlet detect glass position, automatically triggering clamping, grinding, and release operations, realizing unmanned continuous processing. The mechanism supports processing of glass sheets with minimum dimensions of 25 mm × 25 mm and maximum dimensions customized according to user needs, making it suitable for both small-scale precision parts and large-format architectural glass.

3. Working Principle

The operational logic of the Pneumatic Straight Round 45 Degree Glass Edging Machine is a highly coordinated sequence of pneumatic actuation, mechanical grinding, and electronic control, divided into five core stages: glass feeding and positioning, pneumatic clamping, multi-stage grinding and polishing, pneumatic release, and glass discharging.

3.1 Glass Feeding and Positioning

The operator places the cut flat glass sheet onto the inlet conveyor belt, which transports the glass to the positioning area. Photoelectric sensors detect the glass edge and send a signal to the PLC, which stops the conveyor and activates the pneumatic positioning cylinders to align the glass precisely with the grinding spindle axis. The positioning accuracy reaches ±0.01 mm, ensuring uniform edge processing across the entire glass sheet.

3.2 Pneumatic Clamping

Upon completion of positioning, the PLC triggers the pneumatic clamping system. The pneumatic cylinders extend to drive the clamping jaws, applying uniform pressure to secure the glass. The pressure is regulated by precision valves to match the glass thickness—thinner glass (3–5 mm) uses lower pressure (0.2–0.3 MPa) to avoid breakage, while thicker glass (12–25 mm) uses higher pressure (0.4–0.6 MPa) for stable fixation. The clamping action is completed within 0.5 seconds, ensuring rapid workflow progression.

3.3 Multi-Stage Grinding and Polishing

After clamping, the PLC activates the grinding spindles and conveying mechanism, with the glass moving linearly through the grinding unit at a set speed. The pneumatic feeding system drives each spindle to extend sequentially, with the grinding wheels making contact with the glass edge at pre-set pressures and angles:


Coarse Grinding Stage: The diamond cup wheels remove the sharp, irregular cut edge, forming a preliminary round profile and eliminating micro-cracks. The high-speed rotation of the spindles (3000–3600 rpm) ensures efficient material removal, while the cooling system sprays coolant to prevent overheating.
Fine Grinding Stage: The resin-bonded diamond wheels refine the edge profile, smoothing coarse grinding marks and improving dimensional accuracy. The spindle speed is adjusted to 2500–3000 rpm, and the pneumatic pressure is reduced to ensure precise material removal.
45-Degree Chamfering Stage: The angled chamfering wheels process the beveled edge synchronously with the round edge, with the chamfer width and angle controlled by the PLC via pneumatic cylinder stroke adjustment.
Polishing Stage: The polishing wheels perform final finishing, achieving a mirror-like surface finish. The spindle speed is reduced to 2000–2500 rpm, and the pneumatic pressure is minimized to avoid surface damage.


Throughout the process, the PLC monitors real-time parameters such as air pressure, spindle speed, and conveyor speed, automatically adjusting for deviations to ensure consistent processing quality. The cooling system operates continuously, flushing away debris and maintaining stable processing temperatures.

3.4 Pneumatic Release and Glass Discharging

Once the glass completes the entire grinding and polishing process and reaches the outlet area, the photoelectric sensor sends a completion signal to the PLC. The pneumatic clamping system retracts the cylinders, releasing the glass. The conveyor belt then transports the finished glass to the discharge area, ready for the next processing cycle or subsequent procedures (e.g., cleaning, tempering, laminating). The entire cycle is continuous, with a processing efficiency of 80–120 pieces per hour (for standard 12 mm thick glass), significantly higher than manual or semi-automatic methods.

4. Core Technical Parameters

The technical parameters of the Pneumatic Straight Round 45 Degree Glass Edging Machine define its processing capacity, precision, and adaptability, with key indicators as follows (typical for mainstream 9–11 spindle models):






Parameter Category
Specific Indicators
Value Range




Processing Scope
Applicable Glass Thickness
3–25 mm



Minimum Glass Size
25 mm × 25 mm



Maximum Glass Size
Customizable (up to 3000 mm × 2000 mm)



45-Degree Chamfer Width
0.5–3 mm


Processing Precision
Edge Dimensional Accuracy
±0.01 mm



Surface Roughness (Ra)
≤0.15 μm



Chamfer Angle Accuracy
±0.5°


Operational Parameters
Spindle Speed
2000–3600 rpm



Conveyor Speed
0.8–6 m/min



Pneumatic System Pressure
0.2–0.6 MPa



Compressed Air Consumption
<1 L/min


Power Parameters
Total Motor Power
19.5–25 kW



Power Supply
380 V/50 Hz, Three-Phase


Physical Dimensions
Length × Width × Height
7.0–7.5 m × 1.2 m × 2.6 m



Machine Weight
3000–4500 kg






These parameters reflect the machine’s balance of high precision and high efficiency, with the pneumatic system enabling flexible pressure adjustment to accommodate diverse glass types (float glass, tempered glass, laminated glass, Low-E glass) and processing requirements.

5. Industrial Applications

The Pneumatic Straight Round 45 Degree Glass Edging Machine’s versatility, precision, and efficiency make it widely applicable across multiple industries requiring high-quality flat glass edge processing, with key application scenarios as follows:

5.1 Architectural Decoration Industry

In architectural glass processing, the machine is used for edging and chamfering of curtain wall glass, partition glass, doors and windows glass, and shower room glass. The 45-degree chamfered edge enhances the aesthetic appeal of architectural glass, while the rounded edge improves safety and mechanical strength, complying with building safety standards. The machine’s ability to process large-format glass (up to 3000 mm × 2000 mm) meets the requirements of high-rise buildings and commercial complexes, with processing precision ensuring seamless installation of curtain wall glass. It is also used for processing glass railings, skylights, and decorative glass panels, providing smooth, safe edges for architectural interiors and exteriors.

5.2 Automotive Glass Manufacturing

Automotive glass (windshields, side windows, rear windows, sunroofs) requires high-precision edge processing to ensure sealing, safety, and compatibility with vehicle frames. The machine’s pneumatic clamping and precision grinding avoid glass deformation and chipping, critical for automotive safety glass. The 45-degree chamfering facilitates the installation of rubber seals and adhesives, improving the sealing performance and wind resistance of automotive glass. It is also used for processing sunroof glass and rearview mirror glass, meeting the strict dimensional and surface quality requirements of the automotive industry.

5.3 Home Appliances and Furniture Industry

In home appliance manufacturing, the machine processes glass panels for refrigerators, ovens, washing machines, and display screens, with rounded and chamfered edges enhancing product safety and aesthetics. For furniture, it is used for glass tabletops, cabinet doors, display cabinets, and decorative glass parts, providing smooth edges that prevent user injury and improve product durability. The machine’s ability to process small-sized glass (minimum 25 mm × 25 mm) makes it suitable for precision furniture components and small home appliance parts.

5.4 Electronic and Optical Glass Industry

For electronic glass (smartphone screens, tablet displays, TV panels) and optical glass (lens substrates, instrument glass), the machine’s high-precision polishing achieves an optical-grade surface finish (Ra ≤ 0.1 μm), meeting the requirements of light transmittance and surface smoothness. The pneumatic system’s low-pressure clamping avoids damage to thin electronic glass (3–5 mm), while the continuous processing ensures consistency for mass production of electronic components.

5.5 Solar Photovoltaic Industry

With the rapid development of the photovoltaic industry, the demand for high-quality photovoltaic glass has surged. The machine processes the edges of photovoltaic glass panels, eliminating micro-cracks and improving the mechanical strength and weather resistance of the glass. The 45-degree chamfering facilitates the lamination of photovoltaic modules, enhancing the sealing performance and service life of solar panels. Its high processing efficiency supports the mass production needs of photovoltaic glass manufacturing.

6. Performance Advantages

Compared with traditional mechanical edging machines, manual edging tools, and semi-automatic edging equipment, the Pneumatic Straight Round 45 Degree Glass Edging Machine offers distinct performance advantages, driving the upgrading of glass processing technology:

6.1 High Processing Precision and Consistency

The integration of pneumatic precision control, PLC automation, and linear guide rail transmission ensures edge dimensional accuracy of ±0.01 mm and chamfer angle accuracy of ±0.5°, far exceeding manual and semi-automatic methods. The uniform pneumatic clamping pressure and spindle feeding pressure eliminate positional deviation and uneven material removal, ensuring consistent edge quality across mass-produced glass sheets. The surface roughness after polishing reaches Ra ≤ 0.15 μm, meeting optical-grade requirements and reducing the need for secondary processing.

6.2 High Efficiency and Continuous Operation

The one-pass processing of coarse grinding, fine grinding, chamfering, and polishing eliminates the need for multiple clamping and repositioning, improving production efficiency by 30–50% compared with traditional methods. The automatic conveying and clamping system enables unmanned continuous operation, with a processing capacity of 80–120 pieces per hour (standard glass). The PLC’s parameter memory function reduces setup time for different glass specifications, further enhancing production flexibility and efficiency.

6.3 Wide Adaptability to Glass Specifications

The pneumatic system’s adjustable clamping pressure and spindle stroke, combined with variable conveyor speed, enable processing of glass thicknesses from 3 mm to 25 mm and sizes from 25 mm × 25 mm to large-format panels. The machine accommodates various glass types, including float glass, tempered glass, laminated glass, Low-E glass, and photovoltaic glass, making it suitable for diversified production needs of glass processing enterprises.

6.4 Enhanced Safety and Product Yield

The pneumatic clamping mechanism provides soft, uniform contact with the glass, reducing the risk of edge breakage and surface scratching compared with mechanical clamping. The cooling system’s real-time temperature control prevents thermal stress and glass cracking, while the multi-stage grinding process eliminates micro-cracks, improving the mechanical strength and safety of the finished glass. The product yield rate exceeds 99%, significantly reducing material waste and production costs.

6.5 Intelligent Control and Ease of Operation

The PLC touch-screen control system simplifies operation, with intuitive parameter setting and real-time monitoring. Operators can master equipment operation after basic training, reducing reliance on skilled workers. The fault diagnosis and automatic alarm functions enable timely detection and resolution of issues (e.g., air pressure anomalies, spindle overload, coolant blockage), reducing downtime. Advanced models support remote monitoring and maintenance, improving equipment management efficiency.

6.6 Low Maintenance and Long Service Life

The pneumatic system has a simple structure with few moving parts, reducing wear and maintenance requirements compared with complex mechanical transmission systems. The cooling and dust removal system minimizes grinding wheel wear and component contamination, extending the service life of grinding wheels (up to 12,000 hours for high-quality diamond wheels) and spindles. The main frame’s rigid, anti-deformation design ensures long-term dimensional stability, with a service life of over 10 years under proper maintenance.

7. Maintenance and Troubleshooting

To ensure the long-term stable operation and processing precision of the Pneumatic Straight Round 45 Degree Glass Edging Machine, standardized maintenance and timely troubleshooting are essential. The maintenance system is divided into daily, weekly, and monthly routines, with key measures as follows:

7.1 Daily Maintenance


Cleaning: After each shift, clean the machine surface, grinding spindles, conveyor belts, and cooling nozzles with compressed air and a lint-free cloth to remove glass powder and debris. Drain and replace the coolant in the circulation tank to prevent sludge buildup and nozzle clogging.
Inspection: Check the pneumatic system pressure, ensuring it remains within the 0.2–0.6 MPa range; inspect for air leaks at cylinder joints and valves. Verify the operation of photoelectric sensors and emergency stop buttons, ensuring their sensitivity. Check the grinding wheel wear, replacing wheels that are worn beyond the minimum diameter or show signs of chipping.
Lubrication: Apply a small amount of lubricating oil to linear guide rails and ball screws to ensure smooth movement, avoiding over-lubrication that attracts glass powder.


7.2 Weekly Maintenance


Pneumatic System Maintenance: Drain moisture from the air storage tank and replace the pneumatic filter element to ensure dry, clean compressed air. Inspect pneumatic cylinder seals, replacing damaged seals to prevent air leakage and pressure loss.
Spindle and Transmission Inspection: Check spindle runout (≤0.02 mm) and tighten spindle fixing screws. Inspect conveyor belt tension and alignment, adjusting as needed to prevent glass slippage. Test the PLC control system, calibrating parameter settings and ensuring normal communication between the HMI and PLC.
Cooling System Maintenance: Flush the coolant circulation pipeline and filter, removing accumulated glass powder and debris to ensure smooth coolant flow. Check the water pump pressure, replacing worn pump parts if necessary.


7.3 Monthly Maintenance


Comprehensive Component Inspection: Inspect the main frame for deformation or cracks, checking the tightness of all connecting bolts. Calibrate the grinding spindle angle and positioning accuracy, ensuring compliance with technical parameters. Test the emergency stop and safety interlock systems, ensuring they function reliably.
Electrical System Maintenance: Inspect electrical wiring, connectors, and motor insulation, replacing aging wires and damaged connectors. Check the PLC and HMI for software updates, installing patches to improve system stability.
Lubrication System Overhaul: Replace lubricating oil in gearboxes and bearing components, using high-grade industrial lubricants suitable for high-speed operation. Clean and lubricate pneumatic control valves to ensure flexible movement.


7.4 Common Troubleshooting


Uneven Edge Processing: Causes include uneven pneumatic clamping pressure, worn grinding wheels, or misaligned spindles. Solutions: Adjust pneumatic pressure regulators, replace worn grinding wheels, and calibrate spindle position via the PLC.
Glass Chipping During Processing: Causes include excessive grinding pressure, insufficient cooling, or glass positioning deviation. Solutions: Reduce pneumatic feeding pressure, check coolant nozzle blockage, and re-calibrate photoelectric positioning sensors.
Low Surface Finish After Polishing: Causes include worn polishing wheels, incorrect spindle speed, or contaminated coolant. Solutions: Replace polishing wheels, adjust spindle speed via the frequency converter, and replace the coolant.
Pneumatic System Pressure Loss: Causes include air leaks, damaged filter elements, or faulty pressure regulating valves. Solutions: Inspect and repair air leaks, replace filter elements, and calibrate or replace pressure regulating valves.
Conveyor Belt Slippage: Causes include worn conveyor belt lining, insufficient tension, or excessive glass weight. Solutions: Replace the conveyor belt lining, adjust belt tension, and ensure glass weight does not exceed the machine’s load capacity.


8. Future Development Trends

Driven by technological innovation and evolving industry demands, the Pneumatic Straight Round 45 Degree Glass Edging Machine is evolving toward higher intelligence, precision, energy efficiency, and versatility, with key development trends as follows:

8.1 Intelligent and Digital Upgrading

Future models will integrate artificial intelligence (AI), machine vision, and Internet of Things (IoT) technologies to achieve fully autonomous processing. Machine vision systems will automatically detect glass size, thickness, and edge defects, with AI algorithms optimizing processing parameters (grinding pressure, speed, chamfer size) in real time. IoT-enabled remote monitoring and predictive maintenance will enable real-time collection of equipment operating data, predicting component wear and faults to reduce downtime. Digital twin technology will simulate the processing workflow, optimizing production scheduling and improving overall equipment effectiveness (OEE).

8.2 Higher Precision and Ultra-Thin Glass Processing

With the development of electronic and optical industries, the demand for ultra-thin glass (≤2 mm) and higher precision processing will grow. Future machines will adopt micro-pneumatic control systems (pressure regulation accuracy ≤ 0.01 MPa) and high-precision spindles (runout ≤ 0.005 mm), achieving surface roughness Ra ≤ 0.05 μm. The grinding wheel material and manufacturing process will be upgraded, with nano-scale abrasive particles enabling ultra-precision polishing for optical and electronic glass applications.

8.3 Energy Conservation and Environmental Protection

In response to global energy conservation and emission reduction policies, future machines will adopt energy-efficient motors (permanent magnet synchronous motors) and variable-frequency control systems, reducing power consumption by 30–40% compared with current models. The cooling system will be optimized for closed-loop circulation with high-efficiency filtration, reducing water consumption by over 50%. Dust removal systems will integrate waste glass powder recycling technology, converting processing waste into reusable materials, realizing green and sustainable production.

8.4 Multi-Functional Integration and Flexible Manufacturing

To meet the demand for diversified glass processing, future machines will integrate multiple edging functions (round edge, 45-degree chamfer, bevel edge, duckbill edge) in a single unit, with quick-change grinding wheel modules reducing setup time to less than 15 minutes. The machine will support processing of irregular-shaped glass (in addition to flat glass) through flexible pneumatic clamping and multi-axis linkage spindles, adapting to customized production needs. Modular design will enable flexible configuration of spindles and functions, allowing enterprises to customize equipment according to their production scale and processing requirements.

8.5 Global Market Expansion and Localized Innovation

With the growth of the global glass processing market, especially in emerging economies (Southeast Asia, Latin America, Africa), the demand for cost-effective, high-performance edging equipment will increase. Domestic equipment manufacturers will accelerate technological innovation and product upgrading, improving product quality and brand influence to expand international market share. Localized R&D and production will be strengthened, adapting to regional processing standards and user needs, while establishing global after-sales service networks to enhance customer support.

9. Conclusion

The Pneumatic Straight Round 45 Degree Glass Edging Machine represents a significant advancement in glass processing technology, integrating pneumatic actuation, precision machining, and intelligent control to address the limitations of traditional edging methods. Its high precision, efficiency, adaptability, and safety make it an indispensable piece of equipment in architectural, automotive, home appliance, electronic, and photovoltaic glass processing, driving the upgrading of the glass processing industry toward automation, intelligence, and high quality.

With ongoing technological innovation and evolving market demands, the machine will continue to evolve in intelligence, precision, energy efficiency, and versatility, meeting the increasingly diverse and stringent requirements of glass products. For glass processing enterprises, adopting this advanced edging equipment is crucial for improving production efficiency, reducing costs, enhancing product quality, and gaining a competitive edge in the market. For equipment manufacturers, continuous R&D investment in core technologies (pneumatic control, precision spindles, intelligent systems) and localized innovation will be key to capturing market opportunities and promoting the sustainable development of the glass processing equipment industry.

Future research should focus on the integration of AI and machine vision in processing control, the development of ultra-precision grinding and polishing technologies, and the optimization of energy-saving and environmental protection systems, further unlocking the potential of the Pneumatic Straight Round 45 Degree Glass Edging Machine and promoting the high-quality development of the global glass processing industry.





The article is structured in a formal academic style, covering all key aspects of the machine. You can let me know if you need to adjust the length, emphasize specific sections (e.g., more technical details or application cases), or modify the tone.

Glass Coating: Advanced Materials, Technological Innovations and Industrial Applications

In the contemporary field of material engineering and surface treatment, glass coating represents a high‑tech solution that endows ordinary glass substrates with additional functionalities and performance improvements. As an indispensable surface modification technology, glass coating has been widely used in construction, transportation, photovoltaics, home appliances, medical care, electronic displays and other fields. It not only enhances the physical and chemical stability of glass, but also creates intelligent, energy‑saving and environment‑friendly material properties for modern industrial products. This article systematically expounds the definition, classification, core properties, preparation processes, application scenarios and development trends of glass coating, demonstrating its important value in the global manufacturing and material industries.

1. Concept and Basic Principles of Glass Coating

Glass coating refers to a thin functional layer formed on the surface of glass through physical deposition, chemical reaction, spraying, curing and other processes. This layer is closely combined with the glass substrate at the molecular or atomic level, which can change the surface characteristics of glass without affecting its basic light transmittance and shape. The core principle of glass coating is to use the structural characteristics and chemical properties of coating materials to isolate the glass from external erosion, adjust light transmittance, reflect heat, resist friction and prevent pollution, so as to achieve the purpose of protection, beauty and functional expansion.

Ordinary glass has disadvantages such as fragility, easy scratching, easy adhesion of dirt, poor thermal insulation and easy weathering. After professional coating treatment, it can obtain superhydrophobicity, high hardness, corrosion resistance, UV resistance, infrared reflection, self‑cleaning and other characteristics, which greatly expands the application boundary of glass products.

2. Main Classification of Glass Coating

According to functional characteristics, application scenarios and material composition, glass coatings can be divided into the following categories, each with unique technical advantages and applicable fields.

2.1 Protective Glass Coating

Protective coating is the most widely used type of glass coating, mainly used to improve the surface strength and durability of glass. It includes anti‑scratch coating, anti‑collision coating, waterproof coating, acid and alkali resistant coating, etc. This kind of coating usually uses nano‑silica, nano‑titanium dioxide, polymer resin and other materials, which can form a high‑hardness transparent protective layer on the glass surface, effectively resist daily scratches, chemical corrosion and weathering damage, and extend the service life of glass.

2.2 Energy‑Saving and Thermal Insulation Coating

Energy‑saving coating is a key technology in the field of architectural glass and automotive glass. It uses metal oxide materials such as indium tin oxide (ITO) and low‑emissivity (Low‑E) materials to selectively reflect infrared and ultraviolet rays while ensuring high light transmittance. This kind of coating can block outdoor heat in summer and reduce indoor heat loss in winter, so as to achieve the effect of building energy conservation and interior comfort.

2.3 Self‑Cleaning and Antifouling Coating

Self‑cleaning glass coating is divided into photocatalytic type and hydrophobic type. The photocatalytic self‑cleaning coating uses nano‑titanium dioxide materials. Under the action of light, it can decompose organic dirt attached to the glass surface and make it easy to be washed away by rain. The hydrophobic self‑cleaning coating forms a lotus‑leaf‑like bionic surface, making water droplets form spherical shapes and slide off quickly, taking away dust and stains without leaving water marks. It is widely used in curtain wall glass, automotive glass and solar photovoltaic glass.

2.4 Anti‑Glare and Anti‑Reflection Coating

Anti‑reflection (AR) coating and anti‑glare (AG) coating are mainly used in electronic display screens, instrument panels, automotive central control screens and optical equipment. They can reduce light reflection, improve light transmittance, make the screen display clearer, reduce visual fatigue and avoid light pollution caused by reflection.

2.5 Functional Composite Coating

With the development of material technology, composite glass coating with multiple functions has gradually become the mainstream. For example, a coating can simultaneously have thermal insulation, self‑cleaning, anti‑UV and anti‑scratch functions, meeting the high‑standard needs of high‑end industries.

3. Core Performance Characteristics of High‑Quality Glass Coating

High‑performance glass coating has excellent physical and chemical indicators, which are the key to distinguishing ordinary treatment and professional coating.

3.1 High Hardness and Wear Resistance

Professional glass coating can reach a hardness of 9H or above, which can resist daily friction, scraping and hard object impact, and is not easy to produce scratches and wear marks.

3.2 Excellent Light Transmittance

High‑quality coating maintains high transparency, does not affect the original light transmittance of the glass, and does not produce yellowing, fogging and discoloration.

3.3 Strong Weather Resistance

It can adapt to extreme environments such as high temperature, low temperature, humidity and ultraviolet radiation, and the coating does not fall off, crack or degrade for a long time.

3.4 Good Adhesion

The coating is closely combined with the glass substrate, not easy to peel off, not easy to fall off, and has long‑term stability.

3.5 Environmental Protection and Non‑Toxic

Modern glass coating materials meet environmental protection standards, do not contain harmful substances, and are safe for humans and the environment.

4. Common Preparation Processes of Glass Coating

The production process of glass coating directly determines the uniformity, firmness and service life of the coating. The mainstream processes in the industry include the following types:

4.1 Magnetron Sputtering Coating

A physical vapor deposition (PVD) technology, which forms a uniform and dense film on the glass surface under vacuum conditions. It is mostly used in the production of Low‑E glass, AR glass and automotive functional glass, with high precision and good film quality.

4.2 Chemical Vapor Deposition (CVD)

Using chemical reaction to generate film‑forming substances and deposit them on the glass surface, it is suitable for large‑scale continuous production of architectural glass.

4.3 Spray Coating and Curing

Using nano‑ceramic coating or polymer coating materials, it is formed on the glass surface by spraying, wiping and high‑temperature curing. It is suitable for post‑processing of finished glass products, such as automotive glass coating, architectural glass renovation, etc.

4.4 Dip Coating and Roller Coating

Suitable for industrial mass production, with high efficiency and low cost, used for surface protective treatment of ordinary glass.

5. Main Application Fields of Glass Coating

Glass coating technology has penetrated into all aspects of modern industry and life, becoming an indispensable supporting technology.

5.1 Architectural Glass

Curtain wall glass, doors and windows glass use Low‑E coating, self‑cleaning coating and thermal insulation coating to achieve building energy conservation, environmental protection and beauty.

5.2 Automotive Glass

Automotive front windshield, side window glass use hydrophobic coating, thermal insulation coating, anti‑UV coating to improve driving safety and comfort.

5.3 Photovoltaic Solar Glass

Solar panels use anti‑reflection coating and self‑cleaning coating to improve light transmittance, reduce dust retention and increase power generation efficiency.

5.4 Electronic and Home Appliance Glass

Mobile phone screens, TV displays, refrigerator panels, air conditioner glass panels use anti‑scratch, anti‑fingerprint and anti‑reflection coating.

5.5 Medical and Laboratory Glass

Medical equipment glass and laboratory glass use antibacterial coating and corrosion‑resistant coating to meet the requirements of hygiene and safety.

5.6 Traffic and Public Facilities

Street lamp covers, subway station glass, airport glass use self‑cleaning and anti‑vandalism coating to reduce maintenance costs.

6. Development Trend of Glass Coating Technology

With the advancement of science and technology and the improvement of global environmental protection requirements, glass coating is developing towards intelligence, multi‑functionality, green and high efficiency.

6.1 Intelligent and Responsive Coating

Electrochromic, thermochromic and photochromic intelligent glass coatings will realize automatic adjustment of light and heat according to environmental changes.

6.2 Green and Environmentally Friendly Materials

Water‑based, solvent‑free and pollution‑free coating materials will replace traditional chemical coatings, complying with global low‑carbon and environmental protection trends.

6.3 High‑Efficiency and Large‑Scale Production

New coating equipment and processes will achieve higher efficiency, lower cost and larger‑scale production.

6.4 Multi‑Functional Composite Integration

A single coating will integrate multiple functions such as thermal insulation, self‑cleaning, antibiosis, wear resistance and energy saving.

7. Conclusion

As an advanced surface treatment technology, glass coating plays an important role in improving material performance, expanding product functions and promoting industrial upgrading. From architectural energy conservation to automotive safety, from electronic displays to photovoltaic power generation, glass coating provides reliable technical support for the development of modern industries. With the continuous innovation of material science and manufacturing technology, glass coating will show greater application potential and market value in the future, and become one of the core driving forces for the development of the functional material industry.

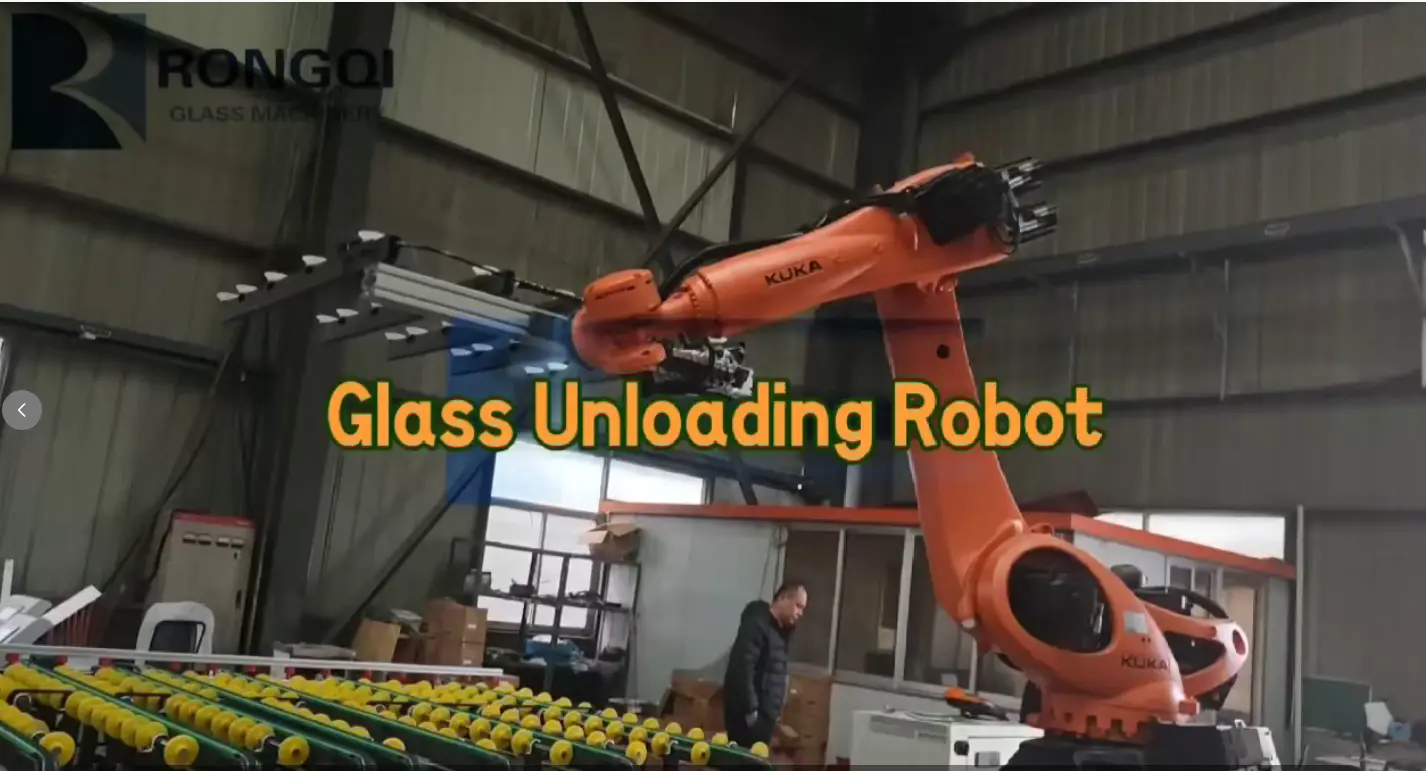

Automatic Glass Unloading Robot & Glass Carrier: Technical Principles, Industrial Applications and Intelligent Development Trends

Abstract

In the modern glass deep processing industry, the automation, intelligence and safety of material handling have become core indicators to measure production efficiency and enterprise competitiveness. The Automatic Glass Unloading Robot and Glass Carrier, as key intelligent equipment connecting glass cutting, edging, tempering, coating, insulating glass production and other processes, undertake the important tasks of automatic sheet taking, transferring, positioning, stacking and conveying of glass sheets. This paper systematically discusses the structural composition, working principles, technical characteristics, application scenarios, operation and maintenance, as well as future development trends of Automatic Glass Unloading Robots and Glass Carriers. By analyzing their value in improving production efficiency, reducing labor intensity, ensuring operational safety and enhancing product quality, this article aims to provide a comprehensive reference for the intelligent upgrading of glass production lines.

1. Introduction

With the rapid development of global construction, automotive, home appliance and photovoltaic industries, the demand for high-quality flat glass, tempered glass, coated glass, Low-E glass and insulating glass continues to grow. Traditional glass handling relies heavily on manual labor, which has problems such as high labor costs, high risk of breakage, low handling efficiency, unstable production rhythm and potential safety hazards. In order to adapt to large-scale, continuous and automated production modes, glass manufacturing enterprises have accelerated the introduction of intelligent handling equipment.

The Automatic Glass Unloading Robot and Glass Carrier are representative products of intelligent logistics in the glass industry. The glass unloading robot, usually a joint robot or a gantry robot equipped with professional suction cups and control systems, can automatically unload, pick up and transfer glass sheets from processing equipment. The Glass Carrier, also known as a glass transfer cart, glass conveyor or glass shuttle car, is responsible for the long-distance, fixed-path or flexible transportation of glass semi-finished and finished products between different stations. The combination of the two forms a complete automatic handling system, which realizes unmanned, high-speed and high-stability circulation in the glass production process, and has become an indispensable part of modern intelligent glass factories.

2. Overview of Automatic Glass Unloading Robot

2.1 Definition and Classification

The Automatic Glass Unloading Robot is an intelligent electromechanical equipment specially designed for the automatic unloading and transferring of flat glass. It integrates mechanical arms, pneumatic suction systems, servo control, visual positioning and safety protection modules, and can complete precise picking, flipping, rotating and placing operations for glass of different sizes, thicknesses and types.

According to the structural form, it can be divided into:


Gantry Type Glass Unloading Robot: Featuring a large-span beam structure and high load capacity, suitable for large-format glass and high-speed continuous unloading.
Joint Arm Type Glass Unloading Robot: Adopting a multi-degree-of-freedom joint structure, with flexible movement and strong adaptability to complex working conditions.
Cantilever Type Glass Unloading Robot: Compact in structure, small in footprint, suitable for small and medium-sized glass processing lines.


According to the degree of automation, it can be divided into semi-automatic unloading robots and fully automatic unloading robots linked with the production line.

2.2 Core Structural Components



Mechanical Motion System

The mechanical arm, beam, guide rail and transmission mechanism form the motion framework. High-strength aluminum alloy or steel structure ensures rigidity and stability, while servo motors and precision reducers achieve high-precision positioning.



Glass Suction and Holding System

Equipped with professional vacuum suction cups made of silicone or anti-slip materials, matched with vacuum generators, pressure sensors and air storage tanks. The suction system can automatically adjust adsorption force according to glass size and weight to ensure safe and non-damaging clamping.



Electrical Control System

The core controller adopts a high-performance PLC or robot motion controller, equipped with a human-machine touch screen for parameter setting, program editing and status monitoring. It supports communication with host computers and other equipment to realize linkage operation.



Visual Positioning and Detection System

High-end models are equipped with industrial cameras and visual recognition systems to automatically detect glass position, size and surface state, realizing precise grabbing and error correction.



**Safety Protection System

Including emergency stop buttons, safety gratings, anti-collision sensors, overload protection and vacuum pressure monitoring. Once abnormal conditions occur, the system will stop immediately to protect personnel, equipment and glass from damage.




2.3 Working Principle

The Automatic Glass Unloading Robot receives signals from the upper processing equipment (such as glass cutting machine, edging machine, washing machine). After the glass processing is completed, the robot moves to the designated position, and the suction cup assembly descends to contact the glass surface. The vacuum system generates negative pressure to stably adsorb the glass, then lifts, translates, rotates or flips according to the preset path, and finally places the glass accurately on the conveying line, processing station or storage area. The whole process is automatically completed without manual intervention, with high stability and repeatability.

3. Overview of Glass Carrier

3.1 Definition and Classification

The Glass Carrier is a special transport vehicle used for the horizontal or vertical transfer of glass sheets in the production workshop. It runs on a fixed track or a flexible ground path, carrying glass frames, racks or conveying platforms to realize the efficient circulation of glass between different processes.

Common classifications include:


Rail Type Glass Carrier: Runs on embedded tracks, with stable operation and high positioning accuracy, suitable for fixed-line transportation.
Trackless Glass Carrier: Adopts wheeled or AGV structure, flexible in path, suitable for complex workshop layout.
Lifting Type Glass Carrier: Equipped with a lifting platform to adapt to conveying surfaces of different heights.
Rotary Glass Carrier: Supports 360-degree rotation to meet multi-directional docking requirements.


3.2 Core Structural Components



Car Body and Load-Bearing Platform

Made of high-strength steel with anti-deformation design, the load-bearing platform is equipped with anti-slip mats, protective baffles or special glass brackets to prevent shaking and scratching during transportation.



Driving System

Driven by servo motors or DC variable frequency motors, with stable speed, low noise and strong power. It can realize fast acceleration and deceleration and precise stopping.



Control and Navigation System

Rail-type carriers use photoelectric or magnetic navigation; trackless AGV carriers use laser, visual or magnetic stripe navigation. The control system supports automatic path planning, obstacle avoidance and fault self-diagnosis.



Safety and Auxiliary System

Equipped with emergency stop devices, sound and light alarms, anti-collision bumpers and position sensors to ensure safe operation in complex working environments.




3.3 Working Principle

The Glass Carrier receives transport instructions from the central control system or manual operation. It automatically travels to the loading station, docks with the glass unloading robot or conveying line, and loads the glass onto the carrier platform. Then it runs along the preset path to the target station, completes automatic unloading, and returns to the original position to wait for the next instruction. The whole transportation process is continuous, stable and efficient, realizing seamless connection between multiple processes.

4. Technical Characteristics and Advantages

4.1 Advantages of Automatic Glass Unloading Robot



High Efficiency and Stability

The robot operates continuously for 24 hours without fatigue, with a fixed operation cycle and stable production rhythm, greatly improving the unloading efficiency compared with manual work.



High Precision and Non-Damaging Handling

Servo control and vacuum adsorption ensure precise positioning, avoiding surface scratches, edge chipping and breakage caused by manual misoperation.



Strong Adaptability

Suitable for glass of different thicknesses (from 1mm to 25mm), sizes and types, including float glass, tempered glass, Low-E glass, laminated glass and insulating glass.



Improved Safety Performance

Reduces manual contact with high-risk glass handling, completely eliminating potential safety accidents such as glass breakage and cutting injuries.



Intelligent and Flexible Production

Supports multi-program switching, rapid product replacement and flexible production, adapting to diversified and small-batch processing needs.




4.2 Advantages of Glass Carrier



Large Load Capacity and Stable Transportation

Can carry single or multiple pieces of large-format glass with stable operation and no shaking, ensuring the safety of glass in long-distance transportation.



Seamless Connection with Production Line

Realizes automatic butt joint with unloading robots, edging machines, washing machines, tempering furnaces and insulating glass production lines, forming a closed-loop automated production system.



Flexible Layout and Strong Compatibility

Rail-type and trackless structures can be customized according to workshop space and process layout, with strong compatibility with different equipment.



Low Operation Cost

Reduces the number of handling workers, lowers labor costs, and has low energy consumption and maintenance costs in long-term use.



Environmentally Friendly and Low Noise

Adopts electric drive mode, with no exhaust emissions and low working noise, in line with the requirements of green and intelligent workshops.




5. Integrated Application in Glass Production Lines

The combination of Automatic Glass Unloading Robot and Glass Carrier forms an intelligent handling system widely used in the whole process of glass deep processing:



Glass Cutting Line Unloading

The robot automatically unloads cut glass sheets and transfers them to the edging line; the glass carrier transports semi-finished products between processes.



Glass Edging & Washing Line

After edging and cleaning, the robot unloads the glass and places it on the carrier for transfer to the tempering furnace or coating line.



Tempering & Coating Line Handling

The system realizes automatic loading and unloading of tempering furnaces and coating equipment, ensuring continuous and stable production.



Insulating Glass Production Line

Completes the transfer of glass sheets between cleaning, film removing, frame pasting and pressing processes, realizing full-line automation.



Finished Glass Storage & Packaging

The robot stacks finished glass neatly, and the carrier transports them to the packaging or storage area, realizing unmanned finished product logistics.




Through integrated application, the glass production line realizes unmanned handling, high-speed circulation and quality traceability, comprehensively improving production efficiency and product qualification rate.

6. Operation, Maintenance and Safety Management

6.1 Operation Specifications

Operators must receive professional training and be familiar with equipment functions, parameter settings and emergency handling methods. Before starting, check the vacuum system, driving mechanism, sensor and safety device. During operation, it is forbidden to enter the working area of the robot and carrier. The equipment shall be operated in strict accordance with the operating procedures to ensure stable operation.

6.2 Daily Maintenance

Regularly clean the suction cups, guide rails and transmission parts; check the vacuum pressure, circuit and air circuit; lubricate the moving components; replace vulnerable parts such as suction cups and sensors in time. The control system shall be backed up regularly to prevent program loss.

6.3 Safety Management

The equipment must be equipped with complete safety protection facilities and warning signs. The working area shall be isolated by safety fences. Regular safety inspections and fault elimination shall be carried out to ensure that the emergency stop function, anti-collision function and vacuum failure protection function are effective.

7. Development Trends of Intelligent Glass Handling Equipment

With the advancement of intelligent manufacturing technology, Automatic Glass Unloading Robots and Glass Carriers are developing in the following directions:

7.1 Higher Degree of Intelligence

Equipped with AI algorithms, machine learning and multi-sensor fusion technology, the equipment can independently judge glass types, optimize handling paths and adapt to complex working conditions.

7.2 Stronger Flexibility and Collaboration

Collaborative robots will be more widely used, which can work safely with workers without fences, further improving production flexibility.

7.3 Digital and Networked Management

Based on the Internet of Things (IoT) and cloud platforms, the equipment realizes remote monitoring, fault diagnosis, predictive maintenance and production data statistics, supporting the construction of smart factories.

7.4 Larger Load and Higher Speed

The development of large-format and ultra-thick glass puts forward higher requirements for the load capacity and operating speed of handling equipment.

7.5 Green and Energy-Saving Design

Adopt high-efficiency motors, energy recovery systems and lightweight structures to reduce energy consumption and meet carbon peak and carbon neutrality goals.

8. Conclusion

The Automatic Glass Unloading Robot and Glass Carrier are core pillars of intelligent transformation in the glass deep processing industry. They effectively solve the pain points of traditional manual handling, such as low efficiency, high damage rate and potential safety hazards, and provide strong support for enterprises to achieve high-efficiency, high-quality and low-cost production. With the continuous expansion of the glass application market and the accelerated upgrading of manufacturing intelligence, the technical level of glass handling equipment will continue to improve, and the application scope will be further expanded.

Low-E Film Deleting Machine: Professional Technical Overview & Comprehensive Description
The Low-E Film Deleting Machine is a kind of high-precision, automatic, and professional processing equipment specially designed for the edge deletion of coated glass, especially Low-E (Low Emissivity) glass. As an indispensable supporting equipment in the deep processing of architectural glass, insulating glass, and tempered glass, this machine adopts advanced physical deletion technology to accurately remove the unnecessary Low-E coating layer at the edge of the glass, so as to ensure the bonding fastness, sealing performance and service life of insulating glass, and avoid quality problems such as degumming, oxidation, and air leakage caused by the coating layer. With the characteristics of high automation, high processing precision, stable operation, and friendly operation, the Low-E Film Deleting Machine has become a key production equipment for modern glass deep-processing enterprises to improve product quality, optimize production efficiency and meet industrial processing standards.

Working Principle

The working principle of the Low-E Film Deleting Machine is based on precise mechanical grinding and positioning control technology, combined with automatic transmission and intelligent control system, to realize efficient and non-damaging edge deletion of Low-E coated glass. Firstly, the glass to be processed is automatically conveyed to the processing area through the conveyor system, and the precise positioning is completed through the photoelectric sensor and the positioning mechanism to ensure the consistency of the deletion position and size. Then, the high-speed rotating grinding wheel or special deletion head is driven by the servo motor to contact the surface of the Low-E coating evenly, and the coating layer at the edge of the glass is removed quantitatively and stably according to the set deletion width, depth and path. During the whole processing, the dust removal system runs synchronously to absorb the grinding dust in real time, keeping the processing environment clean and the glass surface smooth. The intelligent control system can automatically adjust the running speed, grinding force and deletion range according to the thickness, size and coating type of the glass, so as to realize fully automatic continuous processing without damaging the glass substrate and ensuring the integrity and flatness of the non-deletion area.

Core Structure and Functional Components

The Low-E Film Deleting Machine is composed of a plurality of coordinated functional modules, each of which plays an important role in the stability, precision and service life of the equipment.

1. Automatic Conveying and Positioning System

This system adopts a motor-driven roller conveyor or belt conveyor, matched with a high-precision photoelectric positioning device and a pneumatic clamping mechanism, which can realize stable transmission and accurate positioning of glass of different sizes and thicknesses. It can automatically adapt to the processing requirements of various specifications of architectural glass and insulating glass, avoid position deviation during operation, and ensure the accuracy and consistency of edge deletion.

2. Servo Drive and Grinding System

As the core execution structure of the machine, the servo drive system controls the high-speed grinding head or diamond grinding wheel with high precision, with stable speed and adjustable force. The professional deletion grinding head is designed for Low-E coating, which can quickly and effectively remove the coating layer without scratching the glass surface, and the deletion effect is neat and uniform, fully meeting the processing standards of insulating glass edge sealing.

3. Intelligent Control System

The machine is equipped with an industrial PLC control system and a human-machine touch screen, which supports one-key setting of processing parameters such as deletion width, speed, path and glass thickness. It has the functions of parameter storage, fault self-diagnosis, automatic alarm and emergency stop, which simplifies the operation difficulty and improves the safety and stability of the equipment. The intelligent control mode can realize fully automatic continuous production and reduce manual intervention.

4. Dust Removal and Cleaning System

Equipped with a high-power industrial dust collection and filtration system, it can absorb the coating dust and debris generated during the grinding process in real time, prevent dust from adhering to the glass surface and polluting the processing environment, and keep the glass clean and the internal parts of the equipment clean, reducing the failure rate caused by dust accumulation.

5. Frame and Protective System

The whole machine adopts a high-strength steel frame structure, with solid and stable operation, low vibration and low noise. The fully enclosed protective cover and safety interlock device effectively protect the personal safety of operators, in line with international industrial safety standards, and make the equipment more reliable and durable in long-term industrial production.

6. Size Adaptation and Adjustment Mechanism

The machine has a wide range of size adaptation, which can quickly adjust the processing range according to the length, width and thickness of the glass, support small-size decorative glass and large-size architectural curtain wall glass, and has strong flexibility and versatility to meet the diversified production needs of enterprises.

Key Performance Advantages

Compared with traditional manual deletion or semi-automatic deletion equipment, the fully automatic Low-E Film Deleting Machine has obvious technical and application advantages, which can greatly improve the production efficiency and product qualification rate of glass deep-processing enterprises.

First of all, high processing precision and good effect. The deletion width and depth are precisely controlled, the edge is neat and smooth, no damage to the glass substrate, completely solve the problems of uneven deletion, missing deletion and excessive deletion in manual operation, and greatly improve the processing quality of insulating glass.

Secondly, high degree of automation and high production efficiency. It can realize continuous automatic processing without manual hand-held grinding, the processing speed is fast, the single piece processing time is short, and it can match the production rhythm of the insulating glass production line, greatly improving the overall production capacity.

Thirdly, wide application range and strong adaptability. It is suitable for single silver Low-E glass, double silver Low-E glass, triple silver Low-E glass and other different types of coated glass, and compatible with glass of various thicknesses and sizes, with strong versatility and practicability.

Fourthly, stable operation and low failure rate. The equipment adopts high-quality electrical components and wear-resistant grinding parts, with reasonable structure design, stable operation, long service life, simple daily maintenance and low later use cost.

Fifthly, safe and environmentally friendly operation. The fully enclosed protection and dust removal system ensure a clean and safe processing environment, reduce the labor intensity of workers, avoid dust hazards, and meet the requirements of green and safe production.

Sixthly, improve product quality and service life. By accurately removing the edge coating, the bonding force between the glass and the sealing material is enhanced, the oxidation and corrosion of the coating layer are prevented, the airtightness and durability of the insulating glass are improved, and the quality and added value of the final product are upgraded.

Main Application Fields

The Low-E Film Deleting Machine is mainly used in the glass deep-processing industry, and is widely used in the production and processing of insulating glass, tempered glass, laminated glass and architectural coated glass. It is an essential equipment for professional glass processing factories, architectural glass manufacturers, insulating glass production bases and door and window curtain wall enterprises.

In the field of architectural glass, it is used for edge deletion processing of Low-E glass for high-rise buildings, office buildings, residential buildings, shopping malls and other curtain walls and doors and windows, ensuring the sealing and safety performance of insulating glass.

In the field of insulating glass production, it is matched with insulating glass production lines, automatic glass cutting machines, edge grinding machines and other equipment to form a complete automated production process, improving the efficiency and quality of insulating glass manufacturing.

In addition, it is also used in the processing of automotive glass, home appliance glass, decorative glass and other coated glass products, providing professional edge deletion solutions for various high-standard coated glass deep processing.
