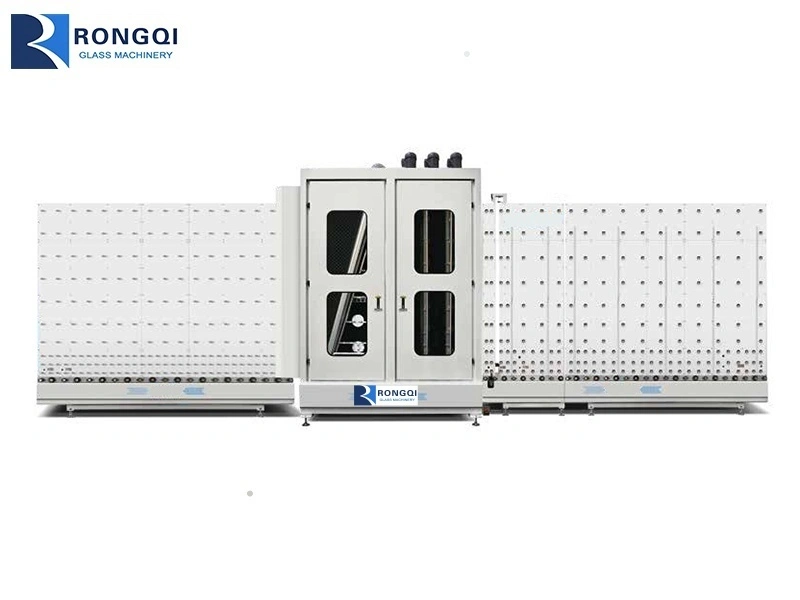

VW2000/1800/2500 Vertical Insulating Glass Washing Machine
● The cleaning area and water system are all made of stainless steel,durable.
● Floating design of cleaning transmission mechanism,suitable for cleaning 3-18mm glass.
● The transmission system adopts intelligent frequency conversion to realize efficient operation of the cleaning area.
● The unique drying design of the cleaning machine ensures the drying effect and reduces energy consumption.
Equipment Features
● The cleaning area and water system are all made of stainless steel,durable.
● Floating design of cleaning transmission mechanism,suitable for cleaning 3-18mm glass.
● The transmission system adopts intelligent frequency conversion to realize efficient operation of the cleaning area.
● The unique drying design of the cleaning machine ensures the drying effect and reduces energy consumption.
Technical Parameter
|
Model |
VW2000 |
VW1800 |
VW2500 |
|
Voltage |
380V/50Hz |
380V/50Hz |
380V/50Hz |
|
Total power |
19KW |
15KW |
21KW |
|
Max glass size |
2000*2500mm |
1800*2500mm |
2500*3000mm |
|
Mini glass size |
280*450mm |
280*450mm |
280*450mm |
|
Thickness of original glass |
3-18mm |
3-18mm |
3-18mm |
|
Cleaning speed |
0-8m/min |
0-8m/min |
0-8m/min |
|
Total weight |
3000kg |
2500kg |
3500kg |
|
Overall dimension |
8500*2100*3050mm |
8500*2100*2850mm |
8500*2100*2850mm |
