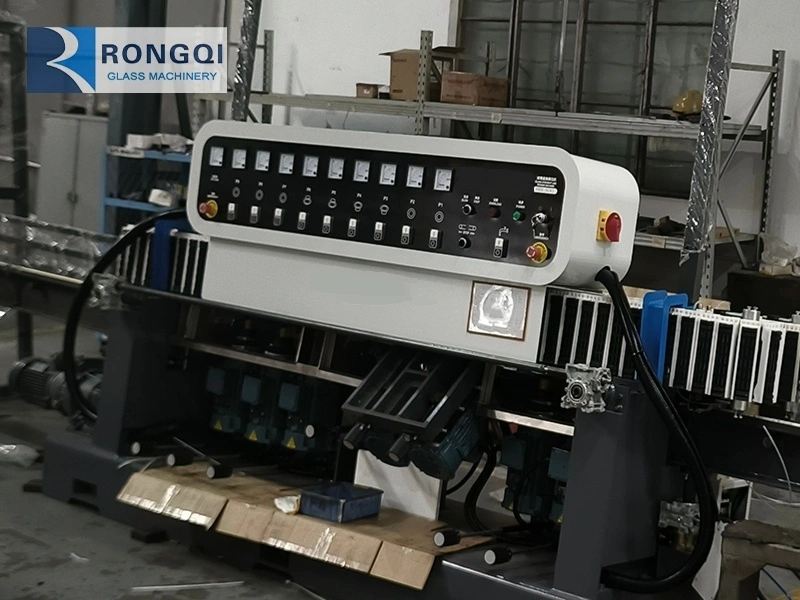

9 Motors Straight Line Edging Machine For Glass Processing
● RThere are mainly 3 kinds of the straight line edging machine,9 motors,10 motors,and 11 motors.
● The stepless speed regulation,adjustable range,steady speed,can adjust the feed speed and quantity.
Equipment Features
● There are mainly 3 kinds of the straight line edging machine,9 motors,10 motors,and 11 motors.
● They are used in grinding of different sizes and thickness of plate glass straight edge,coarse grinding, fine grinding, chamfer,polishing once completed.
● The stepless speed regulation,adjustable range,steady speed,can adjust the feed speed and quantity.
● The front guide rail is adjustable to adjust the processed glass thickness.
● The machine is equipped with automatic clamp and voltage stabilizing system.
● The processing is with high precision,high working efficiency and convenient operation.
● It is a necessary tool of glass processing technology.
Technical Parameter
|
Voltage |
380V 50HZ |
|
Weight |
2600kg |
|
Power |
20KW |
|
Glass thickness |
3-25mm |
|
Feeding Speed |
0 .5-5m/min |
|
Mini size |
80*80mm |
|
Dimension |
6800*1000*2500mm |
