CNC Glass Drilling Machine For Precision Hole Drilling
● First input the circular data of the product to be processed into the program
● Place the product to be processed on the drilling platform surface, align with the positioning points on both sides of the platform, press the pneumatic button, the equipment will automatically move the position of the drill pipe according to the program.
● And complete the drilling, and then remove the glass manually, two pieces of glass can be placed on the work table, and the two pieces of glass can be processed alternately.
Working method
● First input the circular data of the product to be processed into the program.
● Place the product to be processed on the drilling platform surface, align with the positioning points on both sides of the platform, press the pneumatic button, the equipment will automatically move the position of the drill pipe according to the program.
● And complete the drilling, and then remove the glass manually, two pieces of glass can be placed on the work table, and the two pieces of glass can be processed alternately.
Technical Parameter
|
Drilling diameter |
5-60mm |
|
Thickness of processed glass |
3-19mm |
|
Maximum drilling stroke |
x-axis 1100mm, y-axis 700mm |
|
Working platform height |
900mm |
|
Drilling speed |
≤7-10s |
|
The maximum number of automatic drilling |
20pcs |
|
Hole position deviation of batch products |
≤±0.13mm |
|
Maximum size of processed glass |
800x1200mm |
|
Power |
6kw |
|
Weight |
1000kg |
|
Dimension |
2400*2100*1950mm |

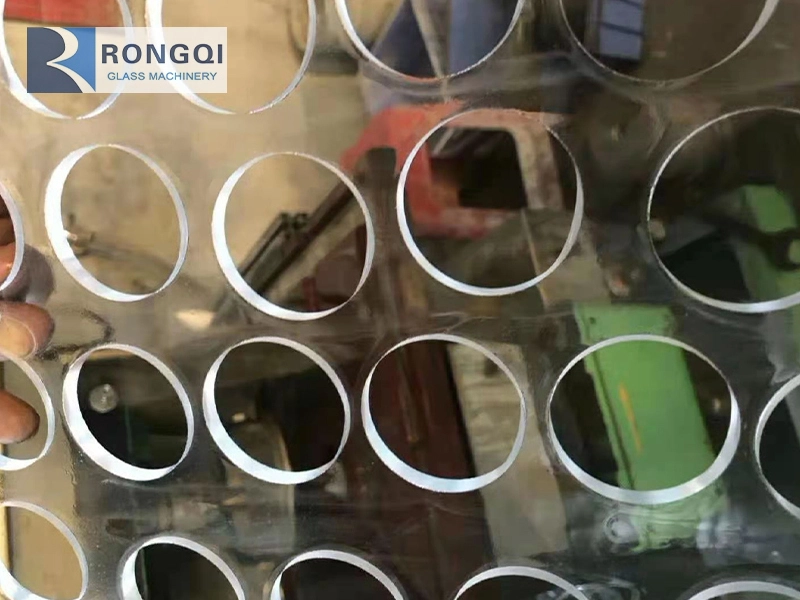

Sample
