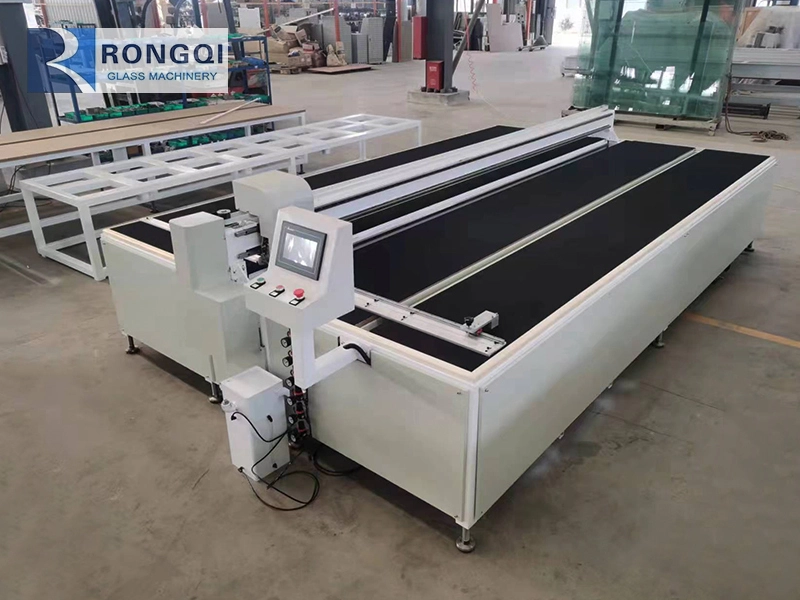

SY-3826 Semi auto laminated glass cutting machine
National standard square pipe welding frame. Synchronous belt transmission system. PLC and imported electrical components, stepper motor, LCD display, man-machine interface, more convenient operation, stable performance. Cutting speed can be set directly. The cutting positions of the upper and lower cutter heads are consistent, the matching degree is high, and the breaking piece is easy.
Equipment Features
● The cutting positions of the upper and lower cutter heads are consistent.
● Upper cutter with broken wheel, automatically press the lower layer of glass.
● When the next lever is broken, there is a pneumatic pressure to ensure the effect of breaking.
● Heating and breaking are full auto.
● Cutting precision: ≤±0.50mm
● Diagonal accuracy: ≤1.0mm/m
● Max. Cutting size: 3800*2600mm（special size can be customized)
● Min. Cutting size: 150*150mm
● Cutting thickness: 2+0.38+2----8+3.04+8mm
● Cutting efficiency: 1sheet/2—4min
● Cutter life: 30,000m--50,000m
● Operator: 1－2 people
● Packing size: 4800*1600*1700mm
● Voltage: 380V/50HZ（Configurable transformer）
● The installed power: 13.5Kw
● Weight: 1800Kg
Use profile
| 1. Set cutting parameter | 7. Pneumatic mode control cutter down |
| 2. Loading glass on table | 8. Cutter up after cutting |
| 3. Start fan | 9. The lower pressure wheel starts the pressure glass |
| 4. Remove glass to cutting position | 10. Lower beam move do breaking |
| 5. Stop fan | 11. Heating or Automatic spraying of alcohol |
| 6. Cutter remove to cutting position | 12. Finish all processes |
Machine configuration
|
Equipment frame structure |
GB thick wall rectangular pipe welding |
|
Straight guideway |
Taiwan silver straight square guideway |
|
Motor synchronous wheel and belt |
Babel, Italy |
|
Pneumatic components |
China |
|
Motor |
China Sutai 130 step motor |
|
Driver |
DELTA |
|
PLC |
DELTA |
|
Touch screen |
DELTA |
|
Platform board |
original imported E0 grade high density board from Taiwan |
|
Felt |
original imported felt from Taiwan |
|
Fan |
4KW 2 sets made in China |
|
Steel plate |
1. 2 mm thickness of outer shell |
|
Heating tube |
light wave infrared |
Handing and installation notice
In the process of carrying, please gently handle and avoid collision,When installing can use level correction and adjust the four feet adjustable bracket so that the desktop level.
