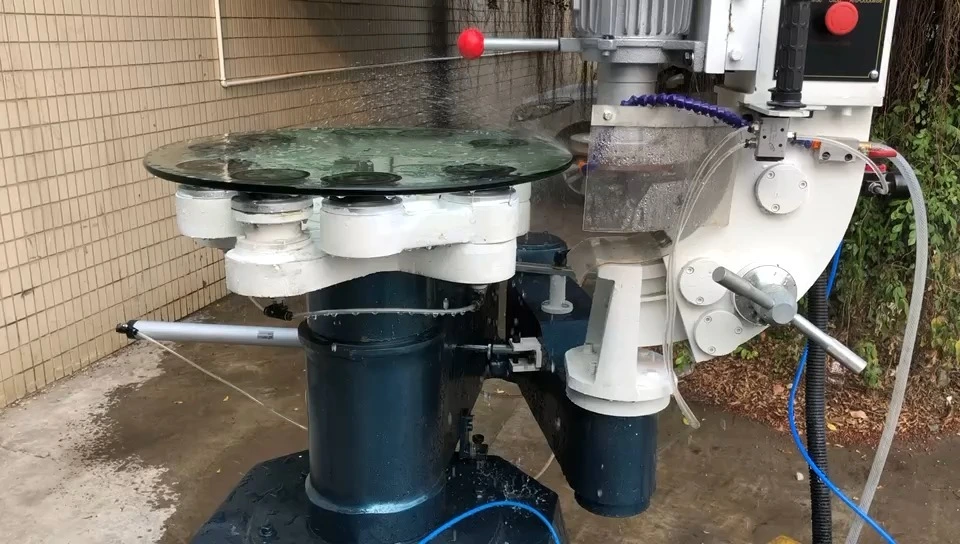

Round Glass Shaped Edging Machine Table
● Higher turntable accuracy: This machine improves the accuracy of the turntable to ensure the grinding accuracy of the beveled edge in response to the shortcomings of the previous models.
● Brake system: Eliminate the movement gap, and apply a moderate load (adjustable) during rotation, which greatly reduces the vibration during grinding.
● Cylinder device: The machine arm can be flexibly extended when processing different glass sizes, breaking through the traditional design, making work easier and more efficient.
Equipment Features
Applicable to the arc edge, duckbill edge, bevel edge and other shapes of all kinds of flat glass (depending on the shape of the grinding wheel)
● Higher turntable accuracy: This machine improves the accuracy of the turntable to ensure the grinding accuracy of the beveled edge in response to the shortcomings of the previous models.
● Brake system: Eliminate the movement gap, and apply a moderate load (adjustable) during rotation, which greatly reduces the vibration during grinding.
● Cylinder device: The machine arm can be flexibly extended when processing different glass sizes, breaking through the traditional design, making work easier and more efficient.
● Portable small electric box: It is more convenient to replace electrical appliances, realize the high efficiency of the machine, and the simple operation.
● Brand motor: waterproof, explosion-proof, durable, strong power, stable operation.
● Rotatable suction cup seat: the angle can be changed at will, which greatly reduces the complicated manual work and improves work efficiency.
● Semi-automatic grinding: all kinds of flat glass with simple shapes can realize semi-automatic grinding.
Technical Parameter
|
Max.Size |
100-2100mm |
|
Glass thickness |
3-21mm |
|
Max.Width of bevel |
35mm |
|
Bevel degree |
0-20° |
|
Rotating speed of independent turn plate |
1.2-6r/min |
|
Rotating speed of working table |
0.8-4r/min |
|
Total power |
2.6kw |
|
Table size |
2200*1600mm |
|
Overall dimension |
1300*1300*1700mm |
|
Weight |
1200kg |
