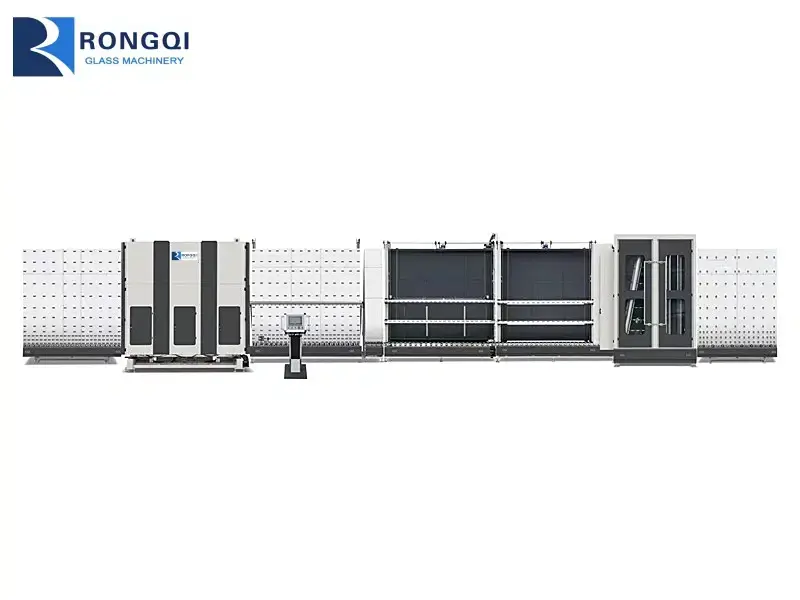

RONGQI's Tempered Glass Cutting Machine

I. Introduction



Mechanized production of insulating glass significantly improves production efficiency and product quality. This plan details the process of manufacturing insulating glass using automated machinery.



II. Production Process



A. Glass Feeding and Cutting



- Automated Loading: High - speed robotic arms are used to load large sheets of float glass from storage racks onto the glass cutting line. These arms are programmed to handle the glass gently to avoid scratches or breakages.

- Precision Cutting: Computer - controlled glass cutting machines measure and cut the glass according to pre - set dimensions. The cutting blades are automatically adjusted for different glass thicknesses, ensuring a precise cut with an accuracy of ± 0.5mm.



B. Edge Processing



- Grinding and Polishing: The cut glass edges are fed into an automated edge - processing machine. This machine uses rotating abrasive wheels to grind the edges smoothly and then polishes them to enhance the glass's appearance and adhesion for sealants.

- Drilling (if required): For customized insulating glass with holes, a numerically - controlled drilling machine is integrated into the production line. It accurately drills holes based on the input specifications, with a high - speed spindle ensuring clean and precise holes.



C. Washing and Drying



- The Glass will be washed with the glass washing machine.The machine is with 6 soft brushes for cleaning and knieves for drying.It is ok for Low-E glass and the glass thickness can be adjusted automatically.



D. Spacer and Desiccant Handling



- Spacer Bending and Assembly: An automatic spacer bending machine forms aluminum or stainless - steel spacers into the required shapes. The machine can handle different spacer profiles and lengths. Desiccant is automatically filled into the spacers through a precise dosing system to absorb moisture in the air gap.

- Spacer Placement: Robotic arms pick up the bent spacers and accurately position them between the cleaned glass sheets on a conveyor - based assembly platform.



E. Gas Filling (Optional)



- Inert Gas Injection: For insulating glass that requires enhanced thermal performance, an automated gas - filling machine is used. It injects inert gases like argon or krypton into the air gap between the glass panes. The gas flow rate and pressure are precisely controlled to achieve the desired gas concentration.



F. Sealing



- Primary Seal Application: A robotic sealant dispensing arm applies the primary sealant, typically polysulfide, along the inner edge of the spacer. The arm moves at a constant speed and pressure, ensuring an even and consistent sealant layer.

- Secondary Seal Application: After the primary seal has cured to a certain extent, another robotic arm applies the secondary sealant, such as silicone, on the outside of the primary seal. This provides additional protection and strength to the insulating glass unit.



III. Quality Assurance



- In - line Inspection: Throughout the production process, multiple in - line inspection stations are installed. These use sensors and cameras to detect defects such as uneven sealant application, air bubbles, and misaligned components. Defective products are automatically flagged and removed from the production line.

- Final Testing: Before packaging, each insulating glass unit undergoes a final set of tests, including a leak test for gas - filled units and a dimensional accuracy check. Only products that meet the strict quality standards are approved for shipment.



IV. Conclusion



This mechanized production process for insulating glass, with its combination of automated machinery and strict quality control measures, ensures the efficient production of high - quality insulating glass products, meeting the demands of the construction and related industries.

Butyl Coating Machine: Core Equipment for Precision Sealing in Modern Insulating Glass Manufacturing

Abstract

In the global push for energy-efficient buildings and high-performance architectural and automotive glass, insulating glass (IG) has become a cornerstone material, with its thermal insulation, soundproofing, and durability directly dependent on the quality of edge sealing. The butyl coating machine, as a critical piece of automated equipment in the IG production line, is specifically designed for the uniform, continuous application of hot-melt butyl rubber—an essential primary sealant for insulating glass spacers. This article explores the working principle, technical characteristics, core advantages, application scenarios, and development trends of butyl coating machines, demonstrating their indispensable role in ensuring the long-term reliability, production efficiency, and cost-effectiveness of modern insulating glass manufacturing.

1. Introduction

The global demand for energy-saving and environmentally friendly building materials has surged in recent years, driven by stringent carbon neutrality policies and the rapid development of green construction. Insulating glass, composed of two or more glass panes separated by a spacer frame and sealed with dual-layer sealants (primary butyl rubber and secondary polysulfide/silicone sealant), has emerged as the preferred choice for modern commercial and residential buildings, automotive windows, and aerospace components. The primary seal—hot-melt butyl rubber—acts as the first line of defense against moisture penetration, gas leakage, and spacer corrosion, directly determining the service life and performance stability of insulating glass.

Traditional manual or semi-automatic butyl coating methods suffer from inherent flaws such as uneven glue application, inconsistent thickness, low efficiency, and high material waste, which severely compromise the quality of insulating glass and increase production costs. In contrast, modern butyl coating machines integrate advanced PLC control systems, servo-driven precision mechanisms, and intelligent temperature control technology, enabling fully automated, high-precision, and continuous butyl rubber coating. As the "heart" of the insulating glass primary sealing process, butyl coating machines have become an irreplaceable core equipment for manufacturers seeking to upgrade production lines, improve product quality, and enhance market competitiveness.

2. Working Principle and Core Components of Butyl Coating Machine

2.1 Basic Working Principle

Butyl coating machines operate on the principle of hot-melt extrusion and precision coating. Solid or semi-solid hot-melt butyl rubber is first heated to a molten state (typically 110–150°C) in a temperature-controlled heating system, then pressurized and delivered to a precision coating nozzle via a screw or piston extrusion mechanism. The spacer frame (aluminum, warm-edge, or composite spacer) is fed through the machine’s transmission system at a constant speed, and the molten butyl rubber is extruded uniformly onto the two sides of the spacer frame in a continuous, bead-like form. The machine’s control system real-time adjusts extrusion pressure, coating speed, and glue bead thickness to ensure consistent coating quality across different spacer sizes and types. After coating, the spacer is cooled slightly to maintain the shape of the butyl rubber bead, ready for the subsequent glass bonding and secondary sealing processes.

2.2 Core Components and Functions

A high-performance butyl coating machine comprises several key modules, each contributing to its precision and reliability:

2.2.1 Heating and Melting System

This system consists of a heating barrel, temperature sensors, and a digital temperature controller. The heating barrel is equipped with multi-zone electric heating elements and thermal insulation layers to ensure uniform heating of butyl rubber, preventing local overheating (which causes glue degradation) or insufficient melting (which leads to poor fluidity). High-precision temperature sensors (±1°C accuracy) monitor the melting temperature in real time, with the controller automatically adjusting heating power to maintain a stable molten state—critical for consistent extrusion and coating quality.

2.2.2 Extrusion Mechanism

The extrusion mechanism is the core of the butyl coating machine, available in two main types: screw extrusion and piston extrusion.


Screw extrusion: Features a precision-ground screw with a variable pitch design, which pushes molten butyl rubber forward through rotation, ensuring stable and continuous extrusion. It is suitable for high-volume, continuous production lines and can handle a wide range of butyl rubber viscosities.
Piston extrusion: Uses a hydraulic or pneumatic piston to pressurize and extrude molten glue, offering higher extrusion pressure and more precise glue volume control. It is ideal for small-batch, customized production or coating narrow-width spacers, with minimal glue residue and waste.


Modern high-end models often adopt servo-driven screw extrusion, combining the advantages of continuous production and precision control, with extrusion pressure adjustable from 0.5 to 20 MPa to meet diverse coating requirements.

2.2.3 Precision Coating Nozzle

The coating nozzle is designed for uniform glue distribution and adaptability to different spacer specifications. Key features include:


Dual-side coating design: Simultaneously coats butyl rubber on both sides of the spacer frame, improving production efficiency by 50% compared to single-side coating.
Adjustable nozzle gap: The gap between the nozzle and spacer can be finely adjusted (0.1–3 mm) to control glue bead thickness (typically 0.5–2 mm) and width (2–10 mm), compatible with spacers of 6–27 mm width (the most common in insulating glass).
Anti-drip and anti-clogging design: Equipped with a pneumatic or electric glue cutoff valve to prevent glue dripping when the machine stops, and a self-cleaning function to remove residual butyl rubber and avoid nozzle clogging.
Curved surface adaptability: Some models feature a floating nozzle design, which can automatically adjust to the curvature of curved spacers (used in automotive or special-shaped insulating glass), ensuring uniform coating on non-linear surfaces.


2.2.4 Transmission and Positioning System

The transmission system uses a servo motor-driven roller chain or belt conveyor, with a speed range of 0–30 m/min (adjustable via the HMI). High-precision positioning sensors (photoelectric or proximity sensors) detect the position and length of the spacer, automatically starting and stopping the coating process to avoid glue waste on spacer ends. For multi-specification spacers, the system can store up to 50+ sets of parameter presets, enabling one-click switching between different production tasks and reducing setup time by over 80%.

2.2.5 PLC Control and Human-Machine Interface (HMI)

The core control system is based on a Siemens or Mitsubishi PLC, paired with a 7–10 inch touchscreen HMI for intuitive operation. Key functions include:


Real-time display of temperature, extrusion pressure, coating speed, and glue bead thickness.
One-key setting and storage of process parameters for different spacer types and glue formulas.
Fault self-diagnosis and alarm (e.g., over-temperature, low pressure, nozzle clogging), with troubleshooting prompts displayed on the HMI.
Remote monitoring and data export (via Ethernet or USB), supporting production data tracking and quality traceability—critical for compliance with international quality standards (e.g., CE, ASTM, GB/T 11944).


2.2.6 Safety and Auxiliary Systems

To ensure operational safety and equipment durability, butyl coating machines are equipped with:


Safety interlocks: Emergency stop buttons, safety doors, and protective covers that stop the machine immediately when opened, preventing operator contact with high-temperature components and moving parts.
Glue level detection: A sensor monitors the butyl rubber level in the melting barrel, triggering an alarm when the glue is low to avoid empty extrusion.
Cooling system: A forced air cooling or water cooling system cools the coated spacer slightly, maintaining the shape of the butyl rubber bead and preventing deformation during subsequent handling.


3. Technical Advantages of Modern Butyl Coating Machines

3.1 High Precision and Consistent Coating Quality

The most significant advantage of butyl coating machines is their ability to deliver uniform, bubble-free, and consistent butyl rubber coating—a critical requirement for insulating glass primary sealing. Unlike manual coating, which is prone to uneven thickness, gaps, or excess glue, the machine’s servo-driven extrusion and precision nozzle ensure that the glue bead has a consistent cross-section (width and thickness) along the entire length of the spacer (up to 6 m long). This eliminates moisture penetration paths and gas leakage points, significantly improving the insulating glass’s thermal insulation performance and service life (extending it from 5–10 years to 15–20 years or more). For high-value Low-E (low-emissivity) glass and multi-cavity insulating glass, the machine’s non-contact floating nozzle design avoids scratching the sensitive Low-E coating or damaging multi-layer spacers, ensuring product integrity.

3.2 High Production Efficiency and Cost Savings

Automated butyl coating machines drastically improve production efficiency compared to manual or semi-automatic methods. A standard high-speed model can coat spacers at a speed of up to 30 m/min, processing 800–1200 spacer frames per 8-hour shift—a 5–10 times increase in output compared to manual coating. The continuous extrusion design eliminates downtime for glue refilling (large-capacity melting barrels hold 5–20 kg of butyl rubber, reducing refilling frequency), and the one-click parameter switching reduces setup time for different spacer specifications from 30–60 minutes to 2–5 minutes.

In terms of cost savings, the machine’s precise glue volume control reduces butyl rubber waste by 30–50% compared to manual coating (excess glue is minimized, and no dripping or spillage occurs). Additionally, automation reduces labor costs: a single operator can manage 2–3 machines simultaneously, replacing 4–6 manual workers. Over the equipment’s 8–10 year service life, the savings in material and labor costs far outweigh the initial investment, delivering a rapid return on investment (ROI) for manufacturers.

3.3 Wide Compatibility and Versatility

Modern butyl coating machines are highly versatile, compatible with a wide range of spacer types and insulating glass products:


Spacer materials: Aluminum spacers (standard, bent, or welded), warm-edge spacers (stainless steel, composite, or foam), and special-shaped spacers (curved, angled, or multi-cavity).
Spacer specifications: Width 6–27 mm, thickness 0.3–1.2 mm, length up to 6 m, suitable for both small-sized residential glass and large-sized commercial curtain wall glass.
Butyl rubber types: Hot-melt butyl rubber of different viscosities (low, medium, high) and formulations (standard, anti-aging, or low-VOC), compatible with all major butyl rubber brands in the market.
Application scenarios: Flat insulating glass, curved insulating glass, triple-glazing, multi-cavity insulating glass, automotive glass, and solar photovoltaic glass.


Some advanced models also feature a dual-nozzle design for coating multi-cavity spacers (e.g., 3-cavity or 4-cavity spacers used in ultra-high-performance insulating glass), enabling simultaneous coating of multiple glue lines and further expanding their application scope.

3.4 Enhanced Safety and Environmental Compliance

Butyl coating machines prioritize operator safety and environmental protection, addressing the drawbacks of manual coating:


Safety: By automating the high-temperature (110–150°C) coating process, the machine eliminates operator contact with molten butyl rubber and high-temperature components, reducing the risk of burns and repetitive motion injuries. Safety interlocks and emergency stop functions provide additional protection, complying with international safety standards (e.g., OSHA, CE).
Environmental protection: The closed melting and extrusion system minimizes the emission of volatile organic compounds (VOCs) from butyl rubber, improving the workshop air quality. The precise glue control reduces waste, and the self-cleaning nozzle design minimizes residual glue disposal—aligning with global environmental regulations and green manufacturing trends. Many models are also compatible with low-VOC and eco-friendly butyl rubber formulations, further reducing the environmental footprint of production.


3.5 Stable Performance and Low Maintenance

High-quality butyl coating machines are built with durable materials (stainless steel for the melting barrel, hardened alloy for the screw and nozzle, and industrial-grade servo motors) to ensure long-term stable operation under continuous production conditions. The key components have a service life of 50,000+ hours, and the modular design simplifies maintenance: wearing parts (e.g., nozzles, seals) can be replaced quickly, and routine maintenance (e.g., cleaning, lubrication) is minimal. The PLC control system’s fault self-diagnosis function reduces downtime by identifying and resolving issues promptly, ensuring uninterrupted production—critical for large-scale insulating glass manufacturing plants.

4. Application Scenarios of Butyl Coating Machines

4.1 Architectural Insulating Glass Manufacturing

The largest application area of butyl coating machines is the architectural insulating glass industry, covering residential windows, commercial curtain walls, office buildings, shopping malls, and green buildings. In high-rise buildings and energy-saving residential complexes, insulating glass with high-quality butyl rubber primary sealing provides excellent thermal insulation (U-value as low as 1.0 W/(m²·K)) and soundproofing (up to 35–40 dB), reducing heating and cooling costs by 30–50% compared to single-pane glass. Butyl coating machines enable mass production of standard and customized architectural insulating glass, meeting the demand for large-sized glass (up to 3 m × 6 m) used in modern curtain walls and ensuring consistent quality across thousands of units.

4.2 Automotive Glass Production

In the automotive industry, butyl coating machines are used to produce insulating glass for windshields, side windows, sunroofs, and rear windows of passenger cars, commercial vehicles, and new energy vehicles (NEVs). Automotive insulating glass requires not only thermal insulation and soundproofing but also resistance to extreme temperatures (-40°C to 85°C), vibration, and UV radiation. The machine’s precision coating ensures that the butyl rubber seal adheres firmly to the glass and spacer, preventing moisture from entering the glass cavity and causing fogging—critical for driving safety. For curved automotive glass, models with floating nozzles and curved spacer adaptability deliver uniform coating on non-linear surfaces, meeting the strict quality standards of automotive OEMs (e.g., Volkswagen, Toyota, Tesla).

4.3 Solar Photovoltaic (PV) Glass and Special Glass

With the rapid development of the solar energy industry, butyl coating machines are increasingly used in the production of PV insulating glass (used in solar panels and BIPV—building-integrated photovoltaics). PV glass requires a highly durable seal to protect the solar cells from moisture and corrosion, and the machine’s high-precision butyl coating provides a long-lasting primary seal, extending the service life of PV modules to 25+ years. Additionally, butyl coating machines are used in the production of special glass for aerospace, marine, and industrial applications, such as insulated glass for aircraft cabins, ship windows, and industrial furnace observation windows—where sealing reliability under extreme conditions is paramount.

4.4 Small and Medium-Sized Enterprises (SMEs) and Customized Production

Butyl coating machines are not only suitable for large-scale mass production lines but also for SMEs and customized glass manufacturers. Semi-automatic or compact models (with a small footprint and low investment) are ideal for SMEs producing small batches of customized insulating glass (e.g., for villas, specialty buildings, or automotive aftermarket). These models retain the core precision and efficiency advantages of full-automatic machines but with a lower price point and simpler operation, making advanced butyl coating technology accessible to a broader range of manufacturers. Refurbished butyl coating machines (from reputable brands) are also a cost-effective option for SMEs, offering the same performance as new equipment at 50–70% of the cost.

5. Development Trends of Butyl Coating Machines

5.1 Intelligentization and Digitalization

The future of butyl coating machines lies in intelligentization and digital transformation, driven by Industry 4.0 and smart manufacturing. Advanced models will integrate artificial intelligence (AI) and machine learning algorithms to optimize process parameters in real time: for example, automatically adjusting extrusion pressure and temperature based on butyl rubber viscosity changes (caused by temperature or batch differences) to maintain consistent coating quality. IoT (Internet of Things) connectivity will enable remote monitoring, predictive maintenance, and production data analysis—manufacturers can track machine performance, output, and quality from a central control room, and the system will predict component failures (e.g., screw wear, nozzle clogging) and schedule maintenance in advance, reducing unplanned downtime. Digital twin technology will also be applied, allowing manufacturers to simulate coating processes and optimize production lines before physical implementation.

5.2 High-Speed and High-Precision Upgrades

To meet the growing demand for large-scale and high-quality insulating glass, butyl coating machines will continue to evolve toward higher speed and precision. Future models will feature servo-driven systems with faster response times, increasing coating speed to 40–50 m/min while maintaining glue bead precision (±0.05 mm thickness tolerance). The extrusion mechanism will be optimized for higher pressure and more uniform glue distribution, enabling coating of ultra-narrow spacers (3–5 mm width) and ultra-thick glue beads (3–5 mm) for special applications. Additionally, 3D vision sensors will be integrated to detect spacer position and curvature in real time, enabling fully adaptive coating on complex-shaped spacers without manual adjustment.

5.3 Green and Eco-Friendly Design

Sustainability will be a core focus in the development of butyl coating machines, aligning with global carbon neutrality goals. Future models will feature energy-efficient heating systems (e.g., infrared heating or electromagnetic heating) that reduce energy consumption by 20–30% compared to traditional electric heating. The closed-loop glue recycling system will collect and reuse residual butyl rubber, further reducing material waste to less than 5%. Compatibility with bio-based butyl rubber (made from renewable resources) and low-VOC, zero-halogen formulations will be enhanced, making the production process more environmentally friendly. Additionally, the machine’s design will prioritize recyclable materials and modular components, reducing the environmental impact of manufacturing and disposal.

5.4 Integration with Automated Production Lines

Butyl coating machines will be more deeply integrated into fully automated insulating glass production lines, connecting with upstream spacer bending/welding machines, glass washing machines, and downstream glass bonding/secondary sealing robots. The entire production process—from spacer processing to final insulating glass assembly—will be automated, with seamless data exchange between machines via a central control system. This integration will eliminate manual handling, reduce production cycle time by 40–60%, and ensure 100% quality consistency across the entire production line. For example, the spacer bending machine will transmit spacer specifications to the butyl coating machine, which automatically adjusts parameters and starts coating; after coating, the spacer is automatically transferred to the glass bonding station, with no human intervention required.

6. Conclusion

As the core equipment for primary sealing in modern insulating glass manufacturing, the butyl coating machine plays a pivotal role in ensuring product quality, improving production efficiency, and reducing costs. Its technical advantages—high precision, high efficiency, wide compatibility, safety, and environmental protection—address the limitations of traditional coating methods, making it an indispensable tool for manufacturers seeking to meet the demand for energy-efficient, high-performance insulating glass.

With the ongoing development of the global green building and automotive industries, the demand for high-quality insulating glass will continue to grow, driving the continuous innovation of butyl coating machines toward intelligentization, high-speed, green, and integrated production. For insulating glass manufacturers, investing in a high-performance butyl coating machine is not only a practical upgrade for production lines but also a strategic decision to enhance market competitiveness, comply with international quality and environmental standards, and seize opportunities in the rapidly growing energy-saving glass market.

In the future, as technology advances, butyl coating machines will further evolve into smart, connected, and eco-friendly equipment, empowering the insulating glass industry to achieve higher levels of automation, efficiency, and sustainability—contributing to the global transition to a low-carbon, green economy.

References


GB/T 11944-2012, Insulating Glass for Buildings.
ASTM E2190-19, Standard Specification for Insulating Glass Units.
CE Marking Standards for Machinery (2006/42/EC).
International Energy Agency (IEA), Energy Efficiency Trends in Buildings, 2024.
Journal of Glass Technology, Vol. 65, No. 3, 2023: Advances in Insulating Glass Sealing Technology.
Automotive Engineering International, Vol. 28, No. 5, 2024: Sealing Solutions for Automotive Insulating Glass.

Automatic Dessicant Filling Machine: A Comprehensive Analysis of Technology, Application and Industrial Value

1. Introduction

In the modern industrial manufacturing and product packaging system, moisture control has become a key link to ensure product quality, extend shelf life and maintain performance stability. Dessicants, as core materials for absorbing moisture and regulating environmental humidity, are widely used in food, pharmaceutical, electronic manufacturing, insulating glass, precision instruments and other fields. The traditional manual or semi-automatic desiccant filling method has problems such as low efficiency, large filling error, easy material waste, high labor cost and difficulty in meeting large-scale standardized production. Against this background, the Automatic Dessicant Filling Machine, as an automated equipment integrating mechanical, electrical, pneumatic, sensing and intelligent control technologies, has gradually replaced traditional processes and become an indispensable core equipment in the desiccant application and packaging industry chain.

This paper systematically combs the core connotation, working principle, structural composition, technical parameters, application scenarios, core advantages and market development trends of the Automatic Dessicant Filling Machine, and deeply analyzes its technological innovation path and future development direction, aiming to provide a comprehensive reference for industrial practitioners, equipment R&D personnel and market investors, and clarify the important value of this equipment in promoting industrial automation upgrading and quality improvement.

2. Definition and Classification of Automatic Dessicant Filling Machine

2.1 Core Definition

The Automatic Dessicant Filling Machine is a special automated mechanical and electrical integration equipment that can automatically complete the processes of desiccant feeding, metering, filling, sealing (partial models), detection and rejection without manual intervention. It takes desiccant (including silica gel, molecular sieve, montmorillonite, calcium chloride and other granular, powdery or columnar desiccants) as the processing object, and realizes precise, efficient and standardized filling operations for different containers (such as insulating glass aluminum spacer frames, food and pharmaceutical bottles, electronic product packaging boxes, desiccant small bags, etc.) through programmable logic controller (PLC) control, servo drive and sensing detection technology, so as to meet the moisture-proof needs of various industrial products.

2.2 Main Classification

According to different application scenarios, processing objects and functional configurations, Automatic Dessicant Filling Machines can be divided into the following categories:

2.2.1 Classified by Application Field


Insulating Glass Special Dessicant Filling Machine: Mainly used for filling molecular sieve desiccant into aluminum spacer frames or stainless steel spacer frames of insulating glass. It integrates automatic drilling, filling and sealing functions, and can adapt to spacer frames of different sizes (from 300mm×250mm to 2000mm×2000mm) and specifications (5.5-26.5mm in width). Typical models include LJGZ2020 series and ARL-45F, which are core equipment in the insulating glass deep processing industry.
Packaging Line Dessicant Inserting/Filling Machine: Applied to food, pharmaceutical, health care products and electronic product packaging lines, mainly for inserting desiccant bags, columnar desiccants or filling loose desiccants into bottles, boxes and bags. It can be seamlessly connected with filling, capping, labeling and other equipment to form a fully automated packaging production line, such as ZONESUN ZS-PD1 and Rx-Desiccant series.
Desiccant Bag Automatic Filling Machine: Specialized in the production of small desiccant bags, realizing automatic film feeding, metering and filling of desiccant, heat sealing, cutting and other processes, suitable for mass production of small-package desiccants (such as 1g, 5g, 10g specifications), with a production speed of up to 20-100 bags per minute.


2.2.2 Classified by Automation Degree


Fully Automatic Dessicant Filling Machine: Realizes unmanned operation in the whole process, with functions such as automatic feeding, automatic metering, automatic filling, automatic fault detection, automatic rejection of unqualified products and automatic material replenishment. It is equipped with a touch human-machine interface (HMI) and PLC control system, and can store multiple production recipes to meet flexible production needs.
Semi-Automatic Dessicant Filling Machine: Needs manual assistance in partial links (such as manual placement of containers, manual feeding of desiccants), and the core filling and metering links are automated. It has a small footprint and low cost, and is suitable for small-batch and multi-variety production scenarios.


2.2.3 Classified by Filling Form


Granular/Powder Dessicant Filling Machine: For granular (such as silica gel particles, molecular sieve) and powdery desiccants, it adopts vibration feeding, spiral metering or gravity metering to ensure the accuracy of single filling, and is equipped with an anti-dust device to avoid material flying.
Columnar/Block Dessicant Filling Machine: Aims at columnar or block desiccants, adopts mechanical clamping and pushing structure, realizes precise insertion into containers, and is equipped with infrared counting and detection functions to avoid missing filling or multiple filling.
Desiccant Bag Inserting Machine: For pre-made desiccant bags, it completes automatic cutting, conveying and inserting into packaging containers, with a high-speed cutting structure to avoid bag breakage and desiccant leakage.


3. Working Principle and Structural Composition

3.1 Core Working Principle

The Automatic Dessicant Filling Machine takes the PLC control system as the core, and realizes the coordinated operation of each mechanism through the combination of pneumatic, servo drive and sensing detection technology, and completes the whole process of desiccant filling in accordance with the preset program. The basic working process is as follows:

First, the desiccant is stored in the feeding hopper, and the automatic feeding mechanism (vibration feeder, spiral conveyor or pneumatic conveying device) transports the desiccant to the metering unit according to the set flow rate. The metering unit adopts high-precision sensors (infrared counting sensor, weighing sensor, volume metering sensor) to measure the desiccant, ensuring that the single filling amount meets the process requirements. Then, the positioning mechanism fixes the container (insulating glass spacer frame, packaging bottle, etc.) at the designated filling position, and the filling head moves to the filling port under the drive of the servo motor to complete the desiccant filling. For insulating glass special models, after filling, the automatic sealing mechanism uses butyl rubber to seal the drilling hole to prevent desiccant leakage and moisture intrusion; for packaging line models, after filling/inserting, the detection mechanism checks for missing filling, broken bags and other problems, and the unqualified products are automatically rejected, while the qualified products enter the next process. In addition, the machine is equipped with a material level sensor, which triggers an alarm and starts the automatic replenishment function when the desiccant is insufficient, ensuring the continuity of production.

The whole process is controlled by the PLC system, and the operating parameters (filling amount, filling speed, filling height, sealing time, etc.) can be adjusted and set through the touch screen, and the production data (production quantity, qualified rate, fault information, etc.) can be recorded and displayed in real time to realize intelligent management of the production process.

3.2 Key Structural Composition

The Automatic Dessicant Filling Machine is a complex system integrating multiple modules, and its core components directly determine the equipment's performance, stability and filling accuracy. The main structural modules are as follows:

3.2.1 Control System Module

As the "brain" of the equipment, it mainly includes PLC controller (mostly imported brands such as Siemens and Omron), touch human-machine interface (HMI), relay, contactor and other electrical components. The PLC system is responsible for receiving signals from sensors, issuing execution instructions to drive mechanisms, and realizing logic control of the whole process; the touch screen provides a human-computer interaction platform, which can set process parameters, store production recipes, monitor operating status and query fault information, and supports multi-language switching to adapt to different regional use needs.

3.2.2 Feeding and Metering Module

This module is the core to ensure filling accuracy, including feeding hopper, automatic feeding mechanism (vibration feeder, spiral propeller, pneumatic conveying pipeline), metering unit and material level detection sensor. The feeding hopper is usually made of food-grade or industrial-grade stainless steel, with a large capacity (standard 5L, optional 20L) to reduce the frequency of manual feeding; the metering unit adopts different forms according to desiccant types: granular desiccant uses infrared counting or volume metering, powdery desiccant uses spiral metering or weighing feedback metering, and desiccant bags use fixed-length cutting metering. The material level sensor monitors the residual amount of desiccant in real time, and sends an alarm signal when the material is insufficient to realize automatic replenishment.

3.2.3 Filling and Execution Module

Including filling head, servo drive mechanism, positioning fixture, pneumatic cylinder and other components. The filling head is designed with anti-drip and anti-blocking structure, and the filling height can be adjusted automatically according to the container size; the servo drive mechanism ensures the precise movement of the filling head, with a positioning accuracy of up to ±0.1mm; the positioning fixture can be quickly replaced to adapt to containers of different shapes and sizes (round, square, rectangular, etc.), realizing tool-free quick changeover. For insulating glass models, this module also includes an automatic drilling mechanism and a sealing mechanism, which can complete drilling and butyl rubber sealing synchronously with filling.

3.2.4 Detection and Rejection Module

Equipped with a variety of sensors (infrared sensor, photoelectric sensor, pressure sensor, weighing sensor), it realizes real-time detection of filling status, including missing filling detection, filling amount detection, desiccant bag breakage detection, container in-place detection, etc. When unqualified products are detected, the system immediately sends a signal, and the rejection mechanism pushes the unqualified products to the designated area to ensure that only qualified products enter the next process. At the same time, the module has fault self-diagnosis function, which can quickly locate faults such as motor abnormality, sensor failure and air pressure shortage, and display fault codes on the touch screen to facilitate maintenance.

3.2.5 Frame and Protective Module

The frame is made of high-strength aluminum alloy or stainless steel, with industrial plastic spraying treatment on the surface, which has the characteristics of corrosion resistance, wear resistance and easy cleaning; the protective module includes safety grating, emergency stop button, protective cover and other devices, which meets the industrial safety standards, prevents operators from contacting the moving parts, and ensures the safety of operation.

4. Core Technical Parameters and Performance Indicators

The technical parameters of the Automatic Dessicant Filling Machine are the key basis for measuring its performance and selecting models. Different types of equipment have different parameter standards, and the common core technical parameters and performance indicators are as follows:

4.1 Basic Operating Parameters


Power Supply: AC 110V/220V/380V, 50/60Hz, power range from 500W (small packaging line models) to 2.5KW (insulating glass large models);
Air Pressure Requirement: ≥0.65MPa, air consumption is 2-5CFM@90PSI, equipped with air filtration and pressure regulation device to ensure stable pneumatic operation;
Production Efficiency: Packaging line models can reach 10-150 bottles per minute (BPM), insulating glass models can complete filling of a 1m×1m spacer frame in about 30 seconds, and desiccant bag models can produce 20-100 bags per minute;
Adaptable Container/Spacer Size: Insulating glass models: minimum 300mm×250mm, maximum 2000mm×2000mm, spacer width 5.5-26.5mm; packaging line models: suitable for containers with a neck diameter of more than 2 inches, height of 1-12 inches, and desiccant bags with a size of ≤150mm×35mm;
Adaptable Desiccant Specifications: Granular diameter 0.5-1.5mm (molecular sieve, silica gel), columnar desiccant of various lengths, desiccant bags of 1-50g specifications.


4.2 Precision and Stability Indicators


Filling Accuracy: ±1%-±3% (for granular/powdery desiccant), counting accuracy of columnar desiccant/desiccant bags up to 99.9%;
Positioning Accuracy: Servo drive positioning accuracy ±0.1mm, ensuring that the filling head is accurately aligned with the container filling port;
Operating Stability: Continuous operation time of more than 24 hours, fault rate ≤0.5%, and the service life of core components (servo motor, PLC) is more than 5 years;
Sealing Performance: For insulating glass models, the butyl rubber sealing is tight, with no desiccant leakage and air leakage rate meeting the insulating glass industry standards; for desiccant bag models, the heat sealing strength is uniform, with no bag breakage and desiccant leakage.


4.3 Intelligent and Humanized Parameters


Recipe Storage Capacity: Can store 50-100 groups of production recipes, realizing one-key switching of different products;
Fault Self-Diagnosis: Can identify more than 50 kinds of common faults, and display fault causes and solutions in real time;
Data Interaction: Supports connection with MES system, realizes real-time upload of production data, and meets the needs of industrial digital management;
Changeover Time: Tool-free quick changeover, and the time for replacing container/desiccant specifications is ≤10 minutes.


5. Application Fields and Scenario Requirements

With the continuous improvement of industrial automation level and the increasingly strict requirements for product moisture-proof performance, the Automatic Dessicant Filling Machine has been widely used in multiple industries, and each field has specific scenario requirements for equipment performance.

5.1 Insulating Glass Manufacturing Industry

As the largest application field of desiccant filling machines, insulating glass needs to fill molecular sieve desiccant into the spacer frame to absorb moisture in the interlayer and prevent glass fogging and condensation. The industry requires the equipment to have the functions of automatic drilling, filling and sealing, adapt to various shapes of spacer frames (straight, arc, special-shaped), and the filling amount of molecular sieve is accurate to ensure the service life of insulating glass (more than 15 years). At the same time, the equipment needs to be compatible with flexible spacers (such as Swisspacer) and ordinary aluminum spacers, and can realize simultaneous filling of both sides of the spacer frame to improve production efficiency.

5.2 Food and Health Care Products Industry

Food (such as snacks, dried fruits, canned food) and health care products are extremely sensitive to moisture, and desiccant bags or columnar desiccants need to be inserted into the packaging to extend the shelf life. The industry has strict hygiene requirements, and the contact parts of the equipment must be made of food-grade 316 stainless steel, with no dead corners and easy cleaning to meet GMP and food safety standards; at the same time, the equipment needs to be seamlessly connected with the existing packaging line (filling, capping, labeling), with high-speed operation capacity (up to 150BPM) and zero missing filling rate to avoid food quality problems caused by missing desiccant.

5.3 Pharmaceutical Industry

Pharmaceutical products (such as tablets, capsules, powder injections) have extremely high requirements for moisture-proof and sterile environments. The desiccant filling machine needs to meet the pharmaceutical GMP certification, with dust-proof and sterile design, and the filling process is fully enclosed to avoid cross-contamination; the filling accuracy is higher (±1%), and the equipment has functions such as real-time monitoring of filling data and traceability of production records to meet the regulatory requirements of the pharmaceutical industry. In addition, the equipment needs to adapt to various pharmaceutical packaging containers (bottles, blister boxes, cartons) and realize flexible switching of different desiccant specifications.

5.4 Electronic and Precision Instrument Industry

Electronic components, circuit boards, precision instruments and other products are prone to short circuit, rust and performance degradation due to moisture. The desiccant filling machine needs to realize precise insertion of desiccant into electronic product packaging boxes/bags, with anti-static design to avoid damage to electronic components; the equipment has high stability, no dust and particle emission during operation, and adapts to small and precise packaging containers to meet the moisture-proof needs of high-value electronic products.

5.5 Other Industrial Fields

In addition, the Automatic Dessicant Filling Machine is also used in leather, furniture, textile, chemical and other industries, mainly for filling desiccant into product packaging to prevent moisture, mildew and oxidation during storage and transportation. For these fields, the equipment focuses on cost performance, adaptability to different desiccant types and simple operation, to meet the needs of small and medium-sized enterprises for automated production.

6. Core Advantages of Automatic Dessicant Filling Machine

Compared with manual and semi-automatic filling methods, the Automatic Dessicant Filling Machine has obvious advantages in efficiency, accuracy, cost, quality and intelligence, which is the core driving force for its popularization in the industry.

6.1 Significant Improvement of Production Efficiency

The fully automatic operation mode eliminates the link of manual intervention, and the production efficiency is 5-10 times higher than that of manual filling. Taking the packaging line model as an example, the production speed can reach 150BPM, and the insulating glass model can complete the filling of hundreds of spacer frames per hour; at the same time, the equipment can run continuously for 24 hours, and the automatic material replenishment and fault self-recovery functions reduce the downtime caused by material shortage and faults, greatly improving the overall production capacity of the production line.

6.2 Guaranteed Filling Accuracy and Product Quality

High-precision metering and sensing technology ensures the consistency of filling amount, avoiding the problems of insufficient moisture-proof effect caused by less filling and material waste caused by more filling; the fully enclosed filling process prevents desiccant from being polluted by dust and bacteria, and the detection and rejection module eliminates unqualified products, ensuring that each product meets the process standards. For industries such as food and pharmaceuticals, this effectively avoids quality accidents and reduces the loss caused by unqualified products.

6.3 Significant Reduction of Production Cost

On the one hand, it reduces labor costs: a fully automatic filling machine can replace 5-8 manual operators, and only one person is needed for daily operation and maintenance, which greatly saves labor expenditure; on the other hand, it reduces material waste: the accurate metering system reduces the waste of desiccant by more than 5% compared with manual operation, and the anti-breakage and anti-leakage design of the filling head reduces the loss of desiccant bags and containers; in addition, the long service life and low fault rate of the equipment reduce maintenance costs and downtime losses.

6.4 Strong Flexibility and Adaptability

The equipment can store multiple production recipes, and realize quick switching of different desiccant types, container specifications and filling processes by adjusting parameters on the touch screen, with tool-free changeover and strong adaptability to multi-variety and small-batch production; at the same time, it can be customized according to customer needs, such as adding double filling stations, height adjustment devices, special-shaped filling functions, etc., to meet the personalized process requirements of different industries.

6.5 Intelligent Management and Compliance Improvement

The PLC control system realizes real-time monitoring of production data, automatic recording of production quantity, qualified rate, fault information and other data, which is convenient for enterprises to carry out production management and quality traceability; the equipment meets industrial safety, food hygiene, pharmaceutical GMP and other industry standards, and the safety protection and sterile design help enterprises pass relevant certifications and meet regulatory requirements.

6.6 Improvement of Working Environment and Labor Safety

The fully enclosed operation reduces dust and noise, and the safety protection devices (safety grating, emergency stop button) avoid industrial accidents caused by manual contact with moving parts; at the same time, it liberates workers from heavy and repetitive manual labor, reduces labor intensity and improves the working environment of the production line.

7. Market Development Status and Trends

7.1 Global Market Status

In recent years, driven by the rapid development of food, pharmaceutical, electronic manufacturing, insulating glass and other downstream industries, the global demand for Automatic Dessicant Filling Machines has maintained a steady growth trend. The Asia-Pacific region, represented by China, Japan and South Korea, has become the largest market due to its rapid industrialization, large manufacturing scale and continuous improvement of automation level; Europe and the United States, as developed regions, focus on high-end intelligent and customized models, with high requirements for equipment accuracy, stability and compliance; emerging markets in Latin America, Africa and the Middle East are in the stage of industrial upgrading, and the demand for cost-effective automatic filling machines is growing rapidly.

At present, the global market competition pattern is relatively clear: European and American brands (such as LiSEC, BellatRx) occupy the high-end market with advanced technology, high stability and complete after-sales service, mainly serving large enterprises in the insulating glass and pharmaceutical industries; Chinese brands (such as ZONESUN, LIJIANG Glass) have rapidly risen with cost performance, fast delivery and customized services, and have a high market share in the middle and low-end markets and emerging markets, and some high-end models have gradually entered the European and American markets.

7.2 Core Market Trends

7.2.1 Intelligent and Digital Upgrading

With the development of industrial Internet and artificial intelligence, the Automatic Dessicant Filling Machine is developing towards higher intelligence: integrating AI algorithms to realize adaptive adjustment of filling parameters (automatically optimizing filling speed and metering accuracy according to desiccant characteristics and container changes); adding digital twin technology to simulate the filling process and predict faults in advance; realizing remote monitoring, fault diagnosis and program upgrade through cloud platforms, and meeting the needs of intelligent factory management.

7.2.2 High Precision and High Efficiency

Downstream industries have higher and higher requirements for desiccant filling accuracy and production efficiency, and the equipment is developing towards higher precision (filling accuracy up to ±0.5%) and higher speed (packaging line models exceeding 200BPM); at the same time, multi-station and multi-channel synchronous filling technology is adopted to further improve production capacity, and the lightweight and compact design reduces the floor space and improves the space utilization rate of the production line.

7.2.3 Green and Energy-Saving Development

In response to the global call for energy conservation and emission reduction, the equipment is optimized in terms of energy consumption: adopting high-efficiency servo motors and energy-saving pneumatic components to reduce power and air consumption; using recyclable and environmentally friendly materials for the frame and contact parts; designing a dust recovery system to collect desiccant dust and realize material recycling, reducing environmental pollution and material waste.

7.2.4 Customization and Integration

The personalized needs of downstream industries are becoming more and more prominent, and customized equipment (such as special-shaped container filling, ultra-small desiccant filling, high-temperature resistant desiccant filling) has become a new growth point; at the same time, the equipment is developing towards integration with the whole production line, realizing seamless connection with filling, capping, labeling, testing, packaging and other equipment, and forming a fully automated intelligent production line to improve the overall automation level of the factory.

7.2.5 Compliance and Standardization Improvement

With the increasingly strict regulatory standards in food, pharmaceutical and other industries, the equipment pays more attention to compliance design: meeting GMP, FDA, CE and other international certifications, with sterile, dust-proof and anti-cross-contamination functions; establishing a complete quality traceability system, recording the whole process of equipment operation and product production, to meet the regulatory requirements of product quality traceability.

8. Challenges and Future Development Prospects

8.1 Existing Challenges

Although the Automatic Dessicant Filling Machine has achieved rapid development, it still faces some challenges in the process of industrial popularization: first, the technical level of some domestic small and medium-sized brands is uneven, and the core components (such as high-precision sensors, servo motors) still rely on imports, resulting in high production costs and weak competitiveness in the high-end market; second, the after-sales service system of some enterprises is not perfect, and the response speed to equipment faults and maintenance needs is slow, affecting the user experience; third, the adaptability to special desiccants (such as ultra-fine powder, corrosive desiccant) and special containers (such as micro containers, irregular containers) needs to be further improved; fourth, the digital transformation of small and medium-sized enterprises is slow, and the acceptance and application capacity of high-end intelligent filling machines are insufficient.

8.2 Future Development Prospects

In the future, with the continuous advancement of industrial automation, the upgrading of downstream industries and the breakthrough of core technologies, the Automatic Dessicant Filling Machine will show broader development prospects:

In terms of technology, the localization of core components will be accelerated, and domestic brands will break through the technical monopoly of foreign brands in high-precision sensors, intelligent control systems and other fields, reducing production costs and improving product competitiveness; the integration of new technologies such as 5G, machine vision and big data will further improve the intelligence level of the equipment, realizing unmanned production and full-process digital management.

In terms of application, the application fields will continue to expand, and new energy batteries, aerospace, medical devices and other emerging high-end fields will put forward new demands for desiccant filling equipment, promoting the development of the equipment in the direction of ultra-high precision, ultra-clean and special environment adaptation; at the same time, the demand for customized and personalized equipment will continue to grow, and the equipment manufacturers will shift from "standardized production" to "customized solutions" to meet the diversified needs of different industries.

In terms of market, the global market demand will maintain steady growth, and Chinese brands will further expand the international market with technological advantages and cost performance, and the global competition pattern will be more balanced; the industry will accelerate the elimination of backward production capacity, and enterprises with core technologies, complete after-sales service and strong R&D capabilities will occupy a dominant position, promoting the healthy and standardized development of the industry.

9. Conclusion

The Automatic Dessicant Filling Machine, as an important part of modern industrial automation equipment, has become a key link to ensure product quality, improve production efficiency and reduce production costs in food, pharmaceutical, insulating glass, electronic manufacturing and other industries. It integrates mechanical, electrical, pneumatic, sensing and intelligent control technologies, and realizes the transformation of desiccant filling from manual and semi-automatic to fully automatic and intelligent, with significant advantages in efficiency, accuracy, cost and quality.

At present, the industry is in a period of rapid development of intelligent and digital upgrading, and is facing both opportunities such as the expansion of downstream market demand and the breakthrough of core technologies, as well as challenges such as technical bottlenecks and market competition. In the future, equipment manufacturers need to increase R&D investment, break through the technical barriers of core components, improve the level of intelligence and customization, and improve the after-sales service system; downstream enterprises need to accelerate the pace of automation transformation, and select appropriate filling equipment according to their own production needs to improve the overall competitiveness of the industrial chain.

With the continuous progress of technology and the continuous upgrading of industrial demand, the Automatic Dessicant Filling Machine will play a more important role in the global industrial manufacturing system, and promote the high-quality development of multiple industries with more intelligent, efficient and stable performance.





The article has covered all the core dimensions of the Automatic Dessicant Filling Machine with a formal and professional tone. If you need to adjust the content focus (such as adding more case studies, simplifying technical descriptions, or expanding market data), or modify the length and style, please feel free to let me know.

The insulating glass packaging machine is a key piece of automated equipment in the modern construction glass and energy-saving building materials industry, specially designed for the final protection, fixing, wrapping, strapping and stacking of insulated glass units (IGUs). It integrates mechanical transmission, precision positioning, pneumatic control, sensor detection and intelligent electrical systems to realize fully automatic or semi‑automatic packaging from finished insulated glass products to transport‑ready packages. This paper systematically elaborates the definition, functional positioning, mechanical structure, working process, classification characteristics, core technical indicators and application advantages of insulating glass packaging machines. It further analyzes their wide applications in architectural doors and windows, curtain walls, residential construction, commercial buildings and international logistics transportation, summarizes the selection and maintenance specifications, and prospects the intelligent, green, flexible and digital development trends of insulating glass packaging equipment. The study shows that high‑performance insulating glass packaging machines effectively improve production efficiency, reduce glass damage rates, standardize packaging quality and enhance logistics safety, providing strong support for large‑scale, standardized and intelligent production of insulated glass.

1. Introduction

With the rapid development of global energy‑efficient buildings, green construction policies and modern urbanization, the demand for insulated glass units (IGUs) has increased sharply in architectural engineering, residential housing, commercial complex and public facility construction. As a core component of energy‑efficient windows and doors, insulated glass features remarkable thermal insulation, sound insulation, anti‑condensation and safety performance, and its production and processing have entered a stage of large‑scale, automated and intelligent manufacturing. The production process of insulated glass includes glass washing, drying, spacer frame assembly, desiccant filling, butyl rubber coating, composite pressing, inert gas filling and secondary sealing. After these processes, finished insulated glass needs reliable, standardized and efficient packaging before entering storage and logistics links. Traditional manual packaging has problems such as high labor intensity, low efficiency, inconsistent packaging quality, high breakage risk and poor protection effect, which can no longer meet the requirements of modern insulated glass production lines.

Insulating glass packaging machines emerged as specialized automated equipment targeting the above pain points. They are designed to achieve stable clamping, corner protection installation, surface protection, film wrapping, strapping, stacking and handling of insulated glass of different sizes, thicknesses and weights. By replacing manual operation with mechanical automation, these machines ensure the integrity, cleanliness and safety of insulated glass during transportation and storage, reduce production costs and improve the overall competitiveness of glass processing enterprises. In the context of intelligent manufacturing and industrial upgrading, insulating glass packaging machines have become indispensable terminal equipment connecting insulated glass production lines and logistics systems. This paper focuses on the technical system, application value and development direction of insulating glass packaging machines to provide theoretical and practical references for equipment R&D, production application and technological upgrading in the glass deep processing industry.

2. Overview of Insulating Glass Packaging Machine

2.1 Definition and Functional Orientation

An insulating glass packaging machine is an automatic or semi‑automatic mechanical and electrical integration device dedicated to the surface protection, edge wrapping, corner protection, fixing, strapping, wrapping and palletizing of insulated glass units. Its core functions include: protecting the glass surface from scratches, collisions and contamination; reinforcing edge and corner strength to prevent chipping and breakage; fixing the glass to avoid relative sliding during transportation; forming standardized, neat and stable packaging units; and connecting with production lines to realize continuous automated operation.

2.2 Position in the Insulated Glass Production Line

Insulating glass packaging machines are located at the tail end of the entire insulated glass production line, following processes such as sealing, curing and quality inspection. They serve as the last key node before finished products enter storage and transportation. The operational stability and packaging effect of packaging machines directly affect product yield, delivery efficiency and after‑sales damage rate, making them critical to the operational efficiency and economic benefits of the whole production line.

2.3 Differences from General Glass Packaging Equipment

Compared with ordinary flat glass, tempered glass or laminated glass packaging machines, insulating glass packaging machines have higher technical requirements:


Adaptability to multi‑layer composite structures and different thickness combinations
Protection for sealing edges to avoid damage to sealing structures
High compatibility with variable length, width and thickness specifications
Stable clamping force control to prevent glass deformation or layer separation
Dust‑free and clean packaging requirements to maintain internal dryness


3. Core Structure and Composition System

Modern insulating glass packaging machines adopt modular design, which is convenient for installation, commissioning, maintenance and functional expansion. The whole machine mainly consists of the following systems:

3.1 Frame and Host Structure

The frame is made of high‑strength sectional steel or welded steel plate with overall annealing treatment to ensure rigidity, stability and non‑deformation during long‑term operation. The host structure supports transmission, clamping, wrapping and strapping modules, providing a stable foundation for high‑precision operation.

3.2 Automatic Conveying and Positioning System

This system includes motor‑driven roller tables, conveyor belts, frequency conversion speed regulation devices and photoelectric sensors. It realizes automatic feeding, conveying, stopping, centering and positioning of insulated glass, ensuring accurate entry into the packaging station without deviation or collision.

3.3 Corner Protector Installation Mechanism

Corner protectors (plastic, paper or foam) are critical for protecting glass corners. The mechanism includes corner storage, pneumatic clamping, pushing and pressing components to automatically install corner protectors at four corners and edges, greatly improving anti‑collision performance.

3.4 Surface Protection and Wrapping System

This system includes film unwinding, cutting, laminating and wrapping devices. It uses PE stretch film, anti‑scratch film, woven cloth or bubble film to fully wrap the glass surface, isolating dust, moisture and scratches. High‑end models adopt electrostatic prevention and non‑slip wrapping technology.

3.5 Strapping and Fixing System

Strapping machines use PP or PET straps to tighten and fix the wrapped glass automatically. Functions include automatic strap feeding, tensioning, hot melting, cutting and knotting, with stable and firm binding without damaging the packaging film. Tension can be adjusted according to glass specifications.

3.6 Pneumatic and Hydraulic Power System

The pneumatic system provides clamping, lifting and pushing power with stable pressure and fast response. The hydraulic system is used in large‑scale heavy‑duty models to provide higher clamping and lifting force, ensuring stable handling of large‑size and heavy insulated glass.

3.7 Electrical Control and Human‑Machine Interface

The core control system adopts a high‑performance PLC (Siemens, Mitsubishi, etc.) with a touch screen for parameter setting, mode switching, fault alarm and running status monitoring. It supports automatic, manual and debugging modes, with functions such as automatic counting, fault self‑diagnosis and emergency stop.

3.8 Safety Protection System

Safety guards, photoelectric protection, emergency stop buttons and overload protection ensure operator safety and equipment stability. When an obstacle is detected, the machine stops immediately to avoid glass breakage or personal injury.

4. Working Principle and Automatic Packaging Process

4.1 Basic Working Principle

The insulating glass packaging machine takes electrical control as the core, pneumatic/hydraulic power as the drive, and sensor detection as the feedback. It automatically completes conveying, positioning, corner protection, surface wrapping, strapping and output according to preset procedures. The whole process replaces manual labor with mechanical movement, ensuring consistency, stability and high efficiency.

4.2 Full Automatic Packaging Process


Automatic Feeding: The insulated glass finished product is transported from the production line to the packaging machine’s conveying platform.
Precision Positioning: Photoelectric sensors detect the glass position; the conveying system adjusts to center the glass accurately.
Corner Protector Mounting: Pneumatic mechanisms automatically install protective corners on four corners and side edges.
Surface Protection Film Covering: The film covering mechanism covers the glass surface with protective film.
Stretch Wrapping: The wrapping system rotates or horizontally wraps to cover the glass fully.
Automatic Strapping: The strapping system tensions, heats and cuts straps to fix the package firmly.
Output and Palletizing: The packaged glass is automatically output and can be connected with a palletizing robot for automatic stacking.


4.3 Control Logic

The whole machine follows a sequential interlock control logic: only when the previous process is completed can the next process start. Once abnormal conditions occur, such as misalignment, film breakage or strap shortage, the system alarms immediately and pauses to avoid defective packaging or equipment damage.

5. Classification of Insulating Glass Packaging Machines

According to automation degree, structure form, application scenario and function configuration, insulating glass packaging machines can be classified into the following categories:

5.1 By Automation Degree


Semi‑automatic insulating glass packaging machine: Requires manual assistance in film placement, corner placement or button triggering; suitable for small‑batch production.
Full‑automatic insulating glass packaging machine: One‑click automatic completion of the whole process; suitable for large‑scale and assembly‑line production.


5.2 By Structural Form


Vertical insulating glass packaging machine: Glass stands vertically during packaging; small footprint, suitable for conventional doors and windows.
Horizontal insulating glass packaging machine: Glass lies horizontally; suitable for large‑size, heavy, thick or curved insulated glass.


5.3 By Function Configuration


Basic type: Only wrapping + strapping
Standard type: Positioning + corner protection + wrapping + strapping
Full‑function type: With dust removal, surface cleaning, labeling, coding and palletizing interfaces


5.4 By Applicable Glass Specifications


Small and medium‑sized model: For doors and windows below 2.4m
Large and super‑large model: For curtain wall and special engineering glass above 3m


6. Core Technical Parameters and Performance Indicators

The performance of an insulating glass packaging machine is mainly evaluated by the following indicators:


Applicable glass size: Length, width and thickness range
Applicable glass weight: Maximum load capacity
Packaging speed: Units per minute/hour
Strapping quantity and spacing: Adjustable range
Wrapping film width and thickness: Adaptability
Clamping force adjustment range: To avoid glass damage
Control system: PLC brand, human‑machine interface
Power supply and air pressure: Standard configuration
Dimensions and weight: Installation space requirements
Failure rate and stability: Mean time between failures (MTBF)


7. Application Advantages in Industrial Production

7.1 Greatly Improve Production Efficiency

Automatic packaging can reach 300–600 pieces per shift, 3–5 times higher than manual packaging, matching the beat of modern high‑speed insulated glass production lines.

7.2 Significantly Reduce Breakage Rate

Professional protection and stable clamping reduce corner damage and surface scratches, lowering the breakage rate from manual 3–5% to below 0.5%.

7.3 Improve Packaging Standardization

Uniform wrapping tightness, strap position and corner protection ensure consistent appearance and structural stability, enhancing product image.

7.4 Reduce Labor Cost and Intensity

One operator can manage multiple machines, reducing labor demand by 70–80% and lowering long-term production costs.

7.5 Enhance Logistics Safety and Storage Efficiency

Standardized packaging facilitates stacking, handling and transportation, saving storage space and reducing transport damage.

7.6 Meet Clean and Dust‑Free Requirements

Closed automatic packaging reduces dust contamination and keeps the insulated glass interior dry and clean.

8. Typical Industrial Application Fields

8.1 Architectural Doors and Windows Industry

The largest application area, used for packaging energy‑saving insulated glass for residential buildings, offices and public constructions.

8.2 Curtain Wall and Engineering Glass

Large‑scale packaging machines serve high‑rise building curtain walls, shopping malls, airports and stations.

8.3 Export Glass Logistics

Standardized packaging meets international transport requirements, resisting moisture, salt spray and vibration during long‑distance shipping.

8.4 Household Appliances and Automotive Glass

Adapted for special insulated glass used in refrigeration, home appliances and vehicle windows.

8.5 Photovoltaic and Solar Energy Glass

Special anti‑static and high‑cleanliness packaging models for photovoltaic modules.

9. Selection Principles and Operation Maintenance

9.1 Selection Principles


Match production line speed and output
Adapt to glass size, thickness and weight range
Select vertical or horizontal structure according to plant space
Choose automation level based on product type and batch size
Prioritize stable brand, reliable configuration and convenient maintenance
Consider expandability for future product upgrades


9.2 Daily Operation Specifications


Operators must receive professional training
Check air pressure, voltage and strap/film supply before startup
Set parameters according to glass specifications
Monitor operation and handle alarms in time
Regularly clean dust and glue residue


9.3 Maintenance and Upkeep


Weekly lubrication of transmission parts
Monthly inspection of sensors, cylinders and motors
Quarterly calibration of positioning accuracy
Annual comprehensive maintenance and parts replacement
Use original consumables to ensure stability


10. Current Development Status and Future Trends

10.1 Current Industry Status

In recent years, with the popularization of energy‑saving buildings, insulated glass packaging machines have developed rapidly in China and globally. The technology has evolved from semi‑automatic to fully automatic, from single‑function to integrated, and from mechanical control to intelligent digital control. High‑end models integrate visual positioning, AI fault detection and flexible adjustment.

10.2 Future Development Trends


Higher Intelligence: AI visual recognition, automatic specification adjustment, unmanned operation
Flexible Production: Quick changeover for multi‑size mixed production
Green and Low‑Carbon: Energy‑saving motors, recyclable packaging materials
Digital Management: Data monitoring, remote diagnosis, MES connection
Integration and Completeness: Integration of cleaning, packaging, labeling and palletizing
Higher Safety and Stability: Stronger anti‑breakage, quieter and more reliable systems


11. Conclusion

As a key terminal device in the insulated glass industry chain, the insulating glass packaging machine plays an irreplaceable role in improving production efficiency, ensuring product quality, reducing damage rates and enhancing logistics safety. With the continuous advancement of energy‑efficient construction policies and intelligent manufacturing technology, automated, intelligent and integrated packaging equipment will become the mainstream choice for glass processing enterprises. The continuous innovation of insulating glass packaging machines will further promote the standardized, large‑scale and green development of the insulated glass industry, create greater economic and social value, and provide solid support for the global construction industry’s energy conservation, emission reduction and sustainable development.

Ethylene-Vinyl Acetate (EVA) film bending represents a precision materials-forming discipline that integrates polymer physics, thermal engineering, and mechanical shaping to realize controllable deformation of EVA polymeric films while preserving structural integrity, optical clarity, and functional performance. This formal exposition systematically examines the molecular and macromolecular foundations of EVA film bendability, establishes the governing principles and parametric boundaries of thermal-mechanical bending processes, evaluates quality-governing mechanisms and defect-mitigation strategies, and articulates validated industrial implementations across photovoltaics, architectural glazing, flexible electronics, and advanced packaging. By unifying material characterization, process modeling, and application engineering, this document establishes a rigorous technical framework for the design, scaling, and quality assurance of EVA film bending in high-performance manufacturing environments.

1. Introduction

EVA film, a thermoplastic copolymer of ethylene and vinyl acetate, occupies a distinctive position among functional polymeric films due to its balanced combination of optical transparency, elastomeric flexibility, thermal processability, and interfacial adhesion. In contrast to rigid engineering plastics and highly compliant elastomers, EVA exhibits a tunable modulus that enables controlled plastic and elastic bending under defined thermal and mechanical conditions. EVA film bending is not merely a geometric shaping operation but a materials transformation process that dictates long-term dimensional stability, optical uniformity, mechanical robustness, and service life in end-use assemblies.

Historically, EVA film has been deployed primarily as an encapsulant and interlayer material, where flat-sheet lamination dominated manufacturing workflows. However, the proliferation of curved, conformal, and three-dimensional product architectures—from curved photovoltaic modules and sculptural architectural glass to flexible display stacks and contoured medical devices—has elevated EVA film bending from a secondary operation to a core enabling technology. Contemporary industrial practice demands that bent EVA films maintain pristine optical transmission, resist microcracking and haze, preserve adhesive bonding strength, and withstand cyclic mechanical fatigue and environmental aging. These requirements necessitate a formal, science-based approach to EVA film bending that transcends empirical trial-and-error.

This paper presents a comprehensive technical treatment of EVA film bending, structured to support engineering specification, process development, and quality validation. It addresses material-dependent factors, thermal-mechanical process regimes, in-process monitoring, defect root-cause analysis, and scalable industrial applications. Emphasis is placed on formal engineering principles, quantitative parametric relationships, and repeatable manufacturing methodologies to ensure the reliability and reproducibility of bent EVA film components.

2. Material Foundations of EVA Film Bendability

2.1 Molecular Architecture and Deformation Behavior

The bendability of EVA film is intrinsically governed by its copolymer microstructure. Ethylene units provide crystalline domains that impart mechanical strength and structural stability, while vinyl acetate (VA) segments disrupt crystalline registry, introducing amorphous regions that confer flexibility, toughness, and low-temperature ductility. VA content—typically ranging from 15% to 33% for industrial-grade bending films—directly modulates the glass transition temperature (Tg), melt flow behavior, and elongation-at-break. Films engineered for precision bending commonly feature VA concentrations between 22% and 28%, balancing formability with post-forming shape retention.

Under bending stress, EVA undergoes a sequence of deformation regimes: elastic deflection at low strain, uniform plastic flow at moderate thermal activation, and localized strain narrowing at excessive stress or insufficient temperature. The characteristic rubbery elasticity of EVA above Tg enables large-radius bending with minimal internal stress, while cross-linked formulations (employed in high-durability applications) establish a molecular network that restricts irreversible flow and enhances recovery after bending. This molecular response defines the safe forming envelope for EVA film bending, distinguishing between recoverable elastic deflection and permanent shape-setting deformation.

2.2 Thermomechanical Properties Critical to Bending

Key performance metrics that govern EVA film bending include:


Flexural Modulus: Temperature-dependent stiffness that determines force requirements and springback behavior.
Elongation-at-Break: Typically 300%–800%, providing the extensibility required for convex and concave bending.
Melting Onset: 55°C–95°C, establishing the lower bound for thermally assisted forming.
Thermal Stability: Retention of molecular integrity up to approximately 120°C, preventing thermal degradation during processing.
Optical Retention: Resistance to haze, whitening, or birefringence under bending strain.


These properties collectively establish the process window for EVA film bending: operations conducted within the recommended thermal-mechanical envelope yield smooth, defect-free curved surfaces; excursions outside this window result in microcracking, stress whitening, uneven curvature, or permanent optical degradation.

2.3 Film Structure and Formulation Effects

Commercial EVA bending films are manufactured via extrusion casting or blown-film processes, which influence thickness uniformity, surface energy, and internal residual stress. Films produced for precision bending are calibrated to tight thickness tolerances (±2% for high-performance grades) to ensure consistent strain distribution across the bend zone. Additive packages—including UV stabilizers, cross-linking agents, and anti-oxidants—are formulated to preserve processability without compromising bend ductility. Cross-linked EVA films, widely used in photovoltaic and architectural applications, exhibit reduced creep under sustained bending and improved resistance to fatigue cracking during cyclic loading.

3. Principles of EVA Film Bending Processes

3.1 Thermal-Mechanical Forming Regimes

EVA film bending is universally implemented as a thermally assisted process, as cold bending induces excessive internal stress and leads to brittle fracture. Thermal activation softens the amorphous domains, lowers the flexural modulus, and enables controlled molecular rearrangement under mechanical constraint. Three primary process regimes are recognized in industrial practice:


Low-Temperature Elastic Bending (60°C–80°C): Used for gentle, large-radius curves where temporary deformation is sufficient; shape stability depends on rapid cooling and constraint.
Medium-Temperature Thermoforming (85°C–110°C): The dominant industrial regime for EVA film bending, enabling permanent shape setting with uniform deformation and minimal optical distortion.
High-Temperature Flow Bending (>115°C): Reserved for complex, tight-radius geometries; requires precise thermal profiling to avoid melting, thickness reduction, or molecular degradation.


In all regimes, uniform temperature distribution across the film is critical to prevent differential strain, which manifests as wrinkling, thickness variation, or localized failure.

3.2 Mechanical Bending Modes

EVA film bending is categorized by geometric configuration and stress distribution:


Convex Bending: External tensile stress dominates; requires sufficient elongation capacity to avoid necking or fracture.
Concave Bending: Internal compressive stress dominates; risk of wrinkling or buckling dominates over fracture.
Compound Curvature Bending: Simultaneous tensile and compressive stress in orthogonal axes; demands uniform heating and matched tooling to maintain dimensional fidelity.
Free-Bending vs. Constrained Bending: Free-bending relies on controlled force and cooling; constrained bending uses male/female tooling to enforce precise curvature and minimize springback.


Constrained bending is the formal industrial standard for high-precision applications, as it decouples operator variability from geometric outcome and ensures repeatable bend radii and angular accuracy.

3.3 Process Parameters and Parametric Interactions

Formal control of EVA film bending requires quantitative specification of interdependent parameters:


Temperature Profile: Ramp rate, soak time, peak temperature, and cooling rate.
Mechanical Force: Applied load, displacement rate, and holding pressure.
Tooling Geometry: Bend radius, contact surface finish, and thermal conductivity.
Film Condition: Initial temperature, moisture content, and pre-treatment status.


Interactions between these parameters define the forming limit diagram (FLD) for EVA film, which maps safe operating regions against failure modes. Formal process development employs design-of-experiments (DoE) methodologies to optimize parameter sets and establish statistical process control (SPC) limits for mass production.

4. Engineering Methodology for Controlled EVA Film Bending

4.1 Pre-Forming Preparation and Quality Assurance

Prior to bending, EVA film must undergo controlled conditioning to eliminate internal stress and moisture uptake, which can cause bubbling, delamination, or inconsistent deformation during heating. Industrial best practice includes:


Desiccant storage at 15°C–25°C and relative humidity <50%.
Pre-heat conditioning to remove residual extrusion stress.
Thickness and optical inspection to reject non-uniform sheets.
Surface cleaning to preserve adhesion and optical clarity.


4.2 Thermal Control and Uniformity Systems

Precision thermal delivery is the cornerstone of high-quality EVA film bending. Industrial systems employ:


Convective heating for gentle, uniform thermal transfer.
Infrared (IR) heating with spectral tuning for rapid, zone-controlled thermal input.
Conductive tooling for conformal heat distribution in constrained bending.
Closed-loop temperature monitoring with multi-point sensing to eliminate hot/cold spots.


Uniform thermal distribution ensures that the entire bend zone reaches the target deformation state simultaneously, preventing localized over-extension or under-forming.

4.3 Mechanical Actuation and Kinematic Control

Bending actuators are engineered to apply consistent, rate-controlled force to avoid shock loading. Servo-driven linear mechanisms and articulated tooling provide programmable bend profiles, enabling ramped deformation that matches the stress-relaxation behavior of EVA. Holding stages at peak deformation allow molecular stabilization prior to cooling, significantly reducing springback and improving dimensional stability.

4.4 Cooling and Shape Setting

Rapid, uniform cooling locks the deformed molecular structure into the desired geometry. Controlled cooling—via ambient convection, chilled air, or temperature-stabilized tooling—minimizes thermal shrinkage and internal residual stress. Abrupt quenching is avoided, as it can induce internal stress gradients that lead to post-forming warping or optical inhomogeneity.

4.5 In-Process Metrology and Validation

Formal EVA film bending processes integrate real-time metrology to validate geometric conformance and functional quality:


Laser profilometry for bend radius and angular accuracy.
Optical transmission and haze measurement to verify optical stability.
Thickness gauging to detect excessive thinning or wrinkling.
Microscopic inspection to rule out microcracking or crazing.


In-process validation ensures that deviations are contained within specification limits before downstream assembly.

5. Defect Mechanisms, Analysis, and Mitigation

5.1 Common Defects and Root Causes

Formal defect analysis in EVA film bending attributes anomalies to material, thermal, mechanical, or tooling factors:


Stress Whitening: Localized yielding due to insufficient temperature or excessive bend rate.
Microcracking: Exceeding elongation limits or sharp tooling edges.
Wrinkling/Buckling: Compressive instability in concave bending or uneven heating.
Thickness Reduction: Overheating and tensile flow in convex bending.
Optical Haze: Molecular chain alignment or microvoid formation under extreme strain.
Springback: Inadequate holding time, insufficient temperature, or rapid cooling.


5.2 Systematic Mitigation Strategies

Engineering mitigation is derived directly from root-cause mechanisms:


Expand thermal process windows to ensure uniform ductility.
Optimize tooling radii and surface finishes to eliminate stress concentrations.
Implement ramped deformation profiles to match material flow characteristics.
Use constrained forming to stabilize compressive zones and prevent wrinkling.
Apply closed-loop thermal and force control to maintain operation within the FLD.


Formal corrective actions are documented in process failure-mode effects analysis (PFMEA) frameworks to drive continuous improvement.

6. Industrial Applications of EVA Film Bending

6.1 Photovoltaic Module Encapsulation

Curved and flexible PV modules rely on precision-bent EVA encapsulant films to conform to contoured glass or flexible back-sheets. EVA film bending enables aesthetic, building-integrated photovoltaics (BIPV) with curved facades, sunshades, and structural glazing, while preserving high light transmittance and long-term environmental stability.

6.2 Architectural and Automotive Laminated Glass

Bent EVA film serves as a safe, transparent interlayer in curved laminated glass for architectural curtain walls, automotive sunroofs, and transportation glazing. Its excellent adhesion to glass, impact resistance, and acoustic damping properties make it a preferred alternative to conventional interlayers in complex curved assemblies.

6.3 Flexible Electronics and Optoelectronic Assemblies

EVA film bending supports the manufacturing of flexible displays, touch sensors, and wearable devices by providing a conformal, optically clear, and dielectrically stable substrate and encapsulant. Controlled bending ensures pixel-level uniformity and resistance to cyclic flex fatigue.

6.4 Advanced Packaging and Protective Films

High-value consumer goods, medical devices, and industrial components utilize bent EVA films for form-fitting protective packaging. The material’s thermoformability, clarity, and toughness enable custom contoured packaging with superior impact resistance and visual presentation.

7. Quality Standards and Performance Validation

Formal EVA film bending is governed by material and process standards that ensure fitness for service:


Optical Specifications: Light transmittance >90%, haze <1.5% after bending.
Mechanical Specifications: No cracking or whitening at specified minimum bend radius.
Dimensional Specifications: Bend radius tolerance ±1 mm, angular tolerance ±0.5°.
Environmental Stability: Passes thermal cycling, humidity aging, and UV exposure without delamination or degradation.


Validation includes accelerated aging tests, mechanical fatigue cycling, and long-term creep testing to verify performance over the product service life.

8. Conclusion

EVA film bending is a sophisticated thermal-mechanical forming process grounded in polymer physics, process engineering, and precision manufacturing. Its formal implementation requires rigorous control of material condition, thermal delivery, mechanical actuation, and in-process validation to produce defect-free, dimensionally accurate, and functionally robust curved EVA film components. As industrial demand for conformal, lightweight, and optically superior assemblies continues to grow, EVA film bending will remain a critical enabling technology across photovoltaics, architecture, automotive, flexible electronics, and advanced packaging.
