EVA Film bending
EVA Film bending
2026-03-05
×
Ethylene-Vinyl Acetate (EVA) film bending represents a precision materials-forming discipline that integrates polymer physics, thermal engineering, and mechanical shaping to realize controllable deformation of EVA polymeric films while preserving structural integrity, optical clarity, and functional performance. This formal exposition systematically examines the molecular and macromolecular foundations of EVA film bendability, establishes the governing principles and parametric boundaries of thermal-mechanical bending processes, evaluates quality-governing mechanisms and defect-mitigation strategies, and articulates validated industrial implementations across photovoltaics, architectural glazing, flexible electronics, and advanced packaging. By unifying material characterization, process modeling, and application engineering, this document establishes a rigorous technical framework for the design, scaling, and quality assurance of EVA film bending in high-performance manufacturing environments.
1. Introduction
EVA film, a thermoplastic copolymer of ethylene and vinyl acetate, occupies a distinctive position among functional polymeric films due to its balanced combination of optical transparency, elastomeric flexibility, thermal processability, and interfacial adhesion. In contrast to rigid engineering plastics and highly compliant elastomers, EVA exhibits a tunable modulus that enables controlled plastic and elastic bending under defined thermal and mechanical conditions. EVA film bending is not merely a geometric shaping operation but a materials transformation process that dictates long-term dimensional stability, optical uniformity, mechanical robustness, and service life in end-use assemblies.
Historically, EVA film has been deployed primarily as an encapsulant and interlayer material, where flat-sheet lamination dominated manufacturing workflows. However, the proliferation of curved, conformal, and three-dimensional product architectures—from curved photovoltaic modules and sculptural architectural glass to flexible display stacks and contoured medical devices—has elevated EVA film bending from a secondary operation to a core enabling technology. Contemporary industrial practice demands that bent EVA films maintain pristine optical transmission, resist microcracking and haze, preserve adhesive bonding strength, and withstand cyclic mechanical fatigue and environmental aging. These requirements necessitate a formal, science-based approach to EVA film bending that transcends empirical trial-and-error.
This paper presents a comprehensive technical treatment of EVA film bending, structured to support engineering specification, process development, and quality validation. It addresses material-dependent factors, thermal-mechanical process regimes, in-process monitoring, defect root-cause analysis, and scalable industrial applications. Emphasis is placed on formal engineering principles, quantitative parametric relationships, and repeatable manufacturing methodologies to ensure the reliability and reproducibility of bent EVA film components.
2. Material Foundations of EVA Film Bendability
2.1 Molecular Architecture and Deformation Behavior
The bendability of EVA film is intrinsically governed by its copolymer microstructure. Ethylene units provide crystalline domains that impart mechanical strength and structural stability, while vinyl acetate (VA) segments disrupt crystalline registry, introducing amorphous regions that confer flexibility, toughness, and low-temperature ductility. VA content—typically ranging from 15% to 33% for industrial-grade bending films—directly modulates the glass transition temperature (Tg), melt flow behavior, and elongation-at-break. Films engineered for precision bending commonly feature VA concentrations between 22% and 28%, balancing formability with post-forming shape retention.
Under bending stress, EVA undergoes a sequence of deformation regimes: elastic deflection at low strain, uniform plastic flow at moderate thermal activation, and localized strain narrowing at excessive stress or insufficient temperature. The characteristic rubbery elasticity of EVA above Tg enables large-radius bending with minimal internal stress, while cross-linked formulations (employed in high-durability applications) establish a molecular network that restricts irreversible flow and enhances recovery after bending. This molecular response defines the safe forming envelope for EVA film bending, distinguishing between recoverable elastic deflection and permanent shape-setting deformation.
2.2 Thermomechanical Properties Critical to Bending
Key performance metrics that govern EVA film bending include:
- Flexural Modulus: Temperature-dependent stiffness that determines force requirements and springback behavior.
- Elongation-at-Break: Typically 300%–800%, providing the extensibility required for convex and concave bending.
- Melting Onset: 55°C–95°C, establishing the lower bound for thermally assisted forming.
- Thermal Stability: Retention of molecular integrity up to approximately 120°C, preventing thermal degradation during processing.
- Optical Retention: Resistance to haze, whitening, or birefringence under bending strain.
These properties collectively establish the process window for EVA film bending: operations conducted within the recommended thermal-mechanical envelope yield smooth, defect-free curved surfaces; excursions outside this window result in microcracking, stress whitening, uneven curvature, or permanent optical degradation.
2.3 Film Structure and Formulation Effects
Commercial EVA bending films are manufactured via extrusion casting or blown-film processes, which influence thickness uniformity, surface energy, and internal residual stress. Films produced for precision bending are calibrated to tight thickness tolerances (±2% for high-performance grades) to ensure consistent strain distribution across the bend zone. Additive packages—including UV stabilizers, cross-linking agents, and anti-oxidants—are formulated to preserve processability without compromising bend ductility. Cross-linked EVA films, widely used in photovoltaic and architectural applications, exhibit reduced creep under sustained bending and improved resistance to fatigue cracking during cyclic loading.
3. Principles of EVA Film Bending Processes
3.1 Thermal-Mechanical Forming Regimes
EVA film bending is universally implemented as a thermally assisted process, as cold bending induces excessive internal stress and leads to brittle fracture. Thermal activation softens the amorphous domains, lowers the flexural modulus, and enables controlled molecular rearrangement under mechanical constraint. Three primary process regimes are recognized in industrial practice:
- Low-Temperature Elastic Bending (60°C–80°C): Used for gentle, large-radius curves where temporary deformation is sufficient; shape stability depends on rapid cooling and constraint.
- Medium-Temperature Thermoforming (85°C–110°C): The dominant industrial regime for EVA film bending, enabling permanent shape setting with uniform deformation and minimal optical distortion.
- High-Temperature Flow Bending (>115°C): Reserved for complex, tight-radius geometries; requires precise thermal profiling to avoid melting, thickness reduction, or molecular degradation.
In all regimes, uniform temperature distribution across the film is critical to prevent differential strain, which manifests as wrinkling, thickness variation, or localized failure.
3.2 Mechanical Bending Modes
EVA film bending is categorized by geometric configuration and stress distribution:
- Convex Bending: External tensile stress dominates; requires sufficient elongation capacity to avoid necking or fracture.
- Concave Bending: Internal compressive stress dominates; risk of wrinkling or buckling dominates over fracture.
- Compound Curvature Bending: Simultaneous tensile and compressive stress in orthogonal axes; demands uniform heating and matched tooling to maintain dimensional fidelity.
- Free-Bending vs. Constrained Bending: Free-bending relies on controlled force and cooling; constrained bending uses male/female tooling to enforce precise curvature and minimize springback.
Constrained bending is the formal industrial standard for high-precision applications, as it decouples operator variability from geometric outcome and ensures repeatable bend radii and angular accuracy.
3.3 Process Parameters and Parametric Interactions
Formal control of EVA film bending requires quantitative specification of interdependent parameters:
- Temperature Profile: Ramp rate, soak time, peak temperature, and cooling rate.
- Mechanical Force: Applied load, displacement rate, and holding pressure.
- Tooling Geometry: Bend radius, contact surface finish, and thermal conductivity.
- Film Condition: Initial temperature, moisture content, and pre-treatment status.
Interactions between these parameters define the forming limit diagram (FLD) for EVA film, which maps safe operating regions against failure modes. Formal process development employs design-of-experiments (DoE) methodologies to optimize parameter sets and establish statistical process control (SPC) limits for mass production.
4. Engineering Methodology for Controlled EVA Film Bending
4.1 Pre-Forming Preparation and Quality Assurance
Prior to bending, EVA film must undergo controlled conditioning to eliminate internal stress and moisture uptake, which can cause bubbling, delamination, or inconsistent deformation during heating. Industrial best practice includes:
- Desiccant storage at 15°C–25°C and relative humidity <50%.
- Pre-heat conditioning to remove residual extrusion stress.
- Thickness and optical inspection to reject non-uniform sheets.
- Surface cleaning to preserve adhesion and optical clarity.
4.2 Thermal Control and Uniformity Systems
Precision thermal delivery is the cornerstone of high-quality EVA film bending. Industrial systems employ:
- Convective heating for gentle, uniform thermal transfer.
- Infrared (IR) heating with spectral tuning for rapid, zone-controlled thermal input.
- Conductive tooling for conformal heat distribution in constrained bending.
- Closed-loop temperature monitoring with multi-point sensing to eliminate hot/cold spots.
Uniform thermal distribution ensures that the entire bend zone reaches the target deformation state simultaneously, preventing localized over-extension or under-forming.
4.3 Mechanical Actuation and Kinematic Control
Bending actuators are engineered to apply consistent, rate-controlled force to avoid shock loading. Servo-driven linear mechanisms and articulated tooling provide programmable bend profiles, enabling ramped deformation that matches the stress-relaxation behavior of EVA. Holding stages at peak deformation allow molecular stabilization prior to cooling, significantly reducing springback and improving dimensional stability.
4.4 Cooling and Shape Setting
Rapid, uniform cooling locks the deformed molecular structure into the desired geometry. Controlled cooling—via ambient convection, chilled air, or temperature-stabilized tooling—minimizes thermal shrinkage and internal residual stress. Abrupt quenching is avoided, as it can induce internal stress gradients that lead to post-forming warping or optical inhomogeneity.
4.5 In-Process Metrology and Validation
Formal EVA film bending processes integrate real-time metrology to validate geometric conformance and functional quality:
- Laser profilometry for bend radius and angular accuracy.
- Optical transmission and haze measurement to verify optical stability.
- Thickness gauging to detect excessive thinning or wrinkling.
- Microscopic inspection to rule out microcracking or crazing.
In-process validation ensures that deviations are contained within specification limits before downstream assembly.
5. Defect Mechanisms, Analysis, and Mitigation
5.1 Common Defects and Root Causes
Formal defect analysis in EVA film bending attributes anomalies to material, thermal, mechanical, or tooling factors:
- Stress Whitening: Localized yielding due to insufficient temperature or excessive bend rate.
- Microcracking: Exceeding elongation limits or sharp tooling edges.
- Wrinkling/Buckling: Compressive instability in concave bending or uneven heating.
- Thickness Reduction: Overheating and tensile flow in convex bending.
- Optical Haze: Molecular chain alignment or microvoid formation under extreme strain.
- Springback: Inadequate holding time, insufficient temperature, or rapid cooling.
5.2 Systematic Mitigation Strategies
Engineering mitigation is derived directly from root-cause mechanisms:
- Expand thermal process windows to ensure uniform ductility.
- Optimize tooling radii and surface finishes to eliminate stress concentrations.
- Implement ramped deformation profiles to match material flow characteristics.
- Use constrained forming to stabilize compressive zones and prevent wrinkling.
- Apply closed-loop thermal and force control to maintain operation within the FLD.
Formal corrective actions are documented in process failure-mode effects analysis (PFMEA) frameworks to drive continuous improvement.
6. Industrial Applications of EVA Film Bending
6.1 Photovoltaic Module Encapsulation
Curved and flexible PV modules rely on precision-bent EVA encapsulant films to conform to contoured glass or flexible back-sheets. EVA film bending enables aesthetic, building-integrated photovoltaics (BIPV) with curved facades, sunshades, and structural glazing, while preserving high light transmittance and long-term environmental stability.

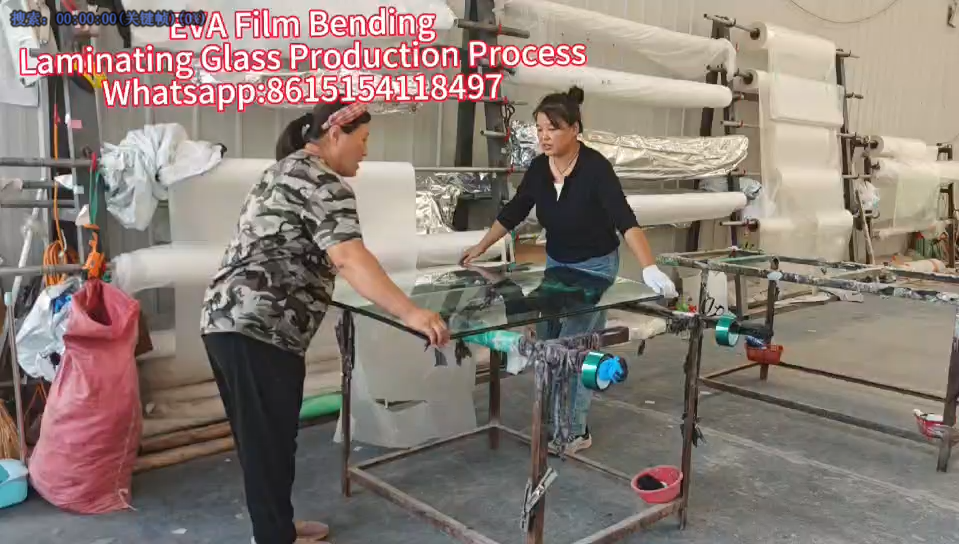

6.2 Architectural and Automotive Laminated Glass
Bent EVA film serves as a safe, transparent interlayer in curved laminated glass for architectural curtain walls, automotive sunroofs, and transportation glazing. Its excellent adhesion to glass, impact resistance, and acoustic damping properties make it a preferred alternative to conventional interlayers in complex curved assemblies.
6.3 Flexible Electronics and Optoelectronic Assemblies
EVA film bending supports the manufacturing of flexible displays, touch sensors, and wearable devices by providing a conformal, optically clear, and dielectrically stable substrate and encapsulant. Controlled bending ensures pixel-level uniformity and resistance to cyclic flex fatigue.
6.4 Advanced Packaging and Protective Films
High-value consumer goods, medical devices, and industrial components utilize bent EVA films for form-fitting protective packaging. The material’s thermoformability, clarity, and toughness enable custom contoured packaging with superior impact resistance and visual presentation.
7. Quality Standards and Performance Validation
Formal EVA film bending is governed by material and process standards that ensure fitness for service:
- Optical Specifications: Light transmittance >90%, haze <1.5% after bending.
- Mechanical Specifications: No cracking or whitening at specified minimum bend radius.
- Dimensional Specifications: Bend radius tolerance ±1 mm, angular tolerance ±0.5°.
- Environmental Stability: Passes thermal cycling, humidity aging, and UV exposure without delamination or degradation.
Validation includes accelerated aging tests, mechanical fatigue cycling, and long-term creep testing to verify performance over the product service life.
8. Conclusion
EVA film bending is a sophisticated thermal-mechanical forming process grounded in polymer physics, process engineering, and precision manufacturing. Its formal implementation requires rigorous control of material condition, thermal delivery, mechanical actuation, and in-process validation to produce defect-free, dimensionally accurate, and functionally robust curved EVA film components. As industrial demand for conformal, lightweight, and optically superior assemblies continues to grow, EVA film bending will remain a critical enabling technology across photovoltaics, architecture, automotive, flexible electronics, and advanced packaging.
