I. Introduction



Mechanized production of insulating glass significantly improves production efficiency and product quality. This plan details the process of manufacturing insulating glass using automated machinery.



II. Production Process



A. Glass Feeding and Cutting



- Automated Loading: High - speed robotic arms are used to load large sheets of float glass from storage racks onto the glass cutting line. These arms are programmed to handle the glass gently to avoid scratches or breakages.

- Precision Cutting: Computer - controlled glass cutting machines measure and cut the glass according to pre - set dimensions. The cutting blades are automatically adjusted for different glass thicknesses, ensuring a precise cut with an accuracy of ± 0.5mm.



B. Edge Processing



- Grinding and Polishing: The cut glass edges are fed into an automated edge - processing machine. This machine uses rotating abrasive wheels to grind the edges smoothly and then polishes them to enhance the glass's appearance and adhesion for sealants.

- Drilling (if required): For customized insulating glass with holes, a numerically - controlled drilling machine is integrated into the production line. It accurately drills holes based on the input specifications, with a high - speed spindle ensuring clean and precise holes.



C. Washing and Drying



- The Glass will be washed with the glass washing machine.The machine is with 6 soft brushes for cleaning and knieves for drying.It is ok for Low-E glass and the glass thickness can be adjusted automatically.



D. Spacer and Desiccant Handling



- Spacer Bending and Assembly: An automatic spacer bending machine forms aluminum or stainless - steel spacers into the required shapes. The machine can handle different spacer profiles and lengths. Desiccant is automatically filled into the spacers through a precise dosing system to absorb moisture in the air gap.

- Spacer Placement: Robotic arms pick up the bent spacers and accurately position them between the cleaned glass sheets on a conveyor - based assembly platform.



E. Gas Filling (Optional)



- Inert Gas Injection: For insulating glass that requires enhanced thermal performance, an automated gas - filling machine is used. It injects inert gases like argon or krypton into the air gap between the glass panes. The gas flow rate and pressure are precisely controlled to achieve the desired gas concentration.



F. Sealing



- Primary Seal Application: A robotic sealant dispensing arm applies the primary sealant, typically polysulfide, along the inner edge of the spacer. The arm moves at a constant speed and pressure, ensuring an even and consistent sealant layer.

- Secondary Seal Application: After the primary seal has cured to a certain extent, another robotic arm applies the secondary sealant, such as silicone, on the outside of the primary seal. This provides additional protection and strength to the insulating glass unit.



III. Quality Assurance



- In - line Inspection: Throughout the production process, multiple in - line inspection stations are installed. These use sensors and cameras to detect defects such as uneven sealant application, air bubbles, and misaligned components. Defective products are automatically flagged and removed from the production line.

- Final Testing: Before packaging, each insulating glass unit undergoes a final set of tests, including a leak test for gas - filled units and a dimensional accuracy check. Only products that meet the strict quality standards are approved for shipment.



IV. Conclusion



This mechanized production process for insulating glass, with its combination of automated machinery and strict quality control measures, ensures the efficient production of high - quality insulating glass products, meeting the demands of the construction and related industries.

Double Head Low-E Film Deletion Machine: Technical Overview, Operational Principles and Industrial Applications

Abstract

The Double Head Low-E Film Deletion Machine is a high‑precision, high‑efficiency special equipment designed for removing the low‑emissivity coating along the edges of Low‑E glass. It adopts dual independent grinding heads, an intelligent CNC or PLC control system, pneumatic positioning, and an air‑flotation worktable to achieve synchronous, stable, and residue‑free edge deletion on two adjacent edges of glass sheets. This equipment is essential in the production of insulating glass, architectural glass, automotive glass, and energy‑saving glass, as it ensures reliable sealing, stable bonding, and long service life of final glass units. This article systematically introduces the definition, structural composition, working principle, core technical features, advantages, applications, operation, maintenance, and development trends of the double head Low‑E film deletion machine, providing a complete technical reference for glass deep‑processing enterprises.

1. Introduction

With the global promotion of green building and energy‑saving policies, Low‑E (low‑emissivity) glass has become the preferred material in modern construction, automotive, home appliance, and photovoltaic industries due to its excellent thermal insulation, light transmission, and UV protection performance. However, the metallic coating on Low‑E glass surface will seriously affect the bonding strength and sealing effect between glass and sealant, leading to risks such as degumming, air leakage, and hollow layer failure. Therefore, removing a certain width of the coating along the glass edge before sealing and tempering is an indispensable process.

Traditional manual film removal and single‑head deletion machines suffer from low efficiency, uneven deletion, residual coating, high labor intensity, and poor consistency. The double head Low‑E film deletion machine overcomes these shortcomings through dual synchronous heads, automatic positioning, and intelligent control. It can process two edges simultaneously, greatly improving production efficiency and product qualification rate. It has become core supporting equipment in automated glass processing lines.

2. Basic Definition and Classification

2.1 Definition

Double Head Low-E Film Deletion Machine is an automatic or semi-automatic mechanical equipment specially used to strip the low-emissivity coating layer from the edge of coated glass. It is equipped with two independently controlled or synchronously linked grinding heads, which can remove the film on two adjacent sides of glass at the same time. The deletion width, speed, and pressure are adjustable to adapt to different glass thicknesses, sizes, and coating types.

2.2 Classification


By control mode: semi-automatic (manual feeding) and fully automatic (automatic sensing, conveying, and positioning).
By structure: horizontal air-flotation type and vertical conveying type.
By application: standard type for architectural insulating glass, high-precision type for automotive glass, multi-functional type compatible with single-silver, double-silver, and triple-silver Low-E glass.
By grinding method: resin wheel grinding, diamond wheel grinding, and combined grinding system.


3. Structural Composition

The double head Low-E film deletion machine integrates machinery, electricity, pneumatics, and intelligent control. Its main components include:

3.1 Heavy-Duty Frame Structure

The frame is welded with high-strength steel and treated by stress relief, ensuring high rigidity, low vibration, and stable operation during long-term production. The stable structure guarantees precision and reduces glass damage caused by shaking.

3.2 Double Independent Grinding Head System

Two high-speed grinding motors drive special wear-resistant resin or diamond grinding wheels. The heads can move synchronously or independently, with adjustable height, pressure, and deletion width. They can process different glass thicknesses from 3 mm to 15 mm and ensure clean, scratch-free removal.

3.3 Air-Flotation Workbench

The workbench is equipped with high-pressure air nozzles to form a stable air cushion, allowing labor-free and low-damage movement of large glass sheets. It effectively reduces friction and edge breakage during feeding and positioning.

3.4 Pneumatic Clamping & Positioning System

Precision pneumatic cylinders fix the glass position automatically to avoid sliding during grinding. The positioning system ensures consistent deletion width and high dimensional accuracy.

3.5 Intelligent Control System

Equipped with PLC or CNC controller and touch screen, it supports one-key operation, parameter storage, deletion width setting, speed adjustment, and fault self-diagnosis. The human-machine interface is intuitive and easy to master.

3.6 Dust Collection & Environmental Protection System

A built-in vacuum dust collection device absorbs coating dust in real time, preventing dust pollution and protecting the health of operators. It keeps the workbench clean and improves working environment.

3.7 Safety Protection System

Equipped with emergency stop, safety grating, overload protection, and limit switches to ensure safe operation and prevent personal injury or equipment damage.

4. Working Principle

The working process of the double head Low-E film deletion machine follows a stable and efficient logic:



Feeding & Positioning

The operator places the glass on the air-flotation table and pushes it to the positioning area. The pneumatic system automatically clamps and fixes the glass sheet.



Parameter Setting

Set deletion width, grinding speed, and pressure on the touch screen according to glass thickness and coating type.



Dual-Head Synchronous Deletion

The two grinding heads start simultaneously and move along the glass edges to remove the Low-E coating completely and evenly.



Automatic Stop & Unloading

When deletion is finished, the heads return automatically. The air cushion starts again for easy unloading. For four-edge deletion, the glass is rotated 90 degrees for repeated processing.




The dual-head design doubles efficiency compared with single-head machines. The precise pressure control ensures no damage to the glass surface while removing the coating thoroughly.

5. Core Technical Characteristics and Advantages

5.1 High Efficiency & Double Productivity

Two grinding heads work at the same time, significantly reducing processing time. Fully automatic models can be linked with glass cutting lines and insulating glass production lines to realize continuous flow operation.

5.2 High Precision & Good Consistency

Deletion width can be adjusted from 5 mm to 50 mm with an error less than ±1 mm. The edge is clean and residue-free, which greatly improves the sealing quality and service life of insulating glass.

5.3 Wide Compatibility

Suitable for single-silver, double-silver, triple-silver Low-E glass, coated glass, reflective glass, and solar glass. Compatible with various glass sizes and thicknesses.

5.4 Low Breakage Rate & High Stability

Air-flotation table, soft clamping, and stable pressure control minimize glass scratch and breakage. The breakage rate is controlled below 0.3%.

5.5 Easy Operation & Low Labor Intensity

Intelligent touch screen control reduces professional skill requirements. Air flotation makes glass movement effortless, reducing operator fatigue.

5.6 Environmentally Friendly & Low Maintenance

Dust removal system ensures clean production. The grinding wheels have long service life and are easy to replace. The overall structure is simple with low failure rate.

6. Main Application Fields

6.1 Insulating Glass Production

The most important application: removing edge coating to ensure reliable bonding between glass and butyl rubber / structural sealant, preventing hollow glass failure.

6.2 Architectural Glass Processing

Used for curtain wall glass, doors and windows, skylights, and partition glass to meet building energy-saving and safety standards.

6.3 Automotive Glass

Edge treatment of automotive sunroofs, rear windshields, and side windows to ensure optical performance and sealing reliability.

6.4 Home Appliance & Photovoltaic Glass

Suitable for oven doors, refrigerator shelves, solar panels, and display glass, improving product durability and appearance.

7. Operation and Maintenance

7.1 Standard Operation


Check power, air pressure, grinding wheels, and dust collector before startup.
Set correct parameters according to glass type.
Do not place hands near grinding heads during operation.
Clean glass chippings and dust after shutdown.


7.2 Daily Maintenance


Clean the workbench and dust collection box daily.
Check air tightness of pneumatic components.
Lubricate linear guides and transmission parts regularly.
Replace worn grinding wheels to ensure deletion quality.


7.3 Regular Overhaul

Check motor current, control system, and positioning accuracy every 6–12 months. Replace aging wearing parts to extend service life.

8. Development Trend

8.1 Higher Intelligence

Future models will integrate AI visual recognition, automatic glass size detection, automatic coating identification, and remote monitoring for unmanned production.

8.2 Higher Integration

The machine will combine with loading, cutting, edging, and washing functions to form a fully automatic processing unit.

8.3 Greener & More Efficient

Energy-saving motors, optimized dust removal, and quieter design will meet environmental requirements.

8.4 More Specialized Customization

Special models for ultra-thin glass, large-size glass, and shaped glass will be developed to meet diversified market demands.

9. Conclusion

The Double Head Low-E Film Deletion Machine is key equipment in the modern glass deep-processing industry. It solves the problems of low efficiency and poor quality in traditional film removal processes, and guarantees the sealing performance, structural stability, and service life of Low-E glass products. With the rapid development of energy-saving buildings and automotive industries, the demand for high-quality coated glass will continue to grow, and the double head Low-E film deletion machine will become more intelligent, efficient, and integrated. For glass processing enterprises, choosing reliable double head film deletion equipment is an important way to improve product quality, reduce production costs, and enhance market competitiveness.

The insulating glass packaging machine is a key piece of automated equipment in the modern construction glass and energy-saving building materials industry, specially designed for the final protection, fixing, wrapping, strapping and stacking of insulated glass units (IGUs). It integrates mechanical transmission, precision positioning, pneumatic control, sensor detection and intelligent electrical systems to realize fully automatic or semi‑automatic packaging from finished insulated glass products to transport‑ready packages. This paper systematically elaborates the definition, functional positioning, mechanical structure, working process, classification characteristics, core technical indicators and application advantages of insulating glass packaging machines. It further analyzes their wide applications in architectural doors and windows, curtain walls, residential construction, commercial buildings and international logistics transportation, summarizes the selection and maintenance specifications, and prospects the intelligent, green, flexible and digital development trends of insulating glass packaging equipment. The study shows that high‑performance insulating glass packaging machines effectively improve production efficiency, reduce glass damage rates, standardize packaging quality and enhance logistics safety, providing strong support for large‑scale, standardized and intelligent production of insulated glass.

1. Introduction

With the rapid development of global energy‑efficient buildings, green construction policies and modern urbanization, the demand for insulated glass units (IGUs) has increased sharply in architectural engineering, residential housing, commercial complex and public facility construction. As a core component of energy‑efficient windows and doors, insulated glass features remarkable thermal insulation, sound insulation, anti‑condensation and safety performance, and its production and processing have entered a stage of large‑scale, automated and intelligent manufacturing. The production process of insulated glass includes glass washing, drying, spacer frame assembly, desiccant filling, butyl rubber coating, composite pressing, inert gas filling and secondary sealing. After these processes, finished insulated glass needs reliable, standardized and efficient packaging before entering storage and logistics links. Traditional manual packaging has problems such as high labor intensity, low efficiency, inconsistent packaging quality, high breakage risk and poor protection effect, which can no longer meet the requirements of modern insulated glass production lines.

Insulating glass packaging machines emerged as specialized automated equipment targeting the above pain points. They are designed to achieve stable clamping, corner protection installation, surface protection, film wrapping, strapping, stacking and handling of insulated glass of different sizes, thicknesses and weights. By replacing manual operation with mechanical automation, these machines ensure the integrity, cleanliness and safety of insulated glass during transportation and storage, reduce production costs and improve the overall competitiveness of glass processing enterprises. In the context of intelligent manufacturing and industrial upgrading, insulating glass packaging machines have become indispensable terminal equipment connecting insulated glass production lines and logistics systems. This paper focuses on the technical system, application value and development direction of insulating glass packaging machines to provide theoretical and practical references for equipment R&D, production application and technological upgrading in the glass deep processing industry.

2. Overview of Insulating Glass Packaging Machine

2.1 Definition and Functional Orientation

An insulating glass packaging machine is an automatic or semi‑automatic mechanical and electrical integration device dedicated to the surface protection, edge wrapping, corner protection, fixing, strapping, wrapping and palletizing of insulated glass units. Its core functions include: protecting the glass surface from scratches, collisions and contamination; reinforcing edge and corner strength to prevent chipping and breakage; fixing the glass to avoid relative sliding during transportation; forming standardized, neat and stable packaging units; and connecting with production lines to realize continuous automated operation.

2.2 Position in the Insulated Glass Production Line

Insulating glass packaging machines are located at the tail end of the entire insulated glass production line, following processes such as sealing, curing and quality inspection. They serve as the last key node before finished products enter storage and transportation. The operational stability and packaging effect of packaging machines directly affect product yield, delivery efficiency and after‑sales damage rate, making them critical to the operational efficiency and economic benefits of the whole production line.

2.3 Differences from General Glass Packaging Equipment

Compared with ordinary flat glass, tempered glass or laminated glass packaging machines, insulating glass packaging machines have higher technical requirements:


Adaptability to multi‑layer composite structures and different thickness combinations
Protection for sealing edges to avoid damage to sealing structures
High compatibility with variable length, width and thickness specifications
Stable clamping force control to prevent glass deformation or layer separation
Dust‑free and clean packaging requirements to maintain internal dryness


3. Core Structure and Composition System

Modern insulating glass packaging machines adopt modular design, which is convenient for installation, commissioning, maintenance and functional expansion. The whole machine mainly consists of the following systems:

3.1 Frame and Host Structure

The frame is made of high‑strength sectional steel or welded steel plate with overall annealing treatment to ensure rigidity, stability and non‑deformation during long‑term operation. The host structure supports transmission, clamping, wrapping and strapping modules, providing a stable foundation for high‑precision operation.

3.2 Automatic Conveying and Positioning System

This system includes motor‑driven roller tables, conveyor belts, frequency conversion speed regulation devices and photoelectric sensors. It realizes automatic feeding, conveying, stopping, centering and positioning of insulated glass, ensuring accurate entry into the packaging station without deviation or collision.

3.3 Corner Protector Installation Mechanism

Corner protectors (plastic, paper or foam) are critical for protecting glass corners. The mechanism includes corner storage, pneumatic clamping, pushing and pressing components to automatically install corner protectors at four corners and edges, greatly improving anti‑collision performance.

3.4 Surface Protection and Wrapping System

This system includes film unwinding, cutting, laminating and wrapping devices. It uses PE stretch film, anti‑scratch film, woven cloth or bubble film to fully wrap the glass surface, isolating dust, moisture and scratches. High‑end models adopt electrostatic prevention and non‑slip wrapping technology.

3.5 Strapping and Fixing System

Strapping machines use PP or PET straps to tighten and fix the wrapped glass automatically. Functions include automatic strap feeding, tensioning, hot melting, cutting and knotting, with stable and firm binding without damaging the packaging film. Tension can be adjusted according to glass specifications.

3.6 Pneumatic and Hydraulic Power System

The pneumatic system provides clamping, lifting and pushing power with stable pressure and fast response. The hydraulic system is used in large‑scale heavy‑duty models to provide higher clamping and lifting force, ensuring stable handling of large‑size and heavy insulated glass.

3.7 Electrical Control and Human‑Machine Interface

The core control system adopts a high‑performance PLC (Siemens, Mitsubishi, etc.) with a touch screen for parameter setting, mode switching, fault alarm and running status monitoring. It supports automatic, manual and debugging modes, with functions such as automatic counting, fault self‑diagnosis and emergency stop.

3.8 Safety Protection System

Safety guards, photoelectric protection, emergency stop buttons and overload protection ensure operator safety and equipment stability. When an obstacle is detected, the machine stops immediately to avoid glass breakage or personal injury.

4. Working Principle and Automatic Packaging Process

4.1 Basic Working Principle

The insulating glass packaging machine takes electrical control as the core, pneumatic/hydraulic power as the drive, and sensor detection as the feedback. It automatically completes conveying, positioning, corner protection, surface wrapping, strapping and output according to preset procedures. The whole process replaces manual labor with mechanical movement, ensuring consistency, stability and high efficiency.

4.2 Full Automatic Packaging Process


Automatic Feeding: The insulated glass finished product is transported from the production line to the packaging machine’s conveying platform.
Precision Positioning: Photoelectric sensors detect the glass position; the conveying system adjusts to center the glass accurately.
Corner Protector Mounting: Pneumatic mechanisms automatically install protective corners on four corners and side edges.
Surface Protection Film Covering: The film covering mechanism covers the glass surface with protective film.
Stretch Wrapping: The wrapping system rotates or horizontally wraps to cover the glass fully.
Automatic Strapping: The strapping system tensions, heats and cuts straps to fix the package firmly.
Output and Palletizing: The packaged glass is automatically output and can be connected with a palletizing robot for automatic stacking.


4.3 Control Logic

The whole machine follows a sequential interlock control logic: only when the previous process is completed can the next process start. Once abnormal conditions occur, such as misalignment, film breakage or strap shortage, the system alarms immediately and pauses to avoid defective packaging or equipment damage.

5. Classification of Insulating Glass Packaging Machines

According to automation degree, structure form, application scenario and function configuration, insulating glass packaging machines can be classified into the following categories:

5.1 By Automation Degree


Semi‑automatic insulating glass packaging machine: Requires manual assistance in film placement, corner placement or button triggering; suitable for small‑batch production.
Full‑automatic insulating glass packaging machine: One‑click automatic completion of the whole process; suitable for large‑scale and assembly‑line production.


5.2 By Structural Form


Vertical insulating glass packaging machine: Glass stands vertically during packaging; small footprint, suitable for conventional doors and windows.
Horizontal insulating glass packaging machine: Glass lies horizontally; suitable for large‑size, heavy, thick or curved insulated glass.


5.3 By Function Configuration


Basic type: Only wrapping + strapping
Standard type: Positioning + corner protection + wrapping + strapping
Full‑function type: With dust removal, surface cleaning, labeling, coding and palletizing interfaces


5.4 By Applicable Glass Specifications


Small and medium‑sized model: For doors and windows below 2.4m
Large and super‑large model: For curtain wall and special engineering glass above 3m


6. Core Technical Parameters and Performance Indicators

The performance of an insulating glass packaging machine is mainly evaluated by the following indicators:


Applicable glass size: Length, width and thickness range
Applicable glass weight: Maximum load capacity
Packaging speed: Units per minute/hour
Strapping quantity and spacing: Adjustable range
Wrapping film width and thickness: Adaptability
Clamping force adjustment range: To avoid glass damage
Control system: PLC brand, human‑machine interface
Power supply and air pressure: Standard configuration
Dimensions and weight: Installation space requirements
Failure rate and stability: Mean time between failures (MTBF)


7. Application Advantages in Industrial Production

7.1 Greatly Improve Production Efficiency

Automatic packaging can reach 300–600 pieces per shift, 3–5 times higher than manual packaging, matching the beat of modern high‑speed insulated glass production lines.

7.2 Significantly Reduce Breakage Rate

Professional protection and stable clamping reduce corner damage and surface scratches, lowering the breakage rate from manual 3–5% to below 0.5%.

7.3 Improve Packaging Standardization

Uniform wrapping tightness, strap position and corner protection ensure consistent appearance and structural stability, enhancing product image.

7.4 Reduce Labor Cost and Intensity

One operator can manage multiple machines, reducing labor demand by 70–80% and lowering long-term production costs.

7.5 Enhance Logistics Safety and Storage Efficiency

Standardized packaging facilitates stacking, handling and transportation, saving storage space and reducing transport damage.

7.6 Meet Clean and Dust‑Free Requirements

Closed automatic packaging reduces dust contamination and keeps the insulated glass interior dry and clean.

8. Typical Industrial Application Fields

8.1 Architectural Doors and Windows Industry

The largest application area, used for packaging energy‑saving insulated glass for residential buildings, offices and public constructions.

8.2 Curtain Wall and Engineering Glass

Large‑scale packaging machines serve high‑rise building curtain walls, shopping malls, airports and stations.

8.3 Export Glass Logistics

Standardized packaging meets international transport requirements, resisting moisture, salt spray and vibration during long‑distance shipping.

8.4 Household Appliances and Automotive Glass

Adapted for special insulated glass used in refrigeration, home appliances and vehicle windows.

8.5 Photovoltaic and Solar Energy Glass

Special anti‑static and high‑cleanliness packaging models for photovoltaic modules.

9. Selection Principles and Operation Maintenance

9.1 Selection Principles


Match production line speed and output
Adapt to glass size, thickness and weight range
Select vertical or horizontal structure according to plant space
Choose automation level based on product type and batch size
Prioritize stable brand, reliable configuration and convenient maintenance
Consider expandability for future product upgrades


9.2 Daily Operation Specifications


Operators must receive professional training
Check air pressure, voltage and strap/film supply before startup
Set parameters according to glass specifications
Monitor operation and handle alarms in time
Regularly clean dust and glue residue


9.3 Maintenance and Upkeep


Weekly lubrication of transmission parts
Monthly inspection of sensors, cylinders and motors
Quarterly calibration of positioning accuracy
Annual comprehensive maintenance and parts replacement
Use original consumables to ensure stability


10. Current Development Status and Future Trends

10.1 Current Industry Status

In recent years, with the popularization of energy‑saving buildings, insulated glass packaging machines have developed rapidly in China and globally. The technology has evolved from semi‑automatic to fully automatic, from single‑function to integrated, and from mechanical control to intelligent digital control. High‑end models integrate visual positioning, AI fault detection and flexible adjustment.

10.2 Future Development Trends


Higher Intelligence: AI visual recognition, automatic specification adjustment, unmanned operation
Flexible Production: Quick changeover for multi‑size mixed production
Green and Low‑Carbon: Energy‑saving motors, recyclable packaging materials
Digital Management: Data monitoring, remote diagnosis, MES connection
Integration and Completeness: Integration of cleaning, packaging, labeling and palletizing
Higher Safety and Stability: Stronger anti‑breakage, quieter and more reliable systems


11. Conclusion

As a key terminal device in the insulated glass industry chain, the insulating glass packaging machine plays an irreplaceable role in improving production efficiency, ensuring product quality, reducing damage rates and enhancing logistics safety. With the continuous advancement of energy‑efficient construction policies and intelligent manufacturing technology, automated, intelligent and integrated packaging equipment will become the mainstream choice for glass processing enterprises. The continuous innovation of insulating glass packaging machines will further promote the standardized, large‑scale and green development of the insulated glass industry, create greater economic and social value, and provide solid support for the global construction industry’s energy conservation, emission reduction and sustainable development.

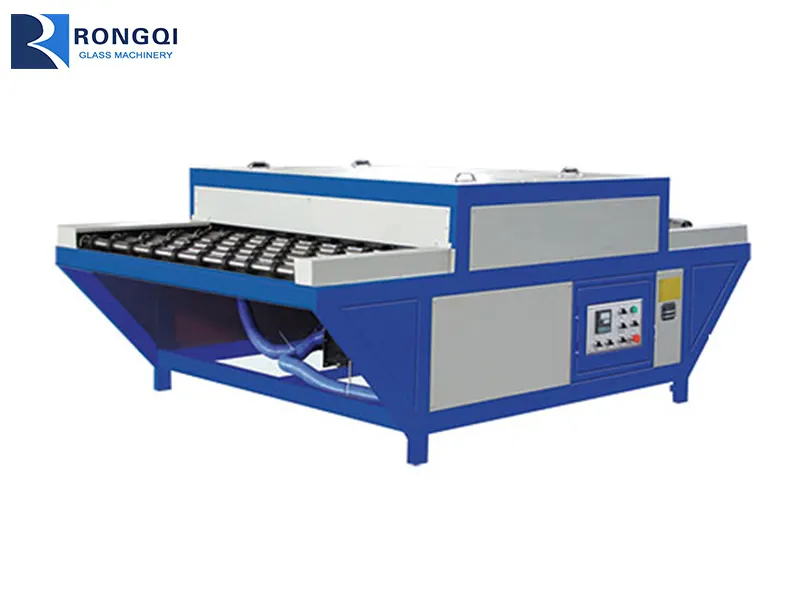

Low-E Film Deleting Machine: Professional Technical Overview & Comprehensive Description
The Low-E Film Deleting Machine is a kind of high-precision, automatic, and professional processing equipment specially designed for the edge deletion of coated glass, especially Low-E (Low Emissivity) glass. As an indispensable supporting equipment in the deep processing of architectural glass, insulating glass, and tempered glass, this machine adopts advanced physical deletion technology to accurately remove the unnecessary Low-E coating layer at the edge of the glass, so as to ensure the bonding fastness, sealing performance and service life of insulating glass, and avoid quality problems such as degumming, oxidation, and air leakage caused by the coating layer. With the characteristics of high automation, high processing precision, stable operation, and friendly operation, the Low-E Film Deleting Machine has become a key production equipment for modern glass deep-processing enterprises to improve product quality, optimize production efficiency and meet industrial processing standards.

Working Principle

The working principle of the Low-E Film Deleting Machine is based on precise mechanical grinding and positioning control technology, combined with automatic transmission and intelligent control system, to realize efficient and non-damaging edge deletion of Low-E coated glass. Firstly, the glass to be processed is automatically conveyed to the processing area through the conveyor system, and the precise positioning is completed through the photoelectric sensor and the positioning mechanism to ensure the consistency of the deletion position and size. Then, the high-speed rotating grinding wheel or special deletion head is driven by the servo motor to contact the surface of the Low-E coating evenly, and the coating layer at the edge of the glass is removed quantitatively and stably according to the set deletion width, depth and path. During the whole processing, the dust removal system runs synchronously to absorb the grinding dust in real time, keeping the processing environment clean and the glass surface smooth. The intelligent control system can automatically adjust the running speed, grinding force and deletion range according to the thickness, size and coating type of the glass, so as to realize fully automatic continuous processing without damaging the glass substrate and ensuring the integrity and flatness of the non-deletion area.

Core Structure and Functional Components

The Low-E Film Deleting Machine is composed of a plurality of coordinated functional modules, each of which plays an important role in the stability, precision and service life of the equipment.

1. Automatic Conveying and Positioning System

This system adopts a motor-driven roller conveyor or belt conveyor, matched with a high-precision photoelectric positioning device and a pneumatic clamping mechanism, which can realize stable transmission and accurate positioning of glass of different sizes and thicknesses. It can automatically adapt to the processing requirements of various specifications of architectural glass and insulating glass, avoid position deviation during operation, and ensure the accuracy and consistency of edge deletion.

2. Servo Drive and Grinding System

As the core execution structure of the machine, the servo drive system controls the high-speed grinding head or diamond grinding wheel with high precision, with stable speed and adjustable force. The professional deletion grinding head is designed for Low-E coating, which can quickly and effectively remove the coating layer without scratching the glass surface, and the deletion effect is neat and uniform, fully meeting the processing standards of insulating glass edge sealing.

3. Intelligent Control System

The machine is equipped with an industrial PLC control system and a human-machine touch screen, which supports one-key setting of processing parameters such as deletion width, speed, path and glass thickness. It has the functions of parameter storage, fault self-diagnosis, automatic alarm and emergency stop, which simplifies the operation difficulty and improves the safety and stability of the equipment. The intelligent control mode can realize fully automatic continuous production and reduce manual intervention.

4. Dust Removal and Cleaning System

Equipped with a high-power industrial dust collection and filtration system, it can absorb the coating dust and debris generated during the grinding process in real time, prevent dust from adhering to the glass surface and polluting the processing environment, and keep the glass clean and the internal parts of the equipment clean, reducing the failure rate caused by dust accumulation.

5. Frame and Protective System

The whole machine adopts a high-strength steel frame structure, with solid and stable operation, low vibration and low noise. The fully enclosed protective cover and safety interlock device effectively protect the personal safety of operators, in line with international industrial safety standards, and make the equipment more reliable and durable in long-term industrial production.

6. Size Adaptation and Adjustment Mechanism

The machine has a wide range of size adaptation, which can quickly adjust the processing range according to the length, width and thickness of the glass, support small-size decorative glass and large-size architectural curtain wall glass, and has strong flexibility and versatility to meet the diversified production needs of enterprises.

Key Performance Advantages

Compared with traditional manual deletion or semi-automatic deletion equipment, the fully automatic Low-E Film Deleting Machine has obvious technical and application advantages, which can greatly improve the production efficiency and product qualification rate of glass deep-processing enterprises.

First of all, high processing precision and good effect. The deletion width and depth are precisely controlled, the edge is neat and smooth, no damage to the glass substrate, completely solve the problems of uneven deletion, missing deletion and excessive deletion in manual operation, and greatly improve the processing quality of insulating glass.

Secondly, high degree of automation and high production efficiency. It can realize continuous automatic processing without manual hand-held grinding, the processing speed is fast, the single piece processing time is short, and it can match the production rhythm of the insulating glass production line, greatly improving the overall production capacity.

Thirdly, wide application range and strong adaptability. It is suitable for single silver Low-E glass, double silver Low-E glass, triple silver Low-E glass and other different types of coated glass, and compatible with glass of various thicknesses and sizes, with strong versatility and practicability.

Fourthly, stable operation and low failure rate. The equipment adopts high-quality electrical components and wear-resistant grinding parts, with reasonable structure design, stable operation, long service life, simple daily maintenance and low later use cost.

Fifthly, safe and environmentally friendly operation. The fully enclosed protection and dust removal system ensure a clean and safe processing environment, reduce the labor intensity of workers, avoid dust hazards, and meet the requirements of green and safe production.

Sixthly, improve product quality and service life. By accurately removing the edge coating, the bonding force between the glass and the sealing material is enhanced, the oxidation and corrosion of the coating layer are prevented, the airtightness and durability of the insulating glass are improved, and the quality and added value of the final product are upgraded.

Main Application Fields

The Low-E Film Deleting Machine is mainly used in the glass deep-processing industry, and is widely used in the production and processing of insulating glass, tempered glass, laminated glass and architectural coated glass. It is an essential equipment for professional glass processing factories, architectural glass manufacturers, insulating glass production bases and door and window curtain wall enterprises.

In the field of architectural glass, it is used for edge deletion processing of Low-E glass for high-rise buildings, office buildings, residential buildings, shopping malls and other curtain walls and doors and windows, ensuring the sealing and safety performance of insulating glass.

In the field of insulating glass production, it is matched with insulating glass production lines, automatic glass cutting machines, edge grinding machines and other equipment to form a complete automated production process, improving the efficiency and quality of insulating glass manufacturing.

In addition, it is also used in the processing of automotive glass, home appliance glass, decorative glass and other coated glass products, providing professional edge deletion solutions for various high-standard coated glass deep processing.

We are proud to present our Detachable Mobile A-Frame, a premium-grade material handling solution engineered to meet the rigorous demands of modern manufacturing, logistics, and project-based operations. Designed with versatility, stability, and efficiency at its core, this A-Frame redefines standards for the safe storage, transportation, and on-site maneuvering of glass panels, metal sheets, composite panels, and other oversized, delicate, or heavy-duty materials.

Crafted from high-strength, wear-resistant steel as the primary structural frame, the Detachable Mobile A-Frame delivers exceptional load-bearing capacity while ensuring long-term durability even in harsh industrial environments. Its modular, disassembly-friendly design is a cornerstone of its functionality: when not in use, the frame can be quickly disassembled into compact components, significantly reducing storage space occupancy and simplifying cross-border transportation, container loading, and long-distance logistics. This feature makes it an ideal choice for both permanent manufacturing facilities and temporary project sites, particularly for overseas engineering projects where space optimization and cost-effective transport are critical.

Equipped with heavy-duty, lockable casters, the A-Frame enables seamless mobile operation across workshop floors, warehouses, and job sites. The casters feature high load capacity and smooth maneuverability, allowing operators to move heavy loads with minimal effort while ensuring secure positioning via integrated locks. For enhanced logistical flexibility, the frame is also integrated with reinforced forklift pockets, enabling efficient lifting and transfer by forklift or crane equipment—streamlining material handling processes across different stages of production and delivery.

To protect the surface of stored materials and prevent scratches, dents, or damage, the A-Frame is fitted with thick, anti-slip rubber padding along its contact surfaces. This protective padding is not only shock-absorbent but also resistant to abrasion, ensuring the integrity of sensitive materials such as tempered glass, laminated glass, and precision metal panels. Additionally, the frame is equipped with adjustable holding bars that feature multi-position hole settings, allowing for customization to accommodate materials of varying widths and thicknesses. This adaptability ensures consistent stability and secure positioning, regardless of the specific characteristics of the load.

Further designed for user convenience, the Detachable Mobile A-Frame includes integrated lifting eyes for safe hoisting during assembly, disassembly, and large-scale transport. Its modular structure adheres to international industrial safety standards, with rigorous quality control applied to every component—from weld integrity and load testing to corrosion-resistant surface treatment. This commitment to quality ensures reliable performance, minimal maintenance requirements, and a long service life, delivering exceptional value to our customers.

Widely applied in glass deep-processing plants, construction material workshops, logistics centers, and overseas engineering projects, our Detachable Mobile A-Frame has become a trusted solution for businesses seeking to optimize material handling efficiency, enhance workplace safety, and reduce operational costs. We remain dedicated to continuous innovation and customization, working closely with customers to tailor the A-Frame to their specific operational needs. Whether supporting small-scale production or large-scale international projects, our Detachable Mobile A-Frame stands as a testament to our commitment to delivering high-quality, practical, and future-ready material handling solutions.
