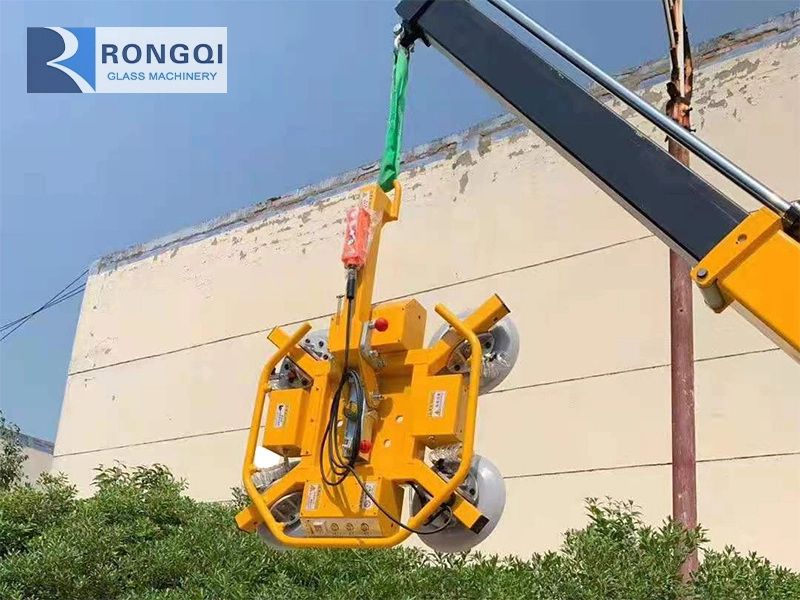

High Efficiency Electrical Remote Control Glass Sucker
The RQURY-E is equipped with a hydraulic tilting mechanism. In addition, motorized rotary movement is for option, then glass elements can easily be rotated through 360 degrees. Thanks to the dual vacuum system, you can always make full use of the maximum lifting capacity. The glass lifter comes with radio remote control for radio remote suction and releasing. Using a specially designed plywood case packing , the lifter can be easily transported, and no special equipment is required. With the SSURY-E, lifting and mounting heavy glass facade elements is no longer a challenge.
Equipment Features
● American Thomas Vacuum System design, safe and efficient
● High-power pole design, strong thrust, easy to flip
● Japan Panasonic vacuum sensor, with automatic pneumatic stop function, sensitive reaction, stable performance
● Equipped with vacuum accumulator, long pressure protection time, safer to use
● Two pieces 12V20Ah high-capacity batteries, with sufficient power
● 24V charger with smart repair function
● Each pad is equipped with a vacuum control valve and can be controlled separately for easy maintenance
● pads position adjustable to accommodate different sizes of glass
● Radio remote control operation, easy to use and safe
● Suction cup holder can be extended (H type)
● Not suitable for rain use
Technical Parameter
|
Capacity |
Suction size mm |
Suction number |
Battery V/AH |
Charger V/A |
titling° |
Sucker size |
Dimension mm |
Weight kg |
|
400 |
Φ300 |
4 |
24V20AH |
24V/6A |
90° |
840*930 |
1100*940*500 |
160 |
|
600 |
Φ300 |
6 |
24V20AH |
24V/6A |
90° |
2420*1100 |
1100*940*500 |
175 |
|
800 |
Φ300 |
8 |
24V20AH |
24V/6A |
90° |
1980*1620 |
1100*940*500 |
190 |
|
1000 |
Φ300 |
10 |
24V20AH |
24V/6A |
90° |
1980*1620 |
1100*940*500 |
198 |
|
1200 |
Φ300 |
12 |
24V20AH |
24V/6A |
90° |
1980*1620 |
1100*940*500 |
207 |
