Air-Floating Inclined Glass Breaking Table: Engineering Principles, Technical Advantages, and Industrial Applications

1. Introduction

In the modern manufacturing landscape of flat-panel displays (FPD), photovoltaic (PV) modules, architectural glass, and automotive glazing, the demand for precise, non-destructive glass processing and strength testing has intensified. The Air-Floating Inclined Glass Breaking Table (AFIGBT) emerges as a pivotal innovation, integrating air-bearing technology, hydraulic tilting mechanisms, and pneumatic control systems to redefine the standards of glass handling, positioning, and fracture testing. Unlike conventional contact-based breaking tables that risk surface scratches, edge damage, or inconsistent stress distribution, the AFIGBT leverages non-contact air suspension to ensure uniform support, precise angular adjustment, and repeatable fracture initiation—critical for quality control in high-precision glass manufacturing. This article comprehensively explores the technical fundamentals, structural components, performance characteristics, industrial applications, and future development directions of the AFIGBT, shedding light on its transformative role in the global glass processing industry.

2. Core Technical Principles

2.1 Non-Contact Air Suspension Mechanism

The cornerstone of the AFIGBT lies in its air-floating system, which employs porous media technology to generate a stable, ultra-thin air film between the glass substrate and the table surface. Compressed air is forced through millions of sub-micron pores in a proprietary carbon or ceramic bearing surface, creating a uniform pressure distribution that lifts the glass off the table without physical contact . The thickness of this air film is precisely controllable, typically ranging from 10µm to 200µm, with a stability tolerance of ±5µm to ±20µm—sufficient to accommodate inherent flatness deviations of up to 5µm in glass substrates while maintaining optimal support rigidity . Contrary to traditional assumptions, thinner air films exhibit higher stiffness, enabling the AFIGBT to achieve sub-micron positioning resolution and rapid vibration damping—essential for minimizing structural deformation during the breaking process.

To prevent "skating" or lateral displacement of the glass during suspension, the system integrates a balanced vacuum-preload mechanism. By adjusting the ratio of air pressure and vacuum force, engineers can "lock" the glass in a stable spatial position, suppressing flutter and ensuring consistent alignment throughout the testing or processing cycle . This pressure-vacuum balance also facilitates glass flattening, reducing surface vibrations that could compromise the accuracy of fracture analysis. Notably, the porous media surface acts as a HEPA-like filter, preventing particle generation and making the system compatible with ISO Class 10 cleanroom environments—a critical requirement for FPD and semiconductor manufacturing .

2.2 Hydraulic Tilting Control System

The inclined functionality of the AFIGBT is enabled by a hydraulic actuation system, designed to deliver smooth, stable angular adjustment with precise position control. The hydraulic cylinder-driven tilting mechanism allows the table to rotate from a horizontal (0°) to a vertical (90°) position, with intermediate angle settings adjustable in increments as fine as 0.1°—catering to diverse testing standards and processing requirements. The hydraulic system’s high load-bearing capacity ensures stable operation even for large-format glass substrates, with table sizes ranging up to 2200mm × 3600mm to accommodate Gen 10+ FPD panels and oversized architectural glass sheets.

Key to the tilting system’s performance is its closed-loop feedback control, which utilizes linear displacement sensors and pressure transducers to monitor the table’s angle and load in real time. This enables dynamic adjustment of hydraulic flow rates, ensuring uniform acceleration and deceleration during tilting—preventing inertial forces from causing glass slippage or edge impact. Additionally, safety interlocks are integrated to halt operation if the tilt angle exceeds preset limits or if pressure loss is detected, mitigating the risk of equipment damage or operator injury.

2.3 Pneumatic Fracture Initiation Mechanism

The AFIGBT’s breaking system employs pneumatically controlled X and Y-axis breaking bars, activated via foot pedals or programmable logic controllers (PLCs) to initiate precise, localized fractures. These breaking bars are strategically positioned across the table surface, allowing for selective activation to target specific sections of the glass—enabling both full-panel breaking and segmented cutting for large-format substrates. The pneumatic actuation ensures rapid, consistent force application, with adjustable pressure settings to match the mechanical properties of different glass types (e.g., tempered glass, laminated glass, ultra-thin glass).

To enhance fracture accuracy, the breaking bars are equipped with precision-machined contact points that concentrate stress at predefined locations—replicating real-world failure scenarios while ensuring repeatable test results. The integration of the air-floating system with the breaking mechanism is critical: the non-contact support eliminates friction-induced stress variations, ensuring that the applied breaking force is uniformly distributed across the glass’s cross-section. This results in clean, predictable fractures that align with industry standards such as SEMI, CE, and ISO 9001.

3. Structural Components and Technical Specifications

3.1 Key Component Architecture

The AFIGBT comprises six core subsystems, each engineered for durability, precision, and seamless integration:

1. Heavy-Duty Metallic Frame: Constructed from high-strength steel with reinforced welds, the frame provides structural rigidity to withstand dynamic loads during tilting and breaking, with a design life exceeding 10,000 operating hours.

2. Air-Floating Platform: Modular porous media air-bearing panels (available in standard, precision, and ultra-precision variants) cover the table surface, with customizable configurations to accommodate different glass sizes and thicknesses (from 0.1mm to 20mm).

3. Air Supply System: A high-pressure compressor (3–5 kW) with pressure regulators, filters, and flow meters delivers clean, dry air (≤ -40°C dew point) to the air-bearing panels, ensuring consistent air film formation.

4. Hydraulic Tilting Unit: Double-acting hydraulic cylinders with servo valves, paired with a hydraulic power unit (380V/50Hz or 220V/60Hz), enable smooth angle adjustment with a tilting speed of 2–5° per second.

5. Pneumatic Breaking Assembly: 3–6 pneumatically controlled breaking bars (depending on table size) with adjustable stroke lengths (10–50mm) and force ranges (50–500N), synchronized via PLC for coordinated fracture initiation.

6. Control and Safety System: A touchscreen HMI (Human-Machine Interface) with PLC integration allows for program storage (up to 100 test protocols), real-time data visualization, and remote monitoring. Safety features include emergency stop buttons, pressure loss alarms, and interlocked access doors.

3.2 Critical Technical Parameters表格Parameter Specification Range Table Dimensions 1000mm×1000mm to 2200mm×3600mm Maximum Glass Size Up to 2000mm×1000mm (standard) / Gen 12+ compatible (custom) Glass Thickness Capacity 0.1mm–20mm Air Film Thickness 10µm–200µm Tilt Angle Range 0°–90° (adjustable in 0.1° increments) Breaking Force Adjustment 50N–500N Positioning Accuracy ±2µm (linear) / ±0.1° (angular) Operating Speed 2–3 m/s (glass transport) / 2–5°/s (tilting) Power Requirements 380V 3-phase 50Hz / 220V single-phase 60Hz (3–5 kW) Environmental Compatibility Temperature: 0°C–40°C; Humidity: <98% (non-condensing) Certifications CE, ROHS, ISO 9001, SEMI-compliant 4. Technical Advantages Over Conventional Systems4.1 Non-Contact Handling and Surface ProtectionUnlike mechanical conveyor belts or vacuum chucks that exert localized pressure on glass surfaces, the AFIGBT’s air-floating system eliminates physical contact, preventing scratches, micro-cracks, and contamination. This is particularly critical for high-value applications such as FPD substrates and PV solar panels, where surface integrity directly impacts product performance . The carbon or ceramic bearing surfaces are wear-resistant and particle-free, ensuring compatibility with cleanroom environments and reducing maintenance costs associated with contact-based components.4.2 Enhanced Precision and RepeatabilityThe combination of air-film stability, hydraulic tilting control, and pneumatic breaking mechanisms enables the AFIGBT to achieve fracture test repeatability within ±3%—a significant improvement over conventional tables (±8–12%). The sub-micron positioning resolution and uniform stress distribution ensure that each test replicates real-world conditions, providing reliable data on glass toughness, fracture energy, and failure modes. This precision is validated by compliance with international standards such as SEMI, which has adopted air-floating-based measurement models for glass quality assessment.4.3 Versatility and ScalabilityThe AFIGBT’s modular design allows for seamless customization to meet diverse industry needs. It supports multiple glass types (tempered, laminated, ultra-thin, AR-coated) and processing tasks, including strength testing, precision cutting, and edge quality inspection. The table’s compatibility with Gen 5 to Gen 12 glass substrates makes it suitable for small-scale laboratories and large-scale manufacturing facilities alike, with the ability to handle glass sizes up to 2200mm×3600mm and beyond with custom configurations.4.4 Operational Efficiency and SafetyThe AFIGBT’s automated loading/unloading systems, rapid test cycles (≤1000ms per measurement point), and data logging capabilities streamline quality control processes, reducing labor costs and increasing throughput. The hydraulic tilting system’s smooth operation minimizes glass breakage during handling, while the integrated safety features (pressure loss alarms, emergency stops, interlocks) ensure operator protection. Additionally, the low air consumption of porous media air bearings (measured in liters per hour rather than liters per minute) reduces energy costs compared to traditional air-bearing systems .5. Industrial Applications5.1 Flat-Panel Display (FPD) ManufacturingIn FPD production (LCD, OLED, microLED), the AFIGBT is used for post-processing quality control, including glass substrate strength testing, laser划片 alignment, and edge defect detection. The non-contact air suspension prevents damage to sensitive display layers, while the precise tilting and breaking mechanisms ensure clean, straight fractures during panel separation. The system’s compatibility with ISO Class 10 cleanrooms and sub-micron positioning accuracy makes it indispensable for Gen 10+ FPD facilities, where even minor surface defects can render panels defective .5.2 Photovoltaic (PV) Module ProductionFor solar glass (ultra-white embossed glass, AR-coated glass), the AFIGBT enables rapid measurement of spectral transmittance, fracture toughness, and edge strength—critical parameters for PV module efficiency and durability. The system’s ability to handle large-format glass sheets (up to 2000mm×1000mm) and perform multi-point testing allows manufacturers to assess spatial uniformity of mechanical properties, ensuring compliance with TAM1.5 and SEMI standards. The air-floating design also facilitates easy movement of heavy glass sheets, reducing handling time and breakage rates during production.5.3 Architectural and Automotive Glass ProcessingIn architectural glass manufacturing, the AFIGBT is used to test the breaking strength of tempered and laminated glass, ensuring compliance with building safety codes. The tilting function simulates real-world installation angles, allowing engineers to evaluate fracture behavior under gravitational loads. For automotive glass (windshields, side windows), the system performs impact resistance testing and precision cutting, with the non-contact handling preserving the glass’s optical clarity and structural integrity. The pneumatic breaking bars enable segmented cutting of complex shapes, supporting the production of curved and customized automotive glass components.5.4 Research and Development LaboratoriesAcademic and industrial R&D labs utilize the AFIGBT to study glass fracture mechanics, material fatigue, and the effects of coating technologies on mechanical performance. The system’s adjustable parameters (air film thickness, tilting angle, breaking force) allow researchers to replicate diverse environmental and loading conditions, generating data to optimize glass formulations and processing techniques. The integration of advanced sensors (strain gauges, high-speed cameras) enables real-time monitoring of fracture propagation, providing insights into crack initiation and growth mechanisms.6. Future Development Trends6.1 Integration of Smart Sensing and AIThe next generation of AFIGBT will incorporate advanced sensing technologies, including machine vision cameras, ultrasonic sensors, and fiber optic strain gauges, to enable real-time monitoring of glass deformation, stress distribution, and fracture dynamics. Artificial intelligence (AI) algorithms will analyze this data to predict failure points, optimize test parameters, and automate quality grading—reducing human intervention and improving testing accuracy. For example, AI-powered image recognition can identify micro-cracks before fracture, enabling proactive quality control in high-volume production lines.6.2 Miniaturization and High-Speed ProcessingAs the demand for ultra-thin glass (≤0.1mm) in wearable devices and flexible electronics grows, AFIGBT systems will be miniaturized to accommodate small-format substrates while maintaining high precision. Advances in micro-air-bearing technology will enable air film thicknesses below 10µm, supporting the handling of fragile, flexible glass without deformation. Additionally, improvements in hydraulic and pneumatic actuation will reduce test cycle times to <500ms per point, meeting the throughput requirements of next-generation electronics manufacturing.6.3 Energy Efficiency and SustainabilityFuture AFIGBT designs will focus on reducing energy consumption through the adoption of energy-efficient compressors, regenerative hydraulic systems, and low-power sensors. The use of recyclable materials in frame construction and biodegradable lubricants in hydraulic systems will align with global sustainability initiatives. Furthermore, the integration of solar-powered air supply systems will enable off-grid operation in remote manufacturing facilities, reducing carbon emissions.6.4 Interoperability with Industry 4.0 SystemsTo support smart manufacturing, AFIGBT systems will be equipped with Industrial Internet of Things (IIoT) connectivity, enabling seamless integration with MES (Manufacturing Execution Systems) and ERP (Enterprise Resource Planning) platforms. Real-time test data, equipment performance metrics, and maintenance alerts will be transmitted to cloud-based dashboards, allowing for remote monitoring, predictive maintenance, and process optimization. This interoperability will enable manufacturers to achieve end-to-end traceability of glass components, from raw material to finished product.7. ConclusionThe Air-Floating Inclined Glass Breaking Table represents a paradigm shift in glass processing and testing, combining non-contact air suspension, precise hydraulic tilting, and pneumatic fracture control to deliver unmatched precision, versatility, and efficiency. Its ability to protect glass surfaces, ensure repeatable test results, and accommodate diverse industry needs has made it an indispensable tool in FPD, PV, architectural, and automotive glass manufacturing. As technology advances, the integration of smart sensing, AI, and IIoT connectivity will further enhance the AFIGBT’s capabilities, driving innovation in glass processing and supporting the growth of high-precision manufacturing industries worldwide. By adhering to international standards and prioritizing sustainability, the AFIGBT is poised to remain a cornerstone of modern glass production, enabling manufacturers to meet the evolving demands of quality, efficiency, and environmental responsibility.

Glass Tempering Furnace: Principles, Technology, Applications and Industrial Development

Abstract

Glass tempering furnace, as a core thermal processing equipment in the modern glass deep-processing industry, plays an irreplaceable role in transforming ordinary float glass, sheet glass and other flat glass products into tempered glass with high mechanical strength, thermal stability and safety performance. This paper systematically elaborates on the fundamental working principles, structural composition, classification characteristics, processing technology, application scenarios, performance advantages and existing challenges of glass tempering furnaces. Combined with the latest technological innovations and market development trends in the global glass industry, it also prospects the future development direction of glass tempering furnace equipment, aiming to provide a comprehensive and in-depth reference for industrial practitioners, engineering technicians and relevant research scholars.

1. Introduction

With the rapid advancement of global construction, automotive, home appliance, electronic information and new energy industries, the demand for high-performance safety glass has shown a sustained growth trend. Tempered glass, known as "safety glass", has become one of the most widely used functional glass products in modern industrial and civil fields due to its outstanding characteristics such as 3-5 times higher impact resistance than ordinary glass, excellent thermal shock resistance, and harmless small granular fragments when broken. The core equipment for achieving the glass tempering process is the glass tempering furnace, which integrates multiple disciplines including mechanical engineering, thermal engineering, automation control, material science and electrical engineering.

Since the birth of the first industrialized glass tempering furnace in the mid-20th century, the equipment has undergone continuous technological iteration and structural optimization. From the initial vertical tempering furnaces to the widely used horizontal convection tempering furnaces today, and from the single small-scale processing equipment to the large-scale, intelligent, energy-saving and high-efficiency production lines, glass tempering furnaces have gradually evolved into a highly specialized and standardized industrial equipment category. In the global glass deep-processing industry chain, the performance level of glass tempering furnaces directly determines the quality, production efficiency and cost control of tempered glass products, and is a key link that affects the core competitiveness of glass processing enterprises. This paper will conduct an all-round and multi-angle analysis of glass tempering furnaces, starting from their basic theoretical basis, and extending to practical applications and future development.

2. Fundamental Principles of Glass Tempering

Before analyzing the structure and working process of glass tempering furnaces, it is essential to clarify the physical and chemical principles behind the glass tempering process, which is the theoretical cornerstone for the design and operation of glass tempering furnaces. Glass tempering, also referred to as glass toughening, is a physical heat treatment method that changes the internal stress state and mechanical properties of glass without altering its chemical composition.

2.1 Thermal Tempering Principle

The vast majority of commercial glass tempering furnaces adopt the thermal tempering process, whose core principle is based on the rapid cooling of heated glass to form a uniform compressive stress layer on the surface and a tensile stress layer inside the glass. Specifically, ordinary flat glass is heated in a tempering furnace to a temperature close to its softening point (generally between 600°C and 650°C, varying slightly with glass composition and thickness), at which the glass internal molecular structure is in a state of high activity and the internal stress is completely eliminated. Subsequently, the heated glass is quickly transferred to the cooling zone of the tempering furnace, where high-speed and uniform cold air is blown onto both sides of the glass surface through a specially designed air grid system.

Due to the rapid cooling rate, the glass surface layer solidifies and contracts first, forming a rigid compressive stress layer, while the internal glass is still in a high-temperature plastic state and continues to cool and contract. As the internal glass gradually cools to room temperature, its shrinkage is constrained by the already solidified surface layer, resulting in a stable tensile stress inside the glass and a compressive stress on the surface. This stress distribution endows tempered glass with exceptional mechanical properties: when subjected to external impact or bending force, the surface compressive stress can offset most of the external tensile stress, significantly improving the glass's impact resistance and bending strength. Moreover, when the tempered glass is broken by an external force exceeding its bearing limit, the internal tensile stress is released instantaneously, causing the glass to break into numerous small obtuse-angle particles, avoiding sharp fragments that cause harm to the human body, thus achieving the safety performance of tempered glass.

2.2 Chemical Tempering Principle

In addition to thermal tempering, a small number of special glass tempering furnaces adopt the chemical tempering process, which is mainly applicable to thin glass (thickness <3mm) and special-shaped glass products that are not suitable for thermal tempering. The chemical tempering principle is to immerse the preheated glass in a molten salt bath containing alkali metal ions with a larger ionic radius at a temperature lower than the glass transition temperature, and realize the ion exchange between the glass surface and the molten salt through the diffusion of alkali metal ions in the glass network structure. For example, sodium ions (Na⁺) on the glass surface are replaced by potassium ions (K⁺) with a larger radius in the molten salt. The volume expansion caused by ion substitution forms a compressive stress layer on the glass surface, thereby improving the mechanical strength and thermal stability of the glass. Although chemical tempering has advantages in processing thin glass, its production cycle is long, the cost is high, and the compressive stress layer is relatively thin, so it is only used in specific industrial fields, and thermal tempering furnaces still dominate the mainstream market.

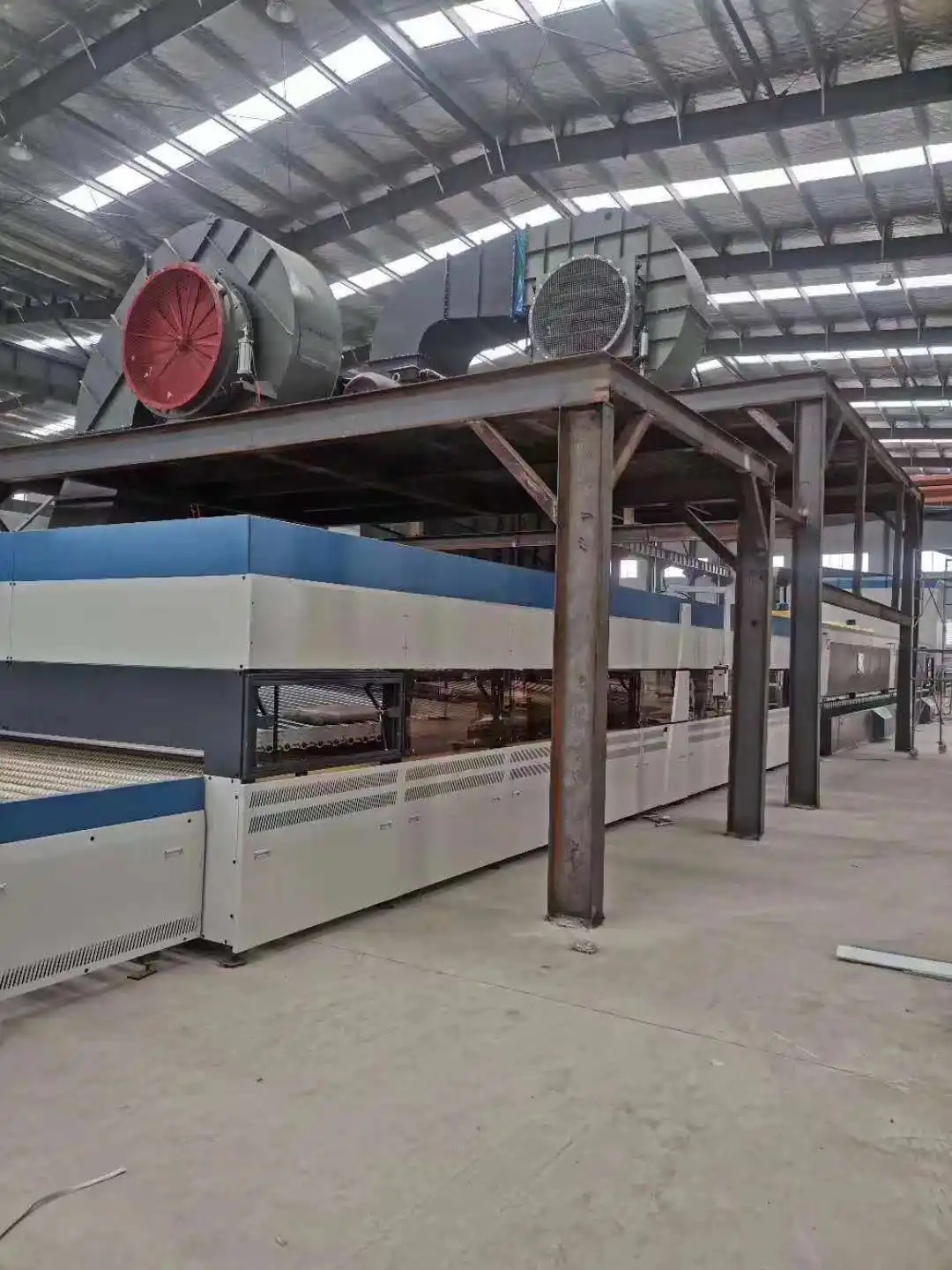

3. Structural Composition of Glass Tempering Furnace

A complete glass tempering furnace is a complex integrated system composed of multiple functional modules, each module cooperating closely to complete the continuous and stable tempering processing of glass. The typical horizontal glass tempering furnace, which is the most widely used in the industry, mainly includes the feeding system, heating furnace body, conveying system, cooling system, control system and auxiliary systems such as exhaust and dust removal. Each part has a clear functional positioning and precise design requirements.

3.1 Feeding System

The feeding system is the starting end of the glass tempering furnace, responsible for stably and accurately sending the original glass sheets to be processed into the heating furnace. It mainly consists of a loading table, a sheet separating device, a positioning mechanism and a conveying roller table. For automated production lines, the feeding system is often equipped with a robotic arm loading system, which can realize automatic sorting, positioning and feeding of glass sheets, reducing manual labor and improving production efficiency. The positioning mechanism ensures that each glass sheet enters the heating furnace at a fixed position and angle, avoiding deflection or overlapping that affects the heating uniformity. For large-format glass, the feeding system is designed with anti-deformation support structures to prevent the glass from bending or breaking during the feeding process due to its own weight.

3.2 Heating Furnace Body

The heating furnace body is the core component of the glass tempering furnace, where the glass is heated to the specified tempering temperature, and its performance directly determines the heating efficiency and temperature uniformity of the glass. The heating furnace body is generally a sealed box structure, composed of a furnace shell, a thermal insulation layer, a heating element, a temperature sensor and a furnace inner cavity.

The furnace shell is usually made of high-strength steel plates, with good structural rigidity to ensure the stability of the furnace body during long-term operation. The thermal insulation layer is filled with high-temperature resistant thermal insulation materials such as aluminum silicate fiber and ceramic fiber, which can effectively reduce heat loss, reduce energy consumption and ensure the temperature stability of the furnace inner cavity. The heating element is the heat source of the furnace body, mainly including resistance heating wires, ceramic heating plates and infrared radiation heating tubes. According to different heating methods, it can be divided into radiation heating and convection heating. Traditional tempering furnaces mainly adopt radiation heating, which relies on the infrared radiation emitted by the heating element to heat the glass; modern high-efficiency tempering furnaces add a forced convection system, which circulates the high-temperature gas in the furnace through a convection fan to achieve uniform heating of the glass surface, especially suitable for low-e coated glass and other coated glass products that are sensitive to temperature differences.

Temperature sensors (such as thermocouples) are evenly arranged in the furnace body to collect real-time temperature data of different zones in the furnace, and feed back to the control system to realize closed-loop control of the furnace temperature, ensuring that the temperature difference in the effective heating area is controlled within ±2°C, which is a prerequisite for ensuring the quality of tempered glass. In addition, the heating furnace body is divided into multiple independent temperature control zones according to the length and width, and the temperature of each zone can be adjusted independently to adapt to the heating requirements of glass with different thicknesses and sizes.

3.3 Conveying System

The conveying system runs through the entire glass tempering furnace, responsible for transporting the glass through the feeding area, heating area and cooling area at a controllable speed. It mainly adopts a ceramic roller conveying structure, because ceramic rollers have excellent high-temperature resistance, low thermal expansion coefficient and smooth surface, which will not scratch the glass surface and can maintain stable conveying performance at high temperatures up to 700°C.

The ceramic rollers are driven by a motor and a transmission system (such as a chain or a synchronous belt), and the conveying speed can be adjusted steplessly through the control system. For glass with different thicknesses, the conveying speed in the heating zone and the cooling zone is precisely matched: thicker glass requires a slower conveying speed in the heating zone to ensure sufficient heating time, while thinner glass needs a faster conveying speed to avoid overheating. In addition, the conveying system of high-end tempering furnaces is equipped with a roller speed synchronization control device to ensure that the glass is always in a horizontal and stable state during the conveying process, avoiding deflection or warping caused by inconsistent roller speeds.

3.4 Cooling System

The cooling system is the key module to realize the rapid cooling of the heated glass and form the internal stress of tempered glass, which is composed of an air compressor, an air storage tank, an air grid assembly and an air volume adjustment device. The air grid is the core component of the cooling system, which is divided into upper and lower air grids, arranged symmetrically on the upper and lower sides of the glass conveying path. The surface of the air grid is densely distributed with specially designed air nozzles, which can spray high-pressure and uniform cold air onto the glass surface.

The cooling system of a high-performance glass tempering furnace can realize stepless adjustment of air volume, air pressure and cooling speed according to the thickness, size and type of glass. For example, thick glass requires a relatively gentle cooling rate to avoid excessive temperature stress causing glass bursting, while thin glass needs a higher cooling rate to ensure the formation of effective compressive stress. In addition, the cooling system is equipped with an air circulation and filtration device, which can recycle the cold air after heat exchange, reduce the load of the air compressor and achieve energy saving. The uniformity of the air grid air supply is a key indicator to measure the performance of the cooling system, and uneven air supply will lead to uneven stress distribution of the tempered glass, resulting in quality problems such as glass warping, self-explosion and poor strength.

3.5 Automatic Control System

The automatic control system is the "brain" of the glass tempering furnace, integrating programmable logic controller (PLC), human-machine interface (HMI), temperature control module, speed control module and safety protection module. The control system realizes the automatic operation of the entire tempering process by presetting process parameters for different types of glass.

Operators only need to input glass parameters such as thickness, size and type on the human-machine interface, and the system will automatically match the optimal heating temperature, heating time, conveying speed, cooling air volume and other process parameters. The control system has functions such as real-time data monitoring, fault alarm, parameter storage and historical data query. It can monitor the operating status of each module of the furnace body in real time, and issue an alarm and take protective measures in time when abnormal conditions such as temperature overrun, roller jam, and air pressure abnormality occur. In addition, the intelligent control system of modern glass tempering furnaces is equipped with a network communication interface, which can realize remote monitoring, fault diagnosis and program upgrade, facilitating the management and maintenance of the production line by enterprises.

3.6 Auxiliary Systems

In addition to the above core modules, the glass tempering furnace is also equipped with a series of auxiliary systems to ensure the stable operation of the equipment and compliance with environmental protection requirements. The exhaust gas treatment system is used to discharge the volatile gas and dust generated during the glass heating process, and purify the exhaust gas to meet environmental protection standards; the dust removal system collects the glass dust and impurities generated during the feeding and conveying process to keep the inside of the furnace clean; the cooling water circulation system is used to cool the motor, transmission system and electrical components of the equipment to prevent overheating damage; the safety protection system includes emergency stop buttons, safety doors, temperature and pressure overload protection, etc., to ensure the personal safety of operators and the safety of equipment.

4. Classification of Glass Tempering Furnaces

Glass tempering furnaces can be classified from multiple perspectives according to different structural forms, processing technologies, application scenarios and automation levels. The classification is conducive to the selection and application of equipment in different industrial fields. The main classification methods are as follows:

4.1 Classification by Structural Form

According to the conveying and processing structure, glass tempering furnaces are mainly divided into horizontal glass tempering furnaces and vertical glass tempering furnaces. Horizontal glass tempering furnaces adopt a horizontal conveying method, with glass lying flat on the ceramic roller table for heating and cooling. They have the advantages of large processing format, high production efficiency, good glass flatness, and suitability for mass production of various flat glass. They are the most widely used type in the market, covering almost all fields of tempered glass production. Vertical glass tempering furnaces adopt a vertical hanging conveying method, with glass vertically suspended and sent into the furnace for processing. They have a small floor area and are suitable for processing small and medium-sized glass and special-shaped glass, but their production efficiency is low and the processing format is limited, so they are only used in a small number of special processing scenarios.

4.2 Classification by Heating Method

According to the heating method of the furnace body, glass tempering furnaces are divided into radiation heating tempering furnaces and convection heating tempering furnaces. Radiation heating tempering furnaces rely on the infrared radiation of heating elements to heat glass, with a simple structure and low cost, suitable for processing ordinary clear float glass. However, the heating uniformity is relatively poor, and it is easy to cause uneven heating of coated glass, resulting in quality defects. Convection heating tempering furnaces add a forced convection circulation system on the basis of radiation heating, which uses high-temperature hot air to convectively heat the glass surface, greatly improving the heating uniformity and heating speed. They are especially suitable for processing low-e coated glass, solar coated glass, colored glass and other special glass products, and have become the mainstream development trend of modern tempering furnaces.

4.3 Classification by Processing Capacity and Scale

According to the processing capacity and production scale, glass tempering furnaces are divided into small and medium-sized laboratory tempering furnaces, medium-sized industrial production tempering furnaces and large-scale continuous production tempering furnaces. Small and medium-sized laboratory tempering furnaces are mainly used for glass tempering process research, product development and small-batch sample production, with small processing format, low power and flexible operation. Medium-sized industrial production tempering furnaces are suitable for small and medium-sized glass processing enterprises, with moderate processing capacity and cost, meeting the production needs of conventional tempered glass products. Large-scale continuous production tempering furnaces are designed for large glass processing groups, with ultra-large processing format, high-speed continuous production capacity, high degree of automation and intelligent integration, and can realize 24-hour uninterrupted production, suitable for large-scale orders in construction, automotive and other industries.

4.4 Classification by Process Purpose

According to different process purposes and processed glass types, glass tempering furnaces are also divided into flat glass tempering furnaces, bent glass tempering furnaces, laminated glass supporting tempering furnaces, and ultra-thin glass tempering furnaces. Among them, the bent glass tempering furnace is equipped with a bending mold and a bending control system in the heating zone, which can heat and bend the glass while tempering, producing curved tempered glass for automotive windshields, architectural curved curtain walls and other fields.

5. Glass Tempering Process Flow

The complete glass tempering process realized by the glass tempering furnace is a standardized and continuous operation flow, and each process link must be strictly controlled to ensure the quality of tempered glass. The standard process flow of the horizontal thermal glass tempering furnace is as follows:

5.1 Original Glass Preparation

Before entering the tempering furnace, the original glass sheets need to be cut, edged, polished and cleaned. Cutting is to cut the large-format original glass into the required size according to the design requirements; edging and polishing are to remove the sharp edges and burrs generated during cutting, because the micro-cracks on the glass edge will become the stress concentration point during the tempering process, leading to glass bursting; cleaning is to remove the oil, dust and impurities on the glass surface through a glass cleaning machine, avoiding the formation of spots or defects on the glass surface during heating and affecting the appearance quality of tempered glass.

5.2 Automatic Feeding

The cleaned and inspected qualified glass sheets are placed on the feeding table of the tempering furnace, and the feeding system positions and separates the glass sheets, then sends them into the heating furnace body one by one through the conveying roller table at a set speed. For automated production lines, this process is completed by a robotic arm without manual intervention.

5.3 High-Temperature Heating

The glass enters the heating furnace body and is conveyed forward slowly through the ceramic roller table. The heating element and convection system in the furnace heat the glass uniformly, and the temperature is raised to the tempering temperature (600-650°C) and maintained for a certain period of time. The heating time is determined by the glass thickness, type and furnace temperature: the thicker the glass, the longer the heating time required to ensure that the glass internal temperature reaches the softening state and the internal stress is completely eliminated. During the heating process, the control system monitors the furnace temperature in real time and adjusts the heating power to ensure temperature uniformity.

5.4 Rapid Cooling (Tempering)

After the heating is completed, the glass is quickly conveyed from the heating furnace to the cooling zone. The upper and lower air grids of the cooling system spray high-pressure uniform cold air onto the glass surface instantly, realizing rapid and uniform cooling. The cooling speed is precisely controlled according to the glass thickness, forming a stable compressive stress layer on the glass surface and a tensile stress layer inside, completing the tempering process. This link is the most critical step in determining the performance of tempered glass, and any deviation in cooling speed or uniformity will lead to unqualified product quality.

5.5 Unloading and Quality Inspection

The tempered glass after cooling is conveyed to the unloading table by the conveying system, and the operator or automatic inspection equipment conducts quality inspection on the tempered glass. The inspection items include appearance quality (no scratches, spots, bubbles, etc.), dimensional accuracy, flatness, stress distribution, and impact resistance. Qualified products are packaged and stored, while unqualified products are screened out for reprocessing or scrap treatment.

6. Application Fields of Tempered Glass Produced by Tempering Furnaces

Tempered glass produced by professional glass tempering furnaces has excellent performance and is widely used in various fields of the national economy, covering construction, automotive, home appliances, electronics, new energy, aerospace and other industries, and its application scope is still expanding with the development of technology.

6.1 Architectural Decoration Field

The architectural field is the largest consumer market for tempered glass. Tempered glass is widely used in building curtain walls, interior partition walls, doors and windows, shower rooms, floor glass, railings and ceilings. In high-rise buildings, tempered glass curtain walls not only have a beautiful and modern appearance, but also can withstand strong wind pressure and external impact, ensuring the safety of the building. In interior decoration, tempered glass partitions and doors and windows have good light transmittance and safety performance, improving the space utilization rate and aesthetic feeling of the building. In addition, laminated tempered glass and insulating tempered glass processed on the basis of tempered glass are also widely used in building energy-saving and sound insulation projects.

6.2 Automotive Industry

The automotive industry has extremely strict requirements on glass safety and performance, and almost all automotive glass (except for individual small decorative glasses) is tempered glass or laminated tempered glass produced by tempering furnaces. Automotive front windshields generally adopt laminated tempered glass, which can maintain integrity even when broken, avoiding fragments from hurting passengers; automotive side windows and rear windshields adopt single-piece tempered glass, which can be quickly broken into small particles in case of accidents, facilitating passenger escape. In addition, automotive sunroofs, rearview mirror glasses and instrument panel protective glasses also use high-quality tempered glass processed by precision tempering furnaces.

6.3 Home Appliance and Electronic Products

In the home appliance industry, tempered glass is used in the door panels of refrigerators, ovens, microwave ovens, the panels of induction cookers, the shells of washing machines, and the screens of televisions. The high thermal stability of tempered glass can adapt to the high-temperature working environment of kitchen appliances, and its high strength can resist collision and scratch during use. In the electronic information industry, with the popularization of smart phones, tablet computers, liquid crystal displays and other products, ultra-thin tempered glass processed by chemical or special thermal tempering furnaces is used as the protective screen of electronic products, with high hardness, scratch resistance and impact resistance, protecting the display screen from damage.

6.4 New Energy and Solar Energy Industry

With the rapid development of the global new energy industry, tempered glass has become an important component of solar photovoltaic modules and solar thermal collectors. Solar tempered glass produced by special tempering furnaces has high light transmittance, low iron content, excellent weather resistance and mechanical strength, which can protect the solar cells inside the module from wind, sand, hail and other external impacts, and ensure the long-term stable operation of photovoltaic power generation systems. The demand for solar tempered glass is growing rapidly with the large-scale application of photovoltaic power generation, which has put forward higher requirements for the performance of glass tempering furnaces.

6.5 Other Special Fields

In addition to the above fields, tempered glass is also used in aerospace, marine engineering, medical equipment, furniture manufacturing and other fields. For example, the cockpit glass of aircraft, the observation window of ships, the protective cover of medical equipment, and the glass tabletop of high-end furniture all use high-performance tempered glass processed by professional tempering furnaces, meeting the special performance requirements of different industries.

7. Advantages and Existing Challenges of Modern Glass Tempering Furnaces

7.1 Core Advantages

Modern glass tempering furnaces, after continuous technological innovation and optimization, present significant advantages in terms of performance, efficiency and energy saving compared with traditional equipment. Firstly, high degree of automation and intelligence reduces the dependence on manual operation, improves production efficiency and product stability, and reduces the defective rate caused by human factors. Secondly, excellent heating uniformity and cooling precision ensure that the tempered glass has uniform stress distribution, high flatness and stable mechanical properties, adapting to the processing of high-end coated glass and special glass. Thirdly, energy-saving and environmental protection performance is significantly improved through the optimization of thermal insulation structure, the application of convection heating technology and the recovery of waste heat, reducing energy consumption per unit product and meeting the national dual-carbon policy requirements. Fourthly, large-scale and multi-functional processing capacity meets the market demand for large-format, special-shaped and diversified tempered glass products, expanding the application scope of tempered glass.

7.2 Existing Challenges

Despite the rapid development of glass tempering furnace technology, there are still some challenges in the industrial application process. Firstly, the problem of self-explosion of tempered glass has not been completely solved. The self-explosion is mainly caused by the nickel sulfide inclusions inside the glass and the uneven stress distribution during the tempering process. Although the homogenization treatment furnace can reduce the self-explosion rate, it increases the production cost and process flow. Secondly, the processing of ultra-thin and ultra-thick glass still has technical bottlenecks. Ultra-thin glass (thickness <2mm) is easy to warp and break during the tempering process, while ultra-thick glass (thickness >25mm) has low heating efficiency and difficult control of cooling stress, requiring further research and development of specialized tempering furnace technology. Thirdly, the high cost of high-end intelligent tempering furnaces limits the popularization and application of small and medium-sized enterprises, and the technical gap between domestic and international high-end equipment still exists in some core components and control systems. Fourthly, the energy consumption and environmental protection requirements are becoming increasingly stringent, and the traditional tempering furnace energy-saving technology still has room for improvement, requiring the research and development of more efficient heating and cooling technologies to reduce carbon emissions.

8. Future Development Trends of Glass Tempering Furnaces

Driven by technological progress, market demand and policy guidance, the global glass tempering furnace industry will present the following development trends in the future:

8.1 Intelligent and Digital Upgrading

The future glass tempering furnaces will develop towards higher intelligence and digitization, integrating technologies such as artificial intelligence, big data analysis and the Internet of Things. The equipment will realize automatic optimization of process parameters, real-time online monitoring of glass quality, predictive maintenance of equipment faults and remote intelligent management. Through the collection and analysis of production data, the system can automatically adjust the heating, cooling and conveying parameters according to the production status, further improving product quality and production efficiency, and realizing the intelligent manufacturing of the glass tempering production line.

8.2 High Efficiency and Energy Saving Technology Innovation

Energy conservation and emission reduction will become the core research direction of glass tempering furnace technology. New heating technologies such as microwave heating, laser heating and high-efficiency infrared convection heating will be applied to tempering furnaces, improving heating efficiency and reducing energy consumption. At the same time, the waste heat recovery system will be further optimized, recovering the heat generated in the cooling and exhaust processes for preheating the original glass or heating the furnace body, realizing the recycling of energy. The research and development of low-emission and low-energy-consumption tempering furnace structures will also be accelerated to meet the global dual-carbon development goals.

8.3 Specialized and Diversified Product Development

Aiming at the demand for specialized tempered glass in different industries, glass tempering furnaces will develop towards specialization and diversification. Specialized tempering furnaces for ultra-thin electronic glass, ultra-thick architectural glass, curved large-format glass, high-temperature resistant solar glass and other products will be launched successively, meeting the personalized and high-end processing needs of the market. At the same time, the integration of tempering furnaces with other glass processing technologies (such as coating, laminating, engraving) will be realized, forming a one-stop glass deep-processing production line and improving the added value of products.

8.4 Green and Environmental Protection Development

In response to global environmental protection requirements, future glass tempering furnaces will adopt more green and environmentally friendly materials and processes, reducing the emission of volatile organic compounds, dust and noise. The closed-loop recycling of cooling water and exhaust gas will be fully realized, minimizing the impact of equipment production on the environment. In addition, the recyclable design of tempering furnace equipment will be strengthened, extending the service life of equipment and reducing the generation of industrial waste.

8.5 Internationalization of Core Technology and Localization of High-End Components

With the development of the global glass industry, the core technology of glass tempering furnaces will tend to be internationalized, and the technical exchanges and cooperation between countries will be more frequent. For domestic equipment manufacturers, accelerating the localization research and development of high-end core components (such as precision convection fans, high-performance temperature sensors, intelligent control systems) will break the foreign technology monopoly, reduce the production cost of high-end tempering furnaces, and improve the international competitiveness of domestic glass tempering furnace equipment.

9. Conclusion

Glass tempering furnace, as the core equipment of the glass deep-processing industry, has a pivotal position in promoting the development of the global glass industry and meeting the demand for high-performance safety glass in various fields. Through the analysis of its working principle, structural composition, classification, process flow, application fields and development trends, it can be seen that the glass tempering furnace industry is in a period of rapid technological innovation and structural optimization. With the continuous progress of materials science, mechanical engineering, automation control and other disciplines, and the continuous growth of market demand for high-end tempered glass, glass tempering furnaces will develop towards intelligence, high efficiency, energy saving, specialization and green environmental protection.

In the future, glass tempering furnace manufacturers need to increase R&D investment, break through key technical bottlenecks, optimize product performance, and meet the diversified and high-end needs of the market. At the same time, industry practitioners should strengthen technological exchanges and cooperation, promote the upgrading and transformation of the glass deep-processing industry, and make greater contributions to the development of construction, automotive, new energy, electronic information and other industries. With the continuous improvement of technology and the expansion of application fields, glass tempering furnaces will continue to play an important role in the global industrial system and promote the sustainable development of the safety glass industry.

The insulating glass packaging machine is a key piece of automated equipment in the modern construction glass and energy-saving building materials industry, specially designed for the final protection, fixing, wrapping, strapping and stacking of insulated glass units (IGUs). It integrates mechanical transmission, precision positioning, pneumatic control, sensor detection and intelligent electrical systems to realize fully automatic or semi‑automatic packaging from finished insulated glass products to transport‑ready packages. This paper systematically elaborates the definition, functional positioning, mechanical structure, working process, classification characteristics, core technical indicators and application advantages of insulating glass packaging machines. It further analyzes their wide applications in architectural doors and windows, curtain walls, residential construction, commercial buildings and international logistics transportation, summarizes the selection and maintenance specifications, and prospects the intelligent, green, flexible and digital development trends of insulating glass packaging equipment. The study shows that high‑performance insulating glass packaging machines effectively improve production efficiency, reduce glass damage rates, standardize packaging quality and enhance logistics safety, providing strong support for large‑scale, standardized and intelligent production of insulated glass.

1. Introduction

With the rapid development of global energy‑efficient buildings, green construction policies and modern urbanization, the demand for insulated glass units (IGUs) has increased sharply in architectural engineering, residential housing, commercial complex and public facility construction. As a core component of energy‑efficient windows and doors, insulated glass features remarkable thermal insulation, sound insulation, anti‑condensation and safety performance, and its production and processing have entered a stage of large‑scale, automated and intelligent manufacturing. The production process of insulated glass includes glass washing, drying, spacer frame assembly, desiccant filling, butyl rubber coating, composite pressing, inert gas filling and secondary sealing. After these processes, finished insulated glass needs reliable, standardized and efficient packaging before entering storage and logistics links. Traditional manual packaging has problems such as high labor intensity, low efficiency, inconsistent packaging quality, high breakage risk and poor protection effect, which can no longer meet the requirements of modern insulated glass production lines.

Insulating glass packaging machines emerged as specialized automated equipment targeting the above pain points. They are designed to achieve stable clamping, corner protection installation, surface protection, film wrapping, strapping, stacking and handling of insulated glass of different sizes, thicknesses and weights. By replacing manual operation with mechanical automation, these machines ensure the integrity, cleanliness and safety of insulated glass during transportation and storage, reduce production costs and improve the overall competitiveness of glass processing enterprises. In the context of intelligent manufacturing and industrial upgrading, insulating glass packaging machines have become indispensable terminal equipment connecting insulated glass production lines and logistics systems. This paper focuses on the technical system, application value and development direction of insulating glass packaging machines to provide theoretical and practical references for equipment R&D, production application and technological upgrading in the glass deep processing industry.

2. Overview of Insulating Glass Packaging Machine

2.1 Definition and Functional Orientation

An insulating glass packaging machine is an automatic or semi‑automatic mechanical and electrical integration device dedicated to the surface protection, edge wrapping, corner protection, fixing, strapping, wrapping and palletizing of insulated glass units. Its core functions include: protecting the glass surface from scratches, collisions and contamination; reinforcing edge and corner strength to prevent chipping and breakage; fixing the glass to avoid relative sliding during transportation; forming standardized, neat and stable packaging units; and connecting with production lines to realize continuous automated operation.

2.2 Position in the Insulated Glass Production Line

Insulating glass packaging machines are located at the tail end of the entire insulated glass production line, following processes such as sealing, curing and quality inspection. They serve as the last key node before finished products enter storage and transportation. The operational stability and packaging effect of packaging machines directly affect product yield, delivery efficiency and after‑sales damage rate, making them critical to the operational efficiency and economic benefits of the whole production line.

2.3 Differences from General Glass Packaging Equipment

Compared with ordinary flat glass, tempered glass or laminated glass packaging machines, insulating glass packaging machines have higher technical requirements:


Adaptability to multi‑layer composite structures and different thickness combinations
Protection for sealing edges to avoid damage to sealing structures
High compatibility with variable length, width and thickness specifications
Stable clamping force control to prevent glass deformation or layer separation
Dust‑free and clean packaging requirements to maintain internal dryness


3. Core Structure and Composition System

Modern insulating glass packaging machines adopt modular design, which is convenient for installation, commissioning, maintenance and functional expansion. The whole machine mainly consists of the following systems:

3.1 Frame and Host Structure

The frame is made of high‑strength sectional steel or welded steel plate with overall annealing treatment to ensure rigidity, stability and non‑deformation during long‑term operation. The host structure supports transmission, clamping, wrapping and strapping modules, providing a stable foundation for high‑precision operation.

3.2 Automatic Conveying and Positioning System

This system includes motor‑driven roller tables, conveyor belts, frequency conversion speed regulation devices and photoelectric sensors. It realizes automatic feeding, conveying, stopping, centering and positioning of insulated glass, ensuring accurate entry into the packaging station without deviation or collision.

3.3 Corner Protector Installation Mechanism

Corner protectors (plastic, paper or foam) are critical for protecting glass corners. The mechanism includes corner storage, pneumatic clamping, pushing and pressing components to automatically install corner protectors at four corners and edges, greatly improving anti‑collision performance.

3.4 Surface Protection and Wrapping System

This system includes film unwinding, cutting, laminating and wrapping devices. It uses PE stretch film, anti‑scratch film, woven cloth or bubble film to fully wrap the glass surface, isolating dust, moisture and scratches. High‑end models adopt electrostatic prevention and non‑slip wrapping technology.

3.5 Strapping and Fixing System

Strapping machines use PP or PET straps to tighten and fix the wrapped glass automatically. Functions include automatic strap feeding, tensioning, hot melting, cutting and knotting, with stable and firm binding without damaging the packaging film. Tension can be adjusted according to glass specifications.

3.6 Pneumatic and Hydraulic Power System

The pneumatic system provides clamping, lifting and pushing power with stable pressure and fast response. The hydraulic system is used in large‑scale heavy‑duty models to provide higher clamping and lifting force, ensuring stable handling of large‑size and heavy insulated glass.

3.7 Electrical Control and Human‑Machine Interface

The core control system adopts a high‑performance PLC (Siemens, Mitsubishi, etc.) with a touch screen for parameter setting, mode switching, fault alarm and running status monitoring. It supports automatic, manual and debugging modes, with functions such as automatic counting, fault self‑diagnosis and emergency stop.

3.8 Safety Protection System

Safety guards, photoelectric protection, emergency stop buttons and overload protection ensure operator safety and equipment stability. When an obstacle is detected, the machine stops immediately to avoid glass breakage or personal injury.

4. Working Principle and Automatic Packaging Process

4.1 Basic Working Principle

The insulating glass packaging machine takes electrical control as the core, pneumatic/hydraulic power as the drive, and sensor detection as the feedback. It automatically completes conveying, positioning, corner protection, surface wrapping, strapping and output according to preset procedures. The whole process replaces manual labor with mechanical movement, ensuring consistency, stability and high efficiency.

4.2 Full Automatic Packaging Process


Automatic Feeding: The insulated glass finished product is transported from the production line to the packaging machine’s conveying platform.
Precision Positioning: Photoelectric sensors detect the glass position; the conveying system adjusts to center the glass accurately.
Corner Protector Mounting: Pneumatic mechanisms automatically install protective corners on four corners and side edges.
Surface Protection Film Covering: The film covering mechanism covers the glass surface with protective film.
Stretch Wrapping: The wrapping system rotates or horizontally wraps to cover the glass fully.
Automatic Strapping: The strapping system tensions, heats and cuts straps to fix the package firmly.
Output and Palletizing: The packaged glass is automatically output and can be connected with a palletizing robot for automatic stacking.


4.3 Control Logic

The whole machine follows a sequential interlock control logic: only when the previous process is completed can the next process start. Once abnormal conditions occur, such as misalignment, film breakage or strap shortage, the system alarms immediately and pauses to avoid defective packaging or equipment damage.

5. Classification of Insulating Glass Packaging Machines

According to automation degree, structure form, application scenario and function configuration, insulating glass packaging machines can be classified into the following categories:

5.1 By Automation Degree


Semi‑automatic insulating glass packaging machine: Requires manual assistance in film placement, corner placement or button triggering; suitable for small‑batch production.
Full‑automatic insulating glass packaging machine: One‑click automatic completion of the whole process; suitable for large‑scale and assembly‑line production.


5.2 By Structural Form


Vertical insulating glass packaging machine: Glass stands vertically during packaging; small footprint, suitable for conventional doors and windows.
Horizontal insulating glass packaging machine: Glass lies horizontally; suitable for large‑size, heavy, thick or curved insulated glass.


5.3 By Function Configuration


Basic type: Only wrapping + strapping
Standard type: Positioning + corner protection + wrapping + strapping
Full‑function type: With dust removal, surface cleaning, labeling, coding and palletizing interfaces


5.4 By Applicable Glass Specifications


Small and medium‑sized model: For doors and windows below 2.4m
Large and super‑large model: For curtain wall and special engineering glass above 3m


6. Core Technical Parameters and Performance Indicators

The performance of an insulating glass packaging machine is mainly evaluated by the following indicators:


Applicable glass size: Length, width and thickness range
Applicable glass weight: Maximum load capacity
Packaging speed: Units per minute/hour
Strapping quantity and spacing: Adjustable range
Wrapping film width and thickness: Adaptability
Clamping force adjustment range: To avoid glass damage
Control system: PLC brand, human‑machine interface
Power supply and air pressure: Standard configuration
Dimensions and weight: Installation space requirements
Failure rate and stability: Mean time between failures (MTBF)


7. Application Advantages in Industrial Production

7.1 Greatly Improve Production Efficiency

Automatic packaging can reach 300–600 pieces per shift, 3–5 times higher than manual packaging, matching the beat of modern high‑speed insulated glass production lines.

7.2 Significantly Reduce Breakage Rate

Professional protection and stable clamping reduce corner damage and surface scratches, lowering the breakage rate from manual 3–5% to below 0.5%.

7.3 Improve Packaging Standardization

Uniform wrapping tightness, strap position and corner protection ensure consistent appearance and structural stability, enhancing product image.

7.4 Reduce Labor Cost and Intensity

One operator can manage multiple machines, reducing labor demand by 70–80% and lowering long-term production costs.

7.5 Enhance Logistics Safety and Storage Efficiency

Standardized packaging facilitates stacking, handling and transportation, saving storage space and reducing transport damage.

7.6 Meet Clean and Dust‑Free Requirements

Closed automatic packaging reduces dust contamination and keeps the insulated glass interior dry and clean.

8. Typical Industrial Application Fields

8.1 Architectural Doors and Windows Industry

The largest application area, used for packaging energy‑saving insulated glass for residential buildings, offices and public constructions.

8.2 Curtain Wall and Engineering Glass

Large‑scale packaging machines serve high‑rise building curtain walls, shopping malls, airports and stations.

8.3 Export Glass Logistics

Standardized packaging meets international transport requirements, resisting moisture, salt spray and vibration during long‑distance shipping.

8.4 Household Appliances and Automotive Glass

Adapted for special insulated glass used in refrigeration, home appliances and vehicle windows.

8.5 Photovoltaic and Solar Energy Glass

Special anti‑static and high‑cleanliness packaging models for photovoltaic modules.

9. Selection Principles and Operation Maintenance

9.1 Selection Principles


Match production line speed and output
Adapt to glass size, thickness and weight range
Select vertical or horizontal structure according to plant space
Choose automation level based on product type and batch size
Prioritize stable brand, reliable configuration and convenient maintenance
Consider expandability for future product upgrades


9.2 Daily Operation Specifications


Operators must receive professional training
Check air pressure, voltage and strap/film supply before startup
Set parameters according to glass specifications
Monitor operation and handle alarms in time
Regularly clean dust and glue residue


9.3 Maintenance and Upkeep


Weekly lubrication of transmission parts
Monthly inspection of sensors, cylinders and motors
Quarterly calibration of positioning accuracy
Annual comprehensive maintenance and parts replacement
Use original consumables to ensure stability


10. Current Development Status and Future Trends

10.1 Current Industry Status

In recent years, with the popularization of energy‑saving buildings, insulated glass packaging machines have developed rapidly in China and globally. The technology has evolved from semi‑automatic to fully automatic, from single‑function to integrated, and from mechanical control to intelligent digital control. High‑end models integrate visual positioning, AI fault detection and flexible adjustment.

10.2 Future Development Trends


Higher Intelligence: AI visual recognition, automatic specification adjustment, unmanned operation
Flexible Production: Quick changeover for multi‑size mixed production
Green and Low‑Carbon: Energy‑saving motors, recyclable packaging materials
Digital Management: Data monitoring, remote diagnosis, MES connection
Integration and Completeness: Integration of cleaning, packaging, labeling and palletizing
Higher Safety and Stability: Stronger anti‑breakage, quieter and more reliable systems


11. Conclusion

As a key terminal device in the insulated glass industry chain, the insulating glass packaging machine plays an irreplaceable role in improving production efficiency, ensuring product quality, reducing damage rates and enhancing logistics safety. With the continuous advancement of energy‑efficient construction policies and intelligent manufacturing technology, automated, intelligent and integrated packaging equipment will become the mainstream choice for glass processing enterprises. The continuous innovation of insulating glass packaging machines will further promote the standardized, large‑scale and green development of the insulated glass industry, create greater economic and social value, and provide solid support for the global construction industry’s energy conservation, emission reduction and sustainable development.

Ethylene-Vinyl Acetate (EVA) film bending represents a precision materials-forming discipline that integrates polymer physics, thermal engineering, and mechanical shaping to realize controllable deformation of EVA polymeric films while preserving structural integrity, optical clarity, and functional performance. This formal exposition systematically examines the molecular and macromolecular foundations of EVA film bendability, establishes the governing principles and parametric boundaries of thermal-mechanical bending processes, evaluates quality-governing mechanisms and defect-mitigation strategies, and articulates validated industrial implementations across photovoltaics, architectural glazing, flexible electronics, and advanced packaging. By unifying material characterization, process modeling, and application engineering, this document establishes a rigorous technical framework for the design, scaling, and quality assurance of EVA film bending in high-performance manufacturing environments.

1. Introduction

EVA film, a thermoplastic copolymer of ethylene and vinyl acetate, occupies a distinctive position among functional polymeric films due to its balanced combination of optical transparency, elastomeric flexibility, thermal processability, and interfacial adhesion. In contrast to rigid engineering plastics and highly compliant elastomers, EVA exhibits a tunable modulus that enables controlled plastic and elastic bending under defined thermal and mechanical conditions. EVA film bending is not merely a geometric shaping operation but a materials transformation process that dictates long-term dimensional stability, optical uniformity, mechanical robustness, and service life in end-use assemblies.

Historically, EVA film has been deployed primarily as an encapsulant and interlayer material, where flat-sheet lamination dominated manufacturing workflows. However, the proliferation of curved, conformal, and three-dimensional product architectures—from curved photovoltaic modules and sculptural architectural glass to flexible display stacks and contoured medical devices—has elevated EVA film bending from a secondary operation to a core enabling technology. Contemporary industrial practice demands that bent EVA films maintain pristine optical transmission, resist microcracking and haze, preserve adhesive bonding strength, and withstand cyclic mechanical fatigue and environmental aging. These requirements necessitate a formal, science-based approach to EVA film bending that transcends empirical trial-and-error.

This paper presents a comprehensive technical treatment of EVA film bending, structured to support engineering specification, process development, and quality validation. It addresses material-dependent factors, thermal-mechanical process regimes, in-process monitoring, defect root-cause analysis, and scalable industrial applications. Emphasis is placed on formal engineering principles, quantitative parametric relationships, and repeatable manufacturing methodologies to ensure the reliability and reproducibility of bent EVA film components.

2. Material Foundations of EVA Film Bendability

2.1 Molecular Architecture and Deformation Behavior

The bendability of EVA film is intrinsically governed by its copolymer microstructure. Ethylene units provide crystalline domains that impart mechanical strength and structural stability, while vinyl acetate (VA) segments disrupt crystalline registry, introducing amorphous regions that confer flexibility, toughness, and low-temperature ductility. VA content—typically ranging from 15% to 33% for industrial-grade bending films—directly modulates the glass transition temperature (Tg), melt flow behavior, and elongation-at-break. Films engineered for precision bending commonly feature VA concentrations between 22% and 28%, balancing formability with post-forming shape retention.

Under bending stress, EVA undergoes a sequence of deformation regimes: elastic deflection at low strain, uniform plastic flow at moderate thermal activation, and localized strain narrowing at excessive stress or insufficient temperature. The characteristic rubbery elasticity of EVA above Tg enables large-radius bending with minimal internal stress, while cross-linked formulations (employed in high-durability applications) establish a molecular network that restricts irreversible flow and enhances recovery after bending. This molecular response defines the safe forming envelope for EVA film bending, distinguishing between recoverable elastic deflection and permanent shape-setting deformation.

2.2 Thermomechanical Properties Critical to Bending

Key performance metrics that govern EVA film bending include:


Flexural Modulus: Temperature-dependent stiffness that determines force requirements and springback behavior.
Elongation-at-Break: Typically 300%–800%, providing the extensibility required for convex and concave bending.
Melting Onset: 55°C–95°C, establishing the lower bound for thermally assisted forming.
Thermal Stability: Retention of molecular integrity up to approximately 120°C, preventing thermal degradation during processing.
Optical Retention: Resistance to haze, whitening, or birefringence under bending strain.


These properties collectively establish the process window for EVA film bending: operations conducted within the recommended thermal-mechanical envelope yield smooth, defect-free curved surfaces; excursions outside this window result in microcracking, stress whitening, uneven curvature, or permanent optical degradation.

2.3 Film Structure and Formulation Effects

Commercial EVA bending films are manufactured via extrusion casting or blown-film processes, which influence thickness uniformity, surface energy, and internal residual stress. Films produced for precision bending are calibrated to tight thickness tolerances (±2% for high-performance grades) to ensure consistent strain distribution across the bend zone. Additive packages—including UV stabilizers, cross-linking agents, and anti-oxidants—are formulated to preserve processability without compromising bend ductility. Cross-linked EVA films, widely used in photovoltaic and architectural applications, exhibit reduced creep under sustained bending and improved resistance to fatigue cracking during cyclic loading.

3. Principles of EVA Film Bending Processes

3.1 Thermal-Mechanical Forming Regimes

EVA film bending is universally implemented as a thermally assisted process, as cold bending induces excessive internal stress and leads to brittle fracture. Thermal activation softens the amorphous domains, lowers the flexural modulus, and enables controlled molecular rearrangement under mechanical constraint. Three primary process regimes are recognized in industrial practice:


Low-Temperature Elastic Bending (60°C–80°C): Used for gentle, large-radius curves where temporary deformation is sufficient; shape stability depends on rapid cooling and constraint.
Medium-Temperature Thermoforming (85°C–110°C): The dominant industrial regime for EVA film bending, enabling permanent shape setting with uniform deformation and minimal optical distortion.
High-Temperature Flow Bending (>115°C): Reserved for complex, tight-radius geometries; requires precise thermal profiling to avoid melting, thickness reduction, or molecular degradation.


In all regimes, uniform temperature distribution across the film is critical to prevent differential strain, which manifests as wrinkling, thickness variation, or localized failure.

3.2 Mechanical Bending Modes

EVA film bending is categorized by geometric configuration and stress distribution:


Convex Bending: External tensile stress dominates; requires sufficient elongation capacity to avoid necking or fracture.
Concave Bending: Internal compressive stress dominates; risk of wrinkling or buckling dominates over fracture.
Compound Curvature Bending: Simultaneous tensile and compressive stress in orthogonal axes; demands uniform heating and matched tooling to maintain dimensional fidelity.
Free-Bending vs. Constrained Bending: Free-bending relies on controlled force and cooling; constrained bending uses male/female tooling to enforce precise curvature and minimize springback.


Constrained bending is the formal industrial standard for high-precision applications, as it decouples operator variability from geometric outcome and ensures repeatable bend radii and angular accuracy.

3.3 Process Parameters and Parametric Interactions

Formal control of EVA film bending requires quantitative specification of interdependent parameters:


Temperature Profile: Ramp rate, soak time, peak temperature, and cooling rate.
Mechanical Force: Applied load, displacement rate, and holding pressure.
Tooling Geometry: Bend radius, contact surface finish, and thermal conductivity.
Film Condition: Initial temperature, moisture content, and pre-treatment status.


Interactions between these parameters define the forming limit diagram (FLD) for EVA film, which maps safe operating regions against failure modes. Formal process development employs design-of-experiments (DoE) methodologies to optimize parameter sets and establish statistical process control (SPC) limits for mass production.

4. Engineering Methodology for Controlled EVA Film Bending

4.1 Pre-Forming Preparation and Quality Assurance

Prior to bending, EVA film must undergo controlled conditioning to eliminate internal stress and moisture uptake, which can cause bubbling, delamination, or inconsistent deformation during heating. Industrial best practice includes:


Desiccant storage at 15°C–25°C and relative humidity <50%.
Pre-heat conditioning to remove residual extrusion stress.
Thickness and optical inspection to reject non-uniform sheets.
Surface cleaning to preserve adhesion and optical clarity.


4.2 Thermal Control and Uniformity Systems

Precision thermal delivery is the cornerstone of high-quality EVA film bending. Industrial systems employ:


Convective heating for gentle, uniform thermal transfer.
Infrared (IR) heating with spectral tuning for rapid, zone-controlled thermal input.
Conductive tooling for conformal heat distribution in constrained bending.
Closed-loop temperature monitoring with multi-point sensing to eliminate hot/cold spots.


Uniform thermal distribution ensures that the entire bend zone reaches the target deformation state simultaneously, preventing localized over-extension or under-forming.

4.3 Mechanical Actuation and Kinematic Control

Bending actuators are engineered to apply consistent, rate-controlled force to avoid shock loading. Servo-driven linear mechanisms and articulated tooling provide programmable bend profiles, enabling ramped deformation that matches the stress-relaxation behavior of EVA. Holding stages at peak deformation allow molecular stabilization prior to cooling, significantly reducing springback and improving dimensional stability.

4.4 Cooling and Shape Setting

Rapid, uniform cooling locks the deformed molecular structure into the desired geometry. Controlled cooling—via ambient convection, chilled air, or temperature-stabilized tooling—minimizes thermal shrinkage and internal residual stress. Abrupt quenching is avoided, as it can induce internal stress gradients that lead to post-forming warping or optical inhomogeneity.

4.5 In-Process Metrology and Validation

Formal EVA film bending processes integrate real-time metrology to validate geometric conformance and functional quality:


Laser profilometry for bend radius and angular accuracy.
Optical transmission and haze measurement to verify optical stability.
Thickness gauging to detect excessive thinning or wrinkling.
Microscopic inspection to rule out microcracking or crazing.


In-process validation ensures that deviations are contained within specification limits before downstream assembly.

5. Defect Mechanisms, Analysis, and Mitigation

5.1 Common Defects and Root Causes

Formal defect analysis in EVA film bending attributes anomalies to material, thermal, mechanical, or tooling factors:


Stress Whitening: Localized yielding due to insufficient temperature or excessive bend rate.
Microcracking: Exceeding elongation limits or sharp tooling edges.
Wrinkling/Buckling: Compressive instability in concave bending or uneven heating.
Thickness Reduction: Overheating and tensile flow in convex bending.
Optical Haze: Molecular chain alignment or microvoid formation under extreme strain.
Springback: Inadequate holding time, insufficient temperature, or rapid cooling.


5.2 Systematic Mitigation Strategies

Engineering mitigation is derived directly from root-cause mechanisms:


Expand thermal process windows to ensure uniform ductility.
Optimize tooling radii and surface finishes to eliminate stress concentrations.
Implement ramped deformation profiles to match material flow characteristics.
Use constrained forming to stabilize compressive zones and prevent wrinkling.
Apply closed-loop thermal and force control to maintain operation within the FLD.


Formal corrective actions are documented in process failure-mode effects analysis (PFMEA) frameworks to drive continuous improvement.

6. Industrial Applications of EVA Film Bending

6.1 Photovoltaic Module Encapsulation

Curved and flexible PV modules rely on precision-bent EVA encapsulant films to conform to contoured glass or flexible back-sheets. EVA film bending enables aesthetic, building-integrated photovoltaics (BIPV) with curved facades, sunshades, and structural glazing, while preserving high light transmittance and long-term environmental stability.

6.2 Architectural and Automotive Laminated Glass

Bent EVA film serves as a safe, transparent interlayer in curved laminated glass for architectural curtain walls, automotive sunroofs, and transportation glazing. Its excellent adhesion to glass, impact resistance, and acoustic damping properties make it a preferred alternative to conventional interlayers in complex curved assemblies.

6.3 Flexible Electronics and Optoelectronic Assemblies

EVA film bending supports the manufacturing of flexible displays, touch sensors, and wearable devices by providing a conformal, optically clear, and dielectrically stable substrate and encapsulant. Controlled bending ensures pixel-level uniformity and resistance to cyclic flex fatigue.

6.4 Advanced Packaging and Protective Films

High-value consumer goods, medical devices, and industrial components utilize bent EVA films for form-fitting protective packaging. The material’s thermoformability, clarity, and toughness enable custom contoured packaging with superior impact resistance and visual presentation.

7. Quality Standards and Performance Validation

Formal EVA film bending is governed by material and process standards that ensure fitness for service:


Optical Specifications: Light transmittance >90%, haze <1.5% after bending.
Mechanical Specifications: No cracking or whitening at specified minimum bend radius.
Dimensional Specifications: Bend radius tolerance ±1 mm, angular tolerance ±0.5°.
Environmental Stability: Passes thermal cycling, humidity aging, and UV exposure without delamination or degradation.


Validation includes accelerated aging tests, mechanical fatigue cycling, and long-term creep testing to verify performance over the product service life.

8. Conclusion

EVA film bending is a sophisticated thermal-mechanical forming process grounded in polymer physics, process engineering, and precision manufacturing. Its formal implementation requires rigorous control of material condition, thermal delivery, mechanical actuation, and in-process validation to produce defect-free, dimensionally accurate, and functionally robust curved EVA film components. As industrial demand for conformal, lightweight, and optically superior assemblies continues to grow, EVA film bending will remain a critical enabling technology across photovoltaics, architecture, automotive, flexible electronics, and advanced packaging.
