I. Introduction



Mechanized production of insulating glass significantly improves production efficiency and product quality. This plan details the process of manufacturing insulating glass using automated machinery.



II. Production Process



A. Glass Feeding and Cutting



- Automated Loading: High - speed robotic arms are used to load large sheets of float glass from storage racks onto the glass cutting line. These arms are programmed to handle the glass gently to avoid scratches or breakages.

- Precision Cutting: Computer - controlled glass cutting machines measure and cut the glass according to pre - set dimensions. The cutting blades are automatically adjusted for different glass thicknesses, ensuring a precise cut with an accuracy of ± 0.5mm.



B. Edge Processing



- Grinding and Polishing: The cut glass edges are fed into an automated edge - processing machine. This machine uses rotating abrasive wheels to grind the edges smoothly and then polishes them to enhance the glass's appearance and adhesion for sealants.

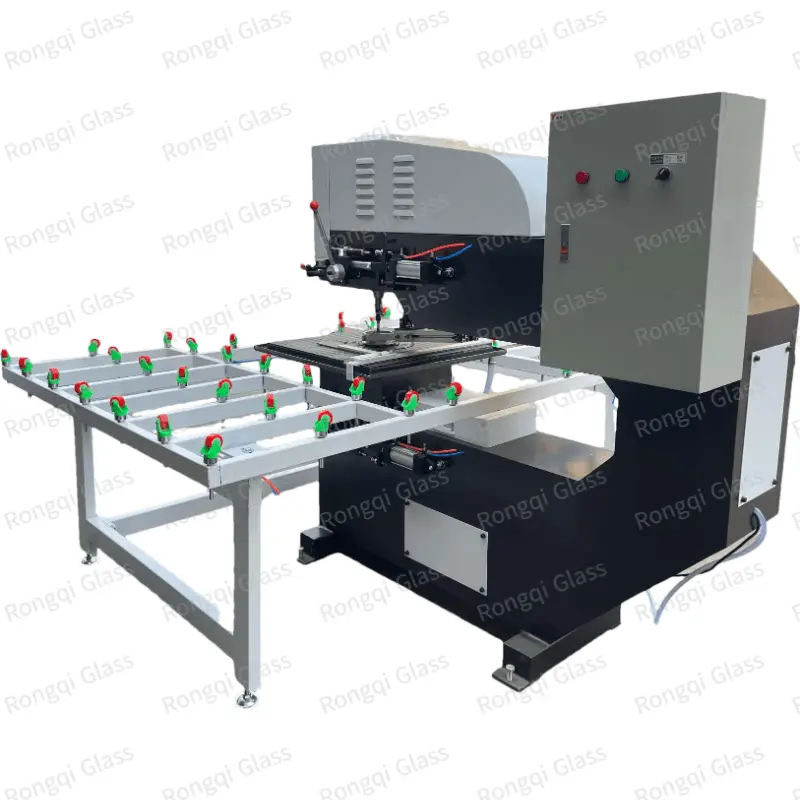

- Drilling (if required): For customized insulating glass with holes, a numerically - controlled drilling machine is integrated into the production line. It accurately drills holes based on the input specifications, with a high - speed spindle ensuring clean and precise holes.



C. Washing and Drying



- The Glass will be washed with the glass washing machine.The machine is with 6 soft brushes for cleaning and knieves for drying.It is ok for Low-E glass and the glass thickness can be adjusted automatically.



D. Spacer and Desiccant Handling



- Spacer Bending and Assembly: An automatic spacer bending machine forms aluminum or stainless - steel spacers into the required shapes. The machine can handle different spacer profiles and lengths. Desiccant is automatically filled into the spacers through a precise dosing system to absorb moisture in the air gap.

- Spacer Placement: Robotic arms pick up the bent spacers and accurately position them between the cleaned glass sheets on a conveyor - based assembly platform.



E. Gas Filling (Optional)



- Inert Gas Injection: For insulating glass that requires enhanced thermal performance, an automated gas - filling machine is used. It injects inert gases like argon or krypton into the air gap between the glass panes. The gas flow rate and pressure are precisely controlled to achieve the desired gas concentration.



F. Sealing



- Primary Seal Application: A robotic sealant dispensing arm applies the primary sealant, typically polysulfide, along the inner edge of the spacer. The arm moves at a constant speed and pressure, ensuring an even and consistent sealant layer.

- Secondary Seal Application: After the primary seal has cured to a certain extent, another robotic arm applies the secondary sealant, such as silicone, on the outside of the primary seal. This provides additional protection and strength to the insulating glass unit.



III. Quality Assurance



- In - line Inspection: Throughout the production process, multiple in - line inspection stations are installed. These use sensors and cameras to detect defects such as uneven sealant application, air bubbles, and misaligned components. Defective products are automatically flagged and removed from the production line.

- Final Testing: Before packaging, each insulating glass unit undergoes a final set of tests, including a leak test for gas - filled units and a dimensional accuracy check. Only products that meet the strict quality standards are approved for shipment.



IV. Conclusion



This mechanized production process for insulating glass, with its combination of automated machinery and strict quality control measures, ensures the efficient production of high - quality insulating glass products, meeting the demands of the construction and related industries.

The production process of EVA laminated glass is similar to that of ordinary laminated glass, but there are differences in film selection and some processes. The main process is as follows:



Original glass preparation



-Film selection: Select high-quality glass raw materials with high flatness and no obvious defects, and determine the type of glass according to actual needs, such as float glass, ultra white glass, etc.

-Cutting: Use a glass cutting machine to cut the original glass into the required size and shape, with cutting accuracy controlled within a small range to ensure the accuracy of subsequent processing.



Glass cleaning and drying



-Cleaning: Place the cut glass into a glass cleaning machine and use methods such as spraying and brushing to remove dust, oil, and other impurities from the glass surface using clean water and specialized cleaning agents, ensuring the cleanliness of the glass surface.

-Drying: After cleaning, the glass is dried by hot air or natural drying to completely dry the surface of the glass and avoid moisture residue affecting the bonding between the EVA film and the glass.



EVA film preparation



-Film selection: Based on the usage requirements and performance characteristics of laminated glass, select EVA (ethylene vinyl acetate copolymer) film with appropriate thickness and performance. EVA film should have good transparency, adhesion, and weather resistance.

-Film cutting: Use cutting equipment to cut EVA film into a shape that matches the size of the glass. When cutting, pay attention to ensuring that the edges of the film are neat, without burrs or damage.



Lamination



-On a clean workbench, place a piece of glass first, lay the cut EVA film flat on the glass, ensure that the film is aligned with the edge of the glass, and then cover another piece of glass on the EVA film to form a sandwich structure. During the lamination process, it is important to avoid the formation of bubbles and wrinkles between the film and glass as much as possible.





High temperature curing



-Place the sealed laminated glass into the laminated glass equipment and crosslink the EVA film at a high temperature to achieve complete curing, thereby firmly bonding the two pieces of glass. The curing temperature is generally around 130-150 ℃, and the curing time depends on the thickness of the glass and film, usually ranging from tens of minutes to several hours.



Cooling and testing



-Cooling: The cured laminated glass is taken out of the curing equipment and naturally cooled to room temperature. During the cooling process, it is necessary to avoid external impact or rapid temperature changes on the glass to avoid affecting product quality.

-Testing: Conduct a comprehensive inspection of the cooled EVA laminated glass, including visual inspection, to check for defects such as bubbles, impurities, and delamination; Measure the dimensions to ensure that the glass meets the standard requirements; Performance testing to check whether the indicators such as light transmittance, impact resistance, and bonding strength meet the specified standards.



Packaging and Storage



-Packaging: Qualified EVA laminated glass is packaged with protective film, cardboard boxes, or wooden crates to protect the glass from damage during transportation and storage.

-Storage: Store the packaged laminated glass in the warehouse, classify it according to specifications and batches, take measures to prevent moisture and dust, and wait for shipment.

The first critical step in molecular sieve processing is creating precise access points for filler injection—without compromising the structural integrity of the target component (e.g., hollow glass aluminum spacers, adsorption towers, or catalyst reactors). The all-in-one automatic filler’s punching module is engineered to address this challenge through advanced mechanical design and intelligent control systems.Unlike manual punching, which often results in irregular hole sizes, burr formation, or material deformation, the automated punching mechanism leverages servo-driven actuators and precision tooling to deliver consistent, repeatable results. For instance, in hollow glass production, the system targets aluminum spacers (6–24mm in width) with punch diameters calibrated to match molecular sieve particle sizes (0.5–0.8mm), ensuring unobstructed filler flow while minimizing post-processing debris. The punching process is synchronized with component positioning systems, which use optical sensors to align the punch with pre-programmed coordinates—eliminating human error and ensuring hole placement accuracy within ±0.1mm.Notably, the module’s adaptability is a key strength. It accommodates diverse component geometries, from straight aluminum strips to custom-bent frames (square, rectangular,弓形, or rounded-corner designs) and cylindrical adsorption towers, making it suitable for multiple industrial sectors . Advanced models also feature adjustable punch depth and force control, preventing material damage while maintaining structural integrity—a critical consideration for thin-walled components or high-pressure applications like gas separation reactors.

In the contemporary architectural glass industry, insulated glass has evolved from an optional accessory to an indispensable core component of modern, energy-efficient, and high-rise buildings. As the global demand for premium architectural solutions continues to surge, the High Performance Insulated Glass Production Line stands as a pinnacle of engineering excellence, integrating precision manufacturing, intelligent automation, and cutting-edge material processing technologies to redefine the standards of insulated glass production. This state-of-the-art production system is meticulously designed to manufacture insulated glass units (IGUs) of unparalleled quality, durability, thermal insulation, soundproofing, and structural stability, catering to the stringent requirements of commercial skyscrapers, residential high-rises, green buildings, industrial facilities, and special architectural projects worldwide.

Core Technical Advantages of High Performance Insulated Glass Production Line

The high performance insulated glass production line is engineered with a focus on operational efficiency, processing precision, and product reliability, embodying the highest level of industrial manufacturing technology. At its core, the production line adopts fully automated control systems, including PLC programmable logic control, human-machine interface operation, and servo-driven precision positioning, which minimize manual intervention, reduce production errors, and ensure consistent product quality across every batch.

In terms of glass processing, the production line integrates high-precision glass washing, drying, automatic positioning, spacer frame bending, molecular sieve filling, butyl rubber coating, structural gluing, and pressing forming processes. The glass washing and drying module employs multi-stage pure water washing and low-wind-speed hot air drying technology, which completely removes dust, oil stains, and impurities from the glass surface without leaving water marks or scratches, laying a solid foundation for the sealing performance and service life of insulated glass units. The automatic spacer frame processing system supports the production of aluminum spacers, warm edge spacers, and composite spacers, with bending accuracy controlled within micron levels, adapting to various sizes and shapes of insulated glass, including rectangular, special-shaped, and oversized units.

A critical highlight of the high performance production line is its sealing system, which adopts dual-component sealant automatic coating technology with precise glue output control. The first-layer butyl rubber seal and the second-layer structural sealant form a closed and robust sealing structure, effectively preventing air penetration, moisture intrusion, and sealant failure, thereby extending the service life of insulated glass to more than 20 years. Meanwhile, the production line is equipped with an automatic molecular sieve filling device, which ensures uniform and sufficient filling of desiccant inside the spacer frame, maintaining long-term dryness inside the insulated glass cavity, eliminating condensation and fogging, and enhancing the thermal insulation and optical performance of the finished products.

Application Scope and Product Performance

Insulated glass produced by the high performance production line boasts exceptional comprehensive performance, making it suitable for a wide range of high-end architectural applications. In terms of thermal insulation, the production line can manufacture double-glazed, triple-glazed, and even quadruple-glazed insulated glass units, with inert gas (argon, krypton) automatic filling function, which greatly reduces the heat transfer coefficient (U-value) and meets the energy-saving standards of passive houses and zero-energy buildings. In terms of sound insulation, the multi-cavity structure and professional processing technology enable the insulated glass to achieve a sound insulation rating of up to 35-45 decibels, effectively isolating outdoor noise and creating a quiet indoor environment.

In addition, the production line supports the processing of coated glass, tempered glass, laminated glass, low-e glass and other high-performance glass substrates, combining them into composite insulated glass products with functions such as UV protection, solar control, high light transmittance, and safety explosion-proof. These products are widely used in landmark buildings, airport terminals, railway stations, five-star hotels, high-end residential areas, medical facilities, and office buildings, meeting the dual demands of architectural aesthetics and functional practicality.

Intelligent Manufacturing and Sustainable Development

The high performance insulated glass production line aligns with the global trend of intelligent manufacturing and green sustainable development. The entire production line is equipped with an intelligent monitoring system, which can collect and analyze real-time data on production speed, processing accuracy, material consumption, and equipment operation status, realizing remote control, fault self-diagnosis, and production optimization. This not only improves production efficiency and reduces labor costs but also ensures the stability and continuity of the production process.

In terms of environmental protection and energy conservation, the production line adopts energy-saving motors, low-consumption control systems, and closed-loop recycling technology for washing water and sealants, minimizing energy consumption and waste discharge. The production process is pollution-free, low-noise, and in line with international environmental protection standards, helping glass processing enterprises achieve green and low-carbon production while improving product added value.

We are delighted to issue this formal announcement confirming the successful and comprehensive installation of our factory’s flagship hot-selling glass cutting machine at the designated production facility. The seamless completion of this installation project represents a pivotal milestone for our manufacturing operations, underscoring our commitment to equipping the production line with state-of-the-art equipment and reinforcing the machine’s preeminent position in the market.

This glass cutting machine, renowned as one of our factory’s best-selling and most reliable products, is the culmination of years of rigorous research and development, meticulous engineering, and continuous process optimization. Crafted to meet the evolving and demanding requirements of the modern glass processing industry, the machine integrates cutting-edge digital control systems, ultra-precise servo-driven components, and an intelligent cutting algorithm suite. Its design is engineered for versatility, enabling it to process a wide spectrum of glass materials, including standard float glass, tempered glass, insulated glass, laminated glass, and decorative glass, with unparalleled accuracy and efficiency. Core to its performance is the ability to maintain an extraordinarily narrow tolerance in cutting dimensions, far exceeding industry benchmarks, while delivering exceptional cutting speeds that optimize overall production throughput.

Beyond its superior technical performance, the machine is engineered with operational efficiency and cost reduction at its core. Its high degree of automation minimizes reliance on manual intervention, thereby reducing labor costs and human error. Integrated sensors and automated feedback mechanisms ensure minimal material waste, a critical factor in enhancing the profitability of glass processing operations. The robust construction of the machine, utilizing high-grade materials and components, guarantees long-term operational stability, low maintenance requirements, and a prolonged service life—attributes that have been instrumental in its strong sales performance and widespread customer adoption.

The installation process, executed by a specialized team of engineers and technicians from our factory, was conducted with the utmost professionalism and adherence to stringent safety and quality standards. Prior to on-site activities, comprehensive planning was undertaken, including detailed site surveys, logistical coordination for equipment transportation, and the preparation of utility connections to ensure a smooth workflow. Upon arrival, the equipment was carefully unloaded, inspected for any potential transit damage, and then positioned with precision using specialized lifting gear.

The installation itself involved a series of complex and interconnected tasks. This included the mechanical assembly of the machine’s structural frame, the precise calibration of its cutting table and motion systems, the meticulous routing and connection of electrical, pneumatic, and hydraulic systems, and the final configuration of its control software. Each step was executed with great care, with continuous performance checks and system verifications conducted at various stages to identify and resolve any potential issues promptly. Following the physical assembly, an extensive commissioning phase was carried out, involving test runs with various glass types, fine-tuning of cutting parameters, and comprehensive performance validation to ensure all operational specifications were met or exceeded.

Simultaneously, our technical team provided comprehensive training to the production facility’s operating and maintenance staff. This training program covered all facets of equipment usage, including standard operating procedures, parameter setting for different cutting tasks, routine maintenance protocols, and best practices for troubleshooting common faults. By the conclusion of the installation and commissioning process, the client’s personnel were fully proficient in the safe and efficient operation of the machine, ensuring its seamless integration into the existing production workflow.

Stakeholders at the production facility have expressed immense satisfaction with the outcome. They highlighted the machine’s exceptional build quality, its intuitive user interface, and the outstanding performance demonstrated during the trial runs as key factors in their positive assessment. The installation of this hot-selling glass cutting machine is set to significantly elevate the facility’s production capabilities, enabling it to meet higher order volumes, deliver products with even greater precision, and maintain a competitive edge in the market.

For our factory, this successful installation reaffirms the trust that customers place in our products and services. It serves as a testament to our unwavering dedication to innovation, quality, and customer satisfaction. As we move forward, we will continue to invest in research and development to further enhance the performance and capabilities of our glass processing equipment. We remain committed to providing our global customer base with reliable, efficient, and future-ready solutions that drive their operational success. This milestone solidifies our position as a leading provider of glass cutting technology and paves the way for continued growth and expansion in both domestic and international markets.
