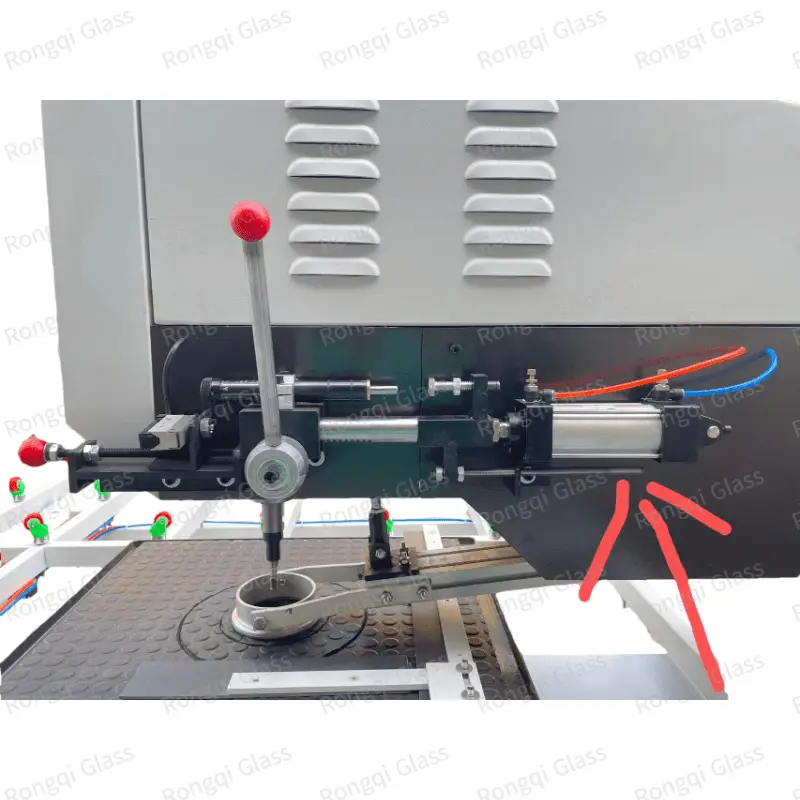

Automatic Dessicant Filling Machine: A Comprehensive Analysis of Technology, Application and Industrial Value

1. Introduction

In the modern industrial manufacturing and product packaging system, moisture control has become a key link to ensure product quality, extend shelf life and maintain performance stability. Dessicants, as core materials for absorbing moisture and regulating environmental humidity, are widely used in food, pharmaceutical, electronic manufacturing, insulating glass, precision instruments and other fields. The traditional manual or semi-automatic desiccant filling method has problems such as low efficiency, large filling error, easy material waste, high labor cost and difficulty in meeting large-scale standardized production. Against this background, the Automatic Dessicant Filling Machine, as an automated equipment integrating mechanical, electrical, pneumatic, sensing and intelligent control technologies, has gradually replaced traditional processes and become an indispensable core equipment in the desiccant application and packaging industry chain.

This paper systematically combs the core connotation, working principle, structural composition, technical parameters, application scenarios, core advantages and market development trends of the Automatic Dessicant Filling Machine, and deeply analyzes its technological innovation path and future development direction, aiming to provide a comprehensive reference for industrial practitioners, equipment R&D personnel and market investors, and clarify the important value of this equipment in promoting industrial automation upgrading and quality improvement.

2. Definition and Classification of Automatic Dessicant Filling Machine

2.1 Core Definition

The Automatic Dessicant Filling Machine is a special automated mechanical and electrical integration equipment that can automatically complete the processes of desiccant feeding, metering, filling, sealing (partial models), detection and rejection without manual intervention. It takes desiccant (including silica gel, molecular sieve, montmorillonite, calcium chloride and other granular, powdery or columnar desiccants) as the processing object, and realizes precise, efficient and standardized filling operations for different containers (such as insulating glass aluminum spacer frames, food and pharmaceutical bottles, electronic product packaging boxes, desiccant small bags, etc.) through programmable logic controller (PLC) control, servo drive and sensing detection technology, so as to meet the moisture-proof needs of various industrial products.

2.2 Main Classification

According to different application scenarios, processing objects and functional configurations, Automatic Dessicant Filling Machines can be divided into the following categories:

2.2.1 Classified by Application Field


Insulating Glass Special Dessicant Filling Machine: Mainly used for filling molecular sieve desiccant into aluminum spacer frames or stainless steel spacer frames of insulating glass. It integrates automatic drilling, filling and sealing functions, and can adapt to spacer frames of different sizes (from 300mm×250mm to 2000mm×2000mm) and specifications (5.5-26.5mm in width). Typical models include LJGZ2020 series and ARL-45F, which are core equipment in the insulating glass deep processing industry.
Packaging Line Dessicant Inserting/Filling Machine: Applied to food, pharmaceutical, health care products and electronic product packaging lines, mainly for inserting desiccant bags, columnar desiccants or filling loose desiccants into bottles, boxes and bags. It can be seamlessly connected with filling, capping, labeling and other equipment to form a fully automated packaging production line, such as ZONESUN ZS-PD1 and Rx-Desiccant series.
Desiccant Bag Automatic Filling Machine: Specialized in the production of small desiccant bags, realizing automatic film feeding, metering and filling of desiccant, heat sealing, cutting and other processes, suitable for mass production of small-package desiccants (such as 1g, 5g, 10g specifications), with a production speed of up to 20-100 bags per minute.


2.2.2 Classified by Automation Degree


Fully Automatic Dessicant Filling Machine: Realizes unmanned operation in the whole process, with functions such as automatic feeding, automatic metering, automatic filling, automatic fault detection, automatic rejection of unqualified products and automatic material replenishment. It is equipped with a touch human-machine interface (HMI) and PLC control system, and can store multiple production recipes to meet flexible production needs.
Semi-Automatic Dessicant Filling Machine: Needs manual assistance in partial links (such as manual placement of containers, manual feeding of desiccants), and the core filling and metering links are automated. It has a small footprint and low cost, and is suitable for small-batch and multi-variety production scenarios.


2.2.3 Classified by Filling Form


Granular/Powder Dessicant Filling Machine: For granular (such as silica gel particles, molecular sieve) and powdery desiccants, it adopts vibration feeding, spiral metering or gravity metering to ensure the accuracy of single filling, and is equipped with an anti-dust device to avoid material flying.
Columnar/Block Dessicant Filling Machine: Aims at columnar or block desiccants, adopts mechanical clamping and pushing structure, realizes precise insertion into containers, and is equipped with infrared counting and detection functions to avoid missing filling or multiple filling.
Desiccant Bag Inserting Machine: For pre-made desiccant bags, it completes automatic cutting, conveying and inserting into packaging containers, with a high-speed cutting structure to avoid bag breakage and desiccant leakage.


3. Working Principle and Structural Composition

3.1 Core Working Principle

The Automatic Dessicant Filling Machine takes the PLC control system as the core, and realizes the coordinated operation of each mechanism through the combination of pneumatic, servo drive and sensing detection technology, and completes the whole process of desiccant filling in accordance with the preset program. The basic working process is as follows:

First, the desiccant is stored in the feeding hopper, and the automatic feeding mechanism (vibration feeder, spiral conveyor or pneumatic conveying device) transports the desiccant to the metering unit according to the set flow rate. The metering unit adopts high-precision sensors (infrared counting sensor, weighing sensor, volume metering sensor) to measure the desiccant, ensuring that the single filling amount meets the process requirements. Then, the positioning mechanism fixes the container (insulating glass spacer frame, packaging bottle, etc.) at the designated filling position, and the filling head moves to the filling port under the drive of the servo motor to complete the desiccant filling. For insulating glass special models, after filling, the automatic sealing mechanism uses butyl rubber to seal the drilling hole to prevent desiccant leakage and moisture intrusion; for packaging line models, after filling/inserting, the detection mechanism checks for missing filling, broken bags and other problems, and the unqualified products are automatically rejected, while the qualified products enter the next process. In addition, the machine is equipped with a material level sensor, which triggers an alarm and starts the automatic replenishment function when the desiccant is insufficient, ensuring the continuity of production.

The whole process is controlled by the PLC system, and the operating parameters (filling amount, filling speed, filling height, sealing time, etc.) can be adjusted and set through the touch screen, and the production data (production quantity, qualified rate, fault information, etc.) can be recorded and displayed in real time to realize intelligent management of the production process.

3.2 Key Structural Composition

The Automatic Dessicant Filling Machine is a complex system integrating multiple modules, and its core components directly determine the equipment's performance, stability and filling accuracy. The main structural modules are as follows:

3.2.1 Control System Module

As the "brain" of the equipment, it mainly includes PLC controller (mostly imported brands such as Siemens and Omron), touch human-machine interface (HMI), relay, contactor and other electrical components. The PLC system is responsible for receiving signals from sensors, issuing execution instructions to drive mechanisms, and realizing logic control of the whole process; the touch screen provides a human-computer interaction platform, which can set process parameters, store production recipes, monitor operating status and query fault information, and supports multi-language switching to adapt to different regional use needs.

3.2.2 Feeding and Metering Module

This module is the core to ensure filling accuracy, including feeding hopper, automatic feeding mechanism (vibration feeder, spiral propeller, pneumatic conveying pipeline), metering unit and material level detection sensor. The feeding hopper is usually made of food-grade or industrial-grade stainless steel, with a large capacity (standard 5L, optional 20L) to reduce the frequency of manual feeding; the metering unit adopts different forms according to desiccant types: granular desiccant uses infrared counting or volume metering, powdery desiccant uses spiral metering or weighing feedback metering, and desiccant bags use fixed-length cutting metering. The material level sensor monitors the residual amount of desiccant in real time, and sends an alarm signal when the material is insufficient to realize automatic replenishment.

3.2.3 Filling and Execution Module

Including filling head, servo drive mechanism, positioning fixture, pneumatic cylinder and other components. The filling head is designed with anti-drip and anti-blocking structure, and the filling height can be adjusted automatically according to the container size; the servo drive mechanism ensures the precise movement of the filling head, with a positioning accuracy of up to ±0.1mm; the positioning fixture can be quickly replaced to adapt to containers of different shapes and sizes (round, square, rectangular, etc.), realizing tool-free quick changeover. For insulating glass models, this module also includes an automatic drilling mechanism and a sealing mechanism, which can complete drilling and butyl rubber sealing synchronously with filling.

3.2.4 Detection and Rejection Module

Equipped with a variety of sensors (infrared sensor, photoelectric sensor, pressure sensor, weighing sensor), it realizes real-time detection of filling status, including missing filling detection, filling amount detection, desiccant bag breakage detection, container in-place detection, etc. When unqualified products are detected, the system immediately sends a signal, and the rejection mechanism pushes the unqualified products to the designated area to ensure that only qualified products enter the next process. At the same time, the module has fault self-diagnosis function, which can quickly locate faults such as motor abnormality, sensor failure and air pressure shortage, and display fault codes on the touch screen to facilitate maintenance.

3.2.5 Frame and Protective Module

The frame is made of high-strength aluminum alloy or stainless steel, with industrial plastic spraying treatment on the surface, which has the characteristics of corrosion resistance, wear resistance and easy cleaning; the protective module includes safety grating, emergency stop button, protective cover and other devices, which meets the industrial safety standards, prevents operators from contacting the moving parts, and ensures the safety of operation.

4. Core Technical Parameters and Performance Indicators

The technical parameters of the Automatic Dessicant Filling Machine are the key basis for measuring its performance and selecting models. Different types of equipment have different parameter standards, and the common core technical parameters and performance indicators are as follows:

4.1 Basic Operating Parameters


Power Supply: AC 110V/220V/380V, 50/60Hz, power range from 500W (small packaging line models) to 2.5KW (insulating glass large models);
Air Pressure Requirement: ≥0.65MPa, air consumption is 2-5CFM@90PSI, equipped with air filtration and pressure regulation device to ensure stable pneumatic operation;
Production Efficiency: Packaging line models can reach 10-150 bottles per minute (BPM), insulating glass models can complete filling of a 1m×1m spacer frame in about 30 seconds, and desiccant bag models can produce 20-100 bags per minute;
Adaptable Container/Spacer Size: Insulating glass models: minimum 300mm×250mm, maximum 2000mm×2000mm, spacer width 5.5-26.5mm; packaging line models: suitable for containers with a neck diameter of more than 2 inches, height of 1-12 inches, and desiccant bags with a size of ≤150mm×35mm;
Adaptable Desiccant Specifications: Granular diameter 0.5-1.5mm (molecular sieve, silica gel), columnar desiccant of various lengths, desiccant bags of 1-50g specifications.


4.2 Precision and Stability Indicators


Filling Accuracy: ±1%-±3% (for granular/powdery desiccant), counting accuracy of columnar desiccant/desiccant bags up to 99.9%;
Positioning Accuracy: Servo drive positioning accuracy ±0.1mm, ensuring that the filling head is accurately aligned with the container filling port;
Operating Stability: Continuous operation time of more than 24 hours, fault rate ≤0.5%, and the service life of core components (servo motor, PLC) is more than 5 years;
Sealing Performance: For insulating glass models, the butyl rubber sealing is tight, with no desiccant leakage and air leakage rate meeting the insulating glass industry standards; for desiccant bag models, the heat sealing strength is uniform, with no bag breakage and desiccant leakage.


4.3 Intelligent and Humanized Parameters


Recipe Storage Capacity: Can store 50-100 groups of production recipes, realizing one-key switching of different products;
Fault Self-Diagnosis: Can identify more than 50 kinds of common faults, and display fault causes and solutions in real time;
Data Interaction: Supports connection with MES system, realizes real-time upload of production data, and meets the needs of industrial digital management;
Changeover Time: Tool-free quick changeover, and the time for replacing container/desiccant specifications is ≤10 minutes.


5. Application Fields and Scenario Requirements

With the continuous improvement of industrial automation level and the increasingly strict requirements for product moisture-proof performance, the Automatic Dessicant Filling Machine has been widely used in multiple industries, and each field has specific scenario requirements for equipment performance.

5.1 Insulating Glass Manufacturing Industry

As the largest application field of desiccant filling machines, insulating glass needs to fill molecular sieve desiccant into the spacer frame to absorb moisture in the interlayer and prevent glass fogging and condensation. The industry requires the equipment to have the functions of automatic drilling, filling and sealing, adapt to various shapes of spacer frames (straight, arc, special-shaped), and the filling amount of molecular sieve is accurate to ensure the service life of insulating glass (more than 15 years). At the same time, the equipment needs to be compatible with flexible spacers (such as Swisspacer) and ordinary aluminum spacers, and can realize simultaneous filling of both sides of the spacer frame to improve production efficiency.

5.2 Food and Health Care Products Industry

Food (such as snacks, dried fruits, canned food) and health care products are extremely sensitive to moisture, and desiccant bags or columnar desiccants need to be inserted into the packaging to extend the shelf life. The industry has strict hygiene requirements, and the contact parts of the equipment must be made of food-grade 316 stainless steel, with no dead corners and easy cleaning to meet GMP and food safety standards; at the same time, the equipment needs to be seamlessly connected with the existing packaging line (filling, capping, labeling), with high-speed operation capacity (up to 150BPM) and zero missing filling rate to avoid food quality problems caused by missing desiccant.

5.3 Pharmaceutical Industry

Pharmaceutical products (such as tablets, capsules, powder injections) have extremely high requirements for moisture-proof and sterile environments. The desiccant filling machine needs to meet the pharmaceutical GMP certification, with dust-proof and sterile design, and the filling process is fully enclosed to avoid cross-contamination; the filling accuracy is higher (±1%), and the equipment has functions such as real-time monitoring of filling data and traceability of production records to meet the regulatory requirements of the pharmaceutical industry. In addition, the equipment needs to adapt to various pharmaceutical packaging containers (bottles, blister boxes, cartons) and realize flexible switching of different desiccant specifications.

5.4 Electronic and Precision Instrument Industry

Electronic components, circuit boards, precision instruments and other products are prone to short circuit, rust and performance degradation due to moisture. The desiccant filling machine needs to realize precise insertion of desiccant into electronic product packaging boxes/bags, with anti-static design to avoid damage to electronic components; the equipment has high stability, no dust and particle emission during operation, and adapts to small and precise packaging containers to meet the moisture-proof needs of high-value electronic products.

5.5 Other Industrial Fields

In addition, the Automatic Dessicant Filling Machine is also used in leather, furniture, textile, chemical and other industries, mainly for filling desiccant into product packaging to prevent moisture, mildew and oxidation during storage and transportation. For these fields, the equipment focuses on cost performance, adaptability to different desiccant types and simple operation, to meet the needs of small and medium-sized enterprises for automated production.

6. Core Advantages of Automatic Dessicant Filling Machine

Compared with manual and semi-automatic filling methods, the Automatic Dessicant Filling Machine has obvious advantages in efficiency, accuracy, cost, quality and intelligence, which is the core driving force for its popularization in the industry.

6.1 Significant Improvement of Production Efficiency

The fully automatic operation mode eliminates the link of manual intervention, and the production efficiency is 5-10 times higher than that of manual filling. Taking the packaging line model as an example, the production speed can reach 150BPM, and the insulating glass model can complete the filling of hundreds of spacer frames per hour; at the same time, the equipment can run continuously for 24 hours, and the automatic material replenishment and fault self-recovery functions reduce the downtime caused by material shortage and faults, greatly improving the overall production capacity of the production line.

6.2 Guaranteed Filling Accuracy and Product Quality

High-precision metering and sensing technology ensures the consistency of filling amount, avoiding the problems of insufficient moisture-proof effect caused by less filling and material waste caused by more filling; the fully enclosed filling process prevents desiccant from being polluted by dust and bacteria, and the detection and rejection module eliminates unqualified products, ensuring that each product meets the process standards. For industries such as food and pharmaceuticals, this effectively avoids quality accidents and reduces the loss caused by unqualified products.

6.3 Significant Reduction of Production Cost

On the one hand, it reduces labor costs: a fully automatic filling machine can replace 5-8 manual operators, and only one person is needed for daily operation and maintenance, which greatly saves labor expenditure; on the other hand, it reduces material waste: the accurate metering system reduces the waste of desiccant by more than 5% compared with manual operation, and the anti-breakage and anti-leakage design of the filling head reduces the loss of desiccant bags and containers; in addition, the long service life and low fault rate of the equipment reduce maintenance costs and downtime losses.

6.4 Strong Flexibility and Adaptability

The equipment can store multiple production recipes, and realize quick switching of different desiccant types, container specifications and filling processes by adjusting parameters on the touch screen, with tool-free changeover and strong adaptability to multi-variety and small-batch production; at the same time, it can be customized according to customer needs, such as adding double filling stations, height adjustment devices, special-shaped filling functions, etc., to meet the personalized process requirements of different industries.

6.5 Intelligent Management and Compliance Improvement

The PLC control system realizes real-time monitoring of production data, automatic recording of production quantity, qualified rate, fault information and other data, which is convenient for enterprises to carry out production management and quality traceability; the equipment meets industrial safety, food hygiene, pharmaceutical GMP and other industry standards, and the safety protection and sterile design help enterprises pass relevant certifications and meet regulatory requirements.

6.6 Improvement of Working Environment and Labor Safety

The fully enclosed operation reduces dust and noise, and the safety protection devices (safety grating, emergency stop button) avoid industrial accidents caused by manual contact with moving parts; at the same time, it liberates workers from heavy and repetitive manual labor, reduces labor intensity and improves the working environment of the production line.

7. Market Development Status and Trends

7.1 Global Market Status

In recent years, driven by the rapid development of food, pharmaceutical, electronic manufacturing, insulating glass and other downstream industries, the global demand for Automatic Dessicant Filling Machines has maintained a steady growth trend. The Asia-Pacific region, represented by China, Japan and South Korea, has become the largest market due to its rapid industrialization, large manufacturing scale and continuous improvement of automation level; Europe and the United States, as developed regions, focus on high-end intelligent and customized models, with high requirements for equipment accuracy, stability and compliance; emerging markets in Latin America, Africa and the Middle East are in the stage of industrial upgrading, and the demand for cost-effective automatic filling machines is growing rapidly.

At present, the global market competition pattern is relatively clear: European and American brands (such as LiSEC, BellatRx) occupy the high-end market with advanced technology, high stability and complete after-sales service, mainly serving large enterprises in the insulating glass and pharmaceutical industries; Chinese brands (such as ZONESUN, LIJIANG Glass) have rapidly risen with cost performance, fast delivery and customized services, and have a high market share in the middle and low-end markets and emerging markets, and some high-end models have gradually entered the European and American markets.

7.2 Core Market Trends

7.2.1 Intelligent and Digital Upgrading

With the development of industrial Internet and artificial intelligence, the Automatic Dessicant Filling Machine is developing towards higher intelligence: integrating AI algorithms to realize adaptive adjustment of filling parameters (automatically optimizing filling speed and metering accuracy according to desiccant characteristics and container changes); adding digital twin technology to simulate the filling process and predict faults in advance; realizing remote monitoring, fault diagnosis and program upgrade through cloud platforms, and meeting the needs of intelligent factory management.

7.2.2 High Precision and High Efficiency

Downstream industries have higher and higher requirements for desiccant filling accuracy and production efficiency, and the equipment is developing towards higher precision (filling accuracy up to ±0.5%) and higher speed (packaging line models exceeding 200BPM); at the same time, multi-station and multi-channel synchronous filling technology is adopted to further improve production capacity, and the lightweight and compact design reduces the floor space and improves the space utilization rate of the production line.

7.2.3 Green and Energy-Saving Development

In response to the global call for energy conservation and emission reduction, the equipment is optimized in terms of energy consumption: adopting high-efficiency servo motors and energy-saving pneumatic components to reduce power and air consumption; using recyclable and environmentally friendly materials for the frame and contact parts; designing a dust recovery system to collect desiccant dust and realize material recycling, reducing environmental pollution and material waste.

7.2.4 Customization and Integration

The personalized needs of downstream industries are becoming more and more prominent, and customized equipment (such as special-shaped container filling, ultra-small desiccant filling, high-temperature resistant desiccant filling) has become a new growth point; at the same time, the equipment is developing towards integration with the whole production line, realizing seamless connection with filling, capping, labeling, testing, packaging and other equipment, and forming a fully automated intelligent production line to improve the overall automation level of the factory.

7.2.5 Compliance and Standardization Improvement

With the increasingly strict regulatory standards in food, pharmaceutical and other industries, the equipment pays more attention to compliance design: meeting GMP, FDA, CE and other international certifications, with sterile, dust-proof and anti-cross-contamination functions; establishing a complete quality traceability system, recording the whole process of equipment operation and product production, to meet the regulatory requirements of product quality traceability.

8. Challenges and Future Development Prospects

8.1 Existing Challenges

Although the Automatic Dessicant Filling Machine has achieved rapid development, it still faces some challenges in the process of industrial popularization: first, the technical level of some domestic small and medium-sized brands is uneven, and the core components (such as high-precision sensors, servo motors) still rely on imports, resulting in high production costs and weak competitiveness in the high-end market; second, the after-sales service system of some enterprises is not perfect, and the response speed to equipment faults and maintenance needs is slow, affecting the user experience; third, the adaptability to special desiccants (such as ultra-fine powder, corrosive desiccant) and special containers (such as micro containers, irregular containers) needs to be further improved; fourth, the digital transformation of small and medium-sized enterprises is slow, and the acceptance and application capacity of high-end intelligent filling machines are insufficient.

8.2 Future Development Prospects

In the future, with the continuous advancement of industrial automation, the upgrading of downstream industries and the breakthrough of core technologies, the Automatic Dessicant Filling Machine will show broader development prospects:

In terms of technology, the localization of core components will be accelerated, and domestic brands will break through the technical monopoly of foreign brands in high-precision sensors, intelligent control systems and other fields, reducing production costs and improving product competitiveness; the integration of new technologies such as 5G, machine vision and big data will further improve the intelligence level of the equipment, realizing unmanned production and full-process digital management.

In terms of application, the application fields will continue to expand, and new energy batteries, aerospace, medical devices and other emerging high-end fields will put forward new demands for desiccant filling equipment, promoting the development of the equipment in the direction of ultra-high precision, ultra-clean and special environment adaptation; at the same time, the demand for customized and personalized equipment will continue to grow, and the equipment manufacturers will shift from "standardized production" to "customized solutions" to meet the diversified needs of different industries.

In terms of market, the global market demand will maintain steady growth, and Chinese brands will further expand the international market with technological advantages and cost performance, and the global competition pattern will be more balanced; the industry will accelerate the elimination of backward production capacity, and enterprises with core technologies, complete after-sales service and strong R&D capabilities will occupy a dominant position, promoting the healthy and standardized development of the industry.

9. Conclusion

The Automatic Dessicant Filling Machine, as an important part of modern industrial automation equipment, has become a key link to ensure product quality, improve production efficiency and reduce production costs in food, pharmaceutical, insulating glass, electronic manufacturing and other industries. It integrates mechanical, electrical, pneumatic, sensing and intelligent control technologies, and realizes the transformation of desiccant filling from manual and semi-automatic to fully automatic and intelligent, with significant advantages in efficiency, accuracy, cost and quality.

At present, the industry is in a period of rapid development of intelligent and digital upgrading, and is facing both opportunities such as the expansion of downstream market demand and the breakthrough of core technologies, as well as challenges such as technical bottlenecks and market competition. In the future, equipment manufacturers need to increase R&D investment, break through the technical barriers of core components, improve the level of intelligence and customization, and improve the after-sales service system; downstream enterprises need to accelerate the pace of automation transformation, and select appropriate filling equipment according to their own production needs to improve the overall competitiveness of the industrial chain.

With the continuous progress of technology and the continuous upgrading of industrial demand, the Automatic Dessicant Filling Machine will play a more important role in the global industrial manufacturing system, and promote the high-quality development of multiple industries with more intelligent, efficient and stable performance.





The article has covered all the core dimensions of the Automatic Dessicant Filling Machine with a formal and professional tone. If you need to adjust the content focus (such as adding more case studies, simplifying technical descriptions, or expanding market data), or modify the length and style, please feel free to let me know.

Automatic Glass Unloading Robot & Glass Carrier: Technical Principles, Industrial Applications and Intelligent Development Trends

Abstract

In the modern glass deep processing industry, the automation, intelligence and safety of material handling have become core indicators to measure production efficiency and enterprise competitiveness. The Automatic Glass Unloading Robot and Glass Carrier, as key intelligent equipment connecting glass cutting, edging, tempering, coating, insulating glass production and other processes, undertake the important tasks of automatic sheet taking, transferring, positioning, stacking and conveying of glass sheets. This paper systematically discusses the structural composition, working principles, technical characteristics, application scenarios, operation and maintenance, as well as future development trends of Automatic Glass Unloading Robots and Glass Carriers. By analyzing their value in improving production efficiency, reducing labor intensity, ensuring operational safety and enhancing product quality, this article aims to provide a comprehensive reference for the intelligent upgrading of glass production lines.

1. Introduction

With the rapid development of global construction, automotive, home appliance and photovoltaic industries, the demand for high-quality flat glass, tempered glass, coated glass, Low-E glass and insulating glass continues to grow. Traditional glass handling relies heavily on manual labor, which has problems such as high labor costs, high risk of breakage, low handling efficiency, unstable production rhythm and potential safety hazards. In order to adapt to large-scale, continuous and automated production modes, glass manufacturing enterprises have accelerated the introduction of intelligent handling equipment.

The Automatic Glass Unloading Robot and Glass Carrier are representative products of intelligent logistics in the glass industry. The glass unloading robot, usually a joint robot or a gantry robot equipped with professional suction cups and control systems, can automatically unload, pick up and transfer glass sheets from processing equipment. The Glass Carrier, also known as a glass transfer cart, glass conveyor or glass shuttle car, is responsible for the long-distance, fixed-path or flexible transportation of glass semi-finished and finished products between different stations. The combination of the two forms a complete automatic handling system, which realizes unmanned, high-speed and high-stability circulation in the glass production process, and has become an indispensable part of modern intelligent glass factories.

2. Overview of Automatic Glass Unloading Robot

2.1 Definition and Classification

The Automatic Glass Unloading Robot is an intelligent electromechanical equipment specially designed for the automatic unloading and transferring of flat glass. It integrates mechanical arms, pneumatic suction systems, servo control, visual positioning and safety protection modules, and can complete precise picking, flipping, rotating and placing operations for glass of different sizes, thicknesses and types.

According to the structural form, it can be divided into:


Gantry Type Glass Unloading Robot: Featuring a large-span beam structure and high load capacity, suitable for large-format glass and high-speed continuous unloading.
Joint Arm Type Glass Unloading Robot: Adopting a multi-degree-of-freedom joint structure, with flexible movement and strong adaptability to complex working conditions.
Cantilever Type Glass Unloading Robot: Compact in structure, small in footprint, suitable for small and medium-sized glass processing lines.


According to the degree of automation, it can be divided into semi-automatic unloading robots and fully automatic unloading robots linked with the production line.

2.2 Core Structural Components



Mechanical Motion System

The mechanical arm, beam, guide rail and transmission mechanism form the motion framework. High-strength aluminum alloy or steel structure ensures rigidity and stability, while servo motors and precision reducers achieve high-precision positioning.



Glass Suction and Holding System

Equipped with professional vacuum suction cups made of silicone or anti-slip materials, matched with vacuum generators, pressure sensors and air storage tanks. The suction system can automatically adjust adsorption force according to glass size and weight to ensure safe and non-damaging clamping.



Electrical Control System

The core controller adopts a high-performance PLC or robot motion controller, equipped with a human-machine touch screen for parameter setting, program editing and status monitoring. It supports communication with host computers and other equipment to realize linkage operation.



Visual Positioning and Detection System

High-end models are equipped with industrial cameras and visual recognition systems to automatically detect glass position, size and surface state, realizing precise grabbing and error correction.



**Safety Protection System

Including emergency stop buttons, safety gratings, anti-collision sensors, overload protection and vacuum pressure monitoring. Once abnormal conditions occur, the system will stop immediately to protect personnel, equipment and glass from damage.




2.3 Working Principle

The Automatic Glass Unloading Robot receives signals from the upper processing equipment (such as glass cutting machine, edging machine, washing machine). After the glass processing is completed, the robot moves to the designated position, and the suction cup assembly descends to contact the glass surface. The vacuum system generates negative pressure to stably adsorb the glass, then lifts, translates, rotates or flips according to the preset path, and finally places the glass accurately on the conveying line, processing station or storage area. The whole process is automatically completed without manual intervention, with high stability and repeatability.

3. Overview of Glass Carrier

3.1 Definition and Classification

The Glass Carrier is a special transport vehicle used for the horizontal or vertical transfer of glass sheets in the production workshop. It runs on a fixed track or a flexible ground path, carrying glass frames, racks or conveying platforms to realize the efficient circulation of glass between different processes.

Common classifications include:


Rail Type Glass Carrier: Runs on embedded tracks, with stable operation and high positioning accuracy, suitable for fixed-line transportation.
Trackless Glass Carrier: Adopts wheeled or AGV structure, flexible in path, suitable for complex workshop layout.
Lifting Type Glass Carrier: Equipped with a lifting platform to adapt to conveying surfaces of different heights.
Rotary Glass Carrier: Supports 360-degree rotation to meet multi-directional docking requirements.


3.2 Core Structural Components



Car Body and Load-Bearing Platform

Made of high-strength steel with anti-deformation design, the load-bearing platform is equipped with anti-slip mats, protective baffles or special glass brackets to prevent shaking and scratching during transportation.



Driving System

Driven by servo motors or DC variable frequency motors, with stable speed, low noise and strong power. It can realize fast acceleration and deceleration and precise stopping.



Control and Navigation System

Rail-type carriers use photoelectric or magnetic navigation; trackless AGV carriers use laser, visual or magnetic stripe navigation. The control system supports automatic path planning, obstacle avoidance and fault self-diagnosis.



Safety and Auxiliary System

Equipped with emergency stop devices, sound and light alarms, anti-collision bumpers and position sensors to ensure safe operation in complex working environments.




3.3 Working Principle

The Glass Carrier receives transport instructions from the central control system or manual operation. It automatically travels to the loading station, docks with the glass unloading robot or conveying line, and loads the glass onto the carrier platform. Then it runs along the preset path to the target station, completes automatic unloading, and returns to the original position to wait for the next instruction. The whole transportation process is continuous, stable and efficient, realizing seamless connection between multiple processes.

4. Technical Characteristics and Advantages

4.1 Advantages of Automatic Glass Unloading Robot



High Efficiency and Stability

The robot operates continuously for 24 hours without fatigue, with a fixed operation cycle and stable production rhythm, greatly improving the unloading efficiency compared with manual work.



High Precision and Non-Damaging Handling

Servo control and vacuum adsorption ensure precise positioning, avoiding surface scratches, edge chipping and breakage caused by manual misoperation.



Strong Adaptability

Suitable for glass of different thicknesses (from 1mm to 25mm), sizes and types, including float glass, tempered glass, Low-E glass, laminated glass and insulating glass.



Improved Safety Performance

Reduces manual contact with high-risk glass handling, completely eliminating potential safety accidents such as glass breakage and cutting injuries.



Intelligent and Flexible Production

Supports multi-program switching, rapid product replacement and flexible production, adapting to diversified and small-batch processing needs.




4.2 Advantages of Glass Carrier



Large Load Capacity and Stable Transportation

Can carry single or multiple pieces of large-format glass with stable operation and no shaking, ensuring the safety of glass in long-distance transportation.



Seamless Connection with Production Line

Realizes automatic butt joint with unloading robots, edging machines, washing machines, tempering furnaces and insulating glass production lines, forming a closed-loop automated production system.



Flexible Layout and Strong Compatibility

Rail-type and trackless structures can be customized according to workshop space and process layout, with strong compatibility with different equipment.



Low Operation Cost

Reduces the number of handling workers, lowers labor costs, and has low energy consumption and maintenance costs in long-term use.



Environmentally Friendly and Low Noise

Adopts electric drive mode, with no exhaust emissions and low working noise, in line with the requirements of green and intelligent workshops.




5. Integrated Application in Glass Production Lines

The combination of Automatic Glass Unloading Robot and Glass Carrier forms an intelligent handling system widely used in the whole process of glass deep processing:



Glass Cutting Line Unloading

The robot automatically unloads cut glass sheets and transfers them to the edging line; the glass carrier transports semi-finished products between processes.



Glass Edging & Washing Line

After edging and cleaning, the robot unloads the glass and places it on the carrier for transfer to the tempering furnace or coating line.



Tempering & Coating Line Handling

The system realizes automatic loading and unloading of tempering furnaces and coating equipment, ensuring continuous and stable production.



Insulating Glass Production Line

Completes the transfer of glass sheets between cleaning, film removing, frame pasting and pressing processes, realizing full-line automation.



Finished Glass Storage & Packaging

The robot stacks finished glass neatly, and the carrier transports them to the packaging or storage area, realizing unmanned finished product logistics.




Through integrated application, the glass production line realizes unmanned handling, high-speed circulation and quality traceability, comprehensively improving production efficiency and product qualification rate.

6. Operation, Maintenance and Safety Management

6.1 Operation Specifications

Operators must receive professional training and be familiar with equipment functions, parameter settings and emergency handling methods. Before starting, check the vacuum system, driving mechanism, sensor and safety device. During operation, it is forbidden to enter the working area of the robot and carrier. The equipment shall be operated in strict accordance with the operating procedures to ensure stable operation.

6.2 Daily Maintenance

Regularly clean the suction cups, guide rails and transmission parts; check the vacuum pressure, circuit and air circuit; lubricate the moving components; replace vulnerable parts such as suction cups and sensors in time. The control system shall be backed up regularly to prevent program loss.

6.3 Safety Management

The equipment must be equipped with complete safety protection facilities and warning signs. The working area shall be isolated by safety fences. Regular safety inspections and fault elimination shall be carried out to ensure that the emergency stop function, anti-collision function and vacuum failure protection function are effective.

7. Development Trends of Intelligent Glass Handling Equipment

With the advancement of intelligent manufacturing technology, Automatic Glass Unloading Robots and Glass Carriers are developing in the following directions:

7.1 Higher Degree of Intelligence

Equipped with AI algorithms, machine learning and multi-sensor fusion technology, the equipment can independently judge glass types, optimize handling paths and adapt to complex working conditions.

7.2 Stronger Flexibility and Collaboration

Collaborative robots will be more widely used, which can work safely with workers without fences, further improving production flexibility.

7.3 Digital and Networked Management

Based on the Internet of Things (IoT) and cloud platforms, the equipment realizes remote monitoring, fault diagnosis, predictive maintenance and production data statistics, supporting the construction of smart factories.

7.4 Larger Load and Higher Speed

The development of large-format and ultra-thick glass puts forward higher requirements for the load capacity and operating speed of handling equipment.

7.5 Green and Energy-Saving Design

Adopt high-efficiency motors, energy recovery systems and lightweight structures to reduce energy consumption and meet carbon peak and carbon neutrality goals.

8. Conclusion

The Automatic Glass Unloading Robot and Glass Carrier are core pillars of intelligent transformation in the glass deep processing industry. They effectively solve the pain points of traditional manual handling, such as low efficiency, high damage rate and potential safety hazards, and provide strong support for enterprises to achieve high-efficiency, high-quality and low-cost production. With the continuous expansion of the glass application market and the accelerated upgrading of manufacturing intelligence, the technical level of glass handling equipment will continue to improve, and the application scope will be further expanded.

Hot Melt Coating Machine: Professional Technical Description & Comprehensive Overview

1. Introduction to Hot Melt Coating Machine

The Hot Melt Coating Machine is a highly integrated, precision-engineered industrial processing equipment dedicated to the application of hot melt adhesives onto a wide variety of flexible and semi-rigid substrates. As a core piece of equipment in the adhesive coating and composite material industry, it replaces traditional solvent-based and water-based coating methods with a solvent-free, pollution-free, and highly efficient thermal bonding process. It integrates mechanical transmission, precision temperature control, automatic metering, continuous coating, cooling setting, tension control and intelligent electrical control systems, realizing stable, high-speed and high-quality roll-to-roll coating production. It is widely recognized as an indispensable and advanced production solution in modern manufacturing, meeting the strict requirements of product performance, environmental protection standards and production efficiency in multiple industries.

2. Working Principle and Operational Mechanism

The operating principle of the hot melt coating machine is based on the physical phase change of hot melt adhesive and precise fluid coating technology, forming a complete and stable closed-loop production system. The entire production process can be divided into several key steps: adhesive melting, quantitative delivery, precision coating, cooling curing and finished product winding.

First, solid hot melt adhesive particles, blocks or strips are added to the special heating melting tank of the equipment. Under the precise multi-zone temperature control system, the solid adhesive is heated and converted into a uniform liquid state with stable viscosity. Then, the high-precision gear pump or screw metering pump system transports the molten adhesive at a constant pressure and fixed flow rate to the coating head module, eliminating the influence of adhesive viscosity and liquid level changes on the coating effect.

Next, under the synchronous operation of the substrate transmission system, the molten adhesive is uniformly coated on the surface of the substrate through the coating head in the form of a full film, dots, lines or mesh according to the process requirements. Immediately after coating, the substrate with the adhesive layer enters the cooling and shaping zone, where the adhesive is rapidly cooled and solidified through cooling rollers or circulating air cooling to restore a solid state and form a firm adhesive layer.

Throughout the process, the PLC central control system monitors and adjusts key parameters in real time, including heating temperature, metering pump speed, substrate transmission speed, tension value and coating thickness, ensuring the consistency and stability of the coating effect and achieving fully automated continuous operation.

3. Core Structure and Component Functions

The hot melt coating machine consists of multiple functional modules with precise coordination, and each component directly determines the stability, accuracy and service life of the equipment.

3.1 Unwinding System

The unwinding system is responsible for providing stable substrate feeding, adopting automatic tension control and photoelectric correction device, which can adapt to various roll materials such as films, non-woven fabrics, paper, aluminum foil and fabrics. It effectively prevents substrate deviation, wrinkling or breakage during high-speed operation, and supports non-stop roll changing to improve production continuity.

3.2 Heating and Melting System

As the power core of the hot melt adhesive treatment, the heating and melting system is equipped with a stainless steel melting tank with multi-zone independent temperature control, fast heating speed and uniform temperature distribution. The thermal insulation design reduces energy loss, and the anti-coking and anti-carbonization structure ensures the stability of the adhesive performance and avoids material deterioration caused by overheating.

3.3 Precision Metering and Delivery System

This system adopts a high-precision gear pump or screw pump driven by a servo motor, which can realize quantitative and constant pressure delivery of molten adhesive. The metering error is extremely low, ensuring that the coating weight is accurately controlled within the process range, and it is suitable for both thin-layer micro-coating and thick-layer heavy coating processes.

3.4 Coating Head Module

The coating head is the core component that determines the coating shape and uniformity. The equipment can be equipped with different types of coating heads such as roller coating, slot die coating, comma blade coating and nozzle coating, which can flexibly switch between full-surface coating, dot coating, line coating and other forms to meet the bonding and functional requirements of different products.

3.5 Cooling and Curing System

The cooling system adopts high-efficiency cooling rollers with internal circulating cooling water or strong air cooling equipment, which can quickly reduce the surface temperature of the coated substrate, accelerate the curing and forming of the hot melt adhesive, prevent the adhesive from flowing or transferring, and ensure the flatness and stability of the coating layer.

3.6 Tension Control and Transmission System

The whole line adopts a segmented tension control system to keep the tension of the substrate stable during unwinding, coating and winding. The servo-driven variable-frequency transmission system realizes high-precision speed synchronization, supports high-speed continuous production, and runs smoothly with low noise.

3.7 Winding System

The winding system adopts automatic constant tension control, with functions such as automatic roll changing, length counting and edge alignment, ensuring that the coated finished products are neatly wound, easy to unload and subsequent processing, and adapting to large-batch continuous industrial production.

3.8 Intelligent Electrical Control System

The human-machine interaction interface based on PLC and touch screen realizes visual operation. Operators can set and store process parameters, monitor real-time operating status, and have complete fault self-diagnosis, alarm and protection functions, which simplifies operation difficulty and improves production safety and stability.

4. Core Advantages and Technical Characteristics

Compared with traditional coating equipment, hot melt coating machines have obvious technical and application advantages, which are the key reasons why they are widely promoted and applied globally.

Firstly, environmental protection and safety. The hot melt coating process does not use any organic solvents, has no VOC emissions, no toxic and harmful gas generation, fully meets international environmental protection standards and occupational health requirements, and is a green and environmentally friendly production process.

Secondly, high production efficiency. Hot melt adhesive can complete melting, coating and curing in a very short time, without long drying or volatilization time. The equipment can run continuously at high speed, greatly shortening the production cycle and improving output efficiency.

Thirdly, coating precision and uniformity. With the servo metering system and precision coating head, the coating weight and thickness can be precisely controlled, the error is extremely small, and the coating layer is uniform and flat, which significantly improves product quality and stability.

Fourthly, wide material adaptability. The equipment is compatible with almost all types of hot melt adhesives on the market, and can coat various substrates such as plastic films, non-woven fabrics, paper, aluminum foil, foam, leather and textiles, with strong versatility.

Fifthly, cost saving and low loss. The solvent-free process reduces material costs, the automatic operation reduces labor input, the adhesive utilization rate is high, and the equipment has low failure rate and low maintenance cost, bringing obvious economic benefits to enterprises.

Sixthly, flexible production mode. By replacing the coating head and adjusting parameters, it can quickly switch different coating processes and product specifications, meeting the diversified and personalized production needs of enterprises.

5. Main Application Fields

With excellent performance and stable process, hot melt coating machines are widely used in many important manufacturing fields, covering daily necessities, medical treatment, industry, packaging, automobiles and other categories.

In the hygiene products industry, it is used for the production of diapers, sanitary napkins, adult care products, etc., realizing the adhesive coating of elastic waist circumference, leg cuffs and composite layers.

In the medical and health industry, it is used to produce medical tapes, wound dressings, surgical drapes, medical non-woven composites and other products, with safe and non-toxic adhesive layers and stable bonding performance.

In the adhesive tape and label industry, it is the core equipment for producing double-sided tapes, foam tapes, cloth-based tapes, protective films, self-adhesive labels and trademark materials.

In the flexible packaging industry, it is used for composite coating of food packaging films, plastic packaging bags, aluminum foil composite bags, etc., with good sealing and bonding fastness.

In the automotive interior industry, it is used for bonding and coating of automotive sound insulation cotton, carpets, door panels, decorative parts and thermal insulation materials.

In addition, it is also widely used in non-woven fabric lamination, filter materials, electronic protective materials, stationery, furniture manufacturing and other fields, and is one of the key equipment to improve product quality and production efficiency.

6. Technical Development Trend and Industry Prospect

With the development of global industrial intelligence, environmental protection and high efficiency, hot melt coating machines are constantly upgrading and innovating, showing a clear development trend.

In terms of intelligent control, the equipment is gradually integrated with IoT technology, realizing remote monitoring, data statistics, fault early warning and predictive maintenance, and deeply integrated with intelligent production lines to adapt to Industry 4.0 production modes.

In terms of high speed and wide width, the equipment speed and effective coating width are continuously improved to meet the needs of large-scale and high-efficiency production, further reducing the unit production cost.

In terms of precision and energy saving, the new heating system, metering system and transmission system reduce energy consumption while improving coating accuracy, making the process more energy-saving and efficient.

In terms of multi-function and integration, the equipment tends to integrate multiple functions such as coating, compounding, slitting and molding, realizing one-stop production and improving the added value of the equipment.

As a high-performance, environmentally friendly and efficient coating equipment, the hot melt coating machine will continue to expand its application fields with the upgrading of manufacturing industry and the enhancement of environmental protection requirements. Its market demand will maintain a steady growth trend, and it will always play an important role in the field of adhesive coating and composite material production, becoming a key support for the sustainable development of related industries.

The Multi-Functional Mobile Glass Wafer Holder is a professionally engineered, high-performance storage and handling solution designed for the safe, efficient, and flexible management of glass wafers, panels, and semi-finished glass components in modern industrial production environments. Meticulously developed to meet the stringent requirements of glass deep processing, architectural glass manufacturing, insulating glass production, and automated assembly lines, this integrated mobile support system combines robust structural design, ergonomic functionality, and high-load mobility to deliver reliable performance in diverse working scenarios.

Featuring a heavy-duty reinforced frame constructed from high-strength steel or industrial-grade aluminum alloy, the holder ensures exceptional structural stability, anti-deformation performance, and long service life even under continuous heavy-load operation. The integrated mobile chassis is equipped with high-load-bearing, wear-resistant universal casters, equipped with reliable braking systems to enable flexible movement, steady positioning, and secure locking during material transfer, storage, and production docking. This mobility effectively optimizes workshop layout, improves logistics efficiency, and reduces manual handling risks.

With its multi-functional design, the unit provides adjustable, classified, and dedicated storage spaces to accommodate glass wafers and panels of varying specifications, thicknesses, and sizes. Protective padding, anti-slip surfaces, and buffer structures are applied throughout the contact areas to prevent surface scratching, edge chipping, or cracking, ensuring the integrity and surface quality of precision glass materials. The rational layout of support arms, separation slots, and limit devices enhances operational convenience, allowing for safe, fast, and orderly loading, unloading, and access.

Engineered with a focus on industrial safety and operational efficiency, the Multi-Functional Mobile Glass Wafer Holder integrates humanized operation features with stable mechanical performance. Its compact and reasonable structure saves space while maximizing storage capacity, making it highly compatible with automated production lines, robotic handling systems, and various glass processing equipment. Suitable for use in factories, warehouses, processing workshops, and logistics transfer areas, this mobile holder serves as an essential auxiliary device for improving production continuity, enhancing material management standards, and ensuring operational safety.

Combining durability, flexibility, and multi-scenario adaptability, the Multi-Functional Mobile Glass Wafer Holder represents a reliable, high-quality solution for modern glass processing and manufacturing enterprises, supporting standardized, efficient, and safe production operations.
