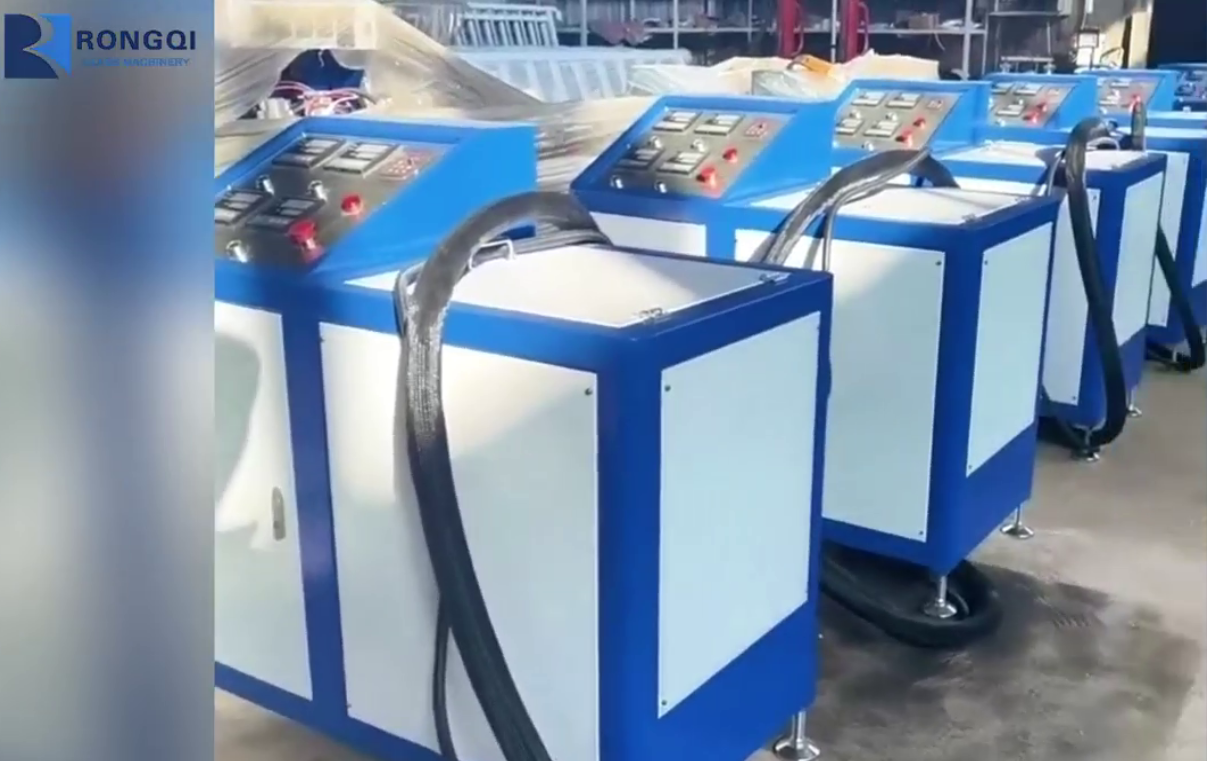

The Hot Melt Coating Machine is a highly integrated, precision-engineered industrial processing equipment dedicated to the application of hot melt adhesives onto a wide variety of flexible and semi-rigid substrates. As a core piece of equipment in the adhesive coating and composite material industry, it replaces traditional solvent-based and water-based coating methods with a solvent-free, pollution-free, and highly efficient thermal bonding process. It integrates mechanical transmission, precision temperature control, automatic metering, continuous coating, cooling setting, tension control and intelligent electrical control systems, realizing stable, high-speed and high-quality roll-to-roll coating production. It is widely recognized as an indispensable and advanced production solution in modern manufacturing, meeting the strict requirements of product performance, environmental protection standards and production efficiency in multiple industries.

The operating principle of the hot melt coating machine is based on the physical phase change of hot melt adhesive and precise fluid coating technology, forming a complete and stable closed-loop production system. The entire production process can be divided into several key steps: adhesive melting, quantitative delivery, precision coating, cooling curing and finished product winding.

First, solid hot melt adhesive particles, blocks or strips are added to the special heating melting tank of the equipment. Under the precise multi-zone temperature control system, the solid adhesive is heated and converted into a uniform liquid state with stable viscosity. Then, the high-precision gear pump or screw metering pump system transports the molten adhesive at a constant pressure and fixed flow rate to the coating head module, eliminating the influence of adhesive viscosity and liquid level changes on the coating effect.

Next, under the synchronous operation of the substrate transmission system, the molten adhesive is uniformly coated on the surface of the substrate through the coating head in the form of a full film, dots, lines or mesh according to the process requirements. Immediately after coating, the substrate with the adhesive layer enters the cooling and shaping zone, where the adhesive is rapidly cooled and solidified through cooling rollers or circulating air cooling to restore a solid state and form a firm adhesive layer.

Throughout the process, the PLC central control system monitors and adjusts key parameters in real time, including heating temperature, metering pump speed, substrate transmission speed, tension value and coating thickness, ensuring the consistency and stability of the coating effect and achieving fully automated continuous operation.

The hot melt coating machine consists of multiple functional modules with precise coordination, and each component directly determines the stability, accuracy and service life of the equipment.

The unwinding system is responsible for providing stable substrate feeding, adopting automatic tension control and photoelectric correction device, which can adapt to various roll materials such as films, non-woven fabrics, paper, aluminum foil and fabrics. It effectively prevents substrate deviation, wrinkling or breakage during high-speed operation, and supports non-stop roll changing to improve production continuity.

As the power core of the hot melt adhesive treatment, the heating and melting system is equipped with a stainless steel melting tank with multi-zone independent temperature control, fast heating speed and uniform temperature distribution. The thermal insulation design reduces energy loss, and the anti-coking and anti-carbonization structure ensures the stability of the adhesive performance and avoids material deterioration caused by overheating.

This system adopts a high-precision gear pump or screw pump driven by a servo motor, which can realize quantitative and constant pressure delivery of molten adhesive. The metering error is extremely low, ensuring that the coating weight is accurately controlled within the process range, and it is suitable for both thin-layer micro-coating and thick-layer heavy coating processes.

The coating head is the core component that determines the coating shape and uniformity. The equipment can be equipped with different types of coating heads such as roller coating, slot die coating, comma blade coating and nozzle coating, which can flexibly switch between full-surface coating, dot coating, line coating and other forms to meet the bonding and functional requirements of different products.

The cooling system adopts high-efficiency cooling rollers with internal circulating cooling water or strong air cooling equipment, which can quickly reduce the surface temperature of the coated substrate, accelerate the curing and forming of the hot melt adhesive, prevent the adhesive from flowing or transferring, and ensure the flatness and stability of the coating layer.

The whole line adopts a segmented tension control system to keep the tension of the substrate stable during unwinding, coating and winding. The servo-driven variable-frequency transmission system realizes high-precision speed synchronization, supports high-speed continuous production, and runs smoothly with low noise.

The winding system adopts automatic constant tension control, with functions such as automatic roll changing, length counting and edge alignment, ensuring that the coated finished products are neatly wound, easy to unload and subsequent processing, and adapting to large-batch continuous industrial production.

The human-machine interaction interface based on PLC and touch screen realizes visual operation. Operators can set and store process parameters, monitor real-time operating status, and have complete fault self-diagnosis, alarm and protection functions, which simplifies operation difficulty and improves production safety and stability.

Compared with traditional coating equipment, hot melt coating machines have obvious technical and application advantages, which are the key reasons why they are widely promoted and applied globally.

Firstly, environmental protection and safety. The hot melt coating process does not use any organic solvents, has no VOC emissions, no toxic and harmful gas generation, fully meets international environmental protection standards and occupational health requirements, and is a green and environmentally friendly production process.

Secondly, high production efficiency. Hot melt adhesive can complete melting, coating and curing in a very short time, without long drying or volatilization time. The equipment can run continuously at high speed, greatly shortening the production cycle and improving output efficiency.

Thirdly, coating precision and uniformity. With the servo metering system and precision coating head, the coating weight and thickness can be precisely controlled, the error is extremely small, and the coating layer is uniform and flat, which significantly improves product quality and stability.

Fourthly, wide material adaptability. The equipment is compatible with almost all types of hot melt adhesives on the market, and can coat various substrates such as plastic films, non-woven fabrics, paper, aluminum foil, foam, leather and textiles, with strong versatility.

Fifthly, cost saving and low loss. The solvent-free process reduces material costs, the automatic operation reduces labor input, the adhesive utilization rate is high, and the equipment has low failure rate and low maintenance cost, bringing obvious economic benefits to enterprises.

Sixthly, flexible production mode. By replacing the coating head and adjusting parameters, it can quickly switch different coating processes and product specifications, meeting the diversified and personalized production needs of enterprises.

With excellent performance and stable process, hot melt coating machines are widely used in many important manufacturing fields, covering daily necessities, medical treatment, industry, packaging, automobiles and other categories.

In the hygiene products industry, it is used for the production of diapers, sanitary napkins, adult care products, etc., realizing the adhesive coating of elastic waist circumference, leg cuffs and composite layers.

In the medical and health industry, it is used to produce medical tapes, wound dressings, surgical drapes, medical non-woven composites and other products, with safe and non-toxic adhesive layers and stable bonding performance.

In the adhesive tape and label industry, it is the core equipment for producing double-sided tapes, foam tapes, cloth-based tapes, protective films, self-adhesive labels and trademark materials.

In the flexible packaging industry, it is used for composite coating of food packaging films, plastic packaging bags, aluminum foil composite bags, etc., with good sealing and bonding fastness.

In the automotive interior industry, it is used for bonding and coating of automotive sound insulation cotton, carpets, door panels, decorative parts and thermal insulation materials.

In addition, it is also widely used in non-woven fabric lamination, filter materials, electronic protective materials, stationery, furniture manufacturing and other fields, and is one of the key equipment to improve product quality and production efficiency.

With the development of global industrial intelligence, environmental protection and high efficiency, hot melt coating machines are constantly upgrading and innovating, showing a clear development trend.

In terms of intelligent control, the equipment is gradually integrated with IoT technology, realizing remote monitoring, data statistics, fault early warning and predictive maintenance, and deeply integrated with intelligent production lines to adapt to Industry 4.0 production modes.

In terms of high speed and wide width, the equipment speed and effective coating width are continuously improved to meet the needs of large-scale and high-efficiency production, further reducing the unit production cost.

In terms of precision and energy saving, the new heating system, metering system and transmission system reduce energy consumption while improving coating accuracy, making the process more energy-saving and efficient.

In terms of multi-function and integration, the equipment tends to integrate multiple functions such as coating, compounding, slitting and molding, realizing one-stop production and improving the added value of the equipment.

As a high-performance, environmentally friendly and efficient coating equipment, the hot melt coating machine will continue to expand its application fields with the upgrading of manufacturing industry and the enhancement of environmental protection requirements. Its market demand will maintain a steady growth trend, and it will always play an important role in the field of adhesive coating and composite material production, becoming a key support for the sustainable development of related industries.
