RQGZ02 Automatic Desiccant Filling Machine
● PLC control system,friendly interface touch screen,easy operation.
● Filling under closed conditions, solving the failure of desiccant to absorb water vapor, improving efficiency and insulating glass life, is an essential equipment in the production of bending insulating glass.
● The core control adopts Omron.
● Drilling hole and filling desiccant in the middle of the back of the aluminum strip, automatic sealing.
● Can be filled with automatic bending aluminum frame and ordinary straight angle aluminum frame.
● The filling height can be adjusted according to the size of the aluminum frame.
● Unique advanced feeding device can automatically replenish.
Equipment Features
● PLC control system,friendly interface touch screen,easy operation.
● Filling under closed conditions, solving the failure of desiccant to absorb water vapor, improving efficiency and insulating glass life, is an essential equipment in the production of bending insulating glass.
● The core control adopts Omron.
● Drilling hole and filling desiccant in the middle of the back of the aluminum strip, automatic sealing.
● Can be filled with automatic bending aluminum frame and ordinary straight angle aluminum frame.
● The filling height can be adjusted according to the size of the aluminum frame.
● Unique advanced feeding device can automatically replenish.
Technical Parameter
|
Work pressure |
0.5-0.6MPa |
Max size of aluminum frame |
2500*2500mm |
|
Mini size of aluminum frame |
350*350mm |
Voltage |
220V |
|
Flow control |
24g/s |
Filling speed |
8-12s(1m*1m 9A) |
|
Mini spacer size |
5.5*5.5mm |
Max spacer size |
5.5mm*26.5mm |
|
Dimension |
900*1200*3600mm |
Weight |
400kgs |

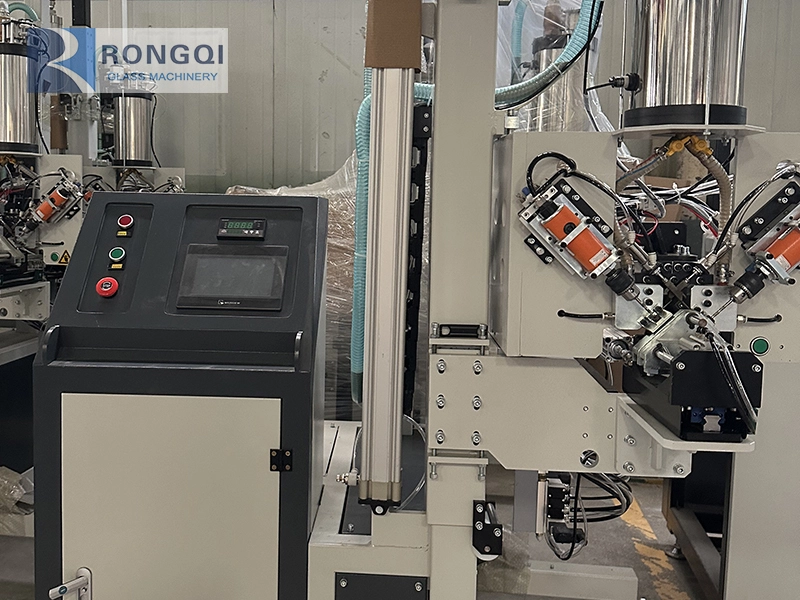

Detail presentation
