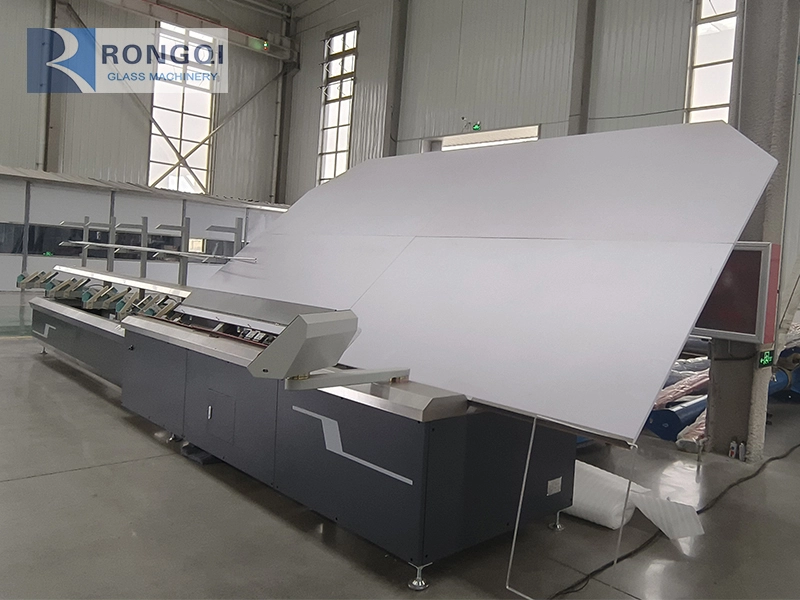

RQZW02 Automatic Aluminum Spacer Bar Bending Machine
● Feeding system adopts CNC servo motor,bending angle uses CNC control system.
● Four material storage slots for four different specification of spacers.
● Bending and cutting automatically avoid the connection and the roundness,automatically cut after bending.
● With manual operation model,easy to debug and repair.
● It can make triangle,rectangle,positive five squareness,positive hexagon,roundness shape and so on.
● Large box can achieve two box docking.
Equipment Features
● PLC control, touch screen simple operation.
● Feeding system adopts CNC servo motor,bending angle uses CNC control system.
● Four material storage slots for four different specification of spacers.
● Bending and cutting automatically avoid the connection and the roundness, automatically cut after bending.
● With manual operation model, easy to debug and repair.
● It can make triangle, rectangle,positive five squareness, positive hexagon, roundness shape and so on.
● Large box can achieve two box docking.
Technical Parameter
|
Voltage |
380V/50HZ |
Air pressure |
0.7MPa |
|
Aluminum bar specification |
5.5-26.5mm |
Aluminum bar size |
300*300--2500*2500mm |
|
Bending angle error |
±0.3° |
Total power |
4KW |
|
Bending speed |
＜30s/pc(1000*1000mm) |
Overall dimension |
10000*2200*2600mm |
Detail presentation
