I. Introduction



Mechanized production of insulating glass significantly improves production efficiency and product quality. This plan details the process of manufacturing insulating glass using automated machinery.



II. Production Process



A. Glass Feeding and Cutting



- Automated Loading: High - speed robotic arms are used to load large sheets of float glass from storage racks onto the glass cutting line. These arms are programmed to handle the glass gently to avoid scratches or breakages.

- Precision Cutting: Computer - controlled glass cutting machines measure and cut the glass according to pre - set dimensions. The cutting blades are automatically adjusted for different glass thicknesses, ensuring a precise cut with an accuracy of ± 0.5mm.



B. Edge Processing



- Grinding and Polishing: The cut glass edges are fed into an automated edge - processing machine. This machine uses rotating abrasive wheels to grind the edges smoothly and then polishes them to enhance the glass's appearance and adhesion for sealants.

- Drilling (if required): For customized insulating glass with holes, a numerically - controlled drilling machine is integrated into the production line. It accurately drills holes based on the input specifications, with a high - speed spindle ensuring clean and precise holes.



C. Washing and Drying



- The Glass will be washed with the glass washing machine.The machine is with 6 soft brushes for cleaning and knieves for drying.It is ok for Low-E glass and the glass thickness can be adjusted automatically.



D. Spacer and Desiccant Handling



- Spacer Bending and Assembly: An automatic spacer bending machine forms aluminum or stainless - steel spacers into the required shapes. The machine can handle different spacer profiles and lengths. Desiccant is automatically filled into the spacers through a precise dosing system to absorb moisture in the air gap.

- Spacer Placement: Robotic arms pick up the bent spacers and accurately position them between the cleaned glass sheets on a conveyor - based assembly platform.



E. Gas Filling (Optional)



- Inert Gas Injection: For insulating glass that requires enhanced thermal performance, an automated gas - filling machine is used. It injects inert gases like argon or krypton into the air gap between the glass panes. The gas flow rate and pressure are precisely controlled to achieve the desired gas concentration.



F. Sealing



- Primary Seal Application: A robotic sealant dispensing arm applies the primary sealant, typically polysulfide, along the inner edge of the spacer. The arm moves at a constant speed and pressure, ensuring an even and consistent sealant layer.

- Secondary Seal Application: After the primary seal has cured to a certain extent, another robotic arm applies the secondary sealant, such as silicone, on the outside of the primary seal. This provides additional protection and strength to the insulating glass unit.



III. Quality Assurance



- In - line Inspection: Throughout the production process, multiple in - line inspection stations are installed. These use sensors and cameras to detect defects such as uneven sealant application, air bubbles, and misaligned components. Defective products are automatically flagged and removed from the production line.

- Final Testing: Before packaging, each insulating glass unit undergoes a final set of tests, including a leak test for gas - filled units and a dimensional accuracy check. Only products that meet the strict quality standards are approved for shipment.



IV. Conclusion



This mechanized production process for insulating glass, with its combination of automated machinery and strict quality control measures, ensures the efficient production of high - quality insulating glass products, meeting the demands of the construction and related industries.

Front Sealing Head Sealing Robot: A Superior Choice for Gradual Double Glazing Glass

1. Introduction

In the contemporary construction and manufacturing industries, double glazing glass—renowned for its exceptional thermal insulation, soundproofing, and energy-saving properties—has become an indispensable material for high-performance buildings and vehicles. Also referred to as insulating glass, it comprises two or more glass panes separated by a spacer frame filled with desiccant, creating a sealed cavity that minimizes heat transfer and sound transmission . However, the efficacy of double glazing glass is inherently dependent on the quality of its sealing process. A precise, consistent seal not only prevents moisture penetration and gas leakage but also ensures the material’s long-term structural integrity and performance stability. As the demand for gradual double glazing glass—characterized by varying thicknesses, multi-cavity designs, and specialized coatings—continues to grow, traditional manual sealing methods and conventional equipment have increasingly struggled to meet the stringent requirements of modern production. In this context, the front sealing head sealing robot emerges as a transformative solution, integrating advanced automation, precision engineering, and adaptive technology to redefine the standards of double glazing sealing. This article explores the technical advantages, functional capabilities, and industry impact of front sealing head sealing robots, demonstrating why they are the optimal choice for gradual double glazing glass processing.

2. The Critical Role of Sealing in Gradual Double Glazing Glass

2.1 Key Requirements for Sealing Gradual Double Glazing

Gradual double glazing glass presents unique challenges that elevate the complexity of the sealing process. Unlike standard double glazing, gradual variants often feature variable pane thicknesses, multi-layered cavities (such as three-layer insulating glass), and specialized coatings (e.g., low-emissivity or double-silver coatings) . These characteristics impose strict demands on the sealing process:


Precision and Consistency: The sealant must be applied uniformly across irregular surfaces and varying gaps, ensuring no bubbles, gaps, or excess overflow. For multi-cavity designs, each cavity requires independent, accurate sealing to maintain thermal and acoustic insulation .
Material Compatibility: Sealing agents must adhere effectively to coated glass surfaces without damaging the film or compromising its low-radiation properties. This requires precise control of application pressure, temperature, and sealant composition .
Efficiency and Scalability: With the expansion of production volumes, the sealing process must balance high speed with uncompromised quality, avoiding bottlenecks in mass production while accommodating small-batch, customized orders .
Sustainability: Minimizing sealant waste and reducing volatile organic compound (VOC) emissions are critical for environmental compliance and cost optimization .


2.2 Limitations of Traditional Sealing Methods

Traditional sealing approaches, including manual application and semi-automatic equipment, fail to address these requirements adequately. Manual sealing is inherently prone to human error, resulting in inconsistent sealant distribution, uneven thickness, and frequent defects such as bubbles or gaps . Workers cannot replicate the same pressure, speed, or precision across multiple units, leading to variations in product quality that compromise the performance of gradual double glazing glass. Additionally, manual sealing is labor-intensive, time-consuming, and exposes workers to hazardous fumes and repetitive motion injuries, posing significant safety and productivity risks . Conventional semi-automatic equipment, while more consistent than manual methods, lacks the adaptability to handle gradual double glazing’s variable specifications. It often requires time-consuming adjustments for different glass thicknesses or cavity designs, leading to production downtime and inefficiency . These limitations highlight the need for a fully automated, adaptive solution that can meet the dynamic demands of gradual double glazing glass processing.

3. Technical Advantages of Front Sealing Head Sealing Robots

Front sealing head sealing robots address the shortcomings of traditional methods through a combination of advanced sensors, precision control systems, and adaptive mechanical design. Their technical superiority is evident in the following key aspects:

3.1 High-Precision Sensing and Adaptive Control

Modern front sealing head sealing robots are equipped with high-resolution photoelectric switch sensors and depth detection devices that automatically measure glass thickness, cavity depth, and spacer frame dimensions . This real-time data is processed by a sophisticated control system—typically a Siemens PLC or large-screen touchscreen human-machine interface—that adjusts application parameters (e.g., sealant flow rate, nozzle position, and movement speed) in real time . For example, the LJTJ2540 model from LIJIANG Glass uses servo motors and high-precision racks to achieve automated transmission, ensuring glue coating accuracy even for glass with misalignment errors within a certain range . The robot’s front sealing head features a unique floating structure that maintains close contact with the glass surface without causing damage, adapting to irregularities and ensuring uniform sealant application . This adaptive control capability is particularly critical for gradual double glazing glass, as it allows the robot to handle variable thicknesses (ranging from 6mm to 20mm or more) and multi-cavity designs without manual intervention . For three-layer insulating glass, the robot can automatically adjust the sealing head angle after completing the first cavity, ensuring precise sealing of the second cavity with consistent quality .

3.2 Efficient and Cost-Effective Sealing

Front sealing head sealing robots significantly enhance production efficiency through automation and process optimization. Equipped with automatic glue replenishing functions and dual-channel sealing gasket structures, they eliminate the need for manual refilling and reduce sealant overflow—a common issue with two-component glue barrels . The hydraulic pressure control system ensures quantitative supply of both component A (white glue) and component B (black glue), maintaining optimal mixing ratios and minimizing waste . This not only reduces material costs but also improves the curing quality of the sealant, enhancing the durability of the double glazing glass . Additionally, the robots’ high-speed transmission systems—combining multi-row roller chains and V-belts—ensure smooth glass movement during sealing, reducing cycle times while maintaining precision . The LJTJ2030 model, for instance, can process glass sizes ranging from 400×280mm to 2000×3000mm with consistent sealing standards, achieving high production efficiency while lowering labor intensity . For manufacturers, this translates to increased throughput, reduced operational costs, and improved scalability—whether for large-scale mass production or small-batch customized orders .

3.3 Enhanced Safety and Sustainability

Safety and sustainability are core advantages of front sealing head sealing robots. By automating repetitive and hazardous tasks, they eliminate workers’ exposure to sealant fumes, chemical irritants, and repetitive motion injuries . The robots’ enclosed design and safety interlocks further reduce the risk of accidents in the production environment. From an environmental perspective, the precise control of sealant application minimizes waste, reducing VOC emissions and the overall environmental footprint of the production process . The automatic adjustment of glue output based on real-time sensor data ensures that only the required amount of sealant is used, avoiding excess that would otherwise be discarded . Additionally, many front sealing head robots are compatible with eco-friendly sealant materials, further aligning with global sustainability goals .

3.4 Versatility and Compatibility with Advanced Designs

Front sealing head sealing robots are highly versatile, capable of adapting to a wide range of gradual double glazing configurations. Their programmability allows for the storage of multiple part-specific programs, enabling seamless switching between different glass sizes, cavity designs, and coating types . For example, the 3D head robotic sealer from Sames supports three separate nozzles with adjustable orientations, allowing it to access hard-to-reach areas and apply flat, uniform seals on complex geometries . Kawasaki’s BU series robots, with their 7-axis design and long reach (up to 2887.5mm), are ideal for sealing large or irregularly shaped double glazing units, such as those used in automotive or aerospace applications . Moreover, these robots are compatible with various sealant types, including polysulfide, silicone, and butyl rubber, ensuring compatibility with the diverse material requirements of gradual double glazing glass . Whether processing standard double glazing, three-layer insulating glass, or coated gradual variants, front sealing head robots deliver consistent, high-quality results.

4. Real-World Applications and Industry Impact

The adoption of front sealing head sealing robots has already made a significant impact across key industries, including construction, automotive, and aerospace. In the construction sector, where energy efficiency and durability are paramount, these robots are used to produce high-performance gradual double glazing for commercial buildings, residential complexes, and green infrastructure . For example, manufacturers using LIJIANG Glass’s LJTJ2540 and LJTJ2030 robots have reported improved sealing consistency, reduced product failure rates, and enhanced compliance with international energy efficiency standards . In the automotive industry, front sealing head robots are employed to seal windshields, side windows, and sunroofs—often gradual double glazing with curved surfaces and variable thicknesses. Robots like the ABB IRB 6640 and Fanuc R-2000 series ensure precise, uniform seals that withstand extreme temperatures, vibrations, and moisture, improving vehicle safety and comfort .

Refurbished front sealing head robots have also emerged as a cost-effective option for small and medium-sized enterprises (SMEs), offering the same precision and efficiency as new equipment at a lower investment . Companies like Global Robots supply refurbished models from top brands (e.g., ABB, Fanuc, Kuka) that undergo rigorous testing to ensure reliability, making advanced sealing technology accessible to a broader range of manufacturers . This democratization of automation has accelerated the adoption of front sealing head robots, driving innovation and competitiveness in the double glazing industry.

5. Conclusion

As the demand for gradual double glazing glass continues to rise, the need for a precise, efficient, and adaptive sealing solution has never been greater. Front sealing head sealing robots address this need by integrating high-precision sensing, adaptive control, and automated technology to overcome the limitations of traditional sealing methods. Their ability to handle variable thicknesses, multi-cavity designs, and specialized coatings—while maintaining consistency, efficiency, and sustainability—makes them the superior choice for modern double glazing production. From enhancing product quality and reducing costs to improving workplace safety and environmental compliance, these robots deliver multifaceted value that drives industry progress. As technology advances, front sealing head sealing robots will continue to evolve, incorporating artificial intelligence, machine learning, and advanced materials to meet the ever-changing demands of gradual double glazing glass processing. For manufacturers committed to excellence, investing in a front sealing head sealing robot is not just a practical decision—it is a strategic investment in the future of high-performance double glazing.





This article comprehensively covers the technical, operational, and industry-specific aspects of front sealing head sealing robots for gradual double glazing glass. If you need to emphasize specific applications (e.g., automotive vs. construction), add technical data comparisons, or include case studies from particular manufacturers, feel free to provide additional details. I can also refine the content to align with specific industry standards or target audiences (e.g., engineering professionals, production managers).

Pneumatic Straight Round 45 Degree Glass Edging Machine: A Comprehensive Technical Overview

Abstract

The Pneumatic Straight Round 45 Degree Glass Edging Machine stands as a pivotal piece of equipment in the modern glass processing industry, integrating pneumatic actuation, precision machining, and automated control technologies to deliver high-efficiency, high-precision edge treatment for flat glass. This article systematically elaborates on the machine’s structural design, working principle, core technical parameters, application scenarios, performance advantages, maintenance protocols, and future development trends. By analyzing its engineering innovations and industrial value, it aims to provide a theoretical and practical reference for glass processing enterprises, equipment manufacturers, and technical researchers, highlighting the machine’s role in advancing the automation, precision, and versatility of glass edge processing.

1. Introduction

With the rapid development of industries such as architectural decoration, automotive manufacturing, home appliances, and furniture production, the demand for flat glass products has grown exponentially, accompanied by increasingly stringent requirements for glass edge quality, processing efficiency, and product safety. Raw glass, after cutting, exhibits sharp, irregular edges with micro-cracks and burrs, which not only pose safety hazards during handling and installation but also reduce the mechanical strength and aesthetic appeal of the final product. Traditional manual edging and semi-automatic mechanical edging methods suffer from low efficiency, inconsistent precision, high labor intensity, and poor surface finish, failing to meet the mass production and high-quality standards of modern glass processing.

In response to these industry pain points, the Pneumatic Straight Round 45 Degree Glass Edging Machine has emerged as a specialized solution designed for continuous, one-pass processing of straight round edges and 45-degree chamfers on flat glass. Leveraging pneumatic systems for stable clamping, precise pressure control, and flexible spindle feeding, combined with multi-stage grinding and polishing mechanisms, the machine achieves integrated coarse grinding, fine grinding, chamfering, and polishing operations. It addresses the limitations of conventional edging equipment, offering superior stability, precision, and adaptability to diverse glass thicknesses and sizes. This article provides a comprehensive analysis of the machine’s technical characteristics, operational mechanisms, and industrial applications, exploring its contributions to the upgrading of glass processing technology and the optimization of production workflows.

2. Structural Design and Core Components

The Pneumatic Straight Round 45 Degree Glass Edging Machine features a robust, integrated structural design, consisting of a main frame, pneumatic clamping and feeding system, multi-spindle grinding and polishing unit, PLC control system, cooling and dust removal system, and glass conveying mechanism. Each component is engineered for synergistic operation, ensuring high precision, stability, and reliability during continuous processing.

2.1 Main Frame

The main frame serves as the structural foundation of the machine, typically fabricated from high-strength thick steel plates through precision welding and stress-relief annealing. This design eliminates deformation caused by long-term high-load operation, maintaining the geometric accuracy of the entire equipment. The frame is equipped with precision linear guide rails and ball screws for the grinding spindle movement, ensuring smooth, backlash-free motion of the grinding heads. The rigid frame structure also minimizes vibration during high-speed grinding, which is critical for preventing glass chipping and ensuring edge finish consistency. Some high-end models adopt a gantry-type structure to enhance stability when processing large-format glass sheets, with a load-bearing capacity of up to 700 kg, suitable for architectural and automotive glass applications.

2.2 Pneumatic Clamping and Feeding System

As the core feature distinguishing this machine from conventional mechanical edging equipment, the pneumatic system is responsible for glass clamping, spindle feeding, and pressure regulation. The system comprises an air compressor, air storage tank, precision pressure regulating valves, pneumatic cylinders, and pneumatic control valves.


Pneumatic Clamping Mechanism: Equipped with pneumatic clamping jaws lined with wear-resistant rubber or polyurethane, the system applies uniform, adjustable pressure (0.2–0.6 MPa) to secure glass sheets of varying thicknesses (3–25 mm) without surface damage. The pneumatic clamping ensures stable glass positioning during high-speed grinding, eliminating slippage and positional deviation. Compared with mechanical clamping, pneumatic clamping offers softer contact, reducing the risk of glass edge breakage and improving product yield.
Pneumatic Spindle Feeding: The grinding and polishing spindles are driven by pneumatic cylinders for radial feeding, with PLC-controlled precision pressure regulation. This allows real-time adjustment of the grinding wheel’s contact pressure with the glass edge, adapting to different glass hardnesses and processing requirements. The pneumatic feeding mechanism provides flexible, shock-free movement, avoiding excessive pressure that causes chipping and ensuring uniform material removal across the glass edge. High-end models feature independent pneumatic control for each spindle, enabling separate adjustment of grinding pressure for coarse grinding, fine grinding, and polishing stages.


2.3 Multi-Spindle Grinding and Polishing Unit

The grinding and polishing unit is the core execution component, typically configured with 9–11 spindles arranged in a linear sequence, each equipped with a dedicated grinding or polishing wheel for sequential processing. The spindle configuration is optimized for one-pass completion of coarse grinding, fine grinding, 45-degree chamfering, and polishing:


Coarse Grinding Spindles: The first two to three spindles are fitted with diamond cup wheels (grit size #100–#140) for rapid removal of sharp edges, burrs, and micro-cracks from the cut glass, forming the basic round edge profile. These spindles operate at high speeds (2800–3600 rpm) to ensure efficient material removal, with pneumatic pressure set to 0.4–0.6 MPa for stable cutting.
Fine Grinding Spindles: The middle three to four spindles use resin-bonded diamond wheels (grit size #230–#320) to refine the edge profile, eliminating coarse grinding marks and improving surface flatness. The pneumatic feeding pressure is reduced to 0.3–0.4 MPa to achieve precise material removal and edge uniformity.
45-Degree Chamfering Spindles: Dedicated spindles are angled at 45 degrees, equipped with specialized chamfering wheels to process the beveled edge synchronously with the round edge. The chamfer width is adjustable (0.5–3 mm) via the PLC control panel, meeting diverse design requirements for architectural glass, shower enclosures, and furniture glass.
Polishing Spindles: The final two to three spindles use cerium oxide polishing wheels or resin polishing wheels to achieve an optical-grade finish (surface roughness Ra ≤ 0.15 μm). The pneumatic pressure is further reduced to 0.2–0.3 MPa to ensure a smooth, scratch-free surface, eliminating the need for secondary polishing.


2.4 PLC Control System

The machine is equipped with a high-performance PLC (Programmable Logic Controller) paired with a touch-screen human-machine interface (HMI), enabling intelligent control of the entire processing workflow. The control system supports parameter setting (glass thickness, chamfer width, processing speed, grinding pressure), real-time monitoring (spindle speed, air pressure, processing status), fault diagnosis, and automatic alarm functions. Operators can store and recall processing parameters for different glass specifications, reducing setup time and improving production efficiency. The system also supports linkage with automatic glass loading and unloading equipment, facilitating integration into fully automated production lines. Advanced models feature Ethernet communication for remote monitoring, parameter optimization, and predictive maintenance, aligning with smart manufacturing trends.

2.5 Cooling and Dust Removal System

During grinding and polishing, the friction between the grinding wheel and glass generates high temperatures, which can cause thermal stress, edge cracking, or grinding wheel wear. The cooling system adopts a water circulation design, with precision nozzles spraying cooling liquid (pure water or specialized glass grinding coolant) directly onto the grinding contact area. This reduces temperature, lubricates the contact surface, and flushes away glass powder and debris. The dust removal system, integrated with the cooling circulation, filters and recycles the coolant, reducing water consumption and environmental pollution. High-efficiency filtration systems (filter precision ≤ 5 μm) prevent glass powder from clogging nozzles and damaging precision components, extending the service life of grinding wheels and spindles.

2.6 Glass Conveying Mechanism

The conveying mechanism consists of variable-speed conveyor belts, drive motors, and positioning sensors, ensuring stable, continuous glass feeding during processing. The conveyor speed is adjustable (0.8–6 m/min) via a frequency converter, matching the processing efficiency to different glass thicknesses and edge requirements. The conveyor surface is lined with anti-slip, wear-resistant materials to prevent glass scratching and slippage. Positioning sensors at the inlet and outlet detect glass position, automatically triggering clamping, grinding, and release operations, realizing unmanned continuous processing. The mechanism supports processing of glass sheets with minimum dimensions of 25 mm × 25 mm and maximum dimensions customized according to user needs, making it suitable for both small-scale precision parts and large-format architectural glass.

3. Working Principle

The operational logic of the Pneumatic Straight Round 45 Degree Glass Edging Machine is a highly coordinated sequence of pneumatic actuation, mechanical grinding, and electronic control, divided into five core stages: glass feeding and positioning, pneumatic clamping, multi-stage grinding and polishing, pneumatic release, and glass discharging.

3.1 Glass Feeding and Positioning

The operator places the cut flat glass sheet onto the inlet conveyor belt, which transports the glass to the positioning area. Photoelectric sensors detect the glass edge and send a signal to the PLC, which stops the conveyor and activates the pneumatic positioning cylinders to align the glass precisely with the grinding spindle axis. The positioning accuracy reaches ±0.01 mm, ensuring uniform edge processing across the entire glass sheet.

3.2 Pneumatic Clamping

Upon completion of positioning, the PLC triggers the pneumatic clamping system. The pneumatic cylinders extend to drive the clamping jaws, applying uniform pressure to secure the glass. The pressure is regulated by precision valves to match the glass thickness—thinner glass (3–5 mm) uses lower pressure (0.2–0.3 MPa) to avoid breakage, while thicker glass (12–25 mm) uses higher pressure (0.4–0.6 MPa) for stable fixation. The clamping action is completed within 0.5 seconds, ensuring rapid workflow progression.

3.3 Multi-Stage Grinding and Polishing

After clamping, the PLC activates the grinding spindles and conveying mechanism, with the glass moving linearly through the grinding unit at a set speed. The pneumatic feeding system drives each spindle to extend sequentially, with the grinding wheels making contact with the glass edge at pre-set pressures and angles:


Coarse Grinding Stage: The diamond cup wheels remove the sharp, irregular cut edge, forming a preliminary round profile and eliminating micro-cracks. The high-speed rotation of the spindles (3000–3600 rpm) ensures efficient material removal, while the cooling system sprays coolant to prevent overheating.
Fine Grinding Stage: The resin-bonded diamond wheels refine the edge profile, smoothing coarse grinding marks and improving dimensional accuracy. The spindle speed is adjusted to 2500–3000 rpm, and the pneumatic pressure is reduced to ensure precise material removal.
45-Degree Chamfering Stage: The angled chamfering wheels process the beveled edge synchronously with the round edge, with the chamfer width and angle controlled by the PLC via pneumatic cylinder stroke adjustment.
Polishing Stage: The polishing wheels perform final finishing, achieving a mirror-like surface finish. The spindle speed is reduced to 2000–2500 rpm, and the pneumatic pressure is minimized to avoid surface damage.


Throughout the process, the PLC monitors real-time parameters such as air pressure, spindle speed, and conveyor speed, automatically adjusting for deviations to ensure consistent processing quality. The cooling system operates continuously, flushing away debris and maintaining stable processing temperatures.

3.4 Pneumatic Release and Glass Discharging

Once the glass completes the entire grinding and polishing process and reaches the outlet area, the photoelectric sensor sends a completion signal to the PLC. The pneumatic clamping system retracts the cylinders, releasing the glass. The conveyor belt then transports the finished glass to the discharge area, ready for the next processing cycle or subsequent procedures (e.g., cleaning, tempering, laminating). The entire cycle is continuous, with a processing efficiency of 80–120 pieces per hour (for standard 12 mm thick glass), significantly higher than manual or semi-automatic methods.

4. Core Technical Parameters

The technical parameters of the Pneumatic Straight Round 45 Degree Glass Edging Machine define its processing capacity, precision, and adaptability, with key indicators as follows (typical for mainstream 9–11 spindle models):






Parameter Category
Specific Indicators
Value Range




Processing Scope
Applicable Glass Thickness
3–25 mm



Minimum Glass Size
25 mm × 25 mm



Maximum Glass Size
Customizable (up to 3000 mm × 2000 mm)



45-Degree Chamfer Width
0.5–3 mm


Processing Precision
Edge Dimensional Accuracy
±0.01 mm



Surface Roughness (Ra)
≤0.15 μm



Chamfer Angle Accuracy
±0.5°


Operational Parameters
Spindle Speed
2000–3600 rpm



Conveyor Speed
0.8–6 m/min



Pneumatic System Pressure
0.2–0.6 MPa



Compressed Air Consumption
<1 L/min


Power Parameters
Total Motor Power
19.5–25 kW



Power Supply
380 V/50 Hz, Three-Phase


Physical Dimensions
Length × Width × Height
7.0–7.5 m × 1.2 m × 2.6 m



Machine Weight
3000–4500 kg






These parameters reflect the machine’s balance of high precision and high efficiency, with the pneumatic system enabling flexible pressure adjustment to accommodate diverse glass types (float glass, tempered glass, laminated glass, Low-E glass) and processing requirements.

5. Industrial Applications

The Pneumatic Straight Round 45 Degree Glass Edging Machine’s versatility, precision, and efficiency make it widely applicable across multiple industries requiring high-quality flat glass edge processing, with key application scenarios as follows:

5.1 Architectural Decoration Industry

In architectural glass processing, the machine is used for edging and chamfering of curtain wall glass, partition glass, doors and windows glass, and shower room glass. The 45-degree chamfered edge enhances the aesthetic appeal of architectural glass, while the rounded edge improves safety and mechanical strength, complying with building safety standards. The machine’s ability to process large-format glass (up to 3000 mm × 2000 mm) meets the requirements of high-rise buildings and commercial complexes, with processing precision ensuring seamless installation of curtain wall glass. It is also used for processing glass railings, skylights, and decorative glass panels, providing smooth, safe edges for architectural interiors and exteriors.

5.2 Automotive Glass Manufacturing

Automotive glass (windshields, side windows, rear windows, sunroofs) requires high-precision edge processing to ensure sealing, safety, and compatibility with vehicle frames. The machine’s pneumatic clamping and precision grinding avoid glass deformation and chipping, critical for automotive safety glass. The 45-degree chamfering facilitates the installation of rubber seals and adhesives, improving the sealing performance and wind resistance of automotive glass. It is also used for processing sunroof glass and rearview mirror glass, meeting the strict dimensional and surface quality requirements of the automotive industry.

5.3 Home Appliances and Furniture Industry

In home appliance manufacturing, the machine processes glass panels for refrigerators, ovens, washing machines, and display screens, with rounded and chamfered edges enhancing product safety and aesthetics. For furniture, it is used for glass tabletops, cabinet doors, display cabinets, and decorative glass parts, providing smooth edges that prevent user injury and improve product durability. The machine’s ability to process small-sized glass (minimum 25 mm × 25 mm) makes it suitable for precision furniture components and small home appliance parts.

5.4 Electronic and Optical Glass Industry

For electronic glass (smartphone screens, tablet displays, TV panels) and optical glass (lens substrates, instrument glass), the machine’s high-precision polishing achieves an optical-grade surface finish (Ra ≤ 0.1 μm), meeting the requirements of light transmittance and surface smoothness. The pneumatic system’s low-pressure clamping avoids damage to thin electronic glass (3–5 mm), while the continuous processing ensures consistency for mass production of electronic components.

5.5 Solar Photovoltaic Industry

With the rapid development of the photovoltaic industry, the demand for high-quality photovoltaic glass has surged. The machine processes the edges of photovoltaic glass panels, eliminating micro-cracks and improving the mechanical strength and weather resistance of the glass. The 45-degree chamfering facilitates the lamination of photovoltaic modules, enhancing the sealing performance and service life of solar panels. Its high processing efficiency supports the mass production needs of photovoltaic glass manufacturing.

6. Performance Advantages

Compared with traditional mechanical edging machines, manual edging tools, and semi-automatic edging equipment, the Pneumatic Straight Round 45 Degree Glass Edging Machine offers distinct performance advantages, driving the upgrading of glass processing technology:

6.1 High Processing Precision and Consistency

The integration of pneumatic precision control, PLC automation, and linear guide rail transmission ensures edge dimensional accuracy of ±0.01 mm and chamfer angle accuracy of ±0.5°, far exceeding manual and semi-automatic methods. The uniform pneumatic clamping pressure and spindle feeding pressure eliminate positional deviation and uneven material removal, ensuring consistent edge quality across mass-produced glass sheets. The surface roughness after polishing reaches Ra ≤ 0.15 μm, meeting optical-grade requirements and reducing the need for secondary processing.

6.2 High Efficiency and Continuous Operation

The one-pass processing of coarse grinding, fine grinding, chamfering, and polishing eliminates the need for multiple clamping and repositioning, improving production efficiency by 30–50% compared with traditional methods. The automatic conveying and clamping system enables unmanned continuous operation, with a processing capacity of 80–120 pieces per hour (standard glass). The PLC’s parameter memory function reduces setup time for different glass specifications, further enhancing production flexibility and efficiency.

6.3 Wide Adaptability to Glass Specifications

The pneumatic system’s adjustable clamping pressure and spindle stroke, combined with variable conveyor speed, enable processing of glass thicknesses from 3 mm to 25 mm and sizes from 25 mm × 25 mm to large-format panels. The machine accommodates various glass types, including float glass, tempered glass, laminated glass, Low-E glass, and photovoltaic glass, making it suitable for diversified production needs of glass processing enterprises.

6.4 Enhanced Safety and Product Yield

The pneumatic clamping mechanism provides soft, uniform contact with the glass, reducing the risk of edge breakage and surface scratching compared with mechanical clamping. The cooling system’s real-time temperature control prevents thermal stress and glass cracking, while the multi-stage grinding process eliminates micro-cracks, improving the mechanical strength and safety of the finished glass. The product yield rate exceeds 99%, significantly reducing material waste and production costs.

6.5 Intelligent Control and Ease of Operation

The PLC touch-screen control system simplifies operation, with intuitive parameter setting and real-time monitoring. Operators can master equipment operation after basic training, reducing reliance on skilled workers. The fault diagnosis and automatic alarm functions enable timely detection and resolution of issues (e.g., air pressure anomalies, spindle overload, coolant blockage), reducing downtime. Advanced models support remote monitoring and maintenance, improving equipment management efficiency.

6.6 Low Maintenance and Long Service Life

The pneumatic system has a simple structure with few moving parts, reducing wear and maintenance requirements compared with complex mechanical transmission systems. The cooling and dust removal system minimizes grinding wheel wear and component contamination, extending the service life of grinding wheels (up to 12,000 hours for high-quality diamond wheels) and spindles. The main frame’s rigid, anti-deformation design ensures long-term dimensional stability, with a service life of over 10 years under proper maintenance.

7. Maintenance and Troubleshooting

To ensure the long-term stable operation and processing precision of the Pneumatic Straight Round 45 Degree Glass Edging Machine, standardized maintenance and timely troubleshooting are essential. The maintenance system is divided into daily, weekly, and monthly routines, with key measures as follows:

7.1 Daily Maintenance


Cleaning: After each shift, clean the machine surface, grinding spindles, conveyor belts, and cooling nozzles with compressed air and a lint-free cloth to remove glass powder and debris. Drain and replace the coolant in the circulation tank to prevent sludge buildup and nozzle clogging.
Inspection: Check the pneumatic system pressure, ensuring it remains within the 0.2–0.6 MPa range; inspect for air leaks at cylinder joints and valves. Verify the operation of photoelectric sensors and emergency stop buttons, ensuring their sensitivity. Check the grinding wheel wear, replacing wheels that are worn beyond the minimum diameter or show signs of chipping.
Lubrication: Apply a small amount of lubricating oil to linear guide rails and ball screws to ensure smooth movement, avoiding over-lubrication that attracts glass powder.


7.2 Weekly Maintenance


Pneumatic System Maintenance: Drain moisture from the air storage tank and replace the pneumatic filter element to ensure dry, clean compressed air. Inspect pneumatic cylinder seals, replacing damaged seals to prevent air leakage and pressure loss.
Spindle and Transmission Inspection: Check spindle runout (≤0.02 mm) and tighten spindle fixing screws. Inspect conveyor belt tension and alignment, adjusting as needed to prevent glass slippage. Test the PLC control system, calibrating parameter settings and ensuring normal communication between the HMI and PLC.
Cooling System Maintenance: Flush the coolant circulation pipeline and filter, removing accumulated glass powder and debris to ensure smooth coolant flow. Check the water pump pressure, replacing worn pump parts if necessary.


7.3 Monthly Maintenance


Comprehensive Component Inspection: Inspect the main frame for deformation or cracks, checking the tightness of all connecting bolts. Calibrate the grinding spindle angle and positioning accuracy, ensuring compliance with technical parameters. Test the emergency stop and safety interlock systems, ensuring they function reliably.
Electrical System Maintenance: Inspect electrical wiring, connectors, and motor insulation, replacing aging wires and damaged connectors. Check the PLC and HMI for software updates, installing patches to improve system stability.
Lubrication System Overhaul: Replace lubricating oil in gearboxes and bearing components, using high-grade industrial lubricants suitable for high-speed operation. Clean and lubricate pneumatic control valves to ensure flexible movement.


7.4 Common Troubleshooting


Uneven Edge Processing: Causes include uneven pneumatic clamping pressure, worn grinding wheels, or misaligned spindles. Solutions: Adjust pneumatic pressure regulators, replace worn grinding wheels, and calibrate spindle position via the PLC.
Glass Chipping During Processing: Causes include excessive grinding pressure, insufficient cooling, or glass positioning deviation. Solutions: Reduce pneumatic feeding pressure, check coolant nozzle blockage, and re-calibrate photoelectric positioning sensors.
Low Surface Finish After Polishing: Causes include worn polishing wheels, incorrect spindle speed, or contaminated coolant. Solutions: Replace polishing wheels, adjust spindle speed via the frequency converter, and replace the coolant.
Pneumatic System Pressure Loss: Causes include air leaks, damaged filter elements, or faulty pressure regulating valves. Solutions: Inspect and repair air leaks, replace filter elements, and calibrate or replace pressure regulating valves.
Conveyor Belt Slippage: Causes include worn conveyor belt lining, insufficient tension, or excessive glass weight. Solutions: Replace the conveyor belt lining, adjust belt tension, and ensure glass weight does not exceed the machine’s load capacity.


8. Future Development Trends

Driven by technological innovation and evolving industry demands, the Pneumatic Straight Round 45 Degree Glass Edging Machine is evolving toward higher intelligence, precision, energy efficiency, and versatility, with key development trends as follows:

8.1 Intelligent and Digital Upgrading

Future models will integrate artificial intelligence (AI), machine vision, and Internet of Things (IoT) technologies to achieve fully autonomous processing. Machine vision systems will automatically detect glass size, thickness, and edge defects, with AI algorithms optimizing processing parameters (grinding pressure, speed, chamfer size) in real time. IoT-enabled remote monitoring and predictive maintenance will enable real-time collection of equipment operating data, predicting component wear and faults to reduce downtime. Digital twin technology will simulate the processing workflow, optimizing production scheduling and improving overall equipment effectiveness (OEE).

8.2 Higher Precision and Ultra-Thin Glass Processing

With the development of electronic and optical industries, the demand for ultra-thin glass (≤2 mm) and higher precision processing will grow. Future machines will adopt micro-pneumatic control systems (pressure regulation accuracy ≤ 0.01 MPa) and high-precision spindles (runout ≤ 0.005 mm), achieving surface roughness Ra ≤ 0.05 μm. The grinding wheel material and manufacturing process will be upgraded, with nano-scale abrasive particles enabling ultra-precision polishing for optical and electronic glass applications.

8.3 Energy Conservation and Environmental Protection

In response to global energy conservation and emission reduction policies, future machines will adopt energy-efficient motors (permanent magnet synchronous motors) and variable-frequency control systems, reducing power consumption by 30–40% compared with current models. The cooling system will be optimized for closed-loop circulation with high-efficiency filtration, reducing water consumption by over 50%. Dust removal systems will integrate waste glass powder recycling technology, converting processing waste into reusable materials, realizing green and sustainable production.

8.4 Multi-Functional Integration and Flexible Manufacturing

To meet the demand for diversified glass processing, future machines will integrate multiple edging functions (round edge, 45-degree chamfer, bevel edge, duckbill edge) in a single unit, with quick-change grinding wheel modules reducing setup time to less than 15 minutes. The machine will support processing of irregular-shaped glass (in addition to flat glass) through flexible pneumatic clamping and multi-axis linkage spindles, adapting to customized production needs. Modular design will enable flexible configuration of spindles and functions, allowing enterprises to customize equipment according to their production scale and processing requirements.

8.5 Global Market Expansion and Localized Innovation

With the growth of the global glass processing market, especially in emerging economies (Southeast Asia, Latin America, Africa), the demand for cost-effective, high-performance edging equipment will increase. Domestic equipment manufacturers will accelerate technological innovation and product upgrading, improving product quality and brand influence to expand international market share. Localized R&D and production will be strengthened, adapting to regional processing standards and user needs, while establishing global after-sales service networks to enhance customer support.

9. Conclusion

The Pneumatic Straight Round 45 Degree Glass Edging Machine represents a significant advancement in glass processing technology, integrating pneumatic actuation, precision machining, and intelligent control to address the limitations of traditional edging methods. Its high precision, efficiency, adaptability, and safety make it an indispensable piece of equipment in architectural, automotive, home appliance, electronic, and photovoltaic glass processing, driving the upgrading of the glass processing industry toward automation, intelligence, and high quality.

With ongoing technological innovation and evolving market demands, the machine will continue to evolve in intelligence, precision, energy efficiency, and versatility, meeting the increasingly diverse and stringent requirements of glass products. For glass processing enterprises, adopting this advanced edging equipment is crucial for improving production efficiency, reducing costs, enhancing product quality, and gaining a competitive edge in the market. For equipment manufacturers, continuous R&D investment in core technologies (pneumatic control, precision spindles, intelligent systems) and localized innovation will be key to capturing market opportunities and promoting the sustainable development of the glass processing equipment industry.

Future research should focus on the integration of AI and machine vision in processing control, the development of ultra-precision grinding and polishing technologies, and the optimization of energy-saving and environmental protection systems, further unlocking the potential of the Pneumatic Straight Round 45 Degree Glass Edging Machine and promoting the high-quality development of the global glass processing industry.





The article is structured in a formal academic style, covering all key aspects of the machine. You can let me know if you need to adjust the length, emphasize specific sections (e.g., more technical details or application cases), or modify the tone.

Automatic Glass Unloading Robot & Glass Carrier: Technical Principles, Industrial Applications and Intelligent Development Trends

Abstract

In the modern glass deep processing industry, the automation, intelligence and safety of material handling have become core indicators to measure production efficiency and enterprise competitiveness. The Automatic Glass Unloading Robot and Glass Carrier, as key intelligent equipment connecting glass cutting, edging, tempering, coating, insulating glass production and other processes, undertake the important tasks of automatic sheet taking, transferring, positioning, stacking and conveying of glass sheets. This paper systematically discusses the structural composition, working principles, technical characteristics, application scenarios, operation and maintenance, as well as future development trends of Automatic Glass Unloading Robots and Glass Carriers. By analyzing their value in improving production efficiency, reducing labor intensity, ensuring operational safety and enhancing product quality, this article aims to provide a comprehensive reference for the intelligent upgrading of glass production lines.

1. Introduction

With the rapid development of global construction, automotive, home appliance and photovoltaic industries, the demand for high-quality flat glass, tempered glass, coated glass, Low-E glass and insulating glass continues to grow. Traditional glass handling relies heavily on manual labor, which has problems such as high labor costs, high risk of breakage, low handling efficiency, unstable production rhythm and potential safety hazards. In order to adapt to large-scale, continuous and automated production modes, glass manufacturing enterprises have accelerated the introduction of intelligent handling equipment.

The Automatic Glass Unloading Robot and Glass Carrier are representative products of intelligent logistics in the glass industry. The glass unloading robot, usually a joint robot or a gantry robot equipped with professional suction cups and control systems, can automatically unload, pick up and transfer glass sheets from processing equipment. The Glass Carrier, also known as a glass transfer cart, glass conveyor or glass shuttle car, is responsible for the long-distance, fixed-path or flexible transportation of glass semi-finished and finished products between different stations. The combination of the two forms a complete automatic handling system, which realizes unmanned, high-speed and high-stability circulation in the glass production process, and has become an indispensable part of modern intelligent glass factories.

2. Overview of Automatic Glass Unloading Robot

2.1 Definition and Classification

The Automatic Glass Unloading Robot is an intelligent electromechanical equipment specially designed for the automatic unloading and transferring of flat glass. It integrates mechanical arms, pneumatic suction systems, servo control, visual positioning and safety protection modules, and can complete precise picking, flipping, rotating and placing operations for glass of different sizes, thicknesses and types.

According to the structural form, it can be divided into:


Gantry Type Glass Unloading Robot: Featuring a large-span beam structure and high load capacity, suitable for large-format glass and high-speed continuous unloading.
Joint Arm Type Glass Unloading Robot: Adopting a multi-degree-of-freedom joint structure, with flexible movement and strong adaptability to complex working conditions.
Cantilever Type Glass Unloading Robot: Compact in structure, small in footprint, suitable for small and medium-sized glass processing lines.


According to the degree of automation, it can be divided into semi-automatic unloading robots and fully automatic unloading robots linked with the production line.

2.2 Core Structural Components



Mechanical Motion System

The mechanical arm, beam, guide rail and transmission mechanism form the motion framework. High-strength aluminum alloy or steel structure ensures rigidity and stability, while servo motors and precision reducers achieve high-precision positioning.



Glass Suction and Holding System

Equipped with professional vacuum suction cups made of silicone or anti-slip materials, matched with vacuum generators, pressure sensors and air storage tanks. The suction system can automatically adjust adsorption force according to glass size and weight to ensure safe and non-damaging clamping.



Electrical Control System

The core controller adopts a high-performance PLC or robot motion controller, equipped with a human-machine touch screen for parameter setting, program editing and status monitoring. It supports communication with host computers and other equipment to realize linkage operation.



Visual Positioning and Detection System

High-end models are equipped with industrial cameras and visual recognition systems to automatically detect glass position, size and surface state, realizing precise grabbing and error correction.



**Safety Protection System

Including emergency stop buttons, safety gratings, anti-collision sensors, overload protection and vacuum pressure monitoring. Once abnormal conditions occur, the system will stop immediately to protect personnel, equipment and glass from damage.




2.3 Working Principle

The Automatic Glass Unloading Robot receives signals from the upper processing equipment (such as glass cutting machine, edging machine, washing machine). After the glass processing is completed, the robot moves to the designated position, and the suction cup assembly descends to contact the glass surface. The vacuum system generates negative pressure to stably adsorb the glass, then lifts, translates, rotates or flips according to the preset path, and finally places the glass accurately on the conveying line, processing station or storage area. The whole process is automatically completed without manual intervention, with high stability and repeatability.

3. Overview of Glass Carrier

3.1 Definition and Classification

The Glass Carrier is a special transport vehicle used for the horizontal or vertical transfer of glass sheets in the production workshop. It runs on a fixed track or a flexible ground path, carrying glass frames, racks or conveying platforms to realize the efficient circulation of glass between different processes.

Common classifications include:


Rail Type Glass Carrier: Runs on embedded tracks, with stable operation and high positioning accuracy, suitable for fixed-line transportation.
Trackless Glass Carrier: Adopts wheeled or AGV structure, flexible in path, suitable for complex workshop layout.
Lifting Type Glass Carrier: Equipped with a lifting platform to adapt to conveying surfaces of different heights.
Rotary Glass Carrier: Supports 360-degree rotation to meet multi-directional docking requirements.


3.2 Core Structural Components



Car Body and Load-Bearing Platform

Made of high-strength steel with anti-deformation design, the load-bearing platform is equipped with anti-slip mats, protective baffles or special glass brackets to prevent shaking and scratching during transportation.



Driving System

Driven by servo motors or DC variable frequency motors, with stable speed, low noise and strong power. It can realize fast acceleration and deceleration and precise stopping.



Control and Navigation System

Rail-type carriers use photoelectric or magnetic navigation; trackless AGV carriers use laser, visual or magnetic stripe navigation. The control system supports automatic path planning, obstacle avoidance and fault self-diagnosis.



Safety and Auxiliary System

Equipped with emergency stop devices, sound and light alarms, anti-collision bumpers and position sensors to ensure safe operation in complex working environments.




3.3 Working Principle

The Glass Carrier receives transport instructions from the central control system or manual operation. It automatically travels to the loading station, docks with the glass unloading robot or conveying line, and loads the glass onto the carrier platform. Then it runs along the preset path to the target station, completes automatic unloading, and returns to the original position to wait for the next instruction. The whole transportation process is continuous, stable and efficient, realizing seamless connection between multiple processes.

4. Technical Characteristics and Advantages

4.1 Advantages of Automatic Glass Unloading Robot



High Efficiency and Stability

The robot operates continuously for 24 hours without fatigue, with a fixed operation cycle and stable production rhythm, greatly improving the unloading efficiency compared with manual work.



High Precision and Non-Damaging Handling

Servo control and vacuum adsorption ensure precise positioning, avoiding surface scratches, edge chipping and breakage caused by manual misoperation.



Strong Adaptability

Suitable for glass of different thicknesses (from 1mm to 25mm), sizes and types, including float glass, tempered glass, Low-E glass, laminated glass and insulating glass.



Improved Safety Performance

Reduces manual contact with high-risk glass handling, completely eliminating potential safety accidents such as glass breakage and cutting injuries.



Intelligent and Flexible Production

Supports multi-program switching, rapid product replacement and flexible production, adapting to diversified and small-batch processing needs.




4.2 Advantages of Glass Carrier



Large Load Capacity and Stable Transportation

Can carry single or multiple pieces of large-format glass with stable operation and no shaking, ensuring the safety of glass in long-distance transportation.



Seamless Connection with Production Line

Realizes automatic butt joint with unloading robots, edging machines, washing machines, tempering furnaces and insulating glass production lines, forming a closed-loop automated production system.



Flexible Layout and Strong Compatibility

Rail-type and trackless structures can be customized according to workshop space and process layout, with strong compatibility with different equipment.



Low Operation Cost

Reduces the number of handling workers, lowers labor costs, and has low energy consumption and maintenance costs in long-term use.



Environmentally Friendly and Low Noise

Adopts electric drive mode, with no exhaust emissions and low working noise, in line with the requirements of green and intelligent workshops.




5. Integrated Application in Glass Production Lines

The combination of Automatic Glass Unloading Robot and Glass Carrier forms an intelligent handling system widely used in the whole process of glass deep processing:



Glass Cutting Line Unloading

The robot automatically unloads cut glass sheets and transfers them to the edging line; the glass carrier transports semi-finished products between processes.



Glass Edging & Washing Line

After edging and cleaning, the robot unloads the glass and places it on the carrier for transfer to the tempering furnace or coating line.



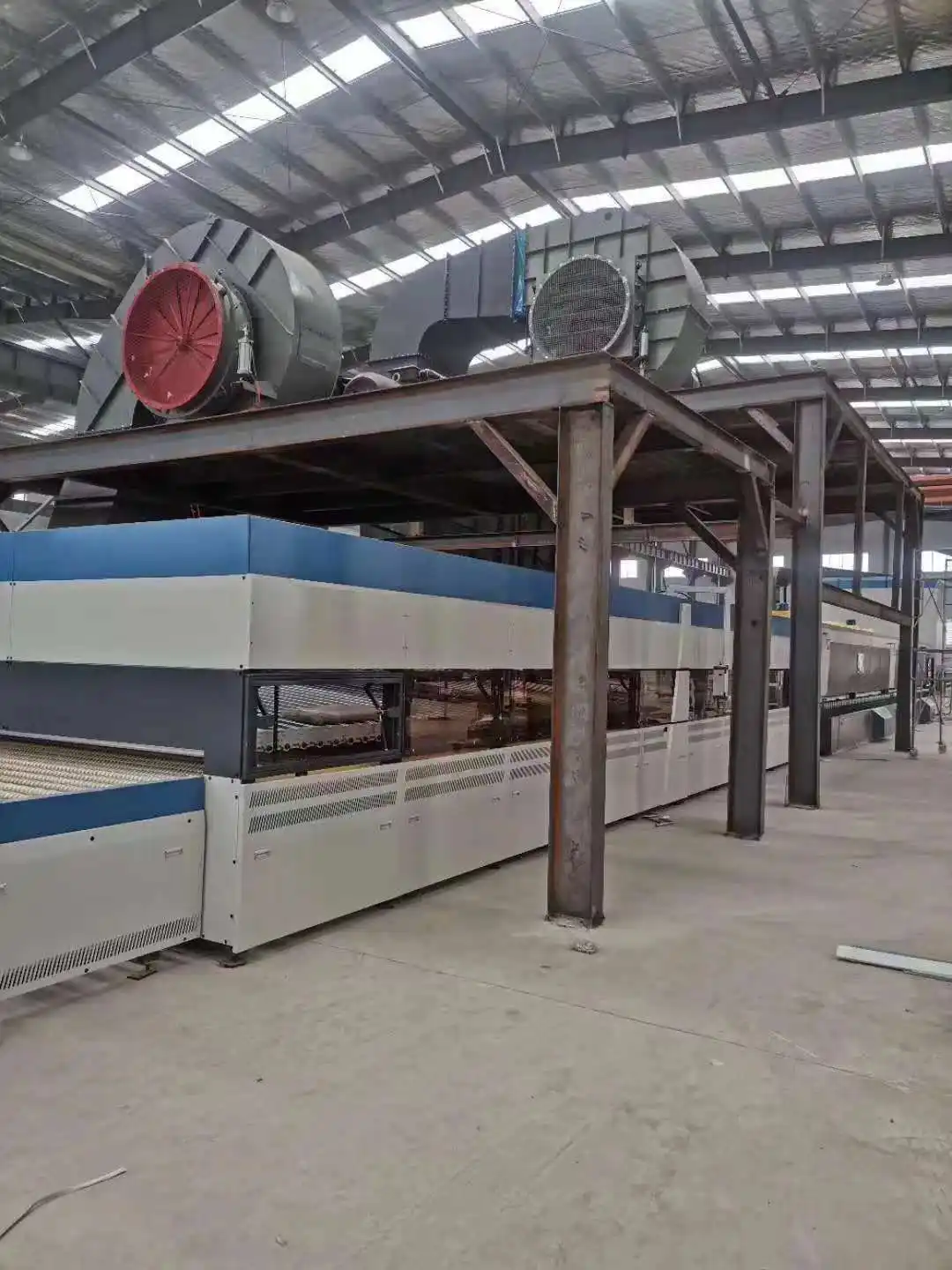

Tempering & Coating Line Handling

The system realizes automatic loading and unloading of tempering furnaces and coating equipment, ensuring continuous and stable production.



Insulating Glass Production Line

Completes the transfer of glass sheets between cleaning, film removing, frame pasting and pressing processes, realizing full-line automation.



Finished Glass Storage & Packaging

The robot stacks finished glass neatly, and the carrier transports them to the packaging or storage area, realizing unmanned finished product logistics.




Through integrated application, the glass production line realizes unmanned handling, high-speed circulation and quality traceability, comprehensively improving production efficiency and product qualification rate.

6. Operation, Maintenance and Safety Management

6.1 Operation Specifications

Operators must receive professional training and be familiar with equipment functions, parameter settings and emergency handling methods. Before starting, check the vacuum system, driving mechanism, sensor and safety device. During operation, it is forbidden to enter the working area of the robot and carrier. The equipment shall be operated in strict accordance with the operating procedures to ensure stable operation.

6.2 Daily Maintenance

Regularly clean the suction cups, guide rails and transmission parts; check the vacuum pressure, circuit and air circuit; lubricate the moving components; replace vulnerable parts such as suction cups and sensors in time. The control system shall be backed up regularly to prevent program loss.

6.3 Safety Management

The equipment must be equipped with complete safety protection facilities and warning signs. The working area shall be isolated by safety fences. Regular safety inspections and fault elimination shall be carried out to ensure that the emergency stop function, anti-collision function and vacuum failure protection function are effective.

7. Development Trends of Intelligent Glass Handling Equipment

With the advancement of intelligent manufacturing technology, Automatic Glass Unloading Robots and Glass Carriers are developing in the following directions:

7.1 Higher Degree of Intelligence

Equipped with AI algorithms, machine learning and multi-sensor fusion technology, the equipment can independently judge glass types, optimize handling paths and adapt to complex working conditions.

7.2 Stronger Flexibility and Collaboration

Collaborative robots will be more widely used, which can work safely with workers without fences, further improving production flexibility.

7.3 Digital and Networked Management

Based on the Internet of Things (IoT) and cloud platforms, the equipment realizes remote monitoring, fault diagnosis, predictive maintenance and production data statistics, supporting the construction of smart factories.

7.4 Larger Load and Higher Speed

The development of large-format and ultra-thick glass puts forward higher requirements for the load capacity and operating speed of handling equipment.

7.5 Green and Energy-Saving Design

Adopt high-efficiency motors, energy recovery systems and lightweight structures to reduce energy consumption and meet carbon peak and carbon neutrality goals.

8. Conclusion

The Automatic Glass Unloading Robot and Glass Carrier are core pillars of intelligent transformation in the glass deep processing industry. They effectively solve the pain points of traditional manual handling, such as low efficiency, high damage rate and potential safety hazards, and provide strong support for enterprises to achieve high-efficiency, high-quality and low-cost production. With the continuous expansion of the glass application market and the accelerated upgrading of manufacturing intelligence, the technical level of glass handling equipment will continue to improve, and the application scope will be further expanded.

Rotable Insulating Glass Making Line and Sealing Robot

1. Overview

The Rotable Insulating Glass (IG) Making Line integrated with an Automatic Sealing Robot represents a state-of-the-art, fully automated solution for high-efficiency, high-precision manufacturing of insulated glass units (IGUs). Engineered for modern architectural glass processing, this integrated production system combines rotary positioning technology, continuous conveying, automated assembly, and intelligent robotic sealing to deliver stable, scalable, and standardized IG fabrication. It supports double-glazing, triple-glazing, stepped, and special-shaped IGUs, widely applied in residential doors and windows, commercial curtain walls, energy-saving buildings, and industrial glass engineering. By replacing manual operation with intelligent mechatronic control, the line significantly improves production efficiency, sealing quality, and product consistency while reducing material waste and labor intensity.

2. System Composition and Working Principles

2.1 Rotable Insulating Glass Making Line

The rotable production line adopts a modular, horizontally oriented layout with a precision rotating worktable as its core positioning unit, enabling flexible glass orientation, stable transfer, and synchronous processing at multiple stations. The full line consists of the following functional modules:


Automatic Glass Loading Section: Equipped with glass detection and Low‑E film identification, it automatically separates and feeds glass sheets without surface scratching.
Glass Washing and Drying Section: Uses stainless‑steel structure, imported soft brushes, and dual air‑knife drying to ensure thorough cleaning and residue‑free surfaces.
Rotary Positioning & Conveying Section: The precision rotating platform supports stepless angle adjustment and pneumatic suction fixing, suitable for small and large glass panels, facilitating accurate alignment of spacer frames and glass sheets.
Spacer Frame Assembly Section: Provides automatic positioning and manual auxiliary installation for aluminum spacers, warm edges, and composite spacers, compatible with diversified frame specifications.
Pressing & Gas Filling Section: Servo‑controlled flat pressing ensures uniform stress; inert gas (argon/krypton) filling enhances thermal insulation performance.
Rotary Transfer & Buffer Section: Enables multi‑directional glass delivery, improves workflow continuity, and supports seamless docking with the sealing robot.
Unloading & Storage Section: Outputs finished IGUs and provides temporary buffer storage for continuous production.


The rotating mechanism is driven by servo motors with high positioning accuracy, supporting both automatic and pedal‑controlled manual modes. It ensures stable glass placement during assembly and sealing, effectively improving dimensional accuracy and assembly quality.

2.2 Automatic Sealing Robot

As the final and critical process module, the sealing robot performs high‑precision secondary sealing for IGUs, ensuring long‑term airtightness and structural stability.


Core Structure: Servo drive system, precision nozzle assembly, dual‑component sealant dosing unit, automatic cleaning mechanism, and human‑machine interface (HMI).
Operating Principle: The robot automatically measures glass dimensions, sealing width, and spacer depth; the control system adjusts sealant output, nozzle position, and movement speed in real time. The floating nozzle design closely fits the glass edge without damage, achieving uniform, bubble‑free sealing. The corner‑repairing spatula system forms full, smooth corners without manual trimming.
Sealant Supply System: Dual independent barrel sets support non‑stop production; anti‑blocking mixing structure ensures stable ratio and uniform mixing for two‑component polysulfide, silicone, and hot‑melt sealants.


3. Core Technical Features and Advantages

3.1 High Compatibility and Flexibility

The system supports a wide processing range, from minimum 300×400 mm to maximum 3300×7000 mm glass, with IGU thickness 12–80 mm. It adapts to rectangular, trapezoidal, circular, polygonal, and stepped IGUs, meeting diversified architectural design requirements. The rotating platform allows quick product changeover without line modification.

3.2 Intelligent Control and High Precision

Adopting a PLC + touch screen control system with servo motors and high‑precision sensors, the line realizes automatic size detection, glue volume adjustment, speed matching, and fault self‑diagnosis. Sealing position error is controlled within ±0.5 mm, ensuring consistent glue width and depth.

3.3 Stable Sealing Quality

The robotized sealing process eliminates human factors, providing full corner filling, no bubbles, no gaps, and a smooth surface. The precise ratio control and volume‑based dosing effectively improve durability, anti‑aging performance, and service life of IGUs.

3.4 High Efficiency and Production Continuity

The rotary table shortens handling and positioning time; the dual sealant supply and buffer section enable uninterrupted 24‑hour operation. A single shift can produce 700–800 standard IG units, greatly improving output compared with semi‑automatic lines.

3.5 Safety, Energy Saving and Easy Maintenance

The whole line features full protective covers, emergency stop, and alarm functions. The modular design allows quick access for maintenance; wear parts are standardized and easy to replace. The sealant saving design reduces material consumption by 10%–15%.

3.6 Humanized Operation

The system supports full automatic production and independent manual control for each function, facilitating debugging and maintenance. The intuitive HMI simplifies parameter setting, production monitoring, and data recording.

4. Application Scope

This integrated rotable IG line with sealing robot is designed for professional glass deep‑processing enterprises, offering a reliable solution for mass production of high‑performance insulated glass. It is widely used in:


Energy‑saving doors and windows for residential and commercial buildings
Architectural curtain walls and structural glass systems
High‑speed rail, automotive, and marine special insulated glass
Low‑e, sound insulation, and ultra‑large insulated glass units


5. Conclusion

The Rotable Insulating Glass Making Line and Sealing Robot integrate mechanical transmission, intelligent control, robotic operation, and precision sealing technology to provide a fully upgraded solution for modern IG manufacturing. With high flexibility, stability, efficiency, and consistency, it helps manufacturers enhance product competitiveness, reduce production costs, and meet the growing demand for high‑quality energy‑saving glass. As a core equipment in the glass processing industry, this system represents the development trend of automation, intelligence, and green manufacturing, and will continue to drive technological progress in the insulated glass sector.
