I. Introduction



Mechanized production of insulating glass significantly improves production efficiency and product quality. This plan details the process of manufacturing insulating glass using automated machinery.



II. Production Process



A. Glass Feeding and Cutting



- Automated Loading: High - speed robotic arms are used to load large sheets of float glass from storage racks onto the glass cutting line. These arms are programmed to handle the glass gently to avoid scratches or breakages.

- Precision Cutting: Computer - controlled glass cutting machines measure and cut the glass according to pre - set dimensions. The cutting blades are automatically adjusted for different glass thicknesses, ensuring a precise cut with an accuracy of ± 0.5mm.



B. Edge Processing



- Grinding and Polishing: The cut glass edges are fed into an automated edge - processing machine. This machine uses rotating abrasive wheels to grind the edges smoothly and then polishes them to enhance the glass's appearance and adhesion for sealants.

- Drilling (if required): For customized insulating glass with holes, a numerically - controlled drilling machine is integrated into the production line. It accurately drills holes based on the input specifications, with a high - speed spindle ensuring clean and precise holes.



C. Washing and Drying

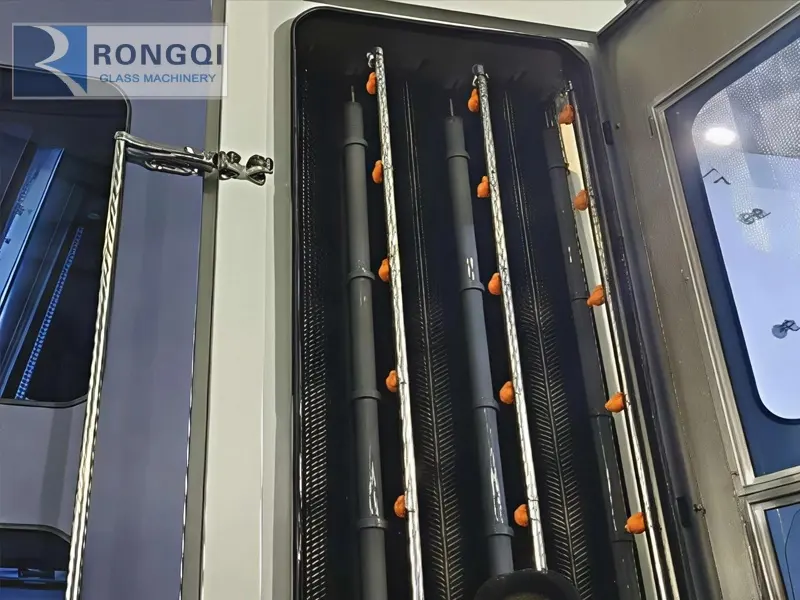

- The Glass will be washed with the glass washing machine.The machine is with 6 soft brushes for cleaning and knieves for drying.It is ok for Low-E glass and the glass thickness can be adjusted automatically.



D. Spacer and Desiccant Handling



- Spacer Bending and Assembly: An automatic spacer bending machine forms aluminum or stainless - steel spacers into the required shapes. The machine can handle different spacer profiles and lengths. Desiccant is automatically filled into the spacers through a precise dosing system to absorb moisture in the air gap.

- Spacer Placement: Robotic arms pick up the bent spacers and accurately position them between the cleaned glass sheets on a conveyor - based assembly platform.



E. Gas Filling (Optional)



- Inert Gas Injection: For insulating glass that requires enhanced thermal performance, an automated gas - filling machine is used. It injects inert gases like argon or krypton into the air gap between the glass panes. The gas flow rate and pressure are precisely controlled to achieve the desired gas concentration.



F. Sealing



- Primary Seal Application: A robotic sealant dispensing arm applies the primary sealant, typically polysulfide, along the inner edge of the spacer. The arm moves at a constant speed and pressure, ensuring an even and consistent sealant layer.

- Secondary Seal Application: After the primary seal has cured to a certain extent, another robotic arm applies the secondary sealant, such as silicone, on the outside of the primary seal. This provides additional protection and strength to the insulating glass unit.



III. Quality Assurance



- In - line Inspection: Throughout the production process, multiple in - line inspection stations are installed. These use sensors and cameras to detect defects such as uneven sealant application, air bubbles, and misaligned components. Defective products are automatically flagged and removed from the production line.

- Final Testing: Before packaging, each insulating glass unit undergoes a final set of tests, including a leak test for gas - filled units and a dimensional accuracy check. Only products that meet the strict quality standards are approved for shipment.



IV. Conclusion



This mechanized production process for insulating glass, with its combination of automated machinery and strict quality control measures, ensures the efficient production of high - quality insulating glass products, meeting the demands of the construction and related industries.

Glass cutting machines come in three main types: glass cutting production lines, glass cutting and loading integrated machines, and glass cutting tables.Glass cutting production lines are highly automated systems, capable of handling large - scale production tasks. They integrate multiple processes including glass feeding, cutting, and sometimes even edge - processing, enabling continuous and efficient operation, which is ideal for mass - production factories.Glass cutting and loading integrated machines combine the functions of glass loading and cutting. They can automatically pick up glass sheets from the storage area and perform cutting operations, reducing labor intensity and improving production efficiency. These machines are suitable for medium - sized enterprises that aim to enhance automation while saving space.Glass cutting tables are more basic and flexible tools. They are usually semi - automated or manually operated, mainly providing a stable platform for cutting glass. They are cost - effective and easy to operate, making them a good choice for small - scale workshops or for handling small - batch, customized cutting tasks.

On August 26th, 2025, a high-performance Automatic Glass Laminating Machine with a production size of 2440*3660 was successfully installed and put into operation for one of our valued clients. The machine was commissioned to enhance the production efficiency and quality of laminated glass products, particularly focusing on the integration and clarity achieved with EVA film.

To rigorously verify the performance and output quality of the new system, the customer conducted a unique quality assurance test: they deliberately broke a laminated glass sample produced by the machine to inspect the internal structure, bonding strength, and overall uniformity. The results were exceptional. The laminated glass exhibited perfect adhesion, with no bubbles, delamination, or optical distortions. The EVA film used in the process proved to be highly durable, with excellent optical clarity and strong interlayer bonding, ensuring both safety and aesthetic quality.

The client’s boss was thoroughly impressed with the performance of the laminating machine and the superior quality of the EVA film. He emphasized that the equipment not only met but exceeded their expectations in terms of reliability, finish, and consistency. The test confirmed that the machine delivers high-precision laminating under exacting standards, making it an invaluable asset to their production line.

This successful installation and validation reflect our commitment to providing advanced laminating solutions and high-quality materials that build trust and deliver tangible results. We look forward to continuing our partnership and supporting their growth with innovative technology and reliable performance.

In a significant milestone for our collaboration, our customer recently received a full batch of advanced glass processing equipment and materials, delivered directly to their factory. The shipment, which included an Automatic Glass Laminating Machine, a high-precision CNC Glass Cutting Machine, Double Glass insulating units materials, and premium EVA film, arrived safely in three containers.



Our team coordinated the entire unloading process seamlessly, ensuring all machinery and materials were handled with care and efficiency. The successful logistics operation highlights our capability to manage large-scale, multi-product orders and deliver them ready for installation and production.



The client expressed great satisfaction with the organization of the delivery and the quality of the products supplied. This delivery marks a crucial step in expanding their production capabilities, enabling them to offer higher quality and more diverse glass products. We are proud to be a trusted partner in providing comprehensive solutions for the glass industry.

Air-Floating Inclined Glass Breaking Table: Engineering Principles, Technical Advantages, and Industrial Applications

1. Introduction

In the modern manufacturing landscape of flat-panel displays (FPD), photovoltaic (PV) modules, architectural glass, and automotive glazing, the demand for precise, non-destructive glass processing and strength testing has intensified. The Air-Floating Inclined Glass Breaking Table (AFIGBT) emerges as a pivotal innovation, integrating air-bearing technology, hydraulic tilting mechanisms, and pneumatic control systems to redefine the standards of glass handling, positioning, and fracture testing. Unlike conventional contact-based breaking tables that risk surface scratches, edge damage, or inconsistent stress distribution, the AFIGBT leverages non-contact air suspension to ensure uniform support, precise angular adjustment, and repeatable fracture initiation—critical for quality control in high-precision glass manufacturing. This article comprehensively explores the technical fundamentals, structural components, performance characteristics, industrial applications, and future development directions of the AFIGBT, shedding light on its transformative role in the global glass processing industry.

2. Core Technical Principles

2.1 Non-Contact Air Suspension Mechanism

The cornerstone of the AFIGBT lies in its air-floating system, which employs porous media technology to generate a stable, ultra-thin air film between the glass substrate and the table surface. Compressed air is forced through millions of sub-micron pores in a proprietary carbon or ceramic bearing surface, creating a uniform pressure distribution that lifts the glass off the table without physical contact . The thickness of this air film is precisely controllable, typically ranging from 10µm to 200µm, with a stability tolerance of ±5µm to ±20µm—sufficient to accommodate inherent flatness deviations of up to 5µm in glass substrates while maintaining optimal support rigidity . Contrary to traditional assumptions, thinner air films exhibit higher stiffness, enabling the AFIGBT to achieve sub-micron positioning resolution and rapid vibration damping—essential for minimizing structural deformation during the breaking process.

To prevent "skating" or lateral displacement of the glass during suspension, the system integrates a balanced vacuum-preload mechanism. By adjusting the ratio of air pressure and vacuum force, engineers can "lock" the glass in a stable spatial position, suppressing flutter and ensuring consistent alignment throughout the testing or processing cycle . This pressure-vacuum balance also facilitates glass flattening, reducing surface vibrations that could compromise the accuracy of fracture analysis. Notably, the porous media surface acts as a HEPA-like filter, preventing particle generation and making the system compatible with ISO Class 10 cleanroom environments—a critical requirement for FPD and semiconductor manufacturing .

2.2 Hydraulic Tilting Control System

The inclined functionality of the AFIGBT is enabled by a hydraulic actuation system, designed to deliver smooth, stable angular adjustment with precise position control. The hydraulic cylinder-driven tilting mechanism allows the table to rotate from a horizontal (0°) to a vertical (90°) position, with intermediate angle settings adjustable in increments as fine as 0.1°—catering to diverse testing standards and processing requirements. The hydraulic system’s high load-bearing capacity ensures stable operation even for large-format glass substrates, with table sizes ranging up to 2200mm × 3600mm to accommodate Gen 10+ FPD panels and oversized architectural glass sheets.

Key to the tilting system’s performance is its closed-loop feedback control, which utilizes linear displacement sensors and pressure transducers to monitor the table’s angle and load in real time. This enables dynamic adjustment of hydraulic flow rates, ensuring uniform acceleration and deceleration during tilting—preventing inertial forces from causing glass slippage or edge impact. Additionally, safety interlocks are integrated to halt operation if the tilt angle exceeds preset limits or if pressure loss is detected, mitigating the risk of equipment damage or operator injury.

2.3 Pneumatic Fracture Initiation Mechanism

The AFIGBT’s breaking system employs pneumatically controlled X and Y-axis breaking bars, activated via foot pedals or programmable logic controllers (PLCs) to initiate precise, localized fractures. These breaking bars are strategically positioned across the table surface, allowing for selective activation to target specific sections of the glass—enabling both full-panel breaking and segmented cutting for large-format substrates. The pneumatic actuation ensures rapid, consistent force application, with adjustable pressure settings to match the mechanical properties of different glass types (e.g., tempered glass, laminated glass, ultra-thin glass).

To enhance fracture accuracy, the breaking bars are equipped with precision-machined contact points that concentrate stress at predefined locations—replicating real-world failure scenarios while ensuring repeatable test results. The integration of the air-floating system with the breaking mechanism is critical: the non-contact support eliminates friction-induced stress variations, ensuring that the applied breaking force is uniformly distributed across the glass’s cross-section. This results in clean, predictable fractures that align with industry standards such as SEMI, CE, and ISO 9001.

3. Structural Components and Technical Specifications

3.1 Key Component Architecture

The AFIGBT comprises six core subsystems, each engineered for durability, precision, and seamless integration:

1. Heavy-Duty Metallic Frame: Constructed from high-strength steel with reinforced welds, the frame provides structural rigidity to withstand dynamic loads during tilting and breaking, with a design life exceeding 10,000 operating hours.

2. Air-Floating Platform: Modular porous media air-bearing panels (available in standard, precision, and ultra-precision variants) cover the table surface, with customizable configurations to accommodate different glass sizes and thicknesses (from 0.1mm to 20mm).

3. Air Supply System: A high-pressure compressor (3–5 kW) with pressure regulators, filters, and flow meters delivers clean, dry air (≤ -40°C dew point) to the air-bearing panels, ensuring consistent air film formation.

4. Hydraulic Tilting Unit: Double-acting hydraulic cylinders with servo valves, paired with a hydraulic power unit (380V/50Hz or 220V/60Hz), enable smooth angle adjustment with a tilting speed of 2–5° per second.

5. Pneumatic Breaking Assembly: 3–6 pneumatically controlled breaking bars (depending on table size) with adjustable stroke lengths (10–50mm) and force ranges (50–500N), synchronized via PLC for coordinated fracture initiation.

6. Control and Safety System: A touchscreen HMI (Human-Machine Interface) with PLC integration allows for program storage (up to 100 test protocols), real-time data visualization, and remote monitoring. Safety features include emergency stop buttons, pressure loss alarms, and interlocked access doors.

3.2 Critical Technical Parameters表格Parameter Specification Range Table Dimensions 1000mm×1000mm to 2200mm×3600mm Maximum Glass Size Up to 2000mm×1000mm (standard) / Gen 12+ compatible (custom) Glass Thickness Capacity 0.1mm–20mm Air Film Thickness 10µm–200µm Tilt Angle Range 0°–90° (adjustable in 0.1° increments) Breaking Force Adjustment 50N–500N Positioning Accuracy ±2µm (linear) / ±0.1° (angular) Operating Speed 2–3 m/s (glass transport) / 2–5°/s (tilting) Power Requirements 380V 3-phase 50Hz / 220V single-phase 60Hz (3–5 kW) Environmental Compatibility Temperature: 0°C–40°C; Humidity: <98% (non-condensing) Certifications CE, ROHS, ISO 9001, SEMI-compliant 4. Technical Advantages Over Conventional Systems4.1 Non-Contact Handling and Surface ProtectionUnlike mechanical conveyor belts or vacuum chucks that exert localized pressure on glass surfaces, the AFIGBT’s air-floating system eliminates physical contact, preventing scratches, micro-cracks, and contamination. This is particularly critical for high-value applications such as FPD substrates and PV solar panels, where surface integrity directly impacts product performance . The carbon or ceramic bearing surfaces are wear-resistant and particle-free, ensuring compatibility with cleanroom environments and reducing maintenance costs associated with contact-based components.4.2 Enhanced Precision and RepeatabilityThe combination of air-film stability, hydraulic tilting control, and pneumatic breaking mechanisms enables the AFIGBT to achieve fracture test repeatability within ±3%—a significant improvement over conventional tables (±8–12%). The sub-micron positioning resolution and uniform stress distribution ensure that each test replicates real-world conditions, providing reliable data on glass toughness, fracture energy, and failure modes. This precision is validated by compliance with international standards such as SEMI, which has adopted air-floating-based measurement models for glass quality assessment.4.3 Versatility and ScalabilityThe AFIGBT’s modular design allows for seamless customization to meet diverse industry needs. It supports multiple glass types (tempered, laminated, ultra-thin, AR-coated) and processing tasks, including strength testing, precision cutting, and edge quality inspection. The table’s compatibility with Gen 5 to Gen 12 glass substrates makes it suitable for small-scale laboratories and large-scale manufacturing facilities alike, with the ability to handle glass sizes up to 2200mm×3600mm and beyond with custom configurations.4.4 Operational Efficiency and SafetyThe AFIGBT’s automated loading/unloading systems, rapid test cycles (≤1000ms per measurement point), and data logging capabilities streamline quality control processes, reducing labor costs and increasing throughput. The hydraulic tilting system’s smooth operation minimizes glass breakage during handling, while the integrated safety features (pressure loss alarms, emergency stops, interlocks) ensure operator protection. Additionally, the low air consumption of porous media air bearings (measured in liters per hour rather than liters per minute) reduces energy costs compared to traditional air-bearing systems .5. Industrial Applications5.1 Flat-Panel Display (FPD) ManufacturingIn FPD production (LCD, OLED, microLED), the AFIGBT is used for post-processing quality control, including glass substrate strength testing, laser划片 alignment, and edge defect detection. The non-contact air suspension prevents damage to sensitive display layers, while the precise tilting and breaking mechanisms ensure clean, straight fractures during panel separation. The system’s compatibility with ISO Class 10 cleanrooms and sub-micron positioning accuracy makes it indispensable for Gen 10+ FPD facilities, where even minor surface defects can render panels defective .5.2 Photovoltaic (PV) Module ProductionFor solar glass (ultra-white embossed glass, AR-coated glass), the AFIGBT enables rapid measurement of spectral transmittance, fracture toughness, and edge strength—critical parameters for PV module efficiency and durability. The system’s ability to handle large-format glass sheets (up to 2000mm×1000mm) and perform multi-point testing allows manufacturers to assess spatial uniformity of mechanical properties, ensuring compliance with TAM1.5 and SEMI standards. The air-floating design also facilitates easy movement of heavy glass sheets, reducing handling time and breakage rates during production.5.3 Architectural and Automotive Glass ProcessingIn architectural glass manufacturing, the AFIGBT is used to test the breaking strength of tempered and laminated glass, ensuring compliance with building safety codes. The tilting function simulates real-world installation angles, allowing engineers to evaluate fracture behavior under gravitational loads. For automotive glass (windshields, side windows), the system performs impact resistance testing and precision cutting, with the non-contact handling preserving the glass’s optical clarity and structural integrity. The pneumatic breaking bars enable segmented cutting of complex shapes, supporting the production of curved and customized automotive glass components.5.4 Research and Development LaboratoriesAcademic and industrial R&D labs utilize the AFIGBT to study glass fracture mechanics, material fatigue, and the effects of coating technologies on mechanical performance. The system’s adjustable parameters (air film thickness, tilting angle, breaking force) allow researchers to replicate diverse environmental and loading conditions, generating data to optimize glass formulations and processing techniques. The integration of advanced sensors (strain gauges, high-speed cameras) enables real-time monitoring of fracture propagation, providing insights into crack initiation and growth mechanisms.6. Future Development Trends6.1 Integration of Smart Sensing and AIThe next generation of AFIGBT will incorporate advanced sensing technologies, including machine vision cameras, ultrasonic sensors, and fiber optic strain gauges, to enable real-time monitoring of glass deformation, stress distribution, and fracture dynamics. Artificial intelligence (AI) algorithms will analyze this data to predict failure points, optimize test parameters, and automate quality grading—reducing human intervention and improving testing accuracy. For example, AI-powered image recognition can identify micro-cracks before fracture, enabling proactive quality control in high-volume production lines.6.2 Miniaturization and High-Speed ProcessingAs the demand for ultra-thin glass (≤0.1mm) in wearable devices and flexible electronics grows, AFIGBT systems will be miniaturized to accommodate small-format substrates while maintaining high precision. Advances in micro-air-bearing technology will enable air film thicknesses below 10µm, supporting the handling of fragile, flexible glass without deformation. Additionally, improvements in hydraulic and pneumatic actuation will reduce test cycle times to <500ms per point, meeting the throughput requirements of next-generation electronics manufacturing.6.3 Energy Efficiency and SustainabilityFuture AFIGBT designs will focus on reducing energy consumption through the adoption of energy-efficient compressors, regenerative hydraulic systems, and low-power sensors. The use of recyclable materials in frame construction and biodegradable lubricants in hydraulic systems will align with global sustainability initiatives. Furthermore, the integration of solar-powered air supply systems will enable off-grid operation in remote manufacturing facilities, reducing carbon emissions.6.4 Interoperability with Industry 4.0 SystemsTo support smart manufacturing, AFIGBT systems will be equipped with Industrial Internet of Things (IIoT) connectivity, enabling seamless integration with MES (Manufacturing Execution Systems) and ERP (Enterprise Resource Planning) platforms. Real-time test data, equipment performance metrics, and maintenance alerts will be transmitted to cloud-based dashboards, allowing for remote monitoring, predictive maintenance, and process optimization. This interoperability will enable manufacturers to achieve end-to-end traceability of glass components, from raw material to finished product.7. ConclusionThe Air-Floating Inclined Glass Breaking Table represents a paradigm shift in glass processing and testing, combining non-contact air suspension, precise hydraulic tilting, and pneumatic fracture control to deliver unmatched precision, versatility, and efficiency. Its ability to protect glass surfaces, ensure repeatable test results, and accommodate diverse industry needs has made it an indispensable tool in FPD, PV, architectural, and automotive glass manufacturing. As technology advances, the integration of smart sensing, AI, and IIoT connectivity will further enhance the AFIGBT’s capabilities, driving innovation in glass processing and supporting the growth of high-precision manufacturing industries worldwide. By adhering to international standards and prioritizing sustainability, the AFIGBT is poised to remain a cornerstone of modern glass production, enabling manufacturers to meet the evolving demands of quality, efficiency, and environmental responsibility.
