Double Edge Straight Glass Grinding Machine: A Comprehensive Analysis of Design, Technology and Industrial Application

Abstract

The Double Edge Straight Glass Grinding Machine is a core piece of automated processing equipment in the modern glass deep-processing industry, dedicated to the simultaneous high-precision grinding, polishing and chamfering of two parallel straight edges of flat glass. This article systematically expounds the structural composition, working principle, core technical parameters, application scenarios, performance advantages, maintenance specifications and future development trends of the double edge straight glass grinding machine. By analyzing its technological innovation, processing efficiency and industrial value, it aims to provide a theoretical basis and practical reference for glass processing enterprises, equipment R&D institutions and technical practitioners, and clarify the important role of this equipment in promoting the automation, intelligence and high-quality development of the glass processing industry.

1. Introduction

With the rapid expansion of application fields such as architectural decoration, automotive manufacturing, home appliances, furniture and photovoltaic new energy, the demand for flat glass products has shown a sustained growth trend, and the requirements for glass edge processing quality, production efficiency and dimensional accuracy are becoming increasingly stringent. The traditional single-side glass grinding machine can only process one edge of the glass at a time, which requires repeated clamping and positioning of the glass, resulting in low production efficiency, poor dimensional consistency, high labor intensity and high production cost, and it is difficult to adapt to the large-scale and standardized production needs of modern glass processing.

In response to the pain points of the industry, the double edge straight glass grinding machine has been developed and applied, which realizes the simultaneous processing of two parallel straight edges of flat glass through a dual-spindle group, dual-conveying system and integrated control technology. It integrates multiple processes such as coarse grinding, fine grinding, polishing and chamfering, and completes the edge processing of glass in one pass, which greatly improves the processing efficiency and product quality. This equipment has become an indispensable key equipment in the glass deep-processing production line, and its technical level and performance indicators directly affect the core competitiveness of glass processing enterprises. This article will conduct an in-depth and comprehensive analysis of the double edge straight glass grinding machine from multiple dimensions, and explore its technical characteristics and development potential in the industrial field.

2. Structural Composition and Core Components

The double edge straight glass grinding machine adopts a symmetrical integrated structural design, which is mainly composed of a main frame, a double-side grinding spindle group, a pneumatic clamping and conveying system, a PLC intelligent control system, a cooling and dust removal system, a glass positioning mechanism and a safety protection device. Each component is designed and matched with high precision to ensure the stability, accuracy and continuity of the equipment during operation.

2.1 Main Frame

The main frame is the load-bearing foundation of the entire equipment, which is generally made of high-strength thick steel plates through precision welding, stress relief annealing and precision machining. This manufacturing process can effectively eliminate the internal stress of the frame, avoid deformation and vibration caused by long-term high-load operation, and ensure the geometric accuracy and stability of the equipment. The frame is designed with a symmetrical structure on both sides, equipped with high-precision linear guide rails, ball screws and servo drive systems for the movement of the grinding spindle group, which can realize the precise adjustment of the distance between the two sides of the grinding heads and the feeding accuracy of the spindles. The gantry-type reinforced structure is adopted for large-scale models, which can bear the weight of large-format glass and high-speed grinding load, and is suitable for the processing of architectural curtain wall glass and automotive large glass.

2.2 Double-Side Grinding Spindle Group

The double-side grinding spindle group is the core execution component of the equipment, which is symmetrically arranged on both sides of the conveying channel, and each side is equipped with 8-12 high-speed precision spindles, which are divided into coarse grinding spindles, fine grinding spindles, chamfering spindles and polishing spindles according to the processing process. The spindles are driven by high-performance servo motors, with a rotation speed of 2800-3600rpm, and have the characteristics of low vibration, low noise and high stability.

The coarse grinding spindle is equipped with diamond grinding wheels with a grit size of #100-#180, which is used to quickly remove the sharp edges, burrs and micro-cracks of the cut glass, and form the basic straight edge profile; the fine grinding spindle adopts resin-bonded diamond grinding wheels with a grit size of #240-#400, which refines the edge surface, eliminates grinding marks and improves the dimensional accuracy of the edge; the chamfering spindle is equipped with a special chamfering grinding wheel, which can process 45° chamfers, rounded corners and other edge shapes according to the process requirements, with a chamfer width adjustable from 0.5mm to 3mm; the polishing spindle is equipped with cerium oxide polishing wheels or resin polishing wheels, which can polish the glass edge to an optical-grade finish with a surface roughness Ra ≤ 0.15μm, meeting the high surface quality requirements of high-end glass products. The two-side spindle groups can be independently adjusted in speed, feeding amount and grinding pressure, and can realize the synchronous processing of different edge processes on both sides of the glass, with strong process adaptability.

2.3 Pneumatic Clamping and Conveying System

The pneumatic clamping and conveying system is responsible for the stable fixation and continuous conveying of glass, which is the key to ensuring the processing accuracy and efficiency of the equipment. The system consists of a pneumatic power unit, precision pressure regulating valves, pneumatic clamping cylinders, wear-resistant clamping jaws, a variable-frequency conveying belt and a drive motor.

The pneumatic clamping mechanism adopts a flexible clamping design, and the clamping jaws are lined with polyurethane or rubber materials, which can apply uniform and adjustable clamping pressure (0.2-0.6MPa) according to the thickness of the glass (3-25mm), avoiding glass surface damage and edge chipping caused by excessive pressure, and ensuring the stable positioning of the glass during high-speed grinding. The conveying system adopts a double-sided synchronous conveying belt driven by a variable-frequency motor, with a conveying speed adjustable from 1m/min to 8m/min, which can be matched with different processing speeds and glass thicknesses. The conveying belt is made of anti-slip and wear-resistant materials, which can prevent glass slippage and scratching during the conveying process, and realize the continuous and stable conveying of glass from the feeding end to the discharging end.

2.4 PLC Intelligent Control System

The double edge straight glass grinding machine is equipped with a high-performance PLC (Programmable Logic Controller) and a touch-screen human-machine interface (HMI), which realizes the intelligent control of the entire processing process. The control system supports the setting and storage of processing parameters such as glass thickness, edge width, chamfer size, spindle speed, conveying speed and grinding pressure, and can store more than 100 groups of process parameters, which is convenient for quick switching of different glass specifications and reduces the equipment adjustment time.

The system has real-time monitoring functions, which can display the operating status of each spindle, pneumatic pressure, conveying speed, cooling system flow and other parameters in real time, and has fault self-diagnosis and alarm functions. When equipment failures such as spindle overload, air pressure abnormality, cooling blockage and glass jamming occur, the system will automatically stop and send out an audible and visual alarm, and display the fault location and solution on the touch screen, which is convenient for operators to troubleshoot. Advanced models are also equipped with Ethernet communication and remote control functions, which can realize remote monitoring, parameter adjustment and fault diagnosis, and integrate with the glass processing production line to form an intelligent manufacturing system.

2.5 Cooling and Dust Removal System

During the glass grinding process, the friction between the grinding wheel and the glass will generate a lot of heat, and a large amount of glass powder will be produced at the same time. The cooling and dust removal system is designed to reduce the grinding temperature, lubricate the grinding contact surface, and remove glass powder, which is an important guarantee for improving the processing quality and extending the service life of the grinding wheel.

The cooling system adopts a closed-loop water circulation design, and high-precision nozzles are installed at each grinding spindle to spray cooling liquid (pure water or special glass grinding coolant) directly onto the grinding contact area, which can quickly take away the grinding heat, prevent the glass edge from cracking due to thermal stress, and reduce the wear of the grinding wheel. The dust removal system is integrated with the cooling circulation system, and the glass powder and debris generated during grinding are flushed into the sedimentation tank by the cooling liquid, and then filtered and recycled through a multi-stage filtration device (filter precision ≤ 5μm), which reduces water consumption and environmental pollution, and avoids the blockage of precision components by glass powder.

2.6 Glass Positioning Mechanism and Safety Protection Device

The glass positioning mechanism is composed of photoelectric sensors, mechanical positioning blocks and pneumatic positioning cylinders, which can realize the precise positioning of the glass before entering the grinding area, with a positioning accuracy of ±0.01mm, ensuring the consistency of the processing size of the two sides of the glass. The safety protection device includes a safety grating, an emergency stop button, a protective cover and an interlock device, which can prevent operators from being injured by the rotating grinding wheel and the moving glass during the operation of the equipment, and meet the safety production standards of industrial machinery.

3. Working Principle

The working process of the double edge straight glass grinding machine is a highly coordinated operation of mechanical transmission, pneumatic control, electrical control and grinding processing, which is divided into six stages: glass feeding, precise positioning, pneumatic clamping, double-side synchronous grinding, glass release and discharging, and the entire process is automatically completed under the control of the PLC system.

3.1 Glass Feeding and Precise Positioning

The operator places the cut flat glass on the feeding conveyor belt, and the conveyor belt transports the glass to the positioning area. The photoelectric sensor detects the position of the glass edge and transmits the signal to the PLC system. The PLC controls the pneumatic positioning cylinder to push the glass to the preset positioning position, and the mechanical positioning block assists in fixing, realizing the precise alignment of the glass and the grinding spindle group, ensuring that the two parallel edges of the glass are accurately aligned with the grinding heads on both sides.

3.2 Pneumatic Clamping

After the glass is positioned accurately, the PLC system sends a command to activate the pneumatic clamping system. The pneumatic cylinders on both sides drive the clamping jaws to move towards the glass, and apply uniform clamping pressure according to the set parameters to fix the glass firmly. The clamping pressure is adjusted in real time by the precision pressure regulating valve to adapt to glass of different thicknesses and materials, avoiding glass damage and ensuring that the glass does not shift during the grinding process.

3.3 Double-Side Synchronous Grinding

After the clamping is completed, the PLC system starts the double-side grinding spindle group and the conveying system at the same time. The glass moves forward at a set conveying speed, and the grinding spindles on both sides feed radially at the same time. The grinding wheels make contact with the two parallel edges of the glass, and complete the processes of coarse grinding, fine grinding, chamfering and polishing in sequence according to the preset process flow.

During the grinding process, the cooling system sprays cooling liquid continuously to cool and lubricate the grinding area, and the dust removal system synchronously recovers the glass powder. The PLC system monitors the operating parameters of each spindle and the conveying system in real time, and automatically adjusts the spindle speed, feeding amount and grinding pressure to ensure the stability of the grinding process and the consistency of the processing quality of the two edges of the glass.

3.4 Glass Release and Discharging

When the glass passes through the entire grinding area and completes all edge processing, the photoelectric sensor at the discharging end sends a signal to the PLC system. The PLC controls the pneumatic clamping cylinder to retract, the clamping jaws release the glass, and the conveying belt transports the processed glass to the discharging area. At this point, a complete processing cycle is completed, and the equipment immediately enters the next processing cycle to realize continuous automatic production.

4. Core Technical Parameters

The core technical parameters of the double edge straight glass grinding machine determine its processing capacity, accuracy and application scope. The following are the main technical parameters of mainstream models in the market:






Parameter Category
Specific Indicators
Parameter Range




Processing Scope
Applicable glass thickness
3-25mm



Minimum processing glass size
50mm×50mm



Maximum processing glass size
Customizable (up to 3000mm×2000mm)



Processing edge type
Straight edge, 45° chamfer, rounded edge



Chamfer width adjustment range
0.5-3mm


Processing Accuracy
Edge dimensional accuracy
±0.01mm



Parallelism of double edges
≤0.02mm/m



Surface roughness after polishing
Ra≤0.15μm



Chamfer angle accuracy
±0.5°


Operational Parameters
Spindle rotation speed
2800-3600rpm



Conveying speed
1-8m/min



Pneumatic system working pressure
0.2-0.6MPa



Compressed air consumption
≤1.5L/min


Power Parameters
Total installed power
22-30kW



Power supply
380V/50Hz, three-phase four-wire


Physical Parameters
Overall dimensions (L×W×H)
7.5-8.5m×1.8m×2.8m



Equipment weight
4000-6000kg






These technical parameters reflect the high precision, high efficiency and wide adaptability of the double edge straight glass grinding machine, which can meet the processing needs of different glass specifications and different application scenarios.

5. Industrial Application Scenarios

Due to its advantages of high efficiency, high precision and automation, the double edge straight glass grinding machine is widely used in various fields of flat glass deep processing, and has become the core equipment of glass processing production lines in many industries.

5.1 Architectural Decoration Industry

In the architectural glass processing field, the double edge straight glass grinding machine is mainly used for the edge processing of architectural curtain wall glass, doors and windows glass, partition glass, shower room glass and glass railing. The equipment can process high-precision straight edges and 45° chamfers for large-format architectural glass, which not only improves the aesthetic appearance of the glass, but also enhances the mechanical strength and safety of the glass, meeting the safety standards of architectural glass. The high processing efficiency of the equipment can meet the large-scale production needs of architectural glass projects, and is widely used in the processing of glass for high-rise buildings, commercial complexes, hotels and residential buildings.

5.2 Automotive Glass Manufacturing

Automotive glass (windshield, side window glass, rear window glass, sunroof glass) has extremely high requirements for edge processing accuracy and quality. The double edge straight glass grinding machine can realize the high-precision grinding and polishing of the two parallel edges of automotive glass, ensure the dimensional accuracy and sealing performance of the glass, and facilitate the installation of glass and automotive frames. The equipment can process various types of automotive glass such as tempered glass and laminated glass, and is an indispensable processing equipment in the automotive glass production line.

5.3 Home Appliances and Furniture Industry

In the home appliance industry, the equipment is used for the edge processing of glass panels of refrigerators, washing machines, ovens, microwave ovens and display screens, and the polished glass edge improves the safety and aesthetic appearance of home appliance products. In the furniture industry, it is mainly used for the processing of glass tabletops, cabinet glass doors, display cabinet glass and decorative glass parts, and the processed glass has smooth edges and high dimensional accuracy, which meets the production needs of high-end furniture.

5.4 Photovoltaic New Energy Industry

With the rapid development of the photovoltaic industry, the demand for photovoltaic glass is increasing year by year. The double edge straight glass grinding machine is used for the edge processing of photovoltaic glass panels, which can eliminate the micro-cracks on the glass edge, improve the mechanical strength and weather resistance of the photovoltaic glass, and ensure the service life of photovoltaic modules. The high-efficiency processing capacity of the equipment can meet the large-scale production needs of photovoltaic glass manufacturing enterprises.

5.5 Electronic and Optical Glass Industry

For electronic glass (smart phone cover glass, tablet display glass, TV panel glass) and optical glass (optical lens substrate, instrument glass), the double edge straight glass grinding machine can achieve ultra-precision polishing of the glass edge, with a surface roughness Ra ≤ 0.1μm, meeting the requirements of light transmittance and surface smoothness of electronic and optical glass. The equipment's high-precision positioning and processing capabilities ensure the consistency of small-sized electronic glass processing, and are suitable for the mass production of electronic and optical glass components.

6. Performance Advantages

Compared with the traditional single-side glass grinding machine and manual edging process, the double edge straight glass grinding machine has obvious performance advantages, which can effectively improve the production efficiency and product quality of glass processing enterprises and reduce production costs.

6.1 High Processing Efficiency and Continuous Production Capacity

The double edge straight glass grinding machine can process two parallel edges of glass at the same time, and complete multiple processes such as coarse grinding, fine grinding, chamfering and polishing in one pass, which improves the processing efficiency by 50%-80% compared with the single-side grinding machine. The automatic feeding, positioning, clamping, grinding and discharging system realizes unmanned continuous production, with a processing capacity of 100-150 pieces per hour (for standard 12mm thick glass), which can meet the large-scale production needs of enterprises.

6.2 High Processing Precision and Product Consistency

The equipment adopts high-precision linear guide rails, servo drive systems and PLC intelligent control, with an edge dimensional accuracy of ±0.01mm and a double-edge parallelism of ≤0.02mm/m, which far exceeds the processing accuracy of manual and single-side grinding machines. The synchronous processing of the double-side spindle group ensures the consistency of the processing quality of the two edges of the glass, and the polished edge surface is smooth and scratch-free, which improves the qualification rate of glass products to more than 99.5%.

6.3 Wide Adaptability to Glass Specifications and Types

The equipment can process glass with a thickness of 3-25mm and a size of 50mm×50mm to 3000mm×2000mm, and can adapt to various types of flat glass such as float glass, tempered glass, laminated glass, Low-E glass, photovoltaic glass and electronic glass. The spindle speed, grinding pressure, conveying speed and chamfer size can be flexibly adjusted according to the processing requirements, with strong process adaptability and can meet the diversified processing needs of enterprises.

6.4 High Degree of Automation and Easy Operation

The PLC touch-screen control system simplifies the operation process, and operators can complete the parameter setting and equipment start-stop only through simple training. The system has functions such as parameter memory, fault self-diagnosis and automatic alarm, which reduces the labor intensity of operators and the dependence on skilled workers. The integration with the automatic loading and unloading equipment can form a fully automatic glass processing production line, realizing the intelligent manufacturing of glass processing.

6.5 Low Production Cost and Long Service Life

The one-pass processing of the equipment reduces the number of glass clamping and positioning, reduces the loss of glass caused by repeated handling and clamping, and saves labor costs. The closed-loop cooling and dust removal system reduces the consumption of cooling liquid and the wear of grinding wheels, and the service life of high-quality diamond grinding wheels can reach more than 10,000 hours. The high-strength frame structure and high-quality components ensure the long-term stable operation of the equipment, with a service life of more than 15 years under normal maintenance, which reduces the equipment replacement and maintenance costs of enterprises.

6.6 Good Safety and Environmental Protection Performance

The equipment is equipped with a complete safety protection device, which can effectively prevent safety accidents during the operation of the equipment and meet the industrial safety production standards. The closed-loop cooling and dust removal system recycles the cooling liquid and collects the glass powder, which reduces the discharge of waste water and waste residue, realizes green and environmentally friendly production, and complies with the national environmental protection policies.

7. Equipment Maintenance and Troubleshooting

In order to ensure the long-term stable operation of the double edge straight glass grinding machine and maintain its processing accuracy, it is necessary to carry out standardized daily maintenance and timely troubleshooting. The maintenance of the equipment is divided into daily maintenance, weekly maintenance and monthly maintenance, and corresponding solutions are formulated for common faults.

7.1 Daily Maintenance

After each shift, clean the glass powder and debris on the surface of the equipment, grinding spindles, conveying belts and cooling nozzles with compressed air and a clean cloth; check the liquid level of the cooling liquid, and add or replace the cooling liquid in time if it is insufficient or contaminated; check the pneumatic system pressure to ensure that it is within the normal range, and check for air leakage at the cylinder joints and valves; check the wear of the grinding wheels, and replace the grinding wheels that are seriously worn or chipped in time; lubricate the linear guide rails and ball screws with special lubricating oil to ensure smooth movement.

7.2 Weekly Maintenance

Drain the water and impurities in the air storage tank of the pneumatic system, and replace the pneumatic filter element; check the tightness of the spindle fixing screws and the conveyor belt tension, and adjust them in time if they are loose; calibrate the positioning accuracy of the photoelectric sensor and the mechanical positioning block; clean the filter device of the cooling and dust removal system to prevent blockage; check the operation of the servo motor and the PLC control system, and test the emergency stop and alarm functions.

7.3 Monthly Maintenance

Conduct a comprehensive inspection of the main frame, grinding spindle group, conveying system and electrical system of the equipment, check for deformation, wear and damage of components, and replace damaged parts in time; replace the lubricating oil of the spindle bearing and the gearbox; calibrate the processing accuracy of the equipment, including edge dimensional accuracy, double-edge parallelism and chamfer angle accuracy; update the PLC system software and back up the process parameters; conduct a comprehensive safety inspection of the equipment to ensure the normal operation of the safety protection device.

7.4 Common Faults and Troubleshooting


Uneven processing of double edges: The main reasons are inconsistent feeding of double-side spindles, misalignment of glass positioning and uneven clamping pressure. The solutions are to calibrate the feeding accuracy of the double-side spindles, adjust the glass positioning mechanism and the pneumatic clamping pressure.
Glass edge chipping and cracking: The main reasons are excessive grinding pressure, insufficient cooling liquid, hard glass material and glass positioning deviation. The solutions are to reduce the grinding pressure, check the cooling nozzle blockage, replace the appropriate grinding wheel and re-calibrate the glass positioning.
Low surface roughness after polishing: The main reasons are worn polishing wheels, incorrect spindle speed and contaminated cooling liquid. The solutions are to replace the polishing wheels, adjust the spindle speed and replace the cooling liquid.
Conveyor belt slipping and jamming: The main reasons are worn conveyor belt lining, insufficient tension and excessive glass weight. The solutions are to replace the conveyor belt lining, adjust the belt tension and control the glass processing size within the equipment's bearing range.
PLC system fault and alarm: The main reasons are parameter setting error, electrical component damage and communication failure. The solutions are to check and correct the process parameters, replace the damaged electrical components and check the communication line connection.


8. Future Development Trends

With the continuous progress of science and technology and the changing market demand, the double edge straight glass grinding machine is developing in the direction of higher intelligence, higher precision, energy saving and environmental protection, and multi-functional integration, and its technical level and application scope will be further improved and expanded.

8.1 Intelligent and Digital Upgrading

In the future, the double edge straight glass grinding machine will integrate more intelligent technologies such as artificial intelligence, machine vision and big data. The machine vision system will automatically detect the size, thickness, edge defects and processing quality of the glass, and the artificial intelligence algorithm will optimize the processing parameters in real time to realize the adaptive processing of different glass. The big data platform will collect and analyze the equipment operation data, realize predictive maintenance and production scheduling optimization, and improve the overall efficiency of the production line. The digital twin technology will be applied to simulate the equipment operation and processing process, and realize the virtual debugging and process optimization of the equipment.

8.2 Ultra-Precision Processing Technology

With the development of electronic, optical and semiconductor industries, the demand for ultra-precision glass processing is increasing. The double edge straight glass grinding machine will develop towards higher precision, with the edge dimensional accuracy reaching ±0.005mm and the surface roughness Ra ≤ 0.05μm. The new type of nano-grinding wheel and high-precision spindle technology will be applied to realize the ultra-precision grinding and polishing of thin glass and special-shaped glass, meeting the processing needs of high-end electronic and optical products.

8.3 Energy Saving and Environmental Protection Optimization

In response to the national dual-carbon target and environmental protection requirements, the equipment will adopt energy-saving motors, high-efficiency drive systems and intelligent energy management systems to reduce power consumption by 30%-40%. The cooling and dust removal system will be further optimized, adopting a zero-discharge closed-loop circulation system and glass powder recycling technology to realize the recycling of waste resources and reduce environmental pollution. The equipment will use more environmentally friendly materials and manufacturing processes to realize the green design and production of the equipment.

8.4 Multi-Functional Integration and Flexible Manufacturing

The future double edge straight glass grinding machine will integrate multiple processing functions such as straight edge grinding, chamfering, polishing, drilling and slotting, and realize the one-stop processing of glass. The modular design will be adopted, and the spindle group and processing module can be quickly replaced and combined to adapt to the processing of different edge shapes and glass types. The equipment will have the ability of flexible production, which can quickly switch between different production tasks and meet the personalized and customized processing needs of the market.

8.5 Global Market Expansion and Localized Innovation

With the rapid development of the global glass processing industry, especially in emerging markets such as Southeast Asia, Latin America and Africa, the demand for high-performance double edge straight glass grinding machines is growing. Domestic equipment manufacturers will increase R&D investment, break through the core technology bottleneck, improve the quality and performance of the equipment, and expand the international market share. At the same time, localized innovation will be carried out according to the market demand and processing standards of different regions, and customized equipment and solutions will be provided to meet the diversified needs of global customers.

9. Conclusion

The double edge straight glass grinding machine, as a key equipment in the modern glass deep-processing industry, has revolutionized the traditional glass edge processing mode with its high efficiency, high precision, automation and intelligence, and has become an important support for the high-quality development of the glass processing industry. Its structural design, technical performance and application scope have been continuously improved and expanded, and it plays an irreplaceable role in architectural decoration, automotive manufacturing, home appliances, photovoltaic and other fields.

In the future, with the continuous innovation of intelligent manufacturing technology, energy saving and environmental protection technology and ultra-precision processing technology, the double edge straight glass grinding machine will move towards a higher level of intelligence, precision and greenness, and provide more efficient and high-quality processing solutions for the glass processing industry. For glass processing enterprises, adopting advanced double edge straight glass grinding machines is an important way to improve production efficiency, reduce production costs and enhance market competitiveness. For equipment manufacturers, continuous technological innovation and product upgrading are the core driving forces to seize market opportunities and promote the sustainable development of the industry.

Aluminum Spacer Bar Cutting Saw: Design, Performance and Industrial Application

Abstract

Aluminum spacer bar cutting saws represent a category of precision processing equipment dedicated to the high-efficiency, high-precision cutting of aluminum spacer bars, which are core components in insulating glass manufacturing, architectural aluminum profiles, door and window engineering, and industrial assembly systems. This article systematically elaborates on the structural composition, working principles, technical characteristics, classification, application scenarios, operation specifications, maintenance protocols, and development trends of aluminum spacer bar cutting saws. It aims to provide a comprehensive theoretical and practical reference for equipment selection, production management, and technical optimization in the manufacturing and processing industries, highlighting the critical role of such cutting systems in improving product quality, reducing material waste, and enhancing production efficiency.

1. Introduction

With the rapid development of modern construction, energy-saving building materials, and automated manufacturing, aluminum spacer bars have been widely used in insulating glass units, curtain wall systems, door and window frames, and industrial aluminum components due to their excellent corrosion resistance, light weight, high structural strength, and stable dimensional stability. As the key front-end process in the production chain of aluminum spacer bars, cutting quality directly determines the assembly accuracy, sealing performance, and service life of downstream products. Traditional manual cutting or general-purpose metal cutting equipment can no longer meet the requirements of high precision, high consistency, and high automation in modern industrial production. Aluminum spacer bar cutting saws, as special-purpose cutting machines designed for aluminum spacer profiles, integrate precision machinery, pneumatic control, electrical control, and digital operation technology, and have become indispensable core equipment in the automated production line of aluminum spacer bars. This article conducts an in-depth analysis of the technical system and application value of aluminum spacer bar cutting saws from multiple dimensions, and clarifies its technical advantages and industrial positioning in the field of non-ferrous metal profile processing.

2. Structural Composition and Working Principle

2.1 Core Structural Components

Aluminum spacer bar cutting saws adopt a modular and integrated design, and their stable operation and cutting accuracy depend on the coordinated work of multiple core components. The main structure includes a frame system, feeding and positioning mechanism, cutting execution unit, clamping device, control system, safety protection device, and chip removal system.

The frame system is usually made of high-strength steel plate welding or heavy-duty cast iron, with good rigidity and shock absorption performance, which can effectively offset the vibration generated during high-speed cutting and ensure the stability of the whole machine. The feeding and positioning mechanism is equipped with precision linear guide rails, ball screws, or pneumatic feeding components, matched with a digital length-setting device or laser positioning sensor, to realize the automatic feeding and precise positioning of aluminum spacer bars, and the positioning accuracy can reach ±0.05mm to ±0.1mm.

The cutting execution unit is the core of the equipment, mainly composed of a high-torque drive motor, carbide-tipped circular saw blade, spindle assembly, and feed cylinder. The saw blade is made of special carbide for non-ferrous metals, with a reasonable number of teeth and tooth shape design, which can realize burr-free and smooth cutting of aluminum profiles. The clamping device adopts pneumatic or hydraulic pressing, with uniform force and no deformation of the profile, ensuring that the aluminum spacer bar does not shift during the cutting process.

The control system is divided into manual control, semi-automatic control, and CNC numerical control system. The CNC system can realize the programming input of cutting length, quantity, and angle, and automatically complete continuous cutting operations. The safety protection device is equipped with a fully enclosed saw blade shield, emergency stop switch, photoelectric protection, and interlock device to prevent accidental contact with moving parts and ensure the personal safety of operators. The chip removal system is matched with a vacuum suction or automatic chip cleaning device to collect aluminum chips in a centralized manner, keeping the working environment clean and avoiding chip accumulation from affecting cutting accuracy.

2.2 Working Principle

The working process of aluminum spacer bar cutting saws follows the logic of "feeding-positioning-clamping-cutting-discharging", and the specific steps are as follows: First, the operator places the aluminum spacer bar on the feeding rack, and adjusts or inputs the cutting parameters through the control panel according to the processing requirements. Then, the feeding mechanism sends the profile to the cutting area, and the precision positioning device locks the cutting length to ensure dimensional consistency. Next, the pneumatic clamping device quickly presses the profile to fix it firmly, and the high-speed motor drives the carbide saw blade to rotate at a rated speed (usually 2800r/min to 3400r/min). Under the push of the feed cylinder, the saw blade moves smoothly to complete the cutting of the aluminum spacer bar. After cutting, the clamping device is released, the finished product is discharged automatically, and the equipment enters the next cutting cycle. For CNC models, the entire process can be fully automated without manual intervention, realizing continuous and batch processing.

3. Technical Characteristics and Performance Advantages

3.1 High Cutting Precision

Aluminum spacer bar cutting saws are equipped with precision transmission components and digital positioning systems, with a length tolerance of cutting within ±0.1mm and an angle tolerance controlled within ±4′, which can meet the high-precision assembly requirements of insulating glass and architectural aluminum profiles. The cutting surface is flat and smooth, with no burrs, no deformation, and no oxidation discoloration, eliminating the need for secondary grinding and polishing processes and reducing production processes and costs.

3.2 High Production Efficiency

Compared with manual cutting or ordinary cutting machines, aluminum spacer bar cutting saws have a fast feeding speed and high cutting frequency. Semi-automatic models can complete hundreds of cuts per hour, and CNC automatic models can realize 24-hour uninterrupted operation, which increases production efficiency by more than 30% compared with traditional processes. At the same time, the equipment supports fixed-length continuous cutting, batch processing, and angle cutting (0° to 45° adjustable), adapting to diversified processing needs and improving the flexibility of the production line.

3.3 Wide Application Adaptability

This type of cutting saw is suitable for aluminum spacer bars of various specifications and cross-sections, including rectangular, square, and special-shaped profiles, with a maximum cutting width of up to 120mm and a maximum cutting height of up to 150mm. It can meet the processing requirements of aluminum spacer bars for insulating glass of different sizes, door and window profiles, and industrial aluminum components, and is compatible with 6063, 6061, and other commonly used aluminum alloy materials.

3.4 Stable and Durable Performance

The core components such as motors, saw blades, and guide rails adopt high-quality imported or domestic high-end accessories, with a robust structure and strong resistance to wear and fatigue. The equipment can operate stably for a long time in a high-load industrial environment, with a low failure rate. The carbide saw blade has a long service life, and regular maintenance can ensure long-term stable cutting performance.

3.5 Easy Operation and Maintenance

The humanized control panel and intuitive operation interface reduce the difficulty of operation. Ordinary operators can master the use skills after simple training. The equipment adopts a modular design, with convenient disassembly and assembly of components, easy cleaning of aluminum chips, and simple daily maintenance. Regular lubrication, saw blade replacement, and circuit inspection can maintain the optimal working state of the equipment.

3.6 High Safety Performance

Full set of safety protection configurations, including fully enclosed protective covers, emergency stop buttons, photoelectric safety sensors, and interlock protection systems, effectively avoid operational safety accidents. The pneumatic clamping and automatic feeding design reduces manual contact with the cutting area, realizing humanized and safe production.

4. Classification of Aluminum Spacer Bar Cutting Saws

According to the degree of automation, control mode, and structural form, aluminum spacer bar cutting saws can be divided into three categories: manual, semi-automatic, and fully automatic CNC models, each with its own applicable scenarios and user groups.

4.1 Manual Aluminum Spacer Bar Cutting Saw

Manual models are small and low-cost, with a simple structure, mainly relying on manual feeding, positioning, and pressing. They are suitable for small-batch processing, sample production, or small workshops with low output. The equipment has low power consumption (usually 0.55kw), small floor space, and flexible movement, but the cutting efficiency and precision are relatively low, and the labor intensity of operators is high.

4.2 Semi-Automatic Aluminum Spacer Bar Cutting Saw

Semi-automatic models integrate pneumatic feeding, automatic clamping, and automatic cutting functions. Operators only need to set the cutting parameters and start the equipment, and the rest of the process is completed automatically. They have moderate precision and efficiency, with a power of about 1.67kw to 2.2kw, and are suitable for medium-sized processing enterprises with medium batch production. This type of equipment balances cost and performance, and is the mainstream model in the market.

4.3 Fully Automatic CNC Aluminum Spacer Bar Cutting Saw

CNC models adopt a programmable logic controller (PLC) and human-machine interface, supporting parameter storage, batch cutting, angle adjustment, and fault self-diagnosis. They can be connected to the automated production line to realize unmanned production. With the highest cutting precision (up to ±0.05mm) and production efficiency, they are suitable for large-scale insulating glass manufacturing bases, architectural aluminum profile processing plants, and automated industrial production lines with high requirements for precision and output.

In addition, according to the cutting angle, it can be divided into right-angle cutting saws and multi-angle cutting saws; according to the number of cutting heads, it can be divided into single-head cutting saws and double-head cutting saws. Double-head models can complete 45° or 90° cutting at both ends of the profile at the same time, further improving the processing efficiency of special-shaped components.

5. Main Application Scenarios

5.1 Insulating Glass Manufacturing Industry

As the most important application field, aluminum spacer bars are the core components of hollow glass, and their cutting accuracy directly affects the sealing and thermal insulation performance of hollow glass. Aluminum spacer bar cutting saws can realize the precise cutting of aluminum spacer bars of different lengths and specifications, ensuring the tight fit between the spacer bar and the glass, preventing air leakage and moisture intrusion, and meeting the production standards of energy-saving and sound-insulating hollow glass.

5.2 Architectural Aluminum Profile Processing

In the field of construction engineering, aluminum alloy doors and windows, curtain walls, and decorative profiles require a large number of aluminum spacer components. The cutting saw can complete the fixed-length and angle cutting of profiles, ensuring the assembly accuracy of door and window frames and curtain wall keels, improving the overall structural stability and appearance quality of construction projects.

5.3 Industrial Aluminum Component Production

In the industrial manufacturing field, aluminum spacer bars are used in electronic equipment radiators, automobile accessories, solar panel frames, furniture frames, and other components. The high-precision cutting of the saw ensures the dimensional consistency of industrial components, adapts to automated assembly lines, and improves the quality stability of industrial products.

5.4 Picture Frame and Decorative Product Processing

Aluminum spacer cutting saws are also used in the production of high-end picture frames, decorative lines, and display stands. The angled cutting function ensures the perfect splicing of frames, and the smooth cutting surface brings a high-grade appearance effect to decorative products, meeting the aesthetic and quality requirements of the commercial and art markets.

6. Operation Specifications and Safety Management

6.1 Pre-Operation Preparation

Before starting the equipment, operators should check whether the power supply, air pressure (0.5Mpa~0.8Mpa), and lubrication system are normal; check the wear of the saw blade, replace severely worn or cracked saw blades in time; adjust the cutting length and angle parameters according to the process requirements, and conduct a no-load test run to confirm that the equipment runs smoothly without abnormal noise.

6.2 Standard Operation Process

Operators should wear protective equipment such as goggles and anti-slip gloves, and it is forbidden to wear loose clothes or accessories to avoid involvement in rotating parts. Place the aluminum spacer bar smoothly on the feeding rack, ensure that the profile is aligned with the positioning device, and start the clamping and cutting button after confirmation. During the operation, it is forbidden to touch the rotating saw blade and moving parts with hands, and do not adjust the parameters at will. If abnormal conditions are found, press the emergency stop button immediately and cut off the power supply for inspection.

6.3 Post-Operation Cleaning

After the operation, cut off the power supply and air source, clean the aluminum chips on the equipment and in the chip removal system, wipe the surface of the machine tool, and apply anti-rust oil to the transmission parts. Sort and stack the cut finished products and waste materials to keep the working area tidy.

6.4 Safety Management Regulations

Non-professionals are prohibited from operating or disassembling the equipment; regular training and assessment for operators to master professional skills and safety knowledge; set up obvious safety warning signs in the working area; regularly check the effectiveness of safety protection devices to ensure that all protection functions are normal.

7. Equipment Maintenance and Troubleshooting

7.1 Daily Maintenance

Daily maintenance is the key to ensuring the long-term stable operation of the equipment. It mainly includes: cleaning aluminum chips and dust on the surface and inside of the equipment every day to prevent chip accumulation from affecting the transmission and heat dissipation; checking the tightness of the saw blade fastening bolts and the air tightness of the pneumatic system; adding lubricating oil to linear guide rails, screws, and other moving parts to reduce friction and wear.

7.2 Regular Maintenance

Weekly maintenance: Check the wear of the saw blade, clean the saw blade surface attachments, and adjust the saw blade runout within 0.05mm; check the oil level of the gearbox and the tension of the transmission belt.

Monthly maintenance: Clean the oil circuit filter, check the aging of the oil pipe and circuit, and replace the seriously aged parts; calibrate the cutting length and angle accuracy to ensure the processing error is within the allowable range.

Quarterly maintenance: Conduct a comprehensive inspection of the motor, control system, and pneumatic components, replace the lubricating grease, and carry out equipment commissioning to restore the optimal performance.

7.3 Common Faults and Troubleshooting


Inaccurate cutting length: It may be caused by loose positioning device, worn guide rail, or parameter setting error. Troubleshooting methods: calibrate the positioning system, replace worn parts, and reset the parameters.
Rough cutting surface with burrs: It is usually caused by dull or damaged saw blade. Troubleshooting method: replace the carbide saw blade and ensure the saw blade speed and feed speed match.
Equipment cannot start: Check whether the power supply is connected, the emergency stop button is reset, and the air pressure meets the standard; check whether the control circuit is faulty.
Pneumatic clamping failure: Check whether the air pipe is leaking, the solenoid valve is working normally, and clean the clogged pneumatic components.


8. Development Trend of Aluminum Spacer Bar Cutting Saws

With the advancement of intelligent manufacturing, energy-saving technology, and material science, aluminum spacer bar cutting saws are developing in the direction of higher precision, higher automation, intelligence, and greening.

First of all, the integration of digital technology is deepening. More CNC systems will be equipped with IoT modules to realize remote monitoring, fault diagnosis, and data statistics of equipment, and connect with the factory MES system to promote the construction of intelligent factories.

Secondly, the cutting accuracy and efficiency will be further improved. The application of high-precision servo drive, linear motor, and laser positioning technology will reduce the cutting error to a higher level, and the cutting speed and processing efficiency will be greatly improved.

Thirdly, green and low-carbon design will become the mainstream. The equipment will adopt energy-saving motors, closed chip removal systems, and low-noise designs to reduce energy consumption, noise pollution, and aluminum chip waste, and meet the requirements of green industrial production.

In addition, the versatility of the equipment will be enhanced. The multi-functional cutting saw that can process aluminum, plastic, and other non-ferrous metal profiles at the same time will be launched to meet the diversified processing needs of enterprises and reduce the equipment investment cost.

9. Conclusion

Aluminum spacer bar cutting saws, as special precision processing equipment for aluminum spacer profiles, play an irreplaceable role in modern industrial production such as insulating glass manufacturing, architectural engineering, and industrial aluminum component processing. Its high precision, high efficiency, stability, and safety advantages effectively solve the pain points of low precision, low efficiency, and high waste in traditional cutting processes, and provide a strong guarantee for improving product quality, reducing production costs, and enhancing the competitiveness of enterprises. With the continuous development of the manufacturing industry and the upgrading of technical requirements, aluminum spacer bar cutting saws will continue to iterate and innovate in the direction of intelligence, automation, and greening, and further expand their application fields and market space. For production enterprises, selecting the appropriate type of aluminum spacer bar cutting saw, standardizing operation and maintenance management, and giving full play to the performance advantages of the equipment are important ways to improve production efficiency and product quality, and also an inevitable choice to adapt to the development trend of modern industrial processing.

Ethylene-Vinyl Acetate (EVA) film bending represents a precision materials-forming discipline that integrates polymer physics, thermal engineering, and mechanical shaping to realize controllable deformation of EVA polymeric films while preserving structural integrity, optical clarity, and functional performance. This formal exposition systematically examines the molecular and macromolecular foundations of EVA film bendability, establishes the governing principles and parametric boundaries of thermal-mechanical bending processes, evaluates quality-governing mechanisms and defect-mitigation strategies, and articulates validated industrial implementations across photovoltaics, architectural glazing, flexible electronics, and advanced packaging. By unifying material characterization, process modeling, and application engineering, this document establishes a rigorous technical framework for the design, scaling, and quality assurance of EVA film bending in high-performance manufacturing environments.

1. Introduction

EVA film, a thermoplastic copolymer of ethylene and vinyl acetate, occupies a distinctive position among functional polymeric films due to its balanced combination of optical transparency, elastomeric flexibility, thermal processability, and interfacial adhesion. In contrast to rigid engineering plastics and highly compliant elastomers, EVA exhibits a tunable modulus that enables controlled plastic and elastic bending under defined thermal and mechanical conditions. EVA film bending is not merely a geometric shaping operation but a materials transformation process that dictates long-term dimensional stability, optical uniformity, mechanical robustness, and service life in end-use assemblies.

Historically, EVA film has been deployed primarily as an encapsulant and interlayer material, where flat-sheet lamination dominated manufacturing workflows. However, the proliferation of curved, conformal, and three-dimensional product architectures—from curved photovoltaic modules and sculptural architectural glass to flexible display stacks and contoured medical devices—has elevated EVA film bending from a secondary operation to a core enabling technology. Contemporary industrial practice demands that bent EVA films maintain pristine optical transmission, resist microcracking and haze, preserve adhesive bonding strength, and withstand cyclic mechanical fatigue and environmental aging. These requirements necessitate a formal, science-based approach to EVA film bending that transcends empirical trial-and-error.

This paper presents a comprehensive technical treatment of EVA film bending, structured to support engineering specification, process development, and quality validation. It addresses material-dependent factors, thermal-mechanical process regimes, in-process monitoring, defect root-cause analysis, and scalable industrial applications. Emphasis is placed on formal engineering principles, quantitative parametric relationships, and repeatable manufacturing methodologies to ensure the reliability and reproducibility of bent EVA film components.

2. Material Foundations of EVA Film Bendability

2.1 Molecular Architecture and Deformation Behavior

The bendability of EVA film is intrinsically governed by its copolymer microstructure. Ethylene units provide crystalline domains that impart mechanical strength and structural stability, while vinyl acetate (VA) segments disrupt crystalline registry, introducing amorphous regions that confer flexibility, toughness, and low-temperature ductility. VA content—typically ranging from 15% to 33% for industrial-grade bending films—directly modulates the glass transition temperature (Tg), melt flow behavior, and elongation-at-break. Films engineered for precision bending commonly feature VA concentrations between 22% and 28%, balancing formability with post-forming shape retention.

Under bending stress, EVA undergoes a sequence of deformation regimes: elastic deflection at low strain, uniform plastic flow at moderate thermal activation, and localized strain narrowing at excessive stress or insufficient temperature. The characteristic rubbery elasticity of EVA above Tg enables large-radius bending with minimal internal stress, while cross-linked formulations (employed in high-durability applications) establish a molecular network that restricts irreversible flow and enhances recovery after bending. This molecular response defines the safe forming envelope for EVA film bending, distinguishing between recoverable elastic deflection and permanent shape-setting deformation.

2.2 Thermomechanical Properties Critical to Bending

Key performance metrics that govern EVA film bending include:


Flexural Modulus: Temperature-dependent stiffness that determines force requirements and springback behavior.
Elongation-at-Break: Typically 300%–800%, providing the extensibility required for convex and concave bending.
Melting Onset: 55°C–95°C, establishing the lower bound for thermally assisted forming.
Thermal Stability: Retention of molecular integrity up to approximately 120°C, preventing thermal degradation during processing.
Optical Retention: Resistance to haze, whitening, or birefringence under bending strain.


These properties collectively establish the process window for EVA film bending: operations conducted within the recommended thermal-mechanical envelope yield smooth, defect-free curved surfaces; excursions outside this window result in microcracking, stress whitening, uneven curvature, or permanent optical degradation.

2.3 Film Structure and Formulation Effects

Commercial EVA bending films are manufactured via extrusion casting or blown-film processes, which influence thickness uniformity, surface energy, and internal residual stress. Films produced for precision bending are calibrated to tight thickness tolerances (±2% for high-performance grades) to ensure consistent strain distribution across the bend zone. Additive packages—including UV stabilizers, cross-linking agents, and anti-oxidants—are formulated to preserve processability without compromising bend ductility. Cross-linked EVA films, widely used in photovoltaic and architectural applications, exhibit reduced creep under sustained bending and improved resistance to fatigue cracking during cyclic loading.

3. Principles of EVA Film Bending Processes

3.1 Thermal-Mechanical Forming Regimes

EVA film bending is universally implemented as a thermally assisted process, as cold bending induces excessive internal stress and leads to brittle fracture. Thermal activation softens the amorphous domains, lowers the flexural modulus, and enables controlled molecular rearrangement under mechanical constraint. Three primary process regimes are recognized in industrial practice:


Low-Temperature Elastic Bending (60°C–80°C): Used for gentle, large-radius curves where temporary deformation is sufficient; shape stability depends on rapid cooling and constraint.
Medium-Temperature Thermoforming (85°C–110°C): The dominant industrial regime for EVA film bending, enabling permanent shape setting with uniform deformation and minimal optical distortion.
High-Temperature Flow Bending (>115°C): Reserved for complex, tight-radius geometries; requires precise thermal profiling to avoid melting, thickness reduction, or molecular degradation.


In all regimes, uniform temperature distribution across the film is critical to prevent differential strain, which manifests as wrinkling, thickness variation, or localized failure.

3.2 Mechanical Bending Modes

EVA film bending is categorized by geometric configuration and stress distribution:


Convex Bending: External tensile stress dominates; requires sufficient elongation capacity to avoid necking or fracture.
Concave Bending: Internal compressive stress dominates; risk of wrinkling or buckling dominates over fracture.
Compound Curvature Bending: Simultaneous tensile and compressive stress in orthogonal axes; demands uniform heating and matched tooling to maintain dimensional fidelity.
Free-Bending vs. Constrained Bending: Free-bending relies on controlled force and cooling; constrained bending uses male/female tooling to enforce precise curvature and minimize springback.


Constrained bending is the formal industrial standard for high-precision applications, as it decouples operator variability from geometric outcome and ensures repeatable bend radii and angular accuracy.

3.3 Process Parameters and Parametric Interactions

Formal control of EVA film bending requires quantitative specification of interdependent parameters:


Temperature Profile: Ramp rate, soak time, peak temperature, and cooling rate.
Mechanical Force: Applied load, displacement rate, and holding pressure.
Tooling Geometry: Bend radius, contact surface finish, and thermal conductivity.
Film Condition: Initial temperature, moisture content, and pre-treatment status.


Interactions between these parameters define the forming limit diagram (FLD) for EVA film, which maps safe operating regions against failure modes. Formal process development employs design-of-experiments (DoE) methodologies to optimize parameter sets and establish statistical process control (SPC) limits for mass production.

4. Engineering Methodology for Controlled EVA Film Bending

4.1 Pre-Forming Preparation and Quality Assurance

Prior to bending, EVA film must undergo controlled conditioning to eliminate internal stress and moisture uptake, which can cause bubbling, delamination, or inconsistent deformation during heating. Industrial best practice includes:


Desiccant storage at 15°C–25°C and relative humidity <50%.
Pre-heat conditioning to remove residual extrusion stress.
Thickness and optical inspection to reject non-uniform sheets.
Surface cleaning to preserve adhesion and optical clarity.


4.2 Thermal Control and Uniformity Systems

Precision thermal delivery is the cornerstone of high-quality EVA film bending. Industrial systems employ:


Convective heating for gentle, uniform thermal transfer.
Infrared (IR) heating with spectral tuning for rapid, zone-controlled thermal input.
Conductive tooling for conformal heat distribution in constrained bending.
Closed-loop temperature monitoring with multi-point sensing to eliminate hot/cold spots.


Uniform thermal distribution ensures that the entire bend zone reaches the target deformation state simultaneously, preventing localized over-extension or under-forming.

4.3 Mechanical Actuation and Kinematic Control

Bending actuators are engineered to apply consistent, rate-controlled force to avoid shock loading. Servo-driven linear mechanisms and articulated tooling provide programmable bend profiles, enabling ramped deformation that matches the stress-relaxation behavior of EVA. Holding stages at peak deformation allow molecular stabilization prior to cooling, significantly reducing springback and improving dimensional stability.

4.4 Cooling and Shape Setting

Rapid, uniform cooling locks the deformed molecular structure into the desired geometry. Controlled cooling—via ambient convection, chilled air, or temperature-stabilized tooling—minimizes thermal shrinkage and internal residual stress. Abrupt quenching is avoided, as it can induce internal stress gradients that lead to post-forming warping or optical inhomogeneity.

4.5 In-Process Metrology and Validation

Formal EVA film bending processes integrate real-time metrology to validate geometric conformance and functional quality:


Laser profilometry for bend radius and angular accuracy.
Optical transmission and haze measurement to verify optical stability.
Thickness gauging to detect excessive thinning or wrinkling.
Microscopic inspection to rule out microcracking or crazing.


In-process validation ensures that deviations are contained within specification limits before downstream assembly.

5. Defect Mechanisms, Analysis, and Mitigation

5.1 Common Defects and Root Causes

Formal defect analysis in EVA film bending attributes anomalies to material, thermal, mechanical, or tooling factors:


Stress Whitening: Localized yielding due to insufficient temperature or excessive bend rate.
Microcracking: Exceeding elongation limits or sharp tooling edges.
Wrinkling/Buckling: Compressive instability in concave bending or uneven heating.
Thickness Reduction: Overheating and tensile flow in convex bending.
Optical Haze: Molecular chain alignment or microvoid formation under extreme strain.
Springback: Inadequate holding time, insufficient temperature, or rapid cooling.


5.2 Systematic Mitigation Strategies

Engineering mitigation is derived directly from root-cause mechanisms:


Expand thermal process windows to ensure uniform ductility.
Optimize tooling radii and surface finishes to eliminate stress concentrations.
Implement ramped deformation profiles to match material flow characteristics.
Use constrained forming to stabilize compressive zones and prevent wrinkling.
Apply closed-loop thermal and force control to maintain operation within the FLD.


Formal corrective actions are documented in process failure-mode effects analysis (PFMEA) frameworks to drive continuous improvement.

6. Industrial Applications of EVA Film Bending

6.1 Photovoltaic Module Encapsulation

Curved and flexible PV modules rely on precision-bent EVA encapsulant films to conform to contoured glass or flexible back-sheets. EVA film bending enables aesthetic, building-integrated photovoltaics (BIPV) with curved facades, sunshades, and structural glazing, while preserving high light transmittance and long-term environmental stability.

6.2 Architectural and Automotive Laminated Glass

Bent EVA film serves as a safe, transparent interlayer in curved laminated glass for architectural curtain walls, automotive sunroofs, and transportation glazing. Its excellent adhesion to glass, impact resistance, and acoustic damping properties make it a preferred alternative to conventional interlayers in complex curved assemblies.

6.3 Flexible Electronics and Optoelectronic Assemblies

EVA film bending supports the manufacturing of flexible displays, touch sensors, and wearable devices by providing a conformal, optically clear, and dielectrically stable substrate and encapsulant. Controlled bending ensures pixel-level uniformity and resistance to cyclic flex fatigue.

6.4 Advanced Packaging and Protective Films

High-value consumer goods, medical devices, and industrial components utilize bent EVA films for form-fitting protective packaging. The material’s thermoformability, clarity, and toughness enable custom contoured packaging with superior impact resistance and visual presentation.

7. Quality Standards and Performance Validation

Formal EVA film bending is governed by material and process standards that ensure fitness for service:


Optical Specifications: Light transmittance >90%, haze <1.5% after bending.
Mechanical Specifications: No cracking or whitening at specified minimum bend radius.
Dimensional Specifications: Bend radius tolerance ±1 mm, angular tolerance ±0.5°.
Environmental Stability: Passes thermal cycling, humidity aging, and UV exposure without delamination or degradation.


Validation includes accelerated aging tests, mechanical fatigue cycling, and long-term creep testing to verify performance over the product service life.

8. Conclusion

EVA film bending is a sophisticated thermal-mechanical forming process grounded in polymer physics, process engineering, and precision manufacturing. Its formal implementation requires rigorous control of material condition, thermal delivery, mechanical actuation, and in-process validation to produce defect-free, dimensionally accurate, and functionally robust curved EVA film components. As industrial demand for conformal, lightweight, and optically superior assemblies continues to grow, EVA film bending will remain a critical enabling technology across photovoltaics, architecture, automotive, flexible electronics, and advanced packaging.

In the modern architectural glass deep-processing industry, the production efficiency, sealing quality, and service life of insulating glass directly determine the performance indicators of building energy saving, sound insulation, heat preservation, and safety. As a core piece of equipment in the automatic production line of insulating glass, the Horizontal Automatic Sealing Machine for Insulating Glass integrates mechanical transmission, precision control, automatic glue supply, and intelligent detection technologies, realizing high-efficiency, high-consistency, and high-stability automatic sealing operations for insulating glass. This equipment is specially designed for the secondary sealing process of insulating glass, aiming to replace traditional manual gluing and semi-automatic sealing equipment, so as to improve production efficiency, reduce labor costs, optimize sealing appearance, and enhance the overall structural strength and durability of insulating glass products.

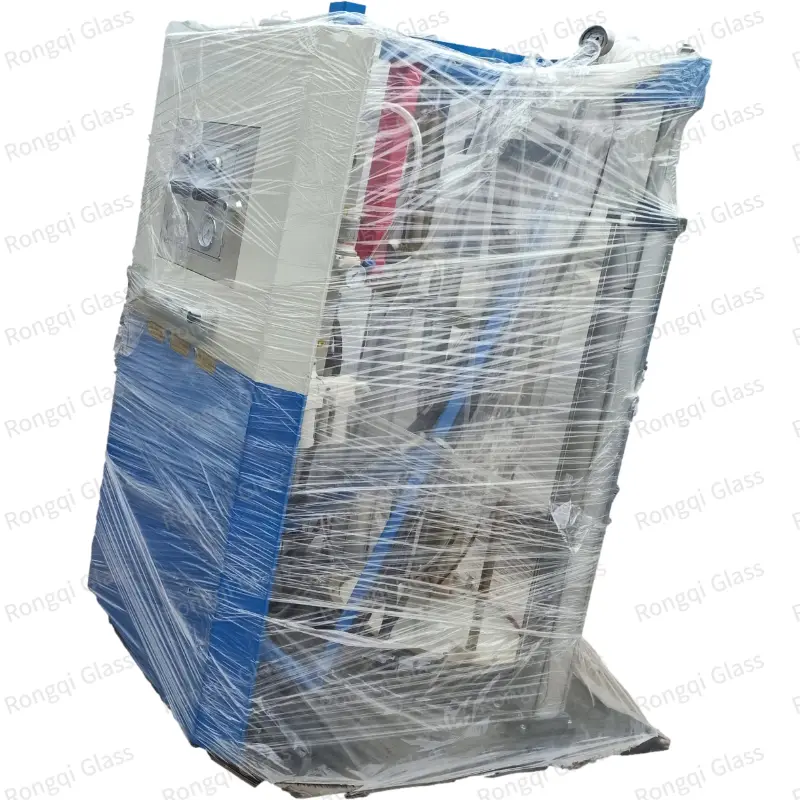

The horizontal structural design is the most significant feature of this sealing machine, which is different from vertical sealing equipment. The horizontal conveying mode enables the glass to maintain a stable and flat state during the entire sealing process, effectively avoiding deflection, deviation, or surface wear caused by the self-weight of large-size and ultra-thick insulating glass. This design is especially suitable for the production and processing of large-format, high-weight, and high-precision insulating glass products, and can meet the production needs of modern construction, curtain wall engineering, residential doors and windows, commercial buildings, and industrial special glass. The whole machine adopts a high-rigidity frame structure and precision linear guide rails, with strong anti-vibration performance and high movement stability, ensuring that the sealing gun head can run smoothly and accurately along the set trajectory during high-speed operation.

In terms of core working principles, the Horizontal Automatic Sealing Machine for Insulating Glass adopts a fully automatic control system based on PLC and human-computer interaction interface. After the insulating glass enters the equipment through the horizontal conveying platform, the positioning system automatically identifies the glass size, corner position, and aluminum spacer frame parameters, and then the glue supply system quantitatively outputs two-component sealant (such as polysulfide glue, silicone glue, or polyurethane glue) according to the preset program. The servo-driven sealing gun head automatically moves along the edge of the glass, completing uniform gluing, corner wrapping, and seam smoothing at one time. The whole process does not require manual intervention, and the glue output, running speed, gun head angle, and coating thickness can be flexibly adjusted according to glass specifications and process requirements, with strong adaptability and flexibility.

The glue supply system is one of the key components to ensure sealing quality. This equipment is equipped with a high-precision automatic proportional glue mixing device, which can strictly control the mixing ratio of the two-component sealant to avoid problems such as uneven curing, insufficient bonding strength, or bubbles caused by improper ratio. At the same time, the glue supply system has functions of automatic pressure stabilization, real-time monitoring, and fault alarm, which can ensure continuous and stable glue output during long-term production, prevent glue breakage, glue leakage, or excessive gluing, and greatly reduce the waste of sealant and the generation of defective products. For different types of sealants, the equipment can be quickly adapted by adjusting parameters, which meets the diversified process selection needs of glass deep-processing enterprises.

In terms of automation and intelligence, the Horizontal Automatic Sealing Machine for Insulating Glass has reached a high level in the industry. It supports docking with the upper-level production management system, can realize data storage, production statistics, fault self-diagnosis, and remote maintenance functions, and meets the needs of intelligent manufacturing and digital management. The equipment is equipped with safety protection devices such as photoelectric induction, emergency stop, and safety guards, which fully comply with industrial safety standards and protect the personal safety of operators. In addition, the automatic cleaning function of the gun head and pipeline reduces the difficulty of daily maintenance, prolongs the service life of the equipment, and reduces the downtime caused by maintenance.

Compared with manual sealing and semi-automatic sealing equipment, the Horizontal Automatic Sealing Machine for Insulating Glass has obvious advantages in production efficiency, product quality, and cost control. Manual gluing has problems such as low efficiency, uneven glue layer, poor appearance, and large human error, which cannot meet the requirements of large-scale and high-standard production. This automatic sealing machine can achieve a continuous operation mode of multiple pieces of glass, greatly improving the hourly output; the sealing layer is uniform and full, with smooth corners and consistent appearance, fully meeting the national standards and industry specifications for insulating glass sealing; the stable sealing quality effectively reduces the failure rate of insulating glass in use, such as air leakage, fogging, and delamination, and extends the service life of the glass.

At present, the Horizontal Automatic Sealing Machine for Insulating Glass has been widely used in large and medium-sized glass deep-processing enterprises, architectural curtain wall companies, door and window manufacturing plants, and export-oriented glass product production bases. With the continuous improvement of global architectural energy-saving standards and the rapid development of the hollow glass industry, the demand for high-performance automatic sealing equipment is increasing year by year. This horizontal automatic sealing machine, with its advanced design, stable performance, high efficiency, and intelligence, has become an indispensable key equipment in the field of insulating glass production, promoting the upgrading and technological progress of the entire glass deep-processing industry.

We are proud to present our Detachable Mobile A-Frame, a premium-grade material handling solution engineered to meet the rigorous demands of modern manufacturing, logistics, and project-based operations. Designed with versatility, stability, and efficiency at its core, this A-Frame redefines standards for the safe storage, transportation, and on-site maneuvering of glass panels, metal sheets, composite panels, and other oversized, delicate, or heavy-duty materials.

Crafted from high-strength, wear-resistant steel as the primary structural frame, the Detachable Mobile A-Frame delivers exceptional load-bearing capacity while ensuring long-term durability even in harsh industrial environments. Its modular, disassembly-friendly design is a cornerstone of its functionality: when not in use, the frame can be quickly disassembled into compact components, significantly reducing storage space occupancy and simplifying cross-border transportation, container loading, and long-distance logistics. This feature makes it an ideal choice for both permanent manufacturing facilities and temporary project sites, particularly for overseas engineering projects where space optimization and cost-effective transport are critical.

Equipped with heavy-duty, lockable casters, the A-Frame enables seamless mobile operation across workshop floors, warehouses, and job sites. The casters feature high load capacity and smooth maneuverability, allowing operators to move heavy loads with minimal effort while ensuring secure positioning via integrated locks. For enhanced logistical flexibility, the frame is also integrated with reinforced forklift pockets, enabling efficient lifting and transfer by forklift or crane equipment—streamlining material handling processes across different stages of production and delivery.

To protect the surface of stored materials and prevent scratches, dents, or damage, the A-Frame is fitted with thick, anti-slip rubber padding along its contact surfaces. This protective padding is not only shock-absorbent but also resistant to abrasion, ensuring the integrity of sensitive materials such as tempered glass, laminated glass, and precision metal panels. Additionally, the frame is equipped with adjustable holding bars that feature multi-position hole settings, allowing for customization to accommodate materials of varying widths and thicknesses. This adaptability ensures consistent stability and secure positioning, regardless of the specific characteristics of the load.

Further designed for user convenience, the Detachable Mobile A-Frame includes integrated lifting eyes for safe hoisting during assembly, disassembly, and large-scale transport. Its modular structure adheres to international industrial safety standards, with rigorous quality control applied to every component—from weld integrity and load testing to corrosion-resistant surface treatment. This commitment to quality ensures reliable performance, minimal maintenance requirements, and a long service life, delivering exceptional value to our customers.

Widely applied in glass deep-processing plants, construction material workshops, logistics centers, and overseas engineering projects, our Detachable Mobile A-Frame has become a trusted solution for businesses seeking to optimize material handling efficiency, enhance workplace safety, and reduce operational costs. We remain dedicated to continuous innovation and customization, working closely with customers to tailor the A-Frame to their specific operational needs. Whether supporting small-scale production or large-scale international projects, our Detachable Mobile A-Frame stands as a testament to our commitment to delivering high-quality, practical, and future-ready material handling solutions.
