Glass Tempering Furnace: Principles, Technology, Applications and Industrial Development

Abstract

Glass tempering furnace, as a core thermal processing equipment in the modern glass deep-processing industry, plays an irreplaceable role in transforming ordinary float glass, sheet glass and other flat glass products into tempered glass with high mechanical strength, thermal stability and safety performance. This paper systematically elaborates on the fundamental working principles, structural composition, classification characteristics, processing technology, application scenarios, performance advantages and existing challenges of glass tempering furnaces. Combined with the latest technological innovations and market development trends in the global glass industry, it also prospects the future development direction of glass tempering furnace equipment, aiming to provide a comprehensive and in-depth reference for industrial practitioners, engineering technicians and relevant research scholars.

1. Introduction

With the rapid advancement of global construction, automotive, home appliance, electronic information and new energy industries, the demand for high-performance safety glass has shown a sustained growth trend. Tempered glass, known as "safety glass", has become one of the most widely used functional glass products in modern industrial and civil fields due to its outstanding characteristics such as 3-5 times higher impact resistance than ordinary glass, excellent thermal shock resistance, and harmless small granular fragments when broken. The core equipment for achieving the glass tempering process is the glass tempering furnace, which integrates multiple disciplines including mechanical engineering, thermal engineering, automation control, material science and electrical engineering.

Since the birth of the first industrialized glass tempering furnace in the mid-20th century, the equipment has undergone continuous technological iteration and structural optimization. From the initial vertical tempering furnaces to the widely used horizontal convection tempering furnaces today, and from the single small-scale processing equipment to the large-scale, intelligent, energy-saving and high-efficiency production lines, glass tempering furnaces have gradually evolved into a highly specialized and standardized industrial equipment category. In the global glass deep-processing industry chain, the performance level of glass tempering furnaces directly determines the quality, production efficiency and cost control of tempered glass products, and is a key link that affects the core competitiveness of glass processing enterprises. This paper will conduct an all-round and multi-angle analysis of glass tempering furnaces, starting from their basic theoretical basis, and extending to practical applications and future development.

2. Fundamental Principles of Glass Tempering

Before analyzing the structure and working process of glass tempering furnaces, it is essential to clarify the physical and chemical principles behind the glass tempering process, which is the theoretical cornerstone for the design and operation of glass tempering furnaces. Glass tempering, also referred to as glass toughening, is a physical heat treatment method that changes the internal stress state and mechanical properties of glass without altering its chemical composition.

2.1 Thermal Tempering Principle

The vast majority of commercial glass tempering furnaces adopt the thermal tempering process, whose core principle is based on the rapid cooling of heated glass to form a uniform compressive stress layer on the surface and a tensile stress layer inside the glass. Specifically, ordinary flat glass is heated in a tempering furnace to a temperature close to its softening point (generally between 600°C and 650°C, varying slightly with glass composition and thickness), at which the glass internal molecular structure is in a state of high activity and the internal stress is completely eliminated. Subsequently, the heated glass is quickly transferred to the cooling zone of the tempering furnace, where high-speed and uniform cold air is blown onto both sides of the glass surface through a specially designed air grid system.

Due to the rapid cooling rate, the glass surface layer solidifies and contracts first, forming a rigid compressive stress layer, while the internal glass is still in a high-temperature plastic state and continues to cool and contract. As the internal glass gradually cools to room temperature, its shrinkage is constrained by the already solidified surface layer, resulting in a stable tensile stress inside the glass and a compressive stress on the surface. This stress distribution endows tempered glass with exceptional mechanical properties: when subjected to external impact or bending force, the surface compressive stress can offset most of the external tensile stress, significantly improving the glass's impact resistance and bending strength. Moreover, when the tempered glass is broken by an external force exceeding its bearing limit, the internal tensile stress is released instantaneously, causing the glass to break into numerous small obtuse-angle particles, avoiding sharp fragments that cause harm to the human body, thus achieving the safety performance of tempered glass.

2.2 Chemical Tempering Principle

In addition to thermal tempering, a small number of special glass tempering furnaces adopt the chemical tempering process, which is mainly applicable to thin glass (thickness <3mm) and special-shaped glass products that are not suitable for thermal tempering. The chemical tempering principle is to immerse the preheated glass in a molten salt bath containing alkali metal ions with a larger ionic radius at a temperature lower than the glass transition temperature, and realize the ion exchange between the glass surface and the molten salt through the diffusion of alkali metal ions in the glass network structure. For example, sodium ions (Na⁺) on the glass surface are replaced by potassium ions (K⁺) with a larger radius in the molten salt. The volume expansion caused by ion substitution forms a compressive stress layer on the glass surface, thereby improving the mechanical strength and thermal stability of the glass. Although chemical tempering has advantages in processing thin glass, its production cycle is long, the cost is high, and the compressive stress layer is relatively thin, so it is only used in specific industrial fields, and thermal tempering furnaces still dominate the mainstream market.

3. Structural Composition of Glass Tempering Furnace

A complete glass tempering furnace is a complex integrated system composed of multiple functional modules, each module cooperating closely to complete the continuous and stable tempering processing of glass. The typical horizontal glass tempering furnace, which is the most widely used in the industry, mainly includes the feeding system, heating furnace body, conveying system, cooling system, control system and auxiliary systems such as exhaust and dust removal. Each part has a clear functional positioning and precise design requirements.

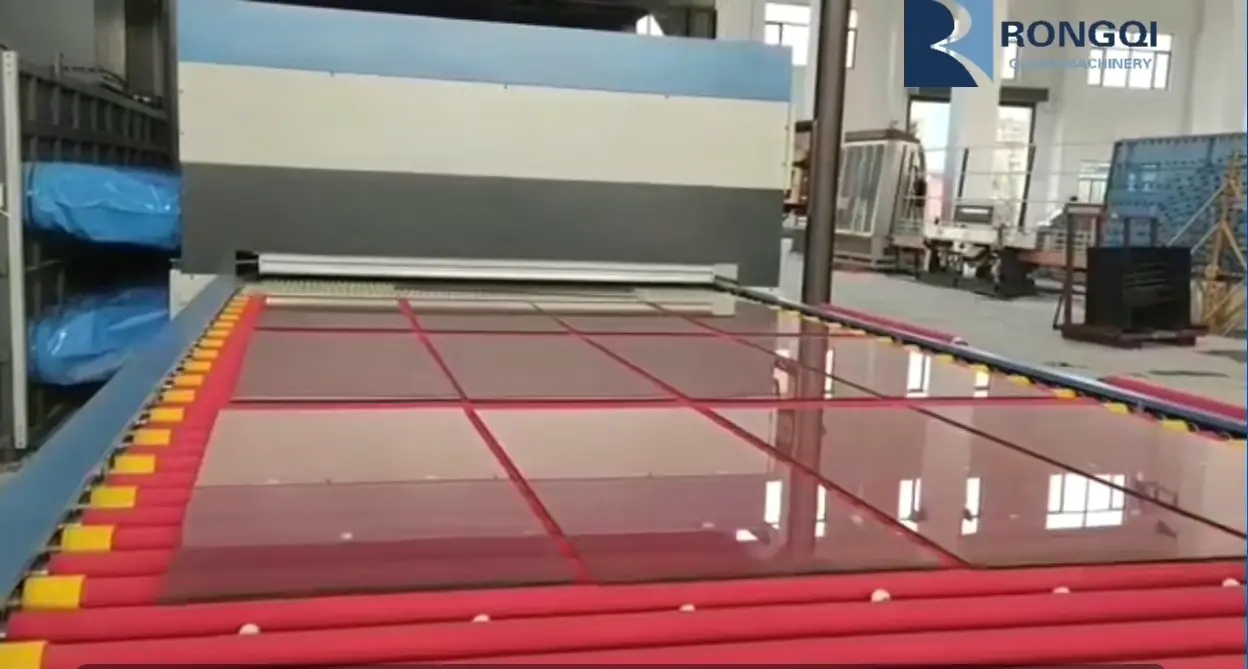

3.1 Feeding System

The feeding system is the starting end of the glass tempering furnace, responsible for stably and accurately sending the original glass sheets to be processed into the heating furnace. It mainly consists of a loading table, a sheet separating device, a positioning mechanism and a conveying roller table. For automated production lines, the feeding system is often equipped with a robotic arm loading system, which can realize automatic sorting, positioning and feeding of glass sheets, reducing manual labor and improving production efficiency. The positioning mechanism ensures that each glass sheet enters the heating furnace at a fixed position and angle, avoiding deflection or overlapping that affects the heating uniformity. For large-format glass, the feeding system is designed with anti-deformation support structures to prevent the glass from bending or breaking during the feeding process due to its own weight.

3.2 Heating Furnace Body

The heating furnace body is the core component of the glass tempering furnace, where the glass is heated to the specified tempering temperature, and its performance directly determines the heating efficiency and temperature uniformity of the glass. The heating furnace body is generally a sealed box structure, composed of a furnace shell, a thermal insulation layer, a heating element, a temperature sensor and a furnace inner cavity.

The furnace shell is usually made of high-strength steel plates, with good structural rigidity to ensure the stability of the furnace body during long-term operation. The thermal insulation layer is filled with high-temperature resistant thermal insulation materials such as aluminum silicate fiber and ceramic fiber, which can effectively reduce heat loss, reduce energy consumption and ensure the temperature stability of the furnace inner cavity. The heating element is the heat source of the furnace body, mainly including resistance heating wires, ceramic heating plates and infrared radiation heating tubes. According to different heating methods, it can be divided into radiation heating and convection heating. Traditional tempering furnaces mainly adopt radiation heating, which relies on the infrared radiation emitted by the heating element to heat the glass; modern high-efficiency tempering furnaces add a forced convection system, which circulates the high-temperature gas in the furnace through a convection fan to achieve uniform heating of the glass surface, especially suitable for low-e coated glass and other coated glass products that are sensitive to temperature differences.

Temperature sensors (such as thermocouples) are evenly arranged in the furnace body to collect real-time temperature data of different zones in the furnace, and feed back to the control system to realize closed-loop control of the furnace temperature, ensuring that the temperature difference in the effective heating area is controlled within ±2°C, which is a prerequisite for ensuring the quality of tempered glass. In addition, the heating furnace body is divided into multiple independent temperature control zones according to the length and width, and the temperature of each zone can be adjusted independently to adapt to the heating requirements of glass with different thicknesses and sizes.

3.3 Conveying System

The conveying system runs through the entire glass tempering furnace, responsible for transporting the glass through the feeding area, heating area and cooling area at a controllable speed. It mainly adopts a ceramic roller conveying structure, because ceramic rollers have excellent high-temperature resistance, low thermal expansion coefficient and smooth surface, which will not scratch the glass surface and can maintain stable conveying performance at high temperatures up to 700°C.

The ceramic rollers are driven by a motor and a transmission system (such as a chain or a synchronous belt), and the conveying speed can be adjusted steplessly through the control system. For glass with different thicknesses, the conveying speed in the heating zone and the cooling zone is precisely matched: thicker glass requires a slower conveying speed in the heating zone to ensure sufficient heating time, while thinner glass needs a faster conveying speed to avoid overheating. In addition, the conveying system of high-end tempering furnaces is equipped with a roller speed synchronization control device to ensure that the glass is always in a horizontal and stable state during the conveying process, avoiding deflection or warping caused by inconsistent roller speeds.

3.4 Cooling System

The cooling system is the key module to realize the rapid cooling of the heated glass and form the internal stress of tempered glass, which is composed of an air compressor, an air storage tank, an air grid assembly and an air volume adjustment device. The air grid is the core component of the cooling system, which is divided into upper and lower air grids, arranged symmetrically on the upper and lower sides of the glass conveying path. The surface of the air grid is densely distributed with specially designed air nozzles, which can spray high-pressure and uniform cold air onto the glass surface.

The cooling system of a high-performance glass tempering furnace can realize stepless adjustment of air volume, air pressure and cooling speed according to the thickness, size and type of glass. For example, thick glass requires a relatively gentle cooling rate to avoid excessive temperature stress causing glass bursting, while thin glass needs a higher cooling rate to ensure the formation of effective compressive stress. In addition, the cooling system is equipped with an air circulation and filtration device, which can recycle the cold air after heat exchange, reduce the load of the air compressor and achieve energy saving. The uniformity of the air grid air supply is a key indicator to measure the performance of the cooling system, and uneven air supply will lead to uneven stress distribution of the tempered glass, resulting in quality problems such as glass warping, self-explosion and poor strength.

3.5 Automatic Control System

The automatic control system is the "brain" of the glass tempering furnace, integrating programmable logic controller (PLC), human-machine interface (HMI), temperature control module, speed control module and safety protection module. The control system realizes the automatic operation of the entire tempering process by presetting process parameters for different types of glass.

Operators only need to input glass parameters such as thickness, size and type on the human-machine interface, and the system will automatically match the optimal heating temperature, heating time, conveying speed, cooling air volume and other process parameters. The control system has functions such as real-time data monitoring, fault alarm, parameter storage and historical data query. It can monitor the operating status of each module of the furnace body in real time, and issue an alarm and take protective measures in time when abnormal conditions such as temperature overrun, roller jam, and air pressure abnormality occur. In addition, the intelligent control system of modern glass tempering furnaces is equipped with a network communication interface, which can realize remote monitoring, fault diagnosis and program upgrade, facilitating the management and maintenance of the production line by enterprises.

3.6 Auxiliary Systems

In addition to the above core modules, the glass tempering furnace is also equipped with a series of auxiliary systems to ensure the stable operation of the equipment and compliance with environmental protection requirements. The exhaust gas treatment system is used to discharge the volatile gas and dust generated during the glass heating process, and purify the exhaust gas to meet environmental protection standards; the dust removal system collects the glass dust and impurities generated during the feeding and conveying process to keep the inside of the furnace clean; the cooling water circulation system is used to cool the motor, transmission system and electrical components of the equipment to prevent overheating damage; the safety protection system includes emergency stop buttons, safety doors, temperature and pressure overload protection, etc., to ensure the personal safety of operators and the safety of equipment.

4. Classification of Glass Tempering Furnaces

Glass tempering furnaces can be classified from multiple perspectives according to different structural forms, processing technologies, application scenarios and automation levels. The classification is conducive to the selection and application of equipment in different industrial fields. The main classification methods are as follows:

4.1 Classification by Structural Form

According to the conveying and processing structure, glass tempering furnaces are mainly divided into horizontal glass tempering furnaces and vertical glass tempering furnaces. Horizontal glass tempering furnaces adopt a horizontal conveying method, with glass lying flat on the ceramic roller table for heating and cooling. They have the advantages of large processing format, high production efficiency, good glass flatness, and suitability for mass production of various flat glass. They are the most widely used type in the market, covering almost all fields of tempered glass production. Vertical glass tempering furnaces adopt a vertical hanging conveying method, with glass vertically suspended and sent into the furnace for processing. They have a small floor area and are suitable for processing small and medium-sized glass and special-shaped glass, but their production efficiency is low and the processing format is limited, so they are only used in a small number of special processing scenarios.

4.2 Classification by Heating Method

According to the heating method of the furnace body, glass tempering furnaces are divided into radiation heating tempering furnaces and convection heating tempering furnaces. Radiation heating tempering furnaces rely on the infrared radiation of heating elements to heat glass, with a simple structure and low cost, suitable for processing ordinary clear float glass. However, the heating uniformity is relatively poor, and it is easy to cause uneven heating of coated glass, resulting in quality defects. Convection heating tempering furnaces add a forced convection circulation system on the basis of radiation heating, which uses high-temperature hot air to convectively heat the glass surface, greatly improving the heating uniformity and heating speed. They are especially suitable for processing low-e coated glass, solar coated glass, colored glass and other special glass products, and have become the mainstream development trend of modern tempering furnaces.

4.3 Classification by Processing Capacity and Scale

According to the processing capacity and production scale, glass tempering furnaces are divided into small and medium-sized laboratory tempering furnaces, medium-sized industrial production tempering furnaces and large-scale continuous production tempering furnaces. Small and medium-sized laboratory tempering furnaces are mainly used for glass tempering process research, product development and small-batch sample production, with small processing format, low power and flexible operation. Medium-sized industrial production tempering furnaces are suitable for small and medium-sized glass processing enterprises, with moderate processing capacity and cost, meeting the production needs of conventional tempered glass products. Large-scale continuous production tempering furnaces are designed for large glass processing groups, with ultra-large processing format, high-speed continuous production capacity, high degree of automation and intelligent integration, and can realize 24-hour uninterrupted production, suitable for large-scale orders in construction, automotive and other industries.

4.4 Classification by Process Purpose

According to different process purposes and processed glass types, glass tempering furnaces are also divided into flat glass tempering furnaces, bent glass tempering furnaces, laminated glass supporting tempering furnaces, and ultra-thin glass tempering furnaces. Among them, the bent glass tempering furnace is equipped with a bending mold and a bending control system in the heating zone, which can heat and bend the glass while tempering, producing curved tempered glass for automotive windshields, architectural curved curtain walls and other fields.

5. Glass Tempering Process Flow

The complete glass tempering process realized by the glass tempering furnace is a standardized and continuous operation flow, and each process link must be strictly controlled to ensure the quality of tempered glass. The standard process flow of the horizontal thermal glass tempering furnace is as follows:

5.1 Original Glass Preparation

Before entering the tempering furnace, the original glass sheets need to be cut, edged, polished and cleaned. Cutting is to cut the large-format original glass into the required size according to the design requirements; edging and polishing are to remove the sharp edges and burrs generated during cutting, because the micro-cracks on the glass edge will become the stress concentration point during the tempering process, leading to glass bursting; cleaning is to remove the oil, dust and impurities on the glass surface through a glass cleaning machine, avoiding the formation of spots or defects on the glass surface during heating and affecting the appearance quality of tempered glass.

5.2 Automatic Feeding

The cleaned and inspected qualified glass sheets are placed on the feeding table of the tempering furnace, and the feeding system positions and separates the glass sheets, then sends them into the heating furnace body one by one through the conveying roller table at a set speed. For automated production lines, this process is completed by a robotic arm without manual intervention.

5.3 High-Temperature Heating

The glass enters the heating furnace body and is conveyed forward slowly through the ceramic roller table. The heating element and convection system in the furnace heat the glass uniformly, and the temperature is raised to the tempering temperature (600-650°C) and maintained for a certain period of time. The heating time is determined by the glass thickness, type and furnace temperature: the thicker the glass, the longer the heating time required to ensure that the glass internal temperature reaches the softening state and the internal stress is completely eliminated. During the heating process, the control system monitors the furnace temperature in real time and adjusts the heating power to ensure temperature uniformity.

5.4 Rapid Cooling (Tempering)

After the heating is completed, the glass is quickly conveyed from the heating furnace to the cooling zone. The upper and lower air grids of the cooling system spray high-pressure uniform cold air onto the glass surface instantly, realizing rapid and uniform cooling. The cooling speed is precisely controlled according to the glass thickness, forming a stable compressive stress layer on the glass surface and a tensile stress layer inside, completing the tempering process. This link is the most critical step in determining the performance of tempered glass, and any deviation in cooling speed or uniformity will lead to unqualified product quality.

5.5 Unloading and Quality Inspection

The tempered glass after cooling is conveyed to the unloading table by the conveying system, and the operator or automatic inspection equipment conducts quality inspection on the tempered glass. The inspection items include appearance quality (no scratches, spots, bubbles, etc.), dimensional accuracy, flatness, stress distribution, and impact resistance. Qualified products are packaged and stored, while unqualified products are screened out for reprocessing or scrap treatment.

6. Application Fields of Tempered Glass Produced by Tempering Furnaces

Tempered glass produced by professional glass tempering furnaces has excellent performance and is widely used in various fields of the national economy, covering construction, automotive, home appliances, electronics, new energy, aerospace and other industries, and its application scope is still expanding with the development of technology.

6.1 Architectural Decoration Field

The architectural field is the largest consumer market for tempered glass. Tempered glass is widely used in building curtain walls, interior partition walls, doors and windows, shower rooms, floor glass, railings and ceilings. In high-rise buildings, tempered glass curtain walls not only have a beautiful and modern appearance, but also can withstand strong wind pressure and external impact, ensuring the safety of the building. In interior decoration, tempered glass partitions and doors and windows have good light transmittance and safety performance, improving the space utilization rate and aesthetic feeling of the building. In addition, laminated tempered glass and insulating tempered glass processed on the basis of tempered glass are also widely used in building energy-saving and sound insulation projects.

6.2 Automotive Industry

The automotive industry has extremely strict requirements on glass safety and performance, and almost all automotive glass (except for individual small decorative glasses) is tempered glass or laminated tempered glass produced by tempering furnaces. Automotive front windshields generally adopt laminated tempered glass, which can maintain integrity even when broken, avoiding fragments from hurting passengers; automotive side windows and rear windshields adopt single-piece tempered glass, which can be quickly broken into small particles in case of accidents, facilitating passenger escape. In addition, automotive sunroofs, rearview mirror glasses and instrument panel protective glasses also use high-quality tempered glass processed by precision tempering furnaces.

6.3 Home Appliance and Electronic Products

In the home appliance industry, tempered glass is used in the door panels of refrigerators, ovens, microwave ovens, the panels of induction cookers, the shells of washing machines, and the screens of televisions. The high thermal stability of tempered glass can adapt to the high-temperature working environment of kitchen appliances, and its high strength can resist collision and scratch during use. In the electronic information industry, with the popularization of smart phones, tablet computers, liquid crystal displays and other products, ultra-thin tempered glass processed by chemical or special thermal tempering furnaces is used as the protective screen of electronic products, with high hardness, scratch resistance and impact resistance, protecting the display screen from damage.

6.4 New Energy and Solar Energy Industry

With the rapid development of the global new energy industry, tempered glass has become an important component of solar photovoltaic modules and solar thermal collectors. Solar tempered glass produced by special tempering furnaces has high light transmittance, low iron content, excellent weather resistance and mechanical strength, which can protect the solar cells inside the module from wind, sand, hail and other external impacts, and ensure the long-term stable operation of photovoltaic power generation systems. The demand for solar tempered glass is growing rapidly with the large-scale application of photovoltaic power generation, which has put forward higher requirements for the performance of glass tempering furnaces.

6.5 Other Special Fields

In addition to the above fields, tempered glass is also used in aerospace, marine engineering, medical equipment, furniture manufacturing and other fields. For example, the cockpit glass of aircraft, the observation window of ships, the protective cover of medical equipment, and the glass tabletop of high-end furniture all use high-performance tempered glass processed by professional tempering furnaces, meeting the special performance requirements of different industries.

7. Advantages and Existing Challenges of Modern Glass Tempering Furnaces

7.1 Core Advantages

Modern glass tempering furnaces, after continuous technological innovation and optimization, present significant advantages in terms of performance, efficiency and energy saving compared with traditional equipment. Firstly, high degree of automation and intelligence reduces the dependence on manual operation, improves production efficiency and product stability, and reduces the defective rate caused by human factors. Secondly, excellent heating uniformity and cooling precision ensure that the tempered glass has uniform stress distribution, high flatness and stable mechanical properties, adapting to the processing of high-end coated glass and special glass. Thirdly, energy-saving and environmental protection performance is significantly improved through the optimization of thermal insulation structure, the application of convection heating technology and the recovery of waste heat, reducing energy consumption per unit product and meeting the national dual-carbon policy requirements. Fourthly, large-scale and multi-functional processing capacity meets the market demand for large-format, special-shaped and diversified tempered glass products, expanding the application scope of tempered glass.

7.2 Existing Challenges

Despite the rapid development of glass tempering furnace technology, there are still some challenges in the industrial application process. Firstly, the problem of self-explosion of tempered glass has not been completely solved. The self-explosion is mainly caused by the nickel sulfide inclusions inside the glass and the uneven stress distribution during the tempering process. Although the homogenization treatment furnace can reduce the self-explosion rate, it increases the production cost and process flow. Secondly, the processing of ultra-thin and ultra-thick glass still has technical bottlenecks. Ultra-thin glass (thickness <2mm) is easy to warp and break during the tempering process, while ultra-thick glass (thickness >25mm) has low heating efficiency and difficult control of cooling stress, requiring further research and development of specialized tempering furnace technology. Thirdly, the high cost of high-end intelligent tempering furnaces limits the popularization and application of small and medium-sized enterprises, and the technical gap between domestic and international high-end equipment still exists in some core components and control systems. Fourthly, the energy consumption and environmental protection requirements are becoming increasingly stringent, and the traditional tempering furnace energy-saving technology still has room for improvement, requiring the research and development of more efficient heating and cooling technologies to reduce carbon emissions.

8. Future Development Trends of Glass Tempering Furnaces

Driven by technological progress, market demand and policy guidance, the global glass tempering furnace industry will present the following development trends in the future:

8.1 Intelligent and Digital Upgrading

The future glass tempering furnaces will develop towards higher intelligence and digitization, integrating technologies such as artificial intelligence, big data analysis and the Internet of Things. The equipment will realize automatic optimization of process parameters, real-time online monitoring of glass quality, predictive maintenance of equipment faults and remote intelligent management. Through the collection and analysis of production data, the system can automatically adjust the heating, cooling and conveying parameters according to the production status, further improving product quality and production efficiency, and realizing the intelligent manufacturing of the glass tempering production line.

8.2 High Efficiency and Energy Saving Technology Innovation

Energy conservation and emission reduction will become the core research direction of glass tempering furnace technology. New heating technologies such as microwave heating, laser heating and high-efficiency infrared convection heating will be applied to tempering furnaces, improving heating efficiency and reducing energy consumption. At the same time, the waste heat recovery system will be further optimized, recovering the heat generated in the cooling and exhaust processes for preheating the original glass or heating the furnace body, realizing the recycling of energy. The research and development of low-emission and low-energy-consumption tempering furnace structures will also be accelerated to meet the global dual-carbon development goals.

8.3 Specialized and Diversified Product Development

Aiming at the demand for specialized tempered glass in different industries, glass tempering furnaces will develop towards specialization and diversification. Specialized tempering furnaces for ultra-thin electronic glass, ultra-thick architectural glass, curved large-format glass, high-temperature resistant solar glass and other products will be launched successively, meeting the personalized and high-end processing needs of the market. At the same time, the integration of tempering furnaces with other glass processing technologies (such as coating, laminating, engraving) will be realized, forming a one-stop glass deep-processing production line and improving the added value of products.

8.4 Green and Environmental Protection Development

In response to global environmental protection requirements, future glass tempering furnaces will adopt more green and environmentally friendly materials and processes, reducing the emission of volatile organic compounds, dust and noise. The closed-loop recycling of cooling water and exhaust gas will be fully realized, minimizing the impact of equipment production on the environment. In addition, the recyclable design of tempering furnace equipment will be strengthened, extending the service life of equipment and reducing the generation of industrial waste.

8.5 Internationalization of Core Technology and Localization of High-End Components

With the development of the global glass industry, the core technology of glass tempering furnaces will tend to be internationalized, and the technical exchanges and cooperation between countries will be more frequent. For domestic equipment manufacturers, accelerating the localization research and development of high-end core components (such as precision convection fans, high-performance temperature sensors, intelligent control systems) will break the foreign technology monopoly, reduce the production cost of high-end tempering furnaces, and improve the international competitiveness of domestic glass tempering furnace equipment.

9. Conclusion

Glass tempering furnace, as the core equipment of the glass deep-processing industry, has a pivotal position in promoting the development of the global glass industry and meeting the demand for high-performance safety glass in various fields. Through the analysis of its working principle, structural composition, classification, process flow, application fields and development trends, it can be seen that the glass tempering furnace industry is in a period of rapid technological innovation and structural optimization. With the continuous progress of materials science, mechanical engineering, automation control and other disciplines, and the continuous growth of market demand for high-end tempered glass, glass tempering furnaces will develop towards intelligence, high efficiency, energy saving, specialization and green environmental protection.

In the future, glass tempering furnace manufacturers need to increase R&D investment, break through key technical bottlenecks, optimize product performance, and meet the diversified and high-end needs of the market. At the same time, industry practitioners should strengthen technological exchanges and cooperation, promote the upgrading and transformation of the glass deep-processing industry, and make greater contributions to the development of construction, automotive, new energy, electronic information and other industries. With the continuous improvement of technology and the expansion of application fields, glass tempering furnaces will continue to play an important role in the global industrial system and promote the sustainable development of the safety glass industry.

Automatic Dessicant Filling Machine: A Comprehensive Analysis of Technology, Application and Industrial Value

1. Introduction

In the modern industrial manufacturing and product packaging system, moisture control has become a key link to ensure product quality, extend shelf life and maintain performance stability. Dessicants, as core materials for absorbing moisture and regulating environmental humidity, are widely used in food, pharmaceutical, electronic manufacturing, insulating glass, precision instruments and other fields. The traditional manual or semi-automatic desiccant filling method has problems such as low efficiency, large filling error, easy material waste, high labor cost and difficulty in meeting large-scale standardized production. Against this background, the Automatic Dessicant Filling Machine, as an automated equipment integrating mechanical, electrical, pneumatic, sensing and intelligent control technologies, has gradually replaced traditional processes and become an indispensable core equipment in the desiccant application and packaging industry chain.

This paper systematically combs the core connotation, working principle, structural composition, technical parameters, application scenarios, core advantages and market development trends of the Automatic Dessicant Filling Machine, and deeply analyzes its technological innovation path and future development direction, aiming to provide a comprehensive reference for industrial practitioners, equipment R&D personnel and market investors, and clarify the important value of this equipment in promoting industrial automation upgrading and quality improvement.

2. Definition and Classification of Automatic Dessicant Filling Machine

2.1 Core Definition

The Automatic Dessicant Filling Machine is a special automated mechanical and electrical integration equipment that can automatically complete the processes of desiccant feeding, metering, filling, sealing (partial models), detection and rejection without manual intervention. It takes desiccant (including silica gel, molecular sieve, montmorillonite, calcium chloride and other granular, powdery or columnar desiccants) as the processing object, and realizes precise, efficient and standardized filling operations for different containers (such as insulating glass aluminum spacer frames, food and pharmaceutical bottles, electronic product packaging boxes, desiccant small bags, etc.) through programmable logic controller (PLC) control, servo drive and sensing detection technology, so as to meet the moisture-proof needs of various industrial products.

2.2 Main Classification

According to different application scenarios, processing objects and functional configurations, Automatic Dessicant Filling Machines can be divided into the following categories:

2.2.1 Classified by Application Field


Insulating Glass Special Dessicant Filling Machine: Mainly used for filling molecular sieve desiccant into aluminum spacer frames or stainless steel spacer frames of insulating glass. It integrates automatic drilling, filling and sealing functions, and can adapt to spacer frames of different sizes (from 300mm×250mm to 2000mm×2000mm) and specifications (5.5-26.5mm in width). Typical models include LJGZ2020 series and ARL-45F, which are core equipment in the insulating glass deep processing industry.
Packaging Line Dessicant Inserting/Filling Machine: Applied to food, pharmaceutical, health care products and electronic product packaging lines, mainly for inserting desiccant bags, columnar desiccants or filling loose desiccants into bottles, boxes and bags. It can be seamlessly connected with filling, capping, labeling and other equipment to form a fully automated packaging production line, such as ZONESUN ZS-PD1 and Rx-Desiccant series.
Desiccant Bag Automatic Filling Machine: Specialized in the production of small desiccant bags, realizing automatic film feeding, metering and filling of desiccant, heat sealing, cutting and other processes, suitable for mass production of small-package desiccants (such as 1g, 5g, 10g specifications), with a production speed of up to 20-100 bags per minute.


2.2.2 Classified by Automation Degree


Fully Automatic Dessicant Filling Machine: Realizes unmanned operation in the whole process, with functions such as automatic feeding, automatic metering, automatic filling, automatic fault detection, automatic rejection of unqualified products and automatic material replenishment. It is equipped with a touch human-machine interface (HMI) and PLC control system, and can store multiple production recipes to meet flexible production needs.
Semi-Automatic Dessicant Filling Machine: Needs manual assistance in partial links (such as manual placement of containers, manual feeding of desiccants), and the core filling and metering links are automated. It has a small footprint and low cost, and is suitable for small-batch and multi-variety production scenarios.


2.2.3 Classified by Filling Form


Granular/Powder Dessicant Filling Machine: For granular (such as silica gel particles, molecular sieve) and powdery desiccants, it adopts vibration feeding, spiral metering or gravity metering to ensure the accuracy of single filling, and is equipped with an anti-dust device to avoid material flying.
Columnar/Block Dessicant Filling Machine: Aims at columnar or block desiccants, adopts mechanical clamping and pushing structure, realizes precise insertion into containers, and is equipped with infrared counting and detection functions to avoid missing filling or multiple filling.
Desiccant Bag Inserting Machine: For pre-made desiccant bags, it completes automatic cutting, conveying and inserting into packaging containers, with a high-speed cutting structure to avoid bag breakage and desiccant leakage.


3. Working Principle and Structural Composition

3.1 Core Working Principle

The Automatic Dessicant Filling Machine takes the PLC control system as the core, and realizes the coordinated operation of each mechanism through the combination of pneumatic, servo drive and sensing detection technology, and completes the whole process of desiccant filling in accordance with the preset program. The basic working process is as follows:

First, the desiccant is stored in the feeding hopper, and the automatic feeding mechanism (vibration feeder, spiral conveyor or pneumatic conveying device) transports the desiccant to the metering unit according to the set flow rate. The metering unit adopts high-precision sensors (infrared counting sensor, weighing sensor, volume metering sensor) to measure the desiccant, ensuring that the single filling amount meets the process requirements. Then, the positioning mechanism fixes the container (insulating glass spacer frame, packaging bottle, etc.) at the designated filling position, and the filling head moves to the filling port under the drive of the servo motor to complete the desiccant filling. For insulating glass special models, after filling, the automatic sealing mechanism uses butyl rubber to seal the drilling hole to prevent desiccant leakage and moisture intrusion; for packaging line models, after filling/inserting, the detection mechanism checks for missing filling, broken bags and other problems, and the unqualified products are automatically rejected, while the qualified products enter the next process. In addition, the machine is equipped with a material level sensor, which triggers an alarm and starts the automatic replenishment function when the desiccant is insufficient, ensuring the continuity of production.

The whole process is controlled by the PLC system, and the operating parameters (filling amount, filling speed, filling height, sealing time, etc.) can be adjusted and set through the touch screen, and the production data (production quantity, qualified rate, fault information, etc.) can be recorded and displayed in real time to realize intelligent management of the production process.

3.2 Key Structural Composition

The Automatic Dessicant Filling Machine is a complex system integrating multiple modules, and its core components directly determine the equipment's performance, stability and filling accuracy. The main structural modules are as follows:

3.2.1 Control System Module

As the "brain" of the equipment, it mainly includes PLC controller (mostly imported brands such as Siemens and Omron), touch human-machine interface (HMI), relay, contactor and other electrical components. The PLC system is responsible for receiving signals from sensors, issuing execution instructions to drive mechanisms, and realizing logic control of the whole process; the touch screen provides a human-computer interaction platform, which can set process parameters, store production recipes, monitor operating status and query fault information, and supports multi-language switching to adapt to different regional use needs.

3.2.2 Feeding and Metering Module

This module is the core to ensure filling accuracy, including feeding hopper, automatic feeding mechanism (vibration feeder, spiral propeller, pneumatic conveying pipeline), metering unit and material level detection sensor. The feeding hopper is usually made of food-grade or industrial-grade stainless steel, with a large capacity (standard 5L, optional 20L) to reduce the frequency of manual feeding; the metering unit adopts different forms according to desiccant types: granular desiccant uses infrared counting or volume metering, powdery desiccant uses spiral metering or weighing feedback metering, and desiccant bags use fixed-length cutting metering. The material level sensor monitors the residual amount of desiccant in real time, and sends an alarm signal when the material is insufficient to realize automatic replenishment.

3.2.3 Filling and Execution Module

Including filling head, servo drive mechanism, positioning fixture, pneumatic cylinder and other components. The filling head is designed with anti-drip and anti-blocking structure, and the filling height can be adjusted automatically according to the container size; the servo drive mechanism ensures the precise movement of the filling head, with a positioning accuracy of up to ±0.1mm; the positioning fixture can be quickly replaced to adapt to containers of different shapes and sizes (round, square, rectangular, etc.), realizing tool-free quick changeover. For insulating glass models, this module also includes an automatic drilling mechanism and a sealing mechanism, which can complete drilling and butyl rubber sealing synchronously with filling.

3.2.4 Detection and Rejection Module

Equipped with a variety of sensors (infrared sensor, photoelectric sensor, pressure sensor, weighing sensor), it realizes real-time detection of filling status, including missing filling detection, filling amount detection, desiccant bag breakage detection, container in-place detection, etc. When unqualified products are detected, the system immediately sends a signal, and the rejection mechanism pushes the unqualified products to the designated area to ensure that only qualified products enter the next process. At the same time, the module has fault self-diagnosis function, which can quickly locate faults such as motor abnormality, sensor failure and air pressure shortage, and display fault codes on the touch screen to facilitate maintenance.

3.2.5 Frame and Protective Module

The frame is made of high-strength aluminum alloy or stainless steel, with industrial plastic spraying treatment on the surface, which has the characteristics of corrosion resistance, wear resistance and easy cleaning; the protective module includes safety grating, emergency stop button, protective cover and other devices, which meets the industrial safety standards, prevents operators from contacting the moving parts, and ensures the safety of operation.

4. Core Technical Parameters and Performance Indicators

The technical parameters of the Automatic Dessicant Filling Machine are the key basis for measuring its performance and selecting models. Different types of equipment have different parameter standards, and the common core technical parameters and performance indicators are as follows:

4.1 Basic Operating Parameters


Power Supply: AC 110V/220V/380V, 50/60Hz, power range from 500W (small packaging line models) to 2.5KW (insulating glass large models);
Air Pressure Requirement: ≥0.65MPa, air consumption is 2-5CFM@90PSI, equipped with air filtration and pressure regulation device to ensure stable pneumatic operation;
Production Efficiency: Packaging line models can reach 10-150 bottles per minute (BPM), insulating glass models can complete filling of a 1m×1m spacer frame in about 30 seconds, and desiccant bag models can produce 20-100 bags per minute;
Adaptable Container/Spacer Size: Insulating glass models: minimum 300mm×250mm, maximum 2000mm×2000mm, spacer width 5.5-26.5mm; packaging line models: suitable for containers with a neck diameter of more than 2 inches, height of 1-12 inches, and desiccant bags with a size of ≤150mm×35mm;
Adaptable Desiccant Specifications: Granular diameter 0.5-1.5mm (molecular sieve, silica gel), columnar desiccant of various lengths, desiccant bags of 1-50g specifications.


4.2 Precision and Stability Indicators


Filling Accuracy: ±1%-±3% (for granular/powdery desiccant), counting accuracy of columnar desiccant/desiccant bags up to 99.9%;
Positioning Accuracy: Servo drive positioning accuracy ±0.1mm, ensuring that the filling head is accurately aligned with the container filling port;
Operating Stability: Continuous operation time of more than 24 hours, fault rate ≤0.5%, and the service life of core components (servo motor, PLC) is more than 5 years;
Sealing Performance: For insulating glass models, the butyl rubber sealing is tight, with no desiccant leakage and air leakage rate meeting the insulating glass industry standards; for desiccant bag models, the heat sealing strength is uniform, with no bag breakage and desiccant leakage.


4.3 Intelligent and Humanized Parameters


Recipe Storage Capacity: Can store 50-100 groups of production recipes, realizing one-key switching of different products;
Fault Self-Diagnosis: Can identify more than 50 kinds of common faults, and display fault causes and solutions in real time;
Data Interaction: Supports connection with MES system, realizes real-time upload of production data, and meets the needs of industrial digital management;
Changeover Time: Tool-free quick changeover, and the time for replacing container/desiccant specifications is ≤10 minutes.


5. Application Fields and Scenario Requirements

With the continuous improvement of industrial automation level and the increasingly strict requirements for product moisture-proof performance, the Automatic Dessicant Filling Machine has been widely used in multiple industries, and each field has specific scenario requirements for equipment performance.

5.1 Insulating Glass Manufacturing Industry

As the largest application field of desiccant filling machines, insulating glass needs to fill molecular sieve desiccant into the spacer frame to absorb moisture in the interlayer and prevent glass fogging and condensation. The industry requires the equipment to have the functions of automatic drilling, filling and sealing, adapt to various shapes of spacer frames (straight, arc, special-shaped), and the filling amount of molecular sieve is accurate to ensure the service life of insulating glass (more than 15 years). At the same time, the equipment needs to be compatible with flexible spacers (such as Swisspacer) and ordinary aluminum spacers, and can realize simultaneous filling of both sides of the spacer frame to improve production efficiency.

5.2 Food and Health Care Products Industry

Food (such as snacks, dried fruits, canned food) and health care products are extremely sensitive to moisture, and desiccant bags or columnar desiccants need to be inserted into the packaging to extend the shelf life. The industry has strict hygiene requirements, and the contact parts of the equipment must be made of food-grade 316 stainless steel, with no dead corners and easy cleaning to meet GMP and food safety standards; at the same time, the equipment needs to be seamlessly connected with the existing packaging line (filling, capping, labeling), with high-speed operation capacity (up to 150BPM) and zero missing filling rate to avoid food quality problems caused by missing desiccant.

5.3 Pharmaceutical Industry

Pharmaceutical products (such as tablets, capsules, powder injections) have extremely high requirements for moisture-proof and sterile environments. The desiccant filling machine needs to meet the pharmaceutical GMP certification, with dust-proof and sterile design, and the filling process is fully enclosed to avoid cross-contamination; the filling accuracy is higher (±1%), and the equipment has functions such as real-time monitoring of filling data and traceability of production records to meet the regulatory requirements of the pharmaceutical industry. In addition, the equipment needs to adapt to various pharmaceutical packaging containers (bottles, blister boxes, cartons) and realize flexible switching of different desiccant specifications.

5.4 Electronic and Precision Instrument Industry

Electronic components, circuit boards, precision instruments and other products are prone to short circuit, rust and performance degradation due to moisture. The desiccant filling machine needs to realize precise insertion of desiccant into electronic product packaging boxes/bags, with anti-static design to avoid damage to electronic components; the equipment has high stability, no dust and particle emission during operation, and adapts to small and precise packaging containers to meet the moisture-proof needs of high-value electronic products.

5.5 Other Industrial Fields

In addition, the Automatic Dessicant Filling Machine is also used in leather, furniture, textile, chemical and other industries, mainly for filling desiccant into product packaging to prevent moisture, mildew and oxidation during storage and transportation. For these fields, the equipment focuses on cost performance, adaptability to different desiccant types and simple operation, to meet the needs of small and medium-sized enterprises for automated production.

6. Core Advantages of Automatic Dessicant Filling Machine

Compared with manual and semi-automatic filling methods, the Automatic Dessicant Filling Machine has obvious advantages in efficiency, accuracy, cost, quality and intelligence, which is the core driving force for its popularization in the industry.

6.1 Significant Improvement of Production Efficiency

The fully automatic operation mode eliminates the link of manual intervention, and the production efficiency is 5-10 times higher than that of manual filling. Taking the packaging line model as an example, the production speed can reach 150BPM, and the insulating glass model can complete the filling of hundreds of spacer frames per hour; at the same time, the equipment can run continuously for 24 hours, and the automatic material replenishment and fault self-recovery functions reduce the downtime caused by material shortage and faults, greatly improving the overall production capacity of the production line.

6.2 Guaranteed Filling Accuracy and Product Quality

High-precision metering and sensing technology ensures the consistency of filling amount, avoiding the problems of insufficient moisture-proof effect caused by less filling and material waste caused by more filling; the fully enclosed filling process prevents desiccant from being polluted by dust and bacteria, and the detection and rejection module eliminates unqualified products, ensuring that each product meets the process standards. For industries such as food and pharmaceuticals, this effectively avoids quality accidents and reduces the loss caused by unqualified products.

6.3 Significant Reduction of Production Cost

On the one hand, it reduces labor costs: a fully automatic filling machine can replace 5-8 manual operators, and only one person is needed for daily operation and maintenance, which greatly saves labor expenditure; on the other hand, it reduces material waste: the accurate metering system reduces the waste of desiccant by more than 5% compared with manual operation, and the anti-breakage and anti-leakage design of the filling head reduces the loss of desiccant bags and containers; in addition, the long service life and low fault rate of the equipment reduce maintenance costs and downtime losses.

6.4 Strong Flexibility and Adaptability

The equipment can store multiple production recipes, and realize quick switching of different desiccant types, container specifications and filling processes by adjusting parameters on the touch screen, with tool-free changeover and strong adaptability to multi-variety and small-batch production; at the same time, it can be customized according to customer needs, such as adding double filling stations, height adjustment devices, special-shaped filling functions, etc., to meet the personalized process requirements of different industries.

6.5 Intelligent Management and Compliance Improvement

The PLC control system realizes real-time monitoring of production data, automatic recording of production quantity, qualified rate, fault information and other data, which is convenient for enterprises to carry out production management and quality traceability; the equipment meets industrial safety, food hygiene, pharmaceutical GMP and other industry standards, and the safety protection and sterile design help enterprises pass relevant certifications and meet regulatory requirements.

6.6 Improvement of Working Environment and Labor Safety

The fully enclosed operation reduces dust and noise, and the safety protection devices (safety grating, emergency stop button) avoid industrial accidents caused by manual contact with moving parts; at the same time, it liberates workers from heavy and repetitive manual labor, reduces labor intensity and improves the working environment of the production line.

7. Market Development Status and Trends

7.1 Global Market Status

In recent years, driven by the rapid development of food, pharmaceutical, electronic manufacturing, insulating glass and other downstream industries, the global demand for Automatic Dessicant Filling Machines has maintained a steady growth trend. The Asia-Pacific region, represented by China, Japan and South Korea, has become the largest market due to its rapid industrialization, large manufacturing scale and continuous improvement of automation level; Europe and the United States, as developed regions, focus on high-end intelligent and customized models, with high requirements for equipment accuracy, stability and compliance; emerging markets in Latin America, Africa and the Middle East are in the stage of industrial upgrading, and the demand for cost-effective automatic filling machines is growing rapidly.

At present, the global market competition pattern is relatively clear: European and American brands (such as LiSEC, BellatRx) occupy the high-end market with advanced technology, high stability and complete after-sales service, mainly serving large enterprises in the insulating glass and pharmaceutical industries; Chinese brands (such as ZONESUN, LIJIANG Glass) have rapidly risen with cost performance, fast delivery and customized services, and have a high market share in the middle and low-end markets and emerging markets, and some high-end models have gradually entered the European and American markets.

7.2 Core Market Trends

7.2.1 Intelligent and Digital Upgrading

With the development of industrial Internet and artificial intelligence, the Automatic Dessicant Filling Machine is developing towards higher intelligence: integrating AI algorithms to realize adaptive adjustment of filling parameters (automatically optimizing filling speed and metering accuracy according to desiccant characteristics and container changes); adding digital twin technology to simulate the filling process and predict faults in advance; realizing remote monitoring, fault diagnosis and program upgrade through cloud platforms, and meeting the needs of intelligent factory management.

7.2.2 High Precision and High Efficiency

Downstream industries have higher and higher requirements for desiccant filling accuracy and production efficiency, and the equipment is developing towards higher precision (filling accuracy up to ±0.5%) and higher speed (packaging line models exceeding 200BPM); at the same time, multi-station and multi-channel synchronous filling technology is adopted to further improve production capacity, and the lightweight and compact design reduces the floor space and improves the space utilization rate of the production line.

7.2.3 Green and Energy-Saving Development

In response to the global call for energy conservation and emission reduction, the equipment is optimized in terms of energy consumption: adopting high-efficiency servo motors and energy-saving pneumatic components to reduce power and air consumption; using recyclable and environmentally friendly materials for the frame and contact parts; designing a dust recovery system to collect desiccant dust and realize material recycling, reducing environmental pollution and material waste.

7.2.4 Customization and Integration

The personalized needs of downstream industries are becoming more and more prominent, and customized equipment (such as special-shaped container filling, ultra-small desiccant filling, high-temperature resistant desiccant filling) has become a new growth point; at the same time, the equipment is developing towards integration with the whole production line, realizing seamless connection with filling, capping, labeling, testing, packaging and other equipment, and forming a fully automated intelligent production line to improve the overall automation level of the factory.

7.2.5 Compliance and Standardization Improvement

With the increasingly strict regulatory standards in food, pharmaceutical and other industries, the equipment pays more attention to compliance design: meeting GMP, FDA, CE and other international certifications, with sterile, dust-proof and anti-cross-contamination functions; establishing a complete quality traceability system, recording the whole process of equipment operation and product production, to meet the regulatory requirements of product quality traceability.

8. Challenges and Future Development Prospects

8.1 Existing Challenges

Although the Automatic Dessicant Filling Machine has achieved rapid development, it still faces some challenges in the process of industrial popularization: first, the technical level of some domestic small and medium-sized brands is uneven, and the core components (such as high-precision sensors, servo motors) still rely on imports, resulting in high production costs and weak competitiveness in the high-end market; second, the after-sales service system of some enterprises is not perfect, and the response speed to equipment faults and maintenance needs is slow, affecting the user experience; third, the adaptability to special desiccants (such as ultra-fine powder, corrosive desiccant) and special containers (such as micro containers, irregular containers) needs to be further improved; fourth, the digital transformation of small and medium-sized enterprises is slow, and the acceptance and application capacity of high-end intelligent filling machines are insufficient.

8.2 Future Development Prospects

In the future, with the continuous advancement of industrial automation, the upgrading of downstream industries and the breakthrough of core technologies, the Automatic Dessicant Filling Machine will show broader development prospects:

In terms of technology, the localization of core components will be accelerated, and domestic brands will break through the technical monopoly of foreign brands in high-precision sensors, intelligent control systems and other fields, reducing production costs and improving product competitiveness; the integration of new technologies such as 5G, machine vision and big data will further improve the intelligence level of the equipment, realizing unmanned production and full-process digital management.

In terms of application, the application fields will continue to expand, and new energy batteries, aerospace, medical devices and other emerging high-end fields will put forward new demands for desiccant filling equipment, promoting the development of the equipment in the direction of ultra-high precision, ultra-clean and special environment adaptation; at the same time, the demand for customized and personalized equipment will continue to grow, and the equipment manufacturers will shift from "standardized production" to "customized solutions" to meet the diversified needs of different industries.

In terms of market, the global market demand will maintain steady growth, and Chinese brands will further expand the international market with technological advantages and cost performance, and the global competition pattern will be more balanced; the industry will accelerate the elimination of backward production capacity, and enterprises with core technologies, complete after-sales service and strong R&D capabilities will occupy a dominant position, promoting the healthy and standardized development of the industry.

9. Conclusion

The Automatic Dessicant Filling Machine, as an important part of modern industrial automation equipment, has become a key link to ensure product quality, improve production efficiency and reduce production costs in food, pharmaceutical, insulating glass, electronic manufacturing and other industries. It integrates mechanical, electrical, pneumatic, sensing and intelligent control technologies, and realizes the transformation of desiccant filling from manual and semi-automatic to fully automatic and intelligent, with significant advantages in efficiency, accuracy, cost and quality.

At present, the industry is in a period of rapid development of intelligent and digital upgrading, and is facing both opportunities such as the expansion of downstream market demand and the breakthrough of core technologies, as well as challenges such as technical bottlenecks and market competition. In the future, equipment manufacturers need to increase R&D investment, break through the technical barriers of core components, improve the level of intelligence and customization, and improve the after-sales service system; downstream enterprises need to accelerate the pace of automation transformation, and select appropriate filling equipment according to their own production needs to improve the overall competitiveness of the industrial chain.

With the continuous progress of technology and the continuous upgrading of industrial demand, the Automatic Dessicant Filling Machine will play a more important role in the global industrial manufacturing system, and promote the high-quality development of multiple industries with more intelligent, efficient and stable performance.





The article has covered all the core dimensions of the Automatic Dessicant Filling Machine with a formal and professional tone. If you need to adjust the content focus (such as adding more case studies, simplifying technical descriptions, or expanding market data), or modify the length and style, please feel free to let me know.

Glass Laminating Machine Testing Before Delivery: A Comprehensive Technical and Quality Assurance Protocol

In the highly specialized field of architectural and automotive glass manufacturing, the glass laminating machine stands as a critical piece of equipment, responsible for bonding glass panels with interlayer materials (such as PVB, SGP, or EVA) under precise conditions of heat, pressure, and vacuum to produce safety glass with enhanced strength, sound insulation, and security properties. The performance, reliability, and safety of these machines directly impact the quality of the final laminated glass products, as well as the operational efficiency and safety of end-users. Therefore, rigorous and systematic testing of glass laminating machines prior to delivery is not merely a procedural step but an indispensable quality assurance (QA) and quality control (QC) imperative for manufacturers. This article provides a detailed, formal analysis of the testing protocols, technical standards, key performance indicators (KPIs), and quality validation processes that govern the pre-delivery testing of glass laminating machines, emphasizing the critical role of these procedures in ensuring compliance, functionality, and long-term operational stability.

1. Rationale for Pre-Delivery Testing: Technical, Commercial, and Regulatory Imperatives

Pre-delivery testing of glass laminating machines is rooted in three core pillars: technical validation, regulatory compliance, and commercial accountability. From a technical perspective, glass laminating involves a complex interplay of thermal, mechanical, and pneumatic systems—including heating chambers, vacuum pumps, hydraulic pressure systems, conveyor mechanisms, and control panels—each of which must operate in precise synchronization to achieve consistent lamination results. Even minor deviations in temperature uniformity, pressure distribution, vacuum retention, or cycle timing can lead to defects in laminated glass, such as air bubbles, delamination, uneven bonding, or optical distortion. Pre-delivery testing identifies and rectifies these technical anomalies at the manufacturing facility, eliminating the risk of costly downtime, rework, or product failures at the customer’s production site.

Regulatory compliance is another non-negotiable driver of pre-delivery testing. Laminated glass is subject to stringent international and regional standards, including the European Standard EN 14449 (glass in building—laminated glass and laminated safety glass), the American National Standard ANSI Z97.1 (safety glazing materials used in buildings), and the Global Technical Regulation (GTR) No. 6 for automotive safety glazing. These standards mandate that the production equipment used to manufacture laminated glass must meet specific performance criteria to ensure the final product complies with safety and quality requirements. Additionally, machinery manufacturers must adhere to industrial safety standards such as ISO 13849 (safety of machinery—safety-related parts of control systems) and CE marking directives for equipment sold in the European Economic Area (EEA), which require comprehensive functional safety testing before market placement.

Commercially, pre-delivery testing serves as a contractual and reputational safeguard. For machinery manufacturers, a robust testing protocol demonstrates commitment to quality, builds customer trust, and mitigates the risk of contractual disputes, product returns, or warranty claims. For end-users, verified pre-delivery performance ensures that the machine will integrate seamlessly into their production lines, meet production targets, and produce laminated glass that meets their quality specifications. In an industry where precision and reliability are paramount, pre-delivery testing is the foundation of a transparent and accountable supply chain.

2. Scope and Phases of Pre-Delivery Testing

Pre-delivery testing of glass laminating machines is a multi-phase, end-to-end process that encompasses static inspection, functional testing, performance validation, safety verification, and documentation. The scope of testing is tailored to the machine’s specifications—including its size (e.g., small-scale laboratory machines vs. large-scale industrial production lines), lamination method (autoclave vs. non-autoclave/lamiplast), and automation level (semi-automatic vs. fully automatic with PLC control). Below is a structured breakdown of the key testing phases:

2.1 Static and Visual Inspection (Pre-Operational Testing)

The first phase of pre-delivery testing is a comprehensive static inspection, conducted before the machine is powered on. This phase focuses on verifying the physical integrity, assembly accuracy, and component conformity of the machine, in accordance with the approved engineering drawings, bill of materials (BOM), and customer-specific requirements. Key inspection items include:


Structural Integrity: Examination of the machine frame, chamber walls, and support structures for weld quality, material thickness, dimensional accuracy, and freedom from deformation or corrosion. All structural components must comply with mechanical engineering standards to withstand the thermal and mechanical stresses of lamination cycles.
Component Verification: Validation of all critical components—including heating elements (resistance or infrared), vacuum pumps and hoses, hydraulic/pneumatic cylinders, pressure sensors, temperature controllers, conveyor belts, and safety interlocks—against the manufacturer’s specifications and supplier certifications. Components must be free from defects, properly installed, and labeled in accordance with industrial standards.
Wiring and Pneumatic/Hydraulic Connections: Inspection of electrical wiring for compliance with IEC 60204 (safety of machinery—electrical equipment of machines), including proper insulation, grounding, cable routing, and connection tightness. Pneumatic and hydraulic lines are checked for leaks, proper fitting, and pressure rating compatibility, with all connections secured to prevent fluid or air loss during operation.
Cleanliness and Surface Finish: Verification of the machine’s internal and external cleanliness, particularly the lamination chamber, heating plates, and conveyor surfaces, to ensure no contaminants (e.g., dust, oil, or debris) that could compromise glass lamination quality are present. Surface finishes of contact components must be smooth and free from scratches or irregularities.


2.2 Functional Testing (Operational Validation)

Following static inspection, the machine is powered on for functional testing, which verifies that all individual systems and sub-assemblies operate as designed, without faults or malfunctions. This phase is conducted in a controlled manufacturing environment, with test parameters set to the machine’s nominal operating range. Key functional tests include:


Control System Validation: Testing of the programmable logic controller (PLC), human-machine interface (HMI), and associated software to ensure accurate input of lamination parameters (temperature, pressure, vacuum level, cycle time), real-time data monitoring, and fault diagnostics. The control system must respond correctly to manual and automatic commands, with all alarms and error messages functioning as programmed.
Heating System Performance: Evaluation of the heating system’s ability to reach and maintain set temperatures uniformly across the entire lamination area. Temperature sensors are calibrated and tested to ensure accuracy within ±1°C, and thermal imaging is used to verify temperature distribution across heating plates—critical for preventing uneven bonding in laminated glass.
Vacuum System Testing: Assessment of the vacuum system’s ability to achieve and hold the required vacuum level (typically 0.95–0.98 bar) within the lamination chamber, with no leaks detected over a specified hold time (e.g., 30 minutes). Vacuum pumps are tested for flow rate, noise level, and energy consumption, in compliance with efficiency standards.
Pressure System Testing: Validation of the hydraulic or pneumatic pressure system’s ability to generate and maintain the specified lamination pressure (ranging from 8–12 bar for autoclave systems, 1–3 bar for non-autoclave systems). Pressure sensors are calibrated to ensure accuracy, and the system is tested for pressure stability during the lamination cycle, with no pressure drops or fluctuations.
Conveyor and Handling System Testing: Testing of the conveyor belts, roller systems, and glass loading/unloading mechanisms for smooth, precise movement, with no jams, misalignment, or damage to test glass panels. The speed and positioning accuracy of the conveyor system are verified to meet the machine’s production rate specifications.
Auxiliary System Functionality: Testing of auxiliary systems such as cooling systems, exhaust systems, and glass edge processing attachments (if equipped) to ensure they operate in sync with the main lamination cycle and meet performance requirements.


2.3 Performance Testing (Production Simulation)

Functional testing is followed by performance testing, which simulates real-world production conditions to validate the machine’s ability to produce high-quality laminated glass consistently. This phase uses standard test glass panels (typically 3–6 mm thick float glass) and industry-standard interlayers (PVB, SGP) to conduct full lamination cycles, with the machine operating at its rated production capacity. Key performance metrics evaluated include:


Lamination Quality: Visual and instrumental inspection of the test laminated glass for defects, including air bubbles, inclusions, delamination, edge gaps, and optical distortion. Samples are tested in accordance with EN 14449 and ANSI Z97.1, with all defects measured and documented against acceptable tolerance levels.
Cycle Time Consistency: Verification of the machine’s ability to complete lamination cycles within the specified time frame, with minimal variation between cycles. Cycle time is a critical KPI for end-users, as it directly impacts production throughput.
Uniformity of Bonding: Testing of the bond strength between glass and interlayer across the entire panel area, using peel tests, shear tests, and impact resistance tests (e.g., drop ball test) in accordance with relevant standards. The bond strength must meet or exceed the minimum requirements for safety glass.
Energy Efficiency: Measurement of the machine’s energy consumption (electrical, thermal, and pneumatic) during full production cycles, to validate compliance with energy efficiency standards and ensure operational cost-effectiveness for end-users.
Repeatability and Reproducibility: Conducting multiple consecutive lamination cycles (typically 10–20 cycles) to verify that the machine delivers consistent results, with no degradation in performance or increase in defect rates over time. This validates the machine’s long-term operational stability.


2.4 Safety Testing (Compliance with Industrial Safety Standards)

Safety is a paramount consideration in pre-delivery testing, as glass laminating machines operate under high temperatures, pressures, and vacuum conditions, posing potential risks to operators. All safety systems are rigorously tested to comply with ISO 13849, CE machinery directives, and OSHA standards (for the U.S. market). Key safety tests include:


Emergency Stop (E-Stop) Functionality: Testing of all E-stop buttons (located at multiple access points) to ensure immediate shutdown of all systems when activated, with no residual motion or energy release.
Safety Interlocks: Verification of interlock systems on chamber doors, access panels, and conveyor guards to prevent operation when these components are open or removed. Interlocks must trigger an immediate stop and alarm if breached.
Pressure and Temperature Safety Limits: Testing of over-pressure and over-temperature protection systems to ensure the machine shuts down automatically if parameters exceed safe operating limits, preventing equipment damage or operator injury.
Ergonomic and Hazard Protection: Evaluation of operator access points, control panel positioning, and hazard warnings (visual and auditory) to ensure compliance with ergonomic standards and minimize the risk of burns, crush injuries, or electrical shocks.
Fire and Explosion Protection: Testing of fire suppression systems (if equipped) and ventilation systems to ensure they function correctly in the event of a thermal anomaly or interlayer combustion.


2.5 Final Acceptance Testing (FAT) and Customer Witness Testing

The culmination of pre-delivery testing is the Factory Acceptance Testing (FAT), a formal process where the machine’s performance is verified against the customer’s purchase order, technical specifications, and contractual requirements. FAT is typically conducted in the presence of the customer or their authorized representative, who witnesses all critical tests and reviews the test data. Key components of FAT include:


Review of Test Documentation: Presentation of all test reports, calibration certificates, component certifications, and compliance documents for customer review and approval.
Demonstration of Full Production Cycles: Live demonstration of the machine producing laminated glass to the customer’s specifications, with real-time monitoring of key parameters and defect inspection.
Resolution of Non-Conformities: Any non-conformities identified during FAT are documented in a non-conformance report (NCR), and corrective actions are implemented and re-tested before final acceptance.
Sign-Off and Approval: Upon successful completion of FAT, the customer signs a formal acceptance document, confirming that the machine meets all requirements and is ready for delivery.


3. Documentation and Traceability: The Backbone of Pre-Delivery Testing

A critical, yet often underemphasized, aspect of pre-delivery testing is the creation of a comprehensive, traceable documentation package. This package serves as a permanent record of the machine’s testing history, validates compliance with standards, and provides end-users with critical information for operation, maintenance, and warranty claims. The documentation package typically includes:


Test Plan and Protocol: A detailed document outlining the testing scope, methods, acceptance criteria, and responsible personnel, approved by both the manufacturer and the customer.
Calibration Certificates: Certificates for all measuring and testing equipment (temperature sensors, pressure gauges, vacuum meters, etc.), validating their accuracy and traceability to national or international standards (e.g., NIST, DKD).
Component Certifications: Supplier certificates for all critical components, including material test reports (MTRs), CE certificates, and performance data sheets.
Test Reports: Detailed reports for each testing phase, including raw data, test results, photographs of test samples, and defect analysis. All data is recorded with date, time, and operator identification for full traceability.
Compliance Certificates: Certificates of compliance with relevant standards (CE, ISO, EN, ANSI), signed by the manufacturer’s quality assurance manager.
Operation and Maintenance Manuals: Comprehensive manuals providing instructions for machine operation, routine maintenance, troubleshooting, and spare parts identification, tailored to the machine’s specific configuration.
Warranty Document: A formal warranty statement outlining the terms and conditions of the manufacturer’s warranty, supported by the pre-delivery test data.


4. Post-Testing Preparation for Delivery

Following successful FAT and customer approval, the machine undergoes final preparation for delivery, which includes:


Cleaning and Packaging: Thorough cleaning of the machine to remove all test residues, followed by protective packaging (using anti-corrosion materials, shock absorbers, and weatherproof covers) to prevent damage during transportation.
Labeling and Marking: Application of all required labels, including CE marks, safety warnings, serial numbers, and operational parameters, in accordance with international standards.
Spare Parts and Tooling: Preparation of a standard spare parts kit and specialized tooling, as specified in the contract, for delivery with the machine.
Logistics Coordination: Coordination with shipping and logistics providers to ensure safe and timely transportation, with all necessary export/import documentation (e.g., bill of lading, customs clearance documents) prepared in advance.


5. Conclusion

Pre-delivery testing of glass laminating machines is a rigorous, multi-faceted process that integrates technical validation, regulatory compliance, performance verification, and safety assurance. By adhering to standardized testing protocols, manufacturers ensure that every machine delivered to the market meets the highest standards of quality, reliability, and safety, while end-users gain confidence in the machine’s ability to produce high-quality laminated glass consistently. In an industry where precision and safety are non-negotiable, pre-delivery testing is not just a procedural step but a cornerstone of quality management, driving innovation, customer satisfaction, and long-term success for both machinery manufacturers and laminated glass producers. As the demand for advanced safety glass continues to grow in architectural, automotive, and aerospace applications, the importance of robust pre-delivery testing will only increase, underscoring the need for ongoing investment in testing technology, personnel training, and compliance with evolving international standards.

The insulating glass packaging machine is a key piece of automated equipment in the modern construction glass and energy-saving building materials industry, specially designed for the final protection, fixing, wrapping, strapping and stacking of insulated glass units (IGUs). It integrates mechanical transmission, precision positioning, pneumatic control, sensor detection and intelligent electrical systems to realize fully automatic or semi‑automatic packaging from finished insulated glass products to transport‑ready packages. This paper systematically elaborates the definition, functional positioning, mechanical structure, working process, classification characteristics, core technical indicators and application advantages of insulating glass packaging machines. It further analyzes their wide applications in architectural doors and windows, curtain walls, residential construction, commercial buildings and international logistics transportation, summarizes the selection and maintenance specifications, and prospects the intelligent, green, flexible and digital development trends of insulating glass packaging equipment. The study shows that high‑performance insulating glass packaging machines effectively improve production efficiency, reduce glass damage rates, standardize packaging quality and enhance logistics safety, providing strong support for large‑scale, standardized and intelligent production of insulated glass.

1. Introduction

With the rapid development of global energy‑efficient buildings, green construction policies and modern urbanization, the demand for insulated glass units (IGUs) has increased sharply in architectural engineering, residential housing, commercial complex and public facility construction. As a core component of energy‑efficient windows and doors, insulated glass features remarkable thermal insulation, sound insulation, anti‑condensation and safety performance, and its production and processing have entered a stage of large‑scale, automated and intelligent manufacturing. The production process of insulated glass includes glass washing, drying, spacer frame assembly, desiccant filling, butyl rubber coating, composite pressing, inert gas filling and secondary sealing. After these processes, finished insulated glass needs reliable, standardized and efficient packaging before entering storage and logistics links. Traditional manual packaging has problems such as high labor intensity, low efficiency, inconsistent packaging quality, high breakage risk and poor protection effect, which can no longer meet the requirements of modern insulated glass production lines.

Insulating glass packaging machines emerged as specialized automated equipment targeting the above pain points. They are designed to achieve stable clamping, corner protection installation, surface protection, film wrapping, strapping, stacking and handling of insulated glass of different sizes, thicknesses and weights. By replacing manual operation with mechanical automation, these machines ensure the integrity, cleanliness and safety of insulated glass during transportation and storage, reduce production costs and improve the overall competitiveness of glass processing enterprises. In the context of intelligent manufacturing and industrial upgrading, insulating glass packaging machines have become indispensable terminal equipment connecting insulated glass production lines and logistics systems. This paper focuses on the technical system, application value and development direction of insulating glass packaging machines to provide theoretical and practical references for equipment R&D, production application and technological upgrading in the glass deep processing industry.

2. Overview of Insulating Glass Packaging Machine

2.1 Definition and Functional Orientation

An insulating glass packaging machine is an automatic or semi‑automatic mechanical and electrical integration device dedicated to the surface protection, edge wrapping, corner protection, fixing, strapping, wrapping and palletizing of insulated glass units. Its core functions include: protecting the glass surface from scratches, collisions and contamination; reinforcing edge and corner strength to prevent chipping and breakage; fixing the glass to avoid relative sliding during transportation; forming standardized, neat and stable packaging units; and connecting with production lines to realize continuous automated operation.

2.2 Position in the Insulated Glass Production Line

Insulating glass packaging machines are located at the tail end of the entire insulated glass production line, following processes such as sealing, curing and quality inspection. They serve as the last key node before finished products enter storage and transportation. The operational stability and packaging effect of packaging machines directly affect product yield, delivery efficiency and after‑sales damage rate, making them critical to the operational efficiency and economic benefits of the whole production line.

2.3 Differences from General Glass Packaging Equipment

Compared with ordinary flat glass, tempered glass or laminated glass packaging machines, insulating glass packaging machines have higher technical requirements:


Adaptability to multi‑layer composite structures and different thickness combinations
Protection for sealing edges to avoid damage to sealing structures
High compatibility with variable length, width and thickness specifications
Stable clamping force control to prevent glass deformation or layer separation
Dust‑free and clean packaging requirements to maintain internal dryness


3. Core Structure and Composition System

Modern insulating glass packaging machines adopt modular design, which is convenient for installation, commissioning, maintenance and functional expansion. The whole machine mainly consists of the following systems:

3.1 Frame and Host Structure

The frame is made of high‑strength sectional steel or welded steel plate with overall annealing treatment to ensure rigidity, stability and non‑deformation during long‑term operation. The host structure supports transmission, clamping, wrapping and strapping modules, providing a stable foundation for high‑precision operation.

3.2 Automatic Conveying and Positioning System

This system includes motor‑driven roller tables, conveyor belts, frequency conversion speed regulation devices and photoelectric sensors. It realizes automatic feeding, conveying, stopping, centering and positioning of insulated glass, ensuring accurate entry into the packaging station without deviation or collision.

3.3 Corner Protector Installation Mechanism

Corner protectors (plastic, paper or foam) are critical for protecting glass corners. The mechanism includes corner storage, pneumatic clamping, pushing and pressing components to automatically install corner protectors at four corners and edges, greatly improving anti‑collision performance.

3.4 Surface Protection and Wrapping System

This system includes film unwinding, cutting, laminating and wrapping devices. It uses PE stretch film, anti‑scratch film, woven cloth or bubble film to fully wrap the glass surface, isolating dust, moisture and scratches. High‑end models adopt electrostatic prevention and non‑slip wrapping technology.

3.5 Strapping and Fixing System

Strapping machines use PP or PET straps to tighten and fix the wrapped glass automatically. Functions include automatic strap feeding, tensioning, hot melting, cutting and knotting, with stable and firm binding without damaging the packaging film. Tension can be adjusted according to glass specifications.

3.6 Pneumatic and Hydraulic Power System

The pneumatic system provides clamping, lifting and pushing power with stable pressure and fast response. The hydraulic system is used in large‑scale heavy‑duty models to provide higher clamping and lifting force, ensuring stable handling of large‑size and heavy insulated glass.

3.7 Electrical Control and Human‑Machine Interface

The core control system adopts a high‑performance PLC (Siemens, Mitsubishi, etc.) with a touch screen for parameter setting, mode switching, fault alarm and running status monitoring. It supports automatic, manual and debugging modes, with functions such as automatic counting, fault self‑diagnosis and emergency stop.

3.8 Safety Protection System

Safety guards, photoelectric protection, emergency stop buttons and overload protection ensure operator safety and equipment stability. When an obstacle is detected, the machine stops immediately to avoid glass breakage or personal injury.

4. Working Principle and Automatic Packaging Process

4.1 Basic Working Principle

The insulating glass packaging machine takes electrical control as the core, pneumatic/hydraulic power as the drive, and sensor detection as the feedback. It automatically completes conveying, positioning, corner protection, surface wrapping, strapping and output according to preset procedures. The whole process replaces manual labor with mechanical movement, ensuring consistency, stability and high efficiency.

4.2 Full Automatic Packaging Process


Automatic Feeding: The insulated glass finished product is transported from the production line to the packaging machine’s conveying platform.
Precision Positioning: Photoelectric sensors detect the glass position; the conveying system adjusts to center the glass accurately.
Corner Protector Mounting: Pneumatic mechanisms automatically install protective corners on four corners and side edges.
Surface Protection Film Covering: The film covering mechanism covers the glass surface with protective film.
Stretch Wrapping: The wrapping system rotates or horizontally wraps to cover the glass fully.
Automatic Strapping: The strapping system tensions, heats and cuts straps to fix the package firmly.
Output and Palletizing: The packaged glass is automatically output and can be connected with a palletizing robot for automatic stacking.


4.3 Control Logic

The whole machine follows a sequential interlock control logic: only when the previous process is completed can the next process start. Once abnormal conditions occur, such as misalignment, film breakage or strap shortage, the system alarms immediately and pauses to avoid defective packaging or equipment damage.

5. Classification of Insulating Glass Packaging Machines

According to automation degree, structure form, application scenario and function configuration, insulating glass packaging machines can be classified into the following categories:

5.1 By Automation Degree


Semi‑automatic insulating glass packaging machine: Requires manual assistance in film placement, corner placement or button triggering; suitable for small‑batch production.
Full‑automatic insulating glass packaging machine: One‑click automatic completion of the whole process; suitable for large‑scale and assembly‑line production.


5.2 By Structural Form


Vertical insulating glass packaging machine: Glass stands vertically during packaging; small footprint, suitable for conventional doors and windows.
Horizontal insulating glass packaging machine: Glass lies horizontally; suitable for large‑size, heavy, thick or curved insulated glass.


5.3 By Function Configuration


Basic type: Only wrapping + strapping
Standard type: Positioning + corner protection + wrapping + strapping
Full‑function type: With dust removal, surface cleaning, labeling, coding and palletizing interfaces


5.4 By Applicable Glass Specifications


Small and medium‑sized model: For doors and windows below 2.4m
Large and super‑large model: For curtain wall and special engineering glass above 3m


6. Core Technical Parameters and Performance Indicators

The performance of an insulating glass packaging machine is mainly evaluated by the following indicators:


Applicable glass size: Length, width and thickness range
Applicable glass weight: Maximum load capacity
Packaging speed: Units per minute/hour
Strapping quantity and spacing: Adjustable range
Wrapping film width and thickness: Adaptability
Clamping force adjustment range: To avoid glass damage
Control system: PLC brand, human‑machine interface
Power supply and air pressure: Standard configuration
Dimensions and weight: Installation space requirements
Failure rate and stability: Mean time between failures (MTBF)


7. Application Advantages in Industrial Production

7.1 Greatly Improve Production Efficiency

Automatic packaging can reach 300–600 pieces per shift, 3–5 times higher than manual packaging, matching the beat of modern high‑speed insulated glass production lines.

7.2 Significantly Reduce Breakage Rate

Professional protection and stable clamping reduce corner damage and surface scratches, lowering the breakage rate from manual 3–5% to below 0.5%.

7.3 Improve Packaging Standardization

Uniform wrapping tightness, strap position and corner protection ensure consistent appearance and structural stability, enhancing product image.

7.4 Reduce Labor Cost and Intensity

One operator can manage multiple machines, reducing labor demand by 70–80% and lowering long-term production costs.

7.5 Enhance Logistics Safety and Storage Efficiency

Standardized packaging facilitates stacking, handling and transportation, saving storage space and reducing transport damage.

7.6 Meet Clean and Dust‑Free Requirements

Closed automatic packaging reduces dust contamination and keeps the insulated glass interior dry and clean.

8. Typical Industrial Application Fields

8.1 Architectural Doors and Windows Industry

The largest application area, used for packaging energy‑saving insulated glass for residential buildings, offices and public constructions.

8.2 Curtain Wall and Engineering Glass

Large‑scale packaging machines serve high‑rise building curtain walls, shopping malls, airports and stations.

8.3 Export Glass Logistics

Standardized packaging meets international transport requirements, resisting moisture, salt spray and vibration during long‑distance shipping.

8.4 Household Appliances and Automotive Glass

Adapted for special insulated glass used in refrigeration, home appliances and vehicle windows.

8.5 Photovoltaic and Solar Energy Glass

Special anti‑static and high‑cleanliness packaging models for photovoltaic modules.

9. Selection Principles and Operation Maintenance

9.1 Selection Principles


Match production line speed and output
Adapt to glass size, thickness and weight range
Select vertical or horizontal structure according to plant space
Choose automation level based on product type and batch size
Prioritize stable brand, reliable configuration and convenient maintenance
Consider expandability for future product upgrades


9.2 Daily Operation Specifications


Operators must receive professional training
Check air pressure, voltage and strap/film supply before startup
Set parameters according to glass specifications
Monitor operation and handle alarms in time
Regularly clean dust and glue residue


9.3 Maintenance and Upkeep


Weekly lubrication of transmission parts
Monthly inspection of sensors, cylinders and motors
Quarterly calibration of positioning accuracy
Annual comprehensive maintenance and parts replacement
Use original consumables to ensure stability


10. Current Development Status and Future Trends

10.1 Current Industry Status

In recent years, with the popularization of energy‑saving buildings, insulated glass packaging machines have developed rapidly in China and globally. The technology has evolved from semi‑automatic to fully automatic, from single‑function to integrated, and from mechanical control to intelligent digital control. High‑end models integrate visual positioning, AI fault detection and flexible adjustment.

10.2 Future Development Trends


Higher Intelligence: AI visual recognition, automatic specification adjustment, unmanned operation
Flexible Production: Quick changeover for multi‑size mixed production
Green and Low‑Carbon: Energy‑saving motors, recyclable packaging materials
Digital Management: Data monitoring, remote diagnosis, MES connection
Integration and Completeness: Integration of cleaning, packaging, labeling and palletizing
Higher Safety and Stability: Stronger anti‑breakage, quieter and more reliable systems


11. Conclusion

As a key terminal device in the insulated glass industry chain, the insulating glass packaging machine plays an irreplaceable role in improving production efficiency, ensuring product quality, reducing damage rates and enhancing logistics safety. With the continuous advancement of energy‑efficient construction policies and intelligent manufacturing technology, automated, intelligent and integrated packaging equipment will become the mainstream choice for glass processing enterprises. The continuous innovation of insulating glass packaging machines will further promote the standardized, large‑scale and green development of the insulated glass industry, create greater economic and social value, and provide solid support for the global construction industry’s energy conservation, emission reduction and sustainable development.

Hot Melt Coating Machine: Professional Technical Description & Comprehensive Overview

1. Introduction to Hot Melt Coating Machine

The Hot Melt Coating Machine is a highly integrated, precision-engineered industrial processing equipment dedicated to the application of hot melt adhesives onto a wide variety of flexible and semi-rigid substrates. As a core piece of equipment in the adhesive coating and composite material industry, it replaces traditional solvent-based and water-based coating methods with a solvent-free, pollution-free, and highly efficient thermal bonding process. It integrates mechanical transmission, precision temperature control, automatic metering, continuous coating, cooling setting, tension control and intelligent electrical control systems, realizing stable, high-speed and high-quality roll-to-roll coating production. It is widely recognized as an indispensable and advanced production solution in modern manufacturing, meeting the strict requirements of product performance, environmental protection standards and production efficiency in multiple industries.

2. Working Principle and Operational Mechanism

The operating principle of the hot melt coating machine is based on the physical phase change of hot melt adhesive and precise fluid coating technology, forming a complete and stable closed-loop production system. The entire production process can be divided into several key steps: adhesive melting, quantitative delivery, precision coating, cooling curing and finished product winding.

First, solid hot melt adhesive particles, blocks or strips are added to the special heating melting tank of the equipment. Under the precise multi-zone temperature control system, the solid adhesive is heated and converted into a uniform liquid state with stable viscosity. Then, the high-precision gear pump or screw metering pump system transports the molten adhesive at a constant pressure and fixed flow rate to the coating head module, eliminating the influence of adhesive viscosity and liquid level changes on the coating effect.

Next, under the synchronous operation of the substrate transmission system, the molten adhesive is uniformly coated on the surface of the substrate through the coating head in the form of a full film, dots, lines or mesh according to the process requirements. Immediately after coating, the substrate with the adhesive layer enters the cooling and shaping zone, where the adhesive is rapidly cooled and solidified through cooling rollers or circulating air cooling to restore a solid state and form a firm adhesive layer.

Throughout the process, the PLC central control system monitors and adjusts key parameters in real time, including heating temperature, metering pump speed, substrate transmission speed, tension value and coating thickness, ensuring the consistency and stability of the coating effect and achieving fully automated continuous operation.

3. Core Structure and Component Functions

The hot melt coating machine consists of multiple functional modules with precise coordination, and each component directly determines the stability, accuracy and service life of the equipment.

3.1 Unwinding System

The unwinding system is responsible for providing stable substrate feeding, adopting automatic tension control and photoelectric correction device, which can adapt to various roll materials such as films, non-woven fabrics, paper, aluminum foil and fabrics. It effectively prevents substrate deviation, wrinkling or breakage during high-speed operation, and supports non-stop roll changing to improve production continuity.

3.2 Heating and Melting System

As the power core of the hot melt adhesive treatment, the heating and melting system is equipped with a stainless steel melting tank with multi-zone independent temperature control, fast heating speed and uniform temperature distribution. The thermal insulation design reduces energy loss, and the anti-coking and anti-carbonization structure ensures the stability of the adhesive performance and avoids material deterioration caused by overheating.

3.3 Precision Metering and Delivery System

This system adopts a high-precision gear pump or screw pump driven by a servo motor, which can realize quantitative and constant pressure delivery of molten adhesive. The metering error is extremely low, ensuring that the coating weight is accurately controlled within the process range, and it is suitable for both thin-layer micro-coating and thick-layer heavy coating processes.

3.4 Coating Head Module

The coating head is the core component that determines the coating shape and uniformity. The equipment can be equipped with different types of coating heads such as roller coating, slot die coating, comma blade coating and nozzle coating, which can flexibly switch between full-surface coating, dot coating, line coating and other forms to meet the bonding and functional requirements of different products.

3.5 Cooling and Curing System

The cooling system adopts high-efficiency cooling rollers with internal circulating cooling water or strong air cooling equipment, which can quickly reduce the surface temperature of the coated substrate, accelerate the curing and forming of the hot melt adhesive, prevent the adhesive from flowing or transferring, and ensure the flatness and stability of the coating layer.

3.6 Tension Control and Transmission System

The whole line adopts a segmented tension control system to keep the tension of the substrate stable during unwinding, coating and winding. The servo-driven variable-frequency transmission system realizes high-precision speed synchronization, supports high-speed continuous production, and runs smoothly with low noise.

3.7 Winding System

The winding system adopts automatic constant tension control, with functions such as automatic roll changing, length counting and edge alignment, ensuring that the coated finished products are neatly wound, easy to unload and subsequent processing, and adapting to large-batch continuous industrial production.

3.8 Intelligent Electrical Control System

The human-machine interaction interface based on PLC and touch screen realizes visual operation. Operators can set and store process parameters, monitor real-time operating status, and have complete fault self-diagnosis, alarm and protection functions, which simplifies operation difficulty and improves production safety and stability.

4. Core Advantages and Technical Characteristics

Compared with traditional coating equipment, hot melt coating machines have obvious technical and application advantages, which are the key reasons why they are widely promoted and applied globally.

Firstly, environmental protection and safety. The hot melt coating process does not use any organic solvents, has no VOC emissions, no toxic and harmful gas generation, fully meets international environmental protection standards and occupational health requirements, and is a green and environmentally friendly production process.

Secondly, high production efficiency. Hot melt adhesive can complete melting, coating and curing in a very short time, without long drying or volatilization time. The equipment can run continuously at high speed, greatly shortening the production cycle and improving output efficiency.

Thirdly, coating precision and uniformity. With the servo metering system and precision coating head, the coating weight and thickness can be precisely controlled, the error is extremely small, and the coating layer is uniform and flat, which significantly improves product quality and stability.

Fourthly, wide material adaptability. The equipment is compatible with almost all types of hot melt adhesives on the market, and can coat various substrates such as plastic films, non-woven fabrics, paper, aluminum foil, foam, leather and textiles, with strong versatility.

Fifthly, cost saving and low loss. The solvent-free process reduces material costs, the automatic operation reduces labor input, the adhesive utilization rate is high, and the equipment has low failure rate and low maintenance cost, bringing obvious economic benefits to enterprises.

Sixthly, flexible production mode. By replacing the coating head and adjusting parameters, it can quickly switch different coating processes and product specifications, meeting the diversified and personalized production needs of enterprises.

5. Main Application Fields

With excellent performance and stable process, hot melt coating machines are widely used in many important manufacturing fields, covering daily necessities, medical treatment, industry, packaging, automobiles and other categories.

In the hygiene products industry, it is used for the production of diapers, sanitary napkins, adult care products, etc., realizing the adhesive coating of elastic waist circumference, leg cuffs and composite layers.

In the medical and health industry, it is used to produce medical tapes, wound dressings, surgical drapes, medical non-woven composites and other products, with safe and non-toxic adhesive layers and stable bonding performance.

In the adhesive tape and label industry, it is the core equipment for producing double-sided tapes, foam tapes, cloth-based tapes, protective films, self-adhesive labels and trademark materials.

In the flexible packaging industry, it is used for composite coating of food packaging films, plastic packaging bags, aluminum foil composite bags, etc., with good sealing and bonding fastness.

In the automotive interior industry, it is used for bonding and coating of automotive sound insulation cotton, carpets, door panels, decorative parts and thermal insulation materials.

In addition, it is also widely used in non-woven fabric lamination, filter materials, electronic protective materials, stationery, furniture manufacturing and other fields, and is one of the key equipment to improve product quality and production efficiency.

6. Technical Development Trend and Industry Prospect

With the development of global industrial intelligence, environmental protection and high efficiency, hot melt coating machines are constantly upgrading and innovating, showing a clear development trend.

In terms of intelligent control, the equipment is gradually integrated with IoT technology, realizing remote monitoring, data statistics, fault early warning and predictive maintenance, and deeply integrated with intelligent production lines to adapt to Industry 4.0 production modes.

In terms of high speed and wide width, the equipment speed and effective coating width are continuously improved to meet the needs of large-scale and high-efficiency production, further reducing the unit production cost.

In terms of precision and energy saving, the new heating system, metering system and transmission system reduce energy consumption while improving coating accuracy, making the process more energy-saving and efficient.

In terms of multi-function and integration, the equipment tends to integrate multiple functions such as coating, compounding, slitting and molding, realizing one-stop production and improving the added value of the equipment.

As a high-performance, environmentally friendly and efficient coating equipment, the hot melt coating machine will continue to expand its application fields with the upgrading of manufacturing industry and the enhancement of environmental protection requirements. Its market demand will maintain a steady growth trend, and it will always play an important role in the field of adhesive coating and composite material production, becoming a key support for the sustainable development of related industries.
