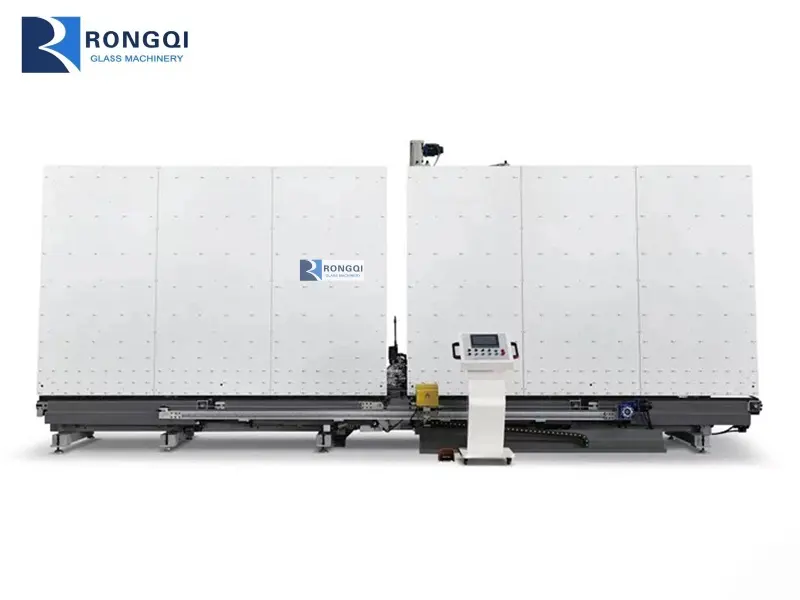

High Quality Automatic Insulating Glass Processing Machine From RONGQI

The first critical step in molecular sieve processing is creating precise access points for filler injection—without compromising the structural integrity of the target component (e.g., hollow glass aluminum spacers, adsorption towers, or catalyst reactors). The all-in-one automatic filler’s punching module is engineered to address this challenge through advanced mechanical design and intelligent control systems.Unlike manual punching, which often results in irregular hole sizes, burr formation, or material deformation, the automated punching mechanism leverages servo-driven actuators and precision tooling to deliver consistent, repeatable results. For instance, in hollow glass production, the system targets aluminum spacers (6–24mm in width) with punch diameters calibrated to match molecular sieve particle sizes (0.5–0.8mm), ensuring unobstructed filler flow while minimizing post-processing debris. The punching process is synchronized with component positioning systems, which use optical sensors to align the punch with pre-programmed coordinates—eliminating human error and ensuring hole placement accuracy within ±0.1mm.Notably, the module’s adaptability is a key strength. It accommodates diverse component geometries, from straight aluminum strips to custom-bent frames (square, rectangular,弓形, or rounded-corner designs) and cylindrical adsorption towers, making it suitable for multiple industrial sectors . Advanced models also feature adjustable punch depth and force control, preventing material damage while maintaining structural integrity—a critical consideration for thin-walled components or high-pressure applications like gas separation reactors.

Air-Floating Inclined Glass Breaking Table: Engineering Principles, Technical Advantages, and Industrial Applications

1. Introduction

In the modern manufacturing landscape of flat-panel displays (FPD), photovoltaic (PV) modules, architectural glass, and automotive glazing, the demand for precise, non-destructive glass processing and strength testing has intensified. The Air-Floating Inclined Glass Breaking Table (AFIGBT) emerges as a pivotal innovation, integrating air-bearing technology, hydraulic tilting mechanisms, and pneumatic control systems to redefine the standards of glass handling, positioning, and fracture testing. Unlike conventional contact-based breaking tables that risk surface scratches, edge damage, or inconsistent stress distribution, the AFIGBT leverages non-contact air suspension to ensure uniform support, precise angular adjustment, and repeatable fracture initiation—critical for quality control in high-precision glass manufacturing. This article comprehensively explores the technical fundamentals, structural components, performance characteristics, industrial applications, and future development directions of the AFIGBT, shedding light on its transformative role in the global glass processing industry.

2. Core Technical Principles

2.1 Non-Contact Air Suspension Mechanism

The cornerstone of the AFIGBT lies in its air-floating system, which employs porous media technology to generate a stable, ultra-thin air film between the glass substrate and the table surface. Compressed air is forced through millions of sub-micron pores in a proprietary carbon or ceramic bearing surface, creating a uniform pressure distribution that lifts the glass off the table without physical contact . The thickness of this air film is precisely controllable, typically ranging from 10µm to 200µm, with a stability tolerance of ±5µm to ±20µm—sufficient to accommodate inherent flatness deviations of up to 5µm in glass substrates while maintaining optimal support rigidity . Contrary to traditional assumptions, thinner air films exhibit higher stiffness, enabling the AFIGBT to achieve sub-micron positioning resolution and rapid vibration damping—essential for minimizing structural deformation during the breaking process.

To prevent "skating" or lateral displacement of the glass during suspension, the system integrates a balanced vacuum-preload mechanism. By adjusting the ratio of air pressure and vacuum force, engineers can "lock" the glass in a stable spatial position, suppressing flutter and ensuring consistent alignment throughout the testing or processing cycle . This pressure-vacuum balance also facilitates glass flattening, reducing surface vibrations that could compromise the accuracy of fracture analysis. Notably, the porous media surface acts as a HEPA-like filter, preventing particle generation and making the system compatible with ISO Class 10 cleanroom environments—a critical requirement for FPD and semiconductor manufacturing .

2.2 Hydraulic Tilting Control System

The inclined functionality of the AFIGBT is enabled by a hydraulic actuation system, designed to deliver smooth, stable angular adjustment with precise position control. The hydraulic cylinder-driven tilting mechanism allows the table to rotate from a horizontal (0°) to a vertical (90°) position, with intermediate angle settings adjustable in increments as fine as 0.1°—catering to diverse testing standards and processing requirements. The hydraulic system’s high load-bearing capacity ensures stable operation even for large-format glass substrates, with table sizes ranging up to 2200mm × 3600mm to accommodate Gen 10+ FPD panels and oversized architectural glass sheets.

Key to the tilting system’s performance is its closed-loop feedback control, which utilizes linear displacement sensors and pressure transducers to monitor the table’s angle and load in real time. This enables dynamic adjustment of hydraulic flow rates, ensuring uniform acceleration and deceleration during tilting—preventing inertial forces from causing glass slippage or edge impact. Additionally, safety interlocks are integrated to halt operation if the tilt angle exceeds preset limits or if pressure loss is detected, mitigating the risk of equipment damage or operator injury.

2.3 Pneumatic Fracture Initiation Mechanism

The AFIGBT’s breaking system employs pneumatically controlled X and Y-axis breaking bars, activated via foot pedals or programmable logic controllers (PLCs) to initiate precise, localized fractures. These breaking bars are strategically positioned across the table surface, allowing for selective activation to target specific sections of the glass—enabling both full-panel breaking and segmented cutting for large-format substrates. The pneumatic actuation ensures rapid, consistent force application, with adjustable pressure settings to match the mechanical properties of different glass types (e.g., tempered glass, laminated glass, ultra-thin glass).

To enhance fracture accuracy, the breaking bars are equipped with precision-machined contact points that concentrate stress at predefined locations—replicating real-world failure scenarios while ensuring repeatable test results. The integration of the air-floating system with the breaking mechanism is critical: the non-contact support eliminates friction-induced stress variations, ensuring that the applied breaking force is uniformly distributed across the glass’s cross-section. This results in clean, predictable fractures that align with industry standards such as SEMI, CE, and ISO 9001.

3. Structural Components and Technical Specifications

3.1 Key Component Architecture

The AFIGBT comprises six core subsystems, each engineered for durability, precision, and seamless integration:

1. Heavy-Duty Metallic Frame: Constructed from high-strength steel with reinforced welds, the frame provides structural rigidity to withstand dynamic loads during tilting and breaking, with a design life exceeding 10,000 operating hours.

2. Air-Floating Platform: Modular porous media air-bearing panels (available in standard, precision, and ultra-precision variants) cover the table surface, with customizable configurations to accommodate different glass sizes and thicknesses (from 0.1mm to 20mm).

3. Air Supply System: A high-pressure compressor (3–5 kW) with pressure regulators, filters, and flow meters delivers clean, dry air (≤ -40°C dew point) to the air-bearing panels, ensuring consistent air film formation.

4. Hydraulic Tilting Unit: Double-acting hydraulic cylinders with servo valves, paired with a hydraulic power unit (380V/50Hz or 220V/60Hz), enable smooth angle adjustment with a tilting speed of 2–5° per second.

5. Pneumatic Breaking Assembly: 3–6 pneumatically controlled breaking bars (depending on table size) with adjustable stroke lengths (10–50mm) and force ranges (50–500N), synchronized via PLC for coordinated fracture initiation.

6. Control and Safety System: A touchscreen HMI (Human-Machine Interface) with PLC integration allows for program storage (up to 100 test protocols), real-time data visualization, and remote monitoring. Safety features include emergency stop buttons, pressure loss alarms, and interlocked access doors.

3.2 Critical Technical Parameters表格Parameter Specification Range Table Dimensions 1000mm×1000mm to 2200mm×3600mm Maximum Glass Size Up to 2000mm×1000mm (standard) / Gen 12+ compatible (custom) Glass Thickness Capacity 0.1mm–20mm Air Film Thickness 10µm–200µm Tilt Angle Range 0°–90° (adjustable in 0.1° increments) Breaking Force Adjustment 50N–500N Positioning Accuracy ±2µm (linear) / ±0.1° (angular) Operating Speed 2–3 m/s (glass transport) / 2–5°/s (tilting) Power Requirements 380V 3-phase 50Hz / 220V single-phase 60Hz (3–5 kW) Environmental Compatibility Temperature: 0°C–40°C; Humidity: <98% (non-condensing) Certifications CE, ROHS, ISO 9001, SEMI-compliant 4. Technical Advantages Over Conventional Systems4.1 Non-Contact Handling and Surface ProtectionUnlike mechanical conveyor belts or vacuum chucks that exert localized pressure on glass surfaces, the AFIGBT’s air-floating system eliminates physical contact, preventing scratches, micro-cracks, and contamination. This is particularly critical for high-value applications such as FPD substrates and PV solar panels, where surface integrity directly impacts product performance . The carbon or ceramic bearing surfaces are wear-resistant and particle-free, ensuring compatibility with cleanroom environments and reducing maintenance costs associated with contact-based components.4.2 Enhanced Precision and RepeatabilityThe combination of air-film stability, hydraulic tilting control, and pneumatic breaking mechanisms enables the AFIGBT to achieve fracture test repeatability within ±3%—a significant improvement over conventional tables (±8–12%). The sub-micron positioning resolution and uniform stress distribution ensure that each test replicates real-world conditions, providing reliable data on glass toughness, fracture energy, and failure modes. This precision is validated by compliance with international standards such as SEMI, which has adopted air-floating-based measurement models for glass quality assessment.4.3 Versatility and ScalabilityThe AFIGBT’s modular design allows for seamless customization to meet diverse industry needs. It supports multiple glass types (tempered, laminated, ultra-thin, AR-coated) and processing tasks, including strength testing, precision cutting, and edge quality inspection. The table’s compatibility with Gen 5 to Gen 12 glass substrates makes it suitable for small-scale laboratories and large-scale manufacturing facilities alike, with the ability to handle glass sizes up to 2200mm×3600mm and beyond with custom configurations.4.4 Operational Efficiency and SafetyThe AFIGBT’s automated loading/unloading systems, rapid test cycles (≤1000ms per measurement point), and data logging capabilities streamline quality control processes, reducing labor costs and increasing throughput. The hydraulic tilting system’s smooth operation minimizes glass breakage during handling, while the integrated safety features (pressure loss alarms, emergency stops, interlocks) ensure operator protection. Additionally, the low air consumption of porous media air bearings (measured in liters per hour rather than liters per minute) reduces energy costs compared to traditional air-bearing systems .5. Industrial Applications5.1 Flat-Panel Display (FPD) ManufacturingIn FPD production (LCD, OLED, microLED), the AFIGBT is used for post-processing quality control, including glass substrate strength testing, laser划片 alignment, and edge defect detection. The non-contact air suspension prevents damage to sensitive display layers, while the precise tilting and breaking mechanisms ensure clean, straight fractures during panel separation. The system’s compatibility with ISO Class 10 cleanrooms and sub-micron positioning accuracy makes it indispensable for Gen 10+ FPD facilities, where even minor surface defects can render panels defective .5.2 Photovoltaic (PV) Module ProductionFor solar glass (ultra-white embossed glass, AR-coated glass), the AFIGBT enables rapid measurement of spectral transmittance, fracture toughness, and edge strength—critical parameters for PV module efficiency and durability. The system’s ability to handle large-format glass sheets (up to 2000mm×1000mm) and perform multi-point testing allows manufacturers to assess spatial uniformity of mechanical properties, ensuring compliance with TAM1.5 and SEMI standards. The air-floating design also facilitates easy movement of heavy glass sheets, reducing handling time and breakage rates during production.5.3 Architectural and Automotive Glass ProcessingIn architectural glass manufacturing, the AFIGBT is used to test the breaking strength of tempered and laminated glass, ensuring compliance with building safety codes. The tilting function simulates real-world installation angles, allowing engineers to evaluate fracture behavior under gravitational loads. For automotive glass (windshields, side windows), the system performs impact resistance testing and precision cutting, with the non-contact handling preserving the glass’s optical clarity and structural integrity. The pneumatic breaking bars enable segmented cutting of complex shapes, supporting the production of curved and customized automotive glass components.5.4 Research and Development LaboratoriesAcademic and industrial R&D labs utilize the AFIGBT to study glass fracture mechanics, material fatigue, and the effects of coating technologies on mechanical performance. The system’s adjustable parameters (air film thickness, tilting angle, breaking force) allow researchers to replicate diverse environmental and loading conditions, generating data to optimize glass formulations and processing techniques. The integration of advanced sensors (strain gauges, high-speed cameras) enables real-time monitoring of fracture propagation, providing insights into crack initiation and growth mechanisms.6. Future Development Trends6.1 Integration of Smart Sensing and AIThe next generation of AFIGBT will incorporate advanced sensing technologies, including machine vision cameras, ultrasonic sensors, and fiber optic strain gauges, to enable real-time monitoring of glass deformation, stress distribution, and fracture dynamics. Artificial intelligence (AI) algorithms will analyze this data to predict failure points, optimize test parameters, and automate quality grading—reducing human intervention and improving testing accuracy. For example, AI-powered image recognition can identify micro-cracks before fracture, enabling proactive quality control in high-volume production lines.6.2 Miniaturization and High-Speed ProcessingAs the demand for ultra-thin glass (≤0.1mm) in wearable devices and flexible electronics grows, AFIGBT systems will be miniaturized to accommodate small-format substrates while maintaining high precision. Advances in micro-air-bearing technology will enable air film thicknesses below 10µm, supporting the handling of fragile, flexible glass without deformation. Additionally, improvements in hydraulic and pneumatic actuation will reduce test cycle times to <500ms per point, meeting the throughput requirements of next-generation electronics manufacturing.6.3 Energy Efficiency and SustainabilityFuture AFIGBT designs will focus on reducing energy consumption through the adoption of energy-efficient compressors, regenerative hydraulic systems, and low-power sensors. The use of recyclable materials in frame construction and biodegradable lubricants in hydraulic systems will align with global sustainability initiatives. Furthermore, the integration of solar-powered air supply systems will enable off-grid operation in remote manufacturing facilities, reducing carbon emissions.6.4 Interoperability with Industry 4.0 SystemsTo support smart manufacturing, AFIGBT systems will be equipped with Industrial Internet of Things (IIoT) connectivity, enabling seamless integration with MES (Manufacturing Execution Systems) and ERP (Enterprise Resource Planning) platforms. Real-time test data, equipment performance metrics, and maintenance alerts will be transmitted to cloud-based dashboards, allowing for remote monitoring, predictive maintenance, and process optimization. This interoperability will enable manufacturers to achieve end-to-end traceability of glass components, from raw material to finished product.7. ConclusionThe Air-Floating Inclined Glass Breaking Table represents a paradigm shift in glass processing and testing, combining non-contact air suspension, precise hydraulic tilting, and pneumatic fracture control to deliver unmatched precision, versatility, and efficiency. Its ability to protect glass surfaces, ensure repeatable test results, and accommodate diverse industry needs has made it an indispensable tool in FPD, PV, architectural, and automotive glass manufacturing. As technology advances, the integration of smart sensing, AI, and IIoT connectivity will further enhance the AFIGBT’s capabilities, driving innovation in glass processing and supporting the growth of high-precision manufacturing industries worldwide. By adhering to international standards and prioritizing sustainability, the AFIGBT is poised to remain a cornerstone of modern glass production, enabling manufacturers to meet the evolving demands of quality, efficiency, and environmental responsibility.

Glass Edging and Polishing Machines: Technological Evolution, Industrial Applications, and Future Trajectories

1. Introduction

Glass edging and polishing machines stand as indispensable pillars of modern glass manufacturing and processing industries, serving as the critical link between raw glass sheets and finished products that meet stringent safety, aesthetic, and functional standards. These specialized pieces of equipment transform the sharp, irregular edges of cut glass—marred by microcracks and structural inconsistencies—into smooth, precise, and visually refined surfaces through a series of controlled grinding, polishing, and finishing operations. As global demand for high-quality glass products surges across architectural, automotive, electronic, and renewable energy sectors, the role of glass edging and polishing machines has evolved from mere finishing tools to integral components of automated production lines, driving efficiency, precision, and innovation in the industry. This article provides a comprehensive analysis of the technological principles, product classifications, industrial applications, market dynamics, and future trends shaping the development of glass edging and polishing machines.

2. Core Technological Principles and Operational Mechanisms

2.1 Fundamental Processing Principles

At its essence, the operation of glass edging and polishing machines revolves around two primary objectives: eliminating structural vulnerabilities in glass edges and enhancing their surface quality. The processing workflow typically unfolds in three sequential stages—rough grinding, fine grinding, and polishing—each tailored to address specific defects and achieve desired outcomes.

Rough grinding constitutes the initial phase, where diamond-impregnated grinding wheels with coarse grit sizes (e.g., 80-mesh diamond wheels) remove excess material, sharp burrs, and microcracks generated during glass cutting. This stage primarily relies on brittle fracture mechanics, as the sharp edges of diamond particles initiate and propagate cracks in the glass matrix, resulting in the formation of debris that is efficiently cleared by cooling systems. The key technical challenge here is balancing material removal rate with structural integrity, as excessive grinding force can induce new cracks or edge chipping.

Fine grinding follows, employing medium-grit abrasive tools (e.g., 140–240-mesh resin-bonded wheels) to refine the edge profile, reduce surface roughness, and correct dimensional deviations. Unlike rough grinding, this stage involves a combination of brittle fracture and ductile deformation, with the grinding temperature rising to 500–800°C in the contact zone. This temperature elevation softens the glass surface, enabling a more uniform material removal process and minimizing the formation of new defects.

Polishing, the final stage, achieves the desired surface finish and luster using ultra-fine abrasives or polishing media (e.g., wool polishing wheels, cerium oxide slurries). The objective here is to eliminate residual scratches from previous grinding stages and achieve a surface roughness (Ra) of less than 0.2μm, often matching the optical clarity of the glass substrate itself. Modern polishing processes may incorporate chemical-mechanical polishing (CMP) techniques, where the synergistic action of chemical etching and mechanical abrasion yields superior surface quality while reducing processing time.

A critical aspect of all three stages is thermal management. Grinding and polishing generate significant heat—with localized temperatures at the abrasive-tool interface reaching up to 1000°C—which can cause glass edge burn, thermal cracking, or structural weakening. To mitigate these risks, glass edging and polishing machines are equipped with high-pressure water cooling systems that circulate coolant across the grinding zone, dissipating heat, flushing away debris, and lubricating the abrasive-tool interface. Advanced systems may also integrate temperature sensors and adaptive cooling controls to maintain optimal processing temperatures in real time.

2.2 Key Technical Components and Their Functions

Modern glass edging and polishing machines are sophisticated assemblies of mechanical, electrical, and control systems, each component contributing to precision, efficiency, and reliability.

The grinding head assembly serves as the core functional unit, comprising multiple grinding and polishing spindles arranged in a sequential configuration. For example, the TJM9 series linear multi-stage edging machine features nine spindles—including five stage-edge grinding heads, two front chamfering heads, and two rear chamfering heads—each dedicated to a specific processing task. These spindles are equipped with high-power motors (ranging from 1.5kW to 2.2kW) operating at variable speeds (1400–2840rpm), enabling precise control over material removal rates. The grinding heads are typically mounted on servo-driven linear guides, allowing for automated adjustments of edge angles (0°–60° for stage edges, 45° for chamfers), edge widths (up to 30mm), and residual thickness, ensuring versatility across different glass processing requirements.

The glass conveying system is responsible for transporting glass sheets through the processing zone with minimal friction and positional deviation. Advanced systems utilize reinforced synchronous belts to address the challenge of slipping when handling heavy glass panels, supporting loads of up to 200kg while maintaining stable conveying speeds (1.2–6.2m/min). The conveying path is often equipped with adjustable guide rails and vacuum suction cups to secure the glass and prevent lateral movement during processing, ensuring dimensional accuracy.

The control system has evolved significantly with the integration of digital and intelligent technologies. Modern machines feature CNC (Computer Numerical Control) systems with user-friendly HMI (Human-Machine Interface) panels, enabling operators to program and store processing parameters for different glass types, thicknesses (4–25mm for standard machines, 0.5–3mm for ultra-thin glass applications), and edge profiles. High-end models incorporate vision positioning systems and laser measurement sensors that perform real-time edge detection and dimensional verification, with feedback loops that automatically adjust processing parameters to compensate for deviations. Some advanced systems also leverage AI algorithms to optimize grinding parameters based on historical data, reducing processing time by up to 40% and lowering material waste rates to below 0.8%.

Auxiliary components include waterproof and debris management systems—such as double-layer brush waterproof structures and quick-change brush holders—to prevent coolant leakage and facilitate maintenance. The machine frame is constructed from high-strength steel to minimize vibration during high-speed operation, ensuring structural stability and processing precision. For large-scale production lines, automated loading and unloading systems (e.g., robotic arms, conveyor integration) may be incorporated to streamline workflow and reduce labor requirements.

3. Classification of Glass Edging and Polishing Machines

Glass edging and polishing machines are classified along multiple dimensions based on processing capabilities, automation levels, and application scenarios, reflecting the diverse needs of the glass processing industry.

3.1 Classification by Processing Form



Linear Edging Machines: Designed for processing straight edges of flat glass sheets, these machines are widely used in architectural glass, furniture glass, and solar panel manufacturing. Linear machines can be further categorized into single-edge, double-edge, and multi-stage models. Double-edge machines process both longitudinal edges simultaneously, improving efficiency for high-volume production, while multi-stage models (e.g., the TJM9 series) integrate rough grinding, fine grinding, chamfering, and polishing in a single pass, enabling continuous processing of same-thickness glass sheets. Linear machines are characterized by their high processing speed and dimensional accuracy, making them ideal for large-scale production of standard glass products.



Inner/Outer Circle Edging Machines: Specialized for processing curved edges of circular, oval, or irregularly shaped glass, these machines are used in applications such as automotive glass (windshields, side windows), decorative glass, and optical components. Inner circle machines focus on grinding the inner diameter of hollow glass parts, while outer circle machines process the outer perimeter. Advanced models can handle complex curved profiles with high precision, leveraging CNC control to follow programmed paths with tolerances of ±0.03mm. The market for inner/outer circle machines is growing rapidly, driven by demand from the automotive and renewable energy sectors, with a projected compound annual growth rate (CAGR) of 17% for combined models.



Special-Shaped Edging Machines: Engineered to process non-linear, complex edge profiles (e.g., bevels, arcs, notches), these machines are used in high-end architectural glass, decorative glassware, and electronic device screens. They combine the capabilities of linear and circular edging machines, with multi-axis servo systems that enable precise control over edge geometry. Special-shaped machines often incorporate 3D scanning and modeling capabilities to process custom-designed profiles, catering to the growing demand for personalized glass products.




3.2 Classification by Automation Level



Manual/ Semi-Automatic Machines: These machines require significant operator intervention for glass loading, positioning, and parameter adjustment. Manual machines are typically small bench-top units suitable for small-scale workshops, custom projects, or low-volume production. Semi-automatic machines automate certain functions (e.g., conveying, grinding head adjustment) but still require operator oversight for quality control. While these machines have lower upfront costs, they are limited by lower processing speeds and higher labor requirements, making them less suitable for large-scale production. Semi-automatic machines maintain a 33% share of the 存量 market, primarily among small and medium-sized glass processing enterprises.



Fully Automatic Machines: These machines integrate automated loading, processing, inspection, and unloading, enabling continuous, high-volume production with minimal human intervention. Fully automatic machines are equipped with advanced control systems, vision sensors, and robotic integration, ensuring consistent processing quality and high efficiency. They are widely used in large glass manufacturing facilities serving the architectural, automotive, and electronic industries. The market share of fully automatic machines has exceeded 61%, with growth driven by the need for scalability and cost reduction in mass production. High-end fully automatic models may feature six-axis robotic arms for handling complex glass shapes and sizes, with a 稼动率 (equipment utilization rate) of up to 92%.



Intelligent/Connected Machines: Representing the cutting edge of technological advancement, these machines incorporate IoT (Internet of Things) connectivity, cloud computing, and AI-driven optimization. They can be remotely monitored and controlled, with predictive maintenance systems that detect potential component failures before they occur, reducing downtime by up to 30%. Intelligent machines also enable data collection and analysis, providing insights into processing efficiency, material usage, and quality trends. Some models feature digital twin technology, creating virtual replicas of the machine and processing process to simulate and optimize performance before physical implementation. The adoption of intelligent machines is accelerating, with 45% of new installations featuring IoT modules and 31% of high-end models utilizing linear motor drives for enhanced positioning precision.




3.3 Classification by Processing Thickness



Ultra-Thin Glass Edging Machines: Specialized for processing glass sheets with thicknesses of 0.5–3mm, these machines are used in electronic applications such as smartphone screens, tablet displays, and Mini LED backlight panels. Ultra-thin glass is highly fragile, requiring precise control over grinding forces and conveying pressure to avoid breakage. These machines feature low-torque spindles, soft-touch conveying systems, and high-precision vision alignment, ensuring edge quality without compromising structural integrity. The market for ultra-thin glass edging machines is growing rapidly, with a 29% year-on-year increase in shipments in 2023, driven by the expansion of the consumer electronics industry.



Medium-Thickness Glass Edging Machines: Designed for glass sheets of 5–12mm thickness, these are the most widely used machines, catering to architectural glass (windows, partitions), furniture glass, and general-purpose applications. They balance processing speed and precision, with standard models offering edge angle adjustments and multi-stage grinding/polishing capabilities. The market for medium-thickness machines is stable, with annual shipments of approximately 4200 units, supported by consistent demand from the construction and furniture industries.



Thick Glass Edging Machines: Specialized for glass sheets of 15–25mm (or thicker) used in applications such as glass doors, curtain walls, and bulletproof glass. These machines require high-power grinding heads and reinforced conveying systems to handle the increased weight and material resistance. They often feature multi-pass grinding sequences to ensure complete removal of microcracks and achieve the required edge strength. The demand for thick glass edging machines is closely tied to the construction of high-rise buildings and luxury properties, with significant growth in regions such as the Middle East and Southeast Asia.




4. Industrial Applications and Market Impact

Glass edging and polishing machines play a pivotal role in multiple industries, enabling the production of safe, durable, and aesthetically pleasing glass products. Their applications span architectural, automotive, electronic, renewable energy, and decorative sectors, each with unique processing requirements that drive innovation in machine design.

4.1 Architectural Glass Industry

The architectural glass sector represents the largest application market for edging and polishing machines, accounting for approximately 56.7% of total demand. Architectural glass—used in windows, curtain walls, interior partitions, and glass facades—requires edges that are both safe (free of sharpness) and visually consistent. In regions with strict building codes (e.g., North America, Europe), polished edges are a mandatory requirement to minimize injury risks during installation and use. High-end skyscrapers and luxury buildings often specify beveled or polished edges to enhance the aesthetic appeal of glass facades.

Linear multi-stage edging machines are the workhorses of architectural glass production, capable of processing large glass sheets (up to 3200×2200mm for solar-integrated facades) with high throughput. The integration of automated systems has significantly reduced labor costs and turnaround times, with some production lines achieving continuous processing of up to 6.2m/min. The growth of green building initiatives and building-integrated photovoltaics (BIPV) has spurred demand for specialized edging machines capable of processing curved and textured glass used in energy-efficient facades. It is projected that by 2030, the BIPV segment will drive a 15.8% share of the glass edging machine market, with a corresponding market size of 19 billion yuan.

4.2 Automotive Glass Industry

The automotive glass industry demands the highest levels of precision and durability, as glass components (windshields, side windows, rear windows, sunroofs) must withstand mechanical stress, temperature fluctuations, and impact. Edging and polishing machines used in this sector are specialized to process complex curved profiles and ensure tight dimensional tolerances (±0.03mm) to fit seamlessly with vehicle frames.

Automotive glass edging involves multiple steps, including rough grinding to remove cutting defects, fine grinding to refine the edge profile, and polishing to enhance durability. Chamfering is a critical process, as it eliminates sharp edges that could propagate cracks under impact. The rise of electric vehicles (EVs) and autonomous driving technologies has further driven innovation, with demand for large-format curved glass (e.g., panoramic sunroofs, integrated display screens) requiring multi-axis edging machines with 3D processing capabilities. Additionally, the use of lightweight, high-strength glass (e.g., lithium-aluminum-silicon glass) in EVs has necessitated the development of adaptive grinding systems that adjust parameters based on material properties. The automotive glass segment is expected to account for 18% of the glass edging machine market by 2030, with a CAGR of 8.9% driven by global EV adoption.

4.3 Electronic Glass Industry

The electronic glass industry—encompassing smartphone screens, tablet displays, laptop panels, and TV screens—relies on ultra-precise edging and polishing machines to process ultra-thin glass (0.5–3mm) with minimal material loss. Electronic glass edges must be smooth and free of microcracks to prevent breakage during device assembly and use, while also meeting strict flatness requirements to ensure optimal display performance.

Specialized ultra-thin glass edging machines are equipped with soft-touch conveying systems, low-force grinding heads, and high-resolution vision sensors to achieve surface roughness (Ra) below 0.2μm. The growth of 8K ultra-high-definition displays, Mini LED, and Micro LED technologies has increased demand for machines capable of processing large-format glass substrates (e.g., 8th-generation glass sheets) with ultra-fine edge profiles. Domestic manufacturers in China have made significant strides in this segment, with their market share in 8K display glass processing equipment rising from 28% in 2020 to 47% in 2023, driven by advancements in six-axis 联动 control systems. The electronic glass segment is projected to become the second-largest application market by 2030, accounting for 32% of total demand.

4.4 Renewable Energy (Solar Glass) Industry

The solar energy industry has emerged as a key growth driver for glass edging and polishing machines, with solar panels requiring high-transmittance glass covers with durable, weather-resistant edges. Solar glass edging primarily involves grinding to remove sharp corners and microcracks, improving structural integrity and longevity in outdoor environments. Most solar glass applications require rounded edges, which are typically processed using double-sided circular edging production lines that integrate rough grinding, fine grinding, and safety chamfering in a single pass.

The rapid expansion of solar energy capacity globally—particularly in regions such as Southeast Asia, the Middle East, and Latin America—has fueled demand for high-throughput solar glass edging machines. These machines are designed to process large glass sheets (up to 3200×2200mm) used in utility-scale solar farms, with processing speeds optimized to meet the high-volume production requirements of solar panel manufacturers. In 2023, shipments of solar-specific edging machines increased by 65% year-on-year, reflecting the strong growth of the solar energy industry. With the global push for carbon neutrality, this segment is expected to maintain robust growth, supported by policy incentives and declining solar panel costs.

5. Market Dynamics and Competitive Landscape

5.1 Global and Regional Market Overview

The global glass edging and polishing machine market has experienced steady growth in recent years, driven by urbanization, industrialization, and technological advancements. According to industry reports, the Chinese market—one of the largest globally—reached a size of 38.6 billion yuan in 2022 and is projected to exceed 52 billion yuan by 2025, representing a CAGR of 10.3%. The global market is expected to reach a value of 120 billion yuan by 2030, with a CAGR of 8.5–9.2% during the forecast period.

Regionally, the market is characterized by significant concentration in East Asia (China, Japan, South Korea), Europe (Germany, Italy, Spain), and North America (the United States, Canada). China dominates global production, accounting for over 58% of the world’s glass edging machine output, with domestic manufacturers such as North Glass and Luoyang North Glass leading the way. The Chinese market is further segmented by regional industrial clusters, with the Yangtze River Delta and Pearl River Delta regions contributing 72% of national 产能，supported by robust demand from the construction and electronics industries. The central and western regions of China are emerging as growth hubs, with 产能 expanding at a rate of 15.6% due to government subsidies for new energy industrial parks.

Overseas markets are also growing, with Chinese exports of glass edging machines exceeding 4.3 billion US dollars in 2022, a year-on-year increase of 21.7%. Southeast Asia is the largest export destination, accounting for 39% of total exports, followed by the Middle East (with demand surging by 62% due to smart city initiatives) and Europe. However, international trade faces challenges from evolving regulatory barriers, such as the EU’s CE certification 新规 that tightened noise standards from 85dB (A) to 78dB (A), forcing manufacturers to invest in acoustic simulation and noise reduction technologies.

5.2 Competitive Landscape and Key Players

The global glass edging and polishing machine market is highly competitive, with a mix of established international brands and rapidly growing domestic manufacturers. The competitive landscape is characterized by two distinct trends: 进口替代 in the high-end segment and price competition in the mid-range segment.

International brands such as Germany’s Bystronic and Austria’s Lisec have long dominated the high-end market, known for their precision, reliability, and advanced technology. These companies have traditionally held a strong position in industries such as automotive and high-end architectural glass, leveraging their expertise in CNC control and automation. However, in recent years, domestic manufacturers in China have made significant strides in technological innovation, narrowing the gap with international brands. For example, North Glass and Luoyang North Glass have developed six-axis 联动 control systems that achieve processing precision of ±0.03mm, enabling them to replace imported equipment in some high-end applications. As a result, the market share of domestic equipment in China has risen to 58%, with further growth expected in the coming years.

To counter the rise of domestic competitors, international brands have adopted localization strategies, such as establishing production facilities in China and adjusting their pricing. For instance, Lisec reduced the price of its mid-range models by 18% to penetrate second- and third-tier cities in China. In the mid-range market, domestic manufacturers face intense price competition, with product prices ranging from 280,000 to 450,000 yuan per unit, leading to a compression of average profit margins to 12.8%. To differentiate themselves, some domestic manufacturers are focusing on niche markets, such as ultra-thin glass edging or special-shaped glass processing, where they can leverage their agility and cost advantages.

The competitive landscape is also shaped by technological innovation and R&D investment. Key players are focusing on developing intelligent, energy-efficient machines to meet the growing demand for sustainable manufacturing. For example, the adoption of fifth-generation servo drive systems has reduced energy consumption by 25%, with single-unit annual power consumption dropping from 35,000 kWh to 26,000 kWh. Manufacturers are also investing in green technologies, such as dry grinding systems that eliminate the need for cooling water and reduce environmental impact. The market share of dry grinding machines is expected to reach 39% by 2025, up from 22% in 2022.

6. Technological Advancements and Innovation Trends

The glass edging and polishing machine industry is undergoing a period of rapid technological transformation, driven by advancements in automation, digitization, materials science, and sustainability. These innovations are reshaping the capabilities of machines, enabling higher precision, efficiency, and versatility while reducing environmental impact.

6.1 Intelligent and Automated Technologies

Intelligence and automation are the most significant trends in the industry, with machines becoming increasingly integrated with digital technologies. The adoption of IoT (Internet of Things) modules has enabled remote monitoring and management of machines, with 58% of new installations featuring cloud connectivity. This allows operators to track processing parameters, monitor machine health, and receive real-time alerts for maintenance or troubleshooting, reducing downtime by up to 30%. Remote diagnostic systems have also become common, enabling technical support teams to resolve issues without on-site visits, improving service efficiency.

AI and machine learning are being applied to optimize processing parameters and improve quality control. AI algorithms analyze historical processing data to identify optimal grinding speeds, pressures, and abrasive tool selections for different glass types and thicknesses, reducing processing time by 40% and material waste to below 0.8%. Vision-based quality inspection systems—equipped with high-resolution cameras and image recognition software—perform 100% inspection of finished edges, detecting defects such as microcracks, scratches, and dimensional deviations with accuracy rates exceeding 99%. These systems can automatically reject defective products or trigger adjustments to processing parameters, ensuring consistent quality.

The integration of robotics is another key advancement, particularly in high-volume production lines. Six-axis robotic arms are used for automated loading and unloading of glass sheets, reducing labor requirements and minimizing the risk of damage during handling. Some advanced systems feature collaborative robots (cobots) that work alongside human operators, performing repetitive tasks such as tool changing or quality inspection. The use of robotics has also enabled the processing of complex-shaped glass products that were previously difficult to handle manually.

6.2 Precision and Multi-Functionalization

The demand for higher precision in glass processing has driven advancements in machine design and component technology. Linear motor drives have replaced traditional ball screw systems in high-end machines, improving positioning accuracy by 0.8 orders of magnitude and enabling processing tolerances of ±0.01mm. This level of precision is critical for applications such as electronic glass and automotive display screens, where even minor dimensional deviations can affect performance.

Multi-functionalization is another key trend, with machines designed to perform multiple processing tasks in a single pass. For example, modern linear multi-stage edging machines integrate rough grinding, fine grinding, chamfering, and polishing, eliminating the need for multiple machines and reducing production time. Some advanced models can also process multiple edge profiles (e.g., straight edges, bevels, arcs) without retooling, enhancing versatility and reducing setup time. The development of hybrid machines that combine edging, polishing, and drilling capabilities is also emerging, catering to the needs of specialized applications such as architectural glass with integrated hardware.

6.3 Sustainable and Energy-Efficient Technologies

Sustainability has become a key focus in the industry, driven by global efforts to reduce carbon emissions and comply with environmental regulations. The Chinese government’s “Dual Carbon” policy and the EU’s Green Deal have set strict targets for energy efficiency and emissions reduction, pushing manufacturers to develop more sustainable machines.

Energy efficiency has been improved through the use of high-efficiency motors, variable frequency drives (VFDs), and optimized hydraulic and pneumatic systems. Fifth-generation servo motors reduce energy consumption by 25% compared to previous models, while VFDs adjust motor speeds based on processing requirements, avoiding unnecessary energy use. Some machines also feature regenerative braking systems that capture and reuse energy during deceleration, further reducing power consumption.

The development of dry grinding technology is a significant advancement in sustainability. Traditional wet grinding systems use large amounts of water (up to 100 liters per minute) for cooling and debris removal, generating wastewater that requires treatment. Dry grinding systems—equipped with dust collection and filtration systems—eliminate the need for water, reducing environmental impact and operational costs. These systems use advanced abrasive tools that generate less heat, minimizing the risk of glass damage, and are increasingly being adopted in regions with water scarcity or strict wastewater regulations. The market share of dry grinding machines is expected to grow from 22% in 2022 to 39% in 2025.

Waste reduction is another focus area, with machines designed to minimize material loss during processing. Precision cutting and grinding technologies reduce glass waste rates to below 0.8%, while abrasive tool recycling programs are being implemented to reduce landfill waste. Some manufacturers also offer equipment remanufacturing services, extending the lifecycle of machines and reducing the environmental impact of new production.

7. Challenges and Future Outlook

7.1 Current Industry Challenges

Despite significant advancements, the glass edging and polishing machine industry faces several challenges that could impact growth and innovation.

Technological barriers remain a key challenge, particularly in the high-end segment. Developing machines with ultra-precision (±0.01mm) and multi-functional capabilities requires advanced materials, precision manufacturing, and sophisticated control systems, which are difficult to master. Core components such as high-precision spindles, linear guides, and servo motors are still dominated by international suppliers, leading to dependence on imports and higher costs for domestic manufacturers. Closing the technological gap with international brands will require sustained R&D investment and collaboration between industry, academia, and research institutions.

Regulatory and trade barriers are also becoming more complex. As countries implement stricter environmental, safety, and quality standards, manufacturers must invest in compliance, which can increase production costs. For example, the EU’s new CE certification requirements for noise and emissions have forced manufacturers to redesign machines and conduct additional testing. International trade tensions and tariffs also pose risks, particularly for exporters, as they can increase costs and limit market access.

Talent shortages are a growing concern, with the industry facing a lack of skilled operators, engineers, and technicians. The integration of digital and intelligent technologies requires workers with expertise in CNC programming, IoT, AI, and robotics, which are in short supply. This skills gap can limit the adoption of advanced machines and affect operational efficiency. Addressing this challenge will require investment in vocational training programs and collaboration with educational institutions to develop specialized curricula.

7.2 Future Outlook and Development Trends

Despite these challenges, the future of the glass edging and polishing machine industry is promising, with several key trends expected to drive growth and innovation in the coming years.

Continued 智能化 and digitization will be the primary driver of growth, with machines becoming increasingly connected, autonomous, and data-driven. By 2028, it is projected that 90% of new machines will feature AI-driven process optimization, and 75% will be equipped with predictive maintenance systems. The integration of digital twin technology will enable manufacturers to simulate and optimize production processes before physical implementation, reducing time-to-market and improving product quality. The use of 5G technology will further enhance connectivity, enabling real-time data transmission and remote control with minimal latency.

Expansion of application areas will open new growth opportunities. The rise of emerging technologies such as 3D printing of glass, smart glass (e.g., electrochromic glass, self-cleaning glass), and quantum dot displays will create demand for specialized edging and polishing machines. For example, smart glass requires precise edge processing to integrate electronic components, while 3D-printed glass parts need complex curved edge finishing. The automotive industry’s shift toward electric and autonomous vehicles will drive demand for large-format curved glass and integrated display screens, requiring multi-axis edging machines with advanced 3D processing capabilities.

Sustainability will become a competitive advantage, with manufacturers focusing on developing energy-efficient, low-emission, and circular machines. The adoption of renewable energy sources (e.g., solar panels) to power machines, the use of biodegradable lubricants, and the implementation of closed-loop water systems will become more common. Governments and customers are increasingly prioritizing sustainable products, creating market opportunities for manufacturers that can demonstrate environmental leadership.

Global market expansion will continue, with emerging economies in Southeast Asia, Africa, and Latin America becoming key growth markets. Urbanization, industrialization, and the expansion of the construction and automotive industries in these regions will drive demand for glass edging and polishing machines. Domestic manufacturers in China and other major producers will continue to expand their global footprint through exports, joint ventures, and local production facilities, leveraging their cost advantages and technological capabilities.

8. Conclusion

Glass edging and polishing machines are essential components of the modern glass manufacturing ecosystem, enabling the production of safe, precise, and aesthetically pleasing glass products for a wide range of industries. From architectural facades to electronic displays, automotive windshields to solar panels, these machines play a critical role in shaping the functionality and appearance of glass, driving innovation and growth across sectors.

The industry has undergone significant transformation in recent years, with technological advancements in automation, digitization, and sustainability reshaping machine capabilities and market dynamics. Intelligent machines with AI-driven optimization, IoT connectivity, and robotic integration have improved precision, efficiency, and reliability, while sustainable technologies such as dry grinding and energy-efficient systems have reduced environmental impact. Domestic manufacturers have emerged as key players, challenging the dominance of international brands through technological innovation and cost competitiveness.

Looking ahead, the industry is poised for continued growth, driven by urbanization, industrialization, and the expansion of emerging technologies. The increasing demand for high-precision, multi-functional, and sustainable machines will drive R&D investment and innovation, while emerging markets will provide new growth opportunities. However, the industry must address challenges such as technological barriers, regulatory compliance, and talent shortages to realize its full potential.

In conclusion, glass edging and polishing machines will remain a critical enabler of the global glass industry, with their evolution closely tied to advancements in technology, changes in market demand, and global efforts toward sustainability. As the industry continues to innovate and adapt, these machines will play an increasingly important role in shaping the future of architecture, transportation, electronics, and renewable energy, contributing to a more efficient, sustainable, and connected world.





This article provides a holistic view of glass edging/polishing machines, integrating technical details, market data, and future trends. If you need to emphasize specific aspects—such as regional market analysis, technical comparisons of leading brands, or case studies of industrial applications—I can expand those sections with additional research. You may also request adjustments to the depth of technical content or focus on a particular industry segment (e.g., electronic glass processing) for more targeted insights.

Glass Tempering Furnace: Principles, Technology, Applications and Industrial Development

Abstract

Glass tempering furnace, as a core thermal processing equipment in the modern glass deep-processing industry, plays an irreplaceable role in transforming ordinary float glass, sheet glass and other flat glass products into tempered glass with high mechanical strength, thermal stability and safety performance. This paper systematically elaborates on the fundamental working principles, structural composition, classification characteristics, processing technology, application scenarios, performance advantages and existing challenges of glass tempering furnaces. Combined with the latest technological innovations and market development trends in the global glass industry, it also prospects the future development direction of glass tempering furnace equipment, aiming to provide a comprehensive and in-depth reference for industrial practitioners, engineering technicians and relevant research scholars.

1. Introduction

With the rapid advancement of global construction, automotive, home appliance, electronic information and new energy industries, the demand for high-performance safety glass has shown a sustained growth trend. Tempered glass, known as "safety glass", has become one of the most widely used functional glass products in modern industrial and civil fields due to its outstanding characteristics such as 3-5 times higher impact resistance than ordinary glass, excellent thermal shock resistance, and harmless small granular fragments when broken. The core equipment for achieving the glass tempering process is the glass tempering furnace, which integrates multiple disciplines including mechanical engineering, thermal engineering, automation control, material science and electrical engineering.

Since the birth of the first industrialized glass tempering furnace in the mid-20th century, the equipment has undergone continuous technological iteration and structural optimization. From the initial vertical tempering furnaces to the widely used horizontal convection tempering furnaces today, and from the single small-scale processing equipment to the large-scale, intelligent, energy-saving and high-efficiency production lines, glass tempering furnaces have gradually evolved into a highly specialized and standardized industrial equipment category. In the global glass deep-processing industry chain, the performance level of glass tempering furnaces directly determines the quality, production efficiency and cost control of tempered glass products, and is a key link that affects the core competitiveness of glass processing enterprises. This paper will conduct an all-round and multi-angle analysis of glass tempering furnaces, starting from their basic theoretical basis, and extending to practical applications and future development.

2. Fundamental Principles of Glass Tempering

Before analyzing the structure and working process of glass tempering furnaces, it is essential to clarify the physical and chemical principles behind the glass tempering process, which is the theoretical cornerstone for the design and operation of glass tempering furnaces. Glass tempering, also referred to as glass toughening, is a physical heat treatment method that changes the internal stress state and mechanical properties of glass without altering its chemical composition.

2.1 Thermal Tempering Principle

The vast majority of commercial glass tempering furnaces adopt the thermal tempering process, whose core principle is based on the rapid cooling of heated glass to form a uniform compressive stress layer on the surface and a tensile stress layer inside the glass. Specifically, ordinary flat glass is heated in a tempering furnace to a temperature close to its softening point (generally between 600°C and 650°C, varying slightly with glass composition and thickness), at which the glass internal molecular structure is in a state of high activity and the internal stress is completely eliminated. Subsequently, the heated glass is quickly transferred to the cooling zone of the tempering furnace, where high-speed and uniform cold air is blown onto both sides of the glass surface through a specially designed air grid system.

Due to the rapid cooling rate, the glass surface layer solidifies and contracts first, forming a rigid compressive stress layer, while the internal glass is still in a high-temperature plastic state and continues to cool and contract. As the internal glass gradually cools to room temperature, its shrinkage is constrained by the already solidified surface layer, resulting in a stable tensile stress inside the glass and a compressive stress on the surface. This stress distribution endows tempered glass with exceptional mechanical properties: when subjected to external impact or bending force, the surface compressive stress can offset most of the external tensile stress, significantly improving the glass's impact resistance and bending strength. Moreover, when the tempered glass is broken by an external force exceeding its bearing limit, the internal tensile stress is released instantaneously, causing the glass to break into numerous small obtuse-angle particles, avoiding sharp fragments that cause harm to the human body, thus achieving the safety performance of tempered glass.

2.2 Chemical Tempering Principle

In addition to thermal tempering, a small number of special glass tempering furnaces adopt the chemical tempering process, which is mainly applicable to thin glass (thickness <3mm) and special-shaped glass products that are not suitable for thermal tempering. The chemical tempering principle is to immerse the preheated glass in a molten salt bath containing alkali metal ions with a larger ionic radius at a temperature lower than the glass transition temperature, and realize the ion exchange between the glass surface and the molten salt through the diffusion of alkali metal ions in the glass network structure. For example, sodium ions (Na⁺) on the glass surface are replaced by potassium ions (K⁺) with a larger radius in the molten salt. The volume expansion caused by ion substitution forms a compressive stress layer on the glass surface, thereby improving the mechanical strength and thermal stability of the glass. Although chemical tempering has advantages in processing thin glass, its production cycle is long, the cost is high, and the compressive stress layer is relatively thin, so it is only used in specific industrial fields, and thermal tempering furnaces still dominate the mainstream market.

3. Structural Composition of Glass Tempering Furnace

A complete glass tempering furnace is a complex integrated system composed of multiple functional modules, each module cooperating closely to complete the continuous and stable tempering processing of glass. The typical horizontal glass tempering furnace, which is the most widely used in the industry, mainly includes the feeding system, heating furnace body, conveying system, cooling system, control system and auxiliary systems such as exhaust and dust removal. Each part has a clear functional positioning and precise design requirements.

3.1 Feeding System

The feeding system is the starting end of the glass tempering furnace, responsible for stably and accurately sending the original glass sheets to be processed into the heating furnace. It mainly consists of a loading table, a sheet separating device, a positioning mechanism and a conveying roller table. For automated production lines, the feeding system is often equipped with a robotic arm loading system, which can realize automatic sorting, positioning and feeding of glass sheets, reducing manual labor and improving production efficiency. The positioning mechanism ensures that each glass sheet enters the heating furnace at a fixed position and angle, avoiding deflection or overlapping that affects the heating uniformity. For large-format glass, the feeding system is designed with anti-deformation support structures to prevent the glass from bending or breaking during the feeding process due to its own weight.

3.2 Heating Furnace Body

The heating furnace body is the core component of the glass tempering furnace, where the glass is heated to the specified tempering temperature, and its performance directly determines the heating efficiency and temperature uniformity of the glass. The heating furnace body is generally a sealed box structure, composed of a furnace shell, a thermal insulation layer, a heating element, a temperature sensor and a furnace inner cavity.

The furnace shell is usually made of high-strength steel plates, with good structural rigidity to ensure the stability of the furnace body during long-term operation. The thermal insulation layer is filled with high-temperature resistant thermal insulation materials such as aluminum silicate fiber and ceramic fiber, which can effectively reduce heat loss, reduce energy consumption and ensure the temperature stability of the furnace inner cavity. The heating element is the heat source of the furnace body, mainly including resistance heating wires, ceramic heating plates and infrared radiation heating tubes. According to different heating methods, it can be divided into radiation heating and convection heating. Traditional tempering furnaces mainly adopt radiation heating, which relies on the infrared radiation emitted by the heating element to heat the glass; modern high-efficiency tempering furnaces add a forced convection system, which circulates the high-temperature gas in the furnace through a convection fan to achieve uniform heating of the glass surface, especially suitable for low-e coated glass and other coated glass products that are sensitive to temperature differences.

Temperature sensors (such as thermocouples) are evenly arranged in the furnace body to collect real-time temperature data of different zones in the furnace, and feed back to the control system to realize closed-loop control of the furnace temperature, ensuring that the temperature difference in the effective heating area is controlled within ±2°C, which is a prerequisite for ensuring the quality of tempered glass. In addition, the heating furnace body is divided into multiple independent temperature control zones according to the length and width, and the temperature of each zone can be adjusted independently to adapt to the heating requirements of glass with different thicknesses and sizes.

3.3 Conveying System

The conveying system runs through the entire glass tempering furnace, responsible for transporting the glass through the feeding area, heating area and cooling area at a controllable speed. It mainly adopts a ceramic roller conveying structure, because ceramic rollers have excellent high-temperature resistance, low thermal expansion coefficient and smooth surface, which will not scratch the glass surface and can maintain stable conveying performance at high temperatures up to 700°C.

The ceramic rollers are driven by a motor and a transmission system (such as a chain or a synchronous belt), and the conveying speed can be adjusted steplessly through the control system. For glass with different thicknesses, the conveying speed in the heating zone and the cooling zone is precisely matched: thicker glass requires a slower conveying speed in the heating zone to ensure sufficient heating time, while thinner glass needs a faster conveying speed to avoid overheating. In addition, the conveying system of high-end tempering furnaces is equipped with a roller speed synchronization control device to ensure that the glass is always in a horizontal and stable state during the conveying process, avoiding deflection or warping caused by inconsistent roller speeds.

3.4 Cooling System

The cooling system is the key module to realize the rapid cooling of the heated glass and form the internal stress of tempered glass, which is composed of an air compressor, an air storage tank, an air grid assembly and an air volume adjustment device. The air grid is the core component of the cooling system, which is divided into upper and lower air grids, arranged symmetrically on the upper and lower sides of the glass conveying path. The surface of the air grid is densely distributed with specially designed air nozzles, which can spray high-pressure and uniform cold air onto the glass surface.

The cooling system of a high-performance glass tempering furnace can realize stepless adjustment of air volume, air pressure and cooling speed according to the thickness, size and type of glass. For example, thick glass requires a relatively gentle cooling rate to avoid excessive temperature stress causing glass bursting, while thin glass needs a higher cooling rate to ensure the formation of effective compressive stress. In addition, the cooling system is equipped with an air circulation and filtration device, which can recycle the cold air after heat exchange, reduce the load of the air compressor and achieve energy saving. The uniformity of the air grid air supply is a key indicator to measure the performance of the cooling system, and uneven air supply will lead to uneven stress distribution of the tempered glass, resulting in quality problems such as glass warping, self-explosion and poor strength.

3.5 Automatic Control System

The automatic control system is the "brain" of the glass tempering furnace, integrating programmable logic controller (PLC), human-machine interface (HMI), temperature control module, speed control module and safety protection module. The control system realizes the automatic operation of the entire tempering process by presetting process parameters for different types of glass.

Operators only need to input glass parameters such as thickness, size and type on the human-machine interface, and the system will automatically match the optimal heating temperature, heating time, conveying speed, cooling air volume and other process parameters. The control system has functions such as real-time data monitoring, fault alarm, parameter storage and historical data query. It can monitor the operating status of each module of the furnace body in real time, and issue an alarm and take protective measures in time when abnormal conditions such as temperature overrun, roller jam, and air pressure abnormality occur. In addition, the intelligent control system of modern glass tempering furnaces is equipped with a network communication interface, which can realize remote monitoring, fault diagnosis and program upgrade, facilitating the management and maintenance of the production line by enterprises.

3.6 Auxiliary Systems

In addition to the above core modules, the glass tempering furnace is also equipped with a series of auxiliary systems to ensure the stable operation of the equipment and compliance with environmental protection requirements. The exhaust gas treatment system is used to discharge the volatile gas and dust generated during the glass heating process, and purify the exhaust gas to meet environmental protection standards; the dust removal system collects the glass dust and impurities generated during the feeding and conveying process to keep the inside of the furnace clean; the cooling water circulation system is used to cool the motor, transmission system and electrical components of the equipment to prevent overheating damage; the safety protection system includes emergency stop buttons, safety doors, temperature and pressure overload protection, etc., to ensure the personal safety of operators and the safety of equipment.

4. Classification of Glass Tempering Furnaces

Glass tempering furnaces can be classified from multiple perspectives according to different structural forms, processing technologies, application scenarios and automation levels. The classification is conducive to the selection and application of equipment in different industrial fields. The main classification methods are as follows:

4.1 Classification by Structural Form

According to the conveying and processing structure, glass tempering furnaces are mainly divided into horizontal glass tempering furnaces and vertical glass tempering furnaces. Horizontal glass tempering furnaces adopt a horizontal conveying method, with glass lying flat on the ceramic roller table for heating and cooling. They have the advantages of large processing format, high production efficiency, good glass flatness, and suitability for mass production of various flat glass. They are the most widely used type in the market, covering almost all fields of tempered glass production. Vertical glass tempering furnaces adopt a vertical hanging conveying method, with glass vertically suspended and sent into the furnace for processing. They have a small floor area and are suitable for processing small and medium-sized glass and special-shaped glass, but their production efficiency is low and the processing format is limited, so they are only used in a small number of special processing scenarios.

4.2 Classification by Heating Method

According to the heating method of the furnace body, glass tempering furnaces are divided into radiation heating tempering furnaces and convection heating tempering furnaces. Radiation heating tempering furnaces rely on the infrared radiation of heating elements to heat glass, with a simple structure and low cost, suitable for processing ordinary clear float glass. However, the heating uniformity is relatively poor, and it is easy to cause uneven heating of coated glass, resulting in quality defects. Convection heating tempering furnaces add a forced convection circulation system on the basis of radiation heating, which uses high-temperature hot air to convectively heat the glass surface, greatly improving the heating uniformity and heating speed. They are especially suitable for processing low-e coated glass, solar coated glass, colored glass and other special glass products, and have become the mainstream development trend of modern tempering furnaces.

4.3 Classification by Processing Capacity and Scale

According to the processing capacity and production scale, glass tempering furnaces are divided into small and medium-sized laboratory tempering furnaces, medium-sized industrial production tempering furnaces and large-scale continuous production tempering furnaces. Small and medium-sized laboratory tempering furnaces are mainly used for glass tempering process research, product development and small-batch sample production, with small processing format, low power and flexible operation. Medium-sized industrial production tempering furnaces are suitable for small and medium-sized glass processing enterprises, with moderate processing capacity and cost, meeting the production needs of conventional tempered glass products. Large-scale continuous production tempering furnaces are designed for large glass processing groups, with ultra-large processing format, high-speed continuous production capacity, high degree of automation and intelligent integration, and can realize 24-hour uninterrupted production, suitable for large-scale orders in construction, automotive and other industries.

4.4 Classification by Process Purpose

According to different process purposes and processed glass types, glass tempering furnaces are also divided into flat glass tempering furnaces, bent glass tempering furnaces, laminated glass supporting tempering furnaces, and ultra-thin glass tempering furnaces. Among them, the bent glass tempering furnace is equipped with a bending mold and a bending control system in the heating zone, which can heat and bend the glass while tempering, producing curved tempered glass for automotive windshields, architectural curved curtain walls and other fields.

5. Glass Tempering Process Flow

The complete glass tempering process realized by the glass tempering furnace is a standardized and continuous operation flow, and each process link must be strictly controlled to ensure the quality of tempered glass. The standard process flow of the horizontal thermal glass tempering furnace is as follows:

5.1 Original Glass Preparation

Before entering the tempering furnace, the original glass sheets need to be cut, edged, polished and cleaned. Cutting is to cut the large-format original glass into the required size according to the design requirements; edging and polishing are to remove the sharp edges and burrs generated during cutting, because the micro-cracks on the glass edge will become the stress concentration point during the tempering process, leading to glass bursting; cleaning is to remove the oil, dust and impurities on the glass surface through a glass cleaning machine, avoiding the formation of spots or defects on the glass surface during heating and affecting the appearance quality of tempered glass.

5.2 Automatic Feeding

The cleaned and inspected qualified glass sheets are placed on the feeding table of the tempering furnace, and the feeding system positions and separates the glass sheets, then sends them into the heating furnace body one by one through the conveying roller table at a set speed. For automated production lines, this process is completed by a robotic arm without manual intervention.

5.3 High-Temperature Heating

The glass enters the heating furnace body and is conveyed forward slowly through the ceramic roller table. The heating element and convection system in the furnace heat the glass uniformly, and the temperature is raised to the tempering temperature (600-650°C) and maintained for a certain period of time. The heating time is determined by the glass thickness, type and furnace temperature: the thicker the glass, the longer the heating time required to ensure that the glass internal temperature reaches the softening state and the internal stress is completely eliminated. During the heating process, the control system monitors the furnace temperature in real time and adjusts the heating power to ensure temperature uniformity.

5.4 Rapid Cooling (Tempering)

After the heating is completed, the glass is quickly conveyed from the heating furnace to the cooling zone. The upper and lower air grids of the cooling system spray high-pressure uniform cold air onto the glass surface instantly, realizing rapid and uniform cooling. The cooling speed is precisely controlled according to the glass thickness, forming a stable compressive stress layer on the glass surface and a tensile stress layer inside, completing the tempering process. This link is the most critical step in determining the performance of tempered glass, and any deviation in cooling speed or uniformity will lead to unqualified product quality.

5.5 Unloading and Quality Inspection

The tempered glass after cooling is conveyed to the unloading table by the conveying system, and the operator or automatic inspection equipment conducts quality inspection on the tempered glass. The inspection items include appearance quality (no scratches, spots, bubbles, etc.), dimensional accuracy, flatness, stress distribution, and impact resistance. Qualified products are packaged and stored, while unqualified products are screened out for reprocessing or scrap treatment.

6. Application Fields of Tempered Glass Produced by Tempering Furnaces

Tempered glass produced by professional glass tempering furnaces has excellent performance and is widely used in various fields of the national economy, covering construction, automotive, home appliances, electronics, new energy, aerospace and other industries, and its application scope is still expanding with the development of technology.

6.1 Architectural Decoration Field

The architectural field is the largest consumer market for tempered glass. Tempered glass is widely used in building curtain walls, interior partition walls, doors and windows, shower rooms, floor glass, railings and ceilings. In high-rise buildings, tempered glass curtain walls not only have a beautiful and modern appearance, but also can withstand strong wind pressure and external impact, ensuring the safety of the building. In interior decoration, tempered glass partitions and doors and windows have good light transmittance and safety performance, improving the space utilization rate and aesthetic feeling of the building. In addition, laminated tempered glass and insulating tempered glass processed on the basis of tempered glass are also widely used in building energy-saving and sound insulation projects.

6.2 Automotive Industry

The automotive industry has extremely strict requirements on glass safety and performance, and almost all automotive glass (except for individual small decorative glasses) is tempered glass or laminated tempered glass produced by tempering furnaces. Automotive front windshields generally adopt laminated tempered glass, which can maintain integrity even when broken, avoiding fragments from hurting passengers; automotive side windows and rear windshields adopt single-piece tempered glass, which can be quickly broken into small particles in case of accidents, facilitating passenger escape. In addition, automotive sunroofs, rearview mirror glasses and instrument panel protective glasses also use high-quality tempered glass processed by precision tempering furnaces.

6.3 Home Appliance and Electronic Products

In the home appliance industry, tempered glass is used in the door panels of refrigerators, ovens, microwave ovens, the panels of induction cookers, the shells of washing machines, and the screens of televisions. The high thermal stability of tempered glass can adapt to the high-temperature working environment of kitchen appliances, and its high strength can resist collision and scratch during use. In the electronic information industry, with the popularization of smart phones, tablet computers, liquid crystal displays and other products, ultra-thin tempered glass processed by chemical or special thermal tempering furnaces is used as the protective screen of electronic products, with high hardness, scratch resistance and impact resistance, protecting the display screen from damage.

6.4 New Energy and Solar Energy Industry

With the rapid development of the global new energy industry, tempered glass has become an important component of solar photovoltaic modules and solar thermal collectors. Solar tempered glass produced by special tempering furnaces has high light transmittance, low iron content, excellent weather resistance and mechanical strength, which can protect the solar cells inside the module from wind, sand, hail and other external impacts, and ensure the long-term stable operation of photovoltaic power generation systems. The demand for solar tempered glass is growing rapidly with the large-scale application of photovoltaic power generation, which has put forward higher requirements for the performance of glass tempering furnaces.

6.5 Other Special Fields

In addition to the above fields, tempered glass is also used in aerospace, marine engineering, medical equipment, furniture manufacturing and other fields. For example, the cockpit glass of aircraft, the observation window of ships, the protective cover of medical equipment, and the glass tabletop of high-end furniture all use high-performance tempered glass processed by professional tempering furnaces, meeting the special performance requirements of different industries.

7. Advantages and Existing Challenges of Modern Glass Tempering Furnaces

7.1 Core Advantages

Modern glass tempering furnaces, after continuous technological innovation and optimization, present significant advantages in terms of performance, efficiency and energy saving compared with traditional equipment. Firstly, high degree of automation and intelligence reduces the dependence on manual operation, improves production efficiency and product stability, and reduces the defective rate caused by human factors. Secondly, excellent heating uniformity and cooling precision ensure that the tempered glass has uniform stress distribution, high flatness and stable mechanical properties, adapting to the processing of high-end coated glass and special glass. Thirdly, energy-saving and environmental protection performance is significantly improved through the optimization of thermal insulation structure, the application of convection heating technology and the recovery of waste heat, reducing energy consumption per unit product and meeting the national dual-carbon policy requirements. Fourthly, large-scale and multi-functional processing capacity meets the market demand for large-format, special-shaped and diversified tempered glass products, expanding the application scope of tempered glass.

7.2 Existing Challenges

Despite the rapid development of glass tempering furnace technology, there are still some challenges in the industrial application process. Firstly, the problem of self-explosion of tempered glass has not been completely solved. The self-explosion is mainly caused by the nickel sulfide inclusions inside the glass and the uneven stress distribution during the tempering process. Although the homogenization treatment furnace can reduce the self-explosion rate, it increases the production cost and process flow. Secondly, the processing of ultra-thin and ultra-thick glass still has technical bottlenecks. Ultra-thin glass (thickness <2mm) is easy to warp and break during the tempering process, while ultra-thick glass (thickness >25mm) has low heating efficiency and difficult control of cooling stress, requiring further research and development of specialized tempering furnace technology. Thirdly, the high cost of high-end intelligent tempering furnaces limits the popularization and application of small and medium-sized enterprises, and the technical gap between domestic and international high-end equipment still exists in some core components and control systems. Fourthly, the energy consumption and environmental protection requirements are becoming increasingly stringent, and the traditional tempering furnace energy-saving technology still has room for improvement, requiring the research and development of more efficient heating and cooling technologies to reduce carbon emissions.

8. Future Development Trends of Glass Tempering Furnaces

Driven by technological progress, market demand and policy guidance, the global glass tempering furnace industry will present the following development trends in the future:

8.1 Intelligent and Digital Upgrading

The future glass tempering furnaces will develop towards higher intelligence and digitization, integrating technologies such as artificial intelligence, big data analysis and the Internet of Things. The equipment will realize automatic optimization of process parameters, real-time online monitoring of glass quality, predictive maintenance of equipment faults and remote intelligent management. Through the collection and analysis of production data, the system can automatically adjust the heating, cooling and conveying parameters according to the production status, further improving product quality and production efficiency, and realizing the intelligent manufacturing of the glass tempering production line.

8.2 High Efficiency and Energy Saving Technology Innovation

Energy conservation and emission reduction will become the core research direction of glass tempering furnace technology. New heating technologies such as microwave heating, laser heating and high-efficiency infrared convection heating will be applied to tempering furnaces, improving heating efficiency and reducing energy consumption. At the same time, the waste heat recovery system will be further optimized, recovering the heat generated in the cooling and exhaust processes for preheating the original glass or heating the furnace body, realizing the recycling of energy. The research and development of low-emission and low-energy-consumption tempering furnace structures will also be accelerated to meet the global dual-carbon development goals.

8.3 Specialized and Diversified Product Development

Aiming at the demand for specialized tempered glass in different industries, glass tempering furnaces will develop towards specialization and diversification. Specialized tempering furnaces for ultra-thin electronic glass, ultra-thick architectural glass, curved large-format glass, high-temperature resistant solar glass and other products will be launched successively, meeting the personalized and high-end processing needs of the market. At the same time, the integration of tempering furnaces with other glass processing technologies (such as coating, laminating, engraving) will be realized, forming a one-stop glass deep-processing production line and improving the added value of products.

8.4 Green and Environmental Protection Development

In response to global environmental protection requirements, future glass tempering furnaces will adopt more green and environmentally friendly materials and processes, reducing the emission of volatile organic compounds, dust and noise. The closed-loop recycling of cooling water and exhaust gas will be fully realized, minimizing the impact of equipment production on the environment. In addition, the recyclable design of tempering furnace equipment will be strengthened, extending the service life of equipment and reducing the generation of industrial waste.

8.5 Internationalization of Core Technology and Localization of High-End Components

With the development of the global glass industry, the core technology of glass tempering furnaces will tend to be internationalized, and the technical exchanges and cooperation between countries will be more frequent. For domestic equipment manufacturers, accelerating the localization research and development of high-end core components (such as precision convection fans, high-performance temperature sensors, intelligent control systems) will break the foreign technology monopoly, reduce the production cost of high-end tempering furnaces, and improve the international competitiveness of domestic glass tempering furnace equipment.

9. Conclusion

Glass tempering furnace, as the core equipment of the glass deep-processing industry, has a pivotal position in promoting the development of the global glass industry and meeting the demand for high-performance safety glass in various fields. Through the analysis of its working principle, structural composition, classification, process flow, application fields and development trends, it can be seen that the glass tempering furnace industry is in a period of rapid technological innovation and structural optimization. With the continuous progress of materials science, mechanical engineering, automation control and other disciplines, and the continuous growth of market demand for high-end tempered glass, glass tempering furnaces will develop towards intelligence, high efficiency, energy saving, specialization and green environmental protection.

In the future, glass tempering furnace manufacturers need to increase R&D investment, break through key technical bottlenecks, optimize product performance, and meet the diversified and high-end needs of the market. At the same time, industry practitioners should strengthen technological exchanges and cooperation, promote the upgrading and transformation of the glass deep-processing industry, and make greater contributions to the development of construction, automotive, new energy, electronic information and other industries. With the continuous improvement of technology and the expansion of application fields, glass tempering furnaces will continue to play an important role in the global industrial system and promote the sustainable development of the safety glass industry.

How to Add Butyl Glue for Butyl Extruding Machine

1. Introduction

The butyl extruding machine is an indispensable core equipment in the manufacturing process of insulating glass, architectural door and window sealing, automotive glass assembly, and other industrial sealing applications. It is specially designed to melt solid or granular butyl glue into a uniform molten state through a precise heating system and extrude the glue stably through a screw propulsion mechanism, so as to complete the sealing and bonding of components. The operation of adding butyl glue is the most critical initial step in the entire working cycle of the butyl extruding machine, which directly determines the continuity of glue extrusion, the uniformity of glue output, the processing accuracy of sealing products, and the service life of the equipment. Improper glue adding operations, such as uncleaned glue barrels, uneven filling, improper preheating parameters, and poor sealing of the glue barrel cover, will lead to a series of problems including discontinuous glue extrusion, air bubbles in the glue, uneven glue output, blockage of the extrusion channel, and even mechanical failure of the equipment.

This article systematically elaborates on the standardized operation process of adding butyl glue for the butyl extruding machine, covering pre-operation preparation, equipment safety inspection, step-by-step operation procedures for different forms of butyl glue (solid strips and granular glue), post-operation treatment, safety operation specifications, common fault troubleshooting, and daily maintenance of the glue adding system. All contents are compiled in strict accordance with international industrial safety standards and equipment operation specifications, aiming to provide operators with a comprehensive and authoritative technical guide to ensure the safe, efficient, and high-quality completion of the butyl glue adding operation, and to lay a solid foundation for the stable operation of the butyl extruding machine and the qualified production of sealing products.

2. Pre-operation Preparation

Adequate and comprehensive pre-operation preparation is the prerequisite to ensure the smooth progress of the butyl glue adding operation and avoid potential risks. Operators must complete the preparation work in strict accordance with the following three dimensions: personnel, equipment, and materials.

2.1 Personnel Preparation and Professional Training

All operators engaged in the butyl glue adding operation must receive systematic professional training, including the structural composition of the butyl extruding machine, working principle, performance parameters of butyl glue, standard operating procedures, safety precautions, and emergency response plans. Only after passing the theoretical and practical assessments can they take up their posts independently. During the operation, operators must wear complete personal protective equipment (PPE) that meets industrial safety standards, including high-temperature and cut-resistant work clothes, heat-insulating and anti-slip gloves, anti-splash safety goggles, and steel-toe safety shoes. It is strictly forbidden to operate with loose cuffs, unbound long hair, or wearing metal jewelry such as rings, bracelets, and necklaces, so as to prevent entanglement with the rotating screw or scalding by high-temperature components of the equipment. In addition, a clear safety warning area should be divided around the equipment, and obvious warning signs such as "Non-operators Prohibited from Entering" and "High Temperature Danger" should be set up to avoid misoperation or accidental injury caused by irrelevant personnel approaching the operating area.

2.2 Equipment Safety and Functional Inspection

Before adding butyl glue, a comprehensive and detailed inspection of the butyl extruding machine must be carried out to ensure that all systems of the equipment are in normal working condition, covering the electrical system, heating system, mechanical structure, and control system.

First, inspect the electrical and pneumatic systems. Check the integrity of the power cord, plug, and socket of the equipment, confirm that there is no damage, aging, or exposed wires, and verify that the leakage protector and circuit breaker are in normal operating state. For butyl extruding machines equipped with pneumatic auxiliary devices, check the air pressure pipeline for air leakage, blockage, or water accumulation, adjust the working air pressure to the range of 0.4-0.6 MPa specified by the equipment, and drain the accumulated water in the air filter and air storage tank regularly to prevent moisture from affecting the pneumatic components. At the same time, test the sensitivity of the emergency stop button, start/stop switch, and parameter adjustment buttons on the control panel to ensure that all control functions can respond quickly and effectively in case of an emergency.

Second, focus on inspecting the heating system, which is the core to ensure the melting effect of butyl glue. Turn on the equipment power supply in advance, set the heating temperature of the glue barrel and extrusion die according to the type and performance parameters of the butyl glue (generally 80-120°C, subject to the glue manufacturer's instructions and equipment manual), and check the working state of the temperature controller, temperature sensor, and heating tube. Ensure that the temperature of each heating zone can be accurately controlled, stabilized within the set range, and free from temperature overshoot, insufficient heating, or temperature fluctuation, so as to avoid incomplete melting or thermal decomposition of butyl glue.

Third, inspect the glue barrel and extrusion mechanism. Open the glue barrel cover, check the inner wall of the glue barrel, extrusion screw, and glue outlet channel for residual solidified butyl glue, metal debris, dust, or other impurities. Check the surface of the extrusion screw for wear, deformation, or scratches, and confirm that the screw can rotate freely without jamming or abnormal noise. At the same time, check the sealing ring of the glue barrel cover for aging, cracking, deformation, or hardening, and replace it with a new sealing ring of the same model in time if it is damaged, so as to prevent glue leakage during the extrusion process.

Finally, inspect the auxiliary tools and collection devices. Prepare special glue loading tools, stainless steel scrapers, lint-free cleaning cloths, industrial alcohol, waste glue collection barrels, torque wrenches, and other auxiliary tools, and confirm that all tools are clean, intact, and free of impurities to avoid contaminating the butyl glue during the operation.

2.3 Material Selection and Preparation

The quality of butyl glue directly affects the sealing performance and extrusion stability of the final product, so the selection and preparation of butyl glue must be strictly controlled. Operators must select qualified butyl glue products that match the model of the butyl extruding machine, and check the production date, shelf life, appearance quality, and factory certification of the butyl glue before use. It is forbidden to use expired, deteriorated, damp, contaminated, or uncertified butyl glue. Solid butyl glue strips should be flat, uniform in texture, free of cracks, hard blocks, bubbles, and impurities; granular butyl glue should have uniform particle size, no agglomeration, moisture, or foreign matter.

In addition, calculate the amount of butyl glue to be added according to the effective capacity of the glue barrel of the butyl extruding machine and the actual production demand, and reserve a certain expansion space at the top of the glue barrel (generally 5-10 cm from the top of the glue barrel). This is to prevent the butyl glue from overflowing due to thermal expansion after being heated and melted, which will cause equipment pollution or safety hazards. At the same time, place the butyl glue in a dry, clean, and dust-free environment to avoid secondary contamination before use.

3. Standard Operation Steps for Adding Butyl Glue

The butyl glue adding operation must be carried out in strict accordance with the step-by-step standardized procedure, and each operation link must be implemented carefully to ensure the accuracy and safety of the process.

3.1 Equipment Shutdown and Safety Locking

Before opening the glue barrel cover for glue adding operation, the equipment must be completely shut down and locked to eliminate all potential safety risks. First, press the emergency stop button of the butyl extruding machine to cut off the power output of the equipment, then turn off the main power switch and air supply valve in sequence, and hang a prominent "No Operation, Maintenance in Progress" warning sign on the control panel to prevent other personnel from misstarting the equipment. Then, wait for the glue barrel, extrusion die, and heating pipeline to cool down naturally to a safe temperature below 40°C. For butyl extruding machines equipped with a quick cooling function, the cooling system can be turned on to accelerate the cooling process, so as to avoid scalding accidents caused by high-temperature components during the operation.

3.2 Opening the Glue Barrel Cover and Thorough Cleaning

Locate the locking device of the glue barrel cover, which is usually designed as a bolt lock, rotary lock, or quick-release lock. Loosen the locking nut or rotate the lock handle in the specified counterclockwise direction, and slowly remove the glue barrel cover and place it on a clean anti-slip mat to avoid contamination of the sealing surface. Next, carry out a thorough cleaning of the glue barrel and internal components: use a special stainless steel scraper to gently scrape off the residual solidified butyl glue on the inner wall of the glue barrel, the root of the extrusion screw, the glue outlet channel, and the check valve, and collect the scraped waste glue into a special sealed waste glue collection barrel. It is strictly forbidden to use hard metal tools such as steel brushes, screwdrivers, or angle grinders for scraping, so as not to scratch the inner wall of the glue barrel and the surface of the screw, which will affect the sealing performance and service life of the equipment.

After scraping off the residual glue, dip a clean lint-free cloth in industrial alcohol, wipe the inner wall of the glue barrel, the surface of the extrusion screw, the sealing surface of the glue barrel cover, and the filter screen repeatedly until there is no residual glue, impurities, or oil stains, and then let it air dry naturally. For the check valve and filter screen at the bottom of the glue barrel, remove them for separate cleaning, check for blockage, damage, or wear, and reinstall them after confirming that they are intact and clean, so as to ensure the smooth flow of the extrusion channel.

3.3 Adding Butyl Glue

The operation methods of adding solid butyl glue strips and granular butyl glue are slightly different, and operators should select the corresponding operation procedures according to the form of butyl glue used in actual production.

3.3.1 Adding Solid Butyl Glue Strips

Take the qualified solid butyl glue strips, and cut them into segments of 10-20 cm according to the inner diameter and depth of the glue barrel, ensuring that the cross-section of each glue strip is flat, free of cracks, burrs, or impurities. Then, put the cut butyl glue strips into the glue barrel one by one along the inner wall, and arrange them evenly around the extrusion screw in a circumferential direction. It is forbidden to throw the glue strips violently into the glue barrel, so as to avoid impact damage to the screw or the inner wall of the glue barrel. During the filling process, ensure that the glue strips are closely arranged without large gaps, and stop filling when reaching the reserved material level. After filling, use a special pressing tool to gently press the butyl glue strips layer by layer to eliminate internal gaps and ensure compact filling, which is conducive to the uniform melting and stable extrusion of butyl glue.

3.3.2 Adding Granular Butyl Glue

Install a special feeding funnel at the mouth of the glue barrel to prevent the granular butyl glue from splashing during the pouring process and causing material waste or environmental pollution. Slowly pour the qualified granular butyl glue into the glue barrel through the funnel, and stir the glue particles appropriately with a clean plastic rod during the pouring process to ensure even distribution of the glue particles and avoid bridging, agglomeration, or local accumulation in the glue barrel. Control the filling amount strictly according to the scale line of the glue barrel, and stop adding when reaching the specified material level, with the same reserved expansion space as the solid butyl glue strips.

3.4 Installing the Glue Barrel Cover and Sealing Inspection

After the butyl glue is added, recheck the integrity and cleanliness of the sealing ring of the glue barrel cover, and apply a small amount of food-grade or equipment-specified high-temperature resistant lubricating oil on the surface of the sealing ring to enhance the sealing effect and facilitate the installation of the cover. Align the glue barrel cover with the flange of the glue barrel accurately, place it flat and slowly, and ensure that the sealing ring is completely embedded in the sealing groove without deviation, distortion, or falling off. Then, tighten the locking device of the glue barrel cover evenly and symmetrically in a diagonal sequence. For bolt-locked glue barrel covers, use a torque wrench to tighten each bolt to the specified torque value (subject to the equipment manual) to ensure uniform stress on the cover, good sealing performance, and avoid glue leakage caused by uneven tightening or insufficient torque.

After the installation is completed, conduct a preliminary sealing inspection: manually check the tightness of the glue barrel cover, confirm that there is no gap between the cover and the flange, and ensure that the sealing ring is in close contact with the sealing surface to lay a foundation for the subsequent preheating and extrusion test.

3.5 Preheating and Extrusion Test

Remove the warning sign on the control panel, turn on the main power supply and air supply valve of the equipment, and reset the emergency stop button to the normal state. Enter the parameter setting interface of the control panel, set the heating temperature of each zone of the glue barrel and extrusion die according to the process requirements, turn on the heating system, and start the preheating program. During the preheating process, observe the temperature change data displayed on the control panel in real time, and check whether the equipment has abnormal noise, glue leakage, temperature overshoot, or circuit failure. After the temperature of each heating zone is stable and reaches the set value, keep the temperature for 10-15 minutes to ensure that the butyl glue in the glue barrel is completely melted into a uniform fluid state with appropriate viscosity.

Then, set the extrusion speed of the screw to a low speed of 10-20 rpm for the extrusion test, observe the extrusion state of the butyl glue at the die outlet in real time, and check whether the extruded glue is continuous, uniform, free of air bubbles, impurities, broken strips, or glue leakage. If the extrusion test result is qualified, adjust the extrusion speed to the process required speed for formal production; if there is an abnormality such as discontinuous glue output, air bubbles, or uneven glue output, stop the machine immediately, cut off the power supply and air supply, and check the cause of the fault in combination with the troubleshooting methods, and conduct the extrusion test again after the fault is eliminated.

4. Post-operation Treatment and Record Keeping

Standardized post-operation treatment and complete record keeping are important links to ensure the traceability of the operation process and the long-term stable operation of the equipment.

First, clean the operation site in a timely manner after completing the glue adding and extrusion test. Collect the residual butyl glue, used cleaning cloths, industrial alcohol waste liquid, and other waste materials into designated sealed containers, and wipe the surface of the equipment, control panel, and surrounding ground with a clean cloth to keep the operation area clean and tidy, in line with industrial production environmental standards.

Second, recheck the operating state of the equipment: check the fastening state of the glue barrel cover, the working state of the heating system, the sealing condition of each interface, and the operation state of the extrusion screw, confirm that there is no glue leakage, abnormal noise, or potential failure, and ensure that the equipment can meet the requirements of formal production.

Third, make a detailed and accurate record in the equipment operation log, including the type and amount of butyl glue added, preheating temperature and holding time, extrusion test parameters, operation time, operator information, and abnormal conditions during the operation. This record is an important basis for subsequent production traceability, equipment maintenance, and fault analysis, and must be kept properly for future reference.

For butyl extruding machines that need to be shut down for a long time, after adding the butyl glue, the equipment should be preheated regularly (once every 3-5 days) to keep the butyl glue in a molten state, prevent the glue from solidifying and blocking the extrusion channel, and extend the service life of the equipment.

5. Safety Precautions During Glue Adding Operation

Safety is the top priority in the operation of industrial equipment, and operators must strictly abide by the following safety precautions during the butyl glue adding operation to avoid personal injury and equipment damage.

First, high-temperature safety protection. During the preheating and operation of the equipment, the surface temperature of the glue barrel, extrusion die, heating pipeline, and other components is very high, and it is strictly forbidden to touch these high-temperature components with bare hands or unprotected parts of the body to avoid high-temperature scalding. If scalding occurs accidentally, take first aid measures immediately (such as flushing with cold water) and seek medical attention in time.

Second, mechanical safety protection. During the operation of the extrusion screw, it is strictly forbidden to extend hands, arms, or any tools into the glue barrel, extrusion channel, or the rotating area of the screw to avoid mechanical entanglement, extrusion, or shear injury. If it is necessary to clean, inspect, or maintain the screw and other components, the equipment must be completely shut down, the power supply and air supply must be cut off, and the operation can be carried out only after the screw is completely stopped.

Third, electrical safety protection. Do not splash water, industrial alcohol, or other liquids on the control panel, motor, electrical components, and wiring of the equipment to prevent short circuit, electric shock, or equipment burnout. In case of electrical failure, the power supply must be cut off immediately, and professional electrical maintenance personnel shall be arranged for repair, and non-professionals shall not disassemble or repair the electrical system without authorization.

Fourth, material safety protection. Butyl glue is a chemical polymer material, and it is forbidden to ingest, inhale, or contact with eyes and mucous membranes for a long time. If the butyl glue splashes into the eyes accidentally, rinse with plenty of clean water immediately and seek medical attention in time. The waste butyl glue and cleaning waste liquid shall be disposed of in strict accordance with national environmental protection regulations, and shall not be discarded, discharged, or piled up at will to avoid environmental pollution.

Fifth, emergency response specifications. In case of emergencies such as equipment jamming, glue leakage, abnormal noise, power failure, or air failure during the glue adding or extrusion process, the operator must press the emergency stop button immediately, cut off the power supply and air supply at the same time, and then check and handle the fault after confirming the safety of the equipment and the surrounding environment. It is strictly forbidden to troubleshoot, clean, or maintain the equipment with the power on or the screw running.

6. Troubleshooting of Common Problems in Glue Adding Process

In the actual butyl glue adding operation, various faults may occur due to improper operation, material quality problems, equipment aging, or parameter setting errors. The following is a detailed analysis of the common faults, causes, and targeted solutions in the glue adding process:

6.1 Glue Leakage at the Glue Barrel Cover

Common Causes: Aging, damage, or improper installation of the sealing ring; uneven tightening or insufficient torque of the locking bolt; contamination of the sealing surface with impurities, glue residue, or scratches on the flange; deformation of the glue barrel cover or flange.

Solutions: Replace the sealing ring with a new one of the same model and specification; re-tighten the locking bolt with a torque wrench in a diagonal sequence to the specified torque value; clean the sealing surface thoroughly with industrial alcohol, and repair or replace the flange if there are scratches; replace the deformed glue barrel cover or flange in time.

6.2 Uneven Extrusion of Butyl Glue

Main Causes: Loose filling of butyl glue with large gaps or agglomeration; insufficient preheating temperature or short holding time, resulting in incomplete melting of the glue; wear, deformation, or blockage of the extrusion screw and filter screen; unstable extrusion speed or pressure.

Solutions: Reopen the glue barrel cover, compact the glue or break up the agglomerated glue to ensure uniform filling; increase the preheating temperature appropriately or extend the holding time to ensure complete melting of the butyl glue; check the wear of the screw, replace the seriously worn screw, and clean or replace the blocked filter screen; calibrate the extrusion speed and pressure control system to ensure stability.

6.3 Air Bubbles in the Extruded Butyl Glue

Causes: Moisture, impurities, or air trapped in the butyl glue; incomplete cleaning of the glue barrel, resulting in residual air in the channel; excessive preheating temperature, causing thermal decomposition of the butyl glue to produce gas; poor sealing of the glue barrel cover, leading to air intake.

Solutions: Use dry, impurity-free butyl glue, and vacuumize the glue barrel (for equipment with vacuum function) during glue adding to remove air; clean the glue barrel and extrusion channel thoroughly to eliminate residual air; adjust the preheating temperature to the process specified range to avoid glue decomposition; recheck and improve the sealing performance of the glue barrel cover.

6.4 Difficulty in Opening or Tightening the Glue Barrel Cover

Causes: Rusting, jamming, or lack of lubrication of the locking device; bonding of the sealing ring to the flange due to high-temperature melting of butyl glue; incorrect operation sequence or excessive force during operation.

Solutions: Apply anti-rust lubricating oil to the locking device, clean the rust and impurities, and ensure flexible rotation; cool the glue barrel completely to separate the bonded sealing ring and flange, and do not pry violently; operate strictly in accordance with the specified opening and tightening sequence, and use appropriate tools to apply force evenly.

6.5 Blockage of the Extrusion Channel

Causes: Use of unqualified butyl glue with hard blocks or impurities; incomplete preheating, resulting in solidification of local butyl glue; residual solidified glue in the channel not cleaned thoroughly; long-term shutdown without preheating, leading to glue solidification.

Solutions: Replace qualified butyl glue free of hard blocks and impurities; increase the preheating temperature and holding time to ensure complete melting of the glue; clean the extrusion channel, check valve, and filter screen thoroughly; preheat the equipment regularly during long-term shutdown to keep the glue in a molten state.

7. Daily Maintenance of the Glue Adding System

Regular and standardized maintenance of the glue adding system of the butyl extruding machine can effectively reduce the failure rate, extend the service life of the equipment, and ensure the stability of the glue adding and extrusion process. The maintenance work is divided into daily, weekly, monthly, and annual maintenance according to the cycle:

7.1 Daily Maintenance (Once per Shift)

Clean the glue barrel, extrusion screw, filter screen, and glue barrel cover after each shift to remove residual butyl glue and impurities; check the fastening state of the locking bolts and the integrity of the sealing ring; test the sensitivity of the emergency stop button and control buttons; record the operation status and abnormal conditions of the equipment in the maintenance log.

7.2 Weekly Maintenance (Once a Week)

Thoroughly clean the inside of the glue barrel and extrusion channel, check the wear of the extrusion screw and filter screen; calibrate the temperature control system to ensure the accuracy of the heating temperature; add lubricating oil or grease to the rotating parts such as the screw bearing; drain the accumulated water in the air filter and air storage tank of the pneumatic system.

7.3 Monthly Maintenance (Once a Month)

Check the aging degree of the sealing ring, heating tube, and power cord, and replace the aging parts in time; calibrate the pressure gauge and temperature sensor to ensure the accuracy of measurement data; inspect the working state of the motor and transmission mechanism, and eliminate abnormal noise and vibration; clean the control cabinet and remove dust to ensure the normal heat dissipation of electrical components.

7.4 Annual Maintenance (Once a Year)

Conduct a comprehensive disassembly and inspection of the glue adding system, replace all wearing parts such as the sealing ring, filter screen, and screw; replace the lubricating oil, hydraulic oil (if equipped), and filter element; conduct a comprehensive safety performance test of the equipment, including safety protection devices, grounding system, and overload protection; update the equipment maintenance file and record the maintenance content and results in detail.

8. Conclusion

The operation of adding butyl glue is a key link that runs through the use and maintenance of the butyl extruding machine, involving multiple dimensions such as personnel operation, equipment inspection, material control, parameter setting, and safety protection. Only by strictly abiding by the standardized operation procedures, doing a good job in pre-operation preparation, in-process standardized operation, and post-operation treatment and maintenance, and firmly establishing a safety first operation concept, can the stable operation of the butyl extruding machine be ensured, the quality of butyl glue extrusion be improved, potential safety and quality hazards be reduced, and the production efficiency and product qualification rate be effectively improved.

With the continuous development of the sealing industry and the continuous upgrading of equipment technology, the requirements for the operation skills and professional quality of operators are also getting higher and higher. Operators should continuously learn new technologies, new processes, and new standards, master the operation and maintenance skills of advanced butyl extruding machines, and adapt to the development needs of industrial production. At the same time, enterprises should strengthen the professional training and safety management of operators, formulate and improve standardized operation systems and maintenance systems, and promote the standardized, intelligent, and efficient development of the operation and maintenance of butyl extruding machines, so as to provide a strong guarantee for the high-quality development of the sealing processing industry.
