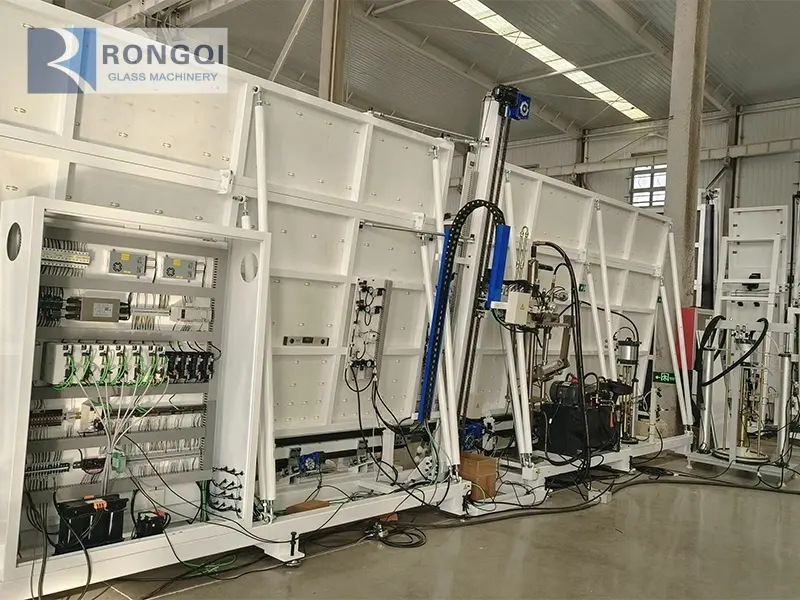

Air-Floating Inclined Glass Breaking Table: Engineering Principles, Technical Advantages, and Industrial Applications

1. Introduction

In the modern manufacturing landscape of flat-panel displays (FPD), photovoltaic (PV) modules, architectural glass, and automotive glazing, the demand for precise, non-destructive glass processing and strength testing has intensified. The Air-Floating Inclined Glass Breaking Table (AFIGBT) emerges as a pivotal innovation, integrating air-bearing technology, hydraulic tilting mechanisms, and pneumatic control systems to redefine the standards of glass handling, positioning, and fracture testing. Unlike conventional contact-based breaking tables that risk surface scratches, edge damage, or inconsistent stress distribution, the AFIGBT leverages non-contact air suspension to ensure uniform support, precise angular adjustment, and repeatable fracture initiation—critical for quality control in high-precision glass manufacturing. This article comprehensively explores the technical fundamentals, structural components, performance characteristics, industrial applications, and future development directions of the AFIGBT, shedding light on its transformative role in the global glass processing industry.

2. Core Technical Principles

2.1 Non-Contact Air Suspension Mechanism

The cornerstone of the AFIGBT lies in its air-floating system, which employs porous media technology to generate a stable, ultra-thin air film between the glass substrate and the table surface. Compressed air is forced through millions of sub-micron pores in a proprietary carbon or ceramic bearing surface, creating a uniform pressure distribution that lifts the glass off the table without physical contact . The thickness of this air film is precisely controllable, typically ranging from 10µm to 200µm, with a stability tolerance of ±5µm to ±20µm—sufficient to accommodate inherent flatness deviations of up to 5µm in glass substrates while maintaining optimal support rigidity . Contrary to traditional assumptions, thinner air films exhibit higher stiffness, enabling the AFIGBT to achieve sub-micron positioning resolution and rapid vibration damping—essential for minimizing structural deformation during the breaking process.

To prevent "skating" or lateral displacement of the glass during suspension, the system integrates a balanced vacuum-preload mechanism. By adjusting the ratio of air pressure and vacuum force, engineers can "lock" the glass in a stable spatial position, suppressing flutter and ensuring consistent alignment throughout the testing or processing cycle . This pressure-vacuum balance also facilitates glass flattening, reducing surface vibrations that could compromise the accuracy of fracture analysis. Notably, the porous media surface acts as a HEPA-like filter, preventing particle generation and making the system compatible with ISO Class 10 cleanroom environments—a critical requirement for FPD and semiconductor manufacturing .

2.2 Hydraulic Tilting Control System

The inclined functionality of the AFIGBT is enabled by a hydraulic actuation system, designed to deliver smooth, stable angular adjustment with precise position control. The hydraulic cylinder-driven tilting mechanism allows the table to rotate from a horizontal (0°) to a vertical (90°) position, with intermediate angle settings adjustable in increments as fine as 0.1°—catering to diverse testing standards and processing requirements. The hydraulic system’s high load-bearing capacity ensures stable operation even for large-format glass substrates, with table sizes ranging up to 2200mm × 3600mm to accommodate Gen 10+ FPD panels and oversized architectural glass sheets.

Key to the tilting system’s performance is its closed-loop feedback control, which utilizes linear displacement sensors and pressure transducers to monitor the table’s angle and load in real time. This enables dynamic adjustment of hydraulic flow rates, ensuring uniform acceleration and deceleration during tilting—preventing inertial forces from causing glass slippage or edge impact. Additionally, safety interlocks are integrated to halt operation if the tilt angle exceeds preset limits or if pressure loss is detected, mitigating the risk of equipment damage or operator injury.

2.3 Pneumatic Fracture Initiation Mechanism

The AFIGBT’s breaking system employs pneumatically controlled X and Y-axis breaking bars, activated via foot pedals or programmable logic controllers (PLCs) to initiate precise, localized fractures. These breaking bars are strategically positioned across the table surface, allowing for selective activation to target specific sections of the glass—enabling both full-panel breaking and segmented cutting for large-format substrates. The pneumatic actuation ensures rapid, consistent force application, with adjustable pressure settings to match the mechanical properties of different glass types (e.g., tempered glass, laminated glass, ultra-thin glass).

To enhance fracture accuracy, the breaking bars are equipped with precision-machined contact points that concentrate stress at predefined locations—replicating real-world failure scenarios while ensuring repeatable test results. The integration of the air-floating system with the breaking mechanism is critical: the non-contact support eliminates friction-induced stress variations, ensuring that the applied breaking force is uniformly distributed across the glass’s cross-section. This results in clean, predictable fractures that align with industry standards such as SEMI, CE, and ISO 9001.

3. Structural Components and Technical Specifications

3.1 Key Component Architecture

The AFIGBT comprises six core subsystems, each engineered for durability, precision, and seamless integration:

1. Heavy-Duty Metallic Frame: Constructed from high-strength steel with reinforced welds, the frame provides structural rigidity to withstand dynamic loads during tilting and breaking, with a design life exceeding 10,000 operating hours.

2. Air-Floating Platform: Modular porous media air-bearing panels (available in standard, precision, and ultra-precision variants) cover the table surface, with customizable configurations to accommodate different glass sizes and thicknesses (from 0.1mm to 20mm).

3. Air Supply System: A high-pressure compressor (3–5 kW) with pressure regulators, filters, and flow meters delivers clean, dry air (≤ -40°C dew point) to the air-bearing panels, ensuring consistent air film formation.

4. Hydraulic Tilting Unit: Double-acting hydraulic cylinders with servo valves, paired with a hydraulic power unit (380V/50Hz or 220V/60Hz), enable smooth angle adjustment with a tilting speed of 2–5° per second.

5. Pneumatic Breaking Assembly: 3–6 pneumatically controlled breaking bars (depending on table size) with adjustable stroke lengths (10–50mm) and force ranges (50–500N), synchronized via PLC for coordinated fracture initiation.

6. Control and Safety System: A touchscreen HMI (Human-Machine Interface) with PLC integration allows for program storage (up to 100 test protocols), real-time data visualization, and remote monitoring. Safety features include emergency stop buttons, pressure loss alarms, and interlocked access doors.

3.2 Critical Technical Parameters表格Parameter Specification Range Table Dimensions 1000mm×1000mm to 2200mm×3600mm Maximum Glass Size Up to 2000mm×1000mm (standard) / Gen 12+ compatible (custom) Glass Thickness Capacity 0.1mm–20mm Air Film Thickness 10µm–200µm Tilt Angle Range 0°–90° (adjustable in 0.1° increments) Breaking Force Adjustment 50N–500N Positioning Accuracy ±2µm (linear) / ±0.1° (angular) Operating Speed 2–3 m/s (glass transport) / 2–5°/s (tilting) Power Requirements 380V 3-phase 50Hz / 220V single-phase 60Hz (3–5 kW) Environmental Compatibility Temperature: 0°C–40°C; Humidity: <98% (non-condensing) Certifications CE, ROHS, ISO 9001, SEMI-compliant 4. Technical Advantages Over Conventional Systems4.1 Non-Contact Handling and Surface ProtectionUnlike mechanical conveyor belts or vacuum chucks that exert localized pressure on glass surfaces, the AFIGBT’s air-floating system eliminates physical contact, preventing scratches, micro-cracks, and contamination. This is particularly critical for high-value applications such as FPD substrates and PV solar panels, where surface integrity directly impacts product performance . The carbon or ceramic bearing surfaces are wear-resistant and particle-free, ensuring compatibility with cleanroom environments and reducing maintenance costs associated with contact-based components.4.2 Enhanced Precision and RepeatabilityThe combination of air-film stability, hydraulic tilting control, and pneumatic breaking mechanisms enables the AFIGBT to achieve fracture test repeatability within ±3%—a significant improvement over conventional tables (±8–12%). The sub-micron positioning resolution and uniform stress distribution ensure that each test replicates real-world conditions, providing reliable data on glass toughness, fracture energy, and failure modes. This precision is validated by compliance with international standards such as SEMI, which has adopted air-floating-based measurement models for glass quality assessment.4.3 Versatility and ScalabilityThe AFIGBT’s modular design allows for seamless customization to meet diverse industry needs. It supports multiple glass types (tempered, laminated, ultra-thin, AR-coated) and processing tasks, including strength testing, precision cutting, and edge quality inspection. The table’s compatibility with Gen 5 to Gen 12 glass substrates makes it suitable for small-scale laboratories and large-scale manufacturing facilities alike, with the ability to handle glass sizes up to 2200mm×3600mm and beyond with custom configurations.4.4 Operational Efficiency and SafetyThe AFIGBT’s automated loading/unloading systems, rapid test cycles (≤1000ms per measurement point), and data logging capabilities streamline quality control processes, reducing labor costs and increasing throughput. The hydraulic tilting system’s smooth operation minimizes glass breakage during handling, while the integrated safety features (pressure loss alarms, emergency stops, interlocks) ensure operator protection. Additionally, the low air consumption of porous media air bearings (measured in liters per hour rather than liters per minute) reduces energy costs compared to traditional air-bearing systems .5. Industrial Applications5.1 Flat-Panel Display (FPD) ManufacturingIn FPD production (LCD, OLED, microLED), the AFIGBT is used for post-processing quality control, including glass substrate strength testing, laser划片 alignment, and edge defect detection. The non-contact air suspension prevents damage to sensitive display layers, while the precise tilting and breaking mechanisms ensure clean, straight fractures during panel separation. The system’s compatibility with ISO Class 10 cleanrooms and sub-micron positioning accuracy makes it indispensable for Gen 10+ FPD facilities, where even minor surface defects can render panels defective .5.2 Photovoltaic (PV) Module ProductionFor solar glass (ultra-white embossed glass, AR-coated glass), the AFIGBT enables rapid measurement of spectral transmittance, fracture toughness, and edge strength—critical parameters for PV module efficiency and durability. The system’s ability to handle large-format glass sheets (up to 2000mm×1000mm) and perform multi-point testing allows manufacturers to assess spatial uniformity of mechanical properties, ensuring compliance with TAM1.5 and SEMI standards. The air-floating design also facilitates easy movement of heavy glass sheets, reducing handling time and breakage rates during production.5.3 Architectural and Automotive Glass ProcessingIn architectural glass manufacturing, the AFIGBT is used to test the breaking strength of tempered and laminated glass, ensuring compliance with building safety codes. The tilting function simulates real-world installation angles, allowing engineers to evaluate fracture behavior under gravitational loads. For automotive glass (windshields, side windows), the system performs impact resistance testing and precision cutting, with the non-contact handling preserving the glass’s optical clarity and structural integrity. The pneumatic breaking bars enable segmented cutting of complex shapes, supporting the production of curved and customized automotive glass components.5.4 Research and Development LaboratoriesAcademic and industrial R&D labs utilize the AFIGBT to study glass fracture mechanics, material fatigue, and the effects of coating technologies on mechanical performance. The system’s adjustable parameters (air film thickness, tilting angle, breaking force) allow researchers to replicate diverse environmental and loading conditions, generating data to optimize glass formulations and processing techniques. The integration of advanced sensors (strain gauges, high-speed cameras) enables real-time monitoring of fracture propagation, providing insights into crack initiation and growth mechanisms.6. Future Development Trends6.1 Integration of Smart Sensing and AIThe next generation of AFIGBT will incorporate advanced sensing technologies, including machine vision cameras, ultrasonic sensors, and fiber optic strain gauges, to enable real-time monitoring of glass deformation, stress distribution, and fracture dynamics. Artificial intelligence (AI) algorithms will analyze this data to predict failure points, optimize test parameters, and automate quality grading—reducing human intervention and improving testing accuracy. For example, AI-powered image recognition can identify micro-cracks before fracture, enabling proactive quality control in high-volume production lines.6.2 Miniaturization and High-Speed ProcessingAs the demand for ultra-thin glass (≤0.1mm) in wearable devices and flexible electronics grows, AFIGBT systems will be miniaturized to accommodate small-format substrates while maintaining high precision. Advances in micro-air-bearing technology will enable air film thicknesses below 10µm, supporting the handling of fragile, flexible glass without deformation. Additionally, improvements in hydraulic and pneumatic actuation will reduce test cycle times to <500ms per point, meeting the throughput requirements of next-generation electronics manufacturing.6.3 Energy Efficiency and SustainabilityFuture AFIGBT designs will focus on reducing energy consumption through the adoption of energy-efficient compressors, regenerative hydraulic systems, and low-power sensors. The use of recyclable materials in frame construction and biodegradable lubricants in hydraulic systems will align with global sustainability initiatives. Furthermore, the integration of solar-powered air supply systems will enable off-grid operation in remote manufacturing facilities, reducing carbon emissions.6.4 Interoperability with Industry 4.0 SystemsTo support smart manufacturing, AFIGBT systems will be equipped with Industrial Internet of Things (IIoT) connectivity, enabling seamless integration with MES (Manufacturing Execution Systems) and ERP (Enterprise Resource Planning) platforms. Real-time test data, equipment performance metrics, and maintenance alerts will be transmitted to cloud-based dashboards, allowing for remote monitoring, predictive maintenance, and process optimization. This interoperability will enable manufacturers to achieve end-to-end traceability of glass components, from raw material to finished product.7. ConclusionThe Air-Floating Inclined Glass Breaking Table represents a paradigm shift in glass processing and testing, combining non-contact air suspension, precise hydraulic tilting, and pneumatic fracture control to deliver unmatched precision, versatility, and efficiency. Its ability to protect glass surfaces, ensure repeatable test results, and accommodate diverse industry needs has made it an indispensable tool in FPD, PV, architectural, and automotive glass manufacturing. As technology advances, the integration of smart sensing, AI, and IIoT connectivity will further enhance the AFIGBT’s capabilities, driving innovation in glass processing and supporting the growth of high-precision manufacturing industries worldwide. By adhering to international standards and prioritizing sustainability, the AFIGBT is poised to remain a cornerstone of modern glass production, enabling manufacturers to meet the evolving demands of quality, efficiency, and environmental responsibility.

Double Head Low-E Film Deletion Machine: Technical Overview, Operational Principles and Industrial Applications

Abstract

The Double Head Low-E Film Deletion Machine is a high‑precision, high‑efficiency special equipment designed for removing the low‑emissivity coating along the edges of Low‑E glass. It adopts dual independent grinding heads, an intelligent CNC or PLC control system, pneumatic positioning, and an air‑flotation worktable to achieve synchronous, stable, and residue‑free edge deletion on two adjacent edges of glass sheets. This equipment is essential in the production of insulating glass, architectural glass, automotive glass, and energy‑saving glass, as it ensures reliable sealing, stable bonding, and long service life of final glass units. This article systematically introduces the definition, structural composition, working principle, core technical features, advantages, applications, operation, maintenance, and development trends of the double head Low‑E film deletion machine, providing a complete technical reference for glass deep‑processing enterprises.

1. Introduction

With the global promotion of green building and energy‑saving policies, Low‑E (low‑emissivity) glass has become the preferred material in modern construction, automotive, home appliance, and photovoltaic industries due to its excellent thermal insulation, light transmission, and UV protection performance. However, the metallic coating on Low‑E glass surface will seriously affect the bonding strength and sealing effect between glass and sealant, leading to risks such as degumming, air leakage, and hollow layer failure. Therefore, removing a certain width of the coating along the glass edge before sealing and tempering is an indispensable process.

Traditional manual film removal and single‑head deletion machines suffer from low efficiency, uneven deletion, residual coating, high labor intensity, and poor consistency. The double head Low‑E film deletion machine overcomes these shortcomings through dual synchronous heads, automatic positioning, and intelligent control. It can process two edges simultaneously, greatly improving production efficiency and product qualification rate. It has become core supporting equipment in automated glass processing lines.

2. Basic Definition and Classification

2.1 Definition

Double Head Low-E Film Deletion Machine is an automatic or semi-automatic mechanical equipment specially used to strip the low-emissivity coating layer from the edge of coated glass. It is equipped with two independently controlled or synchronously linked grinding heads, which can remove the film on two adjacent sides of glass at the same time. The deletion width, speed, and pressure are adjustable to adapt to different glass thicknesses, sizes, and coating types.

2.2 Classification


By control mode: semi-automatic (manual feeding) and fully automatic (automatic sensing, conveying, and positioning).
By structure: horizontal air-flotation type and vertical conveying type.
By application: standard type for architectural insulating glass, high-precision type for automotive glass, multi-functional type compatible with single-silver, double-silver, and triple-silver Low-E glass.
By grinding method: resin wheel grinding, diamond wheel grinding, and combined grinding system.


3. Structural Composition

The double head Low-E film deletion machine integrates machinery, electricity, pneumatics, and intelligent control. Its main components include:

3.1 Heavy-Duty Frame Structure

The frame is welded with high-strength steel and treated by stress relief, ensuring high rigidity, low vibration, and stable operation during long-term production. The stable structure guarantees precision and reduces glass damage caused by shaking.

3.2 Double Independent Grinding Head System

Two high-speed grinding motors drive special wear-resistant resin or diamond grinding wheels. The heads can move synchronously or independently, with adjustable height, pressure, and deletion width. They can process different glass thicknesses from 3 mm to 15 mm and ensure clean, scratch-free removal.

3.3 Air-Flotation Workbench

The workbench is equipped with high-pressure air nozzles to form a stable air cushion, allowing labor-free and low-damage movement of large glass sheets. It effectively reduces friction and edge breakage during feeding and positioning.

3.4 Pneumatic Clamping & Positioning System

Precision pneumatic cylinders fix the glass position automatically to avoid sliding during grinding. The positioning system ensures consistent deletion width and high dimensional accuracy.

3.5 Intelligent Control System

Equipped with PLC or CNC controller and touch screen, it supports one-key operation, parameter storage, deletion width setting, speed adjustment, and fault self-diagnosis. The human-machine interface is intuitive and easy to master.

3.6 Dust Collection & Environmental Protection System

A built-in vacuum dust collection device absorbs coating dust in real time, preventing dust pollution and protecting the health of operators. It keeps the workbench clean and improves working environment.

3.7 Safety Protection System

Equipped with emergency stop, safety grating, overload protection, and limit switches to ensure safe operation and prevent personal injury or equipment damage.

4. Working Principle

The working process of the double head Low-E film deletion machine follows a stable and efficient logic:



Feeding & Positioning

The operator places the glass on the air-flotation table and pushes it to the positioning area. The pneumatic system automatically clamps and fixes the glass sheet.



Parameter Setting

Set deletion width, grinding speed, and pressure on the touch screen according to glass thickness and coating type.



Dual-Head Synchronous Deletion

The two grinding heads start simultaneously and move along the glass edges to remove the Low-E coating completely and evenly.



Automatic Stop & Unloading

When deletion is finished, the heads return automatically. The air cushion starts again for easy unloading. For four-edge deletion, the glass is rotated 90 degrees for repeated processing.




The dual-head design doubles efficiency compared with single-head machines. The precise pressure control ensures no damage to the glass surface while removing the coating thoroughly.

5. Core Technical Characteristics and Advantages

5.1 High Efficiency & Double Productivity

Two grinding heads work at the same time, significantly reducing processing time. Fully automatic models can be linked with glass cutting lines and insulating glass production lines to realize continuous flow operation.

5.2 High Precision & Good Consistency

Deletion width can be adjusted from 5 mm to 50 mm with an error less than ±1 mm. The edge is clean and residue-free, which greatly improves the sealing quality and service life of insulating glass.

5.3 Wide Compatibility

Suitable for single-silver, double-silver, triple-silver Low-E glass, coated glass, reflective glass, and solar glass. Compatible with various glass sizes and thicknesses.

5.4 Low Breakage Rate & High Stability

Air-flotation table, soft clamping, and stable pressure control minimize glass scratch and breakage. The breakage rate is controlled below 0.3%.

5.5 Easy Operation & Low Labor Intensity

Intelligent touch screen control reduces professional skill requirements. Air flotation makes glass movement effortless, reducing operator fatigue.

5.6 Environmentally Friendly & Low Maintenance

Dust removal system ensures clean production. The grinding wheels have long service life and are easy to replace. The overall structure is simple with low failure rate.

6. Main Application Fields

6.1 Insulating Glass Production

The most important application: removing edge coating to ensure reliable bonding between glass and butyl rubber / structural sealant, preventing hollow glass failure.

6.2 Architectural Glass Processing

Used for curtain wall glass, doors and windows, skylights, and partition glass to meet building energy-saving and safety standards.

6.3 Automotive Glass

Edge treatment of automotive sunroofs, rear windshields, and side windows to ensure optical performance and sealing reliability.

6.4 Home Appliance & Photovoltaic Glass

Suitable for oven doors, refrigerator shelves, solar panels, and display glass, improving product durability and appearance.

7. Operation and Maintenance

7.1 Standard Operation


Check power, air pressure, grinding wheels, and dust collector before startup.
Set correct parameters according to glass type.
Do not place hands near grinding heads during operation.
Clean glass chippings and dust after shutdown.


7.2 Daily Maintenance


Clean the workbench and dust collection box daily.
Check air tightness of pneumatic components.
Lubricate linear guides and transmission parts regularly.
Replace worn grinding wheels to ensure deletion quality.


7.3 Regular Overhaul

Check motor current, control system, and positioning accuracy every 6–12 months. Replace aging wearing parts to extend service life.

8. Development Trend

8.1 Higher Intelligence

Future models will integrate AI visual recognition, automatic glass size detection, automatic coating identification, and remote monitoring for unmanned production.

8.2 Higher Integration

The machine will combine with loading, cutting, edging, and washing functions to form a fully automatic processing unit.

8.3 Greener & More Efficient

Energy-saving motors, optimized dust removal, and quieter design will meet environmental requirements.

8.4 More Specialized Customization

Special models for ultra-thin glass, large-size glass, and shaped glass will be developed to meet diversified market demands.

9. Conclusion

The Double Head Low-E Film Deletion Machine is key equipment in the modern glass deep-processing industry. It solves the problems of low efficiency and poor quality in traditional film removal processes, and guarantees the sealing performance, structural stability, and service life of Low-E glass products. With the rapid development of energy-saving buildings and automotive industries, the demand for high-quality coated glass will continue to grow, and the double head Low-E film deletion machine will become more intelligent, efficient, and integrated. For glass processing enterprises, choosing reliable double head film deletion equipment is an important way to improve product quality, reduce production costs, and enhance market competitiveness.

The IG Warm Edge Production Line is a highly integrated, automated manufacturing system dedicated to the continuous production of warm-edge spacer systems for high-performance insulating glass (IG). With the global promotion of low-carbon, energy-saving buildings and the upgrading of architectural glass standards, warm-edge spacer technology has gradually become the mainstream alternative to traditional aluminum spacer systems due to its excellent thermal insulation, anti-condensation performance, structural stability, and extended service life. This article elaborates on the technical background, structural composition, process flow, core functional modules, performance characteristics, operation and maintenance, quality control, application scenarios, and development trends of the IG Warm Edge Production Line. It aims to provide a comprehensive, professional, and systematic technical reference for insulating glass manufacturers, architectural engineering enterprises, equipment suppliers, and technical practitioners, highlighting the important value of automated warm-edge production lines in improving product quality, production efficiency, and the overall performance of modern insulating glass units.

1. Introduction

Insulating glass has become an essential component in modern architectural systems, widely used in residential doors and windows, commercial curtain walls, passive houses, industrial constant-temperature facilities, automotive glass, and rail transit. As one of the core components of insulating glass, the spacer system directly determines the thermal insulation effect, airtightness, sound insulation performance, and service life of the entire glass unit. Traditional aluminum spacer bars, as typical cold-edge products, have high thermal conductivity, which easily leads to edge condensation, increased energy loss, and reduced durability of insulating glass.

Warm-edge spacers adopt non-metallic composite materials, stainless steel with thermal break structure, polymer materials, or foam composite structure, which greatly reduce the heat transfer coefficient and effectively improve the energy-saving performance of insulating glass. The production of high-performance warm-edge spacers cannot rely on manual or simple semi-automatic equipment. It requires a professional IG Warm Edge Production Line to realize integrated processes such as extrusion forming, desiccant filling, butyl rubber coating, continuous shaping, fixed-length cutting, and automatic collection.

In recent years, with the continuous improvement of global building energy-saving standards and the rapid expansion of the high-end insulating glass market, the demand for automated, stable, and high-precision IG Warm Edge Production Lines has increased significantly. This type of production line represents the advanced level of modern insulating glass deep-processing equipment and has become key technical equipment for medium and large-scale glass processing enterprises to enhance product competitiveness and achieve industrial upgrading.

2. Overview of Warm-Edge Spacer Technology

Warm-edge spacers refer to edge isolation components used in insulating glass with low thermal conductivity, good flexibility, and excellent sealing performance. According to material composition and structural form, they are mainly divided into the following categories:


Flexible composite warm-edge spacers (foam + butyl rubber integrated structure)
Thin-walled stainless steel warm-edge spacers with thermal barrier
Polymer reinforced composite warm-edge spacers
Super Spacer silicone foam warm-edge products with built-in desiccant


Compared with traditional aluminum cold-edge spacers, warm-edge spacers have obvious performance advantages:


Lower heat transfer coefficient, significantly improving building energy efficiency
Excellent anti-condensation performance, reducing the risk of internal fogging of insulating glass
Good toughness and shock resistance, adapting to thermal expansion and contraction deformation
Strong compatibility with tempered glass, coated glass, and Low-E glass
Longer service life, improving the durability of insulating glass units


The stable batch production of such high-performance components can only be realized through a fully automatic IG Warm Edge Production Line, which ensures product dimensional consistency, uniform desiccant filling, stable butyl rubber coating, and continuous and reliable process quality.

3. Overall Structure and Core Modules of IG Warm Edge Production Line

The IG Warm Edge Production Line adopts a modular, continuous, and high-integration design. A complete automatic production line is mainly composed of the following core systems:

3.1 Raw Material Unwinding and Preheating System

This system is responsible for the stable supply of base materials such as composite strips, polymer films, foam substrates, and butyl rubber. It is equipped with an automatic unwinding device, tension control system, and preheating mechanism to ensure that raw materials maintain appropriate plasticity and viscosity during the production process, avoiding deformation, fracture, or poor bonding caused by insufficient temperature.

3.2 High-Precision Extrusion and Forming System

As the core module of the entire production line, the extrusion forming system adopts a precision screw extrusion structure and a specially designed forming mold. It melts, extrudes, and shapes composite materials into continuous spacer profiles with fixed cross-sectional dimensions and structural forms. The system has stable extrusion pressure, uniform discharge, and high matching accuracy between the mold and the profile, ensuring that the appearance, size, and structural strength of the warm-edge spacer fully meet process standards.

3.3 Automatic Desiccant Filling System

Desiccant is used to absorb moisture inside the insulating glass cavity and prevent fogging. The automatic desiccant filling system realizes quantitative, continuous, and uniform filling functions. It is equipped with a material level sensor, anti-blocking device, and quantitative control mechanism to ensure stable filling weight, no leakage, no blockage, and uniform internal distribution, providing a guarantee for the long-term stability of insulating glass.

3.4 Butyl Rubber Coating System

Butyl rubber is the first sealing layer of insulating glass, which undertakes the functions of air tightness and initial adhesion. The butyl rubber coating system adopts closed temperature control and pressure-controlled glue output. It can evenly coat molten butyl rubber on both sides or the surface of the spacer. The system supports real-time adjustment of coating thickness, with stable glue output, no bubbles, no breakpoints, and strong bonding fastness.

3.5 Continuous Cooling and Shaping System

After extrusion, filling, and gluing, the warm-edge spacer enters the cooling and shaping section. The system adopts air cooling or water cooling circulation to rapidly cool and shape the profile, maintain stable dimensional accuracy, prevent thermal deformation, and ensure the straightness and flatness of the finished product.

3.6 Servo-Driven Fixed-Length Cutting System

The high-precision cutting system is driven by a servo motor and equipped with a non-deformation cutter. It can automatically cut the continuous warm-edge spacer into fixed lengths according to the set size. The cutting accuracy can reach ±0.1 mm, with a smooth cut surface, no burrs, no deformation, and high consistency, adapting to the assembly needs of insulating glass of different specifications.

3.7 Automatic Conveying, Counting and Stacking System

The cut finished warm-edge spacers are automatically conveyed, sorted, counted, and stacked through a conveyor belt and pneumatic control mechanism. The system can realize automatic palletizing and transfer, which is convenient for subsequent packaging, storage, and use, reducing manual labor and improving production efficiency.

3.8 PLC Central Control and Human-Machine Interface

The entire production line adopts a PLC + touch screen integrated control system, supporting parameter setting, real-time monitoring, production statistics, fault alarm, and historical record query. Operators can set and adjust production speed, temperature, cutting length, coating thickness, and other parameters through the interface to realize stable, intelligent, and standardized production.

3.9 Safety Protection System

The production line is equipped with a complete safety protection system, including emergency stop buttons, fully enclosed safety guards, photoelectric protection, motor overload protection, temperature over-limit alarm, and air pressure abnormality detection. It ensures the personal safety of operators and the long-term stable operation of the equipment.

4. Complete Automatic Production Process Flow

The standard IG Warm Edge Production Line realizes a fully continuous and automated production flow, and the main steps are as follows:


Automatic unwinding and tension stabilization of raw materials
Preheating and plasticization of base materials
High-precision extrusion forming of warm-edge spacer profiles
Automatic quantitative filling of desiccant
Uniform and stable butyl rubber coating
Rapid cooling and shaping
Online dimensional and surface quality inspection
Servo-driven fixed-length high-precision cutting
Automatic conveying, counting and sorting of finished products
Automatic stacking and preparation for packaging


The entire process has a high degree of continuity, stable process parameters, and consistent product quality, which can meet the needs of long-term continuous large-scale production.

5. Technical Characteristics and Performance Advantages

5.1 High Degree of Automation

The IG Warm Edge Production Line realizes full-process automation from raw material feeding to finished product stacking. It only requires one operator to monitor the operation status, which greatly reduces labor input and improves overall production efficiency.

5.2 High Production Accuracy

The servo control system, precision mold, closed-loop temperature control, and high-speed cutting mechanism ensure the dimensional accuracy of the spacer, uniform desiccant filling, and stable butyl rubber coating, directly improving the quality and performance of insulating glass products.

5.3 Stable and Reliable Operation

The whole line adopts high-standard configuration and robust structural design, with strong rigidity, good shock resistance, and low failure rate. It can operate continuously for a long time under high-load working conditions and adapt to the long-term production needs of large-scale glass processing plants.

5.4 Wide Application Compatibility

By replacing molds and adjusting process parameters, the production line can produce various types and specifications of warm-edge spacers, including flexible warm edge, stainless steel warm edge, polymer composite warm edge, Super Spacer, and other products, with strong versatility and scalability.

5.5 Energy Saving and Environmental Protection

The production line adopts an energy-saving heating system, closed glue coating structure, and automatic waste recovery device, with low energy consumption, low noise, no waste gas pollution, and in line with modern industrial environmental protection and low-carbon production requirements.

5.6 Intelligent Management Function

Equipped with a fault self-diagnosis system, real-time data display, and production record function, it can monitor production speed, temperature, pressure, yield, and fault information in real time, facilitating equipment management, maintenance, and production scheduling.

6. Application Fields

IG Warm Edge Production Lines are mainly used for the mass production of high-performance warm-edge spacers, and the final products are widely used in:


High-grade residential doors and windows insulating glass
Commercial building curtain wall insulating glass
Passive ultra-low energy consumption building glass
Cold storage, constant temperature workshop, and laboratory insulating glass
Automotive and rail transit insulating glass
High-end furniture and decorative insulating glass


With the continuous improvement of global building energy-saving regulations and the continuous expansion of the high-end architectural market, the demand for warm-edge spacers will maintain a steady growth trend, and the application scope of IG Warm Edge Production Lines will be further expanded.

7. Operation, Maintenance and Troubleshooting

7.1 Standard Operation Procedure

Before starting the machine, check raw materials, power supply, air pressure, and temperature parameters; set production size, speed, temperature, and other data through the human-machine interface, and conduct a low-speed test run. During production, real-time monitoring of profile forming, glue coating, cutting, and surface quality is required. After shutdown, the glue system, mold, conveyor belt, and working surface should be cleaned in time.

7.2 Daily Maintenance


Clean the surface of the equipment and residual glue debris every day
Check the lubrication of transmission parts and supplement lubricating oil appropriately
Check the tightness of the air circuit and the status of the filter
Verify the effectiveness of temperature control systems and sensors


7.3 Regular Maintenance


Calibrate temperature, speed, and cutting accuracy monthly
Check and clean the extrusion system and glue coating system quarterly
Inspect motors, cylinders, and electrical components every six months
Conduct a comprehensive overhaul and replace vulnerable parts every year


7.4 Common Faults and Solutions


Uneven butyl rubber coating: check temperature stability, glue pressure, and nozzle blockage
Spacer profile deformation: adjust cooling temperature and production line speed
Inaccurate cutting length: calibrate servo system and positioning sensor
Uneven desiccant filling: check feeding device, pipeline blockage, and material level


8. Development Trend of IG Warm Edge Production Line

Driven by intelligent manufacturing and green building trends, future IG Warm Edge Production Lines will develop in the following directions:


Higher automation, realizing fewer people or unmanned production
Higher precision and stability to meet ultra-high-performance insulating glass standards
Multi-functional integration, compatible with more types of warm-edge products
Intelligent interconnection, supporting remote monitoring, data cloud storage, and digital factory management
Higher energy efficiency and lower consumption to meet the global low-carbon production trend


With technological iteration and market upgrading, the IG Warm Edge Production Line will become more intelligent, flexible, integrated, and efficient, and become standard core equipment in the modern high-end insulating glass manufacturing industry.

9. Conclusion

The IG Warm Edge Production Line is a key automated production system for manufacturing high-performance warm-edge spacers, representing the advanced technical level of the modern insulating glass deep-processing industry. It integrates precision machinery, automatic control, material forming, and intelligent management technology, with significant advantages such as high efficiency, high precision, stability, reliability, energy saving, and environmental protection. It can effectively improve the production quality and consistency of warm-edge spacers, reduce production costs, and meet the increasingly high requirements of energy-saving buildings for insulating glass performance.

Low-E Film Deleting Machine: Professional Technical Overview & Comprehensive Description
The Low-E Film Deleting Machine is a kind of high-precision, automatic, and professional processing equipment specially designed for the edge deletion of coated glass, especially Low-E (Low Emissivity) glass. As an indispensable supporting equipment in the deep processing of architectural glass, insulating glass, and tempered glass, this machine adopts advanced physical deletion technology to accurately remove the unnecessary Low-E coating layer at the edge of the glass, so as to ensure the bonding fastness, sealing performance and service life of insulating glass, and avoid quality problems such as degumming, oxidation, and air leakage caused by the coating layer. With the characteristics of high automation, high processing precision, stable operation, and friendly operation, the Low-E Film Deleting Machine has become a key production equipment for modern glass deep-processing enterprises to improve product quality, optimize production efficiency and meet industrial processing standards.

Working Principle

The working principle of the Low-E Film Deleting Machine is based on precise mechanical grinding and positioning control technology, combined with automatic transmission and intelligent control system, to realize efficient and non-damaging edge deletion of Low-E coated glass. Firstly, the glass to be processed is automatically conveyed to the processing area through the conveyor system, and the precise positioning is completed through the photoelectric sensor and the positioning mechanism to ensure the consistency of the deletion position and size. Then, the high-speed rotating grinding wheel or special deletion head is driven by the servo motor to contact the surface of the Low-E coating evenly, and the coating layer at the edge of the glass is removed quantitatively and stably according to the set deletion width, depth and path. During the whole processing, the dust removal system runs synchronously to absorb the grinding dust in real time, keeping the processing environment clean and the glass surface smooth. The intelligent control system can automatically adjust the running speed, grinding force and deletion range according to the thickness, size and coating type of the glass, so as to realize fully automatic continuous processing without damaging the glass substrate and ensuring the integrity and flatness of the non-deletion area.

Core Structure and Functional Components

The Low-E Film Deleting Machine is composed of a plurality of coordinated functional modules, each of which plays an important role in the stability, precision and service life of the equipment.

1. Automatic Conveying and Positioning System

This system adopts a motor-driven roller conveyor or belt conveyor, matched with a high-precision photoelectric positioning device and a pneumatic clamping mechanism, which can realize stable transmission and accurate positioning of glass of different sizes and thicknesses. It can automatically adapt to the processing requirements of various specifications of architectural glass and insulating glass, avoid position deviation during operation, and ensure the accuracy and consistency of edge deletion.

2. Servo Drive and Grinding System

As the core execution structure of the machine, the servo drive system controls the high-speed grinding head or diamond grinding wheel with high precision, with stable speed and adjustable force. The professional deletion grinding head is designed for Low-E coating, which can quickly and effectively remove the coating layer without scratching the glass surface, and the deletion effect is neat and uniform, fully meeting the processing standards of insulating glass edge sealing.

3. Intelligent Control System

The machine is equipped with an industrial PLC control system and a human-machine touch screen, which supports one-key setting of processing parameters such as deletion width, speed, path and glass thickness. It has the functions of parameter storage, fault self-diagnosis, automatic alarm and emergency stop, which simplifies the operation difficulty and improves the safety and stability of the equipment. The intelligent control mode can realize fully automatic continuous production and reduce manual intervention.

4. Dust Removal and Cleaning System

Equipped with a high-power industrial dust collection and filtration system, it can absorb the coating dust and debris generated during the grinding process in real time, prevent dust from adhering to the glass surface and polluting the processing environment, and keep the glass clean and the internal parts of the equipment clean, reducing the failure rate caused by dust accumulation.

5. Frame and Protective System

The whole machine adopts a high-strength steel frame structure, with solid and stable operation, low vibration and low noise. The fully enclosed protective cover and safety interlock device effectively protect the personal safety of operators, in line with international industrial safety standards, and make the equipment more reliable and durable in long-term industrial production.

6. Size Adaptation and Adjustment Mechanism

The machine has a wide range of size adaptation, which can quickly adjust the processing range according to the length, width and thickness of the glass, support small-size decorative glass and large-size architectural curtain wall glass, and has strong flexibility and versatility to meet the diversified production needs of enterprises.

Key Performance Advantages

Compared with traditional manual deletion or semi-automatic deletion equipment, the fully automatic Low-E Film Deleting Machine has obvious technical and application advantages, which can greatly improve the production efficiency and product qualification rate of glass deep-processing enterprises.

First of all, high processing precision and good effect. The deletion width and depth are precisely controlled, the edge is neat and smooth, no damage to the glass substrate, completely solve the problems of uneven deletion, missing deletion and excessive deletion in manual operation, and greatly improve the processing quality of insulating glass.

Secondly, high degree of automation and high production efficiency. It can realize continuous automatic processing without manual hand-held grinding, the processing speed is fast, the single piece processing time is short, and it can match the production rhythm of the insulating glass production line, greatly improving the overall production capacity.

Thirdly, wide application range and strong adaptability. It is suitable for single silver Low-E glass, double silver Low-E glass, triple silver Low-E glass and other different types of coated glass, and compatible with glass of various thicknesses and sizes, with strong versatility and practicability.

Fourthly, stable operation and low failure rate. The equipment adopts high-quality electrical components and wear-resistant grinding parts, with reasonable structure design, stable operation, long service life, simple daily maintenance and low later use cost.

Fifthly, safe and environmentally friendly operation. The fully enclosed protection and dust removal system ensure a clean and safe processing environment, reduce the labor intensity of workers, avoid dust hazards, and meet the requirements of green and safe production.

Sixthly, improve product quality and service life. By accurately removing the edge coating, the bonding force between the glass and the sealing material is enhanced, the oxidation and corrosion of the coating layer are prevented, the airtightness and durability of the insulating glass are improved, and the quality and added value of the final product are upgraded.

Main Application Fields

The Low-E Film Deleting Machine is mainly used in the glass deep-processing industry, and is widely used in the production and processing of insulating glass, tempered glass, laminated glass and architectural coated glass. It is an essential equipment for professional glass processing factories, architectural glass manufacturers, insulating glass production bases and door and window curtain wall enterprises.

In the field of architectural glass, it is used for edge deletion processing of Low-E glass for high-rise buildings, office buildings, residential buildings, shopping malls and other curtain walls and doors and windows, ensuring the sealing and safety performance of insulating glass.

In the field of insulating glass production, it is matched with insulating glass production lines, automatic glass cutting machines, edge grinding machines and other equipment to form a complete automated production process, improving the efficiency and quality of insulating glass manufacturing.

In addition, it is also used in the processing of automotive glass, home appliance glass, decorative glass and other coated glass products, providing professional edge deletion solutions for various high-standard coated glass deep processing.
