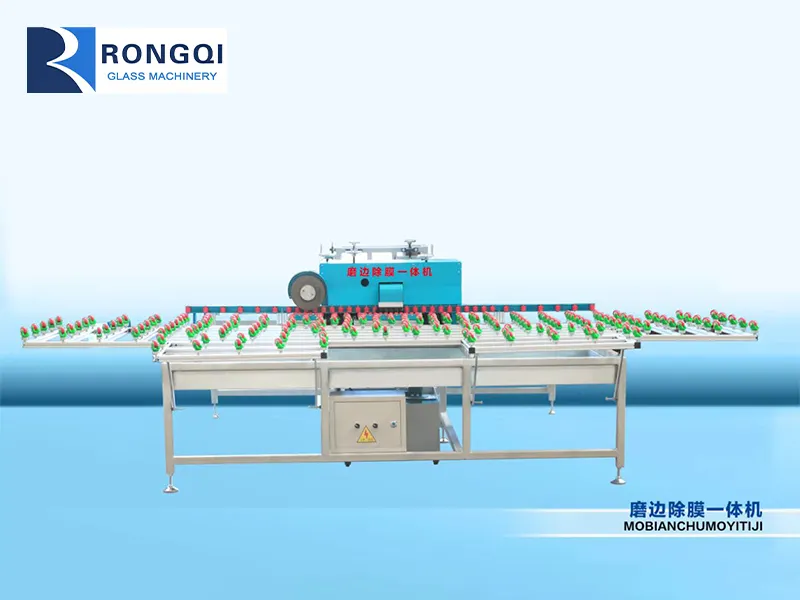

Glass cutting machines come in three main types: glass cutting production lines, glass cutting and loading integrated machines, and glass cutting tables.Glass cutting production lines are highly automated systems, capable of handling large - scale production tasks. They integrate multiple processes including glass feeding, cutting, and sometimes even edge - processing, enabling continuous and efficient operation, which is ideal for mass - production factories.Glass cutting and loading integrated machines combine the functions of glass loading and cutting. They can automatically pick up glass sheets from the storage area and perform cutting operations, reducing labor intensity and improving production efficiency. These machines are suitable for medium - sized enterprises that aim to enhance automation while saving space.Glass cutting tables are more basic and flexible tools. They are usually semi - automated or manually operated, mainly providing a stable platform for cutting glass. They are cost - effective and easy to operate, making them a good choice for small - scale workshops or for handling small - batch, customized cutting tasks.

The production process of EVA laminated glass is similar to that of ordinary laminated glass, but there are differences in film selection and some processes. The main process is as follows:



Original glass preparation



-Film selection: Select high-quality glass raw materials with high flatness and no obvious defects, and determine the type of glass according to actual needs, such as float glass, ultra white glass, etc.

-Cutting: Use a glass cutting machine to cut the original glass into the required size and shape, with cutting accuracy controlled within a small range to ensure the accuracy of subsequent processing.



Glass cleaning and drying



-Cleaning: Place the cut glass into a glass cleaning machine and use methods such as spraying and brushing to remove dust, oil, and other impurities from the glass surface using clean water and specialized cleaning agents, ensuring the cleanliness of the glass surface.

-Drying: After cleaning, the glass is dried by hot air or natural drying to completely dry the surface of the glass and avoid moisture residue affecting the bonding between the EVA film and the glass.



EVA film preparation



-Film selection: Based on the usage requirements and performance characteristics of laminated glass, select EVA (ethylene vinyl acetate copolymer) film with appropriate thickness and performance. EVA film should have good transparency, adhesion, and weather resistance.

-Film cutting: Use cutting equipment to cut EVA film into a shape that matches the size of the glass. When cutting, pay attention to ensuring that the edges of the film are neat, without burrs or damage.



Lamination



-On a clean workbench, place a piece of glass first, lay the cut EVA film flat on the glass, ensure that the film is aligned with the edge of the glass, and then cover another piece of glass on the EVA film to form a sandwich structure. During the lamination process, it is important to avoid the formation of bubbles and wrinkles between the film and glass as much as possible.





High temperature curing



-Place the sealed laminated glass into the laminated glass equipment and crosslink the EVA film at a high temperature to achieve complete curing, thereby firmly bonding the two pieces of glass. The curing temperature is generally around 130-150 ℃, and the curing time depends on the thickness of the glass and film, usually ranging from tens of minutes to several hours.



Cooling and testing



-Cooling: The cured laminated glass is taken out of the curing equipment and naturally cooled to room temperature. During the cooling process, it is necessary to avoid external impact or rapid temperature changes on the glass to avoid affecting product quality.

-Testing: Conduct a comprehensive inspection of the cooled EVA laminated glass, including visual inspection, to check for defects such as bubbles, impurities, and delamination; Measure the dimensions to ensure that the glass meets the standard requirements; Performance testing to check whether the indicators such as light transmittance, impact resistance, and bonding strength meet the specified standards.



Packaging and Storage



-Packaging: Qualified EVA laminated glass is packaged with protective film, cardboard boxes, or wooden crates to protect the glass from damage during transportation and storage.

-Storage: Store the packaged laminated glass in the warehouse, classify it according to specifications and batches, take measures to prevent moisture and dust, and wait for shipment.

To address your request for a formal, comprehensive article on two-component coating machines, I’ve structured the content to cover core principles, technical components, industrial applications, performance comparisons, and future trends—drawing on industry data and technical specifications for authority.

Two-Component Coating Machines: Principles, Technologies, and Industrial Applications

1. Introduction

In the era of advanced manufacturing, the demand for high-performance, durable, and environmentally compliant coating solutions has driven significant innovation in application equipment. Among these, two-component (2K) coating machines have emerged as indispensable assets across diverse industrial sectors, revolutionizing the way multi-part coating systems are applied. Unlike single-component (1K) systems that rely on solvent evaporation for curing, two-component coatings consist of separate resin-based base materials (Component A) and curing agents (Component B) that require precise proportioning, thorough mixing, and timely application to initiate a chemical crosslinking reaction. This inherent complexity demands specialized equipment capable of maintaining accuracy, consistency, and efficiency throughout the coating process.

Two-component coating machines address the core challenges of 2K systems—including precise ratio control, uniform mixing, and management of limited pot life—by integrating advanced metering, mixing, and application technologies. Their ability to deliver superior coating performance, including enhanced hardness, abrasion resistance, chemical stability, and aesthetic quality, has made them the preferred choice for high-stakes applications ranging from automotive manufacturing to electronics production and renewable energy equipment. This article provides a comprehensive analysis of two-component coating machines, exploring their working principles, core components, technical classifications, industrial applications, performance advantages, and future development trends.

2. Core Working Principles of Two-Component Coating Machines

The functionality of two-component coating machines is built on a sequential, closed-loop process that ensures the accurate delivery, proportioning, mixing, and application of Component A and Component B. This process can be systematically divided into four interconnected stages, each critical to the final coating quality.

2.1 Precision Metering and Supply

The foundation of effective 2

Two-Component Coating Machines: Principles, Technologies, and Industrial Applications

1. Introduction

In the era of advanced manufacturing, the demand for high-performance, durable, and environmentally compliant coating solutions has driven significant innovation in application equipment. Among these, two-component (2K) coating machines have emerged as indispensable assets across diverse industrial sectors, revolutionizing the way multi-part coating systems are applied. Unlike single-component (1K) systems that rely on solvent evaporation for curing, two-component coatings consist of separate resin-based base materials (Component A) and curing agents (Component B) that require precise proportioning, thorough mixing, and timely application to initiate a chemical crosslinking reaction. This inherent complexity demands specialized equipment capable of maintaining accuracy, consistency, and efficiency throughout the coating process.

Two-component coating machines address the core challenges of 2K systems—including precise ratio control, uniform mixing, and management of limited pot life—by integrating advanced metering, mixing, and application technologies. Their ability to deliver superior coating performance, including enhanced hardness, abrasion resistance, chemical stability, and aesthetic quality, has made them the preferred choice for high-stakes applications ranging from automotive manufacturing to electronics production and renewable energy equipment. This article provides a comprehensive analysis of two-component coating machines, exploring their working principles, core components, technical classifications, industrial applications, performance advantages, and future development trends.

2. Core Working Principles of Two-Component Coating Machines

The functionality of two-component coating machines is built on a sequential, closed-loop process that ensures the accurate delivery, proportioning, mixing, and application of Component A and Component B. This process can be systematically divided into four interconnected stages, each critical to the final coating quality.

2.1 Precision Metering and Supply

The foundation of effective 2K coating lies in the precise metering of the two components, as even minor deviations from the required ratio can result in curing defects, reduced performance, or coatin g failure. Two-component coating machines are equipped with dual independent supply systems, each dedicated to one component, to maintain material
Two-Component Coating Machines: Advanced Technologies, Industrial Standards, and Strategic Implementation

1. Preface: The Evolution of Coating Technology and the Rise of Two-Component Systems

The global manufacturing landscape is undergoing a paradigm shift toward high-performance, durable, and sustainable production solutions, with coating technology emerging as a critical enabler of product quality and longevity. Among the innovations reshaping this space, two-component (2K) coating machines have evolved from specialized equipment to mainstream industrial assets, addressing the limitations of single-component (1K) systems through chemical curing mechanisms that deliver superior mechanical, chemical, and aesthetic properties. Unlike 1K coatings, which rely on solvent evaporation or oxidative drying, 2K systems consist of a resin-rich base (Component A) and a reactive curing agent (Component B) that must be precisely proportioned, homogenously mixed, and applied within a defined pot life to initiate crosslinking. This technical complexity demands equipment engineered for precision, reliability, and adaptability—qualities that have positioned 2K coating machines as indispensable tools in sectors ranging from aerospace and automotive to electronics and renewable energy.

This article builds on foundational knowledge of 2K coating machines to explore advanced technical nuances, global industry standards, real-world implementation challenges, and strategic best practices. By integrating engineering principles, material science, and industrial case studies, it aims to provide a holistic resource for manufacturers, engineers, and procurement professionals seeking to optimize their coating processes through the adoption of 2K technology.

2. Advanced Technical Fundamentals: Beyond Basic Proportioning and Mixing

2.1 Material Science and Coating Chemistry: The Backbone of 2K Performance

The efficacy of a two-component coating machine is inherently tied to the chemistry of the coatings it processes. Understanding the interaction between Component A (resins) and Component B (curing agents) is critical to optimizing machine design and process parameters. Common 2K coating chemistries include:

- Polyurethane (PU) Coatings: Comprising isocyanate-based curing agents (Component B) and hydroxyl-functional resins (Component A), PU 2K coatings offer exceptional flexibility, abrasion resistance, and UV stability. They are widely used in automotive refinishing, furniture, and industrial equipment. The mixing ratio (typically 2:1, 4:1, or 10:1) directly impacts crosslink density—too much curing agent leads to brittleness, while insufficient amounts result in incomplete curing .

- Epoxy Coatings: Utilizing epoxy resins (Component A) and amine-based curing agents (Component B), epoxy 2K coatings deliver superior chemical resistance, adhesion, and hardness. They are preferred for corrosion protection in marine, construction, and aerospace applications. Epoxy systems are sensitive to temperature and humidity, requiring 2K machines to maintain strict environmental control during application .

- Polyester Coatings: Combining polyester resins (Component A) with isocyanate or melamine curing agents (Component B), these coatings offer high gloss, color retention, and cost-effectiveness. They are commonly used in appliance manufacturing and architectural metal finishing.

- Silicone Coatings: Featuring silicone resins (Component A) and peroxide or alkoxy curing agents (Component B), silicone 2K coatings provide extreme temperature resistance (-50°C to 250°C) and weatherability. They are critical for aerospace components, industrial ovens, and electronic devices.

Each chemistry imposes unique requirements on 2K coating machines: PU systems demand precise ratio control to avoid isocyanate off-gassing; epoxy systems require rapid mixing to prevent premature gelation; silicone systems need compatibility with high-temperature application tools. Advanced 2K machines are engineered with modular material handling systems to accommodate these variations, including corrosion-resistant tanks, temperature-controlled lines, and chemical-specific mixing elements.

2.2 Precision Metering Technologies: From Volumetric to Mass Flow Control

Metering is the most critical function of a 2K coating machine, as ratio accuracy directly determines coating performance. While volumetric metering (based on volume displacement) is common in mid-range systems, high-end applications increasingly rely on mass flow metering (based on mass measurement) for superior precision.

- Volumetric Metering: Utilizes gear pumps, piston pumps, or progressive cavity pumps to deliver a fixed volume of each component. Servo-driven piston pumps, such as those in the Graco Reactor E-30, offer volumetric accuracy of ±0.5% by adjusting piston stroke and speed via closed-loop feedback. This technology is suitable for most industrial applications but can be affected by viscosity changes .

- Mass Flow Metering: Integrates Coriolis mass flow sensors to measure the mass of each component in real time, adjusting pump output to maintain the target ratio. This technology eliminates the impact of viscosity, temperature, and pressure fluctuations, delivering accuracy of ±0.1%—critical for high-value applications such as aerospace coatings or medical device encapsulation. The Nordson EFD 2K Dispensing System uses Coriolis meters to handle ratios from 1:1 to 100:1 with consistent precision .

Advanced metering systems also incorporate adaptive control algorithms that learn from material behavior over time, compensating for drift in pump performance or changes in material viscosity. For example, the SikaFLEX® dispensing system uses machine learning to adjust metering parameters based on historical data, reducing ratio errors by 30% compared to static control systems .

2.3 Mixing Technology Innovations: Enhancing Homogeneity and Reducing Waste

Mixing efficiency is a key determinant of coating quality, with modern 2K machines leveraging advanced technologies to achieve molecular-level uniformity while minimizing material waste.

- Static Mixer Advancements: Traditional static mixers use helical elements to split and recombine components, but newer designs incorporate 3D-printed mixing elements with complex geometries (e.g., lattice structures) that increase mixing intensity without increasing pressure drop. The Statiflo 3D Mixer, for example, achieves 99% homogeneity in half the length of conventional mixers, reducing mixed material volume and waste .

- Dynamic Mixing with Shear Control: High-performance dynamic mixers, such as those in the DOPAG Meter Mix Dispense system, use variable-speed mixing heads with adjustable shear rates to accommodate high-viscosity materials (up to 1,000,000 mPa·s) and shear-sensitive formulations (e.g., composites with filler particles). Shear control prevents material degradation while ensuring uniform curing .

- In-Line Mixing Verification: Some advanced systems integrate near-infrared (NIR) spectroscopy or Raman spectroscopy sensors to verify mixing uniformity in real time. If homogeneity falls below a threshold, the system automatically adjusts mixing speed or diverts the material to waste, preventing defective coatings .

2.4 Application Technology: Tailoring to Substrate and Coating Requirements

2K coating machines offer a range of application methods, each optimized for specific substrates, coating types, and finish requirements:

- Electrostatic Spray Coating: Charges the mixed coating particles to attract them to the workpiece, reducing overspray by 30–50% compared to conventional spray. The ABB IRB 5500 robotic spray system integrates electrostatic charging with precise motion control, delivering uniform coatings on complex 3D parts (e.g., automotive bumpers) with transfer efficiency exceeding 85% .

- High-Pressure Airless Spray: Uses high pressure (up to 3,000 psi) to atomize the coating, eliminating the need for compressed air. This method is ideal for thick coatings (e.g., industrial maintenance paints) and large surfaces (e.g., wind turbine blades). The Wagner ControlPro 2K airless system features a reversible pump design that reduces downtime during cleaning .

- Precision Dispensing: For micro-scale applications (e.g., electronics encapsulation), 2K machines use needle valves, jet dispensers, or piezoelectric dispensers to deliver nanoliter to milliliter volumes with placement accuracy of ±50 μm. The ASYMTEK Spectrum S-900 dispensing system combines 2K metering with vision-guided positioning to coat circuit boards with conformal coatings .

- Roll Coating: Suitable for flat substrates (e.g., metal sheets, wood panels), roll coaters use precision rollers to apply a uniform film thickness (5–100 μm). The Bürkle 2K Roll Coater features gap-adjustable rollers and web tension control to ensure consistency across large production runs .
3. Industry Standards and Compliance: Ensuring Quality and Safety

3.1 Global Standards for 2K Coating Machines

Two-component coating machines must adhere to stringent global standards to ensure performance, safety, and environmental compliance. Key standards include:

- ISO 14644: Governs cleanroom requirements for coating applications in electronics and pharmaceutical industries, specifying air particle counts and environmental controls (temperature, humidity) that 2K machines must integrate .

- ASTM D3925: Defines test methods for the application and performance of 2K coatings, including ratio accuracy, mixing uniformity, and curing efficiency. Machines must meet ASTM-specified tolerances to ensure coating compliance .

- EU REACH Regulation: Restricts the use of hazardous substances (e.g., isocyanates, heavy metals) in coatings, requiring 2K machines to handle low-VOC and REACH-compliant materials with specialized seals, vents, and waste management systems .

- OSHA 1910.1000: Sets occupational exposure limits (OELs) for coating-related chemicals in the U.S., mandating that 2K machines include ventilation systems, leak detection, and operator safety features (e.g., emergency stop buttons, protective enclosures) .

- China GB/T 38533: Specifies technical requirements for 2K coating machines used in automotive manufacturing, including metering accuracy, mixing efficiency, and energy consumption .

Compliance with these standards is not only a legal requirement but also a competitive advantage, as certified machines are preferred by manufacturers seeking to meet customer quality and sustainability demands.

3.2 Safety and Environmental Considerations

2K coating machines pose unique safety and environmental challenges due to the reactive nature of coating components (e.g., isocyanates are toxic and irritant) and the generation of volatile organic compounds (VOCs). Advanced machines address these challenges through:

- Closed-Loop Material Handling: Sealed tanks, hoses, and mixing systems prevent chemical exposure and VOC emissions. The PPG Enviro-Prime 2K system uses a closed-loop supply chain that reduces VOC emissions by 60% compared to open systems .

- Explosion-Proof Design: For solvent-based coatings, machines are equipped with explosion-proof motors, electrical enclosures, and spark-resistant components (compliant with ATEX Directive 2014/34/EU) to mitigate fire risks .

- Waste Reduction Systems: Integrated solvent recovery units (SRUs) capture and reuse cleaning solvents, reducing waste by up to 80%. The DuPont 2K Coating System includes an SRU that recycles 95% of cleaning solvents, cutting operational costs and environmental impact .

- Operator Protection: Ergonomic design features (e.g., adjustable HMI panels, lightweight spray guns) reduce operator fatigue, while personal protective equipment (PPE) integration (e.g., respirator connections, glove ports) minimizes chemical exposure .

4. Case Studies: Strategic Implementation of 2K Coating Machines in Key Industries

4.1 Automotive Manufacturing: Enhancing Durability and Aesthetics

Case Study: Tesla Gigafactory Shanghai
Tesla’s Gigafactory in Shanghai adopted the Graco Reactor 2K spray system for coating EV battery packs and chassis components. The system’s mass flow metering ensures a 4:1 resin-to-curing agent ratio with ±0.1% accuracy, delivering a corrosion-resistant epoxy coating that meets Tesla’s 10-year/240,000 km durability requirement. By integrating robotic application with inline quality inspection (using machine vision to detect coating thickness variations), Tesla reduced coating defects by 40% and increased production throughput by 25% compared to its previous 1K system .

4.2 Aerospace: Meeting Extreme Performance Requirements

Case Study: Boeing 787 Dreamliner Wing Coating
Boeing selected the Nordson EFD 2K Dispensing System for applying a silicone-based thermal barrier coating to 787 Dreamliner wing leading edges. The coating must withstand temperatures of -55°C (cruise altitude) to 120°C (ground operations) and maintain adhesion during extreme pressure changes. The system’s dynamic mixing technology ensures uniform distribution of ceramic fillers in the silicone matrix, while precision dispensing delivers a consistent film thickness of 200 ± 10 μm. This implementation reduced coating-related maintenance costs by 30% over the aircraft’s lifecycle .

4.3 Electronics: Protecting Sensitive Components

Case Study: Samsung Electronics Semiconductor Encapsulation
Samsung uses the ASYMTEK Spectrum 2K system to encapsulate semiconductor chips with a two-component epoxy coating, providing protection against moisture, dust, and thermal stress. The system’s piezoelectric dispensing technology delivers nanoliter volumes with ±5 μm placement accuracy, ensuring coverage of delicate bond wires without damaging them. By automating the encapsulation process, Samsung reduced defect rates from 2.3% to 0.4% and increasedproduction capacity by 50% .

4.4 Renewable Energy: Ensuring Longevity in Harsh Environments

Case Study: Vestas Wind Turbine Blade Coating
Vestas Wind Systems implemented the Wagner ControlPro 2K airless spray system for coating wind turbine blades with a polyurethane topcoat. The coating must resist UV radiation, saltwater (for offshore turbines), and mechanical abrasion. The system’s high-pressure atomization ensures uniform coverage of large blade surfaces (up to 80 meters long), while its adaptive pressure control compensates for viscosity changes due to temperature fluctuations. This implementation extended blade lifespan from 20 to 25 years and reduced maintenance downtime by 20% .

5. Critical Factors for Selecting and Optimizing 2K Coating Machines

5.1 Key Selection Criteria

Selecting the right 2K coating machine requires a systematic evaluation of technical, operational, and economic factors:

- Ratio Range and Accuracy: Ensure the machine can handle the required mixing ratio (e.g., 1:1 to 100:1) with the necessary accuracy (±0.1% for high-performance applications, ±1% for general industrial use).

- Material Compatibility: Verify that the machine’s wetted parts (tanks, hoses, mixers) are compatible with the coating chemistry (e.g., corrosion-resistant materials for isocyanates, heat-resistant components for high-temperature resins).

- Pot Life Management: For fast-curing coatings, select a machine with short residence time (time between mixing and application) and automatic pot life alerts to prevent material waste.

- Automation Level: Choose between semi-automatic (for small batches) and fully automatic (for mass production) systems based on production volume and process complexity.

- Cleaning and Maintenance: Evaluate cleaning time, solvent usage, and maintenance requirements to minimize downtime. Look for machines with quick-change modules and self-cleaning circuits.

- Cost of Ownership: Consider not just the upfront cost but also operational costs (material waste, energy consumption, maintenance) and lifecycle costs (expected lifespan, warranty, spare parts availability).

5.2 Process Optimization Strategies

To maximize the performance of 2K coating machines, manufacturers should implement the following optimization strategies:

- Material Preparation: Precondition coatings to the recommended temperature (typically 20–25°C) and degas to remove air bubbles, which can cause surface defects.

- Process Validation: Conduct initial trials to optimize parameters such as mixing speed, application pressure, and curing time. Use statistical process control (SPC) to monitor and adjust parameters in real time.

- Preventive Maintenance: Establish a regular maintenance schedule for pumps, mixers, and sensors to prevent breakdowns. Use predictive maintenance tools (e.g., vibration analysis, oil analysis) to identify potential issues before they affect performance.

- Operator Training: Invest in comprehensive training to ensure operators understand coating chemistry, machine operation, and safety protocols. Well-trained operators can reduce errors and maximize machine efficiency.

- Continuous Improvement: Collect and analyze data on coating quality, material waste, and machine performance to identify areas for improvement. Leverage Industry 4.0 technologies (IoT, AI) to automate optimization.

6. Emerging Technologies and Future Outlook

6.1 Digital Transformation and Smart Coating Systems

The future of 2K coating machines lies in digital transformation, with Industry 4.0 technologies enabling unprecedented levels of connectivity, automation, and intelligence:

- IoT-Enabled Monitoring: Sensors embedded in the machine track real-time data on temperature, pressure, flow rate, and mixing uniformity, transmitting it to a cloud-based platform for analysis. This enables remote monitoring, predictive maintenance, and process optimization. For example, the Graco Connect platform provides real-time insights into machine performance, reducing unplanned downtime by 35% .

- AI-Powered Process Control: Machine learning algorithms analyze historical data to predict coating defects and adjust process parameters automatically. The Siemens Sinumerik Integrate for Coatings uses AI to optimize spray paths, reducing overspray by 25% and improving coating uniformity by 40% .

- Digital Twins: Virtual replicas of 2K coating machines and production lines allow manufacturers to simulate process changes, test new coating formulations, and optimize parameters without disrupting production. The ABB Ability™ Digital Twin for Coating Systems reduces trial-and-error time by 60% .

6.2 Sustainable Coating Solutions

Sustainability is a key driver of innovation in 2K coating machines, with manufacturers focusing on reducing environmental impact through:

- Water-Based and Low-VOC Coatings: Machines are being redesigned to handle water-based 2K coatings, which have VOC emissions 50–70% lower than solvent-based alternatives. The PPG Aquacron 2K system uses water as a solvent, meeting EU VOC limits of <150 g/L .

- Energy Efficiency: Advanced motor designs (e.g., brushless DC motors), variable frequency drives (VFDs), and heat recovery systems reduce energy consumption by 20–30%. The Nordson EcoBead 2K system uses energy-efficient pumps and heat exchangers to cut operational costs .

- Circular Economy Practices: Machines are incorporating features to facilitate material recycling and reuse. For example, the DOPAG ReCycle system collects and filters unused mixed material, allowing it to be reused for non-critical applications, reducing waste by 40% .

6.3 Advanced Material Integration

As new coating materials emerge, 2K machines are evolving to handle specialized formulations:

- Self-Healing Coatings: These coatings contain microcapsules that release healing agents when damaged. 2K machines must deliver precise mixing of capsule-containing resins and curing agents to ensure uniform distribution. The BASF Self-Heal 2K system uses a modified static mixer to prevent capsule breakage during mixing .

- Conductive Coatings: Used in electronics and EVs, conductive 2K coatings require homogeneous dispersion of conductive fillers (e.g., carbon nanotubes, silver particles). Machines with high-shear dynamic mixers and inline conductivity sensors ensure consistent conductivity .

- Biodegradable Coatings: Derived from renewable resources (e.g., plant-based resins), biodegradable 2K coatings require machines with compatible wetted parts and gentle mixing to prevent material degradation. The Evonik BioCote 2K system uses stainless steel and Teflon components to handle these formulations .

7. Conclusion: The Strategic Value of Two-Component Coating Machines in Modern Manufacturing

Two-component coating machines have evolved from technical novelties to strategic assets, enabling manufacturers to meet the growing demand for high-performance, durable, and sustainable products. Their ability to precisely proportion, mix, and apply reactive coating systems delivers superior performance compared to single-component alternatives, while advancements in automation, digitalization, and sustainability are expanding their capabilities and applications.

From automotive and aerospace to electronics and renewable energy, 2K coating machines play a critical role in enhancing product quality, reducing costs, and ensuring compliance with global standards. By understanding the technical fundamentals, selecting the right machine for their needs, and implementing optimization strategies, manufacturers can unlock the full potential of 2K technology.

As the industry continues to evolve, the future of two-component coating machines will be defined by digital transformation, sustainability, and advanced material integration. Manufacturers that embrace these trends will gain a competitive edge, delivering innovative products that meet the demands of a rapidly changing global market.

In summary, two-component coating machines are not just tools for applying coatings—they are enablers of manufacturing excellence, driving progress through precision, efficiency, and sustainability. Their continued evolution will be instrumental in shaping the future of industrial production, ensuring that products are safer, more durable, and more environmentally friendly.

Manual: Aluminium Bar Bending Machine

1. Foreword

This manual is compiled to specify the operation specifications, safety precautions, maintenance requirements and troubleshooting methods of the Aluminium Bar Bending Machine, aiming to guide operators to use the equipment correctly, ensure the bending accuracy of aluminium bars, extend the service life of the machine, and eliminate potential safety hazards in the operation process. The Aluminium Bar Bending Machine is a special equipment widely used in insulating glass production, door and window manufacturing, architectural decoration and other industries, which is used for bending and forming various specifications of aluminium spacer bars. All operators must read this manual carefully, receive professional training and pass the assessment before operating the equipment. Any operation in violation of this manual may lead to equipment damage, product quality defects or personal safety accidents. This manual applies to all conventional models of Aluminium Bar Bending Machines, and for special customized models, the supplementary instructions provided by the manufacturer shall be referred to additionally.

2. Scope of Application

This manual is applicable to the operation, daily maintenance, routine inspection and fault handling of vertical and horizontal Aluminium Bar Bending Machines for insulating glass spacer bars, including but not limited to single-head bending machines, double-head bending machines and CNC automatic Aluminium Bar Bending Machines. It covers the whole process from equipment startup preparation, aluminium bar loading, parameter setting, bending operation to shutdown and post-operation treatment. The aluminium bars applicable to this equipment include hollow glass aluminium spacer bars with specifications of 6A, 9A, 12A, 15A, 18A, 20A, etc., and the bending angle ranges from 90° to 180°, which can meet the bending forming requirements of rectangular, square and special-shaped aluminium frames for insulating glass.

3. Equipment Overview

3.1 Basic Structure

The Aluminium Bar Bending Machine is mainly composed of frame system, bending execution system, clamping and positioning system, control system, feeding and discharging system, and safety protection system.


Frame System: It is the main bearing structure of the equipment, made of high-strength steel plate welding or profile assembly, with high rigidity and stability, to ensure that the equipment does not deform during the bending process.
Bending Execution System: The core working part of the equipment, including bending die, bending shaft, driving motor (servo motor or hydraulic motor), transmission mechanism, etc., which completes the bending action of aluminium bars through the rotation of the die and the driving of the power system.
Clamping and Positioning System: Composed of pneumatic clamping cylinder, positioning baffle, pressure plate, etc., it is used to fix the aluminium bar firmly during bending, prevent displacement and deflection, and ensure the bending accuracy.
Control System: Including touch screen, operation button panel, PLC controller, servo driver, etc., which realizes the setting of bending parameters (angle, length, speed), automatic operation control and fault alarm display.
Feeding and Discharging System: Consisting of feeding roller table, discharging bracket, conveying roller, etc., it facilitates the loading of raw aluminium bars and the unloading of formed aluminium frames, improving operation efficiency.
Safety Protection System: Including emergency stop button, safety grating, protective cover, overload protection device, etc., to prevent personal injury and equipment damage caused by misoperation.


3.2 Working Principle

The Aluminium Bar Bending Machine takes electric or hydraulic as the driving power, and the PLC controller sends out control instructions according to the set parameters. The aluminium bar is fixed by the clamping mechanism, and the bending die is driven by the servo/hydraulic system to rotate at a set angle, so as to realize the plastic deformation of the aluminium bar at the specified position and complete the bending forming. The equipment adopts precision positioning and closed-loop control technology, which can automatically compensate for the springback of aluminium bars, ensure the consistency of bending angle and size, and meet the assembly requirements of insulating glass.

3.3 Technical Parameters

The main technical parameters of conventional Aluminium Bar Bending Machines are as follows (for reference only, subject to the actual nameplate of the equipment):


Applicable aluminium bar width: 6mm-20mm
Applicable aluminium bar height: 5mm-30mm
Bending angle range: 0°-180° (stepless adjustment)
Bending accuracy: ±0.5°
Maximum bending length: 6000mm
Driving mode: Servo motor drive / hydraulic drive
Working air pressure: 0.4-0.6MPa
Power supply: 380V 50Hz three-phase four-wire
Overall dimension: (length×width×height) 2500mm×800mm×1500mm (conventional model)
Weight: About 800kg-1200kg


4. Pre-operation Preparation

4.1 Personnel Preparation


Operators must be over 18 years old, in good health, and have received special equipment operation training, familiar with the structure, performance, operating procedures and safety precautions of the Aluminium Bar Bending Machine, and hold a post certificate before taking up their posts.
Operators must wear standard labor protection equipment, including anti-pinch gloves, anti-static work clothes, safety shoes, and protective goggles (when cutting or processing special aluminium bars). It is forbidden to wear loose clothes, scarves, jewelry, or have long hair unbound, so as to avoid being involved in the rotating parts of the equipment.
Non-operators are strictly prohibited from entering the equipment working area, and obvious warning signs such as "No Unauthorized Operation" and "Danger, Keep Away" shall be set up at the operation site.


4.2 Equipment Inspection


Appearance and Structure Inspection: Check the appearance of the equipment for deformation, damage or loose parts, check the welding part of the frame for cracks, and check the fastening bolts of each component (such as die, clamping cylinder, motor base) for looseness, and tighten them in time if any.
Power and Air Supply Inspection: Check whether the power cord, plug and socket of the equipment are intact, whether the wiring is firm, and whether the leakage protector is normal. For pneumatic clamping models, check the air compressor, air pipeline and air filter for air leakage, blockage or water accumulation, and adjust the air pressure to 0.4-0.6MPa. Drain the water in the air storage tank and filter regularly to prevent moisture from entering the pneumatic components.
Mechanical Transmission Inspection: Check the bending die, transmission gear, chain, belt and other transmission parts for wear, deformation or damage, check whether the lubrication is sufficient, and add lubricating oil or grease according to the regulations if necessary. Manually rotate the bending shaft to check whether it rotates smoothly without jamming or abnormal noise.
Control System Inspection: Turn on the power supply of the equipment, check whether the touch screen and operation panel are lighted normally, whether the display data is accurate, and test the functions of start, stop, emergency stop, parameter adjustment and other buttons to ensure that all control functions are sensitive and effective. Check the PLC controller and servo driver for fault alarms, and eliminate the alarms in time if any.
Die and Accessory Inspection: Select the bending die matching the specification of the aluminium bar, check the die for wear, cracks or burrs, and replace it in time if it is damaged. Check the positioning baffle, pressure plate and clamping block for wear or deformation, and adjust or replace them to ensure the positioning accuracy.


4.3 Material and Tool Preparation


Select qualified aluminium spacer bars that meet the production requirements, check the appearance of aluminium bars for scratches, deformation, oxidation or impurities, check the dimensional accuracy (width, height, thickness), and prohibit the use of unqualified aluminium bars that do not meet the bending requirements.
Prepare auxiliary tools, such as hexagon wrench, screwdriver, torque wrench, cleaning cloth, lubricating oil, measuring tools (angle ruler, tape measure, vernier caliper), etc., to ensure that the tools are complete and intact.
Prepare the product drawings or process documents, confirm the bending parameters of aluminium bars (bending angle, side length, quantity, etc.), and input the parameters into the control system in advance for trial bending verification.


5. Standard Operation Procedures

5.1 Equipment Startup


Turn on the main power switch of the equipment, and then turn on the power supply of the control system, PLC and touch screen in sequence. Wait for the system to start and self-check, and confirm that there is no fault alarm before proceeding to the next operation.
For hydraulic drive models, turn on the hydraulic pump motor, run it idly for 3-5 minutes, check the hydraulic system for oil leakage, abnormal noise or overheating, and confirm that the hydraulic pressure is within the normal range.
For pneumatic models, open the air supply valve, check the air pressure gauge to ensure that the air pressure is stable at 0.4-0.6MPa, and test the action of the clamping cylinder to ensure that the clamping and loosening actions are flexible and in place.


5.2 Parameter Setting


Enter the parameter setting interface of the touch screen, input the bending parameters according to the product process requirements, including aluminium bar specification, bending angle, left and right side lengths, bending speed, clamping pressure, etc.
Set the springback compensation value according to the material characteristics of the aluminium bar (the springback of aluminium bars is generally 1°-3°, which can be adjusted according to the actual trial bending results).
For batch production, store the set parameters in the system program, name the program according to the product model, and call it directly during subsequent production to improve efficiency.
After setting the parameters, double-check to confirm that the input data is correct, and then save the parameters and exit the setting interface.


5.3 Aluminium Bar Loading and Positioning


Place the qualified aluminium bar flat on the feeding roller table, push it to the positioning baffle of the equipment, and adjust the position of the positioning baffle to ensure that the bending point of the aluminium bar is aligned with the center of the bending die.
Start the clamping mechanism (manual or automatic), and the clamping cylinder drives the pressure plate to press the aluminium bar firmly to prevent the aluminium bar from moving or rotating during the bending process. The clamping pressure should be appropriate, not too large to deform the aluminium bar, nor too small to cause insufficient clamping.
Use a measuring tool to recheck the positioning size of the aluminium bar, confirm that the bending position and length meet the process requirements, and then proceed to the bending operation.


5.4 Bending Operation

5.4.1 Manual Bending Mode


Select the manual operation mode on the control panel, and operate the manual button or joystick to control the bending die to rotate slowly, and observe the bending state of the aluminium bar in real time.
When the bending angle reaches the set value, the equipment will automatically stop or stop manually, and keep the pressure for 1-2 seconds to eliminate the springback of the aluminium bar.
Operate the loosening button to release the clamping mechanism, take out the bent aluminium bar, and use an angle ruler and tape measure to check the bending angle and size accuracy. If the accuracy is unqualified, readjust the springback compensation value and parameters for trial bending again.


5.4.2 Automatic Bending Mode


Select the automatic operation mode on the touch screen, call the pre-stored product program, and confirm that the parameters are correct.
Press the automatic start button, the equipment will automatically complete the actions of clamping, bending, pressure maintaining, loosening and resetting in sequence according to the set program.
During the automatic operation, the operator shall stand in the safe area outside the safety grating, observe the operation state of the equipment in real time, and pay attention to whether there is abnormal noise, aluminium bar deformation or equipment failure.
After the bending of a single aluminium bar is completed, the equipment will automatically reset and wait for the next feeding. For batch production, repeat the loading and start operation until the production task is completed.


5.5 Trial Bending and Batch Production


Before formal batch production, conduct trial bending on 2-3 aluminium bars, check the bending angle, side length, flatness and appearance quality of the formed aluminium frame, and confirm that all indicators meet the process standards.
If the trial bending product is unqualified, analyze the causes (such as parameter setting error, die mismatch, positioning deviation, aluminium bar quality problem), adjust the parameters or replace the accessories in time, and conduct trial bending again until the product is qualified.
After the trial bending is qualified, carry out formal batch production, and conduct random inspection on the formed products at regular intervals (every 50-100 pieces) to ensure the stability of product quality.


5.6 Equipment Shutdown


After completing the production task, press the stop button to stop the operation of the equipment, and reset the bending die and clamping mechanism to the initial position.
For hydraulic drive models, turn off the hydraulic pump motor first, and then turn off the main power supply; for pneumatic models, close the air supply valve first, and then turn off the power supply.
Clean the residual aluminium chips, dust and impurities on the equipment surface, roller table and die, wipe the equipment with a clean cloth, and apply anti-rust oil on the die and metal parts if necessary.
Hang the "Shutdown for Maintenance" or "No Operation" warning sign on the operation panel, and record the production data, operation time and equipment status in the equipment operation log.


6. Safety Precautions

6.1 Basic Safety Rules


It is strictly forbidden to operate the equipment with diseases, fatigue, drunk or distracted mental state, so as to avoid misoperation.
During the operation of the equipment, it is forbidden to extend hands, arms or any parts of the body into the bending working area, and it is forbidden to touch the rotating die, transmission parts and high-temperature components (hydraulic motor, servo motor) with bare hands.
Do not place tools, aluminium bars or other sundries on the equipment frame, control panel and safety protection device to avoid affecting the equipment operation or causing safety accidents.
The equipment must be reliably grounded to prevent electric shock accidents. Do not disassemble or modify the electrical components, control circuit and mechanical structure of the equipment without authorization.
In case of power failure or air failure during operation, immediately press the emergency stop button, cut off the power supply and air supply, and wait for the power supply and air supply to return to normal before restarting the operation after inspection.


6.2 Special Operation Safety


When replacing the bending die, the equipment must be completely shut down, the power supply and air supply/hydraulic supply must be cut off, and the operation can be carried out only after the die is completely stopped. Use special tools to disassemble and assemble the die to avoid injury caused by die falling.
When bending special-shaped or ultra-long aluminium bars, add auxiliary support brackets to prevent the aluminium bars from deforming or swinging during the bending process, and arrange special personnel to assist in feeding and discharging.
When the equipment is running with overload or abnormal noise, immediately press the emergency stop button, cut off the power supply, check the cause of the fault, and it is forbidden to continue operation with fault.
The safety grating, protective cover and emergency stop button of the equipment shall not be dismantled or shielded at will, and regular inspection shall be carried out to ensure their effectiveness.


6.3 Emergency Handling


In case of personal injury (such as pinch, scald, electric shock), immediately cut off the power supply and air supply, carry out first aid measures, and send to the hospital for treatment in time.
In case of equipment failure (such as die jamming, hydraulic oil leakage, motor overheating), press the emergency stop button immediately, stop the operation, record the fault phenomenon, and notify the professional maintenance personnel for repair.
In case of fire caused by electrical short circuit or hydraulic oil combustion, immediately cut off the power supply, use dry powder fire extinguisher to put out the fire, and it is forbidden to use water to put out the electrical fire.


7. Equipment Maintenance and Upkeep

7.1 Daily Maintenance (Once per Shift)


Clean the equipment surface, die, roller table and working area, remove aluminium chips, dust and impurities, and keep the equipment clean.
Check the fastening of bolts, nuts and connectors of each component, and tighten them in time if loose.
Check the air pressure, hydraulic pressure and lubrication state of the equipment, add lubricating oil or grease to the transmission parts (bearing, gear, chain) according to the regulations, and check the hydraulic oil level and oil quality.
Test the functions of emergency stop button, safety grating and control buttons to ensure they are normal.
Record the daily maintenance situation in the equipment maintenance log.


7.2 Weekly Maintenance (Once a Week)


Thoroughly clean the inside of the equipment, including the hydraulic oil tank, air filter, control cabinet, remove dust and impurities, and check the wiring in the control cabinet for looseness.
Check the wear of bending die, clamping block, positioning baffle and transmission parts, and replace the seriously worn parts in time.
Drain the water and impurities in the air storage tank, air filter and hydraulic oil tank, and check the hydraulic oil for deterioration or pollution. If necessary, replace the hydraulic oil and filter element.
Calibrate the bending angle and positioning size of the equipment, and adjust the deviation to ensure the processing accuracy.
Check the operation of the servo motor, hydraulic pump and clamping cylinder, and eliminate abnormal noise and oil leakage.


7.3 Monthly Maintenance (Once a Month)


Conduct a comprehensive inspection of the electrical system, including the PLC controller, servo driver, touch screen, sensor, etc., check the wiring for aging or damage, and replace the damaged wires in time.
Perform lubrication maintenance on all transmission mechanisms, replace the lubricating oil or grease that has deteriorated or exceeded the service life, and adjust the tightness of the chain and belt.
Check the sealing performance of the hydraulic system and pneumatic system, replace the aging sealing ring and oil seal, and eliminate oil leakage and air leakage faults.
Calibrate the pressure gauge, temperature sensor and other measuring instruments of the equipment to ensure the accuracy of measurement data.
Conduct a comprehensive test run of the equipment, check the operation status of each system, and deal with potential faults in advance.


7.4 Annual Maintenance (Once a Year)


Conduct a comprehensive disassembly and inspection of the equipment, check the wear of key components such as frame, bending shaft, bearing, and carry out repair or replacement according to the wear degree.
Replace all hydraulic oil, lubricating oil, filter element and sealing parts of the equipment, and clean the hydraulic oil tank and lubrication system.
Conduct a comprehensive calibration of the control system, update the system program if necessary, and optimize the bending parameters.
Conduct a safety performance evaluation of the equipment, including safety protection device, grounding system, overload protection, etc., to ensure that the equipment meets the safety standards.
After the annual maintenance is completed, conduct a comprehensive test run and acceptance, and record the maintenance content and acceptance results in the equipment file.


8. Troubleshooting of Common Faults

8.1 Inaccurate Bending Angle


Fault Causes: Incorrect springback compensation parameter setting, wear or deformation of bending die, loose positioning baffle, unstable air pressure/hydraulic pressure, damage of angle sensor.
Solutions: Readjust the springback compensation value according to the trial bending results; replace the worn or deformed bending die; tighten the positioning baffle and recalibrate the positioning size; check the air compressor/hydraulic pump to stabilize the pressure; replace the damaged angle sensor and recalibrate.


8.2 Aluminium Bar Deformation or Scratches During Bending


Fault Causes: Improper clamping pressure, burrs or wear on the die and clamping block, unqualified aluminium bar material, misalignment of bending point.
Solutions: Adjust the clamping pressure to an appropriate value; polish or replace the die and clamping block with burrs or wear; replace qualified aluminium bars; recalibrate the bending point position to ensure alignment with the die center.


8.3 Clamping Mechanism Fails to Clamp or Loosen


Fault Causes: Insufficient air pressure/hydraulic pressure, blockage of air pipe/hydraulic pipe, damage of clamping cylinder, failure of solenoid valve, loose circuit connection.
Solutions: Adjust the air pressure/hydraulic pressure to the normal range; clean the blocked pipeline; replace the damaged clamping cylinder; check and replace the faulty solenoid valve; tighten the loose circuit connector.


8.4 Equipment Abnormal Noise or Vibration


Fault Causes: Insufficient lubrication of transmission parts, loose fastening bolts, wear or damage of bearing and gear, unbalanced bending die, overload operation.
Solutions: Add lubricating oil or grease to the transmission parts; tighten all loose fastening bolts; replace the worn bearing and gear; recalibrate the balance of the bending die; reduce the processing load to avoid overload operation.


8.5 Hydraulic System Oil Leakage


Fault Causes: Aging or damage of sealing ring, loose joint of hydraulic pipe, crack of hydraulic oil tank, damage of hydraulic pump shaft seal.
Solutions: Replace the aging sealing ring; tighten the loose hydraulic pipe joint; weld or replace the cracked hydraulic oil tank; replace the damaged hydraulic pump shaft seal.


8.6 Control System Failure (Touch Screen No Display, Parameter Cannot Be Set)


Fault Causes: Power supply abnormality, loose connection of control line, damage of touch screen or PLC controller, system program error.
Solutions: Check the power supply and restore normal power supply; tighten the loose control line connector; replace the damaged touch screen or PLC controller; restart the system or reload the program to restore the normal operation of the control system.


9. Storage and Transportation of Equipment

9.1 Equipment Storage


The equipment should be stored in a dry, ventilated, dust-free and non-corrosive gas environment, away from heat sources, direct sunlight and rain.
Before storage, clean the equipment thoroughly, apply anti-rust oil on all metal parts and die, cover the equipment with a dust cover, and block the hydraulic pipe and air pipe interface to prevent dust and impurities from entering.
The equipment should be placed flat on a solid ground, and the support points should be set according to the requirements to avoid deformation of the frame. Regular inspection should be carried out during storage, and anti-rust and moisture-proof treatment should be done well.


9.2 Equipment Transportation


The equipment transportation should be carried out by a professional logistics company, and the transportation vehicle should have a fixed device to prevent the equipment from shaking or colliding during transportation.
Before transportation, fix all movable parts of the equipment (such as bending die, clamping cylinder, roller table) with fixtures, remove the easily damaged parts (such as touch screen, sensor) and pack them separately for transportation.
During loading and unloading, use a forklift or crane that meets the lifting requirements, and operate in accordance with the hoisting specifications to avoid impact or tilting of the equipment. The lifting point should be selected at the designated position of the equipment frame.
During transportation, cover the equipment with a rainproof and dustproof cloth to prevent rain, snow and dust from eroding the equipment.


10. Supplementary Provisions


This manual is the basic operation standard of the Aluminium Bar Bending Machine, and the operator shall strictly abide by it. If there is any conflict with the special instructions of the equipment manufacturer, the manufacturer's instructions shall prevail.
The enterprise shall formulate corresponding operation management system and maintenance system according to this manual, and assign special personnel to be responsible for the management and maintenance of the equipment.
Any modification, transformation or upgrade of the equipment must be approved by the equipment manufacturer or professional technical personnel, and shall not be carried out without authorization.
The operator shall be responsible for the equipment damage and personal safety accidents caused by violation of this manual.
This manual shall be kept properly, and the lost or damaged manual shall be reported to the equipment management department in time for replacement. The technical department of the enterprise is responsible for the interpretation and revision of this manual.

Glass Laminating Machine Testing Before Delivery: A Comprehensive Technical and Quality Assurance Protocol

In the highly specialized field of architectural and automotive glass manufacturing, the glass laminating machine stands as a critical piece of equipment, responsible for bonding glass panels with interlayer materials (such as PVB, SGP, or EVA) under precise conditions of heat, pressure, and vacuum to produce safety glass with enhanced strength, sound insulation, and security properties. The performance, reliability, and safety of these machines directly impact the quality of the final laminated glass products, as well as the operational efficiency and safety of end-users. Therefore, rigorous and systematic testing of glass laminating machines prior to delivery is not merely a procedural step but an indispensable quality assurance (QA) and quality control (QC) imperative for manufacturers. This article provides a detailed, formal analysis of the testing protocols, technical standards, key performance indicators (KPIs), and quality validation processes that govern the pre-delivery testing of glass laminating machines, emphasizing the critical role of these procedures in ensuring compliance, functionality, and long-term operational stability.

1. Rationale for Pre-Delivery Testing: Technical, Commercial, and Regulatory Imperatives

Pre-delivery testing of glass laminating machines is rooted in three core pillars: technical validation, regulatory compliance, and commercial accountability. From a technical perspective, glass laminating involves a complex interplay of thermal, mechanical, and pneumatic systems—including heating chambers, vacuum pumps, hydraulic pressure systems, conveyor mechanisms, and control panels—each of which must operate in precise synchronization to achieve consistent lamination results. Even minor deviations in temperature uniformity, pressure distribution, vacuum retention, or cycle timing can lead to defects in laminated glass, such as air bubbles, delamination, uneven bonding, or optical distortion. Pre-delivery testing identifies and rectifies these technical anomalies at the manufacturing facility, eliminating the risk of costly downtime, rework, or product failures at the customer’s production site.

Regulatory compliance is another non-negotiable driver of pre-delivery testing. Laminated glass is subject to stringent international and regional standards, including the European Standard EN 14449 (glass in building—laminated glass and laminated safety glass), the American National Standard ANSI Z97.1 (safety glazing materials used in buildings), and the Global Technical Regulation (GTR) No. 6 for automotive safety glazing. These standards mandate that the production equipment used to manufacture laminated glass must meet specific performance criteria to ensure the final product complies with safety and quality requirements. Additionally, machinery manufacturers must adhere to industrial safety standards such as ISO 13849 (safety of machinery—safety-related parts of control systems) and CE marking directives for equipment sold in the European Economic Area (EEA), which require comprehensive functional safety testing before market placement.

Commercially, pre-delivery testing serves as a contractual and reputational safeguard. For machinery manufacturers, a robust testing protocol demonstrates commitment to quality, builds customer trust, and mitigates the risk of contractual disputes, product returns, or warranty claims. For end-users, verified pre-delivery performance ensures that the machine will integrate seamlessly into their production lines, meet production targets, and produce laminated glass that meets their quality specifications. In an industry where precision and reliability are paramount, pre-delivery testing is the foundation of a transparent and accountable supply chain.

2. Scope and Phases of Pre-Delivery Testing

Pre-delivery testing of glass laminating machines is a multi-phase, end-to-end process that encompasses static inspection, functional testing, performance validation, safety verification, and documentation. The scope of testing is tailored to the machine’s specifications—including its size (e.g., small-scale laboratory machines vs. large-scale industrial production lines), lamination method (autoclave vs. non-autoclave/lamiplast), and automation level (semi-automatic vs. fully automatic with PLC control). Below is a structured breakdown of the key testing phases:

2.1 Static and Visual Inspection (Pre-Operational Testing)

The first phase of pre-delivery testing is a comprehensive static inspection, conducted before the machine is powered on. This phase focuses on verifying the physical integrity, assembly accuracy, and component conformity of the machine, in accordance with the approved engineering drawings, bill of materials (BOM), and customer-specific requirements. Key inspection items include:


Structural Integrity: Examination of the machine frame, chamber walls, and support structures for weld quality, material thickness, dimensional accuracy, and freedom from deformation or corrosion. All structural components must comply with mechanical engineering standards to withstand the thermal and mechanical stresses of lamination cycles.
Component Verification: Validation of all critical components—including heating elements (resistance or infrared), vacuum pumps and hoses, hydraulic/pneumatic cylinders, pressure sensors, temperature controllers, conveyor belts, and safety interlocks—against the manufacturer’s specifications and supplier certifications. Components must be free from defects, properly installed, and labeled in accordance with industrial standards.
Wiring and Pneumatic/Hydraulic Connections: Inspection of electrical wiring for compliance with IEC 60204 (safety of machinery—electrical equipment of machines), including proper insulation, grounding, cable routing, and connection tightness. Pneumatic and hydraulic lines are checked for leaks, proper fitting, and pressure rating compatibility, with all connections secured to prevent fluid or air loss during operation.
Cleanliness and Surface Finish: Verification of the machine’s internal and external cleanliness, particularly the lamination chamber, heating plates, and conveyor surfaces, to ensure no contaminants (e.g., dust, oil, or debris) that could compromise glass lamination quality are present. Surface finishes of contact components must be smooth and free from scratches or irregularities.


2.2 Functional Testing (Operational Validation)

Following static inspection, the machine is powered on for functional testing, which verifies that all individual systems and sub-assemblies operate as designed, without faults or malfunctions. This phase is conducted in a controlled manufacturing environment, with test parameters set to the machine’s nominal operating range. Key functional tests include:


Control System Validation: Testing of the programmable logic controller (PLC), human-machine interface (HMI), and associated software to ensure accurate input of lamination parameters (temperature, pressure, vacuum level, cycle time), real-time data monitoring, and fault diagnostics. The control system must respond correctly to manual and automatic commands, with all alarms and error messages functioning as programmed.
Heating System Performance: Evaluation of the heating system’s ability to reach and maintain set temperatures uniformly across the entire lamination area. Temperature sensors are calibrated and tested to ensure accuracy within ±1°C, and thermal imaging is used to verify temperature distribution across heating plates—critical for preventing uneven bonding in laminated glass.
Vacuum System Testing: Assessment of the vacuum system’s ability to achieve and hold the required vacuum level (typically 0.95–0.98 bar) within the lamination chamber, with no leaks detected over a specified hold time (e.g., 30 minutes). Vacuum pumps are tested for flow rate, noise level, and energy consumption, in compliance with efficiency standards.
Pressure System Testing: Validation of the hydraulic or pneumatic pressure system’s ability to generate and maintain the specified lamination pressure (ranging from 8–12 bar for autoclave systems, 1–3 bar for non-autoclave systems). Pressure sensors are calibrated to ensure accuracy, and the system is tested for pressure stability during the lamination cycle, with no pressure drops or fluctuations.
Conveyor and Handling System Testing: Testing of the conveyor belts, roller systems, and glass loading/unloading mechanisms for smooth, precise movement, with no jams, misalignment, or damage to test glass panels. The speed and positioning accuracy of the conveyor system are verified to meet the machine’s production rate specifications.
Auxiliary System Functionality: Testing of auxiliary systems such as cooling systems, exhaust systems, and glass edge processing attachments (if equipped) to ensure they operate in sync with the main lamination cycle and meet performance requirements.


2.3 Performance Testing (Production Simulation)

Functional testing is followed by performance testing, which simulates real-world production conditions to validate the machine’s ability to produce high-quality laminated glass consistently. This phase uses standard test glass panels (typically 3–6 mm thick float glass) and industry-standard interlayers (PVB, SGP) to conduct full lamination cycles, with the machine operating at its rated production capacity. Key performance metrics evaluated include:


Lamination Quality: Visual and instrumental inspection of the test laminated glass for defects, including air bubbles, inclusions, delamination, edge gaps, and optical distortion. Samples are tested in accordance with EN 14449 and ANSI Z97.1, with all defects measured and documented against acceptable tolerance levels.
Cycle Time Consistency: Verification of the machine’s ability to complete lamination cycles within the specified time frame, with minimal variation between cycles. Cycle time is a critical KPI for end-users, as it directly impacts production throughput.
Uniformity of Bonding: Testing of the bond strength between glass and interlayer across the entire panel area, using peel tests, shear tests, and impact resistance tests (e.g., drop ball test) in accordance with relevant standards. The bond strength must meet or exceed the minimum requirements for safety glass.
Energy Efficiency: Measurement of the machine’s energy consumption (electrical, thermal, and pneumatic) during full production cycles, to validate compliance with energy efficiency standards and ensure operational cost-effectiveness for end-users.
Repeatability and Reproducibility: Conducting multiple consecutive lamination cycles (typically 10–20 cycles) to verify that the machine delivers consistent results, with no degradation in performance or increase in defect rates over time. This validates the machine’s long-term operational stability.


2.4 Safety Testing (Compliance with Industrial Safety Standards)

Safety is a paramount consideration in pre-delivery testing, as glass laminating machines operate under high temperatures, pressures, and vacuum conditions, posing potential risks to operators. All safety systems are rigorously tested to comply with ISO 13849, CE machinery directives, and OSHA standards (for the U.S. market). Key safety tests include:


Emergency Stop (E-Stop) Functionality: Testing of all E-stop buttons (located at multiple access points) to ensure immediate shutdown of all systems when activated, with no residual motion or energy release.
Safety Interlocks: Verification of interlock systems on chamber doors, access panels, and conveyor guards to prevent operation when these components are open or removed. Interlocks must trigger an immediate stop and alarm if breached.
Pressure and Temperature Safety Limits: Testing of over-pressure and over-temperature protection systems to ensure the machine shuts down automatically if parameters exceed safe operating limits, preventing equipment damage or operator injury.
Ergonomic and Hazard Protection: Evaluation of operator access points, control panel positioning, and hazard warnings (visual and auditory) to ensure compliance with ergonomic standards and minimize the risk of burns, crush injuries, or electrical shocks.
Fire and Explosion Protection: Testing of fire suppression systems (if equipped) and ventilation systems to ensure they function correctly in the event of a thermal anomaly or interlayer combustion.


2.5 Final Acceptance Testing (FAT) and Customer Witness Testing

The culmination of pre-delivery testing is the Factory Acceptance Testing (FAT), a formal process where the machine’s performance is verified against the customer’s purchase order, technical specifications, and contractual requirements. FAT is typically conducted in the presence of the customer or their authorized representative, who witnesses all critical tests and reviews the test data. Key components of FAT include:


Review of Test Documentation: Presentation of all test reports, calibration certificates, component certifications, and compliance documents for customer review and approval.
Demonstration of Full Production Cycles: Live demonstration of the machine producing laminated glass to the customer’s specifications, with real-time monitoring of key parameters and defect inspection.
Resolution of Non-Conformities: Any non-conformities identified during FAT are documented in a non-conformance report (NCR), and corrective actions are implemented and re-tested before final acceptance.
Sign-Off and Approval: Upon successful completion of FAT, the customer signs a formal acceptance document, confirming that the machine meets all requirements and is ready for delivery.


3. Documentation and Traceability: The Backbone of Pre-Delivery Testing

A critical, yet often underemphasized, aspect of pre-delivery testing is the creation of a comprehensive, traceable documentation package. This package serves as a permanent record of the machine’s testing history, validates compliance with standards, and provides end-users with critical information for operation, maintenance, and warranty claims. The documentation package typically includes:


Test Plan and Protocol: A detailed document outlining the testing scope, methods, acceptance criteria, and responsible personnel, approved by both the manufacturer and the customer.
Calibration Certificates: Certificates for all measuring and testing equipment (temperature sensors, pressure gauges, vacuum meters, etc.), validating their accuracy and traceability to national or international standards (e.g., NIST, DKD).
Component Certifications: Supplier certificates for all critical components, including material test reports (MTRs), CE certificates, and performance data sheets.
Test Reports: Detailed reports for each testing phase, including raw data, test results, photographs of test samples, and defect analysis. All data is recorded with date, time, and operator identification for full traceability.
Compliance Certificates: Certificates of compliance with relevant standards (CE, ISO, EN, ANSI), signed by the manufacturer’s quality assurance manager.
Operation and Maintenance Manuals: Comprehensive manuals providing instructions for machine operation, routine maintenance, troubleshooting, and spare parts identification, tailored to the machine’s specific configuration.
Warranty Document: A formal warranty statement outlining the terms and conditions of the manufacturer’s warranty, supported by the pre-delivery test data.


4. Post-Testing Preparation for Delivery

Following successful FAT and customer approval, the machine undergoes final preparation for delivery, which includes:


Cleaning and Packaging: Thorough cleaning of the machine to remove all test residues, followed by protective packaging (using anti-corrosion materials, shock absorbers, and weatherproof covers) to prevent damage during transportation.
Labeling and Marking: Application of all required labels, including CE marks, safety warnings, serial numbers, and operational parameters, in accordance with international standards.
Spare Parts and Tooling: Preparation of a standard spare parts kit and specialized tooling, as specified in the contract, for delivery with the machine.
Logistics Coordination: Coordination with shipping and logistics providers to ensure safe and timely transportation, with all necessary export/import documentation (e.g., bill of lading, customs clearance documents) prepared in advance.


5. Conclusion

Pre-delivery testing of glass laminating machines is a rigorous, multi-faceted process that integrates technical validation, regulatory compliance, performance verification, and safety assurance. By adhering to standardized testing protocols, manufacturers ensure that every machine delivered to the market meets the highest standards of quality, reliability, and safety, while end-users gain confidence in the machine’s ability to produce high-quality laminated glass consistently. In an industry where precision and safety are non-negotiable, pre-delivery testing is not just a procedural step but a cornerstone of quality management, driving innovation, customer satisfaction, and long-term success for both machinery manufacturers and laminated glass producers. As the demand for advanced safety glass continues to grow in architectural, automotive, and aerospace applications, the importance of robust pre-delivery testing will only increase, underscoring the need for ongoing investment in testing technology, personnel training, and compliance with evolving international standards.
