I. Introduction



Mechanized production of insulating glass significantly improves production efficiency and product quality. This plan details the process of manufacturing insulating glass using automated machinery.



II. Production Process



A. Glass Feeding and Cutting



- Automated Loading: High - speed robotic arms are used to load large sheets of float glass from storage racks onto the glass cutting line. These arms are programmed to handle the glass gently to avoid scratches or breakages.

- Precision Cutting: Computer - controlled glass cutting machines measure and cut the glass according to pre - set dimensions. The cutting blades are automatically adjusted for different glass thicknesses, ensuring a precise cut with an accuracy of ± 0.5mm.



B. Edge Processing



- Grinding and Polishing: The cut glass edges are fed into an automated edge - processing machine. This machine uses rotating abrasive wheels to grind the edges smoothly and then polishes them to enhance the glass's appearance and adhesion for sealants.

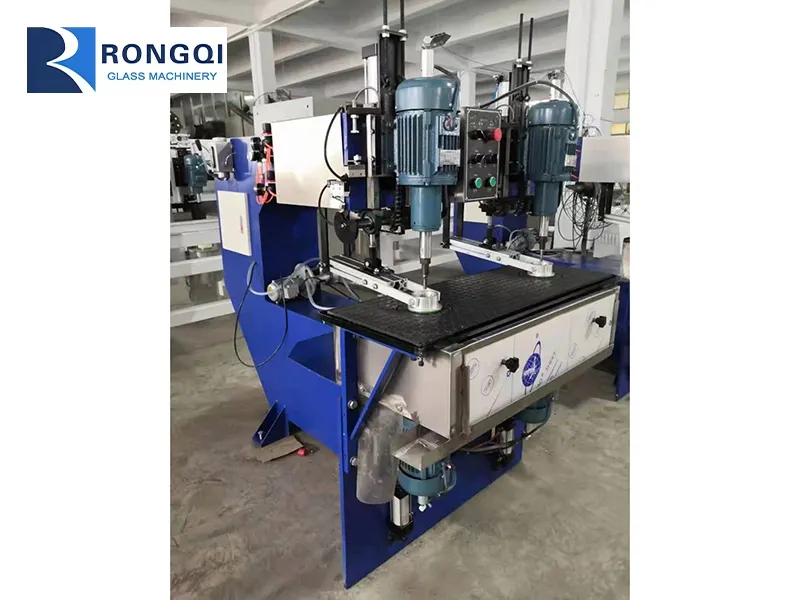

- Drilling (if required): For customized insulating glass with holes, a numerically - controlled drilling machine is integrated into the production line. It accurately drills holes based on the input specifications, with a high - speed spindle ensuring clean and precise holes.



C. Washing and Drying



- The Glass will be washed with the glass washing machine.The machine is with 6 soft brushes for cleaning and knieves for drying.It is ok for Low-E glass and the glass thickness can be adjusted automatically.



D. Spacer and Desiccant Handling



- Spacer Bending and Assembly: An automatic spacer bending machine forms aluminum or stainless - steel spacers into the required shapes. The machine can handle different spacer profiles and lengths. Desiccant is automatically filled into the spacers through a precise dosing system to absorb moisture in the air gap.

- Spacer Placement: Robotic arms pick up the bent spacers and accurately position them between the cleaned glass sheets on a conveyor - based assembly platform.



E. Gas Filling (Optional)



- Inert Gas Injection: For insulating glass that requires enhanced thermal performance, an automated gas - filling machine is used. It injects inert gases like argon or krypton into the air gap between the glass panes. The gas flow rate and pressure are precisely controlled to achieve the desired gas concentration.



F. Sealing



- Primary Seal Application: A robotic sealant dispensing arm applies the primary sealant, typically polysulfide, along the inner edge of the spacer. The arm moves at a constant speed and pressure, ensuring an even and consistent sealant layer.

- Secondary Seal Application: After the primary seal has cured to a certain extent, another robotic arm applies the secondary sealant, such as silicone, on the outside of the primary seal. This provides additional protection and strength to the insulating glass unit.



III. Quality Assurance



- In - line Inspection: Throughout the production process, multiple in - line inspection stations are installed. These use sensors and cameras to detect defects such as uneven sealant application, air bubbles, and misaligned components. Defective products are automatically flagged and removed from the production line.

- Final Testing: Before packaging, each insulating glass unit undergoes a final set of tests, including a leak test for gas - filled units and a dimensional accuracy check. Only products that meet the strict quality standards are approved for shipment.



IV. Conclusion



This mechanized production process for insulating glass, with its combination of automated machinery and strict quality control measures, ensures the efficient production of high - quality insulating glass products, meeting the demands of the construction and related industries.

The production process of EVA laminated glass is similar to that of ordinary laminated glass, but there are differences in film selection and some processes. The main process is as follows:



Original glass preparation



-Film selection: Select high-quality glass raw materials with high flatness and no obvious defects, and determine the type of glass according to actual needs, such as float glass, ultra white glass, etc.

-Cutting: Use a glass cutting machine to cut the original glass into the required size and shape, with cutting accuracy controlled within a small range to ensure the accuracy of subsequent processing.



Glass cleaning and drying



-Cleaning: Place the cut glass into a glass cleaning machine and use methods such as spraying and brushing to remove dust, oil, and other impurities from the glass surface using clean water and specialized cleaning agents, ensuring the cleanliness of the glass surface.

-Drying: After cleaning, the glass is dried by hot air or natural drying to completely dry the surface of the glass and avoid moisture residue affecting the bonding between the EVA film and the glass.



EVA film preparation



-Film selection: Based on the usage requirements and performance characteristics of laminated glass, select EVA (ethylene vinyl acetate copolymer) film with appropriate thickness and performance. EVA film should have good transparency, adhesion, and weather resistance.

-Film cutting: Use cutting equipment to cut EVA film into a shape that matches the size of the glass. When cutting, pay attention to ensuring that the edges of the film are neat, without burrs or damage.



Lamination



-On a clean workbench, place a piece of glass first, lay the cut EVA film flat on the glass, ensure that the film is aligned with the edge of the glass, and then cover another piece of glass on the EVA film to form a sandwich structure. During the lamination process, it is important to avoid the formation of bubbles and wrinkles between the film and glass as much as possible.





High temperature curing



-Place the sealed laminated glass into the laminated glass equipment and crosslink the EVA film at a high temperature to achieve complete curing, thereby firmly bonding the two pieces of glass. The curing temperature is generally around 130-150 ℃, and the curing time depends on the thickness of the glass and film, usually ranging from tens of minutes to several hours.



Cooling and testing



-Cooling: The cured laminated glass is taken out of the curing equipment and naturally cooled to room temperature. During the cooling process, it is necessary to avoid external impact or rapid temperature changes on the glass to avoid affecting product quality.

-Testing: Conduct a comprehensive inspection of the cooled EVA laminated glass, including visual inspection, to check for defects such as bubbles, impurities, and delamination; Measure the dimensions to ensure that the glass meets the standard requirements; Performance testing to check whether the indicators such as light transmittance, impact resistance, and bonding strength meet the specified standards.



Packaging and Storage



-Packaging: Qualified EVA laminated glass is packaged with protective film, cardboard boxes, or wooden crates to protect the glass from damage during transportation and storage.

-Storage: Store the packaged laminated glass in the warehouse, classify it according to specifications and batches, take measures to prevent moisture and dust, and wait for shipment.

Butyl Coating Machine: Core Equipment for Precision Sealing in Modern Insulating Glass Manufacturing

Abstract

In the global push for energy-efficient buildings and high-performance architectural and automotive glass, insulating glass (IG) has become a cornerstone material, with its thermal insulation, soundproofing, and durability directly dependent on the quality of edge sealing. The butyl coating machine, as a critical piece of automated equipment in the IG production line, is specifically designed for the uniform, continuous application of hot-melt butyl rubber—an essential primary sealant for insulating glass spacers. This article explores the working principle, technical characteristics, core advantages, application scenarios, and development trends of butyl coating machines, demonstrating their indispensable role in ensuring the long-term reliability, production efficiency, and cost-effectiveness of modern insulating glass manufacturing.

1. Introduction

The global demand for energy-saving and environmentally friendly building materials has surged in recent years, driven by stringent carbon neutrality policies and the rapid development of green construction. Insulating glass, composed of two or more glass panes separated by a spacer frame and sealed with dual-layer sealants (primary butyl rubber and secondary polysulfide/silicone sealant), has emerged as the preferred choice for modern commercial and residential buildings, automotive windows, and aerospace components. The primary seal—hot-melt butyl rubber—acts as the first line of defense against moisture penetration, gas leakage, and spacer corrosion, directly determining the service life and performance stability of insulating glass.

Traditional manual or semi-automatic butyl coating methods suffer from inherent flaws such as uneven glue application, inconsistent thickness, low efficiency, and high material waste, which severely compromise the quality of insulating glass and increase production costs. In contrast, modern butyl coating machines integrate advanced PLC control systems, servo-driven precision mechanisms, and intelligent temperature control technology, enabling fully automated, high-precision, and continuous butyl rubber coating. As the "heart" of the insulating glass primary sealing process, butyl coating machines have become an irreplaceable core equipment for manufacturers seeking to upgrade production lines, improve product quality, and enhance market competitiveness.

2. Working Principle and Core Components of Butyl Coating Machine

2.1 Basic Working Principle

Butyl coating machines operate on the principle of hot-melt extrusion and precision coating. Solid or semi-solid hot-melt butyl rubber is first heated to a molten state (typically 110–150°C) in a temperature-controlled heating system, then pressurized and delivered to a precision coating nozzle via a screw or piston extrusion mechanism. The spacer frame (aluminum, warm-edge, or composite spacer) is fed through the machine’s transmission system at a constant speed, and the molten butyl rubber is extruded uniformly onto the two sides of the spacer frame in a continuous, bead-like form. The machine’s control system real-time adjusts extrusion pressure, coating speed, and glue bead thickness to ensure consistent coating quality across different spacer sizes and types. After coating, the spacer is cooled slightly to maintain the shape of the butyl rubber bead, ready for the subsequent glass bonding and secondary sealing processes.

2.2 Core Components and Functions

A high-performance butyl coating machine comprises several key modules, each contributing to its precision and reliability:

2.2.1 Heating and Melting System

This system consists of a heating barrel, temperature sensors, and a digital temperature controller. The heating barrel is equipped with multi-zone electric heating elements and thermal insulation layers to ensure uniform heating of butyl rubber, preventing local overheating (which causes glue degradation) or insufficient melting (which leads to poor fluidity). High-precision temperature sensors (±1°C accuracy) monitor the melting temperature in real time, with the controller automatically adjusting heating power to maintain a stable molten state—critical for consistent extrusion and coating quality.

2.2.2 Extrusion Mechanism

The extrusion mechanism is the core of the butyl coating machine, available in two main types: screw extrusion and piston extrusion.


Screw extrusion: Features a precision-ground screw with a variable pitch design, which pushes molten butyl rubber forward through rotation, ensuring stable and continuous extrusion. It is suitable for high-volume, continuous production lines and can handle a wide range of butyl rubber viscosities.
Piston extrusion: Uses a hydraulic or pneumatic piston to pressurize and extrude molten glue, offering higher extrusion pressure and more precise glue volume control. It is ideal for small-batch, customized production or coating narrow-width spacers, with minimal glue residue and waste.


Modern high-end models often adopt servo-driven screw extrusion, combining the advantages of continuous production and precision control, with extrusion pressure adjustable from 0.5 to 20 MPa to meet diverse coating requirements.

2.2.3 Precision Coating Nozzle

The coating nozzle is designed for uniform glue distribution and adaptability to different spacer specifications. Key features include:


Dual-side coating design: Simultaneously coats butyl rubber on both sides of the spacer frame, improving production efficiency by 50% compared to single-side coating.
Adjustable nozzle gap: The gap between the nozzle and spacer can be finely adjusted (0.1–3 mm) to control glue bead thickness (typically 0.5–2 mm) and width (2–10 mm), compatible with spacers of 6–27 mm width (the most common in insulating glass).
Anti-drip and anti-clogging design: Equipped with a pneumatic or electric glue cutoff valve to prevent glue dripping when the machine stops, and a self-cleaning function to remove residual butyl rubber and avoid nozzle clogging.
Curved surface adaptability: Some models feature a floating nozzle design, which can automatically adjust to the curvature of curved spacers (used in automotive or special-shaped insulating glass), ensuring uniform coating on non-linear surfaces.


2.2.4 Transmission and Positioning System

The transmission system uses a servo motor-driven roller chain or belt conveyor, with a speed range of 0–30 m/min (adjustable via the HMI). High-precision positioning sensors (photoelectric or proximity sensors) detect the position and length of the spacer, automatically starting and stopping the coating process to avoid glue waste on spacer ends. For multi-specification spacers, the system can store up to 50+ sets of parameter presets, enabling one-click switching between different production tasks and reducing setup time by over 80%.

2.2.5 PLC Control and Human-Machine Interface (HMI)

The core control system is based on a Siemens or Mitsubishi PLC, paired with a 7–10 inch touchscreen HMI for intuitive operation. Key functions include:


Real-time display of temperature, extrusion pressure, coating speed, and glue bead thickness.
One-key setting and storage of process parameters for different spacer types and glue formulas.
Fault self-diagnosis and alarm (e.g., over-temperature, low pressure, nozzle clogging), with troubleshooting prompts displayed on the HMI.
Remote monitoring and data export (via Ethernet or USB), supporting production data tracking and quality traceability—critical for compliance with international quality standards (e.g., CE, ASTM, GB/T 11944).


2.2.6 Safety and Auxiliary Systems

To ensure operational safety and equipment durability, butyl coating machines are equipped with:


Safety interlocks: Emergency stop buttons, safety doors, and protective covers that stop the machine immediately when opened, preventing operator contact with high-temperature components and moving parts.
Glue level detection: A sensor monitors the butyl rubber level in the melting barrel, triggering an alarm when the glue is low to avoid empty extrusion.
Cooling system: A forced air cooling or water cooling system cools the coated spacer slightly, maintaining the shape of the butyl rubber bead and preventing deformation during subsequent handling.


3. Technical Advantages of Modern Butyl Coating Machines

3.1 High Precision and Consistent Coating Quality

The most significant advantage of butyl coating machines is their ability to deliver uniform, bubble-free, and consistent butyl rubber coating—a critical requirement for insulating glass primary sealing. Unlike manual coating, which is prone to uneven thickness, gaps, or excess glue, the machine’s servo-driven extrusion and precision nozzle ensure that the glue bead has a consistent cross-section (width and thickness) along the entire length of the spacer (up to 6 m long). This eliminates moisture penetration paths and gas leakage points, significantly improving the insulating glass’s thermal insulation performance and service life (extending it from 5–10 years to 15–20 years or more). For high-value Low-E (low-emissivity) glass and multi-cavity insulating glass, the machine’s non-contact floating nozzle design avoids scratching the sensitive Low-E coating or damaging multi-layer spacers, ensuring product integrity.

3.2 High Production Efficiency and Cost Savings

Automated butyl coating machines drastically improve production efficiency compared to manual or semi-automatic methods. A standard high-speed model can coat spacers at a speed of up to 30 m/min, processing 800–1200 spacer frames per 8-hour shift—a 5–10 times increase in output compared to manual coating. The continuous extrusion design eliminates downtime for glue refilling (large-capacity melting barrels hold 5–20 kg of butyl rubber, reducing refilling frequency), and the one-click parameter switching reduces setup time for different spacer specifications from 30–60 minutes to 2–5 minutes.

In terms of cost savings, the machine’s precise glue volume control reduces butyl rubber waste by 30–50% compared to manual coating (excess glue is minimized, and no dripping or spillage occurs). Additionally, automation reduces labor costs: a single operator can manage 2–3 machines simultaneously, replacing 4–6 manual workers. Over the equipment’s 8–10 year service life, the savings in material and labor costs far outweigh the initial investment, delivering a rapid return on investment (ROI) for manufacturers.

3.3 Wide Compatibility and Versatility

Modern butyl coating machines are highly versatile, compatible with a wide range of spacer types and insulating glass products:


Spacer materials: Aluminum spacers (standard, bent, or welded), warm-edge spacers (stainless steel, composite, or foam), and special-shaped spacers (curved, angled, or multi-cavity).
Spacer specifications: Width 6–27 mm, thickness 0.3–1.2 mm, length up to 6 m, suitable for both small-sized residential glass and large-sized commercial curtain wall glass.
Butyl rubber types: Hot-melt butyl rubber of different viscosities (low, medium, high) and formulations (standard, anti-aging, or low-VOC), compatible with all major butyl rubber brands in the market.
Application scenarios: Flat insulating glass, curved insulating glass, triple-glazing, multi-cavity insulating glass, automotive glass, and solar photovoltaic glass.


Some advanced models also feature a dual-nozzle design for coating multi-cavity spacers (e.g., 3-cavity or 4-cavity spacers used in ultra-high-performance insulating glass), enabling simultaneous coating of multiple glue lines and further expanding their application scope.

3.4 Enhanced Safety and Environmental Compliance

Butyl coating machines prioritize operator safety and environmental protection, addressing the drawbacks of manual coating:


Safety: By automating the high-temperature (110–150°C) coating process, the machine eliminates operator contact with molten butyl rubber and high-temperature components, reducing the risk of burns and repetitive motion injuries. Safety interlocks and emergency stop functions provide additional protection, complying with international safety standards (e.g., OSHA, CE).
Environmental protection: The closed melting and extrusion system minimizes the emission of volatile organic compounds (VOCs) from butyl rubber, improving the workshop air quality. The precise glue control reduces waste, and the self-cleaning nozzle design minimizes residual glue disposal—aligning with global environmental regulations and green manufacturing trends. Many models are also compatible with low-VOC and eco-friendly butyl rubber formulations, further reducing the environmental footprint of production.


3.5 Stable Performance and Low Maintenance

High-quality butyl coating machines are built with durable materials (stainless steel for the melting barrel, hardened alloy for the screw and nozzle, and industrial-grade servo motors) to ensure long-term stable operation under continuous production conditions. The key components have a service life of 50,000+ hours, and the modular design simplifies maintenance: wearing parts (e.g., nozzles, seals) can be replaced quickly, and routine maintenance (e.g., cleaning, lubrication) is minimal. The PLC control system’s fault self-diagnosis function reduces downtime by identifying and resolving issues promptly, ensuring uninterrupted production—critical for large-scale insulating glass manufacturing plants.

4. Application Scenarios of Butyl Coating Machines

4.1 Architectural Insulating Glass Manufacturing

The largest application area of butyl coating machines is the architectural insulating glass industry, covering residential windows, commercial curtain walls, office buildings, shopping malls, and green buildings. In high-rise buildings and energy-saving residential complexes, insulating glass with high-quality butyl rubber primary sealing provides excellent thermal insulation (U-value as low as 1.0 W/(m²·K)) and soundproofing (up to 35–40 dB), reducing heating and cooling costs by 30–50% compared to single-pane glass. Butyl coating machines enable mass production of standard and customized architectural insulating glass, meeting the demand for large-sized glass (up to 3 m × 6 m) used in modern curtain walls and ensuring consistent quality across thousands of units.

4.2 Automotive Glass Production

In the automotive industry, butyl coating machines are used to produce insulating glass for windshields, side windows, sunroofs, and rear windows of passenger cars, commercial vehicles, and new energy vehicles (NEVs). Automotive insulating glass requires not only thermal insulation and soundproofing but also resistance to extreme temperatures (-40°C to 85°C), vibration, and UV radiation. The machine’s precision coating ensures that the butyl rubber seal adheres firmly to the glass and spacer, preventing moisture from entering the glass cavity and causing fogging—critical for driving safety. For curved automotive glass, models with floating nozzles and curved spacer adaptability deliver uniform coating on non-linear surfaces, meeting the strict quality standards of automotive OEMs (e.g., Volkswagen, Toyota, Tesla).

4.3 Solar Photovoltaic (PV) Glass and Special Glass

With the rapid development of the solar energy industry, butyl coating machines are increasingly used in the production of PV insulating glass (used in solar panels and BIPV—building-integrated photovoltaics). PV glass requires a highly durable seal to protect the solar cells from moisture and corrosion, and the machine’s high-precision butyl coating provides a long-lasting primary seal, extending the service life of PV modules to 25+ years. Additionally, butyl coating machines are used in the production of special glass for aerospace, marine, and industrial applications, such as insulated glass for aircraft cabins, ship windows, and industrial furnace observation windows—where sealing reliability under extreme conditions is paramount.

4.4 Small and Medium-Sized Enterprises (SMEs) and Customized Production

Butyl coating machines are not only suitable for large-scale mass production lines but also for SMEs and customized glass manufacturers. Semi-automatic or compact models (with a small footprint and low investment) are ideal for SMEs producing small batches of customized insulating glass (e.g., for villas, specialty buildings, or automotive aftermarket). These models retain the core precision and efficiency advantages of full-automatic machines but with a lower price point and simpler operation, making advanced butyl coating technology accessible to a broader range of manufacturers. Refurbished butyl coating machines (from reputable brands) are also a cost-effective option for SMEs, offering the same performance as new equipment at 50–70% of the cost.

5. Development Trends of Butyl Coating Machines

5.1 Intelligentization and Digitalization

The future of butyl coating machines lies in intelligentization and digital transformation, driven by Industry 4.0 and smart manufacturing. Advanced models will integrate artificial intelligence (AI) and machine learning algorithms to optimize process parameters in real time: for example, automatically adjusting extrusion pressure and temperature based on butyl rubber viscosity changes (caused by temperature or batch differences) to maintain consistent coating quality. IoT (Internet of Things) connectivity will enable remote monitoring, predictive maintenance, and production data analysis—manufacturers can track machine performance, output, and quality from a central control room, and the system will predict component failures (e.g., screw wear, nozzle clogging) and schedule maintenance in advance, reducing unplanned downtime. Digital twin technology will also be applied, allowing manufacturers to simulate coating processes and optimize production lines before physical implementation.

5.2 High-Speed and High-Precision Upgrades

To meet the growing demand for large-scale and high-quality insulating glass, butyl coating machines will continue to evolve toward higher speed and precision. Future models will feature servo-driven systems with faster response times, increasing coating speed to 40–50 m/min while maintaining glue bead precision (±0.05 mm thickness tolerance). The extrusion mechanism will be optimized for higher pressure and more uniform glue distribution, enabling coating of ultra-narrow spacers (3–5 mm width) and ultra-thick glue beads (3–5 mm) for special applications. Additionally, 3D vision sensors will be integrated to detect spacer position and curvature in real time, enabling fully adaptive coating on complex-shaped spacers without manual adjustment.

5.3 Green and Eco-Friendly Design

Sustainability will be a core focus in the development of butyl coating machines, aligning with global carbon neutrality goals. Future models will feature energy-efficient heating systems (e.g., infrared heating or electromagnetic heating) that reduce energy consumption by 20–30% compared to traditional electric heating. The closed-loop glue recycling system will collect and reuse residual butyl rubber, further reducing material waste to less than 5%. Compatibility with bio-based butyl rubber (made from renewable resources) and low-VOC, zero-halogen formulations will be enhanced, making the production process more environmentally friendly. Additionally, the machine’s design will prioritize recyclable materials and modular components, reducing the environmental impact of manufacturing and disposal.

5.4 Integration with Automated Production Lines

Butyl coating machines will be more deeply integrated into fully automated insulating glass production lines, connecting with upstream spacer bending/welding machines, glass washing machines, and downstream glass bonding/secondary sealing robots. The entire production process—from spacer processing to final insulating glass assembly—will be automated, with seamless data exchange between machines via a central control system. This integration will eliminate manual handling, reduce production cycle time by 40–60%, and ensure 100% quality consistency across the entire production line. For example, the spacer bending machine will transmit spacer specifications to the butyl coating machine, which automatically adjusts parameters and starts coating; after coating, the spacer is automatically transferred to the glass bonding station, with no human intervention required.

6. Conclusion

As the core equipment for primary sealing in modern insulating glass manufacturing, the butyl coating machine plays a pivotal role in ensuring product quality, improving production efficiency, and reducing costs. Its technical advantages—high precision, high efficiency, wide compatibility, safety, and environmental protection—address the limitations of traditional coating methods, making it an indispensable tool for manufacturers seeking to meet the demand for energy-efficient, high-performance insulating glass.

With the ongoing development of the global green building and automotive industries, the demand for high-quality insulating glass will continue to grow, driving the continuous innovation of butyl coating machines toward intelligentization, high-speed, green, and integrated production. For insulating glass manufacturers, investing in a high-performance butyl coating machine is not only a practical upgrade for production lines but also a strategic decision to enhance market competitiveness, comply with international quality and environmental standards, and seize opportunities in the rapidly growing energy-saving glass market.

In the future, as technology advances, butyl coating machines will further evolve into smart, connected, and eco-friendly equipment, empowering the insulating glass industry to achieve higher levels of automation, efficiency, and sustainability—contributing to the global transition to a low-carbon, green economy.

References


GB/T 11944-2012, Insulating Glass for Buildings.
ASTM E2190-19, Standard Specification for Insulating Glass Units.
CE Marking Standards for Machinery (2006/42/EC).
International Energy Agency (IEA), Energy Efficiency Trends in Buildings, 2024.
Journal of Glass Technology, Vol. 65, No. 3, 2023: Advances in Insulating Glass Sealing Technology.
Automotive Engineering International, Vol. 28, No. 5, 2024: Sealing Solutions for Automotive Insulating Glass.

Manual: Aluminium Bar Bending Machine

1. Foreword

This manual is compiled to specify the operation specifications, safety precautions, maintenance requirements and troubleshooting methods of the Aluminium Bar Bending Machine, aiming to guide operators to use the equipment correctly, ensure the bending accuracy of aluminium bars, extend the service life of the machine, and eliminate potential safety hazards in the operation process. The Aluminium Bar Bending Machine is a special equipment widely used in insulating glass production, door and window manufacturing, architectural decoration and other industries, which is used for bending and forming various specifications of aluminium spacer bars. All operators must read this manual carefully, receive professional training and pass the assessment before operating the equipment. Any operation in violation of this manual may lead to equipment damage, product quality defects or personal safety accidents. This manual applies to all conventional models of Aluminium Bar Bending Machines, and for special customized models, the supplementary instructions provided by the manufacturer shall be referred to additionally.

2. Scope of Application

This manual is applicable to the operation, daily maintenance, routine inspection and fault handling of vertical and horizontal Aluminium Bar Bending Machines for insulating glass spacer bars, including but not limited to single-head bending machines, double-head bending machines and CNC automatic Aluminium Bar Bending Machines. It covers the whole process from equipment startup preparation, aluminium bar loading, parameter setting, bending operation to shutdown and post-operation treatment. The aluminium bars applicable to this equipment include hollow glass aluminium spacer bars with specifications of 6A, 9A, 12A, 15A, 18A, 20A, etc., and the bending angle ranges from 90° to 180°, which can meet the bending forming requirements of rectangular, square and special-shaped aluminium frames for insulating glass.

3. Equipment Overview

3.1 Basic Structure

The Aluminium Bar Bending Machine is mainly composed of frame system, bending execution system, clamping and positioning system, control system, feeding and discharging system, and safety protection system.


Frame System: It is the main bearing structure of the equipment, made of high-strength steel plate welding or profile assembly, with high rigidity and stability, to ensure that the equipment does not deform during the bending process.
Bending Execution System: The core working part of the equipment, including bending die, bending shaft, driving motor (servo motor or hydraulic motor), transmission mechanism, etc., which completes the bending action of aluminium bars through the rotation of the die and the driving of the power system.
Clamping and Positioning System: Composed of pneumatic clamping cylinder, positioning baffle, pressure plate, etc., it is used to fix the aluminium bar firmly during bending, prevent displacement and deflection, and ensure the bending accuracy.
Control System: Including touch screen, operation button panel, PLC controller, servo driver, etc., which realizes the setting of bending parameters (angle, length, speed), automatic operation control and fault alarm display.
Feeding and Discharging System: Consisting of feeding roller table, discharging bracket, conveying roller, etc., it facilitates the loading of raw aluminium bars and the unloading of formed aluminium frames, improving operation efficiency.
Safety Protection System: Including emergency stop button, safety grating, protective cover, overload protection device, etc., to prevent personal injury and equipment damage caused by misoperation.


3.2 Working Principle

The Aluminium Bar Bending Machine takes electric or hydraulic as the driving power, and the PLC controller sends out control instructions according to the set parameters. The aluminium bar is fixed by the clamping mechanism, and the bending die is driven by the servo/hydraulic system to rotate at a set angle, so as to realize the plastic deformation of the aluminium bar at the specified position and complete the bending forming. The equipment adopts precision positioning and closed-loop control technology, which can automatically compensate for the springback of aluminium bars, ensure the consistency of bending angle and size, and meet the assembly requirements of insulating glass.

3.3 Technical Parameters

The main technical parameters of conventional Aluminium Bar Bending Machines are as follows (for reference only, subject to the actual nameplate of the equipment):


Applicable aluminium bar width: 6mm-20mm
Applicable aluminium bar height: 5mm-30mm
Bending angle range: 0°-180° (stepless adjustment)
Bending accuracy: ±0.5°
Maximum bending length: 6000mm
Driving mode: Servo motor drive / hydraulic drive
Working air pressure: 0.4-0.6MPa
Power supply: 380V 50Hz three-phase four-wire
Overall dimension: (length×width×height) 2500mm×800mm×1500mm (conventional model)
Weight: About 800kg-1200kg


4. Pre-operation Preparation

4.1 Personnel Preparation


Operators must be over 18 years old, in good health, and have received special equipment operation training, familiar with the structure, performance, operating procedures and safety precautions of the Aluminium Bar Bending Machine, and hold a post certificate before taking up their posts.
Operators must wear standard labor protection equipment, including anti-pinch gloves, anti-static work clothes, safety shoes, and protective goggles (when cutting or processing special aluminium bars). It is forbidden to wear loose clothes, scarves, jewelry, or have long hair unbound, so as to avoid being involved in the rotating parts of the equipment.
Non-operators are strictly prohibited from entering the equipment working area, and obvious warning signs such as "No Unauthorized Operation" and "Danger, Keep Away" shall be set up at the operation site.


4.2 Equipment Inspection


Appearance and Structure Inspection: Check the appearance of the equipment for deformation, damage or loose parts, check the welding part of the frame for cracks, and check the fastening bolts of each component (such as die, clamping cylinder, motor base) for looseness, and tighten them in time if any.
Power and Air Supply Inspection: Check whether the power cord, plug and socket of the equipment are intact, whether the wiring is firm, and whether the leakage protector is normal. For pneumatic clamping models, check the air compressor, air pipeline and air filter for air leakage, blockage or water accumulation, and adjust the air pressure to 0.4-0.6MPa. Drain the water in the air storage tank and filter regularly to prevent moisture from entering the pneumatic components.
Mechanical Transmission Inspection: Check the bending die, transmission gear, chain, belt and other transmission parts for wear, deformation or damage, check whether the lubrication is sufficient, and add lubricating oil or grease according to the regulations if necessary. Manually rotate the bending shaft to check whether it rotates smoothly without jamming or abnormal noise.
Control System Inspection: Turn on the power supply of the equipment, check whether the touch screen and operation panel are lighted normally, whether the display data is accurate, and test the functions of start, stop, emergency stop, parameter adjustment and other buttons to ensure that all control functions are sensitive and effective. Check the PLC controller and servo driver for fault alarms, and eliminate the alarms in time if any.
Die and Accessory Inspection: Select the bending die matching the specification of the aluminium bar, check the die for wear, cracks or burrs, and replace it in time if it is damaged. Check the positioning baffle, pressure plate and clamping block for wear or deformation, and adjust or replace them to ensure the positioning accuracy.


4.3 Material and Tool Preparation


Select qualified aluminium spacer bars that meet the production requirements, check the appearance of aluminium bars for scratches, deformation, oxidation or impurities, check the dimensional accuracy (width, height, thickness), and prohibit the use of unqualified aluminium bars that do not meet the bending requirements.
Prepare auxiliary tools, such as hexagon wrench, screwdriver, torque wrench, cleaning cloth, lubricating oil, measuring tools (angle ruler, tape measure, vernier caliper), etc., to ensure that the tools are complete and intact.
Prepare the product drawings or process documents, confirm the bending parameters of aluminium bars (bending angle, side length, quantity, etc.), and input the parameters into the control system in advance for trial bending verification.


5. Standard Operation Procedures

5.1 Equipment Startup


Turn on the main power switch of the equipment, and then turn on the power supply of the control system, PLC and touch screen in sequence. Wait for the system to start and self-check, and confirm that there is no fault alarm before proceeding to the next operation.
For hydraulic drive models, turn on the hydraulic pump motor, run it idly for 3-5 minutes, check the hydraulic system for oil leakage, abnormal noise or overheating, and confirm that the hydraulic pressure is within the normal range.
For pneumatic models, open the air supply valve, check the air pressure gauge to ensure that the air pressure is stable at 0.4-0.6MPa, and test the action of the clamping cylinder to ensure that the clamping and loosening actions are flexible and in place.


5.2 Parameter Setting


Enter the parameter setting interface of the touch screen, input the bending parameters according to the product process requirements, including aluminium bar specification, bending angle, left and right side lengths, bending speed, clamping pressure, etc.
Set the springback compensation value according to the material characteristics of the aluminium bar (the springback of aluminium bars is generally 1°-3°, which can be adjusted according to the actual trial bending results).
For batch production, store the set parameters in the system program, name the program according to the product model, and call it directly during subsequent production to improve efficiency.
After setting the parameters, double-check to confirm that the input data is correct, and then save the parameters and exit the setting interface.


5.3 Aluminium Bar Loading and Positioning


Place the qualified aluminium bar flat on the feeding roller table, push it to the positioning baffle of the equipment, and adjust the position of the positioning baffle to ensure that the bending point of the aluminium bar is aligned with the center of the bending die.
Start the clamping mechanism (manual or automatic), and the clamping cylinder drives the pressure plate to press the aluminium bar firmly to prevent the aluminium bar from moving or rotating during the bending process. The clamping pressure should be appropriate, not too large to deform the aluminium bar, nor too small to cause insufficient clamping.
Use a measuring tool to recheck the positioning size of the aluminium bar, confirm that the bending position and length meet the process requirements, and then proceed to the bending operation.


5.4 Bending Operation

5.4.1 Manual Bending Mode


Select the manual operation mode on the control panel, and operate the manual button or joystick to control the bending die to rotate slowly, and observe the bending state of the aluminium bar in real time.
When the bending angle reaches the set value, the equipment will automatically stop or stop manually, and keep the pressure for 1-2 seconds to eliminate the springback of the aluminium bar.
Operate the loosening button to release the clamping mechanism, take out the bent aluminium bar, and use an angle ruler and tape measure to check the bending angle and size accuracy. If the accuracy is unqualified, readjust the springback compensation value and parameters for trial bending again.


5.4.2 Automatic Bending Mode


Select the automatic operation mode on the touch screen, call the pre-stored product program, and confirm that the parameters are correct.
Press the automatic start button, the equipment will automatically complete the actions of clamping, bending, pressure maintaining, loosening and resetting in sequence according to the set program.
During the automatic operation, the operator shall stand in the safe area outside the safety grating, observe the operation state of the equipment in real time, and pay attention to whether there is abnormal noise, aluminium bar deformation or equipment failure.
After the bending of a single aluminium bar is completed, the equipment will automatically reset and wait for the next feeding. For batch production, repeat the loading and start operation until the production task is completed.


5.5 Trial Bending and Batch Production


Before formal batch production, conduct trial bending on 2-3 aluminium bars, check the bending angle, side length, flatness and appearance quality of the formed aluminium frame, and confirm that all indicators meet the process standards.
If the trial bending product is unqualified, analyze the causes (such as parameter setting error, die mismatch, positioning deviation, aluminium bar quality problem), adjust the parameters or replace the accessories in time, and conduct trial bending again until the product is qualified.
After the trial bending is qualified, carry out formal batch production, and conduct random inspection on the formed products at regular intervals (every 50-100 pieces) to ensure the stability of product quality.


5.6 Equipment Shutdown


After completing the production task, press the stop button to stop the operation of the equipment, and reset the bending die and clamping mechanism to the initial position.
For hydraulic drive models, turn off the hydraulic pump motor first, and then turn off the main power supply; for pneumatic models, close the air supply valve first, and then turn off the power supply.
Clean the residual aluminium chips, dust and impurities on the equipment surface, roller table and die, wipe the equipment with a clean cloth, and apply anti-rust oil on the die and metal parts if necessary.
Hang the "Shutdown for Maintenance" or "No Operation" warning sign on the operation panel, and record the production data, operation time and equipment status in the equipment operation log.


6. Safety Precautions

6.1 Basic Safety Rules


It is strictly forbidden to operate the equipment with diseases, fatigue, drunk or distracted mental state, so as to avoid misoperation.
During the operation of the equipment, it is forbidden to extend hands, arms or any parts of the body into the bending working area, and it is forbidden to touch the rotating die, transmission parts and high-temperature components (hydraulic motor, servo motor) with bare hands.
Do not place tools, aluminium bars or other sundries on the equipment frame, control panel and safety protection device to avoid affecting the equipment operation or causing safety accidents.
The equipment must be reliably grounded to prevent electric shock accidents. Do not disassemble or modify the electrical components, control circuit and mechanical structure of the equipment without authorization.
In case of power failure or air failure during operation, immediately press the emergency stop button, cut off the power supply and air supply, and wait for the power supply and air supply to return to normal before restarting the operation after inspection.


6.2 Special Operation Safety


When replacing the bending die, the equipment must be completely shut down, the power supply and air supply/hydraulic supply must be cut off, and the operation can be carried out only after the die is completely stopped. Use special tools to disassemble and assemble the die to avoid injury caused by die falling.
When bending special-shaped or ultra-long aluminium bars, add auxiliary support brackets to prevent the aluminium bars from deforming or swinging during the bending process, and arrange special personnel to assist in feeding and discharging.
When the equipment is running with overload or abnormal noise, immediately press the emergency stop button, cut off the power supply, check the cause of the fault, and it is forbidden to continue operation with fault.
The safety grating, protective cover and emergency stop button of the equipment shall not be dismantled or shielded at will, and regular inspection shall be carried out to ensure their effectiveness.


6.3 Emergency Handling


In case of personal injury (such as pinch, scald, electric shock), immediately cut off the power supply and air supply, carry out first aid measures, and send to the hospital for treatment in time.
In case of equipment failure (such as die jamming, hydraulic oil leakage, motor overheating), press the emergency stop button immediately, stop the operation, record the fault phenomenon, and notify the professional maintenance personnel for repair.
In case of fire caused by electrical short circuit or hydraulic oil combustion, immediately cut off the power supply, use dry powder fire extinguisher to put out the fire, and it is forbidden to use water to put out the electrical fire.


7. Equipment Maintenance and Upkeep

7.1 Daily Maintenance (Once per Shift)


Clean the equipment surface, die, roller table and working area, remove aluminium chips, dust and impurities, and keep the equipment clean.
Check the fastening of bolts, nuts and connectors of each component, and tighten them in time if loose.
Check the air pressure, hydraulic pressure and lubrication state of the equipment, add lubricating oil or grease to the transmission parts (bearing, gear, chain) according to the regulations, and check the hydraulic oil level and oil quality.
Test the functions of emergency stop button, safety grating and control buttons to ensure they are normal.
Record the daily maintenance situation in the equipment maintenance log.


7.2 Weekly Maintenance (Once a Week)


Thoroughly clean the inside of the equipment, including the hydraulic oil tank, air filter, control cabinet, remove dust and impurities, and check the wiring in the control cabinet for looseness.
Check the wear of bending die, clamping block, positioning baffle and transmission parts, and replace the seriously worn parts in time.
Drain the water and impurities in the air storage tank, air filter and hydraulic oil tank, and check the hydraulic oil for deterioration or pollution. If necessary, replace the hydraulic oil and filter element.
Calibrate the bending angle and positioning size of the equipment, and adjust the deviation to ensure the processing accuracy.
Check the operation of the servo motor, hydraulic pump and clamping cylinder, and eliminate abnormal noise and oil leakage.


7.3 Monthly Maintenance (Once a Month)


Conduct a comprehensive inspection of the electrical system, including the PLC controller, servo driver, touch screen, sensor, etc., check the wiring for aging or damage, and replace the damaged wires in time.
Perform lubrication maintenance on all transmission mechanisms, replace the lubricating oil or grease that has deteriorated or exceeded the service life, and adjust the tightness of the chain and belt.
Check the sealing performance of the hydraulic system and pneumatic system, replace the aging sealing ring and oil seal, and eliminate oil leakage and air leakage faults.
Calibrate the pressure gauge, temperature sensor and other measuring instruments of the equipment to ensure the accuracy of measurement data.
Conduct a comprehensive test run of the equipment, check the operation status of each system, and deal with potential faults in advance.


7.4 Annual Maintenance (Once a Year)


Conduct a comprehensive disassembly and inspection of the equipment, check the wear of key components such as frame, bending shaft, bearing, and carry out repair or replacement according to the wear degree.
Replace all hydraulic oil, lubricating oil, filter element and sealing parts of the equipment, and clean the hydraulic oil tank and lubrication system.
Conduct a comprehensive calibration of the control system, update the system program if necessary, and optimize the bending parameters.
Conduct a safety performance evaluation of the equipment, including safety protection device, grounding system, overload protection, etc., to ensure that the equipment meets the safety standards.
After the annual maintenance is completed, conduct a comprehensive test run and acceptance, and record the maintenance content and acceptance results in the equipment file.


8. Troubleshooting of Common Faults

8.1 Inaccurate Bending Angle


Fault Causes: Incorrect springback compensation parameter setting, wear or deformation of bending die, loose positioning baffle, unstable air pressure/hydraulic pressure, damage of angle sensor.
Solutions: Readjust the springback compensation value according to the trial bending results; replace the worn or deformed bending die; tighten the positioning baffle and recalibrate the positioning size; check the air compressor/hydraulic pump to stabilize the pressure; replace the damaged angle sensor and recalibrate.


8.2 Aluminium Bar Deformation or Scratches During Bending


Fault Causes: Improper clamping pressure, burrs or wear on the die and clamping block, unqualified aluminium bar material, misalignment of bending point.
Solutions: Adjust the clamping pressure to an appropriate value; polish or replace the die and clamping block with burrs or wear; replace qualified aluminium bars; recalibrate the bending point position to ensure alignment with the die center.


8.3 Clamping Mechanism Fails to Clamp or Loosen


Fault Causes: Insufficient air pressure/hydraulic pressure, blockage of air pipe/hydraulic pipe, damage of clamping cylinder, failure of solenoid valve, loose circuit connection.
Solutions: Adjust the air pressure/hydraulic pressure to the normal range; clean the blocked pipeline; replace the damaged clamping cylinder; check and replace the faulty solenoid valve; tighten the loose circuit connector.


8.4 Equipment Abnormal Noise or Vibration


Fault Causes: Insufficient lubrication of transmission parts, loose fastening bolts, wear or damage of bearing and gear, unbalanced bending die, overload operation.
Solutions: Add lubricating oil or grease to the transmission parts; tighten all loose fastening bolts; replace the worn bearing and gear; recalibrate the balance of the bending die; reduce the processing load to avoid overload operation.


8.5 Hydraulic System Oil Leakage


Fault Causes: Aging or damage of sealing ring, loose joint of hydraulic pipe, crack of hydraulic oil tank, damage of hydraulic pump shaft seal.
Solutions: Replace the aging sealing ring; tighten the loose hydraulic pipe joint; weld or replace the cracked hydraulic oil tank; replace the damaged hydraulic pump shaft seal.


8.6 Control System Failure (Touch Screen No Display, Parameter Cannot Be Set)


Fault Causes: Power supply abnormality, loose connection of control line, damage of touch screen or PLC controller, system program error.
Solutions: Check the power supply and restore normal power supply; tighten the loose control line connector; replace the damaged touch screen or PLC controller; restart the system or reload the program to restore the normal operation of the control system.


9. Storage and Transportation of Equipment

9.1 Equipment Storage


The equipment should be stored in a dry, ventilated, dust-free and non-corrosive gas environment, away from heat sources, direct sunlight and rain.
Before storage, clean the equipment thoroughly, apply anti-rust oil on all metal parts and die, cover the equipment with a dust cover, and block the hydraulic pipe and air pipe interface to prevent dust and impurities from entering.
The equipment should be placed flat on a solid ground, and the support points should be set according to the requirements to avoid deformation of the frame. Regular inspection should be carried out during storage, and anti-rust and moisture-proof treatment should be done well.


9.2 Equipment Transportation


The equipment transportation should be carried out by a professional logistics company, and the transportation vehicle should have a fixed device to prevent the equipment from shaking or colliding during transportation.
Before transportation, fix all movable parts of the equipment (such as bending die, clamping cylinder, roller table) with fixtures, remove the easily damaged parts (such as touch screen, sensor) and pack them separately for transportation.
During loading and unloading, use a forklift or crane that meets the lifting requirements, and operate in accordance with the hoisting specifications to avoid impact or tilting of the equipment. The lifting point should be selected at the designated position of the equipment frame.
During transportation, cover the equipment with a rainproof and dustproof cloth to prevent rain, snow and dust from eroding the equipment.


10. Supplementary Provisions


This manual is the basic operation standard of the Aluminium Bar Bending Machine, and the operator shall strictly abide by it. If there is any conflict with the special instructions of the equipment manufacturer, the manufacturer's instructions shall prevail.
The enterprise shall formulate corresponding operation management system and maintenance system according to this manual, and assign special personnel to be responsible for the management and maintenance of the equipment.
Any modification, transformation or upgrade of the equipment must be approved by the equipment manufacturer or professional technical personnel, and shall not be carried out without authorization.
The operator shall be responsible for the equipment damage and personal safety accidents caused by violation of this manual.
This manual shall be kept properly, and the lost or damaged manual shall be reported to the equipment management department in time for replacement. The technical department of the enterprise is responsible for the interpretation and revision of this manual.

Pneumatic Straight Round 45 Degree Glass Edging Machine: A Comprehensive Technical Overview

Abstract

The Pneumatic Straight Round 45 Degree Glass Edging Machine stands as a pivotal piece of equipment in the modern glass processing industry, integrating pneumatic actuation, precision machining, and automated control technologies to deliver high-efficiency, high-precision edge treatment for flat glass. This article systematically elaborates on the machine’s structural design, working principle, core technical parameters, application scenarios, performance advantages, maintenance protocols, and future development trends. By analyzing its engineering innovations and industrial value, it aims to provide a theoretical and practical reference for glass processing enterprises, equipment manufacturers, and technical researchers, highlighting the machine’s role in advancing the automation, precision, and versatility of glass edge processing.

1. Introduction

With the rapid development of industries such as architectural decoration, automotive manufacturing, home appliances, and furniture production, the demand for flat glass products has grown exponentially, accompanied by increasingly stringent requirements for glass edge quality, processing efficiency, and product safety. Raw glass, after cutting, exhibits sharp, irregular edges with micro-cracks and burrs, which not only pose safety hazards during handling and installation but also reduce the mechanical strength and aesthetic appeal of the final product. Traditional manual edging and semi-automatic mechanical edging methods suffer from low efficiency, inconsistent precision, high labor intensity, and poor surface finish, failing to meet the mass production and high-quality standards of modern glass processing.

In response to these industry pain points, the Pneumatic Straight Round 45 Degree Glass Edging Machine has emerged as a specialized solution designed for continuous, one-pass processing of straight round edges and 45-degree chamfers on flat glass. Leveraging pneumatic systems for stable clamping, precise pressure control, and flexible spindle feeding, combined with multi-stage grinding and polishing mechanisms, the machine achieves integrated coarse grinding, fine grinding, chamfering, and polishing operations. It addresses the limitations of conventional edging equipment, offering superior stability, precision, and adaptability to diverse glass thicknesses and sizes. This article provides a comprehensive analysis of the machine’s technical characteristics, operational mechanisms, and industrial applications, exploring its contributions to the upgrading of glass processing technology and the optimization of production workflows.

2. Structural Design and Core Components

The Pneumatic Straight Round 45 Degree Glass Edging Machine features a robust, integrated structural design, consisting of a main frame, pneumatic clamping and feeding system, multi-spindle grinding and polishing unit, PLC control system, cooling and dust removal system, and glass conveying mechanism. Each component is engineered for synergistic operation, ensuring high precision, stability, and reliability during continuous processing.

2.1 Main Frame

The main frame serves as the structural foundation of the machine, typically fabricated from high-strength thick steel plates through precision welding and stress-relief annealing. This design eliminates deformation caused by long-term high-load operation, maintaining the geometric accuracy of the entire equipment. The frame is equipped with precision linear guide rails and ball screws for the grinding spindle movement, ensuring smooth, backlash-free motion of the grinding heads. The rigid frame structure also minimizes vibration during high-speed grinding, which is critical for preventing glass chipping and ensuring edge finish consistency. Some high-end models adopt a gantry-type structure to enhance stability when processing large-format glass sheets, with a load-bearing capacity of up to 700 kg, suitable for architectural and automotive glass applications.

2.2 Pneumatic Clamping and Feeding System

As the core feature distinguishing this machine from conventional mechanical edging equipment, the pneumatic system is responsible for glass clamping, spindle feeding, and pressure regulation. The system comprises an air compressor, air storage tank, precision pressure regulating valves, pneumatic cylinders, and pneumatic control valves.


Pneumatic Clamping Mechanism: Equipped with pneumatic clamping jaws lined with wear-resistant rubber or polyurethane, the system applies uniform, adjustable pressure (0.2–0.6 MPa) to secure glass sheets of varying thicknesses (3–25 mm) without surface damage. The pneumatic clamping ensures stable glass positioning during high-speed grinding, eliminating slippage and positional deviation. Compared with mechanical clamping, pneumatic clamping offers softer contact, reducing the risk of glass edge breakage and improving product yield.
Pneumatic Spindle Feeding: The grinding and polishing spindles are driven by pneumatic cylinders for radial feeding, with PLC-controlled precision pressure regulation. This allows real-time adjustment of the grinding wheel’s contact pressure with the glass edge, adapting to different glass hardnesses and processing requirements. The pneumatic feeding mechanism provides flexible, shock-free movement, avoiding excessive pressure that causes chipping and ensuring uniform material removal across the glass edge. High-end models feature independent pneumatic control for each spindle, enabling separate adjustment of grinding pressure for coarse grinding, fine grinding, and polishing stages.


2.3 Multi-Spindle Grinding and Polishing Unit

The grinding and polishing unit is the core execution component, typically configured with 9–11 spindles arranged in a linear sequence, each equipped with a dedicated grinding or polishing wheel for sequential processing. The spindle configuration is optimized for one-pass completion of coarse grinding, fine grinding, 45-degree chamfering, and polishing:


Coarse Grinding Spindles: The first two to three spindles are fitted with diamond cup wheels (grit size #100–#140) for rapid removal of sharp edges, burrs, and micro-cracks from the cut glass, forming the basic round edge profile. These spindles operate at high speeds (2800–3600 rpm) to ensure efficient material removal, with pneumatic pressure set to 0.4–0.6 MPa for stable cutting.
Fine Grinding Spindles: The middle three to four spindles use resin-bonded diamond wheels (grit size #230–#320) to refine the edge profile, eliminating coarse grinding marks and improving surface flatness. The pneumatic feeding pressure is reduced to 0.3–0.4 MPa to achieve precise material removal and edge uniformity.
45-Degree Chamfering Spindles: Dedicated spindles are angled at 45 degrees, equipped with specialized chamfering wheels to process the beveled edge synchronously with the round edge. The chamfer width is adjustable (0.5–3 mm) via the PLC control panel, meeting diverse design requirements for architectural glass, shower enclosures, and furniture glass.
Polishing Spindles: The final two to three spindles use cerium oxide polishing wheels or resin polishing wheels to achieve an optical-grade finish (surface roughness Ra ≤ 0.15 μm). The pneumatic pressure is further reduced to 0.2–0.3 MPa to ensure a smooth, scratch-free surface, eliminating the need for secondary polishing.


2.4 PLC Control System

The machine is equipped with a high-performance PLC (Programmable Logic Controller) paired with a touch-screen human-machine interface (HMI), enabling intelligent control of the entire processing workflow. The control system supports parameter setting (glass thickness, chamfer width, processing speed, grinding pressure), real-time monitoring (spindle speed, air pressure, processing status), fault diagnosis, and automatic alarm functions. Operators can store and recall processing parameters for different glass specifications, reducing setup time and improving production efficiency. The system also supports linkage with automatic glass loading and unloading equipment, facilitating integration into fully automated production lines. Advanced models feature Ethernet communication for remote monitoring, parameter optimization, and predictive maintenance, aligning with smart manufacturing trends.

2.5 Cooling and Dust Removal System

During grinding and polishing, the friction between the grinding wheel and glass generates high temperatures, which can cause thermal stress, edge cracking, or grinding wheel wear. The cooling system adopts a water circulation design, with precision nozzles spraying cooling liquid (pure water or specialized glass grinding coolant) directly onto the grinding contact area. This reduces temperature, lubricates the contact surface, and flushes away glass powder and debris. The dust removal system, integrated with the cooling circulation, filters and recycles the coolant, reducing water consumption and environmental pollution. High-efficiency filtration systems (filter precision ≤ 5 μm) prevent glass powder from clogging nozzles and damaging precision components, extending the service life of grinding wheels and spindles.

2.6 Glass Conveying Mechanism

The conveying mechanism consists of variable-speed conveyor belts, drive motors, and positioning sensors, ensuring stable, continuous glass feeding during processing. The conveyor speed is adjustable (0.8–6 m/min) via a frequency converter, matching the processing efficiency to different glass thicknesses and edge requirements. The conveyor surface is lined with anti-slip, wear-resistant materials to prevent glass scratching and slippage. Positioning sensors at the inlet and outlet detect glass position, automatically triggering clamping, grinding, and release operations, realizing unmanned continuous processing. The mechanism supports processing of glass sheets with minimum dimensions of 25 mm × 25 mm and maximum dimensions customized according to user needs, making it suitable for both small-scale precision parts and large-format architectural glass.

3. Working Principle

The operational logic of the Pneumatic Straight Round 45 Degree Glass Edging Machine is a highly coordinated sequence of pneumatic actuation, mechanical grinding, and electronic control, divided into five core stages: glass feeding and positioning, pneumatic clamping, multi-stage grinding and polishing, pneumatic release, and glass discharging.

3.1 Glass Feeding and Positioning

The operator places the cut flat glass sheet onto the inlet conveyor belt, which transports the glass to the positioning area. Photoelectric sensors detect the glass edge and send a signal to the PLC, which stops the conveyor and activates the pneumatic positioning cylinders to align the glass precisely with the grinding spindle axis. The positioning accuracy reaches ±0.01 mm, ensuring uniform edge processing across the entire glass sheet.

3.2 Pneumatic Clamping

Upon completion of positioning, the PLC triggers the pneumatic clamping system. The pneumatic cylinders extend to drive the clamping jaws, applying uniform pressure to secure the glass. The pressure is regulated by precision valves to match the glass thickness—thinner glass (3–5 mm) uses lower pressure (0.2–0.3 MPa) to avoid breakage, while thicker glass (12–25 mm) uses higher pressure (0.4–0.6 MPa) for stable fixation. The clamping action is completed within 0.5 seconds, ensuring rapid workflow progression.

3.3 Multi-Stage Grinding and Polishing

After clamping, the PLC activates the grinding spindles and conveying mechanism, with the glass moving linearly through the grinding unit at a set speed. The pneumatic feeding system drives each spindle to extend sequentially, with the grinding wheels making contact with the glass edge at pre-set pressures and angles:


Coarse Grinding Stage: The diamond cup wheels remove the sharp, irregular cut edge, forming a preliminary round profile and eliminating micro-cracks. The high-speed rotation of the spindles (3000–3600 rpm) ensures efficient material removal, while the cooling system sprays coolant to prevent overheating.
Fine Grinding Stage: The resin-bonded diamond wheels refine the edge profile, smoothing coarse grinding marks and improving dimensional accuracy. The spindle speed is adjusted to 2500–3000 rpm, and the pneumatic pressure is reduced to ensure precise material removal.
45-Degree Chamfering Stage: The angled chamfering wheels process the beveled edge synchronously with the round edge, with the chamfer width and angle controlled by the PLC via pneumatic cylinder stroke adjustment.
Polishing Stage: The polishing wheels perform final finishing, achieving a mirror-like surface finish. The spindle speed is reduced to 2000–2500 rpm, and the pneumatic pressure is minimized to avoid surface damage.


Throughout the process, the PLC monitors real-time parameters such as air pressure, spindle speed, and conveyor speed, automatically adjusting for deviations to ensure consistent processing quality. The cooling system operates continuously, flushing away debris and maintaining stable processing temperatures.

3.4 Pneumatic Release and Glass Discharging

Once the glass completes the entire grinding and polishing process and reaches the outlet area, the photoelectric sensor sends a completion signal to the PLC. The pneumatic clamping system retracts the cylinders, releasing the glass. The conveyor belt then transports the finished glass to the discharge area, ready for the next processing cycle or subsequent procedures (e.g., cleaning, tempering, laminating). The entire cycle is continuous, with a processing efficiency of 80–120 pieces per hour (for standard 12 mm thick glass), significantly higher than manual or semi-automatic methods.

4. Core Technical Parameters

The technical parameters of the Pneumatic Straight Round 45 Degree Glass Edging Machine define its processing capacity, precision, and adaptability, with key indicators as follows (typical for mainstream 9–11 spindle models):






Parameter Category
Specific Indicators
Value Range




Processing Scope
Applicable Glass Thickness
3–25 mm



Minimum Glass Size
25 mm × 25 mm



Maximum Glass Size
Customizable (up to 3000 mm × 2000 mm)



45-Degree Chamfer Width
0.5–3 mm


Processing Precision
Edge Dimensional Accuracy
±0.01 mm



Surface Roughness (Ra)
≤0.15 μm



Chamfer Angle Accuracy
±0.5°


Operational Parameters
Spindle Speed
2000–3600 rpm



Conveyor Speed
0.8–6 m/min



Pneumatic System Pressure
0.2–0.6 MPa



Compressed Air Consumption
<1 L/min


Power Parameters
Total Motor Power
19.5–25 kW



Power Supply
380 V/50 Hz, Three-Phase


Physical Dimensions
Length × Width × Height
7.0–7.5 m × 1.2 m × 2.6 m



Machine Weight
3000–4500 kg






These parameters reflect the machine’s balance of high precision and high efficiency, with the pneumatic system enabling flexible pressure adjustment to accommodate diverse glass types (float glass, tempered glass, laminated glass, Low-E glass) and processing requirements.

5. Industrial Applications

The Pneumatic Straight Round 45 Degree Glass Edging Machine’s versatility, precision, and efficiency make it widely applicable across multiple industries requiring high-quality flat glass edge processing, with key application scenarios as follows:

5.1 Architectural Decoration Industry

In architectural glass processing, the machine is used for edging and chamfering of curtain wall glass, partition glass, doors and windows glass, and shower room glass. The 45-degree chamfered edge enhances the aesthetic appeal of architectural glass, while the rounded edge improves safety and mechanical strength, complying with building safety standards. The machine’s ability to process large-format glass (up to 3000 mm × 2000 mm) meets the requirements of high-rise buildings and commercial complexes, with processing precision ensuring seamless installation of curtain wall glass. It is also used for processing glass railings, skylights, and decorative glass panels, providing smooth, safe edges for architectural interiors and exteriors.

5.2 Automotive Glass Manufacturing

Automotive glass (windshields, side windows, rear windows, sunroofs) requires high-precision edge processing to ensure sealing, safety, and compatibility with vehicle frames. The machine’s pneumatic clamping and precision grinding avoid glass deformation and chipping, critical for automotive safety glass. The 45-degree chamfering facilitates the installation of rubber seals and adhesives, improving the sealing performance and wind resistance of automotive glass. It is also used for processing sunroof glass and rearview mirror glass, meeting the strict dimensional and surface quality requirements of the automotive industry.

5.3 Home Appliances and Furniture Industry

In home appliance manufacturing, the machine processes glass panels for refrigerators, ovens, washing machines, and display screens, with rounded and chamfered edges enhancing product safety and aesthetics. For furniture, it is used for glass tabletops, cabinet doors, display cabinets, and decorative glass parts, providing smooth edges that prevent user injury and improve product durability. The machine’s ability to process small-sized glass (minimum 25 mm × 25 mm) makes it suitable for precision furniture components and small home appliance parts.

5.4 Electronic and Optical Glass Industry

For electronic glass (smartphone screens, tablet displays, TV panels) and optical glass (lens substrates, instrument glass), the machine’s high-precision polishing achieves an optical-grade surface finish (Ra ≤ 0.1 μm), meeting the requirements of light transmittance and surface smoothness. The pneumatic system’s low-pressure clamping avoids damage to thin electronic glass (3–5 mm), while the continuous processing ensures consistency for mass production of electronic components.

5.5 Solar Photovoltaic Industry

With the rapid development of the photovoltaic industry, the demand for high-quality photovoltaic glass has surged. The machine processes the edges of photovoltaic glass panels, eliminating micro-cracks and improving the mechanical strength and weather resistance of the glass. The 45-degree chamfering facilitates the lamination of photovoltaic modules, enhancing the sealing performance and service life of solar panels. Its high processing efficiency supports the mass production needs of photovoltaic glass manufacturing.

6. Performance Advantages

Compared with traditional mechanical edging machines, manual edging tools, and semi-automatic edging equipment, the Pneumatic Straight Round 45 Degree Glass Edging Machine offers distinct performance advantages, driving the upgrading of glass processing technology:

6.1 High Processing Precision and Consistency

The integration of pneumatic precision control, PLC automation, and linear guide rail transmission ensures edge dimensional accuracy of ±0.01 mm and chamfer angle accuracy of ±0.5°, far exceeding manual and semi-automatic methods. The uniform pneumatic clamping pressure and spindle feeding pressure eliminate positional deviation and uneven material removal, ensuring consistent edge quality across mass-produced glass sheets. The surface roughness after polishing reaches Ra ≤ 0.15 μm, meeting optical-grade requirements and reducing the need for secondary processing.

6.2 High Efficiency and Continuous Operation

The one-pass processing of coarse grinding, fine grinding, chamfering, and polishing eliminates the need for multiple clamping and repositioning, improving production efficiency by 30–50% compared with traditional methods. The automatic conveying and clamping system enables unmanned continuous operation, with a processing capacity of 80–120 pieces per hour (standard glass). The PLC’s parameter memory function reduces setup time for different glass specifications, further enhancing production flexibility and efficiency.

6.3 Wide Adaptability to Glass Specifications

The pneumatic system’s adjustable clamping pressure and spindle stroke, combined with variable conveyor speed, enable processing of glass thicknesses from 3 mm to 25 mm and sizes from 25 mm × 25 mm to large-format panels. The machine accommodates various glass types, including float glass, tempered glass, laminated glass, Low-E glass, and photovoltaic glass, making it suitable for diversified production needs of glass processing enterprises.

6.4 Enhanced Safety and Product Yield

The pneumatic clamping mechanism provides soft, uniform contact with the glass, reducing the risk of edge breakage and surface scratching compared with mechanical clamping. The cooling system’s real-time temperature control prevents thermal stress and glass cracking, while the multi-stage grinding process eliminates micro-cracks, improving the mechanical strength and safety of the finished glass. The product yield rate exceeds 99%, significantly reducing material waste and production costs.

6.5 Intelligent Control and Ease of Operation

The PLC touch-screen control system simplifies operation, with intuitive parameter setting and real-time monitoring. Operators can master equipment operation after basic training, reducing reliance on skilled workers. The fault diagnosis and automatic alarm functions enable timely detection and resolution of issues (e.g., air pressure anomalies, spindle overload, coolant blockage), reducing downtime. Advanced models support remote monitoring and maintenance, improving equipment management efficiency.

6.6 Low Maintenance and Long Service Life

The pneumatic system has a simple structure with few moving parts, reducing wear and maintenance requirements compared with complex mechanical transmission systems. The cooling and dust removal system minimizes grinding wheel wear and component contamination, extending the service life of grinding wheels (up to 12,000 hours for high-quality diamond wheels) and spindles. The main frame’s rigid, anti-deformation design ensures long-term dimensional stability, with a service life of over 10 years under proper maintenance.

7. Maintenance and Troubleshooting

To ensure the long-term stable operation and processing precision of the Pneumatic Straight Round 45 Degree Glass Edging Machine, standardized maintenance and timely troubleshooting are essential. The maintenance system is divided into daily, weekly, and monthly routines, with key measures as follows:

7.1 Daily Maintenance


Cleaning: After each shift, clean the machine surface, grinding spindles, conveyor belts, and cooling nozzles with compressed air and a lint-free cloth to remove glass powder and debris. Drain and replace the coolant in the circulation tank to prevent sludge buildup and nozzle clogging.
Inspection: Check the pneumatic system pressure, ensuring it remains within the 0.2–0.6 MPa range; inspect for air leaks at cylinder joints and valves. Verify the operation of photoelectric sensors and emergency stop buttons, ensuring their sensitivity. Check the grinding wheel wear, replacing wheels that are worn beyond the minimum diameter or show signs of chipping.
Lubrication: Apply a small amount of lubricating oil to linear guide rails and ball screws to ensure smooth movement, avoiding over-lubrication that attracts glass powder.


7.2 Weekly Maintenance


Pneumatic System Maintenance: Drain moisture from the air storage tank and replace the pneumatic filter element to ensure dry, clean compressed air. Inspect pneumatic cylinder seals, replacing damaged seals to prevent air leakage and pressure loss.
Spindle and Transmission Inspection: Check spindle runout (≤0.02 mm) and tighten spindle fixing screws. Inspect conveyor belt tension and alignment, adjusting as needed to prevent glass slippage. Test the PLC control system, calibrating parameter settings and ensuring normal communication between the HMI and PLC.
Cooling System Maintenance: Flush the coolant circulation pipeline and filter, removing accumulated glass powder and debris to ensure smooth coolant flow. Check the water pump pressure, replacing worn pump parts if necessary.


7.3 Monthly Maintenance


Comprehensive Component Inspection: Inspect the main frame for deformation or cracks, checking the tightness of all connecting bolts. Calibrate the grinding spindle angle and positioning accuracy, ensuring compliance with technical parameters. Test the emergency stop and safety interlock systems, ensuring they function reliably.
Electrical System Maintenance: Inspect electrical wiring, connectors, and motor insulation, replacing aging wires and damaged connectors. Check the PLC and HMI for software updates, installing patches to improve system stability.
Lubrication System Overhaul: Replace lubricating oil in gearboxes and bearing components, using high-grade industrial lubricants suitable for high-speed operation. Clean and lubricate pneumatic control valves to ensure flexible movement.


7.4 Common Troubleshooting


Uneven Edge Processing: Causes include uneven pneumatic clamping pressure, worn grinding wheels, or misaligned spindles. Solutions: Adjust pneumatic pressure regulators, replace worn grinding wheels, and calibrate spindle position via the PLC.
Glass Chipping During Processing: Causes include excessive grinding pressure, insufficient cooling, or glass positioning deviation. Solutions: Reduce pneumatic feeding pressure, check coolant nozzle blockage, and re-calibrate photoelectric positioning sensors.
Low Surface Finish After Polishing: Causes include worn polishing wheels, incorrect spindle speed, or contaminated coolant. Solutions: Replace polishing wheels, adjust spindle speed via the frequency converter, and replace the coolant.
Pneumatic System Pressure Loss: Causes include air leaks, damaged filter elements, or faulty pressure regulating valves. Solutions: Inspect and repair air leaks, replace filter elements, and calibrate or replace pressure regulating valves.
Conveyor Belt Slippage: Causes include worn conveyor belt lining, insufficient tension, or excessive glass weight. Solutions: Replace the conveyor belt lining, adjust belt tension, and ensure glass weight does not exceed the machine’s load capacity.


8. Future Development Trends

Driven by technological innovation and evolving industry demands, the Pneumatic Straight Round 45 Degree Glass Edging Machine is evolving toward higher intelligence, precision, energy efficiency, and versatility, with key development trends as follows:

8.1 Intelligent and Digital Upgrading

Future models will integrate artificial intelligence (AI), machine vision, and Internet of Things (IoT) technologies to achieve fully autonomous processing. Machine vision systems will automatically detect glass size, thickness, and edge defects, with AI algorithms optimizing processing parameters (grinding pressure, speed, chamfer size) in real time. IoT-enabled remote monitoring and predictive maintenance will enable real-time collection of equipment operating data, predicting component wear and faults to reduce downtime. Digital twin technology will simulate the processing workflow, optimizing production scheduling and improving overall equipment effectiveness (OEE).

8.2 Higher Precision and Ultra-Thin Glass Processing

With the development of electronic and optical industries, the demand for ultra-thin glass (≤2 mm) and higher precision processing will grow. Future machines will adopt micro-pneumatic control systems (pressure regulation accuracy ≤ 0.01 MPa) and high-precision spindles (runout ≤ 0.005 mm), achieving surface roughness Ra ≤ 0.05 μm. The grinding wheel material and manufacturing process will be upgraded, with nano-scale abrasive particles enabling ultra-precision polishing for optical and electronic glass applications.

8.3 Energy Conservation and Environmental Protection

In response to global energy conservation and emission reduction policies, future machines will adopt energy-efficient motors (permanent magnet synchronous motors) and variable-frequency control systems, reducing power consumption by 30–40% compared with current models. The cooling system will be optimized for closed-loop circulation with high-efficiency filtration, reducing water consumption by over 50%. Dust removal systems will integrate waste glass powder recycling technology, converting processing waste into reusable materials, realizing green and sustainable production.

8.4 Multi-Functional Integration and Flexible Manufacturing

To meet the demand for diversified glass processing, future machines will integrate multiple edging functions (round edge, 45-degree chamfer, bevel edge, duckbill edge) in a single unit, with quick-change grinding wheel modules reducing setup time to less than 15 minutes. The machine will support processing of irregular-shaped glass (in addition to flat glass) through flexible pneumatic clamping and multi-axis linkage spindles, adapting to customized production needs. Modular design will enable flexible configuration of spindles and functions, allowing enterprises to customize equipment according to their production scale and processing requirements.

8.5 Global Market Expansion and Localized Innovation

With the growth of the global glass processing market, especially in emerging economies (Southeast Asia, Latin America, Africa), the demand for cost-effective, high-performance edging equipment will increase. Domestic equipment manufacturers will accelerate technological innovation and product upgrading, improving product quality and brand influence to expand international market share. Localized R&D and production will be strengthened, adapting to regional processing standards and user needs, while establishing global after-sales service networks to enhance customer support.

9. Conclusion

The Pneumatic Straight Round 45 Degree Glass Edging Machine represents a significant advancement in glass processing technology, integrating pneumatic actuation, precision machining, and intelligent control to address the limitations of traditional edging methods. Its high precision, efficiency, adaptability, and safety make it an indispensable piece of equipment in architectural, automotive, home appliance, electronic, and photovoltaic glass processing, driving the upgrading of the glass processing industry toward automation, intelligence, and high quality.

With ongoing technological innovation and evolving market demands, the machine will continue to evolve in intelligence, precision, energy efficiency, and versatility, meeting the increasingly diverse and stringent requirements of glass products. For glass processing enterprises, adopting this advanced edging equipment is crucial for improving production efficiency, reducing costs, enhancing product quality, and gaining a competitive edge in the market. For equipment manufacturers, continuous R&D investment in core technologies (pneumatic control, precision spindles, intelligent systems) and localized innovation will be key to capturing market opportunities and promoting the sustainable development of the glass processing equipment industry.

Future research should focus on the integration of AI and machine vision in processing control, the development of ultra-precision grinding and polishing technologies, and the optimization of energy-saving and environmental protection systems, further unlocking the potential of the Pneumatic Straight Round 45 Degree Glass Edging Machine and promoting the high-quality development of the global glass processing industry.





The article is structured in a formal academic style, covering all key aspects of the machine. You can let me know if you need to adjust the length, emphasize specific sections (e.g., more technical details or application cases), or modify the tone.
