Glass Coating: Advanced Materials, Technological Innovations and Industrial Applications

In the contemporary field of material engineering and surface treatment, glass coating represents a high‑tech solution that endows ordinary glass substrates with additional functionalities and performance improvements. As an indispensable surface modification technology, glass coating has been widely used in construction, transportation, photovoltaics, home appliances, medical care, electronic displays and other fields. It not only enhances the physical and chemical stability of glass, but also creates intelligent, energy‑saving and environment‑friendly material properties for modern industrial products. This article systematically expounds the definition, classification, core properties, preparation processes, application scenarios and development trends of glass coating, demonstrating its important value in the global manufacturing and material industries.

1. Concept and Basic Principles of Glass Coating

Glass coating refers to a thin functional layer formed on the surface of glass through physical deposition, chemical reaction, spraying, curing and other processes. This layer is closely combined with the glass substrate at the molecular or atomic level, which can change the surface characteristics of glass without affecting its basic light transmittance and shape. The core principle of glass coating is to use the structural characteristics and chemical properties of coating materials to isolate the glass from external erosion, adjust light transmittance, reflect heat, resist friction and prevent pollution, so as to achieve the purpose of protection, beauty and functional expansion.

Ordinary glass has disadvantages such as fragility, easy scratching, easy adhesion of dirt, poor thermal insulation and easy weathering. After professional coating treatment, it can obtain superhydrophobicity, high hardness, corrosion resistance, UV resistance, infrared reflection, self‑cleaning and other characteristics, which greatly expands the application boundary of glass products.

2. Main Classification of Glass Coating

According to functional characteristics, application scenarios and material composition, glass coatings can be divided into the following categories, each with unique technical advantages and applicable fields.

2.1 Protective Glass Coating

Protective coating is the most widely used type of glass coating, mainly used to improve the surface strength and durability of glass. It includes anti‑scratch coating, anti‑collision coating, waterproof coating, acid and alkali resistant coating, etc. This kind of coating usually uses nano‑silica, nano‑titanium dioxide, polymer resin and other materials, which can form a high‑hardness transparent protective layer on the glass surface, effectively resist daily scratches, chemical corrosion and weathering damage, and extend the service life of glass.

2.2 Energy‑Saving and Thermal Insulation Coating

Energy‑saving coating is a key technology in the field of architectural glass and automotive glass. It uses metal oxide materials such as indium tin oxide (ITO) and low‑emissivity (Low‑E) materials to selectively reflect infrared and ultraviolet rays while ensuring high light transmittance. This kind of coating can block outdoor heat in summer and reduce indoor heat loss in winter, so as to achieve the effect of building energy conservation and interior comfort.

2.3 Self‑Cleaning and Antifouling Coating

Self‑cleaning glass coating is divided into photocatalytic type and hydrophobic type. The photocatalytic self‑cleaning coating uses nano‑titanium dioxide materials. Under the action of light, it can decompose organic dirt attached to the glass surface and make it easy to be washed away by rain. The hydrophobic self‑cleaning coating forms a lotus‑leaf‑like bionic surface, making water droplets form spherical shapes and slide off quickly, taking away dust and stains without leaving water marks. It is widely used in curtain wall glass, automotive glass and solar photovoltaic glass.

2.4 Anti‑Glare and Anti‑Reflection Coating

Anti‑reflection (AR) coating and anti‑glare (AG) coating are mainly used in electronic display screens, instrument panels, automotive central control screens and optical equipment. They can reduce light reflection, improve light transmittance, make the screen display clearer, reduce visual fatigue and avoid light pollution caused by reflection.

2.5 Functional Composite Coating

With the development of material technology, composite glass coating with multiple functions has gradually become the mainstream. For example, a coating can simultaneously have thermal insulation, self‑cleaning, anti‑UV and anti‑scratch functions, meeting the high‑standard needs of high‑end industries.

3. Core Performance Characteristics of High‑Quality Glass Coating

High‑performance glass coating has excellent physical and chemical indicators, which are the key to distinguishing ordinary treatment and professional coating.

3.1 High Hardness and Wear Resistance

Professional glass coating can reach a hardness of 9H or above, which can resist daily friction, scraping and hard object impact, and is not easy to produce scratches and wear marks.

3.2 Excellent Light Transmittance

High‑quality coating maintains high transparency, does not affect the original light transmittance of the glass, and does not produce yellowing, fogging and discoloration.

3.3 Strong Weather Resistance

It can adapt to extreme environments such as high temperature, low temperature, humidity and ultraviolet radiation, and the coating does not fall off, crack or degrade for a long time.

3.4 Good Adhesion

The coating is closely combined with the glass substrate, not easy to peel off, not easy to fall off, and has long‑term stability.

3.5 Environmental Protection and Non‑Toxic

Modern glass coating materials meet environmental protection standards, do not contain harmful substances, and are safe for humans and the environment.

4. Common Preparation Processes of Glass Coating

The production process of glass coating directly determines the uniformity, firmness and service life of the coating. The mainstream processes in the industry include the following types:

4.1 Magnetron Sputtering Coating

A physical vapor deposition (PVD) technology, which forms a uniform and dense film on the glass surface under vacuum conditions. It is mostly used in the production of Low‑E glass, AR glass and automotive functional glass, with high precision and good film quality.

4.2 Chemical Vapor Deposition (CVD)

Using chemical reaction to generate film‑forming substances and deposit them on the glass surface, it is suitable for large‑scale continuous production of architectural glass.

4.3 Spray Coating and Curing

Using nano‑ceramic coating or polymer coating materials, it is formed on the glass surface by spraying, wiping and high‑temperature curing. It is suitable for post‑processing of finished glass products, such as automotive glass coating, architectural glass renovation, etc.

4.4 Dip Coating and Roller Coating

Suitable for industrial mass production, with high efficiency and low cost, used for surface protective treatment of ordinary glass.

5. Main Application Fields of Glass Coating

Glass coating technology has penetrated into all aspects of modern industry and life, becoming an indispensable supporting technology.

5.1 Architectural Glass

Curtain wall glass, doors and windows glass use Low‑E coating, self‑cleaning coating and thermal insulation coating to achieve building energy conservation, environmental protection and beauty.

5.2 Automotive Glass

Automotive front windshield, side window glass use hydrophobic coating, thermal insulation coating, anti‑UV coating to improve driving safety and comfort.

5.3 Photovoltaic Solar Glass

Solar panels use anti‑reflection coating and self‑cleaning coating to improve light transmittance, reduce dust retention and increase power generation efficiency.

5.4 Electronic and Home Appliance Glass

Mobile phone screens, TV displays, refrigerator panels, air conditioner glass panels use anti‑scratch, anti‑fingerprint and anti‑reflection coating.

5.5 Medical and Laboratory Glass

Medical equipment glass and laboratory glass use antibacterial coating and corrosion‑resistant coating to meet the requirements of hygiene and safety.

5.6 Traffic and Public Facilities

Street lamp covers, subway station glass, airport glass use self‑cleaning and anti‑vandalism coating to reduce maintenance costs.

6. Development Trend of Glass Coating Technology

With the advancement of science and technology and the improvement of global environmental protection requirements, glass coating is developing towards intelligence, multi‑functionality, green and high efficiency.

6.1 Intelligent and Responsive Coating

Electrochromic, thermochromic and photochromic intelligent glass coatings will realize automatic adjustment of light and heat according to environmental changes.

6.2 Green and Environmentally Friendly Materials

Water‑based, solvent‑free and pollution‑free coating materials will replace traditional chemical coatings, complying with global low‑carbon and environmental protection trends.

6.3 High‑Efficiency and Large‑Scale Production

New coating equipment and processes will achieve higher efficiency, lower cost and larger‑scale production.

6.4 Multi‑Functional Composite Integration

A single coating will integrate multiple functions such as thermal insulation, self‑cleaning, antibiosis, wear resistance and energy saving.

7. Conclusion

As an advanced surface treatment technology, glass coating plays an important role in improving material performance, expanding product functions and promoting industrial upgrading. From architectural energy conservation to automotive safety, from electronic displays to photovoltaic power generation, glass coating provides reliable technical support for the development of modern industries. With the continuous innovation of material science and manufacturing technology, glass coating will show greater application potential and market value in the future, and become one of the core driving forces for the development of the functional material industry.

Insulating Glass Separator (Insulating Glass Sealant Remover) – Professional Product Overview

Abstract

Insulating glass units (IGUs) are core components in modern energy-efficient architecture, providing superior thermal insulation, sound insulation, and structural stability. During manufacturing, refurbishment, maintenance, and recycling of insulating glass, efficient removal of cured sealants, butyl rubber, structural adhesives, and residual bonding materials is essential to ensure glass reusability, surface cleanliness, and operational safety. The Insulating Glass Separator, also widely known as Insulating Glass Sealant Remover, is a professional chemical and mechanical auxiliary product designed specifically for this purpose. It integrates high-efficiency dissolving, softening, stripping, and cleaning functions, supporting industrial production, renovation, and environmental recycling of insulating glass. This article systematically introduces its product positioning, working principles, performance characteristics, application scenarios, operating procedures, material compatibility, safety guidelines, and development trends.

1. Introduction

With the global promotion of green buildings and energy-saving policies, the demand for insulating glass continues to rise. In actual production and service scenarios, a large number of semi-finished products, defective items, on-site renovation projects, and end-of-life window systems require sealant removal and glass separation. Traditional manual scraping, heating, and mechanical cutting suffer from low efficiency, high risk of glass breakage, surface scratching, incomplete residue cleaning, and poor working conditions.

The Insulating Glass Sealant Remover provides an industrial-grade solution. It can quickly soften and decompose cured silicone sealants, polysulfide sealants, polyurethane sealants, hot-melt butyl rubber, and structural adhesives without damaging glass, aluminum spacers, stainless steel, or coated glass surfaces. It greatly improves the efficiency of rework, maintenance, and recycling while reducing material loss and labor costs.

2. Product Definition and Classification

2.1 Definition

Insulating Glass Sealant Remover is a specially formulated chemical agent or composite tool system used to separate glass panes from spacers and remove cured adhesive and sealant residues in insulating glass processing, maintenance, and recycling.

2.2 Classification


By formulation type: liquid remover, gel remover, spray remover
By application method: immersion type, coating type, spray type
By applicable sealant: silicone-specific remover, polyurethane remover, butyl rubber remover, universal multi-purpose remover
By form: pure chemical remover; chemical-mechanical integrated separator kit


3. Working Principle

The product relies on three core mechanisms to achieve efficient removal:


Penetration and swelling: The active ingredients quickly penetrate the molecular structure of cured sealant, causing volume expansion and loosening the bond interface.
Chemical decomposition: Specific solvents break cross-linked polymer chains, turning high-strength cured adhesive into soft, removable material.
Interface stripping: The agent reduces surface adhesion between sealant and glass/spacer, enabling easy mechanical removal without residue.


It supports combination with manual scrapers, electric stripping tools, and industrial cleaning lines for optimized efficiency.

4. Core Performance Advantages


High efficiency: Shortens treatment time from hours to minutes, significantly improving rework efficiency.
Material safety: Non-corrosive to clear glass, coated glass, Low-E glass, aluminum alloy, galvanized steel, and UPVC frames.
Thorough cleaning: Removes both bulk sealant and invisible thin residues, ensuring high transparency and reusability.
Good operability: Low volatility, low odor, non-dripping formula suitable for vertical and flat surfaces.
Wide compatibility: Effective for most mainstream insulating glass sealants including silicone, PU, polysulfide, and butyl rubber.
Stable performance: Long shelf life, stable under normal temperature storage, suitable for factory and on-site use.


5. Main Application Scenarios

5.1 Insulating Glass Factory Rework

Removal of misapplied sealant, defective bonding, spacer misalignment, and unqualified semi-finished products to reuse glass and accessories.

5.2 On-site Construction and Renovation

Window and curtain wall renovation, old sealant replacement, leak repair, and component replacement.

5.3 Glass Recycling and Reclamation

Eco-friendly recycling of waste insulating glass, separating panes and spacers for secondary processing.

5.4 Equipment and Tool Cleaning

Removal of sealant residues from production molds, glue guns, conveying tables, and processing tools.

6. Standard Operating Procedure


Preliminary treatment: Use a blade or scraper to remove excess thick sealant to reduce consumption.
Application: Apply remover evenly to residual sealant surface; gel type for vertical surfaces, liquid for immersion.
Dwell time: Allow 10–30 minutes for penetration and swelling (adjust based on sealant type and thickness).
Mechanical stripping: Use plastic or metal scraper to remove softened adhesive easily.
Residue cleaning: Wipe with a clean lint-free cloth until the surface is residue-free.
Final drying: Air-dry completely before re-sealing or bonding.


7. Material Compatibility


Suitable: Float glass, tempered glass, laminated glass, Low-E coated glass, aluminum spacer, stainless steel, UPVC.
Pre-test recommended: Acrylic, PC, PVC, and painted surfaces (avoid incompatibility or discoloration).


8. Safety and Environmental Instructions


Use with adequate ventilation; avoid direct inhalation of vapor.
Wear protective gloves, goggles, and clothing to prevent skin and eye contact.
Keep away from heat, sparks, open flames, and static electricity.
Store in a cool, dry, ventilated area, out of reach of children.
Dispose of waste according to local environmental regulations; do not discharge into water systems.


9. Comparison with Traditional Methods














Method
Efficiency
Glass Damage
Surface Quality
Cost
Applicability




Manual scraping
Low
High
Scratches
High labor
Simple tasks


Heating separation
Medium
High
Residues
Medium
Limited scenarios


Mechanical cutting
Medium
High
Poor
High
Thick sealants


Professional sealant remover
High
Low
Excellent
Low cost
Industrial & on-site








10. Industry Development Trends


Environmentally friendly formulations: Low VOC, non-toxic, biodegradable components.
Specialization: Custom removers for high-hardness, UV-resistant, or high-temperature sealants.
High efficiency: Fast-acting formulas reducing waiting time to under 10 minutes.
Integration: Combined chemical-mechanical separator kits for one-stop operation.
Automation compatibility: Suitable for assembly lines and intelligent cleaning equipment.


11. Conclusion

The Insulating Glass Separator (Insulating Glass Sealant Remover) is an indispensable supporting product in the modern insulating glass industry chain. It solves core pain points in rework, maintenance, and recycling, improves product quality, reduces material waste, and enhances operational safety. With the continuous expansion of the insulating glass market and stricter environmental standards, professional, efficient, and green sealant removers will become the preferred choice for manufacturers, construction teams, and recycling enterprises. Choosing high-quality insulating glass sealant remover means higher productivity, better quality, and more sustainable development.

Aluminum Spacer Bar Cutting Saw: Design, Performance and Industrial Application

Abstract

Aluminum spacer bar cutting saws represent a category of precision processing equipment dedicated to the high-efficiency, high-precision cutting of aluminum spacer bars, which are core components in insulating glass manufacturing, architectural aluminum profiles, door and window engineering, and industrial assembly systems. This article systematically elaborates on the structural composition, working principles, technical characteristics, classification, application scenarios, operation specifications, maintenance protocols, and development trends of aluminum spacer bar cutting saws. It aims to provide a comprehensive theoretical and practical reference for equipment selection, production management, and technical optimization in the manufacturing and processing industries, highlighting the critical role of such cutting systems in improving product quality, reducing material waste, and enhancing production efficiency.

1. Introduction

With the rapid development of modern construction, energy-saving building materials, and automated manufacturing, aluminum spacer bars have been widely used in insulating glass units, curtain wall systems, door and window frames, and industrial aluminum components due to their excellent corrosion resistance, light weight, high structural strength, and stable dimensional stability. As the key front-end process in the production chain of aluminum spacer bars, cutting quality directly determines the assembly accuracy, sealing performance, and service life of downstream products. Traditional manual cutting or general-purpose metal cutting equipment can no longer meet the requirements of high precision, high consistency, and high automation in modern industrial production. Aluminum spacer bar cutting saws, as special-purpose cutting machines designed for aluminum spacer profiles, integrate precision machinery, pneumatic control, electrical control, and digital operation technology, and have become indispensable core equipment in the automated production line of aluminum spacer bars. This article conducts an in-depth analysis of the technical system and application value of aluminum spacer bar cutting saws from multiple dimensions, and clarifies its technical advantages and industrial positioning in the field of non-ferrous metal profile processing.

2. Structural Composition and Working Principle

2.1 Core Structural Components

Aluminum spacer bar cutting saws adopt a modular and integrated design, and their stable operation and cutting accuracy depend on the coordinated work of multiple core components. The main structure includes a frame system, feeding and positioning mechanism, cutting execution unit, clamping device, control system, safety protection device, and chip removal system.

The frame system is usually made of high-strength steel plate welding or heavy-duty cast iron, with good rigidity and shock absorption performance, which can effectively offset the vibration generated during high-speed cutting and ensure the stability of the whole machine. The feeding and positioning mechanism is equipped with precision linear guide rails, ball screws, or pneumatic feeding components, matched with a digital length-setting device or laser positioning sensor, to realize the automatic feeding and precise positioning of aluminum spacer bars, and the positioning accuracy can reach ±0.05mm to ±0.1mm.

The cutting execution unit is the core of the equipment, mainly composed of a high-torque drive motor, carbide-tipped circular saw blade, spindle assembly, and feed cylinder. The saw blade is made of special carbide for non-ferrous metals, with a reasonable number of teeth and tooth shape design, which can realize burr-free and smooth cutting of aluminum profiles. The clamping device adopts pneumatic or hydraulic pressing, with uniform force and no deformation of the profile, ensuring that the aluminum spacer bar does not shift during the cutting process.

The control system is divided into manual control, semi-automatic control, and CNC numerical control system. The CNC system can realize the programming input of cutting length, quantity, and angle, and automatically complete continuous cutting operations. The safety protection device is equipped with a fully enclosed saw blade shield, emergency stop switch, photoelectric protection, and interlock device to prevent accidental contact with moving parts and ensure the personal safety of operators. The chip removal system is matched with a vacuum suction or automatic chip cleaning device to collect aluminum chips in a centralized manner, keeping the working environment clean and avoiding chip accumulation from affecting cutting accuracy.

2.2 Working Principle

The working process of aluminum spacer bar cutting saws follows the logic of "feeding-positioning-clamping-cutting-discharging", and the specific steps are as follows: First, the operator places the aluminum spacer bar on the feeding rack, and adjusts or inputs the cutting parameters through the control panel according to the processing requirements. Then, the feeding mechanism sends the profile to the cutting area, and the precision positioning device locks the cutting length to ensure dimensional consistency. Next, the pneumatic clamping device quickly presses the profile to fix it firmly, and the high-speed motor drives the carbide saw blade to rotate at a rated speed (usually 2800r/min to 3400r/min). Under the push of the feed cylinder, the saw blade moves smoothly to complete the cutting of the aluminum spacer bar. After cutting, the clamping device is released, the finished product is discharged automatically, and the equipment enters the next cutting cycle. For CNC models, the entire process can be fully automated without manual intervention, realizing continuous and batch processing.

3. Technical Characteristics and Performance Advantages

3.1 High Cutting Precision

Aluminum spacer bar cutting saws are equipped with precision transmission components and digital positioning systems, with a length tolerance of cutting within ±0.1mm and an angle tolerance controlled within ±4′, which can meet the high-precision assembly requirements of insulating glass and architectural aluminum profiles. The cutting surface is flat and smooth, with no burrs, no deformation, and no oxidation discoloration, eliminating the need for secondary grinding and polishing processes and reducing production processes and costs.

3.2 High Production Efficiency

Compared with manual cutting or ordinary cutting machines, aluminum spacer bar cutting saws have a fast feeding speed and high cutting frequency. Semi-automatic models can complete hundreds of cuts per hour, and CNC automatic models can realize 24-hour uninterrupted operation, which increases production efficiency by more than 30% compared with traditional processes. At the same time, the equipment supports fixed-length continuous cutting, batch processing, and angle cutting (0° to 45° adjustable), adapting to diversified processing needs and improving the flexibility of the production line.

3.3 Wide Application Adaptability

This type of cutting saw is suitable for aluminum spacer bars of various specifications and cross-sections, including rectangular, square, and special-shaped profiles, with a maximum cutting width of up to 120mm and a maximum cutting height of up to 150mm. It can meet the processing requirements of aluminum spacer bars for insulating glass of different sizes, door and window profiles, and industrial aluminum components, and is compatible with 6063, 6061, and other commonly used aluminum alloy materials.

3.4 Stable and Durable Performance

The core components such as motors, saw blades, and guide rails adopt high-quality imported or domestic high-end accessories, with a robust structure and strong resistance to wear and fatigue. The equipment can operate stably for a long time in a high-load industrial environment, with a low failure rate. The carbide saw blade has a long service life, and regular maintenance can ensure long-term stable cutting performance.

3.5 Easy Operation and Maintenance

The humanized control panel and intuitive operation interface reduce the difficulty of operation. Ordinary operators can master the use skills after simple training. The equipment adopts a modular design, with convenient disassembly and assembly of components, easy cleaning of aluminum chips, and simple daily maintenance. Regular lubrication, saw blade replacement, and circuit inspection can maintain the optimal working state of the equipment.

3.6 High Safety Performance

Full set of safety protection configurations, including fully enclosed protective covers, emergency stop buttons, photoelectric safety sensors, and interlock protection systems, effectively avoid operational safety accidents. The pneumatic clamping and automatic feeding design reduces manual contact with the cutting area, realizing humanized and safe production.

4. Classification of Aluminum Spacer Bar Cutting Saws

According to the degree of automation, control mode, and structural form, aluminum spacer bar cutting saws can be divided into three categories: manual, semi-automatic, and fully automatic CNC models, each with its own applicable scenarios and user groups.

4.1 Manual Aluminum Spacer Bar Cutting Saw

Manual models are small and low-cost, with a simple structure, mainly relying on manual feeding, positioning, and pressing. They are suitable for small-batch processing, sample production, or small workshops with low output. The equipment has low power consumption (usually 0.55kw), small floor space, and flexible movement, but the cutting efficiency and precision are relatively low, and the labor intensity of operators is high.

4.2 Semi-Automatic Aluminum Spacer Bar Cutting Saw

Semi-automatic models integrate pneumatic feeding, automatic clamping, and automatic cutting functions. Operators only need to set the cutting parameters and start the equipment, and the rest of the process is completed automatically. They have moderate precision and efficiency, with a power of about 1.67kw to 2.2kw, and are suitable for medium-sized processing enterprises with medium batch production. This type of equipment balances cost and performance, and is the mainstream model in the market.

4.3 Fully Automatic CNC Aluminum Spacer Bar Cutting Saw

CNC models adopt a programmable logic controller (PLC) and human-machine interface, supporting parameter storage, batch cutting, angle adjustment, and fault self-diagnosis. They can be connected to the automated production line to realize unmanned production. With the highest cutting precision (up to ±0.05mm) and production efficiency, they are suitable for large-scale insulating glass manufacturing bases, architectural aluminum profile processing plants, and automated industrial production lines with high requirements for precision and output.

In addition, according to the cutting angle, it can be divided into right-angle cutting saws and multi-angle cutting saws; according to the number of cutting heads, it can be divided into single-head cutting saws and double-head cutting saws. Double-head models can complete 45° or 90° cutting at both ends of the profile at the same time, further improving the processing efficiency of special-shaped components.

5. Main Application Scenarios

5.1 Insulating Glass Manufacturing Industry

As the most important application field, aluminum spacer bars are the core components of hollow glass, and their cutting accuracy directly affects the sealing and thermal insulation performance of hollow glass. Aluminum spacer bar cutting saws can realize the precise cutting of aluminum spacer bars of different lengths and specifications, ensuring the tight fit between the spacer bar and the glass, preventing air leakage and moisture intrusion, and meeting the production standards of energy-saving and sound-insulating hollow glass.

5.2 Architectural Aluminum Profile Processing

In the field of construction engineering, aluminum alloy doors and windows, curtain walls, and decorative profiles require a large number of aluminum spacer components. The cutting saw can complete the fixed-length and angle cutting of profiles, ensuring the assembly accuracy of door and window frames and curtain wall keels, improving the overall structural stability and appearance quality of construction projects.

5.3 Industrial Aluminum Component Production

In the industrial manufacturing field, aluminum spacer bars are used in electronic equipment radiators, automobile accessories, solar panel frames, furniture frames, and other components. The high-precision cutting of the saw ensures the dimensional consistency of industrial components, adapts to automated assembly lines, and improves the quality stability of industrial products.

5.4 Picture Frame and Decorative Product Processing

Aluminum spacer cutting saws are also used in the production of high-end picture frames, decorative lines, and display stands. The angled cutting function ensures the perfect splicing of frames, and the smooth cutting surface brings a high-grade appearance effect to decorative products, meeting the aesthetic and quality requirements of the commercial and art markets.

6. Operation Specifications and Safety Management

6.1 Pre-Operation Preparation

Before starting the equipment, operators should check whether the power supply, air pressure (0.5Mpa~0.8Mpa), and lubrication system are normal; check the wear of the saw blade, replace severely worn or cracked saw blades in time; adjust the cutting length and angle parameters according to the process requirements, and conduct a no-load test run to confirm that the equipment runs smoothly without abnormal noise.

6.2 Standard Operation Process

Operators should wear protective equipment such as goggles and anti-slip gloves, and it is forbidden to wear loose clothes or accessories to avoid involvement in rotating parts. Place the aluminum spacer bar smoothly on the feeding rack, ensure that the profile is aligned with the positioning device, and start the clamping and cutting button after confirmation. During the operation, it is forbidden to touch the rotating saw blade and moving parts with hands, and do not adjust the parameters at will. If abnormal conditions are found, press the emergency stop button immediately and cut off the power supply for inspection.

6.3 Post-Operation Cleaning

After the operation, cut off the power supply and air source, clean the aluminum chips on the equipment and in the chip removal system, wipe the surface of the machine tool, and apply anti-rust oil to the transmission parts. Sort and stack the cut finished products and waste materials to keep the working area tidy.

6.4 Safety Management Regulations

Non-professionals are prohibited from operating or disassembling the equipment; regular training and assessment for operators to master professional skills and safety knowledge; set up obvious safety warning signs in the working area; regularly check the effectiveness of safety protection devices to ensure that all protection functions are normal.

7. Equipment Maintenance and Troubleshooting

7.1 Daily Maintenance

Daily maintenance is the key to ensuring the long-term stable operation of the equipment. It mainly includes: cleaning aluminum chips and dust on the surface and inside of the equipment every day to prevent chip accumulation from affecting the transmission and heat dissipation; checking the tightness of the saw blade fastening bolts and the air tightness of the pneumatic system; adding lubricating oil to linear guide rails, screws, and other moving parts to reduce friction and wear.

7.2 Regular Maintenance

Weekly maintenance: Check the wear of the saw blade, clean the saw blade surface attachments, and adjust the saw blade runout within 0.05mm; check the oil level of the gearbox and the tension of the transmission belt.

Monthly maintenance: Clean the oil circuit filter, check the aging of the oil pipe and circuit, and replace the seriously aged parts; calibrate the cutting length and angle accuracy to ensure the processing error is within the allowable range.

Quarterly maintenance: Conduct a comprehensive inspection of the motor, control system, and pneumatic components, replace the lubricating grease, and carry out equipment commissioning to restore the optimal performance.

7.3 Common Faults and Troubleshooting


Inaccurate cutting length: It may be caused by loose positioning device, worn guide rail, or parameter setting error. Troubleshooting methods: calibrate the positioning system, replace worn parts, and reset the parameters.
Rough cutting surface with burrs: It is usually caused by dull or damaged saw blade. Troubleshooting method: replace the carbide saw blade and ensure the saw blade speed and feed speed match.
Equipment cannot start: Check whether the power supply is connected, the emergency stop button is reset, and the air pressure meets the standard; check whether the control circuit is faulty.
Pneumatic clamping failure: Check whether the air pipe is leaking, the solenoid valve is working normally, and clean the clogged pneumatic components.


8. Development Trend of Aluminum Spacer Bar Cutting Saws

With the advancement of intelligent manufacturing, energy-saving technology, and material science, aluminum spacer bar cutting saws are developing in the direction of higher precision, higher automation, intelligence, and greening.

First of all, the integration of digital technology is deepening. More CNC systems will be equipped with IoT modules to realize remote monitoring, fault diagnosis, and data statistics of equipment, and connect with the factory MES system to promote the construction of intelligent factories.

Secondly, the cutting accuracy and efficiency will be further improved. The application of high-precision servo drive, linear motor, and laser positioning technology will reduce the cutting error to a higher level, and the cutting speed and processing efficiency will be greatly improved.

Thirdly, green and low-carbon design will become the mainstream. The equipment will adopt energy-saving motors, closed chip removal systems, and low-noise designs to reduce energy consumption, noise pollution, and aluminum chip waste, and meet the requirements of green industrial production.

In addition, the versatility of the equipment will be enhanced. The multi-functional cutting saw that can process aluminum, plastic, and other non-ferrous metal profiles at the same time will be launched to meet the diversified processing needs of enterprises and reduce the equipment investment cost.

9. Conclusion

Aluminum spacer bar cutting saws, as special precision processing equipment for aluminum spacer profiles, play an irreplaceable role in modern industrial production such as insulating glass manufacturing, architectural engineering, and industrial aluminum component processing. Its high precision, high efficiency, stability, and safety advantages effectively solve the pain points of low precision, low efficiency, and high waste in traditional cutting processes, and provide a strong guarantee for improving product quality, reducing production costs, and enhancing the competitiveness of enterprises. With the continuous development of the manufacturing industry and the upgrading of technical requirements, aluminum spacer bar cutting saws will continue to iterate and innovate in the direction of intelligence, automation, and greening, and further expand their application fields and market space. For production enterprises, selecting the appropriate type of aluminum spacer bar cutting saw, standardizing operation and maintenance management, and giving full play to the performance advantages of the equipment are important ways to improve production efficiency and product quality, and also an inevitable choice to adapt to the development trend of modern industrial processing.

Ethylene-Vinyl Acetate (EVA) film bending represents a precision materials-forming discipline that integrates polymer physics, thermal engineering, and mechanical shaping to realize controllable deformation of EVA polymeric films while preserving structural integrity, optical clarity, and functional performance. This formal exposition systematically examines the molecular and macromolecular foundations of EVA film bendability, establishes the governing principles and parametric boundaries of thermal-mechanical bending processes, evaluates quality-governing mechanisms and defect-mitigation strategies, and articulates validated industrial implementations across photovoltaics, architectural glazing, flexible electronics, and advanced packaging. By unifying material characterization, process modeling, and application engineering, this document establishes a rigorous technical framework for the design, scaling, and quality assurance of EVA film bending in high-performance manufacturing environments.

1. Introduction

EVA film, a thermoplastic copolymer of ethylene and vinyl acetate, occupies a distinctive position among functional polymeric films due to its balanced combination of optical transparency, elastomeric flexibility, thermal processability, and interfacial adhesion. In contrast to rigid engineering plastics and highly compliant elastomers, EVA exhibits a tunable modulus that enables controlled plastic and elastic bending under defined thermal and mechanical conditions. EVA film bending is not merely a geometric shaping operation but a materials transformation process that dictates long-term dimensional stability, optical uniformity, mechanical robustness, and service life in end-use assemblies.

Historically, EVA film has been deployed primarily as an encapsulant and interlayer material, where flat-sheet lamination dominated manufacturing workflows. However, the proliferation of curved, conformal, and three-dimensional product architectures—from curved photovoltaic modules and sculptural architectural glass to flexible display stacks and contoured medical devices—has elevated EVA film bending from a secondary operation to a core enabling technology. Contemporary industrial practice demands that bent EVA films maintain pristine optical transmission, resist microcracking and haze, preserve adhesive bonding strength, and withstand cyclic mechanical fatigue and environmental aging. These requirements necessitate a formal, science-based approach to EVA film bending that transcends empirical trial-and-error.

This paper presents a comprehensive technical treatment of EVA film bending, structured to support engineering specification, process development, and quality validation. It addresses material-dependent factors, thermal-mechanical process regimes, in-process monitoring, defect root-cause analysis, and scalable industrial applications. Emphasis is placed on formal engineering principles, quantitative parametric relationships, and repeatable manufacturing methodologies to ensure the reliability and reproducibility of bent EVA film components.

2. Material Foundations of EVA Film Bendability

2.1 Molecular Architecture and Deformation Behavior

The bendability of EVA film is intrinsically governed by its copolymer microstructure. Ethylene units provide crystalline domains that impart mechanical strength and structural stability, while vinyl acetate (VA) segments disrupt crystalline registry, introducing amorphous regions that confer flexibility, toughness, and low-temperature ductility. VA content—typically ranging from 15% to 33% for industrial-grade bending films—directly modulates the glass transition temperature (Tg), melt flow behavior, and elongation-at-break. Films engineered for precision bending commonly feature VA concentrations between 22% and 28%, balancing formability with post-forming shape retention.

Under bending stress, EVA undergoes a sequence of deformation regimes: elastic deflection at low strain, uniform plastic flow at moderate thermal activation, and localized strain narrowing at excessive stress or insufficient temperature. The characteristic rubbery elasticity of EVA above Tg enables large-radius bending with minimal internal stress, while cross-linked formulations (employed in high-durability applications) establish a molecular network that restricts irreversible flow and enhances recovery after bending. This molecular response defines the safe forming envelope for EVA film bending, distinguishing between recoverable elastic deflection and permanent shape-setting deformation.

2.2 Thermomechanical Properties Critical to Bending

Key performance metrics that govern EVA film bending include:


Flexural Modulus: Temperature-dependent stiffness that determines force requirements and springback behavior.
Elongation-at-Break: Typically 300%–800%, providing the extensibility required for convex and concave bending.
Melting Onset: 55°C–95°C, establishing the lower bound for thermally assisted forming.
Thermal Stability: Retention of molecular integrity up to approximately 120°C, preventing thermal degradation during processing.
Optical Retention: Resistance to haze, whitening, or birefringence under bending strain.


These properties collectively establish the process window for EVA film bending: operations conducted within the recommended thermal-mechanical envelope yield smooth, defect-free curved surfaces; excursions outside this window result in microcracking, stress whitening, uneven curvature, or permanent optical degradation.

2.3 Film Structure and Formulation Effects

Commercial EVA bending films are manufactured via extrusion casting or blown-film processes, which influence thickness uniformity, surface energy, and internal residual stress. Films produced for precision bending are calibrated to tight thickness tolerances (±2% for high-performance grades) to ensure consistent strain distribution across the bend zone. Additive packages—including UV stabilizers, cross-linking agents, and anti-oxidants—are formulated to preserve processability without compromising bend ductility. Cross-linked EVA films, widely used in photovoltaic and architectural applications, exhibit reduced creep under sustained bending and improved resistance to fatigue cracking during cyclic loading.

3. Principles of EVA Film Bending Processes

3.1 Thermal-Mechanical Forming Regimes

EVA film bending is universally implemented as a thermally assisted process, as cold bending induces excessive internal stress and leads to brittle fracture. Thermal activation softens the amorphous domains, lowers the flexural modulus, and enables controlled molecular rearrangement under mechanical constraint. Three primary process regimes are recognized in industrial practice:


Low-Temperature Elastic Bending (60°C–80°C): Used for gentle, large-radius curves where temporary deformation is sufficient; shape stability depends on rapid cooling and constraint.
Medium-Temperature Thermoforming (85°C–110°C): The dominant industrial regime for EVA film bending, enabling permanent shape setting with uniform deformation and minimal optical distortion.
High-Temperature Flow Bending (>115°C): Reserved for complex, tight-radius geometries; requires precise thermal profiling to avoid melting, thickness reduction, or molecular degradation.


In all regimes, uniform temperature distribution across the film is critical to prevent differential strain, which manifests as wrinkling, thickness variation, or localized failure.

3.2 Mechanical Bending Modes

EVA film bending is categorized by geometric configuration and stress distribution:


Convex Bending: External tensile stress dominates; requires sufficient elongation capacity to avoid necking or fracture.
Concave Bending: Internal compressive stress dominates; risk of wrinkling or buckling dominates over fracture.
Compound Curvature Bending: Simultaneous tensile and compressive stress in orthogonal axes; demands uniform heating and matched tooling to maintain dimensional fidelity.
Free-Bending vs. Constrained Bending: Free-bending relies on controlled force and cooling; constrained bending uses male/female tooling to enforce precise curvature and minimize springback.


Constrained bending is the formal industrial standard for high-precision applications, as it decouples operator variability from geometric outcome and ensures repeatable bend radii and angular accuracy.

3.3 Process Parameters and Parametric Interactions

Formal control of EVA film bending requires quantitative specification of interdependent parameters:


Temperature Profile: Ramp rate, soak time, peak temperature, and cooling rate.
Mechanical Force: Applied load, displacement rate, and holding pressure.
Tooling Geometry: Bend radius, contact surface finish, and thermal conductivity.
Film Condition: Initial temperature, moisture content, and pre-treatment status.


Interactions between these parameters define the forming limit diagram (FLD) for EVA film, which maps safe operating regions against failure modes. Formal process development employs design-of-experiments (DoE) methodologies to optimize parameter sets and establish statistical process control (SPC) limits for mass production.

4. Engineering Methodology for Controlled EVA Film Bending

4.1 Pre-Forming Preparation and Quality Assurance

Prior to bending, EVA film must undergo controlled conditioning to eliminate internal stress and moisture uptake, which can cause bubbling, delamination, or inconsistent deformation during heating. Industrial best practice includes:


Desiccant storage at 15°C–25°C and relative humidity <50%.
Pre-heat conditioning to remove residual extrusion stress.
Thickness and optical inspection to reject non-uniform sheets.
Surface cleaning to preserve adhesion and optical clarity.


4.2 Thermal Control and Uniformity Systems

Precision thermal delivery is the cornerstone of high-quality EVA film bending. Industrial systems employ:


Convective heating for gentle, uniform thermal transfer.
Infrared (IR) heating with spectral tuning for rapid, zone-controlled thermal input.
Conductive tooling for conformal heat distribution in constrained bending.
Closed-loop temperature monitoring with multi-point sensing to eliminate hot/cold spots.


Uniform thermal distribution ensures that the entire bend zone reaches the target deformation state simultaneously, preventing localized over-extension or under-forming.

4.3 Mechanical Actuation and Kinematic Control

Bending actuators are engineered to apply consistent, rate-controlled force to avoid shock loading. Servo-driven linear mechanisms and articulated tooling provide programmable bend profiles, enabling ramped deformation that matches the stress-relaxation behavior of EVA. Holding stages at peak deformation allow molecular stabilization prior to cooling, significantly reducing springback and improving dimensional stability.

4.4 Cooling and Shape Setting

Rapid, uniform cooling locks the deformed molecular structure into the desired geometry. Controlled cooling—via ambient convection, chilled air, or temperature-stabilized tooling—minimizes thermal shrinkage and internal residual stress. Abrupt quenching is avoided, as it can induce internal stress gradients that lead to post-forming warping or optical inhomogeneity.

4.5 In-Process Metrology and Validation

Formal EVA film bending processes integrate real-time metrology to validate geometric conformance and functional quality:


Laser profilometry for bend radius and angular accuracy.
Optical transmission and haze measurement to verify optical stability.
Thickness gauging to detect excessive thinning or wrinkling.
Microscopic inspection to rule out microcracking or crazing.


In-process validation ensures that deviations are contained within specification limits before downstream assembly.

5. Defect Mechanisms, Analysis, and Mitigation

5.1 Common Defects and Root Causes

Formal defect analysis in EVA film bending attributes anomalies to material, thermal, mechanical, or tooling factors:


Stress Whitening: Localized yielding due to insufficient temperature or excessive bend rate.
Microcracking: Exceeding elongation limits or sharp tooling edges.
Wrinkling/Buckling: Compressive instability in concave bending or uneven heating.
Thickness Reduction: Overheating and tensile flow in convex bending.
Optical Haze: Molecular chain alignment or microvoid formation under extreme strain.
Springback: Inadequate holding time, insufficient temperature, or rapid cooling.


5.2 Systematic Mitigation Strategies

Engineering mitigation is derived directly from root-cause mechanisms:


Expand thermal process windows to ensure uniform ductility.
Optimize tooling radii and surface finishes to eliminate stress concentrations.
Implement ramped deformation profiles to match material flow characteristics.
Use constrained forming to stabilize compressive zones and prevent wrinkling.
Apply closed-loop thermal and force control to maintain operation within the FLD.


Formal corrective actions are documented in process failure-mode effects analysis (PFMEA) frameworks to drive continuous improvement.

6. Industrial Applications of EVA Film Bending

6.1 Photovoltaic Module Encapsulation

Curved and flexible PV modules rely on precision-bent EVA encapsulant films to conform to contoured glass or flexible back-sheets. EVA film bending enables aesthetic, building-integrated photovoltaics (BIPV) with curved facades, sunshades, and structural glazing, while preserving high light transmittance and long-term environmental stability.

6.2 Architectural and Automotive Laminated Glass

Bent EVA film serves as a safe, transparent interlayer in curved laminated glass for architectural curtain walls, automotive sunroofs, and transportation glazing. Its excellent adhesion to glass, impact resistance, and acoustic damping properties make it a preferred alternative to conventional interlayers in complex curved assemblies.

6.3 Flexible Electronics and Optoelectronic Assemblies

EVA film bending supports the manufacturing of flexible displays, touch sensors, and wearable devices by providing a conformal, optically clear, and dielectrically stable substrate and encapsulant. Controlled bending ensures pixel-level uniformity and resistance to cyclic flex fatigue.

6.4 Advanced Packaging and Protective Films

High-value consumer goods, medical devices, and industrial components utilize bent EVA films for form-fitting protective packaging. The material’s thermoformability, clarity, and toughness enable custom contoured packaging with superior impact resistance and visual presentation.

7. Quality Standards and Performance Validation

Formal EVA film bending is governed by material and process standards that ensure fitness for service:


Optical Specifications: Light transmittance >90%, haze <1.5% after bending.
Mechanical Specifications: No cracking or whitening at specified minimum bend radius.
Dimensional Specifications: Bend radius tolerance ±1 mm, angular tolerance ±0.5°.
Environmental Stability: Passes thermal cycling, humidity aging, and UV exposure without delamination or degradation.


Validation includes accelerated aging tests, mechanical fatigue cycling, and long-term creep testing to verify performance over the product service life.

8. Conclusion

EVA film bending is a sophisticated thermal-mechanical forming process grounded in polymer physics, process engineering, and precision manufacturing. Its formal implementation requires rigorous control of material condition, thermal delivery, mechanical actuation, and in-process validation to produce defect-free, dimensionally accurate, and functionally robust curved EVA film components. As industrial demand for conformal, lightweight, and optically superior assemblies continues to grow, EVA film bending will remain a critical enabling technology across photovoltaics, architecture, automotive, flexible electronics, and advanced packaging.

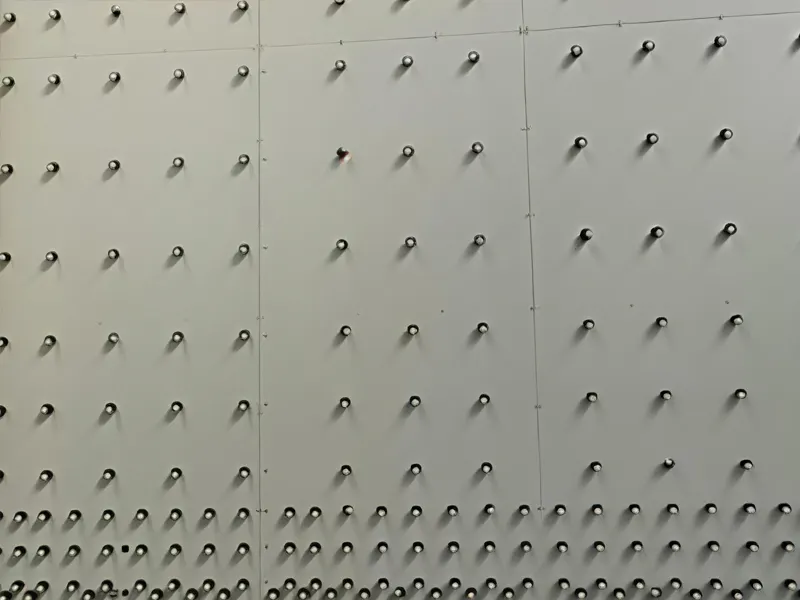

Rotable Insulating Glass Making Line and Sealing Robot

1. Overview

The Rotable Insulating Glass (IG) Making Line integrated with an Automatic Sealing Robot represents a state-of-the-art, fully automated solution for high-efficiency, high-precision manufacturing of insulated glass units (IGUs). Engineered for modern architectural glass processing, this integrated production system combines rotary positioning technology, continuous conveying, automated assembly, and intelligent robotic sealing to deliver stable, scalable, and standardized IG fabrication. It supports double-glazing, triple-glazing, stepped, and special-shaped IGUs, widely applied in residential doors and windows, commercial curtain walls, energy-saving buildings, and industrial glass engineering. By replacing manual operation with intelligent mechatronic control, the line significantly improves production efficiency, sealing quality, and product consistency while reducing material waste and labor intensity.

2. System Composition and Working Principles

2.1 Rotable Insulating Glass Making Line

The rotable production line adopts a modular, horizontally oriented layout with a precision rotating worktable as its core positioning unit, enabling flexible glass orientation, stable transfer, and synchronous processing at multiple stations. The full line consists of the following functional modules:


Automatic Glass Loading Section: Equipped with glass detection and Low‑E film identification, it automatically separates and feeds glass sheets without surface scratching.
Glass Washing and Drying Section: Uses stainless‑steel structure, imported soft brushes, and dual air‑knife drying to ensure thorough cleaning and residue‑free surfaces.
Rotary Positioning & Conveying Section: The precision rotating platform supports stepless angle adjustment and pneumatic suction fixing, suitable for small and large glass panels, facilitating accurate alignment of spacer frames and glass sheets.
Spacer Frame Assembly Section: Provides automatic positioning and manual auxiliary installation for aluminum spacers, warm edges, and composite spacers, compatible with diversified frame specifications.
Pressing & Gas Filling Section: Servo‑controlled flat pressing ensures uniform stress; inert gas (argon/krypton) filling enhances thermal insulation performance.
Rotary Transfer & Buffer Section: Enables multi‑directional glass delivery, improves workflow continuity, and supports seamless docking with the sealing robot.
Unloading & Storage Section: Outputs finished IGUs and provides temporary buffer storage for continuous production.


The rotating mechanism is driven by servo motors with high positioning accuracy, supporting both automatic and pedal‑controlled manual modes. It ensures stable glass placement during assembly and sealing, effectively improving dimensional accuracy and assembly quality.

2.2 Automatic Sealing Robot

As the final and critical process module, the sealing robot performs high‑precision secondary sealing for IGUs, ensuring long‑term airtightness and structural stability.


Core Structure: Servo drive system, precision nozzle assembly, dual‑component sealant dosing unit, automatic cleaning mechanism, and human‑machine interface (HMI).
Operating Principle: The robot automatically measures glass dimensions, sealing width, and spacer depth; the control system adjusts sealant output, nozzle position, and movement speed in real time. The floating nozzle design closely fits the glass edge without damage, achieving uniform, bubble‑free sealing. The corner‑repairing spatula system forms full, smooth corners without manual trimming.
Sealant Supply System: Dual independent barrel sets support non‑stop production; anti‑blocking mixing structure ensures stable ratio and uniform mixing for two‑component polysulfide, silicone, and hot‑melt sealants.


3. Core Technical Features and Advantages

3.1 High Compatibility and Flexibility

The system supports a wide processing range, from minimum 300×400 mm to maximum 3300×7000 mm glass, with IGU thickness 12–80 mm. It adapts to rectangular, trapezoidal, circular, polygonal, and stepped IGUs, meeting diversified architectural design requirements. The rotating platform allows quick product changeover without line modification.

3.2 Intelligent Control and High Precision

Adopting a PLC + touch screen control system with servo motors and high‑precision sensors, the line realizes automatic size detection, glue volume adjustment, speed matching, and fault self‑diagnosis. Sealing position error is controlled within ±0.5 mm, ensuring consistent glue width and depth.

3.3 Stable Sealing Quality

The robotized sealing process eliminates human factors, providing full corner filling, no bubbles, no gaps, and a smooth surface. The precise ratio control and volume‑based dosing effectively improve durability, anti‑aging performance, and service life of IGUs.

3.4 High Efficiency and Production Continuity

The rotary table shortens handling and positioning time; the dual sealant supply and buffer section enable uninterrupted 24‑hour operation. A single shift can produce 700–800 standard IG units, greatly improving output compared with semi‑automatic lines.

3.5 Safety, Energy Saving and Easy Maintenance

The whole line features full protective covers, emergency stop, and alarm functions. The modular design allows quick access for maintenance; wear parts are standardized and easy to replace. The sealant saving design reduces material consumption by 10%–15%.

3.6 Humanized Operation

The system supports full automatic production and independent manual control for each function, facilitating debugging and maintenance. The intuitive HMI simplifies parameter setting, production monitoring, and data recording.

4. Application Scope

This integrated rotable IG line with sealing robot is designed for professional glass deep‑processing enterprises, offering a reliable solution for mass production of high‑performance insulated glass. It is widely used in:


Energy‑saving doors and windows for residential and commercial buildings
Architectural curtain walls and structural glass systems
High‑speed rail, automotive, and marine special insulated glass
Low‑e, sound insulation, and ultra‑large insulated glass units


5. Conclusion

The Rotable Insulating Glass Making Line and Sealing Robot integrate mechanical transmission, intelligent control, robotic operation, and precision sealing technology to provide a fully upgraded solution for modern IG manufacturing. With high flexibility, stability, efficiency, and consistency, it helps manufacturers enhance product competitiveness, reduce production costs, and meet the growing demand for high‑quality energy‑saving glass. As a core equipment in the glass processing industry, this system represents the development trend of automation, intelligence, and green manufacturing, and will continue to drive technological progress in the insulated glass sector.
