I. Introduction



Mechanized production of insulating glass significantly improves production efficiency and product quality. This plan details the process of manufacturing insulating glass using automated machinery.



II. Production Process



A. Glass Feeding and Cutting



- Automated Loading: High - speed robotic arms are used to load large sheets of float glass from storage racks onto the glass cutting line. These arms are programmed to handle the glass gently to avoid scratches or breakages.

- Precision Cutting: Computer - controlled glass cutting machines measure and cut the glass according to pre - set dimensions. The cutting blades are automatically adjusted for different glass thicknesses, ensuring a precise cut with an accuracy of ± 0.5mm.



B. Edge Processing



- Grinding and Polishing: The cut glass edges are fed into an automated edge - processing machine. This machine uses rotating abrasive wheels to grind the edges smoothly and then polishes them to enhance the glass's appearance and adhesion for sealants.

- Drilling (if required): For customized insulating glass with holes, a numerically - controlled drilling machine is integrated into the production line. It accurately drills holes based on the input specifications, with a high - speed spindle ensuring clean and precise holes.



C. Washing and Drying



- The Glass will be washed with the glass washing machine.The machine is with 6 soft brushes for cleaning and knieves for drying.It is ok for Low-E glass and the glass thickness can be adjusted automatically.



D. Spacer and Desiccant Handling



- Spacer Bending and Assembly: An automatic spacer bending machine forms aluminum or stainless - steel spacers into the required shapes. The machine can handle different spacer profiles and lengths. Desiccant is automatically filled into the spacers through a precise dosing system to absorb moisture in the air gap.

- Spacer Placement: Robotic arms pick up the bent spacers and accurately position them between the cleaned glass sheets on a conveyor - based assembly platform.



E. Gas Filling (Optional)



- Inert Gas Injection: For insulating glass that requires enhanced thermal performance, an automated gas - filling machine is used. It injects inert gases like argon or krypton into the air gap between the glass panes. The gas flow rate and pressure are precisely controlled to achieve the desired gas concentration.



F. Sealing



- Primary Seal Application: A robotic sealant dispensing arm applies the primary sealant, typically polysulfide, along the inner edge of the spacer. The arm moves at a constant speed and pressure, ensuring an even and consistent sealant layer.

- Secondary Seal Application: After the primary seal has cured to a certain extent, another robotic arm applies the secondary sealant, such as silicone, on the outside of the primary seal. This provides additional protection and strength to the insulating glass unit.



III. Quality Assurance



- In - line Inspection: Throughout the production process, multiple in - line inspection stations are installed. These use sensors and cameras to detect defects such as uneven sealant application, air bubbles, and misaligned components. Defective products are automatically flagged and removed from the production line.

- Final Testing: Before packaging, each insulating glass unit undergoes a final set of tests, including a leak test for gas - filled units and a dimensional accuracy check. Only products that meet the strict quality standards are approved for shipment.



IV. Conclusion



This mechanized production process for insulating glass, with its combination of automated machinery and strict quality control measures, ensures the efficient production of high - quality insulating glass products, meeting the demands of the construction and related industries.

In a significant milestone for our collaboration, our customer recently received a full batch of advanced glass processing equipment and materials, delivered directly to their factory. The shipment, which included an Automatic Glass Laminating Machine, a high-precision CNC Glass Cutting Machine, Double Glass insulating units materials, and premium EVA film, arrived safely in three containers.



Our team coordinated the entire unloading process seamlessly, ensuring all machinery and materials were handled with care and efficiency. The successful logistics operation highlights our capability to manage large-scale, multi-product orders and deliver them ready for installation and production.



The client expressed great satisfaction with the organization of the delivery and the quality of the products supplied. This delivery marks a crucial step in expanding their production capabilities, enabling them to offer higher quality and more diverse glass products. We are proud to be a trusted partner in providing comprehensive solutions for the glass industry.

Air-Floating Inclined Glass Breaking Table: Engineering Principles, Technical Advantages, and Industrial Applications

1. Introduction

In the modern manufacturing landscape of flat-panel displays (FPD), photovoltaic (PV) modules, architectural glass, and automotive glazing, the demand for precise, non-destructive glass processing and strength testing has intensified. The Air-Floating Inclined Glass Breaking Table (AFIGBT) emerges as a pivotal innovation, integrating air-bearing technology, hydraulic tilting mechanisms, and pneumatic control systems to redefine the standards of glass handling, positioning, and fracture testing. Unlike conventional contact-based breaking tables that risk surface scratches, edge damage, or inconsistent stress distribution, the AFIGBT leverages non-contact air suspension to ensure uniform support, precise angular adjustment, and repeatable fracture initiation—critical for quality control in high-precision glass manufacturing. This article comprehensively explores the technical fundamentals, structural components, performance characteristics, industrial applications, and future development directions of the AFIGBT, shedding light on its transformative role in the global glass processing industry.

2. Core Technical Principles

2.1 Non-Contact Air Suspension Mechanism

The cornerstone of the AFIGBT lies in its air-floating system, which employs porous media technology to generate a stable, ultra-thin air film between the glass substrate and the table surface. Compressed air is forced through millions of sub-micron pores in a proprietary carbon or ceramic bearing surface, creating a uniform pressure distribution that lifts the glass off the table without physical contact . The thickness of this air film is precisely controllable, typically ranging from 10µm to 200µm, with a stability tolerance of ±5µm to ±20µm—sufficient to accommodate inherent flatness deviations of up to 5µm in glass substrates while maintaining optimal support rigidity . Contrary to traditional assumptions, thinner air films exhibit higher stiffness, enabling the AFIGBT to achieve sub-micron positioning resolution and rapid vibration damping—essential for minimizing structural deformation during the breaking process.

To prevent "skating" or lateral displacement of the glass during suspension, the system integrates a balanced vacuum-preload mechanism. By adjusting the ratio of air pressure and vacuum force, engineers can "lock" the glass in a stable spatial position, suppressing flutter and ensuring consistent alignment throughout the testing or processing cycle . This pressure-vacuum balance also facilitates glass flattening, reducing surface vibrations that could compromise the accuracy of fracture analysis. Notably, the porous media surface acts as a HEPA-like filter, preventing particle generation and making the system compatible with ISO Class 10 cleanroom environments—a critical requirement for FPD and semiconductor manufacturing .

2.2 Hydraulic Tilting Control System

The inclined functionality of the AFIGBT is enabled by a hydraulic actuation system, designed to deliver smooth, stable angular adjustment with precise position control. The hydraulic cylinder-driven tilting mechanism allows the table to rotate from a horizontal (0°) to a vertical (90°) position, with intermediate angle settings adjustable in increments as fine as 0.1°—catering to diverse testing standards and processing requirements. The hydraulic system’s high load-bearing capacity ensures stable operation even for large-format glass substrates, with table sizes ranging up to 2200mm × 3600mm to accommodate Gen 10+ FPD panels and oversized architectural glass sheets.

Key to the tilting system’s performance is its closed-loop feedback control, which utilizes linear displacement sensors and pressure transducers to monitor the table’s angle and load in real time. This enables dynamic adjustment of hydraulic flow rates, ensuring uniform acceleration and deceleration during tilting—preventing inertial forces from causing glass slippage or edge impact. Additionally, safety interlocks are integrated to halt operation if the tilt angle exceeds preset limits or if pressure loss is detected, mitigating the risk of equipment damage or operator injury.

2.3 Pneumatic Fracture Initiation Mechanism

The AFIGBT’s breaking system employs pneumatically controlled X and Y-axis breaking bars, activated via foot pedals or programmable logic controllers (PLCs) to initiate precise, localized fractures. These breaking bars are strategically positioned across the table surface, allowing for selective activation to target specific sections of the glass—enabling both full-panel breaking and segmented cutting for large-format substrates. The pneumatic actuation ensures rapid, consistent force application, with adjustable pressure settings to match the mechanical properties of different glass types (e.g., tempered glass, laminated glass, ultra-thin glass).

To enhance fracture accuracy, the breaking bars are equipped with precision-machined contact points that concentrate stress at predefined locations—replicating real-world failure scenarios while ensuring repeatable test results. The integration of the air-floating system with the breaking mechanism is critical: the non-contact support eliminates friction-induced stress variations, ensuring that the applied breaking force is uniformly distributed across the glass’s cross-section. This results in clean, predictable fractures that align with industry standards such as SEMI, CE, and ISO 9001.

3. Structural Components and Technical Specifications

3.1 Key Component Architecture

The AFIGBT comprises six core subsystems, each engineered for durability, precision, and seamless integration:

1. Heavy-Duty Metallic Frame: Constructed from high-strength steel with reinforced welds, the frame provides structural rigidity to withstand dynamic loads during tilting and breaking, with a design life exceeding 10,000 operating hours.

2. Air-Floating Platform: Modular porous media air-bearing panels (available in standard, precision, and ultra-precision variants) cover the table surface, with customizable configurations to accommodate different glass sizes and thicknesses (from 0.1mm to 20mm).

3. Air Supply System: A high-pressure compressor (3–5 kW) with pressure regulators, filters, and flow meters delivers clean, dry air (≤ -40°C dew point) to the air-bearing panels, ensuring consistent air film formation.

4. Hydraulic Tilting Unit: Double-acting hydraulic cylinders with servo valves, paired with a hydraulic power unit (380V/50Hz or 220V/60Hz), enable smooth angle adjustment with a tilting speed of 2–5° per second.

5. Pneumatic Breaking Assembly: 3–6 pneumatically controlled breaking bars (depending on table size) with adjustable stroke lengths (10–50mm) and force ranges (50–500N), synchronized via PLC for coordinated fracture initiation.

6. Control and Safety System: A touchscreen HMI (Human-Machine Interface) with PLC integration allows for program storage (up to 100 test protocols), real-time data visualization, and remote monitoring. Safety features include emergency stop buttons, pressure loss alarms, and interlocked access doors.

3.2 Critical Technical Parameters表格Parameter Specification Range Table Dimensions 1000mm×1000mm to 2200mm×3600mm Maximum Glass Size Up to 2000mm×1000mm (standard) / Gen 12+ compatible (custom) Glass Thickness Capacity 0.1mm–20mm Air Film Thickness 10µm–200µm Tilt Angle Range 0°–90° (adjustable in 0.1° increments) Breaking Force Adjustment 50N–500N Positioning Accuracy ±2µm (linear) / ±0.1° (angular) Operating Speed 2–3 m/s (glass transport) / 2–5°/s (tilting) Power Requirements 380V 3-phase 50Hz / 220V single-phase 60Hz (3–5 kW) Environmental Compatibility Temperature: 0°C–40°C; Humidity: <98% (non-condensing) Certifications CE, ROHS, ISO 9001, SEMI-compliant 4. Technical Advantages Over Conventional Systems4.1 Non-Contact Handling and Surface ProtectionUnlike mechanical conveyor belts or vacuum chucks that exert localized pressure on glass surfaces, the AFIGBT’s air-floating system eliminates physical contact, preventing scratches, micro-cracks, and contamination. This is particularly critical for high-value applications such as FPD substrates and PV solar panels, where surface integrity directly impacts product performance . The carbon or ceramic bearing surfaces are wear-resistant and particle-free, ensuring compatibility with cleanroom environments and reducing maintenance costs associated with contact-based components.4.2 Enhanced Precision and RepeatabilityThe combination of air-film stability, hydraulic tilting control, and pneumatic breaking mechanisms enables the AFIGBT to achieve fracture test repeatability within ±3%—a significant improvement over conventional tables (±8–12%). The sub-micron positioning resolution and uniform stress distribution ensure that each test replicates real-world conditions, providing reliable data on glass toughness, fracture energy, and failure modes. This precision is validated by compliance with international standards such as SEMI, which has adopted air-floating-based measurement models for glass quality assessment.4.3 Versatility and ScalabilityThe AFIGBT’s modular design allows for seamless customization to meet diverse industry needs. It supports multiple glass types (tempered, laminated, ultra-thin, AR-coated) and processing tasks, including strength testing, precision cutting, and edge quality inspection. The table’s compatibility with Gen 5 to Gen 12 glass substrates makes it suitable for small-scale laboratories and large-scale manufacturing facilities alike, with the ability to handle glass sizes up to 2200mm×3600mm and beyond with custom configurations.4.4 Operational Efficiency and SafetyThe AFIGBT’s automated loading/unloading systems, rapid test cycles (≤1000ms per measurement point), and data logging capabilities streamline quality control processes, reducing labor costs and increasing throughput. The hydraulic tilting system’s smooth operation minimizes glass breakage during handling, while the integrated safety features (pressure loss alarms, emergency stops, interlocks) ensure operator protection. Additionally, the low air consumption of porous media air bearings (measured in liters per hour rather than liters per minute) reduces energy costs compared to traditional air-bearing systems .5. Industrial Applications5.1 Flat-Panel Display (FPD) ManufacturingIn FPD production (LCD, OLED, microLED), the AFIGBT is used for post-processing quality control, including glass substrate strength testing, laser划片 alignment, and edge defect detection. The non-contact air suspension prevents damage to sensitive display layers, while the precise tilting and breaking mechanisms ensure clean, straight fractures during panel separation. The system’s compatibility with ISO Class 10 cleanrooms and sub-micron positioning accuracy makes it indispensable for Gen 10+ FPD facilities, where even minor surface defects can render panels defective .5.2 Photovoltaic (PV) Module ProductionFor solar glass (ultra-white embossed glass, AR-coated glass), the AFIGBT enables rapid measurement of spectral transmittance, fracture toughness, and edge strength—critical parameters for PV module efficiency and durability. The system’s ability to handle large-format glass sheets (up to 2000mm×1000mm) and perform multi-point testing allows manufacturers to assess spatial uniformity of mechanical properties, ensuring compliance with TAM1.5 and SEMI standards. The air-floating design also facilitates easy movement of heavy glass sheets, reducing handling time and breakage rates during production.5.3 Architectural and Automotive Glass ProcessingIn architectural glass manufacturing, the AFIGBT is used to test the breaking strength of tempered and laminated glass, ensuring compliance with building safety codes. The tilting function simulates real-world installation angles, allowing engineers to evaluate fracture behavior under gravitational loads. For automotive glass (windshields, side windows), the system performs impact resistance testing and precision cutting, with the non-contact handling preserving the glass’s optical clarity and structural integrity. The pneumatic breaking bars enable segmented cutting of complex shapes, supporting the production of curved and customized automotive glass components.5.4 Research and Development LaboratoriesAcademic and industrial R&D labs utilize the AFIGBT to study glass fracture mechanics, material fatigue, and the effects of coating technologies on mechanical performance. The system’s adjustable parameters (air film thickness, tilting angle, breaking force) allow researchers to replicate diverse environmental and loading conditions, generating data to optimize glass formulations and processing techniques. The integration of advanced sensors (strain gauges, high-speed cameras) enables real-time monitoring of fracture propagation, providing insights into crack initiation and growth mechanisms.6. Future Development Trends6.1 Integration of Smart Sensing and AIThe next generation of AFIGBT will incorporate advanced sensing technologies, including machine vision cameras, ultrasonic sensors, and fiber optic strain gauges, to enable real-time monitoring of glass deformation, stress distribution, and fracture dynamics. Artificial intelligence (AI) algorithms will analyze this data to predict failure points, optimize test parameters, and automate quality grading—reducing human intervention and improving testing accuracy. For example, AI-powered image recognition can identify micro-cracks before fracture, enabling proactive quality control in high-volume production lines.6.2 Miniaturization and High-Speed ProcessingAs the demand for ultra-thin glass (≤0.1mm) in wearable devices and flexible electronics grows, AFIGBT systems will be miniaturized to accommodate small-format substrates while maintaining high precision. Advances in micro-air-bearing technology will enable air film thicknesses below 10µm, supporting the handling of fragile, flexible glass without deformation. Additionally, improvements in hydraulic and pneumatic actuation will reduce test cycle times to <500ms per point, meeting the throughput requirements of next-generation electronics manufacturing.6.3 Energy Efficiency and SustainabilityFuture AFIGBT designs will focus on reducing energy consumption through the adoption of energy-efficient compressors, regenerative hydraulic systems, and low-power sensors. The use of recyclable materials in frame construction and biodegradable lubricants in hydraulic systems will align with global sustainability initiatives. Furthermore, the integration of solar-powered air supply systems will enable off-grid operation in remote manufacturing facilities, reducing carbon emissions.6.4 Interoperability with Industry 4.0 SystemsTo support smart manufacturing, AFIGBT systems will be equipped with Industrial Internet of Things (IIoT) connectivity, enabling seamless integration with MES (Manufacturing Execution Systems) and ERP (Enterprise Resource Planning) platforms. Real-time test data, equipment performance metrics, and maintenance alerts will be transmitted to cloud-based dashboards, allowing for remote monitoring, predictive maintenance, and process optimization. This interoperability will enable manufacturers to achieve end-to-end traceability of glass components, from raw material to finished product.7. ConclusionThe Air-Floating Inclined Glass Breaking Table represents a paradigm shift in glass processing and testing, combining non-contact air suspension, precise hydraulic tilting, and pneumatic fracture control to deliver unmatched precision, versatility, and efficiency. Its ability to protect glass surfaces, ensure repeatable test results, and accommodate diverse industry needs has made it an indispensable tool in FPD, PV, architectural, and automotive glass manufacturing. As technology advances, the integration of smart sensing, AI, and IIoT connectivity will further enhance the AFIGBT’s capabilities, driving innovation in glass processing and supporting the growth of high-precision manufacturing industries worldwide. By adhering to international standards and prioritizing sustainability, the AFIGBT is poised to remain a cornerstone of modern glass production, enabling manufacturers to meet the evolving demands of quality, efficiency, and environmental responsibility.

To address your request for a formal, comprehensive article on two-component coating machines, I’ve structured the content to cover core principles, technical components, industrial applications, performance comparisons, and future trends—drawing on industry data and technical specifications for authority.

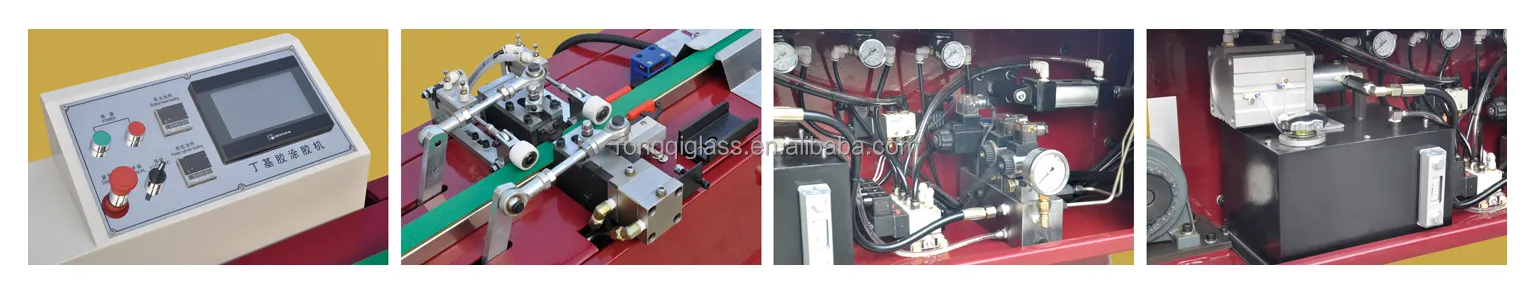

Two-Component Coating Machines: Principles, Technologies, and Industrial Applications

1. Introduction

In the era of advanced manufacturing, the demand for high-performance, durable, and environmentally compliant coating solutions has driven significant innovation in application equipment. Among these, two-component (2K) coating machines have emerged as indispensable assets across diverse industrial sectors, revolutionizing the way multi-part coating systems are applied. Unlike single-component (1K) systems that rely on solvent evaporation for curing, two-component coatings consist of separate resin-based base materials (Component A) and curing agents (Component B) that require precise proportioning, thorough mixing, and timely application to initiate a chemical crosslinking reaction. This inherent complexity demands specialized equipment capable of maintaining accuracy, consistency, and efficiency throughout the coating process.

Two-component coating machines address the core challenges of 2K systems—including precise ratio control, uniform mixing, and management of limited pot life—by integrating advanced metering, mixing, and application technologies. Their ability to deliver superior coating performance, including enhanced hardness, abrasion resistance, chemical stability, and aesthetic quality, has made them the preferred choice for high-stakes applications ranging from automotive manufacturing to electronics production and renewable energy equipment. This article provides a comprehensive analysis of two-component coating machines, exploring their working principles, core components, technical classifications, industrial applications, performance advantages, and future development trends.

2. Core Working Principles of Two-Component Coating Machines

The functionality of two-component coating machines is built on a sequential, closed-loop process that ensures the accurate delivery, proportioning, mixing, and application of Component A and Component B. This process can be systematically divided into four interconnected stages, each critical to the final coating quality.

2.1 Precision Metering and Supply

The foundation of effective 2

Two-Component Coating Machines: Principles, Technologies, and Industrial Applications

1. Introduction

In the era of advanced manufacturing, the demand for high-performance, durable, and environmentally compliant coating solutions has driven significant innovation in application equipment. Among these, two-component (2K) coating machines have emerged as indispensable assets across diverse industrial sectors, revolutionizing the way multi-part coating systems are applied. Unlike single-component (1K) systems that rely on solvent evaporation for curing, two-component coatings consist of separate resin-based base materials (Component A) and curing agents (Component B) that require precise proportioning, thorough mixing, and timely application to initiate a chemical crosslinking reaction. This inherent complexity demands specialized equipment capable of maintaining accuracy, consistency, and efficiency throughout the coating process.

Two-component coating machines address the core challenges of 2K systems—including precise ratio control, uniform mixing, and management of limited pot life—by integrating advanced metering, mixing, and application technologies. Their ability to deliver superior coating performance, including enhanced hardness, abrasion resistance, chemical stability, and aesthetic quality, has made them the preferred choice for high-stakes applications ranging from automotive manufacturing to electronics production and renewable energy equipment. This article provides a comprehensive analysis of two-component coating machines, exploring their working principles, core components, technical classifications, industrial applications, performance advantages, and future development trends.

2. Core Working Principles of Two-Component Coating Machines

The functionality of two-component coating machines is built on a sequential, closed-loop process that ensures the accurate delivery, proportioning, mixing, and application of Component A and Component B. This process can be systematically divided into four interconnected stages, each critical to the final coating quality.

2.1 Precision Metering and Supply

The foundation of effective 2K coating lies in the precise metering of the two components, as even minor deviations from the required ratio can result in curing defects, reduced performance, or coatin g failure. Two-component coating machines are equipped with dual independent supply systems, each dedicated to one component, to maintain material
Two-Component Coating Machines: Advanced Technologies, Industrial Standards, and Strategic Implementation

1. Preface: The Evolution of Coating Technology and the Rise of Two-Component Systems

The global manufacturing landscape is undergoing a paradigm shift toward high-performance, durable, and sustainable production solutions, with coating technology emerging as a critical enabler of product quality and longevity. Among the innovations reshaping this space, two-component (2K) coating machines have evolved from specialized equipment to mainstream industrial assets, addressing the limitations of single-component (1K) systems through chemical curing mechanisms that deliver superior mechanical, chemical, and aesthetic properties. Unlike 1K coatings, which rely on solvent evaporation or oxidative drying, 2K systems consist of a resin-rich base (Component A) and a reactive curing agent (Component B) that must be precisely proportioned, homogenously mixed, and applied within a defined pot life to initiate crosslinking. This technical complexity demands equipment engineered for precision, reliability, and adaptability—qualities that have positioned 2K coating machines as indispensable tools in sectors ranging from aerospace and automotive to electronics and renewable energy.

This article builds on foundational knowledge of 2K coating machines to explore advanced technical nuances, global industry standards, real-world implementation challenges, and strategic best practices. By integrating engineering principles, material science, and industrial case studies, it aims to provide a holistic resource for manufacturers, engineers, and procurement professionals seeking to optimize their coating processes through the adoption of 2K technology.

2. Advanced Technical Fundamentals: Beyond Basic Proportioning and Mixing

2.1 Material Science and Coating Chemistry: The Backbone of 2K Performance

The efficacy of a two-component coating machine is inherently tied to the chemistry of the coatings it processes. Understanding the interaction between Component A (resins) and Component B (curing agents) is critical to optimizing machine design and process parameters. Common 2K coating chemistries include:

- Polyurethane (PU) Coatings: Comprising isocyanate-based curing agents (Component B) and hydroxyl-functional resins (Component A), PU 2K coatings offer exceptional flexibility, abrasion resistance, and UV stability. They are widely used in automotive refinishing, furniture, and industrial equipment. The mixing ratio (typically 2:1, 4:1, or 10:1) directly impacts crosslink density—too much curing agent leads to brittleness, while insufficient amounts result in incomplete curing .

- Epoxy Coatings: Utilizing epoxy resins (Component A) and amine-based curing agents (Component B), epoxy 2K coatings deliver superior chemical resistance, adhesion, and hardness. They are preferred for corrosion protection in marine, construction, and aerospace applications. Epoxy systems are sensitive to temperature and humidity, requiring 2K machines to maintain strict environmental control during application .

- Polyester Coatings: Combining polyester resins (Component A) with isocyanate or melamine curing agents (Component B), these coatings offer high gloss, color retention, and cost-effectiveness. They are commonly used in appliance manufacturing and architectural metal finishing.

- Silicone Coatings: Featuring silicone resins (Component A) and peroxide or alkoxy curing agents (Component B), silicone 2K coatings provide extreme temperature resistance (-50°C to 250°C) and weatherability. They are critical for aerospace components, industrial ovens, and electronic devices.

Each chemistry imposes unique requirements on 2K coating machines: PU systems demand precise ratio control to avoid isocyanate off-gassing; epoxy systems require rapid mixing to prevent premature gelation; silicone systems need compatibility with high-temperature application tools. Advanced 2K machines are engineered with modular material handling systems to accommodate these variations, including corrosion-resistant tanks, temperature-controlled lines, and chemical-specific mixing elements.

2.2 Precision Metering Technologies: From Volumetric to Mass Flow Control

Metering is the most critical function of a 2K coating machine, as ratio accuracy directly determines coating performance. While volumetric metering (based on volume displacement) is common in mid-range systems, high-end applications increasingly rely on mass flow metering (based on mass measurement) for superior precision.

- Volumetric Metering: Utilizes gear pumps, piston pumps, or progressive cavity pumps to deliver a fixed volume of each component. Servo-driven piston pumps, such as those in the Graco Reactor E-30, offer volumetric accuracy of ±0.5% by adjusting piston stroke and speed via closed-loop feedback. This technology is suitable for most industrial applications but can be affected by viscosity changes .

- Mass Flow Metering: Integrates Coriolis mass flow sensors to measure the mass of each component in real time, adjusting pump output to maintain the target ratio. This technology eliminates the impact of viscosity, temperature, and pressure fluctuations, delivering accuracy of ±0.1%—critical for high-value applications such as aerospace coatings or medical device encapsulation. The Nordson EFD 2K Dispensing System uses Coriolis meters to handle ratios from 1:1 to 100:1 with consistent precision .

Advanced metering systems also incorporate adaptive control algorithms that learn from material behavior over time, compensating for drift in pump performance or changes in material viscosity. For example, the SikaFLEX® dispensing system uses machine learning to adjust metering parameters based on historical data, reducing ratio errors by 30% compared to static control systems .

2.3 Mixing Technology Innovations: Enhancing Homogeneity and Reducing Waste

Mixing efficiency is a key determinant of coating quality, with modern 2K machines leveraging advanced technologies to achieve molecular-level uniformity while minimizing material waste.

- Static Mixer Advancements: Traditional static mixers use helical elements to split and recombine components, but newer designs incorporate 3D-printed mixing elements with complex geometries (e.g., lattice structures) that increase mixing intensity without increasing pressure drop. The Statiflo 3D Mixer, for example, achieves 99% homogeneity in half the length of conventional mixers, reducing mixed material volume and waste .

- Dynamic Mixing with Shear Control: High-performance dynamic mixers, such as those in the DOPAG Meter Mix Dispense system, use variable-speed mixing heads with adjustable shear rates to accommodate high-viscosity materials (up to 1,000,000 mPa·s) and shear-sensitive formulations (e.g., composites with filler particles). Shear control prevents material degradation while ensuring uniform curing .

- In-Line Mixing Verification: Some advanced systems integrate near-infrared (NIR) spectroscopy or Raman spectroscopy sensors to verify mixing uniformity in real time. If homogeneity falls below a threshold, the system automatically adjusts mixing speed or diverts the material to waste, preventing defective coatings .

2.4 Application Technology: Tailoring to Substrate and Coating Requirements

2K coating machines offer a range of application methods, each optimized for specific substrates, coating types, and finish requirements:

- Electrostatic Spray Coating: Charges the mixed coating particles to attract them to the workpiece, reducing overspray by 30–50% compared to conventional spray. The ABB IRB 5500 robotic spray system integrates electrostatic charging with precise motion control, delivering uniform coatings on complex 3D parts (e.g., automotive bumpers) with transfer efficiency exceeding 85% .

- High-Pressure Airless Spray: Uses high pressure (up to 3,000 psi) to atomize the coating, eliminating the need for compressed air. This method is ideal for thick coatings (e.g., industrial maintenance paints) and large surfaces (e.g., wind turbine blades). The Wagner ControlPro 2K airless system features a reversible pump design that reduces downtime during cleaning .

- Precision Dispensing: For micro-scale applications (e.g., electronics encapsulation), 2K machines use needle valves, jet dispensers, or piezoelectric dispensers to deliver nanoliter to milliliter volumes with placement accuracy of ±50 μm. The ASYMTEK Spectrum S-900 dispensing system combines 2K metering with vision-guided positioning to coat circuit boards with conformal coatings .

- Roll Coating: Suitable for flat substrates (e.g., metal sheets, wood panels), roll coaters use precision rollers to apply a uniform film thickness (5–100 μm). The Bürkle 2K Roll Coater features gap-adjustable rollers and web tension control to ensure consistency across large production runs .
3. Industry Standards and Compliance: Ensuring Quality and Safety

3.1 Global Standards for 2K Coating Machines

Two-component coating machines must adhere to stringent global standards to ensure performance, safety, and environmental compliance. Key standards include:

- ISO 14644: Governs cleanroom requirements for coating applications in electronics and pharmaceutical industries, specifying air particle counts and environmental controls (temperature, humidity) that 2K machines must integrate .

- ASTM D3925: Defines test methods for the application and performance of 2K coatings, including ratio accuracy, mixing uniformity, and curing efficiency. Machines must meet ASTM-specified tolerances to ensure coating compliance .

- EU REACH Regulation: Restricts the use of hazardous substances (e.g., isocyanates, heavy metals) in coatings, requiring 2K machines to handle low-VOC and REACH-compliant materials with specialized seals, vents, and waste management systems .

- OSHA 1910.1000: Sets occupational exposure limits (OELs) for coating-related chemicals in the U.S., mandating that 2K machines include ventilation systems, leak detection, and operator safety features (e.g., emergency stop buttons, protective enclosures) .

- China GB/T 38533: Specifies technical requirements for 2K coating machines used in automotive manufacturing, including metering accuracy, mixing efficiency, and energy consumption .

Compliance with these standards is not only a legal requirement but also a competitive advantage, as certified machines are preferred by manufacturers seeking to meet customer quality and sustainability demands.

3.2 Safety and Environmental Considerations

2K coating machines pose unique safety and environmental challenges due to the reactive nature of coating components (e.g., isocyanates are toxic and irritant) and the generation of volatile organic compounds (VOCs). Advanced machines address these challenges through:

- Closed-Loop Material Handling: Sealed tanks, hoses, and mixing systems prevent chemical exposure and VOC emissions. The PPG Enviro-Prime 2K system uses a closed-loop supply chain that reduces VOC emissions by 60% compared to open systems .

- Explosion-Proof Design: For solvent-based coatings, machines are equipped with explosion-proof motors, electrical enclosures, and spark-resistant components (compliant with ATEX Directive 2014/34/EU) to mitigate fire risks .

- Waste Reduction Systems: Integrated solvent recovery units (SRUs) capture and reuse cleaning solvents, reducing waste by up to 80%. The DuPont 2K Coating System includes an SRU that recycles 95% of cleaning solvents, cutting operational costs and environmental impact .

- Operator Protection: Ergonomic design features (e.g., adjustable HMI panels, lightweight spray guns) reduce operator fatigue, while personal protective equipment (PPE) integration (e.g., respirator connections, glove ports) minimizes chemical exposure .

4. Case Studies: Strategic Implementation of 2K Coating Machines in Key Industries

4.1 Automotive Manufacturing: Enhancing Durability and Aesthetics

Case Study: Tesla Gigafactory Shanghai
Tesla’s Gigafactory in Shanghai adopted the Graco Reactor 2K spray system for coating EV battery packs and chassis components. The system’s mass flow metering ensures a 4:1 resin-to-curing agent ratio with ±0.1% accuracy, delivering a corrosion-resistant epoxy coating that meets Tesla’s 10-year/240,000 km durability requirement. By integrating robotic application with inline quality inspection (using machine vision to detect coating thickness variations), Tesla reduced coating defects by 40% and increased production throughput by 25% compared to its previous 1K system .

4.2 Aerospace: Meeting Extreme Performance Requirements

Case Study: Boeing 787 Dreamliner Wing Coating
Boeing selected the Nordson EFD 2K Dispensing System for applying a silicone-based thermal barrier coating to 787 Dreamliner wing leading edges. The coating must withstand temperatures of -55°C (cruise altitude) to 120°C (ground operations) and maintain adhesion during extreme pressure changes. The system’s dynamic mixing technology ensures uniform distribution of ceramic fillers in the silicone matrix, while precision dispensing delivers a consistent film thickness of 200 ± 10 μm. This implementation reduced coating-related maintenance costs by 30% over the aircraft’s lifecycle .

4.3 Electronics: Protecting Sensitive Components

Case Study: Samsung Electronics Semiconductor Encapsulation
Samsung uses the ASYMTEK Spectrum 2K system to encapsulate semiconductor chips with a two-component epoxy coating, providing protection against moisture, dust, and thermal stress. The system’s piezoelectric dispensing technology delivers nanoliter volumes with ±5 μm placement accuracy, ensuring coverage of delicate bond wires without damaging them. By automating the encapsulation process, Samsung reduced defect rates from 2.3% to 0.4% and increasedproduction capacity by 50% .

4.4 Renewable Energy: Ensuring Longevity in Harsh Environments

Case Study: Vestas Wind Turbine Blade Coating
Vestas Wind Systems implemented the Wagner ControlPro 2K airless spray system for coating wind turbine blades with a polyurethane topcoat. The coating must resist UV radiation, saltwater (for offshore turbines), and mechanical abrasion. The system’s high-pressure atomization ensures uniform coverage of large blade surfaces (up to 80 meters long), while its adaptive pressure control compensates for viscosity changes due to temperature fluctuations. This implementation extended blade lifespan from 20 to 25 years and reduced maintenance downtime by 20% .

5. Critical Factors for Selecting and Optimizing 2K Coating Machines

5.1 Key Selection Criteria

Selecting the right 2K coating machine requires a systematic evaluation of technical, operational, and economic factors:

- Ratio Range and Accuracy: Ensure the machine can handle the required mixing ratio (e.g., 1:1 to 100:1) with the necessary accuracy (±0.1% for high-performance applications, ±1% for general industrial use).

- Material Compatibility: Verify that the machine’s wetted parts (tanks, hoses, mixers) are compatible with the coating chemistry (e.g., corrosion-resistant materials for isocyanates, heat-resistant components for high-temperature resins).

- Pot Life Management: For fast-curing coatings, select a machine with short residence time (time between mixing and application) and automatic pot life alerts to prevent material waste.

- Automation Level: Choose between semi-automatic (for small batches) and fully automatic (for mass production) systems based on production volume and process complexity.

- Cleaning and Maintenance: Evaluate cleaning time, solvent usage, and maintenance requirements to minimize downtime. Look for machines with quick-change modules and self-cleaning circuits.

- Cost of Ownership: Consider not just the upfront cost but also operational costs (material waste, energy consumption, maintenance) and lifecycle costs (expected lifespan, warranty, spare parts availability).

5.2 Process Optimization Strategies

To maximize the performance of 2K coating machines, manufacturers should implement the following optimization strategies:

- Material Preparation: Precondition coatings to the recommended temperature (typically 20–25°C) and degas to remove air bubbles, which can cause surface defects.

- Process Validation: Conduct initial trials to optimize parameters such as mixing speed, application pressure, and curing time. Use statistical process control (SPC) to monitor and adjust parameters in real time.

- Preventive Maintenance: Establish a regular maintenance schedule for pumps, mixers, and sensors to prevent breakdowns. Use predictive maintenance tools (e.g., vibration analysis, oil analysis) to identify potential issues before they affect performance.

- Operator Training: Invest in comprehensive training to ensure operators understand coating chemistry, machine operation, and safety protocols. Well-trained operators can reduce errors and maximize machine efficiency.

- Continuous Improvement: Collect and analyze data on coating quality, material waste, and machine performance to identify areas for improvement. Leverage Industry 4.0 technologies (IoT, AI) to automate optimization.

6. Emerging Technologies and Future Outlook

6.1 Digital Transformation and Smart Coating Systems

The future of 2K coating machines lies in digital transformation, with Industry 4.0 technologies enabling unprecedented levels of connectivity, automation, and intelligence:

- IoT-Enabled Monitoring: Sensors embedded in the machine track real-time data on temperature, pressure, flow rate, and mixing uniformity, transmitting it to a cloud-based platform for analysis. This enables remote monitoring, predictive maintenance, and process optimization. For example, the Graco Connect platform provides real-time insights into machine performance, reducing unplanned downtime by 35% .

- AI-Powered Process Control: Machine learning algorithms analyze historical data to predict coating defects and adjust process parameters automatically. The Siemens Sinumerik Integrate for Coatings uses AI to optimize spray paths, reducing overspray by 25% and improving coating uniformity by 40% .

- Digital Twins: Virtual replicas of 2K coating machines and production lines allow manufacturers to simulate process changes, test new coating formulations, and optimize parameters without disrupting production. The ABB Ability™ Digital Twin for Coating Systems reduces trial-and-error time by 60% .

6.2 Sustainable Coating Solutions

Sustainability is a key driver of innovation in 2K coating machines, with manufacturers focusing on reducing environmental impact through:

- Water-Based and Low-VOC Coatings: Machines are being redesigned to handle water-based 2K coatings, which have VOC emissions 50–70% lower than solvent-based alternatives. The PPG Aquacron 2K system uses water as a solvent, meeting EU VOC limits of <150 g/L .

- Energy Efficiency: Advanced motor designs (e.g., brushless DC motors), variable frequency drives (VFDs), and heat recovery systems reduce energy consumption by 20–30%. The Nordson EcoBead 2K system uses energy-efficient pumps and heat exchangers to cut operational costs .

- Circular Economy Practices: Machines are incorporating features to facilitate material recycling and reuse. For example, the DOPAG ReCycle system collects and filters unused mixed material, allowing it to be reused for non-critical applications, reducing waste by 40% .

6.3 Advanced Material Integration

As new coating materials emerge, 2K machines are evolving to handle specialized formulations:

- Self-Healing Coatings: These coatings contain microcapsules that release healing agents when damaged. 2K machines must deliver precise mixing of capsule-containing resins and curing agents to ensure uniform distribution. The BASF Self-Heal 2K system uses a modified static mixer to prevent capsule breakage during mixing .

- Conductive Coatings: Used in electronics and EVs, conductive 2K coatings require homogeneous dispersion of conductive fillers (e.g., carbon nanotubes, silver particles). Machines with high-shear dynamic mixers and inline conductivity sensors ensure consistent conductivity .

- Biodegradable Coatings: Derived from renewable resources (e.g., plant-based resins), biodegradable 2K coatings require machines with compatible wetted parts and gentle mixing to prevent material degradation. The Evonik BioCote 2K system uses stainless steel and Teflon components to handle these formulations .

7. Conclusion: The Strategic Value of Two-Component Coating Machines in Modern Manufacturing

Two-component coating machines have evolved from technical novelties to strategic assets, enabling manufacturers to meet the growing demand for high-performance, durable, and sustainable products. Their ability to precisely proportion, mix, and apply reactive coating systems delivers superior performance compared to single-component alternatives, while advancements in automation, digitalization, and sustainability are expanding their capabilities and applications.

From automotive and aerospace to electronics and renewable energy, 2K coating machines play a critical role in enhancing product quality, reducing costs, and ensuring compliance with global standards. By understanding the technical fundamentals, selecting the right machine for their needs, and implementing optimization strategies, manufacturers can unlock the full potential of 2K technology.

As the industry continues to evolve, the future of two-component coating machines will be defined by digital transformation, sustainability, and advanced material integration. Manufacturers that embrace these trends will gain a competitive edge, delivering innovative products that meet the demands of a rapidly changing global market.

In summary, two-component coating machines are not just tools for applying coatings—they are enablers of manufacturing excellence, driving progress through precision, efficiency, and sustainability. Their continued evolution will be instrumental in shaping the future of industrial production, ensuring that products are safer, more durable, and more environmentally friendly.

Glass Tempering Furnace: Principles, Technology, Applications and Industrial Development

Abstract

Glass tempering furnace, as a core thermal processing equipment in the modern glass deep-processing industry, plays an irreplaceable role in transforming ordinary float glass, sheet glass and other flat glass products into tempered glass with high mechanical strength, thermal stability and safety performance. This paper systematically elaborates on the fundamental working principles, structural composition, classification characteristics, processing technology, application scenarios, performance advantages and existing challenges of glass tempering furnaces. Combined with the latest technological innovations and market development trends in the global glass industry, it also prospects the future development direction of glass tempering furnace equipment, aiming to provide a comprehensive and in-depth reference for industrial practitioners, engineering technicians and relevant research scholars.

1. Introduction

With the rapid advancement of global construction, automotive, home appliance, electronic information and new energy industries, the demand for high-performance safety glass has shown a sustained growth trend. Tempered glass, known as "safety glass", has become one of the most widely used functional glass products in modern industrial and civil fields due to its outstanding characteristics such as 3-5 times higher impact resistance than ordinary glass, excellent thermal shock resistance, and harmless small granular fragments when broken. The core equipment for achieving the glass tempering process is the glass tempering furnace, which integrates multiple disciplines including mechanical engineering, thermal engineering, automation control, material science and electrical engineering.

Since the birth of the first industrialized glass tempering furnace in the mid-20th century, the equipment has undergone continuous technological iteration and structural optimization. From the initial vertical tempering furnaces to the widely used horizontal convection tempering furnaces today, and from the single small-scale processing equipment to the large-scale, intelligent, energy-saving and high-efficiency production lines, glass tempering furnaces have gradually evolved into a highly specialized and standardized industrial equipment category. In the global glass deep-processing industry chain, the performance level of glass tempering furnaces directly determines the quality, production efficiency and cost control of tempered glass products, and is a key link that affects the core competitiveness of glass processing enterprises. This paper will conduct an all-round and multi-angle analysis of glass tempering furnaces, starting from their basic theoretical basis, and extending to practical applications and future development.

2. Fundamental Principles of Glass Tempering

Before analyzing the structure and working process of glass tempering furnaces, it is essential to clarify the physical and chemical principles behind the glass tempering process, which is the theoretical cornerstone for the design and operation of glass tempering furnaces. Glass tempering, also referred to as glass toughening, is a physical heat treatment method that changes the internal stress state and mechanical properties of glass without altering its chemical composition.

2.1 Thermal Tempering Principle

The vast majority of commercial glass tempering furnaces adopt the thermal tempering process, whose core principle is based on the rapid cooling of heated glass to form a uniform compressive stress layer on the surface and a tensile stress layer inside the glass. Specifically, ordinary flat glass is heated in a tempering furnace to a temperature close to its softening point (generally between 600°C and 650°C, varying slightly with glass composition and thickness), at which the glass internal molecular structure is in a state of high activity and the internal stress is completely eliminated. Subsequently, the heated glass is quickly transferred to the cooling zone of the tempering furnace, where high-speed and uniform cold air is blown onto both sides of the glass surface through a specially designed air grid system.

Due to the rapid cooling rate, the glass surface layer solidifies and contracts first, forming a rigid compressive stress layer, while the internal glass is still in a high-temperature plastic state and continues to cool and contract. As the internal glass gradually cools to room temperature, its shrinkage is constrained by the already solidified surface layer, resulting in a stable tensile stress inside the glass and a compressive stress on the surface. This stress distribution endows tempered glass with exceptional mechanical properties: when subjected to external impact or bending force, the surface compressive stress can offset most of the external tensile stress, significantly improving the glass's impact resistance and bending strength. Moreover, when the tempered glass is broken by an external force exceeding its bearing limit, the internal tensile stress is released instantaneously, causing the glass to break into numerous small obtuse-angle particles, avoiding sharp fragments that cause harm to the human body, thus achieving the safety performance of tempered glass.

2.2 Chemical Tempering Principle

In addition to thermal tempering, a small number of special glass tempering furnaces adopt the chemical tempering process, which is mainly applicable to thin glass (thickness <3mm) and special-shaped glass products that are not suitable for thermal tempering. The chemical tempering principle is to immerse the preheated glass in a molten salt bath containing alkali metal ions with a larger ionic radius at a temperature lower than the glass transition temperature, and realize the ion exchange between the glass surface and the molten salt through the diffusion of alkali metal ions in the glass network structure. For example, sodium ions (Na⁺) on the glass surface are replaced by potassium ions (K⁺) with a larger radius in the molten salt. The volume expansion caused by ion substitution forms a compressive stress layer on the glass surface, thereby improving the mechanical strength and thermal stability of the glass. Although chemical tempering has advantages in processing thin glass, its production cycle is long, the cost is high, and the compressive stress layer is relatively thin, so it is only used in specific industrial fields, and thermal tempering furnaces still dominate the mainstream market.

3. Structural Composition of Glass Tempering Furnace

A complete glass tempering furnace is a complex integrated system composed of multiple functional modules, each module cooperating closely to complete the continuous and stable tempering processing of glass. The typical horizontal glass tempering furnace, which is the most widely used in the industry, mainly includes the feeding system, heating furnace body, conveying system, cooling system, control system and auxiliary systems such as exhaust and dust removal. Each part has a clear functional positioning and precise design requirements.

3.1 Feeding System

The feeding system is the starting end of the glass tempering furnace, responsible for stably and accurately sending the original glass sheets to be processed into the heating furnace. It mainly consists of a loading table, a sheet separating device, a positioning mechanism and a conveying roller table. For automated production lines, the feeding system is often equipped with a robotic arm loading system, which can realize automatic sorting, positioning and feeding of glass sheets, reducing manual labor and improving production efficiency. The positioning mechanism ensures that each glass sheet enters the heating furnace at a fixed position and angle, avoiding deflection or overlapping that affects the heating uniformity. For large-format glass, the feeding system is designed with anti-deformation support structures to prevent the glass from bending or breaking during the feeding process due to its own weight.

3.2 Heating Furnace Body

The heating furnace body is the core component of the glass tempering furnace, where the glass is heated to the specified tempering temperature, and its performance directly determines the heating efficiency and temperature uniformity of the glass. The heating furnace body is generally a sealed box structure, composed of a furnace shell, a thermal insulation layer, a heating element, a temperature sensor and a furnace inner cavity.

The furnace shell is usually made of high-strength steel plates, with good structural rigidity to ensure the stability of the furnace body during long-term operation. The thermal insulation layer is filled with high-temperature resistant thermal insulation materials such as aluminum silicate fiber and ceramic fiber, which can effectively reduce heat loss, reduce energy consumption and ensure the temperature stability of the furnace inner cavity. The heating element is the heat source of the furnace body, mainly including resistance heating wires, ceramic heating plates and infrared radiation heating tubes. According to different heating methods, it can be divided into radiation heating and convection heating. Traditional tempering furnaces mainly adopt radiation heating, which relies on the infrared radiation emitted by the heating element to heat the glass; modern high-efficiency tempering furnaces add a forced convection system, which circulates the high-temperature gas in the furnace through a convection fan to achieve uniform heating of the glass surface, especially suitable for low-e coated glass and other coated glass products that are sensitive to temperature differences.

Temperature sensors (such as thermocouples) are evenly arranged in the furnace body to collect real-time temperature data of different zones in the furnace, and feed back to the control system to realize closed-loop control of the furnace temperature, ensuring that the temperature difference in the effective heating area is controlled within ±2°C, which is a prerequisite for ensuring the quality of tempered glass. In addition, the heating furnace body is divided into multiple independent temperature control zones according to the length and width, and the temperature of each zone can be adjusted independently to adapt to the heating requirements of glass with different thicknesses and sizes.

3.3 Conveying System

The conveying system runs through the entire glass tempering furnace, responsible for transporting the glass through the feeding area, heating area and cooling area at a controllable speed. It mainly adopts a ceramic roller conveying structure, because ceramic rollers have excellent high-temperature resistance, low thermal expansion coefficient and smooth surface, which will not scratch the glass surface and can maintain stable conveying performance at high temperatures up to 700°C.

The ceramic rollers are driven by a motor and a transmission system (such as a chain or a synchronous belt), and the conveying speed can be adjusted steplessly through the control system. For glass with different thicknesses, the conveying speed in the heating zone and the cooling zone is precisely matched: thicker glass requires a slower conveying speed in the heating zone to ensure sufficient heating time, while thinner glass needs a faster conveying speed to avoid overheating. In addition, the conveying system of high-end tempering furnaces is equipped with a roller speed synchronization control device to ensure that the glass is always in a horizontal and stable state during the conveying process, avoiding deflection or warping caused by inconsistent roller speeds.

3.4 Cooling System

The cooling system is the key module to realize the rapid cooling of the heated glass and form the internal stress of tempered glass, which is composed of an air compressor, an air storage tank, an air grid assembly and an air volume adjustment device. The air grid is the core component of the cooling system, which is divided into upper and lower air grids, arranged symmetrically on the upper and lower sides of the glass conveying path. The surface of the air grid is densely distributed with specially designed air nozzles, which can spray high-pressure and uniform cold air onto the glass surface.

The cooling system of a high-performance glass tempering furnace can realize stepless adjustment of air volume, air pressure and cooling speed according to the thickness, size and type of glass. For example, thick glass requires a relatively gentle cooling rate to avoid excessive temperature stress causing glass bursting, while thin glass needs a higher cooling rate to ensure the formation of effective compressive stress. In addition, the cooling system is equipped with an air circulation and filtration device, which can recycle the cold air after heat exchange, reduce the load of the air compressor and achieve energy saving. The uniformity of the air grid air supply is a key indicator to measure the performance of the cooling system, and uneven air supply will lead to uneven stress distribution of the tempered glass, resulting in quality problems such as glass warping, self-explosion and poor strength.

3.5 Automatic Control System

The automatic control system is the "brain" of the glass tempering furnace, integrating programmable logic controller (PLC), human-machine interface (HMI), temperature control module, speed control module and safety protection module. The control system realizes the automatic operation of the entire tempering process by presetting process parameters for different types of glass.

Operators only need to input glass parameters such as thickness, size and type on the human-machine interface, and the system will automatically match the optimal heating temperature, heating time, conveying speed, cooling air volume and other process parameters. The control system has functions such as real-time data monitoring, fault alarm, parameter storage and historical data query. It can monitor the operating status of each module of the furnace body in real time, and issue an alarm and take protective measures in time when abnormal conditions such as temperature overrun, roller jam, and air pressure abnormality occur. In addition, the intelligent control system of modern glass tempering furnaces is equipped with a network communication interface, which can realize remote monitoring, fault diagnosis and program upgrade, facilitating the management and maintenance of the production line by enterprises.

3.6 Auxiliary Systems

In addition to the above core modules, the glass tempering furnace is also equipped with a series of auxiliary systems to ensure the stable operation of the equipment and compliance with environmental protection requirements. The exhaust gas treatment system is used to discharge the volatile gas and dust generated during the glass heating process, and purify the exhaust gas to meet environmental protection standards; the dust removal system collects the glass dust and impurities generated during the feeding and conveying process to keep the inside of the furnace clean; the cooling water circulation system is used to cool the motor, transmission system and electrical components of the equipment to prevent overheating damage; the safety protection system includes emergency stop buttons, safety doors, temperature and pressure overload protection, etc., to ensure the personal safety of operators and the safety of equipment.

4. Classification of Glass Tempering Furnaces

Glass tempering furnaces can be classified from multiple perspectives according to different structural forms, processing technologies, application scenarios and automation levels. The classification is conducive to the selection and application of equipment in different industrial fields. The main classification methods are as follows:

4.1 Classification by Structural Form

According to the conveying and processing structure, glass tempering furnaces are mainly divided into horizontal glass tempering furnaces and vertical glass tempering furnaces. Horizontal glass tempering furnaces adopt a horizontal conveying method, with glass lying flat on the ceramic roller table for heating and cooling. They have the advantages of large processing format, high production efficiency, good glass flatness, and suitability for mass production of various flat glass. They are the most widely used type in the market, covering almost all fields of tempered glass production. Vertical glass tempering furnaces adopt a vertical hanging conveying method, with glass vertically suspended and sent into the furnace for processing. They have a small floor area and are suitable for processing small and medium-sized glass and special-shaped glass, but their production efficiency is low and the processing format is limited, so they are only used in a small number of special processing scenarios.

4.2 Classification by Heating Method

According to the heating method of the furnace body, glass tempering furnaces are divided into radiation heating tempering furnaces and convection heating tempering furnaces. Radiation heating tempering furnaces rely on the infrared radiation of heating elements to heat glass, with a simple structure and low cost, suitable for processing ordinary clear float glass. However, the heating uniformity is relatively poor, and it is easy to cause uneven heating of coated glass, resulting in quality defects. Convection heating tempering furnaces add a forced convection circulation system on the basis of radiation heating, which uses high-temperature hot air to convectively heat the glass surface, greatly improving the heating uniformity and heating speed. They are especially suitable for processing low-e coated glass, solar coated glass, colored glass and other special glass products, and have become the mainstream development trend of modern tempering furnaces.

4.3 Classification by Processing Capacity and Scale

According to the processing capacity and production scale, glass tempering furnaces are divided into small and medium-sized laboratory tempering furnaces, medium-sized industrial production tempering furnaces and large-scale continuous production tempering furnaces. Small and medium-sized laboratory tempering furnaces are mainly used for glass tempering process research, product development and small-batch sample production, with small processing format, low power and flexible operation. Medium-sized industrial production tempering furnaces are suitable for small and medium-sized glass processing enterprises, with moderate processing capacity and cost, meeting the production needs of conventional tempered glass products. Large-scale continuous production tempering furnaces are designed for large glass processing groups, with ultra-large processing format, high-speed continuous production capacity, high degree of automation and intelligent integration, and can realize 24-hour uninterrupted production, suitable for large-scale orders in construction, automotive and other industries.

4.4 Classification by Process Purpose

According to different process purposes and processed glass types, glass tempering furnaces are also divided into flat glass tempering furnaces, bent glass tempering furnaces, laminated glass supporting tempering furnaces, and ultra-thin glass tempering furnaces. Among them, the bent glass tempering furnace is equipped with a bending mold and a bending control system in the heating zone, which can heat and bend the glass while tempering, producing curved tempered glass for automotive windshields, architectural curved curtain walls and other fields.

5. Glass Tempering Process Flow

The complete glass tempering process realized by the glass tempering furnace is a standardized and continuous operation flow, and each process link must be strictly controlled to ensure the quality of tempered glass. The standard process flow of the horizontal thermal glass tempering furnace is as follows:

5.1 Original Glass Preparation

Before entering the tempering furnace, the original glass sheets need to be cut, edged, polished and cleaned. Cutting is to cut the large-format original glass into the required size according to the design requirements; edging and polishing are to remove the sharp edges and burrs generated during cutting, because the micro-cracks on the glass edge will become the stress concentration point during the tempering process, leading to glass bursting; cleaning is to remove the oil, dust and impurities on the glass surface through a glass cleaning machine, avoiding the formation of spots or defects on the glass surface during heating and affecting the appearance quality of tempered glass.

5.2 Automatic Feeding

The cleaned and inspected qualified glass sheets are placed on the feeding table of the tempering furnace, and the feeding system positions and separates the glass sheets, then sends them into the heating furnace body one by one through the conveying roller table at a set speed. For automated production lines, this process is completed by a robotic arm without manual intervention.

5.3 High-Temperature Heating

The glass enters the heating furnace body and is conveyed forward slowly through the ceramic roller table. The heating element and convection system in the furnace heat the glass uniformly, and the temperature is raised to the tempering temperature (600-650°C) and maintained for a certain period of time. The heating time is determined by the glass thickness, type and furnace temperature: the thicker the glass, the longer the heating time required to ensure that the glass internal temperature reaches the softening state and the internal stress is completely eliminated. During the heating process, the control system monitors the furnace temperature in real time and adjusts the heating power to ensure temperature uniformity.

5.4 Rapid Cooling (Tempering)

After the heating is completed, the glass is quickly conveyed from the heating furnace to the cooling zone. The upper and lower air grids of the cooling system spray high-pressure uniform cold air onto the glass surface instantly, realizing rapid and uniform cooling. The cooling speed is precisely controlled according to the glass thickness, forming a stable compressive stress layer on the glass surface and a tensile stress layer inside, completing the tempering process. This link is the most critical step in determining the performance of tempered glass, and any deviation in cooling speed or uniformity will lead to unqualified product quality.

5.5 Unloading and Quality Inspection

The tempered glass after cooling is conveyed to the unloading table by the conveying system, and the operator or automatic inspection equipment conducts quality inspection on the tempered glass. The inspection items include appearance quality (no scratches, spots, bubbles, etc.), dimensional accuracy, flatness, stress distribution, and impact resistance. Qualified products are packaged and stored, while unqualified products are screened out for reprocessing or scrap treatment.

6. Application Fields of Tempered Glass Produced by Tempering Furnaces

Tempered glass produced by professional glass tempering furnaces has excellent performance and is widely used in various fields of the national economy, covering construction, automotive, home appliances, electronics, new energy, aerospace and other industries, and its application scope is still expanding with the development of technology.

6.1 Architectural Decoration Field

The architectural field is the largest consumer market for tempered glass. Tempered glass is widely used in building curtain walls, interior partition walls, doors and windows, shower rooms, floor glass, railings and ceilings. In high-rise buildings, tempered glass curtain walls not only have a beautiful and modern appearance, but also can withstand strong wind pressure and external impact, ensuring the safety of the building. In interior decoration, tempered glass partitions and doors and windows have good light transmittance and safety performance, improving the space utilization rate and aesthetic feeling of the building. In addition, laminated tempered glass and insulating tempered glass processed on the basis of tempered glass are also widely used in building energy-saving and sound insulation projects.

6.2 Automotive Industry

The automotive industry has extremely strict requirements on glass safety and performance, and almost all automotive glass (except for individual small decorative glasses) is tempered glass or laminated tempered glass produced by tempering furnaces. Automotive front windshields generally adopt laminated tempered glass, which can maintain integrity even when broken, avoiding fragments from hurting passengers; automotive side windows and rear windshields adopt single-piece tempered glass, which can be quickly broken into small particles in case of accidents, facilitating passenger escape. In addition, automotive sunroofs, rearview mirror glasses and instrument panel protective glasses also use high-quality tempered glass processed by precision tempering furnaces.

6.3 Home Appliance and Electronic Products

In the home appliance industry, tempered glass is used in the door panels of refrigerators, ovens, microwave ovens, the panels of induction cookers, the shells of washing machines, and the screens of televisions. The high thermal stability of tempered glass can adapt to the high-temperature working environment of kitchen appliances, and its high strength can resist collision and scratch during use. In the electronic information industry, with the popularization of smart phones, tablet computers, liquid crystal displays and other products, ultra-thin tempered glass processed by chemical or special thermal tempering furnaces is used as the protective screen of electronic products, with high hardness, scratch resistance and impact resistance, protecting the display screen from damage.

6.4 New Energy and Solar Energy Industry

With the rapid development of the global new energy industry, tempered glass has become an important component of solar photovoltaic modules and solar thermal collectors. Solar tempered glass produced by special tempering furnaces has high light transmittance, low iron content, excellent weather resistance and mechanical strength, which can protect the solar cells inside the module from wind, sand, hail and other external impacts, and ensure the long-term stable operation of photovoltaic power generation systems. The demand for solar tempered glass is growing rapidly with the large-scale application of photovoltaic power generation, which has put forward higher requirements for the performance of glass tempering furnaces.

6.5 Other Special Fields

In addition to the above fields, tempered glass is also used in aerospace, marine engineering, medical equipment, furniture manufacturing and other fields. For example, the cockpit glass of aircraft, the observation window of ships, the protective cover of medical equipment, and the glass tabletop of high-end furniture all use high-performance tempered glass processed by professional tempering furnaces, meeting the special performance requirements of different industries.

7. Advantages and Existing Challenges of Modern Glass Tempering Furnaces

7.1 Core Advantages

Modern glass tempering furnaces, after continuous technological innovation and optimization, present significant advantages in terms of performance, efficiency and energy saving compared with traditional equipment. Firstly, high degree of automation and intelligence reduces the dependence on manual operation, improves production efficiency and product stability, and reduces the defective rate caused by human factors. Secondly, excellent heating uniformity and cooling precision ensure that the tempered glass has uniform stress distribution, high flatness and stable mechanical properties, adapting to the processing of high-end coated glass and special glass. Thirdly, energy-saving and environmental protection performance is significantly improved through the optimization of thermal insulation structure, the application of convection heating technology and the recovery of waste heat, reducing energy consumption per unit product and meeting the national dual-carbon policy requirements. Fourthly, large-scale and multi-functional processing capacity meets the market demand for large-format, special-shaped and diversified tempered glass products, expanding the application scope of tempered glass.

7.2 Existing Challenges

Despite the rapid development of glass tempering furnace technology, there are still some challenges in the industrial application process. Firstly, the problem of self-explosion of tempered glass has not been completely solved. The self-explosion is mainly caused by the nickel sulfide inclusions inside the glass and the uneven stress distribution during the tempering process. Although the homogenization treatment furnace can reduce the self-explosion rate, it increases the production cost and process flow. Secondly, the processing of ultra-thin and ultra-thick glass still has technical bottlenecks. Ultra-thin glass (thickness <2mm) is easy to warp and break during the tempering process, while ultra-thick glass (thickness >25mm) has low heating efficiency and difficult control of cooling stress, requiring further research and development of specialized tempering furnace technology. Thirdly, the high cost of high-end intelligent tempering furnaces limits the popularization and application of small and medium-sized enterprises, and the technical gap between domestic and international high-end equipment still exists in some core components and control systems. Fourthly, the energy consumption and environmental protection requirements are becoming increasingly stringent, and the traditional tempering furnace energy-saving technology still has room for improvement, requiring the research and development of more efficient heating and cooling technologies to reduce carbon emissions.

8. Future Development Trends of Glass Tempering Furnaces

Driven by technological progress, market demand and policy guidance, the global glass tempering furnace industry will present the following development trends in the future:

8.1 Intelligent and Digital Upgrading

The future glass tempering furnaces will develop towards higher intelligence and digitization, integrating technologies such as artificial intelligence, big data analysis and the Internet of Things. The equipment will realize automatic optimization of process parameters, real-time online monitoring of glass quality, predictive maintenance of equipment faults and remote intelligent management. Through the collection and analysis of production data, the system can automatically adjust the heating, cooling and conveying parameters according to the production status, further improving product quality and production efficiency, and realizing the intelligent manufacturing of the glass tempering production line.

8.2 High Efficiency and Energy Saving Technology Innovation

Energy conservation and emission reduction will become the core research direction of glass tempering furnace technology. New heating technologies such as microwave heating, laser heating and high-efficiency infrared convection heating will be applied to tempering furnaces, improving heating efficiency and reducing energy consumption. At the same time, the waste heat recovery system will be further optimized, recovering the heat generated in the cooling and exhaust processes for preheating the original glass or heating the furnace body, realizing the recycling of energy. The research and development of low-emission and low-energy-consumption tempering furnace structures will also be accelerated to meet the global dual-carbon development goals.

8.3 Specialized and Diversified Product Development

Aiming at the demand for specialized tempered glass in different industries, glass tempering furnaces will develop towards specialization and diversification. Specialized tempering furnaces for ultra-thin electronic glass, ultra-thick architectural glass, curved large-format glass, high-temperature resistant solar glass and other products will be launched successively, meeting the personalized and high-end processing needs of the market. At the same time, the integration of tempering furnaces with other glass processing technologies (such as coating, laminating, engraving) will be realized, forming a one-stop glass deep-processing production line and improving the added value of products.

8.4 Green and Environmental Protection Development

In response to global environmental protection requirements, future glass tempering furnaces will adopt more green and environmentally friendly materials and processes, reducing the emission of volatile organic compounds, dust and noise. The closed-loop recycling of cooling water and exhaust gas will be fully realized, minimizing the impact of equipment production on the environment. In addition, the recyclable design of tempering furnace equipment will be strengthened, extending the service life of equipment and reducing the generation of industrial waste.

8.5 Internationalization of Core Technology and Localization of High-End Components

With the development of the global glass industry, the core technology of glass tempering furnaces will tend to be internationalized, and the technical exchanges and cooperation between countries will be more frequent. For domestic equipment manufacturers, accelerating the localization research and development of high-end core components (such as precision convection fans, high-performance temperature sensors, intelligent control systems) will break the foreign technology monopoly, reduce the production cost of high-end tempering furnaces, and improve the international competitiveness of domestic glass tempering furnace equipment.

9. Conclusion

Glass tempering furnace, as the core equipment of the glass deep-processing industry, has a pivotal position in promoting the development of the global glass industry and meeting the demand for high-performance safety glass in various fields. Through the analysis of its working principle, structural composition, classification, process flow, application fields and development trends, it can be seen that the glass tempering furnace industry is in a period of rapid technological innovation and structural optimization. With the continuous progress of materials science, mechanical engineering, automation control and other disciplines, and the continuous growth of market demand for high-end tempered glass, glass tempering furnaces will develop towards intelligence, high efficiency, energy saving, specialization and green environmental protection.

In the future, glass tempering furnace manufacturers need to increase R&D investment, break through key technical bottlenecks, optimize product performance, and meet the diversified and high-end needs of the market. At the same time, industry practitioners should strengthen technological exchanges and cooperation, promote the upgrading and transformation of the glass deep-processing industry, and make greater contributions to the development of construction, automotive, new energy, electronic information and other industries. With the continuous improvement of technology and the expansion of application fields, glass tempering furnaces will continue to play an important role in the global industrial system and promote the sustainable development of the safety glass industry.
