I. Introduction



Mechanized production of insulating glass significantly improves production efficiency and product quality. This plan details the process of manufacturing insulating glass using automated machinery.



II. Production Process



A. Glass Feeding and Cutting



- Automated Loading: High - speed robotic arms are used to load large sheets of float glass from storage racks onto the glass cutting line. These arms are programmed to handle the glass gently to avoid scratches or breakages.

- Precision Cutting: Computer - controlled glass cutting machines measure and cut the glass according to pre - set dimensions. The cutting blades are automatically adjusted for different glass thicknesses, ensuring a precise cut with an accuracy of ± 0.5mm.



B. Edge Processing



- Grinding and Polishing: The cut glass edges are fed into an automated edge - processing machine. This machine uses rotating abrasive wheels to grind the edges smoothly and then polishes them to enhance the glass's appearance and adhesion for sealants.

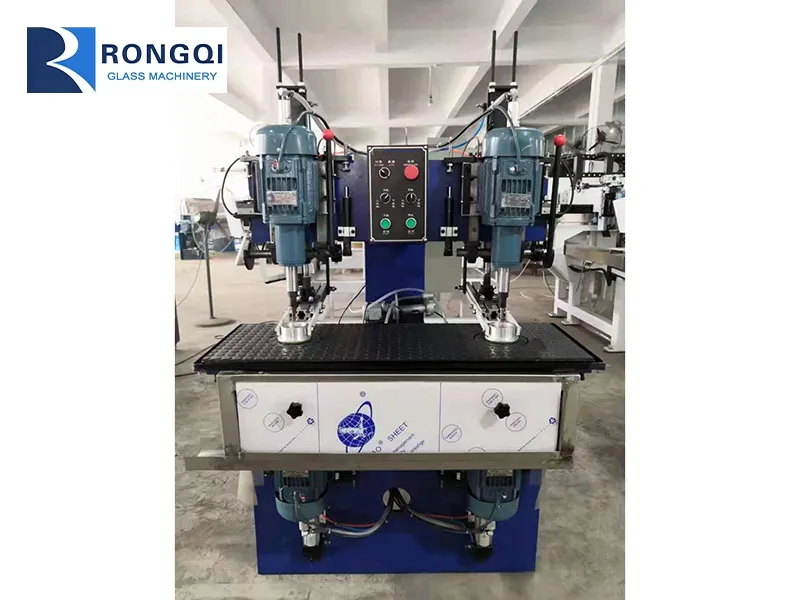

- Drilling (if required): For customized insulating glass with holes, a numerically - controlled drilling machine is integrated into the production line. It accurately drills holes based on the input specifications, with a high - speed spindle ensuring clean and precise holes.



C. Washing and Drying



- The Glass will be washed with the glass washing machine.The machine is with 6 soft brushes for cleaning and knieves for drying.It is ok for Low-E glass and the glass thickness can be adjusted automatically.



D. Spacer and Desiccant Handling



- Spacer Bending and Assembly: An automatic spacer bending machine forms aluminum or stainless - steel spacers into the required shapes. The machine can handle different spacer profiles and lengths. Desiccant is automatically filled into the spacers through a precise dosing system to absorb moisture in the air gap.

- Spacer Placement: Robotic arms pick up the bent spacers and accurately position them between the cleaned glass sheets on a conveyor - based assembly platform.



E. Gas Filling (Optional)



- Inert Gas Injection: For insulating glass that requires enhanced thermal performance, an automated gas - filling machine is used. It injects inert gases like argon or krypton into the air gap between the glass panes. The gas flow rate and pressure are precisely controlled to achieve the desired gas concentration.



F. Sealing



- Primary Seal Application: A robotic sealant dispensing arm applies the primary sealant, typically polysulfide, along the inner edge of the spacer. The arm moves at a constant speed and pressure, ensuring an even and consistent sealant layer.

- Secondary Seal Application: After the primary seal has cured to a certain extent, another robotic arm applies the secondary sealant, such as silicone, on the outside of the primary seal. This provides additional protection and strength to the insulating glass unit.



III. Quality Assurance



- In - line Inspection: Throughout the production process, multiple in - line inspection stations are installed. These use sensors and cameras to detect defects such as uneven sealant application, air bubbles, and misaligned components. Defective products are automatically flagged and removed from the production line.

- Final Testing: Before packaging, each insulating glass unit undergoes a final set of tests, including a leak test for gas - filled units and a dimensional accuracy check. Only products that meet the strict quality standards are approved for shipment.



IV. Conclusion



This mechanized production process for insulating glass, with its combination of automated machinery and strict quality control measures, ensures the efficient production of high - quality insulating glass products, meeting the demands of the construction and related industries.

The production process of EVA laminated glass is similar to that of ordinary laminated glass, but there are differences in film selection and some processes. The main process is as follows:



Original glass preparation



-Film selection: Select high-quality glass raw materials with high flatness and no obvious defects, and determine the type of glass according to actual needs, such as float glass, ultra white glass, etc.

-Cutting: Use a glass cutting machine to cut the original glass into the required size and shape, with cutting accuracy controlled within a small range to ensure the accuracy of subsequent processing.



Glass cleaning and drying



-Cleaning: Place the cut glass into a glass cleaning machine and use methods such as spraying and brushing to remove dust, oil, and other impurities from the glass surface using clean water and specialized cleaning agents, ensuring the cleanliness of the glass surface.

-Drying: After cleaning, the glass is dried by hot air or natural drying to completely dry the surface of the glass and avoid moisture residue affecting the bonding between the EVA film and the glass.



EVA film preparation



-Film selection: Based on the usage requirements and performance characteristics of laminated glass, select EVA (ethylene vinyl acetate copolymer) film with appropriate thickness and performance. EVA film should have good transparency, adhesion, and weather resistance.

-Film cutting: Use cutting equipment to cut EVA film into a shape that matches the size of the glass. When cutting, pay attention to ensuring that the edges of the film are neat, without burrs or damage.



Lamination



-On a clean workbench, place a piece of glass first, lay the cut EVA film flat on the glass, ensure that the film is aligned with the edge of the glass, and then cover another piece of glass on the EVA film to form a sandwich structure. During the lamination process, it is important to avoid the formation of bubbles and wrinkles between the film and glass as much as possible.





High temperature curing



-Place the sealed laminated glass into the laminated glass equipment and crosslink the EVA film at a high temperature to achieve complete curing, thereby firmly bonding the two pieces of glass. The curing temperature is generally around 130-150 ℃, and the curing time depends on the thickness of the glass and film, usually ranging from tens of minutes to several hours.



Cooling and testing



-Cooling: The cured laminated glass is taken out of the curing equipment and naturally cooled to room temperature. During the cooling process, it is necessary to avoid external impact or rapid temperature changes on the glass to avoid affecting product quality.

-Testing: Conduct a comprehensive inspection of the cooled EVA laminated glass, including visual inspection, to check for defects such as bubbles, impurities, and delamination; Measure the dimensions to ensure that the glass meets the standard requirements; Performance testing to check whether the indicators such as light transmittance, impact resistance, and bonding strength meet the specified standards.



Packaging and Storage



-Packaging: Qualified EVA laminated glass is packaged with protective film, cardboard boxes, or wooden crates to protect the glass from damage during transportation and storage.

-Storage: Store the packaged laminated glass in the warehouse, classify it according to specifications and batches, take measures to prevent moisture and dust, and wait for shipment.

Glass Edging and Polishing Machines: Technological Evolution, Industrial Applications, and Future Trajectories

1. Introduction

Glass edging and polishing machines stand as indispensable pillars of modern glass manufacturing and processing industries, serving as the critical link between raw glass sheets and finished products that meet stringent safety, aesthetic, and functional standards. These specialized pieces of equipment transform the sharp, irregular edges of cut glass—marred by microcracks and structural inconsistencies—into smooth, precise, and visually refined surfaces through a series of controlled grinding, polishing, and finishing operations. As global demand for high-quality glass products surges across architectural, automotive, electronic, and renewable energy sectors, the role of glass edging and polishing machines has evolved from mere finishing tools to integral components of automated production lines, driving efficiency, precision, and innovation in the industry. This article provides a comprehensive analysis of the technological principles, product classifications, industrial applications, market dynamics, and future trends shaping the development of glass edging and polishing machines.

2. Core Technological Principles and Operational Mechanisms

2.1 Fundamental Processing Principles

At its essence, the operation of glass edging and polishing machines revolves around two primary objectives: eliminating structural vulnerabilities in glass edges and enhancing their surface quality. The processing workflow typically unfolds in three sequential stages—rough grinding, fine grinding, and polishing—each tailored to address specific defects and achieve desired outcomes.

Rough grinding constitutes the initial phase, where diamond-impregnated grinding wheels with coarse grit sizes (e.g., 80-mesh diamond wheels) remove excess material, sharp burrs, and microcracks generated during glass cutting. This stage primarily relies on brittle fracture mechanics, as the sharp edges of diamond particles initiate and propagate cracks in the glass matrix, resulting in the formation of debris that is efficiently cleared by cooling systems. The key technical challenge here is balancing material removal rate with structural integrity, as excessive grinding force can induce new cracks or edge chipping.

Fine grinding follows, employing medium-grit abrasive tools (e.g., 140–240-mesh resin-bonded wheels) to refine the edge profile, reduce surface roughness, and correct dimensional deviations. Unlike rough grinding, this stage involves a combination of brittle fracture and ductile deformation, with the grinding temperature rising to 500–800°C in the contact zone. This temperature elevation softens the glass surface, enabling a more uniform material removal process and minimizing the formation of new defects.

Polishing, the final stage, achieves the desired surface finish and luster using ultra-fine abrasives or polishing media (e.g., wool polishing wheels, cerium oxide slurries). The objective here is to eliminate residual scratches from previous grinding stages and achieve a surface roughness (Ra) of less than 0.2μm, often matching the optical clarity of the glass substrate itself. Modern polishing processes may incorporate chemical-mechanical polishing (CMP) techniques, where the synergistic action of chemical etching and mechanical abrasion yields superior surface quality while reducing processing time.

A critical aspect of all three stages is thermal management. Grinding and polishing generate significant heat—with localized temperatures at the abrasive-tool interface reaching up to 1000°C—which can cause glass edge burn, thermal cracking, or structural weakening. To mitigate these risks, glass edging and polishing machines are equipped with high-pressure water cooling systems that circulate coolant across the grinding zone, dissipating heat, flushing away debris, and lubricating the abrasive-tool interface. Advanced systems may also integrate temperature sensors and adaptive cooling controls to maintain optimal processing temperatures in real time.

2.2 Key Technical Components and Their Functions

Modern glass edging and polishing machines are sophisticated assemblies of mechanical, electrical, and control systems, each component contributing to precision, efficiency, and reliability.

The grinding head assembly serves as the core functional unit, comprising multiple grinding and polishing spindles arranged in a sequential configuration. For example, the TJM9 series linear multi-stage edging machine features nine spindles—including five stage-edge grinding heads, two front chamfering heads, and two rear chamfering heads—each dedicated to a specific processing task. These spindles are equipped with high-power motors (ranging from 1.5kW to 2.2kW) operating at variable speeds (1400–2840rpm), enabling precise control over material removal rates. The grinding heads are typically mounted on servo-driven linear guides, allowing for automated adjustments of edge angles (0°–60° for stage edges, 45° for chamfers), edge widths (up to 30mm), and residual thickness, ensuring versatility across different glass processing requirements.

The glass conveying system is responsible for transporting glass sheets through the processing zone with minimal friction and positional deviation. Advanced systems utilize reinforced synchronous belts to address the challenge of slipping when handling heavy glass panels, supporting loads of up to 200kg while maintaining stable conveying speeds (1.2–6.2m/min). The conveying path is often equipped with adjustable guide rails and vacuum suction cups to secure the glass and prevent lateral movement during processing, ensuring dimensional accuracy.

The control system has evolved significantly with the integration of digital and intelligent technologies. Modern machines feature CNC (Computer Numerical Control) systems with user-friendly HMI (Human-Machine Interface) panels, enabling operators to program and store processing parameters for different glass types, thicknesses (4–25mm for standard machines, 0.5–3mm for ultra-thin glass applications), and edge profiles. High-end models incorporate vision positioning systems and laser measurement sensors that perform real-time edge detection and dimensional verification, with feedback loops that automatically adjust processing parameters to compensate for deviations. Some advanced systems also leverage AI algorithms to optimize grinding parameters based on historical data, reducing processing time by up to 40% and lowering material waste rates to below 0.8%.

Auxiliary components include waterproof and debris management systems—such as double-layer brush waterproof structures and quick-change brush holders—to prevent coolant leakage and facilitate maintenance. The machine frame is constructed from high-strength steel to minimize vibration during high-speed operation, ensuring structural stability and processing precision. For large-scale production lines, automated loading and unloading systems (e.g., robotic arms, conveyor integration) may be incorporated to streamline workflow and reduce labor requirements.

3. Classification of Glass Edging and Polishing Machines

Glass edging and polishing machines are classified along multiple dimensions based on processing capabilities, automation levels, and application scenarios, reflecting the diverse needs of the glass processing industry.

3.1 Classification by Processing Form



Linear Edging Machines: Designed for processing straight edges of flat glass sheets, these machines are widely used in architectural glass, furniture glass, and solar panel manufacturing. Linear machines can be further categorized into single-edge, double-edge, and multi-stage models. Double-edge machines process both longitudinal edges simultaneously, improving efficiency for high-volume production, while multi-stage models (e.g., the TJM9 series) integrate rough grinding, fine grinding, chamfering, and polishing in a single pass, enabling continuous processing of same-thickness glass sheets. Linear machines are characterized by their high processing speed and dimensional accuracy, making them ideal for large-scale production of standard glass products.



Inner/Outer Circle Edging Machines: Specialized for processing curved edges of circular, oval, or irregularly shaped glass, these machines are used in applications such as automotive glass (windshields, side windows), decorative glass, and optical components. Inner circle machines focus on grinding the inner diameter of hollow glass parts, while outer circle machines process the outer perimeter. Advanced models can handle complex curved profiles with high precision, leveraging CNC control to follow programmed paths with tolerances of ±0.03mm. The market for inner/outer circle machines is growing rapidly, driven by demand from the automotive and renewable energy sectors, with a projected compound annual growth rate (CAGR) of 17% for combined models.



Special-Shaped Edging Machines: Engineered to process non-linear, complex edge profiles (e.g., bevels, arcs, notches), these machines are used in high-end architectural glass, decorative glassware, and electronic device screens. They combine the capabilities of linear and circular edging machines, with multi-axis servo systems that enable precise control over edge geometry. Special-shaped machines often incorporate 3D scanning and modeling capabilities to process custom-designed profiles, catering to the growing demand for personalized glass products.




3.2 Classification by Automation Level



Manual/ Semi-Automatic Machines: These machines require significant operator intervention for glass loading, positioning, and parameter adjustment. Manual machines are typically small bench-top units suitable for small-scale workshops, custom projects, or low-volume production. Semi-automatic machines automate certain functions (e.g., conveying, grinding head adjustment) but still require operator oversight for quality control. While these machines have lower upfront costs, they are limited by lower processing speeds and higher labor requirements, making them less suitable for large-scale production. Semi-automatic machines maintain a 33% share of the 存量 market, primarily among small and medium-sized glass processing enterprises.



Fully Automatic Machines: These machines integrate automated loading, processing, inspection, and unloading, enabling continuous, high-volume production with minimal human intervention. Fully automatic machines are equipped with advanced control systems, vision sensors, and robotic integration, ensuring consistent processing quality and high efficiency. They are widely used in large glass manufacturing facilities serving the architectural, automotive, and electronic industries. The market share of fully automatic machines has exceeded 61%, with growth driven by the need for scalability and cost reduction in mass production. High-end fully automatic models may feature six-axis robotic arms for handling complex glass shapes and sizes, with a 稼动率 (equipment utilization rate) of up to 92%.



Intelligent/Connected Machines: Representing the cutting edge of technological advancement, these machines incorporate IoT (Internet of Things) connectivity, cloud computing, and AI-driven optimization. They can be remotely monitored and controlled, with predictive maintenance systems that detect potential component failures before they occur, reducing downtime by up to 30%. Intelligent machines also enable data collection and analysis, providing insights into processing efficiency, material usage, and quality trends. Some models feature digital twin technology, creating virtual replicas of the machine and processing process to simulate and optimize performance before physical implementation. The adoption of intelligent machines is accelerating, with 45% of new installations featuring IoT modules and 31% of high-end models utilizing linear motor drives for enhanced positioning precision.




3.3 Classification by Processing Thickness



Ultra-Thin Glass Edging Machines: Specialized for processing glass sheets with thicknesses of 0.5–3mm, these machines are used in electronic applications such as smartphone screens, tablet displays, and Mini LED backlight panels. Ultra-thin glass is highly fragile, requiring precise control over grinding forces and conveying pressure to avoid breakage. These machines feature low-torque spindles, soft-touch conveying systems, and high-precision vision alignment, ensuring edge quality without compromising structural integrity. The market for ultra-thin glass edging machines is growing rapidly, with a 29% year-on-year increase in shipments in 2023, driven by the expansion of the consumer electronics industry.



Medium-Thickness Glass Edging Machines: Designed for glass sheets of 5–12mm thickness, these are the most widely used machines, catering to architectural glass (windows, partitions), furniture glass, and general-purpose applications. They balance processing speed and precision, with standard models offering edge angle adjustments and multi-stage grinding/polishing capabilities. The market for medium-thickness machines is stable, with annual shipments of approximately 4200 units, supported by consistent demand from the construction and furniture industries.



Thick Glass Edging Machines: Specialized for glass sheets of 15–25mm (or thicker) used in applications such as glass doors, curtain walls, and bulletproof glass. These machines require high-power grinding heads and reinforced conveying systems to handle the increased weight and material resistance. They often feature multi-pass grinding sequences to ensure complete removal of microcracks and achieve the required edge strength. The demand for thick glass edging machines is closely tied to the construction of high-rise buildings and luxury properties, with significant growth in regions such as the Middle East and Southeast Asia.




4. Industrial Applications and Market Impact

Glass edging and polishing machines play a pivotal role in multiple industries, enabling the production of safe, durable, and aesthetically pleasing glass products. Their applications span architectural, automotive, electronic, renewable energy, and decorative sectors, each with unique processing requirements that drive innovation in machine design.

4.1 Architectural Glass Industry

The architectural glass sector represents the largest application market for edging and polishing machines, accounting for approximately 56.7% of total demand. Architectural glass—used in windows, curtain walls, interior partitions, and glass facades—requires edges that are both safe (free of sharpness) and visually consistent. In regions with strict building codes (e.g., North America, Europe), polished edges are a mandatory requirement to minimize injury risks during installation and use. High-end skyscrapers and luxury buildings often specify beveled or polished edges to enhance the aesthetic appeal of glass facades.

Linear multi-stage edging machines are the workhorses of architectural glass production, capable of processing large glass sheets (up to 3200×2200mm for solar-integrated facades) with high throughput. The integration of automated systems has significantly reduced labor costs and turnaround times, with some production lines achieving continuous processing of up to 6.2m/min. The growth of green building initiatives and building-integrated photovoltaics (BIPV) has spurred demand for specialized edging machines capable of processing curved and textured glass used in energy-efficient facades. It is projected that by 2030, the BIPV segment will drive a 15.8% share of the glass edging machine market, with a corresponding market size of 19 billion yuan.

4.2 Automotive Glass Industry

The automotive glass industry demands the highest levels of precision and durability, as glass components (windshields, side windows, rear windows, sunroofs) must withstand mechanical stress, temperature fluctuations, and impact. Edging and polishing machines used in this sector are specialized to process complex curved profiles and ensure tight dimensional tolerances (±0.03mm) to fit seamlessly with vehicle frames.

Automotive glass edging involves multiple steps, including rough grinding to remove cutting defects, fine grinding to refine the edge profile, and polishing to enhance durability. Chamfering is a critical process, as it eliminates sharp edges that could propagate cracks under impact. The rise of electric vehicles (EVs) and autonomous driving technologies has further driven innovation, with demand for large-format curved glass (e.g., panoramic sunroofs, integrated display screens) requiring multi-axis edging machines with 3D processing capabilities. Additionally, the use of lightweight, high-strength glass (e.g., lithium-aluminum-silicon glass) in EVs has necessitated the development of adaptive grinding systems that adjust parameters based on material properties. The automotive glass segment is expected to account for 18% of the glass edging machine market by 2030, with a CAGR of 8.9% driven by global EV adoption.

4.3 Electronic Glass Industry

The electronic glass industry—encompassing smartphone screens, tablet displays, laptop panels, and TV screens—relies on ultra-precise edging and polishing machines to process ultra-thin glass (0.5–3mm) with minimal material loss. Electronic glass edges must be smooth and free of microcracks to prevent breakage during device assembly and use, while also meeting strict flatness requirements to ensure optimal display performance.

Specialized ultra-thin glass edging machines are equipped with soft-touch conveying systems, low-force grinding heads, and high-resolution vision sensors to achieve surface roughness (Ra) below 0.2μm. The growth of 8K ultra-high-definition displays, Mini LED, and Micro LED technologies has increased demand for machines capable of processing large-format glass substrates (e.g., 8th-generation glass sheets) with ultra-fine edge profiles. Domestic manufacturers in China have made significant strides in this segment, with their market share in 8K display glass processing equipment rising from 28% in 2020 to 47% in 2023, driven by advancements in six-axis 联动 control systems. The electronic glass segment is projected to become the second-largest application market by 2030, accounting for 32% of total demand.

4.4 Renewable Energy (Solar Glass) Industry

The solar energy industry has emerged as a key growth driver for glass edging and polishing machines, with solar panels requiring high-transmittance glass covers with durable, weather-resistant edges. Solar glass edging primarily involves grinding to remove sharp corners and microcracks, improving structural integrity and longevity in outdoor environments. Most solar glass applications require rounded edges, which are typically processed using double-sided circular edging production lines that integrate rough grinding, fine grinding, and safety chamfering in a single pass.

The rapid expansion of solar energy capacity globally—particularly in regions such as Southeast Asia, the Middle East, and Latin America—has fueled demand for high-throughput solar glass edging machines. These machines are designed to process large glass sheets (up to 3200×2200mm) used in utility-scale solar farms, with processing speeds optimized to meet the high-volume production requirements of solar panel manufacturers. In 2023, shipments of solar-specific edging machines increased by 65% year-on-year, reflecting the strong growth of the solar energy industry. With the global push for carbon neutrality, this segment is expected to maintain robust growth, supported by policy incentives and declining solar panel costs.

5. Market Dynamics and Competitive Landscape

5.1 Global and Regional Market Overview

The global glass edging and polishing machine market has experienced steady growth in recent years, driven by urbanization, industrialization, and technological advancements. According to industry reports, the Chinese market—one of the largest globally—reached a size of 38.6 billion yuan in 2022 and is projected to exceed 52 billion yuan by 2025, representing a CAGR of 10.3%. The global market is expected to reach a value of 120 billion yuan by 2030, with a CAGR of 8.5–9.2% during the forecast period.

Regionally, the market is characterized by significant concentration in East Asia (China, Japan, South Korea), Europe (Germany, Italy, Spain), and North America (the United States, Canada). China dominates global production, accounting for over 58% of the world’s glass edging machine output, with domestic manufacturers such as North Glass and Luoyang North Glass leading the way. The Chinese market is further segmented by regional industrial clusters, with the Yangtze River Delta and Pearl River Delta regions contributing 72% of national 产能，supported by robust demand from the construction and electronics industries. The central and western regions of China are emerging as growth hubs, with 产能 expanding at a rate of 15.6% due to government subsidies for new energy industrial parks.

Overseas markets are also growing, with Chinese exports of glass edging machines exceeding 4.3 billion US dollars in 2022, a year-on-year increase of 21.7%. Southeast Asia is the largest export destination, accounting for 39% of total exports, followed by the Middle East (with demand surging by 62% due to smart city initiatives) and Europe. However, international trade faces challenges from evolving regulatory barriers, such as the EU’s CE certification 新规 that tightened noise standards from 85dB (A) to 78dB (A), forcing manufacturers to invest in acoustic simulation and noise reduction technologies.

5.2 Competitive Landscape and Key Players

The global glass edging and polishing machine market is highly competitive, with a mix of established international brands and rapidly growing domestic manufacturers. The competitive landscape is characterized by two distinct trends: 进口替代 in the high-end segment and price competition in the mid-range segment.

International brands such as Germany’s Bystronic and Austria’s Lisec have long dominated the high-end market, known for their precision, reliability, and advanced technology. These companies have traditionally held a strong position in industries such as automotive and high-end architectural glass, leveraging their expertise in CNC control and automation. However, in recent years, domestic manufacturers in China have made significant strides in technological innovation, narrowing the gap with international brands. For example, North Glass and Luoyang North Glass have developed six-axis 联动 control systems that achieve processing precision of ±0.03mm, enabling them to replace imported equipment in some high-end applications. As a result, the market share of domestic equipment in China has risen to 58%, with further growth expected in the coming years.

To counter the rise of domestic competitors, international brands have adopted localization strategies, such as establishing production facilities in China and adjusting their pricing. For instance, Lisec reduced the price of its mid-range models by 18% to penetrate second- and third-tier cities in China. In the mid-range market, domestic manufacturers face intense price competition, with product prices ranging from 280,000 to 450,000 yuan per unit, leading to a compression of average profit margins to 12.8%. To differentiate themselves, some domestic manufacturers are focusing on niche markets, such as ultra-thin glass edging or special-shaped glass processing, where they can leverage their agility and cost advantages.

The competitive landscape is also shaped by technological innovation and R&D investment. Key players are focusing on developing intelligent, energy-efficient machines to meet the growing demand for sustainable manufacturing. For example, the adoption of fifth-generation servo drive systems has reduced energy consumption by 25%, with single-unit annual power consumption dropping from 35,000 kWh to 26,000 kWh. Manufacturers are also investing in green technologies, such as dry grinding systems that eliminate the need for cooling water and reduce environmental impact. The market share of dry grinding machines is expected to reach 39% by 2025, up from 22% in 2022.

6. Technological Advancements and Innovation Trends

The glass edging and polishing machine industry is undergoing a period of rapid technological transformation, driven by advancements in automation, digitization, materials science, and sustainability. These innovations are reshaping the capabilities of machines, enabling higher precision, efficiency, and versatility while reducing environmental impact.

6.1 Intelligent and Automated Technologies

Intelligence and automation are the most significant trends in the industry, with machines becoming increasingly integrated with digital technologies. The adoption of IoT (Internet of Things) modules has enabled remote monitoring and management of machines, with 58% of new installations featuring cloud connectivity. This allows operators to track processing parameters, monitor machine health, and receive real-time alerts for maintenance or troubleshooting, reducing downtime by up to 30%. Remote diagnostic systems have also become common, enabling technical support teams to resolve issues without on-site visits, improving service efficiency.

AI and machine learning are being applied to optimize processing parameters and improve quality control. AI algorithms analyze historical processing data to identify optimal grinding speeds, pressures, and abrasive tool selections for different glass types and thicknesses, reducing processing time by 40% and material waste to below 0.8%. Vision-based quality inspection systems—equipped with high-resolution cameras and image recognition software—perform 100% inspection of finished edges, detecting defects such as microcracks, scratches, and dimensional deviations with accuracy rates exceeding 99%. These systems can automatically reject defective products or trigger adjustments to processing parameters, ensuring consistent quality.

The integration of robotics is another key advancement, particularly in high-volume production lines. Six-axis robotic arms are used for automated loading and unloading of glass sheets, reducing labor requirements and minimizing the risk of damage during handling. Some advanced systems feature collaborative robots (cobots) that work alongside human operators, performing repetitive tasks such as tool changing or quality inspection. The use of robotics has also enabled the processing of complex-shaped glass products that were previously difficult to handle manually.

6.2 Precision and Multi-Functionalization

The demand for higher precision in glass processing has driven advancements in machine design and component technology. Linear motor drives have replaced traditional ball screw systems in high-end machines, improving positioning accuracy by 0.8 orders of magnitude and enabling processing tolerances of ±0.01mm. This level of precision is critical for applications such as electronic glass and automotive display screens, where even minor dimensional deviations can affect performance.

Multi-functionalization is another key trend, with machines designed to perform multiple processing tasks in a single pass. For example, modern linear multi-stage edging machines integrate rough grinding, fine grinding, chamfering, and polishing, eliminating the need for multiple machines and reducing production time. Some advanced models can also process multiple edge profiles (e.g., straight edges, bevels, arcs) without retooling, enhancing versatility and reducing setup time. The development of hybrid machines that combine edging, polishing, and drilling capabilities is also emerging, catering to the needs of specialized applications such as architectural glass with integrated hardware.

6.3 Sustainable and Energy-Efficient Technologies

Sustainability has become a key focus in the industry, driven by global efforts to reduce carbon emissions and comply with environmental regulations. The Chinese government’s “Dual Carbon” policy and the EU’s Green Deal have set strict targets for energy efficiency and emissions reduction, pushing manufacturers to develop more sustainable machines.

Energy efficiency has been improved through the use of high-efficiency motors, variable frequency drives (VFDs), and optimized hydraulic and pneumatic systems. Fifth-generation servo motors reduce energy consumption by 25% compared to previous models, while VFDs adjust motor speeds based on processing requirements, avoiding unnecessary energy use. Some machines also feature regenerative braking systems that capture and reuse energy during deceleration, further reducing power consumption.

The development of dry grinding technology is a significant advancement in sustainability. Traditional wet grinding systems use large amounts of water (up to 100 liters per minute) for cooling and debris removal, generating wastewater that requires treatment. Dry grinding systems—equipped with dust collection and filtration systems—eliminate the need for water, reducing environmental impact and operational costs. These systems use advanced abrasive tools that generate less heat, minimizing the risk of glass damage, and are increasingly being adopted in regions with water scarcity or strict wastewater regulations. The market share of dry grinding machines is expected to grow from 22% in 2022 to 39% in 2025.

Waste reduction is another focus area, with machines designed to minimize material loss during processing. Precision cutting and grinding technologies reduce glass waste rates to below 0.8%, while abrasive tool recycling programs are being implemented to reduce landfill waste. Some manufacturers also offer equipment remanufacturing services, extending the lifecycle of machines and reducing the environmental impact of new production.

7. Challenges and Future Outlook

7.1 Current Industry Challenges

Despite significant advancements, the glass edging and polishing machine industry faces several challenges that could impact growth and innovation.

Technological barriers remain a key challenge, particularly in the high-end segment. Developing machines with ultra-precision (±0.01mm) and multi-functional capabilities requires advanced materials, precision manufacturing, and sophisticated control systems, which are difficult to master. Core components such as high-precision spindles, linear guides, and servo motors are still dominated by international suppliers, leading to dependence on imports and higher costs for domestic manufacturers. Closing the technological gap with international brands will require sustained R&D investment and collaboration between industry, academia, and research institutions.

Regulatory and trade barriers are also becoming more complex. As countries implement stricter environmental, safety, and quality standards, manufacturers must invest in compliance, which can increase production costs. For example, the EU’s new CE certification requirements for noise and emissions have forced manufacturers to redesign machines and conduct additional testing. International trade tensions and tariffs also pose risks, particularly for exporters, as they can increase costs and limit market access.

Talent shortages are a growing concern, with the industry facing a lack of skilled operators, engineers, and technicians. The integration of digital and intelligent technologies requires workers with expertise in CNC programming, IoT, AI, and robotics, which are in short supply. This skills gap can limit the adoption of advanced machines and affect operational efficiency. Addressing this challenge will require investment in vocational training programs and collaboration with educational institutions to develop specialized curricula.

7.2 Future Outlook and Development Trends

Despite these challenges, the future of the glass edging and polishing machine industry is promising, with several key trends expected to drive growth and innovation in the coming years.

Continued 智能化 and digitization will be the primary driver of growth, with machines becoming increasingly connected, autonomous, and data-driven. By 2028, it is projected that 90% of new machines will feature AI-driven process optimization, and 75% will be equipped with predictive maintenance systems. The integration of digital twin technology will enable manufacturers to simulate and optimize production processes before physical implementation, reducing time-to-market and improving product quality. The use of 5G technology will further enhance connectivity, enabling real-time data transmission and remote control with minimal latency.

Expansion of application areas will open new growth opportunities. The rise of emerging technologies such as 3D printing of glass, smart glass (e.g., electrochromic glass, self-cleaning glass), and quantum dot displays will create demand for specialized edging and polishing machines. For example, smart glass requires precise edge processing to integrate electronic components, while 3D-printed glass parts need complex curved edge finishing. The automotive industry’s shift toward electric and autonomous vehicles will drive demand for large-format curved glass and integrated display screens, requiring multi-axis edging machines with advanced 3D processing capabilities.

Sustainability will become a competitive advantage, with manufacturers focusing on developing energy-efficient, low-emission, and circular machines. The adoption of renewable energy sources (e.g., solar panels) to power machines, the use of biodegradable lubricants, and the implementation of closed-loop water systems will become more common. Governments and customers are increasingly prioritizing sustainable products, creating market opportunities for manufacturers that can demonstrate environmental leadership.

Global market expansion will continue, with emerging economies in Southeast Asia, Africa, and Latin America becoming key growth markets. Urbanization, industrialization, and the expansion of the construction and automotive industries in these regions will drive demand for glass edging and polishing machines. Domestic manufacturers in China and other major producers will continue to expand their global footprint through exports, joint ventures, and local production facilities, leveraging their cost advantages and technological capabilities.

8. Conclusion

Glass edging and polishing machines are essential components of the modern glass manufacturing ecosystem, enabling the production of safe, precise, and aesthetically pleasing glass products for a wide range of industries. From architectural facades to electronic displays, automotive windshields to solar panels, these machines play a critical role in shaping the functionality and appearance of glass, driving innovation and growth across sectors.

The industry has undergone significant transformation in recent years, with technological advancements in automation, digitization, and sustainability reshaping machine capabilities and market dynamics. Intelligent machines with AI-driven optimization, IoT connectivity, and robotic integration have improved precision, efficiency, and reliability, while sustainable technologies such as dry grinding and energy-efficient systems have reduced environmental impact. Domestic manufacturers have emerged as key players, challenging the dominance of international brands through technological innovation and cost competitiveness.

Looking ahead, the industry is poised for continued growth, driven by urbanization, industrialization, and the expansion of emerging technologies. The increasing demand for high-precision, multi-functional, and sustainable machines will drive R&D investment and innovation, while emerging markets will provide new growth opportunities. However, the industry must address challenges such as technological barriers, regulatory compliance, and talent shortages to realize its full potential.

In conclusion, glass edging and polishing machines will remain a critical enabler of the global glass industry, with their evolution closely tied to advancements in technology, changes in market demand, and global efforts toward sustainability. As the industry continues to innovate and adapt, these machines will play an increasingly important role in shaping the future of architecture, transportation, electronics, and renewable energy, contributing to a more efficient, sustainable, and connected world.





This article provides a holistic view of glass edging/polishing machines, integrating technical details, market data, and future trends. If you need to emphasize specific aspects—such as regional market analysis, technical comparisons of leading brands, or case studies of industrial applications—I can expand those sections with additional research. You may also request adjustments to the depth of technical content or focus on a particular industry segment (e.g., electronic glass processing) for more targeted insights.

Automatic Aluminium Spacer Bar Bending Machine: Technology, Application and Industrial Development

1. Introduction

In the modern architectural glass deep processing industry, insulating glass has become the core component of energy-saving buildings due to its excellent thermal insulation, sound insulation and anti-fogging performance. The aluminium spacer bar, as the key structural part of insulating glass, plays a vital role in maintaining the cavity thickness of insulating glass, sealing the molecular sieve desiccant and ensuring the structural stability of the glass unit. The traditional manual or semi-automatic bending process of aluminium spacer bars has the problems of low bending precision, poor consistency, low production efficiency, high labor intensity and difficulty in adapting to the production of complex-shaped spacer bars, which has become a bottleneck restricting the high-quality and large-scale development of the insulating glass industry.

Against this background, the Automatic Aluminium Spacer Bar Bending Machine, as an intelligent electromechanical integration equipment integrating mechanical transmission, servo control, numerical control system and sensing detection technology, has gradually replaced the traditional bending process and become the core equipment in the insulating glass production line. This paper systematically expounds the definition, structural composition, working principle, technical parameters, application scenarios, core advantages, market development status and future trends of the Automatic Aluminium Spacer Bar Bending Machine, aiming to provide a comprehensive reference for architectural glass processing enterprises, equipment R&D institutions and industry practitioners, and clarify the important value of this equipment in promoting the upgrading of the insulating glass industry.

2. Definition and Classification of Automatic Aluminium Spacer Bar Bending Machine

2.1 Core Definition

The Automatic Aluminium Spacer Bar Bending Machine is a special numerical control equipment specially designed for bending and forming aluminium spacer bars (including ordinary aluminium spacer bars, warm edge aluminium composite spacer bars, stainless steel spacer bars, etc.) used in insulating glass. It can automatically complete the processes of spacer bar feeding, length measurement, corner bending, angle forming, cutting and discharging according to the preset program and size parameters, without manual intervention in the whole process. Adopting high-precision servo drive and PLC numerical control system, it can realize the bending of aluminium spacer bars of different specifications, sizes and shapes (rectangle, square, special-shaped polygon, arc, etc.), with high bending precision, good forming consistency and high production efficiency, which is an indispensable key equipment in the automatic production line of insulating glass.

2.2 Main Classification

According to different structural forms, functional configurations and application scenarios, the Automatic Aluminium Spacer Bar Bending Machine can be divided into the following categories:

2.2.1 Classified by Bending Form


Right Angle Bending Machine: Mainly used for bending aluminium spacer bars into right-angle rectangular or square shapes, which is the most common type in the insulating glass industry. It is equipped with a fixed-angle bending mechanism, with high bending speed and high precision, suitable for the production of conventional rectangular insulating glass.
Multi-Angle Bending Machine: Adopting a servo-controlled rotating bending head, it can realize the bending of any angle (0°-180°), and can process special-shaped aluminium spacer bars such as trapezoid, rhombus and polygon, meeting the production needs of special-shaped insulating glass for high-end buildings.
Arc Bending Machine: Equipped with an arc forming mechanism, it can bend aluminium spacer bars into arc, circular or elliptical shapes, which is specially used for the production of curved insulating glass, such as curved glass for shopping malls, hotels and landmark buildings.
Composite Bending Machine: Integrating right-angle, multi-angle and arc bending functions, it is a multi-functional integrated equipment that can realize the one-stop processing of various shapes of aluminium spacer bars, with strong flexibility and high adaptability.


2.2.2 Classified by Automation Degree


Fully Automatic Bending Machine: Realizes unmanned operation in the whole process, including automatic feeding, automatic length measurement, automatic bending, automatic cutting, automatic discharging and automatic stacking. It is equipped with a touch human-machine interface and can store multiple processing programs, suitable for large-scale and standardized production of insulating glass enterprises.
Semi-Automatic Bending Machine: Needs manual assistance in partial links such as manual feeding and manual placement of spacer bars, while the core bending and forming links are automatically controlled. It has a small footprint and low cost, suitable for small and medium-sized insulating glass enterprises with small-batch and multi-variety production.


2.2.3 Classified by Processing Specification


Small-Size Bending Machine: Suitable for processing aluminium spacer bars with a width of 5.5-12mm and a minimum bending size of 100mm×100mm, mainly used for the production of small-sized insulating glass such as household doors and windows.
Large-Size Bending Machine: Suitable for processing aluminium spacer bars with a width of 12-27mm and a maximum bending size of 2500mm×3000mm, mainly used for the production of large-sized insulating glass for curtain walls, industrial buildings and public buildings.
Ultra-Wide Bending Machine: Specially designed for processing ultra-wide aluminium spacer bars (27-45mm), which is used for the production of high-performance insulating glass with large cavity thickness and high energy-saving requirements.


3. Structural Composition and Working Principle

3.1 Core Structural Composition

The Automatic Aluminium Spacer Bar Bending Machine is a complex system integrating multiple functional modules, and its structural design directly determines the equipment's bending precision, stability and production efficiency. The main structural modules are as follows:

3.1.1 Numerical Control System Module

As the "control core" of the equipment, it mainly includes PLC controller (Siemens, Omron and other international brands are commonly used), touch human-machine interface (HMI), motion control card and servo driver. The PLC system is responsible for receiving the size parameters input by the operator, calculating the bending path and angle, and issuing execution instructions to each drive mechanism; the touch screen provides a human-computer interaction platform, which can set processing parameters, store processing programs, monitor the operating status of the equipment in real time, and query fault information. The servo driver realizes the precise control of the bending head, feeding mechanism and cutting mechanism, ensuring the positioning accuracy of each action.

3.1.2 Feeding and Conveying Module

Including feeding rack, conveying roller, clamping mechanism and length measuring sensor. The feeding rack is used to store the coiled or straight aluminium spacer bars, and the conveying roller (driven by servo motor) transports the spacer bars to the bending station at a constant speed; the clamping mechanism fixes the spacer bars during the bending process to prevent displacement; the length measuring sensor (laser or encoder type) measures the length of the spacer bars in real time, with a measurement accuracy of ±0.1mm, ensuring the consistency of the processing length.

3.1.3 Bending and Forming Module

This is the core module of the equipment, including bending head, bending die, servo rotating mechanism and angle encoder. The bending head is driven by a high-power servo motor, and the bending die is made of high-strength alloy steel with wear-resistant and anti-deformation treatment, which can be quickly replaced according to the width of the spacer bar; the servo rotating mechanism realizes the precise rotation of the bending head, and the angle encoder feeds back the bending angle in real time, with an angle control accuracy of ±0.1°, ensuring the accuracy of the bending angle. For arc bending machines, this module is also equipped with an arc forming wheel set, which can adjust the arc radius steplessly.

3.1.4 Cutting and Discharging Module

Including pneumatic cutting knife, cutting die and discharging conveyor belt. After the bending and forming of the aluminium spacer bar is completed, the pneumatic cutting knife cuts the spacer bar according to the set length, with a cutting edge flat and no burrs; the discharging conveyor belt transports the formed spacer bar to the designated area, and some high-end models are equipped with an automatic stacking mechanism to realize automatic sorting and stacking of finished products.

3.1.5 Frame and Protective Module

The frame is made of high-strength cast iron or thick-walled steel plate, with good rigidity and shock resistance, which can avoid deformation during high-speed bending and ensure the stability of the equipment; the protective module includes safety grating, emergency stop button, protective cover and safety door, which meets the industrial safety standards, prevents operators from contacting the moving parts, and ensures the safety of operation.

3.2 Working Principle

The Automatic Aluminium Spacer Bar Bending Machine takes the PLC numerical control system as the core, and realizes the coordinated operation of each module through servo drive and sensing detection technology, and completes the whole process of aluminium spacer bar bending and forming according to the preset program. The specific working process is as follows:

First, the operator inputs the processing parameters (spacer bar width, bending size, bending angle, quantity, etc.) through the touch screen, and the system automatically generates the processing program. Then, the feeding mechanism transports the aluminium spacer bar from the feeding rack to the bending station, and the length measuring sensor measures the length of the spacer bar in real time and feeds back the data to the PLC system. When the spacer bar reaches the set length, the clamping mechanism fixes the spacer bar, and the servo motor drives the bending head to rotate to the set angle, and the bending die presses the spacer bar to complete the corner bending. For multi-angle or arc bending, the system controls the bending head to rotate continuously according to the pre-calculated path to realize the forming of complex shapes. After all bending processes are completed, the cutting mechanism cuts the spacer bar, and the discharging conveyor belt transports the finished product to the stacking area. The whole process is automatically controlled by the system, and the equipment can continuously process multiple spacer bars in a cycle, with high production efficiency and high forming precision.

In addition, the equipment is equipped with a fault self-diagnosis system, which can monitor the operating status of each module in real time. When faults such as motor abnormality, sensor failure and material jamming occur, the system will immediately stop operation, send an alarm signal, and display the fault cause and solution on the touch screen to facilitate maintenance.

4. Core Technical Parameters and Performance Indicators

The technical parameters of the Automatic Aluminium Spacer Bar Bending Machine are the key basis for measuring its performance and selecting models. Different types of equipment have different parameter standards, and the common core technical parameters and performance indicators are as follows:

4.1 Basic Processing Parameters


Applicable Spacer Bar Width: 5.5-45mm (conventional models are 5.5-27mm, ultra-wide models are 27-45mm)
Applicable Spacer Bar Thickness: 0.3-1.2mm
Processing Size Range: Minimum 100mm×100mm, Maximum 2500mm×3000mm (customizable for larger sizes)
Bending Angle Range: 0°-180° (stepless adjustment for multi-angle models, fixed 90° for right-angle models)
Arc Radius Range: 50mm-2000mm (for arc bending machines)
Processing Speed: 5-15 pieces per minute (depending on the size and shape of the spacer bar)
Power Supply: AC 380V, 50Hz, Power 3-7.5KW
Air Pressure Requirement: ≥0.6MPa, Air Consumption 0.3-0.5m³/min


4.2 Precision and Stability Indicators


Length Measurement Accuracy: ±0.1mm
Bending Angle Accuracy: ±0.1°
Diagonal Accuracy of Formed Spacer Bar: ±0.2mm
Repeat Positioning Accuracy: ±0.05mm
Continuous Operation Time: ≥24 hours
Fault Rate: ≤0.3%
Service Life of Core Components: ≥8 years (servo motor, PLC, bending die)


4.3 Intelligent and Humanized Parameters


Program Storage Capacity: 100-500 groups of processing programs
Changeover Time: Tool-free quick changeover of bending die, ≤5 minutes
Data Interaction: Supports connection with MES system, real-time upload of processing data
Fault Self-Diagnosis: Can identify more than 60 kinds of common faults, real-time display of fault information
Noise Level: ≤70dB (meeting industrial noise standards)


5. Application Scenarios and Industry Requirements

The Automatic Aluminium Spacer Bar Bending Machine is mainly used in the architectural glass deep processing industry, and its application scenarios cover various fields of insulating glass production, with different industry requirements for equipment performance.

5.1 Residential Building Doors and Windows Insulating Glass Production

This is the most mainstream application scenario, mainly producing rectangular insulating glass for residential doors and windows, with small and medium sizes (300mm×300mm-1500mm×2000mm). The industry requires the equipment to have high bending speed, good forming consistency and low cost, and the right-angle bending machine is the preferred model. At the same time, the equipment needs to adapt to the processing of aluminium spacer bars with a width of 5.5-12mm, and the formed spacer bar has no deformation, no cracks and tight corners, ensuring the sealing performance of insulating glass.

5.2 Commercial Building Curtain Wall Insulating Glass Production

Commercial building curtain walls require large-sized and high-performance insulating glass, with sizes up to 2500mm×3000mm and spacer bar widths of 12-27mm. The industry requires the equipment to have high rigidity, large processing range and high bending precision, and the large-size bending machine is the core equipment. In addition, the equipment needs to realize the processing of special-shaped spacer bars (trapezoid, polygon) to meet the design needs of complex curtain wall shapes, and the formed spacer bar has good structural stability to ensure the safety of curtain wall glass.

5.3 High-End Special-Shaped Insulating Glass Production

High-end buildings such as landmark buildings, shopping malls and hotels often use special-shaped insulating glass (arc, circular, elliptical, irregular polygon), which requires the equipment to have multi-angle and arc bending functions. The multi-angle and arc composite bending machine is the key equipment, which can realize the stepless adjustment of bending angle and arc radius, with high forming precision and good consistency, meeting the personalized design needs of high-end buildings.

5.4 Warm Edge Spacer Bar Processing

With the development of energy-saving buildings, warm edge aluminium composite spacer bars (low thermal conductivity, better energy-saving effect) are gradually replacing ordinary aluminium spacer bars. The processing of warm edge spacer bars requires the equipment to have a soft bending function, avoiding the cracking of the composite layer during bending. Therefore, the bending machine needs to be equipped with a special bending die and a buffer mechanism, with low bending pressure and high forming precision, to ensure the integrity of the warm edge spacer bar structure.

6. Core Advantages of Automatic Aluminium Spacer Bar Bending Machine

Compared with the traditional manual and semi-automatic bending process, the Automatic Aluminium Spacer Bar Bending Machine has obvious advantages in precision, efficiency, cost, quality and intelligence, which is the core driving force for its popularization in the insulating glass industry.

6.1 Ultra-High Bending Precision and Forming Consistency

Adopting high-precision servo drive and angle encoder control, the bending angle accuracy reaches ±0.1° and the length measurement accuracy reaches ±0.1mm, which completely solves the problems of angle deviation, length inconsistency and diagonal error in manual bending. The formed aluminium spacer bar has uniform size, tight corners, no deformation and no cracks, which effectively improves the assembly precision of insulating glass and ensures the sealing and structural stability of the glass unit.

6.2 Significant Improvement of Production Efficiency

The fully automatic operation mode eliminates the link of manual intervention, and the processing speed is 5-10 times higher than that of manual bending. A single fully automatic bending machine can process 5-15 pieces of spacer bars per minute, and can run continuously for 24 hours, which greatly improves the production capacity of insulating glass enterprises. At the same time, the quick changeover function of the bending die reduces the downtime caused by specification replacement, and further improves the overall production efficiency.

6.3 Great Reduction of Production Cost

On the one hand, it reduces labor costs: a fully automatic bending machine can replace 6-10 manual operators, and only one person is needed for daily operation and maintenance, which greatly saves labor expenditure; on the other hand, it reduces material waste: the high-precision processing reduces the scrap rate of aluminium spacer bars to less than 0.5%, which is far lower than the 5%-10% scrap rate of manual bending, saving a lot of raw material costs; in addition, the low fault rate and long service life of the equipment reduce maintenance costs and downtime losses.

6.4 Strong Flexibility and Adaptability

The equipment can store hundreds of processing programs, and realize quick switching of different sizes, widths and shapes of aluminium spacer bars by adjusting parameters on the touch screen, with tool-free changeover and strong adaptability to multi-variety and small-batch production. At the same time, it can be customized according to customer needs, such as adding double bending stations, ultra-large size processing mechanism, warm edge spacer bar special bending die, etc., to meet the personalized processing needs of different enterprises.

6.5 Intelligent Management and Quality Traceability

The PLC numerical control system realizes real-time monitoring of processing data, automatic recording of processing quantity, qualified rate, fault information and other data, which is convenient for enterprises to carry out production management and quality traceability. The equipment supports connection with the MES system of the factory, realizing the digital management of the whole production process, and meeting the requirements of modern intelligent manufacturing for data transparency and traceability.

6.6 Improvement of Working Environment and Labor Safety

The fully enclosed operation and safety protection devices reduce the noise and potential safety hazards in the processing process, and avoid industrial accidents caused by manual operation of bending tools. At the same time, it liberates workers from heavy and repetitive manual labor, reduces labor intensity and improves the working environment of the production line.

7. Market Development Status and Trends

7.1 Global Market Status

Driven by the global energy-saving building policy and the rapid development of the architectural glass industry, the demand for Automatic Aluminium Spacer Bar Bending Machines has maintained a steady growth trend in recent years. The Asia-Pacific region, represented by China, has become the largest market due to its large-scale construction of real estate, infrastructure and energy-saving buildings, and the rapid development of the insulating glass processing industry; Europe and the United States, as developed regions, focus on high-end intelligent and multi-functional bending machines, with high requirements for equipment precision, stability and environmental protection; emerging markets in the Middle East, Latin America and Africa are in the stage of urbanization construction, and the demand for cost-effective automatic bending machines is growing rapidly.

At present, the global market competition pattern is divided into three echelons: the first echelon is European brands such as LiSEC (Austria) and Bystronic (Switzerland), which occupy the high-end market with advanced technology, high stability and complete after-sales service, mainly serving large insulating glass processing enterprises; the second echelon is Chinese brands such as LIJIANG Glass, North Glass and CYGLASS, which have rapidly risen with cost performance, fast delivery and customized services, and have a high market share in the middle and low-end markets and emerging markets, and some high-end models have gradually entered the European and American markets; the third echelon is small and medium-sized brands in South Korea, Japan and other countries, which focus on regional markets and have limited competitiveness.

7.2 Core Market Trends

7.2.1 Intelligent and Digital Upgrading

With the development of industrial Internet and artificial intelligence, the Automatic Aluminium Spacer Bar Bending Machine is developing towards higher intelligence: integrating AI algorithms to realize adaptive adjustment of bending parameters (automatically optimizing bending speed and pressure according to the material and thickness of the spacer bar); adding digital twin technology to simulate the bending process and predict deformation in advance; realizing remote monitoring, fault diagnosis and program upgrade through cloud platforms, and meeting the needs of intelligent factory management.

7.2.2 Multi-Functional and Integrated Development

The single-function bending machine can no longer meet the diversified production needs of enterprises, and the multi-functional integrated bending machine integrating right-angle, multi-angle and arc bending has become the development trend. At the same time, the equipment is developing towards integration with the insulating glass production line, realizing seamless connection with desiccant filling machine, butyl rubber coating machine, glass pressing machine and other equipment, forming a fully automatic intelligent production line of insulating glass, and improving the overall automation level of the factory.

7.2.3 High Precision and High Efficiency

Downstream enterprises have higher and higher requirements for the processing precision and production efficiency of aluminium spacer bars, and the equipment is developing towards higher precision (bending angle accuracy up to ±0.05°) and higher speed (processing speed exceeding 20 pieces per minute); at the same time, the lightweight and compact design reduces the floor space of the equipment, and improves the space utilization rate of the production line.

7.2.4 Green and Energy-Saving Development

In response to the global call for energy conservation and emission reduction, the equipment is optimized in terms of energy consumption: adopting high-efficiency servo motors and energy-saving pneumatic components to reduce power and air consumption; using recyclable and environmentally friendly materials for the frame and bending die; designing a waste recycling system to collect aluminium scraps generated during cutting, realizing material recycling and reducing environmental pollution.

7.2.5 Customization and Personalization

The personalized design needs of modern buildings are becoming more and more prominent, and the demand for special-shaped aluminium spacer bars is increasing year by year. The customized bending machine (such as ultra-large size, ultra-small arc, special-shaped polygon processing) has become a new growth point of the market, and equipment manufacturers are shifting from standardized production to customized solutions to meet the diversified processing needs of different customers.

8. Challenges and Future Development Prospects

8.1 Existing Challenges

Although the Automatic Aluminium Spacer Bar Bending Machine has achieved rapid development, it still faces some challenges in the process of industrial popularization: first, the technical level of some domestic small and medium-sized brands is uneven, and the core components such as high-precision servo motors and numerical control systems still rely on imports, resulting in high production costs and weak competitiveness in the high-end market; second, the after-sales service system of some enterprises is not perfect, and the response speed to equipment faults and maintenance needs is slow, affecting the user experience; third, the adaptability to new materials such as ultra-thin warm edge spacer bars and stainless steel spacer bars needs to be further improved, and the bending precision and forming quality of new materials need to be optimized; fourth, the digital transformation of small and medium-sized insulating glass enterprises is slow, and the acceptance and application capacity of high-end intelligent bending machines are insufficient.

8.2 Future Development Prospects

In the future, with the continuous advancement of global energy-saving building policies, the upgrading of the architectural glass industry and the breakthrough of core technologies, the Automatic Aluminium Spacer Bar Bending Machine will show broader development prospects:

In terms of technology, the localization of core components will be accelerated, and domestic brands will break through the technical monopoly of foreign brands in high-precision servo systems, intelligent numerical control and other fields, reducing production costs and improving product competitiveness; the integration of new technologies such as 5G, machine vision and big data will further improve the intelligence level of the equipment, realizing unmanned production and full-process digital management.

In terms of application, the application fields will continue to expand, and the demand for special-shaped insulating glass in new energy vehicles, aerospace, medical equipment and other emerging fields will drive the development of the equipment in the direction of ultra-high precision, ultra-small size and special material adaptation; at the same time, the warm edge spacer bar, as the development direction of energy-saving spacer bars, will promote the upgrading of bending machine technology, and the special bending equipment for warm edge spacer bars will become the mainstream of the market.

In terms of market, the global market demand will maintain a compound annual growth rate of more than 5%, and Chinese brands will further expand the international market with technological advantages and cost performance, and the global competition pattern will be more balanced; the industry will accelerate the elimination of backward production capacity, and enterprises with core technologies, complete after-sales service and strong R&D capabilities will occupy a dominant position, promoting the healthy and standardized development of the industry.

9. Conclusion

The Automatic Aluminium Spacer Bar Bending Machine, as the core equipment of the modern insulating glass production line, has realized the transformation of aluminium spacer bar processing from manual and semi-automatic to fully automatic and intelligent, which is of great significance for improving the processing precision, production efficiency and product quality of insulating glass. It integrates mechanical transmission, servo control, numerical control system and sensing detection technology, with ultra-high bending precision, high production efficiency, low production cost and strong flexibility, and has become an indispensable key equipment in the architectural glass deep processing industry.

At present, the industry is in a period of rapid development of intelligent and digital upgrading, and is facing both opportunities such as the expansion of downstream market demand and the breakthrough of core technologies, as well as challenges such as technical bottlenecks and market competition. In the future, equipment manufacturers need to increase R&D investment, break through the technical barriers of core components, improve the level of intelligence and customization, and improve the after-sales service system; insulating glass processing enterprises need to accelerate the pace of automation transformation, and select appropriate bending equipment according to their own production needs to improve the overall competitiveness of the enterprise.

With the continuous progress of technology and the continuous upgrading of industrial demand, the Automatic Aluminium Spacer Bar Bending Machine will play a more important role in the global architectural glass industry, and promote the high-quality development of the energy-saving building industry with more intelligent, efficient and stable performance.

CNC Glass Cutting Table (Tilting Type): Technical Overview, Operational Principles and Industrial Applications

Abstract

In the modern glass deep-processing industry, the CNC glass cutting table with tilting function has become a core equipment that integrates high precision, high efficiency and high safety. It breaks through the limitations of traditional horizontal glass cutting tables, realizes the integrated operation of vertical loading, horizontal cutting and tilting blanking through mechanical structure innovation and numerical control system optimization, and is widely used in architectural glass, automotive glass, home appliance glass, decorative glass and other fields. This paper systematically expounds the basic definition, structural composition, working principle, technical characteristics, core advantages, application scenarios, operation and maintenance requirements and development trends of tilting CNC glass cutting tables, aiming to provide a comprehensive reference for equipment selection, process optimization and industrial upgrading of glass processing enterprises.

1. Introduction

With the rapid development of global construction, automobile, home appliance and emerging energy industries, the demand for flat glass products continues to grow, and the requirements for cutting accuracy, shape complexity, production efficiency and processing safety are increasingly stringent. Traditional manual glass cutting and semi-automatic cutting equipment have been difficult to meet the needs of large-scale, high-precision and diversified production due to low efficiency, large error, high labor intensity and high breakage rate. As an advanced special equipment for glass processing, the CNC glass cutting table (tilting type) combines computer numerical control technology, precision mechanical transmission technology and pneumatic auxiliary technology, which not only realizes the automatic and precise cutting of glass sheets of different sizes and thicknesses, but also completes the safe conversion between vertical and horizontal positions of glass through the tilting mechanism, which greatly reduces the risk of glass damage and personnel injury in the handling process.

The emergence of tilting CNC glass cutting tables has promoted the transformation of the glass cutting process from "manual handling + horizontal cutting" to "automatic loading + CNC cutting + tilting blanking", which is a major technological innovation in the glass deep-processing industry. Compared with non-tilting fixed cutting tables, it has obvious advantages in space utilization, operation convenience, product yield and production continuity, and has become an indispensable key equipment in modern glass processing production lines.

2. Basic Definition and Classification of CNC Glass Cutting Table (Tilting Type)

2.1 Basic Definition

CNC glass cutting table (tilting type) is a special numerical control processing equipment that takes flat glass as the processing object, adopts computer programming to control the cutting path and cutting parameters, and is equipped with a mechanical tilting mechanism that can realize the angle adjustment of the workbench. It can stably switch the glass sheet between the vertical loading state, the horizontal cutting state and the tilting unloading state, and complete the whole process of automatic feeding, precise positioning, CNC cutting, auxiliary breaking and safe discharging under the coordination of pneumatic, electrical and mechanical systems.

2.2 Main Classification

According to different classification criteria, tilting CNC glass cutting tables can be divided into multiple categories:


According to the control accuracy, it can be divided into standard precision type (cutting accuracy ±0.25mm/m) and high precision type (cutting accuracy ≤±0.15mm/m), which are suitable for conventional glass processing and high-end precision glass processing respectively.
According to the tilting drive mode, it can be divided into mechanical chain drive type and electric servo drive type. The mechanical chain drive type has the advantages of simple structure and low maintenance cost, and the tilting time can be controlled within 20 seconds; the electric servo drive type has higher motion accuracy and stability, and is suitable for high-end production lines with strict requirements for position control.
According to the processing scale, it can be divided into small and medium-sized type (processing glass size ≤2440mm×1830mm) and large-scale type (processing glass size ≥3660mm×2440mm), which meet the production needs of small and medium-sized glass workshops and large-scale glass processing bases respectively.
According to the functional integration, it can be divided into single cutting function type and multi-functional integrated type (integrating automatic loading, air flotation conveying, edge deletion, automatic labeling and other functions), which is suitable for single process processing and full-automatic production line matching.


3. Structural Composition of CNC Glass Cutting Table (Tilting Type)

The tilting CNC glass cutting table is a complex system integrating machinery, electricity, pneumatics and numerical control, and its core structure mainly includes the following parts:

3.1 Frame and Workbench System

The frame is the load-bearing foundation of the whole equipment, usually made of high-strength steel plate welded and tempered, with high rigidity and stability, which can effectively avoid vibration and deformation during the cutting process and ensure cutting accuracy. The workbench is the carrier of glass placement and cutting operation, and the surface is covered with high-density anti-static and wear-resistant felt, which can protect the glass surface from scratches and reduce the friction between the glass and the workbench. Most tilting cutting tables are equipped with an air flotation system on the workbench surface, which generates a uniform air cushion through high-pressure fans, so that the glass sheet is in a suspended state, facilitating the movement and positioning of the glass and reducing the breakage rate caused by friction.

3.2 Tilting Mechanism

The tilting mechanism is the core component that distinguishes the tilting cutting table from the ordinary cutting table, mainly composed of drive motor, transmission chain (or servo screw), support shaft, limit device and balance cylinder. It can drive the workbench to rotate stably within the angle range of 0° (horizontal) to 85°-90° (vertical) under the control of the numerical control system. The balanced tilting design ensures that the glass sheet does not shift or fall during the angle conversion process, and realizes the smooth transition from vertical loading to horizontal cutting and then to tilting unloading. Compared with the traditional hydraulic tilting system, the current mainstream mechanical and electric tilting mechanisms have the advantages of zero maintenance, fast response and stable operation, and are more in line with the needs of industrial continuous production.

3.3 CNC Cutting System

The CNC cutting system is the "brain" of the equipment, including industrial control computer, motion control card, servo motor, linear guide rail, cutting head and other components. The cutting head is equipped with a precision cutting wheel (diamond or carbide material), which can realize 360° arbitrary rotation to adapt to the cutting of straight lines, arcs, irregular graphics and other complex shapes. The numerical control system can import CAD drawing files, automatically optimize the layout, control the cutting speed, cutting pressure and knife lifting height in real time, and ensure that the cutting trace is accurate and the cutting edge is smooth. At the same time, the automatic lubrication system is matched with the cutting head to reduce the wear of the cutting wheel and prolong the service life.

3.4 Pneumatic Auxiliary System

The pneumatic system mainly provides power for glass adsorption, clamping and air flotation, including air compressor, air storage tank, solenoid valve, air nozzle and suction cup. The vacuum suction cup can firmly adsorb the glass sheet during the tilting process to prevent sliding; the pneumatic clamping device can fix the glass position during cutting to ensure positioning accuracy; the air flotation nozzle forms a uniform air cushion on the workbench surface, which realizes the labor-saving movement of large-size glass sheets.

3.5 Safety Protection System

To ensure the safety of equipment operation and personnel, the tilting CNC glass cutting table is equipped with a complete safety protection system, including emergency stop button, safety grating, overload protection, limit switch and fault alarm device. The safety grating can detect the entry of foreign objects in the working area and stop the equipment immediately; the limit switch controls the maximum tilting angle of the workbench to prevent overtravel damage; the fault alarm system can prompt the abnormal parameters such as motor overload, air pressure shortage and program error in real time, which is convenient for timely troubleshooting.

4. Working Principle of CNC Glass Cutting Table (Tilting Type)

The operation process of the tilting CNC glass cutting table follows the logic of "automatic loading → precision positioning → CNC cutting → tilting blanking", and the specific working principle is as follows:

4.1 Vertical Loading Stage

The numerical control system controls the tilting mechanism to lift the workbench to a nearly vertical state (about 85°). The operator or the automatic loading machine places the raw glass sheet on the vertical workbench, and the vacuum suction cup and pneumatic clamping device act simultaneously to fix the glass sheet stably without shaking. This loading method is close to the conventional glass storage and handling posture, which reduces the difficulty of glass handling and avoids the edge breakage caused by horizontal handling of large-size glass.

4.2 Horizontal Cutting Stage

After the glass is fixed, the tilting mechanism drives the workbench to slowly and stably turn to the horizontal state, and the air flotation system starts at the same time to generate an air cushion to support the glass. The operator inputs or imports the cutting graphics through the numerical control system, and the system automatically optimizes the layout to improve the glass utilization rate. Then the servo motor drives the cutting head to move along the set path along the linear guide rail, and the cutting wheel presses the glass surface with appropriate pressure to complete the scribing operation. For low-E glass, coated glass and other special varieties, the equipment can also be equipped with an edge deletion function to remove the coating layer at the cutting edge to ensure the cutting effect.

4.3 Tilting Unloading Stage

After the cutting and scribing are completed, the auxiliary breaking device acts to separate the cut glass along the scribing line. Then the tilting mechanism lifts the workbench to the vertical or inclined state again, the air flotation system and suction cup are released, and the operator can easily take out the cut glass finished products. The whole process avoids the repeated horizontal handling of glass, greatly reduces the labor intensity of workers and the breakage rate of glass, and improves the production efficiency.

5. Core Technical Characteristics and Advantages

5.1 High Cutting Precision and Good Processing Quality

The tilting CNC glass cutting table adopts high-precision linear guide rail and servo drive system, and the cutting accuracy can reach ±0.15mm-±0.25mm/m, which meets the processing requirements of high-precision glass products such as automotive and architectural curved glass. The cutting head with automatic pressure adjustment function can adapt to glass sheets with thickness ranging from 2mm to 25mm, ensuring that the cutting edge is smooth and free of cracks, and the subsequent grinding and polishing workload is reduced. The automatic layout function of the numerical control system can maximize the utilization rate of glass raw materials, reduce the production cost of enterprises.

5.2 High Production Efficiency and Short Processing Cycle

The integrated design of tilting loading and unloading eliminates the time-consuming process of manual glass turning and handling, and the tilting conversion time of the workbench is less than 20 seconds, which greatly shortens the auxiliary operation time. The CNC automatic cutting mode replaces manual scribing, and the cutting speed is fast and continuous, which can realize 24-hour uninterrupted operation. Compared with traditional equipment, the production efficiency can be increased by more than 50%, and it is suitable for large-batch and continuous glass processing production.

5.3 High Safety and Low Breakage Rate

The vertical loading and tilting unloading mode conforms to the ergonomic design, avoiding the collision and friction caused by horizontal handling of large glass, and the glass breakage rate is reduced to below 0.5%. The complete safety protection system prevents personnel from being injured by mechanical operation and glass breakage, and improves the safety of the production workshop. At the same time, the air flotation and suction cup fixing system ensure the stability of the glass during the tilting process, and there is no risk of falling and breaking.

5.4 Wide Application Range and Strong Adaptability

The equipment can process various types of flat glass, including float glass, tempered glass, laminated glass, low-E coated glass, mirrored glass, etc., and is suitable for cutting straight lines, arcs, circles, irregular patterns and other shapes. By replacing the cutting head and adjusting the parameters, it can meet the processing requirements of different industries, and has strong flexibility and adaptability. In addition, the compact structure design reduces the floor space of the equipment, which is suitable for the layout of small and medium-sized workshops and large-scale automated production lines.

5.5 Simple Operation and Low Maintenance Cost

The human-machine interface of the numerical control system is friendly, with graphical operation and one-key start function, which can be mastered by ordinary operators after short-term training without professional technical background. The mainstream mechanical and electric drive structures abandon the traditional hydraulic system, avoiding oil leakage and frequent maintenance problems, and the daily maintenance only needs regular lubrication and cleaning of the cutting head, which reduces the equipment maintenance cost and downtime.

6. Main Application Fields

With its superior performance, the tilting CNC glass cutting table has been widely used in all walks of life that need flat glass processing, and the main application fields are as follows:

6.1 Architectural Glass Processing

In the field of construction, the equipment is used to cut glass curtain walls, doors and windows, partition glass, skylight glass, etc. It can process large-size glass sheets up to 3800mm×2600mm, meet the needs of high-rise buildings and public buildings for large-area glass, and ensure the dimensional accuracy and aesthetic effect of architectural glass.

6.2 Automotive Glass Processing

Automotive glass has high requirements for precision and shape, and the tilting CNC glass cutting table can realize the precise cutting of car side windows, rear windshield, sunroof glass and other shaped glass, and cooperate with the subsequent tempering and laminating processes to provide high-quality glass parts for the automotive industry.

6.3 Home Appliance Glass Processing

Household appliances such as refrigerators, washing machines, ovens, televisions and range hoods need a large number of glass panels. The equipment can cut small and medium-sized precision glass, and the edge is smooth, which meets the appearance and safety requirements of home appliance products.

6.4 Decorative and Craft Glass Processing

In the field of home decoration and craft gifts, the equipment can cut various irregular decorative glass, mirrored glass, art glass, etc., to meet the personalized and diversified needs of the decoration market.

6.5 Photovoltaic and New Energy Glass Processing

With the development of the new energy industry, the demand for photovoltaic glass is increasing. The tilting CNC glass cutting table can realize the precise cutting of photovoltaic glass panels, laying a foundation for the production of solar panels.

7. Operation and Maintenance Requirements

7.1 Standardized Operation

Before operation, the operator should check the air pressure, power supply, cutting wheel wear and safety protection devices to ensure that the equipment is in normal condition. During the operation, strictly follow the program operation steps, do not modify the parameters at will, and prohibit putting hands and foreign objects into the working area. After the operation, clean the glass debris on the workbench, turn off the power supply and air source, and make the operation record.

7.2 Daily Maintenance

Regularly clean the dust and glass debris in the numerical control cabinet and linear guide rail to keep the equipment clean; check the air tightness of the pneumatic system and replace the worn suction cup and air nozzle in time; add lubricating oil to the transmission parts such as the chain and screw to reduce mechanical wear; check the wear degree of the cutting wheel regularly and replace it in time to ensure the cutting quality.

7.3 Regular Overhaul

Carry out a comprehensive overhaul of the equipment every 6-12 months, check the fastening of the frame bolts, the operation status of the servo motor, the accuracy of the tilting mechanism and the stability of the numerical control system, and replace the aging parts in time to extend the service life of the equipment.

8. Development Trend of CNC Glass Cutting Table (Tilting Type)

8.1 Higher Degree of Intelligence

Future tilting CNC glass cutting tables will be more integrated with artificial intelligence and Internet of Things technology, realize automatic identification of glass types, automatic adjustment of cutting parameters, remote fault diagnosis and remote monitoring, and reduce manual intervention. The visual positioning system will be more widely used to realize automatic identification and positioning of glass edges, further improving cutting accuracy and efficiency.

8.2 More Complete Functional Integration

The equipment will develop towards the direction of "one machine with multiple functions", integrating automatic loading and unloading, edge grinding, cleaning, labeling and other processes, forming a fully automatic glass processing unit, reducing the number of equipment in the production line and improving production continuity.

8.3 Greener and More Energy-Saving

The drive system and pneumatic system of the equipment will adopt more energy-saving designs, reduce power consumption and air consumption, and meet the requirements of green industrial production. At the same time, the noise reduction design will be optimized to improve the working environment of the workshop.

8.4 More Specialized and Customized

For different industries and different glass types, specialized cutting tables will be launched, such as ultra-thin glass cutting tables, ultra-large glass cutting tables, laminated glass special cutting tables, etc., to meet the personalized processing needs of different customers.

9. Conclusion

CNC glass cutting table (tilting type) is an important symbol of the modernization and automation of the glass deep-processing industry. It combines the advantages of numerical control technology and tilting mechanism innovation, and has outstanding performance in cutting accuracy, production efficiency, operation safety and application scope. With the continuous development of the glass processing industry and the continuous progress of technology, tilting CNC glass cutting tables will be more intelligent, integrated and energy-saving, and play a more important role in promoting the upgrading of the glass processing industry. For glass processing enterprises, selecting suitable tilting CNC glass cutting tables, standardizing operation and maintenance, and optimizing processing technology are effective ways to improve production efficiency, reduce production costs and enhance market competitiveness.
