Butyl Coating Machine: Core Equipment for Precision Sealing in Modern Insulating Glass Manufacturing

Abstract

In the global push for energy-efficient buildings and high-performance architectural and automotive glass, insulating glass (IG) has become a cornerstone material, with its thermal insulation, soundproofing, and durability directly dependent on the quality of edge sealing. The butyl coating machine, as a critical piece of automated equipment in the IG production line, is specifically designed for the uniform, continuous application of hot-melt butyl rubber—an essential primary sealant for insulating glass spacers. This article explores the working principle, technical characteristics, core advantages, application scenarios, and development trends of butyl coating machines, demonstrating their indispensable role in ensuring the long-term reliability, production efficiency, and cost-effectiveness of modern insulating glass manufacturing.

1. Introduction

The global demand for energy-saving and environmentally friendly building materials has surged in recent years, driven by stringent carbon neutrality policies and the rapid development of green construction. Insulating glass, composed of two or more glass panes separated by a spacer frame and sealed with dual-layer sealants (primary butyl rubber and secondary polysulfide/silicone sealant), has emerged as the preferred choice for modern commercial and residential buildings, automotive windows, and aerospace components. The primary seal—hot-melt butyl rubber—acts as the first line of defense against moisture penetration, gas leakage, and spacer corrosion, directly determining the service life and performance stability of insulating glass.

Traditional manual or semi-automatic butyl coating methods suffer from inherent flaws such as uneven glue application, inconsistent thickness, low efficiency, and high material waste, which severely compromise the quality of insulating glass and increase production costs. In contrast, modern butyl coating machines integrate advanced PLC control systems, servo-driven precision mechanisms, and intelligent temperature control technology, enabling fully automated, high-precision, and continuous butyl rubber coating. As the "heart" of the insulating glass primary sealing process, butyl coating machines have become an irreplaceable core equipment for manufacturers seeking to upgrade production lines, improve product quality, and enhance market competitiveness.

2. Working Principle and Core Components of Butyl Coating Machine

2.1 Basic Working Principle

Butyl coating machines operate on the principle of hot-melt extrusion and precision coating. Solid or semi-solid hot-melt butyl rubber is first heated to a molten state (typically 110–150°C) in a temperature-controlled heating system, then pressurized and delivered to a precision coating nozzle via a screw or piston extrusion mechanism. The spacer frame (aluminum, warm-edge, or composite spacer) is fed through the machine’s transmission system at a constant speed, and the molten butyl rubber is extruded uniformly onto the two sides of the spacer frame in a continuous, bead-like form. The machine’s control system real-time adjusts extrusion pressure, coating speed, and glue bead thickness to ensure consistent coating quality across different spacer sizes and types. After coating, the spacer is cooled slightly to maintain the shape of the butyl rubber bead, ready for the subsequent glass bonding and secondary sealing processes.

2.2 Core Components and Functions

A high-performance butyl coating machine comprises several key modules, each contributing to its precision and reliability:

2.2.1 Heating and Melting System

This system consists of a heating barrel, temperature sensors, and a digital temperature controller. The heating barrel is equipped with multi-zone electric heating elements and thermal insulation layers to ensure uniform heating of butyl rubber, preventing local overheating (which causes glue degradation) or insufficient melting (which leads to poor fluidity). High-precision temperature sensors (±1°C accuracy) monitor the melting temperature in real time, with the controller automatically adjusting heating power to maintain a stable molten state—critical for consistent extrusion and coating quality.

2.2.2 Extrusion Mechanism

The extrusion mechanism is the core of the butyl coating machine, available in two main types: screw extrusion and piston extrusion.


Screw extrusion: Features a precision-ground screw with a variable pitch design, which pushes molten butyl rubber forward through rotation, ensuring stable and continuous extrusion. It is suitable for high-volume, continuous production lines and can handle a wide range of butyl rubber viscosities.
Piston extrusion: Uses a hydraulic or pneumatic piston to pressurize and extrude molten glue, offering higher extrusion pressure and more precise glue volume control. It is ideal for small-batch, customized production or coating narrow-width spacers, with minimal glue residue and waste.


Modern high-end models often adopt servo-driven screw extrusion, combining the advantages of continuous production and precision control, with extrusion pressure adjustable from 0.5 to 20 MPa to meet diverse coating requirements.

2.2.3 Precision Coating Nozzle

The coating nozzle is designed for uniform glue distribution and adaptability to different spacer specifications. Key features include:


Dual-side coating design: Simultaneously coats butyl rubber on both sides of the spacer frame, improving production efficiency by 50% compared to single-side coating.
Adjustable nozzle gap: The gap between the nozzle and spacer can be finely adjusted (0.1–3 mm) to control glue bead thickness (typically 0.5–2 mm) and width (2–10 mm), compatible with spacers of 6–27 mm width (the most common in insulating glass).
Anti-drip and anti-clogging design: Equipped with a pneumatic or electric glue cutoff valve to prevent glue dripping when the machine stops, and a self-cleaning function to remove residual butyl rubber and avoid nozzle clogging.
Curved surface adaptability: Some models feature a floating nozzle design, which can automatically adjust to the curvature of curved spacers (used in automotive or special-shaped insulating glass), ensuring uniform coating on non-linear surfaces.


2.2.4 Transmission and Positioning System

The transmission system uses a servo motor-driven roller chain or belt conveyor, with a speed range of 0–30 m/min (adjustable via the HMI). High-precision positioning sensors (photoelectric or proximity sensors) detect the position and length of the spacer, automatically starting and stopping the coating process to avoid glue waste on spacer ends. For multi-specification spacers, the system can store up to 50+ sets of parameter presets, enabling one-click switching between different production tasks and reducing setup time by over 80%.

2.2.5 PLC Control and Human-Machine Interface (HMI)

The core control system is based on a Siemens or Mitsubishi PLC, paired with a 7–10 inch touchscreen HMI for intuitive operation. Key functions include:


Real-time display of temperature, extrusion pressure, coating speed, and glue bead thickness.
One-key setting and storage of process parameters for different spacer types and glue formulas.
Fault self-diagnosis and alarm (e.g., over-temperature, low pressure, nozzle clogging), with troubleshooting prompts displayed on the HMI.
Remote monitoring and data export (via Ethernet or USB), supporting production data tracking and quality traceability—critical for compliance with international quality standards (e.g., CE, ASTM, GB/T 11944).


2.2.6 Safety and Auxiliary Systems

To ensure operational safety and equipment durability, butyl coating machines are equipped with:


Safety interlocks: Emergency stop buttons, safety doors, and protective covers that stop the machine immediately when opened, preventing operator contact with high-temperature components and moving parts.
Glue level detection: A sensor monitors the butyl rubber level in the melting barrel, triggering an alarm when the glue is low to avoid empty extrusion.
Cooling system: A forced air cooling or water cooling system cools the coated spacer slightly, maintaining the shape of the butyl rubber bead and preventing deformation during subsequent handling.


3. Technical Advantages of Modern Butyl Coating Machines

3.1 High Precision and Consistent Coating Quality

The most significant advantage of butyl coating machines is their ability to deliver uniform, bubble-free, and consistent butyl rubber coating—a critical requirement for insulating glass primary sealing. Unlike manual coating, which is prone to uneven thickness, gaps, or excess glue, the machine’s servo-driven extrusion and precision nozzle ensure that the glue bead has a consistent cross-section (width and thickness) along the entire length of the spacer (up to 6 m long). This eliminates moisture penetration paths and gas leakage points, significantly improving the insulating glass’s thermal insulation performance and service life (extending it from 5–10 years to 15–20 years or more). For high-value Low-E (low-emissivity) glass and multi-cavity insulating glass, the machine’s non-contact floating nozzle design avoids scratching the sensitive Low-E coating or damaging multi-layer spacers, ensuring product integrity.

3.2 High Production Efficiency and Cost Savings

Automated butyl coating machines drastically improve production efficiency compared to manual or semi-automatic methods. A standard high-speed model can coat spacers at a speed of up to 30 m/min, processing 800–1200 spacer frames per 8-hour shift—a 5–10 times increase in output compared to manual coating. The continuous extrusion design eliminates downtime for glue refilling (large-capacity melting barrels hold 5–20 kg of butyl rubber, reducing refilling frequency), and the one-click parameter switching reduces setup time for different spacer specifications from 30–60 minutes to 2–5 minutes.

In terms of cost savings, the machine’s precise glue volume control reduces butyl rubber waste by 30–50% compared to manual coating (excess glue is minimized, and no dripping or spillage occurs). Additionally, automation reduces labor costs: a single operator can manage 2–3 machines simultaneously, replacing 4–6 manual workers. Over the equipment’s 8–10 year service life, the savings in material and labor costs far outweigh the initial investment, delivering a rapid return on investment (ROI) for manufacturers.

3.3 Wide Compatibility and Versatility

Modern butyl coating machines are highly versatile, compatible with a wide range of spacer types and insulating glass products:


Spacer materials: Aluminum spacers (standard, bent, or welded), warm-edge spacers (stainless steel, composite, or foam), and special-shaped spacers (curved, angled, or multi-cavity).
Spacer specifications: Width 6–27 mm, thickness 0.3–1.2 mm, length up to 6 m, suitable for both small-sized residential glass and large-sized commercial curtain wall glass.
Butyl rubber types: Hot-melt butyl rubber of different viscosities (low, medium, high) and formulations (standard, anti-aging, or low-VOC), compatible with all major butyl rubber brands in the market.
Application scenarios: Flat insulating glass, curved insulating glass, triple-glazing, multi-cavity insulating glass, automotive glass, and solar photovoltaic glass.


Some advanced models also feature a dual-nozzle design for coating multi-cavity spacers (e.g., 3-cavity or 4-cavity spacers used in ultra-high-performance insulating glass), enabling simultaneous coating of multiple glue lines and further expanding their application scope.

3.4 Enhanced Safety and Environmental Compliance

Butyl coating machines prioritize operator safety and environmental protection, addressing the drawbacks of manual coating:


Safety: By automating the high-temperature (110–150°C) coating process, the machine eliminates operator contact with molten butyl rubber and high-temperature components, reducing the risk of burns and repetitive motion injuries. Safety interlocks and emergency stop functions provide additional protection, complying with international safety standards (e.g., OSHA, CE).
Environmental protection: The closed melting and extrusion system minimizes the emission of volatile organic compounds (VOCs) from butyl rubber, improving the workshop air quality. The precise glue control reduces waste, and the self-cleaning nozzle design minimizes residual glue disposal—aligning with global environmental regulations and green manufacturing trends. Many models are also compatible with low-VOC and eco-friendly butyl rubber formulations, further reducing the environmental footprint of production.


3.5 Stable Performance and Low Maintenance

High-quality butyl coating machines are built with durable materials (stainless steel for the melting barrel, hardened alloy for the screw and nozzle, and industrial-grade servo motors) to ensure long-term stable operation under continuous production conditions. The key components have a service life of 50,000+ hours, and the modular design simplifies maintenance: wearing parts (e.g., nozzles, seals) can be replaced quickly, and routine maintenance (e.g., cleaning, lubrication) is minimal. The PLC control system’s fault self-diagnosis function reduces downtime by identifying and resolving issues promptly, ensuring uninterrupted production—critical for large-scale insulating glass manufacturing plants.

4. Application Scenarios of Butyl Coating Machines

4.1 Architectural Insulating Glass Manufacturing

The largest application area of butyl coating machines is the architectural insulating glass industry, covering residential windows, commercial curtain walls, office buildings, shopping malls, and green buildings. In high-rise buildings and energy-saving residential complexes, insulating glass with high-quality butyl rubber primary sealing provides excellent thermal insulation (U-value as low as 1.0 W/(m²·K)) and soundproofing (up to 35–40 dB), reducing heating and cooling costs by 30–50% compared to single-pane glass. Butyl coating machines enable mass production of standard and customized architectural insulating glass, meeting the demand for large-sized glass (up to 3 m × 6 m) used in modern curtain walls and ensuring consistent quality across thousands of units.

4.2 Automotive Glass Production

In the automotive industry, butyl coating machines are used to produce insulating glass for windshields, side windows, sunroofs, and rear windows of passenger cars, commercial vehicles, and new energy vehicles (NEVs). Automotive insulating glass requires not only thermal insulation and soundproofing but also resistance to extreme temperatures (-40°C to 85°C), vibration, and UV radiation. The machine’s precision coating ensures that the butyl rubber seal adheres firmly to the glass and spacer, preventing moisture from entering the glass cavity and causing fogging—critical for driving safety. For curved automotive glass, models with floating nozzles and curved spacer adaptability deliver uniform coating on non-linear surfaces, meeting the strict quality standards of automotive OEMs (e.g., Volkswagen, Toyota, Tesla).

4.3 Solar Photovoltaic (PV) Glass and Special Glass

With the rapid development of the solar energy industry, butyl coating machines are increasingly used in the production of PV insulating glass (used in solar panels and BIPV—building-integrated photovoltaics). PV glass requires a highly durable seal to protect the solar cells from moisture and corrosion, and the machine’s high-precision butyl coating provides a long-lasting primary seal, extending the service life of PV modules to 25+ years. Additionally, butyl coating machines are used in the production of special glass for aerospace, marine, and industrial applications, such as insulated glass for aircraft cabins, ship windows, and industrial furnace observation windows—where sealing reliability under extreme conditions is paramount.

4.4 Small and Medium-Sized Enterprises (SMEs) and Customized Production

Butyl coating machines are not only suitable for large-scale mass production lines but also for SMEs and customized glass manufacturers. Semi-automatic or compact models (with a small footprint and low investment) are ideal for SMEs producing small batches of customized insulating glass (e.g., for villas, specialty buildings, or automotive aftermarket). These models retain the core precision and efficiency advantages of full-automatic machines but with a lower price point and simpler operation, making advanced butyl coating technology accessible to a broader range of manufacturers. Refurbished butyl coating machines (from reputable brands) are also a cost-effective option for SMEs, offering the same performance as new equipment at 50–70% of the cost.

5. Development Trends of Butyl Coating Machines

5.1 Intelligentization and Digitalization

The future of butyl coating machines lies in intelligentization and digital transformation, driven by Industry 4.0 and smart manufacturing. Advanced models will integrate artificial intelligence (AI) and machine learning algorithms to optimize process parameters in real time: for example, automatically adjusting extrusion pressure and temperature based on butyl rubber viscosity changes (caused by temperature or batch differences) to maintain consistent coating quality. IoT (Internet of Things) connectivity will enable remote monitoring, predictive maintenance, and production data analysis—manufacturers can track machine performance, output, and quality from a central control room, and the system will predict component failures (e.g., screw wear, nozzle clogging) and schedule maintenance in advance, reducing unplanned downtime. Digital twin technology will also be applied, allowing manufacturers to simulate coating processes and optimize production lines before physical implementation.

5.2 High-Speed and High-Precision Upgrades

To meet the growing demand for large-scale and high-quality insulating glass, butyl coating machines will continue to evolve toward higher speed and precision. Future models will feature servo-driven systems with faster response times, increasing coating speed to 40–50 m/min while maintaining glue bead precision (±0.05 mm thickness tolerance). The extrusion mechanism will be optimized for higher pressure and more uniform glue distribution, enabling coating of ultra-narrow spacers (3–5 mm width) and ultra-thick glue beads (3–5 mm) for special applications. Additionally, 3D vision sensors will be integrated to detect spacer position and curvature in real time, enabling fully adaptive coating on complex-shaped spacers without manual adjustment.

5.3 Green and Eco-Friendly Design

Sustainability will be a core focus in the development of butyl coating machines, aligning with global carbon neutrality goals. Future models will feature energy-efficient heating systems (e.g., infrared heating or electromagnetic heating) that reduce energy consumption by 20–30% compared to traditional electric heating. The closed-loop glue recycling system will collect and reuse residual butyl rubber, further reducing material waste to less than 5%. Compatibility with bio-based butyl rubber (made from renewable resources) and low-VOC, zero-halogen formulations will be enhanced, making the production process more environmentally friendly. Additionally, the machine’s design will prioritize recyclable materials and modular components, reducing the environmental impact of manufacturing and disposal.

5.4 Integration with Automated Production Lines

Butyl coating machines will be more deeply integrated into fully automated insulating glass production lines, connecting with upstream spacer bending/welding machines, glass washing machines, and downstream glass bonding/secondary sealing robots. The entire production process—from spacer processing to final insulating glass assembly—will be automated, with seamless data exchange between machines via a central control system. This integration will eliminate manual handling, reduce production cycle time by 40–60%, and ensure 100% quality consistency across the entire production line. For example, the spacer bending machine will transmit spacer specifications to the butyl coating machine, which automatically adjusts parameters and starts coating; after coating, the spacer is automatically transferred to the glass bonding station, with no human intervention required.

6. Conclusion

As the core equipment for primary sealing in modern insulating glass manufacturing, the butyl coating machine plays a pivotal role in ensuring product quality, improving production efficiency, and reducing costs. Its technical advantages—high precision, high efficiency, wide compatibility, safety, and environmental protection—address the limitations of traditional coating methods, making it an indispensable tool for manufacturers seeking to meet the demand for energy-efficient, high-performance insulating glass.

With the ongoing development of the global green building and automotive industries, the demand for high-quality insulating glass will continue to grow, driving the continuous innovation of butyl coating machines toward intelligentization, high-speed, green, and integrated production. For insulating glass manufacturers, investing in a high-performance butyl coating machine is not only a practical upgrade for production lines but also a strategic decision to enhance market competitiveness, comply with international quality and environmental standards, and seize opportunities in the rapidly growing energy-saving glass market.

In the future, as technology advances, butyl coating machines will further evolve into smart, connected, and eco-friendly equipment, empowering the insulating glass industry to achieve higher levels of automation, efficiency, and sustainability—contributing to the global transition to a low-carbon, green economy.

References


GB/T 11944-2012, Insulating Glass for Buildings.
ASTM E2190-19, Standard Specification for Insulating Glass Units.
CE Marking Standards for Machinery (2006/42/EC).
International Energy Agency (IEA), Energy Efficiency Trends in Buildings, 2024.
Journal of Glass Technology, Vol. 65, No. 3, 2023: Advances in Insulating Glass Sealing Technology.
Automotive Engineering International, Vol. 28, No. 5, 2024: Sealing Solutions for Automotive Insulating Glass.

CNC Glass Cutting Table (Tilting Type): Technical Overview, Operational Principles and Industrial Applications

Abstract

In the modern glass deep-processing industry, the CNC glass cutting table with tilting function has become a core equipment that integrates high precision, high efficiency and high safety. It breaks through the limitations of traditional horizontal glass cutting tables, realizes the integrated operation of vertical loading, horizontal cutting and tilting blanking through mechanical structure innovation and numerical control system optimization, and is widely used in architectural glass, automotive glass, home appliance glass, decorative glass and other fields. This paper systematically expounds the basic definition, structural composition, working principle, technical characteristics, core advantages, application scenarios, operation and maintenance requirements and development trends of tilting CNC glass cutting tables, aiming to provide a comprehensive reference for equipment selection, process optimization and industrial upgrading of glass processing enterprises.

1. Introduction

With the rapid development of global construction, automobile, home appliance and emerging energy industries, the demand for flat glass products continues to grow, and the requirements for cutting accuracy, shape complexity, production efficiency and processing safety are increasingly stringent. Traditional manual glass cutting and semi-automatic cutting equipment have been difficult to meet the needs of large-scale, high-precision and diversified production due to low efficiency, large error, high labor intensity and high breakage rate. As an advanced special equipment for glass processing, the CNC glass cutting table (tilting type) combines computer numerical control technology, precision mechanical transmission technology and pneumatic auxiliary technology, which not only realizes the automatic and precise cutting of glass sheets of different sizes and thicknesses, but also completes the safe conversion between vertical and horizontal positions of glass through the tilting mechanism, which greatly reduces the risk of glass damage and personnel injury in the handling process.

The emergence of tilting CNC glass cutting tables has promoted the transformation of the glass cutting process from "manual handling + horizontal cutting" to "automatic loading + CNC cutting + tilting blanking", which is a major technological innovation in the glass deep-processing industry. Compared with non-tilting fixed cutting tables, it has obvious advantages in space utilization, operation convenience, product yield and production continuity, and has become an indispensable key equipment in modern glass processing production lines.

2. Basic Definition and Classification of CNC Glass Cutting Table (Tilting Type)

2.1 Basic Definition

CNC glass cutting table (tilting type) is a special numerical control processing equipment that takes flat glass as the processing object, adopts computer programming to control the cutting path and cutting parameters, and is equipped with a mechanical tilting mechanism that can realize the angle adjustment of the workbench. It can stably switch the glass sheet between the vertical loading state, the horizontal cutting state and the tilting unloading state, and complete the whole process of automatic feeding, precise positioning, CNC cutting, auxiliary breaking and safe discharging under the coordination of pneumatic, electrical and mechanical systems.

2.2 Main Classification

According to different classification criteria, tilting CNC glass cutting tables can be divided into multiple categories:


According to the control accuracy, it can be divided into standard precision type (cutting accuracy ±0.25mm/m) and high precision type (cutting accuracy ≤±0.15mm/m), which are suitable for conventional glass processing and high-end precision glass processing respectively.
According to the tilting drive mode, it can be divided into mechanical chain drive type and electric servo drive type. The mechanical chain drive type has the advantages of simple structure and low maintenance cost, and the tilting time can be controlled within 20 seconds; the electric servo drive type has higher motion accuracy and stability, and is suitable for high-end production lines with strict requirements for position control.
According to the processing scale, it can be divided into small and medium-sized type (processing glass size ≤2440mm×1830mm) and large-scale type (processing glass size ≥3660mm×2440mm), which meet the production needs of small and medium-sized glass workshops and large-scale glass processing bases respectively.
According to the functional integration, it can be divided into single cutting function type and multi-functional integrated type (integrating automatic loading, air flotation conveying, edge deletion, automatic labeling and other functions), which is suitable for single process processing and full-automatic production line matching.


3. Structural Composition of CNC Glass Cutting Table (Tilting Type)

The tilting CNC glass cutting table is a complex system integrating machinery, electricity, pneumatics and numerical control, and its core structure mainly includes the following parts:

3.1 Frame and Workbench System

The frame is the load-bearing foundation of the whole equipment, usually made of high-strength steel plate welded and tempered, with high rigidity and stability, which can effectively avoid vibration and deformation during the cutting process and ensure cutting accuracy. The workbench is the carrier of glass placement and cutting operation, and the surface is covered with high-density anti-static and wear-resistant felt, which can protect the glass surface from scratches and reduce the friction between the glass and the workbench. Most tilting cutting tables are equipped with an air flotation system on the workbench surface, which generates a uniform air cushion through high-pressure fans, so that the glass sheet is in a suspended state, facilitating the movement and positioning of the glass and reducing the breakage rate caused by friction.

3.2 Tilting Mechanism

The tilting mechanism is the core component that distinguishes the tilting cutting table from the ordinary cutting table, mainly composed of drive motor, transmission chain (or servo screw), support shaft, limit device and balance cylinder. It can drive the workbench to rotate stably within the angle range of 0° (horizontal) to 85°-90° (vertical) under the control of the numerical control system. The balanced tilting design ensures that the glass sheet does not shift or fall during the angle conversion process, and realizes the smooth transition from vertical loading to horizontal cutting and then to tilting unloading. Compared with the traditional hydraulic tilting system, the current mainstream mechanical and electric tilting mechanisms have the advantages of zero maintenance, fast response and stable operation, and are more in line with the needs of industrial continuous production.

3.3 CNC Cutting System

The CNC cutting system is the "brain" of the equipment, including industrial control computer, motion control card, servo motor, linear guide rail, cutting head and other components. The cutting head is equipped with a precision cutting wheel (diamond or carbide material), which can realize 360° arbitrary rotation to adapt to the cutting of straight lines, arcs, irregular graphics and other complex shapes. The numerical control system can import CAD drawing files, automatically optimize the layout, control the cutting speed, cutting pressure and knife lifting height in real time, and ensure that the cutting trace is accurate and the cutting edge is smooth. At the same time, the automatic lubrication system is matched with the cutting head to reduce the wear of the cutting wheel and prolong the service life.

3.4 Pneumatic Auxiliary System

The pneumatic system mainly provides power for glass adsorption, clamping and air flotation, including air compressor, air storage tank, solenoid valve, air nozzle and suction cup. The vacuum suction cup can firmly adsorb the glass sheet during the tilting process to prevent sliding; the pneumatic clamping device can fix the glass position during cutting to ensure positioning accuracy; the air flotation nozzle forms a uniform air cushion on the workbench surface, which realizes the labor-saving movement of large-size glass sheets.

3.5 Safety Protection System

To ensure the safety of equipment operation and personnel, the tilting CNC glass cutting table is equipped with a complete safety protection system, including emergency stop button, safety grating, overload protection, limit switch and fault alarm device. The safety grating can detect the entry of foreign objects in the working area and stop the equipment immediately; the limit switch controls the maximum tilting angle of the workbench to prevent overtravel damage; the fault alarm system can prompt the abnormal parameters such as motor overload, air pressure shortage and program error in real time, which is convenient for timely troubleshooting.

4. Working Principle of CNC Glass Cutting Table (Tilting Type)

The operation process of the tilting CNC glass cutting table follows the logic of "automatic loading → precision positioning → CNC cutting → tilting blanking", and the specific working principle is as follows:

4.1 Vertical Loading Stage

The numerical control system controls the tilting mechanism to lift the workbench to a nearly vertical state (about 85°). The operator or the automatic loading machine places the raw glass sheet on the vertical workbench, and the vacuum suction cup and pneumatic clamping device act simultaneously to fix the glass sheet stably without shaking. This loading method is close to the conventional glass storage and handling posture, which reduces the difficulty of glass handling and avoids the edge breakage caused by horizontal handling of large-size glass.

4.2 Horizontal Cutting Stage

After the glass is fixed, the tilting mechanism drives the workbench to slowly and stably turn to the horizontal state, and the air flotation system starts at the same time to generate an air cushion to support the glass. The operator inputs or imports the cutting graphics through the numerical control system, and the system automatically optimizes the layout to improve the glass utilization rate. Then the servo motor drives the cutting head to move along the set path along the linear guide rail, and the cutting wheel presses the glass surface with appropriate pressure to complete the scribing operation. For low-E glass, coated glass and other special varieties, the equipment can also be equipped with an edge deletion function to remove the coating layer at the cutting edge to ensure the cutting effect.

4.3 Tilting Unloading Stage

After the cutting and scribing are completed, the auxiliary breaking device acts to separate the cut glass along the scribing line. Then the tilting mechanism lifts the workbench to the vertical or inclined state again, the air flotation system and suction cup are released, and the operator can easily take out the cut glass finished products. The whole process avoids the repeated horizontal handling of glass, greatly reduces the labor intensity of workers and the breakage rate of glass, and improves the production efficiency.

5. Core Technical Characteristics and Advantages

5.1 High Cutting Precision and Good Processing Quality

The tilting CNC glass cutting table adopts high-precision linear guide rail and servo drive system, and the cutting accuracy can reach ±0.15mm-±0.25mm/m, which meets the processing requirements of high-precision glass products such as automotive and architectural curved glass. The cutting head with automatic pressure adjustment function can adapt to glass sheets with thickness ranging from 2mm to 25mm, ensuring that the cutting edge is smooth and free of cracks, and the subsequent grinding and polishing workload is reduced. The automatic layout function of the numerical control system can maximize the utilization rate of glass raw materials, reduce the production cost of enterprises.

5.2 High Production Efficiency and Short Processing Cycle

The integrated design of tilting loading and unloading eliminates the time-consuming process of manual glass turning and handling, and the tilting conversion time of the workbench is less than 20 seconds, which greatly shortens the auxiliary operation time. The CNC automatic cutting mode replaces manual scribing, and the cutting speed is fast and continuous, which can realize 24-hour uninterrupted operation. Compared with traditional equipment, the production efficiency can be increased by more than 50%, and it is suitable for large-batch and continuous glass processing production.

5.3 High Safety and Low Breakage Rate

The vertical loading and tilting unloading mode conforms to the ergonomic design, avoiding the collision and friction caused by horizontal handling of large glass, and the glass breakage rate is reduced to below 0.5%. The complete safety protection system prevents personnel from being injured by mechanical operation and glass breakage, and improves the safety of the production workshop. At the same time, the air flotation and suction cup fixing system ensure the stability of the glass during the tilting process, and there is no risk of falling and breaking.

5.4 Wide Application Range and Strong Adaptability

The equipment can process various types of flat glass, including float glass, tempered glass, laminated glass, low-E coated glass, mirrored glass, etc., and is suitable for cutting straight lines, arcs, circles, irregular patterns and other shapes. By replacing the cutting head and adjusting the parameters, it can meet the processing requirements of different industries, and has strong flexibility and adaptability. In addition, the compact structure design reduces the floor space of the equipment, which is suitable for the layout of small and medium-sized workshops and large-scale automated production lines.

5.5 Simple Operation and Low Maintenance Cost

The human-machine interface of the numerical control system is friendly, with graphical operation and one-key start function, which can be mastered by ordinary operators after short-term training without professional technical background. The mainstream mechanical and electric drive structures abandon the traditional hydraulic system, avoiding oil leakage and frequent maintenance problems, and the daily maintenance only needs regular lubrication and cleaning of the cutting head, which reduces the equipment maintenance cost and downtime.

6. Main Application Fields

With its superior performance, the tilting CNC glass cutting table has been widely used in all walks of life that need flat glass processing, and the main application fields are as follows:

6.1 Architectural Glass Processing

In the field of construction, the equipment is used to cut glass curtain walls, doors and windows, partition glass, skylight glass, etc. It can process large-size glass sheets up to 3800mm×2600mm, meet the needs of high-rise buildings and public buildings for large-area glass, and ensure the dimensional accuracy and aesthetic effect of architectural glass.

6.2 Automotive Glass Processing

Automotive glass has high requirements for precision and shape, and the tilting CNC glass cutting table can realize the precise cutting of car side windows, rear windshield, sunroof glass and other shaped glass, and cooperate with the subsequent tempering and laminating processes to provide high-quality glass parts for the automotive industry.

6.3 Home Appliance Glass Processing

Household appliances such as refrigerators, washing machines, ovens, televisions and range hoods need a large number of glass panels. The equipment can cut small and medium-sized precision glass, and the edge is smooth, which meets the appearance and safety requirements of home appliance products.

6.4 Decorative and Craft Glass Processing

In the field of home decoration and craft gifts, the equipment can cut various irregular decorative glass, mirrored glass, art glass, etc., to meet the personalized and diversified needs of the decoration market.

6.5 Photovoltaic and New Energy Glass Processing

With the development of the new energy industry, the demand for photovoltaic glass is increasing. The tilting CNC glass cutting table can realize the precise cutting of photovoltaic glass panels, laying a foundation for the production of solar panels.

7. Operation and Maintenance Requirements

7.1 Standardized Operation

Before operation, the operator should check the air pressure, power supply, cutting wheel wear and safety protection devices to ensure that the equipment is in normal condition. During the operation, strictly follow the program operation steps, do not modify the parameters at will, and prohibit putting hands and foreign objects into the working area. After the operation, clean the glass debris on the workbench, turn off the power supply and air source, and make the operation record.

7.2 Daily Maintenance

Regularly clean the dust and glass debris in the numerical control cabinet and linear guide rail to keep the equipment clean; check the air tightness of the pneumatic system and replace the worn suction cup and air nozzle in time; add lubricating oil to the transmission parts such as the chain and screw to reduce mechanical wear; check the wear degree of the cutting wheel regularly and replace it in time to ensure the cutting quality.

7.3 Regular Overhaul

Carry out a comprehensive overhaul of the equipment every 6-12 months, check the fastening of the frame bolts, the operation status of the servo motor, the accuracy of the tilting mechanism and the stability of the numerical control system, and replace the aging parts in time to extend the service life of the equipment.

8. Development Trend of CNC Glass Cutting Table (Tilting Type)

8.1 Higher Degree of Intelligence

Future tilting CNC glass cutting tables will be more integrated with artificial intelligence and Internet of Things technology, realize automatic identification of glass types, automatic adjustment of cutting parameters, remote fault diagnosis and remote monitoring, and reduce manual intervention. The visual positioning system will be more widely used to realize automatic identification and positioning of glass edges, further improving cutting accuracy and efficiency.

8.2 More Complete Functional Integration

The equipment will develop towards the direction of "one machine with multiple functions", integrating automatic loading and unloading, edge grinding, cleaning, labeling and other processes, forming a fully automatic glass processing unit, reducing the number of equipment in the production line and improving production continuity.

8.3 Greener and More Energy-Saving

The drive system and pneumatic system of the equipment will adopt more energy-saving designs, reduce power consumption and air consumption, and meet the requirements of green industrial production. At the same time, the noise reduction design will be optimized to improve the working environment of the workshop.

8.4 More Specialized and Customized

For different industries and different glass types, specialized cutting tables will be launched, such as ultra-thin glass cutting tables, ultra-large glass cutting tables, laminated glass special cutting tables, etc., to meet the personalized processing needs of different customers.

9. Conclusion

CNC glass cutting table (tilting type) is an important symbol of the modernization and automation of the glass deep-processing industry. It combines the advantages of numerical control technology and tilting mechanism innovation, and has outstanding performance in cutting accuracy, production efficiency, operation safety and application scope. With the continuous development of the glass processing industry and the continuous progress of technology, tilting CNC glass cutting tables will be more intelligent, integrated and energy-saving, and play a more important role in promoting the upgrading of the glass processing industry. For glass processing enterprises, selecting suitable tilting CNC glass cutting tables, standardizing operation and maintenance, and optimizing processing technology are effective ways to improve production efficiency, reduce production costs and enhance market competitiveness.

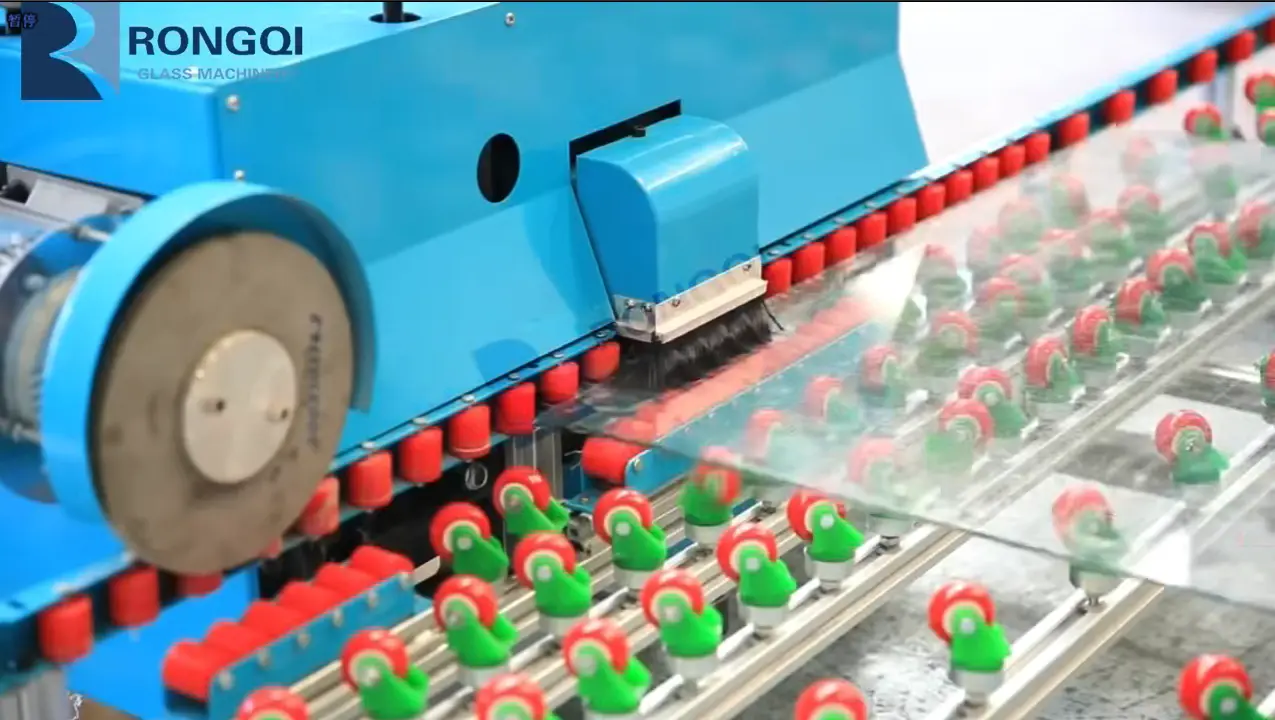

Low-E Film Deleting Machine: Professional Technical Overview & Comprehensive Description
The Low-E Film Deleting Machine is a kind of high-precision, automatic, and professional processing equipment specially designed for the edge deletion of coated glass, especially Low-E (Low Emissivity) glass. As an indispensable supporting equipment in the deep processing of architectural glass, insulating glass, and tempered glass, this machine adopts advanced physical deletion technology to accurately remove the unnecessary Low-E coating layer at the edge of the glass, so as to ensure the bonding fastness, sealing performance and service life of insulating glass, and avoid quality problems such as degumming, oxidation, and air leakage caused by the coating layer. With the characteristics of high automation, high processing precision, stable operation, and friendly operation, the Low-E Film Deleting Machine has become a key production equipment for modern glass deep-processing enterprises to improve product quality, optimize production efficiency and meet industrial processing standards.

Working Principle

The working principle of the Low-E Film Deleting Machine is based on precise mechanical grinding and positioning control technology, combined with automatic transmission and intelligent control system, to realize efficient and non-damaging edge deletion of Low-E coated glass. Firstly, the glass to be processed is automatically conveyed to the processing area through the conveyor system, and the precise positioning is completed through the photoelectric sensor and the positioning mechanism to ensure the consistency of the deletion position and size. Then, the high-speed rotating grinding wheel or special deletion head is driven by the servo motor to contact the surface of the Low-E coating evenly, and the coating layer at the edge of the glass is removed quantitatively and stably according to the set deletion width, depth and path. During the whole processing, the dust removal system runs synchronously to absorb the grinding dust in real time, keeping the processing environment clean and the glass surface smooth. The intelligent control system can automatically adjust the running speed, grinding force and deletion range according to the thickness, size and coating type of the glass, so as to realize fully automatic continuous processing without damaging the glass substrate and ensuring the integrity and flatness of the non-deletion area.

Core Structure and Functional Components

The Low-E Film Deleting Machine is composed of a plurality of coordinated functional modules, each of which plays an important role in the stability, precision and service life of the equipment.

1. Automatic Conveying and Positioning System

This system adopts a motor-driven roller conveyor or belt conveyor, matched with a high-precision photoelectric positioning device and a pneumatic clamping mechanism, which can realize stable transmission and accurate positioning of glass of different sizes and thicknesses. It can automatically adapt to the processing requirements of various specifications of architectural glass and insulating glass, avoid position deviation during operation, and ensure the accuracy and consistency of edge deletion.

2. Servo Drive and Grinding System

As the core execution structure of the machine, the servo drive system controls the high-speed grinding head or diamond grinding wheel with high precision, with stable speed and adjustable force. The professional deletion grinding head is designed for Low-E coating, which can quickly and effectively remove the coating layer without scratching the glass surface, and the deletion effect is neat and uniform, fully meeting the processing standards of insulating glass edge sealing.

3. Intelligent Control System

The machine is equipped with an industrial PLC control system and a human-machine touch screen, which supports one-key setting of processing parameters such as deletion width, speed, path and glass thickness. It has the functions of parameter storage, fault self-diagnosis, automatic alarm and emergency stop, which simplifies the operation difficulty and improves the safety and stability of the equipment. The intelligent control mode can realize fully automatic continuous production and reduce manual intervention.

4. Dust Removal and Cleaning System

Equipped with a high-power industrial dust collection and filtration system, it can absorb the coating dust and debris generated during the grinding process in real time, prevent dust from adhering to the glass surface and polluting the processing environment, and keep the glass clean and the internal parts of the equipment clean, reducing the failure rate caused by dust accumulation.

5. Frame and Protective System

The whole machine adopts a high-strength steel frame structure, with solid and stable operation, low vibration and low noise. The fully enclosed protective cover and safety interlock device effectively protect the personal safety of operators, in line with international industrial safety standards, and make the equipment more reliable and durable in long-term industrial production.

6. Size Adaptation and Adjustment Mechanism

The machine has a wide range of size adaptation, which can quickly adjust the processing range according to the length, width and thickness of the glass, support small-size decorative glass and large-size architectural curtain wall glass, and has strong flexibility and versatility to meet the diversified production needs of enterprises.

Key Performance Advantages

Compared with traditional manual deletion or semi-automatic deletion equipment, the fully automatic Low-E Film Deleting Machine has obvious technical and application advantages, which can greatly improve the production efficiency and product qualification rate of glass deep-processing enterprises.

First of all, high processing precision and good effect. The deletion width and depth are precisely controlled, the edge is neat and smooth, no damage to the glass substrate, completely solve the problems of uneven deletion, missing deletion and excessive deletion in manual operation, and greatly improve the processing quality of insulating glass.

Secondly, high degree of automation and high production efficiency. It can realize continuous automatic processing without manual hand-held grinding, the processing speed is fast, the single piece processing time is short, and it can match the production rhythm of the insulating glass production line, greatly improving the overall production capacity.

Thirdly, wide application range and strong adaptability. It is suitable for single silver Low-E glass, double silver Low-E glass, triple silver Low-E glass and other different types of coated glass, and compatible with glass of various thicknesses and sizes, with strong versatility and practicability.

Fourthly, stable operation and low failure rate. The equipment adopts high-quality electrical components and wear-resistant grinding parts, with reasonable structure design, stable operation, long service life, simple daily maintenance and low later use cost.

Fifthly, safe and environmentally friendly operation. The fully enclosed protection and dust removal system ensure a clean and safe processing environment, reduce the labor intensity of workers, avoid dust hazards, and meet the requirements of green and safe production.

Sixthly, improve product quality and service life. By accurately removing the edge coating, the bonding force between the glass and the sealing material is enhanced, the oxidation and corrosion of the coating layer are prevented, the airtightness and durability of the insulating glass are improved, and the quality and added value of the final product are upgraded.

Main Application Fields

The Low-E Film Deleting Machine is mainly used in the glass deep-processing industry, and is widely used in the production and processing of insulating glass, tempered glass, laminated glass and architectural coated glass. It is an essential equipment for professional glass processing factories, architectural glass manufacturers, insulating glass production bases and door and window curtain wall enterprises.

In the field of architectural glass, it is used for edge deletion processing of Low-E glass for high-rise buildings, office buildings, residential buildings, shopping malls and other curtain walls and doors and windows, ensuring the sealing and safety performance of insulating glass.

In the field of insulating glass production, it is matched with insulating glass production lines, automatic glass cutting machines, edge grinding machines and other equipment to form a complete automated production process, improving the efficiency and quality of insulating glass manufacturing.

In addition, it is also used in the processing of automotive glass, home appliance glass, decorative glass and other coated glass products, providing professional edge deletion solutions for various high-standard coated glass deep processing.

We are pleased to announce that the EVA laminated glass equipment ordered by our valued customer has been successfully installed, commissioned and put into trial operation in Vietnam. After rigorous testing and professional debugging, the entire line runs smoothly and meets all expected technical standards, which lays a solid foundation for our customer’s stable and efficient production in glass deep-processing business.

We sincerely appreciate the long-term trust, strong support and repeat purchase from our customer. Your recognition of our product quality, technical strength and after-sales service is the greatest motivation for our continuous improvement. We have always been committed to providing reliable equipment, standardized solutions and timely overseas services to help customers enhance productivity, reduce costs and expand market competitiveness.

Looking forward, we will continue to uphold the principle of customer-centricity and win-win cooperation, maintaining close communication and providing comprehensive support for your long-term development. We wish our customer a prosperous business and greater achievements in the glass industry.

We are proud to present our Detachable Mobile A-Frame, a premium-grade material handling solution engineered to meet the rigorous demands of modern manufacturing, logistics, and project-based operations. Designed with versatility, stability, and efficiency at its core, this A-Frame redefines standards for the safe storage, transportation, and on-site maneuvering of glass panels, metal sheets, composite panels, and other oversized, delicate, or heavy-duty materials.

Crafted from high-strength, wear-resistant steel as the primary structural frame, the Detachable Mobile A-Frame delivers exceptional load-bearing capacity while ensuring long-term durability even in harsh industrial environments. Its modular, disassembly-friendly design is a cornerstone of its functionality: when not in use, the frame can be quickly disassembled into compact components, significantly reducing storage space occupancy and simplifying cross-border transportation, container loading, and long-distance logistics. This feature makes it an ideal choice for both permanent manufacturing facilities and temporary project sites, particularly for overseas engineering projects where space optimization and cost-effective transport are critical.

Equipped with heavy-duty, lockable casters, the A-Frame enables seamless mobile operation across workshop floors, warehouses, and job sites. The casters feature high load capacity and smooth maneuverability, allowing operators to move heavy loads with minimal effort while ensuring secure positioning via integrated locks. For enhanced logistical flexibility, the frame is also integrated with reinforced forklift pockets, enabling efficient lifting and transfer by forklift or crane equipment—streamlining material handling processes across different stages of production and delivery.

To protect the surface of stored materials and prevent scratches, dents, or damage, the A-Frame is fitted with thick, anti-slip rubber padding along its contact surfaces. This protective padding is not only shock-absorbent but also resistant to abrasion, ensuring the integrity of sensitive materials such as tempered glass, laminated glass, and precision metal panels. Additionally, the frame is equipped with adjustable holding bars that feature multi-position hole settings, allowing for customization to accommodate materials of varying widths and thicknesses. This adaptability ensures consistent stability and secure positioning, regardless of the specific characteristics of the load.

Further designed for user convenience, the Detachable Mobile A-Frame includes integrated lifting eyes for safe hoisting during assembly, disassembly, and large-scale transport. Its modular structure adheres to international industrial safety standards, with rigorous quality control applied to every component—from weld integrity and load testing to corrosion-resistant surface treatment. This commitment to quality ensures reliable performance, minimal maintenance requirements, and a long service life, delivering exceptional value to our customers.

Widely applied in glass deep-processing plants, construction material workshops, logistics centers, and overseas engineering projects, our Detachable Mobile A-Frame has become a trusted solution for businesses seeking to optimize material handling efficiency, enhance workplace safety, and reduce operational costs. We remain dedicated to continuous innovation and customization, working closely with customers to tailor the A-Frame to their specific operational needs. Whether supporting small-scale production or large-scale international projects, our Detachable Mobile A-Frame stands as a testament to our commitment to delivering high-quality, practical, and future-ready material handling solutions.
