The production process of EVA laminated glass is similar to that of ordinary laminated glass, but there are differences in film selection and some processes. The main process is as follows:



Original glass preparation



-Film selection: Select high-quality glass raw materials with high flatness and no obvious defects, and determine the type of glass according to actual needs, such as float glass, ultra white glass, etc.

-Cutting: Use a glass cutting machine to cut the original glass into the required size and shape, with cutting accuracy controlled within a small range to ensure the accuracy of subsequent processing.



Glass cleaning and drying



-Cleaning: Place the cut glass into a glass cleaning machine and use methods such as spraying and brushing to remove dust, oil, and other impurities from the glass surface using clean water and specialized cleaning agents, ensuring the cleanliness of the glass surface.

-Drying: After cleaning, the glass is dried by hot air or natural drying to completely dry the surface of the glass and avoid moisture residue affecting the bonding between the EVA film and the glass.



EVA film preparation



-Film selection: Based on the usage requirements and performance characteristics of laminated glass, select EVA (ethylene vinyl acetate copolymer) film with appropriate thickness and performance. EVA film should have good transparency, adhesion, and weather resistance.

-Film cutting: Use cutting equipment to cut EVA film into a shape that matches the size of the glass. When cutting, pay attention to ensuring that the edges of the film are neat, without burrs or damage.



Lamination



-On a clean workbench, place a piece of glass first, lay the cut EVA film flat on the glass, ensure that the film is aligned with the edge of the glass, and then cover another piece of glass on the EVA film to form a sandwich structure. During the lamination process, it is important to avoid the formation of bubbles and wrinkles between the film and glass as much as possible.





High temperature curing



-Place the sealed laminated glass into the laminated glass equipment and crosslink the EVA film at a high temperature to achieve complete curing, thereby firmly bonding the two pieces of glass. The curing temperature is generally around 130-150 ℃, and the curing time depends on the thickness of the glass and film, usually ranging from tens of minutes to several hours.



Cooling and testing



-Cooling: The cured laminated glass is taken out of the curing equipment and naturally cooled to room temperature. During the cooling process, it is necessary to avoid external impact or rapid temperature changes on the glass to avoid affecting product quality.

-Testing: Conduct a comprehensive inspection of the cooled EVA laminated glass, including visual inspection, to check for defects such as bubbles, impurities, and delamination; Measure the dimensions to ensure that the glass meets the standard requirements; Performance testing to check whether the indicators such as light transmittance, impact resistance, and bonding strength meet the specified standards.



Packaging and Storage



-Packaging: Qualified EVA laminated glass is packaged with protective film, cardboard boxes, or wooden crates to protect the glass from damage during transportation and storage.

-Storage: Store the packaged laminated glass in the warehouse, classify it according to specifications and batches, take measures to prevent moisture and dust, and wait for shipment.

Front Sealing Head Sealing Robot: A Superior Choice for Gradual Double Glazing Glass

1. Introduction

In the contemporary construction and manufacturing industries, double glazing glass—renowned for its exceptional thermal insulation, soundproofing, and energy-saving properties—has become an indispensable material for high-performance buildings and vehicles. Also referred to as insulating glass, it comprises two or more glass panes separated by a spacer frame filled with desiccant, creating a sealed cavity that minimizes heat transfer and sound transmission . However, the efficacy of double glazing glass is inherently dependent on the quality of its sealing process. A precise, consistent seal not only prevents moisture penetration and gas leakage but also ensures the material’s long-term structural integrity and performance stability. As the demand for gradual double glazing glass—characterized by varying thicknesses, multi-cavity designs, and specialized coatings—continues to grow, traditional manual sealing methods and conventional equipment have increasingly struggled to meet the stringent requirements of modern production. In this context, the front sealing head sealing robot emerges as a transformative solution, integrating advanced automation, precision engineering, and adaptive technology to redefine the standards of double glazing sealing. This article explores the technical advantages, functional capabilities, and industry impact of front sealing head sealing robots, demonstrating why they are the optimal choice for gradual double glazing glass processing.

2. The Critical Role of Sealing in Gradual Double Glazing Glass

2.1 Key Requirements for Sealing Gradual Double Glazing

Gradual double glazing glass presents unique challenges that elevate the complexity of the sealing process. Unlike standard double glazing, gradual variants often feature variable pane thicknesses, multi-layered cavities (such as three-layer insulating glass), and specialized coatings (e.g., low-emissivity or double-silver coatings) . These characteristics impose strict demands on the sealing process:


Precision and Consistency: The sealant must be applied uniformly across irregular surfaces and varying gaps, ensuring no bubbles, gaps, or excess overflow. For multi-cavity designs, each cavity requires independent, accurate sealing to maintain thermal and acoustic insulation .
Material Compatibility: Sealing agents must adhere effectively to coated glass surfaces without damaging the film or compromising its low-radiation properties. This requires precise control of application pressure, temperature, and sealant composition .
Efficiency and Scalability: With the expansion of production volumes, the sealing process must balance high speed with uncompromised quality, avoiding bottlenecks in mass production while accommodating small-batch, customized orders .
Sustainability: Minimizing sealant waste and reducing volatile organic compound (VOC) emissions are critical for environmental compliance and cost optimization .


2.2 Limitations of Traditional Sealing Methods

Traditional sealing approaches, including manual application and semi-automatic equipment, fail to address these requirements adequately. Manual sealing is inherently prone to human error, resulting in inconsistent sealant distribution, uneven thickness, and frequent defects such as bubbles or gaps . Workers cannot replicate the same pressure, speed, or precision across multiple units, leading to variations in product quality that compromise the performance of gradual double glazing glass. Additionally, manual sealing is labor-intensive, time-consuming, and exposes workers to hazardous fumes and repetitive motion injuries, posing significant safety and productivity risks . Conventional semi-automatic equipment, while more consistent than manual methods, lacks the adaptability to handle gradual double glazing’s variable specifications. It often requires time-consuming adjustments for different glass thicknesses or cavity designs, leading to production downtime and inefficiency . These limitations highlight the need for a fully automated, adaptive solution that can meet the dynamic demands of gradual double glazing glass processing.

3. Technical Advantages of Front Sealing Head Sealing Robots

Front sealing head sealing robots address the shortcomings of traditional methods through a combination of advanced sensors, precision control systems, and adaptive mechanical design. Their technical superiority is evident in the following key aspects:

3.1 High-Precision Sensing and Adaptive Control

Modern front sealing head sealing robots are equipped with high-resolution photoelectric switch sensors and depth detection devices that automatically measure glass thickness, cavity depth, and spacer frame dimensions . This real-time data is processed by a sophisticated control system—typically a Siemens PLC or large-screen touchscreen human-machine interface—that adjusts application parameters (e.g., sealant flow rate, nozzle position, and movement speed) in real time . For example, the LJTJ2540 model from LIJIANG Glass uses servo motors and high-precision racks to achieve automated transmission, ensuring glue coating accuracy even for glass with misalignment errors within a certain range . The robot’s front sealing head features a unique floating structure that maintains close contact with the glass surface without causing damage, adapting to irregularities and ensuring uniform sealant application . This adaptive control capability is particularly critical for gradual double glazing glass, as it allows the robot to handle variable thicknesses (ranging from 6mm to 20mm or more) and multi-cavity designs without manual intervention . For three-layer insulating glass, the robot can automatically adjust the sealing head angle after completing the first cavity, ensuring precise sealing of the second cavity with consistent quality .

3.2 Efficient and Cost-Effective Sealing

Front sealing head sealing robots significantly enhance production efficiency through automation and process optimization. Equipped with automatic glue replenishing functions and dual-channel sealing gasket structures, they eliminate the need for manual refilling and reduce sealant overflow—a common issue with two-component glue barrels . The hydraulic pressure control system ensures quantitative supply of both component A (white glue) and component B (black glue), maintaining optimal mixing ratios and minimizing waste . This not only reduces material costs but also improves the curing quality of the sealant, enhancing the durability of the double glazing glass . Additionally, the robots’ high-speed transmission systems—combining multi-row roller chains and V-belts—ensure smooth glass movement during sealing, reducing cycle times while maintaining precision . The LJTJ2030 model, for instance, can process glass sizes ranging from 400×280mm to 2000×3000mm with consistent sealing standards, achieving high production efficiency while lowering labor intensity . For manufacturers, this translates to increased throughput, reduced operational costs, and improved scalability—whether for large-scale mass production or small-batch customized orders .

3.3 Enhanced Safety and Sustainability

Safety and sustainability are core advantages of front sealing head sealing robots. By automating repetitive and hazardous tasks, they eliminate workers’ exposure to sealant fumes, chemical irritants, and repetitive motion injuries . The robots’ enclosed design and safety interlocks further reduce the risk of accidents in the production environment. From an environmental perspective, the precise control of sealant application minimizes waste, reducing VOC emissions and the overall environmental footprint of the production process . The automatic adjustment of glue output based on real-time sensor data ensures that only the required amount of sealant is used, avoiding excess that would otherwise be discarded . Additionally, many front sealing head robots are compatible with eco-friendly sealant materials, further aligning with global sustainability goals .

3.4 Versatility and Compatibility with Advanced Designs

Front sealing head sealing robots are highly versatile, capable of adapting to a wide range of gradual double glazing configurations. Their programmability allows for the storage of multiple part-specific programs, enabling seamless switching between different glass sizes, cavity designs, and coating types . For example, the 3D head robotic sealer from Sames supports three separate nozzles with adjustable orientations, allowing it to access hard-to-reach areas and apply flat, uniform seals on complex geometries . Kawasaki’s BU series robots, with their 7-axis design and long reach (up to 2887.5mm), are ideal for sealing large or irregularly shaped double glazing units, such as those used in automotive or aerospace applications . Moreover, these robots are compatible with various sealant types, including polysulfide, silicone, and butyl rubber, ensuring compatibility with the diverse material requirements of gradual double glazing glass . Whether processing standard double glazing, three-layer insulating glass, or coated gradual variants, front sealing head robots deliver consistent, high-quality results.

4. Real-World Applications and Industry Impact

The adoption of front sealing head sealing robots has already made a significant impact across key industries, including construction, automotive, and aerospace. In the construction sector, where energy efficiency and durability are paramount, these robots are used to produce high-performance gradual double glazing for commercial buildings, residential complexes, and green infrastructure . For example, manufacturers using LIJIANG Glass’s LJTJ2540 and LJTJ2030 robots have reported improved sealing consistency, reduced product failure rates, and enhanced compliance with international energy efficiency standards . In the automotive industry, front sealing head robots are employed to seal windshields, side windows, and sunroofs—often gradual double glazing with curved surfaces and variable thicknesses. Robots like the ABB IRB 6640 and Fanuc R-2000 series ensure precise, uniform seals that withstand extreme temperatures, vibrations, and moisture, improving vehicle safety and comfort .

Refurbished front sealing head robots have also emerged as a cost-effective option for small and medium-sized enterprises (SMEs), offering the same precision and efficiency as new equipment at a lower investment . Companies like Global Robots supply refurbished models from top brands (e.g., ABB, Fanuc, Kuka) that undergo rigorous testing to ensure reliability, making advanced sealing technology accessible to a broader range of manufacturers . This democratization of automation has accelerated the adoption of front sealing head robots, driving innovation and competitiveness in the double glazing industry.

5. Conclusion

As the demand for gradual double glazing glass continues to rise, the need for a precise, efficient, and adaptive sealing solution has never been greater. Front sealing head sealing robots address this need by integrating high-precision sensing, adaptive control, and automated technology to overcome the limitations of traditional sealing methods. Their ability to handle variable thicknesses, multi-cavity designs, and specialized coatings—while maintaining consistency, efficiency, and sustainability—makes them the superior choice for modern double glazing production. From enhancing product quality and reducing costs to improving workplace safety and environmental compliance, these robots deliver multifaceted value that drives industry progress. As technology advances, front sealing head sealing robots will continue to evolve, incorporating artificial intelligence, machine learning, and advanced materials to meet the ever-changing demands of gradual double glazing glass processing. For manufacturers committed to excellence, investing in a front sealing head sealing robot is not just a practical decision—it is a strategic investment in the future of high-performance double glazing.





This article comprehensively covers the technical, operational, and industry-specific aspects of front sealing head sealing robots for gradual double glazing glass. If you need to emphasize specific applications (e.g., automotive vs. construction), add technical data comparisons, or include case studies from particular manufacturers, feel free to provide additional details. I can also refine the content to align with specific industry standards or target audiences (e.g., engineering professionals, production managers).

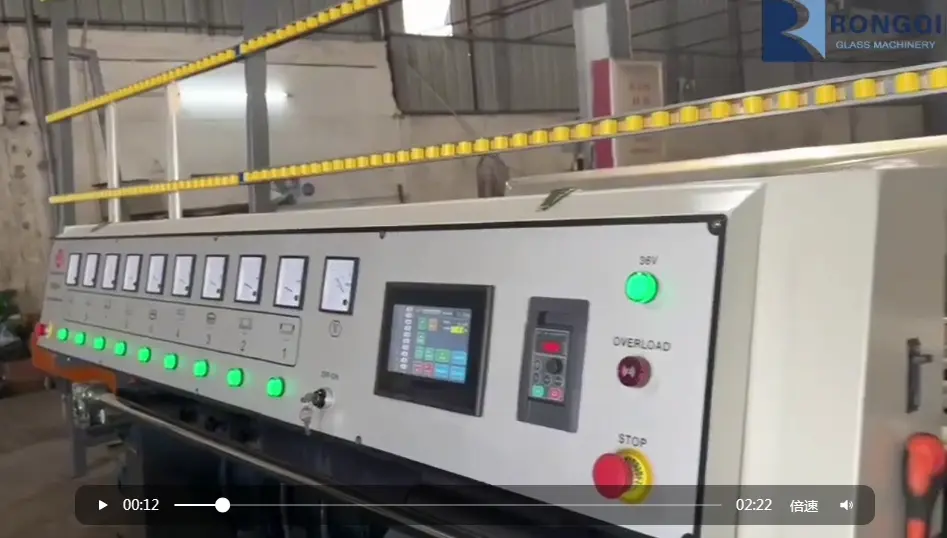

Glass Edging and Polishing Machines: Technological Evolution, Industrial Applications, and Future Trajectories

1. Introduction

Glass edging and polishing machines stand as indispensable pillars of modern glass manufacturing and processing industries, serving as the critical link between raw glass sheets and finished products that meet stringent safety, aesthetic, and functional standards. These specialized pieces of equipment transform the sharp, irregular edges of cut glass—marred by microcracks and structural inconsistencies—into smooth, precise, and visually refined surfaces through a series of controlled grinding, polishing, and finishing operations. As global demand for high-quality glass products surges across architectural, automotive, electronic, and renewable energy sectors, the role of glass edging and polishing machines has evolved from mere finishing tools to integral components of automated production lines, driving efficiency, precision, and innovation in the industry. This article provides a comprehensive analysis of the technological principles, product classifications, industrial applications, market dynamics, and future trends shaping the development of glass edging and polishing machines.

2. Core Technological Principles and Operational Mechanisms

2.1 Fundamental Processing Principles

At its essence, the operation of glass edging and polishing machines revolves around two primary objectives: eliminating structural vulnerabilities in glass edges and enhancing their surface quality. The processing workflow typically unfolds in three sequential stages—rough grinding, fine grinding, and polishing—each tailored to address specific defects and achieve desired outcomes.

Rough grinding constitutes the initial phase, where diamond-impregnated grinding wheels with coarse grit sizes (e.g., 80-mesh diamond wheels) remove excess material, sharp burrs, and microcracks generated during glass cutting. This stage primarily relies on brittle fracture mechanics, as the sharp edges of diamond particles initiate and propagate cracks in the glass matrix, resulting in the formation of debris that is efficiently cleared by cooling systems. The key technical challenge here is balancing material removal rate with structural integrity, as excessive grinding force can induce new cracks or edge chipping.

Fine grinding follows, employing medium-grit abrasive tools (e.g., 140–240-mesh resin-bonded wheels) to refine the edge profile, reduce surface roughness, and correct dimensional deviations. Unlike rough grinding, this stage involves a combination of brittle fracture and ductile deformation, with the grinding temperature rising to 500–800°C in the contact zone. This temperature elevation softens the glass surface, enabling a more uniform material removal process and minimizing the formation of new defects.

Polishing, the final stage, achieves the desired surface finish and luster using ultra-fine abrasives or polishing media (e.g., wool polishing wheels, cerium oxide slurries). The objective here is to eliminate residual scratches from previous grinding stages and achieve a surface roughness (Ra) of less than 0.2μm, often matching the optical clarity of the glass substrate itself. Modern polishing processes may incorporate chemical-mechanical polishing (CMP) techniques, where the synergistic action of chemical etching and mechanical abrasion yields superior surface quality while reducing processing time.

A critical aspect of all three stages is thermal management. Grinding and polishing generate significant heat—with localized temperatures at the abrasive-tool interface reaching up to 1000°C—which can cause glass edge burn, thermal cracking, or structural weakening. To mitigate these risks, glass edging and polishing machines are equipped with high-pressure water cooling systems that circulate coolant across the grinding zone, dissipating heat, flushing away debris, and lubricating the abrasive-tool interface. Advanced systems may also integrate temperature sensors and adaptive cooling controls to maintain optimal processing temperatures in real time.

2.2 Key Technical Components and Their Functions

Modern glass edging and polishing machines are sophisticated assemblies of mechanical, electrical, and control systems, each component contributing to precision, efficiency, and reliability.

The grinding head assembly serves as the core functional unit, comprising multiple grinding and polishing spindles arranged in a sequential configuration. For example, the TJM9 series linear multi-stage edging machine features nine spindles—including five stage-edge grinding heads, two front chamfering heads, and two rear chamfering heads—each dedicated to a specific processing task. These spindles are equipped with high-power motors (ranging from 1.5kW to 2.2kW) operating at variable speeds (1400–2840rpm), enabling precise control over material removal rates. The grinding heads are typically mounted on servo-driven linear guides, allowing for automated adjustments of edge angles (0°–60° for stage edges, 45° for chamfers), edge widths (up to 30mm), and residual thickness, ensuring versatility across different glass processing requirements.

The glass conveying system is responsible for transporting glass sheets through the processing zone with minimal friction and positional deviation. Advanced systems utilize reinforced synchronous belts to address the challenge of slipping when handling heavy glass panels, supporting loads of up to 200kg while maintaining stable conveying speeds (1.2–6.2m/min). The conveying path is often equipped with adjustable guide rails and vacuum suction cups to secure the glass and prevent lateral movement during processing, ensuring dimensional accuracy.

The control system has evolved significantly with the integration of digital and intelligent technologies. Modern machines feature CNC (Computer Numerical Control) systems with user-friendly HMI (Human-Machine Interface) panels, enabling operators to program and store processing parameters for different glass types, thicknesses (4–25mm for standard machines, 0.5–3mm for ultra-thin glass applications), and edge profiles. High-end models incorporate vision positioning systems and laser measurement sensors that perform real-time edge detection and dimensional verification, with feedback loops that automatically adjust processing parameters to compensate for deviations. Some advanced systems also leverage AI algorithms to optimize grinding parameters based on historical data, reducing processing time by up to 40% and lowering material waste rates to below 0.8%.

Auxiliary components include waterproof and debris management systems—such as double-layer brush waterproof structures and quick-change brush holders—to prevent coolant leakage and facilitate maintenance. The machine frame is constructed from high-strength steel to minimize vibration during high-speed operation, ensuring structural stability and processing precision. For large-scale production lines, automated loading and unloading systems (e.g., robotic arms, conveyor integration) may be incorporated to streamline workflow and reduce labor requirements.

3. Classification of Glass Edging and Polishing Machines

Glass edging and polishing machines are classified along multiple dimensions based on processing capabilities, automation levels, and application scenarios, reflecting the diverse needs of the glass processing industry.

3.1 Classification by Processing Form



Linear Edging Machines: Designed for processing straight edges of flat glass sheets, these machines are widely used in architectural glass, furniture glass, and solar panel manufacturing. Linear machines can be further categorized into single-edge, double-edge, and multi-stage models. Double-edge machines process both longitudinal edges simultaneously, improving efficiency for high-volume production, while multi-stage models (e.g., the TJM9 series) integrate rough grinding, fine grinding, chamfering, and polishing in a single pass, enabling continuous processing of same-thickness glass sheets. Linear machines are characterized by their high processing speed and dimensional accuracy, making them ideal for large-scale production of standard glass products.



Inner/Outer Circle Edging Machines: Specialized for processing curved edges of circular, oval, or irregularly shaped glass, these machines are used in applications such as automotive glass (windshields, side windows), decorative glass, and optical components. Inner circle machines focus on grinding the inner diameter of hollow glass parts, while outer circle machines process the outer perimeter. Advanced models can handle complex curved profiles with high precision, leveraging CNC control to follow programmed paths with tolerances of ±0.03mm. The market for inner/outer circle machines is growing rapidly, driven by demand from the automotive and renewable energy sectors, with a projected compound annual growth rate (CAGR) of 17% for combined models.



Special-Shaped Edging Machines: Engineered to process non-linear, complex edge profiles (e.g., bevels, arcs, notches), these machines are used in high-end architectural glass, decorative glassware, and electronic device screens. They combine the capabilities of linear and circular edging machines, with multi-axis servo systems that enable precise control over edge geometry. Special-shaped machines often incorporate 3D scanning and modeling capabilities to process custom-designed profiles, catering to the growing demand for personalized glass products.




3.2 Classification by Automation Level



Manual/ Semi-Automatic Machines: These machines require significant operator intervention for glass loading, positioning, and parameter adjustment. Manual machines are typically small bench-top units suitable for small-scale workshops, custom projects, or low-volume production. Semi-automatic machines automate certain functions (e.g., conveying, grinding head adjustment) but still require operator oversight for quality control. While these machines have lower upfront costs, they are limited by lower processing speeds and higher labor requirements, making them less suitable for large-scale production. Semi-automatic machines maintain a 33% share of the 存量 market, primarily among small and medium-sized glass processing enterprises.



Fully Automatic Machines: These machines integrate automated loading, processing, inspection, and unloading, enabling continuous, high-volume production with minimal human intervention. Fully automatic machines are equipped with advanced control systems, vision sensors, and robotic integration, ensuring consistent processing quality and high efficiency. They are widely used in large glass manufacturing facilities serving the architectural, automotive, and electronic industries. The market share of fully automatic machines has exceeded 61%, with growth driven by the need for scalability and cost reduction in mass production. High-end fully automatic models may feature six-axis robotic arms for handling complex glass shapes and sizes, with a 稼动率 (equipment utilization rate) of up to 92%.



Intelligent/Connected Machines: Representing the cutting edge of technological advancement, these machines incorporate IoT (Internet of Things) connectivity, cloud computing, and AI-driven optimization. They can be remotely monitored and controlled, with predictive maintenance systems that detect potential component failures before they occur, reducing downtime by up to 30%. Intelligent machines also enable data collection and analysis, providing insights into processing efficiency, material usage, and quality trends. Some models feature digital twin technology, creating virtual replicas of the machine and processing process to simulate and optimize performance before physical implementation. The adoption of intelligent machines is accelerating, with 45% of new installations featuring IoT modules and 31% of high-end models utilizing linear motor drives for enhanced positioning precision.




3.3 Classification by Processing Thickness



Ultra-Thin Glass Edging Machines: Specialized for processing glass sheets with thicknesses of 0.5–3mm, these machines are used in electronic applications such as smartphone screens, tablet displays, and Mini LED backlight panels. Ultra-thin glass is highly fragile, requiring precise control over grinding forces and conveying pressure to avoid breakage. These machines feature low-torque spindles, soft-touch conveying systems, and high-precision vision alignment, ensuring edge quality without compromising structural integrity. The market for ultra-thin glass edging machines is growing rapidly, with a 29% year-on-year increase in shipments in 2023, driven by the expansion of the consumer electronics industry.



Medium-Thickness Glass Edging Machines: Designed for glass sheets of 5–12mm thickness, these are the most widely used machines, catering to architectural glass (windows, partitions), furniture glass, and general-purpose applications. They balance processing speed and precision, with standard models offering edge angle adjustments and multi-stage grinding/polishing capabilities. The market for medium-thickness machines is stable, with annual shipments of approximately 4200 units, supported by consistent demand from the construction and furniture industries.



Thick Glass Edging Machines: Specialized for glass sheets of 15–25mm (or thicker) used in applications such as glass doors, curtain walls, and bulletproof glass. These machines require high-power grinding heads and reinforced conveying systems to handle the increased weight and material resistance. They often feature multi-pass grinding sequences to ensure complete removal of microcracks and achieve the required edge strength. The demand for thick glass edging machines is closely tied to the construction of high-rise buildings and luxury properties, with significant growth in regions such as the Middle East and Southeast Asia.




4. Industrial Applications and Market Impact

Glass edging and polishing machines play a pivotal role in multiple industries, enabling the production of safe, durable, and aesthetically pleasing glass products. Their applications span architectural, automotive, electronic, renewable energy, and decorative sectors, each with unique processing requirements that drive innovation in machine design.

4.1 Architectural Glass Industry

The architectural glass sector represents the largest application market for edging and polishing machines, accounting for approximately 56.7% of total demand. Architectural glass—used in windows, curtain walls, interior partitions, and glass facades—requires edges that are both safe (free of sharpness) and visually consistent. In regions with strict building codes (e.g., North America, Europe), polished edges are a mandatory requirement to minimize injury risks during installation and use. High-end skyscrapers and luxury buildings often specify beveled or polished edges to enhance the aesthetic appeal of glass facades.

Linear multi-stage edging machines are the workhorses of architectural glass production, capable of processing large glass sheets (up to 3200×2200mm for solar-integrated facades) with high throughput. The integration of automated systems has significantly reduced labor costs and turnaround times, with some production lines achieving continuous processing of up to 6.2m/min. The growth of green building initiatives and building-integrated photovoltaics (BIPV) has spurred demand for specialized edging machines capable of processing curved and textured glass used in energy-efficient facades. It is projected that by 2030, the BIPV segment will drive a 15.8% share of the glass edging machine market, with a corresponding market size of 19 billion yuan.

4.2 Automotive Glass Industry

The automotive glass industry demands the highest levels of precision and durability, as glass components (windshields, side windows, rear windows, sunroofs) must withstand mechanical stress, temperature fluctuations, and impact. Edging and polishing machines used in this sector are specialized to process complex curved profiles and ensure tight dimensional tolerances (±0.03mm) to fit seamlessly with vehicle frames.

Automotive glass edging involves multiple steps, including rough grinding to remove cutting defects, fine grinding to refine the edge profile, and polishing to enhance durability. Chamfering is a critical process, as it eliminates sharp edges that could propagate cracks under impact. The rise of electric vehicles (EVs) and autonomous driving technologies has further driven innovation, with demand for large-format curved glass (e.g., panoramic sunroofs, integrated display screens) requiring multi-axis edging machines with 3D processing capabilities. Additionally, the use of lightweight, high-strength glass (e.g., lithium-aluminum-silicon glass) in EVs has necessitated the development of adaptive grinding systems that adjust parameters based on material properties. The automotive glass segment is expected to account for 18% of the glass edging machine market by 2030, with a CAGR of 8.9% driven by global EV adoption.

4.3 Electronic Glass Industry

The electronic glass industry—encompassing smartphone screens, tablet displays, laptop panels, and TV screens—relies on ultra-precise edging and polishing machines to process ultra-thin glass (0.5–3mm) with minimal material loss. Electronic glass edges must be smooth and free of microcracks to prevent breakage during device assembly and use, while also meeting strict flatness requirements to ensure optimal display performance.

Specialized ultra-thin glass edging machines are equipped with soft-touch conveying systems, low-force grinding heads, and high-resolution vision sensors to achieve surface roughness (Ra) below 0.2μm. The growth of 8K ultra-high-definition displays, Mini LED, and Micro LED technologies has increased demand for machines capable of processing large-format glass substrates (e.g., 8th-generation glass sheets) with ultra-fine edge profiles. Domestic manufacturers in China have made significant strides in this segment, with their market share in 8K display glass processing equipment rising from 28% in 2020 to 47% in 2023, driven by advancements in six-axis 联动 control systems. The electronic glass segment is projected to become the second-largest application market by 2030, accounting for 32% of total demand.

4.4 Renewable Energy (Solar Glass) Industry

The solar energy industry has emerged as a key growth driver for glass edging and polishing machines, with solar panels requiring high-transmittance glass covers with durable, weather-resistant edges. Solar glass edging primarily involves grinding to remove sharp corners and microcracks, improving structural integrity and longevity in outdoor environments. Most solar glass applications require rounded edges, which are typically processed using double-sided circular edging production lines that integrate rough grinding, fine grinding, and safety chamfering in a single pass.

The rapid expansion of solar energy capacity globally—particularly in regions such as Southeast Asia, the Middle East, and Latin America—has fueled demand for high-throughput solar glass edging machines. These machines are designed to process large glass sheets (up to 3200×2200mm) used in utility-scale solar farms, with processing speeds optimized to meet the high-volume production requirements of solar panel manufacturers. In 2023, shipments of solar-specific edging machines increased by 65% year-on-year, reflecting the strong growth of the solar energy industry. With the global push for carbon neutrality, this segment is expected to maintain robust growth, supported by policy incentives and declining solar panel costs.

5. Market Dynamics and Competitive Landscape

5.1 Global and Regional Market Overview

The global glass edging and polishing machine market has experienced steady growth in recent years, driven by urbanization, industrialization, and technological advancements. According to industry reports, the Chinese market—one of the largest globally—reached a size of 38.6 billion yuan in 2022 and is projected to exceed 52 billion yuan by 2025, representing a CAGR of 10.3%. The global market is expected to reach a value of 120 billion yuan by 2030, with a CAGR of 8.5–9.2% during the forecast period.

Regionally, the market is characterized by significant concentration in East Asia (China, Japan, South Korea), Europe (Germany, Italy, Spain), and North America (the United States, Canada). China dominates global production, accounting for over 58% of the world’s glass edging machine output, with domestic manufacturers such as North Glass and Luoyang North Glass leading the way. The Chinese market is further segmented by regional industrial clusters, with the Yangtze River Delta and Pearl River Delta regions contributing 72% of national 产能，supported by robust demand from the construction and electronics industries. The central and western regions of China are emerging as growth hubs, with 产能 expanding at a rate of 15.6% due to government subsidies for new energy industrial parks.

Overseas markets are also growing, with Chinese exports of glass edging machines exceeding 4.3 billion US dollars in 2022, a year-on-year increase of 21.7%. Southeast Asia is the largest export destination, accounting for 39% of total exports, followed by the Middle East (with demand surging by 62% due to smart city initiatives) and Europe. However, international trade faces challenges from evolving regulatory barriers, such as the EU’s CE certification 新规 that tightened noise standards from 85dB (A) to 78dB (A), forcing manufacturers to invest in acoustic simulation and noise reduction technologies.

5.2 Competitive Landscape and Key Players

The global glass edging and polishing machine market is highly competitive, with a mix of established international brands and rapidly growing domestic manufacturers. The competitive landscape is characterized by two distinct trends: 进口替代 in the high-end segment and price competition in the mid-range segment.

International brands such as Germany’s Bystronic and Austria’s Lisec have long dominated the high-end market, known for their precision, reliability, and advanced technology. These companies have traditionally held a strong position in industries such as automotive and high-end architectural glass, leveraging their expertise in CNC control and automation. However, in recent years, domestic manufacturers in China have made significant strides in technological innovation, narrowing the gap with international brands. For example, North Glass and Luoyang North Glass have developed six-axis 联动 control systems that achieve processing precision of ±0.03mm, enabling them to replace imported equipment in some high-end applications. As a result, the market share of domestic equipment in China has risen to 58%, with further growth expected in the coming years.

To counter the rise of domestic competitors, international brands have adopted localization strategies, such as establishing production facilities in China and adjusting their pricing. For instance, Lisec reduced the price of its mid-range models by 18% to penetrate second- and third-tier cities in China. In the mid-range market, domestic manufacturers face intense price competition, with product prices ranging from 280,000 to 450,000 yuan per unit, leading to a compression of average profit margins to 12.8%. To differentiate themselves, some domestic manufacturers are focusing on niche markets, such as ultra-thin glass edging or special-shaped glass processing, where they can leverage their agility and cost advantages.

The competitive landscape is also shaped by technological innovation and R&D investment. Key players are focusing on developing intelligent, energy-efficient machines to meet the growing demand for sustainable manufacturing. For example, the adoption of fifth-generation servo drive systems has reduced energy consumption by 25%, with single-unit annual power consumption dropping from 35,000 kWh to 26,000 kWh. Manufacturers are also investing in green technologies, such as dry grinding systems that eliminate the need for cooling water and reduce environmental impact. The market share of dry grinding machines is expected to reach 39% by 2025, up from 22% in 2022.

6. Technological Advancements and Innovation Trends

The glass edging and polishing machine industry is undergoing a period of rapid technological transformation, driven by advancements in automation, digitization, materials science, and sustainability. These innovations are reshaping the capabilities of machines, enabling higher precision, efficiency, and versatility while reducing environmental impact.

6.1 Intelligent and Automated Technologies

Intelligence and automation are the most significant trends in the industry, with machines becoming increasingly integrated with digital technologies. The adoption of IoT (Internet of Things) modules has enabled remote monitoring and management of machines, with 58% of new installations featuring cloud connectivity. This allows operators to track processing parameters, monitor machine health, and receive real-time alerts for maintenance or troubleshooting, reducing downtime by up to 30%. Remote diagnostic systems have also become common, enabling technical support teams to resolve issues without on-site visits, improving service efficiency.

AI and machine learning are being applied to optimize processing parameters and improve quality control. AI algorithms analyze historical processing data to identify optimal grinding speeds, pressures, and abrasive tool selections for different glass types and thicknesses, reducing processing time by 40% and material waste to below 0.8%. Vision-based quality inspection systems—equipped with high-resolution cameras and image recognition software—perform 100% inspection of finished edges, detecting defects such as microcracks, scratches, and dimensional deviations with accuracy rates exceeding 99%. These systems can automatically reject defective products or trigger adjustments to processing parameters, ensuring consistent quality.

The integration of robotics is another key advancement, particularly in high-volume production lines. Six-axis robotic arms are used for automated loading and unloading of glass sheets, reducing labor requirements and minimizing the risk of damage during handling. Some advanced systems feature collaborative robots (cobots) that work alongside human operators, performing repetitive tasks such as tool changing or quality inspection. The use of robotics has also enabled the processing of complex-shaped glass products that were previously difficult to handle manually.

6.2 Precision and Multi-Functionalization

The demand for higher precision in glass processing has driven advancements in machine design and component technology. Linear motor drives have replaced traditional ball screw systems in high-end machines, improving positioning accuracy by 0.8 orders of magnitude and enabling processing tolerances of ±0.01mm. This level of precision is critical for applications such as electronic glass and automotive display screens, where even minor dimensional deviations can affect performance.

Multi-functionalization is another key trend, with machines designed to perform multiple processing tasks in a single pass. For example, modern linear multi-stage edging machines integrate rough grinding, fine grinding, chamfering, and polishing, eliminating the need for multiple machines and reducing production time. Some advanced models can also process multiple edge profiles (e.g., straight edges, bevels, arcs) without retooling, enhancing versatility and reducing setup time. The development of hybrid machines that combine edging, polishing, and drilling capabilities is also emerging, catering to the needs of specialized applications such as architectural glass with integrated hardware.

6.3 Sustainable and Energy-Efficient Technologies

Sustainability has become a key focus in the industry, driven by global efforts to reduce carbon emissions and comply with environmental regulations. The Chinese government’s “Dual Carbon” policy and the EU’s Green Deal have set strict targets for energy efficiency and emissions reduction, pushing manufacturers to develop more sustainable machines.

Energy efficiency has been improved through the use of high-efficiency motors, variable frequency drives (VFDs), and optimized hydraulic and pneumatic systems. Fifth-generation servo motors reduce energy consumption by 25% compared to previous models, while VFDs adjust motor speeds based on processing requirements, avoiding unnecessary energy use. Some machines also feature regenerative braking systems that capture and reuse energy during deceleration, further reducing power consumption.

The development of dry grinding technology is a significant advancement in sustainability. Traditional wet grinding systems use large amounts of water (up to 100 liters per minute) for cooling and debris removal, generating wastewater that requires treatment. Dry grinding systems—equipped with dust collection and filtration systems—eliminate the need for water, reducing environmental impact and operational costs. These systems use advanced abrasive tools that generate less heat, minimizing the risk of glass damage, and are increasingly being adopted in regions with water scarcity or strict wastewater regulations. The market share of dry grinding machines is expected to grow from 22% in 2022 to 39% in 2025.

Waste reduction is another focus area, with machines designed to minimize material loss during processing. Precision cutting and grinding technologies reduce glass waste rates to below 0.8%, while abrasive tool recycling programs are being implemented to reduce landfill waste. Some manufacturers also offer equipment remanufacturing services, extending the lifecycle of machines and reducing the environmental impact of new production.

7. Challenges and Future Outlook

7.1 Current Industry Challenges

Despite significant advancements, the glass edging and polishing machine industry faces several challenges that could impact growth and innovation.

Technological barriers remain a key challenge, particularly in the high-end segment. Developing machines with ultra-precision (±0.01mm) and multi-functional capabilities requires advanced materials, precision manufacturing, and sophisticated control systems, which are difficult to master. Core components such as high-precision spindles, linear guides, and servo motors are still dominated by international suppliers, leading to dependence on imports and higher costs for domestic manufacturers. Closing the technological gap with international brands will require sustained R&D investment and collaboration between industry, academia, and research institutions.

Regulatory and trade barriers are also becoming more complex. As countries implement stricter environmental, safety, and quality standards, manufacturers must invest in compliance, which can increase production costs. For example, the EU’s new CE certification requirements for noise and emissions have forced manufacturers to redesign machines and conduct additional testing. International trade tensions and tariffs also pose risks, particularly for exporters, as they can increase costs and limit market access.

Talent shortages are a growing concern, with the industry facing a lack of skilled operators, engineers, and technicians. The integration of digital and intelligent technologies requires workers with expertise in CNC programming, IoT, AI, and robotics, which are in short supply. This skills gap can limit the adoption of advanced machines and affect operational efficiency. Addressing this challenge will require investment in vocational training programs and collaboration with educational institutions to develop specialized curricula.

7.2 Future Outlook and Development Trends

Despite these challenges, the future of the glass edging and polishing machine industry is promising, with several key trends expected to drive growth and innovation in the coming years.

Continued 智能化 and digitization will be the primary driver of growth, with machines becoming increasingly connected, autonomous, and data-driven. By 2028, it is projected that 90% of new machines will feature AI-driven process optimization, and 75% will be equipped with predictive maintenance systems. The integration of digital twin technology will enable manufacturers to simulate and optimize production processes before physical implementation, reducing time-to-market and improving product quality. The use of 5G technology will further enhance connectivity, enabling real-time data transmission and remote control with minimal latency.

Expansion of application areas will open new growth opportunities. The rise of emerging technologies such as 3D printing of glass, smart glass (e.g., electrochromic glass, self-cleaning glass), and quantum dot displays will create demand for specialized edging and polishing machines. For example, smart glass requires precise edge processing to integrate electronic components, while 3D-printed glass parts need complex curved edge finishing. The automotive industry’s shift toward electric and autonomous vehicles will drive demand for large-format curved glass and integrated display screens, requiring multi-axis edging machines with advanced 3D processing capabilities.

Sustainability will become a competitive advantage, with manufacturers focusing on developing energy-efficient, low-emission, and circular machines. The adoption of renewable energy sources (e.g., solar panels) to power machines, the use of biodegradable lubricants, and the implementation of closed-loop water systems will become more common. Governments and customers are increasingly prioritizing sustainable products, creating market opportunities for manufacturers that can demonstrate environmental leadership.

Global market expansion will continue, with emerging economies in Southeast Asia, Africa, and Latin America becoming key growth markets. Urbanization, industrialization, and the expansion of the construction and automotive industries in these regions will drive demand for glass edging and polishing machines. Domestic manufacturers in China and other major producers will continue to expand their global footprint through exports, joint ventures, and local production facilities, leveraging their cost advantages and technological capabilities.

8. Conclusion

Glass edging and polishing machines are essential components of the modern glass manufacturing ecosystem, enabling the production of safe, precise, and aesthetically pleasing glass products for a wide range of industries. From architectural facades to electronic displays, automotive windshields to solar panels, these machines play a critical role in shaping the functionality and appearance of glass, driving innovation and growth across sectors.

The industry has undergone significant transformation in recent years, with technological advancements in automation, digitization, and sustainability reshaping machine capabilities and market dynamics. Intelligent machines with AI-driven optimization, IoT connectivity, and robotic integration have improved precision, efficiency, and reliability, while sustainable technologies such as dry grinding and energy-efficient systems have reduced environmental impact. Domestic manufacturers have emerged as key players, challenging the dominance of international brands through technological innovation and cost competitiveness.

Looking ahead, the industry is poised for continued growth, driven by urbanization, industrialization, and the expansion of emerging technologies. The increasing demand for high-precision, multi-functional, and sustainable machines will drive R&D investment and innovation, while emerging markets will provide new growth opportunities. However, the industry must address challenges such as technological barriers, regulatory compliance, and talent shortages to realize its full potential.

In conclusion, glass edging and polishing machines will remain a critical enabler of the global glass industry, with their evolution closely tied to advancements in technology, changes in market demand, and global efforts toward sustainability. As the industry continues to innovate and adapt, these machines will play an increasingly important role in shaping the future of architecture, transportation, electronics, and renewable energy, contributing to a more efficient, sustainable, and connected world.





This article provides a holistic view of glass edging/polishing machines, integrating technical details, market data, and future trends. If you need to emphasize specific aspects—such as regional market analysis, technical comparisons of leading brands, or case studies of industrial applications—I can expand those sections with additional research. You may also request adjustments to the depth of technical content or focus on a particular industry segment (e.g., electronic glass processing) for more targeted insights.

Glass Coating: Advanced Materials, Technological Innovations and Industrial Applications

In the contemporary field of material engineering and surface treatment, glass coating represents a high‑tech solution that endows ordinary glass substrates with additional functionalities and performance improvements. As an indispensable surface modification technology, glass coating has been widely used in construction, transportation, photovoltaics, home appliances, medical care, electronic displays and other fields. It not only enhances the physical and chemical stability of glass, but also creates intelligent, energy‑saving and environment‑friendly material properties for modern industrial products. This article systematically expounds the definition, classification, core properties, preparation processes, application scenarios and development trends of glass coating, demonstrating its important value in the global manufacturing and material industries.

1. Concept and Basic Principles of Glass Coating

Glass coating refers to a thin functional layer formed on the surface of glass through physical deposition, chemical reaction, spraying, curing and other processes. This layer is closely combined with the glass substrate at the molecular or atomic level, which can change the surface characteristics of glass without affecting its basic light transmittance and shape. The core principle of glass coating is to use the structural characteristics and chemical properties of coating materials to isolate the glass from external erosion, adjust light transmittance, reflect heat, resist friction and prevent pollution, so as to achieve the purpose of protection, beauty and functional expansion.

Ordinary glass has disadvantages such as fragility, easy scratching, easy adhesion of dirt, poor thermal insulation and easy weathering. After professional coating treatment, it can obtain superhydrophobicity, high hardness, corrosion resistance, UV resistance, infrared reflection, self‑cleaning and other characteristics, which greatly expands the application boundary of glass products.

2. Main Classification of Glass Coating

According to functional characteristics, application scenarios and material composition, glass coatings can be divided into the following categories, each with unique technical advantages and applicable fields.

2.1 Protective Glass Coating

Protective coating is the most widely used type of glass coating, mainly used to improve the surface strength and durability of glass. It includes anti‑scratch coating, anti‑collision coating, waterproof coating, acid and alkali resistant coating, etc. This kind of coating usually uses nano‑silica, nano‑titanium dioxide, polymer resin and other materials, which can form a high‑hardness transparent protective layer on the glass surface, effectively resist daily scratches, chemical corrosion and weathering damage, and extend the service life of glass.

2.2 Energy‑Saving and Thermal Insulation Coating

Energy‑saving coating is a key technology in the field of architectural glass and automotive glass. It uses metal oxide materials such as indium tin oxide (ITO) and low‑emissivity (Low‑E) materials to selectively reflect infrared and ultraviolet rays while ensuring high light transmittance. This kind of coating can block outdoor heat in summer and reduce indoor heat loss in winter, so as to achieve the effect of building energy conservation and interior comfort.

2.3 Self‑Cleaning and Antifouling Coating

Self‑cleaning glass coating is divided into photocatalytic type and hydrophobic type. The photocatalytic self‑cleaning coating uses nano‑titanium dioxide materials. Under the action of light, it can decompose organic dirt attached to the glass surface and make it easy to be washed away by rain. The hydrophobic self‑cleaning coating forms a lotus‑leaf‑like bionic surface, making water droplets form spherical shapes and slide off quickly, taking away dust and stains without leaving water marks. It is widely used in curtain wall glass, automotive glass and solar photovoltaic glass.

2.4 Anti‑Glare and Anti‑Reflection Coating

Anti‑reflection (AR) coating and anti‑glare (AG) coating are mainly used in electronic display screens, instrument panels, automotive central control screens and optical equipment. They can reduce light reflection, improve light transmittance, make the screen display clearer, reduce visual fatigue and avoid light pollution caused by reflection.

2.5 Functional Composite Coating

With the development of material technology, composite glass coating with multiple functions has gradually become the mainstream. For example, a coating can simultaneously have thermal insulation, self‑cleaning, anti‑UV and anti‑scratch functions, meeting the high‑standard needs of high‑end industries.

3. Core Performance Characteristics of High‑Quality Glass Coating

High‑performance glass coating has excellent physical and chemical indicators, which are the key to distinguishing ordinary treatment and professional coating.

3.1 High Hardness and Wear Resistance

Professional glass coating can reach a hardness of 9H or above, which can resist daily friction, scraping and hard object impact, and is not easy to produce scratches and wear marks.

3.2 Excellent Light Transmittance

High‑quality coating maintains high transparency, does not affect the original light transmittance of the glass, and does not produce yellowing, fogging and discoloration.

3.3 Strong Weather Resistance

It can adapt to extreme environments such as high temperature, low temperature, humidity and ultraviolet radiation, and the coating does not fall off, crack or degrade for a long time.

3.4 Good Adhesion

The coating is closely combined with the glass substrate, not easy to peel off, not easy to fall off, and has long‑term stability.

3.5 Environmental Protection and Non‑Toxic

Modern glass coating materials meet environmental protection standards, do not contain harmful substances, and are safe for humans and the environment.

4. Common Preparation Processes of Glass Coating

The production process of glass coating directly determines the uniformity, firmness and service life of the coating. The mainstream processes in the industry include the following types:

4.1 Magnetron Sputtering Coating

A physical vapor deposition (PVD) technology, which forms a uniform and dense film on the glass surface under vacuum conditions. It is mostly used in the production of Low‑E glass, AR glass and automotive functional glass, with high precision and good film quality.

4.2 Chemical Vapor Deposition (CVD)

Using chemical reaction to generate film‑forming substances and deposit them on the glass surface, it is suitable for large‑scale continuous production of architectural glass.

4.3 Spray Coating and Curing

Using nano‑ceramic coating or polymer coating materials, it is formed on the glass surface by spraying, wiping and high‑temperature curing. It is suitable for post‑processing of finished glass products, such as automotive glass coating, architectural glass renovation, etc.

4.4 Dip Coating and Roller Coating

Suitable for industrial mass production, with high efficiency and low cost, used for surface protective treatment of ordinary glass.

5. Main Application Fields of Glass Coating

Glass coating technology has penetrated into all aspects of modern industry and life, becoming an indispensable supporting technology.

5.1 Architectural Glass

Curtain wall glass, doors and windows glass use Low‑E coating, self‑cleaning coating and thermal insulation coating to achieve building energy conservation, environmental protection and beauty.

5.2 Automotive Glass

Automotive front windshield, side window glass use hydrophobic coating, thermal insulation coating, anti‑UV coating to improve driving safety and comfort.

5.3 Photovoltaic Solar Glass

Solar panels use anti‑reflection coating and self‑cleaning coating to improve light transmittance, reduce dust retention and increase power generation efficiency.

5.4 Electronic and Home Appliance Glass

Mobile phone screens, TV displays, refrigerator panels, air conditioner glass panels use anti‑scratch, anti‑fingerprint and anti‑reflection coating.

5.5 Medical and Laboratory Glass

Medical equipment glass and laboratory glass use antibacterial coating and corrosion‑resistant coating to meet the requirements of hygiene and safety.

5.6 Traffic and Public Facilities

Street lamp covers, subway station glass, airport glass use self‑cleaning and anti‑vandalism coating to reduce maintenance costs.

6. Development Trend of Glass Coating Technology

With the advancement of science and technology and the improvement of global environmental protection requirements, glass coating is developing towards intelligence, multi‑functionality, green and high efficiency.

6.1 Intelligent and Responsive Coating

Electrochromic, thermochromic and photochromic intelligent glass coatings will realize automatic adjustment of light and heat according to environmental changes.

6.2 Green and Environmentally Friendly Materials

Water‑based, solvent‑free and pollution‑free coating materials will replace traditional chemical coatings, complying with global low‑carbon and environmental protection trends.

6.3 High‑Efficiency and Large‑Scale Production

New coating equipment and processes will achieve higher efficiency, lower cost and larger‑scale production.

6.4 Multi‑Functional Composite Integration

A single coating will integrate multiple functions such as thermal insulation, self‑cleaning, antibiosis, wear resistance and energy saving.

7. Conclusion

As an advanced surface treatment technology, glass coating plays an important role in improving material performance, expanding product functions and promoting industrial upgrading. From architectural energy conservation to automotive safety, from electronic displays to photovoltaic power generation, glass coating provides reliable technical support for the development of modern industries. With the continuous innovation of material science and manufacturing technology, glass coating will show greater application potential and market value in the future, and become one of the core driving forces for the development of the functional material industry.

Insulating Glass Separator (Insulating Glass Sealant Remover) – Professional Product Overview

Abstract

Insulating glass units (IGUs) are core components in modern energy-efficient architecture, providing superior thermal insulation, sound insulation, and structural stability. During manufacturing, refurbishment, maintenance, and recycling of insulating glass, efficient removal of cured sealants, butyl rubber, structural adhesives, and residual bonding materials is essential to ensure glass reusability, surface cleanliness, and operational safety. The Insulating Glass Separator, also widely known as Insulating Glass Sealant Remover, is a professional chemical and mechanical auxiliary product designed specifically for this purpose. It integrates high-efficiency dissolving, softening, stripping, and cleaning functions, supporting industrial production, renovation, and environmental recycling of insulating glass. This article systematically introduces its product positioning, working principles, performance characteristics, application scenarios, operating procedures, material compatibility, safety guidelines, and development trends.

1. Introduction

With the global promotion of green buildings and energy-saving policies, the demand for insulating glass continues to rise. In actual production and service scenarios, a large number of semi-finished products, defective items, on-site renovation projects, and end-of-life window systems require sealant removal and glass separation. Traditional manual scraping, heating, and mechanical cutting suffer from low efficiency, high risk of glass breakage, surface scratching, incomplete residue cleaning, and poor working conditions.

The Insulating Glass Sealant Remover provides an industrial-grade solution. It can quickly soften and decompose cured silicone sealants, polysulfide sealants, polyurethane sealants, hot-melt butyl rubber, and structural adhesives without damaging glass, aluminum spacers, stainless steel, or coated glass surfaces. It greatly improves the efficiency of rework, maintenance, and recycling while reducing material loss and labor costs.

2. Product Definition and Classification

2.1 Definition

Insulating Glass Sealant Remover is a specially formulated chemical agent or composite tool system used to separate glass panes from spacers and remove cured adhesive and sealant residues in insulating glass processing, maintenance, and recycling.

2.2 Classification


By formulation type: liquid remover, gel remover, spray remover
By application method: immersion type, coating type, spray type
By applicable sealant: silicone-specific remover, polyurethane remover, butyl rubber remover, universal multi-purpose remover
By form: pure chemical remover; chemical-mechanical integrated separator kit


3. Working Principle

The product relies on three core mechanisms to achieve efficient removal:


Penetration and swelling: The active ingredients quickly penetrate the molecular structure of cured sealant, causing volume expansion and loosening the bond interface.
Chemical decomposition: Specific solvents break cross-linked polymer chains, turning high-strength cured adhesive into soft, removable material.
Interface stripping: The agent reduces surface adhesion between sealant and glass/spacer, enabling easy mechanical removal without residue.


It supports combination with manual scrapers, electric stripping tools, and industrial cleaning lines for optimized efficiency.

4. Core Performance Advantages


High efficiency: Shortens treatment time from hours to minutes, significantly improving rework efficiency.
Material safety: Non-corrosive to clear glass, coated glass, Low-E glass, aluminum alloy, galvanized steel, and UPVC frames.
Thorough cleaning: Removes both bulk sealant and invisible thin residues, ensuring high transparency and reusability.
Good operability: Low volatility, low odor, non-dripping formula suitable for vertical and flat surfaces.
Wide compatibility: Effective for most mainstream insulating glass sealants including silicone, PU, polysulfide, and butyl rubber.
Stable performance: Long shelf life, stable under normal temperature storage, suitable for factory and on-site use.


5. Main Application Scenarios

5.1 Insulating Glass Factory Rework

Removal of misapplied sealant, defective bonding, spacer misalignment, and unqualified semi-finished products to reuse glass and accessories.

5.2 On-site Construction and Renovation

Window and curtain wall renovation, old sealant replacement, leak repair, and component replacement.

5.3 Glass Recycling and Reclamation

Eco-friendly recycling of waste insulating glass, separating panes and spacers for secondary processing.

5.4 Equipment and Tool Cleaning

Removal of sealant residues from production molds, glue guns, conveying tables, and processing tools.

6. Standard Operating Procedure


Preliminary treatment: Use a blade or scraper to remove excess thick sealant to reduce consumption.
Application: Apply remover evenly to residual sealant surface; gel type for vertical surfaces, liquid for immersion.
Dwell time: Allow 10–30 minutes for penetration and swelling (adjust based on sealant type and thickness).
Mechanical stripping: Use plastic or metal scraper to remove softened adhesive easily.
Residue cleaning: Wipe with a clean lint-free cloth until the surface is residue-free.
Final drying: Air-dry completely before re-sealing or bonding.


7. Material Compatibility


Suitable: Float glass, tempered glass, laminated glass, Low-E coated glass, aluminum spacer, stainless steel, UPVC.
Pre-test recommended: Acrylic, PC, PVC, and painted surfaces (avoid incompatibility or discoloration).


8. Safety and Environmental Instructions


Use with adequate ventilation; avoid direct inhalation of vapor.
Wear protective gloves, goggles, and clothing to prevent skin and eye contact.
Keep away from heat, sparks, open flames, and static electricity.
Store in a cool, dry, ventilated area, out of reach of children.
Dispose of waste according to local environmental regulations; do not discharge into water systems.


9. Comparison with Traditional Methods














Method
Efficiency
Glass Damage
Surface Quality
Cost
Applicability




Manual scraping
Low
High
Scratches
High labor
Simple tasks


Heating separation
Medium
High
Residues
Medium
Limited scenarios


Mechanical cutting
Medium
High
Poor
High
Thick sealants


Professional sealant remover
High
Low
Excellent
Low cost
Industrial & on-site








10. Industry Development Trends


Environmentally friendly formulations: Low VOC, non-toxic, biodegradable components.
Specialization: Custom removers for high-hardness, UV-resistant, or high-temperature sealants.
High efficiency: Fast-acting formulas reducing waiting time to under 10 minutes.
Integration: Combined chemical-mechanical separator kits for one-stop operation.
Automation compatibility: Suitable for assembly lines and intelligent cleaning equipment.


11. Conclusion

The Insulating Glass Separator (Insulating Glass Sealant Remover) is an indispensable supporting product in the modern insulating glass industry chain. It solves core pain points in rework, maintenance, and recycling, improves product quality, reduces material waste, and enhances operational safety. With the continuous expansion of the insulating glass market and stricter environmental standards, professional, efficient, and green sealant removers will become the preferred choice for manufacturers, construction teams, and recycling enterprises. Choosing high-quality insulating glass sealant remover means higher productivity, better quality, and more sustainable development.
