Air-Floating Inclined Glass Breaking Table: Engineering Principles, Technical Advantages, and Industrial Applications

1. Introduction

In the modern manufacturing landscape of flat-panel displays (FPD), photovoltaic (PV) modules, architectural glass, and automotive glazing, the demand for precise, non-destructive glass processing and strength testing has intensified. The Air-Floating Inclined Glass Breaking Table (AFIGBT) emerges as a pivotal innovation, integrating air-bearing technology, hydraulic tilting mechanisms, and pneumatic control systems to redefine the standards of glass handling, positioning, and fracture testing. Unlike conventional contact-based breaking tables that risk surface scratches, edge damage, or inconsistent stress distribution, the AFIGBT leverages non-contact air suspension to ensure uniform support, precise angular adjustment, and repeatable fracture initiation—critical for quality control in high-precision glass manufacturing. This article comprehensively explores the technical fundamentals, structural components, performance characteristics, industrial applications, and future development directions of the AFIGBT, shedding light on its transformative role in the global glass processing industry.

2. Core Technical Principles

2.1 Non-Contact Air Suspension Mechanism

The cornerstone of the AFIGBT lies in its air-floating system, which employs porous media technology to generate a stable, ultra-thin air film between the glass substrate and the table surface. Compressed air is forced through millions of sub-micron pores in a proprietary carbon or ceramic bearing surface, creating a uniform pressure distribution that lifts the glass off the table without physical contact . The thickness of this air film is precisely controllable, typically ranging from 10µm to 200µm, with a stability tolerance of ±5µm to ±20µm—sufficient to accommodate inherent flatness deviations of up to 5µm in glass substrates while maintaining optimal support rigidity . Contrary to traditional assumptions, thinner air films exhibit higher stiffness, enabling the AFIGBT to achieve sub-micron positioning resolution and rapid vibration damping—essential for minimizing structural deformation during the breaking process.

To prevent "skating" or lateral displacement of the glass during suspension, the system integrates a balanced vacuum-preload mechanism. By adjusting the ratio of air pressure and vacuum force, engineers can "lock" the glass in a stable spatial position, suppressing flutter and ensuring consistent alignment throughout the testing or processing cycle . This pressure-vacuum balance also facilitates glass flattening, reducing surface vibrations that could compromise the accuracy of fracture analysis. Notably, the porous media surface acts as a HEPA-like filter, preventing particle generation and making the system compatible with ISO Class 10 cleanroom environments—a critical requirement for FPD and semiconductor manufacturing .

2.2 Hydraulic Tilting Control System

The inclined functionality of the AFIGBT is enabled by a hydraulic actuation system, designed to deliver smooth, stable angular adjustment with precise position control. The hydraulic cylinder-driven tilting mechanism allows the table to rotate from a horizontal (0°) to a vertical (90°) position, with intermediate angle settings adjustable in increments as fine as 0.1°—catering to diverse testing standards and processing requirements. The hydraulic system’s high load-bearing capacity ensures stable operation even for large-format glass substrates, with table sizes ranging up to 2200mm × 3600mm to accommodate Gen 10+ FPD panels and oversized architectural glass sheets.

Key to the tilting system’s performance is its closed-loop feedback control, which utilizes linear displacement sensors and pressure transducers to monitor the table’s angle and load in real time. This enables dynamic adjustment of hydraulic flow rates, ensuring uniform acceleration and deceleration during tilting—preventing inertial forces from causing glass slippage or edge impact. Additionally, safety interlocks are integrated to halt operation if the tilt angle exceeds preset limits or if pressure loss is detected, mitigating the risk of equipment damage or operator injury.

2.3 Pneumatic Fracture Initiation Mechanism

The AFIGBT’s breaking system employs pneumatically controlled X and Y-axis breaking bars, activated via foot pedals or programmable logic controllers (PLCs) to initiate precise, localized fractures. These breaking bars are strategically positioned across the table surface, allowing for selective activation to target specific sections of the glass—enabling both full-panel breaking and segmented cutting for large-format substrates. The pneumatic actuation ensures rapid, consistent force application, with adjustable pressure settings to match the mechanical properties of different glass types (e.g., tempered glass, laminated glass, ultra-thin glass).

To enhance fracture accuracy, the breaking bars are equipped with precision-machined contact points that concentrate stress at predefined locations—replicating real-world failure scenarios while ensuring repeatable test results. The integration of the air-floating system with the breaking mechanism is critical: the non-contact support eliminates friction-induced stress variations, ensuring that the applied breaking force is uniformly distributed across the glass’s cross-section. This results in clean, predictable fractures that align with industry standards such as SEMI, CE, and ISO 9001.

3. Structural Components and Technical Specifications

3.1 Key Component Architecture

The AFIGBT comprises six core subsystems, each engineered for durability, precision, and seamless integration:

1. Heavy-Duty Metallic Frame: Constructed from high-strength steel with reinforced welds, the frame provides structural rigidity to withstand dynamic loads during tilting and breaking, with a design life exceeding 10,000 operating hours.

2. Air-Floating Platform: Modular porous media air-bearing panels (available in standard, precision, and ultra-precision variants) cover the table surface, with customizable configurations to accommodate different glass sizes and thicknesses (from 0.1mm to 20mm).

3. Air Supply System: A high-pressure compressor (3–5 kW) with pressure regulators, filters, and flow meters delivers clean, dry air (≤ -40°C dew point) to the air-bearing panels, ensuring consistent air film formation.

4. Hydraulic Tilting Unit: Double-acting hydraulic cylinders with servo valves, paired with a hydraulic power unit (380V/50Hz or 220V/60Hz), enable smooth angle adjustment with a tilting speed of 2–5° per second.

5. Pneumatic Breaking Assembly: 3–6 pneumatically controlled breaking bars (depending on table size) with adjustable stroke lengths (10–50mm) and force ranges (50–500N), synchronized via PLC for coordinated fracture initiation.

6. Control and Safety System: A touchscreen HMI (Human-Machine Interface) with PLC integration allows for program storage (up to 100 test protocols), real-time data visualization, and remote monitoring. Safety features include emergency stop buttons, pressure loss alarms, and interlocked access doors.

3.2 Critical Technical Parameters表格Parameter Specification Range Table Dimensions 1000mm×1000mm to 2200mm×3600mm Maximum Glass Size Up to 2000mm×1000mm (standard) / Gen 12+ compatible (custom) Glass Thickness Capacity 0.1mm–20mm Air Film Thickness 10µm–200µm Tilt Angle Range 0°–90° (adjustable in 0.1° increments) Breaking Force Adjustment 50N–500N Positioning Accuracy ±2µm (linear) / ±0.1° (angular) Operating Speed 2–3 m/s (glass transport) / 2–5°/s (tilting) Power Requirements 380V 3-phase 50Hz / 220V single-phase 60Hz (3–5 kW) Environmental Compatibility Temperature: 0°C–40°C; Humidity: <98% (non-condensing) Certifications CE, ROHS, ISO 9001, SEMI-compliant 4. Technical Advantages Over Conventional Systems4.1 Non-Contact Handling and Surface ProtectionUnlike mechanical conveyor belts or vacuum chucks that exert localized pressure on glass surfaces, the AFIGBT’s air-floating system eliminates physical contact, preventing scratches, micro-cracks, and contamination. This is particularly critical for high-value applications such as FPD substrates and PV solar panels, where surface integrity directly impacts product performance . The carbon or ceramic bearing surfaces are wear-resistant and particle-free, ensuring compatibility with cleanroom environments and reducing maintenance costs associated with contact-based components.4.2 Enhanced Precision and RepeatabilityThe combination of air-film stability, hydraulic tilting control, and pneumatic breaking mechanisms enables the AFIGBT to achieve fracture test repeatability within ±3%—a significant improvement over conventional tables (±8–12%). The sub-micron positioning resolution and uniform stress distribution ensure that each test replicates real-world conditions, providing reliable data on glass toughness, fracture energy, and failure modes. This precision is validated by compliance with international standards such as SEMI, which has adopted air-floating-based measurement models for glass quality assessment.4.3 Versatility and ScalabilityThe AFIGBT’s modular design allows for seamless customization to meet diverse industry needs. It supports multiple glass types (tempered, laminated, ultra-thin, AR-coated) and processing tasks, including strength testing, precision cutting, and edge quality inspection. The table’s compatibility with Gen 5 to Gen 12 glass substrates makes it suitable for small-scale laboratories and large-scale manufacturing facilities alike, with the ability to handle glass sizes up to 2200mm×3600mm and beyond with custom configurations.4.4 Operational Efficiency and SafetyThe AFIGBT’s automated loading/unloading systems, rapid test cycles (≤1000ms per measurement point), and data logging capabilities streamline quality control processes, reducing labor costs and increasing throughput. The hydraulic tilting system’s smooth operation minimizes glass breakage during handling, while the integrated safety features (pressure loss alarms, emergency stops, interlocks) ensure operator protection. Additionally, the low air consumption of porous media air bearings (measured in liters per hour rather than liters per minute) reduces energy costs compared to traditional air-bearing systems .5. Industrial Applications5.1 Flat-Panel Display (FPD) ManufacturingIn FPD production (LCD, OLED, microLED), the AFIGBT is used for post-processing quality control, including glass substrate strength testing, laser划片 alignment, and edge defect detection. The non-contact air suspension prevents damage to sensitive display layers, while the precise tilting and breaking mechanisms ensure clean, straight fractures during panel separation. The system’s compatibility with ISO Class 10 cleanrooms and sub-micron positioning accuracy makes it indispensable for Gen 10+ FPD facilities, where even minor surface defects can render panels defective .5.2 Photovoltaic (PV) Module ProductionFor solar glass (ultra-white embossed glass, AR-coated glass), the AFIGBT enables rapid measurement of spectral transmittance, fracture toughness, and edge strength—critical parameters for PV module efficiency and durability. The system’s ability to handle large-format glass sheets (up to 2000mm×1000mm) and perform multi-point testing allows manufacturers to assess spatial uniformity of mechanical properties, ensuring compliance with TAM1.5 and SEMI standards. The air-floating design also facilitates easy movement of heavy glass sheets, reducing handling time and breakage rates during production.5.3 Architectural and Automotive Glass ProcessingIn architectural glass manufacturing, the AFIGBT is used to test the breaking strength of tempered and laminated glass, ensuring compliance with building safety codes. The tilting function simulates real-world installation angles, allowing engineers to evaluate fracture behavior under gravitational loads. For automotive glass (windshields, side windows), the system performs impact resistance testing and precision cutting, with the non-contact handling preserving the glass’s optical clarity and structural integrity. The pneumatic breaking bars enable segmented cutting of complex shapes, supporting the production of curved and customized automotive glass components.5.4 Research and Development LaboratoriesAcademic and industrial R&D labs utilize the AFIGBT to study glass fracture mechanics, material fatigue, and the effects of coating technologies on mechanical performance. The system’s adjustable parameters (air film thickness, tilting angle, breaking force) allow researchers to replicate diverse environmental and loading conditions, generating data to optimize glass formulations and processing techniques. The integration of advanced sensors (strain gauges, high-speed cameras) enables real-time monitoring of fracture propagation, providing insights into crack initiation and growth mechanisms.6. Future Development Trends6.1 Integration of Smart Sensing and AIThe next generation of AFIGBT will incorporate advanced sensing technologies, including machine vision cameras, ultrasonic sensors, and fiber optic strain gauges, to enable real-time monitoring of glass deformation, stress distribution, and fracture dynamics. Artificial intelligence (AI) algorithms will analyze this data to predict failure points, optimize test parameters, and automate quality grading—reducing human intervention and improving testing accuracy. For example, AI-powered image recognition can identify micro-cracks before fracture, enabling proactive quality control in high-volume production lines.6.2 Miniaturization and High-Speed ProcessingAs the demand for ultra-thin glass (≤0.1mm) in wearable devices and flexible electronics grows, AFIGBT systems will be miniaturized to accommodate small-format substrates while maintaining high precision. Advances in micro-air-bearing technology will enable air film thicknesses below 10µm, supporting the handling of fragile, flexible glass without deformation. Additionally, improvements in hydraulic and pneumatic actuation will reduce test cycle times to <500ms per point, meeting the throughput requirements of next-generation electronics manufacturing.6.3 Energy Efficiency and SustainabilityFuture AFIGBT designs will focus on reducing energy consumption through the adoption of energy-efficient compressors, regenerative hydraulic systems, and low-power sensors. The use of recyclable materials in frame construction and biodegradable lubricants in hydraulic systems will align with global sustainability initiatives. Furthermore, the integration of solar-powered air supply systems will enable off-grid operation in remote manufacturing facilities, reducing carbon emissions.6.4 Interoperability with Industry 4.0 SystemsTo support smart manufacturing, AFIGBT systems will be equipped with Industrial Internet of Things (IIoT) connectivity, enabling seamless integration with MES (Manufacturing Execution Systems) and ERP (Enterprise Resource Planning) platforms. Real-time test data, equipment performance metrics, and maintenance alerts will be transmitted to cloud-based dashboards, allowing for remote monitoring, predictive maintenance, and process optimization. This interoperability will enable manufacturers to achieve end-to-end traceability of glass components, from raw material to finished product.7. ConclusionThe Air-Floating Inclined Glass Breaking Table represents a paradigm shift in glass processing and testing, combining non-contact air suspension, precise hydraulic tilting, and pneumatic fracture control to deliver unmatched precision, versatility, and efficiency. Its ability to protect glass surfaces, ensure repeatable test results, and accommodate diverse industry needs has made it an indispensable tool in FPD, PV, architectural, and automotive glass manufacturing. As technology advances, the integration of smart sensing, AI, and IIoT connectivity will further enhance the AFIGBT’s capabilities, driving innovation in glass processing and supporting the growth of high-precision manufacturing industries worldwide. By adhering to international standards and prioritizing sustainability, the AFIGBT is poised to remain a cornerstone of modern glass production, enabling manufacturers to meet the evolving demands of quality, efficiency, and environmental responsibility.

Glass Tempering Furnace: Principles, Technology, Applications and Industrial Development

Abstract

Glass tempering furnace, as a core thermal processing equipment in the modern glass deep-processing industry, plays an irreplaceable role in transforming ordinary float glass, sheet glass and other flat glass products into tempered glass with high mechanical strength, thermal stability and safety performance. This paper systematically elaborates on the fundamental working principles, structural composition, classification characteristics, processing technology, application scenarios, performance advantages and existing challenges of glass tempering furnaces. Combined with the latest technological innovations and market development trends in the global glass industry, it also prospects the future development direction of glass tempering furnace equipment, aiming to provide a comprehensive and in-depth reference for industrial practitioners, engineering technicians and relevant research scholars.

1. Introduction

With the rapid advancement of global construction, automotive, home appliance, electronic information and new energy industries, the demand for high-performance safety glass has shown a sustained growth trend. Tempered glass, known as "safety glass", has become one of the most widely used functional glass products in modern industrial and civil fields due to its outstanding characteristics such as 3-5 times higher impact resistance than ordinary glass, excellent thermal shock resistance, and harmless small granular fragments when broken. The core equipment for achieving the glass tempering process is the glass tempering furnace, which integrates multiple disciplines including mechanical engineering, thermal engineering, automation control, material science and electrical engineering.

Since the birth of the first industrialized glass tempering furnace in the mid-20th century, the equipment has undergone continuous technological iteration and structural optimization. From the initial vertical tempering furnaces to the widely used horizontal convection tempering furnaces today, and from the single small-scale processing equipment to the large-scale, intelligent, energy-saving and high-efficiency production lines, glass tempering furnaces have gradually evolved into a highly specialized and standardized industrial equipment category. In the global glass deep-processing industry chain, the performance level of glass tempering furnaces directly determines the quality, production efficiency and cost control of tempered glass products, and is a key link that affects the core competitiveness of glass processing enterprises. This paper will conduct an all-round and multi-angle analysis of glass tempering furnaces, starting from their basic theoretical basis, and extending to practical applications and future development.

2. Fundamental Principles of Glass Tempering

Before analyzing the structure and working process of glass tempering furnaces, it is essential to clarify the physical and chemical principles behind the glass tempering process, which is the theoretical cornerstone for the design and operation of glass tempering furnaces. Glass tempering, also referred to as glass toughening, is a physical heat treatment method that changes the internal stress state and mechanical properties of glass without altering its chemical composition.

2.1 Thermal Tempering Principle

The vast majority of commercial glass tempering furnaces adopt the thermal tempering process, whose core principle is based on the rapid cooling of heated glass to form a uniform compressive stress layer on the surface and a tensile stress layer inside the glass. Specifically, ordinary flat glass is heated in a tempering furnace to a temperature close to its softening point (generally between 600°C and 650°C, varying slightly with glass composition and thickness), at which the glass internal molecular structure is in a state of high activity and the internal stress is completely eliminated. Subsequently, the heated glass is quickly transferred to the cooling zone of the tempering furnace, where high-speed and uniform cold air is blown onto both sides of the glass surface through a specially designed air grid system.

Due to the rapid cooling rate, the glass surface layer solidifies and contracts first, forming a rigid compressive stress layer, while the internal glass is still in a high-temperature plastic state and continues to cool and contract. As the internal glass gradually cools to room temperature, its shrinkage is constrained by the already solidified surface layer, resulting in a stable tensile stress inside the glass and a compressive stress on the surface. This stress distribution endows tempered glass with exceptional mechanical properties: when subjected to external impact or bending force, the surface compressive stress can offset most of the external tensile stress, significantly improving the glass's impact resistance and bending strength. Moreover, when the tempered glass is broken by an external force exceeding its bearing limit, the internal tensile stress is released instantaneously, causing the glass to break into numerous small obtuse-angle particles, avoiding sharp fragments that cause harm to the human body, thus achieving the safety performance of tempered glass.

2.2 Chemical Tempering Principle

In addition to thermal tempering, a small number of special glass tempering furnaces adopt the chemical tempering process, which is mainly applicable to thin glass (thickness <3mm) and special-shaped glass products that are not suitable for thermal tempering. The chemical tempering principle is to immerse the preheated glass in a molten salt bath containing alkali metal ions with a larger ionic radius at a temperature lower than the glass transition temperature, and realize the ion exchange between the glass surface and the molten salt through the diffusion of alkali metal ions in the glass network structure. For example, sodium ions (Na⁺) on the glass surface are replaced by potassium ions (K⁺) with a larger radius in the molten salt. The volume expansion caused by ion substitution forms a compressive stress layer on the glass surface, thereby improving the mechanical strength and thermal stability of the glass. Although chemical tempering has advantages in processing thin glass, its production cycle is long, the cost is high, and the compressive stress layer is relatively thin, so it is only used in specific industrial fields, and thermal tempering furnaces still dominate the mainstream market.

3. Structural Composition of Glass Tempering Furnace

A complete glass tempering furnace is a complex integrated system composed of multiple functional modules, each module cooperating closely to complete the continuous and stable tempering processing of glass. The typical horizontal glass tempering furnace, which is the most widely used in the industry, mainly includes the feeding system, heating furnace body, conveying system, cooling system, control system and auxiliary systems such as exhaust and dust removal. Each part has a clear functional positioning and precise design requirements.

3.1 Feeding System

The feeding system is the starting end of the glass tempering furnace, responsible for stably and accurately sending the original glass sheets to be processed into the heating furnace. It mainly consists of a loading table, a sheet separating device, a positioning mechanism and a conveying roller table. For automated production lines, the feeding system is often equipped with a robotic arm loading system, which can realize automatic sorting, positioning and feeding of glass sheets, reducing manual labor and improving production efficiency. The positioning mechanism ensures that each glass sheet enters the heating furnace at a fixed position and angle, avoiding deflection or overlapping that affects the heating uniformity. For large-format glass, the feeding system is designed with anti-deformation support structures to prevent the glass from bending or breaking during the feeding process due to its own weight.

3.2 Heating Furnace Body

The heating furnace body is the core component of the glass tempering furnace, where the glass is heated to the specified tempering temperature, and its performance directly determines the heating efficiency and temperature uniformity of the glass. The heating furnace body is generally a sealed box structure, composed of a furnace shell, a thermal insulation layer, a heating element, a temperature sensor and a furnace inner cavity.

The furnace shell is usually made of high-strength steel plates, with good structural rigidity to ensure the stability of the furnace body during long-term operation. The thermal insulation layer is filled with high-temperature resistant thermal insulation materials such as aluminum silicate fiber and ceramic fiber, which can effectively reduce heat loss, reduce energy consumption and ensure the temperature stability of the furnace inner cavity. The heating element is the heat source of the furnace body, mainly including resistance heating wires, ceramic heating plates and infrared radiation heating tubes. According to different heating methods, it can be divided into radiation heating and convection heating. Traditional tempering furnaces mainly adopt radiation heating, which relies on the infrared radiation emitted by the heating element to heat the glass; modern high-efficiency tempering furnaces add a forced convection system, which circulates the high-temperature gas in the furnace through a convection fan to achieve uniform heating of the glass surface, especially suitable for low-e coated glass and other coated glass products that are sensitive to temperature differences.

Temperature sensors (such as thermocouples) are evenly arranged in the furnace body to collect real-time temperature data of different zones in the furnace, and feed back to the control system to realize closed-loop control of the furnace temperature, ensuring that the temperature difference in the effective heating area is controlled within ±2°C, which is a prerequisite for ensuring the quality of tempered glass. In addition, the heating furnace body is divided into multiple independent temperature control zones according to the length and width, and the temperature of each zone can be adjusted independently to adapt to the heating requirements of glass with different thicknesses and sizes.

3.3 Conveying System

The conveying system runs through the entire glass tempering furnace, responsible for transporting the glass through the feeding area, heating area and cooling area at a controllable speed. It mainly adopts a ceramic roller conveying structure, because ceramic rollers have excellent high-temperature resistance, low thermal expansion coefficient and smooth surface, which will not scratch the glass surface and can maintain stable conveying performance at high temperatures up to 700°C.

The ceramic rollers are driven by a motor and a transmission system (such as a chain or a synchronous belt), and the conveying speed can be adjusted steplessly through the control system. For glass with different thicknesses, the conveying speed in the heating zone and the cooling zone is precisely matched: thicker glass requires a slower conveying speed in the heating zone to ensure sufficient heating time, while thinner glass needs a faster conveying speed to avoid overheating. In addition, the conveying system of high-end tempering furnaces is equipped with a roller speed synchronization control device to ensure that the glass is always in a horizontal and stable state during the conveying process, avoiding deflection or warping caused by inconsistent roller speeds.

3.4 Cooling System

The cooling system is the key module to realize the rapid cooling of the heated glass and form the internal stress of tempered glass, which is composed of an air compressor, an air storage tank, an air grid assembly and an air volume adjustment device. The air grid is the core component of the cooling system, which is divided into upper and lower air grids, arranged symmetrically on the upper and lower sides of the glass conveying path. The surface of the air grid is densely distributed with specially designed air nozzles, which can spray high-pressure and uniform cold air onto the glass surface.

The cooling system of a high-performance glass tempering furnace can realize stepless adjustment of air volume, air pressure and cooling speed according to the thickness, size and type of glass. For example, thick glass requires a relatively gentle cooling rate to avoid excessive temperature stress causing glass bursting, while thin glass needs a higher cooling rate to ensure the formation of effective compressive stress. In addition, the cooling system is equipped with an air circulation and filtration device, which can recycle the cold air after heat exchange, reduce the load of the air compressor and achieve energy saving. The uniformity of the air grid air supply is a key indicator to measure the performance of the cooling system, and uneven air supply will lead to uneven stress distribution of the tempered glass, resulting in quality problems such as glass warping, self-explosion and poor strength.

3.5 Automatic Control System

The automatic control system is the "brain" of the glass tempering furnace, integrating programmable logic controller (PLC), human-machine interface (HMI), temperature control module, speed control module and safety protection module. The control system realizes the automatic operation of the entire tempering process by presetting process parameters for different types of glass.

Operators only need to input glass parameters such as thickness, size and type on the human-machine interface, and the system will automatically match the optimal heating temperature, heating time, conveying speed, cooling air volume and other process parameters. The control system has functions such as real-time data monitoring, fault alarm, parameter storage and historical data query. It can monitor the operating status of each module of the furnace body in real time, and issue an alarm and take protective measures in time when abnormal conditions such as temperature overrun, roller jam, and air pressure abnormality occur. In addition, the intelligent control system of modern glass tempering furnaces is equipped with a network communication interface, which can realize remote monitoring, fault diagnosis and program upgrade, facilitating the management and maintenance of the production line by enterprises.

3.6 Auxiliary Systems

In addition to the above core modules, the glass tempering furnace is also equipped with a series of auxiliary systems to ensure the stable operation of the equipment and compliance with environmental protection requirements. The exhaust gas treatment system is used to discharge the volatile gas and dust generated during the glass heating process, and purify the exhaust gas to meet environmental protection standards; the dust removal system collects the glass dust and impurities generated during the feeding and conveying process to keep the inside of the furnace clean; the cooling water circulation system is used to cool the motor, transmission system and electrical components of the equipment to prevent overheating damage; the safety protection system includes emergency stop buttons, safety doors, temperature and pressure overload protection, etc., to ensure the personal safety of operators and the safety of equipment.

4. Classification of Glass Tempering Furnaces

Glass tempering furnaces can be classified from multiple perspectives according to different structural forms, processing technologies, application scenarios and automation levels. The classification is conducive to the selection and application of equipment in different industrial fields. The main classification methods are as follows:

4.1 Classification by Structural Form

According to the conveying and processing structure, glass tempering furnaces are mainly divided into horizontal glass tempering furnaces and vertical glass tempering furnaces. Horizontal glass tempering furnaces adopt a horizontal conveying method, with glass lying flat on the ceramic roller table for heating and cooling. They have the advantages of large processing format, high production efficiency, good glass flatness, and suitability for mass production of various flat glass. They are the most widely used type in the market, covering almost all fields of tempered glass production. Vertical glass tempering furnaces adopt a vertical hanging conveying method, with glass vertically suspended and sent into the furnace for processing. They have a small floor area and are suitable for processing small and medium-sized glass and special-shaped glass, but their production efficiency is low and the processing format is limited, so they are only used in a small number of special processing scenarios.

4.2 Classification by Heating Method

According to the heating method of the furnace body, glass tempering furnaces are divided into radiation heating tempering furnaces and convection heating tempering furnaces. Radiation heating tempering furnaces rely on the infrared radiation of heating elements to heat glass, with a simple structure and low cost, suitable for processing ordinary clear float glass. However, the heating uniformity is relatively poor, and it is easy to cause uneven heating of coated glass, resulting in quality defects. Convection heating tempering furnaces add a forced convection circulation system on the basis of radiation heating, which uses high-temperature hot air to convectively heat the glass surface, greatly improving the heating uniformity and heating speed. They are especially suitable for processing low-e coated glass, solar coated glass, colored glass and other special glass products, and have become the mainstream development trend of modern tempering furnaces.

4.3 Classification by Processing Capacity and Scale

According to the processing capacity and production scale, glass tempering furnaces are divided into small and medium-sized laboratory tempering furnaces, medium-sized industrial production tempering furnaces and large-scale continuous production tempering furnaces. Small and medium-sized laboratory tempering furnaces are mainly used for glass tempering process research, product development and small-batch sample production, with small processing format, low power and flexible operation. Medium-sized industrial production tempering furnaces are suitable for small and medium-sized glass processing enterprises, with moderate processing capacity and cost, meeting the production needs of conventional tempered glass products. Large-scale continuous production tempering furnaces are designed for large glass processing groups, with ultra-large processing format, high-speed continuous production capacity, high degree of automation and intelligent integration, and can realize 24-hour uninterrupted production, suitable for large-scale orders in construction, automotive and other industries.

4.4 Classification by Process Purpose

According to different process purposes and processed glass types, glass tempering furnaces are also divided into flat glass tempering furnaces, bent glass tempering furnaces, laminated glass supporting tempering furnaces, and ultra-thin glass tempering furnaces. Among them, the bent glass tempering furnace is equipped with a bending mold and a bending control system in the heating zone, which can heat and bend the glass while tempering, producing curved tempered glass for automotive windshields, architectural curved curtain walls and other fields.

5. Glass Tempering Process Flow

The complete glass tempering process realized by the glass tempering furnace is a standardized and continuous operation flow, and each process link must be strictly controlled to ensure the quality of tempered glass. The standard process flow of the horizontal thermal glass tempering furnace is as follows:

5.1 Original Glass Preparation

Before entering the tempering furnace, the original glass sheets need to be cut, edged, polished and cleaned. Cutting is to cut the large-format original glass into the required size according to the design requirements; edging and polishing are to remove the sharp edges and burrs generated during cutting, because the micro-cracks on the glass edge will become the stress concentration point during the tempering process, leading to glass bursting; cleaning is to remove the oil, dust and impurities on the glass surface through a glass cleaning machine, avoiding the formation of spots or defects on the glass surface during heating and affecting the appearance quality of tempered glass.

5.2 Automatic Feeding

The cleaned and inspected qualified glass sheets are placed on the feeding table of the tempering furnace, and the feeding system positions and separates the glass sheets, then sends them into the heating furnace body one by one through the conveying roller table at a set speed. For automated production lines, this process is completed by a robotic arm without manual intervention.

5.3 High-Temperature Heating

The glass enters the heating furnace body and is conveyed forward slowly through the ceramic roller table. The heating element and convection system in the furnace heat the glass uniformly, and the temperature is raised to the tempering temperature (600-650°C) and maintained for a certain period of time. The heating time is determined by the glass thickness, type and furnace temperature: the thicker the glass, the longer the heating time required to ensure that the glass internal temperature reaches the softening state and the internal stress is completely eliminated. During the heating process, the control system monitors the furnace temperature in real time and adjusts the heating power to ensure temperature uniformity.

5.4 Rapid Cooling (Tempering)

After the heating is completed, the glass is quickly conveyed from the heating furnace to the cooling zone. The upper and lower air grids of the cooling system spray high-pressure uniform cold air onto the glass surface instantly, realizing rapid and uniform cooling. The cooling speed is precisely controlled according to the glass thickness, forming a stable compressive stress layer on the glass surface and a tensile stress layer inside, completing the tempering process. This link is the most critical step in determining the performance of tempered glass, and any deviation in cooling speed or uniformity will lead to unqualified product quality.

5.5 Unloading and Quality Inspection

The tempered glass after cooling is conveyed to the unloading table by the conveying system, and the operator or automatic inspection equipment conducts quality inspection on the tempered glass. The inspection items include appearance quality (no scratches, spots, bubbles, etc.), dimensional accuracy, flatness, stress distribution, and impact resistance. Qualified products are packaged and stored, while unqualified products are screened out for reprocessing or scrap treatment.

6. Application Fields of Tempered Glass Produced by Tempering Furnaces

Tempered glass produced by professional glass tempering furnaces has excellent performance and is widely used in various fields of the national economy, covering construction, automotive, home appliances, electronics, new energy, aerospace and other industries, and its application scope is still expanding with the development of technology.

6.1 Architectural Decoration Field

The architectural field is the largest consumer market for tempered glass. Tempered glass is widely used in building curtain walls, interior partition walls, doors and windows, shower rooms, floor glass, railings and ceilings. In high-rise buildings, tempered glass curtain walls not only have a beautiful and modern appearance, but also can withstand strong wind pressure and external impact, ensuring the safety of the building. In interior decoration, tempered glass partitions and doors and windows have good light transmittance and safety performance, improving the space utilization rate and aesthetic feeling of the building. In addition, laminated tempered glass and insulating tempered glass processed on the basis of tempered glass are also widely used in building energy-saving and sound insulation projects.

6.2 Automotive Industry

The automotive industry has extremely strict requirements on glass safety and performance, and almost all automotive glass (except for individual small decorative glasses) is tempered glass or laminated tempered glass produced by tempering furnaces. Automotive front windshields generally adopt laminated tempered glass, which can maintain integrity even when broken, avoiding fragments from hurting passengers; automotive side windows and rear windshields adopt single-piece tempered glass, which can be quickly broken into small particles in case of accidents, facilitating passenger escape. In addition, automotive sunroofs, rearview mirror glasses and instrument panel protective glasses also use high-quality tempered glass processed by precision tempering furnaces.

6.3 Home Appliance and Electronic Products

In the home appliance industry, tempered glass is used in the door panels of refrigerators, ovens, microwave ovens, the panels of induction cookers, the shells of washing machines, and the screens of televisions. The high thermal stability of tempered glass can adapt to the high-temperature working environment of kitchen appliances, and its high strength can resist collision and scratch during use. In the electronic information industry, with the popularization of smart phones, tablet computers, liquid crystal displays and other products, ultra-thin tempered glass processed by chemical or special thermal tempering furnaces is used as the protective screen of electronic products, with high hardness, scratch resistance and impact resistance, protecting the display screen from damage.

6.4 New Energy and Solar Energy Industry

With the rapid development of the global new energy industry, tempered glass has become an important component of solar photovoltaic modules and solar thermal collectors. Solar tempered glass produced by special tempering furnaces has high light transmittance, low iron content, excellent weather resistance and mechanical strength, which can protect the solar cells inside the module from wind, sand, hail and other external impacts, and ensure the long-term stable operation of photovoltaic power generation systems. The demand for solar tempered glass is growing rapidly with the large-scale application of photovoltaic power generation, which has put forward higher requirements for the performance of glass tempering furnaces.

6.5 Other Special Fields

In addition to the above fields, tempered glass is also used in aerospace, marine engineering, medical equipment, furniture manufacturing and other fields. For example, the cockpit glass of aircraft, the observation window of ships, the protective cover of medical equipment, and the glass tabletop of high-end furniture all use high-performance tempered glass processed by professional tempering furnaces, meeting the special performance requirements of different industries.

7. Advantages and Existing Challenges of Modern Glass Tempering Furnaces

7.1 Core Advantages

Modern glass tempering furnaces, after continuous technological innovation and optimization, present significant advantages in terms of performance, efficiency and energy saving compared with traditional equipment. Firstly, high degree of automation and intelligence reduces the dependence on manual operation, improves production efficiency and product stability, and reduces the defective rate caused by human factors. Secondly, excellent heating uniformity and cooling precision ensure that the tempered glass has uniform stress distribution, high flatness and stable mechanical properties, adapting to the processing of high-end coated glass and special glass. Thirdly, energy-saving and environmental protection performance is significantly improved through the optimization of thermal insulation structure, the application of convection heating technology and the recovery of waste heat, reducing energy consumption per unit product and meeting the national dual-carbon policy requirements. Fourthly, large-scale and multi-functional processing capacity meets the market demand for large-format, special-shaped and diversified tempered glass products, expanding the application scope of tempered glass.

7.2 Existing Challenges

Despite the rapid development of glass tempering furnace technology, there are still some challenges in the industrial application process. Firstly, the problem of self-explosion of tempered glass has not been completely solved. The self-explosion is mainly caused by the nickel sulfide inclusions inside the glass and the uneven stress distribution during the tempering process. Although the homogenization treatment furnace can reduce the self-explosion rate, it increases the production cost and process flow. Secondly, the processing of ultra-thin and ultra-thick glass still has technical bottlenecks. Ultra-thin glass (thickness <2mm) is easy to warp and break during the tempering process, while ultra-thick glass (thickness >25mm) has low heating efficiency and difficult control of cooling stress, requiring further research and development of specialized tempering furnace technology. Thirdly, the high cost of high-end intelligent tempering furnaces limits the popularization and application of small and medium-sized enterprises, and the technical gap between domestic and international high-end equipment still exists in some core components and control systems. Fourthly, the energy consumption and environmental protection requirements are becoming increasingly stringent, and the traditional tempering furnace energy-saving technology still has room for improvement, requiring the research and development of more efficient heating and cooling technologies to reduce carbon emissions.

8. Future Development Trends of Glass Tempering Furnaces

Driven by technological progress, market demand and policy guidance, the global glass tempering furnace industry will present the following development trends in the future:

8.1 Intelligent and Digital Upgrading

The future glass tempering furnaces will develop towards higher intelligence and digitization, integrating technologies such as artificial intelligence, big data analysis and the Internet of Things. The equipment will realize automatic optimization of process parameters, real-time online monitoring of glass quality, predictive maintenance of equipment faults and remote intelligent management. Through the collection and analysis of production data, the system can automatically adjust the heating, cooling and conveying parameters according to the production status, further improving product quality and production efficiency, and realizing the intelligent manufacturing of the glass tempering production line.

8.2 High Efficiency and Energy Saving Technology Innovation

Energy conservation and emission reduction will become the core research direction of glass tempering furnace technology. New heating technologies such as microwave heating, laser heating and high-efficiency infrared convection heating will be applied to tempering furnaces, improving heating efficiency and reducing energy consumption. At the same time, the waste heat recovery system will be further optimized, recovering the heat generated in the cooling and exhaust processes for preheating the original glass or heating the furnace body, realizing the recycling of energy. The research and development of low-emission and low-energy-consumption tempering furnace structures will also be accelerated to meet the global dual-carbon development goals.

8.3 Specialized and Diversified Product Development

Aiming at the demand for specialized tempered glass in different industries, glass tempering furnaces will develop towards specialization and diversification. Specialized tempering furnaces for ultra-thin electronic glass, ultra-thick architectural glass, curved large-format glass, high-temperature resistant solar glass and other products will be launched successively, meeting the personalized and high-end processing needs of the market. At the same time, the integration of tempering furnaces with other glass processing technologies (such as coating, laminating, engraving) will be realized, forming a one-stop glass deep-processing production line and improving the added value of products.

8.4 Green and Environmental Protection Development

In response to global environmental protection requirements, future glass tempering furnaces will adopt more green and environmentally friendly materials and processes, reducing the emission of volatile organic compounds, dust and noise. The closed-loop recycling of cooling water and exhaust gas will be fully realized, minimizing the impact of equipment production on the environment. In addition, the recyclable design of tempering furnace equipment will be strengthened, extending the service life of equipment and reducing the generation of industrial waste.

8.5 Internationalization of Core Technology and Localization of High-End Components

With the development of the global glass industry, the core technology of glass tempering furnaces will tend to be internationalized, and the technical exchanges and cooperation between countries will be more frequent. For domestic equipment manufacturers, accelerating the localization research and development of high-end core components (such as precision convection fans, high-performance temperature sensors, intelligent control systems) will break the foreign technology monopoly, reduce the production cost of high-end tempering furnaces, and improve the international competitiveness of domestic glass tempering furnace equipment.

9. Conclusion

Glass tempering furnace, as the core equipment of the glass deep-processing industry, has a pivotal position in promoting the development of the global glass industry and meeting the demand for high-performance safety glass in various fields. Through the analysis of its working principle, structural composition, classification, process flow, application fields and development trends, it can be seen that the glass tempering furnace industry is in a period of rapid technological innovation and structural optimization. With the continuous progress of materials science, mechanical engineering, automation control and other disciplines, and the continuous growth of market demand for high-end tempered glass, glass tempering furnaces will develop towards intelligence, high efficiency, energy saving, specialization and green environmental protection.

In the future, glass tempering furnace manufacturers need to increase R&D investment, break through key technical bottlenecks, optimize product performance, and meet the diversified and high-end needs of the market. At the same time, industry practitioners should strengthen technological exchanges and cooperation, promote the upgrading and transformation of the glass deep-processing industry, and make greater contributions to the development of construction, automotive, new energy, electronic information and other industries. With the continuous improvement of technology and the expansion of application fields, glass tempering furnaces will continue to play an important role in the global industrial system and promote the sustainable development of the safety glass industry.

How to Add Butyl Glue for Butyl Extruding Machine

1. Introduction

The butyl extruding machine is an indispensable core equipment in the manufacturing process of insulating glass, architectural door and window sealing, automotive glass assembly, and other industrial sealing applications. It is specially designed to melt solid or granular butyl glue into a uniform molten state through a precise heating system and extrude the glue stably through a screw propulsion mechanism, so as to complete the sealing and bonding of components. The operation of adding butyl glue is the most critical initial step in the entire working cycle of the butyl extruding machine, which directly determines the continuity of glue extrusion, the uniformity of glue output, the processing accuracy of sealing products, and the service life of the equipment. Improper glue adding operations, such as uncleaned glue barrels, uneven filling, improper preheating parameters, and poor sealing of the glue barrel cover, will lead to a series of problems including discontinuous glue extrusion, air bubbles in the glue, uneven glue output, blockage of the extrusion channel, and even mechanical failure of the equipment.

This article systematically elaborates on the standardized operation process of adding butyl glue for the butyl extruding machine, covering pre-operation preparation, equipment safety inspection, step-by-step operation procedures for different forms of butyl glue (solid strips and granular glue), post-operation treatment, safety operation specifications, common fault troubleshooting, and daily maintenance of the glue adding system. All contents are compiled in strict accordance with international industrial safety standards and equipment operation specifications, aiming to provide operators with a comprehensive and authoritative technical guide to ensure the safe, efficient, and high-quality completion of the butyl glue adding operation, and to lay a solid foundation for the stable operation of the butyl extruding machine and the qualified production of sealing products.

2. Pre-operation Preparation

Adequate and comprehensive pre-operation preparation is the prerequisite to ensure the smooth progress of the butyl glue adding operation and avoid potential risks. Operators must complete the preparation work in strict accordance with the following three dimensions: personnel, equipment, and materials.

2.1 Personnel Preparation and Professional Training

All operators engaged in the butyl glue adding operation must receive systematic professional training, including the structural composition of the butyl extruding machine, working principle, performance parameters of butyl glue, standard operating procedures, safety precautions, and emergency response plans. Only after passing the theoretical and practical assessments can they take up their posts independently. During the operation, operators must wear complete personal protective equipment (PPE) that meets industrial safety standards, including high-temperature and cut-resistant work clothes, heat-insulating and anti-slip gloves, anti-splash safety goggles, and steel-toe safety shoes. It is strictly forbidden to operate with loose cuffs, unbound long hair, or wearing metal jewelry such as rings, bracelets, and necklaces, so as to prevent entanglement with the rotating screw or scalding by high-temperature components of the equipment. In addition, a clear safety warning area should be divided around the equipment, and obvious warning signs such as "Non-operators Prohibited from Entering" and "High Temperature Danger" should be set up to avoid misoperation or accidental injury caused by irrelevant personnel approaching the operating area.

2.2 Equipment Safety and Functional Inspection

Before adding butyl glue, a comprehensive and detailed inspection of the butyl extruding machine must be carried out to ensure that all systems of the equipment are in normal working condition, covering the electrical system, heating system, mechanical structure, and control system.

First, inspect the electrical and pneumatic systems. Check the integrity of the power cord, plug, and socket of the equipment, confirm that there is no damage, aging, or exposed wires, and verify that the leakage protector and circuit breaker are in normal operating state. For butyl extruding machines equipped with pneumatic auxiliary devices, check the air pressure pipeline for air leakage, blockage, or water accumulation, adjust the working air pressure to the range of 0.4-0.6 MPa specified by the equipment, and drain the accumulated water in the air filter and air storage tank regularly to prevent moisture from affecting the pneumatic components. At the same time, test the sensitivity of the emergency stop button, start/stop switch, and parameter adjustment buttons on the control panel to ensure that all control functions can respond quickly and effectively in case of an emergency.

Second, focus on inspecting the heating system, which is the core to ensure the melting effect of butyl glue. Turn on the equipment power supply in advance, set the heating temperature of the glue barrel and extrusion die according to the type and performance parameters of the butyl glue (generally 80-120°C, subject to the glue manufacturer's instructions and equipment manual), and check the working state of the temperature controller, temperature sensor, and heating tube. Ensure that the temperature of each heating zone can be accurately controlled, stabilized within the set range, and free from temperature overshoot, insufficient heating, or temperature fluctuation, so as to avoid incomplete melting or thermal decomposition of butyl glue.

Third, inspect the glue barrel and extrusion mechanism. Open the glue barrel cover, check the inner wall of the glue barrel, extrusion screw, and glue outlet channel for residual solidified butyl glue, metal debris, dust, or other impurities. Check the surface of the extrusion screw for wear, deformation, or scratches, and confirm that the screw can rotate freely without jamming or abnormal noise. At the same time, check the sealing ring of the glue barrel cover for aging, cracking, deformation, or hardening, and replace it with a new sealing ring of the same model in time if it is damaged, so as to prevent glue leakage during the extrusion process.

Finally, inspect the auxiliary tools and collection devices. Prepare special glue loading tools, stainless steel scrapers, lint-free cleaning cloths, industrial alcohol, waste glue collection barrels, torque wrenches, and other auxiliary tools, and confirm that all tools are clean, intact, and free of impurities to avoid contaminating the butyl glue during the operation.

2.3 Material Selection and Preparation

The quality of butyl glue directly affects the sealing performance and extrusion stability of the final product, so the selection and preparation of butyl glue must be strictly controlled. Operators must select qualified butyl glue products that match the model of the butyl extruding machine, and check the production date, shelf life, appearance quality, and factory certification of the butyl glue before use. It is forbidden to use expired, deteriorated, damp, contaminated, or uncertified butyl glue. Solid butyl glue strips should be flat, uniform in texture, free of cracks, hard blocks, bubbles, and impurities; granular butyl glue should have uniform particle size, no agglomeration, moisture, or foreign matter.

In addition, calculate the amount of butyl glue to be added according to the effective capacity of the glue barrel of the butyl extruding machine and the actual production demand, and reserve a certain expansion space at the top of the glue barrel (generally 5-10 cm from the top of the glue barrel). This is to prevent the butyl glue from overflowing due to thermal expansion after being heated and melted, which will cause equipment pollution or safety hazards. At the same time, place the butyl glue in a dry, clean, and dust-free environment to avoid secondary contamination before use.

3. Standard Operation Steps for Adding Butyl Glue

The butyl glue adding operation must be carried out in strict accordance with the step-by-step standardized procedure, and each operation link must be implemented carefully to ensure the accuracy and safety of the process.

3.1 Equipment Shutdown and Safety Locking

Before opening the glue barrel cover for glue adding operation, the equipment must be completely shut down and locked to eliminate all potential safety risks. First, press the emergency stop button of the butyl extruding machine to cut off the power output of the equipment, then turn off the main power switch and air supply valve in sequence, and hang a prominent "No Operation, Maintenance in Progress" warning sign on the control panel to prevent other personnel from misstarting the equipment. Then, wait for the glue barrel, extrusion die, and heating pipeline to cool down naturally to a safe temperature below 40°C. For butyl extruding machines equipped with a quick cooling function, the cooling system can be turned on to accelerate the cooling process, so as to avoid scalding accidents caused by high-temperature components during the operation.

3.2 Opening the Glue Barrel Cover and Thorough Cleaning

Locate the locking device of the glue barrel cover, which is usually designed as a bolt lock, rotary lock, or quick-release lock. Loosen the locking nut or rotate the lock handle in the specified counterclockwise direction, and slowly remove the glue barrel cover and place it on a clean anti-slip mat to avoid contamination of the sealing surface. Next, carry out a thorough cleaning of the glue barrel and internal components: use a special stainless steel scraper to gently scrape off the residual solidified butyl glue on the inner wall of the glue barrel, the root of the extrusion screw, the glue outlet channel, and the check valve, and collect the scraped waste glue into a special sealed waste glue collection barrel. It is strictly forbidden to use hard metal tools such as steel brushes, screwdrivers, or angle grinders for scraping, so as not to scratch the inner wall of the glue barrel and the surface of the screw, which will affect the sealing performance and service life of the equipment.

After scraping off the residual glue, dip a clean lint-free cloth in industrial alcohol, wipe the inner wall of the glue barrel, the surface of the extrusion screw, the sealing surface of the glue barrel cover, and the filter screen repeatedly until there is no residual glue, impurities, or oil stains, and then let it air dry naturally. For the check valve and filter screen at the bottom of the glue barrel, remove them for separate cleaning, check for blockage, damage, or wear, and reinstall them after confirming that they are intact and clean, so as to ensure the smooth flow of the extrusion channel.

3.3 Adding Butyl Glue

The operation methods of adding solid butyl glue strips and granular butyl glue are slightly different, and operators should select the corresponding operation procedures according to the form of butyl glue used in actual production.

3.3.1 Adding Solid Butyl Glue Strips

Take the qualified solid butyl glue strips, and cut them into segments of 10-20 cm according to the inner diameter and depth of the glue barrel, ensuring that the cross-section of each glue strip is flat, free of cracks, burrs, or impurities. Then, put the cut butyl glue strips into the glue barrel one by one along the inner wall, and arrange them evenly around the extrusion screw in a circumferential direction. It is forbidden to throw the glue strips violently into the glue barrel, so as to avoid impact damage to the screw or the inner wall of the glue barrel. During the filling process, ensure that the glue strips are closely arranged without large gaps, and stop filling when reaching the reserved material level. After filling, use a special pressing tool to gently press the butyl glue strips layer by layer to eliminate internal gaps and ensure compact filling, which is conducive to the uniform melting and stable extrusion of butyl glue.

3.3.2 Adding Granular Butyl Glue

Install a special feeding funnel at the mouth of the glue barrel to prevent the granular butyl glue from splashing during the pouring process and causing material waste or environmental pollution. Slowly pour the qualified granular butyl glue into the glue barrel through the funnel, and stir the glue particles appropriately with a clean plastic rod during the pouring process to ensure even distribution of the glue particles and avoid bridging, agglomeration, or local accumulation in the glue barrel. Control the filling amount strictly according to the scale line of the glue barrel, and stop adding when reaching the specified material level, with the same reserved expansion space as the solid butyl glue strips.

3.4 Installing the Glue Barrel Cover and Sealing Inspection

After the butyl glue is added, recheck the integrity and cleanliness of the sealing ring of the glue barrel cover, and apply a small amount of food-grade or equipment-specified high-temperature resistant lubricating oil on the surface of the sealing ring to enhance the sealing effect and facilitate the installation of the cover. Align the glue barrel cover with the flange of the glue barrel accurately, place it flat and slowly, and ensure that the sealing ring is completely embedded in the sealing groove without deviation, distortion, or falling off. Then, tighten the locking device of the glue barrel cover evenly and symmetrically in a diagonal sequence. For bolt-locked glue barrel covers, use a torque wrench to tighten each bolt to the specified torque value (subject to the equipment manual) to ensure uniform stress on the cover, good sealing performance, and avoid glue leakage caused by uneven tightening or insufficient torque.

After the installation is completed, conduct a preliminary sealing inspection: manually check the tightness of the glue barrel cover, confirm that there is no gap between the cover and the flange, and ensure that the sealing ring is in close contact with the sealing surface to lay a foundation for the subsequent preheating and extrusion test.

3.5 Preheating and Extrusion Test

Remove the warning sign on the control panel, turn on the main power supply and air supply valve of the equipment, and reset the emergency stop button to the normal state. Enter the parameter setting interface of the control panel, set the heating temperature of each zone of the glue barrel and extrusion die according to the process requirements, turn on the heating system, and start the preheating program. During the preheating process, observe the temperature change data displayed on the control panel in real time, and check whether the equipment has abnormal noise, glue leakage, temperature overshoot, or circuit failure. After the temperature of each heating zone is stable and reaches the set value, keep the temperature for 10-15 minutes to ensure that the butyl glue in the glue barrel is completely melted into a uniform fluid state with appropriate viscosity.

Then, set the extrusion speed of the screw to a low speed of 10-20 rpm for the extrusion test, observe the extrusion state of the butyl glue at the die outlet in real time, and check whether the extruded glue is continuous, uniform, free of air bubbles, impurities, broken strips, or glue leakage. If the extrusion test result is qualified, adjust the extrusion speed to the process required speed for formal production; if there is an abnormality such as discontinuous glue output, air bubbles, or uneven glue output, stop the machine immediately, cut off the power supply and air supply, and check the cause of the fault in combination with the troubleshooting methods, and conduct the extrusion test again after the fault is eliminated.

4. Post-operation Treatment and Record Keeping

Standardized post-operation treatment and complete record keeping are important links to ensure the traceability of the operation process and the long-term stable operation of the equipment.

First, clean the operation site in a timely manner after completing the glue adding and extrusion test. Collect the residual butyl glue, used cleaning cloths, industrial alcohol waste liquid, and other waste materials into designated sealed containers, and wipe the surface of the equipment, control panel, and surrounding ground with a clean cloth to keep the operation area clean and tidy, in line with industrial production environmental standards.

Second, recheck the operating state of the equipment: check the fastening state of the glue barrel cover, the working state of the heating system, the sealing condition of each interface, and the operation state of the extrusion screw, confirm that there is no glue leakage, abnormal noise, or potential failure, and ensure that the equipment can meet the requirements of formal production.

Third, make a detailed and accurate record in the equipment operation log, including the type and amount of butyl glue added, preheating temperature and holding time, extrusion test parameters, operation time, operator information, and abnormal conditions during the operation. This record is an important basis for subsequent production traceability, equipment maintenance, and fault analysis, and must be kept properly for future reference.

For butyl extruding machines that need to be shut down for a long time, after adding the butyl glue, the equipment should be preheated regularly (once every 3-5 days) to keep the butyl glue in a molten state, prevent the glue from solidifying and blocking the extrusion channel, and extend the service life of the equipment.

5. Safety Precautions During Glue Adding Operation

Safety is the top priority in the operation of industrial equipment, and operators must strictly abide by the following safety precautions during the butyl glue adding operation to avoid personal injury and equipment damage.

First, high-temperature safety protection. During the preheating and operation of the equipment, the surface temperature of the glue barrel, extrusion die, heating pipeline, and other components is very high, and it is strictly forbidden to touch these high-temperature components with bare hands or unprotected parts of the body to avoid high-temperature scalding. If scalding occurs accidentally, take first aid measures immediately (such as flushing with cold water) and seek medical attention in time.

Second, mechanical safety protection. During the operation of the extrusion screw, it is strictly forbidden to extend hands, arms, or any tools into the glue barrel, extrusion channel, or the rotating area of the screw to avoid mechanical entanglement, extrusion, or shear injury. If it is necessary to clean, inspect, or maintain the screw and other components, the equipment must be completely shut down, the power supply and air supply must be cut off, and the operation can be carried out only after the screw is completely stopped.

Third, electrical safety protection. Do not splash water, industrial alcohol, or other liquids on the control panel, motor, electrical components, and wiring of the equipment to prevent short circuit, electric shock, or equipment burnout. In case of electrical failure, the power supply must be cut off immediately, and professional electrical maintenance personnel shall be arranged for repair, and non-professionals shall not disassemble or repair the electrical system without authorization.

Fourth, material safety protection. Butyl glue is a chemical polymer material, and it is forbidden to ingest, inhale, or contact with eyes and mucous membranes for a long time. If the butyl glue splashes into the eyes accidentally, rinse with plenty of clean water immediately and seek medical attention in time. The waste butyl glue and cleaning waste liquid shall be disposed of in strict accordance with national environmental protection regulations, and shall not be discarded, discharged, or piled up at will to avoid environmental pollution.

Fifth, emergency response specifications. In case of emergencies such as equipment jamming, glue leakage, abnormal noise, power failure, or air failure during the glue adding or extrusion process, the operator must press the emergency stop button immediately, cut off the power supply and air supply at the same time, and then check and handle the fault after confirming the safety of the equipment and the surrounding environment. It is strictly forbidden to troubleshoot, clean, or maintain the equipment with the power on or the screw running.

6. Troubleshooting of Common Problems in Glue Adding Process

In the actual butyl glue adding operation, various faults may occur due to improper operation, material quality problems, equipment aging, or parameter setting errors. The following is a detailed analysis of the common faults, causes, and targeted solutions in the glue adding process:

6.1 Glue Leakage at the Glue Barrel Cover

Common Causes: Aging, damage, or improper installation of the sealing ring; uneven tightening or insufficient torque of the locking bolt; contamination of the sealing surface with impurities, glue residue, or scratches on the flange; deformation of the glue barrel cover or flange.

Solutions: Replace the sealing ring with a new one of the same model and specification; re-tighten the locking bolt with a torque wrench in a diagonal sequence to the specified torque value; clean the sealing surface thoroughly with industrial alcohol, and repair or replace the flange if there are scratches; replace the deformed glue barrel cover or flange in time.

6.2 Uneven Extrusion of Butyl Glue

Main Causes: Loose filling of butyl glue with large gaps or agglomeration; insufficient preheating temperature or short holding time, resulting in incomplete melting of the glue; wear, deformation, or blockage of the extrusion screw and filter screen; unstable extrusion speed or pressure.

Solutions: Reopen the glue barrel cover, compact the glue or break up the agglomerated glue to ensure uniform filling; increase the preheating temperature appropriately or extend the holding time to ensure complete melting of the butyl glue; check the wear of the screw, replace the seriously worn screw, and clean or replace the blocked filter screen; calibrate the extrusion speed and pressure control system to ensure stability.

6.3 Air Bubbles in the Extruded Butyl Glue

Causes: Moisture, impurities, or air trapped in the butyl glue; incomplete cleaning of the glue barrel, resulting in residual air in the channel; excessive preheating temperature, causing thermal decomposition of the butyl glue to produce gas; poor sealing of the glue barrel cover, leading to air intake.

Solutions: Use dry, impurity-free butyl glue, and vacuumize the glue barrel (for equipment with vacuum function) during glue adding to remove air; clean the glue barrel and extrusion channel thoroughly to eliminate residual air; adjust the preheating temperature to the process specified range to avoid glue decomposition; recheck and improve the sealing performance of the glue barrel cover.

6.4 Difficulty in Opening or Tightening the Glue Barrel Cover

Causes: Rusting, jamming, or lack of lubrication of the locking device; bonding of the sealing ring to the flange due to high-temperature melting of butyl glue; incorrect operation sequence or excessive force during operation.

Solutions: Apply anti-rust lubricating oil to the locking device, clean the rust and impurities, and ensure flexible rotation; cool the glue barrel completely to separate the bonded sealing ring and flange, and do not pry violently; operate strictly in accordance with the specified opening and tightening sequence, and use appropriate tools to apply force evenly.

6.5 Blockage of the Extrusion Channel

Causes: Use of unqualified butyl glue with hard blocks or impurities; incomplete preheating, resulting in solidification of local butyl glue; residual solidified glue in the channel not cleaned thoroughly; long-term shutdown without preheating, leading to glue solidification.

Solutions: Replace qualified butyl glue free of hard blocks and impurities; increase the preheating temperature and holding time to ensure complete melting of the glue; clean the extrusion channel, check valve, and filter screen thoroughly; preheat the equipment regularly during long-term shutdown to keep the glue in a molten state.

7. Daily Maintenance of the Glue Adding System

Regular and standardized maintenance of the glue adding system of the butyl extruding machine can effectively reduce the failure rate, extend the service life of the equipment, and ensure the stability of the glue adding and extrusion process. The maintenance work is divided into daily, weekly, monthly, and annual maintenance according to the cycle:

7.1 Daily Maintenance (Once per Shift)

Clean the glue barrel, extrusion screw, filter screen, and glue barrel cover after each shift to remove residual butyl glue and impurities; check the fastening state of the locking bolts and the integrity of the sealing ring; test the sensitivity of the emergency stop button and control buttons; record the operation status and abnormal conditions of the equipment in the maintenance log.

7.2 Weekly Maintenance (Once a Week)

Thoroughly clean the inside of the glue barrel and extrusion channel, check the wear of the extrusion screw and filter screen; calibrate the temperature control system to ensure the accuracy of the heating temperature; add lubricating oil or grease to the rotating parts such as the screw bearing; drain the accumulated water in the air filter and air storage tank of the pneumatic system.

7.3 Monthly Maintenance (Once a Month)

Check the aging degree of the sealing ring, heating tube, and power cord, and replace the aging parts in time; calibrate the pressure gauge and temperature sensor to ensure the accuracy of measurement data; inspect the working state of the motor and transmission mechanism, and eliminate abnormal noise and vibration; clean the control cabinet and remove dust to ensure the normal heat dissipation of electrical components.

7.4 Annual Maintenance (Once a Year)

Conduct a comprehensive disassembly and inspection of the glue adding system, replace all wearing parts such as the sealing ring, filter screen, and screw; replace the lubricating oil, hydraulic oil (if equipped), and filter element; conduct a comprehensive safety performance test of the equipment, including safety protection devices, grounding system, and overload protection; update the equipment maintenance file and record the maintenance content and results in detail.

8. Conclusion

The operation of adding butyl glue is a key link that runs through the use and maintenance of the butyl extruding machine, involving multiple dimensions such as personnel operation, equipment inspection, material control, parameter setting, and safety protection. Only by strictly abiding by the standardized operation procedures, doing a good job in pre-operation preparation, in-process standardized operation, and post-operation treatment and maintenance, and firmly establishing a safety first operation concept, can the stable operation of the butyl extruding machine be ensured, the quality of butyl glue extrusion be improved, potential safety and quality hazards be reduced, and the production efficiency and product qualification rate be effectively improved.

With the continuous development of the sealing industry and the continuous upgrading of equipment technology, the requirements for the operation skills and professional quality of operators are also getting higher and higher. Operators should continuously learn new technologies, new processes, and new standards, master the operation and maintenance skills of advanced butyl extruding machines, and adapt to the development needs of industrial production. At the same time, enterprises should strengthen the professional training and safety management of operators, formulate and improve standardized operation systems and maintenance systems, and promote the standardized, intelligent, and efficient development of the operation and maintenance of butyl extruding machines, so as to provide a strong guarantee for the high-quality development of the sealing processing industry.

Pneumatic Straight Round 45 Degree Glass Edging Machine: A Comprehensive Technical Overview

Abstract

The Pneumatic Straight Round 45 Degree Glass Edging Machine stands as a pivotal piece of equipment in the modern glass processing industry, integrating pneumatic actuation, precision machining, and automated control technologies to deliver high-efficiency, high-precision edge treatment for flat glass. This article systematically elaborates on the machine’s structural design, working principle, core technical parameters, application scenarios, performance advantages, maintenance protocols, and future development trends. By analyzing its engineering innovations and industrial value, it aims to provide a theoretical and practical reference for glass processing enterprises, equipment manufacturers, and technical researchers, highlighting the machine’s role in advancing the automation, precision, and versatility of glass edge processing.

1. Introduction

With the rapid development of industries such as architectural decoration, automotive manufacturing, home appliances, and furniture production, the demand for flat glass products has grown exponentially, accompanied by increasingly stringent requirements for glass edge quality, processing efficiency, and product safety. Raw glass, after cutting, exhibits sharp, irregular edges with micro-cracks and burrs, which not only pose safety hazards during handling and installation but also reduce the mechanical strength and aesthetic appeal of the final product. Traditional manual edging and semi-automatic mechanical edging methods suffer from low efficiency, inconsistent precision, high labor intensity, and poor surface finish, failing to meet the mass production and high-quality standards of modern glass processing.

In response to these industry pain points, the Pneumatic Straight Round 45 Degree Glass Edging Machine has emerged as a specialized solution designed for continuous, one-pass processing of straight round edges and 45-degree chamfers on flat glass. Leveraging pneumatic systems for stable clamping, precise pressure control, and flexible spindle feeding, combined with multi-stage grinding and polishing mechanisms, the machine achieves integrated coarse grinding, fine grinding, chamfering, and polishing operations. It addresses the limitations of conventional edging equipment, offering superior stability, precision, and adaptability to diverse glass thicknesses and sizes. This article provides a comprehensive analysis of the machine’s technical characteristics, operational mechanisms, and industrial applications, exploring its contributions to the upgrading of glass processing technology and the optimization of production workflows.

2. Structural Design and Core Components

The Pneumatic Straight Round 45 Degree Glass Edging Machine features a robust, integrated structural design, consisting of a main frame, pneumatic clamping and feeding system, multi-spindle grinding and polishing unit, PLC control system, cooling and dust removal system, and glass conveying mechanism. Each component is engineered for synergistic operation, ensuring high precision, stability, and reliability during continuous processing.

2.1 Main Frame

The main frame serves as the structural foundation of the machine, typically fabricated from high-strength thick steel plates through precision welding and stress-relief annealing. This design eliminates deformation caused by long-term high-load operation, maintaining the geometric accuracy of the entire equipment. The frame is equipped with precision linear guide rails and ball screws for the grinding spindle movement, ensuring smooth, backlash-free motion of the grinding heads. The rigid frame structure also minimizes vibration during high-speed grinding, which is critical for preventing glass chipping and ensuring edge finish consistency. Some high-end models adopt a gantry-type structure to enhance stability when processing large-format glass sheets, with a load-bearing capacity of up to 700 kg, suitable for architectural and automotive glass applications.

2.2 Pneumatic Clamping and Feeding System

As the core feature distinguishing this machine from conventional mechanical edging equipment, the pneumatic system is responsible for glass clamping, spindle feeding, and pressure regulation. The system comprises an air compressor, air storage tank, precision pressure regulating valves, pneumatic cylinders, and pneumatic control valves.

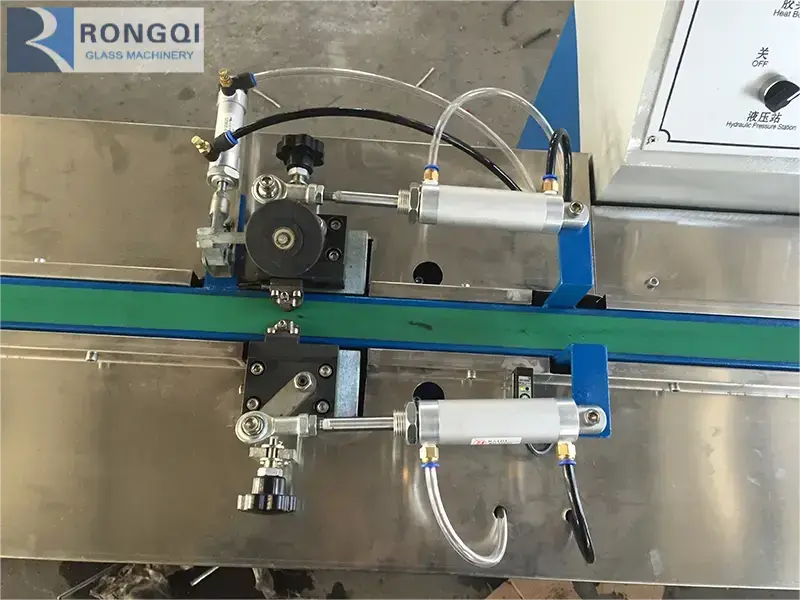

Pneumatic Clamping Mechanism: Equipped with pneumatic clamping jaws lined with wear-resistant rubber or polyurethane, the system applies uniform, adjustable pressure (0.2–0.6 MPa) to secure glass sheets of varying thicknesses (3–25 mm) without surface damage. The pneumatic clamping ensures stable glass positioning during high-speed grinding, eliminating slippage and positional deviation. Compared with mechanical clamping, pneumatic clamping offers softer contact, reducing the risk of glass edge breakage and improving product yield.
Pneumatic Spindle Feeding: The grinding and polishing spindles are driven by pneumatic cylinders for radial feeding, with PLC-controlled precision pressure regulation. This allows real-time adjustment of the grinding wheel’s contact pressure with the glass edge, adapting to different glass hardnesses and processing requirements. The pneumatic feeding mechanism provides flexible, shock-free movement, avoiding excessive pressure that causes chipping and ensuring uniform material removal across the glass edge. High-end models feature independent pneumatic control for each spindle, enabling separate adjustment of grinding pressure for coarse grinding, fine grinding, and polishing stages.


2.3 Multi-Spindle Grinding and Polishing Unit

The grinding and polishing unit is the core execution component, typically configured with 9–11 spindles arranged in a linear sequence, each equipped with a dedicated grinding or polishing wheel for sequential processing. The spindle configuration is optimized for one-pass completion of coarse grinding, fine grinding, 45-degree chamfering, and polishing:


Coarse Grinding Spindles: The first two to three spindles are fitted with diamond cup wheels (grit size #100–#140) for rapid removal of sharp edges, burrs, and micro-cracks from the cut glass, forming the basic round edge profile. These spindles operate at high speeds (2800–3600 rpm) to ensure efficient material removal, with pneumatic pressure set to 0.4–0.6 MPa for stable cutting.
Fine Grinding Spindles: The middle three to four spindles use resin-bonded diamond wheels (grit size #230–#320) to refine the edge profile, eliminating coarse grinding marks and improving surface flatness. The pneumatic feeding pressure is reduced to 0.3–0.4 MPa to achieve precise material removal and edge uniformity.
45-Degree Chamfering Spindles: Dedicated spindles are angled at 45 degrees, equipped with specialized chamfering wheels to process the beveled edge synchronously with the round edge. The chamfer width is adjustable (0.5–3 mm) via the PLC control panel, meeting diverse design requirements for architectural glass, shower enclosures, and furniture glass.
Polishing Spindles: The final two to three spindles use cerium oxide polishing wheels or resin polishing wheels to achieve an optical-grade finish (surface roughness Ra ≤ 0.15 μm). The pneumatic pressure is further reduced to 0.2–0.3 MPa to ensure a smooth, scratch-free surface, eliminating the need for secondary polishing.


2.4 PLC Control System

The machine is equipped with a high-performance PLC (Programmable Logic Controller) paired with a touch-screen human-machine interface (HMI), enabling intelligent control of the entire processing workflow. The control system supports parameter setting (glass thickness, chamfer width, processing speed, grinding pressure), real-time monitoring (spindle speed, air pressure, processing status), fault diagnosis, and automatic alarm functions. Operators can store and recall processing parameters for different glass specifications, reducing setup time and improving production efficiency. The system also supports linkage with automatic glass loading and unloading equipment, facilitating integration into fully automated production lines. Advanced models feature Ethernet communication for remote monitoring, parameter optimization, and predictive maintenance, aligning with smart manufacturing trends.

2.5 Cooling and Dust Removal System

During grinding and polishing, the friction between the grinding wheel and glass generates high temperatures, which can cause thermal stress, edge cracking, or grinding wheel wear. The cooling system adopts a water circulation design, with precision nozzles spraying cooling liquid (pure water or specialized glass grinding coolant) directly onto the grinding contact area. This reduces temperature, lubricates the contact surface, and flushes away glass powder and debris. The dust removal system, integrated with the cooling circulation, filters and recycles the coolant, reducing water consumption and environmental pollution. High-efficiency filtration systems (filter precision ≤ 5 μm) prevent glass powder from clogging nozzles and damaging precision components, extending the service life of grinding wheels and spindles.

2.6 Glass Conveying Mechanism

The conveying mechanism consists of variable-speed conveyor belts, drive motors, and positioning sensors, ensuring stable, continuous glass feeding during processing. The conveyor speed is adjustable (0.8–6 m/min) via a frequency converter, matching the processing efficiency to different glass thicknesses and edge requirements. The conveyor surface is lined with anti-slip, wear-resistant materials to prevent glass scratching and slippage. Positioning sensors at the inlet and outlet detect glass position, automatically triggering clamping, grinding, and release operations, realizing unmanned continuous processing. The mechanism supports processing of glass sheets with minimum dimensions of 25 mm × 25 mm and maximum dimensions customized according to user needs, making it suitable for both small-scale precision parts and large-format architectural glass.

3. Working Principle

The operational logic of the Pneumatic Straight Round 45 Degree Glass Edging Machine is a highly coordinated sequence of pneumatic actuation, mechanical grinding, and electronic control, divided into five core stages: glass feeding and positioning, pneumatic clamping, multi-stage grinding and polishing, pneumatic release, and glass discharging.

3.1 Glass Feeding and Positioning

The operator places the cut flat glass sheet onto the inlet conveyor belt, which transports the glass to the positioning area. Photoelectric sensors detect the glass edge and send a signal to the PLC, which stops the conveyor and activates the pneumatic positioning cylinders to align the glass precisely with the grinding spindle axis. The positioning accuracy reaches ±0.01 mm, ensuring uniform edge processing across the entire glass sheet.

3.2 Pneumatic Clamping

Upon completion of positioning, the PLC triggers the pneumatic clamping system. The pneumatic cylinders extend to drive the clamping jaws, applying uniform pressure to secure the glass. The pressure is regulated by precision valves to match the glass thickness—thinner glass (3–5 mm) uses lower pressure (0.2–0.3 MPa) to avoid breakage, while thicker glass (12–25 mm) uses higher pressure (0.4–0.6 MPa) for stable fixation. The clamping action is completed within 0.5 seconds, ensuring rapid workflow progression.

3.3 Multi-Stage Grinding and Polishing

After clamping, the PLC activates the grinding spindles and conveying mechanism, with the glass moving linearly through the grinding unit at a set speed. The pneumatic feeding system drives each spindle to extend sequentially, with the grinding wheels making contact with the glass edge at pre-set pressures and angles:


Coarse Grinding Stage: The diamond cup wheels remove the sharp, irregular cut edge, forming a preliminary round profile and eliminating micro-cracks. The high-speed rotation of the spindles (3000–3600 rpm) ensures efficient material removal, while the cooling system sprays coolant to prevent overheating.
Fine Grinding Stage: The resin-bonded diamond wheels refine the edge profile, smoothing coarse grinding marks and improving dimensional accuracy. The spindle speed is adjusted to 2500–3000 rpm, and the pneumatic pressure is reduced to ensure precise material removal.
45-Degree Chamfering Stage: The angled chamfering wheels process the beveled edge synchronously with the round edge, with the chamfer width and angle controlled by the PLC via pneumatic cylinder stroke adjustment.
Polishing Stage: The polishing wheels perform final finishing, achieving a mirror-like surface finish. The spindle speed is reduced to 2000–2500 rpm, and the pneumatic pressure is minimized to avoid surface damage.


Throughout the process, the PLC monitors real-time parameters such as air pressure, spindle speed, and conveyor speed, automatically adjusting for deviations to ensure consistent processing quality. The cooling system operates continuously, flushing away debris and maintaining stable processing temperatures.

3.4 Pneumatic Release and Glass Discharging

Once the glass completes the entire grinding and polishing process and reaches the outlet area, the photoelectric sensor sends a completion signal to the PLC. The pneumatic clamping system retracts the cylinders, releasing the glass. The conveyor belt then transports the finished glass to the discharge area, ready for the next processing cycle or subsequent procedures (e.g., cleaning, tempering, laminating). The entire cycle is continuous, with a processing efficiency of 80–120 pieces per hour (for standard 12 mm thick glass), significantly higher than manual or semi-automatic methods.

4. Core Technical Parameters

The technical parameters of the Pneumatic Straight Round 45 Degree Glass Edging Machine define its processing capacity, precision, and adaptability, with key indicators as follows (typical for mainstream 9–11 spindle models):






Parameter Category
Specific Indicators
Value Range




Processing Scope
Applicable Glass Thickness
3–25 mm



Minimum Glass Size
25 mm × 25 mm



Maximum Glass Size
Customizable (up to 3000 mm × 2000 mm)



45-Degree Chamfer Width
0.5–3 mm


Processing Precision
Edge Dimensional Accuracy
±0.01 mm



Surface Roughness (Ra)
≤0.15 μm



Chamfer Angle Accuracy
±0.5°


Operational Parameters
Spindle Speed
2000–3600 rpm



Conveyor Speed
0.8–6 m/min



Pneumatic System Pressure
0.2–0.6 MPa



Compressed Air Consumption
<1 L/min


Power Parameters
Total Motor Power
19.5–25 kW



Power Supply
380 V/50 Hz, Three-Phase


Physical Dimensions
Length × Width × Height
7.0–7.5 m × 1.2 m × 2.6 m



Machine Weight
3000–4500 kg






These parameters reflect the machine’s balance of high precision and high efficiency, with the pneumatic system enabling flexible pressure adjustment to accommodate diverse glass types (float glass, tempered glass, laminated glass, Low-E glass) and processing requirements.

5. Industrial Applications

The Pneumatic Straight Round 45 Degree Glass Edging Machine’s versatility, precision, and efficiency make it widely applicable across multiple industries requiring high-quality flat glass edge processing, with key application scenarios as follows:

5.1 Architectural Decoration Industry

In architectural glass processing, the machine is used for edging and chamfering of curtain wall glass, partition glass, doors and windows glass, and shower room glass. The 45-degree chamfered edge enhances the aesthetic appeal of architectural glass, while the rounded edge improves safety and mechanical strength, complying with building safety standards. The machine’s ability to process large-format glass (up to 3000 mm × 2000 mm) meets the requirements of high-rise buildings and commercial complexes, with processing precision ensuring seamless installation of curtain wall glass. It is also used for processing glass railings, skylights, and decorative glass panels, providing smooth, safe edges for architectural interiors and exteriors.

5.2 Automotive Glass Manufacturing

Automotive glass (windshields, side windows, rear windows, sunroofs) requires high-precision edge processing to ensure sealing, safety, and compatibility with vehicle frames. The machine’s pneumatic clamping and precision grinding avoid glass deformation and chipping, critical for automotive safety glass. The 45-degree chamfering facilitates the installation of rubber seals and adhesives, improving the sealing performance and wind resistance of automotive glass. It is also used for processing sunroof glass and rearview mirror glass, meeting the strict dimensional and surface quality requirements of the automotive industry.

5.3 Home Appliances and Furniture Industry

In home appliance manufacturing, the machine processes glass panels for refrigerators, ovens, washing machines, and display screens, with rounded and chamfered edges enhancing product safety and aesthetics. For furniture, it is used for glass tabletops, cabinet doors, display cabinets, and decorative glass parts, providing smooth edges that prevent user injury and improve product durability. The machine’s ability to process small-sized glass (minimum 25 mm × 25 mm) makes it suitable for precision furniture components and small home appliance parts.

5.4 Electronic and Optical Glass Industry

For electronic glass (smartphone screens, tablet displays, TV panels) and optical glass (lens substrates, instrument glass), the machine’s high-precision polishing achieves an optical-grade surface finish (Ra ≤ 0.1 μm), meeting the requirements of light transmittance and surface smoothness. The pneumatic system’s low-pressure clamping avoids damage to thin electronic glass (3–5 mm), while the continuous processing ensures consistency for mass production of electronic components.

5.5 Solar Photovoltaic Industry

With the rapid development of the photovoltaic industry, the demand for high-quality photovoltaic glass has surged. The machine processes the edges of photovoltaic glass panels, eliminating micro-cracks and improving the mechanical strength and weather resistance of the glass. The 45-degree chamfering facilitates the lamination of photovoltaic modules, enhancing the sealing performance and service life of solar panels. Its high processing efficiency supports the mass production needs of photovoltaic glass manufacturing.

6. Performance Advantages

Compared with traditional mechanical edging machines, manual edging tools, and semi-automatic edging equipment, the Pneumatic Straight Round 45 Degree Glass Edging Machine offers distinct performance advantages, driving the upgrading of glass processing technology:

6.1 High Processing Precision and Consistency

The integration of pneumatic precision control, PLC automation, and linear guide rail transmission ensures edge dimensional accuracy of ±0.01 mm and chamfer angle accuracy of ±0.5°, far exceeding manual and semi-automatic methods. The uniform pneumatic clamping pressure and spindle feeding pressure eliminate positional deviation and uneven material removal, ensuring consistent edge quality across mass-produced glass sheets. The surface roughness after polishing reaches Ra ≤ 0.15 μm, meeting optical-grade requirements and reducing the need for secondary processing.

6.2 High Efficiency and Continuous Operation

The one-pass processing of coarse grinding, fine grinding, chamfering, and polishing eliminates the need for multiple clamping and repositioning, improving production efficiency by 30–50% compared with traditional methods. The automatic conveying and clamping system enables unmanned continuous operation, with a processing capacity of 80–120 pieces per hour (standard glass). The PLC’s parameter memory function reduces setup time for different glass specifications, further enhancing production flexibility and efficiency.

6.3 Wide Adaptability to Glass Specifications

The pneumatic system’s adjustable clamping pressure and spindle stroke, combined with variable conveyor speed, enable processing of glass thicknesses from 3 mm to 25 mm and sizes from 25 mm × 25 mm to large-format panels. The machine accommodates various glass types, including float glass, tempered glass, laminated glass, Low-E glass, and photovoltaic glass, making it suitable for diversified production needs of glass processing enterprises.

6.4 Enhanced Safety and Product Yield

The pneumatic clamping mechanism provides soft, uniform contact with the glass, reducing the risk of edge breakage and surface scratching compared with mechanical clamping. The cooling system’s real-time temperature control prevents thermal stress and glass cracking, while the multi-stage grinding process eliminates micro-cracks, improving the mechanical strength and safety of the finished glass. The product yield rate exceeds 99%, significantly reducing material waste and production costs.

6.5 Intelligent Control and Ease of Operation

The PLC touch-screen control system simplifies operation, with intuitive parameter setting and real-time monitoring. Operators can master equipment operation after basic training, reducing reliance on skilled workers. The fault diagnosis and automatic alarm functions enable timely detection and resolution of issues (e.g., air pressure anomalies, spindle overload, coolant blockage), reducing downtime. Advanced models support remote monitoring and maintenance, improving equipment management efficiency.

6.6 Low Maintenance and Long Service Life

The pneumatic system has a simple structure with few moving parts, reducing wear and maintenance requirements compared with complex mechanical transmission systems. The cooling and dust removal system minimizes grinding wheel wear and component contamination, extending the service life of grinding wheels (up to 12,000 hours for high-quality diamond wheels) and spindles. The main frame’s rigid, anti-deformation design ensures long-term dimensional stability, with a service life of over 10 years under proper maintenance.

7. Maintenance and Troubleshooting

To ensure the long-term stable operation and processing precision of the Pneumatic Straight Round 45 Degree Glass Edging Machine, standardized maintenance and timely troubleshooting are essential. The maintenance system is divided into daily, weekly, and monthly routines, with key measures as follows:

7.1 Daily Maintenance


Cleaning: After each shift, clean the machine surface, grinding spindles, conveyor belts, and cooling nozzles with compressed air and a lint-free cloth to remove glass powder and debris. Drain and replace the coolant in the circulation tank to prevent sludge buildup and nozzle clogging.
Inspection: Check the pneumatic system pressure, ensuring it remains within the 0.2–0.6 MPa range; inspect for air leaks at cylinder joints and valves. Verify the operation of photoelectric sensors and emergency stop buttons, ensuring their sensitivity. Check the grinding wheel wear, replacing wheels that are worn beyond the minimum diameter or show signs of chipping.
Lubrication: Apply a small amount of lubricating oil to linear guide rails and ball screws to ensure smooth movement, avoiding over-lubrication that attracts glass powder.


7.2 Weekly Maintenance


Pneumatic System Maintenance: Drain moisture from the air storage tank and replace the pneumatic filter element to ensure dry, clean compressed air. Inspect pneumatic cylinder seals, replacing damaged seals to prevent air leakage and pressure loss.
Spindle and Transmission Inspection: Check spindle runout (≤0.02 mm) and tighten spindle fixing screws. Inspect conveyor belt tension and alignment, adjusting as needed to prevent glass slippage. Test the PLC control system, calibrating parameter settings and ensuring normal communication between the HMI and PLC.
Cooling System Maintenance: Flush the coolant circulation pipeline and filter, removing accumulated glass powder and debris to ensure smooth coolant flow. Check the water pump pressure, replacing worn pump parts if necessary.


7.3 Monthly Maintenance


Comprehensive Component Inspection: Inspect the main frame for deformation or cracks, checking the tightness of all connecting bolts. Calibrate the grinding spindle angle and positioning accuracy, ensuring compliance with technical parameters. Test the emergency stop and safety interlock systems, ensuring they function reliably.
Electrical System Maintenance: Inspect electrical wiring, connectors, and motor insulation, replacing aging wires and damaged connectors. Check the PLC and HMI for software updates, installing patches to improve system stability.
Lubrication System Overhaul: Replace lubricating oil in gearboxes and bearing components, using high-grade industrial lubricants suitable for high-speed operation. Clean and lubricate pneumatic control valves to ensure flexible movement.


7.4 Common Troubleshooting


Uneven Edge Processing: Causes include uneven pneumatic clamping pressure, worn grinding wheels, or misaligned spindles. Solutions: Adjust pneumatic pressure regulators, replace worn grinding wheels, and calibrate spindle position via the PLC.
Glass Chipping During Processing: Causes include excessive grinding pressure, insufficient cooling, or glass positioning deviation. Solutions: Reduce pneumatic feeding pressure, check coolant nozzle blockage, and re-calibrate photoelectric positioning sensors.
Low Surface Finish After Polishing: Causes include worn polishing wheels, incorrect spindle speed, or contaminated coolant. Solutions: Replace polishing wheels, adjust spindle speed via the frequency converter, and replace the coolant.
Pneumatic System Pressure Loss: Causes include air leaks, damaged filter elements, or faulty pressure regulating valves. Solutions: Inspect and repair air leaks, replace filter elements, and calibrate or replace pressure regulating valves.
Conveyor Belt Slippage: Causes include worn conveyor belt lining, insufficient tension, or excessive glass weight. Solutions: Replace the conveyor belt lining, adjust belt tension, and ensure glass weight does not exceed the machine’s load capacity.


8. Future Development Trends

Driven by technological innovation and evolving industry demands, the Pneumatic Straight Round 45 Degree Glass Edging Machine is evolving toward higher intelligence, precision, energy efficiency, and versatility, with key development trends as follows:

8.1 Intelligent and Digital Upgrading

Future models will integrate artificial intelligence (AI), machine vision, and Internet of Things (IoT) technologies to achieve fully autonomous processing. Machine vision systems will automatically detect glass size, thickness, and edge defects, with AI algorithms optimizing processing parameters (grinding pressure, speed, chamfer size) in real time. IoT-enabled remote monitoring and predictive maintenance will enable real-time collection of equipment operating data, predicting component wear and faults to reduce downtime. Digital twin technology will simulate the processing workflow, optimizing production scheduling and improving overall equipment effectiveness (OEE).

8.2 Higher Precision and Ultra-Thin Glass Processing

With the development of electronic and optical industries, the demand for ultra-thin glass (≤2 mm) and higher precision processing will grow. Future machines will adopt micro-pneumatic control systems (pressure regulation accuracy ≤ 0.01 MPa) and high-precision spindles (runout ≤ 0.005 mm), achieving surface roughness Ra ≤ 0.05 μm. The grinding wheel material and manufacturing process will be upgraded, with nano-scale abrasive particles enabling ultra-precision polishing for optical and electronic glass applications.

8.3 Energy Conservation and Environmental Protection

In response to global energy conservation and emission reduction policies, future machines will adopt energy-efficient motors (permanent magnet synchronous motors) and variable-frequency control systems, reducing power consumption by 30–40% compared with current models. The cooling system will be optimized for closed-loop circulation with high-efficiency filtration, reducing water consumption by over 50%. Dust removal systems will integrate waste glass powder recycling technology, converting processing waste into reusable materials, realizing green and sustainable production.

8.4 Multi-Functional Integration and Flexible Manufacturing

To meet the demand for diversified glass processing, future machines will integrate multiple edging functions (round edge, 45-degree chamfer, bevel edge, duckbill edge) in a single unit, with quick-change grinding wheel modules reducing setup time to less than 15 minutes. The machine will support processing of irregular-shaped glass (in addition to flat glass) through flexible pneumatic clamping and multi-axis linkage spindles, adapting to customized production needs. Modular design will enable flexible configuration of spindles and functions, allowing enterprises to customize equipment according to their production scale and processing requirements.

8.5 Global Market Expansion and Localized Innovation

With the growth of the global glass processing market, especially in emerging economies (Southeast Asia, Latin America, Africa), the demand for cost-effective, high-performance edging equipment will increase. Domestic equipment manufacturers will accelerate technological innovation and product upgrading, improving product quality and brand influence to expand international market share. Localized R&D and production will be strengthened, adapting to regional processing standards and user needs, while establishing global after-sales service networks to enhance customer support.

9. Conclusion

The Pneumatic Straight Round 45 Degree Glass Edging Machine represents a significant advancement in glass processing technology, integrating pneumatic actuation, precision machining, and intelligent control to address the limitations of traditional edging methods. Its high precision, efficiency, adaptability, and safety make it an indispensable piece of equipment in architectural, automotive, home appliance, electronic, and photovoltaic glass processing, driving the upgrading of the glass processing industry toward automation, intelligence, and high quality.

With ongoing technological innovation and evolving market demands, the machine will continue to evolve in intelligence, precision, energy efficiency, and versatility, meeting the increasingly diverse and stringent requirements of glass products. For glass processing enterprises, adopting this advanced edging equipment is crucial for improving production efficiency, reducing costs, enhancing product quality, and gaining a competitive edge in the market. For equipment manufacturers, continuous R&D investment in core technologies (pneumatic control, precision spindles, intelligent systems) and localized innovation will be key to capturing market opportunities and promoting the sustainable development of the glass processing equipment industry.

Future research should focus on the integration of AI and machine vision in processing control, the development of ultra-precision grinding and polishing technologies, and the optimization of energy-saving and environmental protection systems, further unlocking the potential of the Pneumatic Straight Round 45 Degree Glass Edging Machine and promoting the high-quality development of the global glass processing industry.





The article is structured in a formal academic style, covering all key aspects of the machine. You can let me know if you need to adjust the length, emphasize specific sections (e.g., more technical details or application cases), or modify the tone.

Double Head Low-E Film Deletion Machine: Technical Overview, Operational Principles and Industrial Applications

Abstract

The Double Head Low-E Film Deletion Machine is a high‑precision, high‑efficiency special equipment designed for removing the low‑emissivity coating along the edges of Low‑E glass. It adopts dual independent grinding heads, an intelligent CNC or PLC control system, pneumatic positioning, and an air‑flotation worktable to achieve synchronous, stable, and residue‑free edge deletion on two adjacent edges of glass sheets. This equipment is essential in the production of insulating glass, architectural glass, automotive glass, and energy‑saving glass, as it ensures reliable sealing, stable bonding, and long service life of final glass units. This article systematically introduces the definition, structural composition, working principle, core technical features, advantages, applications, operation, maintenance, and development trends of the double head Low‑E film deletion machine, providing a complete technical reference for glass deep‑processing enterprises.

1. Introduction

With the global promotion of green building and energy‑saving policies, Low‑E (low‑emissivity) glass has become the preferred material in modern construction, automotive, home appliance, and photovoltaic industries due to its excellent thermal insulation, light transmission, and UV protection performance. However, the metallic coating on Low‑E glass surface will seriously affect the bonding strength and sealing effect between glass and sealant, leading to risks such as degumming, air leakage, and hollow layer failure. Therefore, removing a certain width of the coating along the glass edge before sealing and tempering is an indispensable process.

Traditional manual film removal and single‑head deletion machines suffer from low efficiency, uneven deletion, residual coating, high labor intensity, and poor consistency. The double head Low‑E film deletion machine overcomes these shortcomings through dual synchronous heads, automatic positioning, and intelligent control. It can process two edges simultaneously, greatly improving production efficiency and product qualification rate. It has become core supporting equipment in automated glass processing lines.

2. Basic Definition and Classification

2.1 Definition

Double Head Low-E Film Deletion Machine is an automatic or semi-automatic mechanical equipment specially used to strip the low-emissivity coating layer from the edge of coated glass. It is equipped with two independently controlled or synchronously linked grinding heads, which can remove the film on two adjacent sides of glass at the same time. The deletion width, speed, and pressure are adjustable to adapt to different glass thicknesses, sizes, and coating types.

2.2 Classification


By control mode: semi-automatic (manual feeding) and fully automatic (automatic sensing, conveying, and positioning).
By structure: horizontal air-flotation type and vertical conveying type.
By application: standard type for architectural insulating glass, high-precision type for automotive glass, multi-functional type compatible with single-silver, double-silver, and triple-silver Low-E glass.
By grinding method: resin wheel grinding, diamond wheel grinding, and combined grinding system.


3. Structural Composition

The double head Low-E film deletion machine integrates machinery, electricity, pneumatics, and intelligent control. Its main components include:

3.1 Heavy-Duty Frame Structure

The frame is welded with high-strength steel and treated by stress relief, ensuring high rigidity, low vibration, and stable operation during long-term production. The stable structure guarantees precision and reduces glass damage caused by shaking.

3.2 Double Independent Grinding Head System

Two high-speed grinding motors drive special wear-resistant resin or diamond grinding wheels. The heads can move synchronously or independently, with adjustable height, pressure, and deletion width. They can process different glass thicknesses from 3 mm to 15 mm and ensure clean, scratch-free removal.

3.3 Air-Flotation Workbench

The workbench is equipped with high-pressure air nozzles to form a stable air cushion, allowing labor-free and low-damage movement of large glass sheets. It effectively reduces friction and edge breakage during feeding and positioning.

3.4 Pneumatic Clamping & Positioning System

Precision pneumatic cylinders fix the glass position automatically to avoid sliding during grinding. The positioning system ensures consistent deletion width and high dimensional accuracy.

3.5 Intelligent Control System

Equipped with PLC or CNC controller and touch screen, it supports one-key operation, parameter storage, deletion width setting, speed adjustment, and fault self-diagnosis. The human-machine interface is intuitive and easy to master.

3.6 Dust Collection & Environmental Protection System

A built-in vacuum dust collection device absorbs coating dust in real time, preventing dust pollution and protecting the health of operators. It keeps the workbench clean and improves working environment.

3.7 Safety Protection System

Equipped with emergency stop, safety grating, overload protection, and limit switches to ensure safe operation and prevent personal injury or equipment damage.

4. Working Principle

The working process of the double head Low-E film deletion machine follows a stable and efficient logic:



Feeding & Positioning

The operator places the glass on the air-flotation table and pushes it to the positioning area. The pneumatic system automatically clamps and fixes the glass sheet.



Parameter Setting

Set deletion width, grinding speed, and pressure on the touch screen according to glass thickness and coating type.



Dual-Head Synchronous Deletion

The two grinding heads start simultaneously and move along the glass edges to remove the Low-E coating completely and evenly.



Automatic Stop & Unloading

When deletion is finished, the heads return automatically. The air cushion starts again for easy unloading. For four-edge deletion, the glass is rotated 90 degrees for repeated processing.




The dual-head design doubles efficiency compared with single-head machines. The precise pressure control ensures no damage to the glass surface while removing the coating thoroughly.

5. Core Technical Characteristics and Advantages

5.1 High Efficiency & Double Productivity

Two grinding heads work at the same time, significantly reducing processing time. Fully automatic models can be linked with glass cutting lines and insulating glass production lines to realize continuous flow operation.

5.2 High Precision & Good Consistency

Deletion width can be adjusted from 5 mm to 50 mm with an error less than ±1 mm. The edge is clean and residue-free, which greatly improves the sealing quality and service life of insulating glass.

5.3 Wide Compatibility

Suitable for single-silver, double-silver, triple-silver Low-E glass, coated glass, reflective glass, and solar glass. Compatible with various glass sizes and thicknesses.

5.4 Low Breakage Rate & High Stability

Air-flotation table, soft clamping, and stable pressure control minimize glass scratch and breakage. The breakage rate is controlled below 0.3%.

5.5 Easy Operation & Low Labor Intensity

Intelligent touch screen control reduces professional skill requirements. Air flotation makes glass movement effortless, reducing operator fatigue.

5.6 Environmentally Friendly & Low Maintenance

Dust removal system ensures clean production. The grinding wheels have long service life and are easy to replace. The overall structure is simple with low failure rate.

6. Main Application Fields

6.1 Insulating Glass Production

The most important application: removing edge coating to ensure reliable bonding between glass and butyl rubber / structural sealant, preventing hollow glass failure.

6.2 Architectural Glass Processing

Used for curtain wall glass, doors and windows, skylights, and partition glass to meet building energy-saving and safety standards.

6.3 Automotive Glass

Edge treatment of automotive sunroofs, rear windshields, and side windows to ensure optical performance and sealing reliability.

6.4 Home Appliance & Photovoltaic Glass

Suitable for oven doors, refrigerator shelves, solar panels, and display glass, improving product durability and appearance.

7. Operation and Maintenance

7.1 Standard Operation


Check power, air pressure, grinding wheels, and dust collector before startup.
Set correct parameters according to glass type.
Do not place hands near grinding heads during operation.
Clean glass chippings and dust after shutdown.


7.2 Daily Maintenance


Clean the workbench and dust collection box daily.
Check air tightness of pneumatic components.
Lubricate linear guides and transmission parts regularly.
Replace worn grinding wheels to ensure deletion quality.


7.3 Regular Overhaul

Check motor current, control system, and positioning accuracy every 6–12 months. Replace aging wearing parts to extend service life.

8. Development Trend

8.1 Higher Intelligence

Future models will integrate AI visual recognition, automatic glass size detection, automatic coating identification, and remote monitoring for unmanned production.

8.2 Higher Integration

The machine will combine with loading, cutting, edging, and washing functions to form a fully automatic processing unit.

8.3 Greener & More Efficient

Energy-saving motors, optimized dust removal, and quieter design will meet environmental requirements.

8.4 More Specialized Customization

Special models for ultra-thin glass, large-size glass, and shaped glass will be developed to meet diversified market demands.

9. Conclusion

The Double Head Low-E Film Deletion Machine is key equipment in the modern glass deep-processing industry. It solves the problems of low efficiency and poor quality in traditional film removal processes, and guarantees the sealing performance, structural stability, and service life of Low-E glass products. With the rapid development of energy-saving buildings and automotive industries, the demand for high-quality coated glass will continue to grow, and the double head Low-E film deletion machine will become more intelligent, efficient, and integrated. For glass processing enterprises, choosing reliable double head film deletion equipment is an important way to improve product quality, reduce production costs, and enhance market competitiveness.
