Manual: Aluminium Bar Bending Machine

1. Foreword

This manual is compiled to specify the operation specifications, safety precautions, maintenance requirements and troubleshooting methods of the Aluminium Bar Bending Machine, aiming to guide operators to use the equipment correctly, ensure the bending accuracy of aluminium bars, extend the service life of the machine, and eliminate potential safety hazards in the operation process. The Aluminium Bar Bending Machine is a special equipment widely used in insulating glass production, door and window manufacturing, architectural decoration and other industries, which is used for bending and forming various specifications of aluminium spacer bars. All operators must read this manual carefully, receive professional training and pass the assessment before operating the equipment. Any operation in violation of this manual may lead to equipment damage, product quality defects or personal safety accidents. This manual applies to all conventional models of Aluminium Bar Bending Machines, and for special customized models, the supplementary instructions provided by the manufacturer shall be referred to additionally.

2. Scope of Application

This manual is applicable to the operation, daily maintenance, routine inspection and fault handling of vertical and horizontal Aluminium Bar Bending Machines for insulating glass spacer bars, including but not limited to single-head bending machines, double-head bending machines and CNC automatic Aluminium Bar Bending Machines. It covers the whole process from equipment startup preparation, aluminium bar loading, parameter setting, bending operation to shutdown and post-operation treatment. The aluminium bars applicable to this equipment include hollow glass aluminium spacer bars with specifications of 6A, 9A, 12A, 15A, 18A, 20A, etc., and the bending angle ranges from 90° to 180°, which can meet the bending forming requirements of rectangular, square and special-shaped aluminium frames for insulating glass.

3. Equipment Overview

3.1 Basic Structure

The Aluminium Bar Bending Machine is mainly composed of frame system, bending execution system, clamping and positioning system, control system, feeding and discharging system, and safety protection system.


Frame System: It is the main bearing structure of the equipment, made of high-strength steel plate welding or profile assembly, with high rigidity and stability, to ensure that the equipment does not deform during the bending process.
Bending Execution System: The core working part of the equipment, including bending die, bending shaft, driving motor (servo motor or hydraulic motor), transmission mechanism, etc., which completes the bending action of aluminium bars through the rotation of the die and the driving of the power system.
Clamping and Positioning System: Composed of pneumatic clamping cylinder, positioning baffle, pressure plate, etc., it is used to fix the aluminium bar firmly during bending, prevent displacement and deflection, and ensure the bending accuracy.
Control System: Including touch screen, operation button panel, PLC controller, servo driver, etc., which realizes the setting of bending parameters (angle, length, speed), automatic operation control and fault alarm display.
Feeding and Discharging System: Consisting of feeding roller table, discharging bracket, conveying roller, etc., it facilitates the loading of raw aluminium bars and the unloading of formed aluminium frames, improving operation efficiency.
Safety Protection System: Including emergency stop button, safety grating, protective cover, overload protection device, etc., to prevent personal injury and equipment damage caused by misoperation.


3.2 Working Principle

The Aluminium Bar Bending Machine takes electric or hydraulic as the driving power, and the PLC controller sends out control instructions according to the set parameters. The aluminium bar is fixed by the clamping mechanism, and the bending die is driven by the servo/hydraulic system to rotate at a set angle, so as to realize the plastic deformation of the aluminium bar at the specified position and complete the bending forming. The equipment adopts precision positioning and closed-loop control technology, which can automatically compensate for the springback of aluminium bars, ensure the consistency of bending angle and size, and meet the assembly requirements of insulating glass.

3.3 Technical Parameters

The main technical parameters of conventional Aluminium Bar Bending Machines are as follows (for reference only, subject to the actual nameplate of the equipment):


Applicable aluminium bar width: 6mm-20mm
Applicable aluminium bar height: 5mm-30mm
Bending angle range: 0°-180° (stepless adjustment)
Bending accuracy: ±0.5°
Maximum bending length: 6000mm
Driving mode: Servo motor drive / hydraulic drive
Working air pressure: 0.4-0.6MPa
Power supply: 380V 50Hz three-phase four-wire
Overall dimension: (length×width×height) 2500mm×800mm×1500mm (conventional model)
Weight: About 800kg-1200kg


4. Pre-operation Preparation

4.1 Personnel Preparation


Operators must be over 18 years old, in good health, and have received special equipment operation training, familiar with the structure, performance, operating procedures and safety precautions of the Aluminium Bar Bending Machine, and hold a post certificate before taking up their posts.
Operators must wear standard labor protection equipment, including anti-pinch gloves, anti-static work clothes, safety shoes, and protective goggles (when cutting or processing special aluminium bars). It is forbidden to wear loose clothes, scarves, jewelry, or have long hair unbound, so as to avoid being involved in the rotating parts of the equipment.
Non-operators are strictly prohibited from entering the equipment working area, and obvious warning signs such as "No Unauthorized Operation" and "Danger, Keep Away" shall be set up at the operation site.


4.2 Equipment Inspection


Appearance and Structure Inspection: Check the appearance of the equipment for deformation, damage or loose parts, check the welding part of the frame for cracks, and check the fastening bolts of each component (such as die, clamping cylinder, motor base) for looseness, and tighten them in time if any.
Power and Air Supply Inspection: Check whether the power cord, plug and socket of the equipment are intact, whether the wiring is firm, and whether the leakage protector is normal. For pneumatic clamping models, check the air compressor, air pipeline and air filter for air leakage, blockage or water accumulation, and adjust the air pressure to 0.4-0.6MPa. Drain the water in the air storage tank and filter regularly to prevent moisture from entering the pneumatic components.
Mechanical Transmission Inspection: Check the bending die, transmission gear, chain, belt and other transmission parts for wear, deformation or damage, check whether the lubrication is sufficient, and add lubricating oil or grease according to the regulations if necessary. Manually rotate the bending shaft to check whether it rotates smoothly without jamming or abnormal noise.
Control System Inspection: Turn on the power supply of the equipment, check whether the touch screen and operation panel are lighted normally, whether the display data is accurate, and test the functions of start, stop, emergency stop, parameter adjustment and other buttons to ensure that all control functions are sensitive and effective. Check the PLC controller and servo driver for fault alarms, and eliminate the alarms in time if any.
Die and Accessory Inspection: Select the bending die matching the specification of the aluminium bar, check the die for wear, cracks or burrs, and replace it in time if it is damaged. Check the positioning baffle, pressure plate and clamping block for wear or deformation, and adjust or replace them to ensure the positioning accuracy.


4.3 Material and Tool Preparation


Select qualified aluminium spacer bars that meet the production requirements, check the appearance of aluminium bars for scratches, deformation, oxidation or impurities, check the dimensional accuracy (width, height, thickness), and prohibit the use of unqualified aluminium bars that do not meet the bending requirements.
Prepare auxiliary tools, such as hexagon wrench, screwdriver, torque wrench, cleaning cloth, lubricating oil, measuring tools (angle ruler, tape measure, vernier caliper), etc., to ensure that the tools are complete and intact.
Prepare the product drawings or process documents, confirm the bending parameters of aluminium bars (bending angle, side length, quantity, etc.), and input the parameters into the control system in advance for trial bending verification.


5. Standard Operation Procedures

5.1 Equipment Startup


Turn on the main power switch of the equipment, and then turn on the power supply of the control system, PLC and touch screen in sequence. Wait for the system to start and self-check, and confirm that there is no fault alarm before proceeding to the next operation.
For hydraulic drive models, turn on the hydraulic pump motor, run it idly for 3-5 minutes, check the hydraulic system for oil leakage, abnormal noise or overheating, and confirm that the hydraulic pressure is within the normal range.
For pneumatic models, open the air supply valve, check the air pressure gauge to ensure that the air pressure is stable at 0.4-0.6MPa, and test the action of the clamping cylinder to ensure that the clamping and loosening actions are flexible and in place.


5.2 Parameter Setting


Enter the parameter setting interface of the touch screen, input the bending parameters according to the product process requirements, including aluminium bar specification, bending angle, left and right side lengths, bending speed, clamping pressure, etc.
Set the springback compensation value according to the material characteristics of the aluminium bar (the springback of aluminium bars is generally 1°-3°, which can be adjusted according to the actual trial bending results).
For batch production, store the set parameters in the system program, name the program according to the product model, and call it directly during subsequent production to improve efficiency.
After setting the parameters, double-check to confirm that the input data is correct, and then save the parameters and exit the setting interface.


5.3 Aluminium Bar Loading and Positioning


Place the qualified aluminium bar flat on the feeding roller table, push it to the positioning baffle of the equipment, and adjust the position of the positioning baffle to ensure that the bending point of the aluminium bar is aligned with the center of the bending die.
Start the clamping mechanism (manual or automatic), and the clamping cylinder drives the pressure plate to press the aluminium bar firmly to prevent the aluminium bar from moving or rotating during the bending process. The clamping pressure should be appropriate, not too large to deform the aluminium bar, nor too small to cause insufficient clamping.
Use a measuring tool to recheck the positioning size of the aluminium bar, confirm that the bending position and length meet the process requirements, and then proceed to the bending operation.


5.4 Bending Operation

5.4.1 Manual Bending Mode


Select the manual operation mode on the control panel, and operate the manual button or joystick to control the bending die to rotate slowly, and observe the bending state of the aluminium bar in real time.
When the bending angle reaches the set value, the equipment will automatically stop or stop manually, and keep the pressure for 1-2 seconds to eliminate the springback of the aluminium bar.
Operate the loosening button to release the clamping mechanism, take out the bent aluminium bar, and use an angle ruler and tape measure to check the bending angle and size accuracy. If the accuracy is unqualified, readjust the springback compensation value and parameters for trial bending again.


5.4.2 Automatic Bending Mode


Select the automatic operation mode on the touch screen, call the pre-stored product program, and confirm that the parameters are correct.
Press the automatic start button, the equipment will automatically complete the actions of clamping, bending, pressure maintaining, loosening and resetting in sequence according to the set program.
During the automatic operation, the operator shall stand in the safe area outside the safety grating, observe the operation state of the equipment in real time, and pay attention to whether there is abnormal noise, aluminium bar deformation or equipment failure.
After the bending of a single aluminium bar is completed, the equipment will automatically reset and wait for the next feeding. For batch production, repeat the loading and start operation until the production task is completed.


5.5 Trial Bending and Batch Production


Before formal batch production, conduct trial bending on 2-3 aluminium bars, check the bending angle, side length, flatness and appearance quality of the formed aluminium frame, and confirm that all indicators meet the process standards.
If the trial bending product is unqualified, analyze the causes (such as parameter setting error, die mismatch, positioning deviation, aluminium bar quality problem), adjust the parameters or replace the accessories in time, and conduct trial bending again until the product is qualified.
After the trial bending is qualified, carry out formal batch production, and conduct random inspection on the formed products at regular intervals (every 50-100 pieces) to ensure the stability of product quality.


5.6 Equipment Shutdown


After completing the production task, press the stop button to stop the operation of the equipment, and reset the bending die and clamping mechanism to the initial position.
For hydraulic drive models, turn off the hydraulic pump motor first, and then turn off the main power supply; for pneumatic models, close the air supply valve first, and then turn off the power supply.
Clean the residual aluminium chips, dust and impurities on the equipment surface, roller table and die, wipe the equipment with a clean cloth, and apply anti-rust oil on the die and metal parts if necessary.
Hang the "Shutdown for Maintenance" or "No Operation" warning sign on the operation panel, and record the production data, operation time and equipment status in the equipment operation log.


6. Safety Precautions

6.1 Basic Safety Rules


It is strictly forbidden to operate the equipment with diseases, fatigue, drunk or distracted mental state, so as to avoid misoperation.
During the operation of the equipment, it is forbidden to extend hands, arms or any parts of the body into the bending working area, and it is forbidden to touch the rotating die, transmission parts and high-temperature components (hydraulic motor, servo motor) with bare hands.
Do not place tools, aluminium bars or other sundries on the equipment frame, control panel and safety protection device to avoid affecting the equipment operation or causing safety accidents.
The equipment must be reliably grounded to prevent electric shock accidents. Do not disassemble or modify the electrical components, control circuit and mechanical structure of the equipment without authorization.
In case of power failure or air failure during operation, immediately press the emergency stop button, cut off the power supply and air supply, and wait for the power supply and air supply to return to normal before restarting the operation after inspection.


6.2 Special Operation Safety


When replacing the bending die, the equipment must be completely shut down, the power supply and air supply/hydraulic supply must be cut off, and the operation can be carried out only after the die is completely stopped. Use special tools to disassemble and assemble the die to avoid injury caused by die falling.
When bending special-shaped or ultra-long aluminium bars, add auxiliary support brackets to prevent the aluminium bars from deforming or swinging during the bending process, and arrange special personnel to assist in feeding and discharging.
When the equipment is running with overload or abnormal noise, immediately press the emergency stop button, cut off the power supply, check the cause of the fault, and it is forbidden to continue operation with fault.
The safety grating, protective cover and emergency stop button of the equipment shall not be dismantled or shielded at will, and regular inspection shall be carried out to ensure their effectiveness.


6.3 Emergency Handling


In case of personal injury (such as pinch, scald, electric shock), immediately cut off the power supply and air supply, carry out first aid measures, and send to the hospital for treatment in time.
In case of equipment failure (such as die jamming, hydraulic oil leakage, motor overheating), press the emergency stop button immediately, stop the operation, record the fault phenomenon, and notify the professional maintenance personnel for repair.
In case of fire caused by electrical short circuit or hydraulic oil combustion, immediately cut off the power supply, use dry powder fire extinguisher to put out the fire, and it is forbidden to use water to put out the electrical fire.


7. Equipment Maintenance and Upkeep

7.1 Daily Maintenance (Once per Shift)


Clean the equipment surface, die, roller table and working area, remove aluminium chips, dust and impurities, and keep the equipment clean.
Check the fastening of bolts, nuts and connectors of each component, and tighten them in time if loose.
Check the air pressure, hydraulic pressure and lubrication state of the equipment, add lubricating oil or grease to the transmission parts (bearing, gear, chain) according to the regulations, and check the hydraulic oil level and oil quality.
Test the functions of emergency stop button, safety grating and control buttons to ensure they are normal.
Record the daily maintenance situation in the equipment maintenance log.


7.2 Weekly Maintenance (Once a Week)


Thoroughly clean the inside of the equipment, including the hydraulic oil tank, air filter, control cabinet, remove dust and impurities, and check the wiring in the control cabinet for looseness.
Check the wear of bending die, clamping block, positioning baffle and transmission parts, and replace the seriously worn parts in time.
Drain the water and impurities in the air storage tank, air filter and hydraulic oil tank, and check the hydraulic oil for deterioration or pollution. If necessary, replace the hydraulic oil and filter element.
Calibrate the bending angle and positioning size of the equipment, and adjust the deviation to ensure the processing accuracy.
Check the operation of the servo motor, hydraulic pump and clamping cylinder, and eliminate abnormal noise and oil leakage.


7.3 Monthly Maintenance (Once a Month)


Conduct a comprehensive inspection of the electrical system, including the PLC controller, servo driver, touch screen, sensor, etc., check the wiring for aging or damage, and replace the damaged wires in time.
Perform lubrication maintenance on all transmission mechanisms, replace the lubricating oil or grease that has deteriorated or exceeded the service life, and adjust the tightness of the chain and belt.
Check the sealing performance of the hydraulic system and pneumatic system, replace the aging sealing ring and oil seal, and eliminate oil leakage and air leakage faults.
Calibrate the pressure gauge, temperature sensor and other measuring instruments of the equipment to ensure the accuracy of measurement data.
Conduct a comprehensive test run of the equipment, check the operation status of each system, and deal with potential faults in advance.


7.4 Annual Maintenance (Once a Year)


Conduct a comprehensive disassembly and inspection of the equipment, check the wear of key components such as frame, bending shaft, bearing, and carry out repair or replacement according to the wear degree.
Replace all hydraulic oil, lubricating oil, filter element and sealing parts of the equipment, and clean the hydraulic oil tank and lubrication system.
Conduct a comprehensive calibration of the control system, update the system program if necessary, and optimize the bending parameters.
Conduct a safety performance evaluation of the equipment, including safety protection device, grounding system, overload protection, etc., to ensure that the equipment meets the safety standards.
After the annual maintenance is completed, conduct a comprehensive test run and acceptance, and record the maintenance content and acceptance results in the equipment file.


8. Troubleshooting of Common Faults

8.1 Inaccurate Bending Angle


Fault Causes: Incorrect springback compensation parameter setting, wear or deformation of bending die, loose positioning baffle, unstable air pressure/hydraulic pressure, damage of angle sensor.
Solutions: Readjust the springback compensation value according to the trial bending results; replace the worn or deformed bending die; tighten the positioning baffle and recalibrate the positioning size; check the air compressor/hydraulic pump to stabilize the pressure; replace the damaged angle sensor and recalibrate.


8.2 Aluminium Bar Deformation or Scratches During Bending


Fault Causes: Improper clamping pressure, burrs or wear on the die and clamping block, unqualified aluminium bar material, misalignment of bending point.
Solutions: Adjust the clamping pressure to an appropriate value; polish or replace the die and clamping block with burrs or wear; replace qualified aluminium bars; recalibrate the bending point position to ensure alignment with the die center.


8.3 Clamping Mechanism Fails to Clamp or Loosen


Fault Causes: Insufficient air pressure/hydraulic pressure, blockage of air pipe/hydraulic pipe, damage of clamping cylinder, failure of solenoid valve, loose circuit connection.
Solutions: Adjust the air pressure/hydraulic pressure to the normal range; clean the blocked pipeline; replace the damaged clamping cylinder; check and replace the faulty solenoid valve; tighten the loose circuit connector.


8.4 Equipment Abnormal Noise or Vibration


Fault Causes: Insufficient lubrication of transmission parts, loose fastening bolts, wear or damage of bearing and gear, unbalanced bending die, overload operation.
Solutions: Add lubricating oil or grease to the transmission parts; tighten all loose fastening bolts; replace the worn bearing and gear; recalibrate the balance of the bending die; reduce the processing load to avoid overload operation.


8.5 Hydraulic System Oil Leakage


Fault Causes: Aging or damage of sealing ring, loose joint of hydraulic pipe, crack of hydraulic oil tank, damage of hydraulic pump shaft seal.
Solutions: Replace the aging sealing ring; tighten the loose hydraulic pipe joint; weld or replace the cracked hydraulic oil tank; replace the damaged hydraulic pump shaft seal.


8.6 Control System Failure (Touch Screen No Display, Parameter Cannot Be Set)


Fault Causes: Power supply abnormality, loose connection of control line, damage of touch screen or PLC controller, system program error.
Solutions: Check the power supply and restore normal power supply; tighten the loose control line connector; replace the damaged touch screen or PLC controller; restart the system or reload the program to restore the normal operation of the control system.


9. Storage and Transportation of Equipment

9.1 Equipment Storage


The equipment should be stored in a dry, ventilated, dust-free and non-corrosive gas environment, away from heat sources, direct sunlight and rain.
Before storage, clean the equipment thoroughly, apply anti-rust oil on all metal parts and die, cover the equipment with a dust cover, and block the hydraulic pipe and air pipe interface to prevent dust and impurities from entering.
The equipment should be placed flat on a solid ground, and the support points should be set according to the requirements to avoid deformation of the frame. Regular inspection should be carried out during storage, and anti-rust and moisture-proof treatment should be done well.


9.2 Equipment Transportation


The equipment transportation should be carried out by a professional logistics company, and the transportation vehicle should have a fixed device to prevent the equipment from shaking or colliding during transportation.
Before transportation, fix all movable parts of the equipment (such as bending die, clamping cylinder, roller table) with fixtures, remove the easily damaged parts (such as touch screen, sensor) and pack them separately for transportation.
During loading and unloading, use a forklift or crane that meets the lifting requirements, and operate in accordance with the hoisting specifications to avoid impact or tilting of the equipment. The lifting point should be selected at the designated position of the equipment frame.
During transportation, cover the equipment with a rainproof and dustproof cloth to prevent rain, snow and dust from eroding the equipment.


10. Supplementary Provisions


This manual is the basic operation standard of the Aluminium Bar Bending Machine, and the operator shall strictly abide by it. If there is any conflict with the special instructions of the equipment manufacturer, the manufacturer's instructions shall prevail.
The enterprise shall formulate corresponding operation management system and maintenance system according to this manual, and assign special personnel to be responsible for the management and maintenance of the equipment.
Any modification, transformation or upgrade of the equipment must be approved by the equipment manufacturer or professional technical personnel, and shall not be carried out without authorization.
The operator shall be responsible for the equipment damage and personal safety accidents caused by violation of this manual.
This manual shall be kept properly, and the lost or damaged manual shall be reported to the equipment management department in time for replacement. The technical department of the enterprise is responsible for the interpretation and revision of this manual.

Automatic Aluminium Spacer Bar Bending Machine: Technology, Application and Industrial Development

1. Introduction

In the modern architectural glass deep processing industry, insulating glass has become the core component of energy-saving buildings due to its excellent thermal insulation, sound insulation and anti-fogging performance. The aluminium spacer bar, as the key structural part of insulating glass, plays a vital role in maintaining the cavity thickness of insulating glass, sealing the molecular sieve desiccant and ensuring the structural stability of the glass unit. The traditional manual or semi-automatic bending process of aluminium spacer bars has the problems of low bending precision, poor consistency, low production efficiency, high labor intensity and difficulty in adapting to the production of complex-shaped spacer bars, which has become a bottleneck restricting the high-quality and large-scale development of the insulating glass industry.

Against this background, the Automatic Aluminium Spacer Bar Bending Machine, as an intelligent electromechanical integration equipment integrating mechanical transmission, servo control, numerical control system and sensing detection technology, has gradually replaced the traditional bending process and become the core equipment in the insulating glass production line. This paper systematically expounds the definition, structural composition, working principle, technical parameters, application scenarios, core advantages, market development status and future trends of the Automatic Aluminium Spacer Bar Bending Machine, aiming to provide a comprehensive reference for architectural glass processing enterprises, equipment R&D institutions and industry practitioners, and clarify the important value of this equipment in promoting the upgrading of the insulating glass industry.

2. Definition and Classification of Automatic Aluminium Spacer Bar Bending Machine

2.1 Core Definition

The Automatic Aluminium Spacer Bar Bending Machine is a special numerical control equipment specially designed for bending and forming aluminium spacer bars (including ordinary aluminium spacer bars, warm edge aluminium composite spacer bars, stainless steel spacer bars, etc.) used in insulating glass. It can automatically complete the processes of spacer bar feeding, length measurement, corner bending, angle forming, cutting and discharging according to the preset program and size parameters, without manual intervention in the whole process. Adopting high-precision servo drive and PLC numerical control system, it can realize the bending of aluminium spacer bars of different specifications, sizes and shapes (rectangle, square, special-shaped polygon, arc, etc.), with high bending precision, good forming consistency and high production efficiency, which is an indispensable key equipment in the automatic production line of insulating glass.

2.2 Main Classification

According to different structural forms, functional configurations and application scenarios, the Automatic Aluminium Spacer Bar Bending Machine can be divided into the following categories:

2.2.1 Classified by Bending Form


Right Angle Bending Machine: Mainly used for bending aluminium spacer bars into right-angle rectangular or square shapes, which is the most common type in the insulating glass industry. It is equipped with a fixed-angle bending mechanism, with high bending speed and high precision, suitable for the production of conventional rectangular insulating glass.
Multi-Angle Bending Machine: Adopting a servo-controlled rotating bending head, it can realize the bending of any angle (0°-180°), and can process special-shaped aluminium spacer bars such as trapezoid, rhombus and polygon, meeting the production needs of special-shaped insulating glass for high-end buildings.
Arc Bending Machine: Equipped with an arc forming mechanism, it can bend aluminium spacer bars into arc, circular or elliptical shapes, which is specially used for the production of curved insulating glass, such as curved glass for shopping malls, hotels and landmark buildings.
Composite Bending Machine: Integrating right-angle, multi-angle and arc bending functions, it is a multi-functional integrated equipment that can realize the one-stop processing of various shapes of aluminium spacer bars, with strong flexibility and high adaptability.


2.2.2 Classified by Automation Degree


Fully Automatic Bending Machine: Realizes unmanned operation in the whole process, including automatic feeding, automatic length measurement, automatic bending, automatic cutting, automatic discharging and automatic stacking. It is equipped with a touch human-machine interface and can store multiple processing programs, suitable for large-scale and standardized production of insulating glass enterprises.
Semi-Automatic Bending Machine: Needs manual assistance in partial links such as manual feeding and manual placement of spacer bars, while the core bending and forming links are automatically controlled. It has a small footprint and low cost, suitable for small and medium-sized insulating glass enterprises with small-batch and multi-variety production.


2.2.3 Classified by Processing Specification


Small-Size Bending Machine: Suitable for processing aluminium spacer bars with a width of 5.5-12mm and a minimum bending size of 100mm×100mm, mainly used for the production of small-sized insulating glass such as household doors and windows.
Large-Size Bending Machine: Suitable for processing aluminium spacer bars with a width of 12-27mm and a maximum bending size of 2500mm×3000mm, mainly used for the production of large-sized insulating glass for curtain walls, industrial buildings and public buildings.
Ultra-Wide Bending Machine: Specially designed for processing ultra-wide aluminium spacer bars (27-45mm), which is used for the production of high-performance insulating glass with large cavity thickness and high energy-saving requirements.


3. Structural Composition and Working Principle

3.1 Core Structural Composition

The Automatic Aluminium Spacer Bar Bending Machine is a complex system integrating multiple functional modules, and its structural design directly determines the equipment's bending precision, stability and production efficiency. The main structural modules are as follows:

3.1.1 Numerical Control System Module

As the "control core" of the equipment, it mainly includes PLC controller (Siemens, Omron and other international brands are commonly used), touch human-machine interface (HMI), motion control card and servo driver. The PLC system is responsible for receiving the size parameters input by the operator, calculating the bending path and angle, and issuing execution instructions to each drive mechanism; the touch screen provides a human-computer interaction platform, which can set processing parameters, store processing programs, monitor the operating status of the equipment in real time, and query fault information. The servo driver realizes the precise control of the bending head, feeding mechanism and cutting mechanism, ensuring the positioning accuracy of each action.

3.1.2 Feeding and Conveying Module

Including feeding rack, conveying roller, clamping mechanism and length measuring sensor. The feeding rack is used to store the coiled or straight aluminium spacer bars, and the conveying roller (driven by servo motor) transports the spacer bars to the bending station at a constant speed; the clamping mechanism fixes the spacer bars during the bending process to prevent displacement; the length measuring sensor (laser or encoder type) measures the length of the spacer bars in real time, with a measurement accuracy of ±0.1mm, ensuring the consistency of the processing length.

3.1.3 Bending and Forming Module

This is the core module of the equipment, including bending head, bending die, servo rotating mechanism and angle encoder. The bending head is driven by a high-power servo motor, and the bending die is made of high-strength alloy steel with wear-resistant and anti-deformation treatment, which can be quickly replaced according to the width of the spacer bar; the servo rotating mechanism realizes the precise rotation of the bending head, and the angle encoder feeds back the bending angle in real time, with an angle control accuracy of ±0.1°, ensuring the accuracy of the bending angle. For arc bending machines, this module is also equipped with an arc forming wheel set, which can adjust the arc radius steplessly.

3.1.4 Cutting and Discharging Module

Including pneumatic cutting knife, cutting die and discharging conveyor belt. After the bending and forming of the aluminium spacer bar is completed, the pneumatic cutting knife cuts the spacer bar according to the set length, with a cutting edge flat and no burrs; the discharging conveyor belt transports the formed spacer bar to the designated area, and some high-end models are equipped with an automatic stacking mechanism to realize automatic sorting and stacking of finished products.

3.1.5 Frame and Protective Module

The frame is made of high-strength cast iron or thick-walled steel plate, with good rigidity and shock resistance, which can avoid deformation during high-speed bending and ensure the stability of the equipment; the protective module includes safety grating, emergency stop button, protective cover and safety door, which meets the industrial safety standards, prevents operators from contacting the moving parts, and ensures the safety of operation.

3.2 Working Principle

The Automatic Aluminium Spacer Bar Bending Machine takes the PLC numerical control system as the core, and realizes the coordinated operation of each module through servo drive and sensing detection technology, and completes the whole process of aluminium spacer bar bending and forming according to the preset program. The specific working process is as follows:

First, the operator inputs the processing parameters (spacer bar width, bending size, bending angle, quantity, etc.) through the touch screen, and the system automatically generates the processing program. Then, the feeding mechanism transports the aluminium spacer bar from the feeding rack to the bending station, and the length measuring sensor measures the length of the spacer bar in real time and feeds back the data to the PLC system. When the spacer bar reaches the set length, the clamping mechanism fixes the spacer bar, and the servo motor drives the bending head to rotate to the set angle, and the bending die presses the spacer bar to complete the corner bending. For multi-angle or arc bending, the system controls the bending head to rotate continuously according to the pre-calculated path to realize the forming of complex shapes. After all bending processes are completed, the cutting mechanism cuts the spacer bar, and the discharging conveyor belt transports the finished product to the stacking area. The whole process is automatically controlled by the system, and the equipment can continuously process multiple spacer bars in a cycle, with high production efficiency and high forming precision.

In addition, the equipment is equipped with a fault self-diagnosis system, which can monitor the operating status of each module in real time. When faults such as motor abnormality, sensor failure and material jamming occur, the system will immediately stop operation, send an alarm signal, and display the fault cause and solution on the touch screen to facilitate maintenance.

4. Core Technical Parameters and Performance Indicators

The technical parameters of the Automatic Aluminium Spacer Bar Bending Machine are the key basis for measuring its performance and selecting models. Different types of equipment have different parameter standards, and the common core technical parameters and performance indicators are as follows:

4.1 Basic Processing Parameters


Applicable Spacer Bar Width: 5.5-45mm (conventional models are 5.5-27mm, ultra-wide models are 27-45mm)
Applicable Spacer Bar Thickness: 0.3-1.2mm
Processing Size Range: Minimum 100mm×100mm, Maximum 2500mm×3000mm (customizable for larger sizes)
Bending Angle Range: 0°-180° (stepless adjustment for multi-angle models, fixed 90° for right-angle models)
Arc Radius Range: 50mm-2000mm (for arc bending machines)
Processing Speed: 5-15 pieces per minute (depending on the size and shape of the spacer bar)
Power Supply: AC 380V, 50Hz, Power 3-7.5KW
Air Pressure Requirement: ≥0.6MPa, Air Consumption 0.3-0.5m³/min


4.2 Precision and Stability Indicators


Length Measurement Accuracy: ±0.1mm
Bending Angle Accuracy: ±0.1°
Diagonal Accuracy of Formed Spacer Bar: ±0.2mm
Repeat Positioning Accuracy: ±0.05mm
Continuous Operation Time: ≥24 hours
Fault Rate: ≤0.3%
Service Life of Core Components: ≥8 years (servo motor, PLC, bending die)


4.3 Intelligent and Humanized Parameters


Program Storage Capacity: 100-500 groups of processing programs
Changeover Time: Tool-free quick changeover of bending die, ≤5 minutes
Data Interaction: Supports connection with MES system, real-time upload of processing data
Fault Self-Diagnosis: Can identify more than 60 kinds of common faults, real-time display of fault information
Noise Level: ≤70dB (meeting industrial noise standards)


5. Application Scenarios and Industry Requirements

The Automatic Aluminium Spacer Bar Bending Machine is mainly used in the architectural glass deep processing industry, and its application scenarios cover various fields of insulating glass production, with different industry requirements for equipment performance.

5.1 Residential Building Doors and Windows Insulating Glass Production

This is the most mainstream application scenario, mainly producing rectangular insulating glass for residential doors and windows, with small and medium sizes (300mm×300mm-1500mm×2000mm). The industry requires the equipment to have high bending speed, good forming consistency and low cost, and the right-angle bending machine is the preferred model. At the same time, the equipment needs to adapt to the processing of aluminium spacer bars with a width of 5.5-12mm, and the formed spacer bar has no deformation, no cracks and tight corners, ensuring the sealing performance of insulating glass.

5.2 Commercial Building Curtain Wall Insulating Glass Production

Commercial building curtain walls require large-sized and high-performance insulating glass, with sizes up to 2500mm×3000mm and spacer bar widths of 12-27mm. The industry requires the equipment to have high rigidity, large processing range and high bending precision, and the large-size bending machine is the core equipment. In addition, the equipment needs to realize the processing of special-shaped spacer bars (trapezoid, polygon) to meet the design needs of complex curtain wall shapes, and the formed spacer bar has good structural stability to ensure the safety of curtain wall glass.

5.3 High-End Special-Shaped Insulating Glass Production

High-end buildings such as landmark buildings, shopping malls and hotels often use special-shaped insulating glass (arc, circular, elliptical, irregular polygon), which requires the equipment to have multi-angle and arc bending functions. The multi-angle and arc composite bending machine is the key equipment, which can realize the stepless adjustment of bending angle and arc radius, with high forming precision and good consistency, meeting the personalized design needs of high-end buildings.

5.4 Warm Edge Spacer Bar Processing

With the development of energy-saving buildings, warm edge aluminium composite spacer bars (low thermal conductivity, better energy-saving effect) are gradually replacing ordinary aluminium spacer bars. The processing of warm edge spacer bars requires the equipment to have a soft bending function, avoiding the cracking of the composite layer during bending. Therefore, the bending machine needs to be equipped with a special bending die and a buffer mechanism, with low bending pressure and high forming precision, to ensure the integrity of the warm edge spacer bar structure.

6. Core Advantages of Automatic Aluminium Spacer Bar Bending Machine

Compared with the traditional manual and semi-automatic bending process, the Automatic Aluminium Spacer Bar Bending Machine has obvious advantages in precision, efficiency, cost, quality and intelligence, which is the core driving force for its popularization in the insulating glass industry.

6.1 Ultra-High Bending Precision and Forming Consistency

Adopting high-precision servo drive and angle encoder control, the bending angle accuracy reaches ±0.1° and the length measurement accuracy reaches ±0.1mm, which completely solves the problems of angle deviation, length inconsistency and diagonal error in manual bending. The formed aluminium spacer bar has uniform size, tight corners, no deformation and no cracks, which effectively improves the assembly precision of insulating glass and ensures the sealing and structural stability of the glass unit.

6.2 Significant Improvement of Production Efficiency

The fully automatic operation mode eliminates the link of manual intervention, and the processing speed is 5-10 times higher than that of manual bending. A single fully automatic bending machine can process 5-15 pieces of spacer bars per minute, and can run continuously for 24 hours, which greatly improves the production capacity of insulating glass enterprises. At the same time, the quick changeover function of the bending die reduces the downtime caused by specification replacement, and further improves the overall production efficiency.

6.3 Great Reduction of Production Cost

On the one hand, it reduces labor costs: a fully automatic bending machine can replace 6-10 manual operators, and only one person is needed for daily operation and maintenance, which greatly saves labor expenditure; on the other hand, it reduces material waste: the high-precision processing reduces the scrap rate of aluminium spacer bars to less than 0.5%, which is far lower than the 5%-10% scrap rate of manual bending, saving a lot of raw material costs; in addition, the low fault rate and long service life of the equipment reduce maintenance costs and downtime losses.

6.4 Strong Flexibility and Adaptability

The equipment can store hundreds of processing programs, and realize quick switching of different sizes, widths and shapes of aluminium spacer bars by adjusting parameters on the touch screen, with tool-free changeover and strong adaptability to multi-variety and small-batch production. At the same time, it can be customized according to customer needs, such as adding double bending stations, ultra-large size processing mechanism, warm edge spacer bar special bending die, etc., to meet the personalized processing needs of different enterprises.

6.5 Intelligent Management and Quality Traceability

The PLC numerical control system realizes real-time monitoring of processing data, automatic recording of processing quantity, qualified rate, fault information and other data, which is convenient for enterprises to carry out production management and quality traceability. The equipment supports connection with the MES system of the factory, realizing the digital management of the whole production process, and meeting the requirements of modern intelligent manufacturing for data transparency and traceability.

6.6 Improvement of Working Environment and Labor Safety

The fully enclosed operation and safety protection devices reduce the noise and potential safety hazards in the processing process, and avoid industrial accidents caused by manual operation of bending tools. At the same time, it liberates workers from heavy and repetitive manual labor, reduces labor intensity and improves the working environment of the production line.

7. Market Development Status and Trends

7.1 Global Market Status

Driven by the global energy-saving building policy and the rapid development of the architectural glass industry, the demand for Automatic Aluminium Spacer Bar Bending Machines has maintained a steady growth trend in recent years. The Asia-Pacific region, represented by China, has become the largest market due to its large-scale construction of real estate, infrastructure and energy-saving buildings, and the rapid development of the insulating glass processing industry; Europe and the United States, as developed regions, focus on high-end intelligent and multi-functional bending machines, with high requirements for equipment precision, stability and environmental protection; emerging markets in the Middle East, Latin America and Africa are in the stage of urbanization construction, and the demand for cost-effective automatic bending machines is growing rapidly.

At present, the global market competition pattern is divided into three echelons: the first echelon is European brands such as LiSEC (Austria) and Bystronic (Switzerland), which occupy the high-end market with advanced technology, high stability and complete after-sales service, mainly serving large insulating glass processing enterprises; the second echelon is Chinese brands such as LIJIANG Glass, North Glass and CYGLASS, which have rapidly risen with cost performance, fast delivery and customized services, and have a high market share in the middle and low-end markets and emerging markets, and some high-end models have gradually entered the European and American markets; the third echelon is small and medium-sized brands in South Korea, Japan and other countries, which focus on regional markets and have limited competitiveness.

7.2 Core Market Trends

7.2.1 Intelligent and Digital Upgrading

With the development of industrial Internet and artificial intelligence, the Automatic Aluminium Spacer Bar Bending Machine is developing towards higher intelligence: integrating AI algorithms to realize adaptive adjustment of bending parameters (automatically optimizing bending speed and pressure according to the material and thickness of the spacer bar); adding digital twin technology to simulate the bending process and predict deformation in advance; realizing remote monitoring, fault diagnosis and program upgrade through cloud platforms, and meeting the needs of intelligent factory management.

7.2.2 Multi-Functional and Integrated Development

The single-function bending machine can no longer meet the diversified production needs of enterprises, and the multi-functional integrated bending machine integrating right-angle, multi-angle and arc bending has become the development trend. At the same time, the equipment is developing towards integration with the insulating glass production line, realizing seamless connection with desiccant filling machine, butyl rubber coating machine, glass pressing machine and other equipment, forming a fully automatic intelligent production line of insulating glass, and improving the overall automation level of the factory.

7.2.3 High Precision and High Efficiency

Downstream enterprises have higher and higher requirements for the processing precision and production efficiency of aluminium spacer bars, and the equipment is developing towards higher precision (bending angle accuracy up to ±0.05°) and higher speed (processing speed exceeding 20 pieces per minute); at the same time, the lightweight and compact design reduces the floor space of the equipment, and improves the space utilization rate of the production line.

7.2.4 Green and Energy-Saving Development

In response to the global call for energy conservation and emission reduction, the equipment is optimized in terms of energy consumption: adopting high-efficiency servo motors and energy-saving pneumatic components to reduce power and air consumption; using recyclable and environmentally friendly materials for the frame and bending die; designing a waste recycling system to collect aluminium scraps generated during cutting, realizing material recycling and reducing environmental pollution.

7.2.5 Customization and Personalization

The personalized design needs of modern buildings are becoming more and more prominent, and the demand for special-shaped aluminium spacer bars is increasing year by year. The customized bending machine (such as ultra-large size, ultra-small arc, special-shaped polygon processing) has become a new growth point of the market, and equipment manufacturers are shifting from standardized production to customized solutions to meet the diversified processing needs of different customers.

8. Challenges and Future Development Prospects

8.1 Existing Challenges

Although the Automatic Aluminium Spacer Bar Bending Machine has achieved rapid development, it still faces some challenges in the process of industrial popularization: first, the technical level of some domestic small and medium-sized brands is uneven, and the core components such as high-precision servo motors and numerical control systems still rely on imports, resulting in high production costs and weak competitiveness in the high-end market; second, the after-sales service system of some enterprises is not perfect, and the response speed to equipment faults and maintenance needs is slow, affecting the user experience; third, the adaptability to new materials such as ultra-thin warm edge spacer bars and stainless steel spacer bars needs to be further improved, and the bending precision and forming quality of new materials need to be optimized; fourth, the digital transformation of small and medium-sized insulating glass enterprises is slow, and the acceptance and application capacity of high-end intelligent bending machines are insufficient.

8.2 Future Development Prospects

In the future, with the continuous advancement of global energy-saving building policies, the upgrading of the architectural glass industry and the breakthrough of core technologies, the Automatic Aluminium Spacer Bar Bending Machine will show broader development prospects:

In terms of technology, the localization of core components will be accelerated, and domestic brands will break through the technical monopoly of foreign brands in high-precision servo systems, intelligent numerical control and other fields, reducing production costs and improving product competitiveness; the integration of new technologies such as 5G, machine vision and big data will further improve the intelligence level of the equipment, realizing unmanned production and full-process digital management.

In terms of application, the application fields will continue to expand, and the demand for special-shaped insulating glass in new energy vehicles, aerospace, medical equipment and other emerging fields will drive the development of the equipment in the direction of ultra-high precision, ultra-small size and special material adaptation; at the same time, the warm edge spacer bar, as the development direction of energy-saving spacer bars, will promote the upgrading of bending machine technology, and the special bending equipment for warm edge spacer bars will become the mainstream of the market.

In terms of market, the global market demand will maintain a compound annual growth rate of more than 5%, and Chinese brands will further expand the international market with technological advantages and cost performance, and the global competition pattern will be more balanced; the industry will accelerate the elimination of backward production capacity, and enterprises with core technologies, complete after-sales service and strong R&D capabilities will occupy a dominant position, promoting the healthy and standardized development of the industry.

9. Conclusion

The Automatic Aluminium Spacer Bar Bending Machine, as the core equipment of the modern insulating glass production line, has realized the transformation of aluminium spacer bar processing from manual and semi-automatic to fully automatic and intelligent, which is of great significance for improving the processing precision, production efficiency and product quality of insulating glass. It integrates mechanical transmission, servo control, numerical control system and sensing detection technology, with ultra-high bending precision, high production efficiency, low production cost and strong flexibility, and has become an indispensable key equipment in the architectural glass deep processing industry.

At present, the industry is in a period of rapid development of intelligent and digital upgrading, and is facing both opportunities such as the expansion of downstream market demand and the breakthrough of core technologies, as well as challenges such as technical bottlenecks and market competition. In the future, equipment manufacturers need to increase R&D investment, break through the technical barriers of core components, improve the level of intelligence and customization, and improve the after-sales service system; insulating glass processing enterprises need to accelerate the pace of automation transformation, and select appropriate bending equipment according to their own production needs to improve the overall competitiveness of the enterprise.

With the continuous progress of technology and the continuous upgrading of industrial demand, the Automatic Aluminium Spacer Bar Bending Machine will play a more important role in the global architectural glass industry, and promote the high-quality development of the energy-saving building industry with more intelligent, efficient and stable performance.

Aluminum Frame Bending Machine: Core Equipment for Precision Aluminum Profile Forming

In the modern manufacturing landscape, aluminum alloy profiles have become indispensable structural and decorative materials due to their lightweight properties, high strength, corrosion resistance, excellent recyclability, and aesthetic appearance. They are widely applied in industries such as architectural doors and windows, curtain walls, automotive manufacturing, home appliances, electronic enclosures, solar frames, and aerospace components. The processing and forming of aluminum frames directly determine the quality, precision, and production efficiency of end products, among which the aluminum frame bending machine stands as a critical piece of equipment that bridges aluminum profile raw materials and finished frame products. This article systematically elaborates on the definition, classification, working principles, core technical characteristics, application fields, development trends, and operational advantages of aluminum frame bending machines, demonstrating their pivotal role in modern industrial processing.

1. Definition and Basic Overview of Aluminum Frame Bending Machine

An aluminum frame bending machine is a specialized metal forming machine designed exclusively for bending, curving, and shaping aluminum alloy profiles, aluminum strips, aluminum tubes, and aluminum spacers into specified geometric frames, including rectangular frames, circular arcs, elliptical shapes, polygonal frames, and special-shaped structures. Unlike universal bending equipment, aluminum frame bending machines are tailored to the physical properties of aluminum materials—such as low hardness, high ductility, and easy surface scratching—with optimized structures to minimize deformation, surface damage, and springback during the bending process.

As a precision-driven processing device, the aluminum frame bending machine integrates mechanical transmission, hydraulic drive, servo control, numerical control systems, and sensor technology. It achieves automated, high-precision, and high-efficiency bending operations, replacing traditional manual bending and simple mechanical bending methods. This advancement effectively solves the problems of low precision, inconsistent dimensions, high scrap rates, and low efficiency in conventional aluminum frame processing, becoming essential equipment for large-scale and standardized production in the aluminum profile processing industry.

2. Classification of Aluminum Frame Bending Machines

Based on structural design, control mode, processing objects, and application scenarios, aluminum frame bending machines can be divided into multiple categories, each with unique functional advantages to meet diversified processing requirements.

2.1 CNC Profile Rolling Bending Machine

Also known as three-axis or four-axis roll bending machine, this type of aluminum frame bending machine adopts a rolling bending principle, driven by servo motors to control the radial feed and rotation of forming rollers. It continuously bends aluminum profiles into arcs, circles, ellipses, S-shaped curves, and other curved frames. It is primarily used for large-radius curved aluminum frames in architectural curtain walls, arched doors and windows, and decorative profiles, featuring high forming smoothness, no surface indentation, and suitability for long-profile bending.

2.2 Automatic Aluminum Spacer Bending Machine

This is a special bending machine for hollow glass aluminum spacer frames, integrating automatic feeding, bending, cutting, and corner forming. It can process rectangular, square, and special-shaped aluminum spacer frames in one go, with high precision and fast speed. It is the core equipment in the hollow glass production line, ensuring the airtightness and dimensional stability of insulating glass components.

2.3 CNC Servo Aluminum Frame Bending Machine

Equipped with a high-precision servo control system and touch-screen operation, this machine is designed for small and medium-sized aluminum frames, such as electronic product frames, smart mirror frames, cabinet frames, and solar panel frames. It realizes precise right-angle bending, multi-angle composite bending, and closed-frame forming, with an angle error controlled within ±0.3°, meeting the high-precision requirements of precision manufacturing industries.

2.4 Hydraulic Aluminum Frame Bending Machine

Driven by a hydraulic system, it provides strong bending force and is suitable for thick-walled, large-cross-section aluminum profiles and heavy-duty aluminum frame processing. It features stable operation, strong load-bearing capacity, and low equipment cost, making it suitable for industrial aluminum frame processing with high strength and large size requirements.

2.5 Fully Automatic Integrated Aluminum Frame Bending Line

For large-scale industrial production, fully automatic integrated bending lines combine feeding, positioning, bending, testing, and unloading functions. Connected with automated production lines, they achieve unmanned continuous processing, greatly improving production efficiency and product consistency, and adapting to mass production in modern manufacturing plants.

3. Working Principle of Aluminum Frame Bending Machine

The core working principle of an aluminum frame bending machine lies in applying controllable external force to aluminum profiles to produce plastic deformation at specified positions, forming the required frame shape without damaging the material structure and surface. The specific process varies slightly with different machine types but generally follows the following steps:

First, the aluminum profile is automatically or manually fed into the machine’s clamping and positioning mechanism, which fixes the profile firmly to avoid displacement or deflection during bending. Second, the control system inputs bending parameters, including bending angle, bending radius, frame size, and processing quantity, which are converted into electrical signals to drive the servo motor, hydraulic cylinder, or mechanical transmission mechanism.

Next, the bending die or roller assembly moves according to the set program, applying pressure or rolling force to the designated position of the aluminum profile. Using the excellent ductility of aluminum alloy, the profile undergoes plastic deformation to reach the target shape. During this process, the machine’s anti-springback compensation system automatically corrects the elastic recovery of aluminum materials to ensure dimensional accuracy.

Finally, after bending is completed, the forming mechanism resets, and the finished aluminum frame is unloaded automatically or manually. High-end CNC aluminum frame bending machines also feature real-time monitoring and error compensation functions, using sensors to collect bending data and adjust parameters dynamically to ensure processing stability.

The design of the bending die is critical to the forming effect: customized dies matched with the cross-section of aluminum profiles prevent surface scratches, wrinkles, and cross-sectional deformation, ensuring the flatness and integrity of the formed frame.

4. Core Technical Characteristics and Advantages

Aluminum frame bending machines have become the preferred equipment for aluminum profile processing due to their outstanding technical advantages, which are mainly reflected in the following aspects:

4.1 High Processing Precision

Equipped with a CNC servo control system, high-precision linear guides, and encoders, the machine achieves precise control of bending angle, position, and radius. The dimensional error is controlled within an extremely low range, meeting the strict precision requirements of high-end products. The anti-springback compensation technology effectively solves the elastic deformation problem of aluminum materials, ensuring consistent forming dimensions of each product.

4.2 Excellent Surface Quality Protection

The contact parts between the machine and aluminum profiles are equipped with polyurethane, rubber, or nylon anti-slip and anti-scratch pads, and the surface of the bending die is polished and coated. This avoids scratches, indentations, and deformation on the surface of aluminum profiles during bending, maintaining the aesthetic appearance of aluminum frames, especially for surface-anodized or sprayed profiles.

4.3 High Degree of Automation

Modern aluminum frame bending machines are equipped with human-machine interaction touch screens, programmable PLC systems, and program storage functions. Operators only need to input processing parameters once, and the machine can automatically complete batch processing. Some models support automatic feeding, cutting, and unloading, reducing manual intervention and labor intensity while improving production efficiency.

4.4 Wide Applicability

By replacing different bending dies and adjusting processing parameters, the machine can process aluminum profiles of various cross-sections (square, rectangular, circular, special-shaped), thicknesses, and lengths, forming frames of different shapes and sizes. It meets the diversified processing needs of multiple industries and has strong flexibility and versatility.

4.5 Stable Performance and Long Service Life

The frame of the aluminum frame bending machine is made of high-strength steel plates through welding and annealing treatment, with high rigidity and stability, avoiding vibration and deformation during long-term operation. Key components such as servo motors, hydraulic pumps, and bearings adopt international brand parts, ensuring stable operation, low failure rate, and long service life.

4.6 Safe and Environmentally Friendly Operation

The machine is equipped with complete safety protection devices, including safety guards, emergency stop buttons, overload protection, and photoelectric protection, to ensure operator safety. At the same time, the equipment operates with low noise and no pollution, complying with environmental protection requirements for industrial production.

5. Main Application Fields of Aluminum Frame Bending Machine

With the continuous expansion of aluminum alloy application scenarios, aluminum frame bending machines are widely used in various manufacturing industries, becoming key equipment to promote the upgrading of aluminum profile processing technology.

5.1 Architectural Doors, Windows and Curtain Walls

In the construction industry, aluminum alloy is the main material for doors, windows, and curtain walls. Aluminum frame bending machines process arc-shaped, arched, and special-shaped aluminum frames for curved windows, revolving doors, and curved curtain walls, enriching the architectural design style while ensuring the structural stability and sealing performance of doors and windows.

5.2 Hollow Glass Manufacturing

Aluminum spacer frames are core components of hollow glass, and automatic aluminum spacer bending machines realize one-time forming of spacer frames, improving the production efficiency and airtightness of hollow glass. They are widely used in architectural glass, automotive glass, and home appliance glass processing.

5.3 Electronic and Electrical Appliances

The shells and frames of TVs, monitors, smart mirrors, refrigerators, and air conditioners mostly use thin-walled aluminum profiles. CNC aluminum frame bending machines process high-precision, aesthetically pleasing aluminum frames, meeting the lightweight and decorative requirements of electronic and electrical products.

5.4 Automotive and Transportation

In the automotive industry, aluminum alloy frames are used in body parts, sunroofs, battery boxes, and interior trims. Aluminum frame bending machines realize the forming of complex aluminum profiles, promoting the lightweight development of automobiles and improving vehicle energy efficiency.

5.5 Solar Energy and Photovoltaic Industry

Solar panel frames require high-precision aluminum alloy frames, and aluminum frame bending machines process corrosion-resistant, high-strength solar frames to ensure the service life and stability of photovoltaic modules.

5.6 Furniture and Decoration

Aluminum alloy furniture frames, decorative lines, and mirror frames rely on aluminum frame bending machines for forming, combining the metallic texture of aluminum with diversified shapes to enhance the aesthetic and practicality of furniture and interior decoration.

6. Development Trends of Aluminum Frame Bending Machines

Driven by industrial automation, intelligence, and high-end manufacturing, aluminum frame bending machines are constantly evolving towards higher precision, intelligence, integration, and green development.

6.1 Higher Degree of Intelligence

Future aluminum frame bending machines will be deeply integrated with artificial intelligence, IoT, and big data technologies, realizing intelligent parameter adjustment, automatic fault diagnosis, predictive maintenance, and remote monitoring. The equipment can automatically optimize bending parameters according to the material and size of aluminum profiles, reducing the dependence on operator experience.

6.2 Higher Processing Precision and Efficiency

With the development of high-end manufacturing, the demand for precision aluminum frames will continue to increase. Aluminum frame bending machines will adopt higher-precision transmission components and control systems, further reducing bending errors and improving processing speed to meet the needs of high-efficiency and high-precision production.

6.3 Multi-Function Integration

Single-function bending machines will gradually transform into multi-functional integrated equipment, combining bending, cutting, punching, and forming processes to realize one-time processing of aluminum profiles, simplifying production processes and reducing equipment investment costs for enterprises.

6.4 Lightweight and Compact Design

For small and medium-sized enterprises and limited workshop space, aluminum frame bending machines will develop towards a compact, lightweight structure while maintaining performance, saving installation space and improving site utilization.

6.5 Green and Energy-Saving Development

New-type aluminum frame bending machines will adopt energy-saving servo hydraulic systems, variable-frequency drive technology, and low-noise components to reduce energy consumption and noise during operation, complying with the global trend of green and low-carbon industrial production.

7. Conclusion

As a key piece of precision forming equipment in the aluminum profile processing industry, the aluminum frame bending machine plays an irreplaceable role in promoting the development of industries such as construction, automobiles, electronics, and solar energy. Its high precision, high efficiency, automation, and versatility solve the technical pain points of traditional aluminum frame processing, improve product quality and production efficiency for manufacturing enterprises, and reduce production costs.

With the continuous growth of global demand for aluminum alloy products and the continuous advancement of manufacturing technology, aluminum frame bending machines will continue to upgrade in terms of intelligence, precision, and integration. They will further expand their application fields and become an important driving force for the transformation and upgrading of the aluminum profile processing industry. For manufacturers in related industries, choosing a high-quality, high-performance aluminum frame bending machine is not only an upgrade of processing equipment but also a strategic layout to enhance market competitiveness and adapt to the development of modern manufacturing.

Hot Melt Coating Machine: Professional Technical Description & Comprehensive Overview

1. Introduction to Hot Melt Coating Machine

The Hot Melt Coating Machine is a highly integrated, precision-engineered industrial processing equipment dedicated to the application of hot melt adhesives onto a wide variety of flexible and semi-rigid substrates. As a core piece of equipment in the adhesive coating and composite material industry, it replaces traditional solvent-based and water-based coating methods with a solvent-free, pollution-free, and highly efficient thermal bonding process. It integrates mechanical transmission, precision temperature control, automatic metering, continuous coating, cooling setting, tension control and intelligent electrical control systems, realizing stable, high-speed and high-quality roll-to-roll coating production. It is widely recognized as an indispensable and advanced production solution in modern manufacturing, meeting the strict requirements of product performance, environmental protection standards and production efficiency in multiple industries.

2. Working Principle and Operational Mechanism

The operating principle of the hot melt coating machine is based on the physical phase change of hot melt adhesive and precise fluid coating technology, forming a complete and stable closed-loop production system. The entire production process can be divided into several key steps: adhesive melting, quantitative delivery, precision coating, cooling curing and finished product winding.

First, solid hot melt adhesive particles, blocks or strips are added to the special heating melting tank of the equipment. Under the precise multi-zone temperature control system, the solid adhesive is heated and converted into a uniform liquid state with stable viscosity. Then, the high-precision gear pump or screw metering pump system transports the molten adhesive at a constant pressure and fixed flow rate to the coating head module, eliminating the influence of adhesive viscosity and liquid level changes on the coating effect.

Next, under the synchronous operation of the substrate transmission system, the molten adhesive is uniformly coated on the surface of the substrate through the coating head in the form of a full film, dots, lines or mesh according to the process requirements. Immediately after coating, the substrate with the adhesive layer enters the cooling and shaping zone, where the adhesive is rapidly cooled and solidified through cooling rollers or circulating air cooling to restore a solid state and form a firm adhesive layer.

Throughout the process, the PLC central control system monitors and adjusts key parameters in real time, including heating temperature, metering pump speed, substrate transmission speed, tension value and coating thickness, ensuring the consistency and stability of the coating effect and achieving fully automated continuous operation.

3. Core Structure and Component Functions

The hot melt coating machine consists of multiple functional modules with precise coordination, and each component directly determines the stability, accuracy and service life of the equipment.

3.1 Unwinding System

The unwinding system is responsible for providing stable substrate feeding, adopting automatic tension control and photoelectric correction device, which can adapt to various roll materials such as films, non-woven fabrics, paper, aluminum foil and fabrics. It effectively prevents substrate deviation, wrinkling or breakage during high-speed operation, and supports non-stop roll changing to improve production continuity.

3.2 Heating and Melting System

As the power core of the hot melt adhesive treatment, the heating and melting system is equipped with a stainless steel melting tank with multi-zone independent temperature control, fast heating speed and uniform temperature distribution. The thermal insulation design reduces energy loss, and the anti-coking and anti-carbonization structure ensures the stability of the adhesive performance and avoids material deterioration caused by overheating.

3.3 Precision Metering and Delivery System

This system adopts a high-precision gear pump or screw pump driven by a servo motor, which can realize quantitative and constant pressure delivery of molten adhesive. The metering error is extremely low, ensuring that the coating weight is accurately controlled within the process range, and it is suitable for both thin-layer micro-coating and thick-layer heavy coating processes.

3.4 Coating Head Module

The coating head is the core component that determines the coating shape and uniformity. The equipment can be equipped with different types of coating heads such as roller coating, slot die coating, comma blade coating and nozzle coating, which can flexibly switch between full-surface coating, dot coating, line coating and other forms to meet the bonding and functional requirements of different products.

3.5 Cooling and Curing System

The cooling system adopts high-efficiency cooling rollers with internal circulating cooling water or strong air cooling equipment, which can quickly reduce the surface temperature of the coated substrate, accelerate the curing and forming of the hot melt adhesive, prevent the adhesive from flowing or transferring, and ensure the flatness and stability of the coating layer.

3.6 Tension Control and Transmission System

The whole line adopts a segmented tension control system to keep the tension of the substrate stable during unwinding, coating and winding. The servo-driven variable-frequency transmission system realizes high-precision speed synchronization, supports high-speed continuous production, and runs smoothly with low noise.

3.7 Winding System

The winding system adopts automatic constant tension control, with functions such as automatic roll changing, length counting and edge alignment, ensuring that the coated finished products are neatly wound, easy to unload and subsequent processing, and adapting to large-batch continuous industrial production.

3.8 Intelligent Electrical Control System

The human-machine interaction interface based on PLC and touch screen realizes visual operation. Operators can set and store process parameters, monitor real-time operating status, and have complete fault self-diagnosis, alarm and protection functions, which simplifies operation difficulty and improves production safety and stability.

4. Core Advantages and Technical Characteristics

Compared with traditional coating equipment, hot melt coating machines have obvious technical and application advantages, which are the key reasons why they are widely promoted and applied globally.

Firstly, environmental protection and safety. The hot melt coating process does not use any organic solvents, has no VOC emissions, no toxic and harmful gas generation, fully meets international environmental protection standards and occupational health requirements, and is a green and environmentally friendly production process.

Secondly, high production efficiency. Hot melt adhesive can complete melting, coating and curing in a very short time, without long drying or volatilization time. The equipment can run continuously at high speed, greatly shortening the production cycle and improving output efficiency.

Thirdly, coating precision and uniformity. With the servo metering system and precision coating head, the coating weight and thickness can be precisely controlled, the error is extremely small, and the coating layer is uniform and flat, which significantly improves product quality and stability.

Fourthly, wide material adaptability. The equipment is compatible with almost all types of hot melt adhesives on the market, and can coat various substrates such as plastic films, non-woven fabrics, paper, aluminum foil, foam, leather and textiles, with strong versatility.

Fifthly, cost saving and low loss. The solvent-free process reduces material costs, the automatic operation reduces labor input, the adhesive utilization rate is high, and the equipment has low failure rate and low maintenance cost, bringing obvious economic benefits to enterprises.

Sixthly, flexible production mode. By replacing the coating head and adjusting parameters, it can quickly switch different coating processes and product specifications, meeting the diversified and personalized production needs of enterprises.

5. Main Application Fields

With excellent performance and stable process, hot melt coating machines are widely used in many important manufacturing fields, covering daily necessities, medical treatment, industry, packaging, automobiles and other categories.

In the hygiene products industry, it is used for the production of diapers, sanitary napkins, adult care products, etc., realizing the adhesive coating of elastic waist circumference, leg cuffs and composite layers.

In the medical and health industry, it is used to produce medical tapes, wound dressings, surgical drapes, medical non-woven composites and other products, with safe and non-toxic adhesive layers and stable bonding performance.

In the adhesive tape and label industry, it is the core equipment for producing double-sided tapes, foam tapes, cloth-based tapes, protective films, self-adhesive labels and trademark materials.

In the flexible packaging industry, it is used for composite coating of food packaging films, plastic packaging bags, aluminum foil composite bags, etc., with good sealing and bonding fastness.

In the automotive interior industry, it is used for bonding and coating of automotive sound insulation cotton, carpets, door panels, decorative parts and thermal insulation materials.

In addition, it is also widely used in non-woven fabric lamination, filter materials, electronic protective materials, stationery, furniture manufacturing and other fields, and is one of the key equipment to improve product quality and production efficiency.

6. Technical Development Trend and Industry Prospect

With the development of global industrial intelligence, environmental protection and high efficiency, hot melt coating machines are constantly upgrading and innovating, showing a clear development trend.

In terms of intelligent control, the equipment is gradually integrated with IoT technology, realizing remote monitoring, data statistics, fault early warning and predictive maintenance, and deeply integrated with intelligent production lines to adapt to Industry 4.0 production modes.

In terms of high speed and wide width, the equipment speed and effective coating width are continuously improved to meet the needs of large-scale and high-efficiency production, further reducing the unit production cost.

In terms of precision and energy saving, the new heating system, metering system and transmission system reduce energy consumption while improving coating accuracy, making the process more energy-saving and efficient.

In terms of multi-function and integration, the equipment tends to integrate multiple functions such as coating, compounding, slitting and molding, realizing one-stop production and improving the added value of the equipment.

As a high-performance, environmentally friendly and efficient coating equipment, the hot melt coating machine will continue to expand its application fields with the upgrading of manufacturing industry and the enhancement of environmental protection requirements. Its market demand will maintain a steady growth trend, and it will always play an important role in the field of adhesive coating and composite material production, becoming a key support for the sustainable development of related industries.

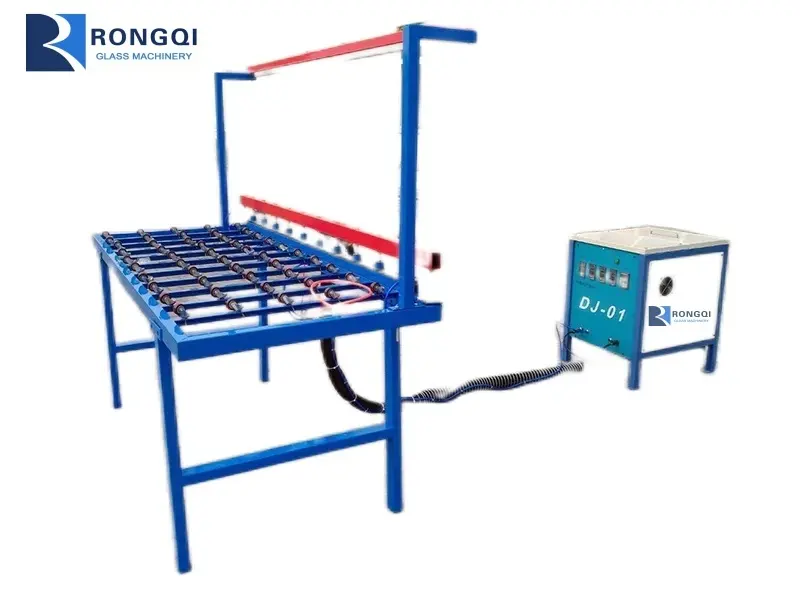

Low-E Film Deleting Machine: Professional Technical Overview & Comprehensive Description
The Low-E Film Deleting Machine is a kind of high-precision, automatic, and professional processing equipment specially designed for the edge deletion of coated glass, especially Low-E (Low Emissivity) glass. As an indispensable supporting equipment in the deep processing of architectural glass, insulating glass, and tempered glass, this machine adopts advanced physical deletion technology to accurately remove the unnecessary Low-E coating layer at the edge of the glass, so as to ensure the bonding fastness, sealing performance and service life of insulating glass, and avoid quality problems such as degumming, oxidation, and air leakage caused by the coating layer. With the characteristics of high automation, high processing precision, stable operation, and friendly operation, the Low-E Film Deleting Machine has become a key production equipment for modern glass deep-processing enterprises to improve product quality, optimize production efficiency and meet industrial processing standards.

Working Principle

The working principle of the Low-E Film Deleting Machine is based on precise mechanical grinding and positioning control technology, combined with automatic transmission and intelligent control system, to realize efficient and non-damaging edge deletion of Low-E coated glass. Firstly, the glass to be processed is automatically conveyed to the processing area through the conveyor system, and the precise positioning is completed through the photoelectric sensor and the positioning mechanism to ensure the consistency of the deletion position and size. Then, the high-speed rotating grinding wheel or special deletion head is driven by the servo motor to contact the surface of the Low-E coating evenly, and the coating layer at the edge of the glass is removed quantitatively and stably according to the set deletion width, depth and path. During the whole processing, the dust removal system runs synchronously to absorb the grinding dust in real time, keeping the processing environment clean and the glass surface smooth. The intelligent control system can automatically adjust the running speed, grinding force and deletion range according to the thickness, size and coating type of the glass, so as to realize fully automatic continuous processing without damaging the glass substrate and ensuring the integrity and flatness of the non-deletion area.

Core Structure and Functional Components

The Low-E Film Deleting Machine is composed of a plurality of coordinated functional modules, each of which plays an important role in the stability, precision and service life of the equipment.

1. Automatic Conveying and Positioning System

This system adopts a motor-driven roller conveyor or belt conveyor, matched with a high-precision photoelectric positioning device and a pneumatic clamping mechanism, which can realize stable transmission and accurate positioning of glass of different sizes and thicknesses. It can automatically adapt to the processing requirements of various specifications of architectural glass and insulating glass, avoid position deviation during operation, and ensure the accuracy and consistency of edge deletion.

2. Servo Drive and Grinding System

As the core execution structure of the machine, the servo drive system controls the high-speed grinding head or diamond grinding wheel with high precision, with stable speed and adjustable force. The professional deletion grinding head is designed for Low-E coating, which can quickly and effectively remove the coating layer without scratching the glass surface, and the deletion effect is neat and uniform, fully meeting the processing standards of insulating glass edge sealing.

3. Intelligent Control System

The machine is equipped with an industrial PLC control system and a human-machine touch screen, which supports one-key setting of processing parameters such as deletion width, speed, path and glass thickness. It has the functions of parameter storage, fault self-diagnosis, automatic alarm and emergency stop, which simplifies the operation difficulty and improves the safety and stability of the equipment. The intelligent control mode can realize fully automatic continuous production and reduce manual intervention.

4. Dust Removal and Cleaning System

Equipped with a high-power industrial dust collection and filtration system, it can absorb the coating dust and debris generated during the grinding process in real time, prevent dust from adhering to the glass surface and polluting the processing environment, and keep the glass clean and the internal parts of the equipment clean, reducing the failure rate caused by dust accumulation.

5. Frame and Protective System

The whole machine adopts a high-strength steel frame structure, with solid and stable operation, low vibration and low noise. The fully enclosed protective cover and safety interlock device effectively protect the personal safety of operators, in line with international industrial safety standards, and make the equipment more reliable and durable in long-term industrial production.

6. Size Adaptation and Adjustment Mechanism

The machine has a wide range of size adaptation, which can quickly adjust the processing range according to the length, width and thickness of the glass, support small-size decorative glass and large-size architectural curtain wall glass, and has strong flexibility and versatility to meet the diversified production needs of enterprises.

Key Performance Advantages

Compared with traditional manual deletion or semi-automatic deletion equipment, the fully automatic Low-E Film Deleting Machine has obvious technical and application advantages, which can greatly improve the production efficiency and product qualification rate of glass deep-processing enterprises.

First of all, high processing precision and good effect. The deletion width and depth are precisely controlled, the edge is neat and smooth, no damage to the glass substrate, completely solve the problems of uneven deletion, missing deletion and excessive deletion in manual operation, and greatly improve the processing quality of insulating glass.

Secondly, high degree of automation and high production efficiency. It can realize continuous automatic processing without manual hand-held grinding, the processing speed is fast, the single piece processing time is short, and it can match the production rhythm of the insulating glass production line, greatly improving the overall production capacity.

Thirdly, wide application range and strong adaptability. It is suitable for single silver Low-E glass, double silver Low-E glass, triple silver Low-E glass and other different types of coated glass, and compatible with glass of various thicknesses and sizes, with strong versatility and practicability.

Fourthly, stable operation and low failure rate. The equipment adopts high-quality electrical components and wear-resistant grinding parts, with reasonable structure design, stable operation, long service life, simple daily maintenance and low later use cost.

Fifthly, safe and environmentally friendly operation. The fully enclosed protection and dust removal system ensure a clean and safe processing environment, reduce the labor intensity of workers, avoid dust hazards, and meet the requirements of green and safe production.

Sixthly, improve product quality and service life. By accurately removing the edge coating, the bonding force between the glass and the sealing material is enhanced, the oxidation and corrosion of the coating layer are prevented, the airtightness and durability of the insulating glass are improved, and the quality and added value of the final product are upgraded.

Main Application Fields

The Low-E Film Deleting Machine is mainly used in the glass deep-processing industry, and is widely used in the production and processing of insulating glass, tempered glass, laminated glass and architectural coated glass. It is an essential equipment for professional glass processing factories, architectural glass manufacturers, insulating glass production bases and door and window curtain wall enterprises.

In the field of architectural glass, it is used for edge deletion processing of Low-E glass for high-rise buildings, office buildings, residential buildings, shopping malls and other curtain walls and doors and windows, ensuring the sealing and safety performance of insulating glass.

In the field of insulating glass production, it is matched with insulating glass production lines, automatic glass cutting machines, edge grinding machines and other equipment to form a complete automated production process, improving the efficiency and quality of insulating glass manufacturing.

In addition, it is also used in the processing of automotive glass, home appliance glass, decorative glass and other coated glass products, providing professional edge deletion solutions for various high-standard coated glass deep processing.
