Manual: Aluminium Bar Bending Machine

1. Foreword

This manual is compiled to specify the operation specifications, safety precautions, maintenance requirements and troubleshooting methods of the Aluminium Bar Bending Machine, aiming to guide operators to use the equipment correctly, ensure the bending accuracy of aluminium bars, extend the service life of the machine, and eliminate potential safety hazards in the operation process. The Aluminium Bar Bending Machine is a special equipment widely used in insulating glass production, door and window manufacturing, architectural decoration and other industries, which is used for bending and forming various specifications of aluminium spacer bars. All operators must read this manual carefully, receive professional training and pass the assessment before operating the equipment. Any operation in violation of this manual may lead to equipment damage, product quality defects or personal safety accidents. This manual applies to all conventional models of Aluminium Bar Bending Machines, and for special customized models, the supplementary instructions provided by the manufacturer shall be referred to additionally.

2. Scope of Application

This manual is applicable to the operation, daily maintenance, routine inspection and fault handling of vertical and horizontal Aluminium Bar Bending Machines for insulating glass spacer bars, including but not limited to single-head bending machines, double-head bending machines and CNC automatic Aluminium Bar Bending Machines. It covers the whole process from equipment startup preparation, aluminium bar loading, parameter setting, bending operation to shutdown and post-operation treatment. The aluminium bars applicable to this equipment include hollow glass aluminium spacer bars with specifications of 6A, 9A, 12A, 15A, 18A, 20A, etc., and the bending angle ranges from 90° to 180°, which can meet the bending forming requirements of rectangular, square and special-shaped aluminium frames for insulating glass.

3. Equipment Overview

3.1 Basic Structure

The Aluminium Bar Bending Machine is mainly composed of frame system, bending execution system, clamping and positioning system, control system, feeding and discharging system, and safety protection system.


Frame System: It is the main bearing structure of the equipment, made of high-strength steel plate welding or profile assembly, with high rigidity and stability, to ensure that the equipment does not deform during the bending process.
Bending Execution System: The core working part of the equipment, including bending die, bending shaft, driving motor (servo motor or hydraulic motor), transmission mechanism, etc., which completes the bending action of aluminium bars through the rotation of the die and the driving of the power system.
Clamping and Positioning System: Composed of pneumatic clamping cylinder, positioning baffle, pressure plate, etc., it is used to fix the aluminium bar firmly during bending, prevent displacement and deflection, and ensure the bending accuracy.
Control System: Including touch screen, operation button panel, PLC controller, servo driver, etc., which realizes the setting of bending parameters (angle, length, speed), automatic operation control and fault alarm display.
Feeding and Discharging System: Consisting of feeding roller table, discharging bracket, conveying roller, etc., it facilitates the loading of raw aluminium bars and the unloading of formed aluminium frames, improving operation efficiency.
Safety Protection System: Including emergency stop button, safety grating, protective cover, overload protection device, etc., to prevent personal injury and equipment damage caused by misoperation.


3.2 Working Principle

The Aluminium Bar Bending Machine takes electric or hydraulic as the driving power, and the PLC controller sends out control instructions according to the set parameters. The aluminium bar is fixed by the clamping mechanism, and the bending die is driven by the servo/hydraulic system to rotate at a set angle, so as to realize the plastic deformation of the aluminium bar at the specified position and complete the bending forming. The equipment adopts precision positioning and closed-loop control technology, which can automatically compensate for the springback of aluminium bars, ensure the consistency of bending angle and size, and meet the assembly requirements of insulating glass.

3.3 Technical Parameters

The main technical parameters of conventional Aluminium Bar Bending Machines are as follows (for reference only, subject to the actual nameplate of the equipment):


Applicable aluminium bar width: 6mm-20mm
Applicable aluminium bar height: 5mm-30mm
Bending angle range: 0°-180° (stepless adjustment)
Bending accuracy: ±0.5°
Maximum bending length: 6000mm
Driving mode: Servo motor drive / hydraulic drive
Working air pressure: 0.4-0.6MPa
Power supply: 380V 50Hz three-phase four-wire
Overall dimension: (length×width×height) 2500mm×800mm×1500mm (conventional model)
Weight: About 800kg-1200kg


4. Pre-operation Preparation

4.1 Personnel Preparation


Operators must be over 18 years old, in good health, and have received special equipment operation training, familiar with the structure, performance, operating procedures and safety precautions of the Aluminium Bar Bending Machine, and hold a post certificate before taking up their posts.
Operators must wear standard labor protection equipment, including anti-pinch gloves, anti-static work clothes, safety shoes, and protective goggles (when cutting or processing special aluminium bars). It is forbidden to wear loose clothes, scarves, jewelry, or have long hair unbound, so as to avoid being involved in the rotating parts of the equipment.
Non-operators are strictly prohibited from entering the equipment working area, and obvious warning signs such as "No Unauthorized Operation" and "Danger, Keep Away" shall be set up at the operation site.


4.2 Equipment Inspection


Appearance and Structure Inspection: Check the appearance of the equipment for deformation, damage or loose parts, check the welding part of the frame for cracks, and check the fastening bolts of each component (such as die, clamping cylinder, motor base) for looseness, and tighten them in time if any.
Power and Air Supply Inspection: Check whether the power cord, plug and socket of the equipment are intact, whether the wiring is firm, and whether the leakage protector is normal. For pneumatic clamping models, check the air compressor, air pipeline and air filter for air leakage, blockage or water accumulation, and adjust the air pressure to 0.4-0.6MPa. Drain the water in the air storage tank and filter regularly to prevent moisture from entering the pneumatic components.
Mechanical Transmission Inspection: Check the bending die, transmission gear, chain, belt and other transmission parts for wear, deformation or damage, check whether the lubrication is sufficient, and add lubricating oil or grease according to the regulations if necessary. Manually rotate the bending shaft to check whether it rotates smoothly without jamming or abnormal noise.
Control System Inspection: Turn on the power supply of the equipment, check whether the touch screen and operation panel are lighted normally, whether the display data is accurate, and test the functions of start, stop, emergency stop, parameter adjustment and other buttons to ensure that all control functions are sensitive and effective. Check the PLC controller and servo driver for fault alarms, and eliminate the alarms in time if any.
Die and Accessory Inspection: Select the bending die matching the specification of the aluminium bar, check the die for wear, cracks or burrs, and replace it in time if it is damaged. Check the positioning baffle, pressure plate and clamping block for wear or deformation, and adjust or replace them to ensure the positioning accuracy.


4.3 Material and Tool Preparation


Select qualified aluminium spacer bars that meet the production requirements, check the appearance of aluminium bars for scratches, deformation, oxidation or impurities, check the dimensional accuracy (width, height, thickness), and prohibit the use of unqualified aluminium bars that do not meet the bending requirements.
Prepare auxiliary tools, such as hexagon wrench, screwdriver, torque wrench, cleaning cloth, lubricating oil, measuring tools (angle ruler, tape measure, vernier caliper), etc., to ensure that the tools are complete and intact.
Prepare the product drawings or process documents, confirm the bending parameters of aluminium bars (bending angle, side length, quantity, etc.), and input the parameters into the control system in advance for trial bending verification.


5. Standard Operation Procedures

5.1 Equipment Startup


Turn on the main power switch of the equipment, and then turn on the power supply of the control system, PLC and touch screen in sequence. Wait for the system to start and self-check, and confirm that there is no fault alarm before proceeding to the next operation.
For hydraulic drive models, turn on the hydraulic pump motor, run it idly for 3-5 minutes, check the hydraulic system for oil leakage, abnormal noise or overheating, and confirm that the hydraulic pressure is within the normal range.
For pneumatic models, open the air supply valve, check the air pressure gauge to ensure that the air pressure is stable at 0.4-0.6MPa, and test the action of the clamping cylinder to ensure that the clamping and loosening actions are flexible and in place.


5.2 Parameter Setting


Enter the parameter setting interface of the touch screen, input the bending parameters according to the product process requirements, including aluminium bar specification, bending angle, left and right side lengths, bending speed, clamping pressure, etc.
Set the springback compensation value according to the material characteristics of the aluminium bar (the springback of aluminium bars is generally 1°-3°, which can be adjusted according to the actual trial bending results).
For batch production, store the set parameters in the system program, name the program according to the product model, and call it directly during subsequent production to improve efficiency.
After setting the parameters, double-check to confirm that the input data is correct, and then save the parameters and exit the setting interface.


5.3 Aluminium Bar Loading and Positioning


Place the qualified aluminium bar flat on the feeding roller table, push it to the positioning baffle of the equipment, and adjust the position of the positioning baffle to ensure that the bending point of the aluminium bar is aligned with the center of the bending die.
Start the clamping mechanism (manual or automatic), and the clamping cylinder drives the pressure plate to press the aluminium bar firmly to prevent the aluminium bar from moving or rotating during the bending process. The clamping pressure should be appropriate, not too large to deform the aluminium bar, nor too small to cause insufficient clamping.
Use a measuring tool to recheck the positioning size of the aluminium bar, confirm that the bending position and length meet the process requirements, and then proceed to the bending operation.


5.4 Bending Operation

5.4.1 Manual Bending Mode


Select the manual operation mode on the control panel, and operate the manual button or joystick to control the bending die to rotate slowly, and observe the bending state of the aluminium bar in real time.
When the bending angle reaches the set value, the equipment will automatically stop or stop manually, and keep the pressure for 1-2 seconds to eliminate the springback of the aluminium bar.
Operate the loosening button to release the clamping mechanism, take out the bent aluminium bar, and use an angle ruler and tape measure to check the bending angle and size accuracy. If the accuracy is unqualified, readjust the springback compensation value and parameters for trial bending again.


5.4.2 Automatic Bending Mode


Select the automatic operation mode on the touch screen, call the pre-stored product program, and confirm that the parameters are correct.
Press the automatic start button, the equipment will automatically complete the actions of clamping, bending, pressure maintaining, loosening and resetting in sequence according to the set program.
During the automatic operation, the operator shall stand in the safe area outside the safety grating, observe the operation state of the equipment in real time, and pay attention to whether there is abnormal noise, aluminium bar deformation or equipment failure.
After the bending of a single aluminium bar is completed, the equipment will automatically reset and wait for the next feeding. For batch production, repeat the loading and start operation until the production task is completed.


5.5 Trial Bending and Batch Production


Before formal batch production, conduct trial bending on 2-3 aluminium bars, check the bending angle, side length, flatness and appearance quality of the formed aluminium frame, and confirm that all indicators meet the process standards.
If the trial bending product is unqualified, analyze the causes (such as parameter setting error, die mismatch, positioning deviation, aluminium bar quality problem), adjust the parameters or replace the accessories in time, and conduct trial bending again until the product is qualified.
After the trial bending is qualified, carry out formal batch production, and conduct random inspection on the formed products at regular intervals (every 50-100 pieces) to ensure the stability of product quality.


5.6 Equipment Shutdown


After completing the production task, press the stop button to stop the operation of the equipment, and reset the bending die and clamping mechanism to the initial position.
For hydraulic drive models, turn off the hydraulic pump motor first, and then turn off the main power supply; for pneumatic models, close the air supply valve first, and then turn off the power supply.
Clean the residual aluminium chips, dust and impurities on the equipment surface, roller table and die, wipe the equipment with a clean cloth, and apply anti-rust oil on the die and metal parts if necessary.
Hang the "Shutdown for Maintenance" or "No Operation" warning sign on the operation panel, and record the production data, operation time and equipment status in the equipment operation log.


6. Safety Precautions

6.1 Basic Safety Rules


It is strictly forbidden to operate the equipment with diseases, fatigue, drunk or distracted mental state, so as to avoid misoperation.
During the operation of the equipment, it is forbidden to extend hands, arms or any parts of the body into the bending working area, and it is forbidden to touch the rotating die, transmission parts and high-temperature components (hydraulic motor, servo motor) with bare hands.
Do not place tools, aluminium bars or other sundries on the equipment frame, control panel and safety protection device to avoid affecting the equipment operation or causing safety accidents.
The equipment must be reliably grounded to prevent electric shock accidents. Do not disassemble or modify the electrical components, control circuit and mechanical structure of the equipment without authorization.
In case of power failure or air failure during operation, immediately press the emergency stop button, cut off the power supply and air supply, and wait for the power supply and air supply to return to normal before restarting the operation after inspection.


6.2 Special Operation Safety


When replacing the bending die, the equipment must be completely shut down, the power supply and air supply/hydraulic supply must be cut off, and the operation can be carried out only after the die is completely stopped. Use special tools to disassemble and assemble the die to avoid injury caused by die falling.
When bending special-shaped or ultra-long aluminium bars, add auxiliary support brackets to prevent the aluminium bars from deforming or swinging during the bending process, and arrange special personnel to assist in feeding and discharging.
When the equipment is running with overload or abnormal noise, immediately press the emergency stop button, cut off the power supply, check the cause of the fault, and it is forbidden to continue operation with fault.
The safety grating, protective cover and emergency stop button of the equipment shall not be dismantled or shielded at will, and regular inspection shall be carried out to ensure their effectiveness.


6.3 Emergency Handling


In case of personal injury (such as pinch, scald, electric shock), immediately cut off the power supply and air supply, carry out first aid measures, and send to the hospital for treatment in time.
In case of equipment failure (such as die jamming, hydraulic oil leakage, motor overheating), press the emergency stop button immediately, stop the operation, record the fault phenomenon, and notify the professional maintenance personnel for repair.
In case of fire caused by electrical short circuit or hydraulic oil combustion, immediately cut off the power supply, use dry powder fire extinguisher to put out the fire, and it is forbidden to use water to put out the electrical fire.


7. Equipment Maintenance and Upkeep

7.1 Daily Maintenance (Once per Shift)


Clean the equipment surface, die, roller table and working area, remove aluminium chips, dust and impurities, and keep the equipment clean.
Check the fastening of bolts, nuts and connectors of each component, and tighten them in time if loose.
Check the air pressure, hydraulic pressure and lubrication state of the equipment, add lubricating oil or grease to the transmission parts (bearing, gear, chain) according to the regulations, and check the hydraulic oil level and oil quality.
Test the functions of emergency stop button, safety grating and control buttons to ensure they are normal.
Record the daily maintenance situation in the equipment maintenance log.


7.2 Weekly Maintenance (Once a Week)


Thoroughly clean the inside of the equipment, including the hydraulic oil tank, air filter, control cabinet, remove dust and impurities, and check the wiring in the control cabinet for looseness.
Check the wear of bending die, clamping block, positioning baffle and transmission parts, and replace the seriously worn parts in time.
Drain the water and impurities in the air storage tank, air filter and hydraulic oil tank, and check the hydraulic oil for deterioration or pollution. If necessary, replace the hydraulic oil and filter element.
Calibrate the bending angle and positioning size of the equipment, and adjust the deviation to ensure the processing accuracy.
Check the operation of the servo motor, hydraulic pump and clamping cylinder, and eliminate abnormal noise and oil leakage.


7.3 Monthly Maintenance (Once a Month)


Conduct a comprehensive inspection of the electrical system, including the PLC controller, servo driver, touch screen, sensor, etc., check the wiring for aging or damage, and replace the damaged wires in time.
Perform lubrication maintenance on all transmission mechanisms, replace the lubricating oil or grease that has deteriorated or exceeded the service life, and adjust the tightness of the chain and belt.
Check the sealing performance of the hydraulic system and pneumatic system, replace the aging sealing ring and oil seal, and eliminate oil leakage and air leakage faults.
Calibrate the pressure gauge, temperature sensor and other measuring instruments of the equipment to ensure the accuracy of measurement data.
Conduct a comprehensive test run of the equipment, check the operation status of each system, and deal with potential faults in advance.


7.4 Annual Maintenance (Once a Year)


Conduct a comprehensive disassembly and inspection of the equipment, check the wear of key components such as frame, bending shaft, bearing, and carry out repair or replacement according to the wear degree.
Replace all hydraulic oil, lubricating oil, filter element and sealing parts of the equipment, and clean the hydraulic oil tank and lubrication system.
Conduct a comprehensive calibration of the control system, update the system program if necessary, and optimize the bending parameters.
Conduct a safety performance evaluation of the equipment, including safety protection device, grounding system, overload protection, etc., to ensure that the equipment meets the safety standards.
After the annual maintenance is completed, conduct a comprehensive test run and acceptance, and record the maintenance content and acceptance results in the equipment file.


8. Troubleshooting of Common Faults

8.1 Inaccurate Bending Angle


Fault Causes: Incorrect springback compensation parameter setting, wear or deformation of bending die, loose positioning baffle, unstable air pressure/hydraulic pressure, damage of angle sensor.
Solutions: Readjust the springback compensation value according to the trial bending results; replace the worn or deformed bending die; tighten the positioning baffle and recalibrate the positioning size; check the air compressor/hydraulic pump to stabilize the pressure; replace the damaged angle sensor and recalibrate.


8.2 Aluminium Bar Deformation or Scratches During Bending


Fault Causes: Improper clamping pressure, burrs or wear on the die and clamping block, unqualified aluminium bar material, misalignment of bending point.
Solutions: Adjust the clamping pressure to an appropriate value; polish or replace the die and clamping block with burrs or wear; replace qualified aluminium bars; recalibrate the bending point position to ensure alignment with the die center.


8.3 Clamping Mechanism Fails to Clamp or Loosen


Fault Causes: Insufficient air pressure/hydraulic pressure, blockage of air pipe/hydraulic pipe, damage of clamping cylinder, failure of solenoid valve, loose circuit connection.
Solutions: Adjust the air pressure/hydraulic pressure to the normal range; clean the blocked pipeline; replace the damaged clamping cylinder; check and replace the faulty solenoid valve; tighten the loose circuit connector.


8.4 Equipment Abnormal Noise or Vibration


Fault Causes: Insufficient lubrication of transmission parts, loose fastening bolts, wear or damage of bearing and gear, unbalanced bending die, overload operation.
Solutions: Add lubricating oil or grease to the transmission parts; tighten all loose fastening bolts; replace the worn bearing and gear; recalibrate the balance of the bending die; reduce the processing load to avoid overload operation.


8.5 Hydraulic System Oil Leakage


Fault Causes: Aging or damage of sealing ring, loose joint of hydraulic pipe, crack of hydraulic oil tank, damage of hydraulic pump shaft seal.
Solutions: Replace the aging sealing ring; tighten the loose hydraulic pipe joint; weld or replace the cracked hydraulic oil tank; replace the damaged hydraulic pump shaft seal.


8.6 Control System Failure (Touch Screen No Display, Parameter Cannot Be Set)


Fault Causes: Power supply abnormality, loose connection of control line, damage of touch screen or PLC controller, system program error.
Solutions: Check the power supply and restore normal power supply; tighten the loose control line connector; replace the damaged touch screen or PLC controller; restart the system or reload the program to restore the normal operation of the control system.


9. Storage and Transportation of Equipment

9.1 Equipment Storage


The equipment should be stored in a dry, ventilated, dust-free and non-corrosive gas environment, away from heat sources, direct sunlight and rain.
Before storage, clean the equipment thoroughly, apply anti-rust oil on all metal parts and die, cover the equipment with a dust cover, and block the hydraulic pipe and air pipe interface to prevent dust and impurities from entering.
The equipment should be placed flat on a solid ground, and the support points should be set according to the requirements to avoid deformation of the frame. Regular inspection should be carried out during storage, and anti-rust and moisture-proof treatment should be done well.


9.2 Equipment Transportation


The equipment transportation should be carried out by a professional logistics company, and the transportation vehicle should have a fixed device to prevent the equipment from shaking or colliding during transportation.
Before transportation, fix all movable parts of the equipment (such as bending die, clamping cylinder, roller table) with fixtures, remove the easily damaged parts (such as touch screen, sensor) and pack them separately for transportation.
During loading and unloading, use a forklift or crane that meets the lifting requirements, and operate in accordance with the hoisting specifications to avoid impact or tilting of the equipment. The lifting point should be selected at the designated position of the equipment frame.
During transportation, cover the equipment with a rainproof and dustproof cloth to prevent rain, snow and dust from eroding the equipment.


10. Supplementary Provisions


This manual is the basic operation standard of the Aluminium Bar Bending Machine, and the operator shall strictly abide by it. If there is any conflict with the special instructions of the equipment manufacturer, the manufacturer's instructions shall prevail.
The enterprise shall formulate corresponding operation management system and maintenance system according to this manual, and assign special personnel to be responsible for the management and maintenance of the equipment.
Any modification, transformation or upgrade of the equipment must be approved by the equipment manufacturer or professional technical personnel, and shall not be carried out without authorization.
The operator shall be responsible for the equipment damage and personal safety accidents caused by violation of this manual.
This manual shall be kept properly, and the lost or damaged manual shall be reported to the equipment management department in time for replacement. The technical department of the enterprise is responsible for the interpretation and revision of this manual.

Double Edge Straight Glass Grinding Machine: A Comprehensive Analysis of Design, Technology and Industrial Application

Abstract

The Double Edge Straight Glass Grinding Machine is a core piece of automated processing equipment in the modern glass deep-processing industry, dedicated to the simultaneous high-precision grinding, polishing and chamfering of two parallel straight edges of flat glass. This article systematically expounds the structural composition, working principle, core technical parameters, application scenarios, performance advantages, maintenance specifications and future development trends of the double edge straight glass grinding machine. By analyzing its technological innovation, processing efficiency and industrial value, it aims to provide a theoretical basis and practical reference for glass processing enterprises, equipment R&D institutions and technical practitioners, and clarify the important role of this equipment in promoting the automation, intelligence and high-quality development of the glass processing industry.

1. Introduction

With the rapid expansion of application fields such as architectural decoration, automotive manufacturing, home appliances, furniture and photovoltaic new energy, the demand for flat glass products has shown a sustained growth trend, and the requirements for glass edge processing quality, production efficiency and dimensional accuracy are becoming increasingly stringent. The traditional single-side glass grinding machine can only process one edge of the glass at a time, which requires repeated clamping and positioning of the glass, resulting in low production efficiency, poor dimensional consistency, high labor intensity and high production cost, and it is difficult to adapt to the large-scale and standardized production needs of modern glass processing.

In response to the pain points of the industry, the double edge straight glass grinding machine has been developed and applied, which realizes the simultaneous processing of two parallel straight edges of flat glass through a dual-spindle group, dual-conveying system and integrated control technology. It integrates multiple processes such as coarse grinding, fine grinding, polishing and chamfering, and completes the edge processing of glass in one pass, which greatly improves the processing efficiency and product quality. This equipment has become an indispensable key equipment in the glass deep-processing production line, and its technical level and performance indicators directly affect the core competitiveness of glass processing enterprises. This article will conduct an in-depth and comprehensive analysis of the double edge straight glass grinding machine from multiple dimensions, and explore its technical characteristics and development potential in the industrial field.

2. Structural Composition and Core Components

The double edge straight glass grinding machine adopts a symmetrical integrated structural design, which is mainly composed of a main frame, a double-side grinding spindle group, a pneumatic clamping and conveying system, a PLC intelligent control system, a cooling and dust removal system, a glass positioning mechanism and a safety protection device. Each component is designed and matched with high precision to ensure the stability, accuracy and continuity of the equipment during operation.

2.1 Main Frame

The main frame is the load-bearing foundation of the entire equipment, which is generally made of high-strength thick steel plates through precision welding, stress relief annealing and precision machining. This manufacturing process can effectively eliminate the internal stress of the frame, avoid deformation and vibration caused by long-term high-load operation, and ensure the geometric accuracy and stability of the equipment. The frame is designed with a symmetrical structure on both sides, equipped with high-precision linear guide rails, ball screws and servo drive systems for the movement of the grinding spindle group, which can realize the precise adjustment of the distance between the two sides of the grinding heads and the feeding accuracy of the spindles. The gantry-type reinforced structure is adopted for large-scale models, which can bear the weight of large-format glass and high-speed grinding load, and is suitable for the processing of architectural curtain wall glass and automotive large glass.

2.2 Double-Side Grinding Spindle Group

The double-side grinding spindle group is the core execution component of the equipment, which is symmetrically arranged on both sides of the conveying channel, and each side is equipped with 8-12 high-speed precision spindles, which are divided into coarse grinding spindles, fine grinding spindles, chamfering spindles and polishing spindles according to the processing process. The spindles are driven by high-performance servo motors, with a rotation speed of 2800-3600rpm, and have the characteristics of low vibration, low noise and high stability.

The coarse grinding spindle is equipped with diamond grinding wheels with a grit size of #100-#180, which is used to quickly remove the sharp edges, burrs and micro-cracks of the cut glass, and form the basic straight edge profile; the fine grinding spindle adopts resin-bonded diamond grinding wheels with a grit size of #240-#400, which refines the edge surface, eliminates grinding marks and improves the dimensional accuracy of the edge; the chamfering spindle is equipped with a special chamfering grinding wheel, which can process 45° chamfers, rounded corners and other edge shapes according to the process requirements, with a chamfer width adjustable from 0.5mm to 3mm; the polishing spindle is equipped with cerium oxide polishing wheels or resin polishing wheels, which can polish the glass edge to an optical-grade finish with a surface roughness Ra ≤ 0.15μm, meeting the high surface quality requirements of high-end glass products. The two-side spindle groups can be independently adjusted in speed, feeding amount and grinding pressure, and can realize the synchronous processing of different edge processes on both sides of the glass, with strong process adaptability.

2.3 Pneumatic Clamping and Conveying System

The pneumatic clamping and conveying system is responsible for the stable fixation and continuous conveying of glass, which is the key to ensuring the processing accuracy and efficiency of the equipment. The system consists of a pneumatic power unit, precision pressure regulating valves, pneumatic clamping cylinders, wear-resistant clamping jaws, a variable-frequency conveying belt and a drive motor.

The pneumatic clamping mechanism adopts a flexible clamping design, and the clamping jaws are lined with polyurethane or rubber materials, which can apply uniform and adjustable clamping pressure (0.2-0.6MPa) according to the thickness of the glass (3-25mm), avoiding glass surface damage and edge chipping caused by excessive pressure, and ensuring the stable positioning of the glass during high-speed grinding. The conveying system adopts a double-sided synchronous conveying belt driven by a variable-frequency motor, with a conveying speed adjustable from 1m/min to 8m/min, which can be matched with different processing speeds and glass thicknesses. The conveying belt is made of anti-slip and wear-resistant materials, which can prevent glass slippage and scratching during the conveying process, and realize the continuous and stable conveying of glass from the feeding end to the discharging end.

2.4 PLC Intelligent Control System

The double edge straight glass grinding machine is equipped with a high-performance PLC (Programmable Logic Controller) and a touch-screen human-machine interface (HMI), which realizes the intelligent control of the entire processing process. The control system supports the setting and storage of processing parameters such as glass thickness, edge width, chamfer size, spindle speed, conveying speed and grinding pressure, and can store more than 100 groups of process parameters, which is convenient for quick switching of different glass specifications and reduces the equipment adjustment time.

The system has real-time monitoring functions, which can display the operating status of each spindle, pneumatic pressure, conveying speed, cooling system flow and other parameters in real time, and has fault self-diagnosis and alarm functions. When equipment failures such as spindle overload, air pressure abnormality, cooling blockage and glass jamming occur, the system will automatically stop and send out an audible and visual alarm, and display the fault location and solution on the touch screen, which is convenient for operators to troubleshoot. Advanced models are also equipped with Ethernet communication and remote control functions, which can realize remote monitoring, parameter adjustment and fault diagnosis, and integrate with the glass processing production line to form an intelligent manufacturing system.

2.5 Cooling and Dust Removal System

During the glass grinding process, the friction between the grinding wheel and the glass will generate a lot of heat, and a large amount of glass powder will be produced at the same time. The cooling and dust removal system is designed to reduce the grinding temperature, lubricate the grinding contact surface, and remove glass powder, which is an important guarantee for improving the processing quality and extending the service life of the grinding wheel.

The cooling system adopts a closed-loop water circulation design, and high-precision nozzles are installed at each grinding spindle to spray cooling liquid (pure water or special glass grinding coolant) directly onto the grinding contact area, which can quickly take away the grinding heat, prevent the glass edge from cracking due to thermal stress, and reduce the wear of the grinding wheel. The dust removal system is integrated with the cooling circulation system, and the glass powder and debris generated during grinding are flushed into the sedimentation tank by the cooling liquid, and then filtered and recycled through a multi-stage filtration device (filter precision ≤ 5μm), which reduces water consumption and environmental pollution, and avoids the blockage of precision components by glass powder.

2.6 Glass Positioning Mechanism and Safety Protection Device

The glass positioning mechanism is composed of photoelectric sensors, mechanical positioning blocks and pneumatic positioning cylinders, which can realize the precise positioning of the glass before entering the grinding area, with a positioning accuracy of ±0.01mm, ensuring the consistency of the processing size of the two sides of the glass. The safety protection device includes a safety grating, an emergency stop button, a protective cover and an interlock device, which can prevent operators from being injured by the rotating grinding wheel and the moving glass during the operation of the equipment, and meet the safety production standards of industrial machinery.

3. Working Principle

The working process of the double edge straight glass grinding machine is a highly coordinated operation of mechanical transmission, pneumatic control, electrical control and grinding processing, which is divided into six stages: glass feeding, precise positioning, pneumatic clamping, double-side synchronous grinding, glass release and discharging, and the entire process is automatically completed under the control of the PLC system.

3.1 Glass Feeding and Precise Positioning

The operator places the cut flat glass on the feeding conveyor belt, and the conveyor belt transports the glass to the positioning area. The photoelectric sensor detects the position of the glass edge and transmits the signal to the PLC system. The PLC controls the pneumatic positioning cylinder to push the glass to the preset positioning position, and the mechanical positioning block assists in fixing, realizing the precise alignment of the glass and the grinding spindle group, ensuring that the two parallel edges of the glass are accurately aligned with the grinding heads on both sides.

3.2 Pneumatic Clamping

After the glass is positioned accurately, the PLC system sends a command to activate the pneumatic clamping system. The pneumatic cylinders on both sides drive the clamping jaws to move towards the glass, and apply uniform clamping pressure according to the set parameters to fix the glass firmly. The clamping pressure is adjusted in real time by the precision pressure regulating valve to adapt to glass of different thicknesses and materials, avoiding glass damage and ensuring that the glass does not shift during the grinding process.

3.3 Double-Side Synchronous Grinding

After the clamping is completed, the PLC system starts the double-side grinding spindle group and the conveying system at the same time. The glass moves forward at a set conveying speed, and the grinding spindles on both sides feed radially at the same time. The grinding wheels make contact with the two parallel edges of the glass, and complete the processes of coarse grinding, fine grinding, chamfering and polishing in sequence according to the preset process flow.

During the grinding process, the cooling system sprays cooling liquid continuously to cool and lubricate the grinding area, and the dust removal system synchronously recovers the glass powder. The PLC system monitors the operating parameters of each spindle and the conveying system in real time, and automatically adjusts the spindle speed, feeding amount and grinding pressure to ensure the stability of the grinding process and the consistency of the processing quality of the two edges of the glass.

3.4 Glass Release and Discharging

When the glass passes through the entire grinding area and completes all edge processing, the photoelectric sensor at the discharging end sends a signal to the PLC system. The PLC controls the pneumatic clamping cylinder to retract, the clamping jaws release the glass, and the conveying belt transports the processed glass to the discharging area. At this point, a complete processing cycle is completed, and the equipment immediately enters the next processing cycle to realize continuous automatic production.

4. Core Technical Parameters

The core technical parameters of the double edge straight glass grinding machine determine its processing capacity, accuracy and application scope. The following are the main technical parameters of mainstream models in the market:






Parameter Category
Specific Indicators
Parameter Range




Processing Scope
Applicable glass thickness
3-25mm



Minimum processing glass size
50mm×50mm



Maximum processing glass size
Customizable (up to 3000mm×2000mm)



Processing edge type
Straight edge, 45° chamfer, rounded edge



Chamfer width adjustment range
0.5-3mm


Processing Accuracy
Edge dimensional accuracy
±0.01mm



Parallelism of double edges
≤0.02mm/m



Surface roughness after polishing
Ra≤0.15μm



Chamfer angle accuracy
±0.5°


Operational Parameters
Spindle rotation speed
2800-3600rpm



Conveying speed
1-8m/min



Pneumatic system working pressure
0.2-0.6MPa



Compressed air consumption
≤1.5L/min


Power Parameters
Total installed power
22-30kW



Power supply
380V/50Hz, three-phase four-wire


Physical Parameters
Overall dimensions (L×W×H)
7.5-8.5m×1.8m×2.8m



Equipment weight
4000-6000kg






These technical parameters reflect the high precision, high efficiency and wide adaptability of the double edge straight glass grinding machine, which can meet the processing needs of different glass specifications and different application scenarios.

5. Industrial Application Scenarios

Due to its advantages of high efficiency, high precision and automation, the double edge straight glass grinding machine is widely used in various fields of flat glass deep processing, and has become the core equipment of glass processing production lines in many industries.

5.1 Architectural Decoration Industry

In the architectural glass processing field, the double edge straight glass grinding machine is mainly used for the edge processing of architectural curtain wall glass, doors and windows glass, partition glass, shower room glass and glass railing. The equipment can process high-precision straight edges and 45° chamfers for large-format architectural glass, which not only improves the aesthetic appearance of the glass, but also enhances the mechanical strength and safety of the glass, meeting the safety standards of architectural glass. The high processing efficiency of the equipment can meet the large-scale production needs of architectural glass projects, and is widely used in the processing of glass for high-rise buildings, commercial complexes, hotels and residential buildings.

5.2 Automotive Glass Manufacturing

Automotive glass (windshield, side window glass, rear window glass, sunroof glass) has extremely high requirements for edge processing accuracy and quality. The double edge straight glass grinding machine can realize the high-precision grinding and polishing of the two parallel edges of automotive glass, ensure the dimensional accuracy and sealing performance of the glass, and facilitate the installation of glass and automotive frames. The equipment can process various types of automotive glass such as tempered glass and laminated glass, and is an indispensable processing equipment in the automotive glass production line.

5.3 Home Appliances and Furniture Industry

In the home appliance industry, the equipment is used for the edge processing of glass panels of refrigerators, washing machines, ovens, microwave ovens and display screens, and the polished glass edge improves the safety and aesthetic appearance of home appliance products. In the furniture industry, it is mainly used for the processing of glass tabletops, cabinet glass doors, display cabinet glass and decorative glass parts, and the processed glass has smooth edges and high dimensional accuracy, which meets the production needs of high-end furniture.

5.4 Photovoltaic New Energy Industry

With the rapid development of the photovoltaic industry, the demand for photovoltaic glass is increasing year by year. The double edge straight glass grinding machine is used for the edge processing of photovoltaic glass panels, which can eliminate the micro-cracks on the glass edge, improve the mechanical strength and weather resistance of the photovoltaic glass, and ensure the service life of photovoltaic modules. The high-efficiency processing capacity of the equipment can meet the large-scale production needs of photovoltaic glass manufacturing enterprises.

5.5 Electronic and Optical Glass Industry

For electronic glass (smart phone cover glass, tablet display glass, TV panel glass) and optical glass (optical lens substrate, instrument glass), the double edge straight glass grinding machine can achieve ultra-precision polishing of the glass edge, with a surface roughness Ra ≤ 0.1μm, meeting the requirements of light transmittance and surface smoothness of electronic and optical glass. The equipment's high-precision positioning and processing capabilities ensure the consistency of small-sized electronic glass processing, and are suitable for the mass production of electronic and optical glass components.

6. Performance Advantages

Compared with the traditional single-side glass grinding machine and manual edging process, the double edge straight glass grinding machine has obvious performance advantages, which can effectively improve the production efficiency and product quality of glass processing enterprises and reduce production costs.

6.1 High Processing Efficiency and Continuous Production Capacity

The double edge straight glass grinding machine can process two parallel edges of glass at the same time, and complete multiple processes such as coarse grinding, fine grinding, chamfering and polishing in one pass, which improves the processing efficiency by 50%-80% compared with the single-side grinding machine. The automatic feeding, positioning, clamping, grinding and discharging system realizes unmanned continuous production, with a processing capacity of 100-150 pieces per hour (for standard 12mm thick glass), which can meet the large-scale production needs of enterprises.

6.2 High Processing Precision and Product Consistency

The equipment adopts high-precision linear guide rails, servo drive systems and PLC intelligent control, with an edge dimensional accuracy of ±0.01mm and a double-edge parallelism of ≤0.02mm/m, which far exceeds the processing accuracy of manual and single-side grinding machines. The synchronous processing of the double-side spindle group ensures the consistency of the processing quality of the two edges of the glass, and the polished edge surface is smooth and scratch-free, which improves the qualification rate of glass products to more than 99.5%.

6.3 Wide Adaptability to Glass Specifications and Types

The equipment can process glass with a thickness of 3-25mm and a size of 50mm×50mm to 3000mm×2000mm, and can adapt to various types of flat glass such as float glass, tempered glass, laminated glass, Low-E glass, photovoltaic glass and electronic glass. The spindle speed, grinding pressure, conveying speed and chamfer size can be flexibly adjusted according to the processing requirements, with strong process adaptability and can meet the diversified processing needs of enterprises.

6.4 High Degree of Automation and Easy Operation

The PLC touch-screen control system simplifies the operation process, and operators can complete the parameter setting and equipment start-stop only through simple training. The system has functions such as parameter memory, fault self-diagnosis and automatic alarm, which reduces the labor intensity of operators and the dependence on skilled workers. The integration with the automatic loading and unloading equipment can form a fully automatic glass processing production line, realizing the intelligent manufacturing of glass processing.

6.5 Low Production Cost and Long Service Life

The one-pass processing of the equipment reduces the number of glass clamping and positioning, reduces the loss of glass caused by repeated handling and clamping, and saves labor costs. The closed-loop cooling and dust removal system reduces the consumption of cooling liquid and the wear of grinding wheels, and the service life of high-quality diamond grinding wheels can reach more than 10,000 hours. The high-strength frame structure and high-quality components ensure the long-term stable operation of the equipment, with a service life of more than 15 years under normal maintenance, which reduces the equipment replacement and maintenance costs of enterprises.

6.6 Good Safety and Environmental Protection Performance

The equipment is equipped with a complete safety protection device, which can effectively prevent safety accidents during the operation of the equipment and meet the industrial safety production standards. The closed-loop cooling and dust removal system recycles the cooling liquid and collects the glass powder, which reduces the discharge of waste water and waste residue, realizes green and environmentally friendly production, and complies with the national environmental protection policies.

7. Equipment Maintenance and Troubleshooting

In order to ensure the long-term stable operation of the double edge straight glass grinding machine and maintain its processing accuracy, it is necessary to carry out standardized daily maintenance and timely troubleshooting. The maintenance of the equipment is divided into daily maintenance, weekly maintenance and monthly maintenance, and corresponding solutions are formulated for common faults.

7.1 Daily Maintenance

After each shift, clean the glass powder and debris on the surface of the equipment, grinding spindles, conveying belts and cooling nozzles with compressed air and a clean cloth; check the liquid level of the cooling liquid, and add or replace the cooling liquid in time if it is insufficient or contaminated; check the pneumatic system pressure to ensure that it is within the normal range, and check for air leakage at the cylinder joints and valves; check the wear of the grinding wheels, and replace the grinding wheels that are seriously worn or chipped in time; lubricate the linear guide rails and ball screws with special lubricating oil to ensure smooth movement.

7.2 Weekly Maintenance

Drain the water and impurities in the air storage tank of the pneumatic system, and replace the pneumatic filter element; check the tightness of the spindle fixing screws and the conveyor belt tension, and adjust them in time if they are loose; calibrate the positioning accuracy of the photoelectric sensor and the mechanical positioning block; clean the filter device of the cooling and dust removal system to prevent blockage; check the operation of the servo motor and the PLC control system, and test the emergency stop and alarm functions.

7.3 Monthly Maintenance

Conduct a comprehensive inspection of the main frame, grinding spindle group, conveying system and electrical system of the equipment, check for deformation, wear and damage of components, and replace damaged parts in time; replace the lubricating oil of the spindle bearing and the gearbox; calibrate the processing accuracy of the equipment, including edge dimensional accuracy, double-edge parallelism and chamfer angle accuracy; update the PLC system software and back up the process parameters; conduct a comprehensive safety inspection of the equipment to ensure the normal operation of the safety protection device.

7.4 Common Faults and Troubleshooting


Uneven processing of double edges: The main reasons are inconsistent feeding of double-side spindles, misalignment of glass positioning and uneven clamping pressure. The solutions are to calibrate the feeding accuracy of the double-side spindles, adjust the glass positioning mechanism and the pneumatic clamping pressure.
Glass edge chipping and cracking: The main reasons are excessive grinding pressure, insufficient cooling liquid, hard glass material and glass positioning deviation. The solutions are to reduce the grinding pressure, check the cooling nozzle blockage, replace the appropriate grinding wheel and re-calibrate the glass positioning.
Low surface roughness after polishing: The main reasons are worn polishing wheels, incorrect spindle speed and contaminated cooling liquid. The solutions are to replace the polishing wheels, adjust the spindle speed and replace the cooling liquid.
Conveyor belt slipping and jamming: The main reasons are worn conveyor belt lining, insufficient tension and excessive glass weight. The solutions are to replace the conveyor belt lining, adjust the belt tension and control the glass processing size within the equipment's bearing range.
PLC system fault and alarm: The main reasons are parameter setting error, electrical component damage and communication failure. The solutions are to check and correct the process parameters, replace the damaged electrical components and check the communication line connection.


8. Future Development Trends

With the continuous progress of science and technology and the changing market demand, the double edge straight glass grinding machine is developing in the direction of higher intelligence, higher precision, energy saving and environmental protection, and multi-functional integration, and its technical level and application scope will be further improved and expanded.

8.1 Intelligent and Digital Upgrading

In the future, the double edge straight glass grinding machine will integrate more intelligent technologies such as artificial intelligence, machine vision and big data. The machine vision system will automatically detect the size, thickness, edge defects and processing quality of the glass, and the artificial intelligence algorithm will optimize the processing parameters in real time to realize the adaptive processing of different glass. The big data platform will collect and analyze the equipment operation data, realize predictive maintenance and production scheduling optimization, and improve the overall efficiency of the production line. The digital twin technology will be applied to simulate the equipment operation and processing process, and realize the virtual debugging and process optimization of the equipment.

8.2 Ultra-Precision Processing Technology

With the development of electronic, optical and semiconductor industries, the demand for ultra-precision glass processing is increasing. The double edge straight glass grinding machine will develop towards higher precision, with the edge dimensional accuracy reaching ±0.005mm and the surface roughness Ra ≤ 0.05μm. The new type of nano-grinding wheel and high-precision spindle technology will be applied to realize the ultra-precision grinding and polishing of thin glass and special-shaped glass, meeting the processing needs of high-end electronic and optical products.

8.3 Energy Saving and Environmental Protection Optimization

In response to the national dual-carbon target and environmental protection requirements, the equipment will adopt energy-saving motors, high-efficiency drive systems and intelligent energy management systems to reduce power consumption by 30%-40%. The cooling and dust removal system will be further optimized, adopting a zero-discharge closed-loop circulation system and glass powder recycling technology to realize the recycling of waste resources and reduce environmental pollution. The equipment will use more environmentally friendly materials and manufacturing processes to realize the green design and production of the equipment.

8.4 Multi-Functional Integration and Flexible Manufacturing

The future double edge straight glass grinding machine will integrate multiple processing functions such as straight edge grinding, chamfering, polishing, drilling and slotting, and realize the one-stop processing of glass. The modular design will be adopted, and the spindle group and processing module can be quickly replaced and combined to adapt to the processing of different edge shapes and glass types. The equipment will have the ability of flexible production, which can quickly switch between different production tasks and meet the personalized and customized processing needs of the market.

8.5 Global Market Expansion and Localized Innovation

With the rapid development of the global glass processing industry, especially in emerging markets such as Southeast Asia, Latin America and Africa, the demand for high-performance double edge straight glass grinding machines is growing. Domestic equipment manufacturers will increase R&D investment, break through the core technology bottleneck, improve the quality and performance of the equipment, and expand the international market share. At the same time, localized innovation will be carried out according to the market demand and processing standards of different regions, and customized equipment and solutions will be provided to meet the diversified needs of global customers.

9. Conclusion

The double edge straight glass grinding machine, as a key equipment in the modern glass deep-processing industry, has revolutionized the traditional glass edge processing mode with its high efficiency, high precision, automation and intelligence, and has become an important support for the high-quality development of the glass processing industry. Its structural design, technical performance and application scope have been continuously improved and expanded, and it plays an irreplaceable role in architectural decoration, automotive manufacturing, home appliances, photovoltaic and other fields.

In the future, with the continuous innovation of intelligent manufacturing technology, energy saving and environmental protection technology and ultra-precision processing technology, the double edge straight glass grinding machine will move towards a higher level of intelligence, precision and greenness, and provide more efficient and high-quality processing solutions for the glass processing industry. For glass processing enterprises, adopting advanced double edge straight glass grinding machines is an important way to improve production efficiency, reduce production costs and enhance market competitiveness. For equipment manufacturers, continuous technological innovation and product upgrading are the core driving forces to seize market opportunities and promote the sustainable development of the industry.

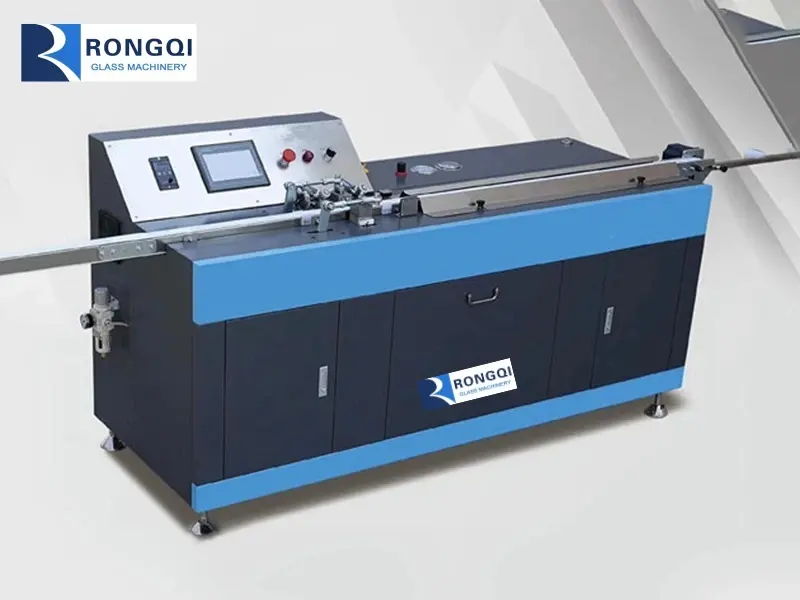

Automatic Dessicant Filling Machine: A Comprehensive Analysis of Technology, Application and Industrial Value

1. Introduction

In the modern industrial manufacturing and product packaging system, moisture control has become a key link to ensure product quality, extend shelf life and maintain performance stability. Dessicants, as core materials for absorbing moisture and regulating environmental humidity, are widely used in food, pharmaceutical, electronic manufacturing, insulating glass, precision instruments and other fields. The traditional manual or semi-automatic desiccant filling method has problems such as low efficiency, large filling error, easy material waste, high labor cost and difficulty in meeting large-scale standardized production. Against this background, the Automatic Dessicant Filling Machine, as an automated equipment integrating mechanical, electrical, pneumatic, sensing and intelligent control technologies, has gradually replaced traditional processes and become an indispensable core equipment in the desiccant application and packaging industry chain.

This paper systematically combs the core connotation, working principle, structural composition, technical parameters, application scenarios, core advantages and market development trends of the Automatic Dessicant Filling Machine, and deeply analyzes its technological innovation path and future development direction, aiming to provide a comprehensive reference for industrial practitioners, equipment R&D personnel and market investors, and clarify the important value of this equipment in promoting industrial automation upgrading and quality improvement.

2. Definition and Classification of Automatic Dessicant Filling Machine

2.1 Core Definition

The Automatic Dessicant Filling Machine is a special automated mechanical and electrical integration equipment that can automatically complete the processes of desiccant feeding, metering, filling, sealing (partial models), detection and rejection without manual intervention. It takes desiccant (including silica gel, molecular sieve, montmorillonite, calcium chloride and other granular, powdery or columnar desiccants) as the processing object, and realizes precise, efficient and standardized filling operations for different containers (such as insulating glass aluminum spacer frames, food and pharmaceutical bottles, electronic product packaging boxes, desiccant small bags, etc.) through programmable logic controller (PLC) control, servo drive and sensing detection technology, so as to meet the moisture-proof needs of various industrial products.

2.2 Main Classification

According to different application scenarios, processing objects and functional configurations, Automatic Dessicant Filling Machines can be divided into the following categories:

2.2.1 Classified by Application Field


Insulating Glass Special Dessicant Filling Machine: Mainly used for filling molecular sieve desiccant into aluminum spacer frames or stainless steel spacer frames of insulating glass. It integrates automatic drilling, filling and sealing functions, and can adapt to spacer frames of different sizes (from 300mm×250mm to 2000mm×2000mm) and specifications (5.5-26.5mm in width). Typical models include LJGZ2020 series and ARL-45F, which are core equipment in the insulating glass deep processing industry.
Packaging Line Dessicant Inserting/Filling Machine: Applied to food, pharmaceutical, health care products and electronic product packaging lines, mainly for inserting desiccant bags, columnar desiccants or filling loose desiccants into bottles, boxes and bags. It can be seamlessly connected with filling, capping, labeling and other equipment to form a fully automated packaging production line, such as ZONESUN ZS-PD1 and Rx-Desiccant series.
Desiccant Bag Automatic Filling Machine: Specialized in the production of small desiccant bags, realizing automatic film feeding, metering and filling of desiccant, heat sealing, cutting and other processes, suitable for mass production of small-package desiccants (such as 1g, 5g, 10g specifications), with a production speed of up to 20-100 bags per minute.


2.2.2 Classified by Automation Degree


Fully Automatic Dessicant Filling Machine: Realizes unmanned operation in the whole process, with functions such as automatic feeding, automatic metering, automatic filling, automatic fault detection, automatic rejection of unqualified products and automatic material replenishment. It is equipped with a touch human-machine interface (HMI) and PLC control system, and can store multiple production recipes to meet flexible production needs.
Semi-Automatic Dessicant Filling Machine: Needs manual assistance in partial links (such as manual placement of containers, manual feeding of desiccants), and the core filling and metering links are automated. It has a small footprint and low cost, and is suitable for small-batch and multi-variety production scenarios.


2.2.3 Classified by Filling Form


Granular/Powder Dessicant Filling Machine: For granular (such as silica gel particles, molecular sieve) and powdery desiccants, it adopts vibration feeding, spiral metering or gravity metering to ensure the accuracy of single filling, and is equipped with an anti-dust device to avoid material flying.
Columnar/Block Dessicant Filling Machine: Aims at columnar or block desiccants, adopts mechanical clamping and pushing structure, realizes precise insertion into containers, and is equipped with infrared counting and detection functions to avoid missing filling or multiple filling.
Desiccant Bag Inserting Machine: For pre-made desiccant bags, it completes automatic cutting, conveying and inserting into packaging containers, with a high-speed cutting structure to avoid bag breakage and desiccant leakage.


3. Working Principle and Structural Composition

3.1 Core Working Principle

The Automatic Dessicant Filling Machine takes the PLC control system as the core, and realizes the coordinated operation of each mechanism through the combination of pneumatic, servo drive and sensing detection technology, and completes the whole process of desiccant filling in accordance with the preset program. The basic working process is as follows:

First, the desiccant is stored in the feeding hopper, and the automatic feeding mechanism (vibration feeder, spiral conveyor or pneumatic conveying device) transports the desiccant to the metering unit according to the set flow rate. The metering unit adopts high-precision sensors (infrared counting sensor, weighing sensor, volume metering sensor) to measure the desiccant, ensuring that the single filling amount meets the process requirements. Then, the positioning mechanism fixes the container (insulating glass spacer frame, packaging bottle, etc.) at the designated filling position, and the filling head moves to the filling port under the drive of the servo motor to complete the desiccant filling. For insulating glass special models, after filling, the automatic sealing mechanism uses butyl rubber to seal the drilling hole to prevent desiccant leakage and moisture intrusion; for packaging line models, after filling/inserting, the detection mechanism checks for missing filling, broken bags and other problems, and the unqualified products are automatically rejected, while the qualified products enter the next process. In addition, the machine is equipped with a material level sensor, which triggers an alarm and starts the automatic replenishment function when the desiccant is insufficient, ensuring the continuity of production.

The whole process is controlled by the PLC system, and the operating parameters (filling amount, filling speed, filling height, sealing time, etc.) can be adjusted and set through the touch screen, and the production data (production quantity, qualified rate, fault information, etc.) can be recorded and displayed in real time to realize intelligent management of the production process.

3.2 Key Structural Composition

The Automatic Dessicant Filling Machine is a complex system integrating multiple modules, and its core components directly determine the equipment's performance, stability and filling accuracy. The main structural modules are as follows:

3.2.1 Control System Module

As the "brain" of the equipment, it mainly includes PLC controller (mostly imported brands such as Siemens and Omron), touch human-machine interface (HMI), relay, contactor and other electrical components. The PLC system is responsible for receiving signals from sensors, issuing execution instructions to drive mechanisms, and realizing logic control of the whole process; the touch screen provides a human-computer interaction platform, which can set process parameters, store production recipes, monitor operating status and query fault information, and supports multi-language switching to adapt to different regional use needs.

3.2.2 Feeding and Metering Module

This module is the core to ensure filling accuracy, including feeding hopper, automatic feeding mechanism (vibration feeder, spiral propeller, pneumatic conveying pipeline), metering unit and material level detection sensor. The feeding hopper is usually made of food-grade or industrial-grade stainless steel, with a large capacity (standard 5L, optional 20L) to reduce the frequency of manual feeding; the metering unit adopts different forms according to desiccant types: granular desiccant uses infrared counting or volume metering, powdery desiccant uses spiral metering or weighing feedback metering, and desiccant bags use fixed-length cutting metering. The material level sensor monitors the residual amount of desiccant in real time, and sends an alarm signal when the material is insufficient to realize automatic replenishment.

3.2.3 Filling and Execution Module

Including filling head, servo drive mechanism, positioning fixture, pneumatic cylinder and other components. The filling head is designed with anti-drip and anti-blocking structure, and the filling height can be adjusted automatically according to the container size; the servo drive mechanism ensures the precise movement of the filling head, with a positioning accuracy of up to ±0.1mm; the positioning fixture can be quickly replaced to adapt to containers of different shapes and sizes (round, square, rectangular, etc.), realizing tool-free quick changeover. For insulating glass models, this module also includes an automatic drilling mechanism and a sealing mechanism, which can complete drilling and butyl rubber sealing synchronously with filling.

3.2.4 Detection and Rejection Module

Equipped with a variety of sensors (infrared sensor, photoelectric sensor, pressure sensor, weighing sensor), it realizes real-time detection of filling status, including missing filling detection, filling amount detection, desiccant bag breakage detection, container in-place detection, etc. When unqualified products are detected, the system immediately sends a signal, and the rejection mechanism pushes the unqualified products to the designated area to ensure that only qualified products enter the next process. At the same time, the module has fault self-diagnosis function, which can quickly locate faults such as motor abnormality, sensor failure and air pressure shortage, and display fault codes on the touch screen to facilitate maintenance.

3.2.5 Frame and Protective Module

The frame is made of high-strength aluminum alloy or stainless steel, with industrial plastic spraying treatment on the surface, which has the characteristics of corrosion resistance, wear resistance and easy cleaning; the protective module includes safety grating, emergency stop button, protective cover and other devices, which meets the industrial safety standards, prevents operators from contacting the moving parts, and ensures the safety of operation.

4. Core Technical Parameters and Performance Indicators

The technical parameters of the Automatic Dessicant Filling Machine are the key basis for measuring its performance and selecting models. Different types of equipment have different parameter standards, and the common core technical parameters and performance indicators are as follows:

4.1 Basic Operating Parameters


Power Supply: AC 110V/220V/380V, 50/60Hz, power range from 500W (small packaging line models) to 2.5KW (insulating glass large models);
Air Pressure Requirement: ≥0.65MPa, air consumption is 2-5CFM@90PSI, equipped with air filtration and pressure regulation device to ensure stable pneumatic operation;
Production Efficiency: Packaging line models can reach 10-150 bottles per minute (BPM), insulating glass models can complete filling of a 1m×1m spacer frame in about 30 seconds, and desiccant bag models can produce 20-100 bags per minute;
Adaptable Container/Spacer Size: Insulating glass models: minimum 300mm×250mm, maximum 2000mm×2000mm, spacer width 5.5-26.5mm; packaging line models: suitable for containers with a neck diameter of more than 2 inches, height of 1-12 inches, and desiccant bags with a size of ≤150mm×35mm;
Adaptable Desiccant Specifications: Granular diameter 0.5-1.5mm (molecular sieve, silica gel), columnar desiccant of various lengths, desiccant bags of 1-50g specifications.


4.2 Precision and Stability Indicators


Filling Accuracy: ±1%-±3% (for granular/powdery desiccant), counting accuracy of columnar desiccant/desiccant bags up to 99.9%;
Positioning Accuracy: Servo drive positioning accuracy ±0.1mm, ensuring that the filling head is accurately aligned with the container filling port;
Operating Stability: Continuous operation time of more than 24 hours, fault rate ≤0.5%, and the service life of core components (servo motor, PLC) is more than 5 years;
Sealing Performance: For insulating glass models, the butyl rubber sealing is tight, with no desiccant leakage and air leakage rate meeting the insulating glass industry standards; for desiccant bag models, the heat sealing strength is uniform, with no bag breakage and desiccant leakage.


4.3 Intelligent and Humanized Parameters


Recipe Storage Capacity: Can store 50-100 groups of production recipes, realizing one-key switching of different products;
Fault Self-Diagnosis: Can identify more than 50 kinds of common faults, and display fault causes and solutions in real time;
Data Interaction: Supports connection with MES system, realizes real-time upload of production data, and meets the needs of industrial digital management;
Changeover Time: Tool-free quick changeover, and the time for replacing container/desiccant specifications is ≤10 minutes.


5. Application Fields and Scenario Requirements

With the continuous improvement of industrial automation level and the increasingly strict requirements for product moisture-proof performance, the Automatic Dessicant Filling Machine has been widely used in multiple industries, and each field has specific scenario requirements for equipment performance.

5.1 Insulating Glass Manufacturing Industry

As the largest application field of desiccant filling machines, insulating glass needs to fill molecular sieve desiccant into the spacer frame to absorb moisture in the interlayer and prevent glass fogging and condensation. The industry requires the equipment to have the functions of automatic drilling, filling and sealing, adapt to various shapes of spacer frames (straight, arc, special-shaped), and the filling amount of molecular sieve is accurate to ensure the service life of insulating glass (more than 15 years). At the same time, the equipment needs to be compatible with flexible spacers (such as Swisspacer) and ordinary aluminum spacers, and can realize simultaneous filling of both sides of the spacer frame to improve production efficiency.

5.2 Food and Health Care Products Industry

Food (such as snacks, dried fruits, canned food) and health care products are extremely sensitive to moisture, and desiccant bags or columnar desiccants need to be inserted into the packaging to extend the shelf life. The industry has strict hygiene requirements, and the contact parts of the equipment must be made of food-grade 316 stainless steel, with no dead corners and easy cleaning to meet GMP and food safety standards; at the same time, the equipment needs to be seamlessly connected with the existing packaging line (filling, capping, labeling), with high-speed operation capacity (up to 150BPM) and zero missing filling rate to avoid food quality problems caused by missing desiccant.

5.3 Pharmaceutical Industry

Pharmaceutical products (such as tablets, capsules, powder injections) have extremely high requirements for moisture-proof and sterile environments. The desiccant filling machine needs to meet the pharmaceutical GMP certification, with dust-proof and sterile design, and the filling process is fully enclosed to avoid cross-contamination; the filling accuracy is higher (±1%), and the equipment has functions such as real-time monitoring of filling data and traceability of production records to meet the regulatory requirements of the pharmaceutical industry. In addition, the equipment needs to adapt to various pharmaceutical packaging containers (bottles, blister boxes, cartons) and realize flexible switching of different desiccant specifications.

5.4 Electronic and Precision Instrument Industry

Electronic components, circuit boards, precision instruments and other products are prone to short circuit, rust and performance degradation due to moisture. The desiccant filling machine needs to realize precise insertion of desiccant into electronic product packaging boxes/bags, with anti-static design to avoid damage to electronic components; the equipment has high stability, no dust and particle emission during operation, and adapts to small and precise packaging containers to meet the moisture-proof needs of high-value electronic products.

5.5 Other Industrial Fields

In addition, the Automatic Dessicant Filling Machine is also used in leather, furniture, textile, chemical and other industries, mainly for filling desiccant into product packaging to prevent moisture, mildew and oxidation during storage and transportation. For these fields, the equipment focuses on cost performance, adaptability to different desiccant types and simple operation, to meet the needs of small and medium-sized enterprises for automated production.

6. Core Advantages of Automatic Dessicant Filling Machine

Compared with manual and semi-automatic filling methods, the Automatic Dessicant Filling Machine has obvious advantages in efficiency, accuracy, cost, quality and intelligence, which is the core driving force for its popularization in the industry.

6.1 Significant Improvement of Production Efficiency

The fully automatic operation mode eliminates the link of manual intervention, and the production efficiency is 5-10 times higher than that of manual filling. Taking the packaging line model as an example, the production speed can reach 150BPM, and the insulating glass model can complete the filling of hundreds of spacer frames per hour; at the same time, the equipment can run continuously for 24 hours, and the automatic material replenishment and fault self-recovery functions reduce the downtime caused by material shortage and faults, greatly improving the overall production capacity of the production line.

6.2 Guaranteed Filling Accuracy and Product Quality

High-precision metering and sensing technology ensures the consistency of filling amount, avoiding the problems of insufficient moisture-proof effect caused by less filling and material waste caused by more filling; the fully enclosed filling process prevents desiccant from being polluted by dust and bacteria, and the detection and rejection module eliminates unqualified products, ensuring that each product meets the process standards. For industries such as food and pharmaceuticals, this effectively avoids quality accidents and reduces the loss caused by unqualified products.

6.3 Significant Reduction of Production Cost

On the one hand, it reduces labor costs: a fully automatic filling machine can replace 5-8 manual operators, and only one person is needed for daily operation and maintenance, which greatly saves labor expenditure; on the other hand, it reduces material waste: the accurate metering system reduces the waste of desiccant by more than 5% compared with manual operation, and the anti-breakage and anti-leakage design of the filling head reduces the loss of desiccant bags and containers; in addition, the long service life and low fault rate of the equipment reduce maintenance costs and downtime losses.

6.4 Strong Flexibility and Adaptability

The equipment can store multiple production recipes, and realize quick switching of different desiccant types, container specifications and filling processes by adjusting parameters on the touch screen, with tool-free changeover and strong adaptability to multi-variety and small-batch production; at the same time, it can be customized according to customer needs, such as adding double filling stations, height adjustment devices, special-shaped filling functions, etc., to meet the personalized process requirements of different industries.

6.5 Intelligent Management and Compliance Improvement

The PLC control system realizes real-time monitoring of production data, automatic recording of production quantity, qualified rate, fault information and other data, which is convenient for enterprises to carry out production management and quality traceability; the equipment meets industrial safety, food hygiene, pharmaceutical GMP and other industry standards, and the safety protection and sterile design help enterprises pass relevant certifications and meet regulatory requirements.

6.6 Improvement of Working Environment and Labor Safety

The fully enclosed operation reduces dust and noise, and the safety protection devices (safety grating, emergency stop button) avoid industrial accidents caused by manual contact with moving parts; at the same time, it liberates workers from heavy and repetitive manual labor, reduces labor intensity and improves the working environment of the production line.

7. Market Development Status and Trends

7.1 Global Market Status

In recent years, driven by the rapid development of food, pharmaceutical, electronic manufacturing, insulating glass and other downstream industries, the global demand for Automatic Dessicant Filling Machines has maintained a steady growth trend. The Asia-Pacific region, represented by China, Japan and South Korea, has become the largest market due to its rapid industrialization, large manufacturing scale and continuous improvement of automation level; Europe and the United States, as developed regions, focus on high-end intelligent and customized models, with high requirements for equipment accuracy, stability and compliance; emerging markets in Latin America, Africa and the Middle East are in the stage of industrial upgrading, and the demand for cost-effective automatic filling machines is growing rapidly.

At present, the global market competition pattern is relatively clear: European and American brands (such as LiSEC, BellatRx) occupy the high-end market with advanced technology, high stability and complete after-sales service, mainly serving large enterprises in the insulating glass and pharmaceutical industries; Chinese brands (such as ZONESUN, LIJIANG Glass) have rapidly risen with cost performance, fast delivery and customized services, and have a high market share in the middle and low-end markets and emerging markets, and some high-end models have gradually entered the European and American markets.

7.2 Core Market Trends

7.2.1 Intelligent and Digital Upgrading

With the development of industrial Internet and artificial intelligence, the Automatic Dessicant Filling Machine is developing towards higher intelligence: integrating AI algorithms to realize adaptive adjustment of filling parameters (automatically optimizing filling speed and metering accuracy according to desiccant characteristics and container changes); adding digital twin technology to simulate the filling process and predict faults in advance; realizing remote monitoring, fault diagnosis and program upgrade through cloud platforms, and meeting the needs of intelligent factory management.

7.2.2 High Precision and High Efficiency

Downstream industries have higher and higher requirements for desiccant filling accuracy and production efficiency, and the equipment is developing towards higher precision (filling accuracy up to ±0.5%) and higher speed (packaging line models exceeding 200BPM); at the same time, multi-station and multi-channel synchronous filling technology is adopted to further improve production capacity, and the lightweight and compact design reduces the floor space and improves the space utilization rate of the production line.

7.2.3 Green and Energy-Saving Development

In response to the global call for energy conservation and emission reduction, the equipment is optimized in terms of energy consumption: adopting high-efficiency servo motors and energy-saving pneumatic components to reduce power and air consumption; using recyclable and environmentally friendly materials for the frame and contact parts; designing a dust recovery system to collect desiccant dust and realize material recycling, reducing environmental pollution and material waste.

7.2.4 Customization and Integration

The personalized needs of downstream industries are becoming more and more prominent, and customized equipment (such as special-shaped container filling, ultra-small desiccant filling, high-temperature resistant desiccant filling) has become a new growth point; at the same time, the equipment is developing towards integration with the whole production line, realizing seamless connection with filling, capping, labeling, testing, packaging and other equipment, and forming a fully automated intelligent production line to improve the overall automation level of the factory.

7.2.5 Compliance and Standardization Improvement

With the increasingly strict regulatory standards in food, pharmaceutical and other industries, the equipment pays more attention to compliance design: meeting GMP, FDA, CE and other international certifications, with sterile, dust-proof and anti-cross-contamination functions; establishing a complete quality traceability system, recording the whole process of equipment operation and product production, to meet the regulatory requirements of product quality traceability.

8. Challenges and Future Development Prospects

8.1 Existing Challenges

Although the Automatic Dessicant Filling Machine has achieved rapid development, it still faces some challenges in the process of industrial popularization: first, the technical level of some domestic small and medium-sized brands is uneven, and the core components (such as high-precision sensors, servo motors) still rely on imports, resulting in high production costs and weak competitiveness in the high-end market; second, the after-sales service system of some enterprises is not perfect, and the response speed to equipment faults and maintenance needs is slow, affecting the user experience; third, the adaptability to special desiccants (such as ultra-fine powder, corrosive desiccant) and special containers (such as micro containers, irregular containers) needs to be further improved; fourth, the digital transformation of small and medium-sized enterprises is slow, and the acceptance and application capacity of high-end intelligent filling machines are insufficient.

8.2 Future Development Prospects

In the future, with the continuous advancement of industrial automation, the upgrading of downstream industries and the breakthrough of core technologies, the Automatic Dessicant Filling Machine will show broader development prospects:

In terms of technology, the localization of core components will be accelerated, and domestic brands will break through the technical monopoly of foreign brands in high-precision sensors, intelligent control systems and other fields, reducing production costs and improving product competitiveness; the integration of new technologies such as 5G, machine vision and big data will further improve the intelligence level of the equipment, realizing unmanned production and full-process digital management.

In terms of application, the application fields will continue to expand, and new energy batteries, aerospace, medical devices and other emerging high-end fields will put forward new demands for desiccant filling equipment, promoting the development of the equipment in the direction of ultra-high precision, ultra-clean and special environment adaptation; at the same time, the demand for customized and personalized equipment will continue to grow, and the equipment manufacturers will shift from "standardized production" to "customized solutions" to meet the diversified needs of different industries.

In terms of market, the global market demand will maintain steady growth, and Chinese brands will further expand the international market with technological advantages and cost performance, and the global competition pattern will be more balanced; the industry will accelerate the elimination of backward production capacity, and enterprises with core technologies, complete after-sales service and strong R&D capabilities will occupy a dominant position, promoting the healthy and standardized development of the industry.

9. Conclusion

The Automatic Dessicant Filling Machine, as an important part of modern industrial automation equipment, has become a key link to ensure product quality, improve production efficiency and reduce production costs in food, pharmaceutical, insulating glass, electronic manufacturing and other industries. It integrates mechanical, electrical, pneumatic, sensing and intelligent control technologies, and realizes the transformation of desiccant filling from manual and semi-automatic to fully automatic and intelligent, with significant advantages in efficiency, accuracy, cost and quality.

At present, the industry is in a period of rapid development of intelligent and digital upgrading, and is facing both opportunities such as the expansion of downstream market demand and the breakthrough of core technologies, as well as challenges such as technical bottlenecks and market competition. In the future, equipment manufacturers need to increase R&D investment, break through the technical barriers of core components, improve the level of intelligence and customization, and improve the after-sales service system; downstream enterprises need to accelerate the pace of automation transformation, and select appropriate filling equipment according to their own production needs to improve the overall competitiveness of the industrial chain.

With the continuous progress of technology and the continuous upgrading of industrial demand, the Automatic Dessicant Filling Machine will play a more important role in the global industrial manufacturing system, and promote the high-quality development of multiple industries with more intelligent, efficient and stable performance.





The article has covered all the core dimensions of the Automatic Dessicant Filling Machine with a formal and professional tone. If you need to adjust the content focus (such as adding more case studies, simplifying technical descriptions, or expanding market data), or modify the length and style, please feel free to let me know.

Glass Laminating Machine Testing Before Delivery: A Comprehensive Technical and Quality Assurance Protocol

In the highly specialized field of architectural and automotive glass manufacturing, the glass laminating machine stands as a critical piece of equipment, responsible for bonding glass panels with interlayer materials (such as PVB, SGP, or EVA) under precise conditions of heat, pressure, and vacuum to produce safety glass with enhanced strength, sound insulation, and security properties. The performance, reliability, and safety of these machines directly impact the quality of the final laminated glass products, as well as the operational efficiency and safety of end-users. Therefore, rigorous and systematic testing of glass laminating machines prior to delivery is not merely a procedural step but an indispensable quality assurance (QA) and quality control (QC) imperative for manufacturers. This article provides a detailed, formal analysis of the testing protocols, technical standards, key performance indicators (KPIs), and quality validation processes that govern the pre-delivery testing of glass laminating machines, emphasizing the critical role of these procedures in ensuring compliance, functionality, and long-term operational stability.

1. Rationale for Pre-Delivery Testing: Technical, Commercial, and Regulatory Imperatives

Pre-delivery testing of glass laminating machines is rooted in three core pillars: technical validation, regulatory compliance, and commercial accountability. From a technical perspective, glass laminating involves a complex interplay of thermal, mechanical, and pneumatic systems—including heating chambers, vacuum pumps, hydraulic pressure systems, conveyor mechanisms, and control panels—each of which must operate in precise synchronization to achieve consistent lamination results. Even minor deviations in temperature uniformity, pressure distribution, vacuum retention, or cycle timing can lead to defects in laminated glass, such as air bubbles, delamination, uneven bonding, or optical distortion. Pre-delivery testing identifies and rectifies these technical anomalies at the manufacturing facility, eliminating the risk of costly downtime, rework, or product failures at the customer’s production site.

Regulatory compliance is another non-negotiable driver of pre-delivery testing. Laminated glass is subject to stringent international and regional standards, including the European Standard EN 14449 (glass in building—laminated glass and laminated safety glass), the American National Standard ANSI Z97.1 (safety glazing materials used in buildings), and the Global Technical Regulation (GTR) No. 6 for automotive safety glazing. These standards mandate that the production equipment used to manufacture laminated glass must meet specific performance criteria to ensure the final product complies with safety and quality requirements. Additionally, machinery manufacturers must adhere to industrial safety standards such as ISO 13849 (safety of machinery—safety-related parts of control systems) and CE marking directives for equipment sold in the European Economic Area (EEA), which require comprehensive functional safety testing before market placement.

Commercially, pre-delivery testing serves as a contractual and reputational safeguard. For machinery manufacturers, a robust testing protocol demonstrates commitment to quality, builds customer trust, and mitigates the risk of contractual disputes, product returns, or warranty claims. For end-users, verified pre-delivery performance ensures that the machine will integrate seamlessly into their production lines, meet production targets, and produce laminated glass that meets their quality specifications. In an industry where precision and reliability are paramount, pre-delivery testing is the foundation of a transparent and accountable supply chain.

2. Scope and Phases of Pre-Delivery Testing

Pre-delivery testing of glass laminating machines is a multi-phase, end-to-end process that encompasses static inspection, functional testing, performance validation, safety verification, and documentation. The scope of testing is tailored to the machine’s specifications—including its size (e.g., small-scale laboratory machines vs. large-scale industrial production lines), lamination method (autoclave vs. non-autoclave/lamiplast), and automation level (semi-automatic vs. fully automatic with PLC control). Below is a structured breakdown of the key testing phases:

2.1 Static and Visual Inspection (Pre-Operational Testing)

The first phase of pre-delivery testing is a comprehensive static inspection, conducted before the machine is powered on. This phase focuses on verifying the physical integrity, assembly accuracy, and component conformity of the machine, in accordance with the approved engineering drawings, bill of materials (BOM), and customer-specific requirements. Key inspection items include:


Structural Integrity: Examination of the machine frame, chamber walls, and support structures for weld quality, material thickness, dimensional accuracy, and freedom from deformation or corrosion. All structural components must comply with mechanical engineering standards to withstand the thermal and mechanical stresses of lamination cycles.
Component Verification: Validation of all critical components—including heating elements (resistance or infrared), vacuum pumps and hoses, hydraulic/pneumatic cylinders, pressure sensors, temperature controllers, conveyor belts, and safety interlocks—against the manufacturer’s specifications and supplier certifications. Components must be free from defects, properly installed, and labeled in accordance with industrial standards.
Wiring and Pneumatic/Hydraulic Connections: Inspection of electrical wiring for compliance with IEC 60204 (safety of machinery—electrical equipment of machines), including proper insulation, grounding, cable routing, and connection tightness. Pneumatic and hydraulic lines are checked for leaks, proper fitting, and pressure rating compatibility, with all connections secured to prevent fluid or air loss during operation.
Cleanliness and Surface Finish: Verification of the machine’s internal and external cleanliness, particularly the lamination chamber, heating plates, and conveyor surfaces, to ensure no contaminants (e.g., dust, oil, or debris) that could compromise glass lamination quality are present. Surface finishes of contact components must be smooth and free from scratches or irregularities.


2.2 Functional Testing (Operational Validation)

Following static inspection, the machine is powered on for functional testing, which verifies that all individual systems and sub-assemblies operate as designed, without faults or malfunctions. This phase is conducted in a controlled manufacturing environment, with test parameters set to the machine’s nominal operating range. Key functional tests include:


Control System Validation: Testing of the programmable logic controller (PLC), human-machine interface (HMI), and associated software to ensure accurate input of lamination parameters (temperature, pressure, vacuum level, cycle time), real-time data monitoring, and fault diagnostics. The control system must respond correctly to manual and automatic commands, with all alarms and error messages functioning as programmed.
Heating System Performance: Evaluation of the heating system’s ability to reach and maintain set temperatures uniformly across the entire lamination area. Temperature sensors are calibrated and tested to ensure accuracy within ±1°C, and thermal imaging is used to verify temperature distribution across heating plates—critical for preventing uneven bonding in laminated glass.
Vacuum System Testing: Assessment of the vacuum system’s ability to achieve and hold the required vacuum level (typically 0.95–0.98 bar) within the lamination chamber, with no leaks detected over a specified hold time (e.g., 30 minutes). Vacuum pumps are tested for flow rate, noise level, and energy consumption, in compliance with efficiency standards.
Pressure System Testing: Validation of the hydraulic or pneumatic pressure system’s ability to generate and maintain the specified lamination pressure (ranging from 8–12 bar for autoclave systems, 1–3 bar for non-autoclave systems). Pressure sensors are calibrated to ensure accuracy, and the system is tested for pressure stability during the lamination cycle, with no pressure drops or fluctuations.
Conveyor and Handling System Testing: Testing of the conveyor belts, roller systems, and glass loading/unloading mechanisms for smooth, precise movement, with no jams, misalignment, or damage to test glass panels. The speed and positioning accuracy of the conveyor system are verified to meet the machine’s production rate specifications.
Auxiliary System Functionality: Testing of auxiliary systems such as cooling systems, exhaust systems, and glass edge processing attachments (if equipped) to ensure they operate in sync with the main lamination cycle and meet performance requirements.


2.3 Performance Testing (Production Simulation)

Functional testing is followed by performance testing, which simulates real-world production conditions to validate the machine’s ability to produce high-quality laminated glass consistently. This phase uses standard test glass panels (typically 3–6 mm thick float glass) and industry-standard interlayers (PVB, SGP) to conduct full lamination cycles, with the machine operating at its rated production capacity. Key performance metrics evaluated include:


Lamination Quality: Visual and instrumental inspection of the test laminated glass for defects, including air bubbles, inclusions, delamination, edge gaps, and optical distortion. Samples are tested in accordance with EN 14449 and ANSI Z97.1, with all defects measured and documented against acceptable tolerance levels.
Cycle Time Consistency: Verification of the machine’s ability to complete lamination cycles within the specified time frame, with minimal variation between cycles. Cycle time is a critical KPI for end-users, as it directly impacts production throughput.
Uniformity of Bonding: Testing of the bond strength between glass and interlayer across the entire panel area, using peel tests, shear tests, and impact resistance tests (e.g., drop ball test) in accordance with relevant standards. The bond strength must meet or exceed the minimum requirements for safety glass.
Energy Efficiency: Measurement of the machine’s energy consumption (electrical, thermal, and pneumatic) during full production cycles, to validate compliance with energy efficiency standards and ensure operational cost-effectiveness for end-users.
Repeatability and Reproducibility: Conducting multiple consecutive lamination cycles (typically 10–20 cycles) to verify that the machine delivers consistent results, with no degradation in performance or increase in defect rates over time. This validates the machine’s long-term operational stability.


2.4 Safety Testing (Compliance with Industrial Safety Standards)

Safety is a paramount consideration in pre-delivery testing, as glass laminating machines operate under high temperatures, pressures, and vacuum conditions, posing potential risks to operators. All safety systems are rigorously tested to comply with ISO 13849, CE machinery directives, and OSHA standards (for the U.S. market). Key safety tests include:


Emergency Stop (E-Stop) Functionality: Testing of all E-stop buttons (located at multiple access points) to ensure immediate shutdown of all systems when activated, with no residual motion or energy release.
Safety Interlocks: Verification of interlock systems on chamber doors, access panels, and conveyor guards to prevent operation when these components are open or removed. Interlocks must trigger an immediate stop and alarm if breached.
Pressure and Temperature Safety Limits: Testing of over-pressure and over-temperature protection systems to ensure the machine shuts down automatically if parameters exceed safe operating limits, preventing equipment damage or operator injury.
Ergonomic and Hazard Protection: Evaluation of operator access points, control panel positioning, and hazard warnings (visual and auditory) to ensure compliance with ergonomic standards and minimize the risk of burns, crush injuries, or electrical shocks.
Fire and Explosion Protection: Testing of fire suppression systems (if equipped) and ventilation systems to ensure they function correctly in the event of a thermal anomaly or interlayer combustion.


2.5 Final Acceptance Testing (FAT) and Customer Witness Testing

The culmination of pre-delivery testing is the Factory Acceptance Testing (FAT), a formal process where the machine’s performance is verified against the customer’s purchase order, technical specifications, and contractual requirements. FAT is typically conducted in the presence of the customer or their authorized representative, who witnesses all critical tests and reviews the test data. Key components of FAT include:


Review of Test Documentation: Presentation of all test reports, calibration certificates, component certifications, and compliance documents for customer review and approval.
Demonstration of Full Production Cycles: Live demonstration of the machine producing laminated glass to the customer’s specifications, with real-time monitoring of key parameters and defect inspection.
Resolution of Non-Conformities: Any non-conformities identified during FAT are documented in a non-conformance report (NCR), and corrective actions are implemented and re-tested before final acceptance.
Sign-Off and Approval: Upon successful completion of FAT, the customer signs a formal acceptance document, confirming that the machine meets all requirements and is ready for delivery.


3. Documentation and Traceability: The Backbone of Pre-Delivery Testing

A critical, yet often underemphasized, aspect of pre-delivery testing is the creation of a comprehensive, traceable documentation package. This package serves as a permanent record of the machine’s testing history, validates compliance with standards, and provides end-users with critical information for operation, maintenance, and warranty claims. The documentation package typically includes:


Test Plan and Protocol: A detailed document outlining the testing scope, methods, acceptance criteria, and responsible personnel, approved by both the manufacturer and the customer.
Calibration Certificates: Certificates for all measuring and testing equipment (temperature sensors, pressure gauges, vacuum meters, etc.), validating their accuracy and traceability to national or international standards (e.g., NIST, DKD).
Component Certifications: Supplier certificates for all critical components, including material test reports (MTRs), CE certificates, and performance data sheets.
Test Reports: Detailed reports for each testing phase, including raw data, test results, photographs of test samples, and defect analysis. All data is recorded with date, time, and operator identification for full traceability.
Compliance Certificates: Certificates of compliance with relevant standards (CE, ISO, EN, ANSI), signed by the manufacturer’s quality assurance manager.
Operation and Maintenance Manuals: Comprehensive manuals providing instructions for machine operation, routine maintenance, troubleshooting, and spare parts identification, tailored to the machine’s specific configuration.
Warranty Document: A formal warranty statement outlining the terms and conditions of the manufacturer’s warranty, supported by the pre-delivery test data.


4. Post-Testing Preparation for Delivery

Following successful FAT and customer approval, the machine undergoes final preparation for delivery, which includes:


Cleaning and Packaging: Thorough cleaning of the machine to remove all test residues, followed by protective packaging (using anti-corrosion materials, shock absorbers, and weatherproof covers) to prevent damage during transportation.
Labeling and Marking: Application of all required labels, including CE marks, safety warnings, serial numbers, and operational parameters, in accordance with international standards.
Spare Parts and Tooling: Preparation of a standard spare parts kit and specialized tooling, as specified in the contract, for delivery with the machine.
Logistics Coordination: Coordination with shipping and logistics providers to ensure safe and timely transportation, with all necessary export/import documentation (e.g., bill of lading, customs clearance documents) prepared in advance.


5. Conclusion

Pre-delivery testing of glass laminating machines is a rigorous, multi-faceted process that integrates technical validation, regulatory compliance, performance verification, and safety assurance. By adhering to standardized testing protocols, manufacturers ensure that every machine delivered to the market meets the highest standards of quality, reliability, and safety, while end-users gain confidence in the machine’s ability to produce high-quality laminated glass consistently. In an industry where precision and safety are non-negotiable, pre-delivery testing is not just a procedural step but a cornerstone of quality management, driving innovation, customer satisfaction, and long-term success for both machinery manufacturers and laminated glass producers. As the demand for advanced safety glass continues to grow in architectural, automotive, and aerospace applications, the importance of robust pre-delivery testing will only increase, underscoring the need for ongoing investment in testing technology, personnel training, and compliance with evolving international standards.
