Glass Edging and Polishing Machines: Technological Evolution, Industrial Applications, and Future Trajectories

1. Introduction

Glass edging and polishing machines stand as indispensable pillars of modern glass manufacturing and processing industries, serving as the critical link between raw glass sheets and finished products that meet stringent safety, aesthetic, and functional standards. These specialized pieces of equipment transform the sharp, irregular edges of cut glass—marred by microcracks and structural inconsistencies—into smooth, precise, and visually refined surfaces through a series of controlled grinding, polishing, and finishing operations. As global demand for high-quality glass products surges across architectural, automotive, electronic, and renewable energy sectors, the role of glass edging and polishing machines has evolved from mere finishing tools to integral components of automated production lines, driving efficiency, precision, and innovation in the industry. This article provides a comprehensive analysis of the technological principles, product classifications, industrial applications, market dynamics, and future trends shaping the development of glass edging and polishing machines.

2. Core Technological Principles and Operational Mechanisms

2.1 Fundamental Processing Principles

At its essence, the operation of glass edging and polishing machines revolves around two primary objectives: eliminating structural vulnerabilities in glass edges and enhancing their surface quality. The processing workflow typically unfolds in three sequential stages—rough grinding, fine grinding, and polishing—each tailored to address specific defects and achieve desired outcomes.

Rough grinding constitutes the initial phase, where diamond-impregnated grinding wheels with coarse grit sizes (e.g., 80-mesh diamond wheels) remove excess material, sharp burrs, and microcracks generated during glass cutting. This stage primarily relies on brittle fracture mechanics, as the sharp edges of diamond particles initiate and propagate cracks in the glass matrix, resulting in the formation of debris that is efficiently cleared by cooling systems. The key technical challenge here is balancing material removal rate with structural integrity, as excessive grinding force can induce new cracks or edge chipping.

Fine grinding follows, employing medium-grit abrasive tools (e.g., 140–240-mesh resin-bonded wheels) to refine the edge profile, reduce surface roughness, and correct dimensional deviations. Unlike rough grinding, this stage involves a combination of brittle fracture and ductile deformation, with the grinding temperature rising to 500–800°C in the contact zone. This temperature elevation softens the glass surface, enabling a more uniform material removal process and minimizing the formation of new defects.

Polishing, the final stage, achieves the desired surface finish and luster using ultra-fine abrasives or polishing media (e.g., wool polishing wheels, cerium oxide slurries). The objective here is to eliminate residual scratches from previous grinding stages and achieve a surface roughness (Ra) of less than 0.2μm, often matching the optical clarity of the glass substrate itself. Modern polishing processes may incorporate chemical-mechanical polishing (CMP) techniques, where the synergistic action of chemical etching and mechanical abrasion yields superior surface quality while reducing processing time.

A critical aspect of all three stages is thermal management. Grinding and polishing generate significant heat—with localized temperatures at the abrasive-tool interface reaching up to 1000°C—which can cause glass edge burn, thermal cracking, or structural weakening. To mitigate these risks, glass edging and polishing machines are equipped with high-pressure water cooling systems that circulate coolant across the grinding zone, dissipating heat, flushing away debris, and lubricating the abrasive-tool interface. Advanced systems may also integrate temperature sensors and adaptive cooling controls to maintain optimal processing temperatures in real time.

2.2 Key Technical Components and Their Functions

Modern glass edging and polishing machines are sophisticated assemblies of mechanical, electrical, and control systems, each component contributing to precision, efficiency, and reliability.

The grinding head assembly serves as the core functional unit, comprising multiple grinding and polishing spindles arranged in a sequential configuration. For example, the TJM9 series linear multi-stage edging machine features nine spindles—including five stage-edge grinding heads, two front chamfering heads, and two rear chamfering heads—each dedicated to a specific processing task. These spindles are equipped with high-power motors (ranging from 1.5kW to 2.2kW) operating at variable speeds (1400–2840rpm), enabling precise control over material removal rates. The grinding heads are typically mounted on servo-driven linear guides, allowing for automated adjustments of edge angles (0°–60° for stage edges, 45° for chamfers), edge widths (up to 30mm), and residual thickness, ensuring versatility across different glass processing requirements.

The glass conveying system is responsible for transporting glass sheets through the processing zone with minimal friction and positional deviation. Advanced systems utilize reinforced synchronous belts to address the challenge of slipping when handling heavy glass panels, supporting loads of up to 200kg while maintaining stable conveying speeds (1.2–6.2m/min). The conveying path is often equipped with adjustable guide rails and vacuum suction cups to secure the glass and prevent lateral movement during processing, ensuring dimensional accuracy.

The control system has evolved significantly with the integration of digital and intelligent technologies. Modern machines feature CNC (Computer Numerical Control) systems with user-friendly HMI (Human-Machine Interface) panels, enabling operators to program and store processing parameters for different glass types, thicknesses (4–25mm for standard machines, 0.5–3mm for ultra-thin glass applications), and edge profiles. High-end models incorporate vision positioning systems and laser measurement sensors that perform real-time edge detection and dimensional verification, with feedback loops that automatically adjust processing parameters to compensate for deviations. Some advanced systems also leverage AI algorithms to optimize grinding parameters based on historical data, reducing processing time by up to 40% and lowering material waste rates to below 0.8%.

Auxiliary components include waterproof and debris management systems—such as double-layer brush waterproof structures and quick-change brush holders—to prevent coolant leakage and facilitate maintenance. The machine frame is constructed from high-strength steel to minimize vibration during high-speed operation, ensuring structural stability and processing precision. For large-scale production lines, automated loading and unloading systems (e.g., robotic arms, conveyor integration) may be incorporated to streamline workflow and reduce labor requirements.

3. Classification of Glass Edging and Polishing Machines

Glass edging and polishing machines are classified along multiple dimensions based on processing capabilities, automation levels, and application scenarios, reflecting the diverse needs of the glass processing industry.

3.1 Classification by Processing Form



Linear Edging Machines: Designed for processing straight edges of flat glass sheets, these machines are widely used in architectural glass, furniture glass, and solar panel manufacturing. Linear machines can be further categorized into single-edge, double-edge, and multi-stage models. Double-edge machines process both longitudinal edges simultaneously, improving efficiency for high-volume production, while multi-stage models (e.g., the TJM9 series) integrate rough grinding, fine grinding, chamfering, and polishing in a single pass, enabling continuous processing of same-thickness glass sheets. Linear machines are characterized by their high processing speed and dimensional accuracy, making them ideal for large-scale production of standard glass products.



Inner/Outer Circle Edging Machines: Specialized for processing curved edges of circular, oval, or irregularly shaped glass, these machines are used in applications such as automotive glass (windshields, side windows), decorative glass, and optical components. Inner circle machines focus on grinding the inner diameter of hollow glass parts, while outer circle machines process the outer perimeter. Advanced models can handle complex curved profiles with high precision, leveraging CNC control to follow programmed paths with tolerances of ±0.03mm. The market for inner/outer circle machines is growing rapidly, driven by demand from the automotive and renewable energy sectors, with a projected compound annual growth rate (CAGR) of 17% for combined models.



Special-Shaped Edging Machines: Engineered to process non-linear, complex edge profiles (e.g., bevels, arcs, notches), these machines are used in high-end architectural glass, decorative glassware, and electronic device screens. They combine the capabilities of linear and circular edging machines, with multi-axis servo systems that enable precise control over edge geometry. Special-shaped machines often incorporate 3D scanning and modeling capabilities to process custom-designed profiles, catering to the growing demand for personalized glass products.




3.2 Classification by Automation Level



Manual/ Semi-Automatic Machines: These machines require significant operator intervention for glass loading, positioning, and parameter adjustment. Manual machines are typically small bench-top units suitable for small-scale workshops, custom projects, or low-volume production. Semi-automatic machines automate certain functions (e.g., conveying, grinding head adjustment) but still require operator oversight for quality control. While these machines have lower upfront costs, they are limited by lower processing speeds and higher labor requirements, making them less suitable for large-scale production. Semi-automatic machines maintain a 33% share of the 存量 market, primarily among small and medium-sized glass processing enterprises.



Fully Automatic Machines: These machines integrate automated loading, processing, inspection, and unloading, enabling continuous, high-volume production with minimal human intervention. Fully automatic machines are equipped with advanced control systems, vision sensors, and robotic integration, ensuring consistent processing quality and high efficiency. They are widely used in large glass manufacturing facilities serving the architectural, automotive, and electronic industries. The market share of fully automatic machines has exceeded 61%, with growth driven by the need for scalability and cost reduction in mass production. High-end fully automatic models may feature six-axis robotic arms for handling complex glass shapes and sizes, with a 稼动率 (equipment utilization rate) of up to 92%.



Intelligent/Connected Machines: Representing the cutting edge of technological advancement, these machines incorporate IoT (Internet of Things) connectivity, cloud computing, and AI-driven optimization. They can be remotely monitored and controlled, with predictive maintenance systems that detect potential component failures before they occur, reducing downtime by up to 30%. Intelligent machines also enable data collection and analysis, providing insights into processing efficiency, material usage, and quality trends. Some models feature digital twin technology, creating virtual replicas of the machine and processing process to simulate and optimize performance before physical implementation. The adoption of intelligent machines is accelerating, with 45% of new installations featuring IoT modules and 31% of high-end models utilizing linear motor drives for enhanced positioning precision.




3.3 Classification by Processing Thickness



Ultra-Thin Glass Edging Machines: Specialized for processing glass sheets with thicknesses of 0.5–3mm, these machines are used in electronic applications such as smartphone screens, tablet displays, and Mini LED backlight panels. Ultra-thin glass is highly fragile, requiring precise control over grinding forces and conveying pressure to avoid breakage. These machines feature low-torque spindles, soft-touch conveying systems, and high-precision vision alignment, ensuring edge quality without compromising structural integrity. The market for ultra-thin glass edging machines is growing rapidly, with a 29% year-on-year increase in shipments in 2023, driven by the expansion of the consumer electronics industry.



Medium-Thickness Glass Edging Machines: Designed for glass sheets of 5–12mm thickness, these are the most widely used machines, catering to architectural glass (windows, partitions), furniture glass, and general-purpose applications. They balance processing speed and precision, with standard models offering edge angle adjustments and multi-stage grinding/polishing capabilities. The market for medium-thickness machines is stable, with annual shipments of approximately 4200 units, supported by consistent demand from the construction and furniture industries.



Thick Glass Edging Machines: Specialized for glass sheets of 15–25mm (or thicker) used in applications such as glass doors, curtain walls, and bulletproof glass. These machines require high-power grinding heads and reinforced conveying systems to handle the increased weight and material resistance. They often feature multi-pass grinding sequences to ensure complete removal of microcracks and achieve the required edge strength. The demand for thick glass edging machines is closely tied to the construction of high-rise buildings and luxury properties, with significant growth in regions such as the Middle East and Southeast Asia.




4. Industrial Applications and Market Impact

Glass edging and polishing machines play a pivotal role in multiple industries, enabling the production of safe, durable, and aesthetically pleasing glass products. Their applications span architectural, automotive, electronic, renewable energy, and decorative sectors, each with unique processing requirements that drive innovation in machine design.

4.1 Architectural Glass Industry

The architectural glass sector represents the largest application market for edging and polishing machines, accounting for approximately 56.7% of total demand. Architectural glass—used in windows, curtain walls, interior partitions, and glass facades—requires edges that are both safe (free of sharpness) and visually consistent. In regions with strict building codes (e.g., North America, Europe), polished edges are a mandatory requirement to minimize injury risks during installation and use. High-end skyscrapers and luxury buildings often specify beveled or polished edges to enhance the aesthetic appeal of glass facades.

Linear multi-stage edging machines are the workhorses of architectural glass production, capable of processing large glass sheets (up to 3200×2200mm for solar-integrated facades) with high throughput. The integration of automated systems has significantly reduced labor costs and turnaround times, with some production lines achieving continuous processing of up to 6.2m/min. The growth of green building initiatives and building-integrated photovoltaics (BIPV) has spurred demand for specialized edging machines capable of processing curved and textured glass used in energy-efficient facades. It is projected that by 2030, the BIPV segment will drive a 15.8% share of the glass edging machine market, with a corresponding market size of 19 billion yuan.

4.2 Automotive Glass Industry

The automotive glass industry demands the highest levels of precision and durability, as glass components (windshields, side windows, rear windows, sunroofs) must withstand mechanical stress, temperature fluctuations, and impact. Edging and polishing machines used in this sector are specialized to process complex curved profiles and ensure tight dimensional tolerances (±0.03mm) to fit seamlessly with vehicle frames.

Automotive glass edging involves multiple steps, including rough grinding to remove cutting defects, fine grinding to refine the edge profile, and polishing to enhance durability. Chamfering is a critical process, as it eliminates sharp edges that could propagate cracks under impact. The rise of electric vehicles (EVs) and autonomous driving technologies has further driven innovation, with demand for large-format curved glass (e.g., panoramic sunroofs, integrated display screens) requiring multi-axis edging machines with 3D processing capabilities. Additionally, the use of lightweight, high-strength glass (e.g., lithium-aluminum-silicon glass) in EVs has necessitated the development of adaptive grinding systems that adjust parameters based on material properties. The automotive glass segment is expected to account for 18% of the glass edging machine market by 2030, with a CAGR of 8.9% driven by global EV adoption.

4.3 Electronic Glass Industry

The electronic glass industry—encompassing smartphone screens, tablet displays, laptop panels, and TV screens—relies on ultra-precise edging and polishing machines to process ultra-thin glass (0.5–3mm) with minimal material loss. Electronic glass edges must be smooth and free of microcracks to prevent breakage during device assembly and use, while also meeting strict flatness requirements to ensure optimal display performance.

Specialized ultra-thin glass edging machines are equipped with soft-touch conveying systems, low-force grinding heads, and high-resolution vision sensors to achieve surface roughness (Ra) below 0.2μm. The growth of 8K ultra-high-definition displays, Mini LED, and Micro LED technologies has increased demand for machines capable of processing large-format glass substrates (e.g., 8th-generation glass sheets) with ultra-fine edge profiles. Domestic manufacturers in China have made significant strides in this segment, with their market share in 8K display glass processing equipment rising from 28% in 2020 to 47% in 2023, driven by advancements in six-axis 联动 control systems. The electronic glass segment is projected to become the second-largest application market by 2030, accounting for 32% of total demand.

4.4 Renewable Energy (Solar Glass) Industry

The solar energy industry has emerged as a key growth driver for glass edging and polishing machines, with solar panels requiring high-transmittance glass covers with durable, weather-resistant edges. Solar glass edging primarily involves grinding to remove sharp corners and microcracks, improving structural integrity and longevity in outdoor environments. Most solar glass applications require rounded edges, which are typically processed using double-sided circular edging production lines that integrate rough grinding, fine grinding, and safety chamfering in a single pass.

The rapid expansion of solar energy capacity globally—particularly in regions such as Southeast Asia, the Middle East, and Latin America—has fueled demand for high-throughput solar glass edging machines. These machines are designed to process large glass sheets (up to 3200×2200mm) used in utility-scale solar farms, with processing speeds optimized to meet the high-volume production requirements of solar panel manufacturers. In 2023, shipments of solar-specific edging machines increased by 65% year-on-year, reflecting the strong growth of the solar energy industry. With the global push for carbon neutrality, this segment is expected to maintain robust growth, supported by policy incentives and declining solar panel costs.

5. Market Dynamics and Competitive Landscape

5.1 Global and Regional Market Overview

The global glass edging and polishing machine market has experienced steady growth in recent years, driven by urbanization, industrialization, and technological advancements. According to industry reports, the Chinese market—one of the largest globally—reached a size of 38.6 billion yuan in 2022 and is projected to exceed 52 billion yuan by 2025, representing a CAGR of 10.3%. The global market is expected to reach a value of 120 billion yuan by 2030, with a CAGR of 8.5–9.2% during the forecast period.

Regionally, the market is characterized by significant concentration in East Asia (China, Japan, South Korea), Europe (Germany, Italy, Spain), and North America (the United States, Canada). China dominates global production, accounting for over 58% of the world’s glass edging machine output, with domestic manufacturers such as North Glass and Luoyang North Glass leading the way. The Chinese market is further segmented by regional industrial clusters, with the Yangtze River Delta and Pearl River Delta regions contributing 72% of national 产能，supported by robust demand from the construction and electronics industries. The central and western regions of China are emerging as growth hubs, with 产能 expanding at a rate of 15.6% due to government subsidies for new energy industrial parks.

Overseas markets are also growing, with Chinese exports of glass edging machines exceeding 4.3 billion US dollars in 2022, a year-on-year increase of 21.7%. Southeast Asia is the largest export destination, accounting for 39% of total exports, followed by the Middle East (with demand surging by 62% due to smart city initiatives) and Europe. However, international trade faces challenges from evolving regulatory barriers, such as the EU’s CE certification 新规 that tightened noise standards from 85dB (A) to 78dB (A), forcing manufacturers to invest in acoustic simulation and noise reduction technologies.

5.2 Competitive Landscape and Key Players

The global glass edging and polishing machine market is highly competitive, with a mix of established international brands and rapidly growing domestic manufacturers. The competitive landscape is characterized by two distinct trends: 进口替代 in the high-end segment and price competition in the mid-range segment.

International brands such as Germany’s Bystronic and Austria’s Lisec have long dominated the high-end market, known for their precision, reliability, and advanced technology. These companies have traditionally held a strong position in industries such as automotive and high-end architectural glass, leveraging their expertise in CNC control and automation. However, in recent years, domestic manufacturers in China have made significant strides in technological innovation, narrowing the gap with international brands. For example, North Glass and Luoyang North Glass have developed six-axis 联动 control systems that achieve processing precision of ±0.03mm, enabling them to replace imported equipment in some high-end applications. As a result, the market share of domestic equipment in China has risen to 58%, with further growth expected in the coming years.

To counter the rise of domestic competitors, international brands have adopted localization strategies, such as establishing production facilities in China and adjusting their pricing. For instance, Lisec reduced the price of its mid-range models by 18% to penetrate second- and third-tier cities in China. In the mid-range market, domestic manufacturers face intense price competition, with product prices ranging from 280,000 to 450,000 yuan per unit, leading to a compression of average profit margins to 12.8%. To differentiate themselves, some domestic manufacturers are focusing on niche markets, such as ultra-thin glass edging or special-shaped glass processing, where they can leverage their agility and cost advantages.

The competitive landscape is also shaped by technological innovation and R&D investment. Key players are focusing on developing intelligent, energy-efficient machines to meet the growing demand for sustainable manufacturing. For example, the adoption of fifth-generation servo drive systems has reduced energy consumption by 25%, with single-unit annual power consumption dropping from 35,000 kWh to 26,000 kWh. Manufacturers are also investing in green technologies, such as dry grinding systems that eliminate the need for cooling water and reduce environmental impact. The market share of dry grinding machines is expected to reach 39% by 2025, up from 22% in 2022.

6. Technological Advancements and Innovation Trends

The glass edging and polishing machine industry is undergoing a period of rapid technological transformation, driven by advancements in automation, digitization, materials science, and sustainability. These innovations are reshaping the capabilities of machines, enabling higher precision, efficiency, and versatility while reducing environmental impact.

6.1 Intelligent and Automated Technologies

Intelligence and automation are the most significant trends in the industry, with machines becoming increasingly integrated with digital technologies. The adoption of IoT (Internet of Things) modules has enabled remote monitoring and management of machines, with 58% of new installations featuring cloud connectivity. This allows operators to track processing parameters, monitor machine health, and receive real-time alerts for maintenance or troubleshooting, reducing downtime by up to 30%. Remote diagnostic systems have also become common, enabling technical support teams to resolve issues without on-site visits, improving service efficiency.

AI and machine learning are being applied to optimize processing parameters and improve quality control. AI algorithms analyze historical processing data to identify optimal grinding speeds, pressures, and abrasive tool selections for different glass types and thicknesses, reducing processing time by 40% and material waste to below 0.8%. Vision-based quality inspection systems—equipped with high-resolution cameras and image recognition software—perform 100% inspection of finished edges, detecting defects such as microcracks, scratches, and dimensional deviations with accuracy rates exceeding 99%. These systems can automatically reject defective products or trigger adjustments to processing parameters, ensuring consistent quality.

The integration of robotics is another key advancement, particularly in high-volume production lines. Six-axis robotic arms are used for automated loading and unloading of glass sheets, reducing labor requirements and minimizing the risk of damage during handling. Some advanced systems feature collaborative robots (cobots) that work alongside human operators, performing repetitive tasks such as tool changing or quality inspection. The use of robotics has also enabled the processing of complex-shaped glass products that were previously difficult to handle manually.

6.2 Precision and Multi-Functionalization

The demand for higher precision in glass processing has driven advancements in machine design and component technology. Linear motor drives have replaced traditional ball screw systems in high-end machines, improving positioning accuracy by 0.8 orders of magnitude and enabling processing tolerances of ±0.01mm. This level of precision is critical for applications such as electronic glass and automotive display screens, where even minor dimensional deviations can affect performance.

Multi-functionalization is another key trend, with machines designed to perform multiple processing tasks in a single pass. For example, modern linear multi-stage edging machines integrate rough grinding, fine grinding, chamfering, and polishing, eliminating the need for multiple machines and reducing production time. Some advanced models can also process multiple edge profiles (e.g., straight edges, bevels, arcs) without retooling, enhancing versatility and reducing setup time. The development of hybrid machines that combine edging, polishing, and drilling capabilities is also emerging, catering to the needs of specialized applications such as architectural glass with integrated hardware.

6.3 Sustainable and Energy-Efficient Technologies

Sustainability has become a key focus in the industry, driven by global efforts to reduce carbon emissions and comply with environmental regulations. The Chinese government’s “Dual Carbon” policy and the EU’s Green Deal have set strict targets for energy efficiency and emissions reduction, pushing manufacturers to develop more sustainable machines.

Energy efficiency has been improved through the use of high-efficiency motors, variable frequency drives (VFDs), and optimized hydraulic and pneumatic systems. Fifth-generation servo motors reduce energy consumption by 25% compared to previous models, while VFDs adjust motor speeds based on processing requirements, avoiding unnecessary energy use. Some machines also feature regenerative braking systems that capture and reuse energy during deceleration, further reducing power consumption.

The development of dry grinding technology is a significant advancement in sustainability. Traditional wet grinding systems use large amounts of water (up to 100 liters per minute) for cooling and debris removal, generating wastewater that requires treatment. Dry grinding systems—equipped with dust collection and filtration systems—eliminate the need for water, reducing environmental impact and operational costs. These systems use advanced abrasive tools that generate less heat, minimizing the risk of glass damage, and are increasingly being adopted in regions with water scarcity or strict wastewater regulations. The market share of dry grinding machines is expected to grow from 22% in 2022 to 39% in 2025.

Waste reduction is another focus area, with machines designed to minimize material loss during processing. Precision cutting and grinding technologies reduce glass waste rates to below 0.8%, while abrasive tool recycling programs are being implemented to reduce landfill waste. Some manufacturers also offer equipment remanufacturing services, extending the lifecycle of machines and reducing the environmental impact of new production.

7. Challenges and Future Outlook

7.1 Current Industry Challenges

Despite significant advancements, the glass edging and polishing machine industry faces several challenges that could impact growth and innovation.

Technological barriers remain a key challenge, particularly in the high-end segment. Developing machines with ultra-precision (±0.01mm) and multi-functional capabilities requires advanced materials, precision manufacturing, and sophisticated control systems, which are difficult to master. Core components such as high-precision spindles, linear guides, and servo motors are still dominated by international suppliers, leading to dependence on imports and higher costs for domestic manufacturers. Closing the technological gap with international brands will require sustained R&D investment and collaboration between industry, academia, and research institutions.

Regulatory and trade barriers are also becoming more complex. As countries implement stricter environmental, safety, and quality standards, manufacturers must invest in compliance, which can increase production costs. For example, the EU’s new CE certification requirements for noise and emissions have forced manufacturers to redesign machines and conduct additional testing. International trade tensions and tariffs also pose risks, particularly for exporters, as they can increase costs and limit market access.

Talent shortages are a growing concern, with the industry facing a lack of skilled operators, engineers, and technicians. The integration of digital and intelligent technologies requires workers with expertise in CNC programming, IoT, AI, and robotics, which are in short supply. This skills gap can limit the adoption of advanced machines and affect operational efficiency. Addressing this challenge will require investment in vocational training programs and collaboration with educational institutions to develop specialized curricula.

7.2 Future Outlook and Development Trends

Despite these challenges, the future of the glass edging and polishing machine industry is promising, with several key trends expected to drive growth and innovation in the coming years.

Continued 智能化 and digitization will be the primary driver of growth, with machines becoming increasingly connected, autonomous, and data-driven. By 2028, it is projected that 90% of new machines will feature AI-driven process optimization, and 75% will be equipped with predictive maintenance systems. The integration of digital twin technology will enable manufacturers to simulate and optimize production processes before physical implementation, reducing time-to-market and improving product quality. The use of 5G technology will further enhance connectivity, enabling real-time data transmission and remote control with minimal latency.

Expansion of application areas will open new growth opportunities. The rise of emerging technologies such as 3D printing of glass, smart glass (e.g., electrochromic glass, self-cleaning glass), and quantum dot displays will create demand for specialized edging and polishing machines. For example, smart glass requires precise edge processing to integrate electronic components, while 3D-printed glass parts need complex curved edge finishing. The automotive industry’s shift toward electric and autonomous vehicles will drive demand for large-format curved glass and integrated display screens, requiring multi-axis edging machines with advanced 3D processing capabilities.

Sustainability will become a competitive advantage, with manufacturers focusing on developing energy-efficient, low-emission, and circular machines. The adoption of renewable energy sources (e.g., solar panels) to power machines, the use of biodegradable lubricants, and the implementation of closed-loop water systems will become more common. Governments and customers are increasingly prioritizing sustainable products, creating market opportunities for manufacturers that can demonstrate environmental leadership.

Global market expansion will continue, with emerging economies in Southeast Asia, Africa, and Latin America becoming key growth markets. Urbanization, industrialization, and the expansion of the construction and automotive industries in these regions will drive demand for glass edging and polishing machines. Domestic manufacturers in China and other major producers will continue to expand their global footprint through exports, joint ventures, and local production facilities, leveraging their cost advantages and technological capabilities.

8. Conclusion

Glass edging and polishing machines are essential components of the modern glass manufacturing ecosystem, enabling the production of safe, precise, and aesthetically pleasing glass products for a wide range of industries. From architectural facades to electronic displays, automotive windshields to solar panels, these machines play a critical role in shaping the functionality and appearance of glass, driving innovation and growth across sectors.

The industry has undergone significant transformation in recent years, with technological advancements in automation, digitization, and sustainability reshaping machine capabilities and market dynamics. Intelligent machines with AI-driven optimization, IoT connectivity, and robotic integration have improved precision, efficiency, and reliability, while sustainable technologies such as dry grinding and energy-efficient systems have reduced environmental impact. Domestic manufacturers have emerged as key players, challenging the dominance of international brands through technological innovation and cost competitiveness.

Looking ahead, the industry is poised for continued growth, driven by urbanization, industrialization, and the expansion of emerging technologies. The increasing demand for high-precision, multi-functional, and sustainable machines will drive R&D investment and innovation, while emerging markets will provide new growth opportunities. However, the industry must address challenges such as technological barriers, regulatory compliance, and talent shortages to realize its full potential.

In conclusion, glass edging and polishing machines will remain a critical enabler of the global glass industry, with their evolution closely tied to advancements in technology, changes in market demand, and global efforts toward sustainability. As the industry continues to innovate and adapt, these machines will play an increasingly important role in shaping the future of architecture, transportation, electronics, and renewable energy, contributing to a more efficient, sustainable, and connected world.





This article provides a holistic view of glass edging/polishing machines, integrating technical details, market data, and future trends. If you need to emphasize specific aspects—such as regional market analysis, technical comparisons of leading brands, or case studies of industrial applications—I can expand those sections with additional research. You may also request adjustments to the depth of technical content or focus on a particular industry segment (e.g., electronic glass processing) for more targeted insights.

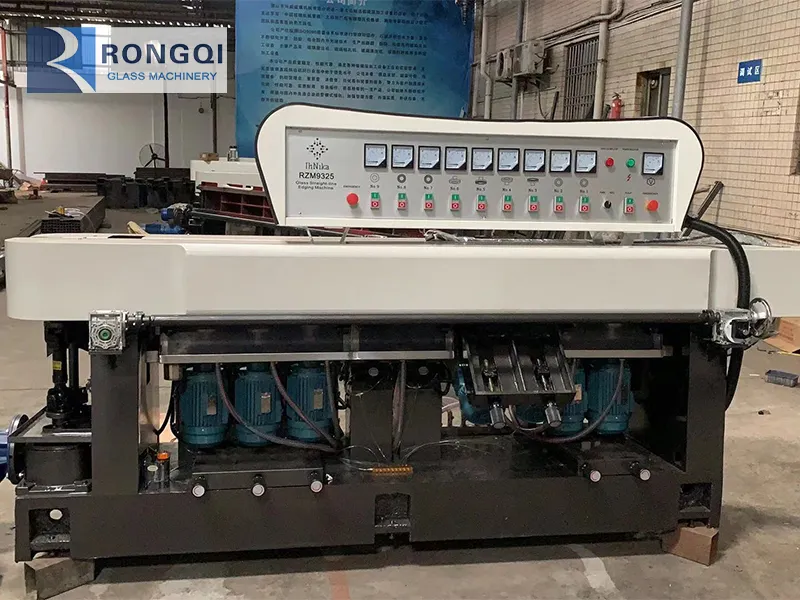

Pneumatic Straight Round 45 Degree Glass Edging Machine: A Comprehensive Technical Overview

Abstract

The Pneumatic Straight Round 45 Degree Glass Edging Machine stands as a pivotal piece of equipment in the modern glass processing industry, integrating pneumatic actuation, precision machining, and automated control technologies to deliver high-efficiency, high-precision edge treatment for flat glass. This article systematically elaborates on the machine’s structural design, working principle, core technical parameters, application scenarios, performance advantages, maintenance protocols, and future development trends. By analyzing its engineering innovations and industrial value, it aims to provide a theoretical and practical reference for glass processing enterprises, equipment manufacturers, and technical researchers, highlighting the machine’s role in advancing the automation, precision, and versatility of glass edge processing.

1. Introduction

With the rapid development of industries such as architectural decoration, automotive manufacturing, home appliances, and furniture production, the demand for flat glass products has grown exponentially, accompanied by increasingly stringent requirements for glass edge quality, processing efficiency, and product safety. Raw glass, after cutting, exhibits sharp, irregular edges with micro-cracks and burrs, which not only pose safety hazards during handling and installation but also reduce the mechanical strength and aesthetic appeal of the final product. Traditional manual edging and semi-automatic mechanical edging methods suffer from low efficiency, inconsistent precision, high labor intensity, and poor surface finish, failing to meet the mass production and high-quality standards of modern glass processing.

In response to these industry pain points, the Pneumatic Straight Round 45 Degree Glass Edging Machine has emerged as a specialized solution designed for continuous, one-pass processing of straight round edges and 45-degree chamfers on flat glass. Leveraging pneumatic systems for stable clamping, precise pressure control, and flexible spindle feeding, combined with multi-stage grinding and polishing mechanisms, the machine achieves integrated coarse grinding, fine grinding, chamfering, and polishing operations. It addresses the limitations of conventional edging equipment, offering superior stability, precision, and adaptability to diverse glass thicknesses and sizes. This article provides a comprehensive analysis of the machine’s technical characteristics, operational mechanisms, and industrial applications, exploring its contributions to the upgrading of glass processing technology and the optimization of production workflows.

2. Structural Design and Core Components

The Pneumatic Straight Round 45 Degree Glass Edging Machine features a robust, integrated structural design, consisting of a main frame, pneumatic clamping and feeding system, multi-spindle grinding and polishing unit, PLC control system, cooling and dust removal system, and glass conveying mechanism. Each component is engineered for synergistic operation, ensuring high precision, stability, and reliability during continuous processing.

2.1 Main Frame

The main frame serves as the structural foundation of the machine, typically fabricated from high-strength thick steel plates through precision welding and stress-relief annealing. This design eliminates deformation caused by long-term high-load operation, maintaining the geometric accuracy of the entire equipment. The frame is equipped with precision linear guide rails and ball screws for the grinding spindle movement, ensuring smooth, backlash-free motion of the grinding heads. The rigid frame structure also minimizes vibration during high-speed grinding, which is critical for preventing glass chipping and ensuring edge finish consistency. Some high-end models adopt a gantry-type structure to enhance stability when processing large-format glass sheets, with a load-bearing capacity of up to 700 kg, suitable for architectural and automotive glass applications.

2.2 Pneumatic Clamping and Feeding System

As the core feature distinguishing this machine from conventional mechanical edging equipment, the pneumatic system is responsible for glass clamping, spindle feeding, and pressure regulation. The system comprises an air compressor, air storage tank, precision pressure regulating valves, pneumatic cylinders, and pneumatic control valves.


Pneumatic Clamping Mechanism: Equipped with pneumatic clamping jaws lined with wear-resistant rubber or polyurethane, the system applies uniform, adjustable pressure (0.2–0.6 MPa) to secure glass sheets of varying thicknesses (3–25 mm) without surface damage. The pneumatic clamping ensures stable glass positioning during high-speed grinding, eliminating slippage and positional deviation. Compared with mechanical clamping, pneumatic clamping offers softer contact, reducing the risk of glass edge breakage and improving product yield.
Pneumatic Spindle Feeding: The grinding and polishing spindles are driven by pneumatic cylinders for radial feeding, with PLC-controlled precision pressure regulation. This allows real-time adjustment of the grinding wheel’s contact pressure with the glass edge, adapting to different glass hardnesses and processing requirements. The pneumatic feeding mechanism provides flexible, shock-free movement, avoiding excessive pressure that causes chipping and ensuring uniform material removal across the glass edge. High-end models feature independent pneumatic control for each spindle, enabling separate adjustment of grinding pressure for coarse grinding, fine grinding, and polishing stages.


2.3 Multi-Spindle Grinding and Polishing Unit

The grinding and polishing unit is the core execution component, typically configured with 9–11 spindles arranged in a linear sequence, each equipped with a dedicated grinding or polishing wheel for sequential processing. The spindle configuration is optimized for one-pass completion of coarse grinding, fine grinding, 45-degree chamfering, and polishing:


Coarse Grinding Spindles: The first two to three spindles are fitted with diamond cup wheels (grit size #100–#140) for rapid removal of sharp edges, burrs, and micro-cracks from the cut glass, forming the basic round edge profile. These spindles operate at high speeds (2800–3600 rpm) to ensure efficient material removal, with pneumatic pressure set to 0.4–0.6 MPa for stable cutting.
Fine Grinding Spindles: The middle three to four spindles use resin-bonded diamond wheels (grit size #230–#320) to refine the edge profile, eliminating coarse grinding marks and improving surface flatness. The pneumatic feeding pressure is reduced to 0.3–0.4 MPa to achieve precise material removal and edge uniformity.
45-Degree Chamfering Spindles: Dedicated spindles are angled at 45 degrees, equipped with specialized chamfering wheels to process the beveled edge synchronously with the round edge. The chamfer width is adjustable (0.5–3 mm) via the PLC control panel, meeting diverse design requirements for architectural glass, shower enclosures, and furniture glass.
Polishing Spindles: The final two to three spindles use cerium oxide polishing wheels or resin polishing wheels to achieve an optical-grade finish (surface roughness Ra ≤ 0.15 μm). The pneumatic pressure is further reduced to 0.2–0.3 MPa to ensure a smooth, scratch-free surface, eliminating the need for secondary polishing.


2.4 PLC Control System

The machine is equipped with a high-performance PLC (Programmable Logic Controller) paired with a touch-screen human-machine interface (HMI), enabling intelligent control of the entire processing workflow. The control system supports parameter setting (glass thickness, chamfer width, processing speed, grinding pressure), real-time monitoring (spindle speed, air pressure, processing status), fault diagnosis, and automatic alarm functions. Operators can store and recall processing parameters for different glass specifications, reducing setup time and improving production efficiency. The system also supports linkage with automatic glass loading and unloading equipment, facilitating integration into fully automated production lines. Advanced models feature Ethernet communication for remote monitoring, parameter optimization, and predictive maintenance, aligning with smart manufacturing trends.

2.5 Cooling and Dust Removal System

During grinding and polishing, the friction between the grinding wheel and glass generates high temperatures, which can cause thermal stress, edge cracking, or grinding wheel wear. The cooling system adopts a water circulation design, with precision nozzles spraying cooling liquid (pure water or specialized glass grinding coolant) directly onto the grinding contact area. This reduces temperature, lubricates the contact surface, and flushes away glass powder and debris. The dust removal system, integrated with the cooling circulation, filters and recycles the coolant, reducing water consumption and environmental pollution. High-efficiency filtration systems (filter precision ≤ 5 μm) prevent glass powder from clogging nozzles and damaging precision components, extending the service life of grinding wheels and spindles.

2.6 Glass Conveying Mechanism

The conveying mechanism consists of variable-speed conveyor belts, drive motors, and positioning sensors, ensuring stable, continuous glass feeding during processing. The conveyor speed is adjustable (0.8–6 m/min) via a frequency converter, matching the processing efficiency to different glass thicknesses and edge requirements. The conveyor surface is lined with anti-slip, wear-resistant materials to prevent glass scratching and slippage. Positioning sensors at the inlet and outlet detect glass position, automatically triggering clamping, grinding, and release operations, realizing unmanned continuous processing. The mechanism supports processing of glass sheets with minimum dimensions of 25 mm × 25 mm and maximum dimensions customized according to user needs, making it suitable for both small-scale precision parts and large-format architectural glass.

3. Working Principle

The operational logic of the Pneumatic Straight Round 45 Degree Glass Edging Machine is a highly coordinated sequence of pneumatic actuation, mechanical grinding, and electronic control, divided into five core stages: glass feeding and positioning, pneumatic clamping, multi-stage grinding and polishing, pneumatic release, and glass discharging.

3.1 Glass Feeding and Positioning

The operator places the cut flat glass sheet onto the inlet conveyor belt, which transports the glass to the positioning area. Photoelectric sensors detect the glass edge and send a signal to the PLC, which stops the conveyor and activates the pneumatic positioning cylinders to align the glass precisely with the grinding spindle axis. The positioning accuracy reaches ±0.01 mm, ensuring uniform edge processing across the entire glass sheet.

3.2 Pneumatic Clamping

Upon completion of positioning, the PLC triggers the pneumatic clamping system. The pneumatic cylinders extend to drive the clamping jaws, applying uniform pressure to secure the glass. The pressure is regulated by precision valves to match the glass thickness—thinner glass (3–5 mm) uses lower pressure (0.2–0.3 MPa) to avoid breakage, while thicker glass (12–25 mm) uses higher pressure (0.4–0.6 MPa) for stable fixation. The clamping action is completed within 0.5 seconds, ensuring rapid workflow progression.

3.3 Multi-Stage Grinding and Polishing

After clamping, the PLC activates the grinding spindles and conveying mechanism, with the glass moving linearly through the grinding unit at a set speed. The pneumatic feeding system drives each spindle to extend sequentially, with the grinding wheels making contact with the glass edge at pre-set pressures and angles:


Coarse Grinding Stage: The diamond cup wheels remove the sharp, irregular cut edge, forming a preliminary round profile and eliminating micro-cracks. The high-speed rotation of the spindles (3000–3600 rpm) ensures efficient material removal, while the cooling system sprays coolant to prevent overheating.
Fine Grinding Stage: The resin-bonded diamond wheels refine the edge profile, smoothing coarse grinding marks and improving dimensional accuracy. The spindle speed is adjusted to 2500–3000 rpm, and the pneumatic pressure is reduced to ensure precise material removal.
45-Degree Chamfering Stage: The angled chamfering wheels process the beveled edge synchronously with the round edge, with the chamfer width and angle controlled by the PLC via pneumatic cylinder stroke adjustment.
Polishing Stage: The polishing wheels perform final finishing, achieving a mirror-like surface finish. The spindle speed is reduced to 2000–2500 rpm, and the pneumatic pressure is minimized to avoid surface damage.


Throughout the process, the PLC monitors real-time parameters such as air pressure, spindle speed, and conveyor speed, automatically adjusting for deviations to ensure consistent processing quality. The cooling system operates continuously, flushing away debris and maintaining stable processing temperatures.

3.4 Pneumatic Release and Glass Discharging

Once the glass completes the entire grinding and polishing process and reaches the outlet area, the photoelectric sensor sends a completion signal to the PLC. The pneumatic clamping system retracts the cylinders, releasing the glass. The conveyor belt then transports the finished glass to the discharge area, ready for the next processing cycle or subsequent procedures (e.g., cleaning, tempering, laminating). The entire cycle is continuous, with a processing efficiency of 80–120 pieces per hour (for standard 12 mm thick glass), significantly higher than manual or semi-automatic methods.

4. Core Technical Parameters

The technical parameters of the Pneumatic Straight Round 45 Degree Glass Edging Machine define its processing capacity, precision, and adaptability, with key indicators as follows (typical for mainstream 9–11 spindle models):






Parameter Category
Specific Indicators
Value Range




Processing Scope
Applicable Glass Thickness
3–25 mm



Minimum Glass Size
25 mm × 25 mm



Maximum Glass Size
Customizable (up to 3000 mm × 2000 mm)



45-Degree Chamfer Width
0.5–3 mm


Processing Precision
Edge Dimensional Accuracy
±0.01 mm



Surface Roughness (Ra)
≤0.15 μm



Chamfer Angle Accuracy
±0.5°


Operational Parameters
Spindle Speed
2000–3600 rpm



Conveyor Speed
0.8–6 m/min



Pneumatic System Pressure
0.2–0.6 MPa



Compressed Air Consumption
<1 L/min


Power Parameters
Total Motor Power
19.5–25 kW



Power Supply
380 V/50 Hz, Three-Phase


Physical Dimensions
Length × Width × Height
7.0–7.5 m × 1.2 m × 2.6 m



Machine Weight
3000–4500 kg






These parameters reflect the machine’s balance of high precision and high efficiency, with the pneumatic system enabling flexible pressure adjustment to accommodate diverse glass types (float glass, tempered glass, laminated glass, Low-E glass) and processing requirements.

5. Industrial Applications

The Pneumatic Straight Round 45 Degree Glass Edging Machine’s versatility, precision, and efficiency make it widely applicable across multiple industries requiring high-quality flat glass edge processing, with key application scenarios as follows:

5.1 Architectural Decoration Industry

In architectural glass processing, the machine is used for edging and chamfering of curtain wall glass, partition glass, doors and windows glass, and shower room glass. The 45-degree chamfered edge enhances the aesthetic appeal of architectural glass, while the rounded edge improves safety and mechanical strength, complying with building safety standards. The machine’s ability to process large-format glass (up to 3000 mm × 2000 mm) meets the requirements of high-rise buildings and commercial complexes, with processing precision ensuring seamless installation of curtain wall glass. It is also used for processing glass railings, skylights, and decorative glass panels, providing smooth, safe edges for architectural interiors and exteriors.

5.2 Automotive Glass Manufacturing

Automotive glass (windshields, side windows, rear windows, sunroofs) requires high-precision edge processing to ensure sealing, safety, and compatibility with vehicle frames. The machine’s pneumatic clamping and precision grinding avoid glass deformation and chipping, critical for automotive safety glass. The 45-degree chamfering facilitates the installation of rubber seals and adhesives, improving the sealing performance and wind resistance of automotive glass. It is also used for processing sunroof glass and rearview mirror glass, meeting the strict dimensional and surface quality requirements of the automotive industry.

5.3 Home Appliances and Furniture Industry

In home appliance manufacturing, the machine processes glass panels for refrigerators, ovens, washing machines, and display screens, with rounded and chamfered edges enhancing product safety and aesthetics. For furniture, it is used for glass tabletops, cabinet doors, display cabinets, and decorative glass parts, providing smooth edges that prevent user injury and improve product durability. The machine’s ability to process small-sized glass (minimum 25 mm × 25 mm) makes it suitable for precision furniture components and small home appliance parts.

5.4 Electronic and Optical Glass Industry

For electronic glass (smartphone screens, tablet displays, TV panels) and optical glass (lens substrates, instrument glass), the machine’s high-precision polishing achieves an optical-grade surface finish (Ra ≤ 0.1 μm), meeting the requirements of light transmittance and surface smoothness. The pneumatic system’s low-pressure clamping avoids damage to thin electronic glass (3–5 mm), while the continuous processing ensures consistency for mass production of electronic components.

5.5 Solar Photovoltaic Industry

With the rapid development of the photovoltaic industry, the demand for high-quality photovoltaic glass has surged. The machine processes the edges of photovoltaic glass panels, eliminating micro-cracks and improving the mechanical strength and weather resistance of the glass. The 45-degree chamfering facilitates the lamination of photovoltaic modules, enhancing the sealing performance and service life of solar panels. Its high processing efficiency supports the mass production needs of photovoltaic glass manufacturing.

6. Performance Advantages

Compared with traditional mechanical edging machines, manual edging tools, and semi-automatic edging equipment, the Pneumatic Straight Round 45 Degree Glass Edging Machine offers distinct performance advantages, driving the upgrading of glass processing technology:

6.1 High Processing Precision and Consistency

The integration of pneumatic precision control, PLC automation, and linear guide rail transmission ensures edge dimensional accuracy of ±0.01 mm and chamfer angle accuracy of ±0.5°, far exceeding manual and semi-automatic methods. The uniform pneumatic clamping pressure and spindle feeding pressure eliminate positional deviation and uneven material removal, ensuring consistent edge quality across mass-produced glass sheets. The surface roughness after polishing reaches Ra ≤ 0.15 μm, meeting optical-grade requirements and reducing the need for secondary processing.

6.2 High Efficiency and Continuous Operation

The one-pass processing of coarse grinding, fine grinding, chamfering, and polishing eliminates the need for multiple clamping and repositioning, improving production efficiency by 30–50% compared with traditional methods. The automatic conveying and clamping system enables unmanned continuous operation, with a processing capacity of 80–120 pieces per hour (standard glass). The PLC’s parameter memory function reduces setup time for different glass specifications, further enhancing production flexibility and efficiency.

6.3 Wide Adaptability to Glass Specifications

The pneumatic system’s adjustable clamping pressure and spindle stroke, combined with variable conveyor speed, enable processing of glass thicknesses from 3 mm to 25 mm and sizes from 25 mm × 25 mm to large-format panels. The machine accommodates various glass types, including float glass, tempered glass, laminated glass, Low-E glass, and photovoltaic glass, making it suitable for diversified production needs of glass processing enterprises.

6.4 Enhanced Safety and Product Yield

The pneumatic clamping mechanism provides soft, uniform contact with the glass, reducing the risk of edge breakage and surface scratching compared with mechanical clamping. The cooling system’s real-time temperature control prevents thermal stress and glass cracking, while the multi-stage grinding process eliminates micro-cracks, improving the mechanical strength and safety of the finished glass. The product yield rate exceeds 99%, significantly reducing material waste and production costs.

6.5 Intelligent Control and Ease of Operation

The PLC touch-screen control system simplifies operation, with intuitive parameter setting and real-time monitoring. Operators can master equipment operation after basic training, reducing reliance on skilled workers. The fault diagnosis and automatic alarm functions enable timely detection and resolution of issues (e.g., air pressure anomalies, spindle overload, coolant blockage), reducing downtime. Advanced models support remote monitoring and maintenance, improving equipment management efficiency.

6.6 Low Maintenance and Long Service Life

The pneumatic system has a simple structure with few moving parts, reducing wear and maintenance requirements compared with complex mechanical transmission systems. The cooling and dust removal system minimizes grinding wheel wear and component contamination, extending the service life of grinding wheels (up to 12,000 hours for high-quality diamond wheels) and spindles. The main frame’s rigid, anti-deformation design ensures long-term dimensional stability, with a service life of over 10 years under proper maintenance.

7. Maintenance and Troubleshooting

To ensure the long-term stable operation and processing precision of the Pneumatic Straight Round 45 Degree Glass Edging Machine, standardized maintenance and timely troubleshooting are essential. The maintenance system is divided into daily, weekly, and monthly routines, with key measures as follows:

7.1 Daily Maintenance


Cleaning: After each shift, clean the machine surface, grinding spindles, conveyor belts, and cooling nozzles with compressed air and a lint-free cloth to remove glass powder and debris. Drain and replace the coolant in the circulation tank to prevent sludge buildup and nozzle clogging.
Inspection: Check the pneumatic system pressure, ensuring it remains within the 0.2–0.6 MPa range; inspect for air leaks at cylinder joints and valves. Verify the operation of photoelectric sensors and emergency stop buttons, ensuring their sensitivity. Check the grinding wheel wear, replacing wheels that are worn beyond the minimum diameter or show signs of chipping.
Lubrication: Apply a small amount of lubricating oil to linear guide rails and ball screws to ensure smooth movement, avoiding over-lubrication that attracts glass powder.


7.2 Weekly Maintenance


Pneumatic System Maintenance: Drain moisture from the air storage tank and replace the pneumatic filter element to ensure dry, clean compressed air. Inspect pneumatic cylinder seals, replacing damaged seals to prevent air leakage and pressure loss.
Spindle and Transmission Inspection: Check spindle runout (≤0.02 mm) and tighten spindle fixing screws. Inspect conveyor belt tension and alignment, adjusting as needed to prevent glass slippage. Test the PLC control system, calibrating parameter settings and ensuring normal communication between the HMI and PLC.
Cooling System Maintenance: Flush the coolant circulation pipeline and filter, removing accumulated glass powder and debris to ensure smooth coolant flow. Check the water pump pressure, replacing worn pump parts if necessary.


7.3 Monthly Maintenance


Comprehensive Component Inspection: Inspect the main frame for deformation or cracks, checking the tightness of all connecting bolts. Calibrate the grinding spindle angle and positioning accuracy, ensuring compliance with technical parameters. Test the emergency stop and safety interlock systems, ensuring they function reliably.
Electrical System Maintenance: Inspect electrical wiring, connectors, and motor insulation, replacing aging wires and damaged connectors. Check the PLC and HMI for software updates, installing patches to improve system stability.
Lubrication System Overhaul: Replace lubricating oil in gearboxes and bearing components, using high-grade industrial lubricants suitable for high-speed operation. Clean and lubricate pneumatic control valves to ensure flexible movement.


7.4 Common Troubleshooting


Uneven Edge Processing: Causes include uneven pneumatic clamping pressure, worn grinding wheels, or misaligned spindles. Solutions: Adjust pneumatic pressure regulators, replace worn grinding wheels, and calibrate spindle position via the PLC.
Glass Chipping During Processing: Causes include excessive grinding pressure, insufficient cooling, or glass positioning deviation. Solutions: Reduce pneumatic feeding pressure, check coolant nozzle blockage, and re-calibrate photoelectric positioning sensors.
Low Surface Finish After Polishing: Causes include worn polishing wheels, incorrect spindle speed, or contaminated coolant. Solutions: Replace polishing wheels, adjust spindle speed via the frequency converter, and replace the coolant.
Pneumatic System Pressure Loss: Causes include air leaks, damaged filter elements, or faulty pressure regulating valves. Solutions: Inspect and repair air leaks, replace filter elements, and calibrate or replace pressure regulating valves.
Conveyor Belt Slippage: Causes include worn conveyor belt lining, insufficient tension, or excessive glass weight. Solutions: Replace the conveyor belt lining, adjust belt tension, and ensure glass weight does not exceed the machine’s load capacity.


8. Future Development Trends

Driven by technological innovation and evolving industry demands, the Pneumatic Straight Round 45 Degree Glass Edging Machine is evolving toward higher intelligence, precision, energy efficiency, and versatility, with key development trends as follows:

8.1 Intelligent and Digital Upgrading

Future models will integrate artificial intelligence (AI), machine vision, and Internet of Things (IoT) technologies to achieve fully autonomous processing. Machine vision systems will automatically detect glass size, thickness, and edge defects, with AI algorithms optimizing processing parameters (grinding pressure, speed, chamfer size) in real time. IoT-enabled remote monitoring and predictive maintenance will enable real-time collection of equipment operating data, predicting component wear and faults to reduce downtime. Digital twin technology will simulate the processing workflow, optimizing production scheduling and improving overall equipment effectiveness (OEE).

8.2 Higher Precision and Ultra-Thin Glass Processing

With the development of electronic and optical industries, the demand for ultra-thin glass (≤2 mm) and higher precision processing will grow. Future machines will adopt micro-pneumatic control systems (pressure regulation accuracy ≤ 0.01 MPa) and high-precision spindles (runout ≤ 0.005 mm), achieving surface roughness Ra ≤ 0.05 μm. The grinding wheel material and manufacturing process will be upgraded, with nano-scale abrasive particles enabling ultra-precision polishing for optical and electronic glass applications.

8.3 Energy Conservation and Environmental Protection

In response to global energy conservation and emission reduction policies, future machines will adopt energy-efficient motors (permanent magnet synchronous motors) and variable-frequency control systems, reducing power consumption by 30–40% compared with current models. The cooling system will be optimized for closed-loop circulation with high-efficiency filtration, reducing water consumption by over 50%. Dust removal systems will integrate waste glass powder recycling technology, converting processing waste into reusable materials, realizing green and sustainable production.

8.4 Multi-Functional Integration and Flexible Manufacturing

To meet the demand for diversified glass processing, future machines will integrate multiple edging functions (round edge, 45-degree chamfer, bevel edge, duckbill edge) in a single unit, with quick-change grinding wheel modules reducing setup time to less than 15 minutes. The machine will support processing of irregular-shaped glass (in addition to flat glass) through flexible pneumatic clamping and multi-axis linkage spindles, adapting to customized production needs. Modular design will enable flexible configuration of spindles and functions, allowing enterprises to customize equipment according to their production scale and processing requirements.

8.5 Global Market Expansion and Localized Innovation

With the growth of the global glass processing market, especially in emerging economies (Southeast Asia, Latin America, Africa), the demand for cost-effective, high-performance edging equipment will increase. Domestic equipment manufacturers will accelerate technological innovation and product upgrading, improving product quality and brand influence to expand international market share. Localized R&D and production will be strengthened, adapting to regional processing standards and user needs, while establishing global after-sales service networks to enhance customer support.

9. Conclusion

The Pneumatic Straight Round 45 Degree Glass Edging Machine represents a significant advancement in glass processing technology, integrating pneumatic actuation, precision machining, and intelligent control to address the limitations of traditional edging methods. Its high precision, efficiency, adaptability, and safety make it an indispensable piece of equipment in architectural, automotive, home appliance, electronic, and photovoltaic glass processing, driving the upgrading of the glass processing industry toward automation, intelligence, and high quality.

With ongoing technological innovation and evolving market demands, the machine will continue to evolve in intelligence, precision, energy efficiency, and versatility, meeting the increasingly diverse and stringent requirements of glass products. For glass processing enterprises, adopting this advanced edging equipment is crucial for improving production efficiency, reducing costs, enhancing product quality, and gaining a competitive edge in the market. For equipment manufacturers, continuous R&D investment in core technologies (pneumatic control, precision spindles, intelligent systems) and localized innovation will be key to capturing market opportunities and promoting the sustainable development of the glass processing equipment industry.

Future research should focus on the integration of AI and machine vision in processing control, the development of ultra-precision grinding and polishing technologies, and the optimization of energy-saving and environmental protection systems, further unlocking the potential of the Pneumatic Straight Round 45 Degree Glass Edging Machine and promoting the high-quality development of the global glass processing industry.





The article is structured in a formal academic style, covering all key aspects of the machine. You can let me know if you need to adjust the length, emphasize specific sections (e.g., more technical details or application cases), or modify the tone.
