Glass Edging and Polishing Machines: Technological Evolution, Industrial Applications, and Future Trajectories

1. Introduction

Glass edging and polishing machines stand as indispensable pillars of modern glass manufacturing and processing industries, serving as the critical link between raw glass sheets and finished products that meet stringent safety, aesthetic, and functional standards. These specialized pieces of equipment transform the sharp, irregular edges of cut glass—marred by microcracks and structural inconsistencies—into smooth, precise, and visually refined surfaces through a series of controlled grinding, polishing, and finishing operations. As global demand for high-quality glass products surges across architectural, automotive, electronic, and renewable energy sectors, the role of glass edging and polishing machines has evolved from mere finishing tools to integral components of automated production lines, driving efficiency, precision, and innovation in the industry. This article provides a comprehensive analysis of the technological principles, product classifications, industrial applications, market dynamics, and future trends shaping the development of glass edging and polishing machines.

2. Core Technological Principles and Operational Mechanisms

2.1 Fundamental Processing Principles

At its essence, the operation of glass edging and polishing machines revolves around two primary objectives: eliminating structural vulnerabilities in glass edges and enhancing their surface quality. The processing workflow typically unfolds in three sequential stages—rough grinding, fine grinding, and polishing—each tailored to address specific defects and achieve desired outcomes.

Rough grinding constitutes the initial phase, where diamond-impregnated grinding wheels with coarse grit sizes (e.g., 80-mesh diamond wheels) remove excess material, sharp burrs, and microcracks generated during glass cutting. This stage primarily relies on brittle fracture mechanics, as the sharp edges of diamond particles initiate and propagate cracks in the glass matrix, resulting in the formation of debris that is efficiently cleared by cooling systems. The key technical challenge here is balancing material removal rate with structural integrity, as excessive grinding force can induce new cracks or edge chipping.

Fine grinding follows, employing medium-grit abrasive tools (e.g., 140–240-mesh resin-bonded wheels) to refine the edge profile, reduce surface roughness, and correct dimensional deviations. Unlike rough grinding, this stage involves a combination of brittle fracture and ductile deformation, with the grinding temperature rising to 500–800°C in the contact zone. This temperature elevation softens the glass surface, enabling a more uniform material removal process and minimizing the formation of new defects.

Polishing, the final stage, achieves the desired surface finish and luster using ultra-fine abrasives or polishing media (e.g., wool polishing wheels, cerium oxide slurries). The objective here is to eliminate residual scratches from previous grinding stages and achieve a surface roughness (Ra) of less than 0.2μm, often matching the optical clarity of the glass substrate itself. Modern polishing processes may incorporate chemical-mechanical polishing (CMP) techniques, where the synergistic action of chemical etching and mechanical abrasion yields superior surface quality while reducing processing time.

A critical aspect of all three stages is thermal management. Grinding and polishing generate significant heat—with localized temperatures at the abrasive-tool interface reaching up to 1000°C—which can cause glass edge burn, thermal cracking, or structural weakening. To mitigate these risks, glass edging and polishing machines are equipped with high-pressure water cooling systems that circulate coolant across the grinding zone, dissipating heat, flushing away debris, and lubricating the abrasive-tool interface. Advanced systems may also integrate temperature sensors and adaptive cooling controls to maintain optimal processing temperatures in real time.

2.2 Key Technical Components and Their Functions

Modern glass edging and polishing machines are sophisticated assemblies of mechanical, electrical, and control systems, each component contributing to precision, efficiency, and reliability.

The grinding head assembly serves as the core functional unit, comprising multiple grinding and polishing spindles arranged in a sequential configuration. For example, the TJM9 series linear multi-stage edging machine features nine spindles—including five stage-edge grinding heads, two front chamfering heads, and two rear chamfering heads—each dedicated to a specific processing task. These spindles are equipped with high-power motors (ranging from 1.5kW to 2.2kW) operating at variable speeds (1400–2840rpm), enabling precise control over material removal rates. The grinding heads are typically mounted on servo-driven linear guides, allowing for automated adjustments of edge angles (0°–60° for stage edges, 45° for chamfers), edge widths (up to 30mm), and residual thickness, ensuring versatility across different glass processing requirements.

The glass conveying system is responsible for transporting glass sheets through the processing zone with minimal friction and positional deviation. Advanced systems utilize reinforced synchronous belts to address the challenge of slipping when handling heavy glass panels, supporting loads of up to 200kg while maintaining stable conveying speeds (1.2–6.2m/min). The conveying path is often equipped with adjustable guide rails and vacuum suction cups to secure the glass and prevent lateral movement during processing, ensuring dimensional accuracy.

The control system has evolved significantly with the integration of digital and intelligent technologies. Modern machines feature CNC (Computer Numerical Control) systems with user-friendly HMI (Human-Machine Interface) panels, enabling operators to program and store processing parameters for different glass types, thicknesses (4–25mm for standard machines, 0.5–3mm for ultra-thin glass applications), and edge profiles. High-end models incorporate vision positioning systems and laser measurement sensors that perform real-time edge detection and dimensional verification, with feedback loops that automatically adjust processing parameters to compensate for deviations. Some advanced systems also leverage AI algorithms to optimize grinding parameters based on historical data, reducing processing time by up to 40% and lowering material waste rates to below 0.8%.

Auxiliary components include waterproof and debris management systems—such as double-layer brush waterproof structures and quick-change brush holders—to prevent coolant leakage and facilitate maintenance. The machine frame is constructed from high-strength steel to minimize vibration during high-speed operation, ensuring structural stability and processing precision. For large-scale production lines, automated loading and unloading systems (e.g., robotic arms, conveyor integration) may be incorporated to streamline workflow and reduce labor requirements.

3. Classification of Glass Edging and Polishing Machines

Glass edging and polishing machines are classified along multiple dimensions based on processing capabilities, automation levels, and application scenarios, reflecting the diverse needs of the glass processing industry.

3.1 Classification by Processing Form

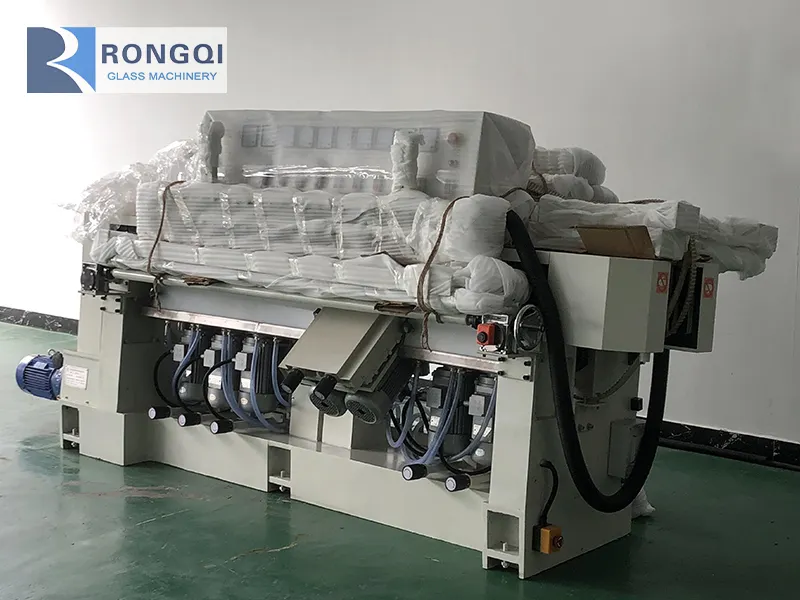

Linear Edging Machines: Designed for processing straight edges of flat glass sheets, these machines are widely used in architectural glass, furniture glass, and solar panel manufacturing. Linear machines can be further categorized into single-edge, double-edge, and multi-stage models. Double-edge machines process both longitudinal edges simultaneously, improving efficiency for high-volume production, while multi-stage models (e.g., the TJM9 series) integrate rough grinding, fine grinding, chamfering, and polishing in a single pass, enabling continuous processing of same-thickness glass sheets. Linear machines are characterized by their high processing speed and dimensional accuracy, making them ideal for large-scale production of standard glass products.



Inner/Outer Circle Edging Machines: Specialized for processing curved edges of circular, oval, or irregularly shaped glass, these machines are used in applications such as automotive glass (windshields, side windows), decorative glass, and optical components. Inner circle machines focus on grinding the inner diameter of hollow glass parts, while outer circle machines process the outer perimeter. Advanced models can handle complex curved profiles with high precision, leveraging CNC control to follow programmed paths with tolerances of ±0.03mm. The market for inner/outer circle machines is growing rapidly, driven by demand from the automotive and renewable energy sectors, with a projected compound annual growth rate (CAGR) of 17% for combined models.



Special-Shaped Edging Machines: Engineered to process non-linear, complex edge profiles (e.g., bevels, arcs, notches), these machines are used in high-end architectural glass, decorative glassware, and electronic device screens. They combine the capabilities of linear and circular edging machines, with multi-axis servo systems that enable precise control over edge geometry. Special-shaped machines often incorporate 3D scanning and modeling capabilities to process custom-designed profiles, catering to the growing demand for personalized glass products.




3.2 Classification by Automation Level



Manual/ Semi-Automatic Machines: These machines require significant operator intervention for glass loading, positioning, and parameter adjustment. Manual machines are typically small bench-top units suitable for small-scale workshops, custom projects, or low-volume production. Semi-automatic machines automate certain functions (e.g., conveying, grinding head adjustment) but still require operator oversight for quality control. While these machines have lower upfront costs, they are limited by lower processing speeds and higher labor requirements, making them less suitable for large-scale production. Semi-automatic machines maintain a 33% share of the 存量 market, primarily among small and medium-sized glass processing enterprises.



Fully Automatic Machines: These machines integrate automated loading, processing, inspection, and unloading, enabling continuous, high-volume production with minimal human intervention. Fully automatic machines are equipped with advanced control systems, vision sensors, and robotic integration, ensuring consistent processing quality and high efficiency. They are widely used in large glass manufacturing facilities serving the architectural, automotive, and electronic industries. The market share of fully automatic machines has exceeded 61%, with growth driven by the need for scalability and cost reduction in mass production. High-end fully automatic models may feature six-axis robotic arms for handling complex glass shapes and sizes, with a 稼动率 (equipment utilization rate) of up to 92%.



Intelligent/Connected Machines: Representing the cutting edge of technological advancement, these machines incorporate IoT (Internet of Things) connectivity, cloud computing, and AI-driven optimization. They can be remotely monitored and controlled, with predictive maintenance systems that detect potential component failures before they occur, reducing downtime by up to 30%. Intelligent machines also enable data collection and analysis, providing insights into processing efficiency, material usage, and quality trends. Some models feature digital twin technology, creating virtual replicas of the machine and processing process to simulate and optimize performance before physical implementation. The adoption of intelligent machines is accelerating, with 45% of new installations featuring IoT modules and 31% of high-end models utilizing linear motor drives for enhanced positioning precision.




3.3 Classification by Processing Thickness



Ultra-Thin Glass Edging Machines: Specialized for processing glass sheets with thicknesses of 0.5–3mm, these machines are used in electronic applications such as smartphone screens, tablet displays, and Mini LED backlight panels. Ultra-thin glass is highly fragile, requiring precise control over grinding forces and conveying pressure to avoid breakage. These machines feature low-torque spindles, soft-touch conveying systems, and high-precision vision alignment, ensuring edge quality without compromising structural integrity. The market for ultra-thin glass edging machines is growing rapidly, with a 29% year-on-year increase in shipments in 2023, driven by the expansion of the consumer electronics industry.



Medium-Thickness Glass Edging Machines: Designed for glass sheets of 5–12mm thickness, these are the most widely used machines, catering to architectural glass (windows, partitions), furniture glass, and general-purpose applications. They balance processing speed and precision, with standard models offering edge angle adjustments and multi-stage grinding/polishing capabilities. The market for medium-thickness machines is stable, with annual shipments of approximately 4200 units, supported by consistent demand from the construction and furniture industries.



Thick Glass Edging Machines: Specialized for glass sheets of 15–25mm (or thicker) used in applications such as glass doors, curtain walls, and bulletproof glass. These machines require high-power grinding heads and reinforced conveying systems to handle the increased weight and material resistance. They often feature multi-pass grinding sequences to ensure complete removal of microcracks and achieve the required edge strength. The demand for thick glass edging machines is closely tied to the construction of high-rise buildings and luxury properties, with significant growth in regions such as the Middle East and Southeast Asia.




4. Industrial Applications and Market Impact

Glass edging and polishing machines play a pivotal role in multiple industries, enabling the production of safe, durable, and aesthetically pleasing glass products. Their applications span architectural, automotive, electronic, renewable energy, and decorative sectors, each with unique processing requirements that drive innovation in machine design.

4.1 Architectural Glass Industry

The architectural glass sector represents the largest application market for edging and polishing machines, accounting for approximately 56.7% of total demand. Architectural glass—used in windows, curtain walls, interior partitions, and glass facades—requires edges that are both safe (free of sharpness) and visually consistent. In regions with strict building codes (e.g., North America, Europe), polished edges are a mandatory requirement to minimize injury risks during installation and use. High-end skyscrapers and luxury buildings often specify beveled or polished edges to enhance the aesthetic appeal of glass facades.

Linear multi-stage edging machines are the workhorses of architectural glass production, capable of processing large glass sheets (up to 3200×2200mm for solar-integrated facades) with high throughput. The integration of automated systems has significantly reduced labor costs and turnaround times, with some production lines achieving continuous processing of up to 6.2m/min. The growth of green building initiatives and building-integrated photovoltaics (BIPV) has spurred demand for specialized edging machines capable of processing curved and textured glass used in energy-efficient facades. It is projected that by 2030, the BIPV segment will drive a 15.8% share of the glass edging machine market, with a corresponding market size of 19 billion yuan.

4.2 Automotive Glass Industry

The automotive glass industry demands the highest levels of precision and durability, as glass components (windshields, side windows, rear windows, sunroofs) must withstand mechanical stress, temperature fluctuations, and impact. Edging and polishing machines used in this sector are specialized to process complex curved profiles and ensure tight dimensional tolerances (±0.03mm) to fit seamlessly with vehicle frames.

Automotive glass edging involves multiple steps, including rough grinding to remove cutting defects, fine grinding to refine the edge profile, and polishing to enhance durability. Chamfering is a critical process, as it eliminates sharp edges that could propagate cracks under impact. The rise of electric vehicles (EVs) and autonomous driving technologies has further driven innovation, with demand for large-format curved glass (e.g., panoramic sunroofs, integrated display screens) requiring multi-axis edging machines with 3D processing capabilities. Additionally, the use of lightweight, high-strength glass (e.g., lithium-aluminum-silicon glass) in EVs has necessitated the development of adaptive grinding systems that adjust parameters based on material properties. The automotive glass segment is expected to account for 18% of the glass edging machine market by 2030, with a CAGR of 8.9% driven by global EV adoption.

4.3 Electronic Glass Industry

The electronic glass industry—encompassing smartphone screens, tablet displays, laptop panels, and TV screens—relies on ultra-precise edging and polishing machines to process ultra-thin glass (0.5–3mm) with minimal material loss. Electronic glass edges must be smooth and free of microcracks to prevent breakage during device assembly and use, while also meeting strict flatness requirements to ensure optimal display performance.

Specialized ultra-thin glass edging machines are equipped with soft-touch conveying systems, low-force grinding heads, and high-resolution vision sensors to achieve surface roughness (Ra) below 0.2μm. The growth of 8K ultra-high-definition displays, Mini LED, and Micro LED technologies has increased demand for machines capable of processing large-format glass substrates (e.g., 8th-generation glass sheets) with ultra-fine edge profiles. Domestic manufacturers in China have made significant strides in this segment, with their market share in 8K display glass processing equipment rising from 28% in 2020 to 47% in 2023, driven by advancements in six-axis 联动 control systems. The electronic glass segment is projected to become the second-largest application market by 2030, accounting for 32% of total demand.

4.4 Renewable Energy (Solar Glass) Industry

The solar energy industry has emerged as a key growth driver for glass edging and polishing machines, with solar panels requiring high-transmittance glass covers with durable, weather-resistant edges. Solar glass edging primarily involves grinding to remove sharp corners and microcracks, improving structural integrity and longevity in outdoor environments. Most solar glass applications require rounded edges, which are typically processed using double-sided circular edging production lines that integrate rough grinding, fine grinding, and safety chamfering in a single pass.

The rapid expansion of solar energy capacity globally—particularly in regions such as Southeast Asia, the Middle East, and Latin America—has fueled demand for high-throughput solar glass edging machines. These machines are designed to process large glass sheets (up to 3200×2200mm) used in utility-scale solar farms, with processing speeds optimized to meet the high-volume production requirements of solar panel manufacturers. In 2023, shipments of solar-specific edging machines increased by 65% year-on-year, reflecting the strong growth of the solar energy industry. With the global push for carbon neutrality, this segment is expected to maintain robust growth, supported by policy incentives and declining solar panel costs.

5. Market Dynamics and Competitive Landscape

5.1 Global and Regional Market Overview

The global glass edging and polishing machine market has experienced steady growth in recent years, driven by urbanization, industrialization, and technological advancements. According to industry reports, the Chinese market—one of the largest globally—reached a size of 38.6 billion yuan in 2022 and is projected to exceed 52 billion yuan by 2025, representing a CAGR of 10.3%. The global market is expected to reach a value of 120 billion yuan by 2030, with a CAGR of 8.5–9.2% during the forecast period.

Regionally, the market is characterized by significant concentration in East Asia (China, Japan, South Korea), Europe (Germany, Italy, Spain), and North America (the United States, Canada). China dominates global production, accounting for over 58% of the world’s glass edging machine output, with domestic manufacturers such as North Glass and Luoyang North Glass leading the way. The Chinese market is further segmented by regional industrial clusters, with the Yangtze River Delta and Pearl River Delta regions contributing 72% of national 产能，supported by robust demand from the construction and electronics industries. The central and western regions of China are emerging as growth hubs, with 产能 expanding at a rate of 15.6% due to government subsidies for new energy industrial parks.

Overseas markets are also growing, with Chinese exports of glass edging machines exceeding 4.3 billion US dollars in 2022, a year-on-year increase of 21.7%. Southeast Asia is the largest export destination, accounting for 39% of total exports, followed by the Middle East (with demand surging by 62% due to smart city initiatives) and Europe. However, international trade faces challenges from evolving regulatory barriers, such as the EU’s CE certification 新规 that tightened noise standards from 85dB (A) to 78dB (A), forcing manufacturers to invest in acoustic simulation and noise reduction technologies.

5.2 Competitive Landscape and Key Players

The global glass edging and polishing machine market is highly competitive, with a mix of established international brands and rapidly growing domestic manufacturers. The competitive landscape is characterized by two distinct trends: 进口替代 in the high-end segment and price competition in the mid-range segment.

International brands such as Germany’s Bystronic and Austria’s Lisec have long dominated the high-end market, known for their precision, reliability, and advanced technology. These companies have traditionally held a strong position in industries such as automotive and high-end architectural glass, leveraging their expertise in CNC control and automation. However, in recent years, domestic manufacturers in China have made significant strides in technological innovation, narrowing the gap with international brands. For example, North Glass and Luoyang North Glass have developed six-axis 联动 control systems that achieve processing precision of ±0.03mm, enabling them to replace imported equipment in some high-end applications. As a result, the market share of domestic equipment in China has risen to 58%, with further growth expected in the coming years.

To counter the rise of domestic competitors, international brands have adopted localization strategies, such as establishing production facilities in China and adjusting their pricing. For instance, Lisec reduced the price of its mid-range models by 18% to penetrate second- and third-tier cities in China. In the mid-range market, domestic manufacturers face intense price competition, with product prices ranging from 280,000 to 450,000 yuan per unit, leading to a compression of average profit margins to 12.8%. To differentiate themselves, some domestic manufacturers are focusing on niche markets, such as ultra-thin glass edging or special-shaped glass processing, where they can leverage their agility and cost advantages.

The competitive landscape is also shaped by technological innovation and R&D investment. Key players are focusing on developing intelligent, energy-efficient machines to meet the growing demand for sustainable manufacturing. For example, the adoption of fifth-generation servo drive systems has reduced energy consumption by 25%, with single-unit annual power consumption dropping from 35,000 kWh to 26,000 kWh. Manufacturers are also investing in green technologies, such as dry grinding systems that eliminate the need for cooling water and reduce environmental impact. The market share of dry grinding machines is expected to reach 39% by 2025, up from 22% in 2022.

6. Technological Advancements and Innovation Trends

The glass edging and polishing machine industry is undergoing a period of rapid technological transformation, driven by advancements in automation, digitization, materials science, and sustainability. These innovations are reshaping the capabilities of machines, enabling higher precision, efficiency, and versatility while reducing environmental impact.

6.1 Intelligent and Automated Technologies

Intelligence and automation are the most significant trends in the industry, with machines becoming increasingly integrated with digital technologies. The adoption of IoT (Internet of Things) modules has enabled remote monitoring and management of machines, with 58% of new installations featuring cloud connectivity. This allows operators to track processing parameters, monitor machine health, and receive real-time alerts for maintenance or troubleshooting, reducing downtime by up to 30%. Remote diagnostic systems have also become common, enabling technical support teams to resolve issues without on-site visits, improving service efficiency.

AI and machine learning are being applied to optimize processing parameters and improve quality control. AI algorithms analyze historical processing data to identify optimal grinding speeds, pressures, and abrasive tool selections for different glass types and thicknesses, reducing processing time by 40% and material waste to below 0.8%. Vision-based quality inspection systems—equipped with high-resolution cameras and image recognition software—perform 100% inspection of finished edges, detecting defects such as microcracks, scratches, and dimensional deviations with accuracy rates exceeding 99%. These systems can automatically reject defective products or trigger adjustments to processing parameters, ensuring consistent quality.

The integration of robotics is another key advancement, particularly in high-volume production lines. Six-axis robotic arms are used for automated loading and unloading of glass sheets, reducing labor requirements and minimizing the risk of damage during handling. Some advanced systems feature collaborative robots (cobots) that work alongside human operators, performing repetitive tasks such as tool changing or quality inspection. The use of robotics has also enabled the processing of complex-shaped glass products that were previously difficult to handle manually.

6.2 Precision and Multi-Functionalization

The demand for higher precision in glass processing has driven advancements in machine design and component technology. Linear motor drives have replaced traditional ball screw systems in high-end machines, improving positioning accuracy by 0.8 orders of magnitude and enabling processing tolerances of ±0.01mm. This level of precision is critical for applications such as electronic glass and automotive display screens, where even minor dimensional deviations can affect performance.

Multi-functionalization is another key trend, with machines designed to perform multiple processing tasks in a single pass. For example, modern linear multi-stage edging machines integrate rough grinding, fine grinding, chamfering, and polishing, eliminating the need for multiple machines and reducing production time. Some advanced models can also process multiple edge profiles (e.g., straight edges, bevels, arcs) without retooling, enhancing versatility and reducing setup time. The development of hybrid machines that combine edging, polishing, and drilling capabilities is also emerging, catering to the needs of specialized applications such as architectural glass with integrated hardware.

6.3 Sustainable and Energy-Efficient Technologies

Sustainability has become a key focus in the industry, driven by global efforts to reduce carbon emissions and comply with environmental regulations. The Chinese government’s “Dual Carbon” policy and the EU’s Green Deal have set strict targets for energy efficiency and emissions reduction, pushing manufacturers to develop more sustainable machines.

Energy efficiency has been improved through the use of high-efficiency motors, variable frequency drives (VFDs), and optimized hydraulic and pneumatic systems. Fifth-generation servo motors reduce energy consumption by 25% compared to previous models, while VFDs adjust motor speeds based on processing requirements, avoiding unnecessary energy use. Some machines also feature regenerative braking systems that capture and reuse energy during deceleration, further reducing power consumption.

The development of dry grinding technology is a significant advancement in sustainability. Traditional wet grinding systems use large amounts of water (up to 100 liters per minute) for cooling and debris removal, generating wastewater that requires treatment. Dry grinding systems—equipped with dust collection and filtration systems—eliminate the need for water, reducing environmental impact and operational costs. These systems use advanced abrasive tools that generate less heat, minimizing the risk of glass damage, and are increasingly being adopted in regions with water scarcity or strict wastewater regulations. The market share of dry grinding machines is expected to grow from 22% in 2022 to 39% in 2025.

Waste reduction is another focus area, with machines designed to minimize material loss during processing. Precision cutting and grinding technologies reduce glass waste rates to below 0.8%, while abrasive tool recycling programs are being implemented to reduce landfill waste. Some manufacturers also offer equipment remanufacturing services, extending the lifecycle of machines and reducing the environmental impact of new production.

7. Challenges and Future Outlook

7.1 Current Industry Challenges

Despite significant advancements, the glass edging and polishing machine industry faces several challenges that could impact growth and innovation.

Technological barriers remain a key challenge, particularly in the high-end segment. Developing machines with ultra-precision (±0.01mm) and multi-functional capabilities requires advanced materials, precision manufacturing, and sophisticated control systems, which are difficult to master. Core components such as high-precision spindles, linear guides, and servo motors are still dominated by international suppliers, leading to dependence on imports and higher costs for domestic manufacturers. Closing the technological gap with international brands will require sustained R&D investment and collaboration between industry, academia, and research institutions.

Regulatory and trade barriers are also becoming more complex. As countries implement stricter environmental, safety, and quality standards, manufacturers must invest in compliance, which can increase production costs. For example, the EU’s new CE certification requirements for noise and emissions have forced manufacturers to redesign machines and conduct additional testing. International trade tensions and tariffs also pose risks, particularly for exporters, as they can increase costs and limit market access.

Talent shortages are a growing concern, with the industry facing a lack of skilled operators, engineers, and technicians. The integration of digital and intelligent technologies requires workers with expertise in CNC programming, IoT, AI, and robotics, which are in short supply. This skills gap can limit the adoption of advanced machines and affect operational efficiency. Addressing this challenge will require investment in vocational training programs and collaboration with educational institutions to develop specialized curricula.

7.2 Future Outlook and Development Trends

Despite these challenges, the future of the glass edging and polishing machine industry is promising, with several key trends expected to drive growth and innovation in the coming years.

Continued 智能化 and digitization will be the primary driver of growth, with machines becoming increasingly connected, autonomous, and data-driven. By 2028, it is projected that 90% of new machines will feature AI-driven process optimization, and 75% will be equipped with predictive maintenance systems. The integration of digital twin technology will enable manufacturers to simulate and optimize production processes before physical implementation, reducing time-to-market and improving product quality. The use of 5G technology will further enhance connectivity, enabling real-time data transmission and remote control with minimal latency.

Expansion of application areas will open new growth opportunities. The rise of emerging technologies such as 3D printing of glass, smart glass (e.g., electrochromic glass, self-cleaning glass), and quantum dot displays will create demand for specialized edging and polishing machines. For example, smart glass requires precise edge processing to integrate electronic components, while 3D-printed glass parts need complex curved edge finishing. The automotive industry’s shift toward electric and autonomous vehicles will drive demand for large-format curved glass and integrated display screens, requiring multi-axis edging machines with advanced 3D processing capabilities.

Sustainability will become a competitive advantage, with manufacturers focusing on developing energy-efficient, low-emission, and circular machines. The adoption of renewable energy sources (e.g., solar panels) to power machines, the use of biodegradable lubricants, and the implementation of closed-loop water systems will become more common. Governments and customers are increasingly prioritizing sustainable products, creating market opportunities for manufacturers that can demonstrate environmental leadership.

Global market expansion will continue, with emerging economies in Southeast Asia, Africa, and Latin America becoming key growth markets. Urbanization, industrialization, and the expansion of the construction and automotive industries in these regions will drive demand for glass edging and polishing machines. Domestic manufacturers in China and other major producers will continue to expand their global footprint through exports, joint ventures, and local production facilities, leveraging their cost advantages and technological capabilities.

8. Conclusion

Glass edging and polishing machines are essential components of the modern glass manufacturing ecosystem, enabling the production of safe, precise, and aesthetically pleasing glass products for a wide range of industries. From architectural facades to electronic displays, automotive windshields to solar panels, these machines play a critical role in shaping the functionality and appearance of glass, driving innovation and growth across sectors.

The industry has undergone significant transformation in recent years, with technological advancements in automation, digitization, and sustainability reshaping machine capabilities and market dynamics. Intelligent machines with AI-driven optimization, IoT connectivity, and robotic integration have improved precision, efficiency, and reliability, while sustainable technologies such as dry grinding and energy-efficient systems have reduced environmental impact. Domestic manufacturers have emerged as key players, challenging the dominance of international brands through technological innovation and cost competitiveness.

Looking ahead, the industry is poised for continued growth, driven by urbanization, industrialization, and the expansion of emerging technologies. The increasing demand for high-precision, multi-functional, and sustainable machines will drive R&D investment and innovation, while emerging markets will provide new growth opportunities. However, the industry must address challenges such as technological barriers, regulatory compliance, and talent shortages to realize its full potential.

In conclusion, glass edging and polishing machines will remain a critical enabler of the global glass industry, with their evolution closely tied to advancements in technology, changes in market demand, and global efforts toward sustainability. As the industry continues to innovate and adapt, these machines will play an increasingly important role in shaping the future of architecture, transportation, electronics, and renewable energy, contributing to a more efficient, sustainable, and connected world.





This article provides a holistic view of glass edging/polishing machines, integrating technical details, market data, and future trends. If you need to emphasize specific aspects—such as regional market analysis, technical comparisons of leading brands, or case studies of industrial applications—I can expand those sections with additional research. You may also request adjustments to the depth of technical content or focus on a particular industry segment (e.g., electronic glass processing) for more targeted insights.
