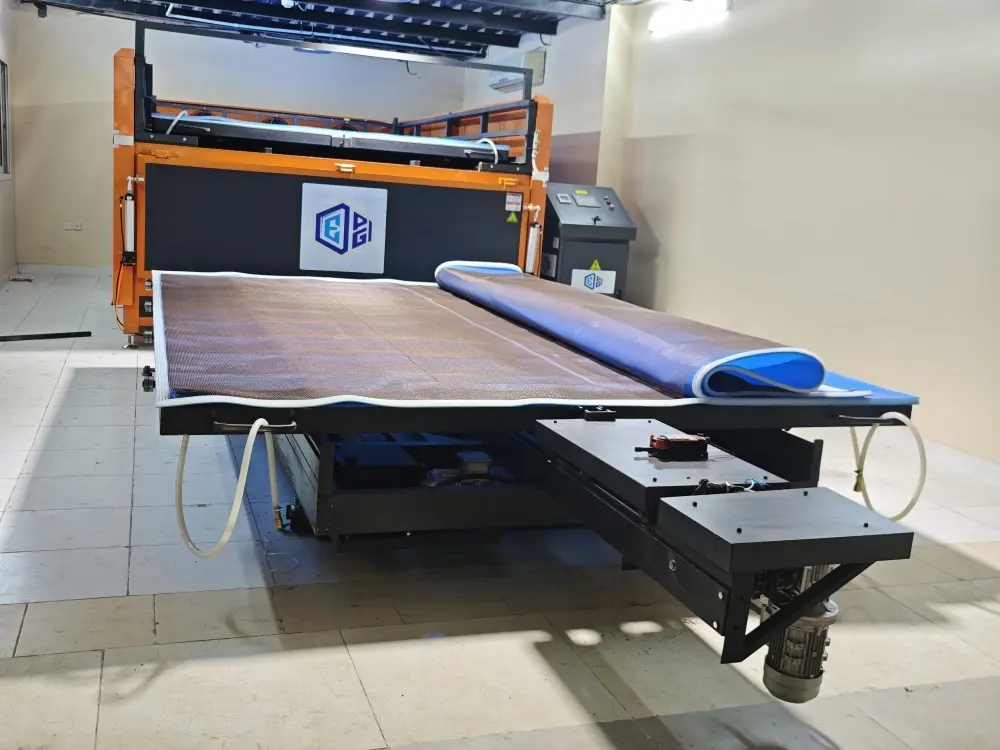

On August 26th, 2025, a high-performance Automatic Glass Laminating Machine with a production size of 2440*3660 was successfully installed and put into operation for one of our valued clients. The machine was commissioned to enhance the production efficiency and quality of laminated glass products, particularly focusing on the integration and clarity achieved with EVA film.

To rigorously verify the performance and output quality of the new system, the customer conducted a unique quality assurance test: they deliberately broke a laminated glass sample produced by the machine to inspect the internal structure, bonding strength, and overall uniformity. The results were exceptional. The laminated glass exhibited perfect adhesion, with no bubbles, delamination, or optical distortions. The EVA film used in the process proved to be highly durable, with excellent optical clarity and strong interlayer bonding, ensuring both safety and aesthetic quality.

The client’s boss was thoroughly impressed with the performance of the laminating machine and the superior quality of the EVA film. He emphasized that the equipment not only met but exceeded their expectations in terms of reliability, finish, and consistency. The test confirmed that the machine delivers high-precision laminating under exacting standards, making it an invaluable asset to their production line.

This successful installation and validation reflect our commitment to providing advanced laminating solutions and high-quality materials that build trust and deliver tangible results. We look forward to continuing our partnership and supporting their growth with innovative technology and reliable performance.

Air-Floating Inclined Glass Breaking Table: Engineering Principles, Technical Advantages, and Industrial Applications

1. Introduction

In the modern manufacturing landscape of flat-panel displays (FPD), photovoltaic (PV) modules, architectural glass, and automotive glazing, the demand for precise, non-destructive glass processing and strength testing has intensified. The Air-Floating Inclined Glass Breaking Table (AFIGBT) emerges as a pivotal innovation, integrating air-bearing technology, hydraulic tilting mechanisms, and pneumatic control systems to redefine the standards of glass handling, positioning, and fracture testing. Unlike conventional contact-based breaking tables that risk surface scratches, edge damage, or inconsistent stress distribution, the AFIGBT leverages non-contact air suspension to ensure uniform support, precise angular adjustment, and repeatable fracture initiation—critical for quality control in high-precision glass manufacturing. This article comprehensively explores the technical fundamentals, structural components, performance characteristics, industrial applications, and future development directions of the AFIGBT, shedding light on its transformative role in the global glass processing industry.

2. Core Technical Principles

2.1 Non-Contact Air Suspension Mechanism

The cornerstone of the AFIGBT lies in its air-floating system, which employs porous media technology to generate a stable, ultra-thin air film between the glass substrate and the table surface. Compressed air is forced through millions of sub-micron pores in a proprietary carbon or ceramic bearing surface, creating a uniform pressure distribution that lifts the glass off the table without physical contact . The thickness of this air film is precisely controllable, typically ranging from 10µm to 200µm, with a stability tolerance of ±5µm to ±20µm—sufficient to accommodate inherent flatness deviations of up to 5µm in glass substrates while maintaining optimal support rigidity . Contrary to traditional assumptions, thinner air films exhibit higher stiffness, enabling the AFIGBT to achieve sub-micron positioning resolution and rapid vibration damping—essential for minimizing structural deformation during the breaking process.

To prevent "skating" or lateral displacement of the glass during suspension, the system integrates a balanced vacuum-preload mechanism. By adjusting the ratio of air pressure and vacuum force, engineers can "lock" the glass in a stable spatial position, suppressing flutter and ensuring consistent alignment throughout the testing or processing cycle . This pressure-vacuum balance also facilitates glass flattening, reducing surface vibrations that could compromise the accuracy of fracture analysis. Notably, the porous media surface acts as a HEPA-like filter, preventing particle generation and making the system compatible with ISO Class 10 cleanroom environments—a critical requirement for FPD and semiconductor manufacturing .

2.2 Hydraulic Tilting Control System

The inclined functionality of the AFIGBT is enabled by a hydraulic actuation system, designed to deliver smooth, stable angular adjustment with precise position control. The hydraulic cylinder-driven tilting mechanism allows the table to rotate from a horizontal (0°) to a vertical (90°) position, with intermediate angle settings adjustable in increments as fine as 0.1°—catering to diverse testing standards and processing requirements. The hydraulic system’s high load-bearing capacity ensures stable operation even for large-format glass substrates, with table sizes ranging up to 2200mm × 3600mm to accommodate Gen 10+ FPD panels and oversized architectural glass sheets.

Key to the tilting system’s performance is its closed-loop feedback control, which utilizes linear displacement sensors and pressure transducers to monitor the table’s angle and load in real time. This enables dynamic adjustment of hydraulic flow rates, ensuring uniform acceleration and deceleration during tilting—preventing inertial forces from causing glass slippage or edge impact. Additionally, safety interlocks are integrated to halt operation if the tilt angle exceeds preset limits or if pressure loss is detected, mitigating the risk of equipment damage or operator injury.

2.3 Pneumatic Fracture Initiation Mechanism

The AFIGBT’s breaking system employs pneumatically controlled X and Y-axis breaking bars, activated via foot pedals or programmable logic controllers (PLCs) to initiate precise, localized fractures. These breaking bars are strategically positioned across the table surface, allowing for selective activation to target specific sections of the glass—enabling both full-panel breaking and segmented cutting for large-format substrates. The pneumatic actuation ensures rapid, consistent force application, with adjustable pressure settings to match the mechanical properties of different glass types (e.g., tempered glass, laminated glass, ultra-thin glass).

To enhance fracture accuracy, the breaking bars are equipped with precision-machined contact points that concentrate stress at predefined locations—replicating real-world failure scenarios while ensuring repeatable test results. The integration of the air-floating system with the breaking mechanism is critical: the non-contact support eliminates friction-induced stress variations, ensuring that the applied breaking force is uniformly distributed across the glass’s cross-section. This results in clean, predictable fractures that align with industry standards such as SEMI, CE, and ISO 9001.

3. Structural Components and Technical Specifications

3.1 Key Component Architecture

The AFIGBT comprises six core subsystems, each engineered for durability, precision, and seamless integration:

1. Heavy-Duty Metallic Frame: Constructed from high-strength steel with reinforced welds, the frame provides structural rigidity to withstand dynamic loads during tilting and breaking, with a design life exceeding 10,000 operating hours.

2. Air-Floating Platform: Modular porous media air-bearing panels (available in standard, precision, and ultra-precision variants) cover the table surface, with customizable configurations to accommodate different glass sizes and thicknesses (from 0.1mm to 20mm).

3. Air Supply System: A high-pressure compressor (3–5 kW) with pressure regulators, filters, and flow meters delivers clean, dry air (≤ -40°C dew point) to the air-bearing panels, ensuring consistent air film formation.

4. Hydraulic Tilting Unit: Double-acting hydraulic cylinders with servo valves, paired with a hydraulic power unit (380V/50Hz or 220V/60Hz), enable smooth angle adjustment with a tilting speed of 2–5° per second.

5. Pneumatic Breaking Assembly: 3–6 pneumatically controlled breaking bars (depending on table size) with adjustable stroke lengths (10–50mm) and force ranges (50–500N), synchronized via PLC for coordinated fracture initiation.

6. Control and Safety System: A touchscreen HMI (Human-Machine Interface) with PLC integration allows for program storage (up to 100 test protocols), real-time data visualization, and remote monitoring. Safety features include emergency stop buttons, pressure loss alarms, and interlocked access doors.

3.2 Critical Technical Parameters表格Parameter Specification Range Table Dimensions 1000mm×1000mm to 2200mm×3600mm Maximum Glass Size Up to 2000mm×1000mm (standard) / Gen 12+ compatible (custom) Glass Thickness Capacity 0.1mm–20mm Air Film Thickness 10µm–200µm Tilt Angle Range 0°–90° (adjustable in 0.1° increments) Breaking Force Adjustment 50N–500N Positioning Accuracy ±2µm (linear) / ±0.1° (angular) Operating Speed 2–3 m/s (glass transport) / 2–5°/s (tilting) Power Requirements 380V 3-phase 50Hz / 220V single-phase 60Hz (3–5 kW) Environmental Compatibility Temperature: 0°C–40°C; Humidity: <98% (non-condensing) Certifications CE, ROHS, ISO 9001, SEMI-compliant 4. Technical Advantages Over Conventional Systems4.1 Non-Contact Handling and Surface ProtectionUnlike mechanical conveyor belts or vacuum chucks that exert localized pressure on glass surfaces, the AFIGBT’s air-floating system eliminates physical contact, preventing scratches, micro-cracks, and contamination. This is particularly critical for high-value applications such as FPD substrates and PV solar panels, where surface integrity directly impacts product performance . The carbon or ceramic bearing surfaces are wear-resistant and particle-free, ensuring compatibility with cleanroom environments and reducing maintenance costs associated with contact-based components.4.2 Enhanced Precision and RepeatabilityThe combination of air-film stability, hydraulic tilting control, and pneumatic breaking mechanisms enables the AFIGBT to achieve fracture test repeatability within ±3%—a significant improvement over conventional tables (±8–12%). The sub-micron positioning resolution and uniform stress distribution ensure that each test replicates real-world conditions, providing reliable data on glass toughness, fracture energy, and failure modes. This precision is validated by compliance with international standards such as SEMI, which has adopted air-floating-based measurement models for glass quality assessment.4.3 Versatility and ScalabilityThe AFIGBT’s modular design allows for seamless customization to meet diverse industry needs. It supports multiple glass types (tempered, laminated, ultra-thin, AR-coated) and processing tasks, including strength testing, precision cutting, and edge quality inspection. The table’s compatibility with Gen 5 to Gen 12 glass substrates makes it suitable for small-scale laboratories and large-scale manufacturing facilities alike, with the ability to handle glass sizes up to 2200mm×3600mm and beyond with custom configurations.4.4 Operational Efficiency and SafetyThe AFIGBT’s automated loading/unloading systems, rapid test cycles (≤1000ms per measurement point), and data logging capabilities streamline quality control processes, reducing labor costs and increasing throughput. The hydraulic tilting system’s smooth operation minimizes glass breakage during handling, while the integrated safety features (pressure loss alarms, emergency stops, interlocks) ensure operator protection. Additionally, the low air consumption of porous media air bearings (measured in liters per hour rather than liters per minute) reduces energy costs compared to traditional air-bearing systems .5. Industrial Applications5.1 Flat-Panel Display (FPD) ManufacturingIn FPD production (LCD, OLED, microLED), the AFIGBT is used for post-processing quality control, including glass substrate strength testing, laser划片 alignment, and edge defect detection. The non-contact air suspension prevents damage to sensitive display layers, while the precise tilting and breaking mechanisms ensure clean, straight fractures during panel separation. The system’s compatibility with ISO Class 10 cleanrooms and sub-micron positioning accuracy makes it indispensable for Gen 10+ FPD facilities, where even minor surface defects can render panels defective .5.2 Photovoltaic (PV) Module ProductionFor solar glass (ultra-white embossed glass, AR-coated glass), the AFIGBT enables rapid measurement of spectral transmittance, fracture toughness, and edge strength—critical parameters for PV module efficiency and durability. The system’s ability to handle large-format glass sheets (up to 2000mm×1000mm) and perform multi-point testing allows manufacturers to assess spatial uniformity of mechanical properties, ensuring compliance with TAM1.5 and SEMI standards. The air-floating design also facilitates easy movement of heavy glass sheets, reducing handling time and breakage rates during production.5.3 Architectural and Automotive Glass ProcessingIn architectural glass manufacturing, the AFIGBT is used to test the breaking strength of tempered and laminated glass, ensuring compliance with building safety codes. The tilting function simulates real-world installation angles, allowing engineers to evaluate fracture behavior under gravitational loads. For automotive glass (windshields, side windows), the system performs impact resistance testing and precision cutting, with the non-contact handling preserving the glass’s optical clarity and structural integrity. The pneumatic breaking bars enable segmented cutting of complex shapes, supporting the production of curved and customized automotive glass components.5.4 Research and Development LaboratoriesAcademic and industrial R&D labs utilize the AFIGBT to study glass fracture mechanics, material fatigue, and the effects of coating technologies on mechanical performance. The system’s adjustable parameters (air film thickness, tilting angle, breaking force) allow researchers to replicate diverse environmental and loading conditions, generating data to optimize glass formulations and processing techniques. The integration of advanced sensors (strain gauges, high-speed cameras) enables real-time monitoring of fracture propagation, providing insights into crack initiation and growth mechanisms.6. Future Development Trends6.1 Integration of Smart Sensing and AIThe next generation of AFIGBT will incorporate advanced sensing technologies, including machine vision cameras, ultrasonic sensors, and fiber optic strain gauges, to enable real-time monitoring of glass deformation, stress distribution, and fracture dynamics. Artificial intelligence (AI) algorithms will analyze this data to predict failure points, optimize test parameters, and automate quality grading—reducing human intervention and improving testing accuracy. For example, AI-powered image recognition can identify micro-cracks before fracture, enabling proactive quality control in high-volume production lines.6.2 Miniaturization and High-Speed ProcessingAs the demand for ultra-thin glass (≤0.1mm) in wearable devices and flexible electronics grows, AFIGBT systems will be miniaturized to accommodate small-format substrates while maintaining high precision. Advances in micro-air-bearing technology will enable air film thicknesses below 10µm, supporting the handling of fragile, flexible glass without deformation. Additionally, improvements in hydraulic and pneumatic actuation will reduce test cycle times to <500ms per point, meeting the throughput requirements of next-generation electronics manufacturing.6.3 Energy Efficiency and SustainabilityFuture AFIGBT designs will focus on reducing energy consumption through the adoption of energy-efficient compressors, regenerative hydraulic systems, and low-power sensors. The use of recyclable materials in frame construction and biodegradable lubricants in hydraulic systems will align with global sustainability initiatives. Furthermore, the integration of solar-powered air supply systems will enable off-grid operation in remote manufacturing facilities, reducing carbon emissions.6.4 Interoperability with Industry 4.0 SystemsTo support smart manufacturing, AFIGBT systems will be equipped with Industrial Internet of Things (IIoT) connectivity, enabling seamless integration with MES (Manufacturing Execution Systems) and ERP (Enterprise Resource Planning) platforms. Real-time test data, equipment performance metrics, and maintenance alerts will be transmitted to cloud-based dashboards, allowing for remote monitoring, predictive maintenance, and process optimization. This interoperability will enable manufacturers to achieve end-to-end traceability of glass components, from raw material to finished product.7. ConclusionThe Air-Floating Inclined Glass Breaking Table represents a paradigm shift in glass processing and testing, combining non-contact air suspension, precise hydraulic tilting, and pneumatic fracture control to deliver unmatched precision, versatility, and efficiency. Its ability to protect glass surfaces, ensure repeatable test results, and accommodate diverse industry needs has made it an indispensable tool in FPD, PV, architectural, and automotive glass manufacturing. As technology advances, the integration of smart sensing, AI, and IIoT connectivity will further enhance the AFIGBT’s capabilities, driving innovation in glass processing and supporting the growth of high-precision manufacturing industries worldwide. By adhering to international standards and prioritizing sustainability, the AFIGBT is poised to remain a cornerstone of modern glass production, enabling manufacturers to meet the evolving demands of quality, efficiency, and environmental responsibility.

Glass Edging and Polishing Machines: Technological Evolution, Industrial Applications, and Future Trajectories

1. Introduction

Glass edging and polishing machines stand as indispensable pillars of modern glass manufacturing and processing industries, serving as the critical link between raw glass sheets and finished products that meet stringent safety, aesthetic, and functional standards. These specialized pieces of equipment transform the sharp, irregular edges of cut glass—marred by microcracks and structural inconsistencies—into smooth, precise, and visually refined surfaces through a series of controlled grinding, polishing, and finishing operations. As global demand for high-quality glass products surges across architectural, automotive, electronic, and renewable energy sectors, the role of glass edging and polishing machines has evolved from mere finishing tools to integral components of automated production lines, driving efficiency, precision, and innovation in the industry. This article provides a comprehensive analysis of the technological principles, product classifications, industrial applications, market dynamics, and future trends shaping the development of glass edging and polishing machines.

2. Core Technological Principles and Operational Mechanisms

2.1 Fundamental Processing Principles

At its essence, the operation of glass edging and polishing machines revolves around two primary objectives: eliminating structural vulnerabilities in glass edges and enhancing their surface quality. The processing workflow typically unfolds in three sequential stages—rough grinding, fine grinding, and polishing—each tailored to address specific defects and achieve desired outcomes.

Rough grinding constitutes the initial phase, where diamond-impregnated grinding wheels with coarse grit sizes (e.g., 80-mesh diamond wheels) remove excess material, sharp burrs, and microcracks generated during glass cutting. This stage primarily relies on brittle fracture mechanics, as the sharp edges of diamond particles initiate and propagate cracks in the glass matrix, resulting in the formation of debris that is efficiently cleared by cooling systems. The key technical challenge here is balancing material removal rate with structural integrity, as excessive grinding force can induce new cracks or edge chipping.

Fine grinding follows, employing medium-grit abrasive tools (e.g., 140–240-mesh resin-bonded wheels) to refine the edge profile, reduce surface roughness, and correct dimensional deviations. Unlike rough grinding, this stage involves a combination of brittle fracture and ductile deformation, with the grinding temperature rising to 500–800°C in the contact zone. This temperature elevation softens the glass surface, enabling a more uniform material removal process and minimizing the formation of new defects.

Polishing, the final stage, achieves the desired surface finish and luster using ultra-fine abrasives or polishing media (e.g., wool polishing wheels, cerium oxide slurries). The objective here is to eliminate residual scratches from previous grinding stages and achieve a surface roughness (Ra) of less than 0.2μm, often matching the optical clarity of the glass substrate itself. Modern polishing processes may incorporate chemical-mechanical polishing (CMP) techniques, where the synergistic action of chemical etching and mechanical abrasion yields superior surface quality while reducing processing time.

A critical aspect of all three stages is thermal management. Grinding and polishing generate significant heat—with localized temperatures at the abrasive-tool interface reaching up to 1000°C—which can cause glass edge burn, thermal cracking, or structural weakening. To mitigate these risks, glass edging and polishing machines are equipped with high-pressure water cooling systems that circulate coolant across the grinding zone, dissipating heat, flushing away debris, and lubricating the abrasive-tool interface. Advanced systems may also integrate temperature sensors and adaptive cooling controls to maintain optimal processing temperatures in real time.

2.2 Key Technical Components and Their Functions

Modern glass edging and polishing machines are sophisticated assemblies of mechanical, electrical, and control systems, each component contributing to precision, efficiency, and reliability.

The grinding head assembly serves as the core functional unit, comprising multiple grinding and polishing spindles arranged in a sequential configuration. For example, the TJM9 series linear multi-stage edging machine features nine spindles—including five stage-edge grinding heads, two front chamfering heads, and two rear chamfering heads—each dedicated to a specific processing task. These spindles are equipped with high-power motors (ranging from 1.5kW to 2.2kW) operating at variable speeds (1400–2840rpm), enabling precise control over material removal rates. The grinding heads are typically mounted on servo-driven linear guides, allowing for automated adjustments of edge angles (0°–60° for stage edges, 45° for chamfers), edge widths (up to 30mm), and residual thickness, ensuring versatility across different glass processing requirements.

The glass conveying system is responsible for transporting glass sheets through the processing zone with minimal friction and positional deviation. Advanced systems utilize reinforced synchronous belts to address the challenge of slipping when handling heavy glass panels, supporting loads of up to 200kg while maintaining stable conveying speeds (1.2–6.2m/min). The conveying path is often equipped with adjustable guide rails and vacuum suction cups to secure the glass and prevent lateral movement during processing, ensuring dimensional accuracy.

The control system has evolved significantly with the integration of digital and intelligent technologies. Modern machines feature CNC (Computer Numerical Control) systems with user-friendly HMI (Human-Machine Interface) panels, enabling operators to program and store processing parameters for different glass types, thicknesses (4–25mm for standard machines, 0.5–3mm for ultra-thin glass applications), and edge profiles. High-end models incorporate vision positioning systems and laser measurement sensors that perform real-time edge detection and dimensional verification, with feedback loops that automatically adjust processing parameters to compensate for deviations. Some advanced systems also leverage AI algorithms to optimize grinding parameters based on historical data, reducing processing time by up to 40% and lowering material waste rates to below 0.8%.

Auxiliary components include waterproof and debris management systems—such as double-layer brush waterproof structures and quick-change brush holders—to prevent coolant leakage and facilitate maintenance. The machine frame is constructed from high-strength steel to minimize vibration during high-speed operation, ensuring structural stability and processing precision. For large-scale production lines, automated loading and unloading systems (e.g., robotic arms, conveyor integration) may be incorporated to streamline workflow and reduce labor requirements.

3. Classification of Glass Edging and Polishing Machines

Glass edging and polishing machines are classified along multiple dimensions based on processing capabilities, automation levels, and application scenarios, reflecting the diverse needs of the glass processing industry.

3.1 Classification by Processing Form



Linear Edging Machines: Designed for processing straight edges of flat glass sheets, these machines are widely used in architectural glass, furniture glass, and solar panel manufacturing. Linear machines can be further categorized into single-edge, double-edge, and multi-stage models. Double-edge machines process both longitudinal edges simultaneously, improving efficiency for high-volume production, while multi-stage models (e.g., the TJM9 series) integrate rough grinding, fine grinding, chamfering, and polishing in a single pass, enabling continuous processing of same-thickness glass sheets. Linear machines are characterized by their high processing speed and dimensional accuracy, making them ideal for large-scale production of standard glass products.



Inner/Outer Circle Edging Machines: Specialized for processing curved edges of circular, oval, or irregularly shaped glass, these machines are used in applications such as automotive glass (windshields, side windows), decorative glass, and optical components. Inner circle machines focus on grinding the inner diameter of hollow glass parts, while outer circle machines process the outer perimeter. Advanced models can handle complex curved profiles with high precision, leveraging CNC control to follow programmed paths with tolerances of ±0.03mm. The market for inner/outer circle machines is growing rapidly, driven by demand from the automotive and renewable energy sectors, with a projected compound annual growth rate (CAGR) of 17% for combined models.



Special-Shaped Edging Machines: Engineered to process non-linear, complex edge profiles (e.g., bevels, arcs, notches), these machines are used in high-end architectural glass, decorative glassware, and electronic device screens. They combine the capabilities of linear and circular edging machines, with multi-axis servo systems that enable precise control over edge geometry. Special-shaped machines often incorporate 3D scanning and modeling capabilities to process custom-designed profiles, catering to the growing demand for personalized glass products.




3.2 Classification by Automation Level



Manual/ Semi-Automatic Machines: These machines require significant operator intervention for glass loading, positioning, and parameter adjustment. Manual machines are typically small bench-top units suitable for small-scale workshops, custom projects, or low-volume production. Semi-automatic machines automate certain functions (e.g., conveying, grinding head adjustment) but still require operator oversight for quality control. While these machines have lower upfront costs, they are limited by lower processing speeds and higher labor requirements, making them less suitable for large-scale production. Semi-automatic machines maintain a 33% share of the 存量 market, primarily among small and medium-sized glass processing enterprises.



Fully Automatic Machines: These machines integrate automated loading, processing, inspection, and unloading, enabling continuous, high-volume production with minimal human intervention. Fully automatic machines are equipped with advanced control systems, vision sensors, and robotic integration, ensuring consistent processing quality and high efficiency. They are widely used in large glass manufacturing facilities serving the architectural, automotive, and electronic industries. The market share of fully automatic machines has exceeded 61%, with growth driven by the need for scalability and cost reduction in mass production. High-end fully automatic models may feature six-axis robotic arms for handling complex glass shapes and sizes, with a 稼动率 (equipment utilization rate) of up to 92%.



Intelligent/Connected Machines: Representing the cutting edge of technological advancement, these machines incorporate IoT (Internet of Things) connectivity, cloud computing, and AI-driven optimization. They can be remotely monitored and controlled, with predictive maintenance systems that detect potential component failures before they occur, reducing downtime by up to 30%. Intelligent machines also enable data collection and analysis, providing insights into processing efficiency, material usage, and quality trends. Some models feature digital twin technology, creating virtual replicas of the machine and processing process to simulate and optimize performance before physical implementation. The adoption of intelligent machines is accelerating, with 45% of new installations featuring IoT modules and 31% of high-end models utilizing linear motor drives for enhanced positioning precision.




3.3 Classification by Processing Thickness



Ultra-Thin Glass Edging Machines: Specialized for processing glass sheets with thicknesses of 0.5–3mm, these machines are used in electronic applications such as smartphone screens, tablet displays, and Mini LED backlight panels. Ultra-thin glass is highly fragile, requiring precise control over grinding forces and conveying pressure to avoid breakage. These machines feature low-torque spindles, soft-touch conveying systems, and high-precision vision alignment, ensuring edge quality without compromising structural integrity. The market for ultra-thin glass edging machines is growing rapidly, with a 29% year-on-year increase in shipments in 2023, driven by the expansion of the consumer electronics industry.



Medium-Thickness Glass Edging Machines: Designed for glass sheets of 5–12mm thickness, these are the most widely used machines, catering to architectural glass (windows, partitions), furniture glass, and general-purpose applications. They balance processing speed and precision, with standard models offering edge angle adjustments and multi-stage grinding/polishing capabilities. The market for medium-thickness machines is stable, with annual shipments of approximately 4200 units, supported by consistent demand from the construction and furniture industries.



Thick Glass Edging Machines: Specialized for glass sheets of 15–25mm (or thicker) used in applications such as glass doors, curtain walls, and bulletproof glass. These machines require high-power grinding heads and reinforced conveying systems to handle the increased weight and material resistance. They often feature multi-pass grinding sequences to ensure complete removal of microcracks and achieve the required edge strength. The demand for thick glass edging machines is closely tied to the construction of high-rise buildings and luxury properties, with significant growth in regions such as the Middle East and Southeast Asia.




4. Industrial Applications and Market Impact

Glass edging and polishing machines play a pivotal role in multiple industries, enabling the production of safe, durable, and aesthetically pleasing glass products. Their applications span architectural, automotive, electronic, renewable energy, and decorative sectors, each with unique processing requirements that drive innovation in machine design.

4.1 Architectural Glass Industry

The architectural glass sector represents the largest application market for edging and polishing machines, accounting for approximately 56.7% of total demand. Architectural glass—used in windows, curtain walls, interior partitions, and glass facades—requires edges that are both safe (free of sharpness) and visually consistent. In regions with strict building codes (e.g., North America, Europe), polished edges are a mandatory requirement to minimize injury risks during installation and use. High-end skyscrapers and luxury buildings often specify beveled or polished edges to enhance the aesthetic appeal of glass facades.

Linear multi-stage edging machines are the workhorses of architectural glass production, capable of processing large glass sheets (up to 3200×2200mm for solar-integrated facades) with high throughput. The integration of automated systems has significantly reduced labor costs and turnaround times, with some production lines achieving continuous processing of up to 6.2m/min. The growth of green building initiatives and building-integrated photovoltaics (BIPV) has spurred demand for specialized edging machines capable of processing curved and textured glass used in energy-efficient facades. It is projected that by 2030, the BIPV segment will drive a 15.8% share of the glass edging machine market, with a corresponding market size of 19 billion yuan.

4.2 Automotive Glass Industry

The automotive glass industry demands the highest levels of precision and durability, as glass components (windshields, side windows, rear windows, sunroofs) must withstand mechanical stress, temperature fluctuations, and impact. Edging and polishing machines used in this sector are specialized to process complex curved profiles and ensure tight dimensional tolerances (±0.03mm) to fit seamlessly with vehicle frames.

Automotive glass edging involves multiple steps, including rough grinding to remove cutting defects, fine grinding to refine the edge profile, and polishing to enhance durability. Chamfering is a critical process, as it eliminates sharp edges that could propagate cracks under impact. The rise of electric vehicles (EVs) and autonomous driving technologies has further driven innovation, with demand for large-format curved glass (e.g., panoramic sunroofs, integrated display screens) requiring multi-axis edging machines with 3D processing capabilities. Additionally, the use of lightweight, high-strength glass (e.g., lithium-aluminum-silicon glass) in EVs has necessitated the development of adaptive grinding systems that adjust parameters based on material properties. The automotive glass segment is expected to account for 18% of the glass edging machine market by 2030, with a CAGR of 8.9% driven by global EV adoption.

4.3 Electronic Glass Industry

The electronic glass industry—encompassing smartphone screens, tablet displays, laptop panels, and TV screens—relies on ultra-precise edging and polishing machines to process ultra-thin glass (0.5–3mm) with minimal material loss. Electronic glass edges must be smooth and free of microcracks to prevent breakage during device assembly and use, while also meeting strict flatness requirements to ensure optimal display performance.

Specialized ultra-thin glass edging machines are equipped with soft-touch conveying systems, low-force grinding heads, and high-resolution vision sensors to achieve surface roughness (Ra) below 0.2μm. The growth of 8K ultra-high-definition displays, Mini LED, and Micro LED technologies has increased demand for machines capable of processing large-format glass substrates (e.g., 8th-generation glass sheets) with ultra-fine edge profiles. Domestic manufacturers in China have made significant strides in this segment, with their market share in 8K display glass processing equipment rising from 28% in 2020 to 47% in 2023, driven by advancements in six-axis 联动 control systems. The electronic glass segment is projected to become the second-largest application market by 2030, accounting for 32% of total demand.

4.4 Renewable Energy (Solar Glass) Industry

The solar energy industry has emerged as a key growth driver for glass edging and polishing machines, with solar panels requiring high-transmittance glass covers with durable, weather-resistant edges. Solar glass edging primarily involves grinding to remove sharp corners and microcracks, improving structural integrity and longevity in outdoor environments. Most solar glass applications require rounded edges, which are typically processed using double-sided circular edging production lines that integrate rough grinding, fine grinding, and safety chamfering in a single pass.

The rapid expansion of solar energy capacity globally—particularly in regions such as Southeast Asia, the Middle East, and Latin America—has fueled demand for high-throughput solar glass edging machines. These machines are designed to process large glass sheets (up to 3200×2200mm) used in utility-scale solar farms, with processing speeds optimized to meet the high-volume production requirements of solar panel manufacturers. In 2023, shipments of solar-specific edging machines increased by 65% year-on-year, reflecting the strong growth of the solar energy industry. With the global push for carbon neutrality, this segment is expected to maintain robust growth, supported by policy incentives and declining solar panel costs.

5. Market Dynamics and Competitive Landscape

5.1 Global and Regional Market Overview

The global glass edging and polishing machine market has experienced steady growth in recent years, driven by urbanization, industrialization, and technological advancements. According to industry reports, the Chinese market—one of the largest globally—reached a size of 38.6 billion yuan in 2022 and is projected to exceed 52 billion yuan by 2025, representing a CAGR of 10.3%. The global market is expected to reach a value of 120 billion yuan by 2030, with a CAGR of 8.5–9.2% during the forecast period.

Regionally, the market is characterized by significant concentration in East Asia (China, Japan, South Korea), Europe (Germany, Italy, Spain), and North America (the United States, Canada). China dominates global production, accounting for over 58% of the world’s glass edging machine output, with domestic manufacturers such as North Glass and Luoyang North Glass leading the way. The Chinese market is further segmented by regional industrial clusters, with the Yangtze River Delta and Pearl River Delta regions contributing 72% of national 产能，supported by robust demand from the construction and electronics industries. The central and western regions of China are emerging as growth hubs, with 产能 expanding at a rate of 15.6% due to government subsidies for new energy industrial parks.

Overseas markets are also growing, with Chinese exports of glass edging machines exceeding 4.3 billion US dollars in 2022, a year-on-year increase of 21.7%. Southeast Asia is the largest export destination, accounting for 39% of total exports, followed by the Middle East (with demand surging by 62% due to smart city initiatives) and Europe. However, international trade faces challenges from evolving regulatory barriers, such as the EU’s CE certification 新规 that tightened noise standards from 85dB (A) to 78dB (A), forcing manufacturers to invest in acoustic simulation and noise reduction technologies.

5.2 Competitive Landscape and Key Players

The global glass edging and polishing machine market is highly competitive, with a mix of established international brands and rapidly growing domestic manufacturers. The competitive landscape is characterized by two distinct trends: 进口替代 in the high-end segment and price competition in the mid-range segment.

International brands such as Germany’s Bystronic and Austria’s Lisec have long dominated the high-end market, known for their precision, reliability, and advanced technology. These companies have traditionally held a strong position in industries such as automotive and high-end architectural glass, leveraging their expertise in CNC control and automation. However, in recent years, domestic manufacturers in China have made significant strides in technological innovation, narrowing the gap with international brands. For example, North Glass and Luoyang North Glass have developed six-axis 联动 control systems that achieve processing precision of ±0.03mm, enabling them to replace imported equipment in some high-end applications. As a result, the market share of domestic equipment in China has risen to 58%, with further growth expected in the coming years.

To counter the rise of domestic competitors, international brands have adopted localization strategies, such as establishing production facilities in China and adjusting their pricing. For instance, Lisec reduced the price of its mid-range models by 18% to penetrate second- and third-tier cities in China. In the mid-range market, domestic manufacturers face intense price competition, with product prices ranging from 280,000 to 450,000 yuan per unit, leading to a compression of average profit margins to 12.8%. To differentiate themselves, some domestic manufacturers are focusing on niche markets, such as ultra-thin glass edging or special-shaped glass processing, where they can leverage their agility and cost advantages.

The competitive landscape is also shaped by technological innovation and R&D investment. Key players are focusing on developing intelligent, energy-efficient machines to meet the growing demand for sustainable manufacturing. For example, the adoption of fifth-generation servo drive systems has reduced energy consumption by 25%, with single-unit annual power consumption dropping from 35,000 kWh to 26,000 kWh. Manufacturers are also investing in green technologies, such as dry grinding systems that eliminate the need for cooling water and reduce environmental impact. The market share of dry grinding machines is expected to reach 39% by 2025, up from 22% in 2022.

6. Technological Advancements and Innovation Trends

The glass edging and polishing machine industry is undergoing a period of rapid technological transformation, driven by advancements in automation, digitization, materials science, and sustainability. These innovations are reshaping the capabilities of machines, enabling higher precision, efficiency, and versatility while reducing environmental impact.

6.1 Intelligent and Automated Technologies

Intelligence and automation are the most significant trends in the industry, with machines becoming increasingly integrated with digital technologies. The adoption of IoT (Internet of Things) modules has enabled remote monitoring and management of machines, with 58% of new installations featuring cloud connectivity. This allows operators to track processing parameters, monitor machine health, and receive real-time alerts for maintenance or troubleshooting, reducing downtime by up to 30%. Remote diagnostic systems have also become common, enabling technical support teams to resolve issues without on-site visits, improving service efficiency.

AI and machine learning are being applied to optimize processing parameters and improve quality control. AI algorithms analyze historical processing data to identify optimal grinding speeds, pressures, and abrasive tool selections for different glass types and thicknesses, reducing processing time by 40% and material waste to below 0.8%. Vision-based quality inspection systems—equipped with high-resolution cameras and image recognition software—perform 100% inspection of finished edges, detecting defects such as microcracks, scratches, and dimensional deviations with accuracy rates exceeding 99%. These systems can automatically reject defective products or trigger adjustments to processing parameters, ensuring consistent quality.

The integration of robotics is another key advancement, particularly in high-volume production lines. Six-axis robotic arms are used for automated loading and unloading of glass sheets, reducing labor requirements and minimizing the risk of damage during handling. Some advanced systems feature collaborative robots (cobots) that work alongside human operators, performing repetitive tasks such as tool changing or quality inspection. The use of robotics has also enabled the processing of complex-shaped glass products that were previously difficult to handle manually.

6.2 Precision and Multi-Functionalization

The demand for higher precision in glass processing has driven advancements in machine design and component technology. Linear motor drives have replaced traditional ball screw systems in high-end machines, improving positioning accuracy by 0.8 orders of magnitude and enabling processing tolerances of ±0.01mm. This level of precision is critical for applications such as electronic glass and automotive display screens, where even minor dimensional deviations can affect performance.

Multi-functionalization is another key trend, with machines designed to perform multiple processing tasks in a single pass. For example, modern linear multi-stage edging machines integrate rough grinding, fine grinding, chamfering, and polishing, eliminating the need for multiple machines and reducing production time. Some advanced models can also process multiple edge profiles (e.g., straight edges, bevels, arcs) without retooling, enhancing versatility and reducing setup time. The development of hybrid machines that combine edging, polishing, and drilling capabilities is also emerging, catering to the needs of specialized applications such as architectural glass with integrated hardware.

6.3 Sustainable and Energy-Efficient Technologies

Sustainability has become a key focus in the industry, driven by global efforts to reduce carbon emissions and comply with environmental regulations. The Chinese government’s “Dual Carbon” policy and the EU’s Green Deal have set strict targets for energy efficiency and emissions reduction, pushing manufacturers to develop more sustainable machines.

Energy efficiency has been improved through the use of high-efficiency motors, variable frequency drives (VFDs), and optimized hydraulic and pneumatic systems. Fifth-generation servo motors reduce energy consumption by 25% compared to previous models, while VFDs adjust motor speeds based on processing requirements, avoiding unnecessary energy use. Some machines also feature regenerative braking systems that capture and reuse energy during deceleration, further reducing power consumption.

The development of dry grinding technology is a significant advancement in sustainability. Traditional wet grinding systems use large amounts of water (up to 100 liters per minute) for cooling and debris removal, generating wastewater that requires treatment. Dry grinding systems—equipped with dust collection and filtration systems—eliminate the need for water, reducing environmental impact and operational costs. These systems use advanced abrasive tools that generate less heat, minimizing the risk of glass damage, and are increasingly being adopted in regions with water scarcity or strict wastewater regulations. The market share of dry grinding machines is expected to grow from 22% in 2022 to 39% in 2025.

Waste reduction is another focus area, with machines designed to minimize material loss during processing. Precision cutting and grinding technologies reduce glass waste rates to below 0.8%, while abrasive tool recycling programs are being implemented to reduce landfill waste. Some manufacturers also offer equipment remanufacturing services, extending the lifecycle of machines and reducing the environmental impact of new production.

7. Challenges and Future Outlook

7.1 Current Industry Challenges

Despite significant advancements, the glass edging and polishing machine industry faces several challenges that could impact growth and innovation.

Technological barriers remain a key challenge, particularly in the high-end segment. Developing machines with ultra-precision (±0.01mm) and multi-functional capabilities requires advanced materials, precision manufacturing, and sophisticated control systems, which are difficult to master. Core components such as high-precision spindles, linear guides, and servo motors are still dominated by international suppliers, leading to dependence on imports and higher costs for domestic manufacturers. Closing the technological gap with international brands will require sustained R&D investment and collaboration between industry, academia, and research institutions.

Regulatory and trade barriers are also becoming more complex. As countries implement stricter environmental, safety, and quality standards, manufacturers must invest in compliance, which can increase production costs. For example, the EU’s new CE certification requirements for noise and emissions have forced manufacturers to redesign machines and conduct additional testing. International trade tensions and tariffs also pose risks, particularly for exporters, as they can increase costs and limit market access.

Talent shortages are a growing concern, with the industry facing a lack of skilled operators, engineers, and technicians. The integration of digital and intelligent technologies requires workers with expertise in CNC programming, IoT, AI, and robotics, which are in short supply. This skills gap can limit the adoption of advanced machines and affect operational efficiency. Addressing this challenge will require investment in vocational training programs and collaboration with educational institutions to develop specialized curricula.

7.2 Future Outlook and Development Trends

Despite these challenges, the future of the glass edging and polishing machine industry is promising, with several key trends expected to drive growth and innovation in the coming years.

Continued 智能化 and digitization will be the primary driver of growth, with machines becoming increasingly connected, autonomous, and data-driven. By 2028, it is projected that 90% of new machines will feature AI-driven process optimization, and 75% will be equipped with predictive maintenance systems. The integration of digital twin technology will enable manufacturers to simulate and optimize production processes before physical implementation, reducing time-to-market and improving product quality. The use of 5G technology will further enhance connectivity, enabling real-time data transmission and remote control with minimal latency.

Expansion of application areas will open new growth opportunities. The rise of emerging technologies such as 3D printing of glass, smart glass (e.g., electrochromic glass, self-cleaning glass), and quantum dot displays will create demand for specialized edging and polishing machines. For example, smart glass requires precise edge processing to integrate electronic components, while 3D-printed glass parts need complex curved edge finishing. The automotive industry’s shift toward electric and autonomous vehicles will drive demand for large-format curved glass and integrated display screens, requiring multi-axis edging machines with advanced 3D processing capabilities.

Sustainability will become a competitive advantage, with manufacturers focusing on developing energy-efficient, low-emission, and circular machines. The adoption of renewable energy sources (e.g., solar panels) to power machines, the use of biodegradable lubricants, and the implementation of closed-loop water systems will become more common. Governments and customers are increasingly prioritizing sustainable products, creating market opportunities for manufacturers that can demonstrate environmental leadership.

Global market expansion will continue, with emerging economies in Southeast Asia, Africa, and Latin America becoming key growth markets. Urbanization, industrialization, and the expansion of the construction and automotive industries in these regions will drive demand for glass edging and polishing machines. Domestic manufacturers in China and other major producers will continue to expand their global footprint through exports, joint ventures, and local production facilities, leveraging their cost advantages and technological capabilities.

8. Conclusion

Glass edging and polishing machines are essential components of the modern glass manufacturing ecosystem, enabling the production of safe, precise, and aesthetically pleasing glass products for a wide range of industries. From architectural facades to electronic displays, automotive windshields to solar panels, these machines play a critical role in shaping the functionality and appearance of glass, driving innovation and growth across sectors.

The industry has undergone significant transformation in recent years, with technological advancements in automation, digitization, and sustainability reshaping machine capabilities and market dynamics. Intelligent machines with AI-driven optimization, IoT connectivity, and robotic integration have improved precision, efficiency, and reliability, while sustainable technologies such as dry grinding and energy-efficient systems have reduced environmental impact. Domestic manufacturers have emerged as key players, challenging the dominance of international brands through technological innovation and cost competitiveness.

Looking ahead, the industry is poised for continued growth, driven by urbanization, industrialization, and the expansion of emerging technologies. The increasing demand for high-precision, multi-functional, and sustainable machines will drive R&D investment and innovation, while emerging markets will provide new growth opportunities. However, the industry must address challenges such as technological barriers, regulatory compliance, and talent shortages to realize its full potential.

In conclusion, glass edging and polishing machines will remain a critical enabler of the global glass industry, with their evolution closely tied to advancements in technology, changes in market demand, and global efforts toward sustainability. As the industry continues to innovate and adapt, these machines will play an increasingly important role in shaping the future of architecture, transportation, electronics, and renewable energy, contributing to a more efficient, sustainable, and connected world.





This article provides a holistic view of glass edging/polishing machines, integrating technical details, market data, and future trends. If you need to emphasize specific aspects—such as regional market analysis, technical comparisons of leading brands, or case studies of industrial applications—I can expand those sections with additional research. You may also request adjustments to the depth of technical content or focus on a particular industry segment (e.g., electronic glass processing) for more targeted insights.

Double Head Low-E Film Deletion Machine: Technical Overview, Operational Principles and Industrial Applications

Abstract

The Double Head Low-E Film Deletion Machine is a high‑precision, high‑efficiency special equipment designed for removing the low‑emissivity coating along the edges of Low‑E glass. It adopts dual independent grinding heads, an intelligent CNC or PLC control system, pneumatic positioning, and an air‑flotation worktable to achieve synchronous, stable, and residue‑free edge deletion on two adjacent edges of glass sheets. This equipment is essential in the production of insulating glass, architectural glass, automotive glass, and energy‑saving glass, as it ensures reliable sealing, stable bonding, and long service life of final glass units. This article systematically introduces the definition, structural composition, working principle, core technical features, advantages, applications, operation, maintenance, and development trends of the double head Low‑E film deletion machine, providing a complete technical reference for glass deep‑processing enterprises.

1. Introduction

With the global promotion of green building and energy‑saving policies, Low‑E (low‑emissivity) glass has become the preferred material in modern construction, automotive, home appliance, and photovoltaic industries due to its excellent thermal insulation, light transmission, and UV protection performance. However, the metallic coating on Low‑E glass surface will seriously affect the bonding strength and sealing effect between glass and sealant, leading to risks such as degumming, air leakage, and hollow layer failure. Therefore, removing a certain width of the coating along the glass edge before sealing and tempering is an indispensable process.

Traditional manual film removal and single‑head deletion machines suffer from low efficiency, uneven deletion, residual coating, high labor intensity, and poor consistency. The double head Low‑E film deletion machine overcomes these shortcomings through dual synchronous heads, automatic positioning, and intelligent control. It can process two edges simultaneously, greatly improving production efficiency and product qualification rate. It has become core supporting equipment in automated glass processing lines.

2. Basic Definition and Classification

2.1 Definition

Double Head Low-E Film Deletion Machine is an automatic or semi-automatic mechanical equipment specially used to strip the low-emissivity coating layer from the edge of coated glass. It is equipped with two independently controlled or synchronously linked grinding heads, which can remove the film on two adjacent sides of glass at the same time. The deletion width, speed, and pressure are adjustable to adapt to different glass thicknesses, sizes, and coating types.

2.2 Classification


By control mode: semi-automatic (manual feeding) and fully automatic (automatic sensing, conveying, and positioning).
By structure: horizontal air-flotation type and vertical conveying type.
By application: standard type for architectural insulating glass, high-precision type for automotive glass, multi-functional type compatible with single-silver, double-silver, and triple-silver Low-E glass.
By grinding method: resin wheel grinding, diamond wheel grinding, and combined grinding system.


3. Structural Composition

The double head Low-E film deletion machine integrates machinery, electricity, pneumatics, and intelligent control. Its main components include:

3.1 Heavy-Duty Frame Structure

The frame is welded with high-strength steel and treated by stress relief, ensuring high rigidity, low vibration, and stable operation during long-term production. The stable structure guarantees precision and reduces glass damage caused by shaking.

3.2 Double Independent Grinding Head System

Two high-speed grinding motors drive special wear-resistant resin or diamond grinding wheels. The heads can move synchronously or independently, with adjustable height, pressure, and deletion width. They can process different glass thicknesses from 3 mm to 15 mm and ensure clean, scratch-free removal.

3.3 Air-Flotation Workbench

The workbench is equipped with high-pressure air nozzles to form a stable air cushion, allowing labor-free and low-damage movement of large glass sheets. It effectively reduces friction and edge breakage during feeding and positioning.

3.4 Pneumatic Clamping & Positioning System

Precision pneumatic cylinders fix the glass position automatically to avoid sliding during grinding. The positioning system ensures consistent deletion width and high dimensional accuracy.

3.5 Intelligent Control System

Equipped with PLC or CNC controller and touch screen, it supports one-key operation, parameter storage, deletion width setting, speed adjustment, and fault self-diagnosis. The human-machine interface is intuitive and easy to master.

3.6 Dust Collection & Environmental Protection System

A built-in vacuum dust collection device absorbs coating dust in real time, preventing dust pollution and protecting the health of operators. It keeps the workbench clean and improves working environment.

3.7 Safety Protection System

Equipped with emergency stop, safety grating, overload protection, and limit switches to ensure safe operation and prevent personal injury or equipment damage.

4. Working Principle

The working process of the double head Low-E film deletion machine follows a stable and efficient logic:



Feeding & Positioning

The operator places the glass on the air-flotation table and pushes it to the positioning area. The pneumatic system automatically clamps and fixes the glass sheet.



Parameter Setting

Set deletion width, grinding speed, and pressure on the touch screen according to glass thickness and coating type.



Dual-Head Synchronous Deletion

The two grinding heads start simultaneously and move along the glass edges to remove the Low-E coating completely and evenly.



Automatic Stop & Unloading

When deletion is finished, the heads return automatically. The air cushion starts again for easy unloading. For four-edge deletion, the glass is rotated 90 degrees for repeated processing.




The dual-head design doubles efficiency compared with single-head machines. The precise pressure control ensures no damage to the glass surface while removing the coating thoroughly.

5. Core Technical Characteristics and Advantages

5.1 High Efficiency & Double Productivity

Two grinding heads work at the same time, significantly reducing processing time. Fully automatic models can be linked with glass cutting lines and insulating glass production lines to realize continuous flow operation.

5.2 High Precision & Good Consistency

Deletion width can be adjusted from 5 mm to 50 mm with an error less than ±1 mm. The edge is clean and residue-free, which greatly improves the sealing quality and service life of insulating glass.

5.3 Wide Compatibility

Suitable for single-silver, double-silver, triple-silver Low-E glass, coated glass, reflective glass, and solar glass. Compatible with various glass sizes and thicknesses.

5.4 Low Breakage Rate & High Stability

Air-flotation table, soft clamping, and stable pressure control minimize glass scratch and breakage. The breakage rate is controlled below 0.3%.

5.5 Easy Operation & Low Labor Intensity

Intelligent touch screen control reduces professional skill requirements. Air flotation makes glass movement effortless, reducing operator fatigue.

5.6 Environmentally Friendly & Low Maintenance

Dust removal system ensures clean production. The grinding wheels have long service life and are easy to replace. The overall structure is simple with low failure rate.

6. Main Application Fields

6.1 Insulating Glass Production

The most important application: removing edge coating to ensure reliable bonding between glass and butyl rubber / structural sealant, preventing hollow glass failure.

6.2 Architectural Glass Processing

Used for curtain wall glass, doors and windows, skylights, and partition glass to meet building energy-saving and safety standards.

6.3 Automotive Glass

Edge treatment of automotive sunroofs, rear windshields, and side windows to ensure optical performance and sealing reliability.

6.4 Home Appliance & Photovoltaic Glass

Suitable for oven doors, refrigerator shelves, solar panels, and display glass, improving product durability and appearance.

7. Operation and Maintenance

7.1 Standard Operation


Check power, air pressure, grinding wheels, and dust collector before startup.
Set correct parameters according to glass type.
Do not place hands near grinding heads during operation.
Clean glass chippings and dust after shutdown.


7.2 Daily Maintenance


Clean the workbench and dust collection box daily.
Check air tightness of pneumatic components.
Lubricate linear guides and transmission parts regularly.
Replace worn grinding wheels to ensure deletion quality.


7.3 Regular Overhaul

Check motor current, control system, and positioning accuracy every 6–12 months. Replace aging wearing parts to extend service life.

8. Development Trend

8.1 Higher Intelligence

Future models will integrate AI visual recognition, automatic glass size detection, automatic coating identification, and remote monitoring for unmanned production.

8.2 Higher Integration

The machine will combine with loading, cutting, edging, and washing functions to form a fully automatic processing unit.

8.3 Greener & More Efficient

Energy-saving motors, optimized dust removal, and quieter design will meet environmental requirements.

8.4 More Specialized Customization

Special models for ultra-thin glass, large-size glass, and shaped glass will be developed to meet diversified market demands.

9. Conclusion

The Double Head Low-E Film Deletion Machine is key equipment in the modern glass deep-processing industry. It solves the problems of low efficiency and poor quality in traditional film removal processes, and guarantees the sealing performance, structural stability, and service life of Low-E glass products. With the rapid development of energy-saving buildings and automotive industries, the demand for high-quality coated glass will continue to grow, and the double head Low-E film deletion machine will become more intelligent, efficient, and integrated. For glass processing enterprises, choosing reliable double head film deletion equipment is an important way to improve product quality, reduce production costs, and enhance market competitiveness.

The insulating glass packaging machine is a key piece of automated equipment in the modern construction glass and energy-saving building materials industry, specially designed for the final protection, fixing, wrapping, strapping and stacking of insulated glass units (IGUs). It integrates mechanical transmission, precision positioning, pneumatic control, sensor detection and intelligent electrical systems to realize fully automatic or semi‑automatic packaging from finished insulated glass products to transport‑ready packages. This paper systematically elaborates the definition, functional positioning, mechanical structure, working process, classification characteristics, core technical indicators and application advantages of insulating glass packaging machines. It further analyzes their wide applications in architectural doors and windows, curtain walls, residential construction, commercial buildings and international logistics transportation, summarizes the selection and maintenance specifications, and prospects the intelligent, green, flexible and digital development trends of insulating glass packaging equipment. The study shows that high‑performance insulating glass packaging machines effectively improve production efficiency, reduce glass damage rates, standardize packaging quality and enhance logistics safety, providing strong support for large‑scale, standardized and intelligent production of insulated glass.

1. Introduction

With the rapid development of global energy‑efficient buildings, green construction policies and modern urbanization, the demand for insulated glass units (IGUs) has increased sharply in architectural engineering, residential housing, commercial complex and public facility construction. As a core component of energy‑efficient windows and doors, insulated glass features remarkable thermal insulation, sound insulation, anti‑condensation and safety performance, and its production and processing have entered a stage of large‑scale, automated and intelligent manufacturing. The production process of insulated glass includes glass washing, drying, spacer frame assembly, desiccant filling, butyl rubber coating, composite pressing, inert gas filling and secondary sealing. After these processes, finished insulated glass needs reliable, standardized and efficient packaging before entering storage and logistics links. Traditional manual packaging has problems such as high labor intensity, low efficiency, inconsistent packaging quality, high breakage risk and poor protection effect, which can no longer meet the requirements of modern insulated glass production lines.

Insulating glass packaging machines emerged as specialized automated equipment targeting the above pain points. They are designed to achieve stable clamping, corner protection installation, surface protection, film wrapping, strapping, stacking and handling of insulated glass of different sizes, thicknesses and weights. By replacing manual operation with mechanical automation, these machines ensure the integrity, cleanliness and safety of insulated glass during transportation and storage, reduce production costs and improve the overall competitiveness of glass processing enterprises. In the context of intelligent manufacturing and industrial upgrading, insulating glass packaging machines have become indispensable terminal equipment connecting insulated glass production lines and logistics systems. This paper focuses on the technical system, application value and development direction of insulating glass packaging machines to provide theoretical and practical references for equipment R&D, production application and technological upgrading in the glass deep processing industry.

2. Overview of Insulating Glass Packaging Machine

2.1 Definition and Functional Orientation

An insulating glass packaging machine is an automatic or semi‑automatic mechanical and electrical integration device dedicated to the surface protection, edge wrapping, corner protection, fixing, strapping, wrapping and palletizing of insulated glass units. Its core functions include: protecting the glass surface from scratches, collisions and contamination; reinforcing edge and corner strength to prevent chipping and breakage; fixing the glass to avoid relative sliding during transportation; forming standardized, neat and stable packaging units; and connecting with production lines to realize continuous automated operation.

2.2 Position in the Insulated Glass Production Line

Insulating glass packaging machines are located at the tail end of the entire insulated glass production line, following processes such as sealing, curing and quality inspection. They serve as the last key node before finished products enter storage and transportation. The operational stability and packaging effect of packaging machines directly affect product yield, delivery efficiency and after‑sales damage rate, making them critical to the operational efficiency and economic benefits of the whole production line.

2.3 Differences from General Glass Packaging Equipment

Compared with ordinary flat glass, tempered glass or laminated glass packaging machines, insulating glass packaging machines have higher technical requirements:


Adaptability to multi‑layer composite structures and different thickness combinations
Protection for sealing edges to avoid damage to sealing structures
High compatibility with variable length, width and thickness specifications
Stable clamping force control to prevent glass deformation or layer separation
Dust‑free and clean packaging requirements to maintain internal dryness


3. Core Structure and Composition System

Modern insulating glass packaging machines adopt modular design, which is convenient for installation, commissioning, maintenance and functional expansion. The whole machine mainly consists of the following systems:

3.1 Frame and Host Structure

The frame is made of high‑strength sectional steel or welded steel plate with overall annealing treatment to ensure rigidity, stability and non‑deformation during long‑term operation. The host structure supports transmission, clamping, wrapping and strapping modules, providing a stable foundation for high‑precision operation.

3.2 Automatic Conveying and Positioning System

This system includes motor‑driven roller tables, conveyor belts, frequency conversion speed regulation devices and photoelectric sensors. It realizes automatic feeding, conveying, stopping, centering and positioning of insulated glass, ensuring accurate entry into the packaging station without deviation or collision.

3.3 Corner Protector Installation Mechanism

Corner protectors (plastic, paper or foam) are critical for protecting glass corners. The mechanism includes corner storage, pneumatic clamping, pushing and pressing components to automatically install corner protectors at four corners and edges, greatly improving anti‑collision performance.

3.4 Surface Protection and Wrapping System

This system includes film unwinding, cutting, laminating and wrapping devices. It uses PE stretch film, anti‑scratch film, woven cloth or bubble film to fully wrap the glass surface, isolating dust, moisture and scratches. High‑end models adopt electrostatic prevention and non‑slip wrapping technology.

3.5 Strapping and Fixing System

Strapping machines use PP or PET straps to tighten and fix the wrapped glass automatically. Functions include automatic strap feeding, tensioning, hot melting, cutting and knotting, with stable and firm binding without damaging the packaging film. Tension can be adjusted according to glass specifications.

3.6 Pneumatic and Hydraulic Power System

The pneumatic system provides clamping, lifting and pushing power with stable pressure and fast response. The hydraulic system is used in large‑scale heavy‑duty models to provide higher clamping and lifting force, ensuring stable handling of large‑size and heavy insulated glass.

3.7 Electrical Control and Human‑Machine Interface

The core control system adopts a high‑performance PLC (Siemens, Mitsubishi, etc.) with a touch screen for parameter setting, mode switching, fault alarm and running status monitoring. It supports automatic, manual and debugging modes, with functions such as automatic counting, fault self‑diagnosis and emergency stop.

3.8 Safety Protection System

Safety guards, photoelectric protection, emergency stop buttons and overload protection ensure operator safety and equipment stability. When an obstacle is detected, the machine stops immediately to avoid glass breakage or personal injury.

4. Working Principle and Automatic Packaging Process

4.1 Basic Working Principle

The insulating glass packaging machine takes electrical control as the core, pneumatic/hydraulic power as the drive, and sensor detection as the feedback. It automatically completes conveying, positioning, corner protection, surface wrapping, strapping and output according to preset procedures. The whole process replaces manual labor with mechanical movement, ensuring consistency, stability and high efficiency.

4.2 Full Automatic Packaging Process


Automatic Feeding: The insulated glass finished product is transported from the production line to the packaging machine’s conveying platform.
Precision Positioning: Photoelectric sensors detect the glass position; the conveying system adjusts to center the glass accurately.
Corner Protector Mounting: Pneumatic mechanisms automatically install protective corners on four corners and side edges.
Surface Protection Film Covering: The film covering mechanism covers the glass surface with protective film.
Stretch Wrapping: The wrapping system rotates or horizontally wraps to cover the glass fully.
Automatic Strapping: The strapping system tensions, heats and cuts straps to fix the package firmly.
Output and Palletizing: The packaged glass is automatically output and can be connected with a palletizing robot for automatic stacking.


4.3 Control Logic

The whole machine follows a sequential interlock control logic: only when the previous process is completed can the next process start. Once abnormal conditions occur, such as misalignment, film breakage or strap shortage, the system alarms immediately and pauses to avoid defective packaging or equipment damage.

5. Classification of Insulating Glass Packaging Machines

According to automation degree, structure form, application scenario and function configuration, insulating glass packaging machines can be classified into the following categories:

5.1 By Automation Degree


Semi‑automatic insulating glass packaging machine: Requires manual assistance in film placement, corner placement or button triggering; suitable for small‑batch production.
Full‑automatic insulating glass packaging machine: One‑click automatic completion of the whole process; suitable for large‑scale and assembly‑line production.


5.2 By Structural Form


Vertical insulating glass packaging machine: Glass stands vertically during packaging; small footprint, suitable for conventional doors and windows.
Horizontal insulating glass packaging machine: Glass lies horizontally; suitable for large‑size, heavy, thick or curved insulated glass.


5.3 By Function Configuration


Basic type: Only wrapping + strapping
Standard type: Positioning + corner protection + wrapping + strapping
Full‑function type: With dust removal, surface cleaning, labeling, coding and palletizing interfaces


5.4 By Applicable Glass Specifications


Small and medium‑sized model: For doors and windows below 2.4m
Large and super‑large model: For curtain wall and special engineering glass above 3m


6. Core Technical Parameters and Performance Indicators

The performance of an insulating glass packaging machine is mainly evaluated by the following indicators:


Applicable glass size: Length, width and thickness range
Applicable glass weight: Maximum load capacity
Packaging speed: Units per minute/hour
Strapping quantity and spacing: Adjustable range
Wrapping film width and thickness: Adaptability
Clamping force adjustment range: To avoid glass damage
Control system: PLC brand, human‑machine interface
Power supply and air pressure: Standard configuration
Dimensions and weight: Installation space requirements
Failure rate and stability: Mean time between failures (MTBF)


7. Application Advantages in Industrial Production

7.1 Greatly Improve Production Efficiency

Automatic packaging can reach 300–600 pieces per shift, 3–5 times higher than manual packaging, matching the beat of modern high‑speed insulated glass production lines.

7.2 Significantly Reduce Breakage Rate

Professional protection and stable clamping reduce corner damage and surface scratches, lowering the breakage rate from manual 3–5% to below 0.5%.

7.3 Improve Packaging Standardization

Uniform wrapping tightness, strap position and corner protection ensure consistent appearance and structural stability, enhancing product image.

7.4 Reduce Labor Cost and Intensity

One operator can manage multiple machines, reducing labor demand by 70–80% and lowering long-term production costs.

7.5 Enhance Logistics Safety and Storage Efficiency

Standardized packaging facilitates stacking, handling and transportation, saving storage space and reducing transport damage.

7.6 Meet Clean and Dust‑Free Requirements

Closed automatic packaging reduces dust contamination and keeps the insulated glass interior dry and clean.

8. Typical Industrial Application Fields

8.1 Architectural Doors and Windows Industry

The largest application area, used for packaging energy‑saving insulated glass for residential buildings, offices and public constructions.

8.2 Curtain Wall and Engineering Glass

Large‑scale packaging machines serve high‑rise building curtain walls, shopping malls, airports and stations.

8.3 Export Glass Logistics

Standardized packaging meets international transport requirements, resisting moisture, salt spray and vibration during long‑distance shipping.

8.4 Household Appliances and Automotive Glass

Adapted for special insulated glass used in refrigeration, home appliances and vehicle windows.

8.5 Photovoltaic and Solar Energy Glass

Special anti‑static and high‑cleanliness packaging models for photovoltaic modules.

9. Selection Principles and Operation Maintenance

9.1 Selection Principles


Match production line speed and output
Adapt to glass size, thickness and weight range
Select vertical or horizontal structure according to plant space
Choose automation level based on product type and batch size
Prioritize stable brand, reliable configuration and convenient maintenance
Consider expandability for future product upgrades


9.2 Daily Operation Specifications


Operators must receive professional training
Check air pressure, voltage and strap/film supply before startup
Set parameters according to glass specifications
Monitor operation and handle alarms in time
Regularly clean dust and glue residue


9.3 Maintenance and Upkeep


Weekly lubrication of transmission parts
Monthly inspection of sensors, cylinders and motors
Quarterly calibration of positioning accuracy
Annual comprehensive maintenance and parts replacement
Use original consumables to ensure stability


10. Current Development Status and Future Trends

10.1 Current Industry Status

In recent years, with the popularization of energy‑saving buildings, insulated glass packaging machines have developed rapidly in China and globally. The technology has evolved from semi‑automatic to fully automatic, from single‑function to integrated, and from mechanical control to intelligent digital control. High‑end models integrate visual positioning, AI fault detection and flexible adjustment.

10.2 Future Development Trends


Higher Intelligence: AI visual recognition, automatic specification adjustment, unmanned operation
Flexible Production: Quick changeover for multi‑size mixed production
Green and Low‑Carbon: Energy‑saving motors, recyclable packaging materials
Digital Management: Data monitoring, remote diagnosis, MES connection
Integration and Completeness: Integration of cleaning, packaging, labeling and palletizing
Higher Safety and Stability: Stronger anti‑breakage, quieter and more reliable systems


11. Conclusion

As a key terminal device in the insulated glass industry chain, the insulating glass packaging machine plays an irreplaceable role in improving production efficiency, ensuring product quality, reducing damage rates and enhancing logistics safety. With the continuous advancement of energy‑efficient construction policies and intelligent manufacturing technology, automated, intelligent and integrated packaging equipment will become the mainstream choice for glass processing enterprises. The continuous innovation of insulating glass packaging machines will further promote the standardized, large‑scale and green development of the insulated glass industry, create greater economic and social value, and provide solid support for the global construction industry’s energy conservation, emission reduction and sustainable development.
