Glass Coating Equipment Series

I. Introduction



Mechanized production of insulating glass significantly improves production efficiency and product quality. This plan details the process of manufacturing insulating glass using automated machinery.



II. Production Process



A. Glass Feeding and Cutting



- Automated Loading: High - speed robotic arms are used to load large sheets of float glass from storage racks onto the glass cutting line. These arms are programmed to handle the glass gently to avoid scratches or breakages.

- Precision Cutting: Computer - controlled glass cutting machines measure and cut the glass according to pre - set dimensions. The cutting blades are automatically adjusted for different glass thicknesses, ensuring a precise cut with an accuracy of ± 0.5mm.



B. Edge Processing



- Grinding and Polishing: The cut glass edges are fed into an automated edge - processing machine. This machine uses rotating abrasive wheels to grind the edges smoothly and then polishes them to enhance the glass's appearance and adhesion for sealants.

- Drilling (if required): For customized insulating glass with holes, a numerically - controlled drilling machine is integrated into the production line. It accurately drills holes based on the input specifications, with a high - speed spindle ensuring clean and precise holes.



C. Washing and Drying



- The Glass will be washed with the glass washing machine.The machine is with 6 soft brushes for cleaning and knieves for drying.It is ok for Low-E glass and the glass thickness can be adjusted automatically.



D. Spacer and Desiccant Handling



- Spacer Bending and Assembly: An automatic spacer bending machine forms aluminum or stainless - steel spacers into the required shapes. The machine can handle different spacer profiles and lengths. Desiccant is automatically filled into the spacers through a precise dosing system to absorb moisture in the air gap.

- Spacer Placement: Robotic arms pick up the bent spacers and accurately position them between the cleaned glass sheets on a conveyor - based assembly platform.



E. Gas Filling (Optional)



- Inert Gas Injection: For insulating glass that requires enhanced thermal performance, an automated gas - filling machine is used. It injects inert gases like argon or krypton into the air gap between the glass panes. The gas flow rate and pressure are precisely controlled to achieve the desired gas concentration.



F. Sealing



- Primary Seal Application: A robotic sealant dispensing arm applies the primary sealant, typically polysulfide, along the inner edge of the spacer. The arm moves at a constant speed and pressure, ensuring an even and consistent sealant layer.

- Secondary Seal Application: After the primary seal has cured to a certain extent, another robotic arm applies the secondary sealant, such as silicone, on the outside of the primary seal. This provides additional protection and strength to the insulating glass unit.



III. Quality Assurance



- In - line Inspection: Throughout the production process, multiple in - line inspection stations are installed. These use sensors and cameras to detect defects such as uneven sealant application, air bubbles, and misaligned components. Defective products are automatically flagged and removed from the production line.

- Final Testing: Before packaging, each insulating glass unit undergoes a final set of tests, including a leak test for gas - filled units and a dimensional accuracy check. Only products that meet the strict quality standards are approved for shipment.



IV. Conclusion



This mechanized production process for insulating glass, with its combination of automated machinery and strict quality control measures, ensures the efficient production of high - quality insulating glass products, meeting the demands of the construction and related industries.

Glass cutting machines come in three main types: glass cutting production lines, glass cutting and loading integrated machines, and glass cutting tables.Glass cutting production lines are highly automated systems, capable of handling large - scale production tasks. They integrate multiple processes including glass feeding, cutting, and sometimes even edge - processing, enabling continuous and efficient operation, which is ideal for mass - production factories.Glass cutting and loading integrated machines combine the functions of glass loading and cutting. They can automatically pick up glass sheets from the storage area and perform cutting operations, reducing labor intensity and improving production efficiency. These machines are suitable for medium - sized enterprises that aim to enhance automation while saving space.Glass cutting tables are more basic and flexible tools. They are usually semi - automated or manually operated, mainly providing a stable platform for cutting glass. They are cost - effective and easy to operate, making them a good choice for small - scale workshops or for handling small - batch, customized cutting tasks.

Air-Floating Inclined Glass Breaking Table: Engineering Principles, Technical Advantages, and Industrial Applications

1. Introduction

In the modern manufacturing landscape of flat-panel displays (FPD), photovoltaic (PV) modules, architectural glass, and automotive glazing, the demand for precise, non-destructive glass processing and strength testing has intensified. The Air-Floating Inclined Glass Breaking Table (AFIGBT) emerges as a pivotal innovation, integrating air-bearing technology, hydraulic tilting mechanisms, and pneumatic control systems to redefine the standards of glass handling, positioning, and fracture testing. Unlike conventional contact-based breaking tables that risk surface scratches, edge damage, or inconsistent stress distribution, the AFIGBT leverages non-contact air suspension to ensure uniform support, precise angular adjustment, and repeatable fracture initiation—critical for quality control in high-precision glass manufacturing. This article comprehensively explores the technical fundamentals, structural components, performance characteristics, industrial applications, and future development directions of the AFIGBT, shedding light on its transformative role in the global glass processing industry.

2. Core Technical Principles

2.1 Non-Contact Air Suspension Mechanism

The cornerstone of the AFIGBT lies in its air-floating system, which employs porous media technology to generate a stable, ultra-thin air film between the glass substrate and the table surface. Compressed air is forced through millions of sub-micron pores in a proprietary carbon or ceramic bearing surface, creating a uniform pressure distribution that lifts the glass off the table without physical contact . The thickness of this air film is precisely controllable, typically ranging from 10µm to 200µm, with a stability tolerance of ±5µm to ±20µm—sufficient to accommodate inherent flatness deviations of up to 5µm in glass substrates while maintaining optimal support rigidity . Contrary to traditional assumptions, thinner air films exhibit higher stiffness, enabling the AFIGBT to achieve sub-micron positioning resolution and rapid vibration damping—essential for minimizing structural deformation during the breaking process.

To prevent "skating" or lateral displacement of the glass during suspension, the system integrates a balanced vacuum-preload mechanism. By adjusting the ratio of air pressure and vacuum force, engineers can "lock" the glass in a stable spatial position, suppressing flutter and ensuring consistent alignment throughout the testing or processing cycle . This pressure-vacuum balance also facilitates glass flattening, reducing surface vibrations that could compromise the accuracy of fracture analysis. Notably, the porous media surface acts as a HEPA-like filter, preventing particle generation and making the system compatible with ISO Class 10 cleanroom environments—a critical requirement for FPD and semiconductor manufacturing .

2.2 Hydraulic Tilting Control System

The inclined functionality of the AFIGBT is enabled by a hydraulic actuation system, designed to deliver smooth, stable angular adjustment with precise position control. The hydraulic cylinder-driven tilting mechanism allows the table to rotate from a horizontal (0°) to a vertical (90°) position, with intermediate angle settings adjustable in increments as fine as 0.1°—catering to diverse testing standards and processing requirements. The hydraulic system’s high load-bearing capacity ensures stable operation even for large-format glass substrates, with table sizes ranging up to 2200mm × 3600mm to accommodate Gen 10+ FPD panels and oversized architectural glass sheets.

Key to the tilting system’s performance is its closed-loop feedback control, which utilizes linear displacement sensors and pressure transducers to monitor the table’s angle and load in real time. This enables dynamic adjustment of hydraulic flow rates, ensuring uniform acceleration and deceleration during tilting—preventing inertial forces from causing glass slippage or edge impact. Additionally, safety interlocks are integrated to halt operation if the tilt angle exceeds preset limits or if pressure loss is detected, mitigating the risk of equipment damage or operator injury.

2.3 Pneumatic Fracture Initiation Mechanism

The AFIGBT’s breaking system employs pneumatically controlled X and Y-axis breaking bars, activated via foot pedals or programmable logic controllers (PLCs) to initiate precise, localized fractures. These breaking bars are strategically positioned across the table surface, allowing for selective activation to target specific sections of the glass—enabling both full-panel breaking and segmented cutting for large-format substrates. The pneumatic actuation ensures rapid, consistent force application, with adjustable pressure settings to match the mechanical properties of different glass types (e.g., tempered glass, laminated glass, ultra-thin glass).

To enhance fracture accuracy, the breaking bars are equipped with precision-machined contact points that concentrate stress at predefined locations—replicating real-world failure scenarios while ensuring repeatable test results. The integration of the air-floating system with the breaking mechanism is critical: the non-contact support eliminates friction-induced stress variations, ensuring that the applied breaking force is uniformly distributed across the glass’s cross-section. This results in clean, predictable fractures that align with industry standards such as SEMI, CE, and ISO 9001.

3. Structural Components and Technical Specifications

3.1 Key Component Architecture

The AFIGBT comprises six core subsystems, each engineered for durability, precision, and seamless integration:

1. Heavy-Duty Metallic Frame: Constructed from high-strength steel with reinforced welds, the frame provides structural rigidity to withstand dynamic loads during tilting and breaking, with a design life exceeding 10,000 operating hours.

2. Air-Floating Platform: Modular porous media air-bearing panels (available in standard, precision, and ultra-precision variants) cover the table surface, with customizable configurations to accommodate different glass sizes and thicknesses (from 0.1mm to 20mm).

3. Air Supply System: A high-pressure compressor (3–5 kW) with pressure regulators, filters, and flow meters delivers clean, dry air (≤ -40°C dew point) to the air-bearing panels, ensuring consistent air film formation.

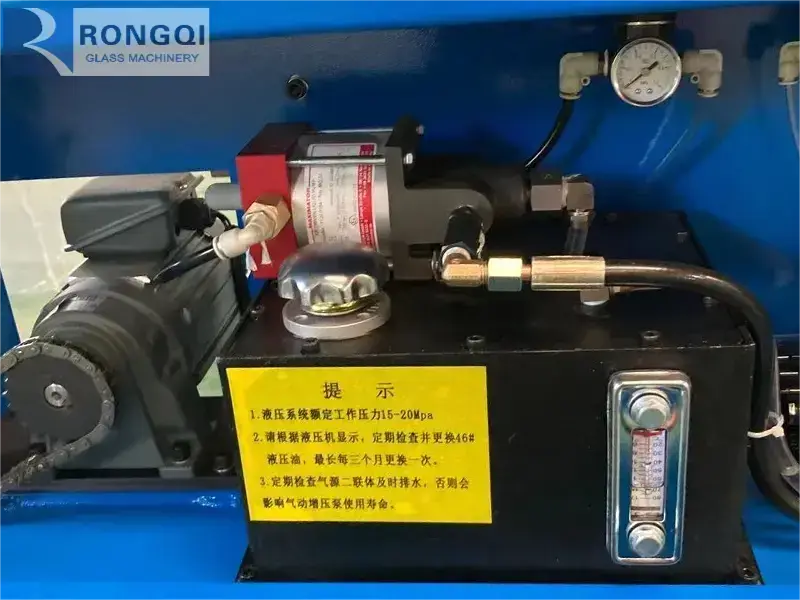

4. Hydraulic Tilting Unit: Double-acting hydraulic cylinders with servo valves, paired with a hydraulic power unit (380V/50Hz or 220V/60Hz), enable smooth angle adjustment with a tilting speed of 2–5° per second.

5. Pneumatic Breaking Assembly: 3–6 pneumatically controlled breaking bars (depending on table size) with adjustable stroke lengths (10–50mm) and force ranges (50–500N), synchronized via PLC for coordinated fracture initiation.

6. Control and Safety System: A touchscreen HMI (Human-Machine Interface) with PLC integration allows for program storage (up to 100 test protocols), real-time data visualization, and remote monitoring. Safety features include emergency stop buttons, pressure loss alarms, and interlocked access doors.

3.2 Critical Technical Parameters表格Parameter Specification Range Table Dimensions 1000mm×1000mm to 2200mm×3600mm Maximum Glass Size Up to 2000mm×1000mm (standard) / Gen 12+ compatible (custom) Glass Thickness Capacity 0.1mm–20mm Air Film Thickness 10µm–200µm Tilt Angle Range 0°–90° (adjustable in 0.1° increments) Breaking Force Adjustment 50N–500N Positioning Accuracy ±2µm (linear) / ±0.1° (angular) Operating Speed 2–3 m/s (glass transport) / 2–5°/s (tilting) Power Requirements 380V 3-phase 50Hz / 220V single-phase 60Hz (3–5 kW) Environmental Compatibility Temperature: 0°C–40°C; Humidity: <98% (non-condensing) Certifications CE, ROHS, ISO 9001, SEMI-compliant 4. Technical Advantages Over Conventional Systems4.1 Non-Contact Handling and Surface ProtectionUnlike mechanical conveyor belts or vacuum chucks that exert localized pressure on glass surfaces, the AFIGBT’s air-floating system eliminates physical contact, preventing scratches, micro-cracks, and contamination. This is particularly critical for high-value applications such as FPD substrates and PV solar panels, where surface integrity directly impacts product performance . The carbon or ceramic bearing surfaces are wear-resistant and particle-free, ensuring compatibility with cleanroom environments and reducing maintenance costs associated with contact-based components.4.2 Enhanced Precision and RepeatabilityThe combination of air-film stability, hydraulic tilting control, and pneumatic breaking mechanisms enables the AFIGBT to achieve fracture test repeatability within ±3%—a significant improvement over conventional tables (±8–12%). The sub-micron positioning resolution and uniform stress distribution ensure that each test replicates real-world conditions, providing reliable data on glass toughness, fracture energy, and failure modes. This precision is validated by compliance with international standards such as SEMI, which has adopted air-floating-based measurement models for glass quality assessment.4.3 Versatility and ScalabilityThe AFIGBT’s modular design allows for seamless customization to meet diverse industry needs. It supports multiple glass types (tempered, laminated, ultra-thin, AR-coated) and processing tasks, including strength testing, precision cutting, and edge quality inspection. The table’s compatibility with Gen 5 to Gen 12 glass substrates makes it suitable for small-scale laboratories and large-scale manufacturing facilities alike, with the ability to handle glass sizes up to 2200mm×3600mm and beyond with custom configurations.4.4 Operational Efficiency and SafetyThe AFIGBT’s automated loading/unloading systems, rapid test cycles (≤1000ms per measurement point), and data logging capabilities streamline quality control processes, reducing labor costs and increasing throughput. The hydraulic tilting system’s smooth operation minimizes glass breakage during handling, while the integrated safety features (pressure loss alarms, emergency stops, interlocks) ensure operator protection. Additionally, the low air consumption of porous media air bearings (measured in liters per hour rather than liters per minute) reduces energy costs compared to traditional air-bearing systems .5. Industrial Applications5.1 Flat-Panel Display (FPD) ManufacturingIn FPD production (LCD, OLED, microLED), the AFIGBT is used for post-processing quality control, including glass substrate strength testing, laser划片 alignment, and edge defect detection. The non-contact air suspension prevents damage to sensitive display layers, while the precise tilting and breaking mechanisms ensure clean, straight fractures during panel separation. The system’s compatibility with ISO Class 10 cleanrooms and sub-micron positioning accuracy makes it indispensable for Gen 10+ FPD facilities, where even minor surface defects can render panels defective .5.2 Photovoltaic (PV) Module ProductionFor solar glass (ultra-white embossed glass, AR-coated glass), the AFIGBT enables rapid measurement of spectral transmittance, fracture toughness, and edge strength—critical parameters for PV module efficiency and durability. The system’s ability to handle large-format glass sheets (up to 2000mm×1000mm) and perform multi-point testing allows manufacturers to assess spatial uniformity of mechanical properties, ensuring compliance with TAM1.5 and SEMI standards. The air-floating design also facilitates easy movement of heavy glass sheets, reducing handling time and breakage rates during production.5.3 Architectural and Automotive Glass ProcessingIn architectural glass manufacturing, the AFIGBT is used to test the breaking strength of tempered and laminated glass, ensuring compliance with building safety codes. The tilting function simulates real-world installation angles, allowing engineers to evaluate fracture behavior under gravitational loads. For automotive glass (windshields, side windows), the system performs impact resistance testing and precision cutting, with the non-contact handling preserving the glass’s optical clarity and structural integrity. The pneumatic breaking bars enable segmented cutting of complex shapes, supporting the production of curved and customized automotive glass components.5.4 Research and Development LaboratoriesAcademic and industrial R&D labs utilize the AFIGBT to study glass fracture mechanics, material fatigue, and the effects of coating technologies on mechanical performance. The system’s adjustable parameters (air film thickness, tilting angle, breaking force) allow researchers to replicate diverse environmental and loading conditions, generating data to optimize glass formulations and processing techniques. The integration of advanced sensors (strain gauges, high-speed cameras) enables real-time monitoring of fracture propagation, providing insights into crack initiation and growth mechanisms.6. Future Development Trends6.1 Integration of Smart Sensing and AIThe next generation of AFIGBT will incorporate advanced sensing technologies, including machine vision cameras, ultrasonic sensors, and fiber optic strain gauges, to enable real-time monitoring of glass deformation, stress distribution, and fracture dynamics. Artificial intelligence (AI) algorithms will analyze this data to predict failure points, optimize test parameters, and automate quality grading—reducing human intervention and improving testing accuracy. For example, AI-powered image recognition can identify micro-cracks before fracture, enabling proactive quality control in high-volume production lines.6.2 Miniaturization and High-Speed ProcessingAs the demand for ultra-thin glass (≤0.1mm) in wearable devices and flexible electronics grows, AFIGBT systems will be miniaturized to accommodate small-format substrates while maintaining high precision. Advances in micro-air-bearing technology will enable air film thicknesses below 10µm, supporting the handling of fragile, flexible glass without deformation. Additionally, improvements in hydraulic and pneumatic actuation will reduce test cycle times to <500ms per point, meeting the throughput requirements of next-generation electronics manufacturing.6.3 Energy Efficiency and SustainabilityFuture AFIGBT designs will focus on reducing energy consumption through the adoption of energy-efficient compressors, regenerative hydraulic systems, and low-power sensors. The use of recyclable materials in frame construction and biodegradable lubricants in hydraulic systems will align with global sustainability initiatives. Furthermore, the integration of solar-powered air supply systems will enable off-grid operation in remote manufacturing facilities, reducing carbon emissions.6.4 Interoperability with Industry 4.0 SystemsTo support smart manufacturing, AFIGBT systems will be equipped with Industrial Internet of Things (IIoT) connectivity, enabling seamless integration with MES (Manufacturing Execution Systems) and ERP (Enterprise Resource Planning) platforms. Real-time test data, equipment performance metrics, and maintenance alerts will be transmitted to cloud-based dashboards, allowing for remote monitoring, predictive maintenance, and process optimization. This interoperability will enable manufacturers to achieve end-to-end traceability of glass components, from raw material to finished product.7. ConclusionThe Air-Floating Inclined Glass Breaking Table represents a paradigm shift in glass processing and testing, combining non-contact air suspension, precise hydraulic tilting, and pneumatic fracture control to deliver unmatched precision, versatility, and efficiency. Its ability to protect glass surfaces, ensure repeatable test results, and accommodate diverse industry needs has made it an indispensable tool in FPD, PV, architectural, and automotive glass manufacturing. As technology advances, the integration of smart sensing, AI, and IIoT connectivity will further enhance the AFIGBT’s capabilities, driving innovation in glass processing and supporting the growth of high-precision manufacturing industries worldwide. By adhering to international standards and prioritizing sustainability, the AFIGBT is poised to remain a cornerstone of modern glass production, enabling manufacturers to meet the evolving demands of quality, efficiency, and environmental responsibility.

How to Add Butyl Glue for Butyl Extruding Machine

1. Introduction

The butyl extruding machine is an indispensable core equipment in the manufacturing process of insulating glass, architectural door and window sealing, automotive glass assembly, and other industrial sealing applications. It is specially designed to melt solid or granular butyl glue into a uniform molten state through a precise heating system and extrude the glue stably through a screw propulsion mechanism, so as to complete the sealing and bonding of components. The operation of adding butyl glue is the most critical initial step in the entire working cycle of the butyl extruding machine, which directly determines the continuity of glue extrusion, the uniformity of glue output, the processing accuracy of sealing products, and the service life of the equipment. Improper glue adding operations, such as uncleaned glue barrels, uneven filling, improper preheating parameters, and poor sealing of the glue barrel cover, will lead to a series of problems including discontinuous glue extrusion, air bubbles in the glue, uneven glue output, blockage of the extrusion channel, and even mechanical failure of the equipment.

This article systematically elaborates on the standardized operation process of adding butyl glue for the butyl extruding machine, covering pre-operation preparation, equipment safety inspection, step-by-step operation procedures for different forms of butyl glue (solid strips and granular glue), post-operation treatment, safety operation specifications, common fault troubleshooting, and daily maintenance of the glue adding system. All contents are compiled in strict accordance with international industrial safety standards and equipment operation specifications, aiming to provide operators with a comprehensive and authoritative technical guide to ensure the safe, efficient, and high-quality completion of the butyl glue adding operation, and to lay a solid foundation for the stable operation of the butyl extruding machine and the qualified production of sealing products.

2. Pre-operation Preparation

Adequate and comprehensive pre-operation preparation is the prerequisite to ensure the smooth progress of the butyl glue adding operation and avoid potential risks. Operators must complete the preparation work in strict accordance with the following three dimensions: personnel, equipment, and materials.

2.1 Personnel Preparation and Professional Training

All operators engaged in the butyl glue adding operation must receive systematic professional training, including the structural composition of the butyl extruding machine, working principle, performance parameters of butyl glue, standard operating procedures, safety precautions, and emergency response plans. Only after passing the theoretical and practical assessments can they take up their posts independently. During the operation, operators must wear complete personal protective equipment (PPE) that meets industrial safety standards, including high-temperature and cut-resistant work clothes, heat-insulating and anti-slip gloves, anti-splash safety goggles, and steel-toe safety shoes. It is strictly forbidden to operate with loose cuffs, unbound long hair, or wearing metal jewelry such as rings, bracelets, and necklaces, so as to prevent entanglement with the rotating screw or scalding by high-temperature components of the equipment. In addition, a clear safety warning area should be divided around the equipment, and obvious warning signs such as "Non-operators Prohibited from Entering" and "High Temperature Danger" should be set up to avoid misoperation or accidental injury caused by irrelevant personnel approaching the operating area.

2.2 Equipment Safety and Functional Inspection

Before adding butyl glue, a comprehensive and detailed inspection of the butyl extruding machine must be carried out to ensure that all systems of the equipment are in normal working condition, covering the electrical system, heating system, mechanical structure, and control system.

First, inspect the electrical and pneumatic systems. Check the integrity of the power cord, plug, and socket of the equipment, confirm that there is no damage, aging, or exposed wires, and verify that the leakage protector and circuit breaker are in normal operating state. For butyl extruding machines equipped with pneumatic auxiliary devices, check the air pressure pipeline for air leakage, blockage, or water accumulation, adjust the working air pressure to the range of 0.4-0.6 MPa specified by the equipment, and drain the accumulated water in the air filter and air storage tank regularly to prevent moisture from affecting the pneumatic components. At the same time, test the sensitivity of the emergency stop button, start/stop switch, and parameter adjustment buttons on the control panel to ensure that all control functions can respond quickly and effectively in case of an emergency.

Second, focus on inspecting the heating system, which is the core to ensure the melting effect of butyl glue. Turn on the equipment power supply in advance, set the heating temperature of the glue barrel and extrusion die according to the type and performance parameters of the butyl glue (generally 80-120°C, subject to the glue manufacturer's instructions and equipment manual), and check the working state of the temperature controller, temperature sensor, and heating tube. Ensure that the temperature of each heating zone can be accurately controlled, stabilized within the set range, and free from temperature overshoot, insufficient heating, or temperature fluctuation, so as to avoid incomplete melting or thermal decomposition of butyl glue.

Third, inspect the glue barrel and extrusion mechanism. Open the glue barrel cover, check the inner wall of the glue barrel, extrusion screw, and glue outlet channel for residual solidified butyl glue, metal debris, dust, or other impurities. Check the surface of the extrusion screw for wear, deformation, or scratches, and confirm that the screw can rotate freely without jamming or abnormal noise. At the same time, check the sealing ring of the glue barrel cover for aging, cracking, deformation, or hardening, and replace it with a new sealing ring of the same model in time if it is damaged, so as to prevent glue leakage during the extrusion process.

Finally, inspect the auxiliary tools and collection devices. Prepare special glue loading tools, stainless steel scrapers, lint-free cleaning cloths, industrial alcohol, waste glue collection barrels, torque wrenches, and other auxiliary tools, and confirm that all tools are clean, intact, and free of impurities to avoid contaminating the butyl glue during the operation.

2.3 Material Selection and Preparation

The quality of butyl glue directly affects the sealing performance and extrusion stability of the final product, so the selection and preparation of butyl glue must be strictly controlled. Operators must select qualified butyl glue products that match the model of the butyl extruding machine, and check the production date, shelf life, appearance quality, and factory certification of the butyl glue before use. It is forbidden to use expired, deteriorated, damp, contaminated, or uncertified butyl glue. Solid butyl glue strips should be flat, uniform in texture, free of cracks, hard blocks, bubbles, and impurities; granular butyl glue should have uniform particle size, no agglomeration, moisture, or foreign matter.

In addition, calculate the amount of butyl glue to be added according to the effective capacity of the glue barrel of the butyl extruding machine and the actual production demand, and reserve a certain expansion space at the top of the glue barrel (generally 5-10 cm from the top of the glue barrel). This is to prevent the butyl glue from overflowing due to thermal expansion after being heated and melted, which will cause equipment pollution or safety hazards. At the same time, place the butyl glue in a dry, clean, and dust-free environment to avoid secondary contamination before use.

3. Standard Operation Steps for Adding Butyl Glue

The butyl glue adding operation must be carried out in strict accordance with the step-by-step standardized procedure, and each operation link must be implemented carefully to ensure the accuracy and safety of the process.

3.1 Equipment Shutdown and Safety Locking

Before opening the glue barrel cover for glue adding operation, the equipment must be completely shut down and locked to eliminate all potential safety risks. First, press the emergency stop button of the butyl extruding machine to cut off the power output of the equipment, then turn off the main power switch and air supply valve in sequence, and hang a prominent "No Operation, Maintenance in Progress" warning sign on the control panel to prevent other personnel from misstarting the equipment. Then, wait for the glue barrel, extrusion die, and heating pipeline to cool down naturally to a safe temperature below 40°C. For butyl extruding machines equipped with a quick cooling function, the cooling system can be turned on to accelerate the cooling process, so as to avoid scalding accidents caused by high-temperature components during the operation.

3.2 Opening the Glue Barrel Cover and Thorough Cleaning

Locate the locking device of the glue barrel cover, which is usually designed as a bolt lock, rotary lock, or quick-release lock. Loosen the locking nut or rotate the lock handle in the specified counterclockwise direction, and slowly remove the glue barrel cover and place it on a clean anti-slip mat to avoid contamination of the sealing surface. Next, carry out a thorough cleaning of the glue barrel and internal components: use a special stainless steel scraper to gently scrape off the residual solidified butyl glue on the inner wall of the glue barrel, the root of the extrusion screw, the glue outlet channel, and the check valve, and collect the scraped waste glue into a special sealed waste glue collection barrel. It is strictly forbidden to use hard metal tools such as steel brushes, screwdrivers, or angle grinders for scraping, so as not to scratch the inner wall of the glue barrel and the surface of the screw, which will affect the sealing performance and service life of the equipment.

After scraping off the residual glue, dip a clean lint-free cloth in industrial alcohol, wipe the inner wall of the glue barrel, the surface of the extrusion screw, the sealing surface of the glue barrel cover, and the filter screen repeatedly until there is no residual glue, impurities, or oil stains, and then let it air dry naturally. For the check valve and filter screen at the bottom of the glue barrel, remove them for separate cleaning, check for blockage, damage, or wear, and reinstall them after confirming that they are intact and clean, so as to ensure the smooth flow of the extrusion channel.

3.3 Adding Butyl Glue

The operation methods of adding solid butyl glue strips and granular butyl glue are slightly different, and operators should select the corresponding operation procedures according to the form of butyl glue used in actual production.

3.3.1 Adding Solid Butyl Glue Strips

Take the qualified solid butyl glue strips, and cut them into segments of 10-20 cm according to the inner diameter and depth of the glue barrel, ensuring that the cross-section of each glue strip is flat, free of cracks, burrs, or impurities. Then, put the cut butyl glue strips into the glue barrel one by one along the inner wall, and arrange them evenly around the extrusion screw in a circumferential direction. It is forbidden to throw the glue strips violently into the glue barrel, so as to avoid impact damage to the screw or the inner wall of the glue barrel. During the filling process, ensure that the glue strips are closely arranged without large gaps, and stop filling when reaching the reserved material level. After filling, use a special pressing tool to gently press the butyl glue strips layer by layer to eliminate internal gaps and ensure compact filling, which is conducive to the uniform melting and stable extrusion of butyl glue.

3.3.2 Adding Granular Butyl Glue

Install a special feeding funnel at the mouth of the glue barrel to prevent the granular butyl glue from splashing during the pouring process and causing material waste or environmental pollution. Slowly pour the qualified granular butyl glue into the glue barrel through the funnel, and stir the glue particles appropriately with a clean plastic rod during the pouring process to ensure even distribution of the glue particles and avoid bridging, agglomeration, or local accumulation in the glue barrel. Control the filling amount strictly according to the scale line of the glue barrel, and stop adding when reaching the specified material level, with the same reserved expansion space as the solid butyl glue strips.

3.4 Installing the Glue Barrel Cover and Sealing Inspection

After the butyl glue is added, recheck the integrity and cleanliness of the sealing ring of the glue barrel cover, and apply a small amount of food-grade or equipment-specified high-temperature resistant lubricating oil on the surface of the sealing ring to enhance the sealing effect and facilitate the installation of the cover. Align the glue barrel cover with the flange of the glue barrel accurately, place it flat and slowly, and ensure that the sealing ring is completely embedded in the sealing groove without deviation, distortion, or falling off. Then, tighten the locking device of the glue barrel cover evenly and symmetrically in a diagonal sequence. For bolt-locked glue barrel covers, use a torque wrench to tighten each bolt to the specified torque value (subject to the equipment manual) to ensure uniform stress on the cover, good sealing performance, and avoid glue leakage caused by uneven tightening or insufficient torque.

After the installation is completed, conduct a preliminary sealing inspection: manually check the tightness of the glue barrel cover, confirm that there is no gap between the cover and the flange, and ensure that the sealing ring is in close contact with the sealing surface to lay a foundation for the subsequent preheating and extrusion test.

3.5 Preheating and Extrusion Test

Remove the warning sign on the control panel, turn on the main power supply and air supply valve of the equipment, and reset the emergency stop button to the normal state. Enter the parameter setting interface of the control panel, set the heating temperature of each zone of the glue barrel and extrusion die according to the process requirements, turn on the heating system, and start the preheating program. During the preheating process, observe the temperature change data displayed on the control panel in real time, and check whether the equipment has abnormal noise, glue leakage, temperature overshoot, or circuit failure. After the temperature of each heating zone is stable and reaches the set value, keep the temperature for 10-15 minutes to ensure that the butyl glue in the glue barrel is completely melted into a uniform fluid state with appropriate viscosity.

Then, set the extrusion speed of the screw to a low speed of 10-20 rpm for the extrusion test, observe the extrusion state of the butyl glue at the die outlet in real time, and check whether the extruded glue is continuous, uniform, free of air bubbles, impurities, broken strips, or glue leakage. If the extrusion test result is qualified, adjust the extrusion speed to the process required speed for formal production; if there is an abnormality such as discontinuous glue output, air bubbles, or uneven glue output, stop the machine immediately, cut off the power supply and air supply, and check the cause of the fault in combination with the troubleshooting methods, and conduct the extrusion test again after the fault is eliminated.

4. Post-operation Treatment and Record Keeping

Standardized post-operation treatment and complete record keeping are important links to ensure the traceability of the operation process and the long-term stable operation of the equipment.

First, clean the operation site in a timely manner after completing the glue adding and extrusion test. Collect the residual butyl glue, used cleaning cloths, industrial alcohol waste liquid, and other waste materials into designated sealed containers, and wipe the surface of the equipment, control panel, and surrounding ground with a clean cloth to keep the operation area clean and tidy, in line with industrial production environmental standards.

Second, recheck the operating state of the equipment: check the fastening state of the glue barrel cover, the working state of the heating system, the sealing condition of each interface, and the operation state of the extrusion screw, confirm that there is no glue leakage, abnormal noise, or potential failure, and ensure that the equipment can meet the requirements of formal production.

Third, make a detailed and accurate record in the equipment operation log, including the type and amount of butyl glue added, preheating temperature and holding time, extrusion test parameters, operation time, operator information, and abnormal conditions during the operation. This record is an important basis for subsequent production traceability, equipment maintenance, and fault analysis, and must be kept properly for future reference.

For butyl extruding machines that need to be shut down for a long time, after adding the butyl glue, the equipment should be preheated regularly (once every 3-5 days) to keep the butyl glue in a molten state, prevent the glue from solidifying and blocking the extrusion channel, and extend the service life of the equipment.

5. Safety Precautions During Glue Adding Operation

Safety is the top priority in the operation of industrial equipment, and operators must strictly abide by the following safety precautions during the butyl glue adding operation to avoid personal injury and equipment damage.

First, high-temperature safety protection. During the preheating and operation of the equipment, the surface temperature of the glue barrel, extrusion die, heating pipeline, and other components is very high, and it is strictly forbidden to touch these high-temperature components with bare hands or unprotected parts of the body to avoid high-temperature scalding. If scalding occurs accidentally, take first aid measures immediately (such as flushing with cold water) and seek medical attention in time.

Second, mechanical safety protection. During the operation of the extrusion screw, it is strictly forbidden to extend hands, arms, or any tools into the glue barrel, extrusion channel, or the rotating area of the screw to avoid mechanical entanglement, extrusion, or shear injury. If it is necessary to clean, inspect, or maintain the screw and other components, the equipment must be completely shut down, the power supply and air supply must be cut off, and the operation can be carried out only after the screw is completely stopped.

Third, electrical safety protection. Do not splash water, industrial alcohol, or other liquids on the control panel, motor, electrical components, and wiring of the equipment to prevent short circuit, electric shock, or equipment burnout. In case of electrical failure, the power supply must be cut off immediately, and professional electrical maintenance personnel shall be arranged for repair, and non-professionals shall not disassemble or repair the electrical system without authorization.

Fourth, material safety protection. Butyl glue is a chemical polymer material, and it is forbidden to ingest, inhale, or contact with eyes and mucous membranes for a long time. If the butyl glue splashes into the eyes accidentally, rinse with plenty of clean water immediately and seek medical attention in time. The waste butyl glue and cleaning waste liquid shall be disposed of in strict accordance with national environmental protection regulations, and shall not be discarded, discharged, or piled up at will to avoid environmental pollution.

Fifth, emergency response specifications. In case of emergencies such as equipment jamming, glue leakage, abnormal noise, power failure, or air failure during the glue adding or extrusion process, the operator must press the emergency stop button immediately, cut off the power supply and air supply at the same time, and then check and handle the fault after confirming the safety of the equipment and the surrounding environment. It is strictly forbidden to troubleshoot, clean, or maintain the equipment with the power on or the screw running.

6. Troubleshooting of Common Problems in Glue Adding Process

In the actual butyl glue adding operation, various faults may occur due to improper operation, material quality problems, equipment aging, or parameter setting errors. The following is a detailed analysis of the common faults, causes, and targeted solutions in the glue adding process:

6.1 Glue Leakage at the Glue Barrel Cover

Common Causes: Aging, damage, or improper installation of the sealing ring; uneven tightening or insufficient torque of the locking bolt; contamination of the sealing surface with impurities, glue residue, or scratches on the flange; deformation of the glue barrel cover or flange.

Solutions: Replace the sealing ring with a new one of the same model and specification; re-tighten the locking bolt with a torque wrench in a diagonal sequence to the specified torque value; clean the sealing surface thoroughly with industrial alcohol, and repair or replace the flange if there are scratches; replace the deformed glue barrel cover or flange in time.

6.2 Uneven Extrusion of Butyl Glue

Main Causes: Loose filling of butyl glue with large gaps or agglomeration; insufficient preheating temperature or short holding time, resulting in incomplete melting of the glue; wear, deformation, or blockage of the extrusion screw and filter screen; unstable extrusion speed or pressure.

Solutions: Reopen the glue barrel cover, compact the glue or break up the agglomerated glue to ensure uniform filling; increase the preheating temperature appropriately or extend the holding time to ensure complete melting of the butyl glue; check the wear of the screw, replace the seriously worn screw, and clean or replace the blocked filter screen; calibrate the extrusion speed and pressure control system to ensure stability.

6.3 Air Bubbles in the Extruded Butyl Glue

Causes: Moisture, impurities, or air trapped in the butyl glue; incomplete cleaning of the glue barrel, resulting in residual air in the channel; excessive preheating temperature, causing thermal decomposition of the butyl glue to produce gas; poor sealing of the glue barrel cover, leading to air intake.

Solutions: Use dry, impurity-free butyl glue, and vacuumize the glue barrel (for equipment with vacuum function) during glue adding to remove air; clean the glue barrel and extrusion channel thoroughly to eliminate residual air; adjust the preheating temperature to the process specified range to avoid glue decomposition; recheck and improve the sealing performance of the glue barrel cover.

6.4 Difficulty in Opening or Tightening the Glue Barrel Cover

Causes: Rusting, jamming, or lack of lubrication of the locking device; bonding of the sealing ring to the flange due to high-temperature melting of butyl glue; incorrect operation sequence or excessive force during operation.

Solutions: Apply anti-rust lubricating oil to the locking device, clean the rust and impurities, and ensure flexible rotation; cool the glue barrel completely to separate the bonded sealing ring and flange, and do not pry violently; operate strictly in accordance with the specified opening and tightening sequence, and use appropriate tools to apply force evenly.

6.5 Blockage of the Extrusion Channel

Causes: Use of unqualified butyl glue with hard blocks or impurities; incomplete preheating, resulting in solidification of local butyl glue; residual solidified glue in the channel not cleaned thoroughly; long-term shutdown without preheating, leading to glue solidification.

Solutions: Replace qualified butyl glue free of hard blocks and impurities; increase the preheating temperature and holding time to ensure complete melting of the glue; clean the extrusion channel, check valve, and filter screen thoroughly; preheat the equipment regularly during long-term shutdown to keep the glue in a molten state.

7. Daily Maintenance of the Glue Adding System

Regular and standardized maintenance of the glue adding system of the butyl extruding machine can effectively reduce the failure rate, extend the service life of the equipment, and ensure the stability of the glue adding and extrusion process. The maintenance work is divided into daily, weekly, monthly, and annual maintenance according to the cycle:

7.1 Daily Maintenance (Once per Shift)

Clean the glue barrel, extrusion screw, filter screen, and glue barrel cover after each shift to remove residual butyl glue and impurities; check the fastening state of the locking bolts and the integrity of the sealing ring; test the sensitivity of the emergency stop button and control buttons; record the operation status and abnormal conditions of the equipment in the maintenance log.

7.2 Weekly Maintenance (Once a Week)

Thoroughly clean the inside of the glue barrel and extrusion channel, check the wear of the extrusion screw and filter screen; calibrate the temperature control system to ensure the accuracy of the heating temperature; add lubricating oil or grease to the rotating parts such as the screw bearing; drain the accumulated water in the air filter and air storage tank of the pneumatic system.

7.3 Monthly Maintenance (Once a Month)

Check the aging degree of the sealing ring, heating tube, and power cord, and replace the aging parts in time; calibrate the pressure gauge and temperature sensor to ensure the accuracy of measurement data; inspect the working state of the motor and transmission mechanism, and eliminate abnormal noise and vibration; clean the control cabinet and remove dust to ensure the normal heat dissipation of electrical components.

7.4 Annual Maintenance (Once a Year)

Conduct a comprehensive disassembly and inspection of the glue adding system, replace all wearing parts such as the sealing ring, filter screen, and screw; replace the lubricating oil, hydraulic oil (if equipped), and filter element; conduct a comprehensive safety performance test of the equipment, including safety protection devices, grounding system, and overload protection; update the equipment maintenance file and record the maintenance content and results in detail.

8. Conclusion

The operation of adding butyl glue is a key link that runs through the use and maintenance of the butyl extruding machine, involving multiple dimensions such as personnel operation, equipment inspection, material control, parameter setting, and safety protection. Only by strictly abiding by the standardized operation procedures, doing a good job in pre-operation preparation, in-process standardized operation, and post-operation treatment and maintenance, and firmly establishing a safety first operation concept, can the stable operation of the butyl extruding machine be ensured, the quality of butyl glue extrusion be improved, potential safety and quality hazards be reduced, and the production efficiency and product qualification rate be effectively improved.

With the continuous development of the sealing industry and the continuous upgrading of equipment technology, the requirements for the operation skills and professional quality of operators are also getting higher and higher. Operators should continuously learn new technologies, new processes, and new standards, master the operation and maintenance skills of advanced butyl extruding machines, and adapt to the development needs of industrial production. At the same time, enterprises should strengthen the professional training and safety management of operators, formulate and improve standardized operation systems and maintenance systems, and promote the standardized, intelligent, and efficient development of the operation and maintenance of butyl extruding machines, so as to provide a strong guarantee for the high-quality development of the sealing processing industry.

Double Edge Straight Glass Grinding Machine: A Comprehensive Analysis of Design, Technology and Industrial Application

Abstract

The Double Edge Straight Glass Grinding Machine is a core piece of automated processing equipment in the modern glass deep-processing industry, dedicated to the simultaneous high-precision grinding, polishing and chamfering of two parallel straight edges of flat glass. This article systematically expounds the structural composition, working principle, core technical parameters, application scenarios, performance advantages, maintenance specifications and future development trends of the double edge straight glass grinding machine. By analyzing its technological innovation, processing efficiency and industrial value, it aims to provide a theoretical basis and practical reference for glass processing enterprises, equipment R&D institutions and technical practitioners, and clarify the important role of this equipment in promoting the automation, intelligence and high-quality development of the glass processing industry.

1. Introduction

With the rapid expansion of application fields such as architectural decoration, automotive manufacturing, home appliances, furniture and photovoltaic new energy, the demand for flat glass products has shown a sustained growth trend, and the requirements for glass edge processing quality, production efficiency and dimensional accuracy are becoming increasingly stringent. The traditional single-side glass grinding machine can only process one edge of the glass at a time, which requires repeated clamping and positioning of the glass, resulting in low production efficiency, poor dimensional consistency, high labor intensity and high production cost, and it is difficult to adapt to the large-scale and standardized production needs of modern glass processing.

In response to the pain points of the industry, the double edge straight glass grinding machine has been developed and applied, which realizes the simultaneous processing of two parallel straight edges of flat glass through a dual-spindle group, dual-conveying system and integrated control technology. It integrates multiple processes such as coarse grinding, fine grinding, polishing and chamfering, and completes the edge processing of glass in one pass, which greatly improves the processing efficiency and product quality. This equipment has become an indispensable key equipment in the glass deep-processing production line, and its technical level and performance indicators directly affect the core competitiveness of glass processing enterprises. This article will conduct an in-depth and comprehensive analysis of the double edge straight glass grinding machine from multiple dimensions, and explore its technical characteristics and development potential in the industrial field.

2. Structural Composition and Core Components

The double edge straight glass grinding machine adopts a symmetrical integrated structural design, which is mainly composed of a main frame, a double-side grinding spindle group, a pneumatic clamping and conveying system, a PLC intelligent control system, a cooling and dust removal system, a glass positioning mechanism and a safety protection device. Each component is designed and matched with high precision to ensure the stability, accuracy and continuity of the equipment during operation.

2.1 Main Frame

The main frame is the load-bearing foundation of the entire equipment, which is generally made of high-strength thick steel plates through precision welding, stress relief annealing and precision machining. This manufacturing process can effectively eliminate the internal stress of the frame, avoid deformation and vibration caused by long-term high-load operation, and ensure the geometric accuracy and stability of the equipment. The frame is designed with a symmetrical structure on both sides, equipped with high-precision linear guide rails, ball screws and servo drive systems for the movement of the grinding spindle group, which can realize the precise adjustment of the distance between the two sides of the grinding heads and the feeding accuracy of the spindles. The gantry-type reinforced structure is adopted for large-scale models, which can bear the weight of large-format glass and high-speed grinding load, and is suitable for the processing of architectural curtain wall glass and automotive large glass.

2.2 Double-Side Grinding Spindle Group

The double-side grinding spindle group is the core execution component of the equipment, which is symmetrically arranged on both sides of the conveying channel, and each side is equipped with 8-12 high-speed precision spindles, which are divided into coarse grinding spindles, fine grinding spindles, chamfering spindles and polishing spindles according to the processing process. The spindles are driven by high-performance servo motors, with a rotation speed of 2800-3600rpm, and have the characteristics of low vibration, low noise and high stability.

The coarse grinding spindle is equipped with diamond grinding wheels with a grit size of #100-#180, which is used to quickly remove the sharp edges, burrs and micro-cracks of the cut glass, and form the basic straight edge profile; the fine grinding spindle adopts resin-bonded diamond grinding wheels with a grit size of #240-#400, which refines the edge surface, eliminates grinding marks and improves the dimensional accuracy of the edge; the chamfering spindle is equipped with a special chamfering grinding wheel, which can process 45° chamfers, rounded corners and other edge shapes according to the process requirements, with a chamfer width adjustable from 0.5mm to 3mm; the polishing spindle is equipped with cerium oxide polishing wheels or resin polishing wheels, which can polish the glass edge to an optical-grade finish with a surface roughness Ra ≤ 0.15μm, meeting the high surface quality requirements of high-end glass products. The two-side spindle groups can be independently adjusted in speed, feeding amount and grinding pressure, and can realize the synchronous processing of different edge processes on both sides of the glass, with strong process adaptability.

2.3 Pneumatic Clamping and Conveying System

The pneumatic clamping and conveying system is responsible for the stable fixation and continuous conveying of glass, which is the key to ensuring the processing accuracy and efficiency of the equipment. The system consists of a pneumatic power unit, precision pressure regulating valves, pneumatic clamping cylinders, wear-resistant clamping jaws, a variable-frequency conveying belt and a drive motor.

The pneumatic clamping mechanism adopts a flexible clamping design, and the clamping jaws are lined with polyurethane or rubber materials, which can apply uniform and adjustable clamping pressure (0.2-0.6MPa) according to the thickness of the glass (3-25mm), avoiding glass surface damage and edge chipping caused by excessive pressure, and ensuring the stable positioning of the glass during high-speed grinding. The conveying system adopts a double-sided synchronous conveying belt driven by a variable-frequency motor, with a conveying speed adjustable from 1m/min to 8m/min, which can be matched with different processing speeds and glass thicknesses. The conveying belt is made of anti-slip and wear-resistant materials, which can prevent glass slippage and scratching during the conveying process, and realize the continuous and stable conveying of glass from the feeding end to the discharging end.

2.4 PLC Intelligent Control System

The double edge straight glass grinding machine is equipped with a high-performance PLC (Programmable Logic Controller) and a touch-screen human-machine interface (HMI), which realizes the intelligent control of the entire processing process. The control system supports the setting and storage of processing parameters such as glass thickness, edge width, chamfer size, spindle speed, conveying speed and grinding pressure, and can store more than 100 groups of process parameters, which is convenient for quick switching of different glass specifications and reduces the equipment adjustment time.

The system has real-time monitoring functions, which can display the operating status of each spindle, pneumatic pressure, conveying speed, cooling system flow and other parameters in real time, and has fault self-diagnosis and alarm functions. When equipment failures such as spindle overload, air pressure abnormality, cooling blockage and glass jamming occur, the system will automatically stop and send out an audible and visual alarm, and display the fault location and solution on the touch screen, which is convenient for operators to troubleshoot. Advanced models are also equipped with Ethernet communication and remote control functions, which can realize remote monitoring, parameter adjustment and fault diagnosis, and integrate with the glass processing production line to form an intelligent manufacturing system.

2.5 Cooling and Dust Removal System

During the glass grinding process, the friction between the grinding wheel and the glass will generate a lot of heat, and a large amount of glass powder will be produced at the same time. The cooling and dust removal system is designed to reduce the grinding temperature, lubricate the grinding contact surface, and remove glass powder, which is an important guarantee for improving the processing quality and extending the service life of the grinding wheel.

The cooling system adopts a closed-loop water circulation design, and high-precision nozzles are installed at each grinding spindle to spray cooling liquid (pure water or special glass grinding coolant) directly onto the grinding contact area, which can quickly take away the grinding heat, prevent the glass edge from cracking due to thermal stress, and reduce the wear of the grinding wheel. The dust removal system is integrated with the cooling circulation system, and the glass powder and debris generated during grinding are flushed into the sedimentation tank by the cooling liquid, and then filtered and recycled through a multi-stage filtration device (filter precision ≤ 5μm), which reduces water consumption and environmental pollution, and avoids the blockage of precision components by glass powder.

2.6 Glass Positioning Mechanism and Safety Protection Device

The glass positioning mechanism is composed of photoelectric sensors, mechanical positioning blocks and pneumatic positioning cylinders, which can realize the precise positioning of the glass before entering the grinding area, with a positioning accuracy of ±0.01mm, ensuring the consistency of the processing size of the two sides of the glass. The safety protection device includes a safety grating, an emergency stop button, a protective cover and an interlock device, which can prevent operators from being injured by the rotating grinding wheel and the moving glass during the operation of the equipment, and meet the safety production standards of industrial machinery.

3. Working Principle

The working process of the double edge straight glass grinding machine is a highly coordinated operation of mechanical transmission, pneumatic control, electrical control and grinding processing, which is divided into six stages: glass feeding, precise positioning, pneumatic clamping, double-side synchronous grinding, glass release and discharging, and the entire process is automatically completed under the control of the PLC system.

3.1 Glass Feeding and Precise Positioning

The operator places the cut flat glass on the feeding conveyor belt, and the conveyor belt transports the glass to the positioning area. The photoelectric sensor detects the position of the glass edge and transmits the signal to the PLC system. The PLC controls the pneumatic positioning cylinder to push the glass to the preset positioning position, and the mechanical positioning block assists in fixing, realizing the precise alignment of the glass and the grinding spindle group, ensuring that the two parallel edges of the glass are accurately aligned with the grinding heads on both sides.

3.2 Pneumatic Clamping

After the glass is positioned accurately, the PLC system sends a command to activate the pneumatic clamping system. The pneumatic cylinders on both sides drive the clamping jaws to move towards the glass, and apply uniform clamping pressure according to the set parameters to fix the glass firmly. The clamping pressure is adjusted in real time by the precision pressure regulating valve to adapt to glass of different thicknesses and materials, avoiding glass damage and ensuring that the glass does not shift during the grinding process.

3.3 Double-Side Synchronous Grinding

After the clamping is completed, the PLC system starts the double-side grinding spindle group and the conveying system at the same time. The glass moves forward at a set conveying speed, and the grinding spindles on both sides feed radially at the same time. The grinding wheels make contact with the two parallel edges of the glass, and complete the processes of coarse grinding, fine grinding, chamfering and polishing in sequence according to the preset process flow.

During the grinding process, the cooling system sprays cooling liquid continuously to cool and lubricate the grinding area, and the dust removal system synchronously recovers the glass powder. The PLC system monitors the operating parameters of each spindle and the conveying system in real time, and automatically adjusts the spindle speed, feeding amount and grinding pressure to ensure the stability of the grinding process and the consistency of the processing quality of the two edges of the glass.

3.4 Glass Release and Discharging

When the glass passes through the entire grinding area and completes all edge processing, the photoelectric sensor at the discharging end sends a signal to the PLC system. The PLC controls the pneumatic clamping cylinder to retract, the clamping jaws release the glass, and the conveying belt transports the processed glass to the discharging area. At this point, a complete processing cycle is completed, and the equipment immediately enters the next processing cycle to realize continuous automatic production.

4. Core Technical Parameters

The core technical parameters of the double edge straight glass grinding machine determine its processing capacity, accuracy and application scope. The following are the main technical parameters of mainstream models in the market:






Parameter Category
Specific Indicators
Parameter Range




Processing Scope
Applicable glass thickness
3-25mm



Minimum processing glass size
50mm×50mm



Maximum processing glass size
Customizable (up to 3000mm×2000mm)



Processing edge type
Straight edge, 45° chamfer, rounded edge



Chamfer width adjustment range
0.5-3mm


Processing Accuracy
Edge dimensional accuracy
±0.01mm



Parallelism of double edges
≤0.02mm/m



Surface roughness after polishing
Ra≤0.15μm



Chamfer angle accuracy
±0.5°


Operational Parameters
Spindle rotation speed
2800-3600rpm



Conveying speed
1-8m/min



Pneumatic system working pressure
0.2-0.6MPa



Compressed air consumption
≤1.5L/min


Power Parameters
Total installed power
22-30kW



Power supply
380V/50Hz, three-phase four-wire


Physical Parameters
Overall dimensions (L×W×H)
7.5-8.5m×1.8m×2.8m



Equipment weight
4000-6000kg






These technical parameters reflect the high precision, high efficiency and wide adaptability of the double edge straight glass grinding machine, which can meet the processing needs of different glass specifications and different application scenarios.

5. Industrial Application Scenarios

Due to its advantages of high efficiency, high precision and automation, the double edge straight glass grinding machine is widely used in various fields of flat glass deep processing, and has become the core equipment of glass processing production lines in many industries.

5.1 Architectural Decoration Industry

In the architectural glass processing field, the double edge straight glass grinding machine is mainly used for the edge processing of architectural curtain wall glass, doors and windows glass, partition glass, shower room glass and glass railing. The equipment can process high-precision straight edges and 45° chamfers for large-format architectural glass, which not only improves the aesthetic appearance of the glass, but also enhances the mechanical strength and safety of the glass, meeting the safety standards of architectural glass. The high processing efficiency of the equipment can meet the large-scale production needs of architectural glass projects, and is widely used in the processing of glass for high-rise buildings, commercial complexes, hotels and residential buildings.

5.2 Automotive Glass Manufacturing

Automotive glass (windshield, side window glass, rear window glass, sunroof glass) has extremely high requirements for edge processing accuracy and quality. The double edge straight glass grinding machine can realize the high-precision grinding and polishing of the two parallel edges of automotive glass, ensure the dimensional accuracy and sealing performance of the glass, and facilitate the installation of glass and automotive frames. The equipment can process various types of automotive glass such as tempered glass and laminated glass, and is an indispensable processing equipment in the automotive glass production line.

5.3 Home Appliances and Furniture Industry

In the home appliance industry, the equipment is used for the edge processing of glass panels of refrigerators, washing machines, ovens, microwave ovens and display screens, and the polished glass edge improves the safety and aesthetic appearance of home appliance products. In the furniture industry, it is mainly used for the processing of glass tabletops, cabinet glass doors, display cabinet glass and decorative glass parts, and the processed glass has smooth edges and high dimensional accuracy, which meets the production needs of high-end furniture.

5.4 Photovoltaic New Energy Industry

With the rapid development of the photovoltaic industry, the demand for photovoltaic glass is increasing year by year. The double edge straight glass grinding machine is used for the edge processing of photovoltaic glass panels, which can eliminate the micro-cracks on the glass edge, improve the mechanical strength and weather resistance of the photovoltaic glass, and ensure the service life of photovoltaic modules. The high-efficiency processing capacity of the equipment can meet the large-scale production needs of photovoltaic glass manufacturing enterprises.

5.5 Electronic and Optical Glass Industry

For electronic glass (smart phone cover glass, tablet display glass, TV panel glass) and optical glass (optical lens substrate, instrument glass), the double edge straight glass grinding machine can achieve ultra-precision polishing of the glass edge, with a surface roughness Ra ≤ 0.1μm, meeting the requirements of light transmittance and surface smoothness of electronic and optical glass. The equipment's high-precision positioning and processing capabilities ensure the consistency of small-sized electronic glass processing, and are suitable for the mass production of electronic and optical glass components.

6. Performance Advantages

Compared with the traditional single-side glass grinding machine and manual edging process, the double edge straight glass grinding machine has obvious performance advantages, which can effectively improve the production efficiency and product quality of glass processing enterprises and reduce production costs.

6.1 High Processing Efficiency and Continuous Production Capacity

The double edge straight glass grinding machine can process two parallel edges of glass at the same time, and complete multiple processes such as coarse grinding, fine grinding, chamfering and polishing in one pass, which improves the processing efficiency by 50%-80% compared with the single-side grinding machine. The automatic feeding, positioning, clamping, grinding and discharging system realizes unmanned continuous production, with a processing capacity of 100-150 pieces per hour (for standard 12mm thick glass), which can meet the large-scale production needs of enterprises.

6.2 High Processing Precision and Product Consistency

The equipment adopts high-precision linear guide rails, servo drive systems and PLC intelligent control, with an edge dimensional accuracy of ±0.01mm and a double-edge parallelism of ≤0.02mm/m, which far exceeds the processing accuracy of manual and single-side grinding machines. The synchronous processing of the double-side spindle group ensures the consistency of the processing quality of the two edges of the glass, and the polished edge surface is smooth and scratch-free, which improves the qualification rate of glass products to more than 99.5%.

6.3 Wide Adaptability to Glass Specifications and Types

The equipment can process glass with a thickness of 3-25mm and a size of 50mm×50mm to 3000mm×2000mm, and can adapt to various types of flat glass such as float glass, tempered glass, laminated glass, Low-E glass, photovoltaic glass and electronic glass. The spindle speed, grinding pressure, conveying speed and chamfer size can be flexibly adjusted according to the processing requirements, with strong process adaptability and can meet the diversified processing needs of enterprises.

6.4 High Degree of Automation and Easy Operation

The PLC touch-screen control system simplifies the operation process, and operators can complete the parameter setting and equipment start-stop only through simple training. The system has functions such as parameter memory, fault self-diagnosis and automatic alarm, which reduces the labor intensity of operators and the dependence on skilled workers. The integration with the automatic loading and unloading equipment can form a fully automatic glass processing production line, realizing the intelligent manufacturing of glass processing.

6.5 Low Production Cost and Long Service Life

The one-pass processing of the equipment reduces the number of glass clamping and positioning, reduces the loss of glass caused by repeated handling and clamping, and saves labor costs. The closed-loop cooling and dust removal system reduces the consumption of cooling liquid and the wear of grinding wheels, and the service life of high-quality diamond grinding wheels can reach more than 10,000 hours. The high-strength frame structure and high-quality components ensure the long-term stable operation of the equipment, with a service life of more than 15 years under normal maintenance, which reduces the equipment replacement and maintenance costs of enterprises.

6.6 Good Safety and Environmental Protection Performance

The equipment is equipped with a complete safety protection device, which can effectively prevent safety accidents during the operation of the equipment and meet the industrial safety production standards. The closed-loop cooling and dust removal system recycles the cooling liquid and collects the glass powder, which reduces the discharge of waste water and waste residue, realizes green and environmentally friendly production, and complies with the national environmental protection policies.

7. Equipment Maintenance and Troubleshooting

In order to ensure the long-term stable operation of the double edge straight glass grinding machine and maintain its processing accuracy, it is necessary to carry out standardized daily maintenance and timely troubleshooting. The maintenance of the equipment is divided into daily maintenance, weekly maintenance and monthly maintenance, and corresponding solutions are formulated for common faults.

7.1 Daily Maintenance

After each shift, clean the glass powder and debris on the surface of the equipment, grinding spindles, conveying belts and cooling nozzles with compressed air and a clean cloth; check the liquid level of the cooling liquid, and add or replace the cooling liquid in time if it is insufficient or contaminated; check the pneumatic system pressure to ensure that it is within the normal range, and check for air leakage at the cylinder joints and valves; check the wear of the grinding wheels, and replace the grinding wheels that are seriously worn or chipped in time; lubricate the linear guide rails and ball screws with special lubricating oil to ensure smooth movement.

7.2 Weekly Maintenance

Drain the water and impurities in the air storage tank of the pneumatic system, and replace the pneumatic filter element; check the tightness of the spindle fixing screws and the conveyor belt tension, and adjust them in time if they are loose; calibrate the positioning accuracy of the photoelectric sensor and the mechanical positioning block; clean the filter device of the cooling and dust removal system to prevent blockage; check the operation of the servo motor and the PLC control system, and test the emergency stop and alarm functions.

7.3 Monthly Maintenance

Conduct a comprehensive inspection of the main frame, grinding spindle group, conveying system and electrical system of the equipment, check for deformation, wear and damage of components, and replace damaged parts in time; replace the lubricating oil of the spindle bearing and the gearbox; calibrate the processing accuracy of the equipment, including edge dimensional accuracy, double-edge parallelism and chamfer angle accuracy; update the PLC system software and back up the process parameters; conduct a comprehensive safety inspection of the equipment to ensure the normal operation of the safety protection device.

7.4 Common Faults and Troubleshooting


Uneven processing of double edges: The main reasons are inconsistent feeding of double-side spindles, misalignment of glass positioning and uneven clamping pressure. The solutions are to calibrate the feeding accuracy of the double-side spindles, adjust the glass positioning mechanism and the pneumatic clamping pressure.
Glass edge chipping and cracking: The main reasons are excessive grinding pressure, insufficient cooling liquid, hard glass material and glass positioning deviation. The solutions are to reduce the grinding pressure, check the cooling nozzle blockage, replace the appropriate grinding wheel and re-calibrate the glass positioning.
Low surface roughness after polishing: The main reasons are worn polishing wheels, incorrect spindle speed and contaminated cooling liquid. The solutions are to replace the polishing wheels, adjust the spindle speed and replace the cooling liquid.
Conveyor belt slipping and jamming: The main reasons are worn conveyor belt lining, insufficient tension and excessive glass weight. The solutions are to replace the conveyor belt lining, adjust the belt tension and control the glass processing size within the equipment's bearing range.
PLC system fault and alarm: The main reasons are parameter setting error, electrical component damage and communication failure. The solutions are to check and correct the process parameters, replace the damaged electrical components and check the communication line connection.


8. Future Development Trends

With the continuous progress of science and technology and the changing market demand, the double edge straight glass grinding machine is developing in the direction of higher intelligence, higher precision, energy saving and environmental protection, and multi-functional integration, and its technical level and application scope will be further improved and expanded.

8.1 Intelligent and Digital Upgrading

In the future, the double edge straight glass grinding machine will integrate more intelligent technologies such as artificial intelligence, machine vision and big data. The machine vision system will automatically detect the size, thickness, edge defects and processing quality of the glass, and the artificial intelligence algorithm will optimize the processing parameters in real time to realize the adaptive processing of different glass. The big data platform will collect and analyze the equipment operation data, realize predictive maintenance and production scheduling optimization, and improve the overall efficiency of the production line. The digital twin technology will be applied to simulate the equipment operation and processing process, and realize the virtual debugging and process optimization of the equipment.

8.2 Ultra-Precision Processing Technology

With the development of electronic, optical and semiconductor industries, the demand for ultra-precision glass processing is increasing. The double edge straight glass grinding machine will develop towards higher precision, with the edge dimensional accuracy reaching ±0.005mm and the surface roughness Ra ≤ 0.05μm. The new type of nano-grinding wheel and high-precision spindle technology will be applied to realize the ultra-precision grinding and polishing of thin glass and special-shaped glass, meeting the processing needs of high-end electronic and optical products.

8.3 Energy Saving and Environmental Protection Optimization

In response to the national dual-carbon target and environmental protection requirements, the equipment will adopt energy-saving motors, high-efficiency drive systems and intelligent energy management systems to reduce power consumption by 30%-40%. The cooling and dust removal system will be further optimized, adopting a zero-discharge closed-loop circulation system and glass powder recycling technology to realize the recycling of waste resources and reduce environmental pollution. The equipment will use more environmentally friendly materials and manufacturing processes to realize the green design and production of the equipment.

8.4 Multi-Functional Integration and Flexible Manufacturing

The future double edge straight glass grinding machine will integrate multiple processing functions such as straight edge grinding, chamfering, polishing, drilling and slotting, and realize the one-stop processing of glass. The modular design will be adopted, and the spindle group and processing module can be quickly replaced and combined to adapt to the processing of different edge shapes and glass types. The equipment will have the ability of flexible production, which can quickly switch between different production tasks and meet the personalized and customized processing needs of the market.

8.5 Global Market Expansion and Localized Innovation

With the rapid development of the global glass processing industry, especially in emerging markets such as Southeast Asia, Latin America and Africa, the demand for high-performance double edge straight glass grinding machines is growing. Domestic equipment manufacturers will increase R&D investment, break through the core technology bottleneck, improve the quality and performance of the equipment, and expand the international market share. At the same time, localized innovation will be carried out according to the market demand and processing standards of different regions, and customized equipment and solutions will be provided to meet the diversified needs of global customers.

9. Conclusion

The double edge straight glass grinding machine, as a key equipment in the modern glass deep-processing industry, has revolutionized the traditional glass edge processing mode with its high efficiency, high precision, automation and intelligence, and has become an important support for the high-quality development of the glass processing industry. Its structural design, technical performance and application scope have been continuously improved and expanded, and it plays an irreplaceable role in architectural decoration, automotive manufacturing, home appliances, photovoltaic and other fields.

In the future, with the continuous innovation of intelligent manufacturing technology, energy saving and environmental protection technology and ultra-precision processing technology, the double edge straight glass grinding machine will move towards a higher level of intelligence, precision and greenness, and provide more efficient and high-quality processing solutions for the glass processing industry. For glass processing enterprises, adopting advanced double edge straight glass grinding machines is an important way to improve production efficiency, reduce production costs and enhance market competitiveness. For equipment manufacturers, continuous technological innovation and product upgrading are the core driving forces to seize market opportunities and promote the sustainable development of the industry.
