I. Introduction



Mechanized production of insulating glass significantly improves production efficiency and product quality. This plan details the process of manufacturing insulating glass using automated machinery.



II. Production Process



A. Glass Feeding and Cutting



- Automated Loading: High - speed robotic arms are used to load large sheets of float glass from storage racks onto the glass cutting line. These arms are programmed to handle the glass gently to avoid scratches or breakages.

- Precision Cutting: Computer - controlled glass cutting machines measure and cut the glass according to pre - set dimensions. The cutting blades are automatically adjusted for different glass thicknesses, ensuring a precise cut with an accuracy of ± 0.5mm.



B. Edge Processing



- Grinding and Polishing: The cut glass edges are fed into an automated edge - processing machine. This machine uses rotating abrasive wheels to grind the edges smoothly and then polishes them to enhance the glass's appearance and adhesion for sealants.

- Drilling (if required): For customized insulating glass with holes, a numerically - controlled drilling machine is integrated into the production line. It accurately drills holes based on the input specifications, with a high - speed spindle ensuring clean and precise holes.



C. Washing and Drying



- The Glass will be washed with the glass washing machine.The machine is with 6 soft brushes for cleaning and knieves for drying.It is ok for Low-E glass and the glass thickness can be adjusted automatically.



D. Spacer and Desiccant Handling



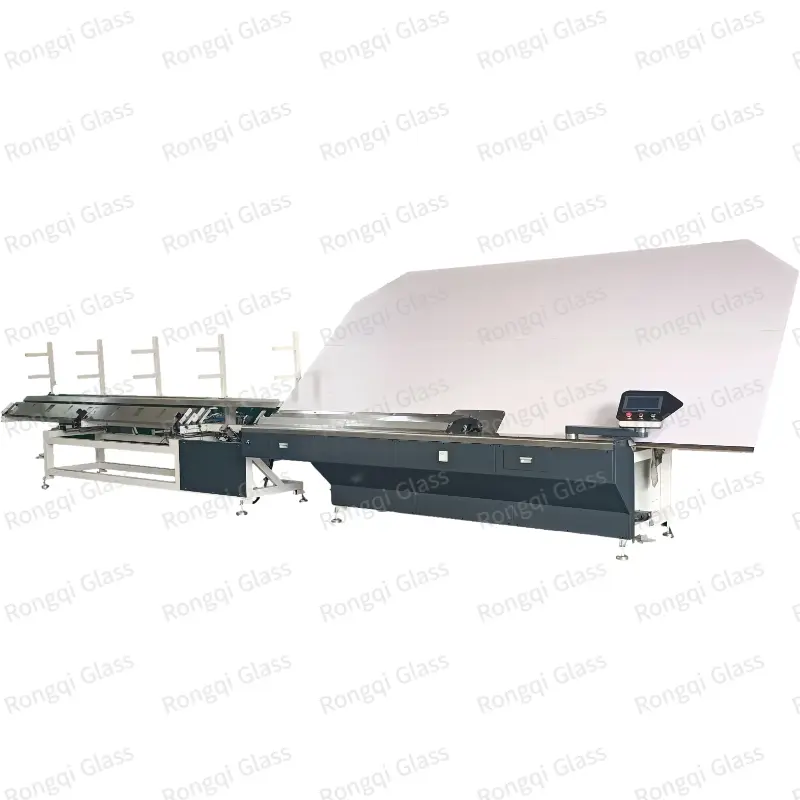

- Spacer Bending and Assembly: An automatic spacer bending machine forms aluminum or stainless - steel spacers into the required shapes. The machine can handle different spacer profiles and lengths. Desiccant is automatically filled into the spacers through a precise dosing system to absorb moisture in the air gap.

- Spacer Placement: Robotic arms pick up the bent spacers and accurately position them between the cleaned glass sheets on a conveyor - based assembly platform.



E. Gas Filling (Optional)



- Inert Gas Injection: For insulating glass that requires enhanced thermal performance, an automated gas - filling machine is used. It injects inert gases like argon or krypton into the air gap between the glass panes. The gas flow rate and pressure are precisely controlled to achieve the desired gas concentration.



F. Sealing



- Primary Seal Application: A robotic sealant dispensing arm applies the primary sealant, typically polysulfide, along the inner edge of the spacer. The arm moves at a constant speed and pressure, ensuring an even and consistent sealant layer.

- Secondary Seal Application: After the primary seal has cured to a certain extent, another robotic arm applies the secondary sealant, such as silicone, on the outside of the primary seal. This provides additional protection and strength to the insulating glass unit.



III. Quality Assurance



- In - line Inspection: Throughout the production process, multiple in - line inspection stations are installed. These use sensors and cameras to detect defects such as uneven sealant application, air bubbles, and misaligned components. Defective products are automatically flagged and removed from the production line.

- Final Testing: Before packaging, each insulating glass unit undergoes a final set of tests, including a leak test for gas - filled units and a dimensional accuracy check. Only products that meet the strict quality standards are approved for shipment.



IV. Conclusion



This mechanized production process for insulating glass, with its combination of automated machinery and strict quality control measures, ensures the efficient production of high - quality insulating glass products, meeting the demands of the construction and related industries.

In a significant milestone for our collaboration, our customer recently received a full batch of advanced glass processing equipment and materials, delivered directly to their factory. The shipment, which included an Automatic Glass Laminating Machine, a high-precision CNC Glass Cutting Machine, Double Glass insulating units materials, and premium EVA film, arrived safely in three containers.



Our team coordinated the entire unloading process seamlessly, ensuring all machinery and materials were handled with care and efficiency. The successful logistics operation highlights our capability to manage large-scale, multi-product orders and deliver them ready for installation and production.



The client expressed great satisfaction with the organization of the delivery and the quality of the products supplied. This delivery marks a crucial step in expanding their production capabilities, enabling them to offer higher quality and more diverse glass products. We are proud to be a trusted partner in providing comprehensive solutions for the glass industry.

Air-Floating Inclined Glass Breaking Table: Engineering Principles, Technical Advantages, and Industrial Applications

1. Introduction

In the modern manufacturing landscape of flat-panel displays (FPD), photovoltaic (PV) modules, architectural glass, and automotive glazing, the demand for precise, non-destructive glass processing and strength testing has intensified. The Air-Floating Inclined Glass Breaking Table (AFIGBT) emerges as a pivotal innovation, integrating air-bearing technology, hydraulic tilting mechanisms, and pneumatic control systems to redefine the standards of glass handling, positioning, and fracture testing. Unlike conventional contact-based breaking tables that risk surface scratches, edge damage, or inconsistent stress distribution, the AFIGBT leverages non-contact air suspension to ensure uniform support, precise angular adjustment, and repeatable fracture initiation—critical for quality control in high-precision glass manufacturing. This article comprehensively explores the technical fundamentals, structural components, performance characteristics, industrial applications, and future development directions of the AFIGBT, shedding light on its transformative role in the global glass processing industry.

2. Core Technical Principles

2.1 Non-Contact Air Suspension Mechanism

The cornerstone of the AFIGBT lies in its air-floating system, which employs porous media technology to generate a stable, ultra-thin air film between the glass substrate and the table surface. Compressed air is forced through millions of sub-micron pores in a proprietary carbon or ceramic bearing surface, creating a uniform pressure distribution that lifts the glass off the table without physical contact . The thickness of this air film is precisely controllable, typically ranging from 10µm to 200µm, with a stability tolerance of ±5µm to ±20µm—sufficient to accommodate inherent flatness deviations of up to 5µm in glass substrates while maintaining optimal support rigidity . Contrary to traditional assumptions, thinner air films exhibit higher stiffness, enabling the AFIGBT to achieve sub-micron positioning resolution and rapid vibration damping—essential for minimizing structural deformation during the breaking process.

To prevent "skating" or lateral displacement of the glass during suspension, the system integrates a balanced vacuum-preload mechanism. By adjusting the ratio of air pressure and vacuum force, engineers can "lock" the glass in a stable spatial position, suppressing flutter and ensuring consistent alignment throughout the testing or processing cycle . This pressure-vacuum balance also facilitates glass flattening, reducing surface vibrations that could compromise the accuracy of fracture analysis. Notably, the porous media surface acts as a HEPA-like filter, preventing particle generation and making the system compatible with ISO Class 10 cleanroom environments—a critical requirement for FPD and semiconductor manufacturing .

2.2 Hydraulic Tilting Control System

The inclined functionality of the AFIGBT is enabled by a hydraulic actuation system, designed to deliver smooth, stable angular adjustment with precise position control. The hydraulic cylinder-driven tilting mechanism allows the table to rotate from a horizontal (0°) to a vertical (90°) position, with intermediate angle settings adjustable in increments as fine as 0.1°—catering to diverse testing standards and processing requirements. The hydraulic system’s high load-bearing capacity ensures stable operation even for large-format glass substrates, with table sizes ranging up to 2200mm × 3600mm to accommodate Gen 10+ FPD panels and oversized architectural glass sheets.

Key to the tilting system’s performance is its closed-loop feedback control, which utilizes linear displacement sensors and pressure transducers to monitor the table’s angle and load in real time. This enables dynamic adjustment of hydraulic flow rates, ensuring uniform acceleration and deceleration during tilting—preventing inertial forces from causing glass slippage or edge impact. Additionally, safety interlocks are integrated to halt operation if the tilt angle exceeds preset limits or if pressure loss is detected, mitigating the risk of equipment damage or operator injury.

2.3 Pneumatic Fracture Initiation Mechanism

The AFIGBT’s breaking system employs pneumatically controlled X and Y-axis breaking bars, activated via foot pedals or programmable logic controllers (PLCs) to initiate precise, localized fractures. These breaking bars are strategically positioned across the table surface, allowing for selective activation to target specific sections of the glass—enabling both full-panel breaking and segmented cutting for large-format substrates. The pneumatic actuation ensures rapid, consistent force application, with adjustable pressure settings to match the mechanical properties of different glass types (e.g., tempered glass, laminated glass, ultra-thin glass).

To enhance fracture accuracy, the breaking bars are equipped with precision-machined contact points that concentrate stress at predefined locations—replicating real-world failure scenarios while ensuring repeatable test results. The integration of the air-floating system with the breaking mechanism is critical: the non-contact support eliminates friction-induced stress variations, ensuring that the applied breaking force is uniformly distributed across the glass’s cross-section. This results in clean, predictable fractures that align with industry standards such as SEMI, CE, and ISO 9001.

3. Structural Components and Technical Specifications

3.1 Key Component Architecture

The AFIGBT comprises six core subsystems, each engineered for durability, precision, and seamless integration:

1. Heavy-Duty Metallic Frame: Constructed from high-strength steel with reinforced welds, the frame provides structural rigidity to withstand dynamic loads during tilting and breaking, with a design life exceeding 10,000 operating hours.

2. Air-Floating Platform: Modular porous media air-bearing panels (available in standard, precision, and ultra-precision variants) cover the table surface, with customizable configurations to accommodate different glass sizes and thicknesses (from 0.1mm to 20mm).

3. Air Supply System: A high-pressure compressor (3–5 kW) with pressure regulators, filters, and flow meters delivers clean, dry air (≤ -40°C dew point) to the air-bearing panels, ensuring consistent air film formation.

4. Hydraulic Tilting Unit: Double-acting hydraulic cylinders with servo valves, paired with a hydraulic power unit (380V/50Hz or 220V/60Hz), enable smooth angle adjustment with a tilting speed of 2–5° per second.

5. Pneumatic Breaking Assembly: 3–6 pneumatically controlled breaking bars (depending on table size) with adjustable stroke lengths (10–50mm) and force ranges (50–500N), synchronized via PLC for coordinated fracture initiation.

6. Control and Safety System: A touchscreen HMI (Human-Machine Interface) with PLC integration allows for program storage (up to 100 test protocols), real-time data visualization, and remote monitoring. Safety features include emergency stop buttons, pressure loss alarms, and interlocked access doors.

3.2 Critical Technical Parameters表格Parameter Specification Range Table Dimensions 1000mm×1000mm to 2200mm×3600mm Maximum Glass Size Up to 2000mm×1000mm (standard) / Gen 12+ compatible (custom) Glass Thickness Capacity 0.1mm–20mm Air Film Thickness 10µm–200µm Tilt Angle Range 0°–90° (adjustable in 0.1° increments) Breaking Force Adjustment 50N–500N Positioning Accuracy ±2µm (linear) / ±0.1° (angular) Operating Speed 2–3 m/s (glass transport) / 2–5°/s (tilting) Power Requirements 380V 3-phase 50Hz / 220V single-phase 60Hz (3–5 kW) Environmental Compatibility Temperature: 0°C–40°C; Humidity: <98% (non-condensing) Certifications CE, ROHS, ISO 9001, SEMI-compliant 4. Technical Advantages Over Conventional Systems4.1 Non-Contact Handling and Surface ProtectionUnlike mechanical conveyor belts or vacuum chucks that exert localized pressure on glass surfaces, the AFIGBT’s air-floating system eliminates physical contact, preventing scratches, micro-cracks, and contamination. This is particularly critical for high-value applications such as FPD substrates and PV solar panels, where surface integrity directly impacts product performance . The carbon or ceramic bearing surfaces are wear-resistant and particle-free, ensuring compatibility with cleanroom environments and reducing maintenance costs associated with contact-based components.4.2 Enhanced Precision and RepeatabilityThe combination of air-film stability, hydraulic tilting control, and pneumatic breaking mechanisms enables the AFIGBT to achieve fracture test repeatability within ±3%—a significant improvement over conventional tables (±8–12%). The sub-micron positioning resolution and uniform stress distribution ensure that each test replicates real-world conditions, providing reliable data on glass toughness, fracture energy, and failure modes. This precision is validated by compliance with international standards such as SEMI, which has adopted air-floating-based measurement models for glass quality assessment.4.3 Versatility and ScalabilityThe AFIGBT’s modular design allows for seamless customization to meet diverse industry needs. It supports multiple glass types (tempered, laminated, ultra-thin, AR-coated) and processing tasks, including strength testing, precision cutting, and edge quality inspection. The table’s compatibility with Gen 5 to Gen 12 glass substrates makes it suitable for small-scale laboratories and large-scale manufacturing facilities alike, with the ability to handle glass sizes up to 2200mm×3600mm and beyond with custom configurations.4.4 Operational Efficiency and SafetyThe AFIGBT’s automated loading/unloading systems, rapid test cycles (≤1000ms per measurement point), and data logging capabilities streamline quality control processes, reducing labor costs and increasing throughput. The hydraulic tilting system’s smooth operation minimizes glass breakage during handling, while the integrated safety features (pressure loss alarms, emergency stops, interlocks) ensure operator protection. Additionally, the low air consumption of porous media air bearings (measured in liters per hour rather than liters per minute) reduces energy costs compared to traditional air-bearing systems .5. Industrial Applications5.1 Flat-Panel Display (FPD) ManufacturingIn FPD production (LCD, OLED, microLED), the AFIGBT is used for post-processing quality control, including glass substrate strength testing, laser划片 alignment, and edge defect detection. The non-contact air suspension prevents damage to sensitive display layers, while the precise tilting and breaking mechanisms ensure clean, straight fractures during panel separation. The system’s compatibility with ISO Class 10 cleanrooms and sub-micron positioning accuracy makes it indispensable for Gen 10+ FPD facilities, where even minor surface defects can render panels defective .5.2 Photovoltaic (PV) Module ProductionFor solar glass (ultra-white embossed glass, AR-coated glass), the AFIGBT enables rapid measurement of spectral transmittance, fracture toughness, and edge strength—critical parameters for PV module efficiency and durability. The system’s ability to handle large-format glass sheets (up to 2000mm×1000mm) and perform multi-point testing allows manufacturers to assess spatial uniformity of mechanical properties, ensuring compliance with TAM1.5 and SEMI standards. The air-floating design also facilitates easy movement of heavy glass sheets, reducing handling time and breakage rates during production.5.3 Architectural and Automotive Glass ProcessingIn architectural glass manufacturing, the AFIGBT is used to test the breaking strength of tempered and laminated glass, ensuring compliance with building safety codes. The tilting function simulates real-world installation angles, allowing engineers to evaluate fracture behavior under gravitational loads. For automotive glass (windshields, side windows), the system performs impact resistance testing and precision cutting, with the non-contact handling preserving the glass’s optical clarity and structural integrity. The pneumatic breaking bars enable segmented cutting of complex shapes, supporting the production of curved and customized automotive glass components.5.4 Research and Development LaboratoriesAcademic and industrial R&D labs utilize the AFIGBT to study glass fracture mechanics, material fatigue, and the effects of coating technologies on mechanical performance. The system’s adjustable parameters (air film thickness, tilting angle, breaking force) allow researchers to replicate diverse environmental and loading conditions, generating data to optimize glass formulations and processing techniques. The integration of advanced sensors (strain gauges, high-speed cameras) enables real-time monitoring of fracture propagation, providing insights into crack initiation and growth mechanisms.6. Future Development Trends6.1 Integration of Smart Sensing and AIThe next generation of AFIGBT will incorporate advanced sensing technologies, including machine vision cameras, ultrasonic sensors, and fiber optic strain gauges, to enable real-time monitoring of glass deformation, stress distribution, and fracture dynamics. Artificial intelligence (AI) algorithms will analyze this data to predict failure points, optimize test parameters, and automate quality grading—reducing human intervention and improving testing accuracy. For example, AI-powered image recognition can identify micro-cracks before fracture, enabling proactive quality control in high-volume production lines.6.2 Miniaturization and High-Speed ProcessingAs the demand for ultra-thin glass (≤0.1mm) in wearable devices and flexible electronics grows, AFIGBT systems will be miniaturized to accommodate small-format substrates while maintaining high precision. Advances in micro-air-bearing technology will enable air film thicknesses below 10µm, supporting the handling of fragile, flexible glass without deformation. Additionally, improvements in hydraulic and pneumatic actuation will reduce test cycle times to <500ms per point, meeting the throughput requirements of next-generation electronics manufacturing.6.3 Energy Efficiency and SustainabilityFuture AFIGBT designs will focus on reducing energy consumption through the adoption of energy-efficient compressors, regenerative hydraulic systems, and low-power sensors. The use of recyclable materials in frame construction and biodegradable lubricants in hydraulic systems will align with global sustainability initiatives. Furthermore, the integration of solar-powered air supply systems will enable off-grid operation in remote manufacturing facilities, reducing carbon emissions.6.4 Interoperability with Industry 4.0 SystemsTo support smart manufacturing, AFIGBT systems will be equipped with Industrial Internet of Things (IIoT) connectivity, enabling seamless integration with MES (Manufacturing Execution Systems) and ERP (Enterprise Resource Planning) platforms. Real-time test data, equipment performance metrics, and maintenance alerts will be transmitted to cloud-based dashboards, allowing for remote monitoring, predictive maintenance, and process optimization. This interoperability will enable manufacturers to achieve end-to-end traceability of glass components, from raw material to finished product.7. ConclusionThe Air-Floating Inclined Glass Breaking Table represents a paradigm shift in glass processing and testing, combining non-contact air suspension, precise hydraulic tilting, and pneumatic fracture control to deliver unmatched precision, versatility, and efficiency. Its ability to protect glass surfaces, ensure repeatable test results, and accommodate diverse industry needs has made it an indispensable tool in FPD, PV, architectural, and automotive glass manufacturing. As technology advances, the integration of smart sensing, AI, and IIoT connectivity will further enhance the AFIGBT’s capabilities, driving innovation in glass processing and supporting the growth of high-precision manufacturing industries worldwide. By adhering to international standards and prioritizing sustainability, the AFIGBT is poised to remain a cornerstone of modern glass production, enabling manufacturers to meet the evolving demands of quality, efficiency, and environmental responsibility.

Glass Tempering Furnace: Principles, Technology, Applications and Industrial Development

Abstract

Glass tempering furnace, as a core thermal processing equipment in the modern glass deep-processing industry, plays an irreplaceable role in transforming ordinary float glass, sheet glass and other flat glass products into tempered glass with high mechanical strength, thermal stability and safety performance. This paper systematically elaborates on the fundamental working principles, structural composition, classification characteristics, processing technology, application scenarios, performance advantages and existing challenges of glass tempering furnaces. Combined with the latest technological innovations and market development trends in the global glass industry, it also prospects the future development direction of glass tempering furnace equipment, aiming to provide a comprehensive and in-depth reference for industrial practitioners, engineering technicians and relevant research scholars.

1. Introduction

With the rapid advancement of global construction, automotive, home appliance, electronic information and new energy industries, the demand for high-performance safety glass has shown a sustained growth trend. Tempered glass, known as "safety glass", has become one of the most widely used functional glass products in modern industrial and civil fields due to its outstanding characteristics such as 3-5 times higher impact resistance than ordinary glass, excellent thermal shock resistance, and harmless small granular fragments when broken. The core equipment for achieving the glass tempering process is the glass tempering furnace, which integrates multiple disciplines including mechanical engineering, thermal engineering, automation control, material science and electrical engineering.

Since the birth of the first industrialized glass tempering furnace in the mid-20th century, the equipment has undergone continuous technological iteration and structural optimization. From the initial vertical tempering furnaces to the widely used horizontal convection tempering furnaces today, and from the single small-scale processing equipment to the large-scale, intelligent, energy-saving and high-efficiency production lines, glass tempering furnaces have gradually evolved into a highly specialized and standardized industrial equipment category. In the global glass deep-processing industry chain, the performance level of glass tempering furnaces directly determines the quality, production efficiency and cost control of tempered glass products, and is a key link that affects the core competitiveness of glass processing enterprises. This paper will conduct an all-round and multi-angle analysis of glass tempering furnaces, starting from their basic theoretical basis, and extending to practical applications and future development.

2. Fundamental Principles of Glass Tempering

Before analyzing the structure and working process of glass tempering furnaces, it is essential to clarify the physical and chemical principles behind the glass tempering process, which is the theoretical cornerstone for the design and operation of glass tempering furnaces. Glass tempering, also referred to as glass toughening, is a physical heat treatment method that changes the internal stress state and mechanical properties of glass without altering its chemical composition.

2.1 Thermal Tempering Principle

The vast majority of commercial glass tempering furnaces adopt the thermal tempering process, whose core principle is based on the rapid cooling of heated glass to form a uniform compressive stress layer on the surface and a tensile stress layer inside the glass. Specifically, ordinary flat glass is heated in a tempering furnace to a temperature close to its softening point (generally between 600°C and 650°C, varying slightly with glass composition and thickness), at which the glass internal molecular structure is in a state of high activity and the internal stress is completely eliminated. Subsequently, the heated glass is quickly transferred to the cooling zone of the tempering furnace, where high-speed and uniform cold air is blown onto both sides of the glass surface through a specially designed air grid system.

Due to the rapid cooling rate, the glass surface layer solidifies and contracts first, forming a rigid compressive stress layer, while the internal glass is still in a high-temperature plastic state and continues to cool and contract. As the internal glass gradually cools to room temperature, its shrinkage is constrained by the already solidified surface layer, resulting in a stable tensile stress inside the glass and a compressive stress on the surface. This stress distribution endows tempered glass with exceptional mechanical properties: when subjected to external impact or bending force, the surface compressive stress can offset most of the external tensile stress, significantly improving the glass's impact resistance and bending strength. Moreover, when the tempered glass is broken by an external force exceeding its bearing limit, the internal tensile stress is released instantaneously, causing the glass to break into numerous small obtuse-angle particles, avoiding sharp fragments that cause harm to the human body, thus achieving the safety performance of tempered glass.

2.2 Chemical Tempering Principle

In addition to thermal tempering, a small number of special glass tempering furnaces adopt the chemical tempering process, which is mainly applicable to thin glass (thickness <3mm) and special-shaped glass products that are not suitable for thermal tempering. The chemical tempering principle is to immerse the preheated glass in a molten salt bath containing alkali metal ions with a larger ionic radius at a temperature lower than the glass transition temperature, and realize the ion exchange between the glass surface and the molten salt through the diffusion of alkali metal ions in the glass network structure. For example, sodium ions (Na⁺) on the glass surface are replaced by potassium ions (K⁺) with a larger radius in the molten salt. The volume expansion caused by ion substitution forms a compressive stress layer on the glass surface, thereby improving the mechanical strength and thermal stability of the glass. Although chemical tempering has advantages in processing thin glass, its production cycle is long, the cost is high, and the compressive stress layer is relatively thin, so it is only used in specific industrial fields, and thermal tempering furnaces still dominate the mainstream market.

3. Structural Composition of Glass Tempering Furnace

A complete glass tempering furnace is a complex integrated system composed of multiple functional modules, each module cooperating closely to complete the continuous and stable tempering processing of glass. The typical horizontal glass tempering furnace, which is the most widely used in the industry, mainly includes the feeding system, heating furnace body, conveying system, cooling system, control system and auxiliary systems such as exhaust and dust removal. Each part has a clear functional positioning and precise design requirements.

3.1 Feeding System

The feeding system is the starting end of the glass tempering furnace, responsible for stably and accurately sending the original glass sheets to be processed into the heating furnace. It mainly consists of a loading table, a sheet separating device, a positioning mechanism and a conveying roller table. For automated production lines, the feeding system is often equipped with a robotic arm loading system, which can realize automatic sorting, positioning and feeding of glass sheets, reducing manual labor and improving production efficiency. The positioning mechanism ensures that each glass sheet enters the heating furnace at a fixed position and angle, avoiding deflection or overlapping that affects the heating uniformity. For large-format glass, the feeding system is designed with anti-deformation support structures to prevent the glass from bending or breaking during the feeding process due to its own weight.

3.2 Heating Furnace Body

The heating furnace body is the core component of the glass tempering furnace, where the glass is heated to the specified tempering temperature, and its performance directly determines the heating efficiency and temperature uniformity of the glass. The heating furnace body is generally a sealed box structure, composed of a furnace shell, a thermal insulation layer, a heating element, a temperature sensor and a furnace inner cavity.

The furnace shell is usually made of high-strength steel plates, with good structural rigidity to ensure the stability of the furnace body during long-term operation. The thermal insulation layer is filled with high-temperature resistant thermal insulation materials such as aluminum silicate fiber and ceramic fiber, which can effectively reduce heat loss, reduce energy consumption and ensure the temperature stability of the furnace inner cavity. The heating element is the heat source of the furnace body, mainly including resistance heating wires, ceramic heating plates and infrared radiation heating tubes. According to different heating methods, it can be divided into radiation heating and convection heating. Traditional tempering furnaces mainly adopt radiation heating, which relies on the infrared radiation emitted by the heating element to heat the glass; modern high-efficiency tempering furnaces add a forced convection system, which circulates the high-temperature gas in the furnace through a convection fan to achieve uniform heating of the glass surface, especially suitable for low-e coated glass and other coated glass products that are sensitive to temperature differences.

Temperature sensors (such as thermocouples) are evenly arranged in the furnace body to collect real-time temperature data of different zones in the furnace, and feed back to the control system to realize closed-loop control of the furnace temperature, ensuring that the temperature difference in the effective heating area is controlled within ±2°C, which is a prerequisite for ensuring the quality of tempered glass. In addition, the heating furnace body is divided into multiple independent temperature control zones according to the length and width, and the temperature of each zone can be adjusted independently to adapt to the heating requirements of glass with different thicknesses and sizes.

3.3 Conveying System

The conveying system runs through the entire glass tempering furnace, responsible for transporting the glass through the feeding area, heating area and cooling area at a controllable speed. It mainly adopts a ceramic roller conveying structure, because ceramic rollers have excellent high-temperature resistance, low thermal expansion coefficient and smooth surface, which will not scratch the glass surface and can maintain stable conveying performance at high temperatures up to 700°C.

The ceramic rollers are driven by a motor and a transmission system (such as a chain or a synchronous belt), and the conveying speed can be adjusted steplessly through the control system. For glass with different thicknesses, the conveying speed in the heating zone and the cooling zone is precisely matched: thicker glass requires a slower conveying speed in the heating zone to ensure sufficient heating time, while thinner glass needs a faster conveying speed to avoid overheating. In addition, the conveying system of high-end tempering furnaces is equipped with a roller speed synchronization control device to ensure that the glass is always in a horizontal and stable state during the conveying process, avoiding deflection or warping caused by inconsistent roller speeds.

3.4 Cooling System

The cooling system is the key module to realize the rapid cooling of the heated glass and form the internal stress of tempered glass, which is composed of an air compressor, an air storage tank, an air grid assembly and an air volume adjustment device. The air grid is the core component of the cooling system, which is divided into upper and lower air grids, arranged symmetrically on the upper and lower sides of the glass conveying path. The surface of the air grid is densely distributed with specially designed air nozzles, which can spray high-pressure and uniform cold air onto the glass surface.

The cooling system of a high-performance glass tempering furnace can realize stepless adjustment of air volume, air pressure and cooling speed according to the thickness, size and type of glass. For example, thick glass requires a relatively gentle cooling rate to avoid excessive temperature stress causing glass bursting, while thin glass needs a higher cooling rate to ensure the formation of effective compressive stress. In addition, the cooling system is equipped with an air circulation and filtration device, which can recycle the cold air after heat exchange, reduce the load of the air compressor and achieve energy saving. The uniformity of the air grid air supply is a key indicator to measure the performance of the cooling system, and uneven air supply will lead to uneven stress distribution of the tempered glass, resulting in quality problems such as glass warping, self-explosion and poor strength.

3.5 Automatic Control System

The automatic control system is the "brain" of the glass tempering furnace, integrating programmable logic controller (PLC), human-machine interface (HMI), temperature control module, speed control module and safety protection module. The control system realizes the automatic operation of the entire tempering process by presetting process parameters for different types of glass.

Operators only need to input glass parameters such as thickness, size and type on the human-machine interface, and the system will automatically match the optimal heating temperature, heating time, conveying speed, cooling air volume and other process parameters. The control system has functions such as real-time data monitoring, fault alarm, parameter storage and historical data query. It can monitor the operating status of each module of the furnace body in real time, and issue an alarm and take protective measures in time when abnormal conditions such as temperature overrun, roller jam, and air pressure abnormality occur. In addition, the intelligent control system of modern glass tempering furnaces is equipped with a network communication interface, which can realize remote monitoring, fault diagnosis and program upgrade, facilitating the management and maintenance of the production line by enterprises.

3.6 Auxiliary Systems

In addition to the above core modules, the glass tempering furnace is also equipped with a series of auxiliary systems to ensure the stable operation of the equipment and compliance with environmental protection requirements. The exhaust gas treatment system is used to discharge the volatile gas and dust generated during the glass heating process, and purify the exhaust gas to meet environmental protection standards; the dust removal system collects the glass dust and impurities generated during the feeding and conveying process to keep the inside of the furnace clean; the cooling water circulation system is used to cool the motor, transmission system and electrical components of the equipment to prevent overheating damage; the safety protection system includes emergency stop buttons, safety doors, temperature and pressure overload protection, etc., to ensure the personal safety of operators and the safety of equipment.

4. Classification of Glass Tempering Furnaces

Glass tempering furnaces can be classified from multiple perspectives according to different structural forms, processing technologies, application scenarios and automation levels. The classification is conducive to the selection and application of equipment in different industrial fields. The main classification methods are as follows:

4.1 Classification by Structural Form

According to the conveying and processing structure, glass tempering furnaces are mainly divided into horizontal glass tempering furnaces and vertical glass tempering furnaces. Horizontal glass tempering furnaces adopt a horizontal conveying method, with glass lying flat on the ceramic roller table for heating and cooling. They have the advantages of large processing format, high production efficiency, good glass flatness, and suitability for mass production of various flat glass. They are the most widely used type in the market, covering almost all fields of tempered glass production. Vertical glass tempering furnaces adopt a vertical hanging conveying method, with glass vertically suspended and sent into the furnace for processing. They have a small floor area and are suitable for processing small and medium-sized glass and special-shaped glass, but their production efficiency is low and the processing format is limited, so they are only used in a small number of special processing scenarios.

4.2 Classification by Heating Method

According to the heating method of the furnace body, glass tempering furnaces are divided into radiation heating tempering furnaces and convection heating tempering furnaces. Radiation heating tempering furnaces rely on the infrared radiation of heating elements to heat glass, with a simple structure and low cost, suitable for processing ordinary clear float glass. However, the heating uniformity is relatively poor, and it is easy to cause uneven heating of coated glass, resulting in quality defects. Convection heating tempering furnaces add a forced convection circulation system on the basis of radiation heating, which uses high-temperature hot air to convectively heat the glass surface, greatly improving the heating uniformity and heating speed. They are especially suitable for processing low-e coated glass, solar coated glass, colored glass and other special glass products, and have become the mainstream development trend of modern tempering furnaces.

4.3 Classification by Processing Capacity and Scale

According to the processing capacity and production scale, glass tempering furnaces are divided into small and medium-sized laboratory tempering furnaces, medium-sized industrial production tempering furnaces and large-scale continuous production tempering furnaces. Small and medium-sized laboratory tempering furnaces are mainly used for glass tempering process research, product development and small-batch sample production, with small processing format, low power and flexible operation. Medium-sized industrial production tempering furnaces are suitable for small and medium-sized glass processing enterprises, with moderate processing capacity and cost, meeting the production needs of conventional tempered glass products. Large-scale continuous production tempering furnaces are designed for large glass processing groups, with ultra-large processing format, high-speed continuous production capacity, high degree of automation and intelligent integration, and can realize 24-hour uninterrupted production, suitable for large-scale orders in construction, automotive and other industries.

4.4 Classification by Process Purpose

According to different process purposes and processed glass types, glass tempering furnaces are also divided into flat glass tempering furnaces, bent glass tempering furnaces, laminated glass supporting tempering furnaces, and ultra-thin glass tempering furnaces. Among them, the bent glass tempering furnace is equipped with a bending mold and a bending control system in the heating zone, which can heat and bend the glass while tempering, producing curved tempered glass for automotive windshields, architectural curved curtain walls and other fields.

5. Glass Tempering Process Flow

The complete glass tempering process realized by the glass tempering furnace is a standardized and continuous operation flow, and each process link must be strictly controlled to ensure the quality of tempered glass. The standard process flow of the horizontal thermal glass tempering furnace is as follows:

5.1 Original Glass Preparation

Before entering the tempering furnace, the original glass sheets need to be cut, edged, polished and cleaned. Cutting is to cut the large-format original glass into the required size according to the design requirements; edging and polishing are to remove the sharp edges and burrs generated during cutting, because the micro-cracks on the glass edge will become the stress concentration point during the tempering process, leading to glass bursting; cleaning is to remove the oil, dust and impurities on the glass surface through a glass cleaning machine, avoiding the formation of spots or defects on the glass surface during heating and affecting the appearance quality of tempered glass.

5.2 Automatic Feeding

The cleaned and inspected qualified glass sheets are placed on the feeding table of the tempering furnace, and the feeding system positions and separates the glass sheets, then sends them into the heating furnace body one by one through the conveying roller table at a set speed. For automated production lines, this process is completed by a robotic arm without manual intervention.

5.3 High-Temperature Heating

The glass enters the heating furnace body and is conveyed forward slowly through the ceramic roller table. The heating element and convection system in the furnace heat the glass uniformly, and the temperature is raised to the tempering temperature (600-650°C) and maintained for a certain period of time. The heating time is determined by the glass thickness, type and furnace temperature: the thicker the glass, the longer the heating time required to ensure that the glass internal temperature reaches the softening state and the internal stress is completely eliminated. During the heating process, the control system monitors the furnace temperature in real time and adjusts the heating power to ensure temperature uniformity.

5.4 Rapid Cooling (Tempering)

After the heating is completed, the glass is quickly conveyed from the heating furnace to the cooling zone. The upper and lower air grids of the cooling system spray high-pressure uniform cold air onto the glass surface instantly, realizing rapid and uniform cooling. The cooling speed is precisely controlled according to the glass thickness, forming a stable compressive stress layer on the glass surface and a tensile stress layer inside, completing the tempering process. This link is the most critical step in determining the performance of tempered glass, and any deviation in cooling speed or uniformity will lead to unqualified product quality.

5.5 Unloading and Quality Inspection

The tempered glass after cooling is conveyed to the unloading table by the conveying system, and the operator or automatic inspection equipment conducts quality inspection on the tempered glass. The inspection items include appearance quality (no scratches, spots, bubbles, etc.), dimensional accuracy, flatness, stress distribution, and impact resistance. Qualified products are packaged and stored, while unqualified products are screened out for reprocessing or scrap treatment.

6. Application Fields of Tempered Glass Produced by Tempering Furnaces

Tempered glass produced by professional glass tempering furnaces has excellent performance and is widely used in various fields of the national economy, covering construction, automotive, home appliances, electronics, new energy, aerospace and other industries, and its application scope is still expanding with the development of technology.

6.1 Architectural Decoration Field

The architectural field is the largest consumer market for tempered glass. Tempered glass is widely used in building curtain walls, interior partition walls, doors and windows, shower rooms, floor glass, railings and ceilings. In high-rise buildings, tempered glass curtain walls not only have a beautiful and modern appearance, but also can withstand strong wind pressure and external impact, ensuring the safety of the building. In interior decoration, tempered glass partitions and doors and windows have good light transmittance and safety performance, improving the space utilization rate and aesthetic feeling of the building. In addition, laminated tempered glass and insulating tempered glass processed on the basis of tempered glass are also widely used in building energy-saving and sound insulation projects.

6.2 Automotive Industry

The automotive industry has extremely strict requirements on glass safety and performance, and almost all automotive glass (except for individual small decorative glasses) is tempered glass or laminated tempered glass produced by tempering furnaces. Automotive front windshields generally adopt laminated tempered glass, which can maintain integrity even when broken, avoiding fragments from hurting passengers; automotive side windows and rear windshields adopt single-piece tempered glass, which can be quickly broken into small particles in case of accidents, facilitating passenger escape. In addition, automotive sunroofs, rearview mirror glasses and instrument panel protective glasses also use high-quality tempered glass processed by precision tempering furnaces.

6.3 Home Appliance and Electronic Products

In the home appliance industry, tempered glass is used in the door panels of refrigerators, ovens, microwave ovens, the panels of induction cookers, the shells of washing machines, and the screens of televisions. The high thermal stability of tempered glass can adapt to the high-temperature working environment of kitchen appliances, and its high strength can resist collision and scratch during use. In the electronic information industry, with the popularization of smart phones, tablet computers, liquid crystal displays and other products, ultra-thin tempered glass processed by chemical or special thermal tempering furnaces is used as the protective screen of electronic products, with high hardness, scratch resistance and impact resistance, protecting the display screen from damage.

6.4 New Energy and Solar Energy Industry

With the rapid development of the global new energy industry, tempered glass has become an important component of solar photovoltaic modules and solar thermal collectors. Solar tempered glass produced by special tempering furnaces has high light transmittance, low iron content, excellent weather resistance and mechanical strength, which can protect the solar cells inside the module from wind, sand, hail and other external impacts, and ensure the long-term stable operation of photovoltaic power generation systems. The demand for solar tempered glass is growing rapidly with the large-scale application of photovoltaic power generation, which has put forward higher requirements for the performance of glass tempering furnaces.

6.5 Other Special Fields

In addition to the above fields, tempered glass is also used in aerospace, marine engineering, medical equipment, furniture manufacturing and other fields. For example, the cockpit glass of aircraft, the observation window of ships, the protective cover of medical equipment, and the glass tabletop of high-end furniture all use high-performance tempered glass processed by professional tempering furnaces, meeting the special performance requirements of different industries.

7. Advantages and Existing Challenges of Modern Glass Tempering Furnaces

7.1 Core Advantages

Modern glass tempering furnaces, after continuous technological innovation and optimization, present significant advantages in terms of performance, efficiency and energy saving compared with traditional equipment. Firstly, high degree of automation and intelligence reduces the dependence on manual operation, improves production efficiency and product stability, and reduces the defective rate caused by human factors. Secondly, excellent heating uniformity and cooling precision ensure that the tempered glass has uniform stress distribution, high flatness and stable mechanical properties, adapting to the processing of high-end coated glass and special glass. Thirdly, energy-saving and environmental protection performance is significantly improved through the optimization of thermal insulation structure, the application of convection heating technology and the recovery of waste heat, reducing energy consumption per unit product and meeting the national dual-carbon policy requirements. Fourthly, large-scale and multi-functional processing capacity meets the market demand for large-format, special-shaped and diversified tempered glass products, expanding the application scope of tempered glass.

7.2 Existing Challenges

Despite the rapid development of glass tempering furnace technology, there are still some challenges in the industrial application process. Firstly, the problem of self-explosion of tempered glass has not been completely solved. The self-explosion is mainly caused by the nickel sulfide inclusions inside the glass and the uneven stress distribution during the tempering process. Although the homogenization treatment furnace can reduce the self-explosion rate, it increases the production cost and process flow. Secondly, the processing of ultra-thin and ultra-thick glass still has technical bottlenecks. Ultra-thin glass (thickness <2mm) is easy to warp and break during the tempering process, while ultra-thick glass (thickness >25mm) has low heating efficiency and difficult control of cooling stress, requiring further research and development of specialized tempering furnace technology. Thirdly, the high cost of high-end intelligent tempering furnaces limits the popularization and application of small and medium-sized enterprises, and the technical gap between domestic and international high-end equipment still exists in some core components and control systems. Fourthly, the energy consumption and environmental protection requirements are becoming increasingly stringent, and the traditional tempering furnace energy-saving technology still has room for improvement, requiring the research and development of more efficient heating and cooling technologies to reduce carbon emissions.

8. Future Development Trends of Glass Tempering Furnaces

Driven by technological progress, market demand and policy guidance, the global glass tempering furnace industry will present the following development trends in the future:

8.1 Intelligent and Digital Upgrading

The future glass tempering furnaces will develop towards higher intelligence and digitization, integrating technologies such as artificial intelligence, big data analysis and the Internet of Things. The equipment will realize automatic optimization of process parameters, real-time online monitoring of glass quality, predictive maintenance of equipment faults and remote intelligent management. Through the collection and analysis of production data, the system can automatically adjust the heating, cooling and conveying parameters according to the production status, further improving product quality and production efficiency, and realizing the intelligent manufacturing of the glass tempering production line.

8.2 High Efficiency and Energy Saving Technology Innovation

Energy conservation and emission reduction will become the core research direction of glass tempering furnace technology. New heating technologies such as microwave heating, laser heating and high-efficiency infrared convection heating will be applied to tempering furnaces, improving heating efficiency and reducing energy consumption. At the same time, the waste heat recovery system will be further optimized, recovering the heat generated in the cooling and exhaust processes for preheating the original glass or heating the furnace body, realizing the recycling of energy. The research and development of low-emission and low-energy-consumption tempering furnace structures will also be accelerated to meet the global dual-carbon development goals.

8.3 Specialized and Diversified Product Development

Aiming at the demand for specialized tempered glass in different industries, glass tempering furnaces will develop towards specialization and diversification. Specialized tempering furnaces for ultra-thin electronic glass, ultra-thick architectural glass, curved large-format glass, high-temperature resistant solar glass and other products will be launched successively, meeting the personalized and high-end processing needs of the market. At the same time, the integration of tempering furnaces with other glass processing technologies (such as coating, laminating, engraving) will be realized, forming a one-stop glass deep-processing production line and improving the added value of products.

8.4 Green and Environmental Protection Development

In response to global environmental protection requirements, future glass tempering furnaces will adopt more green and environmentally friendly materials and processes, reducing the emission of volatile organic compounds, dust and noise. The closed-loop recycling of cooling water and exhaust gas will be fully realized, minimizing the impact of equipment production on the environment. In addition, the recyclable design of tempering furnace equipment will be strengthened, extending the service life of equipment and reducing the generation of industrial waste.

8.5 Internationalization of Core Technology and Localization of High-End Components

With the development of the global glass industry, the core technology of glass tempering furnaces will tend to be internationalized, and the technical exchanges and cooperation between countries will be more frequent. For domestic equipment manufacturers, accelerating the localization research and development of high-end core components (such as precision convection fans, high-performance temperature sensors, intelligent control systems) will break the foreign technology monopoly, reduce the production cost of high-end tempering furnaces, and improve the international competitiveness of domestic glass tempering furnace equipment.

9. Conclusion

Glass tempering furnace, as the core equipment of the glass deep-processing industry, has a pivotal position in promoting the development of the global glass industry and meeting the demand for high-performance safety glass in various fields. Through the analysis of its working principle, structural composition, classification, process flow, application fields and development trends, it can be seen that the glass tempering furnace industry is in a period of rapid technological innovation and structural optimization. With the continuous progress of materials science, mechanical engineering, automation control and other disciplines, and the continuous growth of market demand for high-end tempered glass, glass tempering furnaces will develop towards intelligence, high efficiency, energy saving, specialization and green environmental protection.

In the future, glass tempering furnace manufacturers need to increase R&D investment, break through key technical bottlenecks, optimize product performance, and meet the diversified and high-end needs of the market. At the same time, industry practitioners should strengthen technological exchanges and cooperation, promote the upgrading and transformation of the glass deep-processing industry, and make greater contributions to the development of construction, automotive, new energy, electronic information and other industries. With the continuous improvement of technology and the expansion of application fields, glass tempering furnaces will continue to play an important role in the global industrial system and promote the sustainable development of the safety glass industry.

Double Edge Straight Glass Grinding Machine: A Comprehensive Analysis of Design, Technology and Industrial Application

Abstract

The Double Edge Straight Glass Grinding Machine is a core piece of automated processing equipment in the modern glass deep-processing industry, dedicated to the simultaneous high-precision grinding, polishing and chamfering of two parallel straight edges of flat glass. This article systematically expounds the structural composition, working principle, core technical parameters, application scenarios, performance advantages, maintenance specifications and future development trends of the double edge straight glass grinding machine. By analyzing its technological innovation, processing efficiency and industrial value, it aims to provide a theoretical basis and practical reference for glass processing enterprises, equipment R&D institutions and technical practitioners, and clarify the important role of this equipment in promoting the automation, intelligence and high-quality development of the glass processing industry.

1. Introduction

With the rapid expansion of application fields such as architectural decoration, automotive manufacturing, home appliances, furniture and photovoltaic new energy, the demand for flat glass products has shown a sustained growth trend, and the requirements for glass edge processing quality, production efficiency and dimensional accuracy are becoming increasingly stringent. The traditional single-side glass grinding machine can only process one edge of the glass at a time, which requires repeated clamping and positioning of the glass, resulting in low production efficiency, poor dimensional consistency, high labor intensity and high production cost, and it is difficult to adapt to the large-scale and standardized production needs of modern glass processing.

In response to the pain points of the industry, the double edge straight glass grinding machine has been developed and applied, which realizes the simultaneous processing of two parallel straight edges of flat glass through a dual-spindle group, dual-conveying system and integrated control technology. It integrates multiple processes such as coarse grinding, fine grinding, polishing and chamfering, and completes the edge processing of glass in one pass, which greatly improves the processing efficiency and product quality. This equipment has become an indispensable key equipment in the glass deep-processing production line, and its technical level and performance indicators directly affect the core competitiveness of glass processing enterprises. This article will conduct an in-depth and comprehensive analysis of the double edge straight glass grinding machine from multiple dimensions, and explore its technical characteristics and development potential in the industrial field.

2. Structural Composition and Core Components

The double edge straight glass grinding machine adopts a symmetrical integrated structural design, which is mainly composed of a main frame, a double-side grinding spindle group, a pneumatic clamping and conveying system, a PLC intelligent control system, a cooling and dust removal system, a glass positioning mechanism and a safety protection device. Each component is designed and matched with high precision to ensure the stability, accuracy and continuity of the equipment during operation.

2.1 Main Frame

The main frame is the load-bearing foundation of the entire equipment, which is generally made of high-strength thick steel plates through precision welding, stress relief annealing and precision machining. This manufacturing process can effectively eliminate the internal stress of the frame, avoid deformation and vibration caused by long-term high-load operation, and ensure the geometric accuracy and stability of the equipment. The frame is designed with a symmetrical structure on both sides, equipped with high-precision linear guide rails, ball screws and servo drive systems for the movement of the grinding spindle group, which can realize the precise adjustment of the distance between the two sides of the grinding heads and the feeding accuracy of the spindles. The gantry-type reinforced structure is adopted for large-scale models, which can bear the weight of large-format glass and high-speed grinding load, and is suitable for the processing of architectural curtain wall glass and automotive large glass.

2.2 Double-Side Grinding Spindle Group

The double-side grinding spindle group is the core execution component of the equipment, which is symmetrically arranged on both sides of the conveying channel, and each side is equipped with 8-12 high-speed precision spindles, which are divided into coarse grinding spindles, fine grinding spindles, chamfering spindles and polishing spindles according to the processing process. The spindles are driven by high-performance servo motors, with a rotation speed of 2800-3600rpm, and have the characteristics of low vibration, low noise and high stability.

The coarse grinding spindle is equipped with diamond grinding wheels with a grit size of #100-#180, which is used to quickly remove the sharp edges, burrs and micro-cracks of the cut glass, and form the basic straight edge profile; the fine grinding spindle adopts resin-bonded diamond grinding wheels with a grit size of #240-#400, which refines the edge surface, eliminates grinding marks and improves the dimensional accuracy of the edge; the chamfering spindle is equipped with a special chamfering grinding wheel, which can process 45° chamfers, rounded corners and other edge shapes according to the process requirements, with a chamfer width adjustable from 0.5mm to 3mm; the polishing spindle is equipped with cerium oxide polishing wheels or resin polishing wheels, which can polish the glass edge to an optical-grade finish with a surface roughness Ra ≤ 0.15μm, meeting the high surface quality requirements of high-end glass products. The two-side spindle groups can be independently adjusted in speed, feeding amount and grinding pressure, and can realize the synchronous processing of different edge processes on both sides of the glass, with strong process adaptability.

2.3 Pneumatic Clamping and Conveying System

The pneumatic clamping and conveying system is responsible for the stable fixation and continuous conveying of glass, which is the key to ensuring the processing accuracy and efficiency of the equipment. The system consists of a pneumatic power unit, precision pressure regulating valves, pneumatic clamping cylinders, wear-resistant clamping jaws, a variable-frequency conveying belt and a drive motor.

The pneumatic clamping mechanism adopts a flexible clamping design, and the clamping jaws are lined with polyurethane or rubber materials, which can apply uniform and adjustable clamping pressure (0.2-0.6MPa) according to the thickness of the glass (3-25mm), avoiding glass surface damage and edge chipping caused by excessive pressure, and ensuring the stable positioning of the glass during high-speed grinding. The conveying system adopts a double-sided synchronous conveying belt driven by a variable-frequency motor, with a conveying speed adjustable from 1m/min to 8m/min, which can be matched with different processing speeds and glass thicknesses. The conveying belt is made of anti-slip and wear-resistant materials, which can prevent glass slippage and scratching during the conveying process, and realize the continuous and stable conveying of glass from the feeding end to the discharging end.

2.4 PLC Intelligent Control System

The double edge straight glass grinding machine is equipped with a high-performance PLC (Programmable Logic Controller) and a touch-screen human-machine interface (HMI), which realizes the intelligent control of the entire processing process. The control system supports the setting and storage of processing parameters such as glass thickness, edge width, chamfer size, spindle speed, conveying speed and grinding pressure, and can store more than 100 groups of process parameters, which is convenient for quick switching of different glass specifications and reduces the equipment adjustment time.

The system has real-time monitoring functions, which can display the operating status of each spindle, pneumatic pressure, conveying speed, cooling system flow and other parameters in real time, and has fault self-diagnosis and alarm functions. When equipment failures such as spindle overload, air pressure abnormality, cooling blockage and glass jamming occur, the system will automatically stop and send out an audible and visual alarm, and display the fault location and solution on the touch screen, which is convenient for operators to troubleshoot. Advanced models are also equipped with Ethernet communication and remote control functions, which can realize remote monitoring, parameter adjustment and fault diagnosis, and integrate with the glass processing production line to form an intelligent manufacturing system.

2.5 Cooling and Dust Removal System

During the glass grinding process, the friction between the grinding wheel and the glass will generate a lot of heat, and a large amount of glass powder will be produced at the same time. The cooling and dust removal system is designed to reduce the grinding temperature, lubricate the grinding contact surface, and remove glass powder, which is an important guarantee for improving the processing quality and extending the service life of the grinding wheel.

The cooling system adopts a closed-loop water circulation design, and high-precision nozzles are installed at each grinding spindle to spray cooling liquid (pure water or special glass grinding coolant) directly onto the grinding contact area, which can quickly take away the grinding heat, prevent the glass edge from cracking due to thermal stress, and reduce the wear of the grinding wheel. The dust removal system is integrated with the cooling circulation system, and the glass powder and debris generated during grinding are flushed into the sedimentation tank by the cooling liquid, and then filtered and recycled through a multi-stage filtration device (filter precision ≤ 5μm), which reduces water consumption and environmental pollution, and avoids the blockage of precision components by glass powder.

2.6 Glass Positioning Mechanism and Safety Protection Device

The glass positioning mechanism is composed of photoelectric sensors, mechanical positioning blocks and pneumatic positioning cylinders, which can realize the precise positioning of the glass before entering the grinding area, with a positioning accuracy of ±0.01mm, ensuring the consistency of the processing size of the two sides of the glass. The safety protection device includes a safety grating, an emergency stop button, a protective cover and an interlock device, which can prevent operators from being injured by the rotating grinding wheel and the moving glass during the operation of the equipment, and meet the safety production standards of industrial machinery.

3. Working Principle

The working process of the double edge straight glass grinding machine is a highly coordinated operation of mechanical transmission, pneumatic control, electrical control and grinding processing, which is divided into six stages: glass feeding, precise positioning, pneumatic clamping, double-side synchronous grinding, glass release and discharging, and the entire process is automatically completed under the control of the PLC system.

3.1 Glass Feeding and Precise Positioning

The operator places the cut flat glass on the feeding conveyor belt, and the conveyor belt transports the glass to the positioning area. The photoelectric sensor detects the position of the glass edge and transmits the signal to the PLC system. The PLC controls the pneumatic positioning cylinder to push the glass to the preset positioning position, and the mechanical positioning block assists in fixing, realizing the precise alignment of the glass and the grinding spindle group, ensuring that the two parallel edges of the glass are accurately aligned with the grinding heads on both sides.

3.2 Pneumatic Clamping

After the glass is positioned accurately, the PLC system sends a command to activate the pneumatic clamping system. The pneumatic cylinders on both sides drive the clamping jaws to move towards the glass, and apply uniform clamping pressure according to the set parameters to fix the glass firmly. The clamping pressure is adjusted in real time by the precision pressure regulating valve to adapt to glass of different thicknesses and materials, avoiding glass damage and ensuring that the glass does not shift during the grinding process.

3.3 Double-Side Synchronous Grinding

After the clamping is completed, the PLC system starts the double-side grinding spindle group and the conveying system at the same time. The glass moves forward at a set conveying speed, and the grinding spindles on both sides feed radially at the same time. The grinding wheels make contact with the two parallel edges of the glass, and complete the processes of coarse grinding, fine grinding, chamfering and polishing in sequence according to the preset process flow.

During the grinding process, the cooling system sprays cooling liquid continuously to cool and lubricate the grinding area, and the dust removal system synchronously recovers the glass powder. The PLC system monitors the operating parameters of each spindle and the conveying system in real time, and automatically adjusts the spindle speed, feeding amount and grinding pressure to ensure the stability of the grinding process and the consistency of the processing quality of the two edges of the glass.

3.4 Glass Release and Discharging

When the glass passes through the entire grinding area and completes all edge processing, the photoelectric sensor at the discharging end sends a signal to the PLC system. The PLC controls the pneumatic clamping cylinder to retract, the clamping jaws release the glass, and the conveying belt transports the processed glass to the discharging area. At this point, a complete processing cycle is completed, and the equipment immediately enters the next processing cycle to realize continuous automatic production.

4. Core Technical Parameters

The core technical parameters of the double edge straight glass grinding machine determine its processing capacity, accuracy and application scope. The following are the main technical parameters of mainstream models in the market:






Parameter Category
Specific Indicators
Parameter Range




Processing Scope
Applicable glass thickness
3-25mm



Minimum processing glass size
50mm×50mm



Maximum processing glass size
Customizable (up to 3000mm×2000mm)



Processing edge type
Straight edge, 45° chamfer, rounded edge



Chamfer width adjustment range
0.5-3mm


Processing Accuracy
Edge dimensional accuracy
±0.01mm



Parallelism of double edges
≤0.02mm/m



Surface roughness after polishing
Ra≤0.15μm



Chamfer angle accuracy
±0.5°


Operational Parameters
Spindle rotation speed
2800-3600rpm



Conveying speed
1-8m/min



Pneumatic system working pressure
0.2-0.6MPa



Compressed air consumption
≤1.5L/min


Power Parameters
Total installed power
22-30kW



Power supply
380V/50Hz, three-phase four-wire


Physical Parameters
Overall dimensions (L×W×H)
7.5-8.5m×1.8m×2.8m



Equipment weight
4000-6000kg






These technical parameters reflect the high precision, high efficiency and wide adaptability of the double edge straight glass grinding machine, which can meet the processing needs of different glass specifications and different application scenarios.

5. Industrial Application Scenarios

Due to its advantages of high efficiency, high precision and automation, the double edge straight glass grinding machine is widely used in various fields of flat glass deep processing, and has become the core equipment of glass processing production lines in many industries.

5.1 Architectural Decoration Industry

In the architectural glass processing field, the double edge straight glass grinding machine is mainly used for the edge processing of architectural curtain wall glass, doors and windows glass, partition glass, shower room glass and glass railing. The equipment can process high-precision straight edges and 45° chamfers for large-format architectural glass, which not only improves the aesthetic appearance of the glass, but also enhances the mechanical strength and safety of the glass, meeting the safety standards of architectural glass. The high processing efficiency of the equipment can meet the large-scale production needs of architectural glass projects, and is widely used in the processing of glass for high-rise buildings, commercial complexes, hotels and residential buildings.

5.2 Automotive Glass Manufacturing

Automotive glass (windshield, side window glass, rear window glass, sunroof glass) has extremely high requirements for edge processing accuracy and quality. The double edge straight glass grinding machine can realize the high-precision grinding and polishing of the two parallel edges of automotive glass, ensure the dimensional accuracy and sealing performance of the glass, and facilitate the installation of glass and automotive frames. The equipment can process various types of automotive glass such as tempered glass and laminated glass, and is an indispensable processing equipment in the automotive glass production line.

5.3 Home Appliances and Furniture Industry

In the home appliance industry, the equipment is used for the edge processing of glass panels of refrigerators, washing machines, ovens, microwave ovens and display screens, and the polished glass edge improves the safety and aesthetic appearance of home appliance products. In the furniture industry, it is mainly used for the processing of glass tabletops, cabinet glass doors, display cabinet glass and decorative glass parts, and the processed glass has smooth edges and high dimensional accuracy, which meets the production needs of high-end furniture.

5.4 Photovoltaic New Energy Industry

With the rapid development of the photovoltaic industry, the demand for photovoltaic glass is increasing year by year. The double edge straight glass grinding machine is used for the edge processing of photovoltaic glass panels, which can eliminate the micro-cracks on the glass edge, improve the mechanical strength and weather resistance of the photovoltaic glass, and ensure the service life of photovoltaic modules. The high-efficiency processing capacity of the equipment can meet the large-scale production needs of photovoltaic glass manufacturing enterprises.

5.5 Electronic and Optical Glass Industry

For electronic glass (smart phone cover glass, tablet display glass, TV panel glass) and optical glass (optical lens substrate, instrument glass), the double edge straight glass grinding machine can achieve ultra-precision polishing of the glass edge, with a surface roughness Ra ≤ 0.1μm, meeting the requirements of light transmittance and surface smoothness of electronic and optical glass. The equipment's high-precision positioning and processing capabilities ensure the consistency of small-sized electronic glass processing, and are suitable for the mass production of electronic and optical glass components.

6. Performance Advantages

Compared with the traditional single-side glass grinding machine and manual edging process, the double edge straight glass grinding machine has obvious performance advantages, which can effectively improve the production efficiency and product quality of glass processing enterprises and reduce production costs.

6.1 High Processing Efficiency and Continuous Production Capacity

The double edge straight glass grinding machine can process two parallel edges of glass at the same time, and complete multiple processes such as coarse grinding, fine grinding, chamfering and polishing in one pass, which improves the processing efficiency by 50%-80% compared with the single-side grinding machine. The automatic feeding, positioning, clamping, grinding and discharging system realizes unmanned continuous production, with a processing capacity of 100-150 pieces per hour (for standard 12mm thick glass), which can meet the large-scale production needs of enterprises.

6.2 High Processing Precision and Product Consistency

The equipment adopts high-precision linear guide rails, servo drive systems and PLC intelligent control, with an edge dimensional accuracy of ±0.01mm and a double-edge parallelism of ≤0.02mm/m, which far exceeds the processing accuracy of manual and single-side grinding machines. The synchronous processing of the double-side spindle group ensures the consistency of the processing quality of the two edges of the glass, and the polished edge surface is smooth and scratch-free, which improves the qualification rate of glass products to more than 99.5%.

6.3 Wide Adaptability to Glass Specifications and Types

The equipment can process glass with a thickness of 3-25mm and a size of 50mm×50mm to 3000mm×2000mm, and can adapt to various types of flat glass such as float glass, tempered glass, laminated glass, Low-E glass, photovoltaic glass and electronic glass. The spindle speed, grinding pressure, conveying speed and chamfer size can be flexibly adjusted according to the processing requirements, with strong process adaptability and can meet the diversified processing needs of enterprises.

6.4 High Degree of Automation and Easy Operation

The PLC touch-screen control system simplifies the operation process, and operators can complete the parameter setting and equipment start-stop only through simple training. The system has functions such as parameter memory, fault self-diagnosis and automatic alarm, which reduces the labor intensity of operators and the dependence on skilled workers. The integration with the automatic loading and unloading equipment can form a fully automatic glass processing production line, realizing the intelligent manufacturing of glass processing.

6.5 Low Production Cost and Long Service Life

The one-pass processing of the equipment reduces the number of glass clamping and positioning, reduces the loss of glass caused by repeated handling and clamping, and saves labor costs. The closed-loop cooling and dust removal system reduces the consumption of cooling liquid and the wear of grinding wheels, and the service life of high-quality diamond grinding wheels can reach more than 10,000 hours. The high-strength frame structure and high-quality components ensure the long-term stable operation of the equipment, with a service life of more than 15 years under normal maintenance, which reduces the equipment replacement and maintenance costs of enterprises.

6.6 Good Safety and Environmental Protection Performance

The equipment is equipped with a complete safety protection device, which can effectively prevent safety accidents during the operation of the equipment and meet the industrial safety production standards. The closed-loop cooling and dust removal system recycles the cooling liquid and collects the glass powder, which reduces the discharge of waste water and waste residue, realizes green and environmentally friendly production, and complies with the national environmental protection policies.

7. Equipment Maintenance and Troubleshooting

In order to ensure the long-term stable operation of the double edge straight glass grinding machine and maintain its processing accuracy, it is necessary to carry out standardized daily maintenance and timely troubleshooting. The maintenance of the equipment is divided into daily maintenance, weekly maintenance and monthly maintenance, and corresponding solutions are formulated for common faults.

7.1 Daily Maintenance

After each shift, clean the glass powder and debris on the surface of the equipment, grinding spindles, conveying belts and cooling nozzles with compressed air and a clean cloth; check the liquid level of the cooling liquid, and add or replace the cooling liquid in time if it is insufficient or contaminated; check the pneumatic system pressure to ensure that it is within the normal range, and check for air leakage at the cylinder joints and valves; check the wear of the grinding wheels, and replace the grinding wheels that are seriously worn or chipped in time; lubricate the linear guide rails and ball screws with special lubricating oil to ensure smooth movement.

7.2 Weekly Maintenance

Drain the water and impurities in the air storage tank of the pneumatic system, and replace the pneumatic filter element; check the tightness of the spindle fixing screws and the conveyor belt tension, and adjust them in time if they are loose; calibrate the positioning accuracy of the photoelectric sensor and the mechanical positioning block; clean the filter device of the cooling and dust removal system to prevent blockage; check the operation of the servo motor and the PLC control system, and test the emergency stop and alarm functions.

7.3 Monthly Maintenance

Conduct a comprehensive inspection of the main frame, grinding spindle group, conveying system and electrical system of the equipment, check for deformation, wear and damage of components, and replace damaged parts in time; replace the lubricating oil of the spindle bearing and the gearbox; calibrate the processing accuracy of the equipment, including edge dimensional accuracy, double-edge parallelism and chamfer angle accuracy; update the PLC system software and back up the process parameters; conduct a comprehensive safety inspection of the equipment to ensure the normal operation of the safety protection device.

7.4 Common Faults and Troubleshooting


Uneven processing of double edges: The main reasons are inconsistent feeding of double-side spindles, misalignment of glass positioning and uneven clamping pressure. The solutions are to calibrate the feeding accuracy of the double-side spindles, adjust the glass positioning mechanism and the pneumatic clamping pressure.
Glass edge chipping and cracking: The main reasons are excessive grinding pressure, insufficient cooling liquid, hard glass material and glass positioning deviation. The solutions are to reduce the grinding pressure, check the cooling nozzle blockage, replace the appropriate grinding wheel and re-calibrate the glass positioning.
Low surface roughness after polishing: The main reasons are worn polishing wheels, incorrect spindle speed and contaminated cooling liquid. The solutions are to replace the polishing wheels, adjust the spindle speed and replace the cooling liquid.
Conveyor belt slipping and jamming: The main reasons are worn conveyor belt lining, insufficient tension and excessive glass weight. The solutions are to replace the conveyor belt lining, adjust the belt tension and control the glass processing size within the equipment's bearing range.
PLC system fault and alarm: The main reasons are parameter setting error, electrical component damage and communication failure. The solutions are to check and correct the process parameters, replace the damaged electrical components and check the communication line connection.


8. Future Development Trends

With the continuous progress of science and technology and the changing market demand, the double edge straight glass grinding machine is developing in the direction of higher intelligence, higher precision, energy saving and environmental protection, and multi-functional integration, and its technical level and application scope will be further improved and expanded.

8.1 Intelligent and Digital Upgrading

In the future, the double edge straight glass grinding machine will integrate more intelligent technologies such as artificial intelligence, machine vision and big data. The machine vision system will automatically detect the size, thickness, edge defects and processing quality of the glass, and the artificial intelligence algorithm will optimize the processing parameters in real time to realize the adaptive processing of different glass. The big data platform will collect and analyze the equipment operation data, realize predictive maintenance and production scheduling optimization, and improve the overall efficiency of the production line. The digital twin technology will be applied to simulate the equipment operation and processing process, and realize the virtual debugging and process optimization of the equipment.

8.2 Ultra-Precision Processing Technology

With the development of electronic, optical and semiconductor industries, the demand for ultra-precision glass processing is increasing. The double edge straight glass grinding machine will develop towards higher precision, with the edge dimensional accuracy reaching ±0.005mm and the surface roughness Ra ≤ 0.05μm. The new type of nano-grinding wheel and high-precision spindle technology will be applied to realize the ultra-precision grinding and polishing of thin glass and special-shaped glass, meeting the processing needs of high-end electronic and optical products.

8.3 Energy Saving and Environmental Protection Optimization

In response to the national dual-carbon target and environmental protection requirements, the equipment will adopt energy-saving motors, high-efficiency drive systems and intelligent energy management systems to reduce power consumption by 30%-40%. The cooling and dust removal system will be further optimized, adopting a zero-discharge closed-loop circulation system and glass powder recycling technology to realize the recycling of waste resources and reduce environmental pollution. The equipment will use more environmentally friendly materials and manufacturing processes to realize the green design and production of the equipment.

8.4 Multi-Functional Integration and Flexible Manufacturing

The future double edge straight glass grinding machine will integrate multiple processing functions such as straight edge grinding, chamfering, polishing, drilling and slotting, and realize the one-stop processing of glass. The modular design will be adopted, and the spindle group and processing module can be quickly replaced and combined to adapt to the processing of different edge shapes and glass types. The equipment will have the ability of flexible production, which can quickly switch between different production tasks and meet the personalized and customized processing needs of the market.

8.5 Global Market Expansion and Localized Innovation

With the rapid development of the global glass processing industry, especially in emerging markets such as Southeast Asia, Latin America and Africa, the demand for high-performance double edge straight glass grinding machines is growing. Domestic equipment manufacturers will increase R&D investment, break through the core technology bottleneck, improve the quality and performance of the equipment, and expand the international market share. At the same time, localized innovation will be carried out according to the market demand and processing standards of different regions, and customized equipment and solutions will be provided to meet the diversified needs of global customers.

9. Conclusion

The double edge straight glass grinding machine, as a key equipment in the modern glass deep-processing industry, has revolutionized the traditional glass edge processing mode with its high efficiency, high precision, automation and intelligence, and has become an important support for the high-quality development of the glass processing industry. Its structural design, technical performance and application scope have been continuously improved and expanded, and it plays an irreplaceable role in architectural decoration, automotive manufacturing, home appliances, photovoltaic and other fields.

In the future, with the continuous innovation of intelligent manufacturing technology, energy saving and environmental protection technology and ultra-precision processing technology, the double edge straight glass grinding machine will move towards a higher level of intelligence, precision and greenness, and provide more efficient and high-quality processing solutions for the glass processing industry. For glass processing enterprises, adopting advanced double edge straight glass grinding machines is an important way to improve production efficiency, reduce production costs and enhance market competitiveness. For equipment manufacturers, continuous technological innovation and product upgrading are the core driving forces to seize market opportunities and promote the sustainable development of the industry.
