Automatic Hole Drilling,Dessicant Filling and Sealing
Double Glazed Insulating Glass Factory Direct Molecular Sieve Filler Machine
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(sets):15(days),2-3(sets):25(days),4-5(sets):30(days),>5(sets):To be negotiated(days)
Brand Name:
Rongqi
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Advantage
Easy Operatioin
After Warranty Service
Training
Max.Glass Size
2500mm*4500mm
Type
Fully Automatic
Package
Standard Package
Color
Customers' Request
Control system
PLC Auto
Usage
Making Insulating Glass
Application
Insulating Glass Double Glazing Making
Product name
Aluminum Bar Desiccant Filling Machine
Core Components
Pressure Vessel, Engine
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Glass Thickness
1-40mm
Key Selling Points
Easy To Operate
Warranty
1 Year
Weight
400 kg
Dimension(L*W*H)
900*1200*3600mm
Power(w)
Different by types
Voltage
220V
Place of Origin
Shandong, China
Production Capacity
100%
Machine Type
Other
Product Description

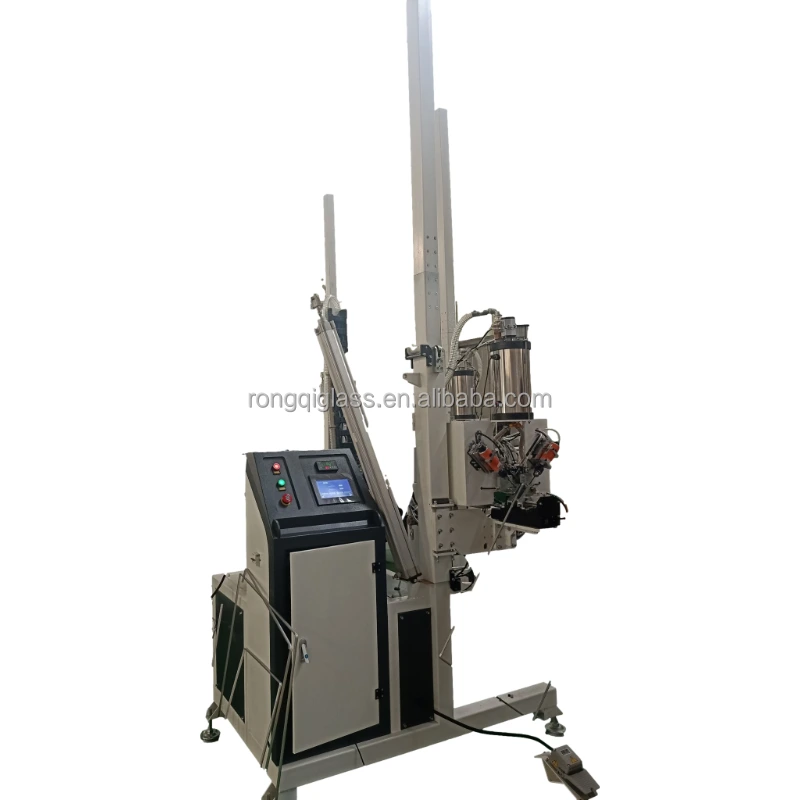

Double Glazed Insulating Glass Factory direct molecular sieve filler machine
Equipment Features
--PLC control system,friendly interface touch screen,easy operation.
--Filling under closed conditions, solving the failure of desiccant to absorb water vapor, improving efficiency and insulating
glass life, is an essential equipment in the production of bending insulating glass.
--The core control adopts Omron.
-Drilling hole and filling desiccant in the middle of the back of the aluminum strip, automatic sealing.
-Can be filled with automatic bending aluminum frame and ordinary straight angle aluminum frame.
--The filling height can be adjusted according to the size of the aluminum frame.
--Unique advanced feeding device can automatically replenish.
--Filling under closed conditions, solving the failure of desiccant to absorb water vapor, improving efficiency and insulating
glass life, is an essential equipment in the production of bending insulating glass.
--The core control adopts Omron.
-Drilling hole and filling desiccant in the middle of the back of the aluminum strip, automatic sealing.
-Can be filled with automatic bending aluminum frame and ordinary straight angle aluminum frame.
--The filling height can be adjusted according to the size of the aluminum frame.
--Unique advanced feeding device can automatically replenish.
Technical Parameters
Work pressure | 0.5-0.6MPa |
Max size of aluminum frame | 2500*2500mm |
Mini size of aluminum frame | 350*350mm |
Voltage | 220V |
Flow control | 24g/s |
Filling speed | 8-12s(1m*1m 9A) |
Mini spacer size | 5.5*5.5mm |
Max spacer size | 5.5mm*26.5mm |
Dimension | 900*1200*3600mm |
Weight | 400kgs |
Related Products
Packing&Shipping
Plywood box or plastic film is ok for the insulated Glass Making line.Please tell us if you need any special labels on machine or package.
We can arrange the delivery with our agent or you could arrange it with your agent.And your requirement is also ok for delivery to the place where you have container.All is for your convenience.
We can arrange the delivery with our agent or you could arrange it with your agent.And your requirement is also ok for delivery to the place where you have container.All is for your convenience.
Company Introduction
Our company can offer you glass processing machines,such as glass washing machine,glass cutting machine,double glass making machine etc.All our products are with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in the building industry and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Exhibition
Our company often take part in the glass exhibition in Beijing and Shanghai.And have got great reputation around the customers at home and abroad.We have exported our glass processing machines,such as the IG line,glass washing machine,sealing robot etc.to over 50 countries.
FAQ
1. HOW ABOUT THE PACKING WAY?
Usually we have the products packed with plastic film for full container and wooden box for less than container. We can also customize the package according to your need.
Usually we have the products packed with plastic film for full container and wooden box for less than container. We can also customize the package according to your need.
2. HOW ABOUT THE PAYMENT AND DELIVERY TIME?
Usually our payment terms is TT,30% in advance and 70% before shipment.We can also accept if you have other
requirements.Normally,products can be delivered within about 15 days after your payment.
3. WHAT IS YOUR MINIMUM ORDER QUANTITY?
One set is ok for the order.
4.CAN YOU DO THE PRODUCTION AS CUSTOMIZED?
Yes, we can produce products according to your requirements.
5. IS YOUR COMPANY A MANUFACTURER OR TRADING COMPANY?
We are a manufacturer of the glass machines, and we have our own factory and production team.
6. WHAT IS YOUR PAYMENT TERMS ?
We accept payment by TT,L/C,West Union,Escrow.The other payment terms can also be negotiable.
Usually our payment terms is TT,30% in advance and 70% before shipment.We can also accept if you have other
requirements.Normally,products can be delivered within about 15 days after your payment.
3. WHAT IS YOUR MINIMUM ORDER QUANTITY?
One set is ok for the order.
4.CAN YOU DO THE PRODUCTION AS CUSTOMIZED?
Yes, we can produce products according to your requirements.
5. IS YOUR COMPANY A MANUFACTURER OR TRADING COMPANY?
We are a manufacturer of the glass machines, and we have our own factory and production team.
6. WHAT IS YOUR PAYMENT TERMS ?
We accept payment by TT,L/C,West Union,Escrow.The other payment terms can also be negotiable.
