I. Introduction



Mechanized production of insulating glass significantly improves production efficiency and product quality. This plan details the process of manufacturing insulating glass using automated machinery.



II. Production Process



A. Glass Feeding and Cutting



- Automated Loading: High - speed robotic arms are used to load large sheets of float glass from storage racks onto the glass cutting line. These arms are programmed to handle the glass gently to avoid scratches or breakages.

- Precision Cutting: Computer - controlled glass cutting machines measure and cut the glass according to pre - set dimensions. The cutting blades are automatically adjusted for different glass thicknesses, ensuring a precise cut with an accuracy of ± 0.5mm.



B. Edge Processing



- Grinding and Polishing: The cut glass edges are fed into an automated edge - processing machine. This machine uses rotating abrasive wheels to grind the edges smoothly and then polishes them to enhance the glass's appearance and adhesion for sealants.

- Drilling (if required): For customized insulating glass with holes, a numerically - controlled drilling machine is integrated into the production line. It accurately drills holes based on the input specifications, with a high - speed spindle ensuring clean and precise holes.



C. Washing and Drying



- The Glass will be washed with the glass washing machine.The machine is with 6 soft brushes for cleaning and knieves for drying.It is ok for Low-E glass and the glass thickness can be adjusted automatically.



D. Spacer and Desiccant Handling



- Spacer Bending and Assembly: An automatic spacer bending machine forms aluminum or stainless - steel spacers into the required shapes. The machine can handle different spacer profiles and lengths. Desiccant is automatically filled into the spacers through a precise dosing system to absorb moisture in the air gap.

- Spacer Placement: Robotic arms pick up the bent spacers and accurately position them between the cleaned glass sheets on a conveyor - based assembly platform.



E. Gas Filling (Optional)



- Inert Gas Injection: For insulating glass that requires enhanced thermal performance, an automated gas - filling machine is used. It injects inert gases like argon or krypton into the air gap between the glass panes. The gas flow rate and pressure are precisely controlled to achieve the desired gas concentration.



F. Sealing



- Primary Seal Application: A robotic sealant dispensing arm applies the primary sealant, typically polysulfide, along the inner edge of the spacer. The arm moves at a constant speed and pressure, ensuring an even and consistent sealant layer.

- Secondary Seal Application: After the primary seal has cured to a certain extent, another robotic arm applies the secondary sealant, such as silicone, on the outside of the primary seal. This provides additional protection and strength to the insulating glass unit.



III. Quality Assurance



- In - line Inspection: Throughout the production process, multiple in - line inspection stations are installed. These use sensors and cameras to detect defects such as uneven sealant application, air bubbles, and misaligned components. Defective products are automatically flagged and removed from the production line.

- Final Testing: Before packaging, each insulating glass unit undergoes a final set of tests, including a leak test for gas - filled units and a dimensional accuracy check. Only products that meet the strict quality standards are approved for shipment.



IV. Conclusion



This mechanized production process for insulating glass, with its combination of automated machinery and strict quality control measures, ensures the efficient production of high - quality insulating glass products, meeting the demands of the construction and related industries.

Front Sealing Head Sealing Robot: A Superior Choice for Gradual Double Glazing Glass

1. Introduction

In the contemporary construction and manufacturing industries, double glazing glass—renowned for its exceptional thermal insulation, soundproofing, and energy-saving properties—has become an indispensable material for high-performance buildings and vehicles. Also referred to as insulating glass, it comprises two or more glass panes separated by a spacer frame filled with desiccant, creating a sealed cavity that minimizes heat transfer and sound transmission . However, the efficacy of double glazing glass is inherently dependent on the quality of its sealing process. A precise, consistent seal not only prevents moisture penetration and gas leakage but also ensures the material’s long-term structural integrity and performance stability. As the demand for gradual double glazing glass—characterized by varying thicknesses, multi-cavity designs, and specialized coatings—continues to grow, traditional manual sealing methods and conventional equipment have increasingly struggled to meet the stringent requirements of modern production. In this context, the front sealing head sealing robot emerges as a transformative solution, integrating advanced automation, precision engineering, and adaptive technology to redefine the standards of double glazing sealing. This article explores the technical advantages, functional capabilities, and industry impact of front sealing head sealing robots, demonstrating why they are the optimal choice for gradual double glazing glass processing.

2. The Critical Role of Sealing in Gradual Double Glazing Glass

2.1 Key Requirements for Sealing Gradual Double Glazing

Gradual double glazing glass presents unique challenges that elevate the complexity of the sealing process. Unlike standard double glazing, gradual variants often feature variable pane thicknesses, multi-layered cavities (such as three-layer insulating glass), and specialized coatings (e.g., low-emissivity or double-silver coatings) . These characteristics impose strict demands on the sealing process:


Precision and Consistency: The sealant must be applied uniformly across irregular surfaces and varying gaps, ensuring no bubbles, gaps, or excess overflow. For multi-cavity designs, each cavity requires independent, accurate sealing to maintain thermal and acoustic insulation .
Material Compatibility: Sealing agents must adhere effectively to coated glass surfaces without damaging the film or compromising its low-radiation properties. This requires precise control of application pressure, temperature, and sealant composition .
Efficiency and Scalability: With the expansion of production volumes, the sealing process must balance high speed with uncompromised quality, avoiding bottlenecks in mass production while accommodating small-batch, customized orders .
Sustainability: Minimizing sealant waste and reducing volatile organic compound (VOC) emissions are critical for environmental compliance and cost optimization .


2.2 Limitations of Traditional Sealing Methods

Traditional sealing approaches, including manual application and semi-automatic equipment, fail to address these requirements adequately. Manual sealing is inherently prone to human error, resulting in inconsistent sealant distribution, uneven thickness, and frequent defects such as bubbles or gaps . Workers cannot replicate the same pressure, speed, or precision across multiple units, leading to variations in product quality that compromise the performance of gradual double glazing glass. Additionally, manual sealing is labor-intensive, time-consuming, and exposes workers to hazardous fumes and repetitive motion injuries, posing significant safety and productivity risks . Conventional semi-automatic equipment, while more consistent than manual methods, lacks the adaptability to handle gradual double glazing’s variable specifications. It often requires time-consuming adjustments for different glass thicknesses or cavity designs, leading to production downtime and inefficiency . These limitations highlight the need for a fully automated, adaptive solution that can meet the dynamic demands of gradual double glazing glass processing.

3. Technical Advantages of Front Sealing Head Sealing Robots

Front sealing head sealing robots address the shortcomings of traditional methods through a combination of advanced sensors, precision control systems, and adaptive mechanical design. Their technical superiority is evident in the following key aspects:

3.1 High-Precision Sensing and Adaptive Control

Modern front sealing head sealing robots are equipped with high-resolution photoelectric switch sensors and depth detection devices that automatically measure glass thickness, cavity depth, and spacer frame dimensions . This real-time data is processed by a sophisticated control system—typically a Siemens PLC or large-screen touchscreen human-machine interface—that adjusts application parameters (e.g., sealant flow rate, nozzle position, and movement speed) in real time . For example, the LJTJ2540 model from LIJIANG Glass uses servo motors and high-precision racks to achieve automated transmission, ensuring glue coating accuracy even for glass with misalignment errors within a certain range . The robot’s front sealing head features a unique floating structure that maintains close contact with the glass surface without causing damage, adapting to irregularities and ensuring uniform sealant application . This adaptive control capability is particularly critical for gradual double glazing glass, as it allows the robot to handle variable thicknesses (ranging from 6mm to 20mm or more) and multi-cavity designs without manual intervention . For three-layer insulating glass, the robot can automatically adjust the sealing head angle after completing the first cavity, ensuring precise sealing of the second cavity with consistent quality .

3.2 Efficient and Cost-Effective Sealing

Front sealing head sealing robots significantly enhance production efficiency through automation and process optimization. Equipped with automatic glue replenishing functions and dual-channel sealing gasket structures, they eliminate the need for manual refilling and reduce sealant overflow—a common issue with two-component glue barrels . The hydraulic pressure control system ensures quantitative supply of both component A (white glue) and component B (black glue), maintaining optimal mixing ratios and minimizing waste . This not only reduces material costs but also improves the curing quality of the sealant, enhancing the durability of the double glazing glass . Additionally, the robots’ high-speed transmission systems—combining multi-row roller chains and V-belts—ensure smooth glass movement during sealing, reducing cycle times while maintaining precision . The LJTJ2030 model, for instance, can process glass sizes ranging from 400×280mm to 2000×3000mm with consistent sealing standards, achieving high production efficiency while lowering labor intensity . For manufacturers, this translates to increased throughput, reduced operational costs, and improved scalability—whether for large-scale mass production or small-batch customized orders .

3.3 Enhanced Safety and Sustainability

Safety and sustainability are core advantages of front sealing head sealing robots. By automating repetitive and hazardous tasks, they eliminate workers’ exposure to sealant fumes, chemical irritants, and repetitive motion injuries . The robots’ enclosed design and safety interlocks further reduce the risk of accidents in the production environment. From an environmental perspective, the precise control of sealant application minimizes waste, reducing VOC emissions and the overall environmental footprint of the production process . The automatic adjustment of glue output based on real-time sensor data ensures that only the required amount of sealant is used, avoiding excess that would otherwise be discarded . Additionally, many front sealing head robots are compatible with eco-friendly sealant materials, further aligning with global sustainability goals .

3.4 Versatility and Compatibility with Advanced Designs

Front sealing head sealing robots are highly versatile, capable of adapting to a wide range of gradual double glazing configurations. Their programmability allows for the storage of multiple part-specific programs, enabling seamless switching between different glass sizes, cavity designs, and coating types . For example, the 3D head robotic sealer from Sames supports three separate nozzles with adjustable orientations, allowing it to access hard-to-reach areas and apply flat, uniform seals on complex geometries . Kawasaki’s BU series robots, with their 7-axis design and long reach (up to 2887.5mm), are ideal for sealing large or irregularly shaped double glazing units, such as those used in automotive or aerospace applications . Moreover, these robots are compatible with various sealant types, including polysulfide, silicone, and butyl rubber, ensuring compatibility with the diverse material requirements of gradual double glazing glass . Whether processing standard double glazing, three-layer insulating glass, or coated gradual variants, front sealing head robots deliver consistent, high-quality results.

4. Real-World Applications and Industry Impact

The adoption of front sealing head sealing robots has already made a significant impact across key industries, including construction, automotive, and aerospace. In the construction sector, where energy efficiency and durability are paramount, these robots are used to produce high-performance gradual double glazing for commercial buildings, residential complexes, and green infrastructure . For example, manufacturers using LIJIANG Glass’s LJTJ2540 and LJTJ2030 robots have reported improved sealing consistency, reduced product failure rates, and enhanced compliance with international energy efficiency standards . In the automotive industry, front sealing head robots are employed to seal windshields, side windows, and sunroofs—often gradual double glazing with curved surfaces and variable thicknesses. Robots like the ABB IRB 6640 and Fanuc R-2000 series ensure precise, uniform seals that withstand extreme temperatures, vibrations, and moisture, improving vehicle safety and comfort .

Refurbished front sealing head robots have also emerged as a cost-effective option for small and medium-sized enterprises (SMEs), offering the same precision and efficiency as new equipment at a lower investment . Companies like Global Robots supply refurbished models from top brands (e.g., ABB, Fanuc, Kuka) that undergo rigorous testing to ensure reliability, making advanced sealing technology accessible to a broader range of manufacturers . This democratization of automation has accelerated the adoption of front sealing head robots, driving innovation and competitiveness in the double glazing industry.

5. Conclusion

As the demand for gradual double glazing glass continues to rise, the need for a precise, efficient, and adaptive sealing solution has never been greater. Front sealing head sealing robots address this need by integrating high-precision sensing, adaptive control, and automated technology to overcome the limitations of traditional sealing methods. Their ability to handle variable thicknesses, multi-cavity designs, and specialized coatings—while maintaining consistency, efficiency, and sustainability—makes them the superior choice for modern double glazing production. From enhancing product quality and reducing costs to improving workplace safety and environmental compliance, these robots deliver multifaceted value that drives industry progress. As technology advances, front sealing head sealing robots will continue to evolve, incorporating artificial intelligence, machine learning, and advanced materials to meet the ever-changing demands of gradual double glazing glass processing. For manufacturers committed to excellence, investing in a front sealing head sealing robot is not just a practical decision—it is a strategic investment in the future of high-performance double glazing.





This article comprehensively covers the technical, operational, and industry-specific aspects of front sealing head sealing robots for gradual double glazing glass. If you need to emphasize specific applications (e.g., automotive vs. construction), add technical data comparisons, or include case studies from particular manufacturers, feel free to provide additional details. I can also refine the content to align with specific industry standards or target audiences (e.g., engineering professionals, production managers).

Butyl Coating Machine: Core Equipment for Precision Sealing in Modern Insulating Glass Manufacturing

Abstract

In the global push for energy-efficient buildings and high-performance architectural and automotive glass, insulating glass (IG) has become a cornerstone material, with its thermal insulation, soundproofing, and durability directly dependent on the quality of edge sealing. The butyl coating machine, as a critical piece of automated equipment in the IG production line, is specifically designed for the uniform, continuous application of hot-melt butyl rubber—an essential primary sealant for insulating glass spacers. This article explores the working principle, technical characteristics, core advantages, application scenarios, and development trends of butyl coating machines, demonstrating their indispensable role in ensuring the long-term reliability, production efficiency, and cost-effectiveness of modern insulating glass manufacturing.

1. Introduction

The global demand for energy-saving and environmentally friendly building materials has surged in recent years, driven by stringent carbon neutrality policies and the rapid development of green construction. Insulating glass, composed of two or more glass panes separated by a spacer frame and sealed with dual-layer sealants (primary butyl rubber and secondary polysulfide/silicone sealant), has emerged as the preferred choice for modern commercial and residential buildings, automotive windows, and aerospace components. The primary seal—hot-melt butyl rubber—acts as the first line of defense against moisture penetration, gas leakage, and spacer corrosion, directly determining the service life and performance stability of insulating glass.

Traditional manual or semi-automatic butyl coating methods suffer from inherent flaws such as uneven glue application, inconsistent thickness, low efficiency, and high material waste, which severely compromise the quality of insulating glass and increase production costs. In contrast, modern butyl coating machines integrate advanced PLC control systems, servo-driven precision mechanisms, and intelligent temperature control technology, enabling fully automated, high-precision, and continuous butyl rubber coating. As the "heart" of the insulating glass primary sealing process, butyl coating machines have become an irreplaceable core equipment for manufacturers seeking to upgrade production lines, improve product quality, and enhance market competitiveness.

2. Working Principle and Core Components of Butyl Coating Machine

2.1 Basic Working Principle

Butyl coating machines operate on the principle of hot-melt extrusion and precision coating. Solid or semi-solid hot-melt butyl rubber is first heated to a molten state (typically 110–150°C) in a temperature-controlled heating system, then pressurized and delivered to a precision coating nozzle via a screw or piston extrusion mechanism. The spacer frame (aluminum, warm-edge, or composite spacer) is fed through the machine’s transmission system at a constant speed, and the molten butyl rubber is extruded uniformly onto the two sides of the spacer frame in a continuous, bead-like form. The machine’s control system real-time adjusts extrusion pressure, coating speed, and glue bead thickness to ensure consistent coating quality across different spacer sizes and types. After coating, the spacer is cooled slightly to maintain the shape of the butyl rubber bead, ready for the subsequent glass bonding and secondary sealing processes.

2.2 Core Components and Functions

A high-performance butyl coating machine comprises several key modules, each contributing to its precision and reliability:

2.2.1 Heating and Melting System

This system consists of a heating barrel, temperature sensors, and a digital temperature controller. The heating barrel is equipped with multi-zone electric heating elements and thermal insulation layers to ensure uniform heating of butyl rubber, preventing local overheating (which causes glue degradation) or insufficient melting (which leads to poor fluidity). High-precision temperature sensors (±1°C accuracy) monitor the melting temperature in real time, with the controller automatically adjusting heating power to maintain a stable molten state—critical for consistent extrusion and coating quality.

2.2.2 Extrusion Mechanism

The extrusion mechanism is the core of the butyl coating machine, available in two main types: screw extrusion and piston extrusion.


Screw extrusion: Features a precision-ground screw with a variable pitch design, which pushes molten butyl rubber forward through rotation, ensuring stable and continuous extrusion. It is suitable for high-volume, continuous production lines and can handle a wide range of butyl rubber viscosities.
Piston extrusion: Uses a hydraulic or pneumatic piston to pressurize and extrude molten glue, offering higher extrusion pressure and more precise glue volume control. It is ideal for small-batch, customized production or coating narrow-width spacers, with minimal glue residue and waste.


Modern high-end models often adopt servo-driven screw extrusion, combining the advantages of continuous production and precision control, with extrusion pressure adjustable from 0.5 to 20 MPa to meet diverse coating requirements.

2.2.3 Precision Coating Nozzle

The coating nozzle is designed for uniform glue distribution and adaptability to different spacer specifications. Key features include:


Dual-side coating design: Simultaneously coats butyl rubber on both sides of the spacer frame, improving production efficiency by 50% compared to single-side coating.
Adjustable nozzle gap: The gap between the nozzle and spacer can be finely adjusted (0.1–3 mm) to control glue bead thickness (typically 0.5–2 mm) and width (2–10 mm), compatible with spacers of 6–27 mm width (the most common in insulating glass).
Anti-drip and anti-clogging design: Equipped with a pneumatic or electric glue cutoff valve to prevent glue dripping when the machine stops, and a self-cleaning function to remove residual butyl rubber and avoid nozzle clogging.
Curved surface adaptability: Some models feature a floating nozzle design, which can automatically adjust to the curvature of curved spacers (used in automotive or special-shaped insulating glass), ensuring uniform coating on non-linear surfaces.


2.2.4 Transmission and Positioning System

The transmission system uses a servo motor-driven roller chain or belt conveyor, with a speed range of 0–30 m/min (adjustable via the HMI). High-precision positioning sensors (photoelectric or proximity sensors) detect the position and length of the spacer, automatically starting and stopping the coating process to avoid glue waste on spacer ends. For multi-specification spacers, the system can store up to 50+ sets of parameter presets, enabling one-click switching between different production tasks and reducing setup time by over 80%.

2.2.5 PLC Control and Human-Machine Interface (HMI)

The core control system is based on a Siemens or Mitsubishi PLC, paired with a 7–10 inch touchscreen HMI for intuitive operation. Key functions include:


Real-time display of temperature, extrusion pressure, coating speed, and glue bead thickness.
One-key setting and storage of process parameters for different spacer types and glue formulas.
Fault self-diagnosis and alarm (e.g., over-temperature, low pressure, nozzle clogging), with troubleshooting prompts displayed on the HMI.
Remote monitoring and data export (via Ethernet or USB), supporting production data tracking and quality traceability—critical for compliance with international quality standards (e.g., CE, ASTM, GB/T 11944).


2.2.6 Safety and Auxiliary Systems

To ensure operational safety and equipment durability, butyl coating machines are equipped with:


Safety interlocks: Emergency stop buttons, safety doors, and protective covers that stop the machine immediately when opened, preventing operator contact with high-temperature components and moving parts.
Glue level detection: A sensor monitors the butyl rubber level in the melting barrel, triggering an alarm when the glue is low to avoid empty extrusion.
Cooling system: A forced air cooling or water cooling system cools the coated spacer slightly, maintaining the shape of the butyl rubber bead and preventing deformation during subsequent handling.


3. Technical Advantages of Modern Butyl Coating Machines

3.1 High Precision and Consistent Coating Quality

The most significant advantage of butyl coating machines is their ability to deliver uniform, bubble-free, and consistent butyl rubber coating—a critical requirement for insulating glass primary sealing. Unlike manual coating, which is prone to uneven thickness, gaps, or excess glue, the machine’s servo-driven extrusion and precision nozzle ensure that the glue bead has a consistent cross-section (width and thickness) along the entire length of the spacer (up to 6 m long). This eliminates moisture penetration paths and gas leakage points, significantly improving the insulating glass’s thermal insulation performance and service life (extending it from 5–10 years to 15–20 years or more). For high-value Low-E (low-emissivity) glass and multi-cavity insulating glass, the machine’s non-contact floating nozzle design avoids scratching the sensitive Low-E coating or damaging multi-layer spacers, ensuring product integrity.

3.2 High Production Efficiency and Cost Savings

Automated butyl coating machines drastically improve production efficiency compared to manual or semi-automatic methods. A standard high-speed model can coat spacers at a speed of up to 30 m/min, processing 800–1200 spacer frames per 8-hour shift—a 5–10 times increase in output compared to manual coating. The continuous extrusion design eliminates downtime for glue refilling (large-capacity melting barrels hold 5–20 kg of butyl rubber, reducing refilling frequency), and the one-click parameter switching reduces setup time for different spacer specifications from 30–60 minutes to 2–5 minutes.

In terms of cost savings, the machine’s precise glue volume control reduces butyl rubber waste by 30–50% compared to manual coating (excess glue is minimized, and no dripping or spillage occurs). Additionally, automation reduces labor costs: a single operator can manage 2–3 machines simultaneously, replacing 4–6 manual workers. Over the equipment’s 8–10 year service life, the savings in material and labor costs far outweigh the initial investment, delivering a rapid return on investment (ROI) for manufacturers.

3.3 Wide Compatibility and Versatility

Modern butyl coating machines are highly versatile, compatible with a wide range of spacer types and insulating glass products:


Spacer materials: Aluminum spacers (standard, bent, or welded), warm-edge spacers (stainless steel, composite, or foam), and special-shaped spacers (curved, angled, or multi-cavity).
Spacer specifications: Width 6–27 mm, thickness 0.3–1.2 mm, length up to 6 m, suitable for both small-sized residential glass and large-sized commercial curtain wall glass.
Butyl rubber types: Hot-melt butyl rubber of different viscosities (low, medium, high) and formulations (standard, anti-aging, or low-VOC), compatible with all major butyl rubber brands in the market.
Application scenarios: Flat insulating glass, curved insulating glass, triple-glazing, multi-cavity insulating glass, automotive glass, and solar photovoltaic glass.


Some advanced models also feature a dual-nozzle design for coating multi-cavity spacers (e.g., 3-cavity or 4-cavity spacers used in ultra-high-performance insulating glass), enabling simultaneous coating of multiple glue lines and further expanding their application scope.

3.4 Enhanced Safety and Environmental Compliance

Butyl coating machines prioritize operator safety and environmental protection, addressing the drawbacks of manual coating:


Safety: By automating the high-temperature (110–150°C) coating process, the machine eliminates operator contact with molten butyl rubber and high-temperature components, reducing the risk of burns and repetitive motion injuries. Safety interlocks and emergency stop functions provide additional protection, complying with international safety standards (e.g., OSHA, CE).
Environmental protection: The closed melting and extrusion system minimizes the emission of volatile organic compounds (VOCs) from butyl rubber, improving the workshop air quality. The precise glue control reduces waste, and the self-cleaning nozzle design minimizes residual glue disposal—aligning with global environmental regulations and green manufacturing trends. Many models are also compatible with low-VOC and eco-friendly butyl rubber formulations, further reducing the environmental footprint of production.


3.5 Stable Performance and Low Maintenance

High-quality butyl coating machines are built with durable materials (stainless steel for the melting barrel, hardened alloy for the screw and nozzle, and industrial-grade servo motors) to ensure long-term stable operation under continuous production conditions. The key components have a service life of 50,000+ hours, and the modular design simplifies maintenance: wearing parts (e.g., nozzles, seals) can be replaced quickly, and routine maintenance (e.g., cleaning, lubrication) is minimal. The PLC control system’s fault self-diagnosis function reduces downtime by identifying and resolving issues promptly, ensuring uninterrupted production—critical for large-scale insulating glass manufacturing plants.

4. Application Scenarios of Butyl Coating Machines

4.1 Architectural Insulating Glass Manufacturing

The largest application area of butyl coating machines is the architectural insulating glass industry, covering residential windows, commercial curtain walls, office buildings, shopping malls, and green buildings. In high-rise buildings and energy-saving residential complexes, insulating glass with high-quality butyl rubber primary sealing provides excellent thermal insulation (U-value as low as 1.0 W/(m²·K)) and soundproofing (up to 35–40 dB), reducing heating and cooling costs by 30–50% compared to single-pane glass. Butyl coating machines enable mass production of standard and customized architectural insulating glass, meeting the demand for large-sized glass (up to 3 m × 6 m) used in modern curtain walls and ensuring consistent quality across thousands of units.

4.2 Automotive Glass Production

In the automotive industry, butyl coating machines are used to produce insulating glass for windshields, side windows, sunroofs, and rear windows of passenger cars, commercial vehicles, and new energy vehicles (NEVs). Automotive insulating glass requires not only thermal insulation and soundproofing but also resistance to extreme temperatures (-40°C to 85°C), vibration, and UV radiation. The machine’s precision coating ensures that the butyl rubber seal adheres firmly to the glass and spacer, preventing moisture from entering the glass cavity and causing fogging—critical for driving safety. For curved automotive glass, models with floating nozzles and curved spacer adaptability deliver uniform coating on non-linear surfaces, meeting the strict quality standards of automotive OEMs (e.g., Volkswagen, Toyota, Tesla).

4.3 Solar Photovoltaic (PV) Glass and Special Glass

With the rapid development of the solar energy industry, butyl coating machines are increasingly used in the production of PV insulating glass (used in solar panels and BIPV—building-integrated photovoltaics). PV glass requires a highly durable seal to protect the solar cells from moisture and corrosion, and the machine’s high-precision butyl coating provides a long-lasting primary seal, extending the service life of PV modules to 25+ years. Additionally, butyl coating machines are used in the production of special glass for aerospace, marine, and industrial applications, such as insulated glass for aircraft cabins, ship windows, and industrial furnace observation windows—where sealing reliability under extreme conditions is paramount.

4.4 Small and Medium-Sized Enterprises (SMEs) and Customized Production

Butyl coating machines are not only suitable for large-scale mass production lines but also for SMEs and customized glass manufacturers. Semi-automatic or compact models (with a small footprint and low investment) are ideal for SMEs producing small batches of customized insulating glass (e.g., for villas, specialty buildings, or automotive aftermarket). These models retain the core precision and efficiency advantages of full-automatic machines but with a lower price point and simpler operation, making advanced butyl coating technology accessible to a broader range of manufacturers. Refurbished butyl coating machines (from reputable brands) are also a cost-effective option for SMEs, offering the same performance as new equipment at 50–70% of the cost.

5. Development Trends of Butyl Coating Machines

5.1 Intelligentization and Digitalization

The future of butyl coating machines lies in intelligentization and digital transformation, driven by Industry 4.0 and smart manufacturing. Advanced models will integrate artificial intelligence (AI) and machine learning algorithms to optimize process parameters in real time: for example, automatically adjusting extrusion pressure and temperature based on butyl rubber viscosity changes (caused by temperature or batch differences) to maintain consistent coating quality. IoT (Internet of Things) connectivity will enable remote monitoring, predictive maintenance, and production data analysis—manufacturers can track machine performance, output, and quality from a central control room, and the system will predict component failures (e.g., screw wear, nozzle clogging) and schedule maintenance in advance, reducing unplanned downtime. Digital twin technology will also be applied, allowing manufacturers to simulate coating processes and optimize production lines before physical implementation.

5.2 High-Speed and High-Precision Upgrades

To meet the growing demand for large-scale and high-quality insulating glass, butyl coating machines will continue to evolve toward higher speed and precision. Future models will feature servo-driven systems with faster response times, increasing coating speed to 40–50 m/min while maintaining glue bead precision (±0.05 mm thickness tolerance). The extrusion mechanism will be optimized for higher pressure and more uniform glue distribution, enabling coating of ultra-narrow spacers (3–5 mm width) and ultra-thick glue beads (3–5 mm) for special applications. Additionally, 3D vision sensors will be integrated to detect spacer position and curvature in real time, enabling fully adaptive coating on complex-shaped spacers without manual adjustment.

5.3 Green and Eco-Friendly Design

Sustainability will be a core focus in the development of butyl coating machines, aligning with global carbon neutrality goals. Future models will feature energy-efficient heating systems (e.g., infrared heating or electromagnetic heating) that reduce energy consumption by 20–30% compared to traditional electric heating. The closed-loop glue recycling system will collect and reuse residual butyl rubber, further reducing material waste to less than 5%. Compatibility with bio-based butyl rubber (made from renewable resources) and low-VOC, zero-halogen formulations will be enhanced, making the production process more environmentally friendly. Additionally, the machine’s design will prioritize recyclable materials and modular components, reducing the environmental impact of manufacturing and disposal.

5.4 Integration with Automated Production Lines

Butyl coating machines will be more deeply integrated into fully automated insulating glass production lines, connecting with upstream spacer bending/welding machines, glass washing machines, and downstream glass bonding/secondary sealing robots. The entire production process—from spacer processing to final insulating glass assembly—will be automated, with seamless data exchange between machines via a central control system. This integration will eliminate manual handling, reduce production cycle time by 40–60%, and ensure 100% quality consistency across the entire production line. For example, the spacer bending machine will transmit spacer specifications to the butyl coating machine, which automatically adjusts parameters and starts coating; after coating, the spacer is automatically transferred to the glass bonding station, with no human intervention required.

6. Conclusion

As the core equipment for primary sealing in modern insulating glass manufacturing, the butyl coating machine plays a pivotal role in ensuring product quality, improving production efficiency, and reducing costs. Its technical advantages—high precision, high efficiency, wide compatibility, safety, and environmental protection—address the limitations of traditional coating methods, making it an indispensable tool for manufacturers seeking to meet the demand for energy-efficient, high-performance insulating glass.

With the ongoing development of the global green building and automotive industries, the demand for high-quality insulating glass will continue to grow, driving the continuous innovation of butyl coating machines toward intelligentization, high-speed, green, and integrated production. For insulating glass manufacturers, investing in a high-performance butyl coating machine is not only a practical upgrade for production lines but also a strategic decision to enhance market competitiveness, comply with international quality and environmental standards, and seize opportunities in the rapidly growing energy-saving glass market.

In the future, as technology advances, butyl coating machines will further evolve into smart, connected, and eco-friendly equipment, empowering the insulating glass industry to achieve higher levels of automation, efficiency, and sustainability—contributing to the global transition to a low-carbon, green economy.

References


GB/T 11944-2012, Insulating Glass for Buildings.
ASTM E2190-19, Standard Specification for Insulating Glass Units.
CE Marking Standards for Machinery (2006/42/EC).
International Energy Agency (IEA), Energy Efficiency Trends in Buildings, 2024.
Journal of Glass Technology, Vol. 65, No. 3, 2023: Advances in Insulating Glass Sealing Technology.
Automotive Engineering International, Vol. 28, No. 5, 2024: Sealing Solutions for Automotive Insulating Glass.

Glass Tempering Furnace: Principles, Technology, Applications and Industrial Development

Abstract

Glass tempering furnace, as a core thermal processing equipment in the modern glass deep-processing industry, plays an irreplaceable role in transforming ordinary float glass, sheet glass and other flat glass products into tempered glass with high mechanical strength, thermal stability and safety performance. This paper systematically elaborates on the fundamental working principles, structural composition, classification characteristics, processing technology, application scenarios, performance advantages and existing challenges of glass tempering furnaces. Combined with the latest technological innovations and market development trends in the global glass industry, it also prospects the future development direction of glass tempering furnace equipment, aiming to provide a comprehensive and in-depth reference for industrial practitioners, engineering technicians and relevant research scholars.

1. Introduction

With the rapid advancement of global construction, automotive, home appliance, electronic information and new energy industries, the demand for high-performance safety glass has shown a sustained growth trend. Tempered glass, known as "safety glass", has become one of the most widely used functional glass products in modern industrial and civil fields due to its outstanding characteristics such as 3-5 times higher impact resistance than ordinary glass, excellent thermal shock resistance, and harmless small granular fragments when broken. The core equipment for achieving the glass tempering process is the glass tempering furnace, which integrates multiple disciplines including mechanical engineering, thermal engineering, automation control, material science and electrical engineering.

Since the birth of the first industrialized glass tempering furnace in the mid-20th century, the equipment has undergone continuous technological iteration and structural optimization. From the initial vertical tempering furnaces to the widely used horizontal convection tempering furnaces today, and from the single small-scale processing equipment to the large-scale, intelligent, energy-saving and high-efficiency production lines, glass tempering furnaces have gradually evolved into a highly specialized and standardized industrial equipment category. In the global glass deep-processing industry chain, the performance level of glass tempering furnaces directly determines the quality, production efficiency and cost control of tempered glass products, and is a key link that affects the core competitiveness of glass processing enterprises. This paper will conduct an all-round and multi-angle analysis of glass tempering furnaces, starting from their basic theoretical basis, and extending to practical applications and future development.

2. Fundamental Principles of Glass Tempering

Before analyzing the structure and working process of glass tempering furnaces, it is essential to clarify the physical and chemical principles behind the glass tempering process, which is the theoretical cornerstone for the design and operation of glass tempering furnaces. Glass tempering, also referred to as glass toughening, is a physical heat treatment method that changes the internal stress state and mechanical properties of glass without altering its chemical composition.

2.1 Thermal Tempering Principle

The vast majority of commercial glass tempering furnaces adopt the thermal tempering process, whose core principle is based on the rapid cooling of heated glass to form a uniform compressive stress layer on the surface and a tensile stress layer inside the glass. Specifically, ordinary flat glass is heated in a tempering furnace to a temperature close to its softening point (generally between 600°C and 650°C, varying slightly with glass composition and thickness), at which the glass internal molecular structure is in a state of high activity and the internal stress is completely eliminated. Subsequently, the heated glass is quickly transferred to the cooling zone of the tempering furnace, where high-speed and uniform cold air is blown onto both sides of the glass surface through a specially designed air grid system.

Due to the rapid cooling rate, the glass surface layer solidifies and contracts first, forming a rigid compressive stress layer, while the internal glass is still in a high-temperature plastic state and continues to cool and contract. As the internal glass gradually cools to room temperature, its shrinkage is constrained by the already solidified surface layer, resulting in a stable tensile stress inside the glass and a compressive stress on the surface. This stress distribution endows tempered glass with exceptional mechanical properties: when subjected to external impact or bending force, the surface compressive stress can offset most of the external tensile stress, significantly improving the glass's impact resistance and bending strength. Moreover, when the tempered glass is broken by an external force exceeding its bearing limit, the internal tensile stress is released instantaneously, causing the glass to break into numerous small obtuse-angle particles, avoiding sharp fragments that cause harm to the human body, thus achieving the safety performance of tempered glass.

2.2 Chemical Tempering Principle

In addition to thermal tempering, a small number of special glass tempering furnaces adopt the chemical tempering process, which is mainly applicable to thin glass (thickness <3mm) and special-shaped glass products that are not suitable for thermal tempering. The chemical tempering principle is to immerse the preheated glass in a molten salt bath containing alkali metal ions with a larger ionic radius at a temperature lower than the glass transition temperature, and realize the ion exchange between the glass surface and the molten salt through the diffusion of alkali metal ions in the glass network structure. For example, sodium ions (Na⁺) on the glass surface are replaced by potassium ions (K⁺) with a larger radius in the molten salt. The volume expansion caused by ion substitution forms a compressive stress layer on the glass surface, thereby improving the mechanical strength and thermal stability of the glass. Although chemical tempering has advantages in processing thin glass, its production cycle is long, the cost is high, and the compressive stress layer is relatively thin, so it is only used in specific industrial fields, and thermal tempering furnaces still dominate the mainstream market.

3. Structural Composition of Glass Tempering Furnace

A complete glass tempering furnace is a complex integrated system composed of multiple functional modules, each module cooperating closely to complete the continuous and stable tempering processing of glass. The typical horizontal glass tempering furnace, which is the most widely used in the industry, mainly includes the feeding system, heating furnace body, conveying system, cooling system, control system and auxiliary systems such as exhaust and dust removal. Each part has a clear functional positioning and precise design requirements.

3.1 Feeding System

The feeding system is the starting end of the glass tempering furnace, responsible for stably and accurately sending the original glass sheets to be processed into the heating furnace. It mainly consists of a loading table, a sheet separating device, a positioning mechanism and a conveying roller table. For automated production lines, the feeding system is often equipped with a robotic arm loading system, which can realize automatic sorting, positioning and feeding of glass sheets, reducing manual labor and improving production efficiency. The positioning mechanism ensures that each glass sheet enters the heating furnace at a fixed position and angle, avoiding deflection or overlapping that affects the heating uniformity. For large-format glass, the feeding system is designed with anti-deformation support structures to prevent the glass from bending or breaking during the feeding process due to its own weight.

3.2 Heating Furnace Body

The heating furnace body is the core component of the glass tempering furnace, where the glass is heated to the specified tempering temperature, and its performance directly determines the heating efficiency and temperature uniformity of the glass. The heating furnace body is generally a sealed box structure, composed of a furnace shell, a thermal insulation layer, a heating element, a temperature sensor and a furnace inner cavity.

The furnace shell is usually made of high-strength steel plates, with good structural rigidity to ensure the stability of the furnace body during long-term operation. The thermal insulation layer is filled with high-temperature resistant thermal insulation materials such as aluminum silicate fiber and ceramic fiber, which can effectively reduce heat loss, reduce energy consumption and ensure the temperature stability of the furnace inner cavity. The heating element is the heat source of the furnace body, mainly including resistance heating wires, ceramic heating plates and infrared radiation heating tubes. According to different heating methods, it can be divided into radiation heating and convection heating. Traditional tempering furnaces mainly adopt radiation heating, which relies on the infrared radiation emitted by the heating element to heat the glass; modern high-efficiency tempering furnaces add a forced convection system, which circulates the high-temperature gas in the furnace through a convection fan to achieve uniform heating of the glass surface, especially suitable for low-e coated glass and other coated glass products that are sensitive to temperature differences.

Temperature sensors (such as thermocouples) are evenly arranged in the furnace body to collect real-time temperature data of different zones in the furnace, and feed back to the control system to realize closed-loop control of the furnace temperature, ensuring that the temperature difference in the effective heating area is controlled within ±2°C, which is a prerequisite for ensuring the quality of tempered glass. In addition, the heating furnace body is divided into multiple independent temperature control zones according to the length and width, and the temperature of each zone can be adjusted independently to adapt to the heating requirements of glass with different thicknesses and sizes.

3.3 Conveying System

The conveying system runs through the entire glass tempering furnace, responsible for transporting the glass through the feeding area, heating area and cooling area at a controllable speed. It mainly adopts a ceramic roller conveying structure, because ceramic rollers have excellent high-temperature resistance, low thermal expansion coefficient and smooth surface, which will not scratch the glass surface and can maintain stable conveying performance at high temperatures up to 700°C.

The ceramic rollers are driven by a motor and a transmission system (such as a chain or a synchronous belt), and the conveying speed can be adjusted steplessly through the control system. For glass with different thicknesses, the conveying speed in the heating zone and the cooling zone is precisely matched: thicker glass requires a slower conveying speed in the heating zone to ensure sufficient heating time, while thinner glass needs a faster conveying speed to avoid overheating. In addition, the conveying system of high-end tempering furnaces is equipped with a roller speed synchronization control device to ensure that the glass is always in a horizontal and stable state during the conveying process, avoiding deflection or warping caused by inconsistent roller speeds.

3.4 Cooling System

The cooling system is the key module to realize the rapid cooling of the heated glass and form the internal stress of tempered glass, which is composed of an air compressor, an air storage tank, an air grid assembly and an air volume adjustment device. The air grid is the core component of the cooling system, which is divided into upper and lower air grids, arranged symmetrically on the upper and lower sides of the glass conveying path. The surface of the air grid is densely distributed with specially designed air nozzles, which can spray high-pressure and uniform cold air onto the glass surface.

The cooling system of a high-performance glass tempering furnace can realize stepless adjustment of air volume, air pressure and cooling speed according to the thickness, size and type of glass. For example, thick glass requires a relatively gentle cooling rate to avoid excessive temperature stress causing glass bursting, while thin glass needs a higher cooling rate to ensure the formation of effective compressive stress. In addition, the cooling system is equipped with an air circulation and filtration device, which can recycle the cold air after heat exchange, reduce the load of the air compressor and achieve energy saving. The uniformity of the air grid air supply is a key indicator to measure the performance of the cooling system, and uneven air supply will lead to uneven stress distribution of the tempered glass, resulting in quality problems such as glass warping, self-explosion and poor strength.

3.5 Automatic Control System

The automatic control system is the "brain" of the glass tempering furnace, integrating programmable logic controller (PLC), human-machine interface (HMI), temperature control module, speed control module and safety protection module. The control system realizes the automatic operation of the entire tempering process by presetting process parameters for different types of glass.

Operators only need to input glass parameters such as thickness, size and type on the human-machine interface, and the system will automatically match the optimal heating temperature, heating time, conveying speed, cooling air volume and other process parameters. The control system has functions such as real-time data monitoring, fault alarm, parameter storage and historical data query. It can monitor the operating status of each module of the furnace body in real time, and issue an alarm and take protective measures in time when abnormal conditions such as temperature overrun, roller jam, and air pressure abnormality occur. In addition, the intelligent control system of modern glass tempering furnaces is equipped with a network communication interface, which can realize remote monitoring, fault diagnosis and program upgrade, facilitating the management and maintenance of the production line by enterprises.

3.6 Auxiliary Systems

In addition to the above core modules, the glass tempering furnace is also equipped with a series of auxiliary systems to ensure the stable operation of the equipment and compliance with environmental protection requirements. The exhaust gas treatment system is used to discharge the volatile gas and dust generated during the glass heating process, and purify the exhaust gas to meet environmental protection standards; the dust removal system collects the glass dust and impurities generated during the feeding and conveying process to keep the inside of the furnace clean; the cooling water circulation system is used to cool the motor, transmission system and electrical components of the equipment to prevent overheating damage; the safety protection system includes emergency stop buttons, safety doors, temperature and pressure overload protection, etc., to ensure the personal safety of operators and the safety of equipment.

4. Classification of Glass Tempering Furnaces

Glass tempering furnaces can be classified from multiple perspectives according to different structural forms, processing technologies, application scenarios and automation levels. The classification is conducive to the selection and application of equipment in different industrial fields. The main classification methods are as follows:

4.1 Classification by Structural Form

According to the conveying and processing structure, glass tempering furnaces are mainly divided into horizontal glass tempering furnaces and vertical glass tempering furnaces. Horizontal glass tempering furnaces adopt a horizontal conveying method, with glass lying flat on the ceramic roller table for heating and cooling. They have the advantages of large processing format, high production efficiency, good glass flatness, and suitability for mass production of various flat glass. They are the most widely used type in the market, covering almost all fields of tempered glass production. Vertical glass tempering furnaces adopt a vertical hanging conveying method, with glass vertically suspended and sent into the furnace for processing. They have a small floor area and are suitable for processing small and medium-sized glass and special-shaped glass, but their production efficiency is low and the processing format is limited, so they are only used in a small number of special processing scenarios.

4.2 Classification by Heating Method

According to the heating method of the furnace body, glass tempering furnaces are divided into radiation heating tempering furnaces and convection heating tempering furnaces. Radiation heating tempering furnaces rely on the infrared radiation of heating elements to heat glass, with a simple structure and low cost, suitable for processing ordinary clear float glass. However, the heating uniformity is relatively poor, and it is easy to cause uneven heating of coated glass, resulting in quality defects. Convection heating tempering furnaces add a forced convection circulation system on the basis of radiation heating, which uses high-temperature hot air to convectively heat the glass surface, greatly improving the heating uniformity and heating speed. They are especially suitable for processing low-e coated glass, solar coated glass, colored glass and other special glass products, and have become the mainstream development trend of modern tempering furnaces.

4.3 Classification by Processing Capacity and Scale

According to the processing capacity and production scale, glass tempering furnaces are divided into small and medium-sized laboratory tempering furnaces, medium-sized industrial production tempering furnaces and large-scale continuous production tempering furnaces. Small and medium-sized laboratory tempering furnaces are mainly used for glass tempering process research, product development and small-batch sample production, with small processing format, low power and flexible operation. Medium-sized industrial production tempering furnaces are suitable for small and medium-sized glass processing enterprises, with moderate processing capacity and cost, meeting the production needs of conventional tempered glass products. Large-scale continuous production tempering furnaces are designed for large glass processing groups, with ultra-large processing format, high-speed continuous production capacity, high degree of automation and intelligent integration, and can realize 24-hour uninterrupted production, suitable for large-scale orders in construction, automotive and other industries.

4.4 Classification by Process Purpose

According to different process purposes and processed glass types, glass tempering furnaces are also divided into flat glass tempering furnaces, bent glass tempering furnaces, laminated glass supporting tempering furnaces, and ultra-thin glass tempering furnaces. Among them, the bent glass tempering furnace is equipped with a bending mold and a bending control system in the heating zone, which can heat and bend the glass while tempering, producing curved tempered glass for automotive windshields, architectural curved curtain walls and other fields.

5. Glass Tempering Process Flow

The complete glass tempering process realized by the glass tempering furnace is a standardized and continuous operation flow, and each process link must be strictly controlled to ensure the quality of tempered glass. The standard process flow of the horizontal thermal glass tempering furnace is as follows:

5.1 Original Glass Preparation

Before entering the tempering furnace, the original glass sheets need to be cut, edged, polished and cleaned. Cutting is to cut the large-format original glass into the required size according to the design requirements; edging and polishing are to remove the sharp edges and burrs generated during cutting, because the micro-cracks on the glass edge will become the stress concentration point during the tempering process, leading to glass bursting; cleaning is to remove the oil, dust and impurities on the glass surface through a glass cleaning machine, avoiding the formation of spots or defects on the glass surface during heating and affecting the appearance quality of tempered glass.

5.2 Automatic Feeding

The cleaned and inspected qualified glass sheets are placed on the feeding table of the tempering furnace, and the feeding system positions and separates the glass sheets, then sends them into the heating furnace body one by one through the conveying roller table at a set speed. For automated production lines, this process is completed by a robotic arm without manual intervention.

5.3 High-Temperature Heating

The glass enters the heating furnace body and is conveyed forward slowly through the ceramic roller table. The heating element and convection system in the furnace heat the glass uniformly, and the temperature is raised to the tempering temperature (600-650°C) and maintained for a certain period of time. The heating time is determined by the glass thickness, type and furnace temperature: the thicker the glass, the longer the heating time required to ensure that the glass internal temperature reaches the softening state and the internal stress is completely eliminated. During the heating process, the control system monitors the furnace temperature in real time and adjusts the heating power to ensure temperature uniformity.

5.4 Rapid Cooling (Tempering)

After the heating is completed, the glass is quickly conveyed from the heating furnace to the cooling zone. The upper and lower air grids of the cooling system spray high-pressure uniform cold air onto the glass surface instantly, realizing rapid and uniform cooling. The cooling speed is precisely controlled according to the glass thickness, forming a stable compressive stress layer on the glass surface and a tensile stress layer inside, completing the tempering process. This link is the most critical step in determining the performance of tempered glass, and any deviation in cooling speed or uniformity will lead to unqualified product quality.

5.5 Unloading and Quality Inspection

The tempered glass after cooling is conveyed to the unloading table by the conveying system, and the operator or automatic inspection equipment conducts quality inspection on the tempered glass. The inspection items include appearance quality (no scratches, spots, bubbles, etc.), dimensional accuracy, flatness, stress distribution, and impact resistance. Qualified products are packaged and stored, while unqualified products are screened out for reprocessing or scrap treatment.

6. Application Fields of Tempered Glass Produced by Tempering Furnaces

Tempered glass produced by professional glass tempering furnaces has excellent performance and is widely used in various fields of the national economy, covering construction, automotive, home appliances, electronics, new energy, aerospace and other industries, and its application scope is still expanding with the development of technology.

6.1 Architectural Decoration Field

The architectural field is the largest consumer market for tempered glass. Tempered glass is widely used in building curtain walls, interior partition walls, doors and windows, shower rooms, floor glass, railings and ceilings. In high-rise buildings, tempered glass curtain walls not only have a beautiful and modern appearance, but also can withstand strong wind pressure and external impact, ensuring the safety of the building. In interior decoration, tempered glass partitions and doors and windows have good light transmittance and safety performance, improving the space utilization rate and aesthetic feeling of the building. In addition, laminated tempered glass and insulating tempered glass processed on the basis of tempered glass are also widely used in building energy-saving and sound insulation projects.

6.2 Automotive Industry

The automotive industry has extremely strict requirements on glass safety and performance, and almost all automotive glass (except for individual small decorative glasses) is tempered glass or laminated tempered glass produced by tempering furnaces. Automotive front windshields generally adopt laminated tempered glass, which can maintain integrity even when broken, avoiding fragments from hurting passengers; automotive side windows and rear windshields adopt single-piece tempered glass, which can be quickly broken into small particles in case of accidents, facilitating passenger escape. In addition, automotive sunroofs, rearview mirror glasses and instrument panel protective glasses also use high-quality tempered glass processed by precision tempering furnaces.

6.3 Home Appliance and Electronic Products

In the home appliance industry, tempered glass is used in the door panels of refrigerators, ovens, microwave ovens, the panels of induction cookers, the shells of washing machines, and the screens of televisions. The high thermal stability of tempered glass can adapt to the high-temperature working environment of kitchen appliances, and its high strength can resist collision and scratch during use. In the electronic information industry, with the popularization of smart phones, tablet computers, liquid crystal displays and other products, ultra-thin tempered glass processed by chemical or special thermal tempering furnaces is used as the protective screen of electronic products, with high hardness, scratch resistance and impact resistance, protecting the display screen from damage.

6.4 New Energy and Solar Energy Industry

With the rapid development of the global new energy industry, tempered glass has become an important component of solar photovoltaic modules and solar thermal collectors. Solar tempered glass produced by special tempering furnaces has high light transmittance, low iron content, excellent weather resistance and mechanical strength, which can protect the solar cells inside the module from wind, sand, hail and other external impacts, and ensure the long-term stable operation of photovoltaic power generation systems. The demand for solar tempered glass is growing rapidly with the large-scale application of photovoltaic power generation, which has put forward higher requirements for the performance of glass tempering furnaces.

6.5 Other Special Fields

In addition to the above fields, tempered glass is also used in aerospace, marine engineering, medical equipment, furniture manufacturing and other fields. For example, the cockpit glass of aircraft, the observation window of ships, the protective cover of medical equipment, and the glass tabletop of high-end furniture all use high-performance tempered glass processed by professional tempering furnaces, meeting the special performance requirements of different industries.

7. Advantages and Existing Challenges of Modern Glass Tempering Furnaces

7.1 Core Advantages

Modern glass tempering furnaces, after continuous technological innovation and optimization, present significant advantages in terms of performance, efficiency and energy saving compared with traditional equipment. Firstly, high degree of automation and intelligence reduces the dependence on manual operation, improves production efficiency and product stability, and reduces the defective rate caused by human factors. Secondly, excellent heating uniformity and cooling precision ensure that the tempered glass has uniform stress distribution, high flatness and stable mechanical properties, adapting to the processing of high-end coated glass and special glass. Thirdly, energy-saving and environmental protection performance is significantly improved through the optimization of thermal insulation structure, the application of convection heating technology and the recovery of waste heat, reducing energy consumption per unit product and meeting the national dual-carbon policy requirements. Fourthly, large-scale and multi-functional processing capacity meets the market demand for large-format, special-shaped and diversified tempered glass products, expanding the application scope of tempered glass.

7.2 Existing Challenges

Despite the rapid development of glass tempering furnace technology, there are still some challenges in the industrial application process. Firstly, the problem of self-explosion of tempered glass has not been completely solved. The self-explosion is mainly caused by the nickel sulfide inclusions inside the glass and the uneven stress distribution during the tempering process. Although the homogenization treatment furnace can reduce the self-explosion rate, it increases the production cost and process flow. Secondly, the processing of ultra-thin and ultra-thick glass still has technical bottlenecks. Ultra-thin glass (thickness <2mm) is easy to warp and break during the tempering process, while ultra-thick glass (thickness >25mm) has low heating efficiency and difficult control of cooling stress, requiring further research and development of specialized tempering furnace technology. Thirdly, the high cost of high-end intelligent tempering furnaces limits the popularization and application of small and medium-sized enterprises, and the technical gap between domestic and international high-end equipment still exists in some core components and control systems. Fourthly, the energy consumption and environmental protection requirements are becoming increasingly stringent, and the traditional tempering furnace energy-saving technology still has room for improvement, requiring the research and development of more efficient heating and cooling technologies to reduce carbon emissions.

8. Future Development Trends of Glass Tempering Furnaces

Driven by technological progress, market demand and policy guidance, the global glass tempering furnace industry will present the following development trends in the future:

8.1 Intelligent and Digital Upgrading

The future glass tempering furnaces will develop towards higher intelligence and digitization, integrating technologies such as artificial intelligence, big data analysis and the Internet of Things. The equipment will realize automatic optimization of process parameters, real-time online monitoring of glass quality, predictive maintenance of equipment faults and remote intelligent management. Through the collection and analysis of production data, the system can automatically adjust the heating, cooling and conveying parameters according to the production status, further improving product quality and production efficiency, and realizing the intelligent manufacturing of the glass tempering production line.

8.2 High Efficiency and Energy Saving Technology Innovation

Energy conservation and emission reduction will become the core research direction of glass tempering furnace technology. New heating technologies such as microwave heating, laser heating and high-efficiency infrared convection heating will be applied to tempering furnaces, improving heating efficiency and reducing energy consumption. At the same time, the waste heat recovery system will be further optimized, recovering the heat generated in the cooling and exhaust processes for preheating the original glass or heating the furnace body, realizing the recycling of energy. The research and development of low-emission and low-energy-consumption tempering furnace structures will also be accelerated to meet the global dual-carbon development goals.

8.3 Specialized and Diversified Product Development

Aiming at the demand for specialized tempered glass in different industries, glass tempering furnaces will develop towards specialization and diversification. Specialized tempering furnaces for ultra-thin electronic glass, ultra-thick architectural glass, curved large-format glass, high-temperature resistant solar glass and other products will be launched successively, meeting the personalized and high-end processing needs of the market. At the same time, the integration of tempering furnaces with other glass processing technologies (such as coating, laminating, engraving) will be realized, forming a one-stop glass deep-processing production line and improving the added value of products.

8.4 Green and Environmental Protection Development

In response to global environmental protection requirements, future glass tempering furnaces will adopt more green and environmentally friendly materials and processes, reducing the emission of volatile organic compounds, dust and noise. The closed-loop recycling of cooling water and exhaust gas will be fully realized, minimizing the impact of equipment production on the environment. In addition, the recyclable design of tempering furnace equipment will be strengthened, extending the service life of equipment and reducing the generation of industrial waste.

8.5 Internationalization of Core Technology and Localization of High-End Components

With the development of the global glass industry, the core technology of glass tempering furnaces will tend to be internationalized, and the technical exchanges and cooperation between countries will be more frequent. For domestic equipment manufacturers, accelerating the localization research and development of high-end core components (such as precision convection fans, high-performance temperature sensors, intelligent control systems) will break the foreign technology monopoly, reduce the production cost of high-end tempering furnaces, and improve the international competitiveness of domestic glass tempering furnace equipment.

9. Conclusion

Glass tempering furnace, as the core equipment of the glass deep-processing industry, has a pivotal position in promoting the development of the global glass industry and meeting the demand for high-performance safety glass in various fields. Through the analysis of its working principle, structural composition, classification, process flow, application fields and development trends, it can be seen that the glass tempering furnace industry is in a period of rapid technological innovation and structural optimization. With the continuous progress of materials science, mechanical engineering, automation control and other disciplines, and the continuous growth of market demand for high-end tempered glass, glass tempering furnaces will develop towards intelligence, high efficiency, energy saving, specialization and green environmental protection.

In the future, glass tempering furnace manufacturers need to increase R&D investment, break through key technical bottlenecks, optimize product performance, and meet the diversified and high-end needs of the market. At the same time, industry practitioners should strengthen technological exchanges and cooperation, promote the upgrading and transformation of the glass deep-processing industry, and make greater contributions to the development of construction, automotive, new energy, electronic information and other industries. With the continuous improvement of technology and the expansion of application fields, glass tempering furnaces will continue to play an important role in the global industrial system and promote the sustainable development of the safety glass industry.

Glass Laminating Machine Testing Before Delivery: A Comprehensive Technical and Quality Assurance Protocol

In the highly specialized field of architectural and automotive glass manufacturing, the glass laminating machine stands as a critical piece of equipment, responsible for bonding glass panels with interlayer materials (such as PVB, SGP, or EVA) under precise conditions of heat, pressure, and vacuum to produce safety glass with enhanced strength, sound insulation, and security properties. The performance, reliability, and safety of these machines directly impact the quality of the final laminated glass products, as well as the operational efficiency and safety of end-users. Therefore, rigorous and systematic testing of glass laminating machines prior to delivery is not merely a procedural step but an indispensable quality assurance (QA) and quality control (QC) imperative for manufacturers. This article provides a detailed, formal analysis of the testing protocols, technical standards, key performance indicators (KPIs), and quality validation processes that govern the pre-delivery testing of glass laminating machines, emphasizing the critical role of these procedures in ensuring compliance, functionality, and long-term operational stability.

1. Rationale for Pre-Delivery Testing: Technical, Commercial, and Regulatory Imperatives

Pre-delivery testing of glass laminating machines is rooted in three core pillars: technical validation, regulatory compliance, and commercial accountability. From a technical perspective, glass laminating involves a complex interplay of thermal, mechanical, and pneumatic systems—including heating chambers, vacuum pumps, hydraulic pressure systems, conveyor mechanisms, and control panels—each of which must operate in precise synchronization to achieve consistent lamination results. Even minor deviations in temperature uniformity, pressure distribution, vacuum retention, or cycle timing can lead to defects in laminated glass, such as air bubbles, delamination, uneven bonding, or optical distortion. Pre-delivery testing identifies and rectifies these technical anomalies at the manufacturing facility, eliminating the risk of costly downtime, rework, or product failures at the customer’s production site.

Regulatory compliance is another non-negotiable driver of pre-delivery testing. Laminated glass is subject to stringent international and regional standards, including the European Standard EN 14449 (glass in building—laminated glass and laminated safety glass), the American National Standard ANSI Z97.1 (safety glazing materials used in buildings), and the Global Technical Regulation (GTR) No. 6 for automotive safety glazing. These standards mandate that the production equipment used to manufacture laminated glass must meet specific performance criteria to ensure the final product complies with safety and quality requirements. Additionally, machinery manufacturers must adhere to industrial safety standards such as ISO 13849 (safety of machinery—safety-related parts of control systems) and CE marking directives for equipment sold in the European Economic Area (EEA), which require comprehensive functional safety testing before market placement.

Commercially, pre-delivery testing serves as a contractual and reputational safeguard. For machinery manufacturers, a robust testing protocol demonstrates commitment to quality, builds customer trust, and mitigates the risk of contractual disputes, product returns, or warranty claims. For end-users, verified pre-delivery performance ensures that the machine will integrate seamlessly into their production lines, meet production targets, and produce laminated glass that meets their quality specifications. In an industry where precision and reliability are paramount, pre-delivery testing is the foundation of a transparent and accountable supply chain.

2. Scope and Phases of Pre-Delivery Testing

Pre-delivery testing of glass laminating machines is a multi-phase, end-to-end process that encompasses static inspection, functional testing, performance validation, safety verification, and documentation. The scope of testing is tailored to the machine’s specifications—including its size (e.g., small-scale laboratory machines vs. large-scale industrial production lines), lamination method (autoclave vs. non-autoclave/lamiplast), and automation level (semi-automatic vs. fully automatic with PLC control). Below is a structured breakdown of the key testing phases:

2.1 Static and Visual Inspection (Pre-Operational Testing)

The first phase of pre-delivery testing is a comprehensive static inspection, conducted before the machine is powered on. This phase focuses on verifying the physical integrity, assembly accuracy, and component conformity of the machine, in accordance with the approved engineering drawings, bill of materials (BOM), and customer-specific requirements. Key inspection items include:


Structural Integrity: Examination of the machine frame, chamber walls, and support structures for weld quality, material thickness, dimensional accuracy, and freedom from deformation or corrosion. All structural components must comply with mechanical engineering standards to withstand the thermal and mechanical stresses of lamination cycles.
Component Verification: Validation of all critical components—including heating elements (resistance or infrared), vacuum pumps and hoses, hydraulic/pneumatic cylinders, pressure sensors, temperature controllers, conveyor belts, and safety interlocks—against the manufacturer’s specifications and supplier certifications. Components must be free from defects, properly installed, and labeled in accordance with industrial standards.
Wiring and Pneumatic/Hydraulic Connections: Inspection of electrical wiring for compliance with IEC 60204 (safety of machinery—electrical equipment of machines), including proper insulation, grounding, cable routing, and connection tightness. Pneumatic and hydraulic lines are checked for leaks, proper fitting, and pressure rating compatibility, with all connections secured to prevent fluid or air loss during operation.
Cleanliness and Surface Finish: Verification of the machine’s internal and external cleanliness, particularly the lamination chamber, heating plates, and conveyor surfaces, to ensure no contaminants (e.g., dust, oil, or debris) that could compromise glass lamination quality are present. Surface finishes of contact components must be smooth and free from scratches or irregularities.


2.2 Functional Testing (Operational Validation)

Following static inspection, the machine is powered on for functional testing, which verifies that all individual systems and sub-assemblies operate as designed, without faults or malfunctions. This phase is conducted in a controlled manufacturing environment, with test parameters set to the machine’s nominal operating range. Key functional tests include:


Control System Validation: Testing of the programmable logic controller (PLC), human-machine interface (HMI), and associated software to ensure accurate input of lamination parameters (temperature, pressure, vacuum level, cycle time), real-time data monitoring, and fault diagnostics. The control system must respond correctly to manual and automatic commands, with all alarms and error messages functioning as programmed.
Heating System Performance: Evaluation of the heating system’s ability to reach and maintain set temperatures uniformly across the entire lamination area. Temperature sensors are calibrated and tested to ensure accuracy within ±1°C, and thermal imaging is used to verify temperature distribution across heating plates—critical for preventing uneven bonding in laminated glass.
Vacuum System Testing: Assessment of the vacuum system’s ability to achieve and hold the required vacuum level (typically 0.95–0.98 bar) within the lamination chamber, with no leaks detected over a specified hold time (e.g., 30 minutes). Vacuum pumps are tested for flow rate, noise level, and energy consumption, in compliance with efficiency standards.
Pressure System Testing: Validation of the hydraulic or pneumatic pressure system’s ability to generate and maintain the specified lamination pressure (ranging from 8–12 bar for autoclave systems, 1–3 bar for non-autoclave systems). Pressure sensors are calibrated to ensure accuracy, and the system is tested for pressure stability during the lamination cycle, with no pressure drops or fluctuations.
Conveyor and Handling System Testing: Testing of the conveyor belts, roller systems, and glass loading/unloading mechanisms for smooth, precise movement, with no jams, misalignment, or damage to test glass panels. The speed and positioning accuracy of the conveyor system are verified to meet the machine’s production rate specifications.
Auxiliary System Functionality: Testing of auxiliary systems such as cooling systems, exhaust systems, and glass edge processing attachments (if equipped) to ensure they operate in sync with the main lamination cycle and meet performance requirements.


2.3 Performance Testing (Production Simulation)

Functional testing is followed by performance testing, which simulates real-world production conditions to validate the machine’s ability to produce high-quality laminated glass consistently. This phase uses standard test glass panels (typically 3–6 mm thick float glass) and industry-standard interlayers (PVB, SGP) to conduct full lamination cycles, with the machine operating at its rated production capacity. Key performance metrics evaluated include:


Lamination Quality: Visual and instrumental inspection of the test laminated glass for defects, including air bubbles, inclusions, delamination, edge gaps, and optical distortion. Samples are tested in accordance with EN 14449 and ANSI Z97.1, with all defects measured and documented against acceptable tolerance levels.
Cycle Time Consistency: Verification of the machine’s ability to complete lamination cycles within the specified time frame, with minimal variation between cycles. Cycle time is a critical KPI for end-users, as it directly impacts production throughput.
Uniformity of Bonding: Testing of the bond strength between glass and interlayer across the entire panel area, using peel tests, shear tests, and impact resistance tests (e.g., drop ball test) in accordance with relevant standards. The bond strength must meet or exceed the minimum requirements for safety glass.
Energy Efficiency: Measurement of the machine’s energy consumption (electrical, thermal, and pneumatic) during full production cycles, to validate compliance with energy efficiency standards and ensure operational cost-effectiveness for end-users.
Repeatability and Reproducibility: Conducting multiple consecutive lamination cycles (typically 10–20 cycles) to verify that the machine delivers consistent results, with no degradation in performance or increase in defect rates over time. This validates the machine’s long-term operational stability.


2.4 Safety Testing (Compliance with Industrial Safety Standards)

Safety is a paramount consideration in pre-delivery testing, as glass laminating machines operate under high temperatures, pressures, and vacuum conditions, posing potential risks to operators. All safety systems are rigorously tested to comply with ISO 13849, CE machinery directives, and OSHA standards (for the U.S. market). Key safety tests include:


Emergency Stop (E-Stop) Functionality: Testing of all E-stop buttons (located at multiple access points) to ensure immediate shutdown of all systems when activated, with no residual motion or energy release.
Safety Interlocks: Verification of interlock systems on chamber doors, access panels, and conveyor guards to prevent operation when these components are open or removed. Interlocks must trigger an immediate stop and alarm if breached.
Pressure and Temperature Safety Limits: Testing of over-pressure and over-temperature protection systems to ensure the machine shuts down automatically if parameters exceed safe operating limits, preventing equipment damage or operator injury.
Ergonomic and Hazard Protection: Evaluation of operator access points, control panel positioning, and hazard warnings (visual and auditory) to ensure compliance with ergonomic standards and minimize the risk of burns, crush injuries, or electrical shocks.
Fire and Explosion Protection: Testing of fire suppression systems (if equipped) and ventilation systems to ensure they function correctly in the event of a thermal anomaly or interlayer combustion.


2.5 Final Acceptance Testing (FAT) and Customer Witness Testing

The culmination of pre-delivery testing is the Factory Acceptance Testing (FAT), a formal process where the machine’s performance is verified against the customer’s purchase order, technical specifications, and contractual requirements. FAT is typically conducted in the presence of the customer or their authorized representative, who witnesses all critical tests and reviews the test data. Key components of FAT include:


Review of Test Documentation: Presentation of all test reports, calibration certificates, component certifications, and compliance documents for customer review and approval.
Demonstration of Full Production Cycles: Live demonstration of the machine producing laminated glass to the customer’s specifications, with real-time monitoring of key parameters and defect inspection.
Resolution of Non-Conformities: Any non-conformities identified during FAT are documented in a non-conformance report (NCR), and corrective actions are implemented and re-tested before final acceptance.
Sign-Off and Approval: Upon successful completion of FAT, the customer signs a formal acceptance document, confirming that the machine meets all requirements and is ready for delivery.


3. Documentation and Traceability: The Backbone of Pre-Delivery Testing

A critical, yet often underemphasized, aspect of pre-delivery testing is the creation of a comprehensive, traceable documentation package. This package serves as a permanent record of the machine’s testing history, validates compliance with standards, and provides end-users with critical information for operation, maintenance, and warranty claims. The documentation package typically includes:


Test Plan and Protocol: A detailed document outlining the testing scope, methods, acceptance criteria, and responsible personnel, approved by both the manufacturer and the customer.
Calibration Certificates: Certificates for all measuring and testing equipment (temperature sensors, pressure gauges, vacuum meters, etc.), validating their accuracy and traceability to national or international standards (e.g., NIST, DKD).
Component Certifications: Supplier certificates for all critical components, including material test reports (MTRs), CE certificates, and performance data sheets.
Test Reports: Detailed reports for each testing phase, including raw data, test results, photographs of test samples, and defect analysis. All data is recorded with date, time, and operator identification for full traceability.
Compliance Certificates: Certificates of compliance with relevant standards (CE, ISO, EN, ANSI), signed by the manufacturer’s quality assurance manager.
Operation and Maintenance Manuals: Comprehensive manuals providing instructions for machine operation, routine maintenance, troubleshooting, and spare parts identification, tailored to the machine’s specific configuration.
Warranty Document: A formal warranty statement outlining the terms and conditions of the manufacturer’s warranty, supported by the pre-delivery test data.


4. Post-Testing Preparation for Delivery

Following successful FAT and customer approval, the machine undergoes final preparation for delivery, which includes:

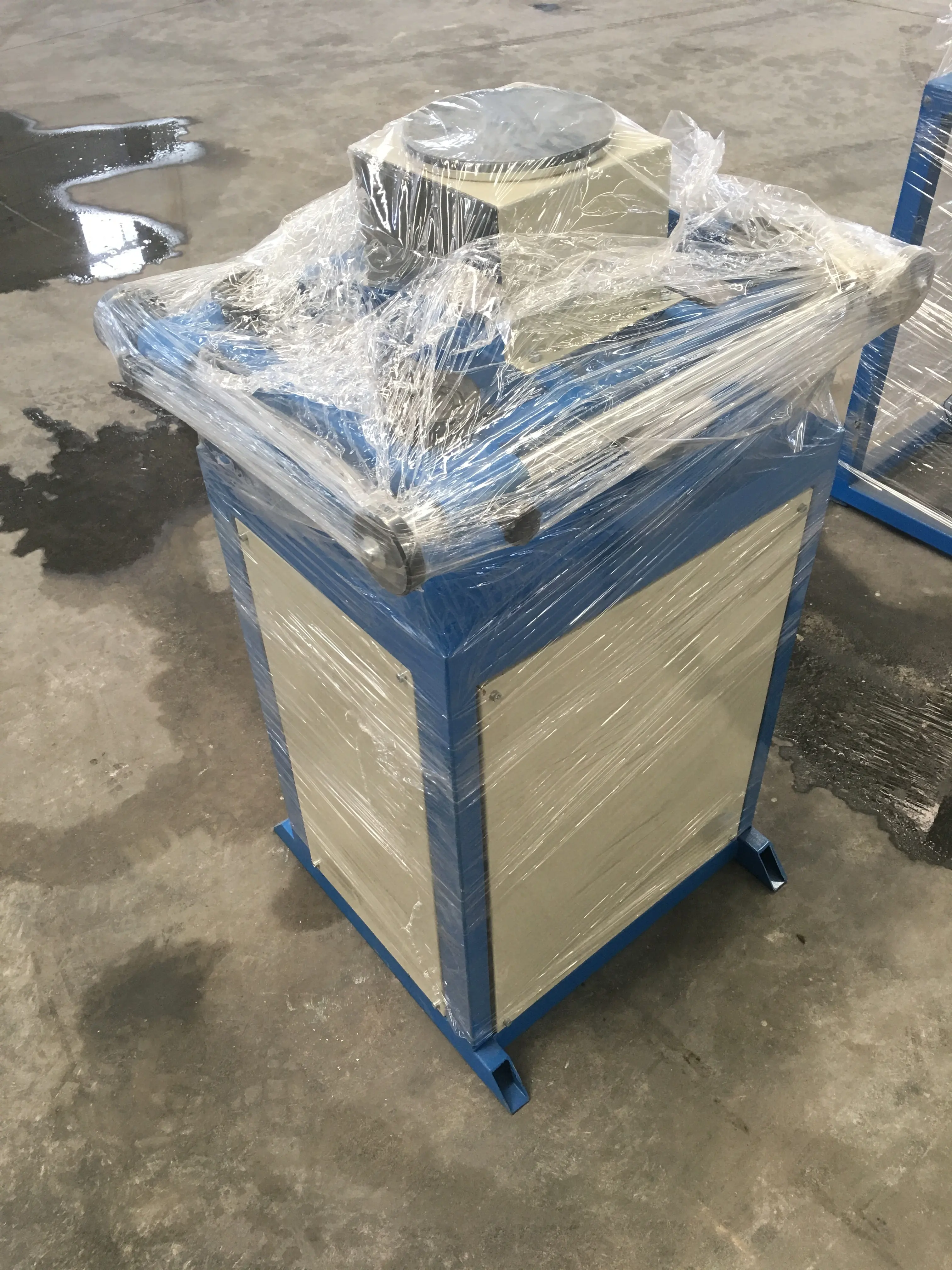

Cleaning and Packaging: Thorough cleaning of the machine to remove all test residues, followed by protective packaging (using anti-corrosion materials, shock absorbers, and weatherproof covers) to prevent damage during transportation.
Labeling and Marking: Application of all required labels, including CE marks, safety warnings, serial numbers, and operational parameters, in accordance with international standards.
Spare Parts and Tooling: Preparation of a standard spare parts kit and specialized tooling, as specified in the contract, for delivery with the machine.
Logistics Coordination: Coordination with shipping and logistics providers to ensure safe and timely transportation, with all necessary export/import documentation (e.g., bill of lading, customs clearance documents) prepared in advance.


5. Conclusion

Pre-delivery testing of glass laminating machines is a rigorous, multi-faceted process that integrates technical validation, regulatory compliance, performance verification, and safety assurance. By adhering to standardized testing protocols, manufacturers ensure that every machine delivered to the market meets the highest standards of quality, reliability, and safety, while end-users gain confidence in the machine’s ability to produce high-quality laminated glass consistently. In an industry where precision and safety are non-negotiable, pre-delivery testing is not just a procedural step but a cornerstone of quality management, driving innovation, customer satisfaction, and long-term success for both machinery manufacturers and laminated glass producers. As the demand for advanced safety glass continues to grow in architectural, automotive, and aerospace applications, the importance of robust pre-delivery testing will only increase, underscoring the need for ongoing investment in testing technology, personnel training, and compliance with evolving international standards.
