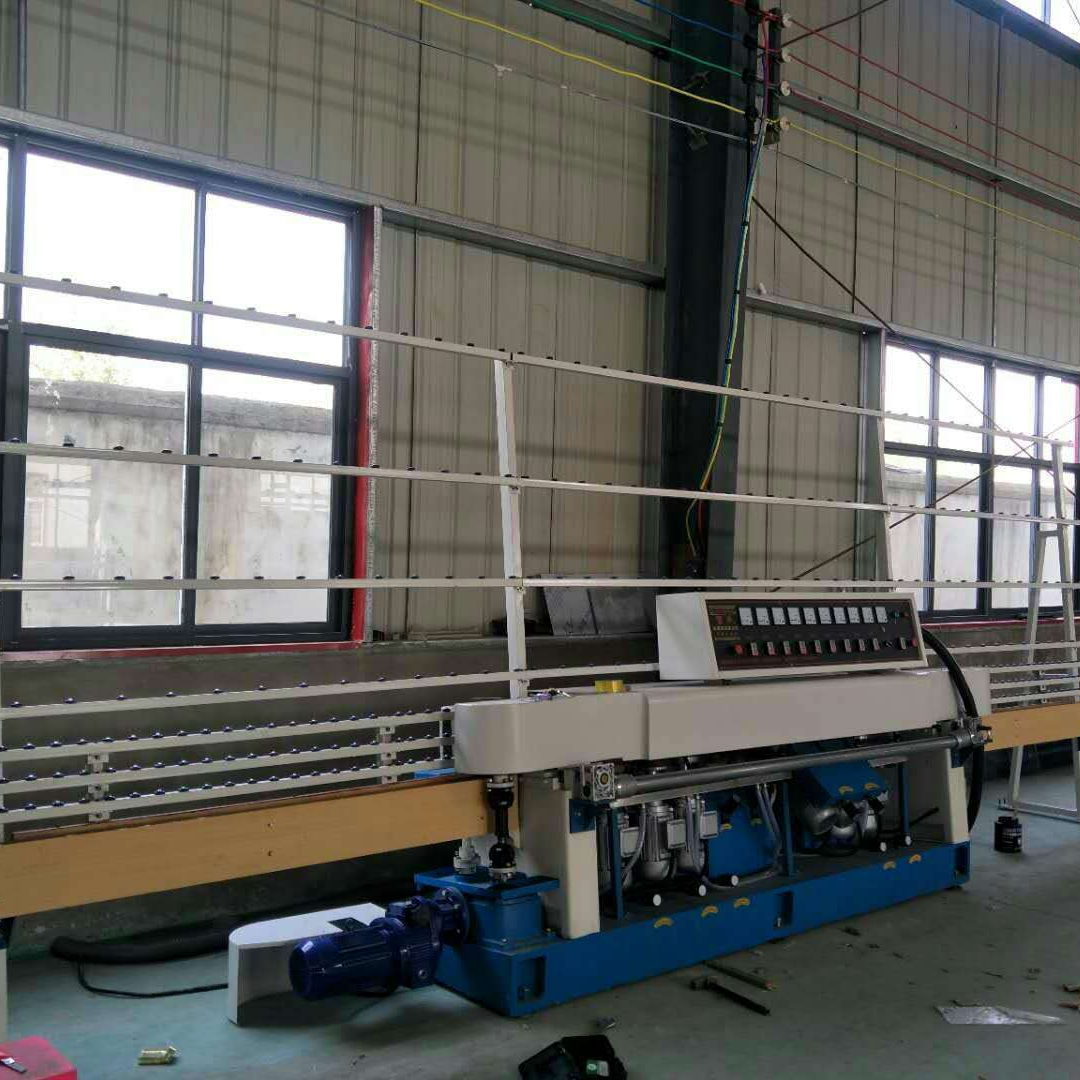

Glass Deep Processing Glass Straight-line Grinding Machine/glass Polishing Machine/glass Edging Machine For Insulated Glass
Glass Straight-Line grinding Machine/glass polishing machine/glass edging machine
Product details
| Product Name | 9 motors vertical Straight Line glass edge polishing machine |
| Glass thickness | 3-26mm |
| Arrise angle | 45° |
| Installed power | 18kw |
| Voltage | 220/380/415/480V,50/60HZ |
| Worktable height | 750mm |
| Package | Wooden package or plastic film according to customer need |
| Color | Customized |
| Delivery | 15 working days |
| Oversea service | Available |
| Product Keywords | GlassStraight-Line grindingMachine/glasspolishingmachine/glassedgingmachine,straight line glass edginggrindingmachine,45 degree glassstraight lineedgingmachine |
9 motors vertical Straight Line glass edge polishing machine
Functions:
1. Processes rectilinear glass plates in various sizes and thicknesses;
2.The grinding (roughing), finishing resin and fillets can be performed simultaneously;
3. The same thickness as the glass sheet can be continuously processed, so that the machine allows having a larger volume of production lines hardening processes, rolling processes and other processing.
Machine specification
|
Item |
Specification |
|
Max. glass size: |
2440x3660mm |
|
Min. glass size: |
100x100mm |
|
Glass thickness: |
3-26mm |
|
Maximum flat edging level: |
3mm |
|
Maximum arrising width: |
2.5mm |
|
Arrise angle: |
45° |
|
Working speed |
0.5-3.0m/min |
|
Installed power |
18kw |
|
Voltage |
220/380/415/480V,50/60HZ |
|
Worktable height |
750mm |
|
Overall dimension |
6500x1000x2500mm |
|
Weight |
3000kg |
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
