Full Automatic Glass Sand Blast Machine/sandblasting Glass Machine For Cnc Working Center
Full automatic glass sand blast machine/sandblasting glass machine for cnc working center
Product details
| The sandblasting Speed | 20-25/h |
| Automatic Gun | 3pcs |
| Manual Gun | 1pc |
| Glass thickness | 3-50mm |
| Power | 3.5KW |
| Port | Qingdao Port |
| Working Pressure | 0.6-0.8Mpa |
| Compressed Air consumption | 22KW |
| Abrasive Material | Aliminum oxide |
| Customization | Available |
| Product Keywords | Full automatic glass sand blast machine/sandblasting glass machine for cnc working center,Semi-automatic Glass sandblasting frosting machine for design glass,Automatic glass Sandblasting Machine/sandblaster for window doors |

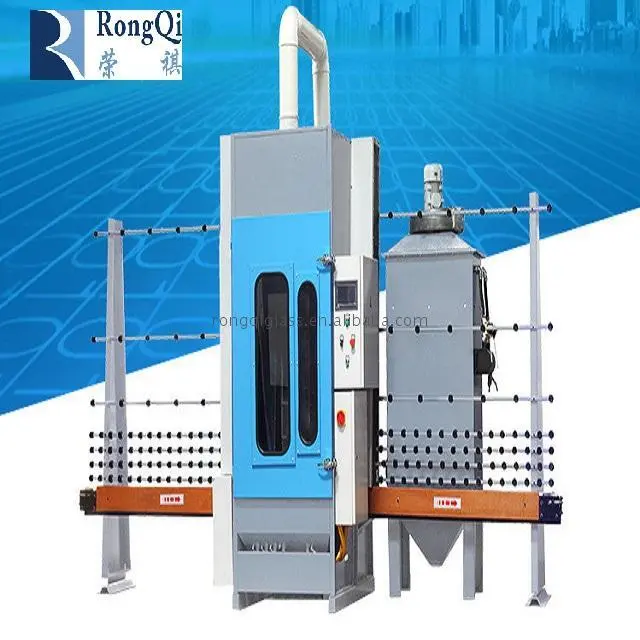

Automatic Glass Sandblasting Machine
Main Features:
1. Adopt touch screen operation,PLC control;
2. Automatic and manual both functions;
3. Adopt special material for nozzle that can be long life;
4. Automatically dust collection,adopt reverse blowing mode for filter bag dust cleaning;
5. Adopt input and output two conveyor belts that avoid to take the sand out;
6. Low cost for usage and maintenance.
Specifications
Model | RQ25LA | RQ20LA | RQ16LA |
Automatic Gun | 3pcs | 3pcs | 3pcs |
Manual Gun | 1pc | 1pc | 1pc |
The sandblasting Speed | 20-25㎡/h | 20-25㎡/h | 20-25㎡/h |
Max. Glass size | 2500*3660mm | 2000*3660mm | 1600*3000mm |
Glass thickness | 3-50mm | 3-50mm | 3-50mm |
Power | 3.5KW | 3.5KW | 3.5KW |
Working Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
Compressed Air consumption | 3m³/min 22KW | 3m³/min 22KW | 3m³/min 22KW |
Abrasive Material | Aliminum oxide | Aliminum oxide | Aliminum oxide |
External Dimensions | 6800*1500*3300mm | 6800*1500*2800mm | 4700*1500*2300mm |
Gross Weight | 1300kg | 1200kg | 1000kg |
Plywood box or plastic film according to your requirement.Please tell us if you need any special labels on machine or package.
Business type:Manufacturer,Trading Company
Location :Mingbang Building ,Huaiyin District ,Jinan , Shandong Province ,China
Year established:2017
Main products:Insulating Glass Machine & Spare Parts,Double Glass Material,Glass Washing Machine,Glass Cutting Machine,Glass Edging Machine,Windows Machine
Main Markets:North America,South America,Eastern Europe,Southeast Asia,Mid East
Our company is one of the best professional company,specialized in manufacturing and exporting insulating glass machine.
Since our company founded,“Best quality,mutual benefit”is always our principle,offering the best equipment and technical support for the old and new customs.
We believe that the quality is the soul of an enterprise and we always put quality as the first consideration.
Main products:Insulating Glass Machine,Glass Washing Machine,Glass Cutting Machine,Glass Edging Machine.
We can customize the machinery according to your requirement.And OEM is available.
Before order
Free contact for the most suitable product
After sale service
1.24 hours technical support by phone, email Whatsapp,skype etc.(Choose the most convenient method for you)
2.Engineer is available to your factory for the installation, maintenance and training.
3.Use friendly English software,user manual and detailed videos
4.Warranty for one year,excepting the consumable parts.
By offering this support, we make sure the customer start the business smoothly, to realize win-win cooperation.
Our advantages
1.reply within 12 hours
2.One to one service
3.24 hours for after sale service
4.Over 10 years of manufacturing and exporting experience.
We can send customer photos and video during the production.And arrange the delivery when you are satisfied with our product.
Payment
1.L/C: 30% deposit by T/T,70% spare payment L/C.
2.T/T: 30% deposit by T/T,70% spare payment before shipment.
3.Other payment methods:Western Union,Paypal,MoneyGram,Escrow etc.
Oversea Agent:
Please contact with us and confirm whether any agent in your area.And we also welcome you to be our agent if it is ok.
How to order our product ?
Tell us the product you needTell us your requirement(size etc.)
Communicate about the details
Order and Make payment
Production
Balance payment
Delivery
Q: How about the packing way?
A: Usually we have the products packed with plastic film for full container and wooden box for less than container.
We can also customize the package according to your need.
Q: How about the payment and delivery time?
A:Usually our payment terms is TT,30% in advance and 70% before shipment.We can also accept if you have other requirements.
Normally,products can be delivered within about 15 days after your payment.
Q: What is your minimum order quantity?
A: One set is ok for the order.
Q: Is your company a manufacturer or trading company?
A: We are a manufacturer of the glass machines, and we have our own factory and production team.
Q: Can you do the production as customized?
A: Yes, we can produce products according to your requirements.
