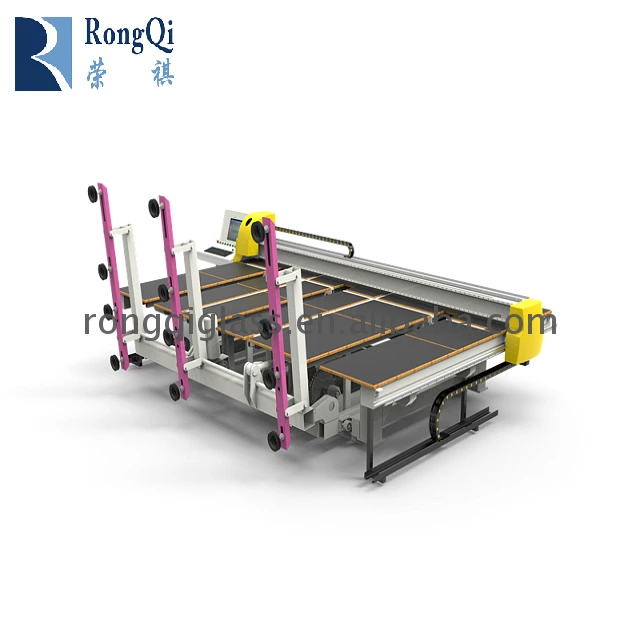

Cheap Factory Toughened Glass Cutting Machine Price For Glass Processing Factory

    Cheap Factory toughened glass cutting machine Price

GUARANTEE

One year ( not including vandalized factors)

During the period of warranty if there are machine malfunctions, repairs to the machines and exchanges of any spare parts will be performed free.of charge, but the charges of engineers’ domestic and international transportation, board and lodging should be paid by customer.

INSTALLATION&COMMISSIONING:

if installation and commissioning help from the seller are required, thebuyer should pay the following fee:

Visa cost, Round way air tickets from our factory to customer’s factory.Local transportation and room & board. USD50/Day for the Technical

1. Equipment parameter:

a.Driving system: X-Y-Z axial by YASKAWA servo motor

b.Cutting wheel holder: cutting wheel 360 rotation, can cut anyshapes

c.Oil supply: automatic oil injection

d.Conveying: air-cushion (floating)

e.Positioning: pneumatic and photo electricity scan

f.Operator: one person

3.Electrical parts:

a.system: Microsoft windows

b.Power: 380v/50Hz

c.Approach switch: SN

d.Control card: Italy imported TECNOS (match with Italy OPTIMA

e.Air proportional valve: Japan SMC

4.Software:

a.Italy imported cutting and optimization software.Optimization software can match with ERP system.

More than two thousand cutting shape database. (Be easy to operate) Match with AUTO CAD drawing software.

b.Automatic calibration function makes ensure cutting accuracy.

c.Cutting route selection function makes ensure the best cutting speed.

d.Adjust cutting pressure automatically, fast, accurate and steady.

e.Operation input: keyboard and mouse, Chinese and English interface.

f.shape scan: different shape point to point scanning, and then transfer into CAD drawing.

g.Shape database: database is available for different kinds of shape.

h.Shape optimization: change size, rotate, move and combine smoothly in the database.

i.Cutting head protection: mechanical protection function, avoid the possibility of crash.

1,Technical Parameter:

a,The max Loading glass size: 4200mm * 2800mm, min. 1500*1500mm

b,Loading glass thickness: 3—19mm

c,Loading cycle: 40—90s (adjustable)

d,Loading weight: 900kg

e,Loading deep:700mm

f, arm quantity: three

g, suction cup in one arm: three

h, single arm with single position

2,Mechanical part:

a,vacuum suction cup: double absorption structure

b, turning motor: Taiwan CPG motor

c.vacuum pump: PUXU( Sino-Germany).

3.Electrical parts:

a.Transducer: Delta

b.Proximity switch: Switzerland ELCO

c.Control cable: High-flexible shielded control cables

d.Contactor: Schneider

e.Pneumatic part: Taiwan Airtac

4.Technical parts:

a, Turning angle: adjustable, from 95 to 98 degree.

b.Rack depth: special connecting rod retractable mechanism, suction cup move forward 150mm, and rack depth is 700mm which could meet different kinds of glass rack.

c.Induction system:two sets of photoelectric sensors to ensure safety operation.

d.Roller bar: special connecting rod retractable mechanism, to ensure the synchronous lift and separate the glass piece safely.

e.Suction system: introduced double layer suction, strong absorption.

f.Suction cup control: Every cup have separated air valve to control,choose the quantity of working cup easily and freely.

Plywood box or plastic film according to your requirement.Please tell us if you need any special labels on machine or package.

Main products:Insulating Glass Machine,Glass Washing Machine,Glass Cutting Machine,Glass Edging Machine.

We can customize the machinery according to your requirement.And OEM is available.

Before order

Free contact for the most suitable product

After sale service

1.24 hours technical support by phone, email Whatsapp,skype etc.(Choose the most convenient method for you)

2.Engineer is available to your factory for the installation, maintenance and training.

3.Use friendly English software,user manual and detailed videos

4.Warranty for one year,excepting the consumable parts.
By offering this support, we make sure the customer start the business smoothly, to realize win-win cooperation.
Our advantages

1.reply within 12 hours

2.One to one service

3.24 hours for after sale service

4.Over 10 years of manufacturing and exporting experience.

We can send customer photos and video during the production.And arrange the delivery when you are satisfied with our product.

Payment
1.L/C: 30% deposit by T/T,70% spare payment L/C.
2.T/T: 30% deposit by T/T,70% spare payment before shipment.
3.Other payment methods:Western Union,Paypal,MoneyGram,Escrow etc.

Oversea Agent:

Please contact with us and confirm whether any agent in your area.And we also welcome you to be our agent if it is ok.

 How to order our product ?

Tell us the product you needTell us your requirement(size etc.)Communicate about the detailsOrder and Make paymentProductionBalance paymentDelivery
